The document discusses MongoDB and how it compares to relational database management systems (RDBMS). It provides examples of how data can be modeled and stored differently in MongoDB compared to SQL databases. Specifically, it discusses how MongoDB allows for flexible, dynamic schemas as each document can have a different structure. This enables complex data like product catalogs with varying attributes for different items to be stored easily in a single collection. The document also provides examples of common operations like insert, update and delete in MongoDB compared to SQL.

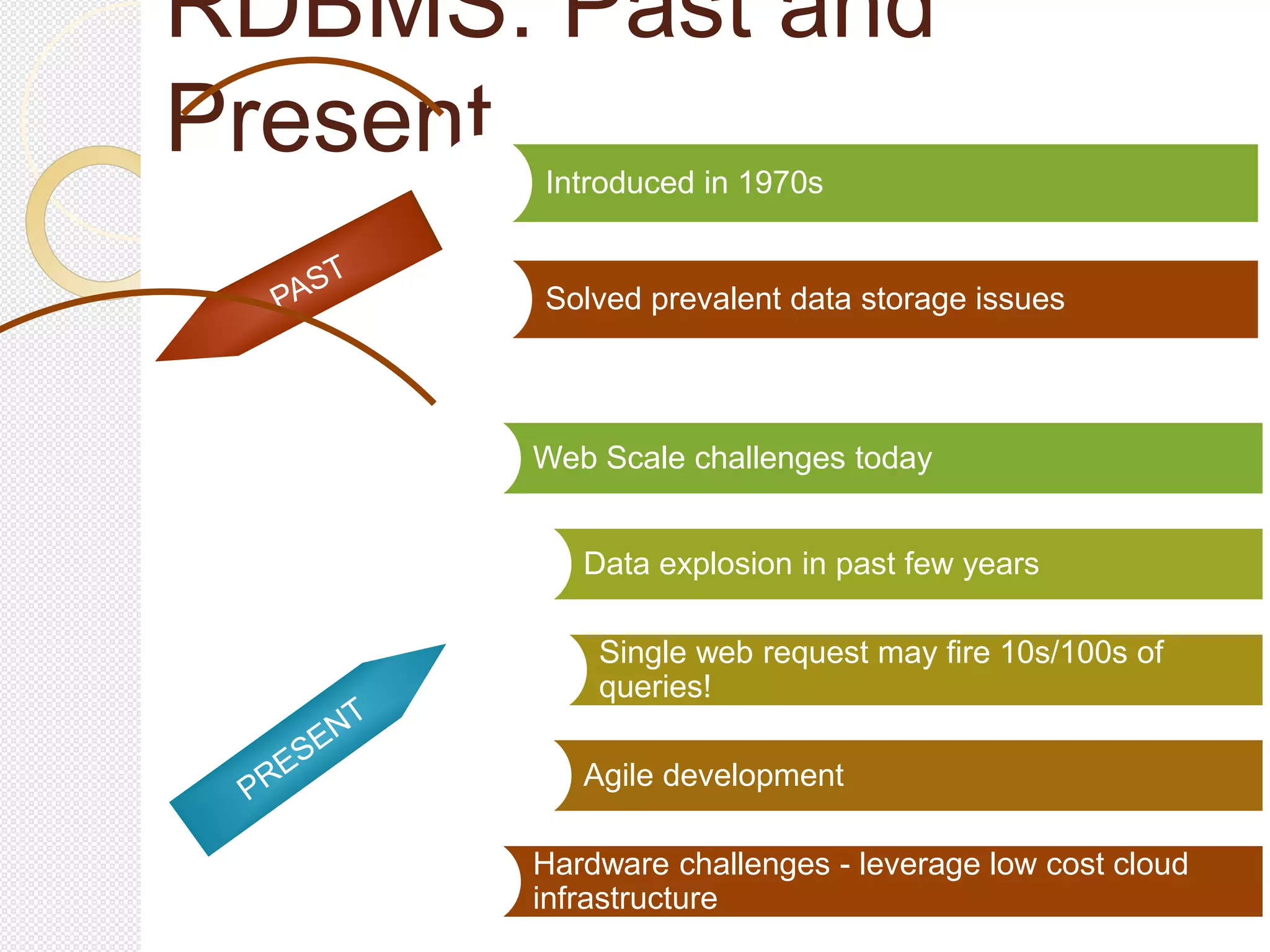

2. RDBMS: Past and
Present
Web Scale challenges today
Data explosion in past few years
Single web request may fire 10s/100s of
queries!
Agile development
Hardware challenges - leverage low cost cloud
infrastructure
Introduced in 1970s
Solved prevalent data storage issues

3. 3
What is

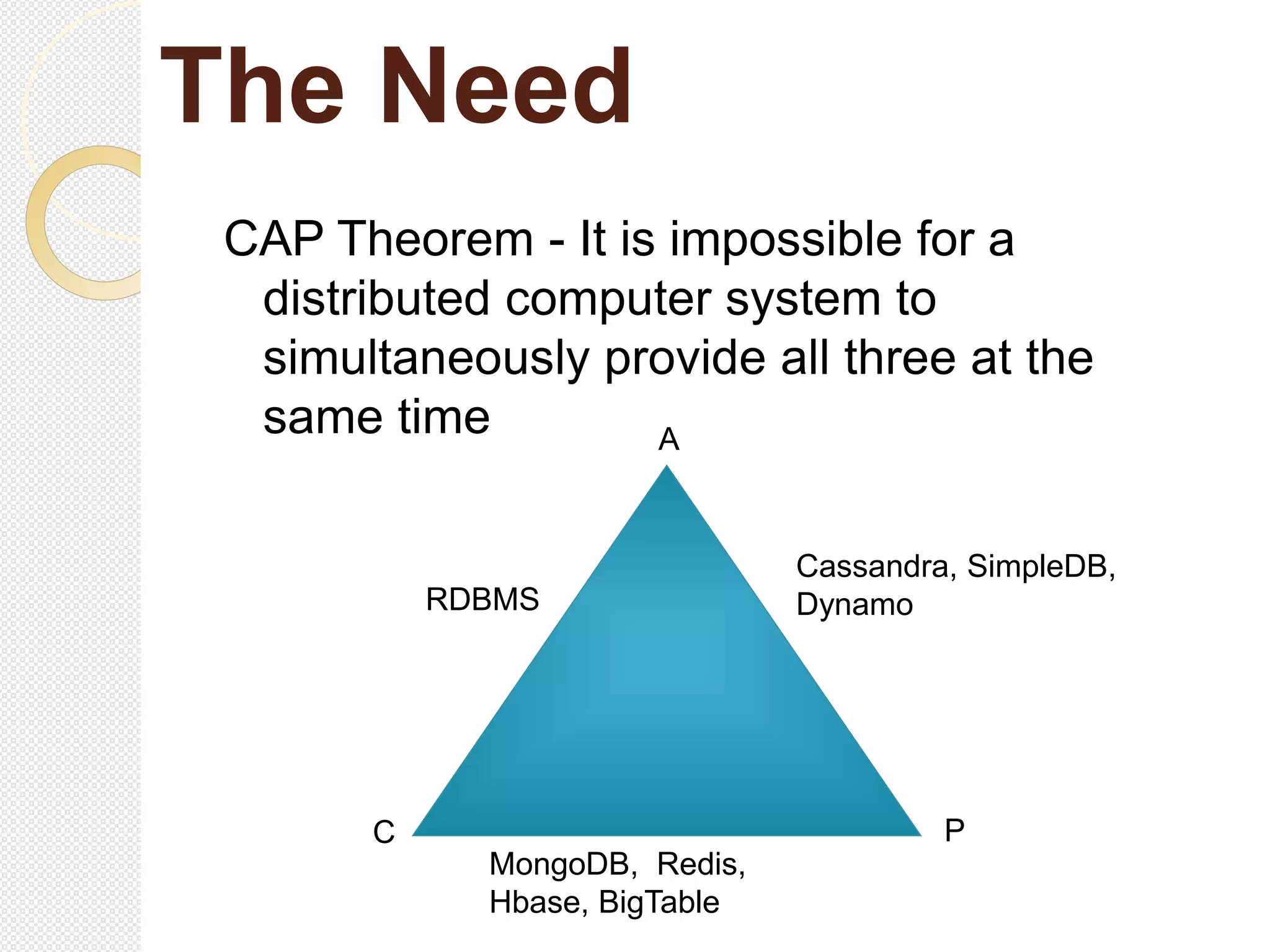

4. CAP Theorem - It is impossible for a
distributed computer system to
simultaneously provide all three at the
same time
The Need
A
C P
MongoDB, Redis,
Hbase, BigTable
Cassandra, SimpleDB,
DynamoRDBMS

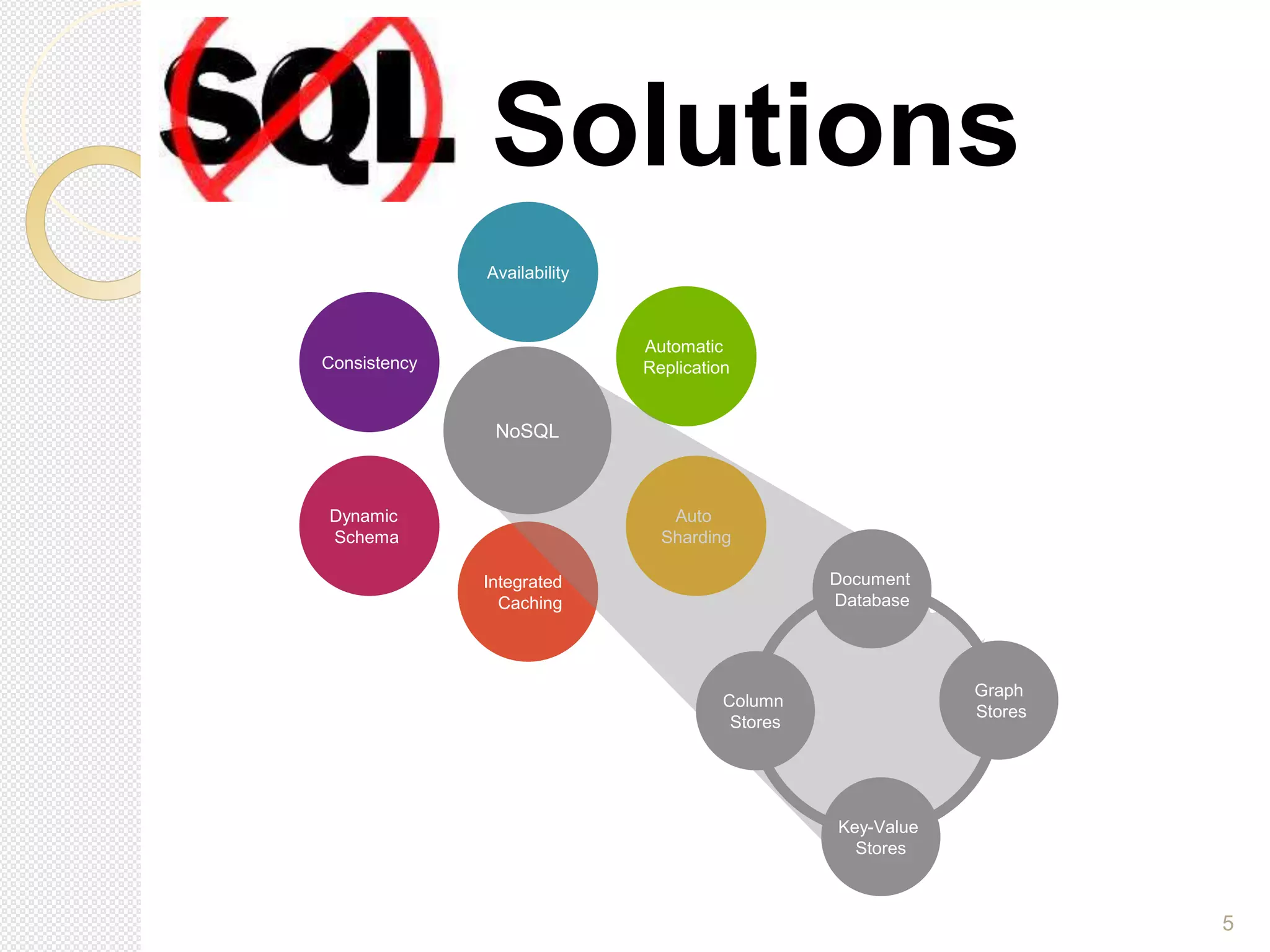

5. 5
Solutions
Availability
Automatic
Replication
Auto
Sharding
Integrated
Caching
Dynamic
Schema
Consistency
Document
Database
Graph
Stores
Key-Value
Stores
Column
Stores
NoSQL

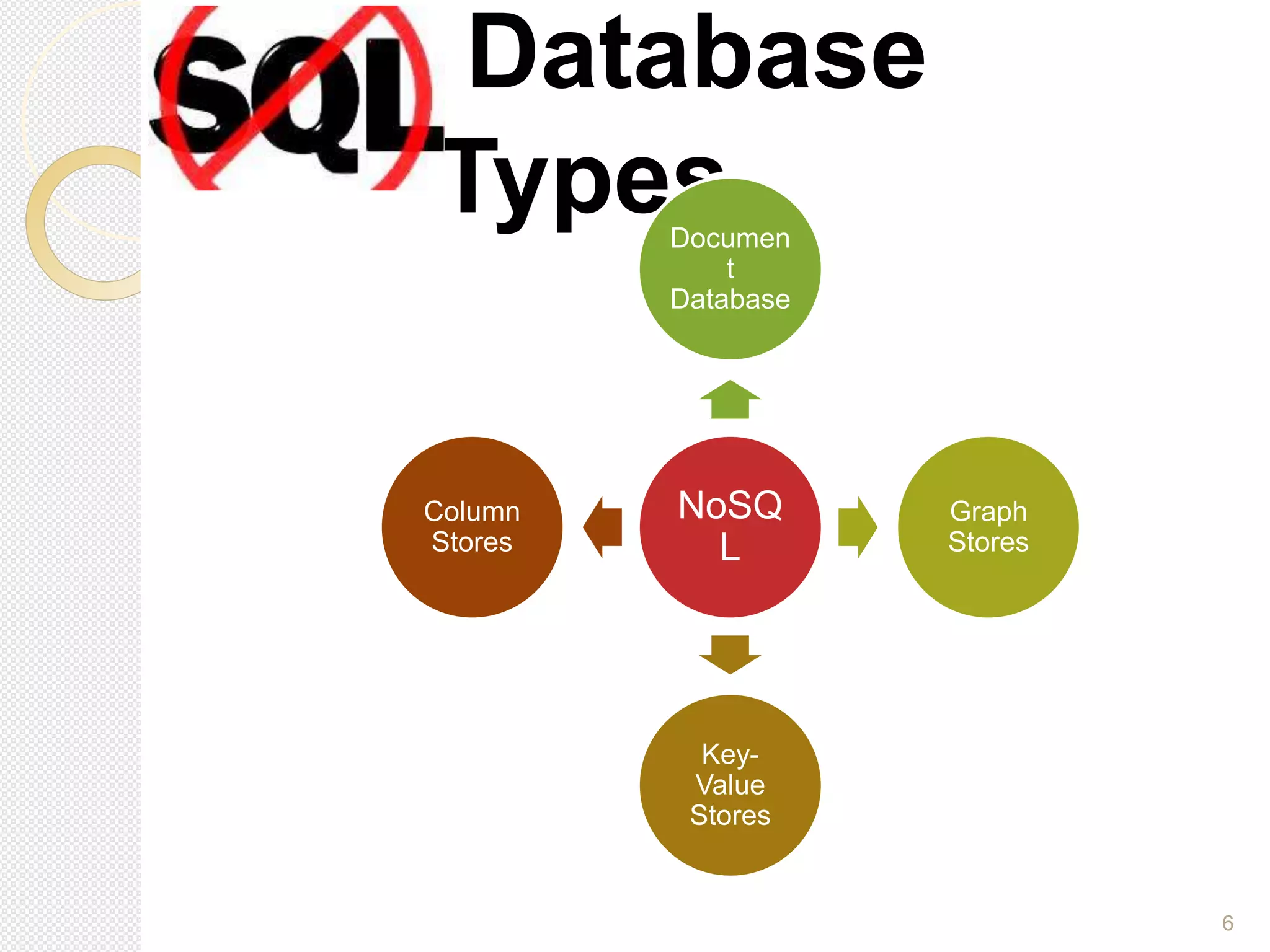

6. 6
Database
Types
NoSQ
L
Documen
t
Database
Graph
Stores
Key-
Value
Stores
Column
Stores

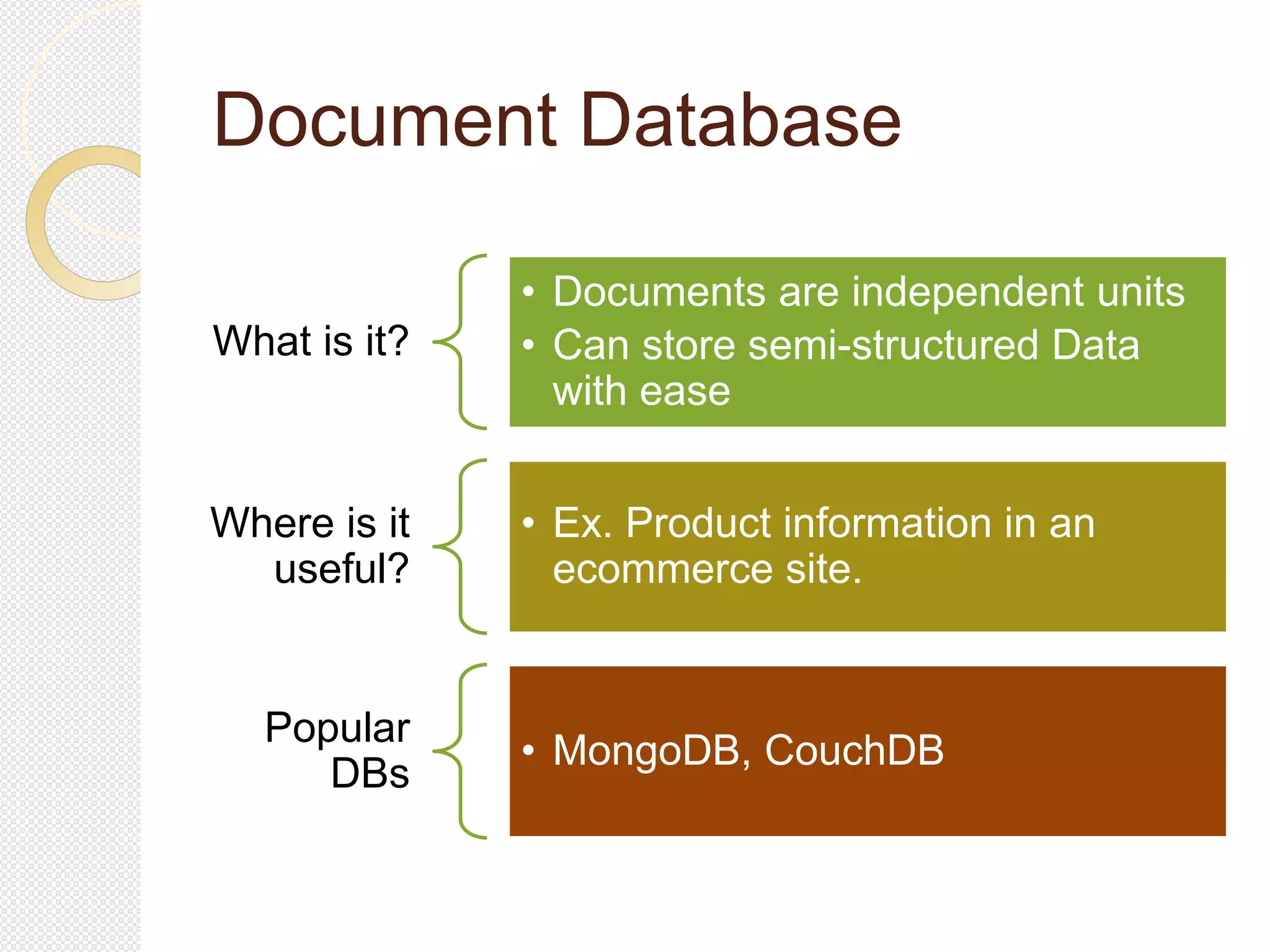

7. Document Database
What is it?
• Documents are independent units
• Can store semi-structured Data
with ease
Where is it
useful?
• Ex. Product information in an
ecommerce site.
Popular
DBs
• MongoDB, CouchDB

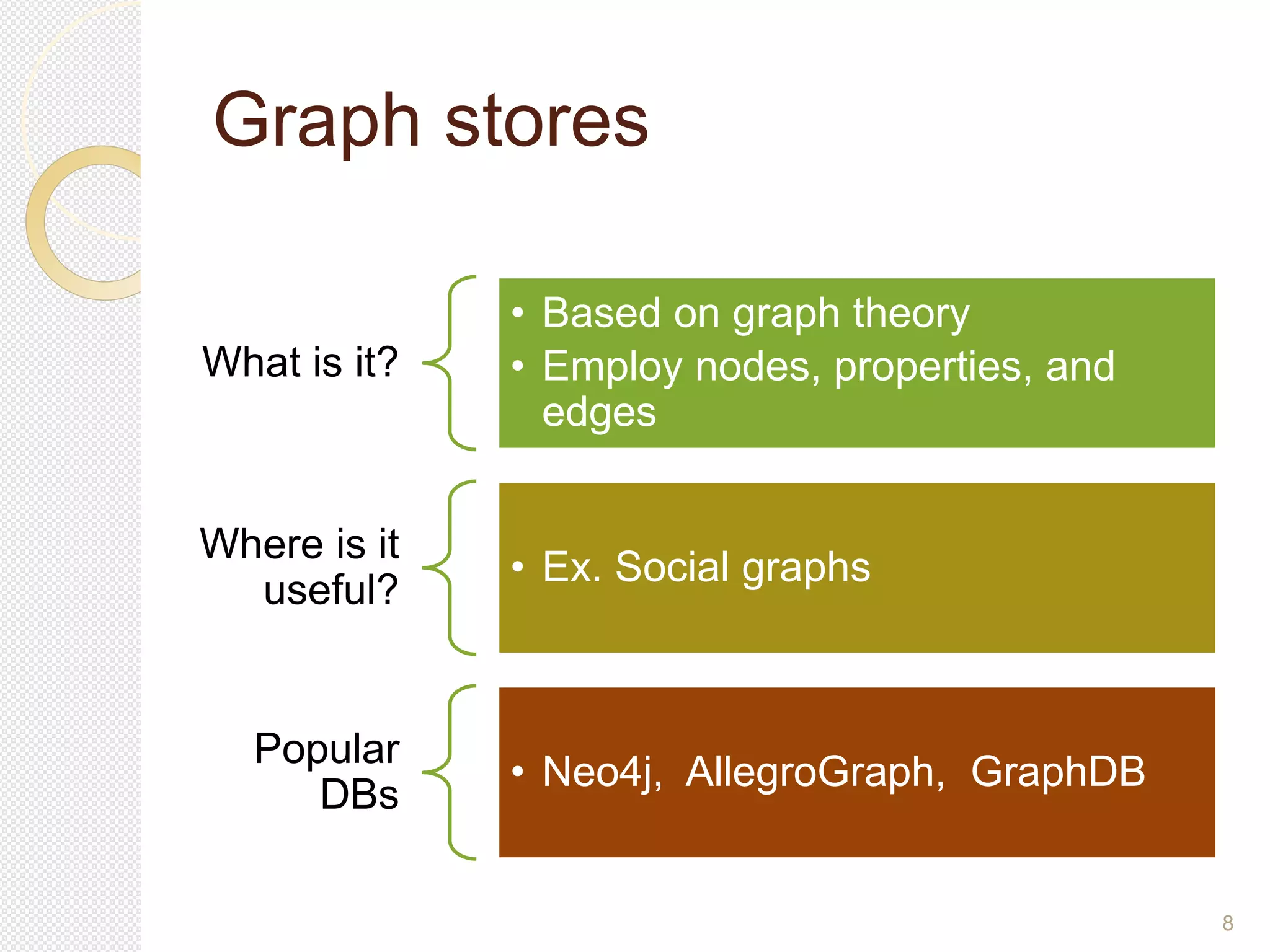

8. 8
Graph stores
What is it?
• Based on graph theory
• Employ nodes, properties, and
edges
Where is it
useful?
• Ex. Social graphs
Popular
DBs
• Neo4j, AllegroGraph, GraphDB

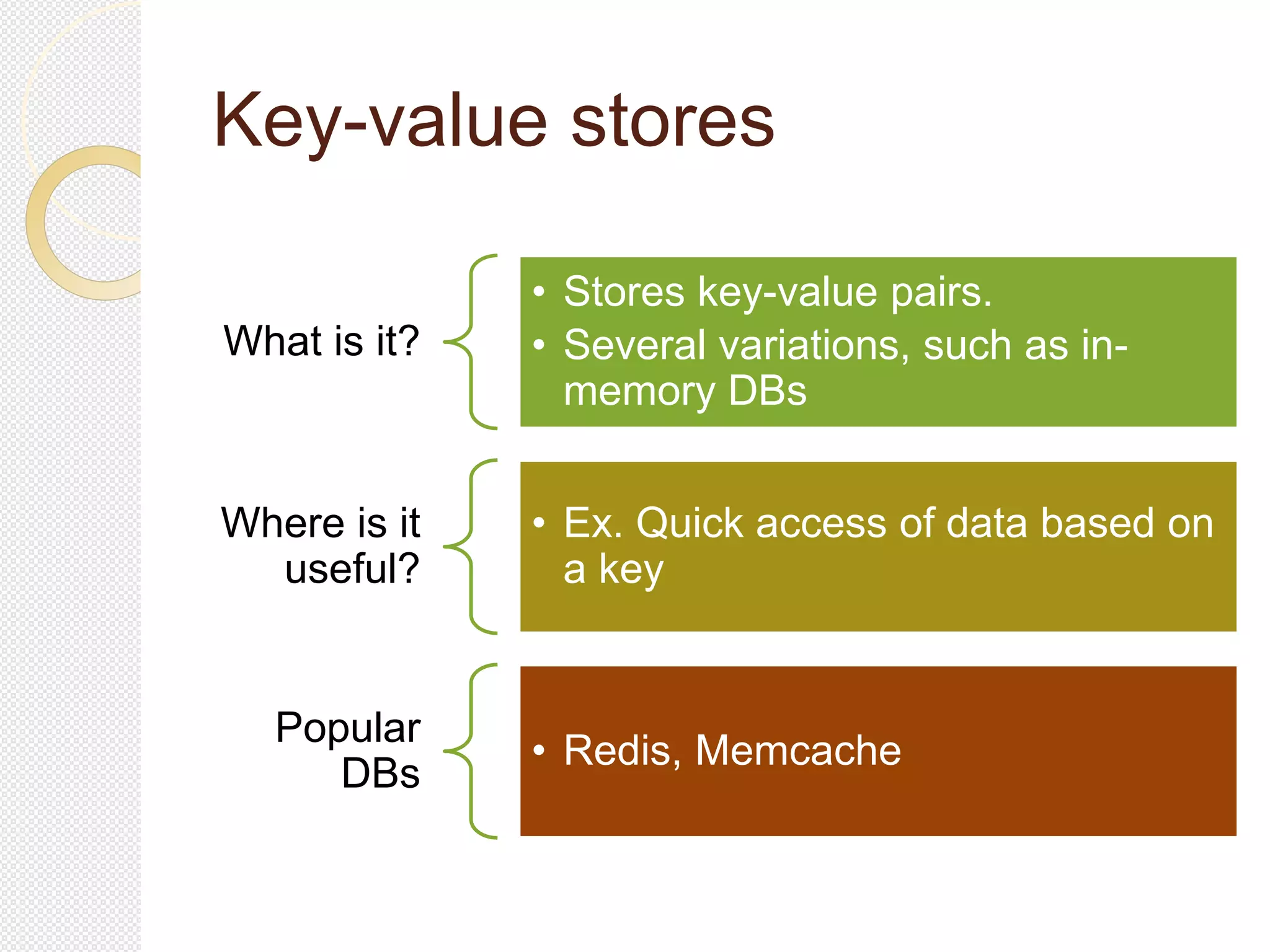

9. Key-value stores
What is it?
• Stores key-value pairs.
• Several variations, such as in-
memory DBs
Where is it
useful?
• Ex. Quick access of data based on
a key
Popular
DBs
• Redis, Memcache

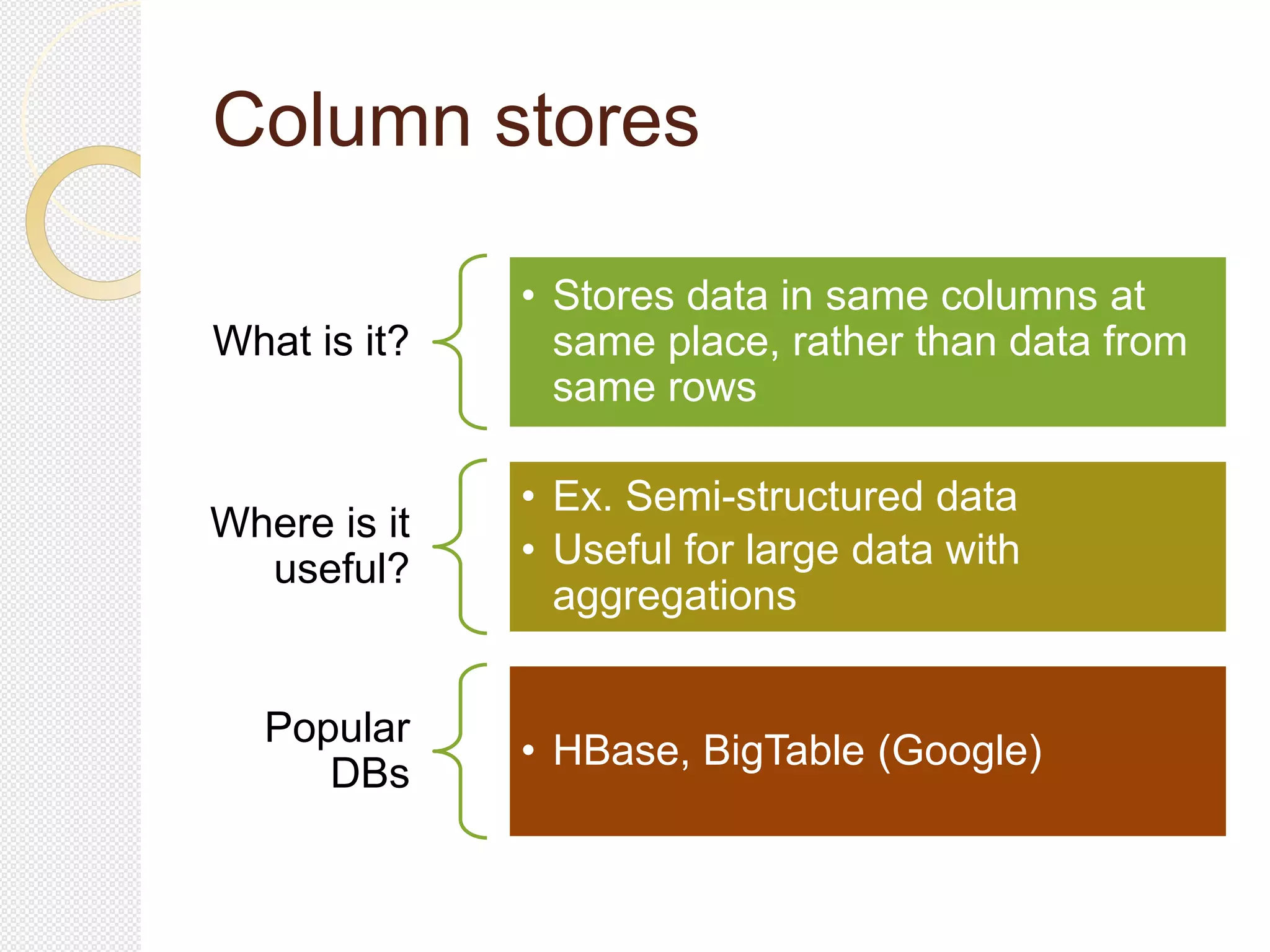

10. Column stores
What is it?
• Stores data in same columns at
same place, rather than data from
same rows
Where is it
useful?
• Ex. Semi-structured data
• Useful for large data with
aggregations
Popular
DBs
• HBase, BigTable (Google)

11. Introduction to

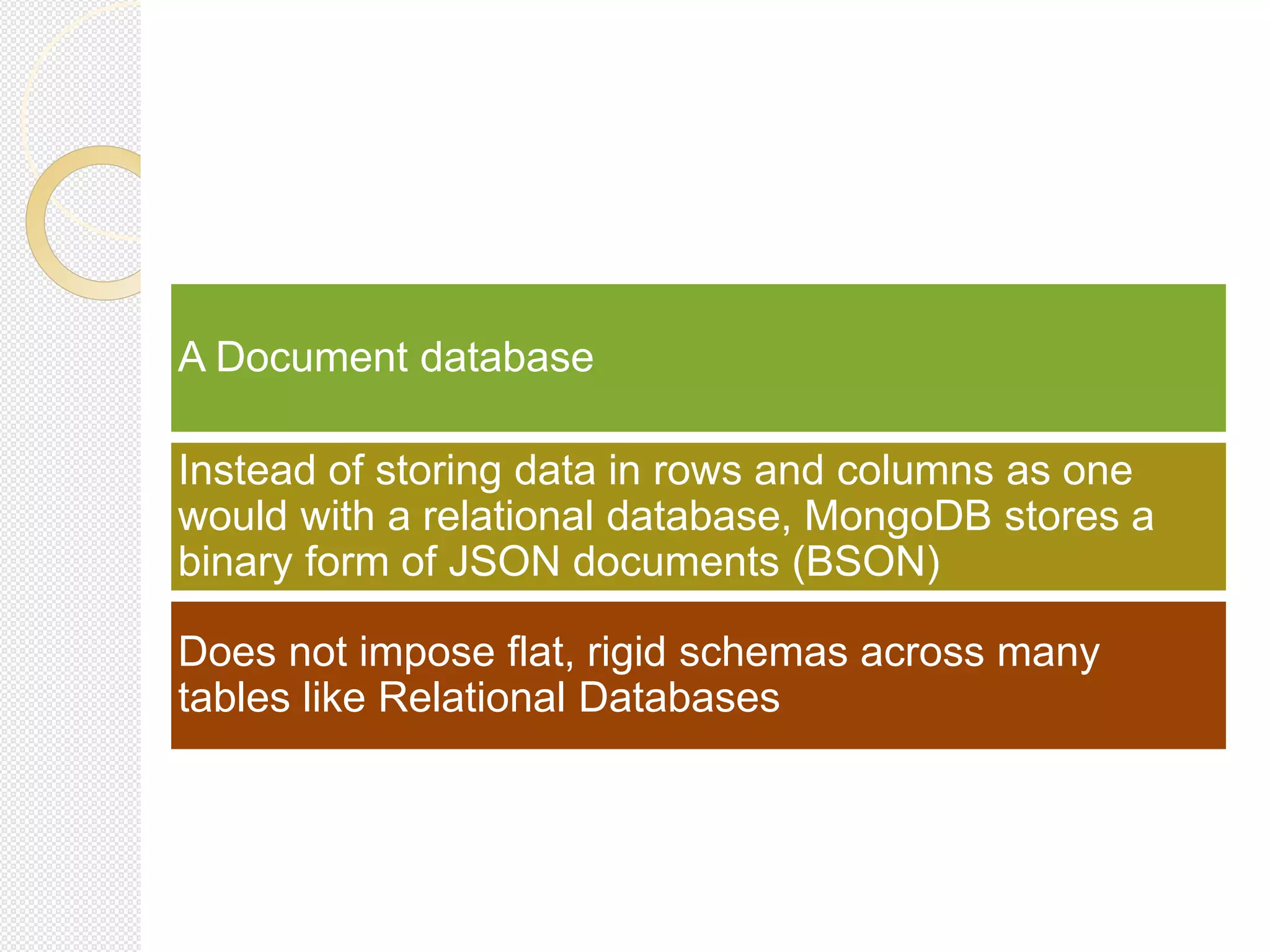

12. A Document database
Instead of storing data in rows and columns as one
would with a relational database, MongoDB stores a
binary form of JSON documents (BSON)
Does not impose flat, rigid schemas across many
tables like Relational Databases

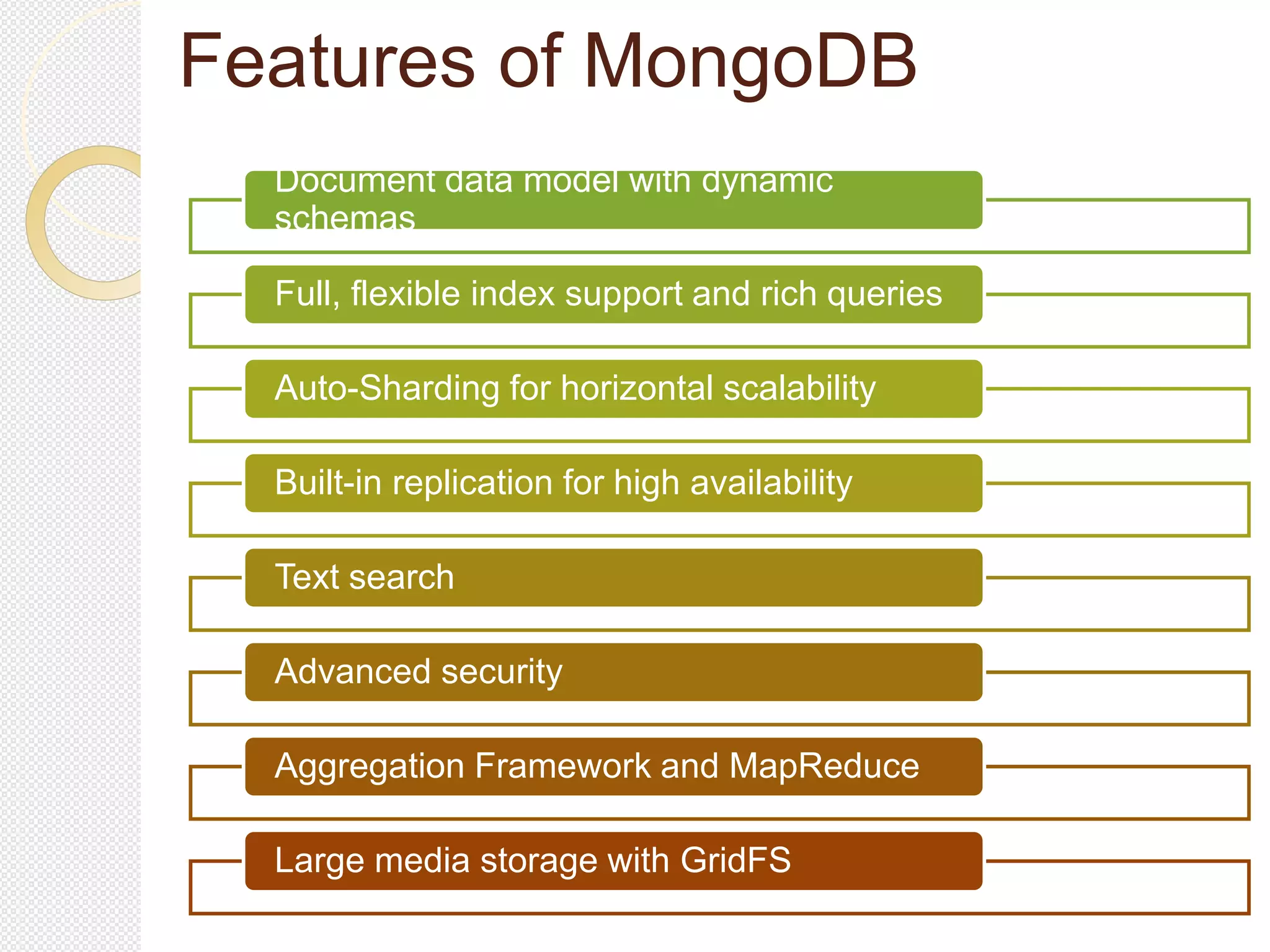

13. Features of MongoDB
Document data model with dynamic
schemas
Full, flexible index support and rich queries
Auto-Sharding for horizontal scalability
Built-in replication for high availability
Text search
Advanced security
Aggregation Framework and MapReduce
Large media storage with GridFS

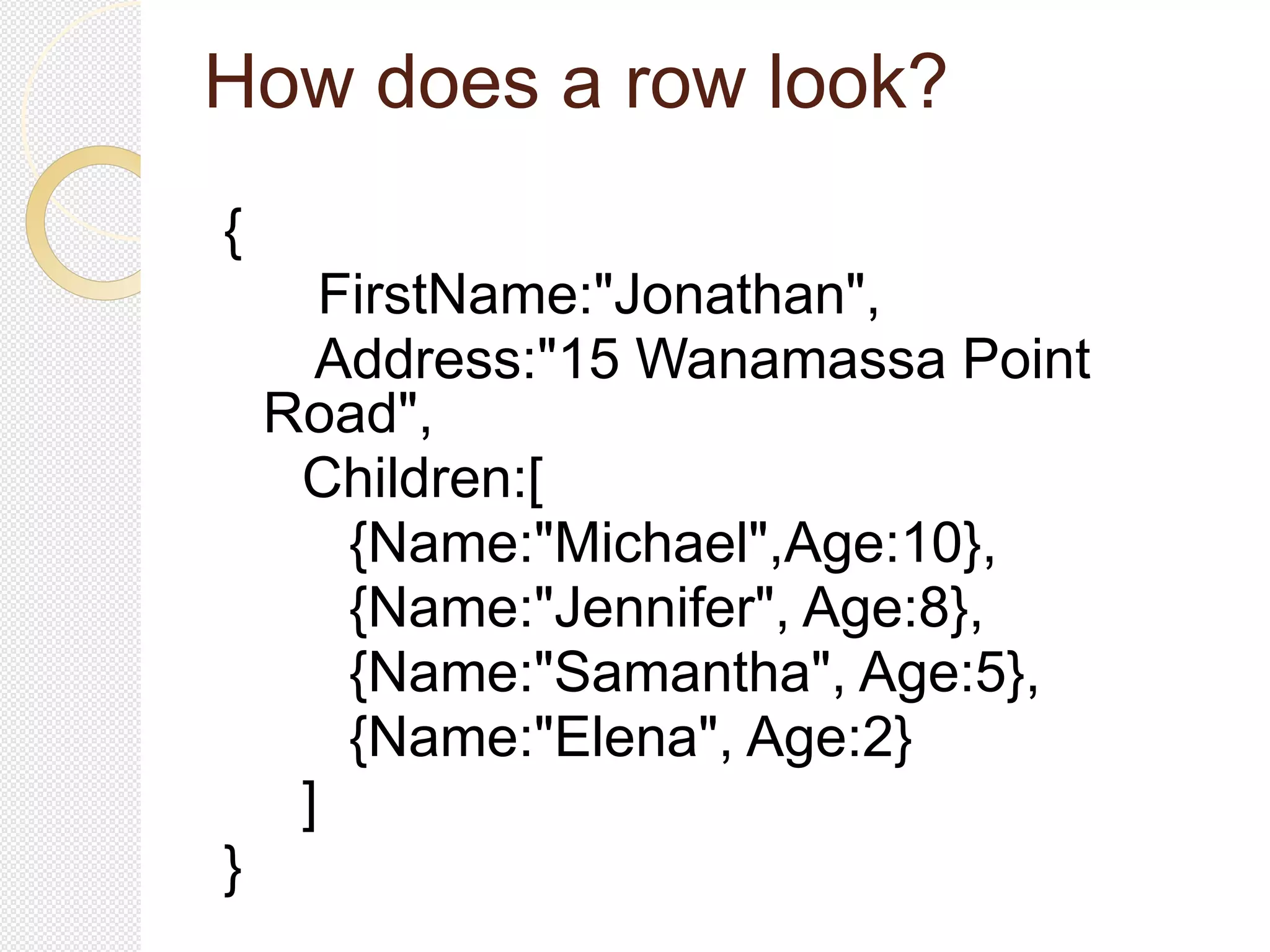

14. How does a row look?
{
FirstName:"Jonathan",
Address:"15 Wanamassa Point
Road",
Children:[
{Name:"Michael",Age:10},
{Name:"Jennifer", Age:8},
{Name:"Samantha", Age:5},
{Name:"Elena", Age:2}
]
}

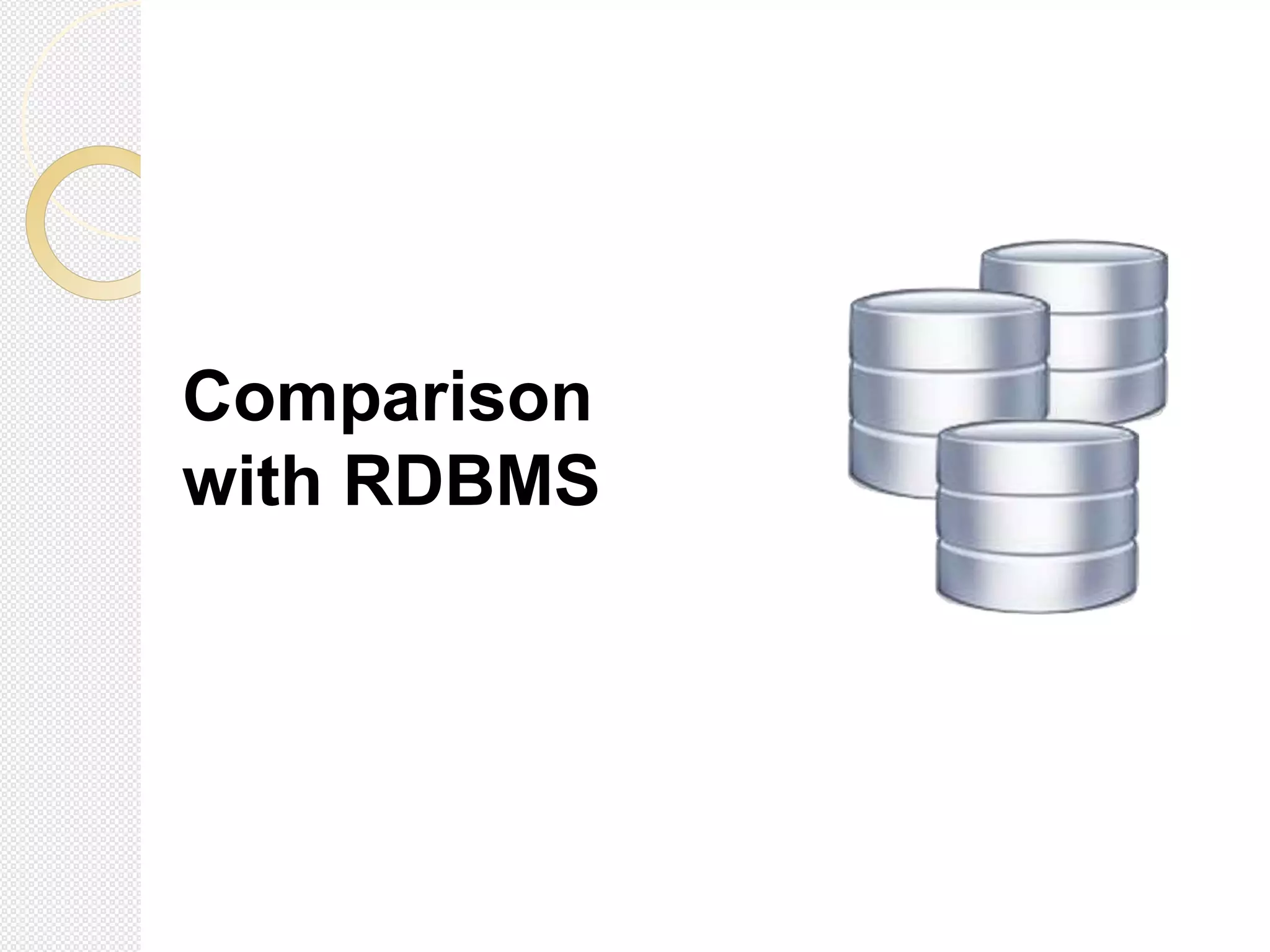

15. Comparison
with RDBMS

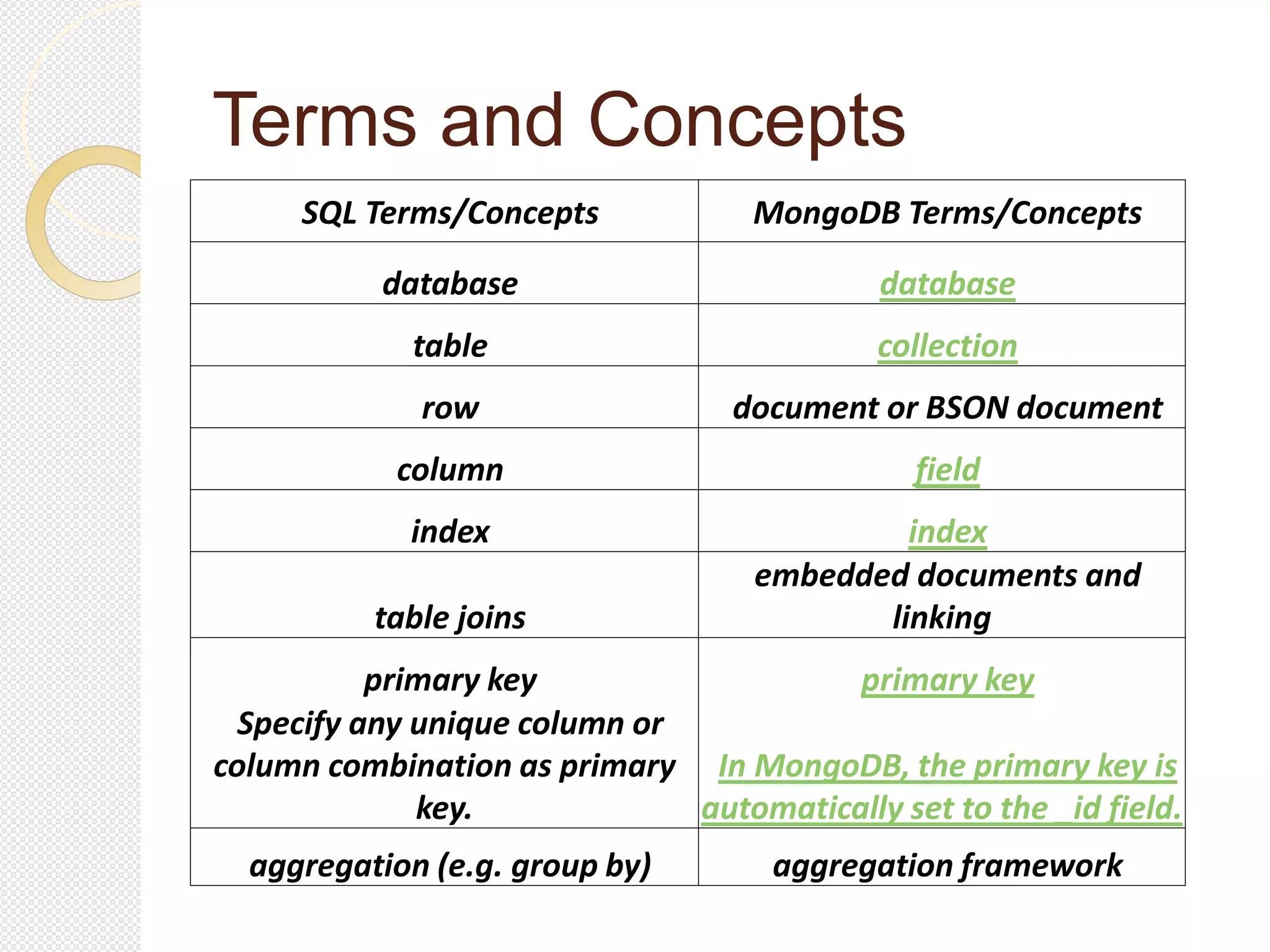

16. Terms and Concepts
SQL Terms/Concepts MongoDB Terms/Concepts
database database
table collection
row document or BSON document
column field
index index
table joins
embedded documents and
linking
primary key primary key
Specify any unique column or
column combination as primary
key.
In MongoDB, the primary key is
automatically set to the _id field.
aggregation (e.g. group by) aggregation framework

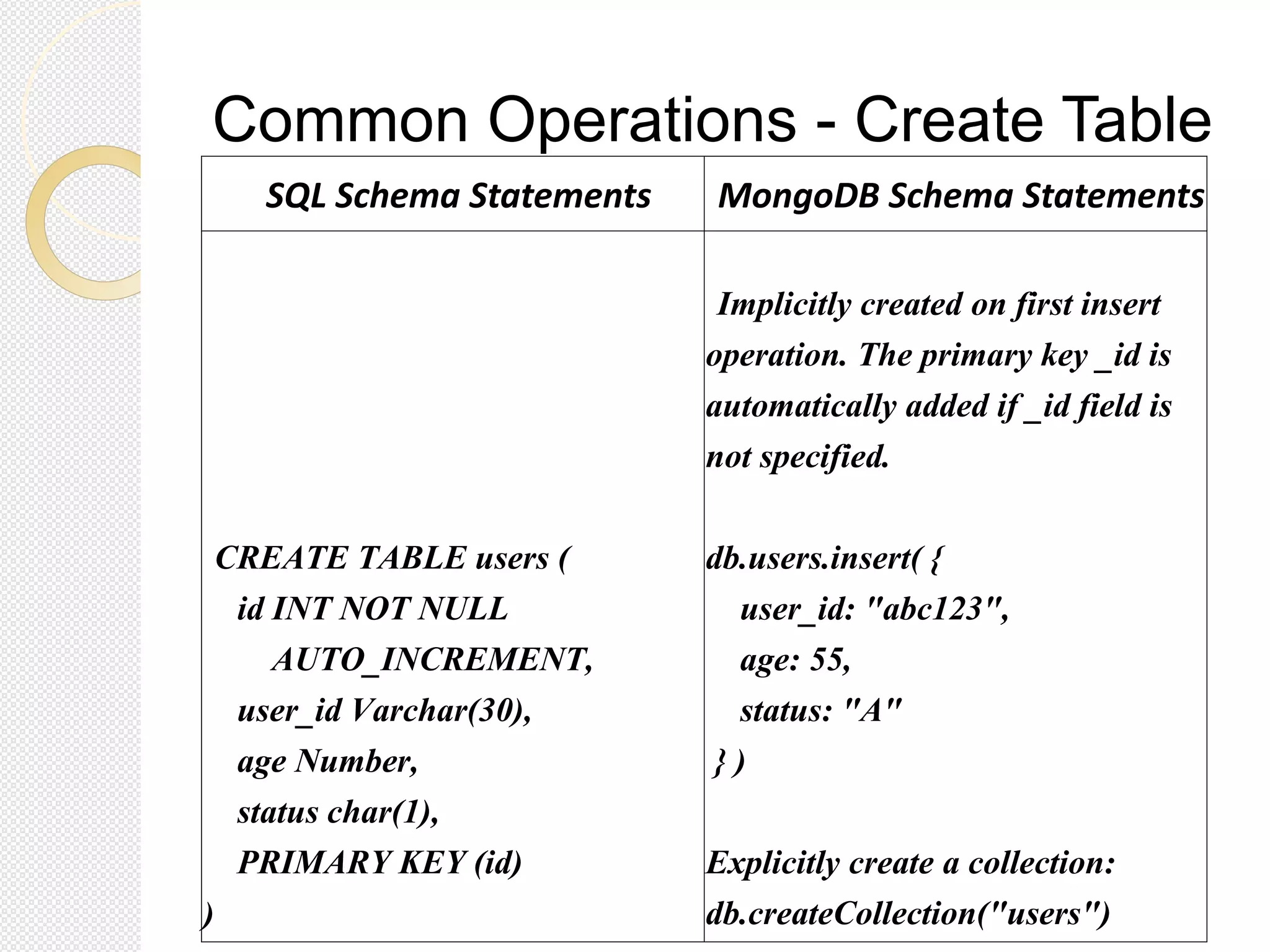

17. Common Operations - Create Table
SQL Schema Statements MongoDB Schema Statements
CREATE TABLE users (
id INT NOT NULL
AUTO_INCREMENT,
user_id Varchar(30),
age Number,
status char(1),
PRIMARY KEY (id)
)
Implicitly created on first insert
operation. The primary key _id is
automatically added if _id field is
not specified.
db.users.insert( {
user_id: "abc123",
age: 55,
status: "A"
} )
Explicitly create a collection:
db.createCollection("users")

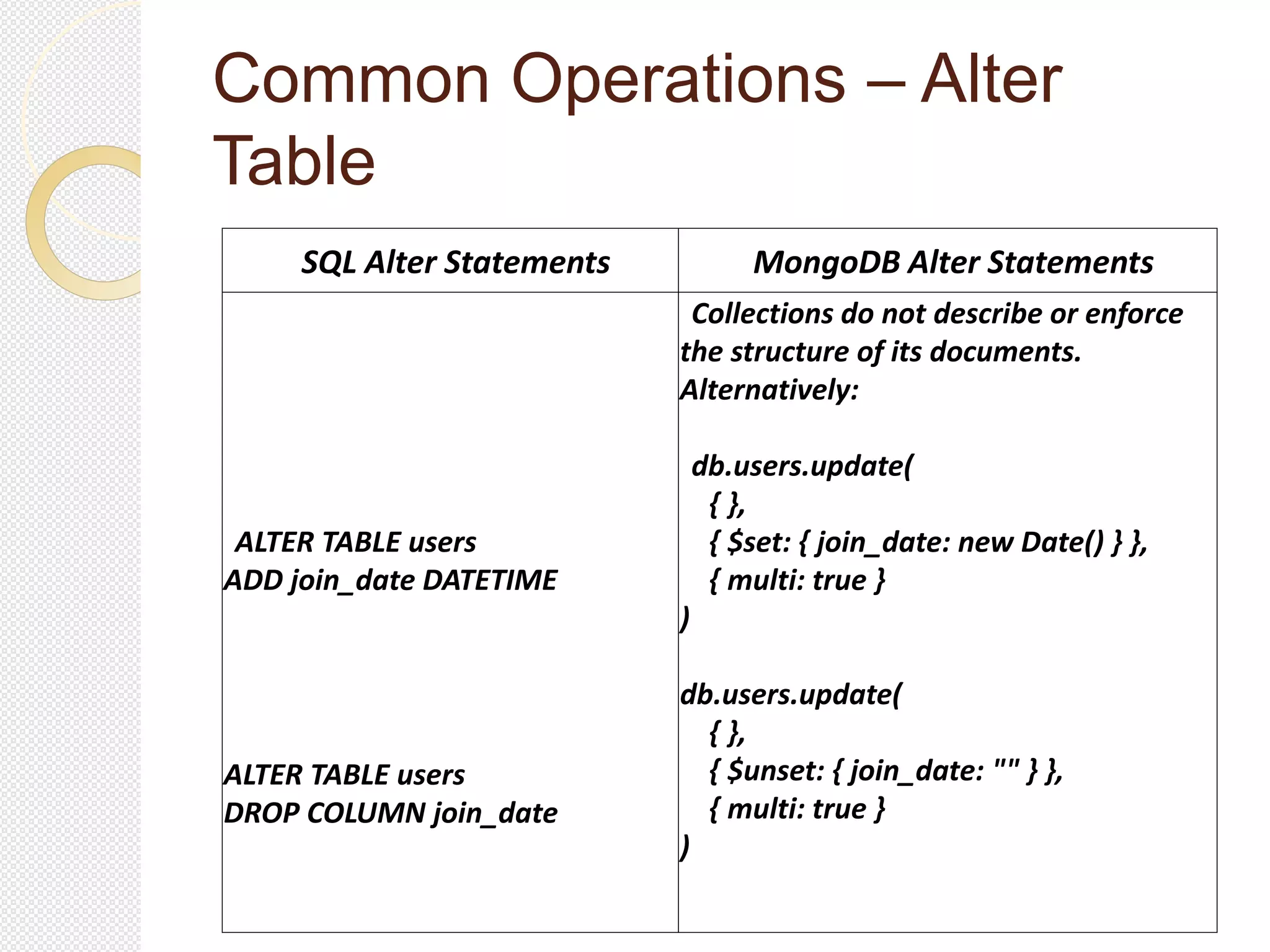

18. Common Operations – Alter
Table
SQL Alter Statements MongoDB Alter Statements
ALTER TABLE users
ADD join_date DATETIME
ALTER TABLE users
DROP COLUMN join_date
Collections do not describe or enforce
the structure of its documents.
Alternatively:
db.users.update(
{ },
{ $set: { join_date: new Date() } },
{ multi: true }
)
db.users.update(
{ },
{ $unset: { join_date: "" } },
{ multi: true }
)

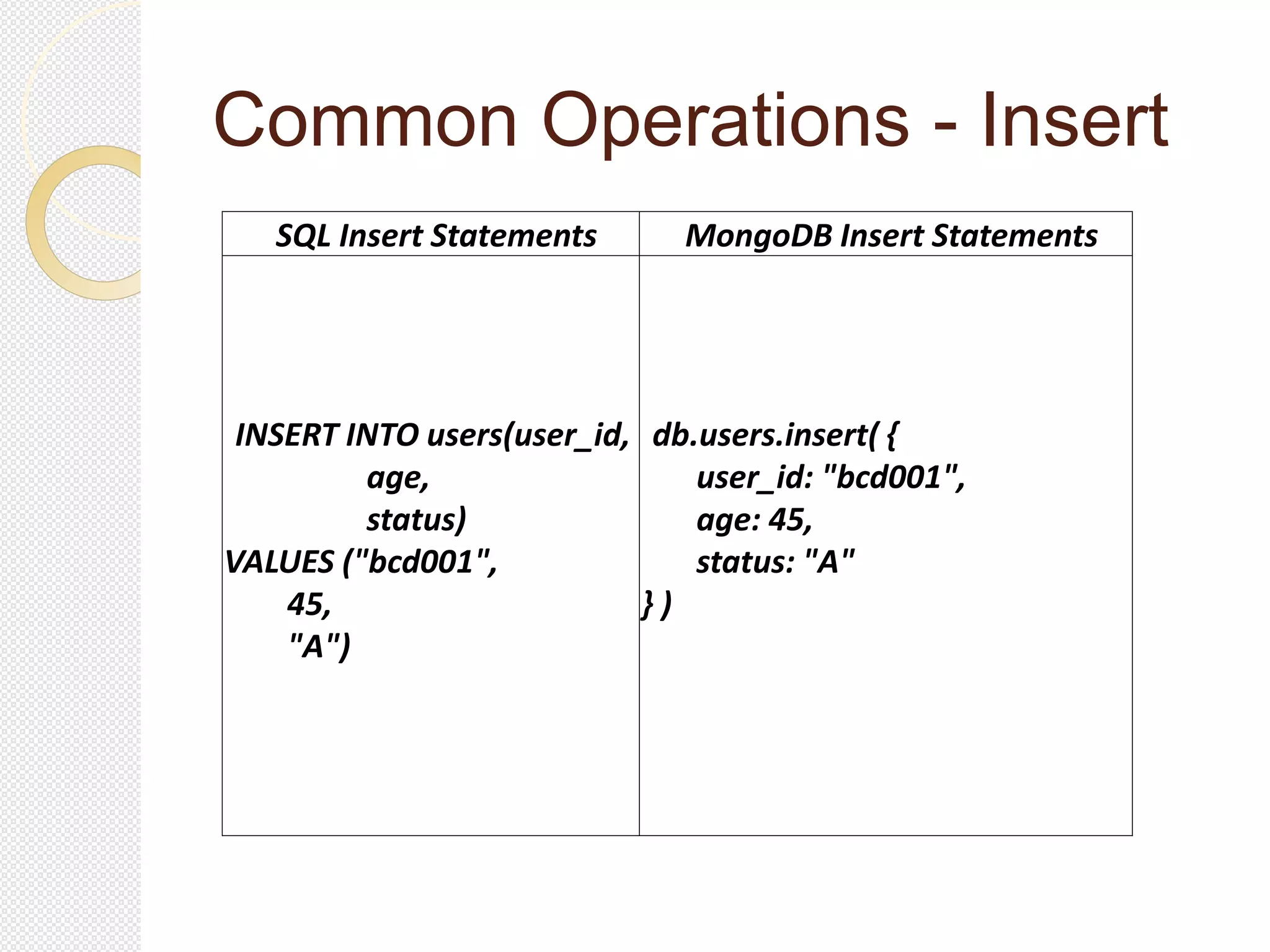

19. Common Operations - Insert
SQL Insert Statements MongoDB Insert Statements
INSERT INTO users(user_id,
age,
status)
VALUES ("bcd001",
45,
"A")
db.users.insert( {
user_id: "bcd001",
age: 45,
status: "A"
} )

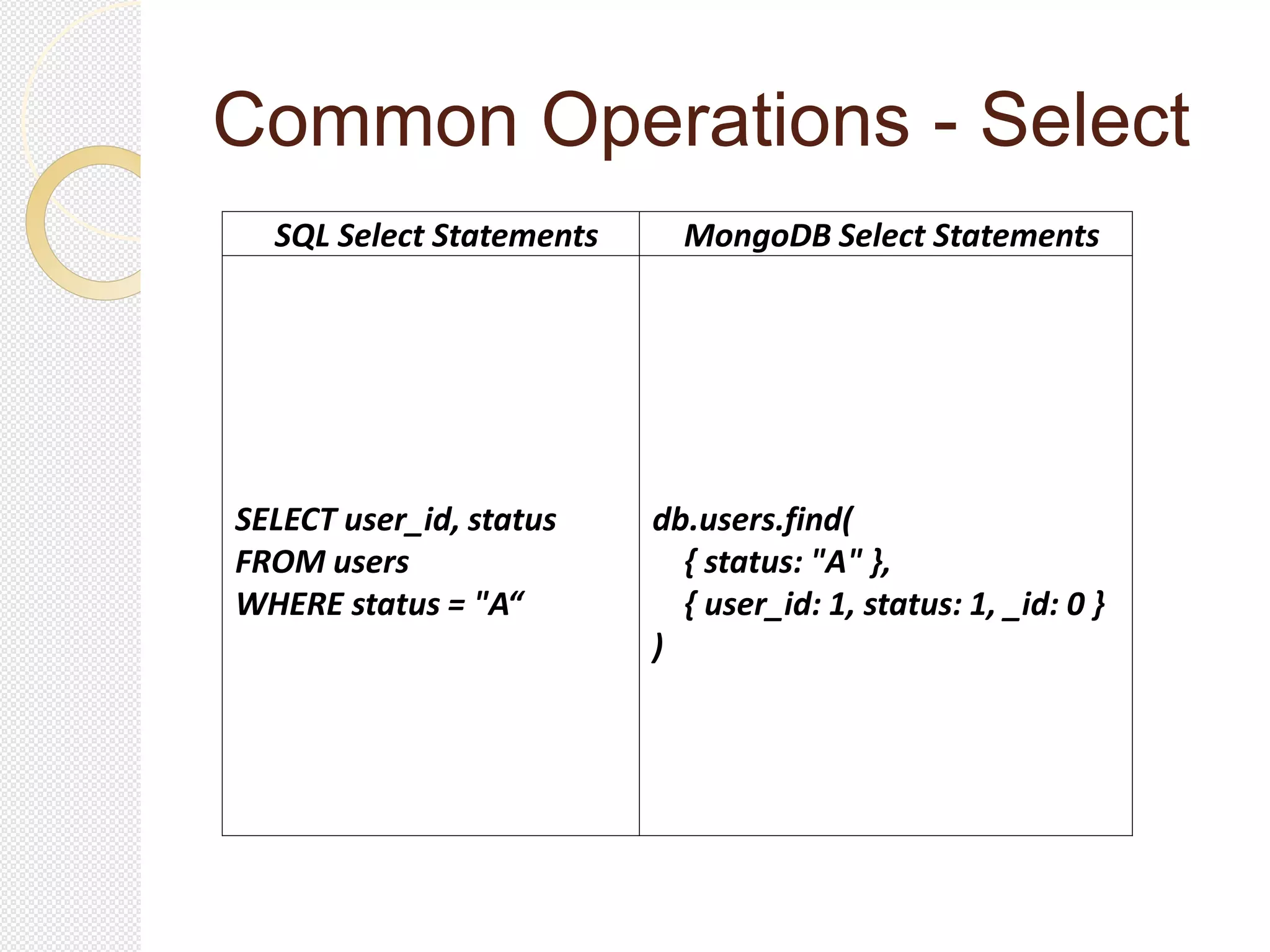

20. Common Operations - Select
SQL Select Statements MongoDB Select Statements
SELECT user_id, status
FROM users
WHERE status = "A“
db.users.find(
{ status: "A" },
{ user_id: 1, status: 1, _id: 0 }
)

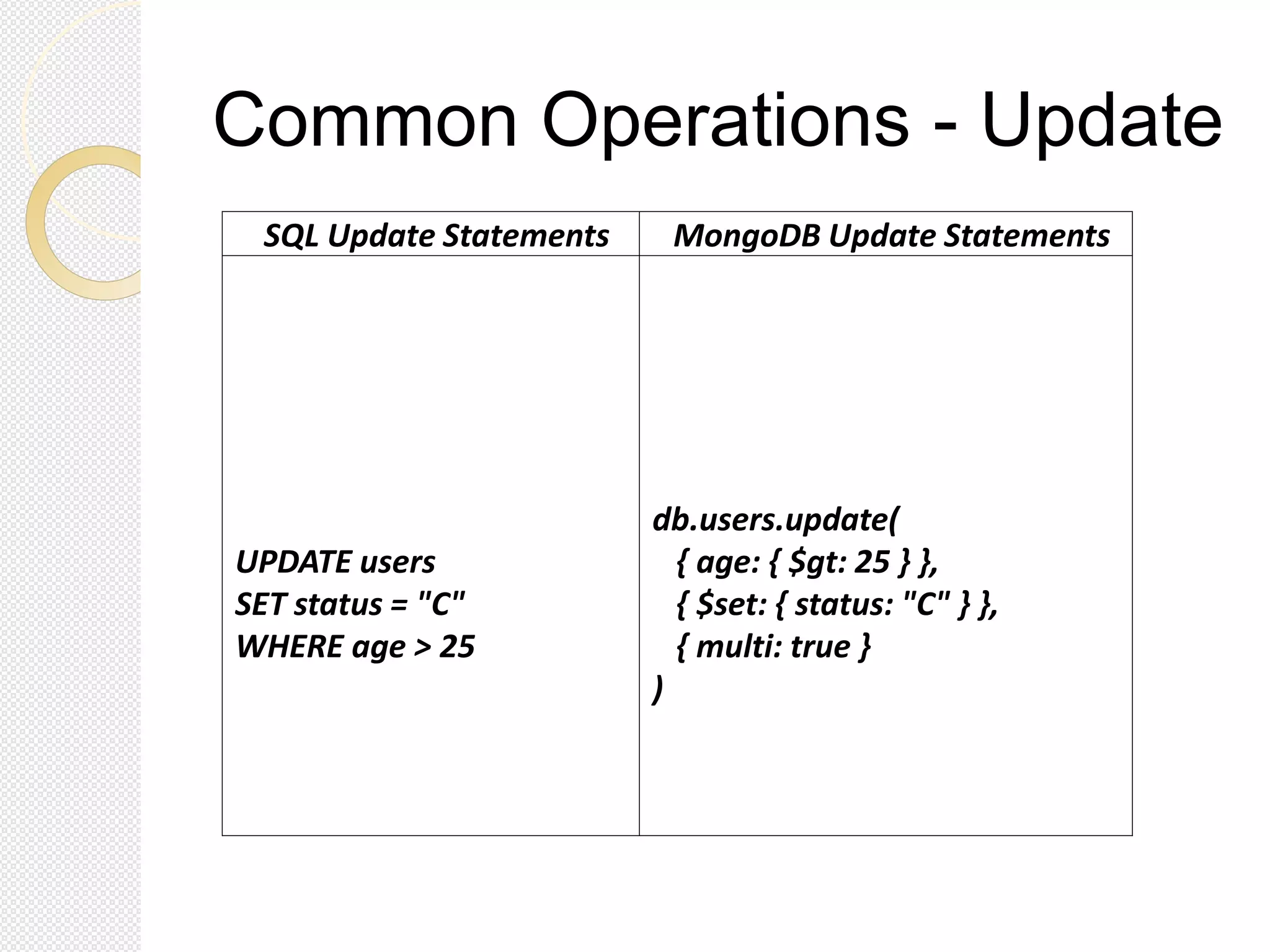

21. Common Operations - Update
SQL Update Statements MongoDB Update Statements
UPDATE users
SET status = "C"
WHERE age > 25
db.users.update(
{ age: { $gt: 25 } },
{ $set: { status: "C" } },
{ multi: true }
)

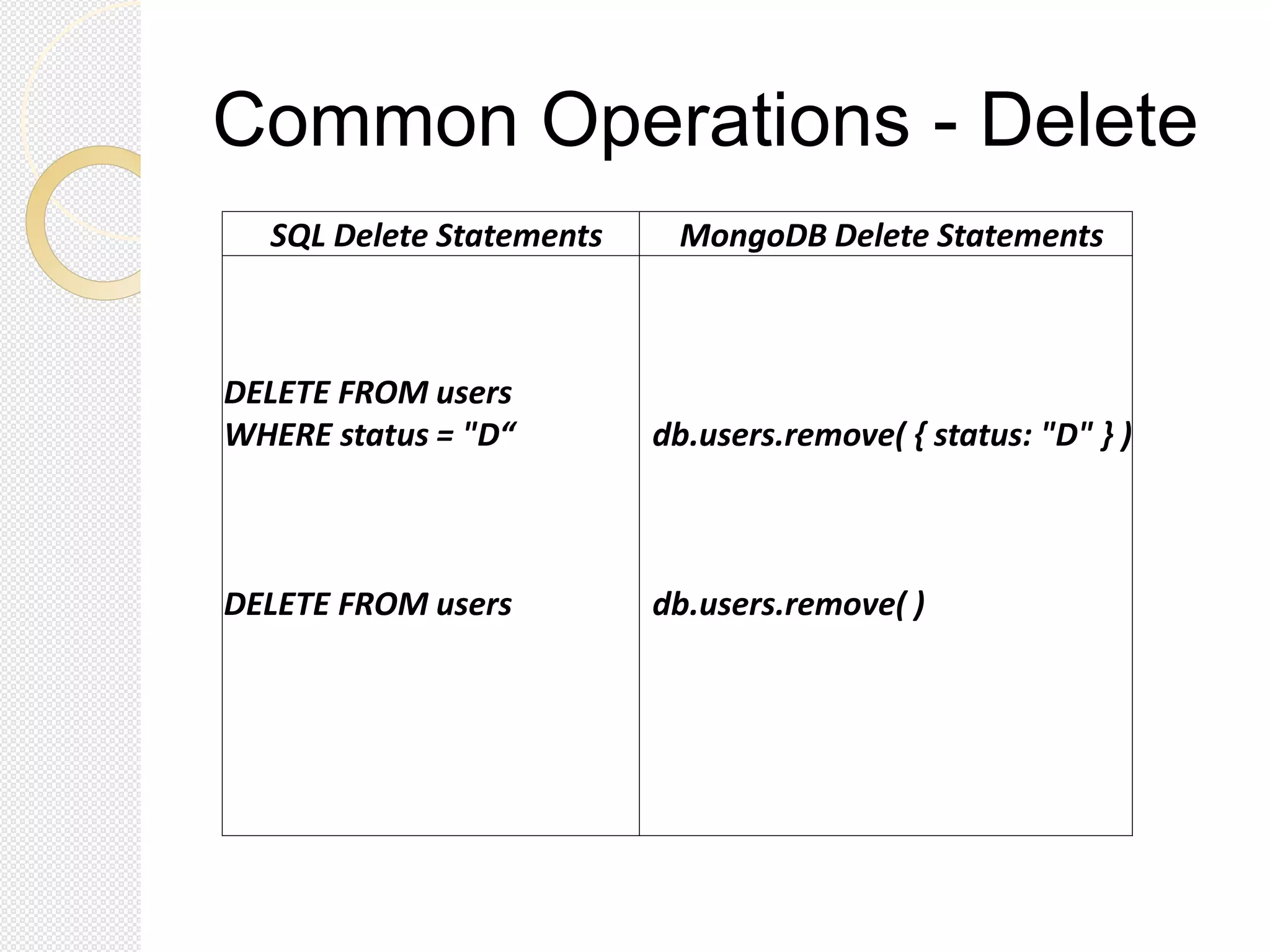

22. Common Operations - Delete
SQL Delete Statements MongoDB Delete Statements
DELETE FROM users
WHERE status = "D“
DELETE FROM users
db.users.remove( { status: "D" } )
db.users.remove( )

23. Case Study:
Designing A Product
Catalog

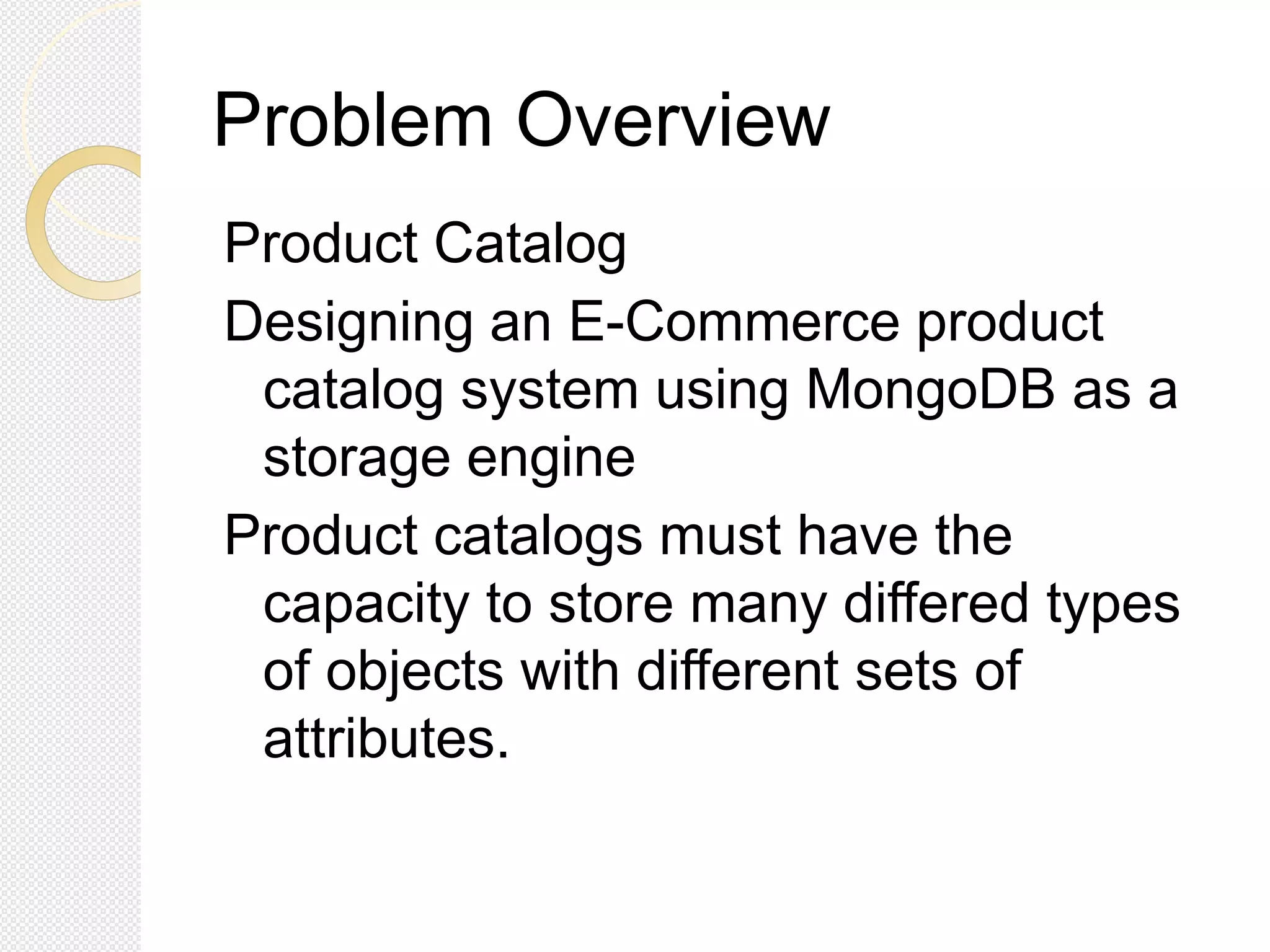

24. Problem Overview
Product Catalog
Designing an E-Commerce product
catalog system using MongoDB as a
storage engine
Product catalogs must have the
capacity to store many differed types
of objects with different sets of
attributes.

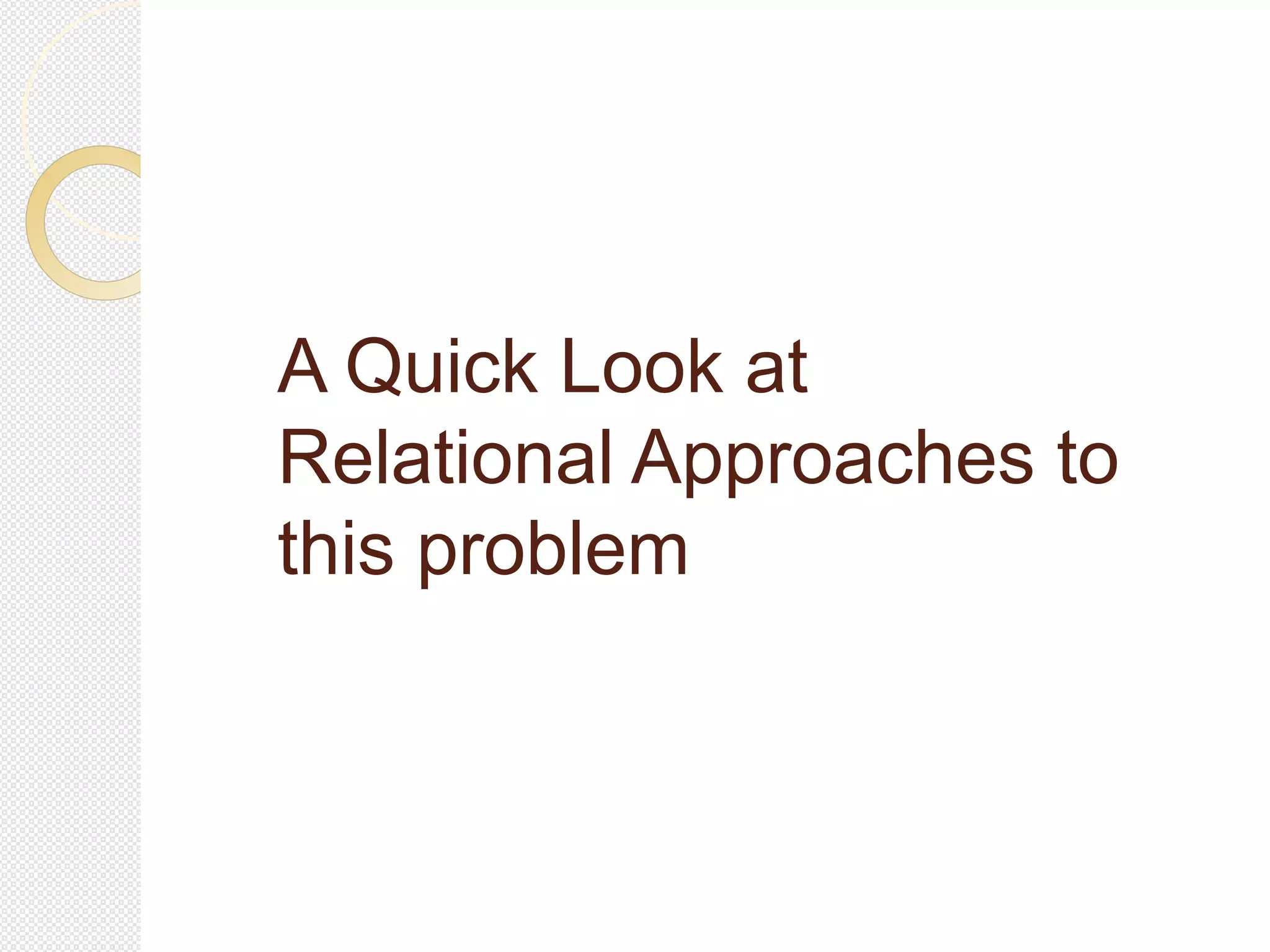

25. A Quick Look at
Relational Approaches to
this problem

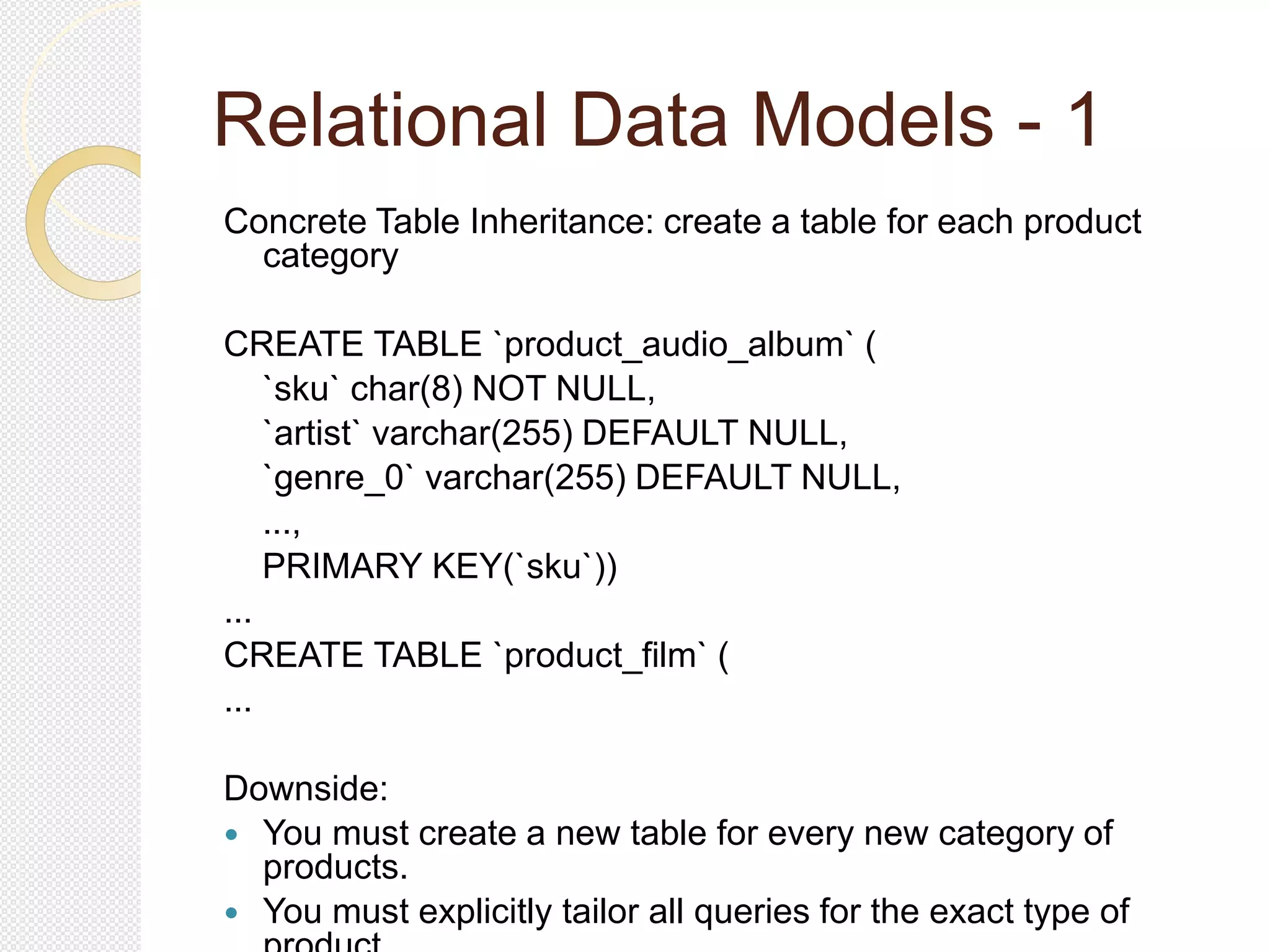

26. Relational Data Models - 1
Concrete Table Inheritance: create a table for each product
category
CREATE TABLE `product_audio_album` (
`sku` char(8) NOT NULL,
`artist` varchar(255) DEFAULT NULL,
`genre_0` varchar(255) DEFAULT NULL,
...,
PRIMARY KEY(`sku`))
...
CREATE TABLE `product_film` (
...
Downside:
 You must create a new table for every new category of
products.
 You must explicitly tailor all queries for the exact type of

27. Relational Data Models - 2
Single Table Inheritance: Single table for all products, add new
columns to store data for a new product
CREATE TABLE `product` (
`sku` char(8) NOT NULL,
...
`artist` varchar(255) DEFAULT NULL,
`genre_1` varchar(255) DEFAULT NULL,
...
`title` varchar(255) DEFAULT NULL,
`rating` char(8) DEFAULT NULL,
...,
PRIMARY KEY(`sku`))
 Downside: More flexible, but at expense of space

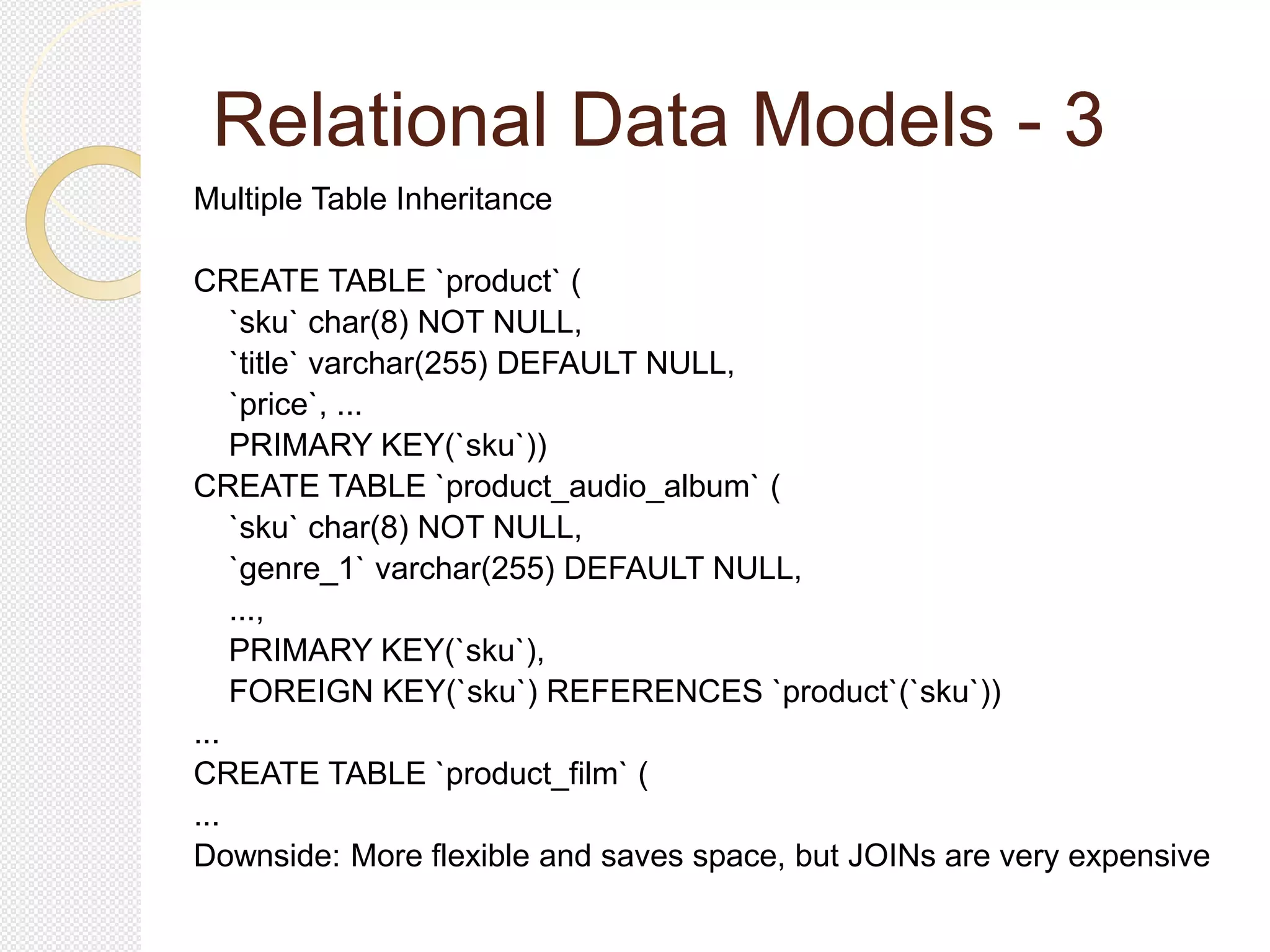

28. Relational Data Models - 3
Multiple Table Inheritance
CREATE TABLE `product` (
`sku` char(8) NOT NULL,
`title` varchar(255) DEFAULT NULL,
`price`, ...
PRIMARY KEY(`sku`))
CREATE TABLE `product_audio_album` (
`sku` char(8) NOT NULL,
`genre_1` varchar(255) DEFAULT NULL,
...,
PRIMARY KEY(`sku`),
FOREIGN KEY(`sku`) REFERENCES `product`(`sku`))
...
CREATE TABLE `product_film` (
...
Downside: More flexible and saves space, but JOINs are very expensive

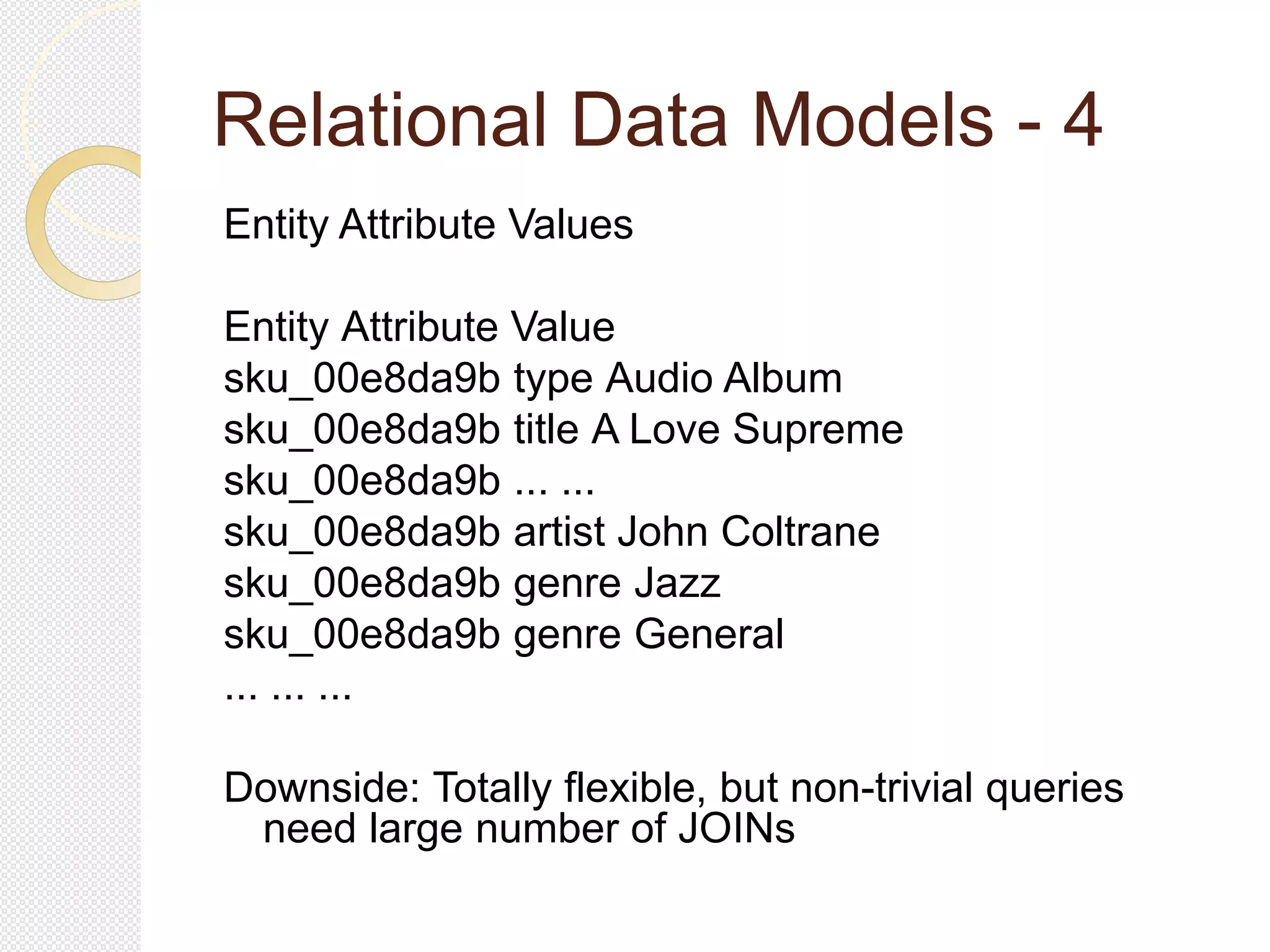

29. Relational Data Models - 4
Entity Attribute Values
Entity Attribute Value
sku_00e8da9b type Audio Album
sku_00e8da9b title A Love Supreme
sku_00e8da9b ... ...
sku_00e8da9b artist John Coltrane
sku_00e8da9b genre Jazz
sku_00e8da9b genre General
... ... ...
Downside: Totally flexible, but non-trivial queries
need large number of JOINs

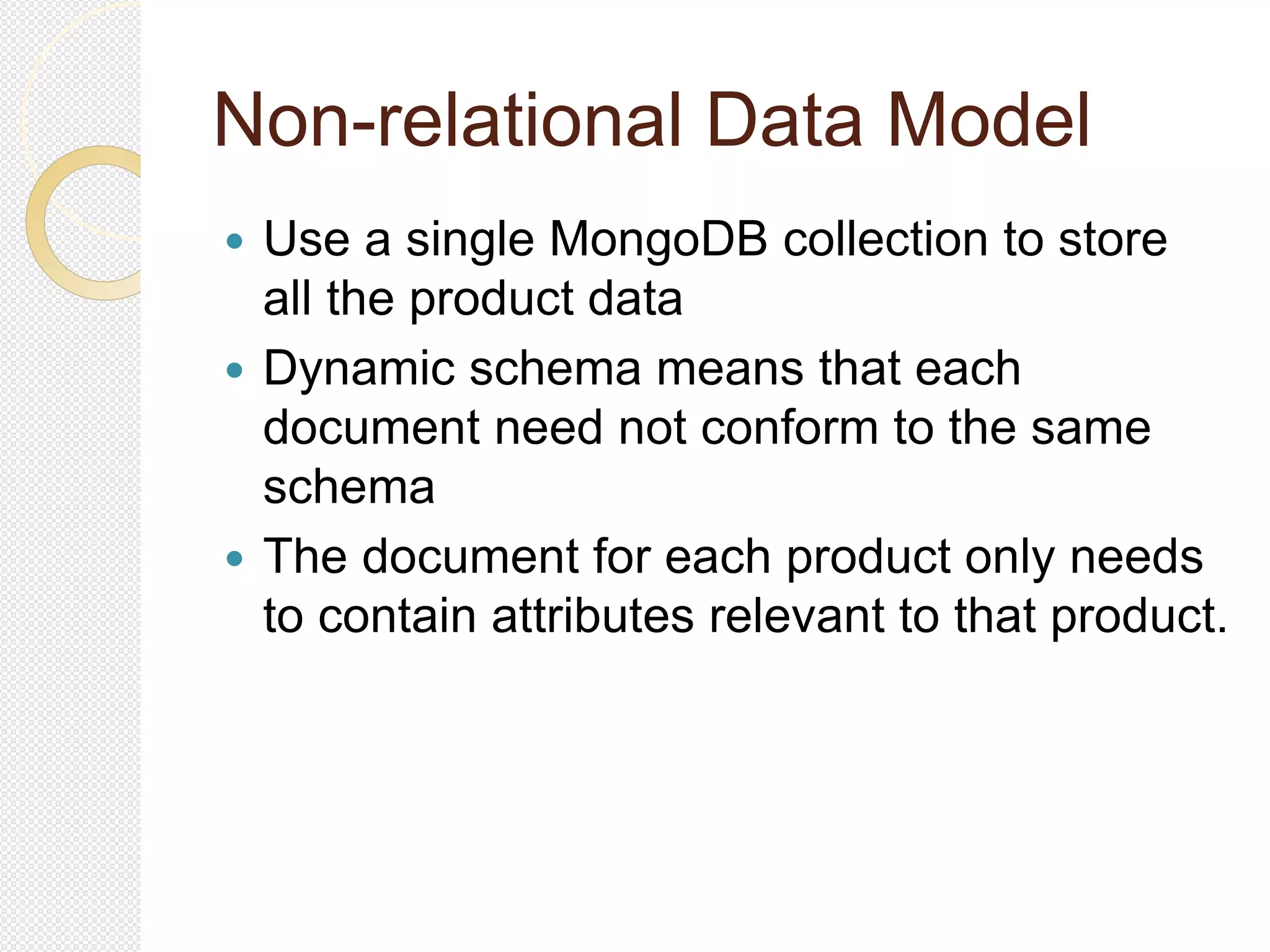

30. Non-relational Data Model
 Use a single MongoDB collection to store
all the product data
 Dynamic schema means that each
document need not conform to the same
schema
 The document for each product only needs
to contain attributes relevant to that product.

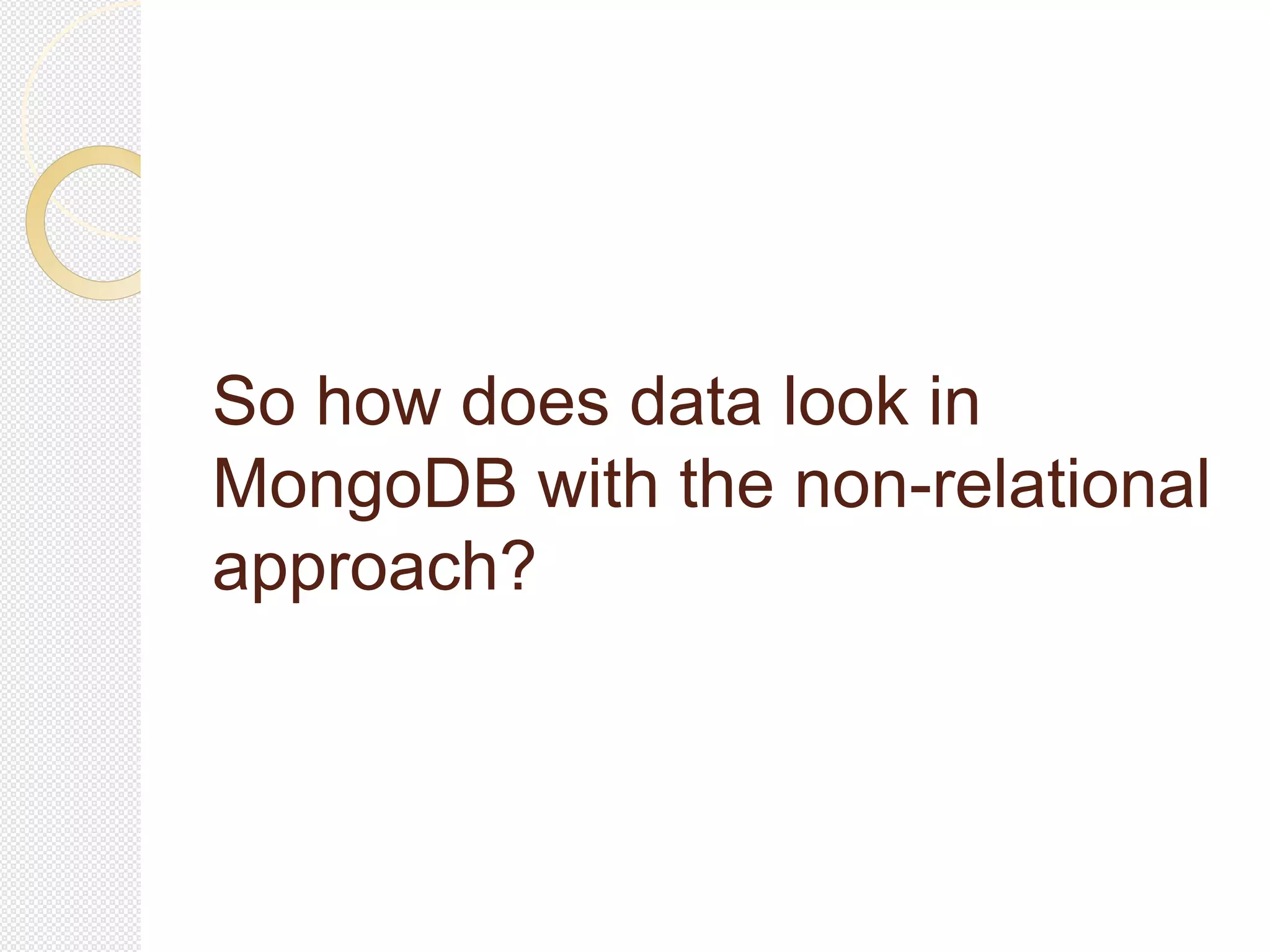

31. So how does data look in
MongoDB with the non-relational
approach?

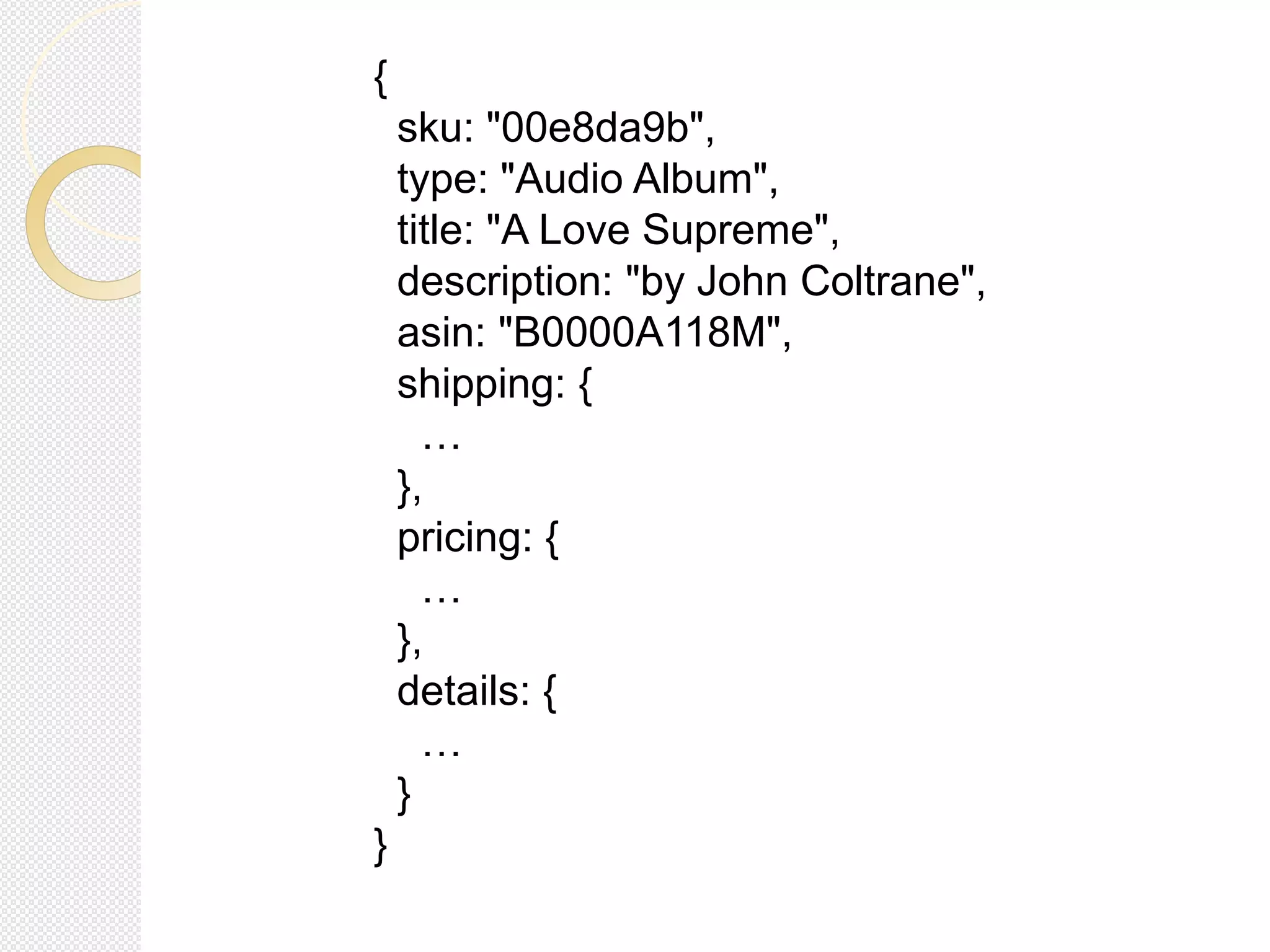

32. {
sku: "00e8da9b",
type: "Audio Album",
title: "A Love Supreme",
description: "by John Coltrane",
asin: "B0000A118M",
shipping: {
…
},
pricing: {
…
},
details: {
…
}
}

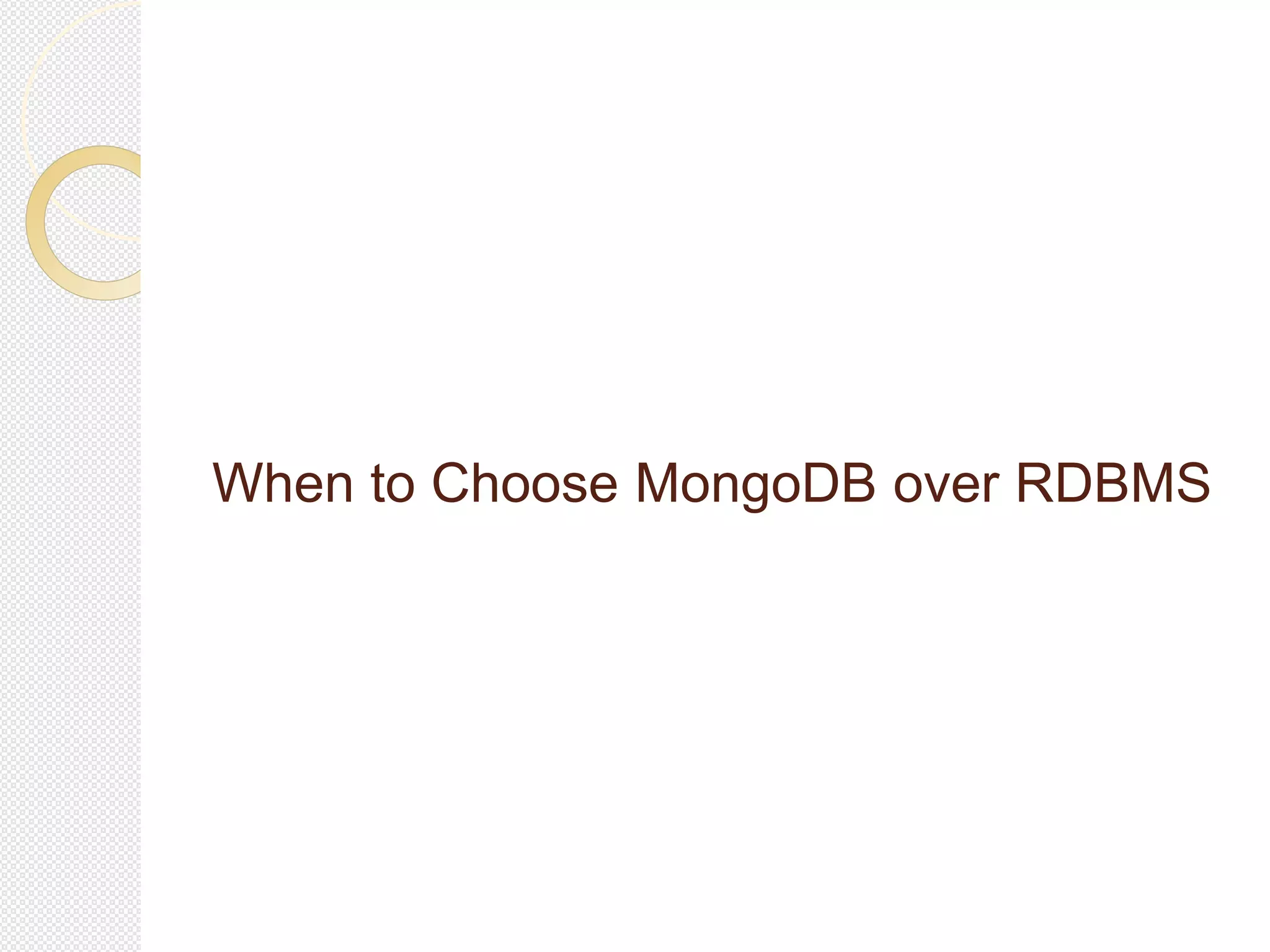

33. When to Choose MongoDB over RDBMS

34. 2/17/2015

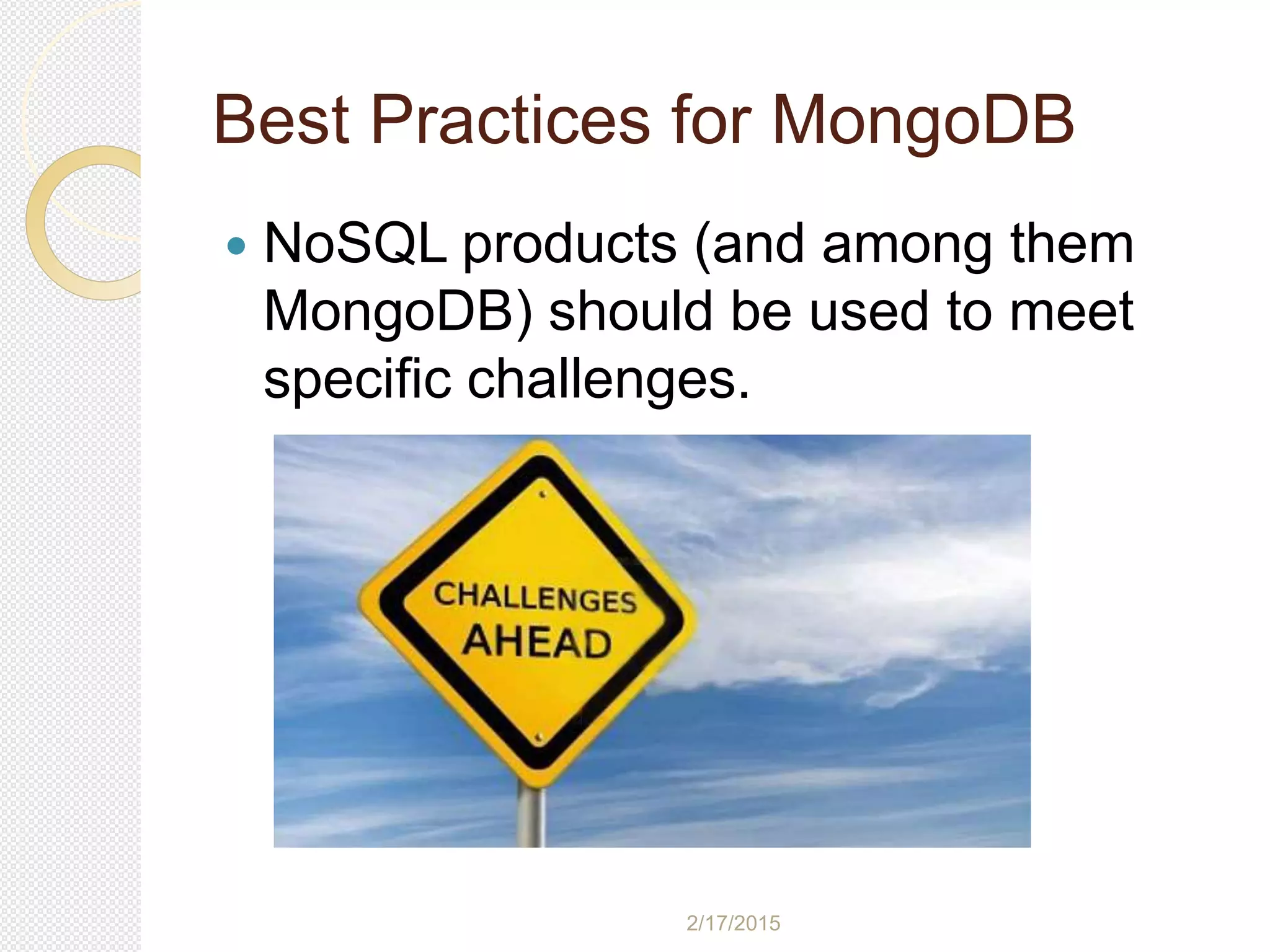

Best Practices for MongoDB
 NoSQL products (and among them
MongoDB) should be used to meet
specific challenges.

35. 2/17/2015

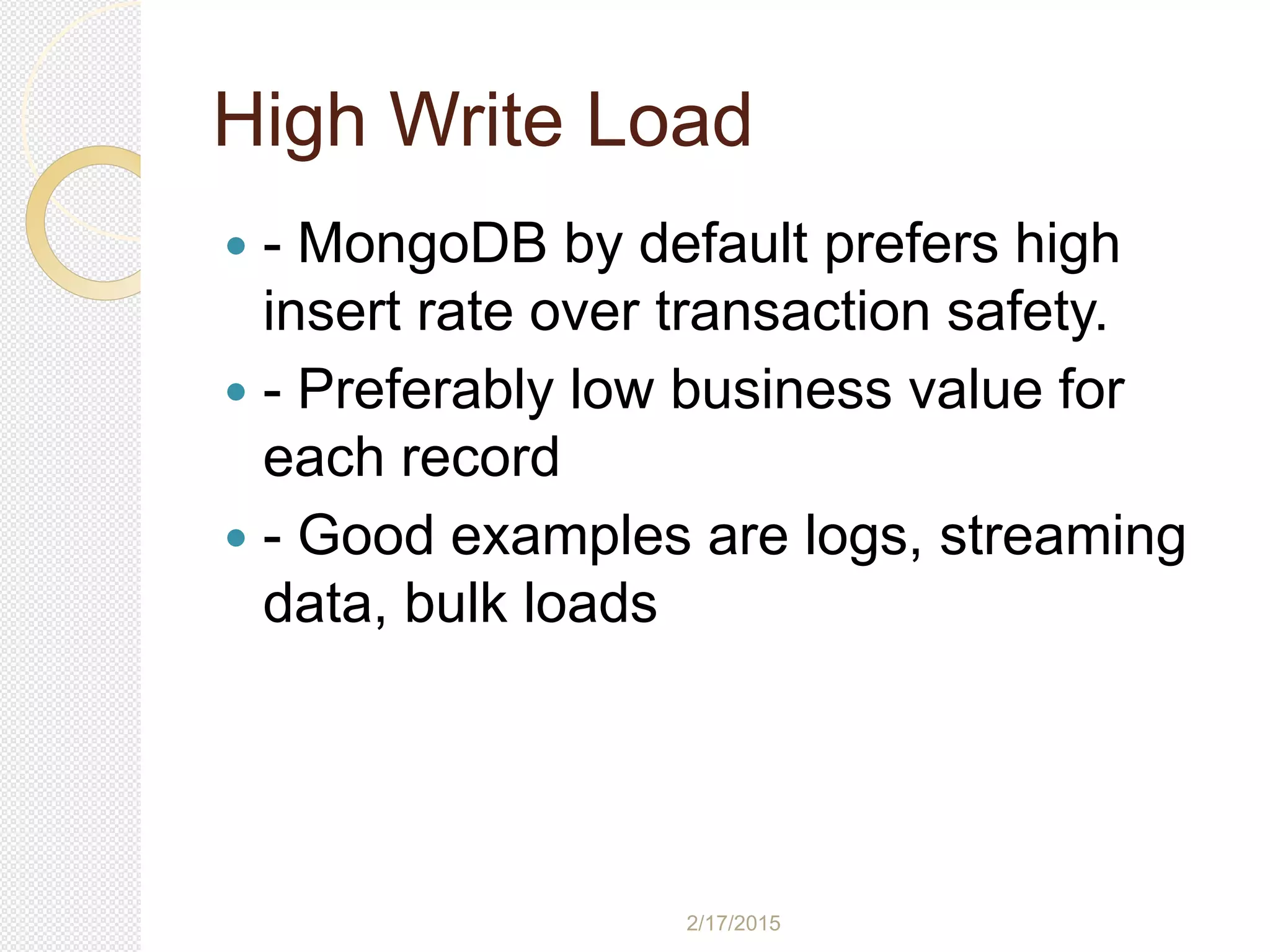

High Write Load
 - MongoDB by default prefers high
insert rate over transaction safety.
 - Preferably low business value for
each record
 - Good examples are logs, streaming
data, bulk loads

36. 2/17/2015

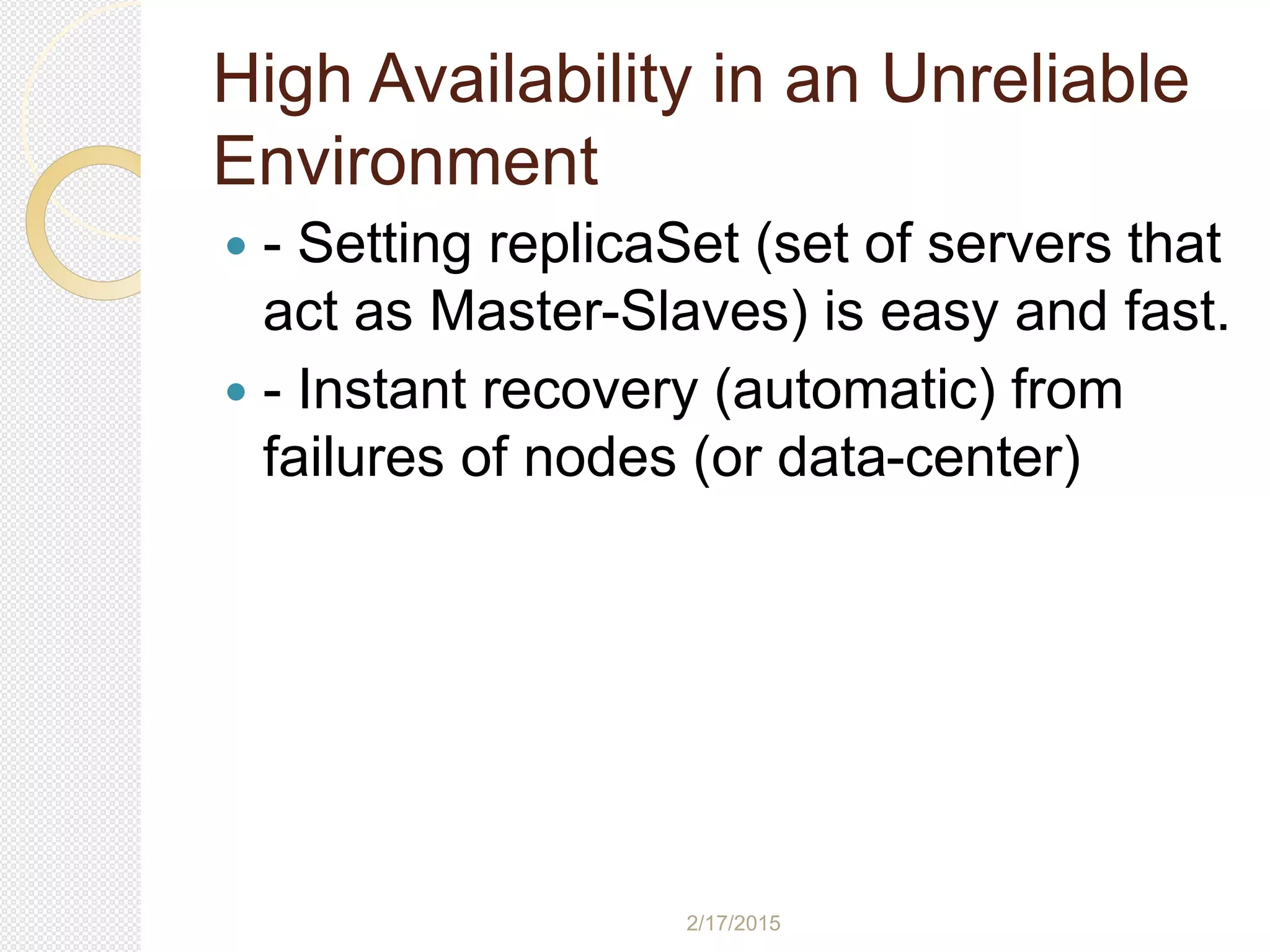

High Availability in an Unreliable
Environment
 - Setting replicaSet (set of servers that
act as Master-Slaves) is easy and fast.
 - Instant recovery (automatic) from
failures of nodes (or data-center)

37. 2/17/2015

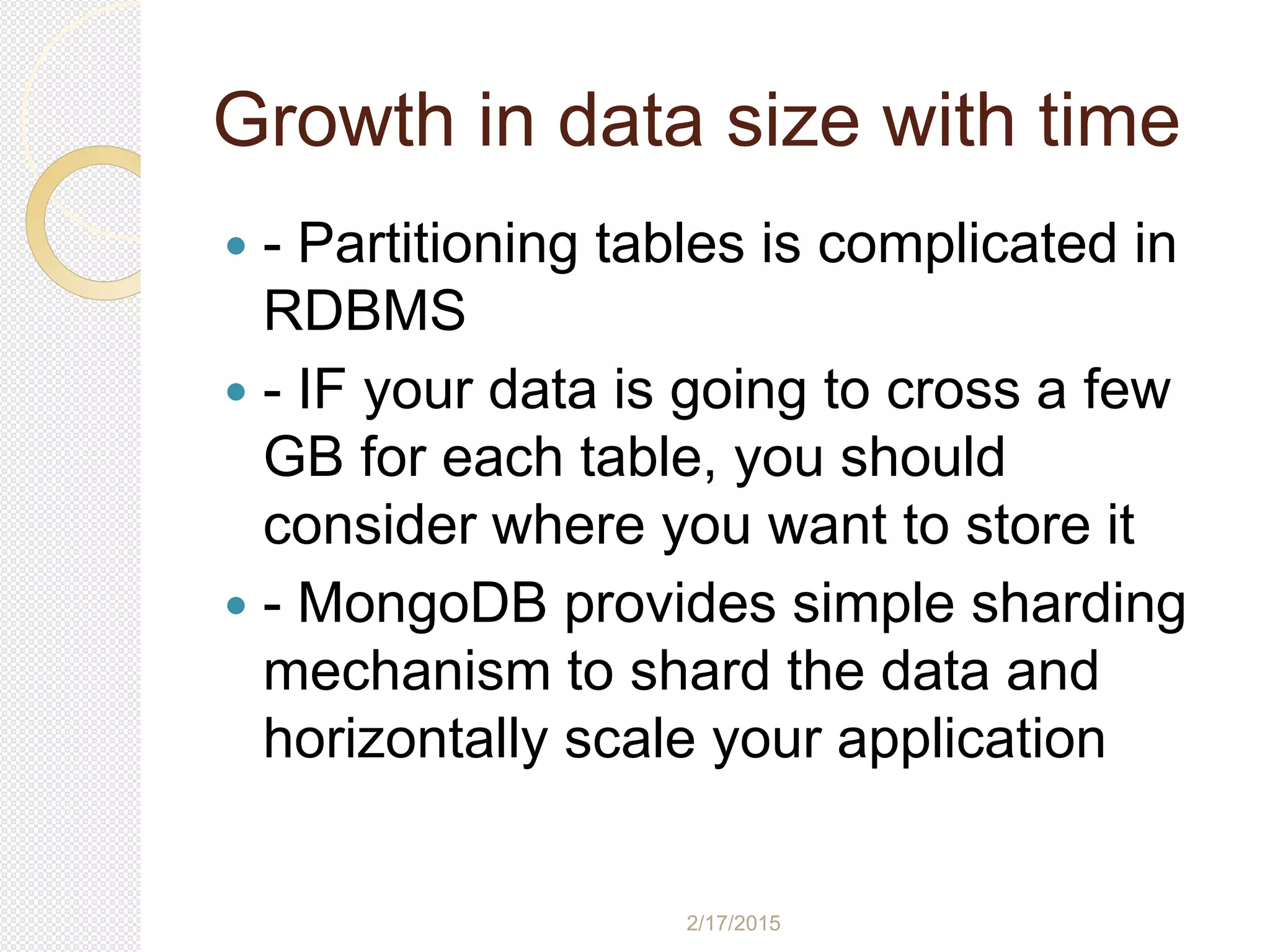

Growth in data size with time
 - Partitioning tables is complicated in
RDBMS
 - IF your data is going to cross a few
GB for each table, you should
consider where you want to store it
 - MongoDB provides simple sharding
mechanism to shard the data and
horizontally scale your application

38. 2/17/2015

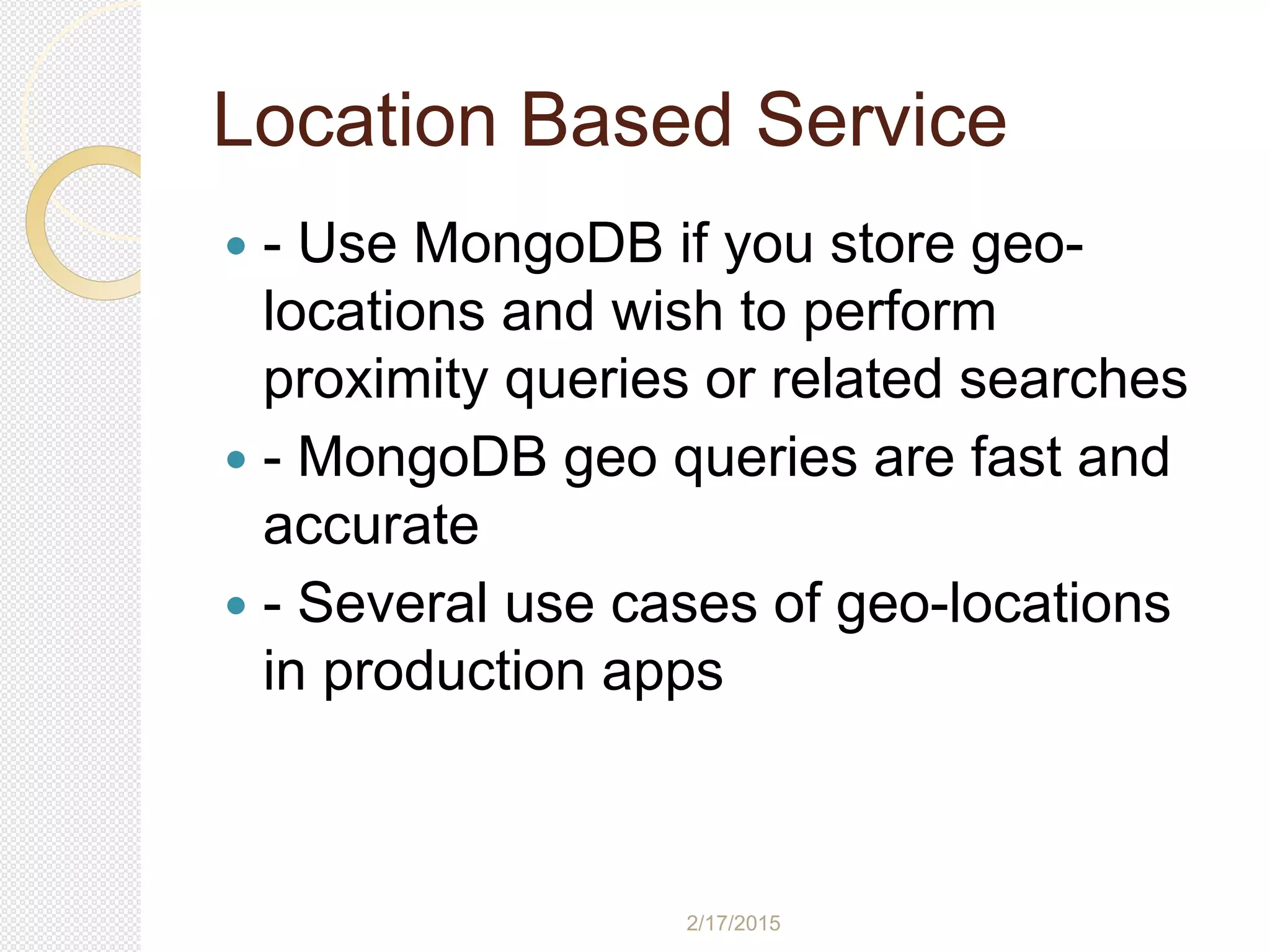

Location Based Service
 - Use MongoDB if you store geo-
locations and wish to perform
proximity queries or related searches
 - MongoDB geo queries are fast and
accurate
 - Several use cases of geo-locations
in production apps

39. 2/17/2015

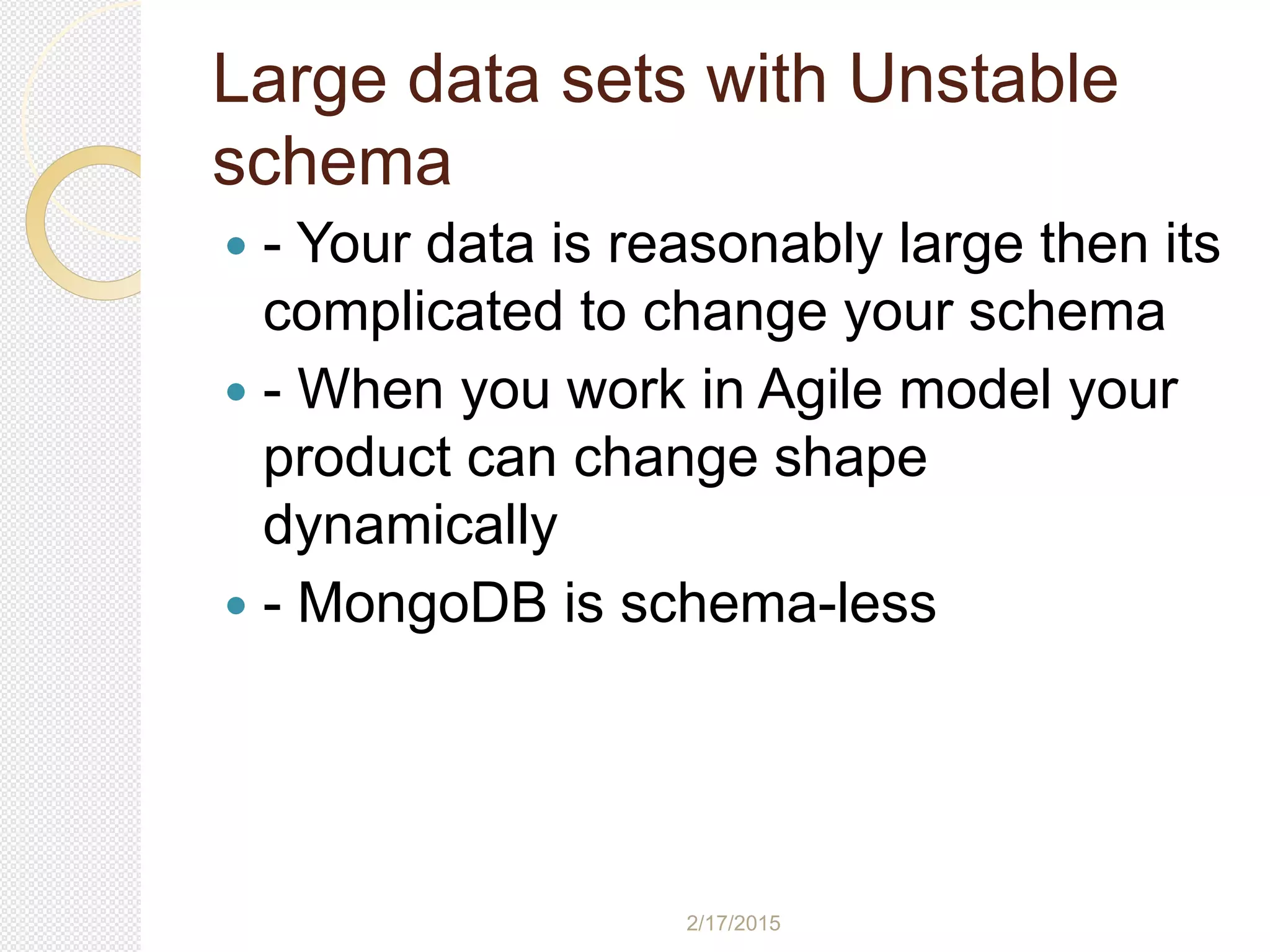

Large data sets with Unstable
schema
 - Your data is reasonably large then its
complicated to change your schema
 - When you work in Agile model your
product can change shape
dynamically
 - MongoDB is schema-less

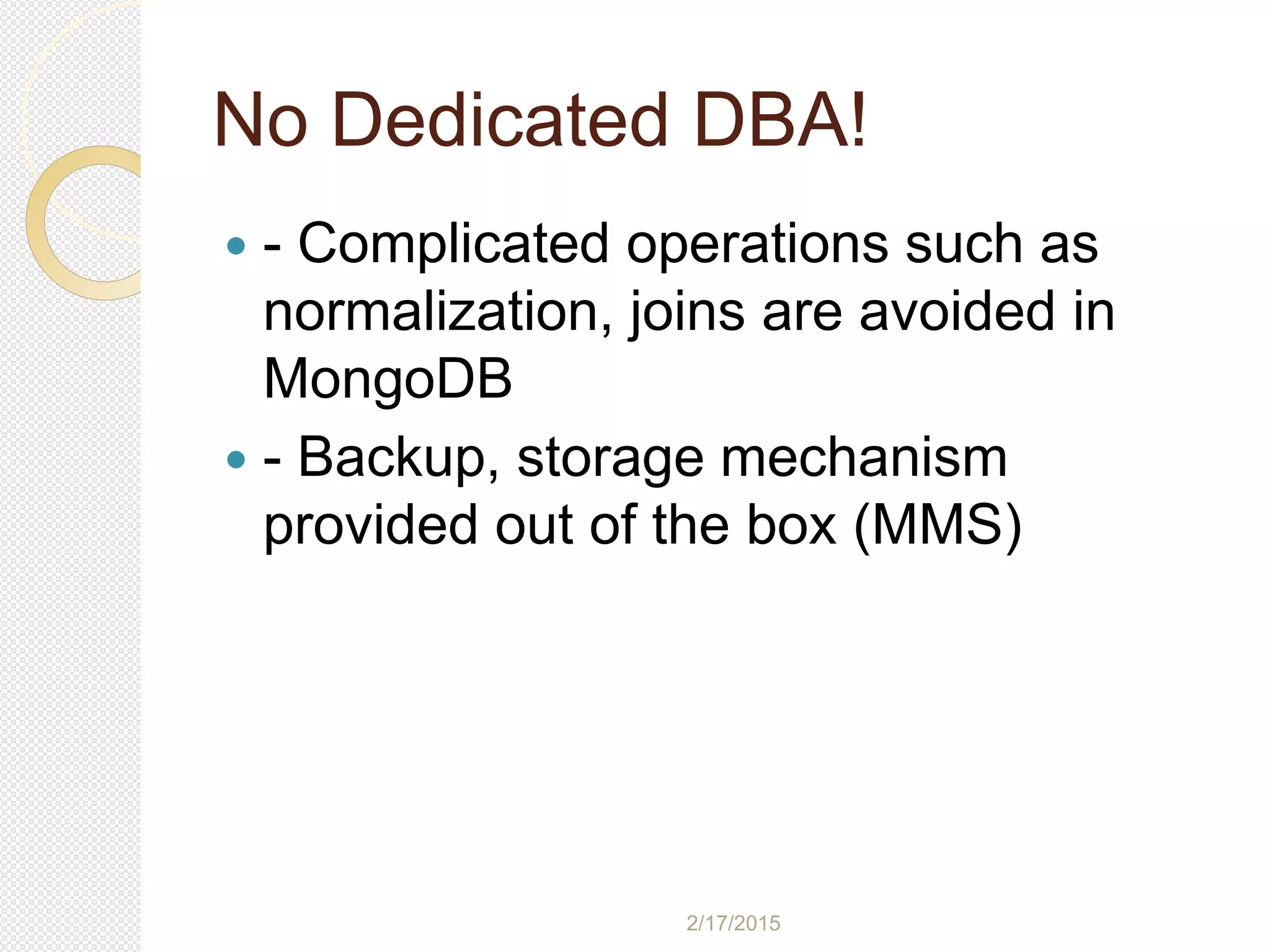

40. 2/17/2015
No Dedicated DBA!
 - Complicated operations such as
normalization, joins are avoided in
MongoDB
 - Backup, storage mechanism
provided out of the box (MMS)

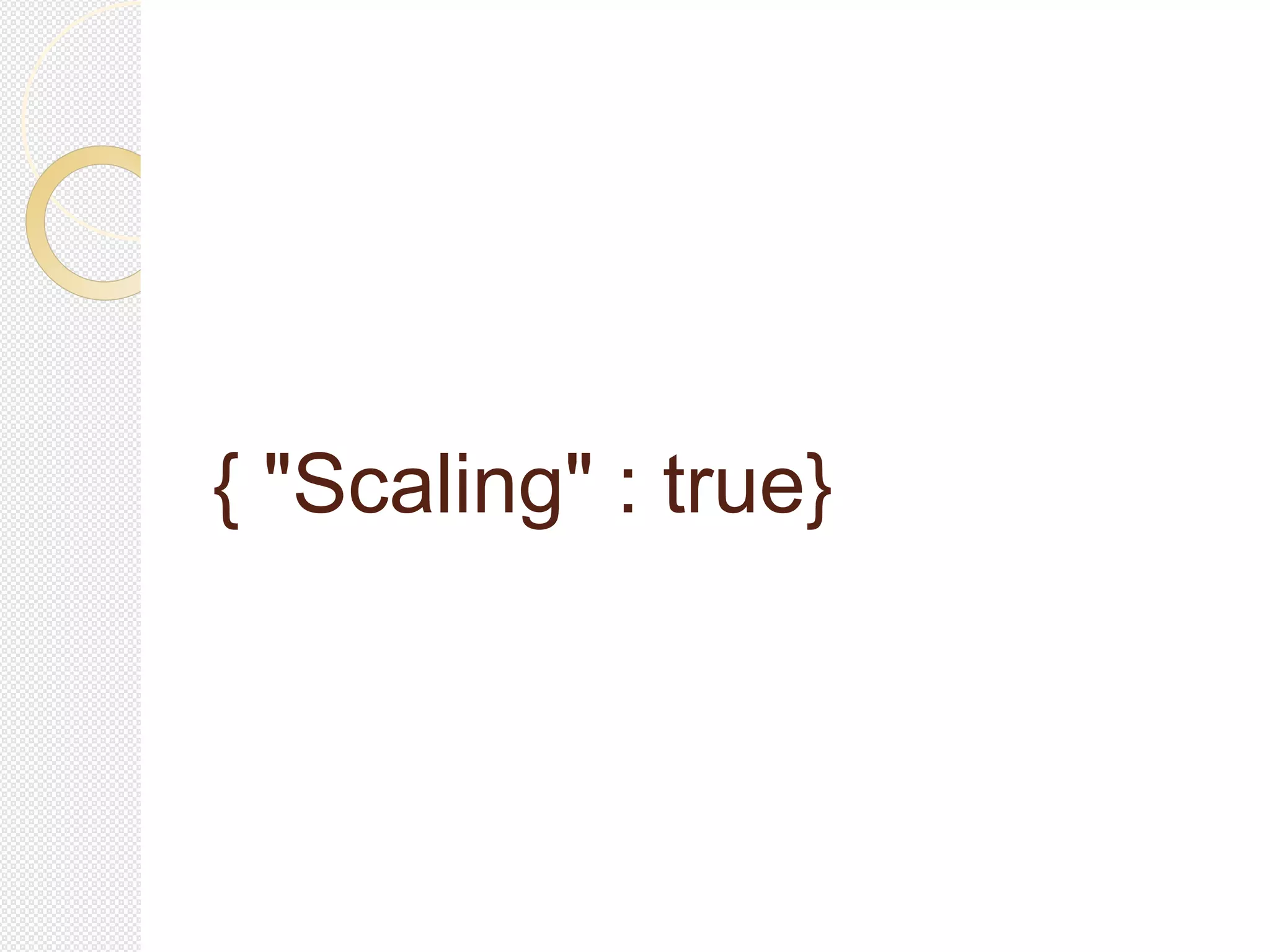

41. { "Scaling" : true}

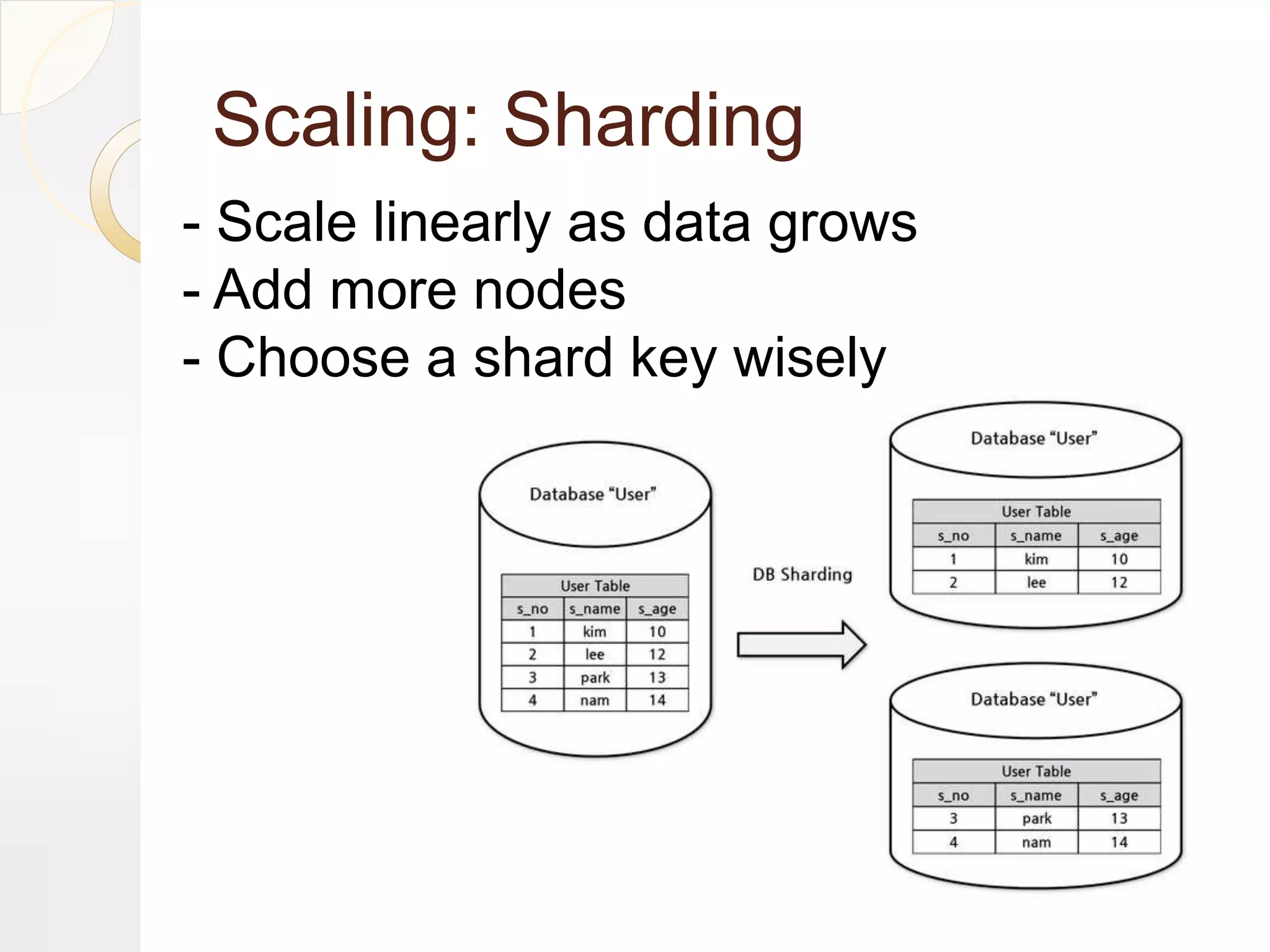

42. Scaling: Sharding
- Scale linearly as data grows
- Add more nodes
- Choose a shard key wisely

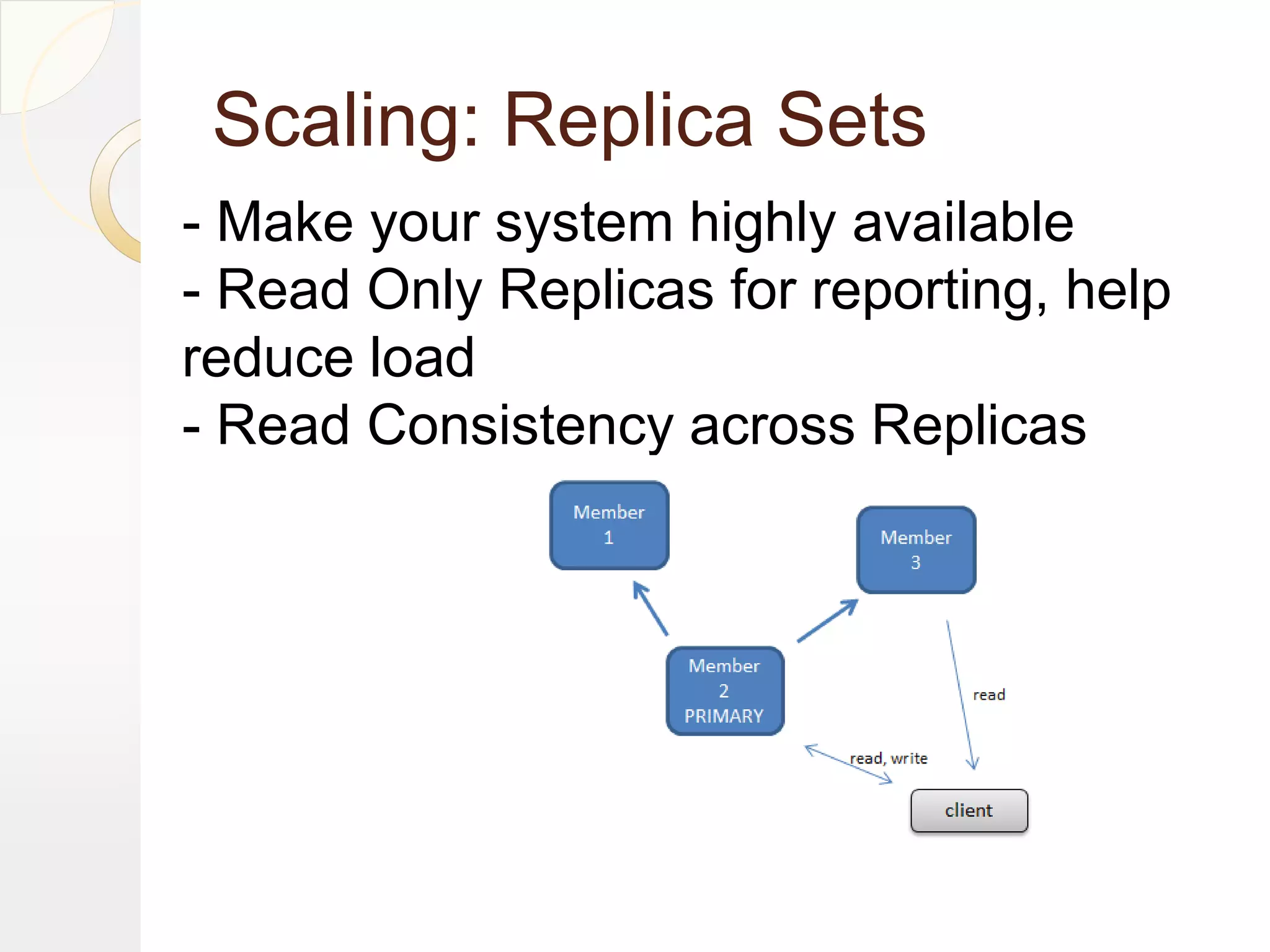

43. Scaling: Replica Sets
- Make your system highly available
- Read Only Replicas for reporting, help
reduce load
- Read Consistency across Replicas

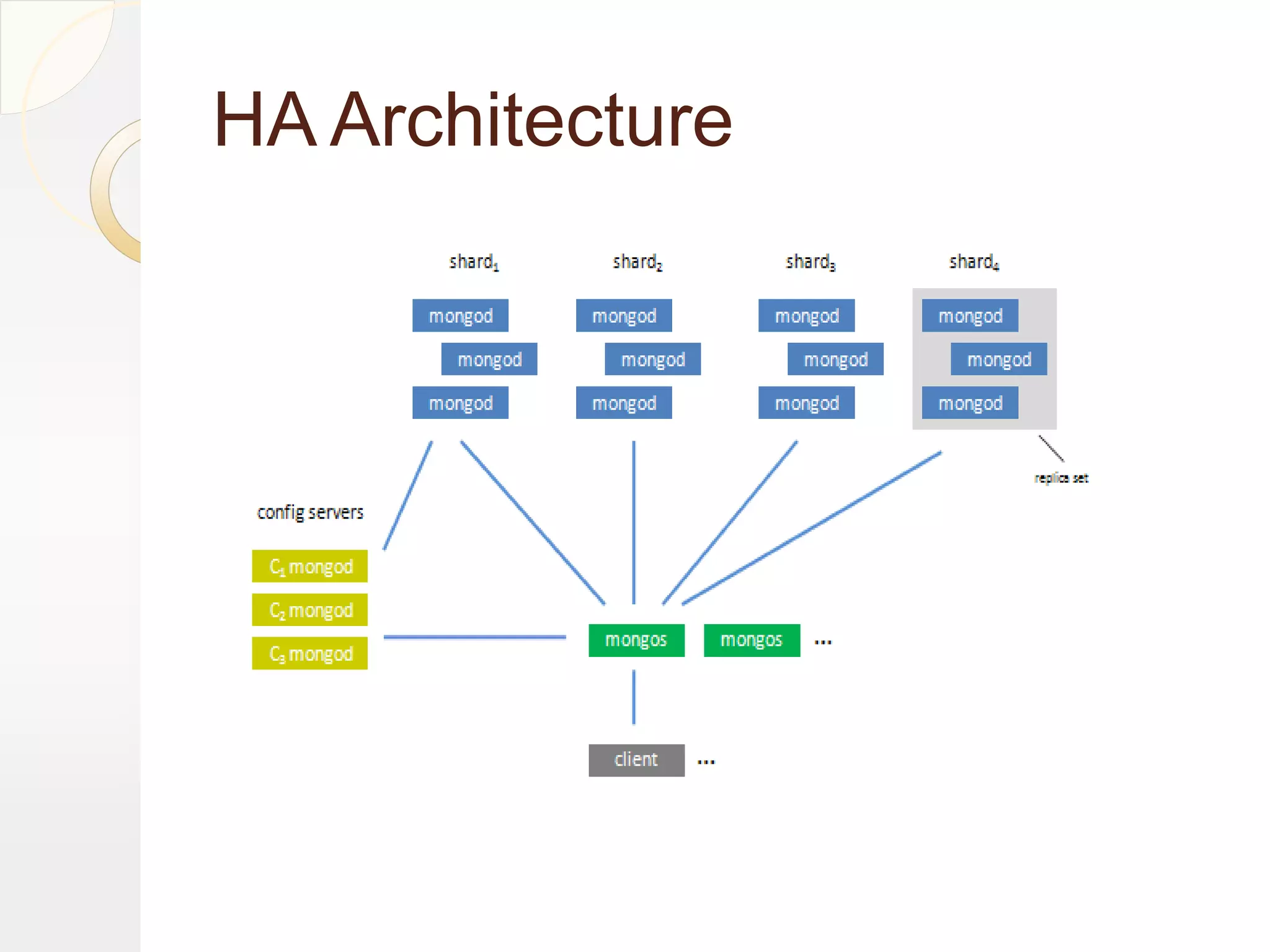

44. HA Architecture

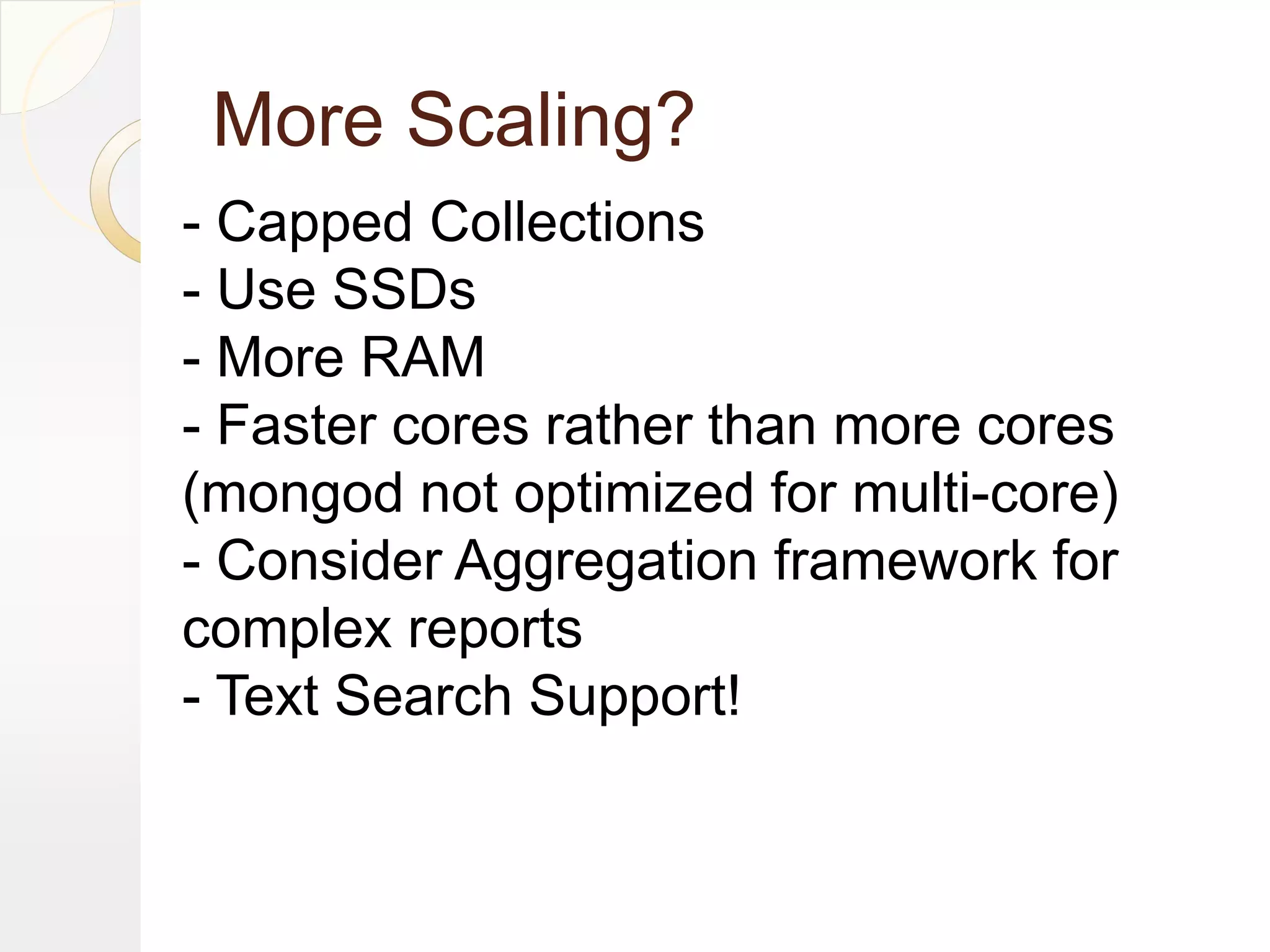

45. More Scaling?
- Capped Collections
- Use SSDs
- More RAM
- Faster cores rather than more cores
(mongod not optimized for multi-core)
- Consider Aggregation framework for
complex reports
- Text Search Support!

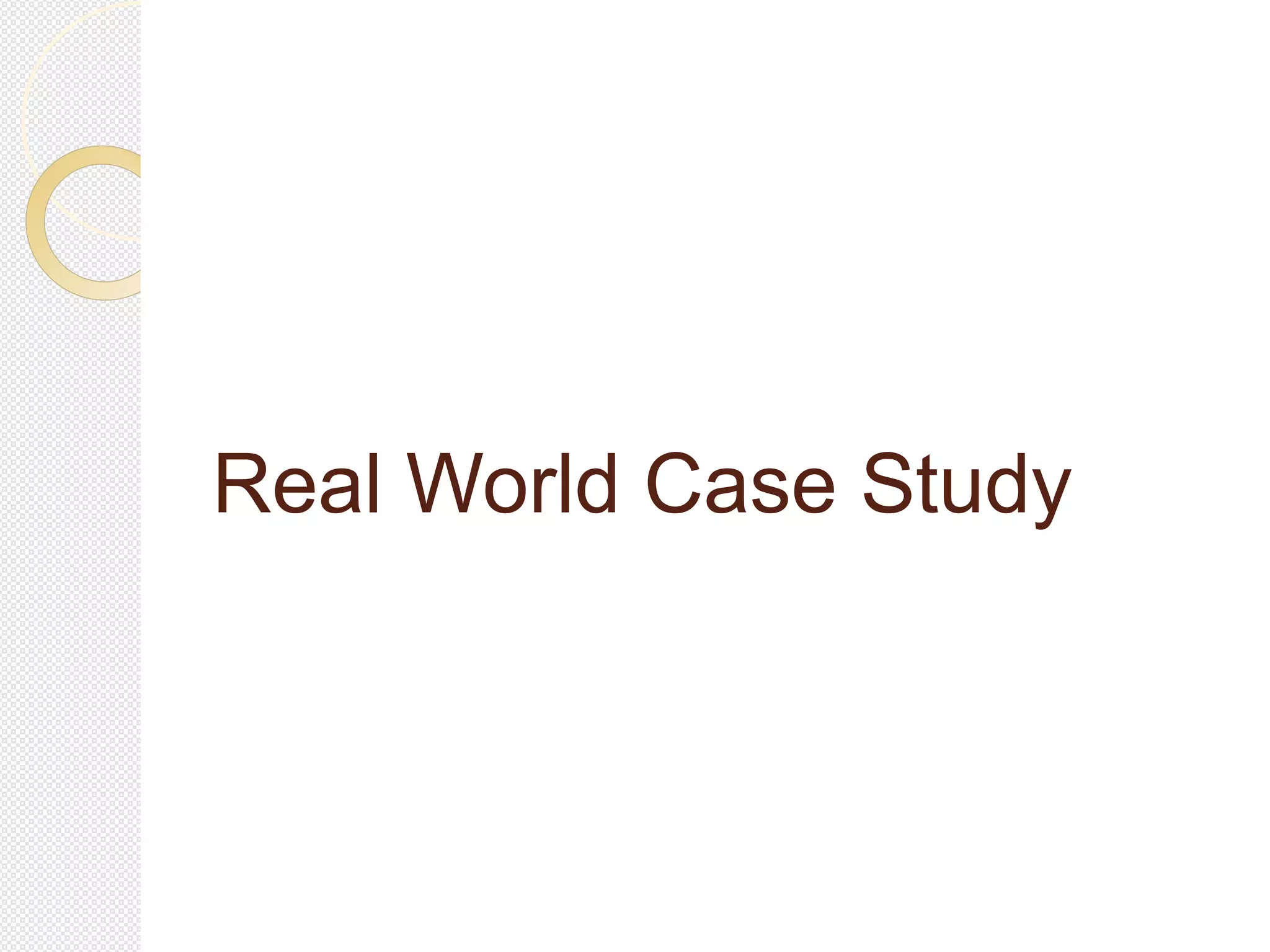

46. Real World Case Study

47. 2/17/2015

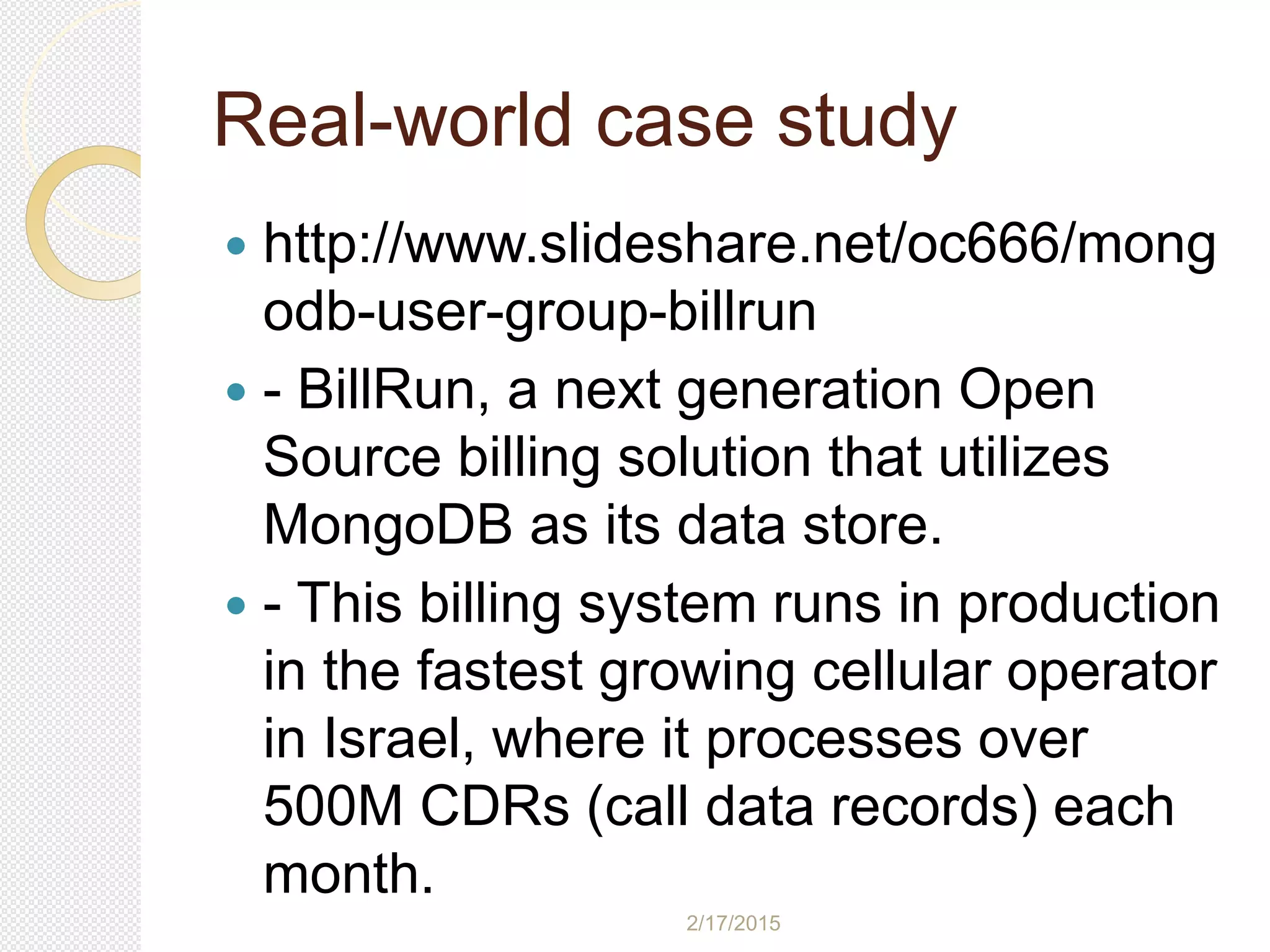

Real-world case study
 http://www.slideshare.net/oc666/mong
odb-user-group-billrun
 - BillRun, a next generation Open
Source billing solution that utilizes
MongoDB as its data store.
 - This billing system runs in production
in the fastest growing cellular operator
in Israel, where it processes over
500M CDRs (call data records) each
month.

48. 2/17/2015
Schema-less design
 - enables rapid introduction of new
CDR types to the system.
 - It lets BillRun keep the data store
generic.

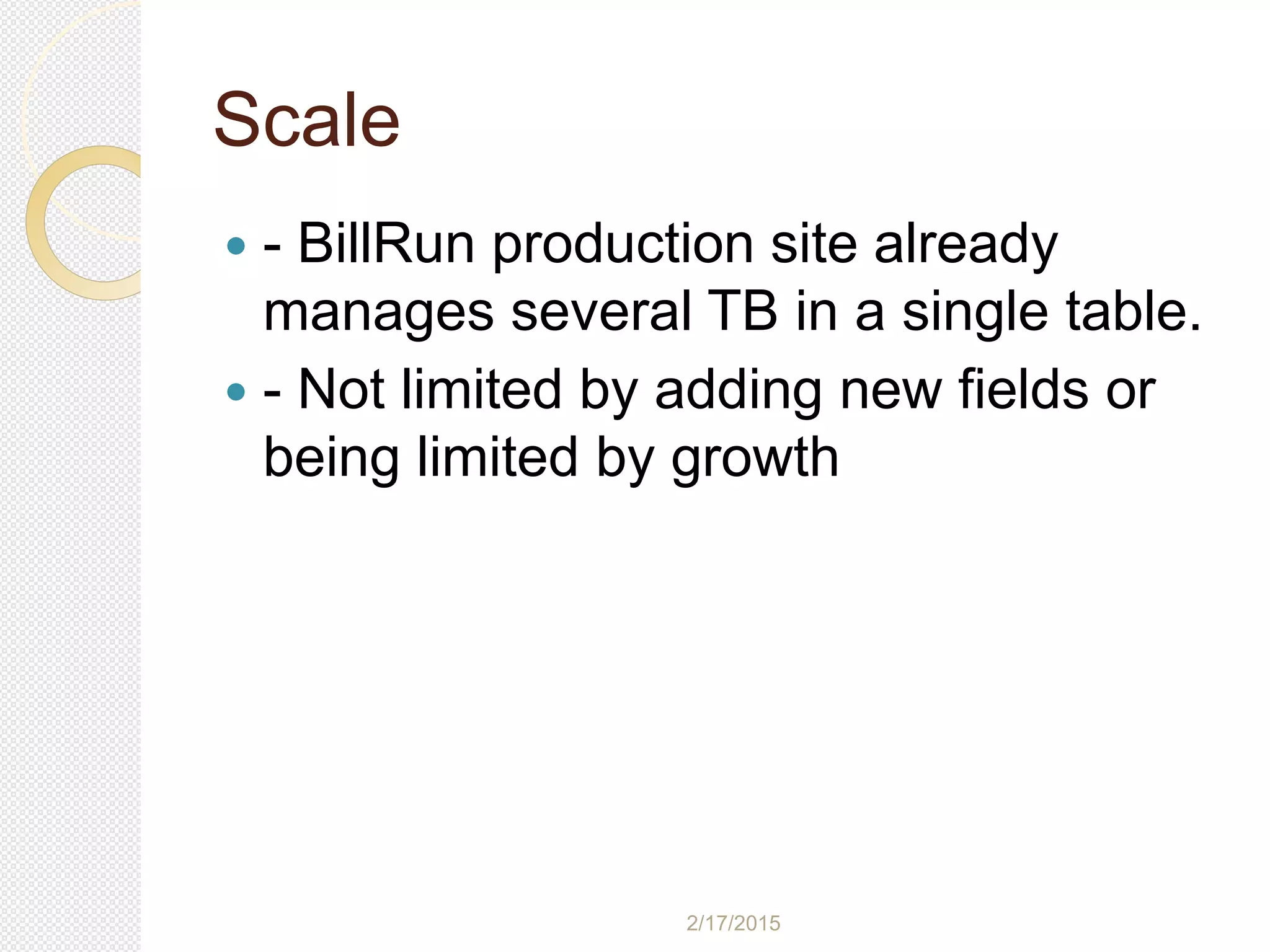

49. 2/17/2015
Scale
 - BillRun production site already
manages several TB in a single table.
 - Not limited by adding new fields or
being limited by growth

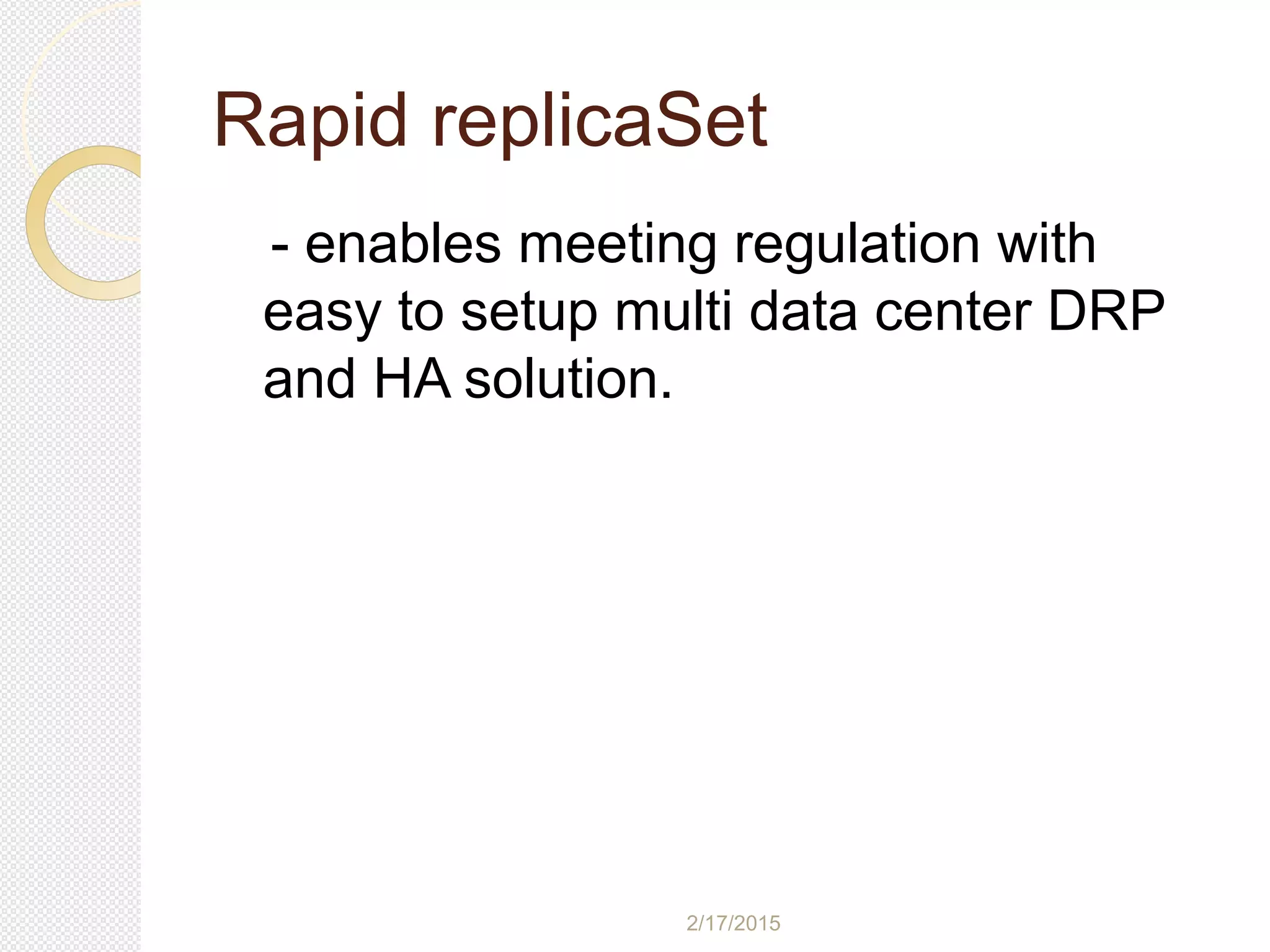

50. 2/17/2015
Rapid replicaSet
- enables meeting regulation with
easy to setup multi data center DRP
and HA solution.

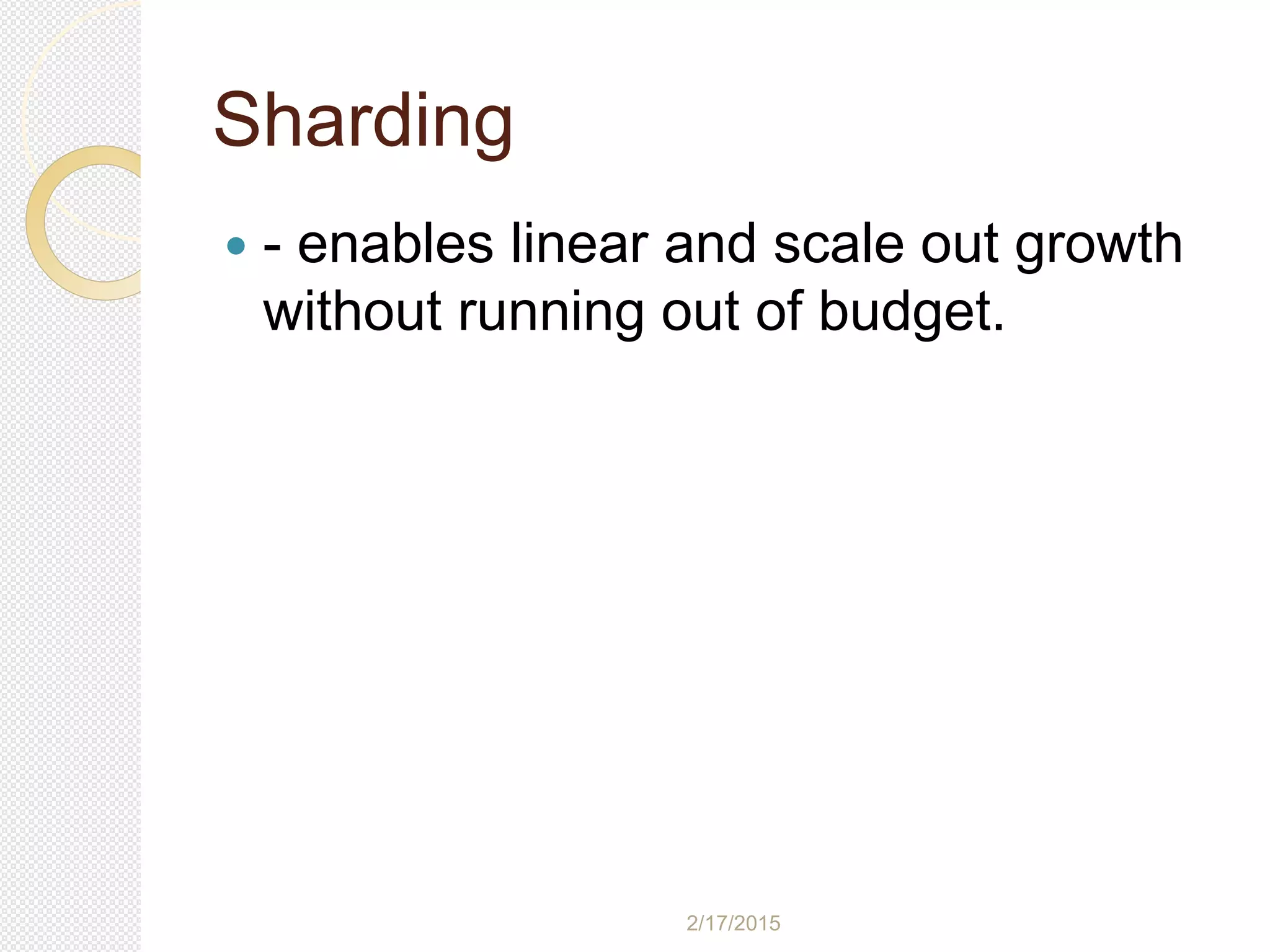

51. 2/17/2015
Sharding
 - enables linear and scale out growth
without running out of budget.

52. 2/17/2015

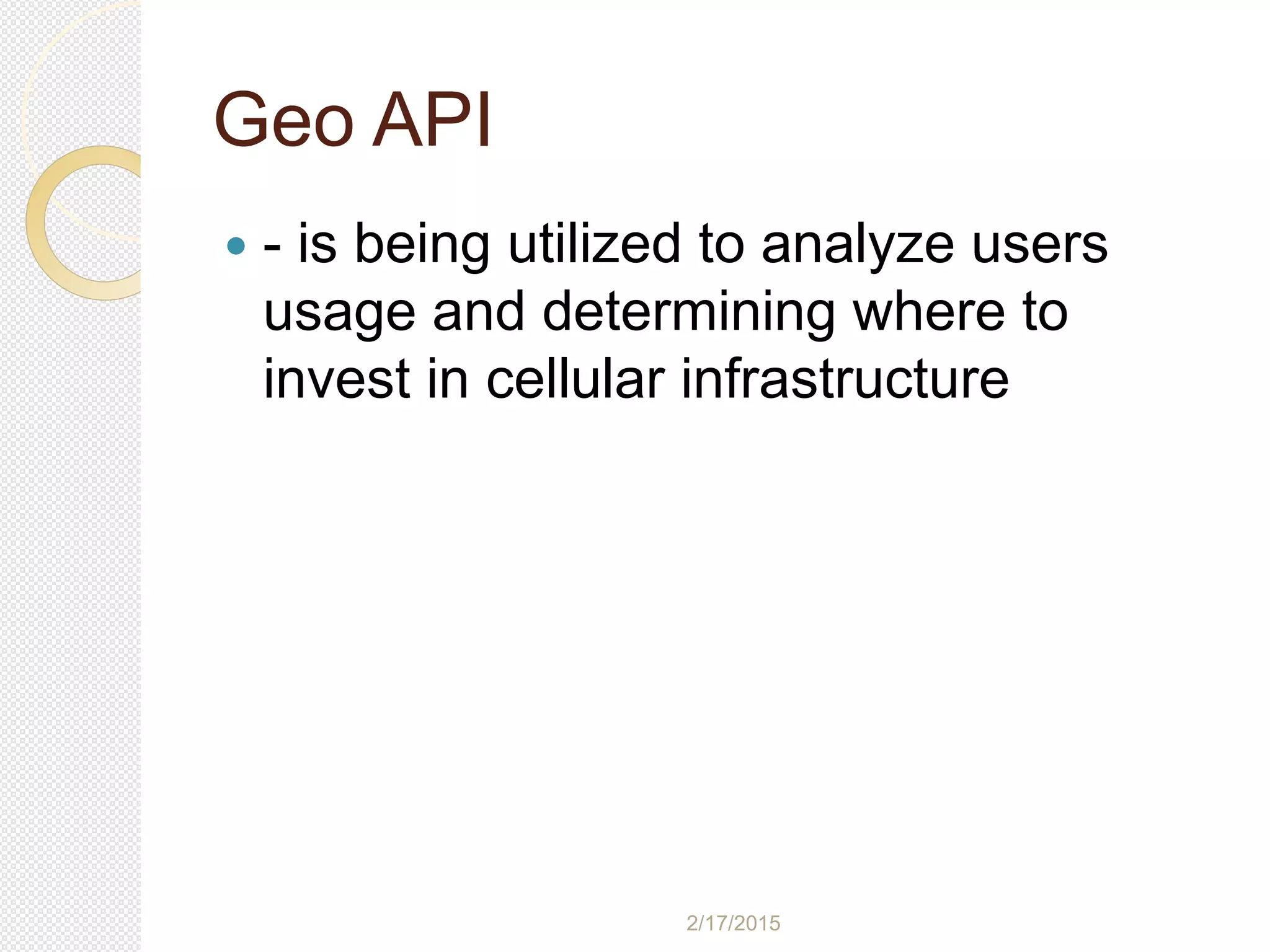

Geo API
 - is being utilized to analyze users
usage and determining where to
invest in cellular infrastructure

53. 2/17/2015

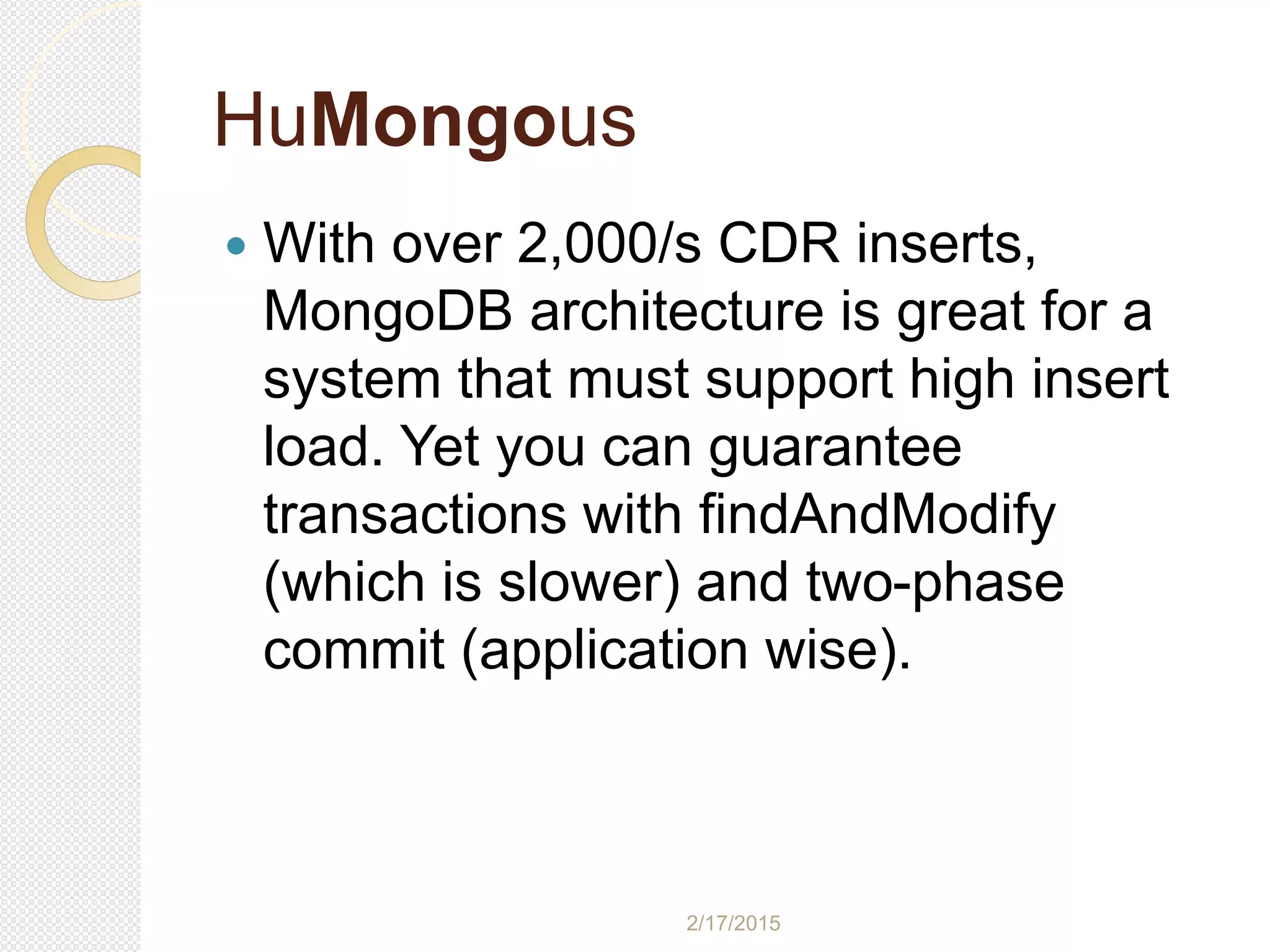

HuMongous
 With over 2,000/s CDR inserts,
MongoDB architecture is great for a
system that must support high insert
load. Yet you can guarantee
transactions with findAndModify
(which is slower) and two-phase
commit (application wise).

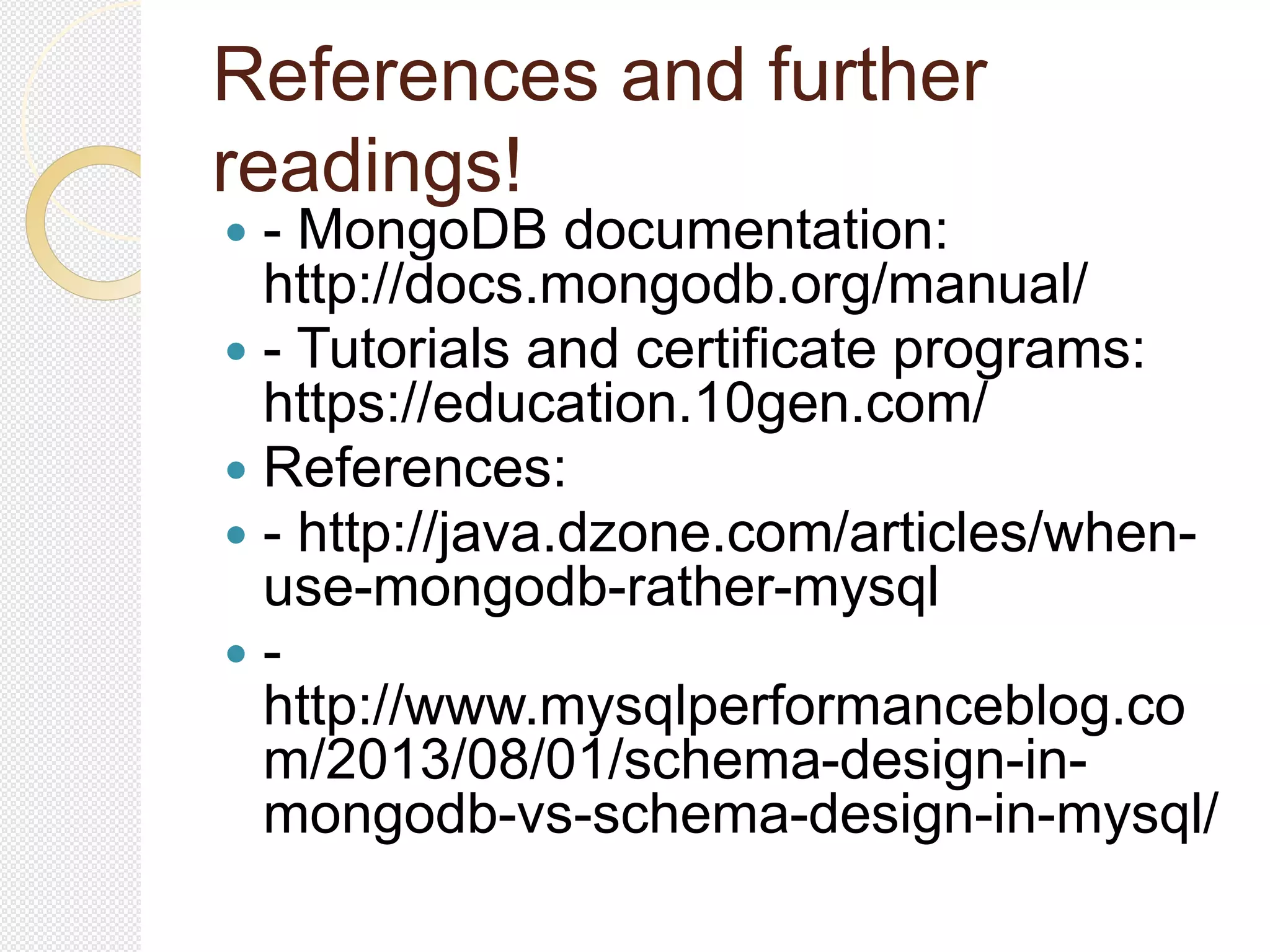

54. References and further
readings!
 - MongoDB documentation:
http://docs.mongodb.org/manual/
 - Tutorials and certificate programs:
https://education.10gen.com/
 References:
 - http://java.dzone.com/articles/when-
use-mongodb-rather-mysql
 -
http://www.mysqlperformanceblog.co
m/2013/08/01/schema-design-in-
mongodb-vs-schema-design-in-mysql/

55. {
Topic:"MongoDB By Example",
Presenter:"Ritesh Gupta",
Info:{
Mail:["ritesh.gupta@techvedika.com"]
Designation:"Sr Architect",
Company:"TechVedika"
Url:"www.techvedika.com"
}
}

56. Thank You!
