Pointers and Array, pointer and String.pptx

UNIT I
POINTERS AND ARRAYS,
POINTERS AND STRINGS
P.ANANTHI, Assistant Professor, Kongu Engineering
College
1

TOPICS: POINTER
• Pointers : Introduction
• Pointer to pointer
• Null pointer, Generic Pointer and Dangling pointer
• Passing an array to a function
• Returning an array from function
• Array of pointers
• Pointers and 1D array
• Pointers and 2D array
• Using pointers for string manipulation

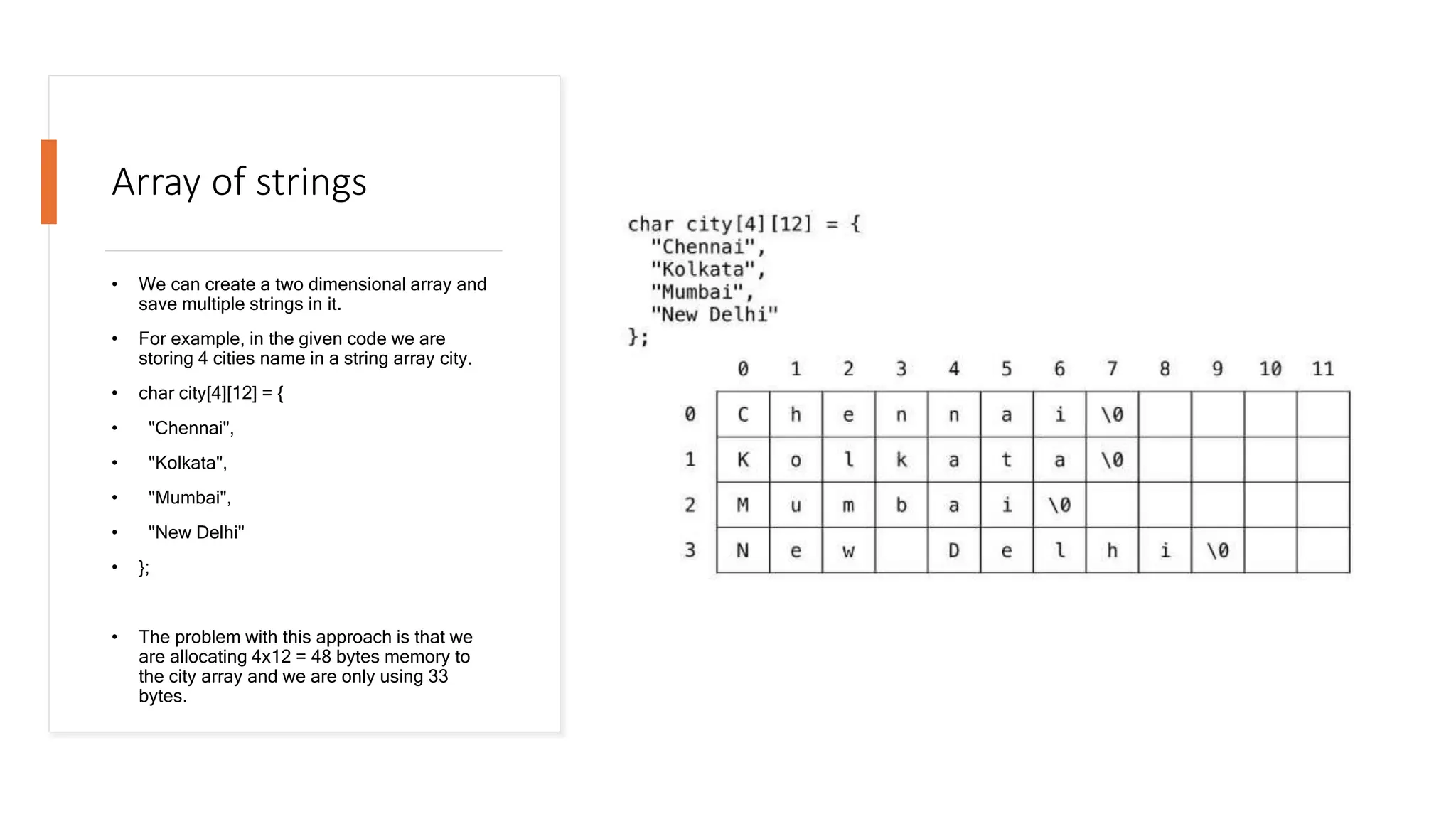

• Two-dimensional Array of strings
• Array of pointers to string
P.ANANTHI, Assistant Professor, Kongu Engineering College 2

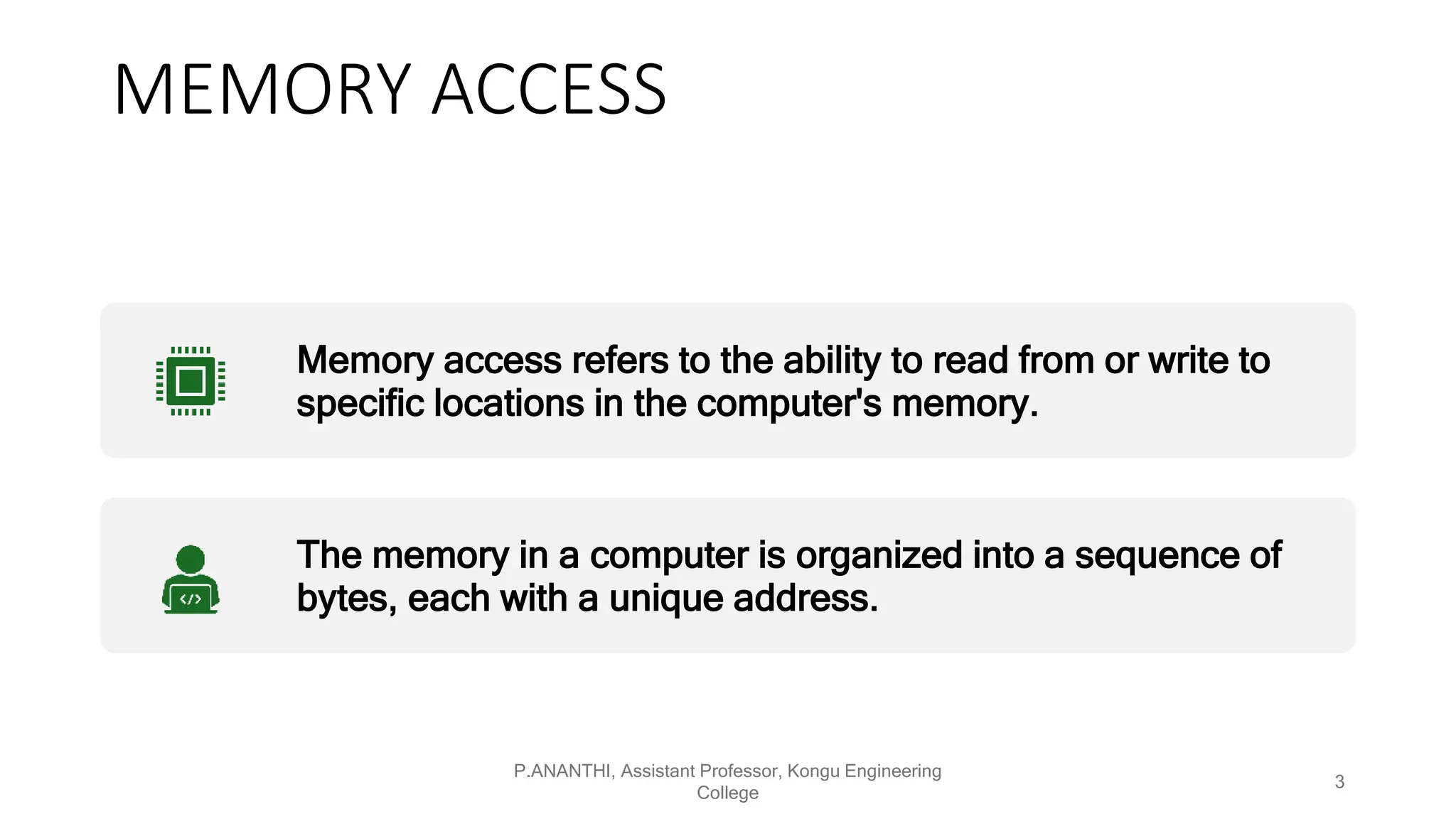

MEMORY ACCESS
College
3

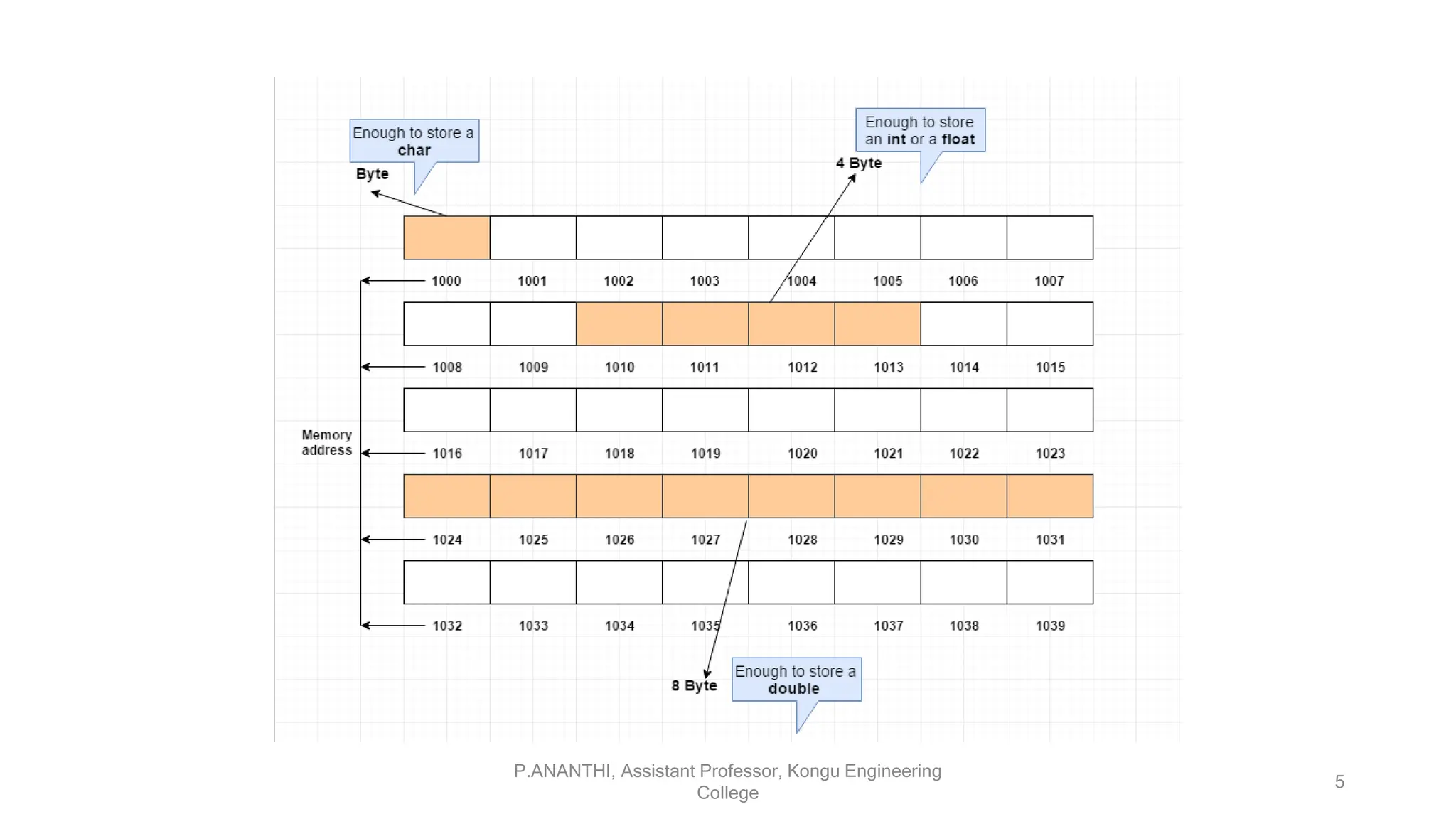

Memory access refers to the ability to read from or write to
specific locations in the computer's memory.
The memory in a computer is organized into a sequence of
bytes, each with a unique address.

MEMORY ACCESS
• Every variable is a memory location and every memory location has
its address defined which can be accessed through ampersand (&)
operator, which denotes an address in memory
P.ANANTHI, Assistant Professor, Kongu Engineering College 4

College
5

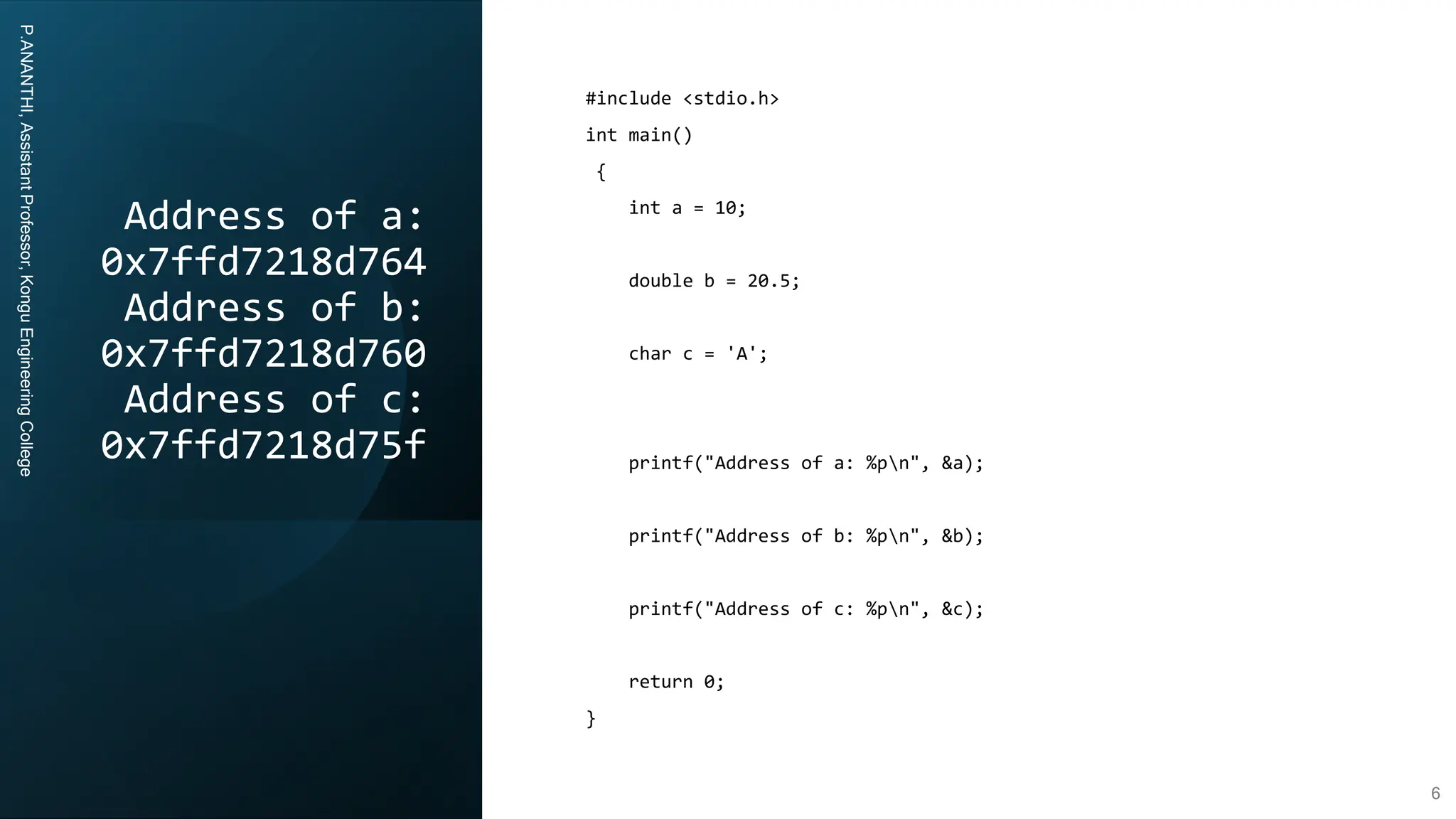

Address of a:
0x7ffd7218d764
Address of b:
0x7ffd7218d760
Address of c:
0x7ffd7218d75f
P.ANANTHI,
Assistant
Professor,
Kongu
Engineering
College
#include <stdio.h>
int main()
{
int a = 10;
double b = 20.5;
char c = 'A';
printf("Address of a: %pn", &a);
printf("Address of b: %pn", &b);
printf("Address of c: %pn", &c);
return 0;
}
6

Variables
• Variables in C are named storage locations that hold values of a
specific data type.
• When you declare a variable, the compiler allocates memory to
store its value, and you can access that memory using the
variable's name.
int age = 25;
// Declaring an integer variable 'age' and assigning it a value
7
College

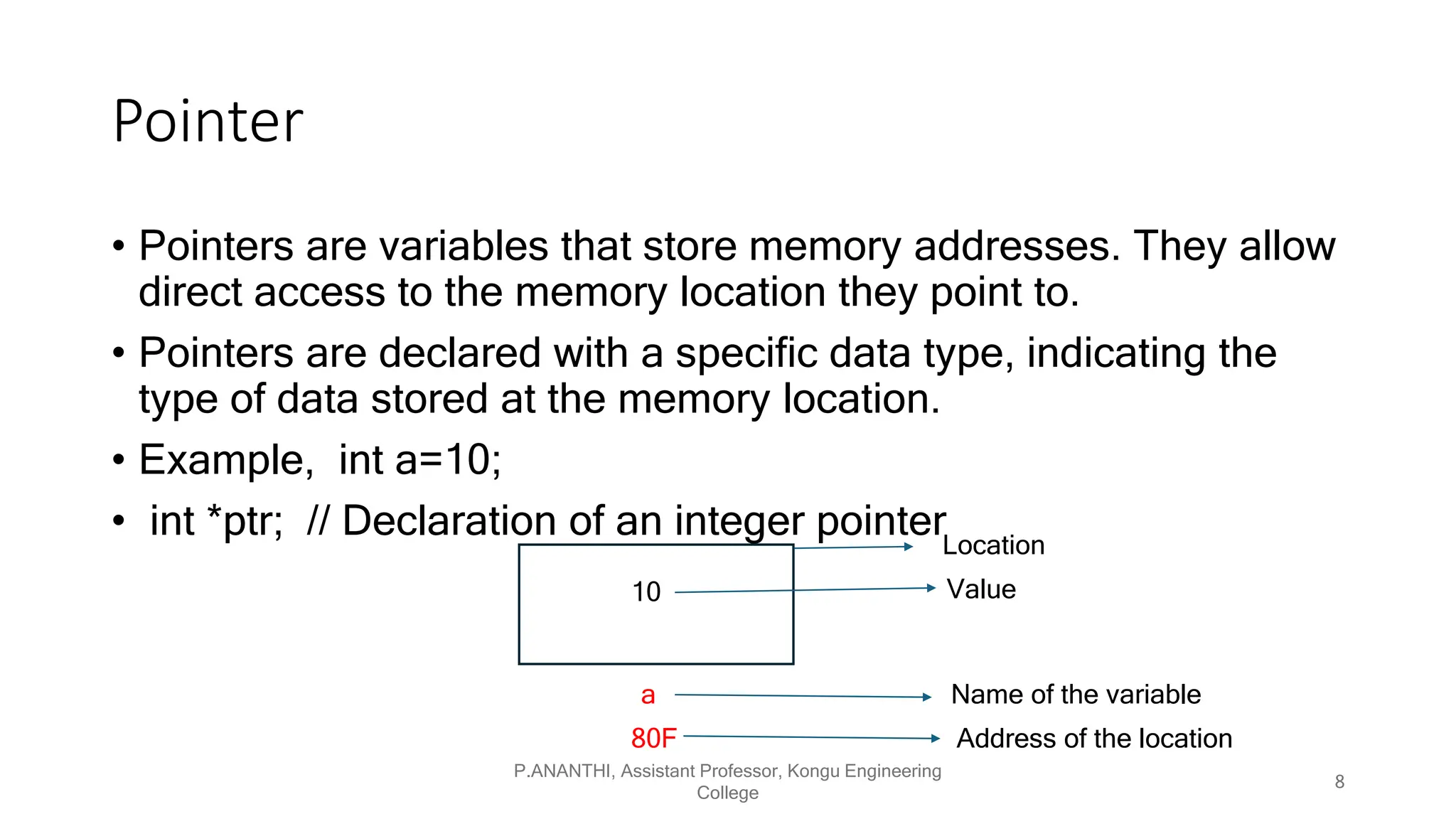

Pointer
• Pointers are variables that store memory addresses. They allow
direct access to the memory location they point to.
• Pointers are declared with a specific data type, indicating the
type of data stored at the memory location.
• Example, int a=10;
• int *ptr; // Declaration of an integer pointer
10
10
a
Location
Value
Name of the variable
80F Address of the location
8
College

Pointer
• Value 10 can be accessed by using the variable name or the
address 80F
• Memory address are simply numbers can be assigned to some
other variable.
• The variable that holds the memory address is called pointer
variable
10
10
a
80F
10
80F
ptr
82C
Pointer name
Address of the
pointer
Address
of a
9
College

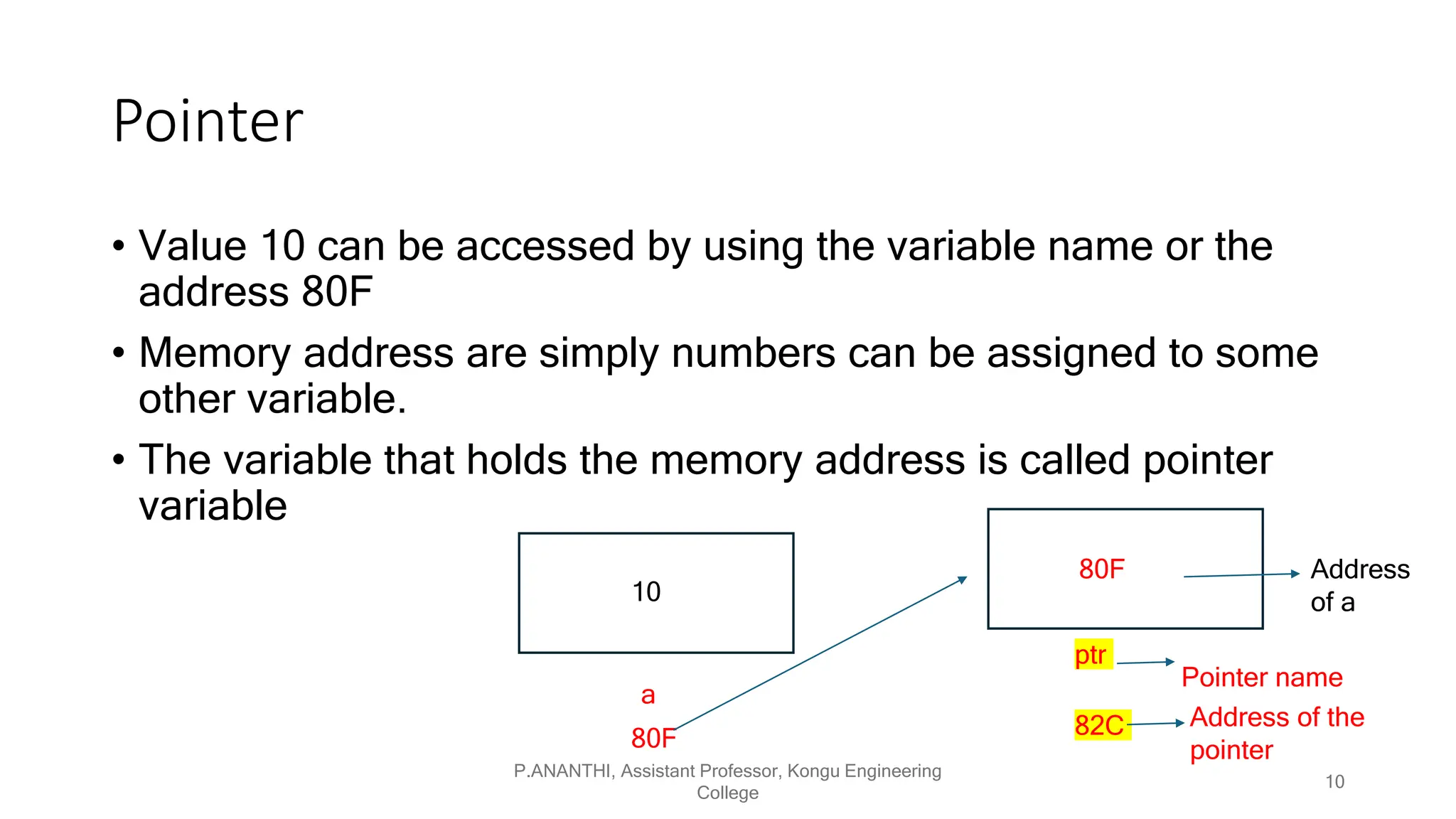

Pointer
• Value 10 can be accessed by using the variable name or the
address 80F
• Memory address are simply numbers can be assigned to some
other variable.
• The variable that holds the memory address is called pointer
variable
10
10
a
80F
10
80F
ptr
82C
Pointer name
Address of the
pointer
Address
of a
10
College

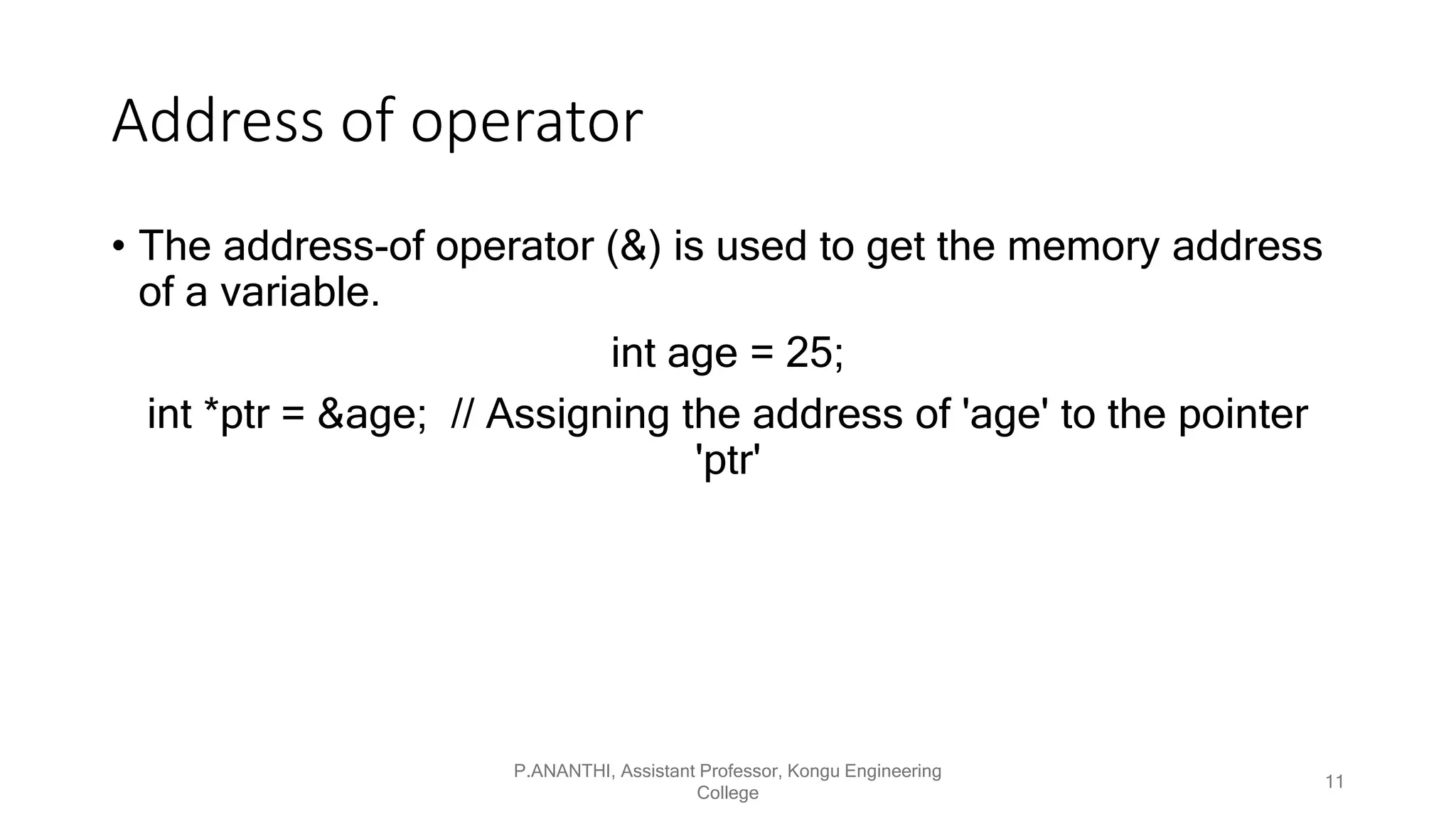

Address of operator
• The address-of operator (&) is used to get the memory address
of a variable.
int age = 25;
int *ptr = &age; // Assigning the address of 'age' to the pointer
'ptr'
11
College

Dereferencing operator
• The dereference operator (*) is used to access the value stored
at a memory address pointed to by a pointer.
int age = 25;
int *ptr = &age;
printf("Value at the memory address pointed by ptr: %dn", *ptr);
12
College

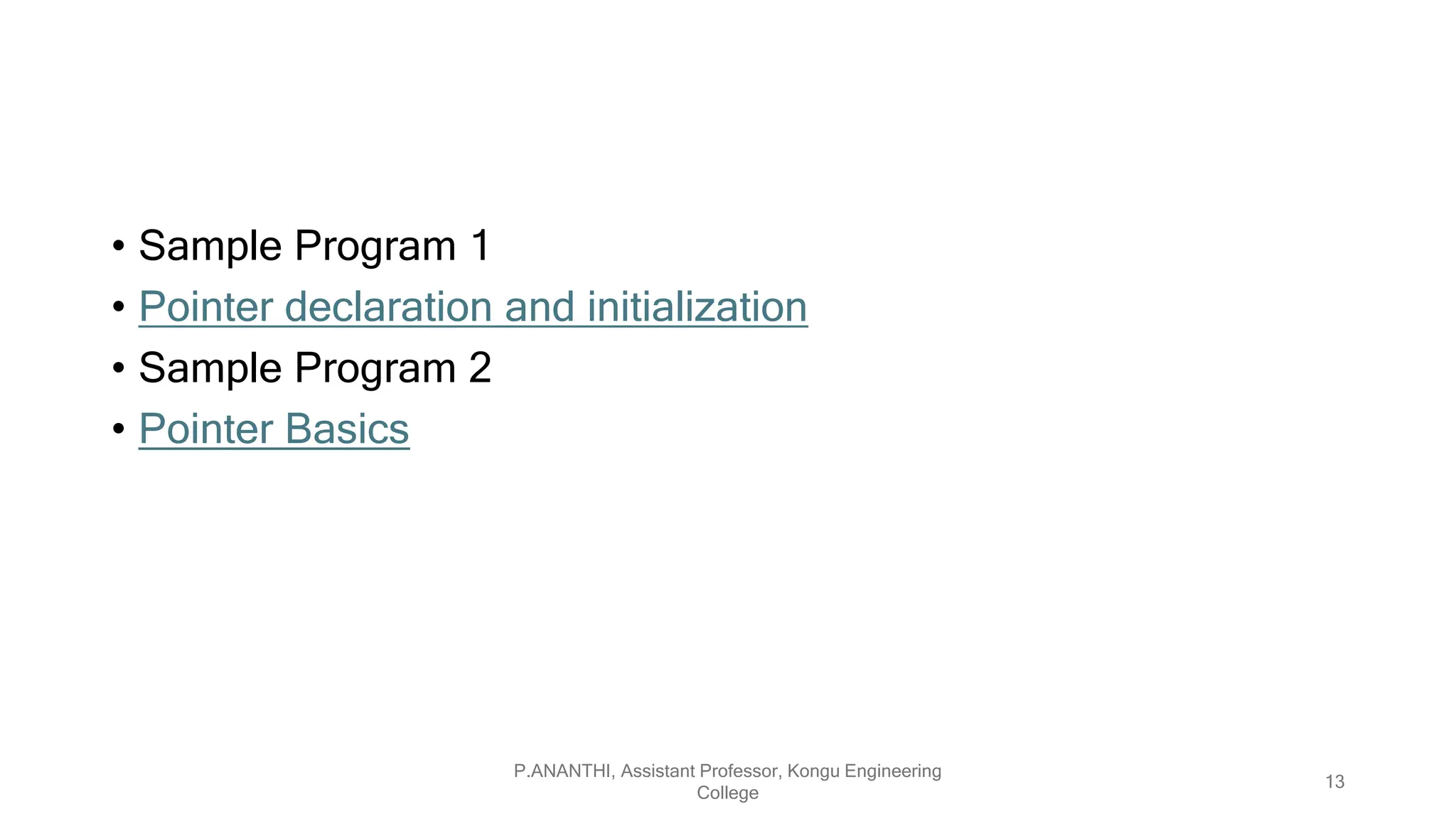

• Sample Program 1
• Pointer declaration and initialization
• Sample Program 2
• Pointer Basics
13
College

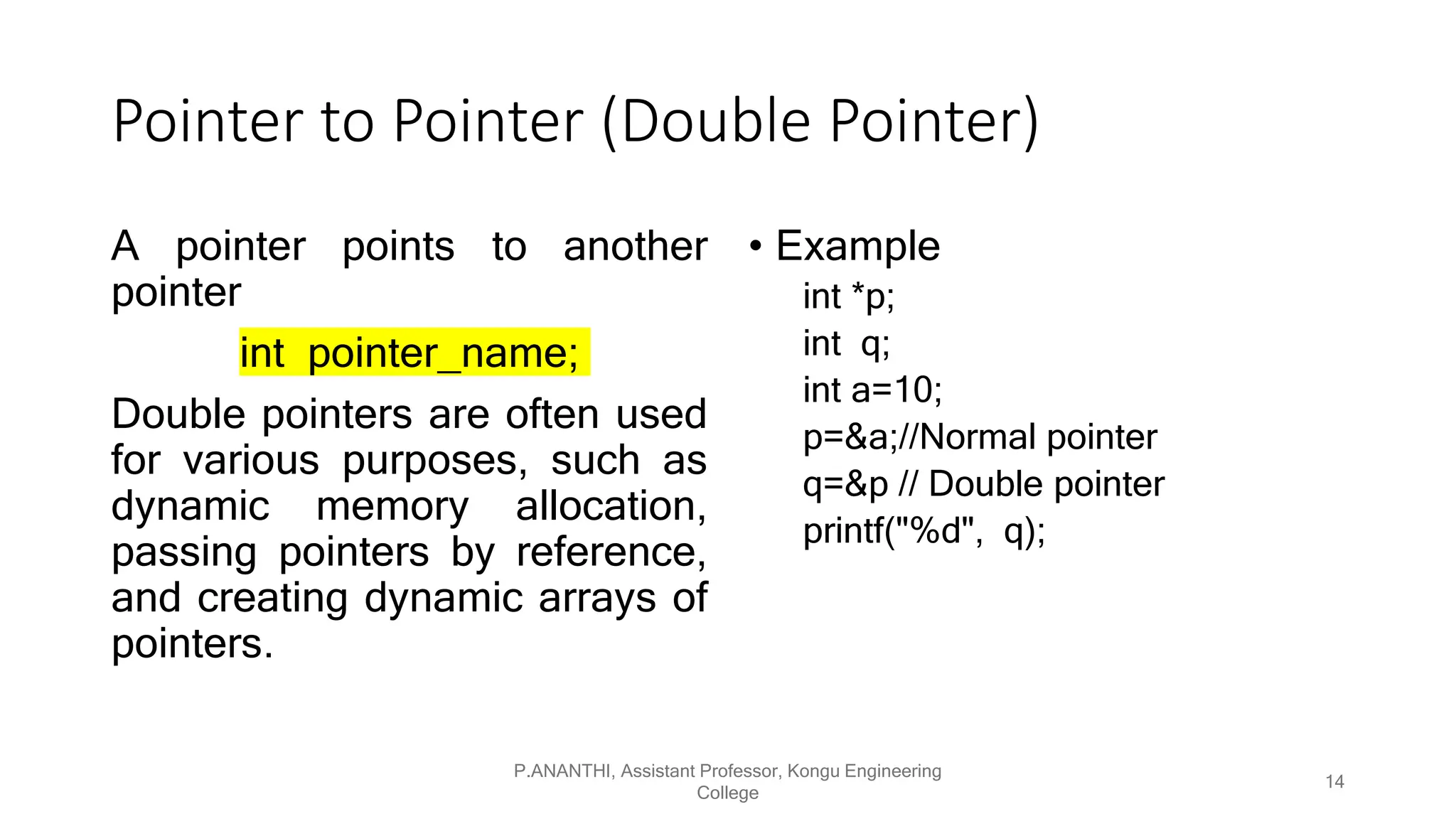

Pointer to Pointer (Double Pointer)
A pointer points to another
pointer
int pointer_name;
Double pointers are often used
for various purposes, such as
dynamic memory allocation,
passing pointers by reference,
and creating dynamic arrays of
pointers.
• Example
int *p;
int q;
int a=10;
p=&a;//Normal pointer
q=&p // Double pointer
printf("%d", q);
College
14

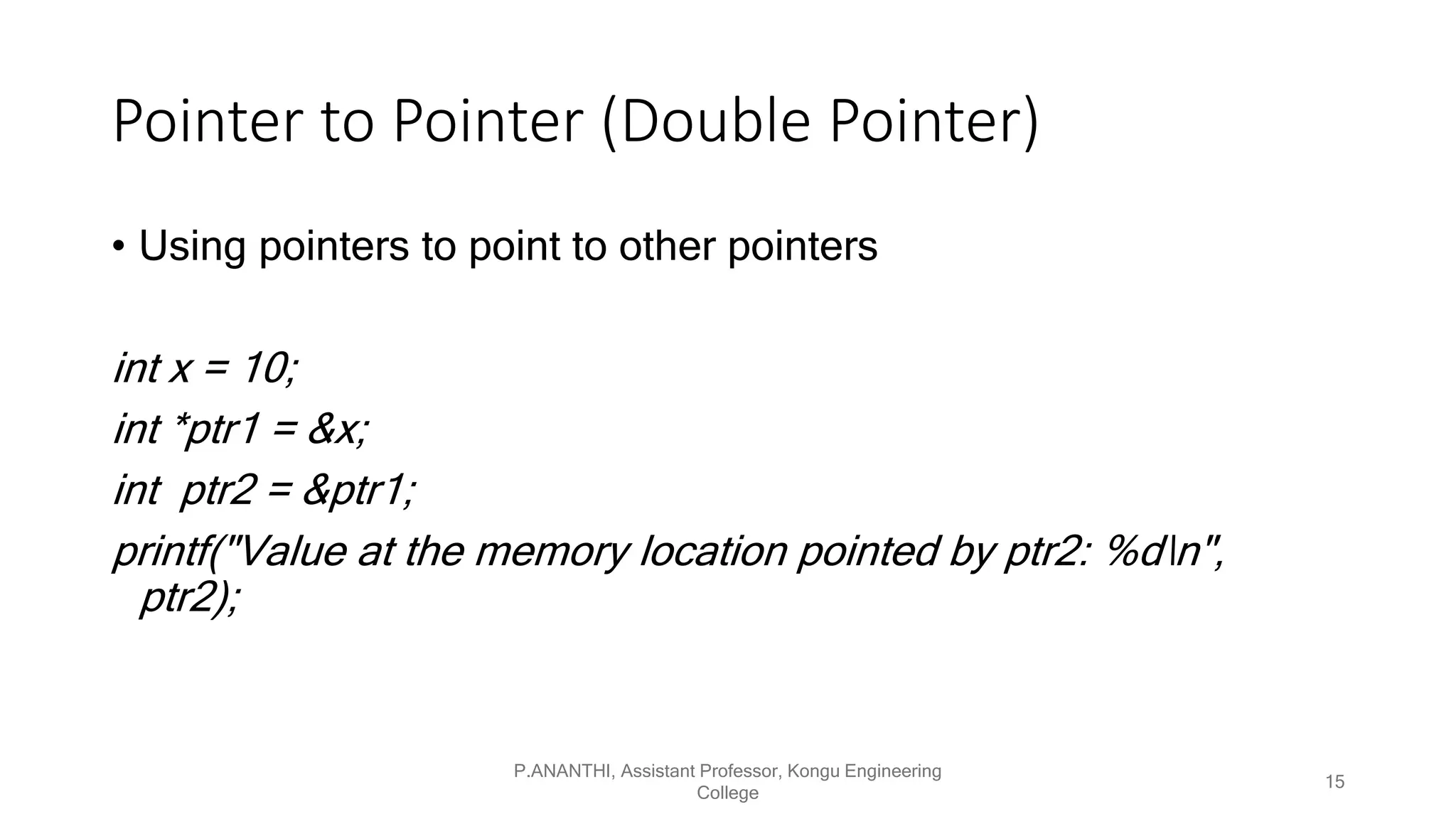

Pointer to Pointer (Double Pointer)
• Using pointers to point to other pointers
int x = 10;
int *ptr1 = &x;
int ptr2 = &ptr1;
printf("Value at the memory location pointed by ptr2: %dn",
ptr2);
15
College

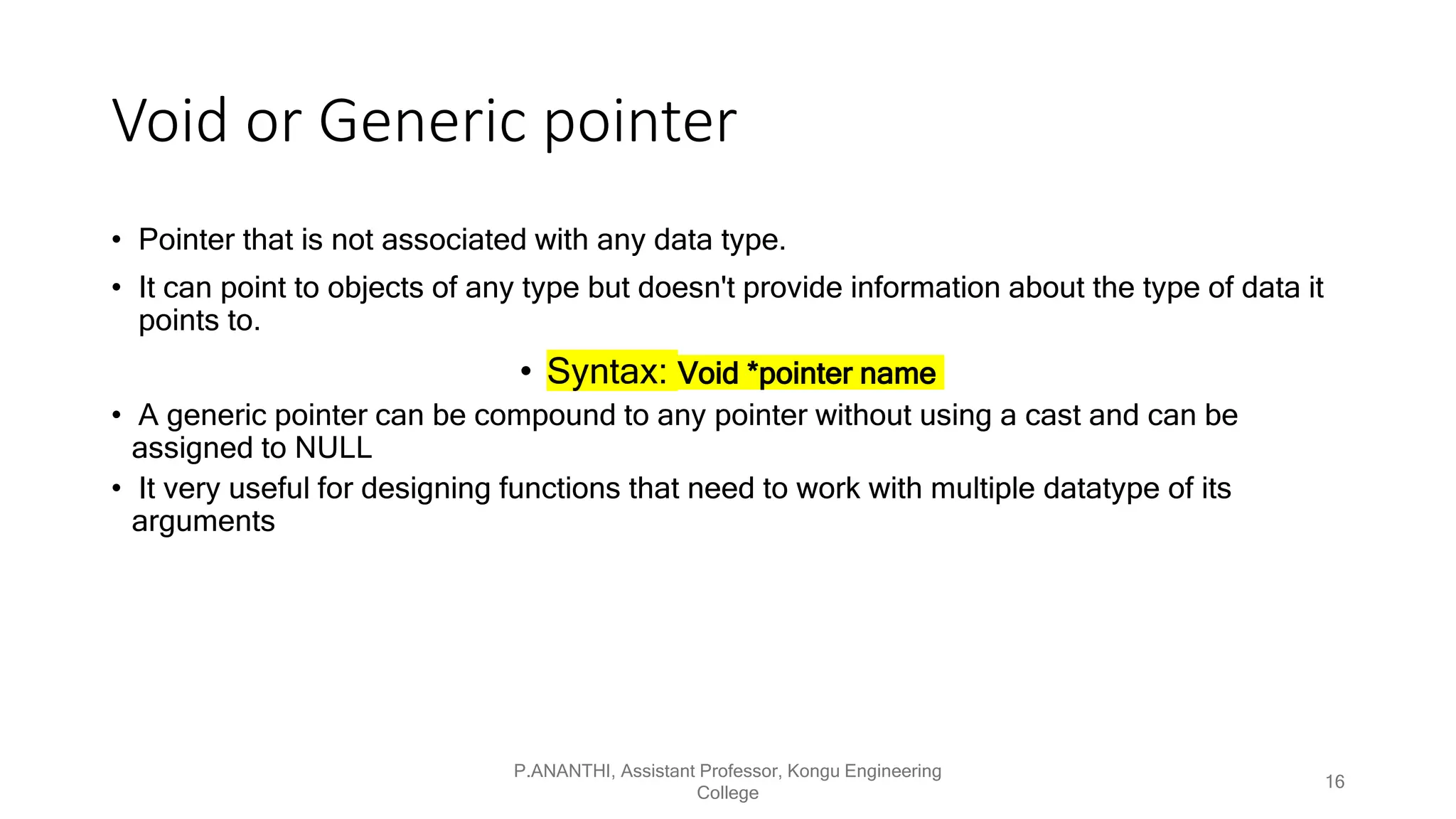

Void or Generic pointer
• Pointer that is not associated with any data type.
• It can point to objects of any type but doesn't provide information about the type of data it
points to.
• Syntax: Void *pointer name
• A generic pointer can be compound to any pointer without using a cast and can be
assigned to NULL
• It very useful for designing functions that need to work with multiple datatype of its
arguments
16
College

Void or Generic pointer
• int x=10;
• void *ptr=&x;
• printf("%d", *(int *)ptr));
• *(int *) ptr=100;
• Void pointer sample Program
17
College

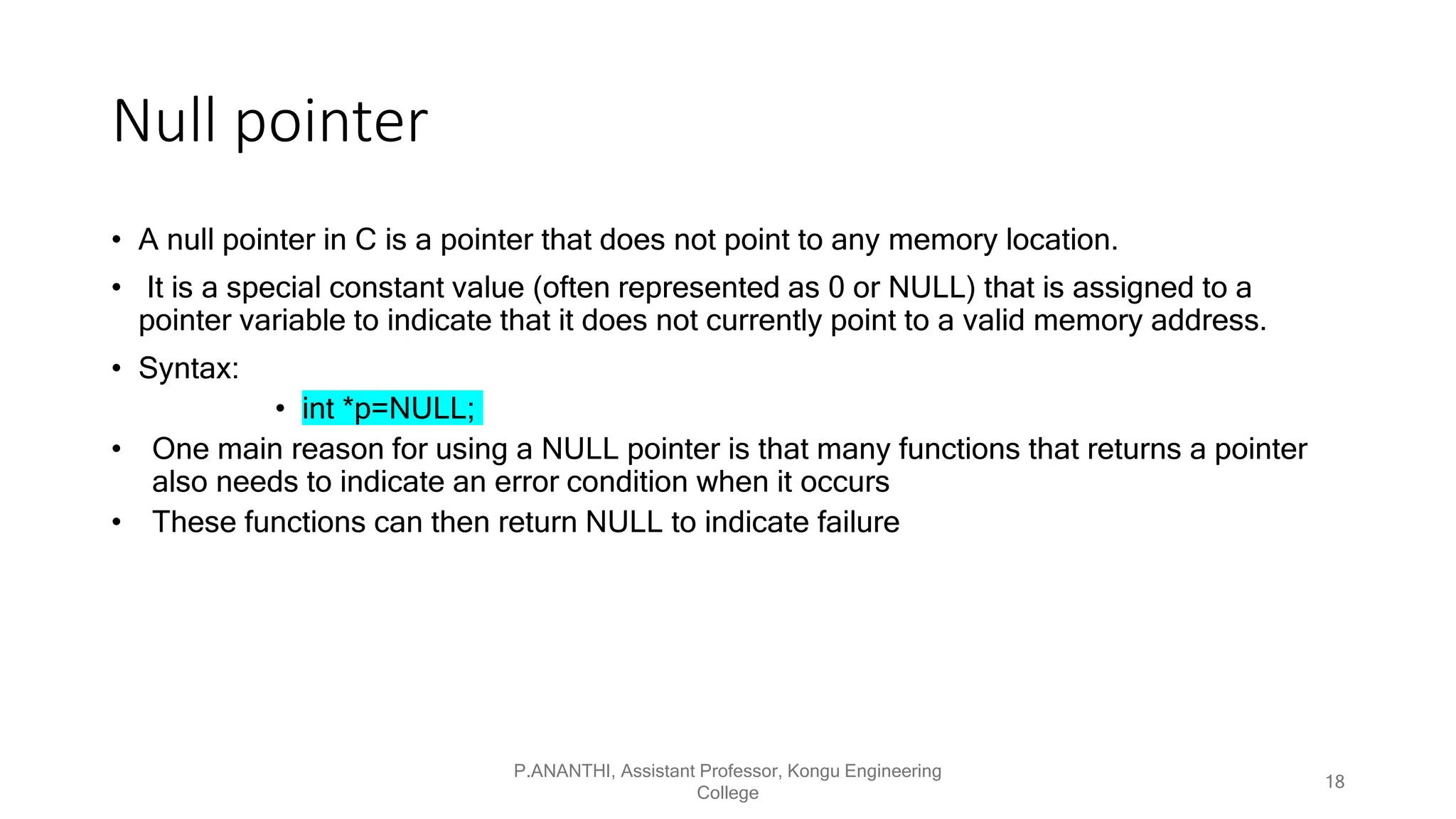

Null pointer
• A null pointer in C is a pointer that does not point to any memory location.
• It is a special constant value (often represented as 0 or NULL) that is assigned to a
pointer variable to indicate that it does not currently point to a valid memory address.
• Syntax:
• int *p=NULL;
• One main reason for using a NULL pointer is that many functions that returns a pointer
also needs to indicate an error condition when it occurs
• These functions can then return NULL to indicate failure
18
College

Null pointer
• A null pointer in C is a pointer that does not point to any memory
location.
• It is a special constant value (often represented as 0 or NULL)
that is assigned to a pointer variable to indicate that it does not
currently point to a valid memory address.
• Null pointer sample program
• Syntax:
• Int *p=NULL;
19
College

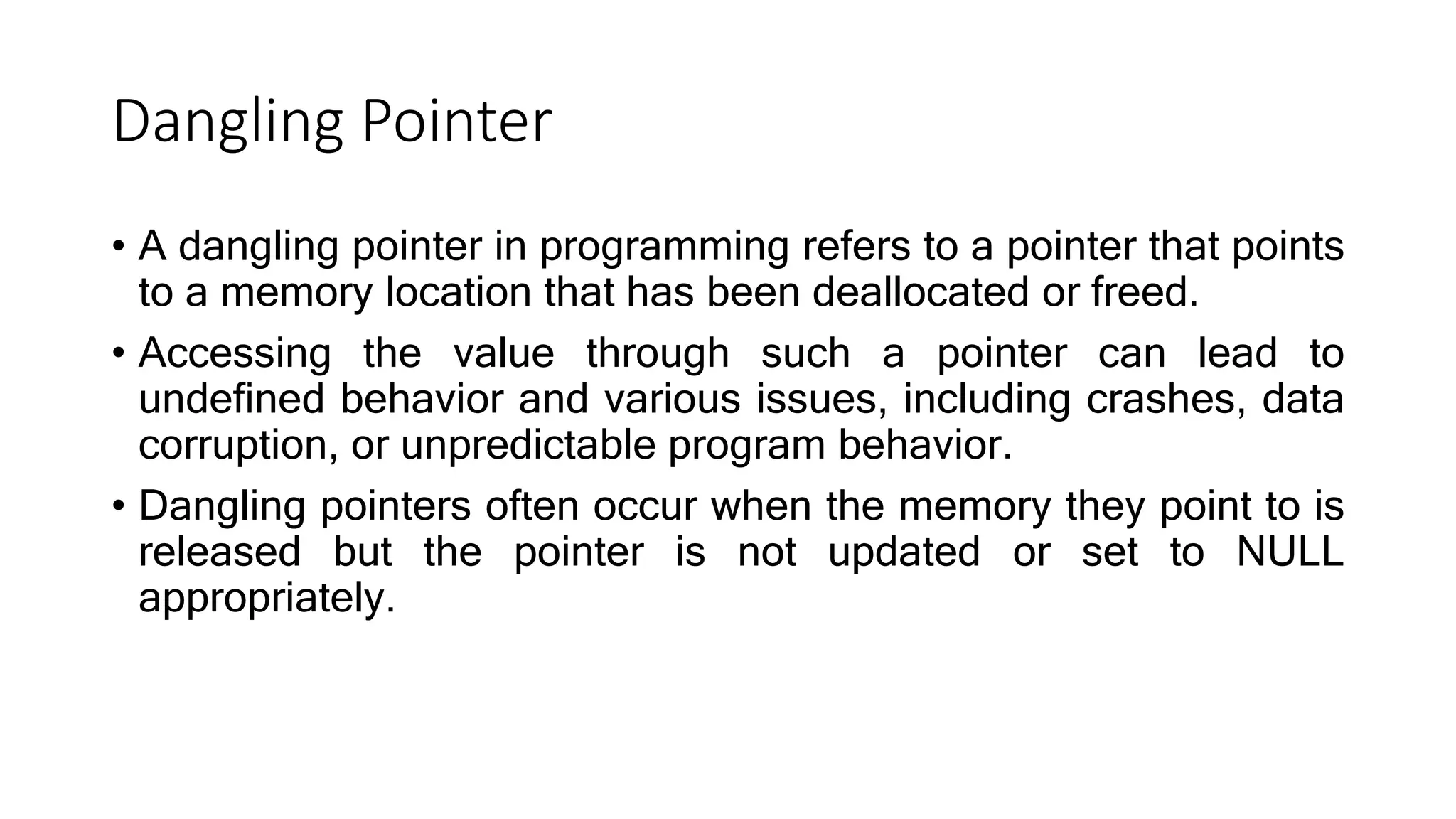

Dangling Pointer
• A dangling pointer in programming refers to a pointer that points
to a memory location that has been deallocated or freed.
• Accessing the value through such a pointer can lead to
undefined behavior and various issues, including crashes, data
corruption, or unpredictable program behavior.
• Dangling pointers often occur when the memory they point to is
released but the pointer is not updated or set to NULL
appropriately.

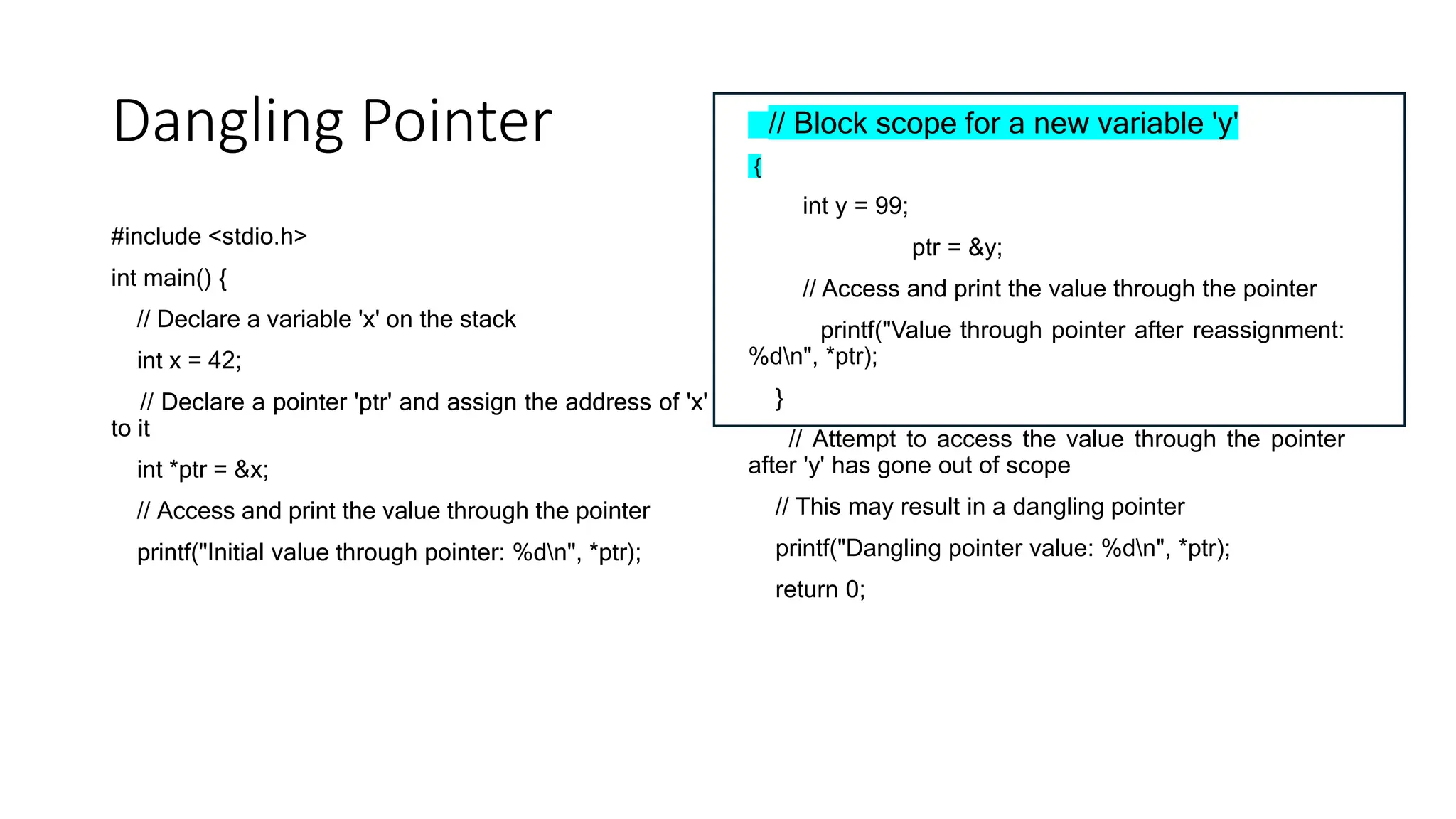

Dangling Pointer
#include <stdio.h>
int main() {
// Declare a variable 'x' on the stack
int x = 42;
// Declare a pointer 'ptr' and assign the address of 'x'
to it
int *ptr = &x;
// Access and print the value through the pointer
printf("Initial value through pointer: %dn", *ptr);
// Block scope for a new variable 'y'
{
int y = 99;
ptr = &y;
// Access and print the value through the pointer
printf("Value through pointer after reassignment:
%dn", *ptr);
}
// Attempt to access the value through the pointer
after 'y' has gone out of scope
// This may result in a dangling pointer
printf("Dangling pointer value: %dn", *ptr);
return 0;

Keep in mind
• The datatype of a pointer is different from the type of the variable it
points to
• The size of a pointer is generally fixed and does not depend on the
size of the object it points to
• A pointer can be assigned to 0
• An uninitialized or null pointer must not be dereferenced
• Adding 1 to a pointer variable doesn't necessarily add 1 to the value
stored by the pointer
• A pointer can snap its current link and points to another variable
22
College

Pointers and function
• Recalling Function!!!!
• A function is a statement that
represents a named body of program
code
• When it is invoked the code
associated with the function is
executed
• A function can accept one or more
values as arguments
• It reports the outcome of its action by
returning a value to the caller
#include <stdio.h>
// Function declaration
int addNumbers(int a, int b);
// Main function
int main() {
// Call the addNumbers function and store the result in a variable
int result = addNumbers(5, 7);
printf("Sum: %dn", result); // Print the result
return 0;
}
int addNumbers(int a, int b) { // Function definition for adding two numbers
return a + b;
}

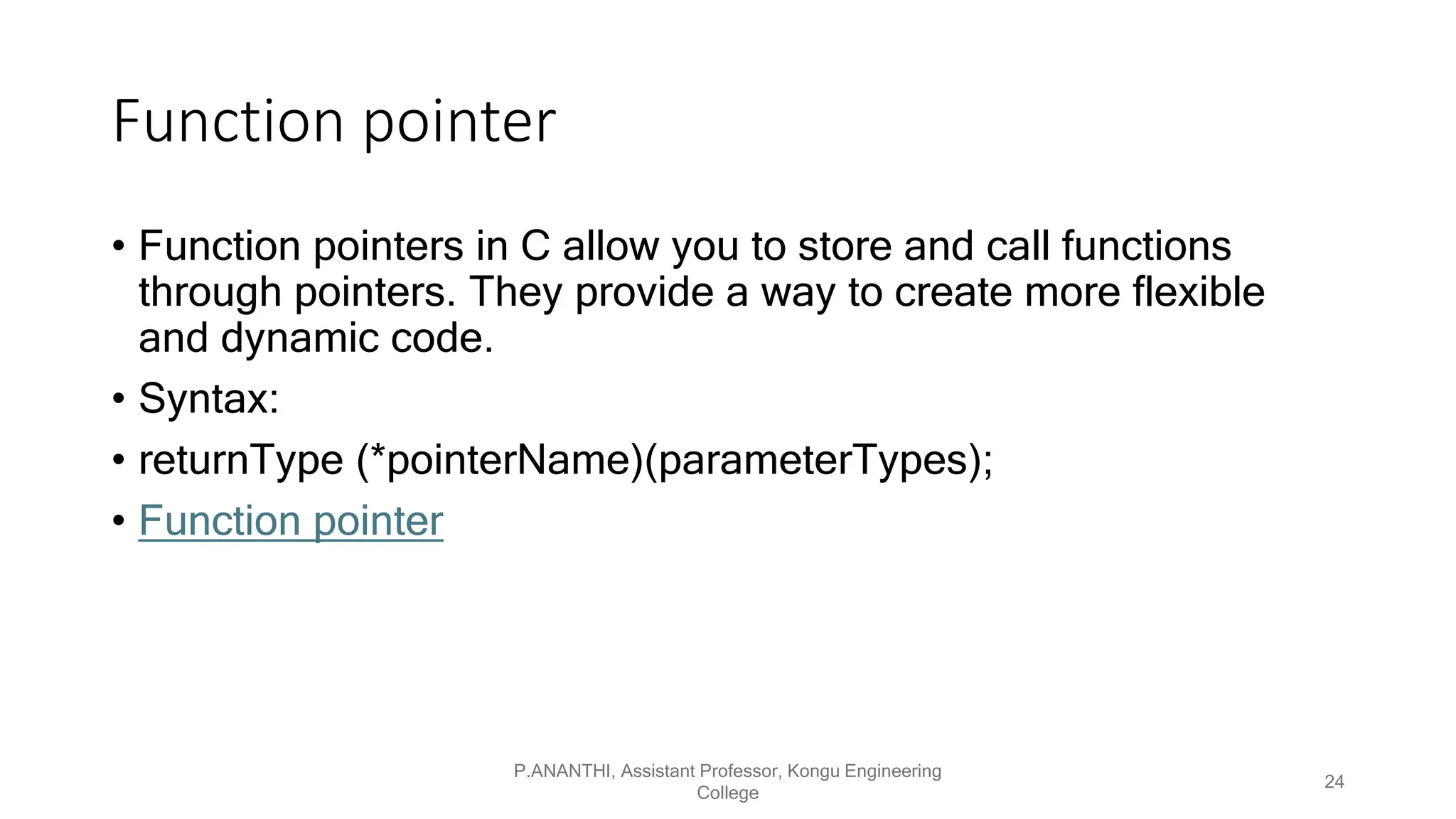

Function pointer
• Function pointers in C allow you to store and call functions
through pointers. They provide a way to create more flexible
and dynamic code.
• Syntax:
• returnType (*pointerName)(parameterTypes);
• Function pointer
24
College

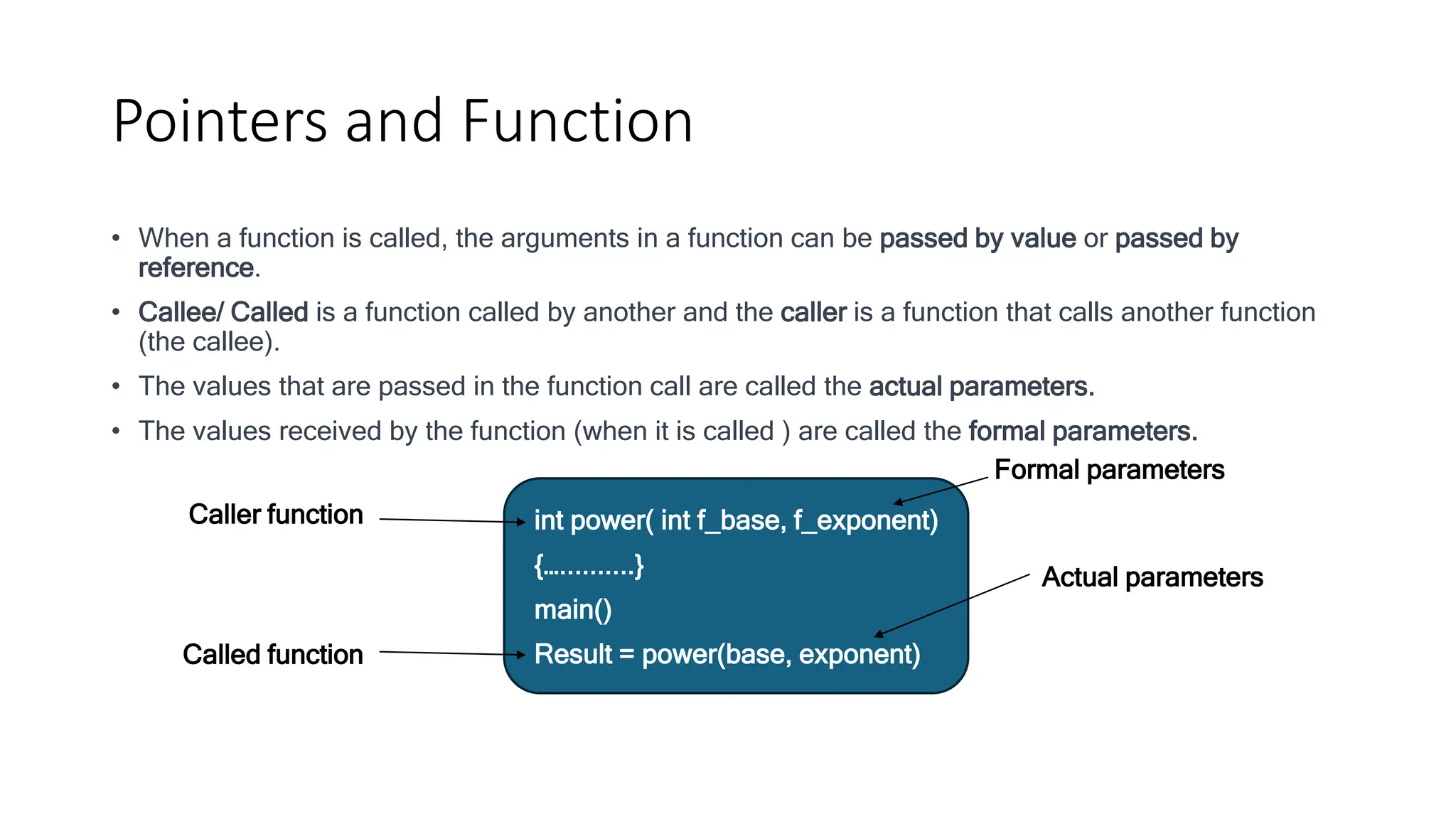

Pointers and Function
• When a function is called, the arguments in a function can be passed by value or passed by
reference.
• Callee/ Called is a function called by another and the caller is a function that calls another function
(the callee).
• The values that are passed in the function call are called the actual parameters.
• The values received by the function (when it is called ) are called the formal parameters.
int power( int f_base, f_exponent)
{…..........}
main()
Result = power(base, exponent)
Caller function
Called function
Formal parameters
Actual parameters

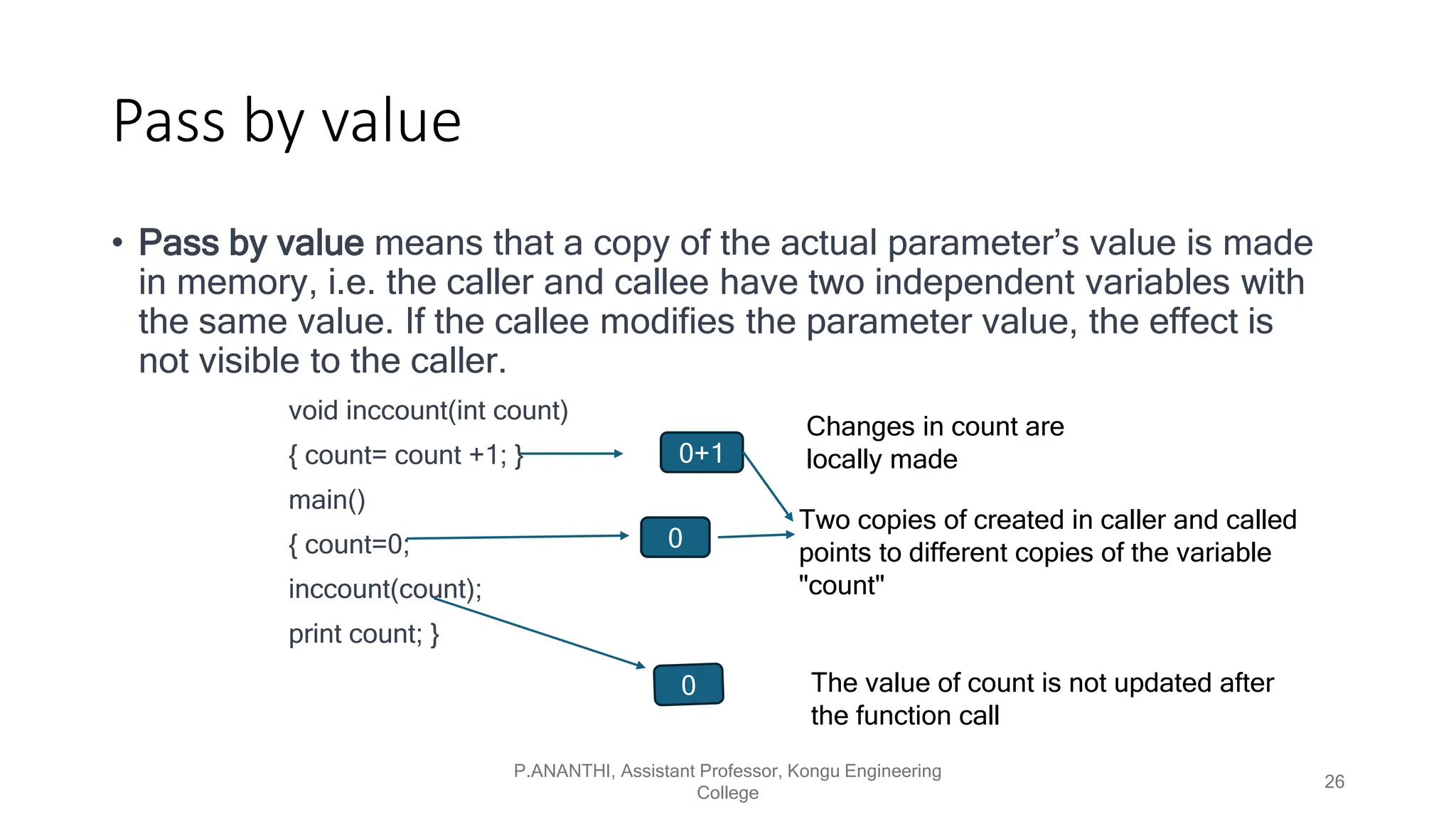

Pass by value
• Pass by value means that a copy of the actual parameter’s value is made
in memory, i.e. the caller and callee have two independent variables with
the same value. If the callee modifies the parameter value, the effect is
not visible to the caller.
void inccount(int count)
{ count= count +1; }
main()
{ count=0;
inccount(count);
print count; }
26
College
0
0+1
Changes in count are
locally made
Two copies of created in caller and called
points to different copies of the variable
"count"
The value of count is not updated after
the function call

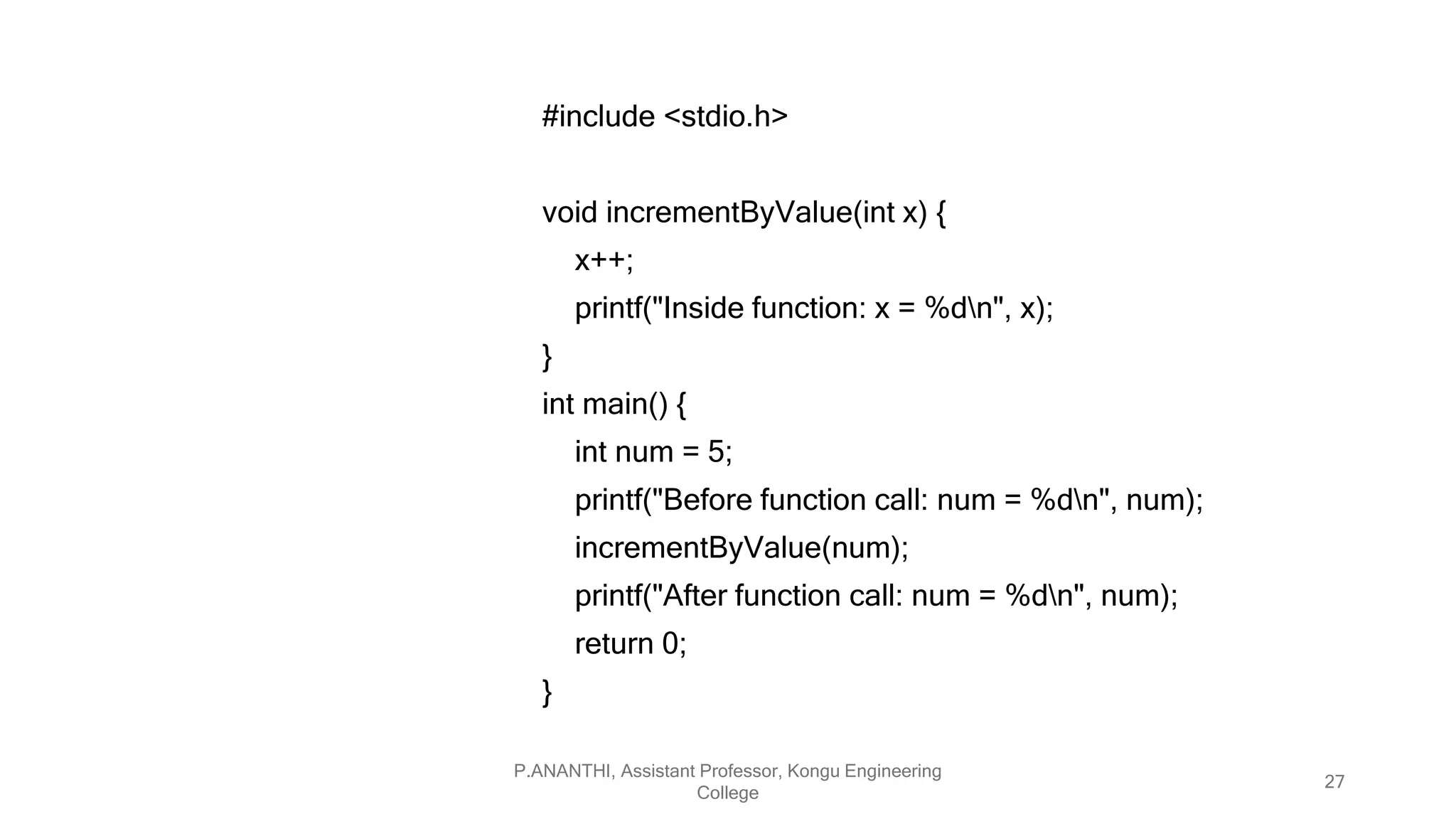

#include <stdio.h>
void incrementByValue(int x) {
x++;
printf("Inside function: x = %dn", x);
}
int main() {
int num = 5;
printf("Before function call: num = %dn", num);
incrementByValue(num);
printf("After function call: num = %dn", num);
return 0;
}
27
College

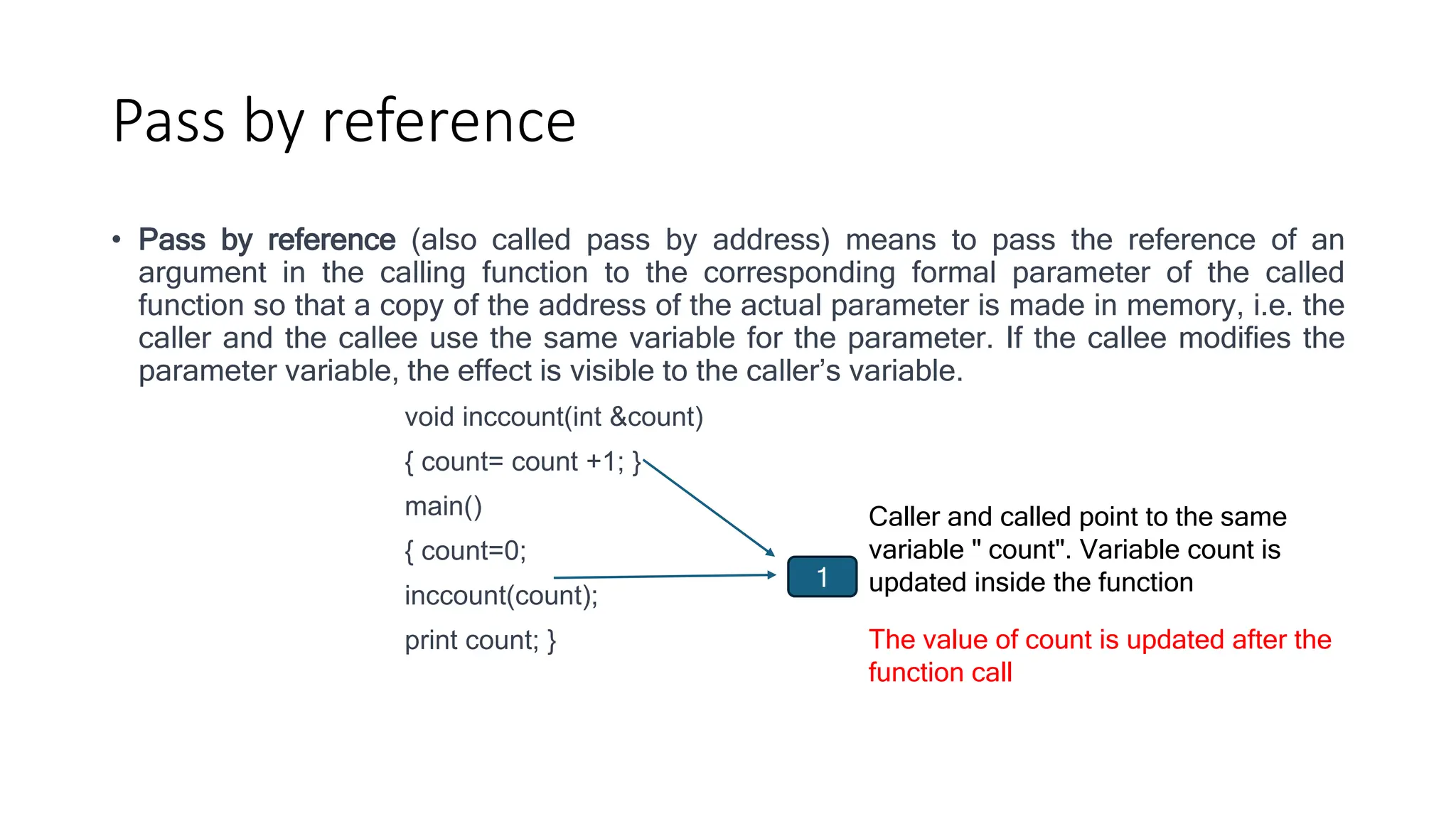

Pass by reference
• Pass by reference (also called pass by address) means to pass the reference of an
argument in the calling function to the corresponding formal parameter of the called
function so that a copy of the address of the actual parameter is made in memory, i.e. the
caller and the callee use the same variable for the parameter. If the callee modifies the
parameter variable, the effect is visible to the caller’s variable.
void inccount(int &count)
{ count= count +1; }
main()
{ count=0;
inccount(count);
print count; }
1
Caller and called point to the same
variable " count". Variable count is
updated inside the function
The value of count is updated after the
function call

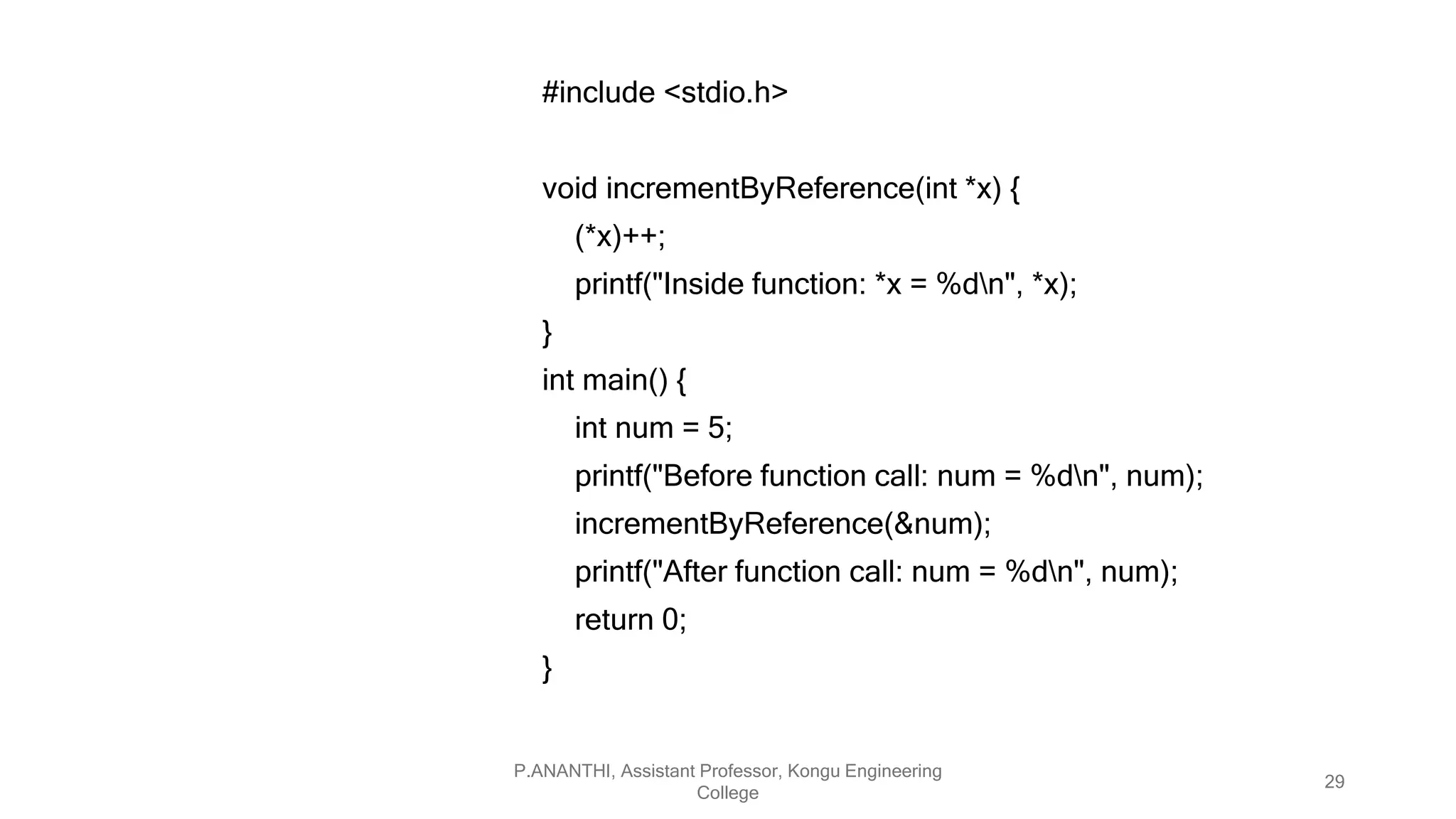

#include <stdio.h>
void incrementByReference(int *x) {
(*x)++;
printf("Inside function: *x = %dn", *x);
}
int main() {
int num = 5;
printf("Before function call: num = %dn", num);
incrementByReference(&num);
printf("After function call: num = %dn", num);
return 0;
}
29
College

Passing array to function using pointer
• A single array element or a entire array can be passed to a
function.
30
College

#include <stdio.h>
int main() {
// Declare an array
int numbers[] = {10, 20, 30, 40, 50};
// Declare a pointer and point it to the first element of the array
int *ptr = numbers;
// Accessing array elements using pointer
printf("First element: %dn", *ptr); // Output: 10
printf("Second element: %dn", *(ptr + 1)); // Output: 20
printf("Third element: %dn", *(ptr + 2)); // Output: 30
// You can also use array subscript notation with pointers
printf("Fourth element: %dn", ptr[3]); // Output: 40
return 0;
}
31
College

• Likewise, one dimensional and multi dimensional array can
be passed to a function as argument
One Dimension:
• While passing arrays to the argument, the name of the array is
passed as an argument
• 1 D ARRAY USING POINTER
32
College

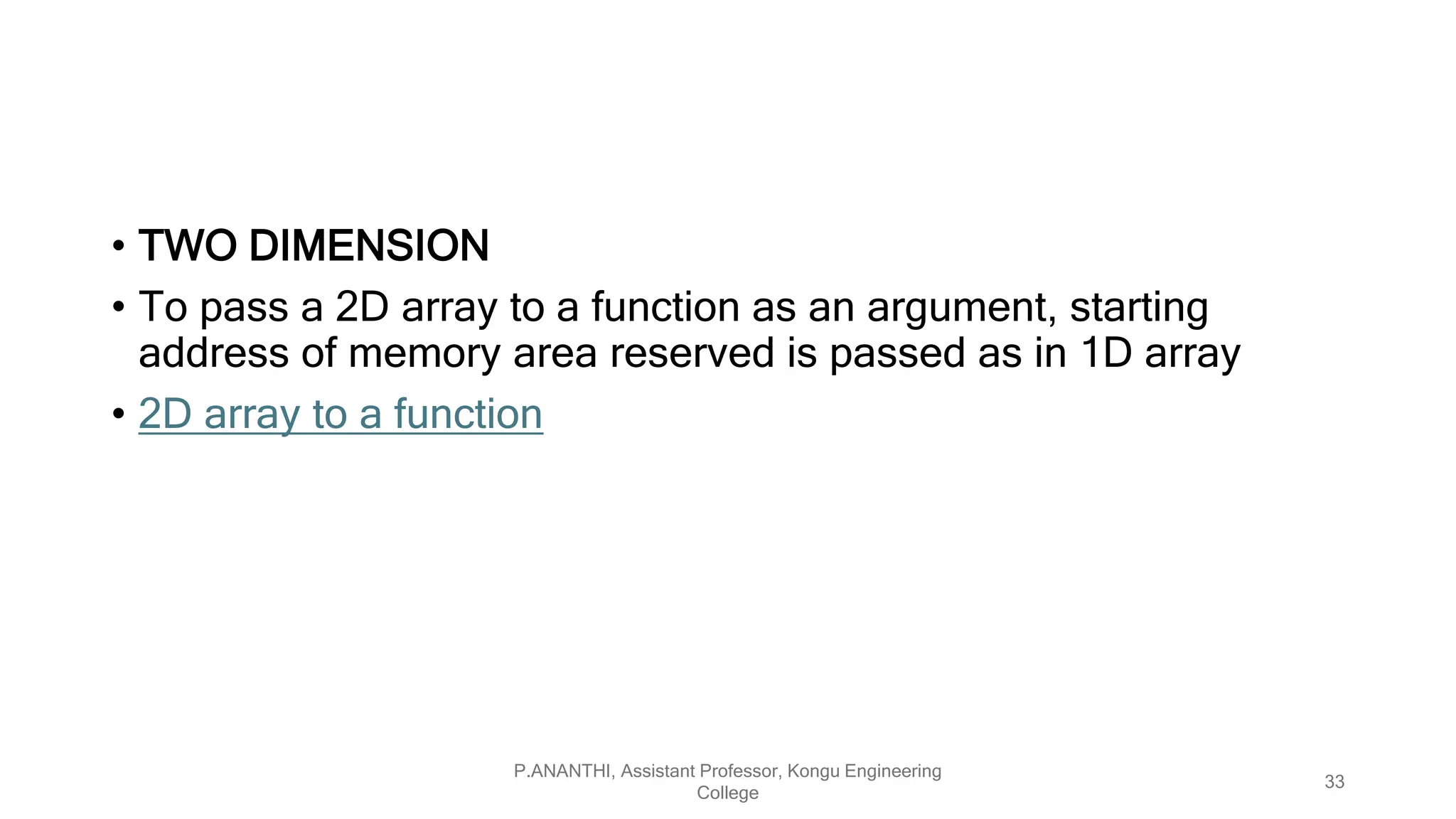

• TWO DIMENSION
• To pass a 2D array to a function as an argument, starting
address of memory area reserved is passed as in 1D array
• 2D array to a function
33
College

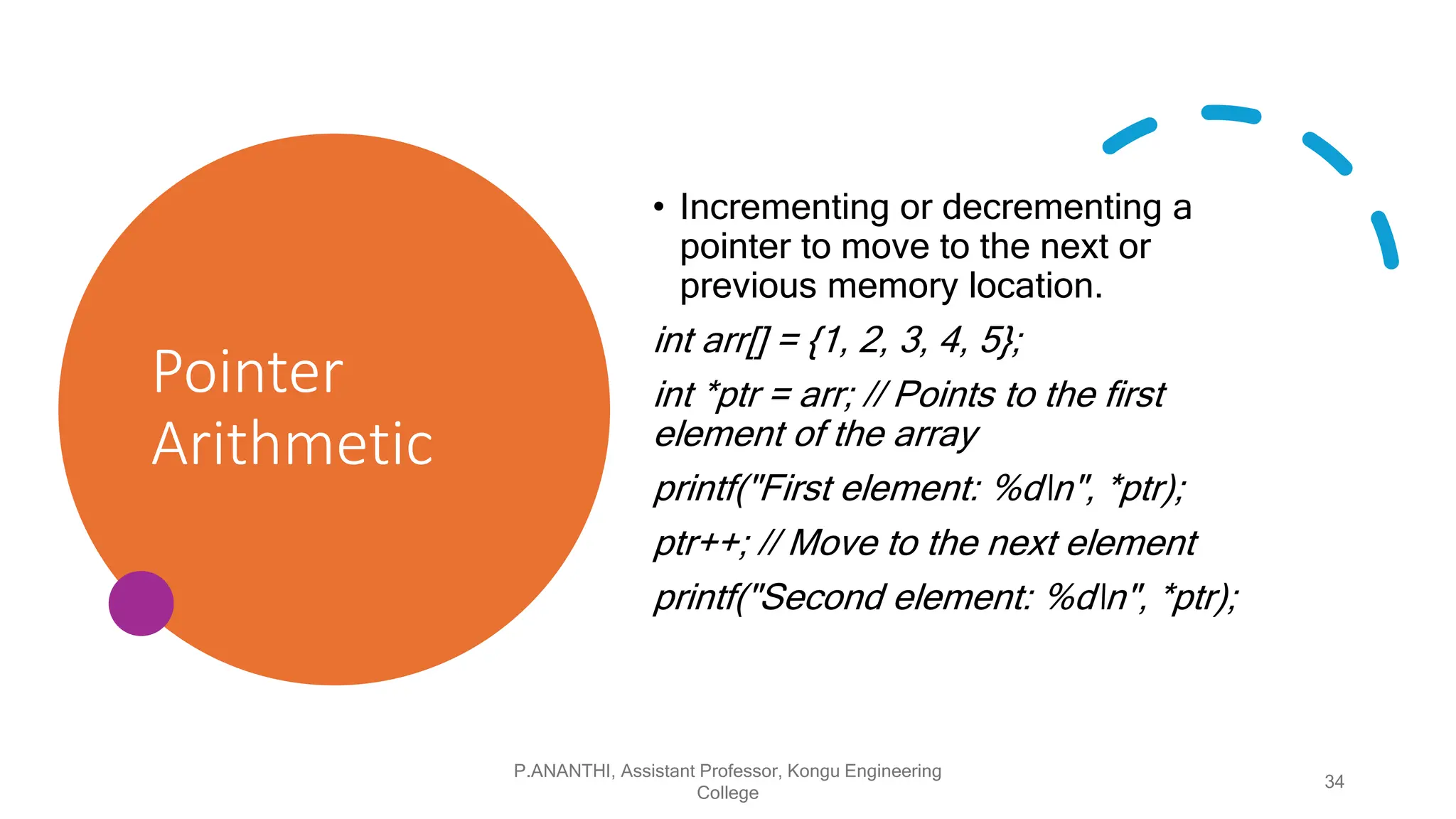

Pointer
Arithmetic
• Incrementing or decrementing a
pointer to move to the next or
previous memory location.
int arr[] = {1, 2, 3, 4, 5};
int *ptr = arr; // Points to the first
element of the array
printf("First element: %dn", *ptr);
ptr++; // Move to the next element
printf("Second element: %dn", *ptr);
College
34

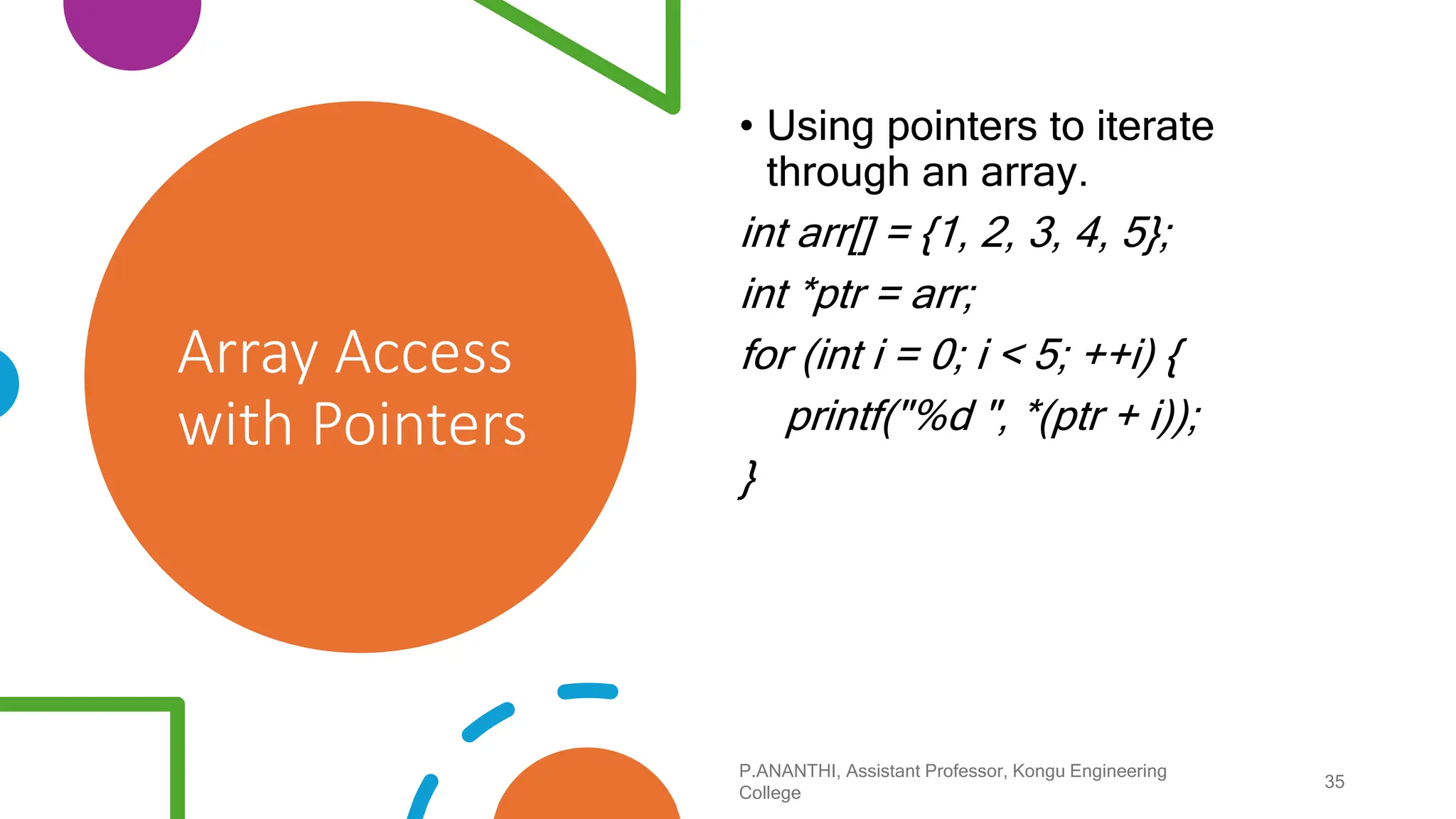

Array Access
with Pointers
• Using pointers to iterate
through an array.
int arr[] = {1, 2, 3, 4, 5};
int *ptr = arr;
for (int i = 0; i < 5; ++i) {
printf("%d ", *(ptr + i));
}
College
35

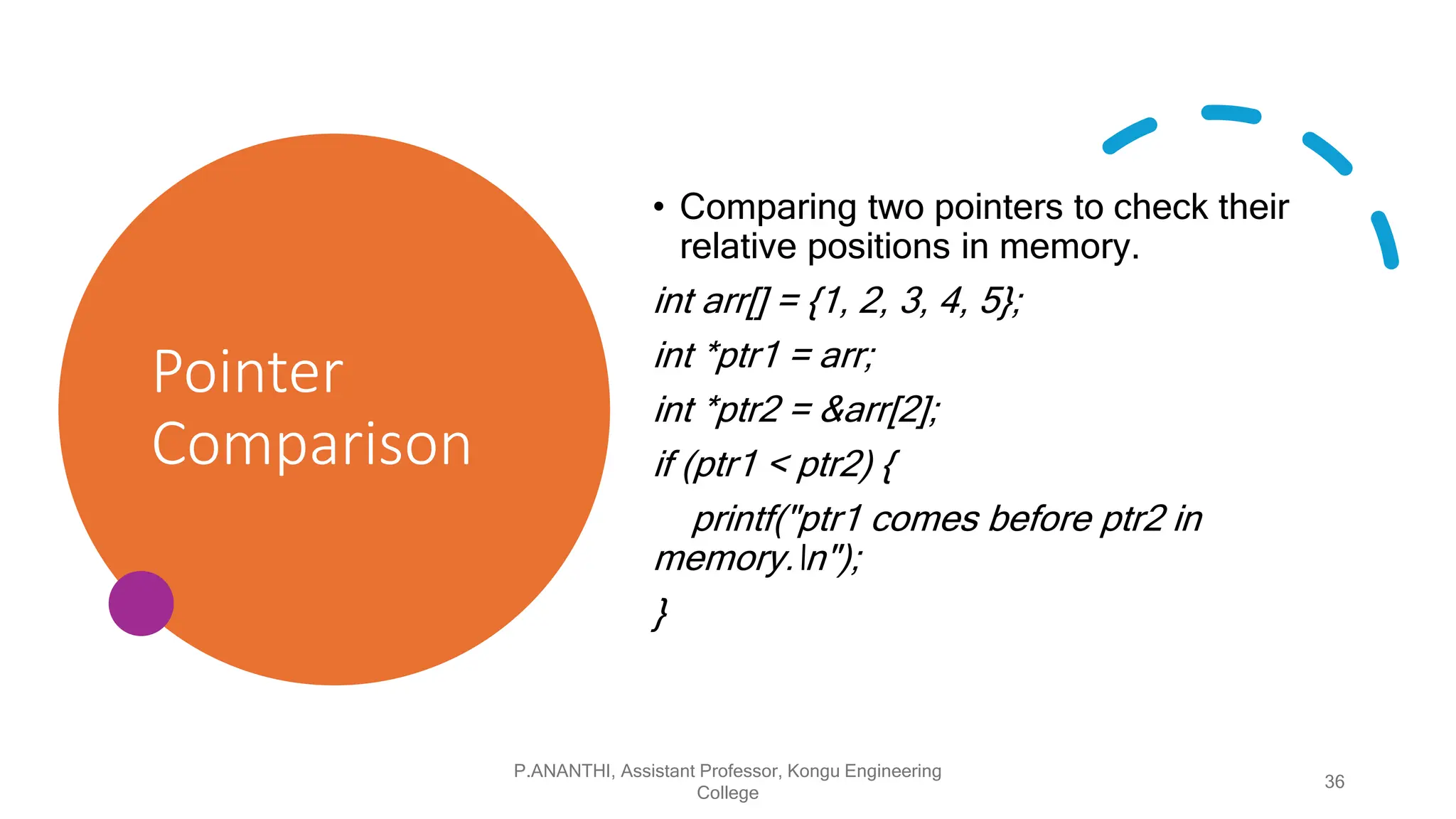

Pointer
Comparison
• Comparing two pointers to check their
relative positions in memory.
int arr[] = {1, 2, 3, 4, 5};
int *ptr1 = arr;
int *ptr2 = &arr[2];
if (ptr1 < ptr2) {
printf("ptr1 comes before ptr2 in
memory.n");
}
College
36

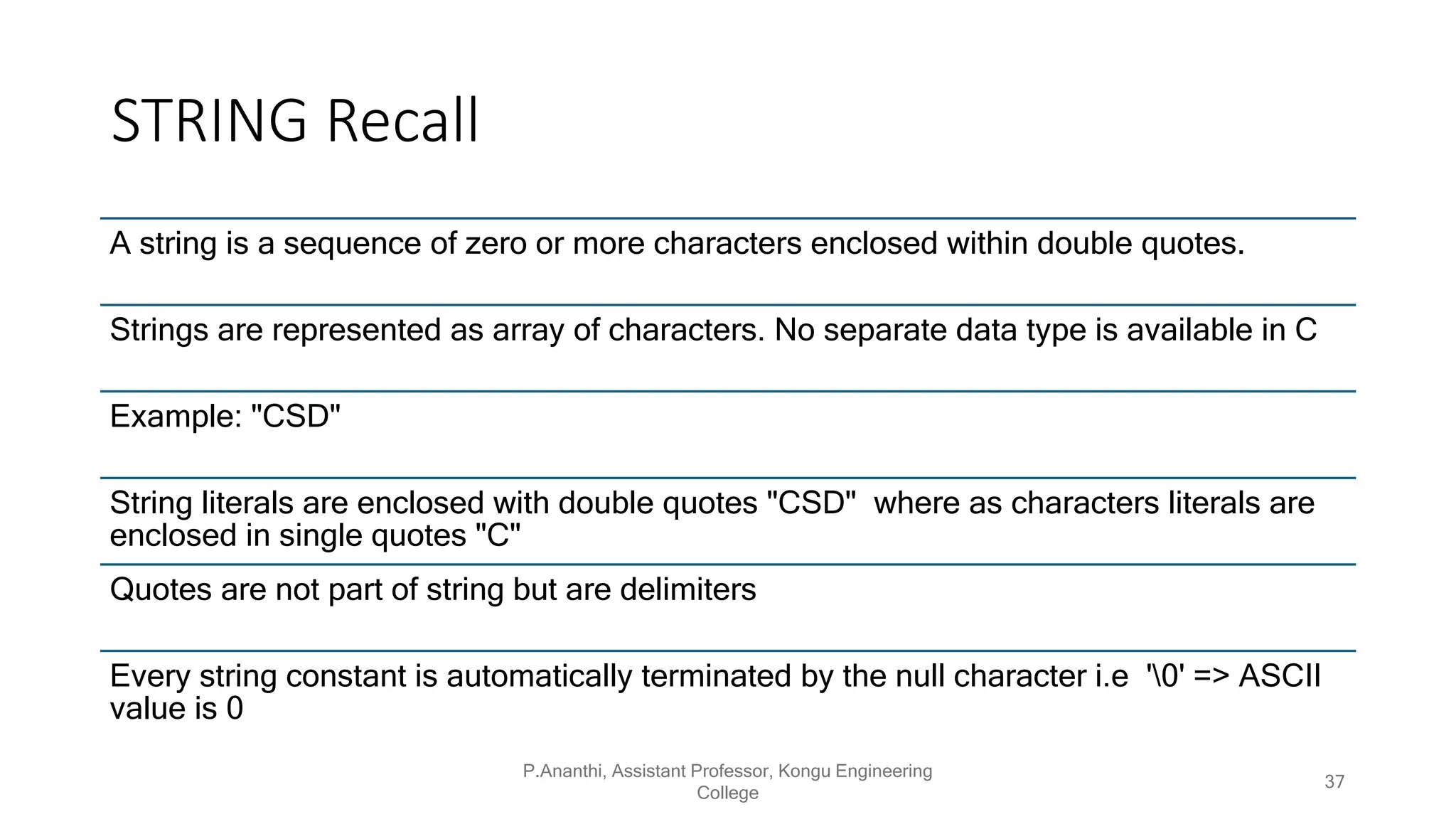

STRING Recall
A string is a sequence of zero or more characters enclosed within double quotes.
Strings are represented as array of characters. No separate data type is available in C
Example: "CSD"
String literals are enclosed with double quotes "CSD" where as characters literals are
enclosed in single quotes "C"
Quotes are not part of string but are delimiters
Every string constant is automatically terminated by the null character i.e '0' => ASCII
value is 0
37
P.Ananthi, Assistant Professor, Kongu Engineering
College

• The characters enclosed in double
quotes and terminating null character
are stored in continuous memory
location.
o EG: "RED CAR"
o The number of bytes required
includes null character also.
Memory required for string "RED
CAR" is 8
o The length of the string is
represented by the number of
characters present in the string 7.
P.Ananthi, Assistant Professor, Kongu Engineering College 38
R E D C A R '0'

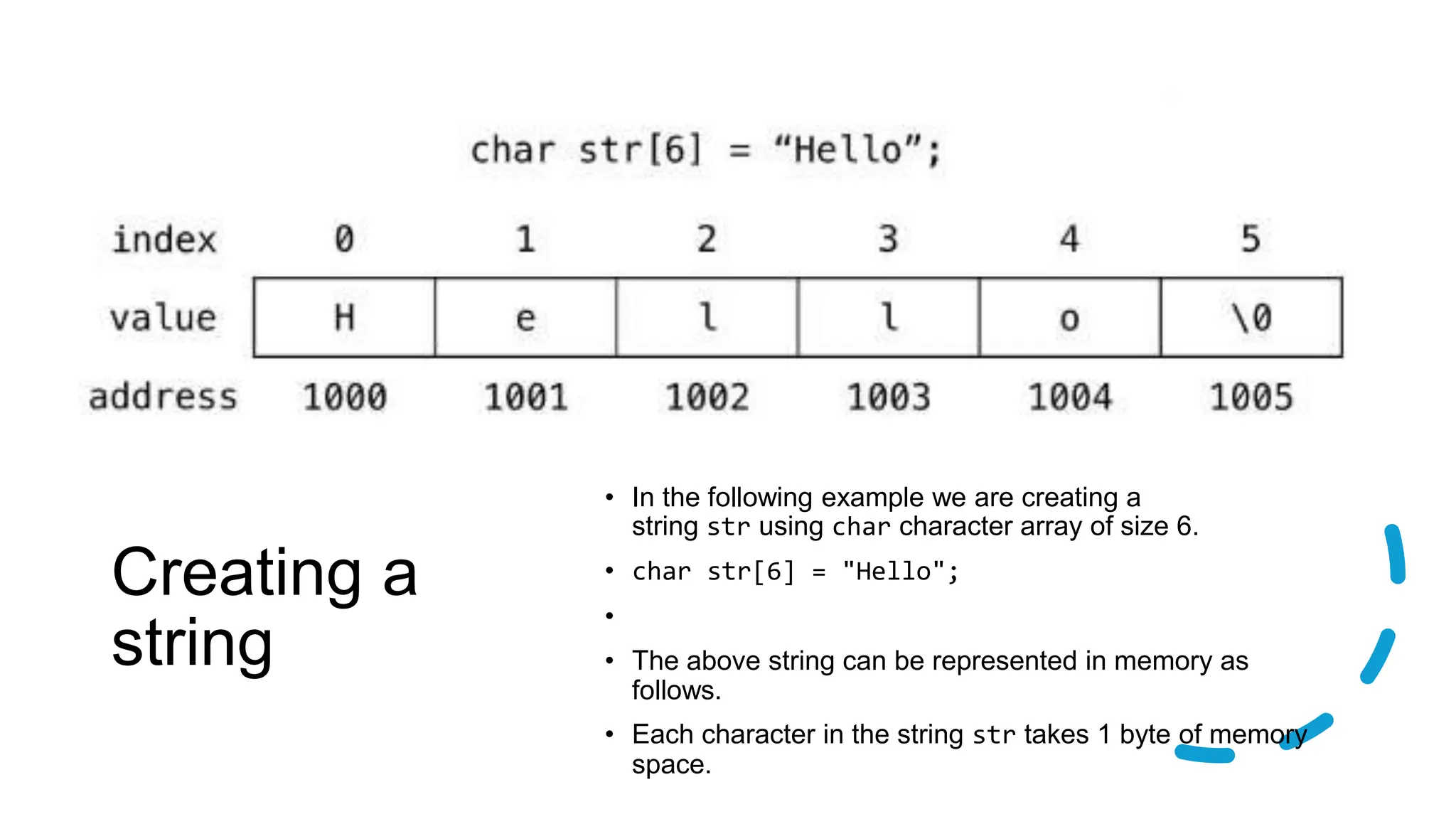

Creating a
string
• In the following example we are creating a
string str using char character array of size 6.
• char str[6] = "Hello";
•
• The above string can be represented in memory as
follows.
• Each character in the string str takes 1 byte of memory
space.

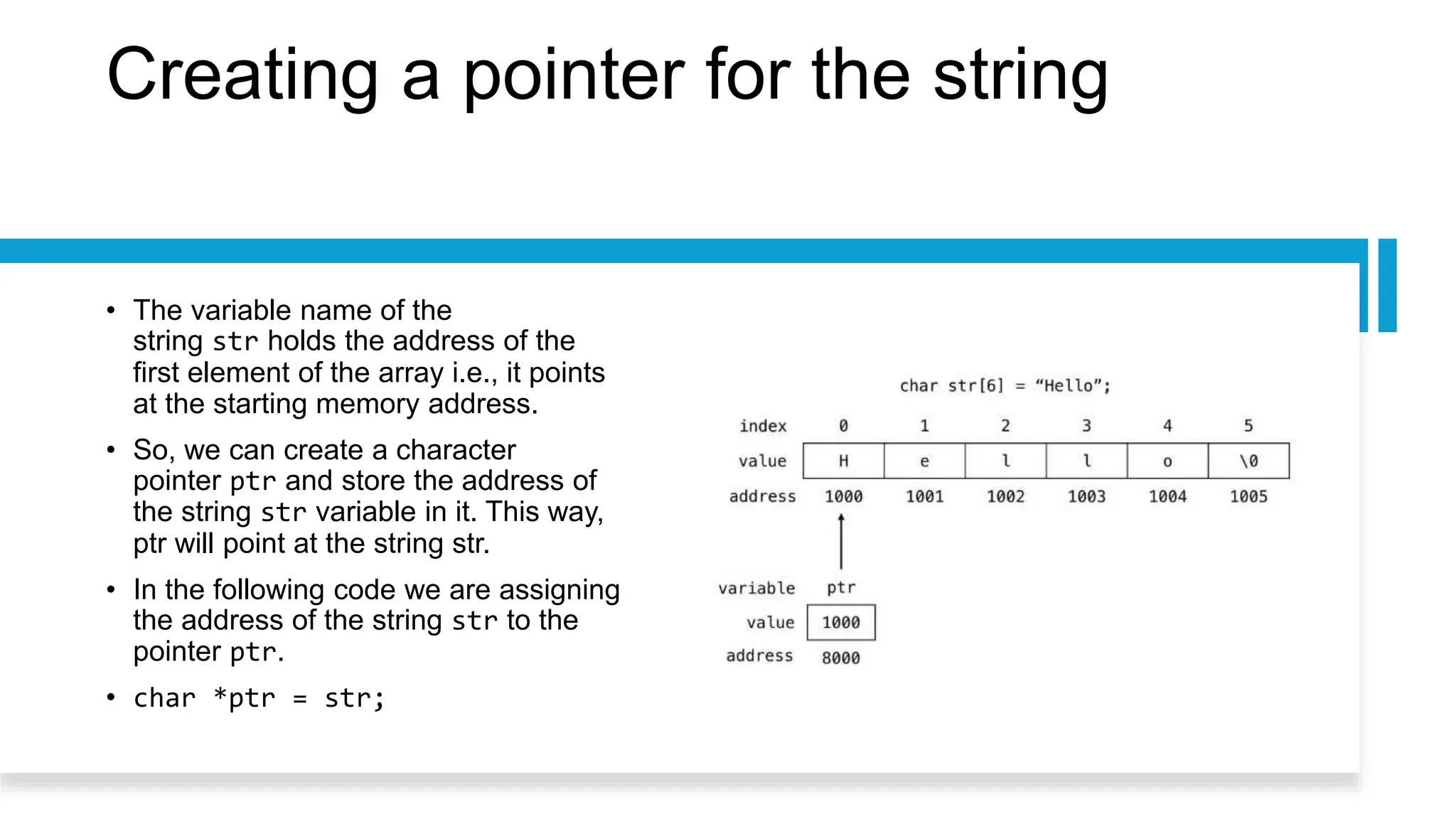

Creating a pointer for the string
• The variable name of the
string str holds the address of the
first element of the array i.e., it points
at the starting memory address.
• So, we can create a character
pointer ptr and store the address of
the string str variable in it. This way,
ptr will point at the string str.
• In the following code we are assigning
the address of the string str to the
pointer ptr.
• char *ptr = str;

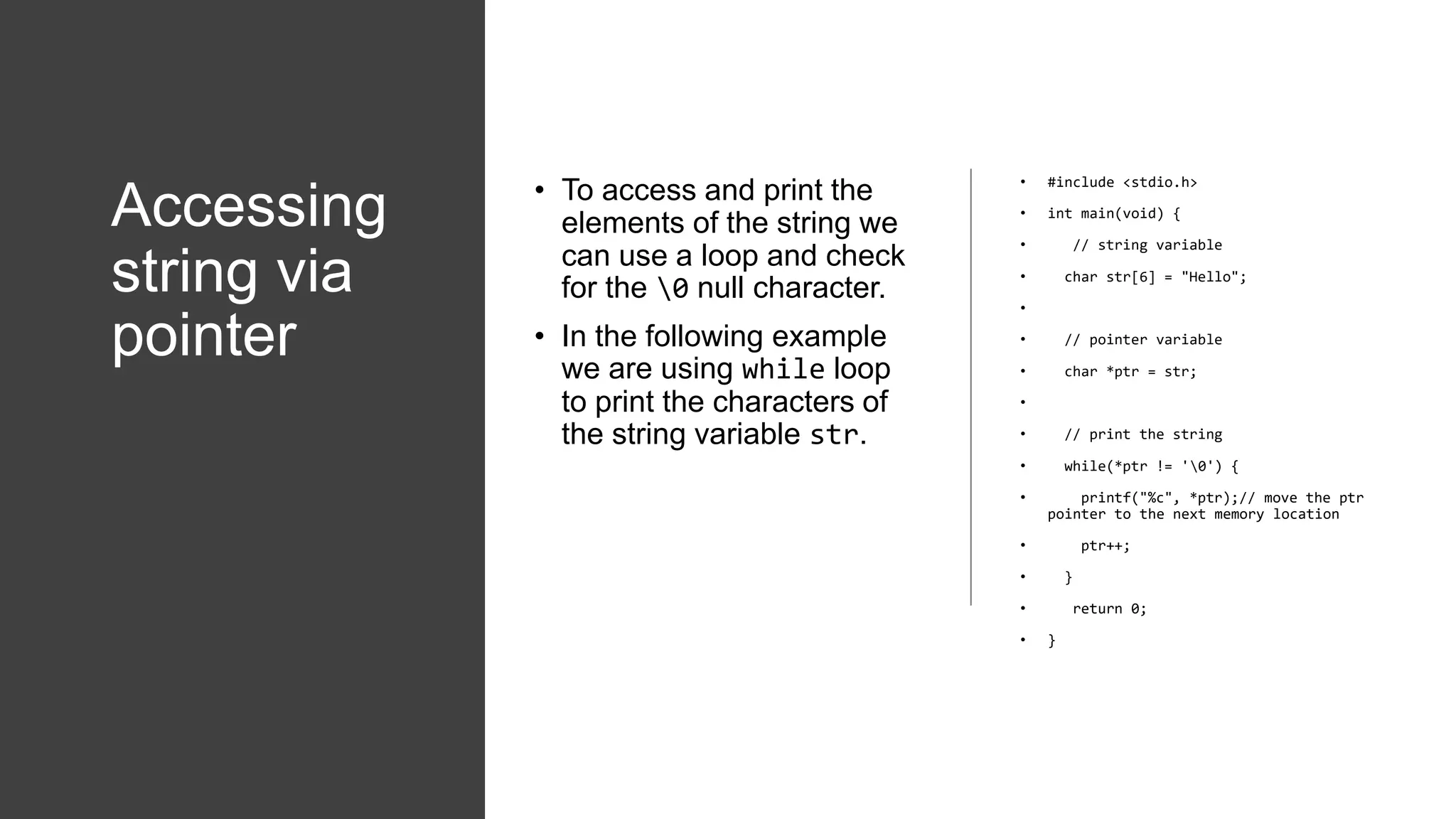

Accessing
string via
pointer
• To access and print the
elements of the string we
can use a loop and check
for the 0 null character.
• In the following example
we are using while loop
to print the characters of
the string variable str.
• #include <stdio.h>
• int main(void) {
• // string variable
• char str[6] = "Hello";
•
• // pointer variable
• char *ptr = str;
•
• // print the string
• while(*ptr != '0') {
• printf("%c", *ptr);// move the ptr
pointer to the next memory location
• ptr++;
• }
• return 0;
• }

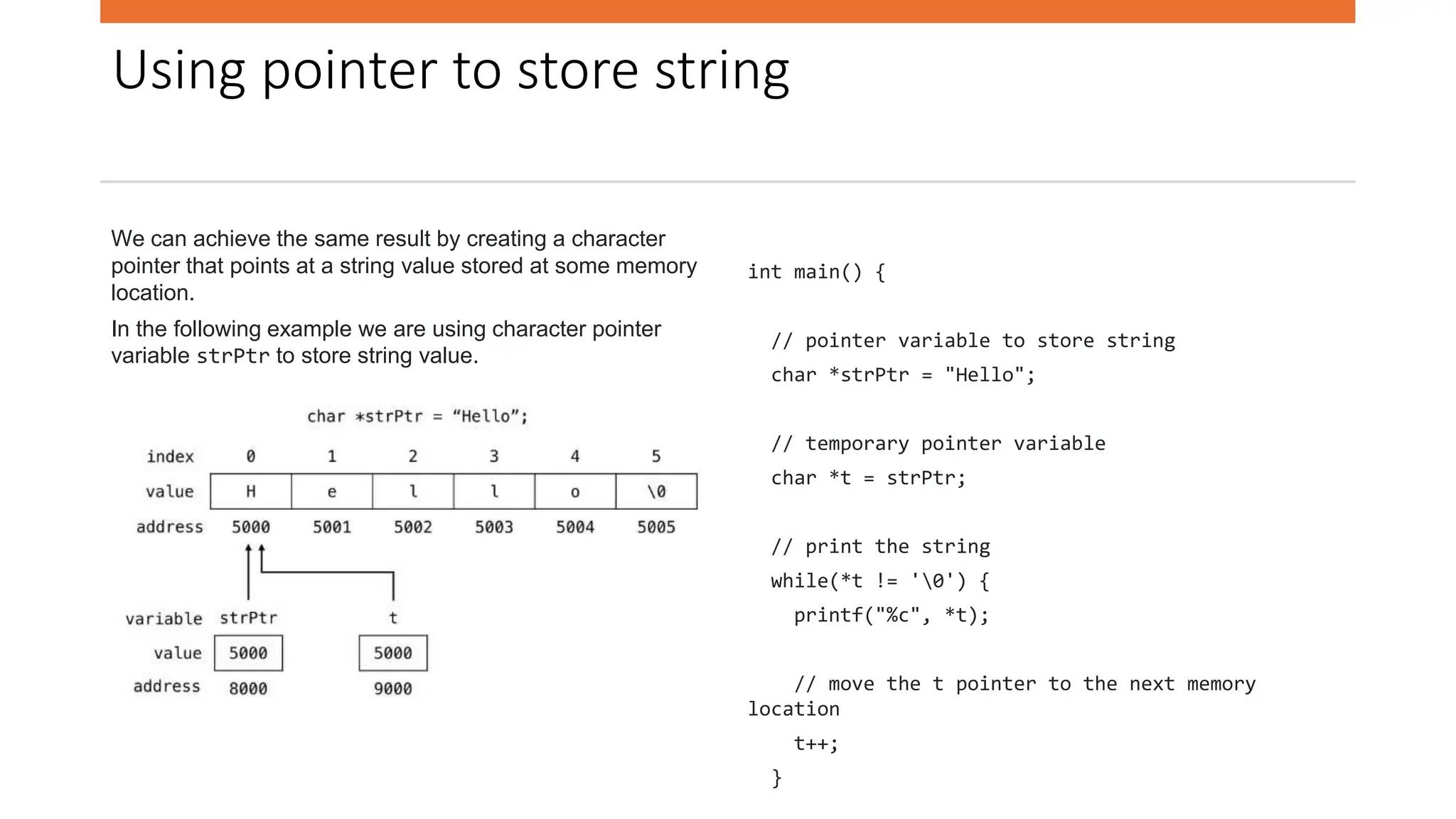

Using pointer to store string
int main() {
// pointer variable to store string
char *strPtr = "Hello";
// temporary pointer variable
char *t = strPtr;
// print the string
while(*t != '0') {
printf("%c", *t);
// move the t pointer to the next memory
location
t++;
}
We can achieve the same result by creating a character
pointer that points at a string value stored at some memory
location.
In the following example we are using character pointer
variable strPtr to store string value.

Array of strings
• We can create a two dimensional array and
save multiple strings in it.
• For example, in the given code we are
storing 4 cities name in a string array city.
• char city[4][12] = {
• "Chennai",
• "Kolkata",
• "Mumbai",
• "New Delhi"
• };
• The problem with this approach is that we
are allocating 4x12 = 48 bytes memory to
the city array and we are only using 33
bytes.

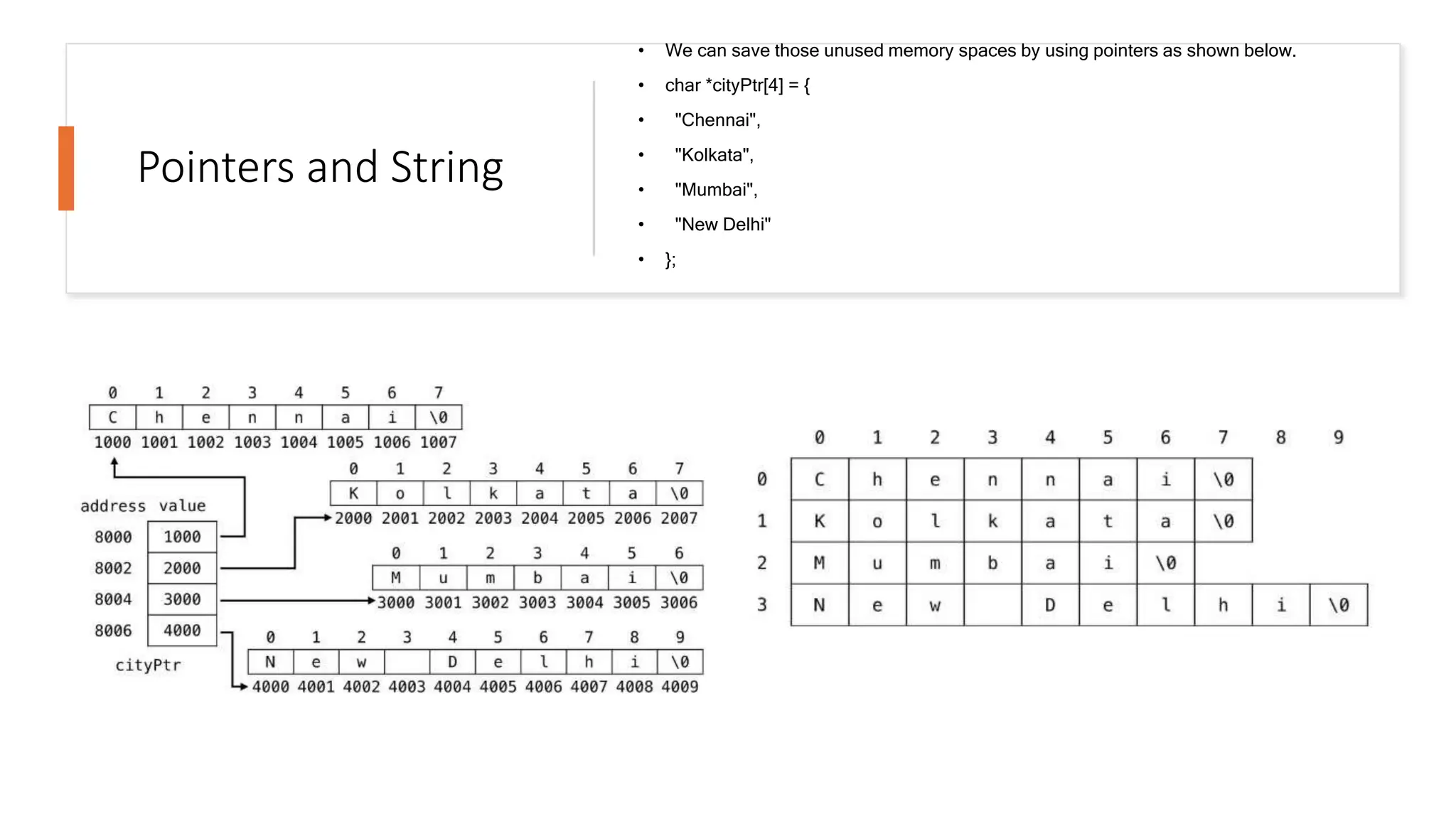

Pointers and String
• We can save those unused memory spaces by using pointers as shown below.
• char *cityPtr[4] = {
• "Chennai",
• "Kolkata",
• "Mumbai",
• "New Delhi"
• };

Summary
1. Introduction to Pointers:
- Pointers are variables that store memory addresses. They provide a way to directly manipulate
memory, enabling efficient and flexible programming.
2. Pointer to Pointer:
- A pointer that holds the address of another pointer. Useful in scenarios where multiple levels of
indirection are required.
3. Null Pointer, Generic Pointer, and Dangling Pointer:
- Discusses the concepts of null pointers (pointers with no valid address), generic pointers (void
pointers), and dangling pointers (pointers pointing to released memory).
4. Passing an Array to a Function:
- Explains how to pass arrays to functions, emphasizing the use of pointers to efficiently work with
arrays in functions.
5. Returning an Array from Function:
- Explores the technique of returning arrays from functions, often involving the use of pointers to
manage memory.

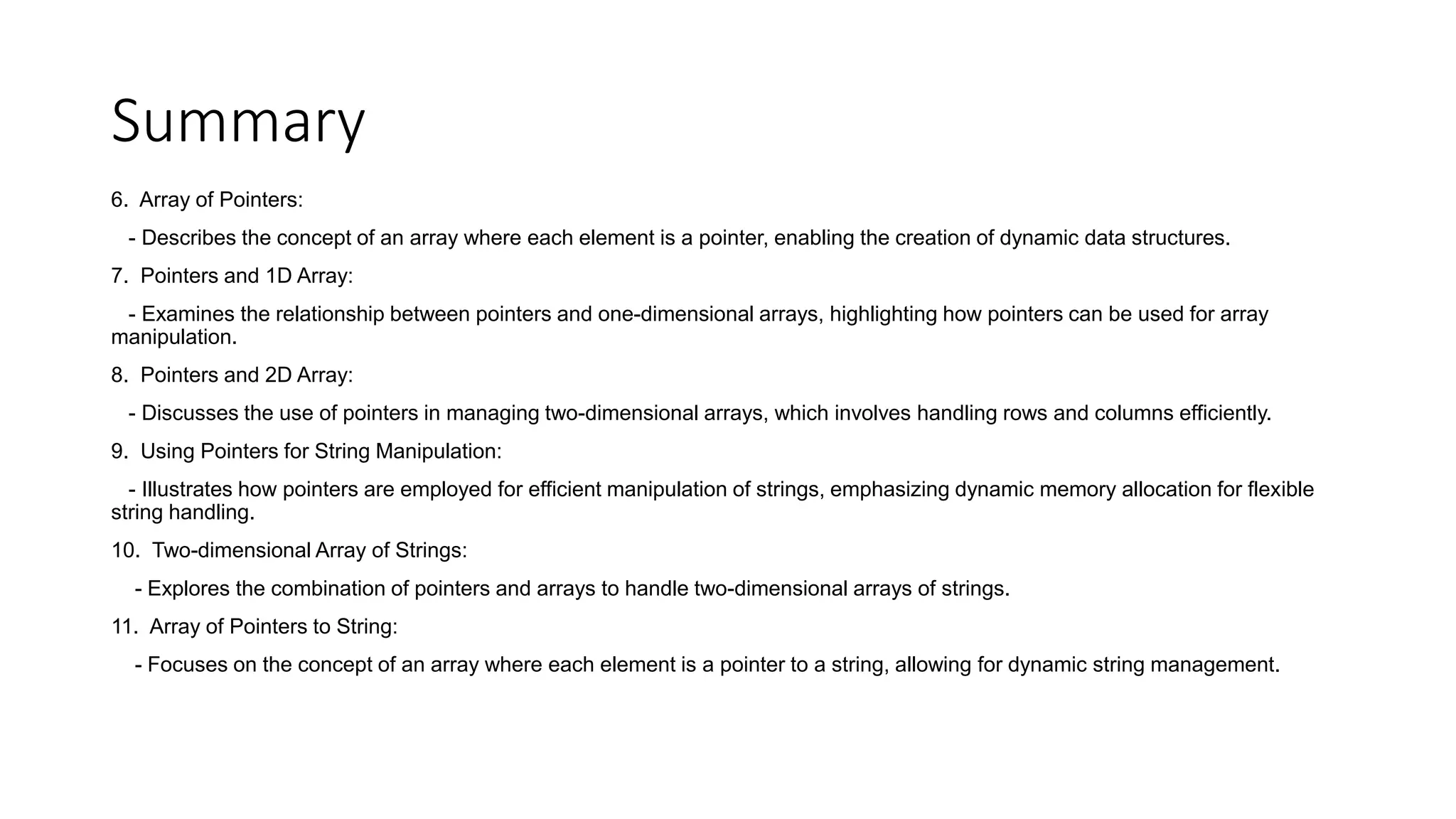

Summary
6. Array of Pointers:
- Describes the concept of an array where each element is a pointer, enabling the creation of dynamic data structures.
7. Pointers and 1D Array:
- Examines the relationship between pointers and one-dimensional arrays, highlighting how pointers can be used for array
manipulation.
8. Pointers and 2D Array:
- Discusses the use of pointers in managing two-dimensional arrays, which involves handling rows and columns efficiently.
9. Using Pointers for String Manipulation:
- Illustrates how pointers are employed for efficient manipulation of strings, emphasizing dynamic memory allocation for flexible
string handling.
10. Two-dimensional Array of Strings:
- Explores the combination of pointers and arrays to handle two-dimensional arrays of strings.
11. Array of Pointers to String:
- Focuses on the concept of an array where each element is a pointer to a string, allowing for dynamic string management.

Pointers and Array, pointer and String.pptx

Pointers and Array, pointer and String.pptx

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Pointers and Array, pointer and String.pptx

Similar to Pointers and Array, pointer and String.pptx (20)

Recently uploaded

Recently uploaded (20)

Pointers and Array, pointer and String.pptx
