Presentation given at PloneConf 2017, how to set up pas.plugins.ldap with in Plone with your ldap directory service

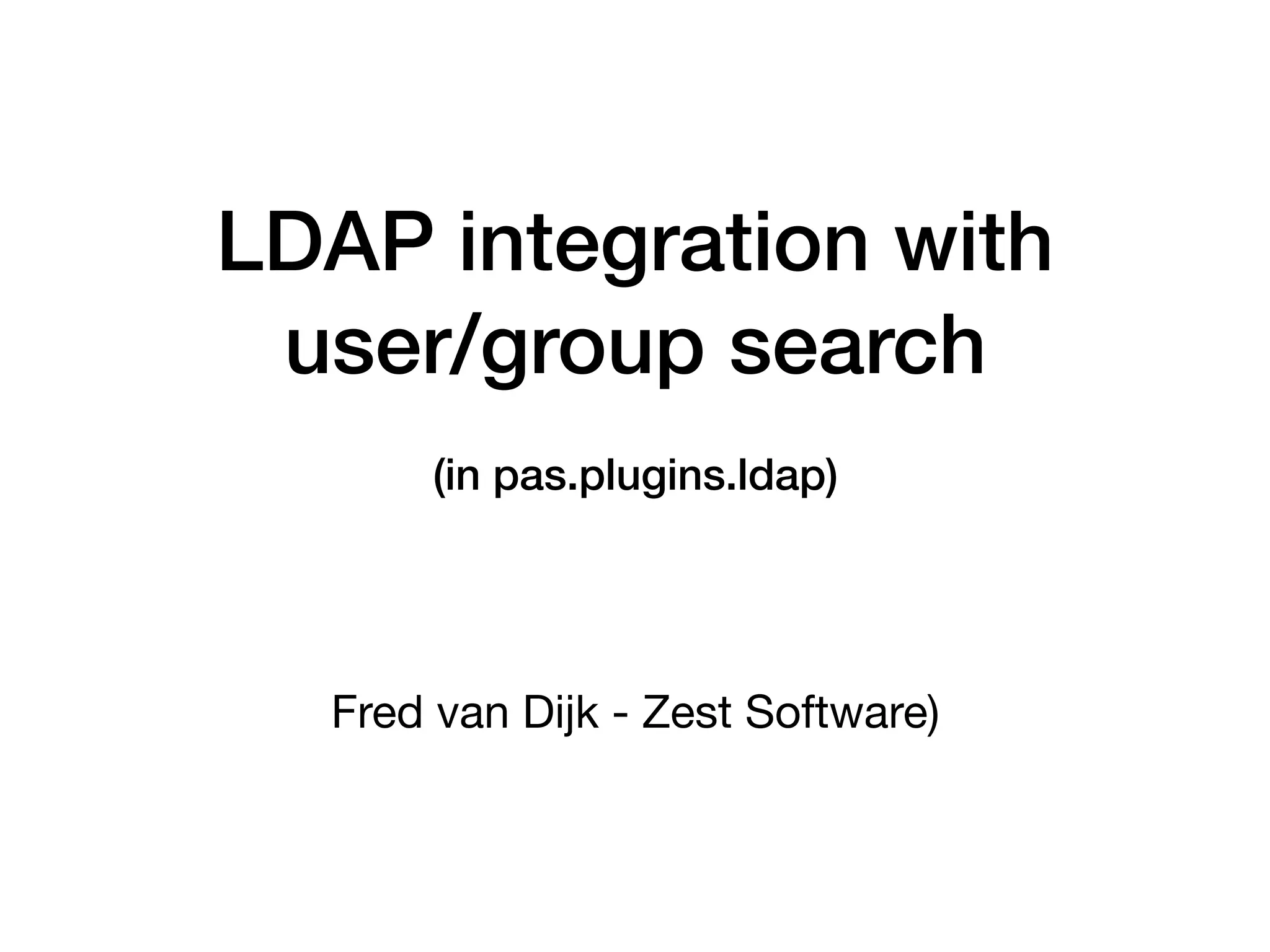

1. LDAP integration with
user/group search
(in pas.plugins.ldap)
Fred van Dijk - Zest Software)

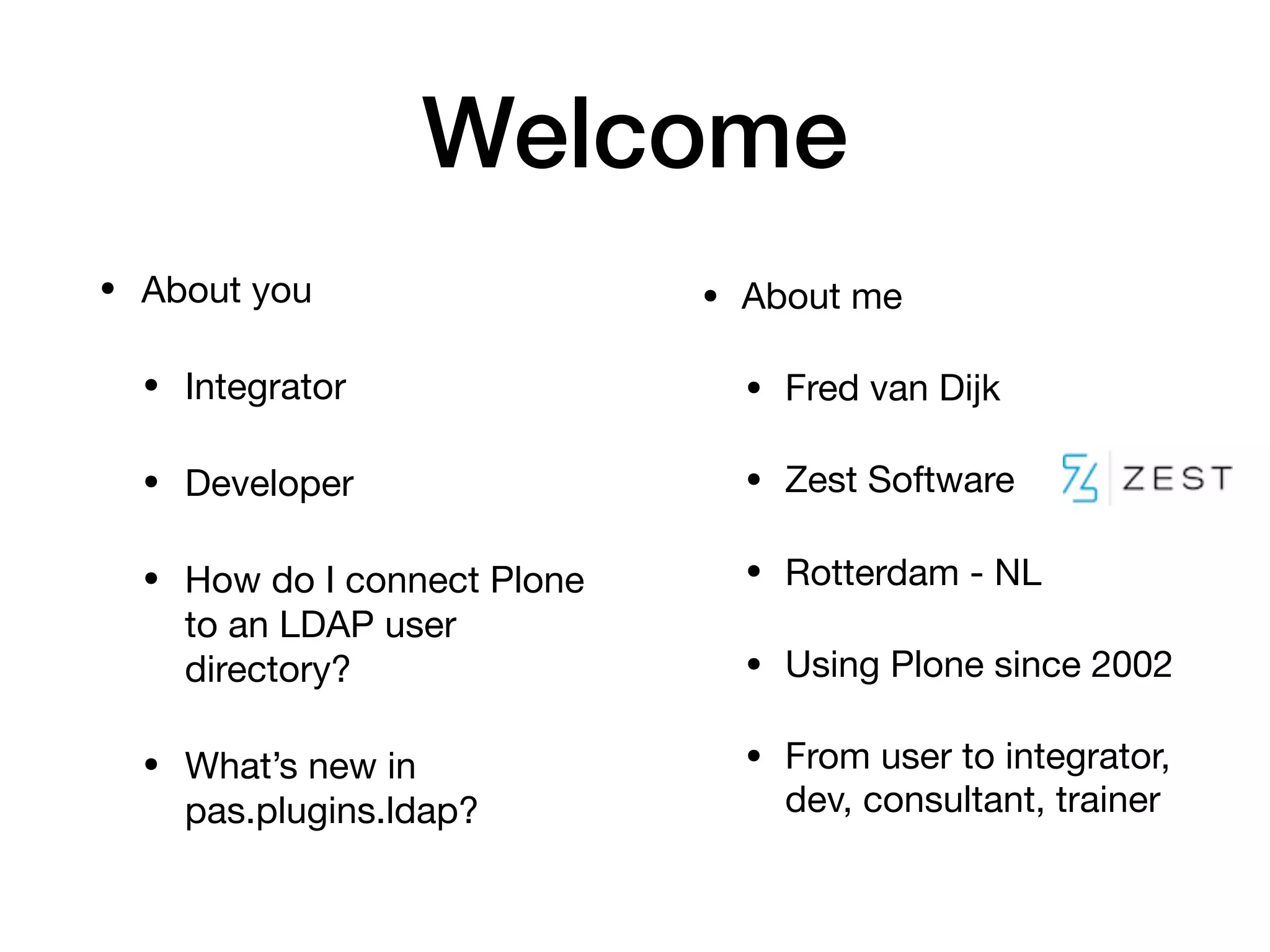

2. Welcome
• About you
• Integrator
• Developer
• How do I connect Plone
to an LDAP user
directory?
• What’s new in
pas.plugins.ldap?
• About me
• Fred van Dijk
• Zest Software
• Rotterdam - NL
• Using Plone since 2002
• From user to integrator,
dev, consultant, trainer

3. Agenda
• Quick: what’s LDAP?
• LDAP and organisations
• Users/Groups in Plone
• LDAP integration in Plone
• pas.plugins.ldap
• Install & setup
• sharing users/groups
• Advanced setup
• Wrap up
• Questions

4. Why LDAP
• Centralised database of users and groups inside
organisations
• old school: copy the users and groups file to different pc’s
• On UNIX this goes back a long way in the 80’s 90’s
NIS, network information service, X.500
• PC’s: Windows: Lan manager, Novell Netware 2/3

5. From flat to hierarchical
user databases
• Organisational units, departments, mirror org. structure
• Some Implementations
• UNIX: SLAPD - Netscape Directory server
• Windows: NDS: Novell Directory Services
• Windows: Microsoft Active Directory
• LDAP: Lightweight Directory Access Protocol
• Protocol becomes server, becomes protocol

6. Users in Plone
• Plone has its own user database
• Works fine, but with larger organisations and/or many
services you don’t want to maintain many user/group lists for
every service.
• Connect to central directory service maintaining user, groups
• Authentication vs Authorisation
• who you are - which groups you belong to. ID - LDAP
• What is the ID allowed to do: in the the separate services

7. What’s the problem for us?
• Us being Plone users and
integrators trying to set up
LDAP
• Multiple moving parts, LDAP
is protocol, data depends on
the directory service (LDAP
implementations, AD)
Zope, PAS, Plone Config
• You only set this up once for
a project, until it works, then
you don’t look back …
• Everything is always (a bit)
different

8. Authentication in Zope
• Plone is built on top of Zope. - Zope is ‘mature’
• acl_users folder - Zope Simple user folder (1996?)
• Products.LDAPUserFolder, replacement for acl_users
(1.0beta2 from 2001)
• Pluggable Authentication Service - Products.PlonePAS
(version 2.3 from 2007)
• PAS -> Products.LDAPMultiplugins -> (LDAPUserFolder)

9. On top of Zope in Plone
• Webmaster facing configuration and support in Plone &
controlpanel:
• Products.PloneLDAP
• plone.app.ldap
• wrapping the stuff on the
previous page
• That’s a a lot of history and stack…

10. pas.plugins.ldap
• “New” implementation without depending on the existing plugins
• developed by BlueDynamics Alliance
• based on node and node.ext.ldap, virtual node tree
• Version 1.1.0 - 2014
• upgraded from bda.ldap - 2007 - so not that new
• Can/should cache results in memcached - speed vs freshness
• Not totally feature equivalent with plone.app.ldap
• underlying node.ext.ldap can also work with Pyramid

11. And so it goes
(with add’ons for Plone)
• People start using and improving
• Open source, on branches, sometimes specifics for their organisation.
• 2016 - fundraising to implement pagination in pas.plugins.ldap
• Fixes and improvements by Asko Soukka from & for University of
Jyväskylä
• Speed optimisations for huge (university) directories
• User search
• Not yet merged to master, needs more testing

12. Our ‘quest’ with
pas.plugins.ldap
• Have setups at different customers with plone.app.ldap
stack. Very stable, fire and forget, but old.
• pagination and unicode issues
• Let’s test this pas.plugins.ldap stuff (on Plone 4)
• Did fixes in main branch and dependent packages, fork
Asko’s branch for search fixes
• Not yet merged to master either. Is this generic and
stable enough?

13. There’s some work to be
done
• Our versions available at
• https://github.com/zestsoftware/pas.plugins.ldap &
node.ext.ldap
• http://pypi.zestsoftware.nl/public/
• Sprint this saturday / sunday?
• More documentation
• check changes and prepare merge back

14. Demonstration
• To test and demo this stuff: get your own ldap-server
• Local setup of openldap on my Mac (quick show)
> slapd -d1 -f slapd.conf -h "ldap://127.0.0.1:8389/"
• Import users/groups with ldapadd and an ldif file
• querying locally on the command line:
> ldapsearch -D "cn=root,dc=ldapdemo,dc=com" -w secret -p
8389 -h localhost -b "dc=ldapdemo,dc=com" -s sub
“(objectclass=inetOrgPerson)"

15. Browsing your LDAP
• Apache Directory Studio
• cross platform
• Big Java Tool, has LDAP browser
but also built in LDAP server,
maybe useful on Windows?
• http://directory.apache.org/studio
• Demo

16. Configuring Plone
• Demo in plone 5.0.8
• Buildout
• pas.plugins.ldap in eggs
sections of
plone.rezipe.zope2instance
• Some version pinnings -
You always pin your
versions, right?
• Show config in editor
# pas.plugins.ldap
pas.plugins.ldap = 1.5.2+zest1
node.ext.ldap = 1.0b4+zest1
bda.cache = 1.2.0
pylibmc = 1.5.1
node = 0.9.16
plumber = 1.3.1
yafowil = 2.2
yafowil.plone = 2.3.1
PyYAML = 3.11
loremipsum = 1.0.5
node.ext.ugm = 0.9.8
odict = 1.5.2
python-memcached = 1.57
smbpasswd = 1.0.2
yafowil.widget.array = 1.4
yafowil.widget.dict = 1.6
yafowil.yaml = 1.2
python-ldap = 2.4.45

17. configuring the Plug-in
• Activate Add’on
• Configuration panel. A lot of options
• Server Settings
• User Settings
• Group Settings

18. Server settings
• Use SSL in production
• The manager user can/should be read only for safety in
production setups
• ignore certificate check option for nasty in company
introspecting firewalls
• Page size: fundraising option to not overquery a large
ldap

19. User settings
• Where are your users coming from?
• Path in the directory
• Can and sometimes should be recursive depending on the
structure
• Limit your search, Limit objects returned for consideration
• Same query language as ldapsearch on the command line
• keep objectClass on iNetOrgPerson for now, not finished
option yet

20. User settings
• User attribute Aliases: which required Plone user
attributes map to the attributes found on your objects in
LDAP?
• for my local LDAP it’s uid, but Active Directory often
uses sAMAccountName
• User Property Sheet: extra attributes coming into the
Plone user object, full name, email, etc.

21. Group support
• Same drill as with users, inspect your directory first
• Different options support for different LDAP backends:
memberOf support on User objects default activated in
Active Directory

22. mapping ldap fields to user
fields
• There’s no one size fits all
• Trial and error is very much that: a lot of trial, please don’t
• Inspect your directory through an ldap browser

23. actual objects in my local
slapd demo server

24. Demo of adding users on
the sharing menu
• Add users to sharing tab
• Add groups to sharing tab
• search parts of name with * syntax at the moment.
• Also searches in other attributes like location or email
• Should also work in global sharing tab, but bug in Plone
5.0.8,will investigate
• hierarchical searching - One Level - Subtree

25. Example of LDAP object in
Active Directory

26. Better performance
• ALWAYS use memcached with pas.plugins.ldap in
production, use system supplied memcached or install
with buildout
[memcached]
recipe = zc.recipe.cmmi
url = http://www.memcached.org/files/memcached-1.5.2.tar.gz
[supervisor]
recipe = collective.recipe.supervisor
…..
programs =
80 memcached (stderr_logfile=NONE stdout_logfile=${buildout:directory}/var/log/
memcached-stdout.log) ${memcached:location}/bin/memcached [ -m ${conf:memcached-size} -
l localhost -p ${conf:memcached} -U ${conf:memcached} ] true

27. Automatic configuration
• Generic Setup:
• ldap_settings.xml
• Configure and export with portal_setup
• Don’t forget registry.xml with the memcached settings
• Demo of ldapdemo.policy product
• show config in editor
• demo

28. Final thoughts
• This is not plug and play easy stuff
• Know your directory, don’t trial and error attributes, use Apache
Directory Studio to find them
• Production:
• SSL communication with LDAP
• Read only admin user
• Add’on still needs more polishment
• Plone 5 / Plone 4

29. Thank You
• Questions ?
• Sprint on pas.plugins.ldap improvements?
