Slides for my talk at Digital Ocean meetup in Pune on 24/06/2017. - Getting started with Docker with some live examples. - Understand the Docker Build-Ship-Run flow. - Docker UI (Portainer) - Docker Compose - Docker Machine - play-with-docker

1. PLAY WITH DOCKER

2. KARIM MEMON@abdulkarim_me

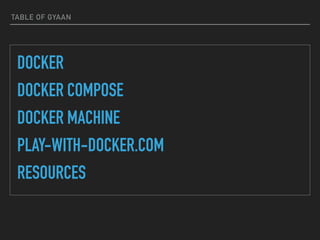

3. TABLE OF GYAAN
DOCKER
DOCKER COMPOSE
DOCKER MACHINE
PLAY-WITH-DOCKER.COM
RESOURCES

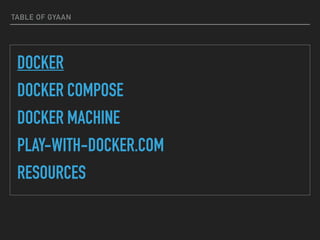

4. TABLE OF GYAAN
DOCKER
DOCKER COMPOSE
DOCKER MACHINE
PLAY-WITH-DOCKER.COM
RESOURCES

5. DOCKER: MIND MAP

6. DOCKER

7. DOCKER
BUILD

8. DOCKER
BUILD
SHIP

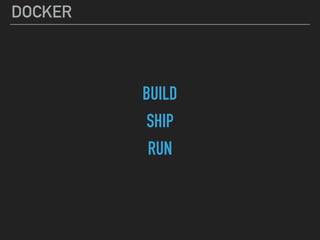

9. DOCKER
BUILD
SHIP
RUN

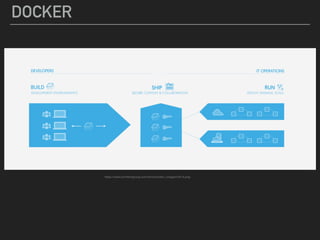

10. DOCKER
https://www.architectgroup.com/docs/docker/_images/info-6.png

11. DOCKER: BUILD
$ echo "<? phpinfo(); ?>" > index.php
Source Code
Dockerfile
Building Docker Image

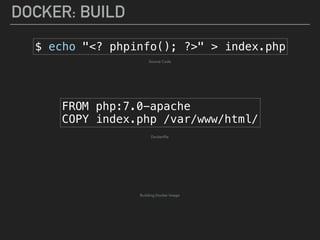

12. DOCKER: BUILD
FROM php:7.0-apache
COPY index.php /var/www/html/
$ echo "<? phpinfo(); ?>" > index.php
Source Code
Dockerfile
Building Docker Image

13. DOCKER: BUILD
FROM php:7.0-apache
COPY index.php /var/www/html/
$ echo "<? phpinfo(); ?>" > index.php
$ docker build -t dobyexample/php-info-demo .
Source Code
Dockerfile
Building Docker Image

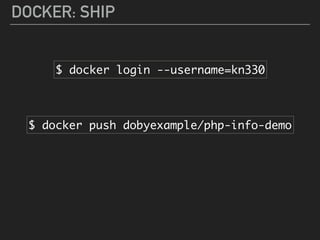

14. DOCKER: SHIP
$ docker login --username=kn330
$ docker push dobyexample/php-info-demo

15. DOCKER: SHIP [HAVELI MODE]

16. DOCKER: SHIP [HAVELI MODE]
# EXPORT

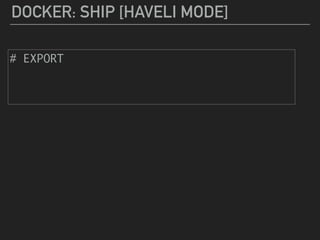

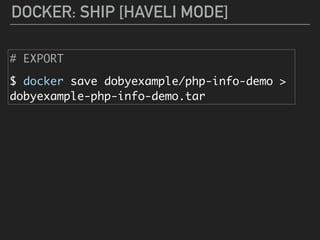

17. DOCKER: SHIP [HAVELI MODE]
# EXPORT
$ docker save dobyexample/php-info-demo >
dobyexample-php-info-demo.tar

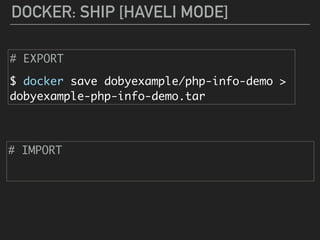

18. DOCKER: SHIP [HAVELI MODE]
# EXPORT
$ docker save dobyexample/php-info-demo >
dobyexample-php-info-demo.tar
# IMPORT

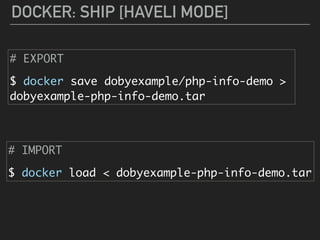

19. DOCKER: SHIP [HAVELI MODE]
# EXPORT
$ docker save dobyexample/php-info-demo >
dobyexample-php-info-demo.tar
# IMPORT
$ docker load < dobyexample-php-info-demo.tar

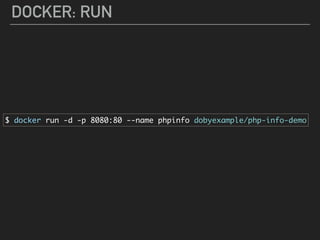

20. DOCKER: RUN
$ docker run -d -p 8080:80 --name phpinfo dobyexample/php-info-demo

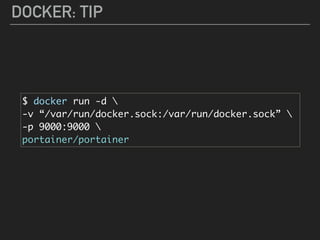

21. DOCKER: TIP
$ docker run -d
-v “/var/run/docker.sock:/var/run/docker.sock”
-p 9000:9000
portainer/portainer

22. TABLE OF GYAAN
DOCKER
DOCKER COMPOSE
DOCKER MACHINE
PLAY-WITH-DOCKER.COM
RESOURCES

23. DOCKER COMPOSE

24. DOCKER COMPOSE
DEFINING AND RUNNING MULTI-CONTAINER DOCKER
APPLICATIONS

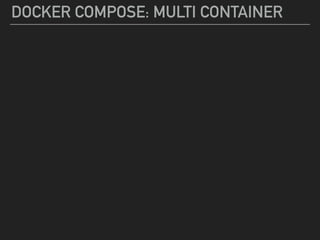

25. DOCKER COMPOSE: MULTI CONTAINER

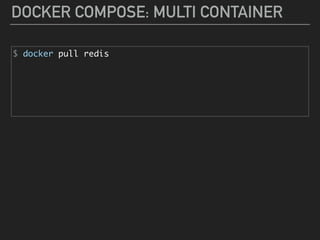

26. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis

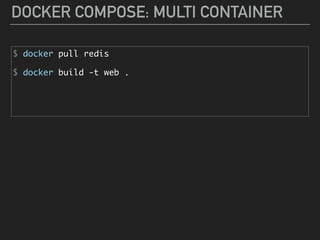

27. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis
$ docker build -t web .

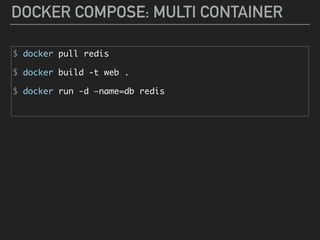

28. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis
$ docker build -t web .
$ docker run -d —name=db redis

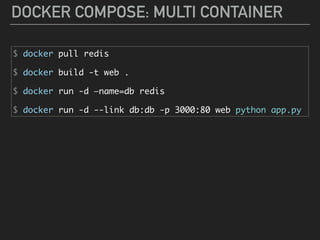

29. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis
$ docker build -t web .
$ docker run -d —name=db redis
$ docker run -d --link db:db -p 3000:80 web python app.py

30. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis
$ docker build -t web .
$ docker run -d —name=db redis
$ docker run -d --link db:db -p 3000:80 web python app.py
MULTI CONTAINER APPLICATIONS ARE BITTER

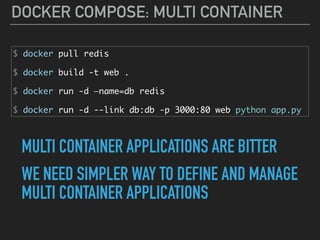

31. DOCKER COMPOSE: MULTI CONTAINER
$ docker pull redis
$ docker build -t web .
$ docker run -d —name=db redis
$ docker run -d --link db:db -p 3000:80 web python app.py
MULTI CONTAINER APPLICATIONS ARE BITTER
WE NEED SIMPLER WAY TO DEFINE AND MANAGE
MULTI CONTAINER APPLICATIONS

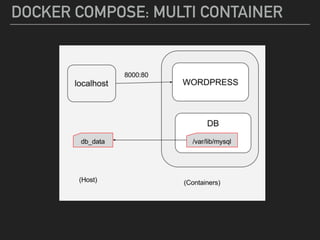

32. DOCKER COMPOSE: MULTI CONTAINER

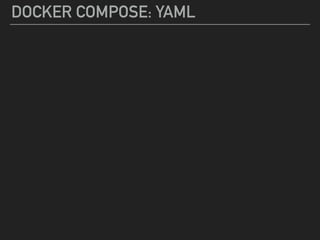

33. DOCKER COMPOSE: YAML

34. DOCKER COMPOSE: YAML
$ docker pull mysql
$ docker pull wordpress
$ docker run -d --name=db
-e MYSQL_ROOT_PASSWORD=root
mysql
$ docker run --name=wp -p
8000:80 --link db:db -e
WORDPRESS_DB_HOST=db -e
WORDPRESS_DB_PASSWORD=root
wordpress

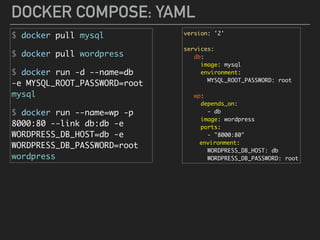

35. DOCKER COMPOSE: YAML
$ docker pull mysql
$ docker pull wordpress
$ docker run -d --name=db
-e MYSQL_ROOT_PASSWORD=root
mysql
$ docker run --name=wp -p
8000:80 --link db:db -e
WORDPRESS_DB_HOST=db -e
WORDPRESS_DB_PASSWORD=root
wordpress
version: '2'
services:
db:
image: mysql
environment:
MYSQL_ROOT_PASSWORD: root
wp:
depends_on:
- db
image: wordpress
ports:
- "8000:80"
environment:
WORDPRESS_DB_HOST: db
WORDPRESS_DB_PASSWORD: root

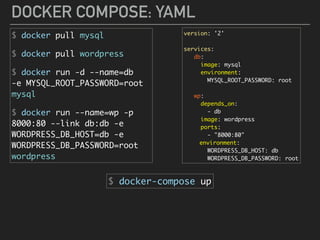

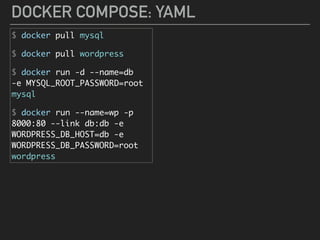

36. DOCKER COMPOSE: YAML
$ docker pull mysql
$ docker pull wordpress
$ docker run -d --name=db
-e MYSQL_ROOT_PASSWORD=root
mysql
$ docker run --name=wp -p
8000:80 --link db:db -e
WORDPRESS_DB_HOST=db -e
WORDPRESS_DB_PASSWORD=root
wordpress
version: '2'
services:
db:
image: mysql
environment:
MYSQL_ROOT_PASSWORD: root
wp:
depends_on:
- db
image: wordpress
ports:
- "8000:80"
environment:
WORDPRESS_DB_HOST: db
WORDPRESS_DB_PASSWORD: root
$ docker-compose up

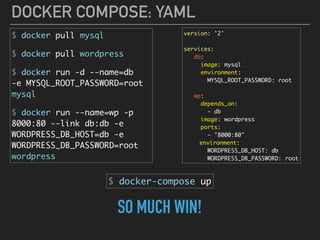

37. DOCKER COMPOSE: YAML
$ docker pull mysql
$ docker pull wordpress
$ docker run -d --name=db
-e MYSQL_ROOT_PASSWORD=root
mysql
$ docker run --name=wp -p
8000:80 --link db:db -e
WORDPRESS_DB_HOST=db -e
WORDPRESS_DB_PASSWORD=root
wordpress
version: '2'
services:
db:
image: mysql
environment:
MYSQL_ROOT_PASSWORD: root
wp:
depends_on:
- db
image: wordpress
ports:
- "8000:80"
environment:
WORDPRESS_DB_HOST: db
WORDPRESS_DB_PASSWORD: root
$ docker-compose up
SO MUCH WIN!

38. TABLE OF GYAAN
DOCKER
DOCKER COMPOSE
DOCKER MACHINE
PLAY-WITH-DOCKER.COM
RESOURCES

39. DOCKER MACHINE

40. DOCKER MACHINE
MANGAE DOCKER HOSTS

41. DOCKER MACHINE
MANGAE DOCKER HOSTS
LOCAL

42. DOCKER MACHINE
MANGAE DOCKER HOSTS
LOCAL
STD

43. DOCKER MACHINE
MANGAE DOCKER HOSTS
LOCAL
ISD
STD

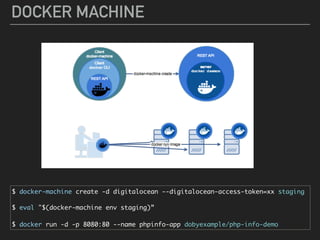

44. DOCKER MACHINE
$ docker-machine create -d digitalocean --digitalocean-access-token=xx staging
$ eval "$(docker-machine env staging)”
$ docker run -d -p 8080:80 --name phpinfo-app dobyexample/php-info-demo

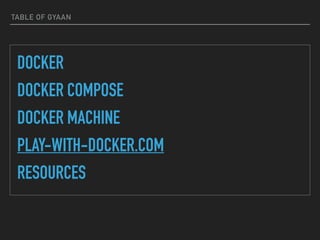

45. TABLE OF GYAAN
DOCKER
DOCKER COMPOSE
DOCKER MACHINE
PLAY-WITH-DOCKER.COM
RESOURCES

46. PLAY-WITH-DOCKER
training.play-with-docker.com

47. QA

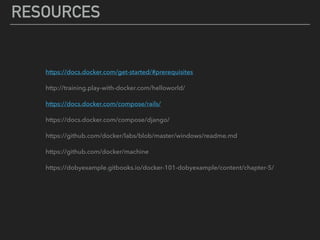

48. RESOURCES
https://docs.docker.com/get-started/#prerequisites
http://training.play-with-docker.com/helloworld/
https://docs.docker.com/compose/rails/
https://docs.docker.com/compose/django/
https://github.com/docker/labs/blob/master/windows/readme.md
https://github.com/docker/machine
https://dobyexample.gitbooks.io/docker-101-dobyexample/content/chapter-5/
