Asynchronous Systems with Fn Flow

#ASFnFlow @JosePaumard @delabassee
Asynchronous Systems
with Fn Flow

@JosePaumard
@JosePaumard
https://github.com/JosePaumard
https://www.slideshare.net/jpaumard
https://www.youtube.com/user/JPaumard

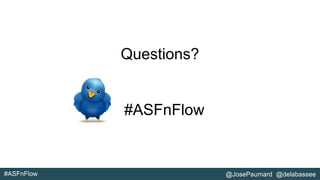

Questions?
#ASFnFlow

@JosePaumard @delabassee#ASFnFlow

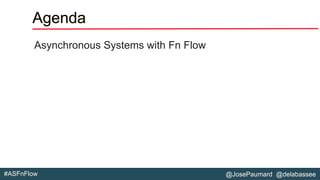

Agenda
Asynchronous Systems with Fn Flow

An Open Source Container Native FaaS Platform
https://github.com/fnproject

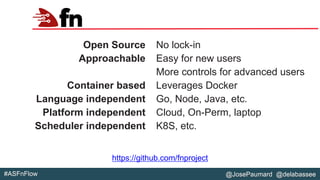

Fn
Open Source
Approachable
Container based
Language independent
Platform independent
Scheduler independent
No lock-in
Easy for new users
More controls for advanced users
Leverages Docker
Go, Node, Java, etc.
Cloud, On-Perm, laptop
K8S, etc.
https://github.com/fnproject

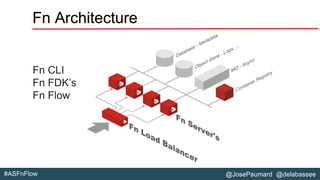

Fn Architecture
Fn CLI
Fn FDK’s
Fn Flow

Setting up Fn

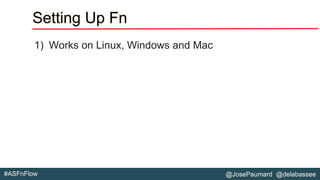

Setting Up Fn
1) Works on Linux, Windows and Mac

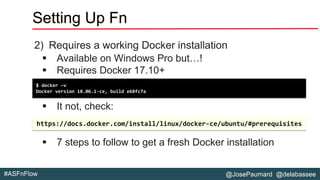

Setting Up Fn
2) Requires a working Docker installation
▪ Available on Windows Pro but…!
▪ Requires Docker 17.10+
▪ It not, check:
▪ 7 steps to follow to get a fresh Docker installation
$ docker –v
Docker version 18.06.1-ce, build e68fc7a
https://docs.docker.com/install/linux/docker-ce/ubuntu/#prerequisites

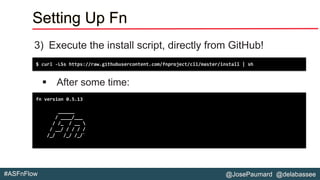

Setting Up Fn
3) Execute the install script, directly from GitHub!
▪ After some time:
$ curl -LSs https://raw.githubusercontent.com/fnproject/cli/master/install | sh
fn version 0.5.13
______
/ ____/___
/ /_ / __
/ __/ / / / /
/_/ /_/ /_/`

Setting Up Fn
4) Launch Fn Server
$ fn start

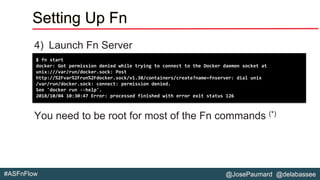

Setting Up Fn
4) Launch Fn Server
You need to be root for most of the Fn commands (*)
$ fn start
docker: Got permission denied while trying to connect to the Docker daemon socket at
unix:///var/run/docker.sock: Post
http://%2Fvar%2Frun%2Fdocker.sock/v1.38/containers/create?name=fnserver: dial unix
/var/run/docker.sock: connect: permission denied.
See 'docker run --help'.
2018/10/04 10:30:47 Error: processed finished with error exit status 126

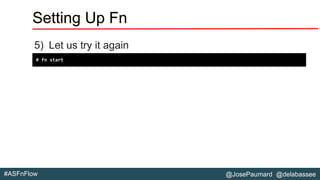

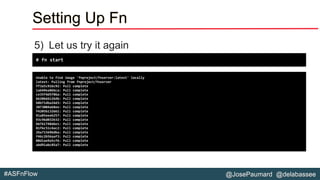

Setting Up Fn
5) Let us try it again
# fn start

Setting Up Fn
# fn start
Unable to find image 'fnproject/fnserver:latest' locally
latest: Pulling from fnproject/fnserver
ff3a5c916c92: Pull complete
1a649ea86bca: Pull complete
ce35f4d5f86a: Pull complete
b6206661264b: Pull complete
b8b71dba24d3: Pull complete
3873004a68ee: Pull complete
f4205b132661: Pull complete
91a85eeeb257: Pull complete
93c96d032b32: Pull complete
bb761748d6e1: Pull complete
81f6c51c4ac2: Pull complete
2ba715696dba: Pull complete
f46c2b56aaf3: Pull complete
08d1ae9a5cf6: Pull complete
abd91abc85a7: Pull complete

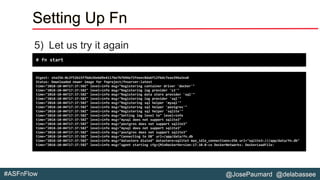

Setting Up Fn
# fn start
Digest: sha256:0c2f52b15f7bde26e6d9e4117be7b7b94e72feeec8da6f12f6dc7eae294a2ea8
Status: Downloaded newer image for fnproject/fnserver:latest
time="2018-10-04T17:37:58Z" level=info msg="Registering container driver 'docker'"
time="2018-10-04T17:37:58Z" level=info msg="Registering log provider 's3'"
time="2018-10-04T17:37:58Z" level=info msg="Registering data store provider 'sql'"
time="2018-10-04T17:37:58Z" level=info msg="Registering log provider 'sql'"
time="2018-10-04T17:37:58Z" level=info msg="Registering sql helper 'mysql'"
time="2018-10-04T17:37:58Z" level=info msg="Registering sql helper 'postgres'"
time="2018-10-04T17:37:58Z" level=info msg="Registering sql helper 'sqlite'"
time="2018-10-04T17:37:58Z" level=info msg="Setting log level to" level=info
time="2018-10-04T17:37:58Z" level=info msg="mysql does not support sqlite3"
time="2018-10-04T17:37:58Z" level=info msg="postgres does not support sqlite3"
time="2018-10-04T17:37:58Z" level=info msg="mysql does not support sqlite3"
time="2018-10-04T17:37:58Z" level=info msg="postgres does not support sqlite3"
time="2018-10-04T17:37:58Z" level=info msg="Connecting to DB" url=/app/data/fn.db
time="2018-10-04T17:37:58Z" level=info msg="datastore dialed" datastore=sqlite3 max_idle_connections=256 url="sqlite3:///app/data/fn.db"
time="2018-10-04T17:37:58Z" level=info msg="agent starting cfg={MinDockerVersion:17.10.0-ce DockerNetworks: DockerLoadFile:

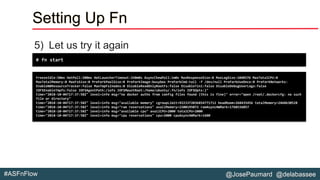

Setting Up Fn
# fn start
FreezeIdle:50ms HotPoll:200ms HotLauncherTimeout:1h0m0s AsyncChewPoll:1m0s MaxResponseSize:0 MaxLogSize:1048576 MaxTotalCPU:0
MaxTotalMemory:0 MaxFsSize:0 PreForkPoolSize:0 PreForkImage:busybox PreForkCmd:tail -f /dev/null PreForkUseOnce:0 PreForkNetworks:
EnableNBResourceTracker:false MaxTmpFsInodes:0 DisableReadOnlyRootFs:false DisableTini:false DisableDebugUserLogs:false
IOFSEnableTmpfs:false IOFSAgentPath:/iofs IOFSMountRoot:/home/ubuntu/.fn/iofs IOFSOpts:}"
time="2018-10-04T17:37:58Z" level=info msg="no docker auths from config files found (this is fine)" error="open /root/.dockercfg: no such
file or directory"
time="2018-10-04T17:37:58Z" level=info msg="available memory" cgroupLimit=9223372036854771712 headRoom=268435456 totalMemory=2468630528
time="2018-10-04T17:37:58Z" level=info msg="ram reservations" availMemory=2200195072 ramAsyncHWMark=1760156057
time="2018-10-04T17:37:58Z" level=info msg="available cpu" availCPU=2000 totalCPU=2000
time="2018-10-04T17:37:58Z" level=info msg="cpu reservations" cpu=2000 cpuAsyncHWMark=1600

Setting Up Fn
5) Let us try again
# fn start
______
/ ____/___
/ /_ / __
/ __/ / / / /
/_/ /_/ /_/
v0.3.591

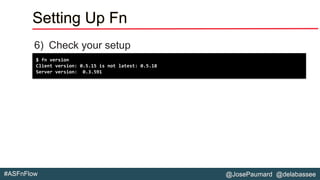

Setting Up Fn
6) Check your setup
$ fn version
Client version: 0.5.15 is not latest: 0.5.18
Server version: 0.3.591

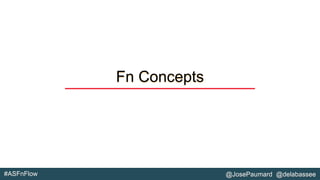

Fn Concepts

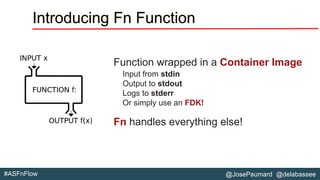

Introducing Fn Function
Function wrapped in a Container Image
Input from stdin
Output to stdout
Logs to stderr
Or simply use an FDK!
Fn handles everything else!

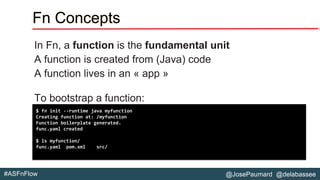

Fn Concepts
In Fn, a function is the fundamental unit
A function is created from (Java) code
A function lives in an « app »
To bootstrap a function:
$ fn init --runtime java myfunction
Creating function at: /myfunction
Function boilerplate generated.
func.yaml created
$ ls myfunction/
func.yaml pom.xml src/

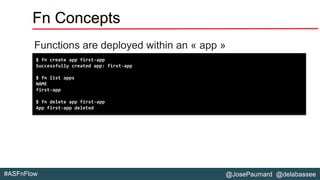

Fn Concepts
Functions are deployed within an « app »
$ fn create app first-app
Successfully created app: first-app
$ fn list apps
NAME
first-app
$ fn delete app first-app
App first-app deleted

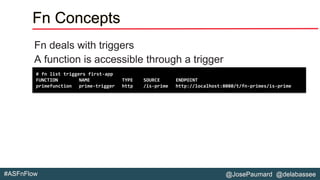

Fn Concepts
Fn deals with triggers
A function is accessible through a trigger
# fn list triggers first-app
FUNCTION NAME TYPE SOURCE ENDPOINT
primefunction prime-trigger http /is-prime http://localhost:8080/t/fn-primes/is-prime

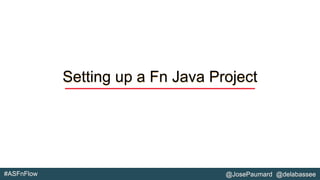

Setting up a Fn Java Project

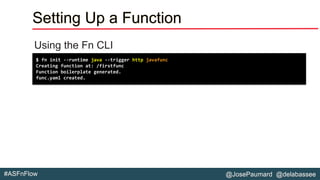

Setting Up a Function
Using the Fn CLI
$ fn init --runtime java --trigger http javafunc
Creating function at: /firstfunc
func.yaml created.

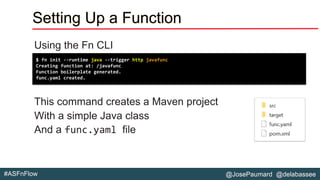

Setting Up a Function
Using the Fn CLI
This command creates a Maven project
With a simple Java class
And a func.yaml file
$ fn init --runtime java --trigger http javafunc
Creating function at: /javafunc
func.yaml created.

The func.yaml file
Function metadatas
https://github.com/fnproject/docs/blob/master/fn/develop/func-file.md

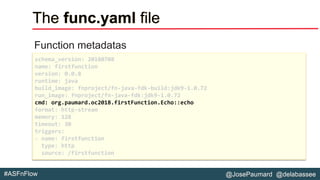

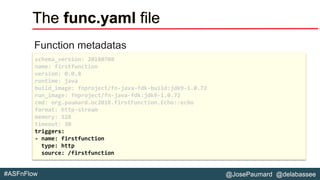

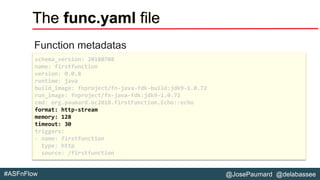

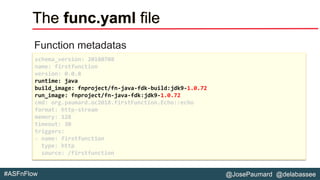

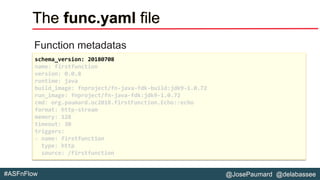

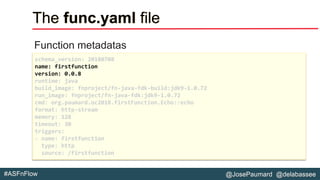

The func.yaml file
Function metadatas
schema_version: 20180708
name: firstfunction
version: 0.0.8
runtime: java
build_image: fnproject/fn-java-fdk-build:jdk9-1.0.72
run_image: fnproject/fn-java-fdk:jdk9-1.0.72
cmd: org.paumard.oc2018.firstFunction.Echo::echo
format: http-stream
memory: 128
timeout: 30
triggers:
- name: firstfunction
type: http
source: /firstfunction

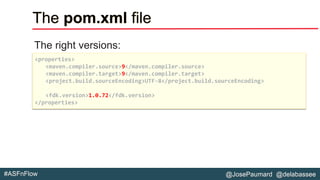

The pom.xml file
The right versions:
<properties>
<maven.compiler.source>9</maven.compiler.source>
<maven.compiler.target>9</maven.compiler.target>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<fdk.version>1.0.72</fdk.version>
</properties>

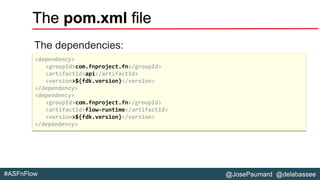

The pom.xml file
The dependencies:
<dependency>
<groupId>com.fnproject.fn</groupId>
<artifactId>api</artifactId>
<version>${fdk.version}</version>
</dependency>
<dependency>
<groupId>com.fnproject.fn</groupId>
<artifactId>flow-runtime</artifactId>
<version>${fdk.version}</version>
</dependency>

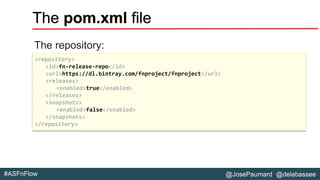

The pom.xml file
The repository:
<repository>
<id>fn-release-repo</id>
<url>https://dl.bintray.com/fnproject/fnproject</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>

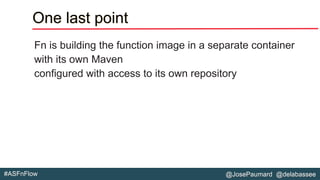

One last point
Fn is building the function image in a separate container
with its own Maven
configured with access to its own repository

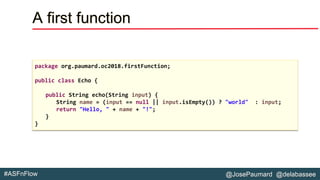

A first function
package org.paumard.oc2018.firstFunction;
public class Echo {
public String echo(String input) {
String name = (input == null || input.isEmpty()) ? "world" : input;
return "Hello, " + name + "!";
}
}

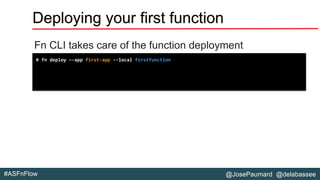

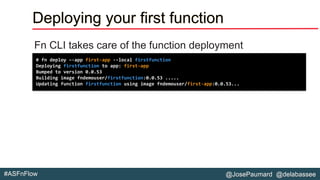

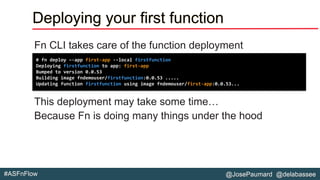

Deploying your first function
Fn CLI takes care of the function deployment
# fn deploy –-app first-app --local firstfunction

Deploying firstfunction to app: first-app
Bumped to version 0.0.53
Building image fndemouser/firstfunction:0.0.53 .....
Updating function firstfunction using image fndemouser/first-app:0.0.53...

This deployment may take some time…
Because Fn is doing many things under the hood
Updating function firstfunction using image fndemouser/first-app:0.0.53...

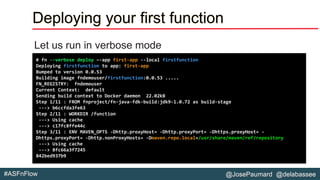

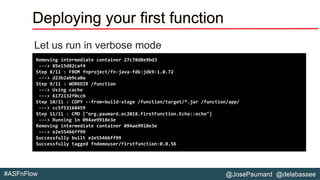

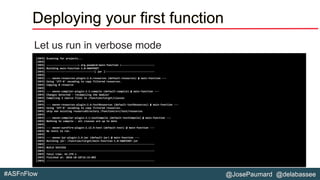

Let us run in verbose mode
# fn --verbose deploy –-app first-app --local firstfunction
FN_REGISTRY: fndemouser
Current Context: default
Sending build context to Docker daemon 22.02kB
Step 1/11 : FROM fnproject/fn-java-fdk-build:jdk9-1.0.72 as build-stage
---> b6ccfda3fe63
Step 2/11 : WORKDIR /function
---> Using cache
---> c17fc8ffe44c
Step 3/11 : ENV MAVEN_OPTS -Dhttp.proxyHost= -Dhttp.proxyPort= -Dhttps.proxyHost= -
Dhttps.proxyPort= -Dhttp.nonProxyHosts= -Dmaven.repo.local=/usr/share/maven/ref/repository
---> Using cache
---> 8fc66a3f7245
842bed937b9

Step 4/11 : ADD pom.xml /function/pom.xml
---> Using cache
---> 1cdf0a511da1
Step 5/11 : RUN ["mvn", "package", "dependency:copy-dependencies", "-DincludeScope=runtime", "-
DskipTests=true", "-Dmdep.prependGroupId=true", "-DoutputDirectory=target", "--fail-never"]
---> Using cache
---> 3c9c6b613843
Step 6/11 : ADD src /function/src
---> Using cache
---> 8842bed937b9
Step 7/11 : RUN ["mvn", "package"]
---> Running in 27c78d8e9bd3

[INFO] Scanning for projects...
[INFO]
[INFO] ---------------------< org.paumard:main-function >----------------------
[INFO] Building main-function 1.0-SNAPSHOT
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ main-function ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] Copying 0 resource
[INFO]
[INFO] --- maven-compiler-plugin:3.1:compile (default-compile) @ main-function ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 2 source files to /function/target/classes
[INFO]
[INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ main-function ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory /function/src/test/resources
[INFO]
[INFO] --- maven-compiler-plugin:3.1:testCompile (default-testCompile) @ main-function ---
[INFO] Nothing to compile - all classes are up to date
[INFO]
[INFO] --- maven-surefire-plugin:2.12.4:test (default-test) @ main-function ---
[INFO] No tests to run.
[INFO]
[INFO] --- maven-jar-plugin:2.4:jar (default-jar) @ main-function ---
[INFO] Building jar: /function/target/main-function-1.0-SNAPSHOT.jar
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 42.379 s
[INFO] Finished at: 2018-10-18T14:33:09Z
[INFO] ------------------------------------------------------------------------

Removing intermediate container 27c78d8e9bd3
---> 85e15d82caf4
Step 8/11 : FROM fnproject/fn-java-fdk:jdk9-1.0.72
---> d23b2ab9ca0a
Step 9/11 : WORKDIR /function
---> Using cache
---> 6172132f0ccb
Step 10/11 : COPY --from=build-stage /function/target/*.jar /function/app/
---> cc5f53168459
Step 11/11 : CMD ["org.paumard.oc2018.firstFunction.Echo::echo"]
---> Running in 094ae9918e3e
Removing intermediate container 094ae9918e3e
---> e2e55466ff99
Successfully built e2e55466ff99
Successfully tagged fndemouser/firstfunction:0.0.56

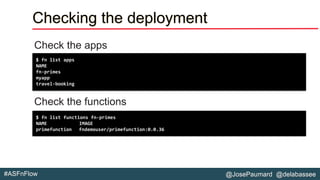

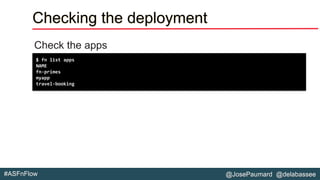

Checking the deployment

Check the apps
$ fn list apps
NAME
fn-primes
myapp
travel-booking

Check the apps
Check the functions
$ fn list apps
NAME
fn-primes
myapp
travel-booking
$ fn list functions fn-primes
NAME IMAGE
primefunction fndemouser/primefunction:0.0.36

Check the triggers
$ fn list triggers fn-primes
FUNCTION NAME TYPE SOURCE ENDPOINT
primefunction prime-trigger http /is-prime http://localhost:8080/t/fn-primes/is-prime

Inspect the function
$ fn inspect function travel-booking quotation
{
"annotations": {
"fnproject.io/fn/invokeEndpoint":
"http://localhost:8080/invoke/01CT168S17NG8G00GZJ0000076"
},
"app_id": "01CT152R7RNG8G00GZJ000006A",
"created_at": "2018-10-17T14:18:29.287Z",
"format": "http-stream",
"id": "01CT168S17NG8G00GZJ0000076",
"idle_timeout": 30,
"image": "fndemouser/quotation:0.0.13",
"memory": 128,
"name": "quotation",
"timeout": 30,
"updated_at": "2018-10-21T16:35:07.894Z"
}

Invoke the function
$ fn invoke fn-primes prime-function
…

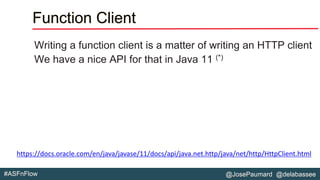

Function Client
Writing a function client is a matter of writing an HTTP client
We have a nice API for that in Java 11 (*)
https://docs.oracle.com/en/java/javase/11/docs/api/java.net.http/java/net/http/HttpClient.html

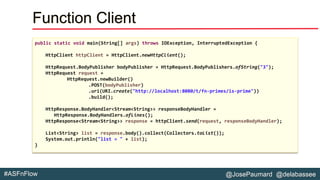

Function Client
public static void main(String[] args) throws IOException, InterruptedException {
HttpClient httpClient = HttpClient.newHttpClient();
HttpRequest.BodyPublisher bodyPublisher = HttpRequest.BodyPublishers.ofString("3");
HttpRequest request =
HttpRequest.newBuilder()
.POST(bodyPublisher)
.uri(URI.create("http://localhost:8080/t/fn-primes/is-prime"))
.build();
HttpResponse.BodyHandler<Stream<String>> responseBodyHandler =
HttpResponse.BodyHandlers.ofLines();
HttpResponse<Stream<String>> response = httpClient.send(request, responseBodyHandler);
List<String> list = response.body().collect(Collectors.toList());
System.out.println("list = " + list);
}

Fn Flow

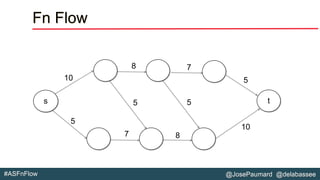

Fn Flow
ts
10
5
5 5
5
8 7
7 8
10

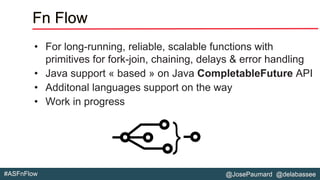

Fn Flow
• For long-running, reliable, scalable functions with
primitives for fork-join, chaining, delays & error handling
• Java support « based » on Java CompletableFuture API
• Additonal languages support on the way
• Work in progress

A simple Flow example

But before…
It needs a little config!
1) Launch the Flow Server
2) Configure the « app » to connect to the Flow Server
# FNSERVER_IP=$(docker inspect --type container -f '{{.NetworkSettings.IPAddress}}' fnserver)
# docker run --rm -p 8081:8081 -d -e API_URL="http://$FNSERVER_IP:8080/invoke"
-e LOG_LEVEL=debug -e no_proxy=$FNSERVER_IP
--name flowserver fnproject/flow:latest
# FLOWSERVER_IP=$(docker inspect --type container -f '{{.NetworkSettings.IPAddress}}' flowserver)
# fn config app fn-primes COMPLETER_BASE_URL "http://$FLOWSERVER_IP:8081"

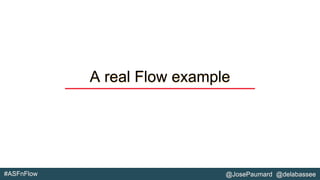

A real Flow example

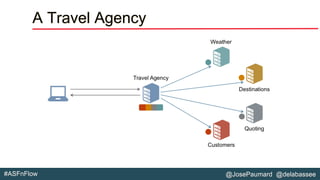

A Travel Agency

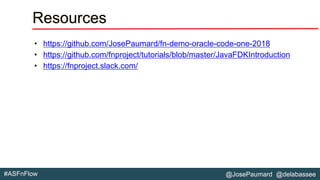

Resources
• https://github.com/JosePaumard/fn-demo-oracle-code-one-2018
• https://github.com/fnproject/tutorials/blob/master/JavaFDKIntroduction
• https://fnproject.slack.com/

Merci!

Questions?

Asynchronous Systems with Fn Flow

More Related Content

What's hot

Similar to Asynchronous Systems with Fn Flow

More from José Paumard

Recently uploaded

Asynchronous Systems with Fn Flow
