- 1. CONFIDENTIAL NSX Use-Cases forPivotal 1 • Agility Provision new networks and services without touching the physical infrastructure. • Repeatability Automate once, use multiple times to stand up multiple installations • Availability Built-in NSX as well as VMware HA/anti-affinity features can be used • Network Services LB, NAT, Centralized Routing, Perimeter firewalling available on the same VM appliance. • Co-existence Each Pivotal installation can co-exist as a tenant with legacy/other workloads using NSX. • Security Edge Firewalling, DFW, Security Groups(BOSH integration) • BOSH integration Dynamic inclusion of BOSH provisioned VMs into NSX Security Groups • Monitoring Tools & vSphere ecosystem VRNI, vRealize Operations with Blue Medora content pack.
- 2. Network Automation “I needto carve out networks for my Pivotal foundation.” 2 Programmatic network provisioning without touching the physical infra. PCF_Infra Logical Switch PCF Foundation Define VXLAN logical switches and run Pivotal foundations on overlay networks.PCF_ERT Logical Switch PCF_Tiles Logical Switch PCF_Services Logical Switch

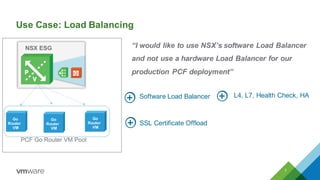

- 3. PCF Go RouterVM Pool NSX ESG Network Services : Load Balancing 3 Software Load Balancer L4, L7, Health Check SSL Certificate Offload Go Router VM Go Router VM Go Router VM Built-in High Availability “I need to frontend my PCF installation with a highly available feature-rich Load Balancer” PCF Foundation
- 4. Network Services :NAT ”Pivotal Elastic Runtime requires a lot of IP addresses I want to preserve my routable IP space addresses and only expose CF endpoints which need exposure using SNAT/DNAT” 4 Programmatic network provisioning of additional PCF foundations using overlapping IP space ESG Deployed in HA mode Edge Load Balancing Perimeter Firewall NAT PCF Foundation VPN Use of non-routed networks with DNAT/SNAT to limit exposure to CF endpoints.
- 5. Security: Edge Firewall 5 “Iwould like to use NSX’s Perimeter firewall capabilities to protect ingress inside my PCF Installation” PCF Go Router VM Pool NSX ESG Go Router VM Go Router VM Go Router VM Allow Ingress Ops Manager 80/443/25555/22 Allow Ingress -> Elastic Runtime 80/443/22 Allow Egress -> DNS, LDAP, Syslog ………………. 53,389,636
- 6. Network Services: Routing 6 PCFFoundation VPN External Network ”Distributed Routing can be used to optimize E-W traffic” “N/S Routing from the ESG to NorthBound” App-to-App traffic trombones thru the LB and is always N-S. DLR can be used to optimize E-W traffic PCF_Infra Logical Switch PCF_ERT Logical Switch PCF_Tiles Logical Switch PCF_Services Logical Switch Routing can be enabled for N-S traffic ESG deployed in HA mode LB Edge Firewall N/S Routing

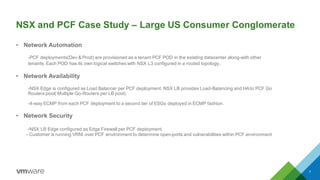

- 7. Co-existence with legacyworkloads: 2 tier NSX+PCF Design Transit LS E1 E2 E3 E4 ECMP NSX Edges Physical Network PCF Dev Non PCF Tenants VPN 2 Tier Design Each Pivotal Installation is a tenant in existing DC Tenant ESG(A/S) per PCF Foundation connect to the 2nd Tier of Provider ECMP Edges ESG deployed in HA mode LB NAT Edge Firewall N/S Routing VPN ESG deployed in HA mode LB NAT Edge Firewall N/S Routing VPN PCF Prod With NAT (Overlapping IP addresses)
- 8. Co-existence with legacyworkloads: Routed Topology Transit LS E1 E2 E3 E4 ECMP NSX Edges Physical Network PCF Dev Non PCF Tenants VPN 2 Tier Design Each Pivotal Installation is a tenant in existing DC Tenant ESG(A/S) per PCF Foundation connect to the 2nd Tier of Provider ECMP Edges ESG deployed in HA mode LB Edge Firewall N/S RoutingVPN ESG deployed in HA mode LB Edge Firewall N/S RoutingVPN PCF Prod Routed topology (No overlapping IP addresses)
- 9. Security Tools: Use vRealizeNetwork Insight or NSX Application Rule Manager to understand E-W traffic flows within the PCF Installation Use Edge firewall to secure any ingress/egress to the PCF Installation 9 Use DFW and dynamic member inclusion to secure elastic PCF Environment
- 10. NSX Application RuleManager : Flow Analysis 10 Diego Cell accessing the Load Balancer VIP on Port 443
- 11. vRealize Network Insight:PCF ERT Security Recommendations 11

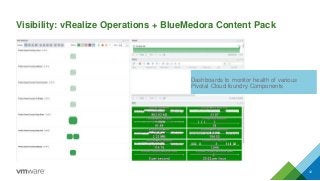

- 12. Visibility: vRealize Operations+ BlueMedora Content Pack 12 Dashboards to monitor health of various Pivotal Cloud foundry Components
- 13.
- 14. Pivotal + NSXReference Design https://github.com/pivotal-cf/landingpage/blob/master/vsphere/PCF-NSX-Cookbook.md
- 15. Diego Cell VM web-app Container GuestvSwitch 192.168.100.100 Cloud Foundry Networking Recap: Inbound access to App Edge Services Gateway web-app.pcf-apps.corp.local PCF Go Router Pool VM IP Address 172.16.90.18/24 App A : Port 60012 web-app.pcf-apps.corp.local *.pcf-apps.corp.local App domain *.pcf-sys.corp.local -> System Domain port mapping 172.16.90.18:60012 Go Router1 Go Router2 Go Router3 App2 Container
Editor's Notes
- #3 Infra = Ops Manager/Director Services = Brokers/Service Nodes Deployment = Elastic Runtime NATs = only accessed within the Foundry
- #4 We can deploy the ESG/ESGs in HA to provide LB functionality to the Go Router pool. We can do SSL termination at the Edge LB.
- #5 Infra = Ops Manager/Director Services = Brokers/Service Nodes Deployment = Elastic Runtime NATs = only accessed within the Foundry
- #8 Each topology can be deployed in minutes in a repeatable fashion
- #9 Each topology can be deployed in minutes in a repeatable fashion
- #15 -From vCenter, create three clusters. Pivotal recommends vSphere DVS (distributed virtual switching) for all clusters used by PCF. -Populate each cluster with two VMware Resource Pools. Enable VMware distributed resource scheduler (DRS) for each Resource Pool, so vMotion can automatically migrate data to avoid downtime. -For hosting capacity, populate each cluster with three ESXi hosts, making nine hosts for each installation. All installations collectively draw from the same nine hosts. -In one PCF deployment, use Ops Manager to create three Availability Zones (AZs), each corresponding to one of the Resource Pools from each cluster. -In the other PCF deployment, create an AZ for each of the three remaining Resource Pools. -For storage, add dedicated datastores to each PCF deployment following one of the two approaches, vertical or horizontal, as described below: Horizontal: You grant all hosts access to all datastores, and assign a subset to each installation. For example, with 6 datastores ds01 through ds06, you grant all nine hosts access to all six datastores, then provision PCF installation #1 to use stores ds01 through ds03, and installation #2 to use ds04 through ds06. Installation #1 will use ds01 until it is full, then ds02, and so on. Vertical: You grant each host cluster its own dedicated datastores, giving each installation multiple datastores based on their host cluster. vSphere VSAN storage requires this architecture. With 6 datastores ds01 through ds06, for example, you assign datastores ds01 and ds02 to cluster 1, ds03 and ds04 to cluster 2, and ds05 and ds06 to cluster 3. Then you provision PCF installation #1 to use ds01, ds03 and ds05, and installation #2 to use ds02, ds04 and ds06. With this arrangement, all VMs in the same installation and cluster share a dedicated datastore. Supply core networking for each deployment by configuring an NSX Edge with the following subnets.
