This document provides information about AAA Supports Private Limited, a company that designs and manufactures variable spring hangers and supports. It describes the company's product range, design principles, ordering information, quality control processes, materials used, and installation instructions. The document also provides details on the company's variable spring support types and selection methods.

2.
AAA SUPPORTS PVT. LTD.
HEAD OFFICE & WORKS:
262, POR – RAMANGAMDI, GIDC ESTATE,
VADODARA, GUJARAT, INDIA
PH: +91‐265‐2830444/ 2830445 / 2830446,
FAX:+91‐ 265 2830445
E‐Mail: sales@aaasupports.com
salesaaaspl@gmail.com
Web: www.aaasupports.com
VARIABLE SPRING HANGERS & SUPPORTS

3. AAA SUPPORTS PRIVATE LIMITED
INTRODUCTION
AAA SUPPORT PVT LTD. is specialized in designing and manufacturing of spring hangers and its accessories. Our comprehensive service includes
the supply of a wide range of pipe hangers equipment .Existing facilities for the design and supply of any special pipe support fabricated and in a
wide range of materials to suit the customer’s requirement. Designing and manufacturing system are controlled documents system incorporated
in our quality assurance and quality control plan.
PRODUCT RANGE
VARIABLE SPRING SUPPORT ANCILLLARY EQUIPMENT
CONSTANT SPRING SUPPORT -BEAM BRECKET
RIGID HANGER/ SUPPORT -TURN BUCKLE
PIPE HANGING ACCESSORIES -HANGER ROD
SPRING SWAY BRACE -PIPE CLAMP
RIGID STUD/RESTRAINT -RISER CLAMP
SPECIAL TYPE SUPPORT -U-CLAMP
COROSSION RESISTANT SUPPORT -EYE NUT
LOW FRICTION SLIDE BEARING SUPPORT -ROLLER
-ANCHOR
-SLIDER
(PTFE/GRAPHITE/BALL)
STANDARD/DESIGN PRINCIPLES
Designing, manufacturing dimensions of component and material properties are in accordance with appropriate standards and approved rate of
techniques. The following standards have been taken into consideration.
BS 1726 Part 1 -Coil Springs
BS 3974 Part 1,2&3 -Pipe Supports ,Slider & Ancillaries
MSS SP 58 -Pipe Hangers Supports (Materials Design & Manufacturing)
MSS SP 69 -Pipe Hangers Supports(Selection & Application)
ANSI B 31.3 -Petroleum Refinery Piping
ANSI B 31.1 -Power Piping
DIN 2092 & 2093 -Disc Spring
Deigning & dimensions are subjected to change due to continuous up gradation & improvement of our product.

4. AAA SUPPORTS PRIVATE LIMITED
ORDERING INFORMATIONS
Value of operating or hot load on pipeline.
Value of Travel or movement and it direction towards cold position to hot position.
Modal or type of hangar as shown ‘A’ to ‘G’/’AC’ to ‘GC’/’AH’ to ‘FH’/’AV’ to ‘FV’ or figure no.
Value of pre-set or cold load on the pipeline
Variability or load variation factor (cold or hot)
Type & size of attachment (if required)
Temperature of pipeline(if required)
QUALITY CONTROL/INSPECTION
All springs are tested as per BS-1726 part-1/ASTM A125.Each and every spring support is subjected to some rigorous internal inspection at our end
and there after offered to the inspecting officer of the Clint/inspection agency concerned for final inspection of required load and travel in our
sophisticated testing machine as per approved Quality Assurance Plan & Drawing. All test certificates shall be provided for client verification.
MATERIAL
SPRING : EN-42 or IS-4454 Part-1 Gr-II upto Ø12mm & EN-45/EN-47-ABOVE Ø12mm.
CASING : IS-1239/3589(medium) & IS-2062
HANGER ROD : Carbon steel to IS-2062 Gr A/B
TOP LUG : Carbon steel to IS-2062 Gr A/B
BEAM ATTACHMENT : Carbon steel to IS-2062 Gr A/B
TURN BUCKLE : Carbon steel to IS-1875 Gr CL-2(Forged) upto M30
PIPE TB (SA 106 Gr B) : Carbon steel to IS-2062 Gr A/B (Machined) above M30
PIPE CLAMP, SHOE : Carbon steel to IS-2062 Gr A/B upto Temperature 350°C
& U-BOLT : Alloy steel to 1%Cr., 0.5%Mo (ASTM A182 F11) upto Temperature 470°C
: Alloy steel to 2%Cr., 1%Mo (ASTM A182 F22) upto Temperature 550°C
: Stainless steel to AISI 304/316/321 above temperature 550°C

5. AAA SUPPORTS PRIVATE LIMITED
BOLT /STUD & NUT : Carbon steel to IS-1363/67 CL-4.6/4.0 upto Temperature 340°C
: Alloy steel to A193 Gr.B7/A194Gr.2H upto Temperature 470°C
: Alloy steel to A193 B16/A194 Gr.4 upto Temperature 550°C
: Stainless steel to A193 B8/A194 Gr.8 above Temperature 550°C
PLATE/ST.STEEL : Carbon steel to IS-2062 Gr A/B
LOW FRICTION PAD : PTFE upto Temperature 210°C
: Graphite upto Temperature 550°C
STEEL BALL : Carbon steel upto Temperature 350°C
: Stainless steel upto Temperature 550°C
NAME PLATE& : Aluminum Anodized
LOAD-TRAVEL SCALE
PAINTING
• Our Standard : Two Coats Of Zinc Chromate Red/Grey oxide primer IS:2074 and one coat Of Finish enamel paint to IS-5:1973
• On Request : Spring to be PU / Neo-prene rubber coating.
: Casing & component to be hot dip galvanized to IS: 2629/A153/A123 except threaded portion.
: Epoxy zinc phosphate primer & high build epoxy finish.
: Threaded component shell be electro zinc coated to ASTM B633/B76
MARKING : Each and every variable & constant supports are fitted with a metallic load travel scale cum name plate on
which all references are punched Such as Cold & Hot Load, Travel, Support Tag Number, Size etc. All items of
ancillary equipment are clearly identified with Clint’s tag number.
PACKING : Each and every spring support and its ancillary equipment are properly packed in Wooden Box/Crate. Packing
list shall indicate contain of item against respective box no.

6. AAA SUPPORTS PRIVATE LIMITED
GUARANTEE
Each and spring support /hanger assembly is guaranteed for a period of 18 month from the date of supply or 12 months from the date of
commissioning, whichever is earlier. We shall replace with free of charges if any materials, which owing to defect in raw materials or
workmanship, should fail within guaranteed period.
INSTALLATION INSTRUCTION
Fix the spring support in accordance with your pipeline drawing maintaining Tag No. if required adjustment can be made by twisting turnbuckle
for hanging type or threaded load column pipe for bottom supported type, till if comes to the mark indicating the pre-setting cold load.
All variable and constant spring supports are locked in cold/pre-set load. Variable spring supports are locked by side studs & nuts from either
side for constant spring supports by a pin, both of which are indicated by an arrow mark. After application of the hydrostatic load and before the
pipe line comes into operation, pre-set locking arrangement are to be removed to take care of thermal movement & pipe load.
Height adjustment by twisting of turnbuckle or threaded load column pipe should not be made in loaded condition. Erection & pre-set removal
instruction writ up are pasted separately on variable and constant spring box.

7. AAA SUPPORTS PRIVATE LIMITED
VARIABLE SPRING SUPPORT
Variable Spring Supports are used where pipeline are under high pressure, high temperature and results in vertical movement. To allow vertical
movement, the entire loads are taken care of by Variable Spring Supports in both the hot and cold position. The Variable Spring Supports are
utilized to protect valuable instrument, pipeline a critical component. The designs of the Variable Spring Supports are based on loads,
movements and modals to suit the required position on pipelines and also depending on the weather condition.

8. AAA SUPPORTS PRIVATE LIMITED
TYPE-A TYPE-B TYPE-C TYPE-D TYPE-E TYPE-F TYPE-G
RANGE
We offer three series prefixed VS1, VS2 & VS3 twenty-five spring sizes allow a range of load 8.2kgs to 27.43 tons. In all the series VS1, VS2 & VS3
provide travel 40mm, 80mm& 160mm respectively. It also takes 5 co-liner displacements. We offer models such as A, B, C, D, E, F, G and for
corrosion resist supports AC, BC, CC, DC, EC, FC & GC.
SPECIAL RANGE/DESIGN
Apart from our standard design and product range, we undertake jobs specially designed by us to suit Clint’s requirement to avoid corrosion. We
offer PU or neoprene rubber coating on spring and epoxy painting/galvanizing.
DESIGN PRINCIPLES
Supports components are arranged in a series of load groups, the load within each load group is in strict accordance with the permissible load of
the connecting thread. All supports have a strictly symmetrical shape; have single upper and lower load connection resulting a moment free load
connection to the structure. The actual travel position of the hangers/supports can be read directly from the travel scale in mm in accordance
with the actual travel. All hangers/supports can be blocked in installation position within a close raster.
SUPPLY STANDARD
All hangers/supports have a rivet on name plate with travel scale displaying series, size, type, hot load, cold load, travel and client’s tag no.

9. AAA SUPPORTS PRIVATE LIMITED
METHOD OF SELECTION (VARIABLE)
Ordering information Hot/Operating load = 2000Kg
Movement/Travel(Vertical) = 20mm UP
Maximum Load Variation(V) = 25%
Using Selection Table
Enter table at 2000 Kg. located in size 15 column
check
variability(V)
=
Movement spring rate*100
hot load
From VS2 series of size 15, Spring Rate =13.0 Kg/mm
Variability(V) =
20*13*100
= 13.0% (acceptable)
2000
Selection/Support Designation = VS2-TYPE-15
Cold/pre-set
load =
hot load+(movement*spring rate)
= 2000+(20*13)=2260 Kg.

11. AAA SUPPORTS PVT. LTD
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
6.4 9 20 32.4 52.6 87 127 172 241 339 466 587 733 922 1064 1277 1502 1884 2631 3520 4414 6642 9355 11153 12251
VS3 VS2 VS1 7 10 22 35 56.4 92 134 181 253 355 486 613 766 964 1116 1343 1588 2000 2781 3720 4674 6982 9775 11693 12911
7.6 11 24 37.6 60.2 97 140 191 266 371 507 639 799 1006 1168 1409 1674 2116 2931 3920 4934 7322 10195 12233 13571
0 0 0 8.2 12 25 40.2 64 102 147 200 278 387 528 665 832 1048 1220 1475 1760 2232 3081 4120 5194 7662 10615 12773 14231
8 4 2 8.8 13 27 42.8 67.8 107 154 209 290 403 548 691 865 1090 1272 1541 1846 2348 3231 4320 5454 8002 11035 13313 14891
16 8 4 9.4 14 28 45.4 71.6 112 161 218 303 419 569 717 898 1132 1324 1607 1932 2464 3381 4520 5714 8342 11455 13853 15551
24 12 6 10 15 30 48 75.4 117 168 227 315 435 589 743 931 1174 1376 1673 2018 2580 3531 4720 5974 8682 11875 14393 16211
32 16 8 11 16 32 50.6 79.2 122 174 237 328 451 610 769 964 1216 1428 1739 2104 2696 3681 4920 6234 9022 12295 14933 16871
40 20 10 11 17 33 53.2 83 127 181 246 340 467 631 795 997 1258 1480 1805 2190 2812 3831 5120 6494 9362 12715 15473 17531
48 24 12 12 18 35 55.8 86.8 132 188 255 352 483 651 821 1030 1300 1532 1871 2276 2928 3981 5320 6754 9702 13135 16013 18191
56 28 14 12 19 36 58.4 90.6 137 195 264 365 499 672 847 1063 1342 1584 1937 2362 3044 4131 5520 7014 10042 13555 16553 18851
64 32 16 13 20 38 61 94.4 142 201 273 377 515 692 873 1096 1384 1636 2003 2448 3160 4281 5720 7274 10382 13975 17093 19511
72 36 18 14 21 40 63.6 98.2 147 208 283 390 531 713 899 1129 1426 1688 2069 2534 3276 4431 5920 7534 10722 14395 17633 20171
80 40 20 14 22 41 66.2 102 152 215 292 402 547 734 925 1162 1468 1740 2135 2620 3392 4581 6120 7794 11062 14815 18173 20831
88 44 22 15 23 43 68.8 105.8 157 222 301 414 563 754 951 1195 1510 1792 2201 2706 3508 4731 6320 8054 11402 15235 18713 21491
96 48 24 15 24 44 71.4 109.6 162 229 310 427 579 775 977 1228 1552 1844 2267 2792 3624 4881 6520 8314 11742 15655 19253 22151
104 52 26 16 25 46 74 113.4 167 235 319 439 595 795 1003 1261 1594 1896 2333 2878 3740 5031 6720 8574 12082 16075 19793 22811
112 56 28 17 26 48 76.6 117.2 172 242 329 452 611 816 1029 1294 1636 1948 2399 2964 3856 5181 6920 8834 12422 16495 20333 23471
120 60 30 17 27 49 79.2 121 177 249 338 464 627 837 1055 1327 1678 2000 2465 3050 3972 5331 7120 9094 12762 16915 20873 24131
128 64 32 18 28 51 81.8 124.8 182 256 347 476 643 857 1081 1360 1720 2052 2531 3136 4088 5481 7320 9354 13102 17335 21413 24791
136 68 34 18 29 52 84.4 128.6 187 263 356 489 659 878 1107 1393 1762 2104 2597 3222 4204 5631 7520 9614 13442 17755 21953 25451
144 72 36 19 30 54 87 132.4 192 269 365 501 675 898 1133 1426 1804 2156 2663 3308 4320 5781 7720 9874 13782 18175 22493 26111
152 76 38 20 31 56 89.6 136.4 197 276 375 514 691 919 1159 1459 1846 2208 2729 3394 4436 5931 7920 10134 14122 18595 23033 26771
160 80 40 20 32 57 92.2 140 202 283 384 526 707 940 1185 1492 1888 2260 2795 3480 4552 6081 8120 10394 14462 19015 23573 27431
21 33 59 94.8 143.6 207 290 393 538 723 960 1211 1525 1930 2312 2861 3566 4668 6231 8320 10654 14802 19435 24113 28091
21 34 60 97.4 147.6 212 297 402 551 739 981 1237 1558 1972 2364 2927 3652 4784 6381 8520 10914 15142 19855 24653 28751
22 35 62 100 151.4 217 303 411 563 755 1002 1263 1591 2014 2416 2993 3738 4900 6531 8720 11174 15482 20275 25193 29411
VS1 0.3 0.5 0.8 1.3 1.9 2.5 3.4 4.6 6.2 8 10.3 13 16.5 21 26 33 43 58 75 100 130 170 210 270 330
VS2 0.2 0.3 0.4 0.65 0.95 1.25 1.7 2.3 3.1 4 5.15 6.5 8.25 10.5 13 16.5 21.5 29 37.5 50 65 85 105 135 165
VS3 0.1 0.1 0.2 0.325 0.475 0.625 0.85 1.15 1.55 2 2.575 3.25 4.125 5.25 6.45 8.25 10.75 14.5 18.75 25 32.5 42.5 52.5 67.5 82.5
VARIABLE SPRING HANGERS & SUPPORTS SELECTION TABLE
SIZE
LOAD IN KILOGRAM
SERIES
TRAVEL IN mm
SPRING
RATE
kg/mm

12. AAA SUPPORTS PVT. LTD
1 M12 107 89 45 18 33 20 207 150 40 125 100 140 182 16 8 8 25 20 75 300
2 M12 111 114 45 18 33 25 211 150 40 125 120 160 186 16 8 8 25 20 75 300
3 M12 120 114 45 18 33 25 220 150 40 125 120 160 195 16 8 8 25 20 75 300
4 M12 118 140 45 18 33 25 218 150 40 140 140 190 193 16 8 8 25 25 75 350
5 M12 135 140 45 18 33 25 235 150 40 140 140 190 210 16 8 8 25 25 75 350
6 M16 147 140 50 23 33 30 247 150 40 140 140 190 228 20 8 8 25 25 75 350
7 M16 155 168 50 23 33 30 255 150 40 140 140 190 235 20 8 8 35 25 75 350
8 M16 163 168 50 23 33 30 263 150 40 140 140 190 243 20 10 8 35 25 75 350
9 M20 181 168 50 27 37 35 286 150 50 160 160 210 261 20 10 8 40 30 75 450
10 M20 189 194 50 27 37 35 294 150 50 160 160 210 274 20 10 8 40 30 75 450
11 M20 197 194 50 27 37 35 302 150 50 160 160 210 282 20 12 10 40 30 75 450
12 M24 192 194 60 27 37 40 302 150 50 190 190 255 277 24 12 10 40 35 75 500
13 M24 213 194 60 27 37 40 323 150 50 190 190 255 298 24 12 10 40 35 100 500
14 M27 237 194 60 30 40 45 350 150 50 190 190 255 327 24 12 10 40 35 100 500
15 M27 240 194 60 30 40 45 353 150 50 190 190 255 330 28 14 12 40 35 100 500
16 M30 246 194 70 33 45 45 359 200 50 190 190 255 336 28 14 12 50 40 100 500
17 M30 269 194 70 33 45 45 382 200 50 190 190 255 359 28 16 12 50 40 125 500
18 M36 273 219 80 39 50 50 498 200 60 210 210 280 368 30 20 14 50 45 125 550
19 M42 317 219 85 45 55 60 442 200 60 210 210 280 412 30 20 14 50 50 125 550
20 M48 331 244 90 51 63 70 461 200 60 230 230 300 426 30 22 14 60 60 150 600
21 M56 347 273 100 60 75 75 482 200 60 260 260 340 447 34 25 16 60 65 150 650
22 M64 411 273 120 68 85 80 556 200 60 260 260 340 511 34 25 16 60 75 175 650
23 M64 427 324 120 68 85 80 572 200 60 300 300 390 532 34 25 18 60 75 175 700
24 M72 465 324 130 76 95 90 615 200 60 300 300 390 570 40 30 20 70 80 200 700
25 M72 491 324 130 76 95 90 641 200 60 300 300 390 598 40 30 20 70 80 200 700
1 M12 184 89 45 18 33 20 284 150 60 125 100 140 299 16 8 8 40 20 75 300
2 M12 186 114 45 18 33 25 286 150 60 125 120 160 301 16 8 8 50 20 75 300
3 M12 202 114 45 18 33 25 302 150 60 125 120 160 317 16 8 8 50 20 75 300
4 M12 197 140 45 18 33 25 297 150 60 140 140 190 312 16 8 8 50 25 75 350
5 M12 228 140 45 18 33 25 328 150 60 140 140 190 343 16 8 8 50 25 75 350
6 M16 249 140 50 23 33 30 349 150 60 140 140 190 369 20 8 8 50 25 75 350
7 M16 263 168 50 23 33 30 363 150 60 140 140 190 383 20 8 8 60 25 75 350
8 M16 277 168 50 23 33 30 377 150 60 140 140 190 397 20 10 8 60 25 75 350
9 M20 310 168 50 27 37 35 415 150 70 160 160 210 435 20 10 8 60 30 75 450
10 M20 323 194 50 27 37 35 428 150 70 160 160 210 448 20 10 8 60 30 75 450
11 M20 335 194 50 27 37 35 440 150 70 160 160 210 460 20 12 10 60 30 75 450
12 M24 322 194 60 27 37 40 432 150 70 190 190 255 447 24 12 10 60 35 75 500
13 M24 358 194 60 27 37 40 468 150 70 190 190 255 483 24 12 10 70 35 100 500
14 M27 406 194 60 30 40 45 519 150 70 190 190 255 536 24 12 10 70 35 100 500
15 M27 409 194 60 30 40 45 522 150 70 190 190 255 539 28 14 12 70 35 100 500
16 M30 420 194 70 33 45 45 533 200 70 190 190 255 550 28 14 12 70 40 100 500
17 M30 457 194 70 33 45 45 570 200 70 190 190 255 587 28 16 12 70 40 125 500
18 M36 456 219 80 39 50 50 581 200 80 210 210 280 591 30 20 14 90 45 125 550
19 M42 538 219 85 45 55 60 663 200 80 210 210 280 673 30 20 14 90 50 125 550
20 M48 560 244 90 51 63 70 690 200 80 230 230 300 695 30 22 14 90 60 150 600
21 M56 576 273 100 60 75 75 711 200 80 260 260 340 716 34 25 16 100 65 150 650
22 M64 702 273 120 68 85 80 847 200 80 260 260 340 842 34 25 16 100 75 175 650
23 M64 719 324 120 68 85 80 864 200 80 300 300 390 864 34 25 18 110 75 175 700
24 M72 791 324 130 76 95 90 941 200 80 300 300 390 936 40 30 20 110 80 200 700
25 M72 838 324 130 76 95 90 988 200 80 300 300 390 983 40 30 20 110 80 200 700
1 M12 334 89 45 18 33 20 434 150 80 125 100 140 514 16 8 8 90 20 75 300
2 M12 336 114 45 18 33 25 436 150 80 125 120 160 516 16 8 8 100 20 75 300
3 M12 367 114 45 18 33 25 467 150 80 125 120 160 547 16 8 8 100 20 75 300
4 M12 355 140 45 18 33 25 455 150 80 140 140 190 535 16 8 8 100 25 75 350
5 M12 430 140 45 18 33 25 530 150 80 140 140 190 610 16 8 8 100 25 75 350
6 M16 470 140 50 23 33 30 570 150 80 140 140 190 655 20 8 8 100 25 75 350
7 M16 498 168 50 23 33 30 598 150 80 140 140 190 683 20 8 8 110 25 75 350
8 M16 526 168 50 23 33 30 626 150 80 140 140 190 711 20 10 8 110 25 75 350
9 M20 593 168 50 27 37 35 698 150 90 160 160 210 783 20 10 8 110 30 75 450
10 M20 618 194 50 27 37 35 723 150 90 160 160 210 813 20 10 8 110 30 75 450
11 M20 640 194 50 27 37 35 745 150 90 160 160 210 835 20 12 10 110 30 75 450
12 M24 608 194 60 27 37 40 718 150 90 190 190 255 803 24 12 10 110 35 75 500
13 M24 680 194 60 27 37 40 790 150 90 190 190 255 875 24 12 10 130 35 100 500
14 M27 776 194 60 30 40 45 889 150 90 190 190 255 976 24 12 10 130 35 100 500
15 M27 782 194 60 30 40 45 895 150 90 190 190 255 982 28 14 12 130 35 100 500
16 M30 804 194 70 33 45 45 917 200 90 190 190 255 1004 28 14 12 130 40 100 500
17 M30 870 194 70 33 45 45 983 200 90 190 190 255 1070 28 16 12 130 40 125 500
18 M36 868 219 80 39 50 50 993 200 100 210 210 280 1073 30 20 14 150 45 125 550
19 M42 1028 219 85 45 55 60 1153 200 100 210 210 280 1233 30 20 14 150 50 125 550
20 M48 1072 244 90 51 63 70 1202 200 100 230 230 300 1277 30 22 14 150 60 150 600
21 M56 1098 273 100 60 75 75 1233 200 100 260 260 340 1303 34 25 16 160 65 150 650
22 M64 1350 273 120 68 85 80 1495 200 100 260 260 340 1555 34 25 16 170 75 175 650
23 M64 1381 324 120 68 85 80 1526 200 100 300 300 390 1591 34 25 18 180 75 175 700
24 M72 1525 324 130 76 95 90 1675 200 100 300 300 390 1735 40 30 20 180 80 200 700
25 M72 1619 324 130 76 95 90 1769 200 100 300 300 390 1829 40 30 20 180 80 200 700
DIMENSIONAL DATA FOR VARIABLE SPRING SUPPORTS
VS1VS2VS3
R CRSL1 maxL maxSIZE A B ØC H ØO ZG Øu T t P WFØDR S E M

14. AAA SUPPORTS PVT. LTD
1 M12 107 89 140 45 18 33 20 207 150 40 125 125 160 182 16 8 8 25 20 75 300
2 M12 111 114 170 45 18 33 25 211 150 40 125 145 180 186 16 8 8 25 20 75 300
3 M12 120 114 170 45 18 33 25 220 150 40 125 145 180 195 16 8 8 25 20 75 300
4 M12 118 140 196 45 18 33 25 218 150 40 140 165 210 193 16 8 8 25 25 75 350
5 M12 135 140 196 45 18 33 25 235 150 40 140 165 210 210 16 8 8 25 25 75 350
6 M16 147 140 196 50 23 33 30 247 150 40 140 165 210 228 20 8 8 25 25 75 350
7 M16 155 168 196 50 23 33 30 255 150 40 140 165 210 235 20 8 8 35 25 75 350
8 M16 163 168 196 50 23 33 30 263 150 40 140 165 210 243 20 10 8 35 25 75 350
9 M20 181 168 232 50 27 37 35 286 150 50 150 190 235 261 20 10 8 40 30 75 450
10 M20 189 194 232 50 27 37 35 294 150 50 150 190 235 274 20 10 8 40 30 75 450
11 M20 197 194 232 50 27 37 35 302 150 50 150 190 235 282 20 12 10 40 30 75 450
12 M24 192 194 277 60 27 37 40 302 150 50 160 235 295 277 24 12 10 40 35 75 500
13 M24 213 194 277 60 27 37 40 323 150 50 160 235 295 298 24 12 10 40 35 100 500
14 M27 237 194 277 60 30 40 45 350 150 50 160 235 295 327 24 12 10 40 35 100 500
15 M27 240 194 277 60 30 40 45 353 150 50 160 235 295 330 28 14 12 40 35 100 500
16 M30 246 194 277 70 33 45 45 359 200 50 180 235 295 336 28 14 12 50 40 100 500
17 M30 269 194 277 70 33 45 45 382 200 50 180 235 295 359 28 16 12 50 40 125 500
18 M36 273 219 304 80 39 50 50 498 200 60 180 255 320 368 30 20 14 50 45 125 550
19 M42 317 219 304 85 45 55 60 442 200 60 180 255 320 412 30 20 14 50 50 125 550
20 M48 331 244 345 90 51 63 70 461 200 60 200 285 350 426 30 22 14 60 60 150 600
21 M56 347 273 377 100 60 75 75 482 200 60 220 315 390 447 34 25 16 60 65 150 650
22 M64 411 273 377 120 68 85 80 556 200 60 220 315 390 511 34 25 16 60 75 175 650
23 M64 427 324 450 120 68 85 80 572 200 60 250 370 455 532 34 25 18 60 75 175 700
24 M72 465 324 450 130 76 95 90 615 200 60 250 370 455 570 40 30 20 70 80 200 700
25 M72 491 324 450 130 76 95 90 641 200 60 250 370 455 596 40 30 20 70 80 200 700
1 M12 184 89 140 45 18 33 20 284 150 60 125 125 160 299 16 8 8 40 20 75 300
2 M12 186 114 170 45 18 33 25 286 150 60 125 145 180 301 16 8 8 50 20 75 300
3 M12 202 114 170 45 18 33 25 302 150 60 125 145 180 317 16 8 8 50 20 75 300
4 M12 197 140 196 45 18 33 25 297 150 60 140 165 210 312 16 8 8 50 25 75 350
5 M12 228 140 196 45 18 33 25 328 150 60 140 165 210 343 16 8 8 50 25 75 350
6 M16 249 140 196 50 23 33 30 349 150 60 140 165 210 369 20 8 8 50 25 75 350
7 M16 263 168 196 50 23 33 30 363 150 60 140 165 210 383 20 8 8 60 25 75 350
8 M16 277 168 196 50 23 33 30 377 150 60 140 165 210 397 20 10 8 60 25 75 350
9 M20 310 168 232 50 27 37 35 415 150 70 150 190 235 435 20 10 8 60 30 75 450
10 M20 323 194 232 50 27 37 35 428 150 70 150 190 235 448 20 10 8 60 30 75 450
11 M20 335 194 232 50 27 37 35 440 150 70 150 190 235 460 20 12 10 60 30 75 450
12 M24 322 194 277 60 27 37 40 432 150 70 160 235 295 447 24 12 10 60 35 75 500
13 M24 358 194 277 60 27 37 40 468 150 70 160 235 295 483 24 12 10 70 35 100 500
14 M27 406 194 277 60 30 40 45 519 150 70 160 235 295 536 24 12 10 70 35 100 500
15 M27 409 194 277 60 30 40 45 522 150 70 160 235 295 539 28 14 12 70 35 100 500
16 M30 420 194 277 70 33 45 45 533 200 70 180 235 295 550 28 14 12 70 40 100 500
17 M30 457 194 277 70 33 45 45 570 200 70 180 235 295 587 28 16 12 70 40 125 500
18 M36 456 219 304 80 39 50 50 581 200 80 180 255 320 591 30 20 14 90 45 125 550
19 M42 538 219 304 85 45 55 60 663 200 80 180 255 320 673 30 20 14 90 50 125 550
20 M48 560 244 345 90 51 63 70 690 200 80 200 285 350 695 30 22 14 90 60 150 600
21 M56 576 273 377 100 60 75 75 711 200 80 220 315 390 716 34 25 16 100 65 150 650
22 M64 702 273 377 120 68 85 80 847 200 80 220 315 390 842 34 25 16 100 75 175 650
23 M64 719 324 450 120 68 85 80 864 200 80 250 370 455 864 34 25 18 110 75 175 700
24 M72 791 324 450 130 76 95 90 941 200 80 250 370 455 936 40 30 20 110 80 200 700
25 M72 838 324 450 130 76 95 90 988 200 80 250 370 455 983 40 30 20 110 80 200 700
1 M12 334 89 140 45 18 33 20 434 150 80 125 125 160 514 16 8 8 90 20 75 300
2 M12 336 114 170 45 18 33 25 436 150 80 125 145 180 516 16 8 8 100 20 75 300
3 M12 367 114 170 45 18 33 25 467 150 80 125 145 180 547 16 8 8 100 20 75 300
4 M12 355 140 196 45 18 33 25 455 150 80 140 165 210 535 16 8 8 100 25 75 350
5 M12 430 140 196 45 18 33 25 530 150 80 140 165 210 610 16 8 8 100 25 75 350
6 M16 470 140 196 50 23 33 30 570 150 80 140 165 210 655 20 8 8 100 25 75 350
7 M16 498 168 196 50 23 33 30 598 150 80 140 165 210 683 20 8 8 110 25 75 350
8 M16 526 168 196 50 23 33 30 626 150 80 140 165 210 711 20 10 8 110 25 75 350
9 M20 593 168 232 50 27 37 35 698 150 90 150 190 235 783 20 10 8 110 30 75 450
10 M20 618 194 232 50 27 37 35 723 150 90 150 190 235 813 20 10 8 110 30 75 450
11 M20 640 194 232 50 27 37 35 745 150 90 150 190 235 835 20 12 10 110 30 75 450
12 M24 608 194 277 60 27 37 40 718 150 90 160 235 295 803 24 12 10 110 35 75 500
13 M24 680 194 277 60 27 37 40 790 150 90 160 235 295 875 24 12 10 130 35 100 500
14 M27 776 194 277 60 30 40 45 889 150 90 160 235 295 976 24 12 10 130 35 100 500
15 M27 782 194 277 60 30 40 45 895 150 90 160 235 295 982 28 14 12 130 35 100 500
16 M30 804 194 277 70 33 45 45 917 200 90 180 235 295 1004 28 14 12 130 40 100 500
17 M30 870 194 277 70 33 45 45 983 200 90 180 235 295 1070 28 16 12 130 40 125 500
18 M36 868 219 304 80 39 50 50 993 200 100 180 255 320 1073 30 20 14 150 45 125 550
19 M42 1028 219 304 85 45 55 60 1153 200 100 180 255 320 1233 30 20 14 150 50 125 550
20 M48 1072 244 345 90 51 63 70 1202 200 100 200 285 350 1277 30 22 14 150 60 150 600
21 M56 1098 273 377 100 60 75 75 1233 200 100 220 315 390 1303 34 25 16 160 65 150 650
22 M64 1350 273 377 120 68 85 80 1495 200 100 220 315 390 1555 34 25 16 170 75 175 650
23 M64 1381 324 450 120 68 85 80 1526 200 100 250 370 455 1591 34 25 18 180 75 175 700
24 M72 1525 324 450 130 76 95 90 1675 200 100 250 370 455 1735 40 30 20 180 80 200 700
25 M72 1619 324 450 130 76 95 90 1769 200 100 250 370 455 1829 40 30 20 180 80 200 700
DIMENSIONAL DATA FOR VARIABLE SPRING SUPPORTS (CORROSION RESISTANCE)
SIZE A B
VS2VS3
R
CRS
VS1
F ØC H ØO R G
L1
max
L
max
ØV E ZS Øu T t P WM ØD

15.
AAA SUPPORTS PVT. LTD.
HEAD OFFICE & WORKS:
262, POR – RAMANGAMDI, GIDC ESTATE,
VADODARA, GUJARAT, INDIA
PH: +91‐265‐2830444/ 2830445 / 2830446,
FAX:+91‐ 265 2830445
E‐Mail: sales@aaasupports.com
salesaaaspl@gmail.com
Web: www.aaasupports.com
CONSTANT SPRING HANGERS & SUPPORTS

16. AAA SUPPORTS PRIVATE LIMITED
CONSTANT SPRING SUPPORT
Constant spring support is specially used to accommodate constant effort load, excessive movement of the pipeline due to high temperature and
pressure of thermal movement. Constant load takes place through its range by a perfect counter balance crank lever where load and spring
movements through the pivot ensure the minimum kinetic variation.
TYPE-A TYPE-B TYPE-C
TYPE-D TYPE-E TYPE-F

17. AAA SUPPORTS PRIVATE LIMITED
RANGE
We offer twenty size of group A, B & C and three series prefixed CS-1, CS-2 & CS-3 for both horizontal and vertical modal. Twenty sizes Constant
spring support allows a load range from 25Kg. to 13000Kgs. And maintains a travel range upto 330mm.
SPECIAL RANGE/DESIGN
Apart from our specified standard design and range of product, we undertake jobs specially designed by us to fulfill client’s requirement i.e.
constant spring support can supply more load/travel than that provided in our standard selection table. Special type of fixing arrangement can
be designed apart from our standard.
LOAD ADJUSTMENT
The load adjuster allows for an increase or decrease of load carrying capacity of plus or minus 10 percent of the mean load. Rotating the load
adjuster nut in the appropriate direction will increase or decrease the load accordingly.
OFF-SET
It also takes 5°co-linear displacement
PRE-SETTING
Each and every Constant spring support is pre-setted prior to dispatch. The pre-set pin must be removed before the entire system comes into
operation and following the erection instruction.
SAFETY DEVICE
Double fold action ‘Travel Stops’ for controlling the required travel as well as resisting excessive load creating impact on the support is provided
in each and every Constant spring support.
INDICATOR & REFERENCE MARK
Each Constant spring support is provided with a travel indicator, which indicates the position of movement of the pipeline. I.e. low, medium and
high. An elaborate introductory plate is also provided on the surface of the support, which indicates client reference mark/tag no., operating
load, total travel, our reference etc.

18. AAA SUPPORTS PRIVATE LIMITED
ACCEPTANCE LIMIT
percentage deviation(V) =
L Max. - L Min.
*100≤6%
L Max. + L Min.
Where, L Max=Maximum load recorded (Kg.) and L Min=Minimum load recorded (Kg.)
METHOD OF SELECTION
Ordering information Hot/operating load = 1250Kg.
Actual Vertical Travel/Movement = 58mmUP
Using Selection Table
Total Travel/Movement = Actual Movement + 25mm
= 58+25 = 83mm
Enter table at load 1250 Kg. and total movement 83mm. It located in size 10B.
Series CS1; Selection/Support Designation = CS1-TYPE-10B.

19. B
K
Q
E
t
L
J
G F
RH. THREAD
LH. THREAD
B
ET
RH
G
L
K
F
TYPE - FH
TYPE - BH
RH. THREAD
LH. THREAD
B
E
G
L
K
F
TYPE - AH
A
RH. THREAD
LH. THREAD
B
E
RH
G
L
K
F
TYPE - CH
t S
RH. THREAD
LH. THREAD
B
E
RH
G
L
K
F
TYPE - DH
t t
K
E
t
L
J
G B
TYPE - EH
II
F
RH. THREAD
LH. THREAD
CONSTANT SUPPORTS
HORIZONTAL TYPE

20. A
TYPE - AV
RH. THREAD
LH. THREAD
T
RH
TYPE - BV
RH. THREAD
LH. THREAD
RH
t S
TYPE - CV
RH. THREAD
LH. THREAD
Et t
RH. THREAD
LH. THREAD
RH
RH. THREAD
LH. THREAD
TYPE - DV
TYPE - EV
TYPE - FV
CONSTANT SUPPORTS
VERTICAL TYPE

21. AAA SUPPORTS PVT. LTD
SIZE
1 25 28 31 34 37 40 43 46 49 52 55 58 61 64 67
2 50 56 62 68 74 80 86 92 98 104 110 116 122 128 134
3 75 83 91 99 107 115 123 131 139 147 155 163 171 179 187
4 100 111 122 133 144 155 166 177 188 199 210 221 232 243 254
5 150 166 182 198 214 230 246 262 278 294 310 326 342 358 374
6 200 221 242 263 284 305 326 347 368 389 410 431 452 473 494
7 300 332 364 396 428 460 492 524 556 588 620 652 684 716 748
8 400 443 486 529 572 615 658 701 744 787 830 873 916 959 1002
9 600 664 728 792 856 920 984 1048 1112 1176 1240 1304 1368 1432 1496
10 800 886 972 1058 1144 1230 1316 1402 1488 1574 1660 1746 1832 1918 2004
11 1200 1329 1458 1587 1716 1845 1974 2103 2232 2361 2490 2619 2748 2877 3006
12 1600 1771 1942 2113 2284 2455 2626 2797 2968 3139 3310 3481 3652 3823 3994
13 2000 2214 2428 2642 2856 3070 3284 3498 3712 3926 4140 4354 4568 4782 4996
14 2400 2657 2914 3171 3428 3685 3942 4199 4456 4713 4970 5227 5484 5741 5998
15 2800 3100 3400 3700 4000 4300 4600 4900 5200 5500 5800 6100 6400 6700 7000
16 3200 3543 3886 4229 4572 4915 5258 5601 5944 6287 6630 6973 7316 7659 8002
17 3600 3986 4372 4758 5144 5530 5916 6302 6688 7074 7460 7846 8232 8618 9004
18 4000 4429 4858 5287 5716 6145 6574 7003 7432 7861 8290 8719 9148 9577 10006
19 4800 5279 5758 6237 6716 7195 7674 8153 8632 9111 9590 10069 10548 10127 11506
20 5600 6129 6658 7187 7716 8245 8774 9303 9832 10361 10890 11419 11948 12477 13006
CS1 124 118 112 106 100 94 88 82 76 70 64 58 52 46 40
CS2 220 210 200 190 180 170 160 150 140 130 120 110 100 90 80
CS3 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120
TOTAL TRAVEL IN mm
C B A
CONSTANT SPRING HANGERS SELECTION TABLE
LOAD IN KILOGRAM

22. AAA SUPPORTS PVT. LTD
1A M12 M12 200 200 110 120 140 150 100 45 160 210 300 425 18 16 33 25 10 8
1B M12 M12 240 220 110 160 180 170 100 45 160 210 400 475 18 16 33 25 10 8
1C M12 M12 260 240 110 170 200 190 100 45 160 210 500 525 18 16 33 25 10 8
2A M12 M12 200 200 110 120 140 150 100 45 160 210 300 425 18 16 33 25 10 8
2B M12 M12 240 220 110 160 180 170 100 45 160 210 400 475 18 16 33 25 10 8
2C M12 M12 260 240 110 170 200 190 100 45 160 210 500 525 18 16 33 25 10 8
3A M12 M12 200 200 110 120 140 150 100 45 160 210 300 425 18 16 33 25 10 8
3B M12 M12 240 220 110 160 180 170 100 45 160 210 400 475 18 16 33 25 10 8
3C M12 M12 260 240 110 170 200 190 100 45 160 210 500 525 18 16 33 25 10 8
4A M16 M12 200 200 110 120 140 150 100 45 160 210 300 425 18 16 33 25 10 8
4B M16 M12 240 220 120 160 180 170 100 45 160 210 400 475 18 16 33 25 10 8
4C M16 M12 260 240 110 170 200 190 100 45 160 210 500 525 18 16 33 25 10 8
5A M16 M12 220 220 120 140 160 160 120 45 170 220 300 425 18 16 33 25 10 8
5B M16 M12 240 240 120 160 180 170 120 45 170 220 400 475 18 16 33 25 10 8
5C M16 M12 260 260 120 170 200 190 120 45 170 220 500 525 18 16 33 25 10 8
6A M16 M12 220 220 120 140 160 160 120 45 170 220 300 425 18 16 33 25 12 8
6B M16 M12 240 240 120 160 180 170 120 45 170 220 450 475 18 16 33 25 12 8
6C M16 M12 260 260 120 170 200 190 120 45 170 220 600 525 18 16 33 25 12 8
7A M20 M16 240 240 130 160 170 170 130 50 190 240 400 450 23 20 33 30 12 8
7B M20 M16 260 260 130 180 190 190 130 50 190 240 500 500 23 20 33 30 12 8
7C M16 M12 280 280 130 170 210 200 130 45 190 240 600 550 18 20 33 30 12 8
8A M20 M16 240 240 130 160 170 170 130 50 190 240 450 450 23 20 33 30 12 10
8B M20 M16 260 260 130 180 190 190 130 50 190 240 550 500 23 20 33 30 12 10
8C M20 M16 280 280 130 190 210 200 130 50 190 240 650 550 23 20 33 30 12 10
9A M24 M20 240 260 130 150 170 170 130 50 190 240 500 450 27 24 37 30 12 10
9B M24 M20 260 260 130 160 190 190 130 50 190 240 600 500 27 24 37 30 12 10
9C M20 M16 280 280 130 190 210 200 130 50 190 240 750 550 23 24 33 30 12 10
10A M27 M24 240 260 140 150 170 170 140 60 210 270 500 475 27 24 37 35 14 12
10B M24 M20 260 280 140 160 190 190 140 50 210 270 600 525 27 24 37 35 14 12
10C M24 M20 280 280 140 180 210 200 140 50 210 270 750 575 27 24 37 35 14 12
11A M30 M27 240 260 140 140 170 170 140 60 210 270 550 475 30 24 40 35 16 12
11B M27 M24 260 280 140 160 190 190 140 60 210 270 650 525 27 24 37 35 16 12
11C M27 M24 280 280 140 180 210 200 140 60 210 270 750 575 27 24 37 35 16 12
12A M30 M27 260 280 150 160 180 180 150 60 220 280 600 475 30 27 40 40 16 14
12B M30 M27 280 280 150 180 200 200 150 60 220 280 700 525 30 27 40 40 16 14
12C M27 M24 300 300 150 200 220 210 150 60 220 280 800 575 27 27 37 40 16 14
13A M36 M30 260 280 160 150 180 180 150 70 220 280 700 500 33 27 45 40 20 14
13B M30 M27 280 280 160 180 200 200 150 60 220 280 800 550 30 27 40 40 20 14
13C M30 M27 300 300 160 190 220 210 150 60 220 280 900 600 30 27 40 40 20 14
14A M42 M36 260 280 160 140 180 180 170 80 250 320 700 525 39 27 50 40 20 16
14B M36 M30 280 280 160 170 200 200 170 70 250 320 800 575 33 27 45 40 20 16
14C M30 M27 300 300 160 190 220 210 170 60 250 320 900 625 30 27 40 40 20 16
15A M42 M36 280 300 170 160 190 200 170 80 250 320 700 525 39 30 50 40 22 16
15B M42 M36 300 300 170 170 210 210 170 80 250 320 800 575 39 30 50 40 22 16
15C M36 M30 300 320 170 200 210 210 170 70 250 320 900 625 33 30 45 40 22 16
16A M48 M42 280 300 180 150 190 200 180 85 260 330 700 550 45 30 55 45 22 16
16B M42 M36 300 300 180 170 210 210 180 80 260 330 800 600 39 30 50 45 22 16
16C M36 M30 300 320 180 200 210 210 180 70 260 330 900 650 33 30 45 45 22 16
17A M48 M42 280 300 190 150 190 200 190 85 270 340 750 550 45 30 55 45 25 18
17B M42 M36 300 300 190 170 210 210 190 80 270 340 850 600 39 30 50 45 25 18
17C M42 M36 300 320 190 190 210 210 190 80 270 340 1000 650 39 30 50 45 25 18
18A M56 M48 280 300 200 130 180 200 200 90 280 360 750 550 51 34 63 50 25 18
18B M48 M42 300 300 200 160 200 210 200 85 280 360 850 600 45 34 55 50 25 18
18C M42 M36 300 320 200 190 200 210 200 80 280 360 1000 650 39 34 50 50 25 18
19A M56 M48 280 320 200 130 180 200 200 90 280 360 750 550 51 34 63 50 25 20
19B M48 M42 300 320 200 160 200 210 200 85 280 360 850 600 45 34 55 50 25 20
19C M42 M36 300 320 200 190 200 210 200 80 280 360 1000 650 39 34 50 50 25 20
20A M56 M48 280 320 200 130 180 200 200 90 280 360 750 575 51 34 63 50 25 20
20B M56 M48 300 320 200 150 200 210 200 90 280 360 850 625 51 34 63 50 25 20
20C M48 M42 300 320 200 180 200 210 200 85 280 360 1000 675 45 34 55 50 25 20
DIMENSIONAL DATA FOR CONSTANT SPRING SUPPORT (CS1 TYPE)
S T tG H I J K L MAX ØO ØU RE
EH/FH
CS1 A A1 B ØC ØD E F

23. AAA SUPPORTS PVT. LTD
1A M12 M12 260 230 110 170 190 200 110 45 160 210 400 475 18 16 33 25 10 8
1B M12 M12 280 250 110 190 210 220 110 45 160 210 550 525 18 16 33 25 10 8
1C M12 M12 300 270 110 210 220 230 110 45 160 210 700 600 18 16 33 25 10 8
2A M12 M12 260 230 120 170 190 200 120 45 170 220 400 475 18 16 33 25 10 8
2B M12 M12 280 250 120 190 210 220 120 45 170 220 550 525 18 16 33 25 10 8
2C M12 M12 300 270 120 210 220 230 120 45 170 220 700 600 18 16 33 25 10 8
3A M12 M12 260 230 120 170 190 200 120 45 170 220 400 475 18 16 33 25 10 8
3B M12 M12 280 250 120 190 210 220 120 45 170 220 550 525 18 16 33 25 10 8
3C M12 M12 300 270 120 210 220 230 120 45 170 220 700 600 18 16 33 25 10 8
4A M16 M12 260 230 120 170 190 200 120 45 170 220 400 475 18 16 33 25 10 8
4B M16 M12 280 250 120 190 210 220 120 45 170 220 550 525 18 16 33 25 10 8
4C M16 M12 300 270 120 210 220 230 120 45 170 220 700 600 18 16 33 25 10 8
5A M16 M12 260 250 130 170 190 200 130 45 190 240 400 475 18 16 33 25 10 8
5B M16 M12 280 270 130 190 210 220 130 45 190 240 550 525 18 16 33 25 10 8
5C M16 M12 300 290 130 210 220 230 130 45 190 240 700 600 18 20 33 25 10 8
6A M16 M12 260 250 130 170 190 200 130 45 190 240 400 475 18 20 33 25 12 8
6B M16 M12 280 270 130 190 210 220 130 45 190 240 600 525 18 20 33 25 12 8
6C M16 M12 300 290 130 210 220 230 130 45 190 240 800 600 18 20 33 25 12 8
7A M20 M16 260 270 140 170 190 200 140 50 210 270 500 500 23 20 33 30 12 8
7B M20 M16 280 290 140 190 200 220 140 50 210 270 700 550 23 20 33 30 12 8
7C M16 M12 300 310 140 210 220 230 140 45 210 270 800 625 18 20 33 30 12 8
8A M20 M16 260 270 140 170 190 200 140 50 210 270 550 500 23 20 33 30 12 10
8B M20 M16 280 290 140 190 200 220 140 50 210 270 700 550 23 20 33 30 12 10
8C M16 M12 300 310 140 210 220 230 140 45 210 270 850 650 18 20 33 30 12 10
9A M24 M20 260 290 140 160 190 200 140 50 210 270 600 500 27 24 37 30 12 10
9B M24 M20 280 310 140 180 200 220 140 50 210 270 750 550 27 24 37 30 12 10
9C M20 M16 300 330 140 200 220 230 140 50 210 270 950 650 23 24 33 30 12 10
10A M27 M24 280 290 150 180 200 210 150 60 220 280 600 525 27 24 37 35 14 12
10B M24 M20 300 310 150 200 220 230 150 50 220 280 750 575 27 24 37 35 14 12
10C M24 M20 320 330 150 220 220 250 150 50 220 280 950 650 27 24 37 35 14 12
11A M30 M27 280 300 150 170 200 210 150 60 220 280 650 525 30 24 40 35 16 12
11B M27 M24 300 320 150 200 220 230 150 60 220 280 800 575 27 24 37 35 16 12
11C M27 M24 320 330 150 220 220 250 150 60 220 280 950 650 27 24 37 35 16 12
12A M30 M27 300 300 160 190 210 220 160 60 240 310 700 525 30 27 40 40 16 14
12B M30 M27 320 320 160 210 220 240 160 60 240 310 850 575 30 27 40 40 16 14
12C M27 M24 320 330 160 220 220 240 160 60 240 310 1000 650 27 27 37 40 16 14
13A M36 M30 300 300 160 180 200 220 160 70 240 310 800 550 33 27 45 40 20 14
13B M30 M27 320 320 160 210 220 240 160 60 240 310 950 600 30 27 40 40 20 14
13C M30 M27 320 340 160 210 220 240 160 60 240 310 1100 675 30 27 40 40 20 14
14A M42 M36 300 300 180 170 200 220 180 80 260 330 800 575 39 27 50 40 20 16
14B M36 M30 320 320 180 200 220 240 180 70 260 330 950 625 33 27 45 40 20 16
14C M30 M27 320 340 180 210 220 240 180 60 260 330 1100 700 30 27 40 40 20 16
15A M42 M36 300 310 180 170 200 220 180 80 260 330 900 575 39 30 50 40 22 16
15B M42 M36 320 320 180 200 220 240 180 80 260 330 1000 625 39 30 50 40 22 16
15C M36 M30 320 350 180 210 220 240 180 70 260 330 1200 700 33 30 45 40 22 16
16A M48 M42 300 310 190 160 200 220 190 85 270 340 900 600 45 30 55 45 22 16
16B M42 M36 320 330 190 190 200 240 190 80 270 340 1050 650 39 30 50 45 22 16
16C M36 M30 320 350 190 200 200 240 190 70 270 340 1200 725 33 30 45 45 22 16
17A M48 M42 300 310 200 160 200 220 200 85 280 360 900 600 45 30 55 45 25 18
17B M42 M36 320 330 200 190 200 240 200 80 280 360 1050 650 39 30 50 45 25 18
17C M42 M36 320 350 200 200 200 240 200 80 280 360 1200 725 39 30 50 45 25 18
18A M56 M48 300 310 210 140 200 200 210 90 290 370 900 600 51 34 63 50 25 18
18B M48 M42 320 330 210 180 210 230 210 85 290 370 1100 650 45 34 55 50 25 18
18C M42 M36 340 350 210 210 220 250 210 80 290 370 1250 725 39 34 50 50 25 18
19A M56 M48 300 310 210 140 200 200 210 90 290 370 900 625 51 34 63 50 25 20
19B M48 M42 320 330 210 180 210 230 210 85 290 370 1100 650 45 34 55 50 25 20
19C M42 M36 340 350 210 210 220 250 210 80 290 370 1250 725 39 34 50 50 25 20
20A M56 M48 300 320 210 140 200 200 210 90 300 380 950 650 51 34 63 50 25 20
20B M56 M48 320 340 210 160 210 230 210 90 300 380 1150 675 51 34 63 50 25 20
20C M48 M42 340 360 210 200 220 250 210 85 300 380 1300 725 45 34 55 50 25 20

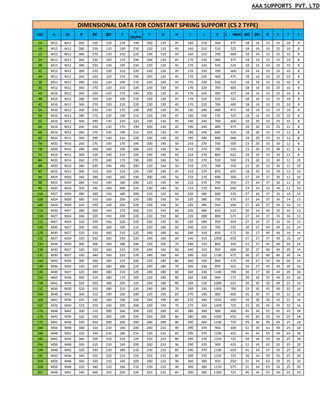

DIMENSIONAL DATA FOR CONSTANT SPRING SUPPORT (CS 2 TYPE)
CS2 A A1 B ØC ØD E
E
EH/FH
F G H I J K L MAX ØO ØU R S T t

24. AAA SUPPORTS PVT. LTD
1A M12 M12 280 240 120 200 200 220 120 45 170 220 550 535 18 16 33 25 10 8
1B M12 M12 300 260 120 210 220 240 120 45 170 220 700 605 18 16 33 25 10 8
1C M12 M12 320 280 120 220 240 250 120 45 170 220 900 700 18 16 33 25 10 8
2A M12 M12 280 240 120 200 200 220 120 45 170 220 550 535 18 16 33 25 10 8
2B M12 M12 300 260 120 210 220 240 120 45 170 220 700 605 18 16 33 25 10 8
2C M12 M12 320 280 120 220 240 250 120 45 170 220 900 700 18 16 33 25 10 8
3A M12 M12 280 240 120 200 200 220 120 45 170 220 550 535 18 16 33 25 10 8
3B M12 M12 300 260 120 210 220 240 120 45 170 220 700 605 18 16 33 25 10 8
3C M12 M12 320 280 120 220 240 250 120 45 170 220 900 700 18 16 33 25 10 8
4A M16 M12 280 240 120 200 200 220 120 45 170 220 550 535 18 16 33 25 10 8
4B M16 M12 300 260 120 210 220 240 120 45 170 220 700 605 18 16 33 25 10 8
4C M16 M12 320 280 120 220 240 250 120 45 170 220 900 700 18 16 33 25 10 8
5A M16 M12 280 270 130 200 200 220 130 45 190 240 550 535 18 16 33 25 10 8
5B M16 M12 300 290 130 210 220 240 130 45 190 240 700 605 18 16 33 25 10 8
5C M16 M12 320 310 130 220 240 250 130 45 190 240 900 700 18 16 33 25 10 8
6A M16 M12 280 270 130 200 200 220 130 45 190 240 550 535 18 20 33 25 12 8
6B M16 M12 300 290 130 210 220 240 130 45 190 240 750 605 18 20 33 25 12 8
6C M16 M12 320 310 130 220 240 250 130 45 190 240 1000 700 18 20 33 25 12 8
7A M20 M16 280 290 140 200 200 220 140 50 210 270 650 560 23 20 33 30 12 8
7B M20 M16 300 310 140 210 220 240 140 50 210 270 850 630 23 20 33 30 12 8
7C M16 M12 320 330 140 220 240 250 140 45 210 270 1000 725 18 20 33 30 12 8
8A M20 M16 280 290 140 200 200 220 140 50 210 270 700 560 23 20 33 30 12 10
8B M20 M16 300 310 140 210 220 240 140 50 210 270 800 630 23 20 33 30 12 10
8C M16 M12 320 330 140 220 240 250 140 45 210 270 1050 750 18 20 33 30 12 10
9A M24 M20 280 300 150 180 200 220 150 50 220 280 750 560 27 24 37 30 12 10
9B M24 M20 300 320 150 200 220 240 150 50 220 280 900 630 27 24 37 30 12 10
9C M20 M16 320 340 150 220 240 250 150 50 220 280 1150 750 23 24 33 30 12 10
10A M27 M24 300 300 150 200 210 230 150 60 220 280 750 585 27 24 37 35 14 12
10B M24 M20 320 320 150 220 230 250 150 50 220 280 900 655 27 24 37 35 14 12
10C M24 M20 340 340 150 240 250 270 150 50 220 280 1050 750 27 24 37 35 14 12
11A M30 M27 300 310 160 190 210 230 160 60 240 310 800 585 30 24 40 35 16 12
11B M27 M24 320 330 160 210 230 250 160 60 240 310 950 655 27 24 37 35 16 12
11C M27 M24 340 350 160 230 250 270 160 60 240 310 1150 750 27 24 37 35 16 12
12A M30 M27 320 310 170 200 220 240 170 60 250 320 850 585 30 27 40 40 16 14
12B M30 M27 340 330 170 220 240 260 170 60 250 320 1000 655 30 27 40 40 16 14
12C M27 M24 360 350 170 240 260 280 170 60 250 320 1200 750 27 27 37 40 16 14
13A M36 M30 320 310 180 200 220 240 180 70 260 330 950 610 33 27 45 40 20 14
13B M30 M27 340 330 180 220 240 260 180 60 260 330 1000 680 30 27 40 40 20 14
13C M30 M27 360 350 180 240 260 280 180 60 260 330 1300 775 30 27 40 40 20 14
14A M42 M36 320 310 190 190 220 240 190 80 270 340 950 635 39 27 50 40 20 16
14B M36 M30 340 330 190 210 240 260 190 70 270 340 1000 705 33 27 45 40 20 16
14C M30 M27 360 350 190 230 260 280 190 60 270 340 1300 800 30 27 40 40 20 16
15A M42 M36 340 320 190 210 220 240 190 80 270 340 1050 635 39 30 50 40 22 16
15B M42 M36 360 340 190 230 240 260 190 80 270 340 1150 705 39 30 50 40 22 16
15C M36 M30 380 360 190 250 260 280 190 70 270 340 1400 800 33 30 45 40 22 16
16A M48 M42 340 320 200 200 220 240 200 85 280 360 1050 660 45 30 55 45 22 16
16B M42 M36 360 340 200 220 240 260 200 80 280 360 1200 730 39 30 50 45 22 16
16C M36 M30 380 360 200 240 260 280 200 70 280 360 1400 825 33 30 45 45 22 16
17A M48 M42 340 320 210 200 220 240 210 85 290 370 1050 660 45 30 55 45 25 18
17B M42 M36 360 340 210 220 240 260 210 80 290 370 1200 730 39 30 50 45 25 18
17C M42 M36 380 360 210 240 260 280 210 80 290 370 1400 825 39 30 50 45 25 18
18A M56 M48 340 320 220 190 220 240 220 90 300 380 1050 660 51 34 63 50 25 18
18B M48 M42 360 340 220 210 240 260 220 85 300 380 1250 730 45 34 55 50 25 18
18C M42 M36 380 360 220 230 260 280 220 80 300 380 1450 825 39 34 50 50 25 18
19A M56 M48 340 320 220 190 220 240 220 90 300 380 1050 685 51 34 63 50 25 20
19B M48 M42 360 340 220 210 240 260 220 85 300 380 1250 730 45 34 55 50 25 20
19C M42 M36 380 360 220 230 260 280 220 80 300 380 1450 825 39 34 50 50 25 20
20A M56 M48 340 330 220 190 220 240 220 90 300 380 1100 710 51 34 63 50 25 20
20B M48 M42 360 350 220 210 240 260 220 85 300 380 1300 755 51 34 55 50 25 20
20C M42 M36 380 370 220 230 260 280 220 80 300 380 1500 825 45 34 50 50 25 20
ØO ØU R S T t
DIMENSIONAL DATA FOR CONSTANT SPRING SUPPORT (CS3 TYPE)
CS3 A A1 B ØC ØD E
E
EH/FH
F G H I J K L MAX

25.
AAA SUPPORTS PVT. LTD.
HEAD OFFICE & WORKS:
262, POR – RAMANGAMDI, GIDC ESTATE,
VADODARA, GUJARAT, INDIA
PH: +91‐265‐2830444/ 2830445 / 2830446,
FAX:+91‐ 265 2830445
E‐Mail: sales@aaasupports.com
salesaaaspl@gmail.com
Web: www.aaasupports.com
PIPE SUPPORTS – CONNECTING ELEMENTS
(BOTTOM OF STRUCTURE TO PIPE WITH
SUPPORT SYSTEM)

27. AAA SUPPORTS PVT LTD
Upto 350°C 351°C ‐ 470°C 471°C ‐ 550°C
1.1 35 75 15 15 35 6 M10 293 199 149
1.2 35 75 20 15 35 6 M12 507 344 296
1.3 40 80 25 20 40 6 M16 901 611 526
2.1 35 75 15 15 35 6 M10 293 199 149
2.2 35 75 20 15 35 6 M12 507 344 296
2.3 40 80 25 20 40 6 M16 901 611 526
3.1 40 80 15 15 35 6 M12 507 344 296
3.2 45 90 20 20 40 6 M16 901 611 526
3.3 50 100 25 25 45 6 M20 1407 1098 859
4.1 45 90 15 15 35 6 M12 507 344 296
4.2 50 100 20 20 40 6 M16 901 611 526
4.3 55 110 25 25 45 6 M20 1407 1098 859
5.1 50 100 20 15 35 6 M12 507 344 296
5.2 55 110 25 20 40 6 M16 901 611 526
5.3 60 120 30 25 45 6 M20 1407 1098 859
6.1 55 105 20 15 35 6 M12 507 344 296
6.2 60 115 25 20 40 6 M16 901 611 526
6.3 65 125 30 25 45 6 M20 1407 1098 859
6.4 70 135 36 30 65 8 M24 2026 1581 1237
7.1 65 115 20 15 35 6 M12 507 344 296
7.2 70 125 25 20 40 6 M16 901 611 526
7.3 75 135 30 25 45 6 M20 1407 1098 859
7.4 80 145 36 30 65 8 M24 2026 1581 1237
8.1 75 175 20 15 35 6 M12 507 344 296
8.2 80 135 25 20 40 6 M16 901 611 526
8.3 85 145 30 25 45 6 M20 1407 1098 859
8.4 90 155 36 30 65 8 M24 2026 1581 1237
8.5 90 160 41 32 65 10 M27 2705 2110 1721
9.1 80 135 20 15 35 6 M12 507 344 296
9.2 85 145 25 20 40 6 M16 901 611 526
9.3 90 155 30 25 45 6 M20 1407 1098 859
9.4 95 165 36 30 65 8 M24 2026 1581 1237
9.5 95 170 41 32 65 10 M27 2705 2110 1721
10.1 85 175 20 15 40 6 M12 507 344 296
10.2 90 175 25 20 45 6 M16 901 611 526
10.3 95 175 30 25 50 6 M20 1407 1098 859
10.4 100 175 36 30 65 8 M24 2026 1581 1237
10.5 105 185 41 32 75 10 M27 2705 2110 1721
10.6 105 190 45 35 75 12 M30 3392 2647 2243
11.1 100 160 20 15 40 6 M12 507 344 296
11.2 105 170 25 20 45 6 M16 901 611 526
11.3 110 180 30 25 50 6 M20 1407 1098 859
11.4 115 190 36 30 65 8 M24 2026 1581 1237
11.5 120 200 41 32 75 10 M27 2705 2110 1721
11.6 120 205 45 35 75 12 M30 3392 2647 2243
11.7 125 220 55 41 100 10 M36 5004 4075 3311
12.1 120 185 25 20 40 6 M16 901 611 526
12.2 125 195 30 25 50 6 M20 1407 1098 859
12.3 130 205 36 30 65 8 M24 2026 1581 1237
12.4 135 215 41 32 75 10 M27 2705 2110 1721
12.5 140 230 45 35 75 12 M30 3392 2647 2243
12.6 145 240 55 41 100 12 M36 5004 4075 3311
12.7 150 250 63 48 100 16 M42 6787 5527 4662
13.1 135 205 25 20 45 6 M16 901 611 526
13.2 140 215 30 25 50 8 M20 1407 1098 859
13.3 145 225 36 30 65 8 M24 2026 1581 1237
13.4 150 235 41 32 75 10 M27 2705 2110 1721
13.5 155 245 45 35 75 12 M30 3392 2647 2243
13.6 160 260 55 41 100 12 M36 5004 4075 3311
13.7 165 275 63 48 100 16 M42 6787 5527 4662
14.1 150 225 25 20 45 6 M16 901 611 526
1.1/2"
168
2.1/2" 76
3" 89
3.1/2" 102
48
2" 60
7" 194
4" 114
5" 140
6"
1" 34
1.1/4" 42
1/2" 21
C
mm
3/4" 27
TWO BOLT PIPE CLAMP & THREE BOLT PIPE CLAMP
Part
No.
Pipe
Size
Pipe OD
mm
A
mm
B
mm
G
mm
W
mm
T
mm
Bolt
M
Safe Working Load (kg.)

28. AAA SUPPORTS PVT LTD
Upto 350°C 351°C ‐ 470°C 471°C ‐ 550°C
C
mm
TWO BOLT PIPE CLAMP & THREE BOLT PIPE CLAMP
Part
No.
Pipe
Size
Pipe OD
mm
A
mm
B
mm
G
mm
W
mm
T
mm
Bolt
M
Safe Working Load (kg.)
14.2 155 235 30 25 50 8 M20 1407 1098 859
14.3 160 245 36 30 65 8 M24 2026 1581 1237
14.4 165 255 41 32 75 10 M27 2705 2110 1721
14.5 170 265 45 35 75 12 M30 3392 2647 2243
14.6 175 280 55 41 100 12 M36 5004 4075 3311
14.7 185 300 63 48 100 16 M42 6787 5527 4662
14.8 190 315 72 54 125 16 M48 9006 7333 5728
15.1 165 245 30 25 50 8 M20 1407 1098 859
15.2 170 255 36 30 65 8 M24 2026 1581 1237
15.3 175 265 41 32 75 10 M27 2705 2110 1721
15.4 180 275 45 35 75 12 M30 3392 2647 2243
15.5 185 290 55 41 100 12 M36 5004 4075 3311
15.6 190 305 63 48 100 16 M42 6787 5527 4662
15.7 195 320 72 54 125 16 M48 9006 7333 5728
15.8 205 340 78 57 125 20 M52 10847 8833 7199
16.1 180 260 30 25 50 8 M20 1407 1098 859
16.2 185 270 36 30 65 8 M24 2026 1581 1237
16.3 190 280 41 32 75 10 M27 2705 2110 1721
16.4 195 290 45 35 75 12 M30 3392 2647 2243
16.5 200 305 55 41 100 12 M36 5004 4075 3311
16.6 205 320 63 48 100 16 M42 6787 5527 4662
16.7 210 335 72 54 125 16 M48 9006 7333 5728
16.8 220 355 78 57 125 20 M52 10847 8833 7199
17.1 205 285 30 25 50 8 M20 1407 1098 859
17.2 210 295 36 30 65 8 M24 2026 1581 1237
17.3 215 305 41 32 75 10 M27 2705 2110 1721
17.4 220 315 45 35 75 12 M30 3392 2647 2243
17.5 225 330 55 41 100 12 M36 5004 4075 3311
17.6 235 350 63 48 100 16 M42 6787 5527 4662
17.7 240 365 72 54 125 16 M48 9006 7333 5728
17.8 250 385 78 57 125 20 M52 10847 8833 7199
18.1 220 305 30 25 50 8 M20 1407 1098 859
18.2 225 315 36 30 65 8 M24 2026 1581 1237
18.3 230 325 41 32 75 10 M27 2705 2110 1721
18.4 235 335 45 35 75 12 M30 3392 2647 2243
18.5 240 350 55 41 100 12 M36 5004 4075 3311
18.6 250 370 63 48 100 16 M42 6787 5527 4662
18.7 260 390 72 54 125 16 M48 9006 7333 5728
18.8 265 405 78 57 125 20 M52 10847 8833 7199
19.1 245 330 30 25 50 8 M20 1407 1098 859
19.2 250 340 36 30 65 10 M24 2026 1581 1237
19.3 255 350 41 32 75 10 M27 2705 2110 1721
19.4 260 360 45 35 75 12 M30 3392 2647 2243
19.5 265 375 55 41 100 12 M36 5004 4075 3311
19.6 275 395 63 48 100 16 M42 6787 5527 4662
19.7 285 415 72 54 125 16 M48 9006 7333 5728
19.8 290 430 78 57 125 20 M52 10847 8833 7199
20.1 275 365 36 30 65 10 M24 2026 1581 1237
20.2 280 375 41 32 75 10 M27 2705 2110 1721
20.3 285 385 45 35 75 12 M30 3392 2647 2243
20.4 290 400 55 41 100 12 M36 5004 4075 3311
20.5 300 420 63 48 100 16 M42 6787 5527 4662
20.6 310 440 72 54 125 16 M48 9006 7333 5728
20.7 315 455 78 57 125 20 M52 10847 8833 7199
20.8 320 470 84 63 150 20 M56 12258 9981 8421
21.1 300 390 36 30 65 10 M24 2026 1581 1237
21.2 310 410 45 35 75 12 M30 3392 2647 2243
21.3 315 425 55 41 100 12 M36 5004 4075 3311
21.4 325 450 63 48 100 16 M42 6787 5527 4662
21.5 335 470 72 54 125 16 M48 9006 7333 5728
21.6 340 480 78 57 125 20 M52 10847 8833 7199
21.7 345 495 84 63 150 20 M56 12258 9981 8421
21.8 355 520 96 72 150 25 M64 16010 13036 10999
10" 273
9" 244
8" 219
16" 406
14" 356
12" 324
20" 508
18" 457

29. AAA SUPPORTS PVT LTD
Upto 350°C 351°C ‐ 470°C 471°C ‐ 550°C
C
mm
TWO BOLT PIPE CLAMP & THREE BOLT PIPE CLAMP
Part
No.
Pipe
Size
Pipe OD
mm
A
mm
B
mm
G
mm
W
mm
T
mm
Bolt
M
Safe Working Load (kg.)
22.1 320 410 36 30 65 10 M24 2026 1581 1237
22.2 330 430 45 35 75 12 M30 3392 2647 2243
22.3 335 445 55 41 100 12 M36 5004 4075 3311
22.4 345 470 63 48 100 16 M42 6787 5527 4662
22.5 355 490 72 54 125 16 M48 9006 7333 5728
22.6 360 500 78 57 125 20 M52 10847 8833 7199
22.7 365 515 84 63 150 20 M56 12258 9981 8421
22.8 375 540 96 72 150 25 M64 16010 13036 10999
23.1 350 440 36 30 65 10 M24 2026 1581 1237
23.2 360 460 45 35 75 12 M30 3392 2647 2243
23.3 365 475 55 41 100 12 M36 5004 4075 3311
23.4 375 500 63 48 100 16 M42 6787 5527 4662
23.5 385 520 72 54 125 16 M48 9006 7333 5728
23.6 390 530 78 57 125 20 M52 10847 8833 7199
23.7 395 545 84 63 150 20 M56 12258 9981 8421
23.8 405 570 96 72 150 25 M64 16010 13036 10999
24.1 375 465 36 30 65 10 M24 2026 1581 1237
24.2 385 485 45 35 75 12 M30 3392 2647 2243
24.3 390 500 55 41 100 12 M36 5004 4075 3311
24.4 400 525 63 48 100 16 M42 6787 5527 4662
24.5 410 545 72 54 125 16 M48 9006 7333 5728
24.6 415 555 78 57 125 20 M52 10847 8833 7199
24.7 420 570 84 63 150 20 M56 12258 9981 8421
24.8 430 595 96 72 150 25 M64 16010 13036 10999
25.1 430 520 36 30 65 10 M24 2026 1581 1237
25.2 435 535 45 35 75 12 M30 3392 2647 2243
25.3 440 550 55 41 100 12 M36 5004 4075 3311
25.4 450 575 63 48 100 16 M42 6787 5527 4662
25.5 460 595 72 54 125 16 M48 9006 7333 5728
25.6 465 605 78 57 125 20 M52 10847 8833 7199
25.7 470 620 84 63 150 20 M56 12258 9981 8421
25.8 480 645 96 72 150 25 M64 16010 13036 10999
26.1 505 595 36 30 75 10 M24 2026 1581 1237
26.2 515 615 45 35 75 12 M30 3392 2647 2243
26.3 520 630 55 41 100 12 M36 5004 4075 3311
26.4 530 655 63 48 100 16 M42 6787 5527 4662
26.5 535 670 72 54 125 16 M48 9006 7333 5728
26.6 545 685 78 57 125 20 M52 10847 8833 7199
26.7 550 700 84 63 150 20 M56 12258 9981 8421
26.8 560 725 96 72 150 25 M64 16010 13036 10999
27.1 555 645 36 30 75 10 M24 2026 1581 1237
27.2 565 665 45 35 75 12 M30 3392 2647 2243
27.3 570 680 55 41 100 12 M36 5004 4075 3311
27.4 580 705 63 48 100 16 M42 6787 5527 4662
27.5 585 720 72 54 125 16 M48 8842 7333 5728
27.6 595 735 78 57 125 20 M52 10305 8833 7199
27.7 600 750 84 63 150 20 M56 11881 9981 8421
27.8 610 775 96 72 150 25 M64 15577 13036 10999
28.1 580 670 36 30 75 10 M24 2026 1581 1237
28.2 590 690 45 35 75 12 M30 3392 2647 2243
28.3 595 705 55 41 100 12 M36 5004 4075 3311
28.4 600 725 63 48 100 16 M42 6787 5527 4662
28.5 610 745 72 54 125 16 M48 8842 7333 5728
28.6 620 760 78 57 125 20 M52 10305 8833 7199
28.7 625 775 84 63 150 20 M56 11881 9981 8421
28.8 635 800 96 72 150 25 M64 15577 13036 10999
22" 550
42" 1066
40" 1016
36" 914
30" 762
26" 660
24" 610

33. PIPE OD A B C R W T t SAFE LOAD
21 M8 70 28 11 25 4 3 270kg
27 M8 76 30 14 25 4 3 270kg
34 M8 82 30 17 25 4 3 270kg
42 M10 92 31 22 30 4 3 300kg
48 M10 103 34 25 30 4 3 300kg
60 M10 110 40 31 35 4 3 400kg
76 M12 140 49 38 40 5 4 500kg
89 M12 153 56 45 40 5 4 500kg
114 M16 195 81 58 40 5 4 500kg
140 M16 227 92 70 40 8 6 650kg
168 M20 320 95 86 40 8 6 750kg
219 M24 383 128 112 45 10 6 900kg
273 M24 446 158 138 50 10 6 1600kg
324 M24 490 180 164 50 10 6 1600kg
356 M27 525 192 180 50 12 6 1800kg
406 M27 575 215 205 65 12 6 1950kg
457 M30 640 246 231 65 12 6 2000kg
508 M30 685 272 258 75 16 8 2500kg
550 M30 742 297 278 75 16 10 2500kg
610 M36 800 322 308 75 16 10 2500kg
CLEVIS HANGER
ALL DIMENSION IN mm
SIZE A B ØC ØD E ØF G
Safe load
(kg)
M12 M12 28 26 12 25 30 40 600
M16 M16 32 30 15 32 36 38 1050
M20 M20 37 35 20 35 40 44 1750
M24 M24 46 42 22 31 47 54 2500
M27 M27 43 44 23 35 45 55 3300
M30 M30 56 60 29 40 57 61 4500
M36 M36 60 64 30 45 60 68 5600
M42 M42 60 68 30 50 68 76 7500
M48 M48 66 76 36 55 74 84 9700
M56 M56 73 86 40 60 80 93 13500
M64 M64 79 100 42 65 86 101 18000
EYE NUT
All Dimension in mm

34. SIZE A B C D E F L ØO T t SAFE LOAD
M12 80 80 25 50 50 55 100 18 6 8 920kg
M16 80 100 30 50 50 70 100 22 8 8 1510kg
M20 100 100 30 60 75 70 120 22 8 8 1750kg
M24 120 110 35 70 90 75 140 26 10 10 2500kg
M27 120 120 40 75 100 80 140 30 10 12 3300kg
M30 130 120 45 80 120 75 150 33 12 14 4500kg
M36 130 130 50 95 120 75 150 39 12 14 6000kg
M42 150 140 60 110 120 67 170 45 16 16 7500kg
M48 160 150 65 125 130 68 180 52 16 18 9700kg
M56 180 170 75 150 130 65 200 60 18 20 13500kg
M64 200 190 85 170 140 65 220 68 20 25 18000kg
M72 220 210 95 190 140 65 240 76 25 30 23000kg
PIPE SHOE ASSEMBLY
ALL DIMENSION IN mm
SIZE A B C D E F G L ØO T t SAFE LOAD
M12 80 80 25 50 50 55 16 100 18 6 8 920kg
M16 80 100 30 50 50 70 20 100 22 8 8 1510kg
M20 100 100 30 60 75 70 25 120 22 8 8 1750kg
M24 120 110 35 70 90 75 30 140 26 10 10 2500kg
M27 120 120 40 75 100 80 32 140 30 10 12 3300kg
M30 130 120 45 80 120 75 35 150 33 12 14 4500kg
M36 130 130 50 95 120 75 42 150 39 12 14 6000kg
M42 150 140 60 110 120 67 48 170 45 16 16 7500kg
M48 160 150 65 125 130 68 55 180 52 16 18 9700kg
M56 180 170 75 150 130 65 63 200 60 18 20 13500kg
M64 200 190 85 170 140 65 65 220 68 20 25 18000kg
M72 220 210 95 190 140 65 65 240 76 25 30 23000kg
PIPE SHOE ASSEMBLY
ALL DIMENSION IN mm

35. SIZE A B C D E L ØO T t SAFE LOAD
M12 80 80 25 50 50 100 18 10 8 920kg
M16 80 100 30 50 50 100 22 12 8 1510kg
M20 100 100 30 60 75 120 22 12 8 1750kg
M24 120 110 35 70 90 140 26 16 10 2500kg
M27 120 120 40 75 100 140 30 18 12 3300kg
M30 130 120 45 80 120 150 33 20 14 4500kg
M36 130 130 50 95 120 150 39 20 14 6000kg
M42 150 140 60 110 120 170 45 25 16 7500kg
M48 160 150 65 125 130 180 52 25 18 9700kg
M56 180 170 75 150 130 200 60 30 20 13500kg
M64 200 190 85 170 140 220 68 35 25 18000kg
M72 220 210 95 190 140 240 76 40 30 23000kg
PIPE SHOE ASSEMBLY
ALL DIMENSION IN mm
SIZE A B C D E F L ØO T t SAFE LOAD
M12 80 80 25 50 50 55 100 18 10 8 920kg
M16 80 100 30 50 50 70 100 22 12 8 1510kg
M20 100 100 30 60 75 70 120 22 12 8 1750kg
M24 120 110 35 70 90 75 140 26 16 10 2500kg
M27 120 120 40 75 100 80 140 30 18 12 3300kg
M30 130 120 45 80 120 75 150 33 20 14 4500kg
M36 130 130 50 95 120 75 150 39 20 14 6000kg
M42 150 140 60 110 120 67 170 45 25 16 7500kg
M48 160 150 65 125 130 68 180 52 25 18 9700kg
M56 180 170 75 150 130 65 200 60 30 20 13500kg
M64 200 190 85 170 140 65 220 68 35 25 18000kg
M72 220 210 95 190 140 65 240 76 40 30 23000kg
PIPE SHOE ASSEMBLY
ALL DIMENSION IN mm

36. FIG. L (MAX.) SECTION & SIZE Sq. B T
Safe load
(kg)
1 230 50 X 50 , Angle 125 8 250
1 230 70 x70 Angle 150 10 570
2 300 76 x 76 Tee 150 10 1500
2 300 102 x 102 Tee 200 12 3820
2 300 127 x 102 , Tee 200 1 4500
3 300 152 x 152 , U Columns 300 15 10500
3 300 203 x 133 , U Beam 300 15 12500
3 450 152 x 152 , U Columns 300 15 9200
3 450 203 x 133 , U Beam 300 15 8800
SECTION SUPPORTS
All Dimension in mm
L max
TUBE
SIZE
SQ. B T
Safe load
(kg)
230 25 100 8 185
230 40 125 8 580
300 50 125 8 700
300 80 150 10 1900
300 100 200 12 3400
300 150 250 12 8800
450 200 300 15 11800
450 250 350 18 16500
PIPE SUPPORTS (BASE)
All Dimension in mm
L max
TUBE
SIZE
SQ. B T
Safe load
(kg)
230 25 100 8 185
230 40 125 8 580
300 50 125 8 700
300 80 150 10 1900
300 100 200 12 3400
300 150 250 12 8800
450 200 300 15 11800
PIPE SUPPORTS (TUBULAR)
All Dimension in mm

37. PIPE SIZE
(INCH)
I/D A B E G L W T
Safe load
(kg)
1" 34 50 75 50 15 150 35 5 350
1.1/2" 48 55 80 50 15 150 35 5 350
2' 60 60 85 60 20 150 35 6 350
2.1/2" 76 70 95 60 20 200 35 6 650
3" 89 80 110 60 20 200 40 6 700
4" 114 90 120 75 25 200 40 6 650
5" 140 110 140 75 25 200 40 6 875
6" 168 125 155 75 25 200 40 8 1450
8" 219 155 195 100 25 200 40 8 1900
10" 273 190 230 100 30 200 40 8 1875
12" 324 210 255 100 30 250 50 10 3275
14" 356 235 280 150 30 250 50 10 3325
16" 406 260 305 150 30 250 65 12 6650
18" 457 280 330 200 30 250 65 12 11375
20" 508 315 365 200 30 300 65 16 11900
22" 559 335 385 200 30 300 65 16 11100
24" 610 365 415 250 30 300 75 16 12675
26' 660 415 465 250 30 300 75 16 12100
30" 762 460 510 250 30 300 75 16 11750
Dimension 'H' = To Bult 50 mm/ 100 mm. max. insulation thickness.
All Dimension in mm
SLIDING PIPE CLAMP ASSEMBLY

38. PIPE SIZE
(INCH)
I/D A B E G L W T
Safe load
(kg)
1" 34 50 75 50 15 150 35 5 350
1.1/2" 48 55 80 50 15 150 35 5 350
2' 60 60 85 60 20 150 35 6 350
2.1/2" 76 70 95 60 20 200 35 6 650
3" 89 80 110 60 20 200 40 6 700
4" 114 90 120 75 25 200 40 6 650
5" 140 110 140 75 25 200 40 6 875
6" 168 125 155 75 25 200 40 8 1450
8" 219 155 195 100 25 200 40 8 1900
10" 273 190 230 100 30 200 40 8 1875
12" 324 210 255 100 30 250 50 10 3275
14" 356 235 280 150 30 250 50 10 3325
16" 406 260 305 150 30 250 65 12 6650
18" 457 280 330 200 30 250 65 12 11375
20" 508 315 365 200 30 300 65 16 11900
22" 559 335 385 200 30 300 65 16 11100
24" 610 365 415 250 30 300 75 16 12675
26' 660 415 465 250 30 300 75 16 12100
30" 762 460 510 250 30 300 75 16 11750
Dimension 'H' = To suit 50 mm/ 100 mm. max. insulation thickness.
All Dimension in mm
SLIDING PIPE CLAMP ASSEMBLY

39. PIPE SIZE
(INCH)
PIPE OD A B C ØD E F
Safe load
(kg)
4" 114 180 60 30 22 M16 190 1600
6" 168 220 70 35 26 M20 270 2800
8" 219 250 85 40 30 M24 320 3500
10" 273 300 85 40 33 M24 390 4500
12" 324 330 100 45 39 M27 440 5850
14" 356 360 100 45 39 M27 475 5850
16" 406 405 110 50 45 M30 530 7500
18" 457 460 110 55 52 M30 600 8750
20" 508 505 120 55 52 M30 650 9500
24" 610 575 130 60 56 M36 800 12100
PIPE CLAMP
All Dimension in mm
PIPE SIZE
(INCH)
ØA ØB C D Sq E Sq F ØO T
Safe load
(kg)
2" 60 24 200 125 100 140 15 6 700
3" 60 24 200 150 100 140 15 6 700
4" 89 27 200 165 100 140 15 8 2800
5" 89 27 200 175 100 140 15 8 2800
6" 114 30 250 200 140 190 19 8 4900
7" 114 30 250 225 140 190 19 8 4900
8" 114 30 250 250 140 190 19 8 4900
10" 140 36 300 300 160 210 23 10 6850
12" 140 36 300 350 160 210 23 10 6850
14" 140 42 300 375 160 210 23 10 8100
16" 140 42 300 400 160 210 23 10 8100
18" 165 48 400 450 190 255 23 12 9500
20" 165 48 400 500 190 255 23 12 9500
22" 165 48 400 525 190 255 27 12 9500
24" 219 56 400 550 190 255 27 12 10750
26" 219 56 400 575 190 255 27 12 10750
30" 273 64 500 625 260 340 30 16 13500
36' 273 64 500 700 260 340 30 16 13500
40" 273 64 500 750 260 340 30 16 13500
42" 273 64 500 775 260 340 30 16 13500
ADJUSTABLE PIPE SUPPORTS
All Dimension in mm

40. 15 mm 30mm 50mm
Up to 500 100 120 140 20 775
500-1500 125 145 165 28 100
1500-4000 150 175 200 34 125
4000-7000 175 200 225 42 150
7000-15000 225 250 275 50 200
15000-30000 275 300 325 56 250
30000-50000 325 350 375 60 300
LOW FRICTION SLIDING SUPPORTS
All Dimension in mm
SAFE
LOAD (Kg)
Sq. A FOR TRAVEL
B
Sq. C
mm
PIPE SIZE
(INCH)
A B C D E
Safe load
(kg)
2" 125 80 125 70 8 500
3" 125 80 125 80 8 600
4" 150 100 125 90 8 850
5" 150 100 125 100 10 1250
6" 150 100 125 110 10 1600
8" 175 120 150 110 10 1800
10" 175 120 150 120 12 2350
12" 200 140 150 120 12 2850
14" 225 150 175 130 14 3500
16" 250 170 175 130 14 4500
18" 250 180 175 140 16 5700
20". 275 200 175 150 16 6500
24" 320 240 200 160 18 7300
30" 380 300 200 170 20 8500
PIPE ROLLER ASSEMBLY
All Dimension in mm

41. UP T0 350°C 351°C-470°C 471°C-550°C
1" 34 100 100 40 80 60 8 6 40 X 5 M12 675 506 430
2" 60 125 125 50 100 75 8 6 50 X 5 M12 752 564 480
3" 89 125 125 60 110 75 8 6 65 X 5 M12 850 637 540
150 150 75 120 75 8 8 65 X 6 M12 1050 790 670
150 150 75 130 100 10 8 75 X 8 M16 2195 1650 1402
200 200 90 160 100 8 8 65 X 8 M16 1565 1170 1001
200 200 90 170 100 10 8 100 X 8 M20 3400 2550 2160
200 200 110 190 125 8 8 75 X 8 M16 1675 1260 1080
200 200 110 200 125 10 8 100 X 8 M16 3500 2650 2230
200 200 110 200 125 12 10 100 X 12 M20 5500 4125 3506
250 250 140 220 150 10 8 100 X 8 M16 3500 2625 2230
250 250 140 220 150 12 10 100 X 12 M20 6300 4725 4016
250 250 140 220 150 16 12 100 X 16 M20 7500 5625 4780
250 250 150 250 200 10 8 75 X 8 M16 4100 3075 2600
250 250 150 250 200 12 10 75 X 12 M20 6800 5100 4335
250 250 150 250 200 16 12 75 X 16 M20 8520 6390 6326
300 300 170 270 250 10 10 75 X 10 M20 4500 3375 2870
300 300 170 270 250 12 10 75 X 12 M20 6700 5025 4270
300 300 170 270 250 16 12 75 X 16 M24 8450 6337 5380
300 300 190 290 250 10 10 75 X 10 M20 4500 3375 2860
300 300 190 290 250 12 10 75 X 12 M20 6700 5025 4270
300 300 190 290 250 16 12 75 X 16 M24 8450 6337 5386
350 350 200 320 250 10 10 75 X 10 M20 4450 3337 2825
350 350 200 320 250 12 10 75 X 12 M20 6650 4980 4230
350 350 200 320 250 16 12 75 X 16 M24 8400 6300 5355
350 350 220 340 250 10 10 75 X 10 M20 4400 3300 2805
350 350 220 340 250 12 10 75 X 12 M20 6600 4950 4207
350 350 220 340 250 16 12 75 X 16 M24 8400 6225 5290
350 350 240 360 250 10 10 75 X 10 M20 4300 3225 2740
350 350 240 360 250 12 10 75 X 12 M20 6500 4875 4140
350 350 240 360 250 16 12 75 X 16 M24 8200 6150 5227
350 350 260 400 300 12 10 75 X 12 M20 5000 3750 3180
350 350 260 400 300 16 12 75 X 16 M24 7500 5625 4780
350 350 260 400 300 20 16 100 X 16 M30 11000 8250 7050
400 400 280 420 300 12 10 75 X 12 M20 4850 3630 3090
400 400 280 420 300 16 12 75 X 16 M24 7350 5510 4685
400 400 280 420 300 20 16 100 X 16 M30 10800 8100 6885
400 400 320 470 300 12 10 75 X 12 M20 4700 3525 3000
400 400 320 470 300 16 12 75 X 16 M24 7200 5400 4590
400 400 320 470 300 20 16 100 X 16 M30 10500 7875 6680
500 500 380 550 400 12 10 75 X 12 M20 4500 3375 2868
500 500 380 550 400 16 12 75 X 16 M24 7000 5250 4460
500 500 380 550 400 20 16 100 X 16 M30 10000 7500 6375
500 500 420 600 400 12 10 75 X 12 M20 4250 3190 2700
500 500 420 600 400 16 12 75 X 16 M24 6500 4875 4140
500 500 420 600 400 20 16 100 X 16 M30 9500 7125 6050
500 500 440 640 400 12 10 75 X 12 M20 4000 3000 2550
500 500 440 640 400 16 12 75 X 16 M24 6300 4725 4010
500 500 440 640 400 20 16 100 X 16 M30 9300 6975 5925
40"
1066
550
610
660
762
914
1016
18"
42"
114
168
219
273
324
356
406
457
508
22"
24"
26"
30"
36"
t
10"
12"
14"
16"
B C D E T
All Dimension in mm
PIPE SIZE
(INCH)
PIPE OD A
SLIDING SUPPORTS
20"
FLAT SIZE
BOLT/
STUD
SAFE WORKING LOAD
4"
6"
8"

42. AAA SUPPORTS PVT. LTD.
Plot No: 262, GIDC Estate,
Por-Ramangamdi - 391 243
Dist: Vadodara, Gujarat, India
Tel: +91 265 2830444 - 445 - 446
Email: sales@aaasupports.com
web: www.aaasupports.com
Fax: +91 265 2830445
