Solar Energy:
• Radiant energy emitted by the sun.
• The Sun daily provides about 10,000 times more energy to the Earth
than
we consume.

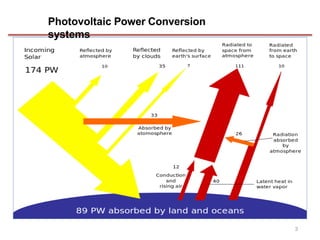

• The earth receives 174 petawatts [1015 watts] of solar radiations from the
sun.
• The total energy absorbed by earth’s atmosphere, oceans, land mass is
38,50,000 exajoules [1018 joules] per year.
• The energy reaching earth’s atmosphere consists of about 8%
UV radiation, 46% visible light, 46% infrared radiations.

3. Photovoltaic Power Conversion
systems
3

4. Photovoltaic Power Conversion
systems

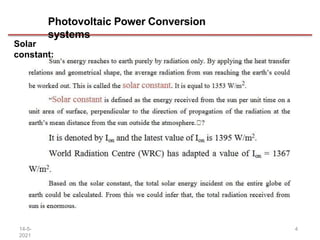

Solar
constant:
14-5-
2021
4

5. Photovoltaic Power Conversion
systems
14-5-
2021
5

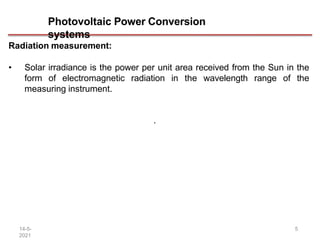

Radiation measurement:
• Solar irradiance is the power per unit area received from the Sun in the
form of electromagnetic radiation in the wavelength range of the
measuring instrument.
.

6. Photovoltaic Power Conversion
systems

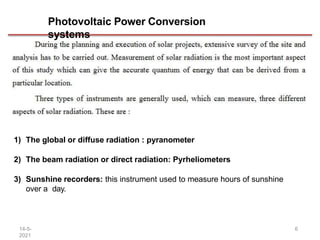

1) The global or diffuse radiation : pyranometer
2) The beam radiation or direct radiation: Pyrheliometers
3) Sunshine recorders: this instrument used to measure hours of sunshine
over a day.
14-5-
2021
6

7. Photovoltaic Power Conversion
systems

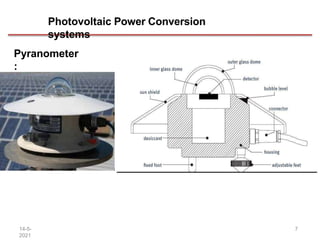

Pyranometer
:
14-5-
2021
7

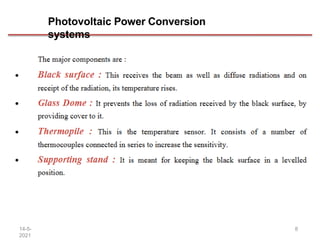

8. Photovoltaic Power Conversion
systems
14-5-
2021
8

9. Photovoltaic Power Conversion
systems
14-5-
2021
9

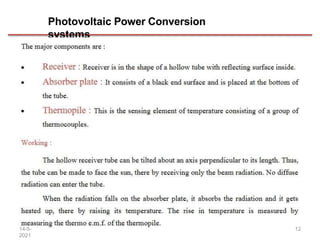

10. Photovoltaic Power Conversion
systems

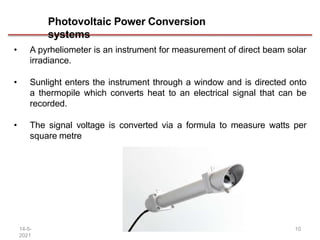

• A pyrheliometer is an instrument for measurement of direct beam solar
irradiance.
• Sunlight enters the instrument through a window and is directed onto
a thermopile which converts heat to an electrical signal that can be
recorded.
• The signal voltage is converted via a formula to measure watts per
square metre
14-5-
2021
10

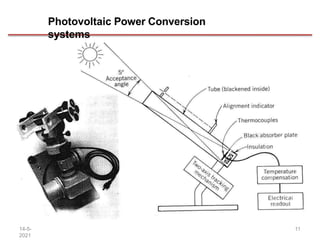

11. Photovoltaic Power Conversion
systems
14-5-
2021
11

12. Photovoltaic Power Conversion
systems
14-5-
2021
12

13. Photovoltaic Power Conversion
systems
14-5-
2021
13

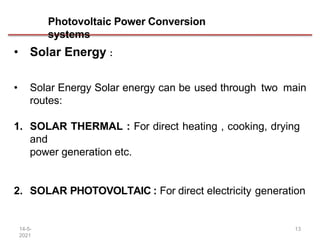

• Solar Energy :
• Solar Energy Solar energy can be used through two main
routes:
1. SOLAR THERMAL : For direct heating , cooking, drying
and
power generation etc.
2. SOLAR PHOTOVOLTAIC : For direct electricity generation

14. Photovoltaic Power Conversion
systems
• Heatin
g
14-5-
2021
14

15. Photovoltaic Power Conversion
systems

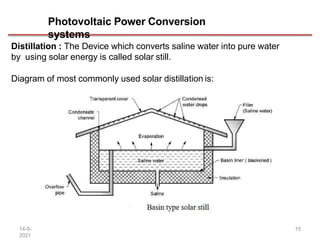

Distillation : The Device which converts saline water into pure water
by using solar energy is called solar still.
Diagram of most commonly used solar distillation is:
14-5-
2021
15

16. Photovoltaic Power Conversion
systems

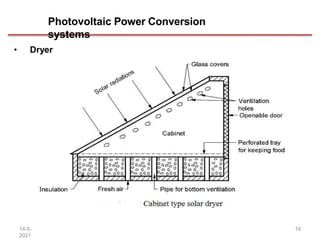

• Dryer
14-5-
2021
16

17. Photovoltaic Power Conversion
systems
• Dryer
14-5-
2021
17

18. Photovoltaic Power Conversion
systems
14-5-
2021
18

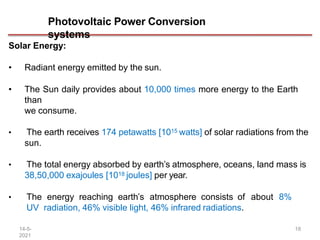

Solar Energy:
• Radiant energy emitted by the sun.
• The Sun daily provides about 10,000 times more energy to the Earth
than
we consume.
• The earth receives 174 petawatts [1015 watts] of solar radiations from the
sun.
• The total energy absorbed by earth’s atmosphere, oceans, land mass is
38,50,000 exajoules [1018 joules] per year.
• The energy reaching earth’s atmosphere consists of about 8%
UV radiation, 46% visible light, 46% infrared radiations.

19. Photovoltaic Power Conversion
systems
14-5-
2021
19

20. Solar Photovoltaic(SPV)
systems
• A photovoltaic system, also PV system or solar power system, is a
power system designed to supply usable solar power by means of
photovoltaics.
• It consists of an arrangement of several components, including solar
panels to absorb and convert sunlight into electricity.
14-5-
2021
20

21. Solar Photovoltaic(SPV)
systems
14-5-
2021
21

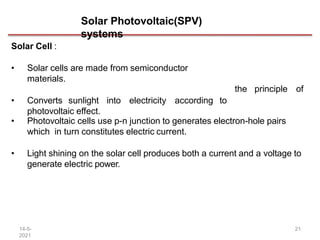

Solar Cell :
• Solar cells are made from semiconductor
materials.
• Converts sunlight into electricity according to
photovoltaic effect.
the principle of
• Photovoltaic cells use p-n junction to generates electron-hole pairs
which in turn constitutes electric current.
• Light shining on the solar cell produces both a current and a voltage to
generate electric power.

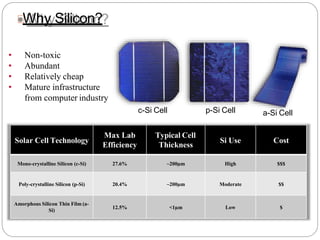

22. Solar Cell Technology
Max Lab
Efficiency
Typical Cell
Thickness
Si Use Cost
Mono-crystalline Silicon (c-Si) 27.6% ~200µm High $$$
Poly-crystalline Silicon (p-Si) 20.4% ~200µm Moderate $$
Amorphous Silicon Thin Film (a-
Si)
12.5% <1µm Low $
Why Silicon?
• Non-toxic
• Abundant
• Relatively cheap
• Mature infrastructure
from computer industry
c-Si Cell p-Si Cell a-Si Cell

23. The photoelectric effect was first noted
by a French physicist, Edmund
Bequerel, in 1839, who found that
certain materials would produce small
amounts of electric current when
exposed to light.
Albert Einstein explained the
underlying mechanism of light
instigated carrier excitation the photo
electric effect-in 1905

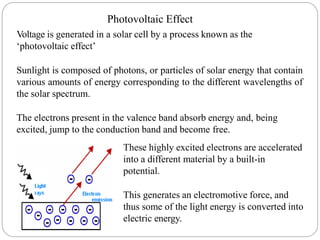

24. Photovoltaic Effect
Voltage is generated in a solar cell by a process known as the
‘photovoltaic effect’
Sunlight is composed of photons, or particles of solar energy that contain
various amounts of energy corresponding to the different wavelengths of
the solar spectrum.
The electrons present in the valence band absorb energy and, being
excited, jump to the conduction band and become free.
These highly excited electrons are accelerated
into a different material by a built-in
potential.
This generates an electromotive force, and
thus some of the light energy is converted into
electric energy.

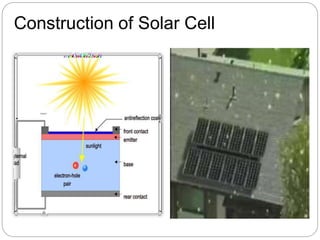

25. Construction of Solar Cell

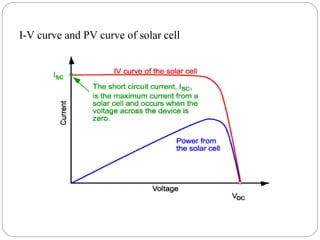

26. I-V curve and PV curve of solar cell

27. 14-5-
2021
27

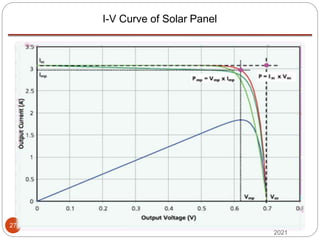

I-V Curve of Solar Panel

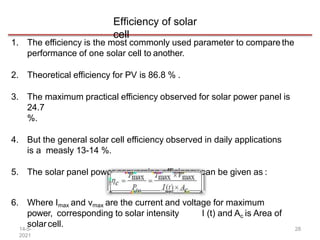

28. Efficiency of solar
cell
1. The efficiency is the most commonly used parameter to compare the
performance of one solar cell to another.
2. Theoretical efficiency for PV is 86.8 % .
3. The maximum practical efficiency observed for solar power panel is
24.7
%.
4. But the general solar cell efficiency observed in daily applications
is a measly 13-14 %.
5. The solar panel power conversion efficiency can be given as :
6. Where Imax and vmax are the current and voltage for maximum
power, corresponding to solar intensity I (t) and Ac is Area of
solarcell.
14-5-
2021
28

29. Efficiency of Solar
Panel
14-5-
2021
29
Major factors affecting solar power panel efficiency are
:-
1) Dusting
2)Temperature rise effect
3)Poor sunlight absorption

30. Effect of Dust On Performance Of Solar PV
Panel
14-5-
2021
30
1. The heavy layer of dust accumulation on module array might cause
reduction in output power, so that can recovered by washing process
2. A major problem facing scientist is sand accumulation, hence
numerous researches proved that, more than 50% of solar module
performance reduction caused by unclean throughout period of one
month
3. Performance of the PV module is proportional to dirt accumulation.
Actually as little of 10% shade on PV module array can result in of
50% lost energy. Even though with an appropriate tilt angle installation
still sand particles accumulate on module surface.

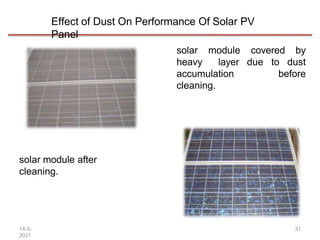

31. Effect of Dust On Performance Of Solar PV
Panel
solar module covered by
heavy layer due to dust
accumulation before
cleaning.
solar module after
cleaning.
14-5-
2021
31

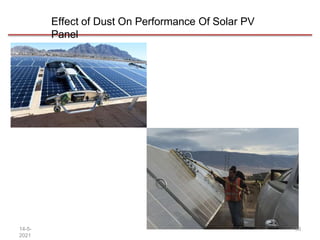

32. Effect of Dust On Performance Of Solar PV
Panel
14-5-
2021
32
To remove dust a wiper/slider mechanism is widely used in practice.
It will be programmed to wipe out the dust on the panel surface after a
particular period of time.
This duster will remove the dust particles hence preventing the fall in
efficiency of the panel and maintaining its original efficiency.
In addition to that clean solar panels are beautiful visually than unclean
panels.

33. Effect of Dust On Performance Of Solar PV
Panel
14-5-
2021
33

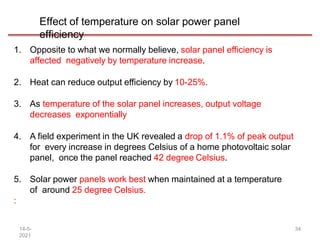

34. Effect of temperature on solar power panel
efficiency
14-5-
2021
34
1. Opposite to what we normally believe, solar panel efficiency is
affected negatively by temperature increase.
2. Heat can reduce output efficiency by 10-25%.
3. As temperature of the solar panel increases, output voltage
decreases exponentially
4. A field experiment in the UK revealed a drop of 1.1% of peak output
for every increase in degrees Celsius of a home photovoltaic solar
panel, once the panel reached 42 degree Celsius.
5. Solar power panels work best when maintained at a temperature
of around 25 degree Celsius.
:

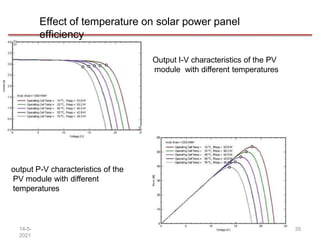

35. Effect of temperature on solar power panel
efficiency
output P-V characteristics of the
PV module with different
temperatures
14-5-
2021
35
Output I-V characteristics of the PV
module with different temperatures

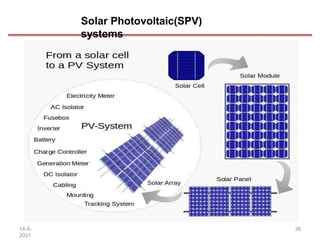

36. Solar Photovoltaic(SPV)
systems
14-5-
2021
36

37. PV Modules
Assemblies of cells are used to make solar modules , also known as
solar panels and these panels are combined to form arrays.
For this , many cells are connected in series and/or parallel to obtain
the expected current and voltage levels and this set of cells is
mounted on an appropriate structure to create a photovoltaic module.

38. Applications of Solar Panels
•Solar Power Plant
•HouseholdApplications
•Street Lights
•Satellites
•Solar Water Pumping
•Battery Charging
•SolarAutomobiles
