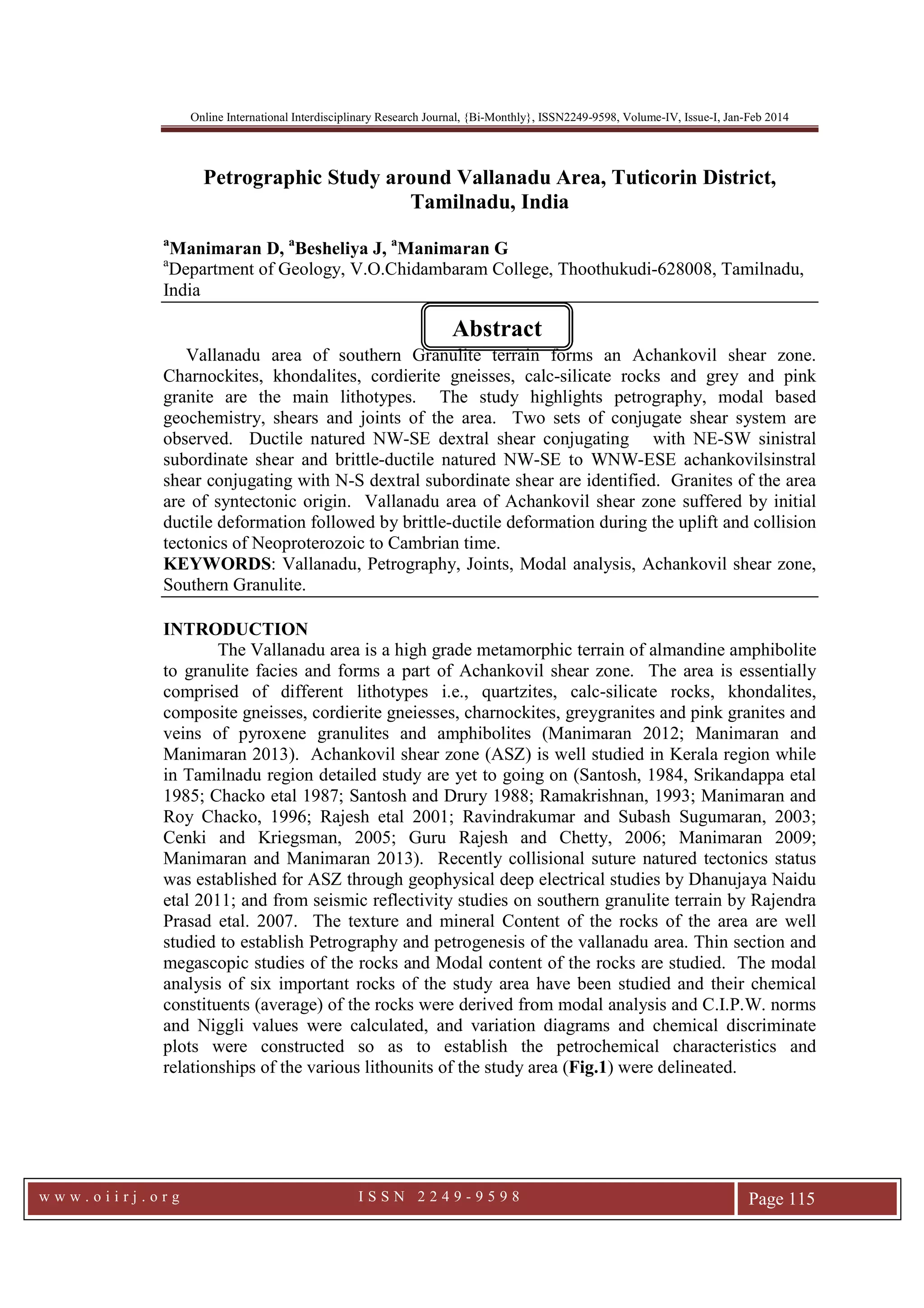

1. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 115
Petrographic Study around Vallanadu Area, Tuticorin District,
Tamilnadu, India
a
Manimaran D, a
Besheliya J, a
Manimaran G
a
Department of Geology, V.O.Chidambaram College, Thoothukudi-628008, Tamilnadu,
India
Vallanadu area of southern Granulite terrain forms an Achankovil shear zone.
Charnockites, khondalites, cordierite gneisses, calc-silicate rocks and grey and pink
granite are the main lithotypes. The study highlights petrography, modal based
geochemistry, shears and joints of the area. Two sets of conjugate shear system are
observed. Ductile natured NW-SE dextral shear conjugating with NE-SW sinistral
subordinate shear and brittle-ductile natured NW-SE to WNW-ESE achankovilsinstral
shear conjugating with N-S dextral subordinate shear are identified. Granites of the area
are of syntectonic origin. Vallanadu area of Achankovil shear zone suffered by initial
ductile deformation followed by brittle-ductile deformation during the uplift and collision
tectonics of Neoproterozoic to Cambrian time.
KEYWORDS: Vallanadu, Petrography, Joints, Modal analysis, Achankovil shear zone,
Southern Granulite.
INTRODUCTION
The Vallanadu area is a high grade metamorphic terrain of almandine amphibolite
to granulite facies and forms a part of Achankovil shear zone. The area is essentially
comprised of different lithotypes i.e., quartzites, calc-silicate rocks, khondalites,
composite gneisses, cordierite gneiesses, charnockites, greygranites and pink granites and
veins of pyroxene granulites and amphibolites (Manimaran 2012; Manimaran and
Manimaran 2013). Achankovil shear zone (ASZ) is well studied in Kerala region while
in Tamilnadu region detailed study are yet to going on (Santosh, 1984, Srikandappa etal
1985; Chacko etal 1987; Santosh and Drury 1988; Ramakrishnan, 1993; Manimaran and
Roy Chacko, 1996; Rajesh etal 2001; Ravindrakumar and Subash Sugumaran, 2003;
Cenki and Kriegsman, 2005; Guru Rajesh and Chetty, 2006; Manimaran 2009;
Manimaran and Manimaran 2013). Recently collisional suture natured tectonics status
was established for ASZ through geophysical deep electrical studies by Dhanujaya Naidu
etal 2011; and from seismic reflectivity studies on southern granulite terrain by Rajendra
Prasad etal. 2007. The texture and mineral Content of the rocks of the area are well
studied to establish Petrography and petrogenesis of the vallanadu area. Thin section and
megascopic studies of the rocks and Modal content of the rocks are studied. The modal
analysis of six important rocks of the study area have been studied and their chemical
constituents (average) of the rocks were derived from modal analysis and C.I.P.W. norms
and Niggli values were calculated, and variation diagrams and chemical discriminate
plots were constructed so as to establish the petrochemical characteristics and
relationships of the various lithounits of the study area (Fig.1) were delineated.
Abstract
2. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 116
LITHOLOGY AND FIELD RELATIONSHIPS
ROCKS OF KERALA KHONDALITE BELT
Khondalites of vallanadu area of Kerala Khondalite Belt (KKB) are represented
by pelitic, Semipelitic, psammitic and calcareous members. The distribution of various
lithotypes of the area is shown in Fig.1a.
QUARTZITES
The psammitic members of KKB are represented by the quartzites and are mostly
granular and massive in appearance. They occurs bands and veins in both gneisses and
charnockites of the area. South of Vallanadu isoclinally folded quartzite occur within the
host of garnetiferous biotite sillmanite gneiss. Intercalation of small bands and veins of
calc-granulites are noticed admist quartzites. Quartzite exposures are occurring at
Vallanadu, east of Seydunganallur, south of Rajagopalapuram and Rajavallipuram. The
general trend of the quartzites is NNW-SSE to NW-SE with variable dips. A quartzite
band at north of Vallanadu occur at the junction among granites, charnockites, cordierite
gneiss and garnetiferous biotite sillimanite gneiss.
CALC-SILICATE ROCKS (CALC-SILICATES)
The calcareous members are represented by calc-granulites, calc-gneisses,
limestones and dolomitic limestones. Linear ellipsoidal band of calc-silicates occur at
palamadai, east of Rajavallipuram and Maruvathalai, east of sivalaperi. Limestone is
essentially composed of calcite with minor minerals of sphene, spinel and graphite. The
calc-granulites and calc-gneisses are manily represented by calcite-wollastonite, diopside
and quartz –wolanstonite – calcite – grossularite and Clinopyroxenes mineral
assemblages. At places scapolite and chondrodite are also noticed in the field.
GARNETIFEROUS BIOTITE SILLIMANITE GNEISSES AND GARNET
BIOTITE GNEISSES
The pelitic and semipelitic members of KKB are represented by graphite bearing
garnetiferous biotite sillimanite gneisses and Garnet biotite gneisses respectively. The
foliations are entirely due to the presence of alternating layers of quartz and feldspars
rich, biotite rich, sillimanite rich zones. Biotite rich layers is from 1cm to 10 cm;
Quartzofeld spathic rich layer is from 1cm to 50cm; sillimanite layer 2cm to 16cm thick
are noted in the field. Imperceptible gradation between garnetiferous biotite sillimanite
gneiss and garnet biotite gneiss and at places biotite-poor leptinitic variety (acid
khondalite), Garnet sillimanite gneiss (white and yellow) is also occur. At places, bands
veins and patches of incipient charnockites are noticed in garnet biotite genisses.
CORDIERITE GNEISSES
Cordierite gneisses are exposed at paraikulam, vasavappapuram,
Rajagopalapuram, Papayankulam, Ganagaigondan (Railway station), Maruvathalai and
Anavaradanallur.The bluish violet, pearly sheen cordierite formed as idioblastic clots and
crystals. Cordierite formed as rich layers and biotite is associated with cordierite rich
layer 1cm to 6cm thick cordierite rich layers are foliated alternately with
quartzofeldspathic layer and depletion of garnet content in cordierite rich layer is
common. Cordierite gneisses developed in the host of garnetiferous gneisses and
charnockites are observed. Band and veins of basic granulites and grey and pink granites
are also observed within the country rocks of cordierite gneisses. Cordierite gneisses are
showing sinistral shearing plans along NW-SE direction, which are parallel to
Achankovil shear zone.
3. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 117
CHARNOCKITES
The massive charnockite exposures are exposed at Timmarajapuram and KTC
Nagar, southeast of sivalaperi; Gangaigondan, Maruvathalai, singattakurichi and NE of
Vallanadu area. It dark green glistening rock having hypersthene as a essential mineral
occuras dark green porphyroblastic crystals. Bands, veins and lenses of basic granulites,
grey and pink granites are common in charnockites. At places near pegmatite intrusions,
the breaking of the charnockite leads to rertograde gneisses evolved from charrockites are
also encountered in the field. Relic patches of garnet biotite gneisses in charnockite, at
contact abrupt warpping of the gneissic foliation at the boundary of charnockite suggest
that the charnockites of the area is subsequent to khondalites and the pelitic genises of the
area were transformed into charnockites.
BASIC GRANULITES
The basic granulites are essentially consists of orthopyroxenes (hypersthene) and
clinopyroxenes (Diopside and Augite), hence the name two-pyroxene granulites. They
occur and associated with all types of rocks of the area and usually as small veins and
lenses in the country rocks of khondalites, quartzites, cordierite gneisses and
charnockites.
GRANITES
The Granites and pegmatites are of in two colours-gray and pink. A large grey
granite band of 1km breadth and 10km length intruded the major isoclinal fold of
vallanadu is traced in the field. The other bands of granite are occur at west of Vallanadu
and east of Sivalaperi at Maruvathalai. The composite gneisses are having veins and
bands of grey as well as pink granites. Since granites intruded all lithotypes it is the
youngest rocks of the area.
COMPOSITE GNEISSES
It is a special kind of rock yielding black soil of the area due to its high Mg and
Ca contents. It is mainly represented by graphite bearing garnetiferous biotite gneisses
showing multi intercalations of veins and bands of calc-silicate rocks, incipient
charnockites, basic granulites, granites and pegmatites. calc-silicate rocks and basic
granulites are also play vital role in the genesis of black (cotton) soil due to their Ca and
Mg bearing minerals. At places, composite gneisses were intruded by lit-par-lit Injection
of grey granites and grey pegmatites and bands of charnockites and basic granulites were
retrograded into regressive gnesisses. The overall multi kind network lithology status of
the rock assigns the name composite gneisses.
PETROGRAPHY AND MICROTECTONIC FEATURES
QUARTZITES
Quartzite shows granular texture and Varieties include white, Milky, Rosy and
Smoky. In general quartzites are feldspathic, ferruginous (haematite and Ilmenite)
bearing quartzite running like a linear band. At vallanadu, quartzites occur in the core of
a isoclinal plunging major fold. The modal content of the quartzite is as follows: Quartz
93.2; graphite 2.5; Biotite 1; Ilmenite 1; apatite 0.25 and plagioclase 2.
Microphotograph (Fig.4.1) shows fluid inclusions bearings (H2O + CO2) quartz grains of
a quartzite.
CALC-GRANULITE
They are dark green coloured with white sacchoroidal grains of calcite and quartz.
The following mineral assemblages are traced from thin sections.
4. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 118
i) Calcite – Wollastonite – quartz – diopside and
ii) Calcite – Wollastonite – scapolite – diopside.
Graphite, ilmenite and sphene are occurring as minor minerals. Scapolite occurs as
prismatic crystals with cleavages intersecting at 90o
and 45o
and it show second order
interference color and straight extinction.
GARNET BIOTITE GNEISSES
The gneissic textured garnet biotite gneisses show mineral assemblage of
plagioclase (An 25 – 35 oligoclase and andesine composition) + Orthoclase +quartz +
garnet + biotite + Graphite ± sillimanite ± cordierite. The biotite flakes define the
foliation and planar fabrics of the rocks. Garnet occurs as irregular and idioblastic grains.
Biotite occurs as irregular plates and laths and is strongly pleochroic from dark brown to
light brown. At places, they are perthitic in nature. The average modal content of garnet
biotite gneiss is as follows quartz 34.18; orthoclase 5.29; plagioclase 19.01; microcline
3.85; garnet 12.03; biotite 12.76; perthite 7.22; Magnetite 3.61 and apatite 2.05.
CORDIERITE GNEISSES
The well foliated cordierite gneisses shows alternating foliations of Cordierite
rich, biotite rich and quartzofeldspathic are common. Cordierite rich zones are generally
depleted in garnet. The modal content of Cordierite gneiss of Maruvathalai is Quartz 7;
Orthoclase 5; Plagioclase (An 25) 5.25; Perthite 1; biotite 4; Cordierite 29; Magnetite 14;
Apatite 14; Ilmenite 2 and Hypersthene 30.
The photomicrograph (fig.2) shows large porphyroblastic, twinned Cordierite
associated with minerals of biotite, hypersthene, orthoclase, quartz, sillimanite,
plagioclase and ilmenite crystals. The above equilibric minerals assemblages suggest the
following equation.
Biotite + sillimanite +Quartz = Cordierite + Spinal + Orthoclase + ilmenite
The above assemblage is noticed in cordierite gneisses associated with garnet
biotite sillimanite gneisses. Hypersthene showing ‘S’ pattern alignment and in contact
with quartz and cordierite and garnet inclusions suggest the following decompression
reaction.
Garnet + Quartz = Hypersthene and Cordierite
The above assemblages are traced in the cordierite gneisses associated with Charnockite
and garnet biotite gneisses.
Cordierite gneiss at Ariyakulam under thin section (fig.3) shows sinistrally
deformed and displaced biotite flakes. Near shear the quartz grains are also seen. The
above features suggest the genesis of Cordierite gneisses are related to the Sinistral
shearing of Achankovil shear event.
The cordierite gneiss at Paraikulam shows (fig.4) relic of garnet in neomineralized
biotite. Two generation of biotite is common. A sinistrally deformed cordierite gneiss at
Ariyakulam depicts (fig.5) sinistrally deformed biotite plate. The adjoining sheared
garnet show retrogression and garnet is converted into green colored chlorites along the
shear planes. The material migrations of quartz along the shear planes are also seen.
Fig.6 reveals mineralized and shear localized quartz micro rods along the shear planes. A
sinistrally sheared biotite is on the right side also visible (location: Ariyakulam). A major
cordierite grain at Ariyakulam shows (fig.7) stretched (interference color of dark grey)
orthoclase feldspar and the pattern of stretching suggest a dextral shearing and the photo
micrograph (fig.8) also shows a stretched orthoclase displaying ‘Z’ vergence also
5. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 119
pointed out a micro dextral shearing of cordierite gneiss suggest that the area was also
suffered through conjugate shearing.
CHARNOCKITE
Charnockite shows both granulitic as well as gnessic texture. Massive and
incipient Charnockites are also common in the area. Incipient Charnockite are in the host
of Cordierite biotite gneisses, Cordierite gneisses and in composite gneisses. Whereas the
massive charnockites are exposed at KTC Nagar, Timmarajapuram, Sivalaperi and north
of vallanadu. The modal content of massive charnockite of KTC nagar , Quartz 20.39;
Orthoclase 4.65; Plagioclase 4.47; perthite 65.18; apatite 2.25; ilmenite 0.17;
Hypersthene 2.50 and zircon 0.39. The modal content of incipient charnockite of
pallamadai is as follows: Quartz 13.48; orthoclase 17.13; plagioclase (An 50); Biotite
16.04; garnet 19.10; Magnetite 3.65; apatite 1.68; Hypersthene 7.58 and chlorite 1.12.
At places, in the field observation the incipient charnockite shows discernible
megascopic garnet and quartz yielding corditerite and hypersthene equilibric assemblages
are also noticed from gneisses with intimately associated incipient charnockite
quarries(Paraikulam quarry).
Garnet + Quartz = Cordierite + hypersthene
The photomicrograph of Akkanaikkanpatti(fig.9 ) shows a gnessic charnockite showing
stretched quartz, hypersthene and biotite and feldspars. The retrograded and non-
retrograded original hypersthene of charnockite is discernible. From the field it is known
that the location is intruded by pink granite.
COMPOSITE GNEISS
The composite gneiss essentially composed of Khondalites intruded by many veins
and bands of grey pegmatites and pink pegmatites, sills and dykes (now bands of
pyroxene granulites) of basic sills. A composite gneiss (fig.10) showing garnet, biotite,
quartz, feldspar and apatite. The altered composite gneiss (fig.11) at Keelapuvani shows
Fluorite, biotite and kaolinized feldspars. The composite gneiss at Lakshmipuram
(fig.12) shows sinistrally sheared biotite and quartz ribbons suggest the existence of
Achankovil shear zone upto Lakshmipuram.
GRANITES
Megascopically Granites of Vallanadu are classified into two types, namely grey
granites and pink granites. The Vallanadu grey granite forms as an axial plane intrusion
of the major Vallanadu quartzite isoclinal Fold (Fig.1). It is also seen at east of
Vasavappapuram and at Maruvathalai. Mode of occurrence of Granites is of two types 1.
Linear band and 2. Foliation guided granite veins. Intrusions of pink granite veins are
observed in charnockites, all gneisses and also grey granites.
The grey granite band of Vallanadu shows the modal contents – quartz 49.5;
orthoclase 23.89, plagioclase 15.27, Biotite 6.18, Magnetite 1.28, Apatite 1.66, chlorite
1.07, zircon 0.37 and sphene 0.78. A grey granite vein associated with incipient
charnockites in cordierite gneisses shows the following mineral assemblages – quartz
56.59, orthoclase 7.96, plagioclase 2.74, perthtie 28.57, apatite 0.27, chlorite 0.58 and
Fluorite 3.29.
The pink granite of Akkanaiyakkanpatti shows the modal content of quartz 38.81,
orthoclase 23.43, plagioclase 8.46, perthite 17.39, zircon 0.72, apatite 3.88, chlorite 1.30,
fluorite 3.95, magnetite 0.99, Ilmenite 0.27, biotite 0.27 and sphene 0.61. Fig.13 the pink
6. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 120
granite shows oriented apatite grains in quartz and feldspar. The pink granite clearly
shows (fig.14) the mineralization of newly forming quartz grain along the mineral
borders of perthite, quartz and feldspar suggest insitu melting due to shearing of mineral
grains. The pink granite (fig.15) shows fluorite, magnetite, apatite and quartz. Fluorite
partly isotropic and partly optically showing anomalous interference colors. Crystals of
fluorite are ubiquitous in Akkanaiyakkanpatti pink granites exposures. The perthite of
the pink granite shows sheared rods of perthite and left stepping of newly formed lense
shaped sodic plagioclase from the sheared rods of sodic plagioclase suggest that the rock
experienced a sinistral shearing (fig.16).
KANKAR
The composite gneisses of Puliyampatti reveal conjugate microshear fractures in
quartz and feldspar (fig.17) and they were converted into kankar formations. The fig.18
shows concretionary kankar formation around a pore space developed in composite
gneiss due to meteoritic water perculations. Also the fig.19 exhibits a filamentous kankar
formed along the gneissic foliations of composite gneisses country rock. Black soil
invariably originated from composite gneisses of the area. At Kilpuvani the composite
gneiss shows (fig.20) the development of calcrite formation due to alteration of
plagioclase feldspar. Kaolinised orthoclase and chloritised biotite are also visible.
The lithotypes of the study area are well displaying microshear features viz. shear
fractures, sinistral and dextral shearing and conjugate shearing. The dominantsinistral
shear pattern suggests that the area belongs to part of Achankovil shear zone and
boundary of the shear zone should be located beyond North to the present study area.
PETROCHEMISTRY
MINERALS
The modal percentage of various minerals of the selected rocks types around
vallanadu are presented in the table 1. Examination of the table reveals that the most of
the rocks of the area have modal quartz more than 10% (acid type). Cordierite gneisses
were formed from shearing and decompression reactions of khondalitic gneisses and
charnockites. There is a general reduction in the modal abundance of biotite in massif
charnockite than the associated cordierite gneisses while in the incipient charnockites
modes of biotite are almost higher in the particular sample due to intrusion of grey
granites and retrogression of incipient charnockites. The depletion of garnet in Cordierite
gneisses and Charnockites are pointing out decompression and shear related origin from
the earlier Khondalitic gneisses. The modal quartz of granites are varies from 38 to 16%
suggest they are derived from salic enriched source.
GEOCHEMISTRY
Mineral Modal based major oxides of the selected six rocks of the vallanadu area
are tabulated in the tables (table 1-8). The estimated Niggli values are given in table 9.
The variation diagram plotted for sio2 versus oxides figures 21, 22 and 23 shows weak
linear relationship for the rocks of the Vallanadu area suggest they are mostly derived
from a Para type-sedimentary provenance, suggest that they are Metasedimentary with
some igneous component.
The plots (Fig.24) versus Na2O K2O the rock types of Vallanadu area fall in
Granite-Adamellite fields Where as the Cao versus K2O plot (fig.25) fall in the field of
Tonalite- Granite field suggest the para-provenance source for these rocks were highly
silicic source i.e. proterozoic in age. The K2O-Na2O-Cao plots (fig.26) fall in the fields of
7. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 121
Granite to Tonalite also pointing the same sialic source for the lithotypes. The Niggli
variation diagram (Fig.27) constructed for the major oxides versus SiO2 suggest pacific
suite for these rocks. The SiO2 versus Na2O+K2O (Fig.28) fall in the field of calcic. The
calcic and pacific suite nature of the rocks reflects that the sediments were partially
produced from Archaean-terrain also i.e. North of Palaght-Cauvery shear zone (or)
Archaean terrain of SriLanka and Madagascar during the late proterozoic time which
were formed as contiguous land during the formation of Gondwana Land.
TECTONIC STUDIES
FOLIATION
The gneisses of khondalites are usually well foliated and their foliation is essentially
parallel to the bedding. The foliation planes are two to three millimeter apart in the fine
grained types and in the layers of garnet rich and cordierite rich zones it is 1cm to 1m
apart. Abrupt warpping of gneissic foliation at the sharp contact of charnockite and also
the continuity of same gneissic pattern (foliation) in charnockite of diffuse contact zones
are encounter in the field. At places, grey granites and pink granites show faint foliation
due to the orientation of tiny crystals of biotite. The general strike of foliation displayed
by the rocks of the area is mostly from NW to SE and the amount of dip varies from 15°
to 85° towards South West. At hinges of khondalite folds show foliation striking either
N-S with easterly dip or E-W with northerly dip.
LINEATION
The observed linear elements are usually the mineral lineations and axes of the
megascopic folds. In the gneissic of Khondalites, spangles of biotite, needles of
sillimanite and in charnockites, the oriented laths of feldspars and hypersthenes are
developed as mineral lineations. The mineral lineation of sub-horizontal plunging and
vertical lineations are also observed in the field. Based on the pattern of fold axes, the
study area is divided into four different structural domains for tectonic analysis (Fig.29).
FOLD PATTERNS
The well-banded gneissic pattern of the area display both major and megascopic folds
and crenulations. Intra-folial isoclinals folds of gneissic bonding are common, although
their hinges do not define a simple systematic orientation and probably reflect near
plastic deformation. The folded quartzite veins are of tight and open types and the strike
of the axial planes of the fold varies from N-S to NE-SW. The quartzite hillock of
Vallanadu shows a northwesterly moderate plunging, isoclinals overturned anticline fold
(Fig.1). The area is a part of Achankovil sinistral shear zones. Apart from NW-SE
sinisterly shears the gneisses of the area exhibits conjugate shear bands systems of an
earlier NW-SE dextral conjugating with NE-SW sinistral followed by overprinting of
NW-SE sinisterly conjugating with N-S dextral shears.
JOINTS
The area is mainly traversed by strike joints running parallel to NW-SE and dipping
steeply towards SW and are well developed in all litho units expect in granites. Steep N-S
joints dipping east and NE-SW joints dipping NW are the other master joints observed
in the field.
For tectonic analysis the study area is divided into four blocks based on the mineral
lineation and fold axes observed i.e. Block I Vallanadu, Block II RajaGopalapuram,
blockIII Rajavallipuram and block IV Akkanayakkanpati. For each block the observed
joint readings like strike and pole to the attitude of the joints are plotted in the equal area
8. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 122
contour plots and rose diagrams as Fig.30 a, b; Fig.31 a, b; Fig. 32 a, b and Fig.33 a, b
respectively. The above plots reveal in all blocks joints are radiating almost in all
direction and are dipping steep to moderate nature and six sets of joints are delineated
from the area and are given in order of prominence.
• NW-WNW to SE-ENE dipping SW with steep to moderate dips.
• NW-WNW to SE-ENE dipping steep NE.
• NE-SW dipping moderate to steep NW.
• NE-SW dipping SE.
• N-S to NNW-SSE group dips easterly.
• E-W to ENE-WSW group dips steeply north.
Apart from the above master joint systems minor joints and gush joints of different
orientations are observed at places, from various litho units of different blocks.
The megascopic interpretation of Achankovil shear zone in satellite imagery displays
en-echelon pattern of lineament with right overstepping arrangement, which can be
interpreted as an evidence of the latest Sinistral transpersonal deformation [Guru Rajesh
and Chetty,2006). Manimaran, (2009) identified three-dimensional finite stain pattern
from gneissic rocks of Tenkasi-Ambassamudram region and suggest Transpressive nature
of Achankovil shear zone during the late Neoproterozoic to Cambrian time.
CONCLUSION
Based on the field and petrography evidence delineated from Vallanadu area rock
types the geological history is established. As a part of Kerala Khondanlite Belt, the
Vallanadu region commences with the depositions of varied sediments of regional
metamorphism due to the Lit-par –Lit emplacement of granite material derived from
sialic crustal source which is now represented by Khondalitic group of rocks.
Subsequently, the basic sills were intruded the knondalitic rocks which are now
represented by basic granulites seen in all litho types of the area. During Achankoil
sinistral shearing CO2 rich fluids were migrated from deep crustal source and syntectonic
cordierite gneisses, incipient charnockites were formed. Last phase of syntectonic event
of granite intrusions into the earlier country rocks and regressive Changes were brought
about in the earlier rocks.
Joints/fractures of the area were originated from shears and extension tectonic
origin. Tectonically the Vallanadu region was experienced a series of sub-horizontal
compression of N-S and NE-SW, directions during its earlier ductile regime and the area
was subjected to a later ENE-WSWhorizontal compression during the event of uplift and
brittle deformation.
Acknowledgement
The authors are thankful to Shri.A.P.C.V.Chockalingam, Secretary, Dr.C.Veerabahu,
Principal and II M.Sc. Geology students (2009-2010), V.O.Chidambaram College,
Tuticorin.
REFERENCES
Cenki, B and Kriegsman, L.M (2005) Tectonics of the Neoproterozoic Southern
Granulite Terrain, South India. Precambrian Res. V.138, p 37-56.
Chacko, T. Ravindrakumar, G.R and Newton, R.C (1987) Metamorphic P.T
conditions of the Kerala (South India) Khondalite belt, a granulite facies Supra
crustal terrane Jour, Geol V.95, pp. 343-358.
9. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 123
Dhanunjaya Naidu, G., Manoj, C., Patro, P.K., Sreejesh V. Sreedhar and
Harinarayana, T. (2011) Deep electrical signatures across the Achankovil Shear
Zone, Southern Granulite Terrain inferred from Magneto tellurics. Gondwana
Res. V.20, p.405-426.
Guru Rajesh, K. and Chetty, T.R.K. (2006) Structure and tectonics of the
Achankovil Shear Zone, Southern India, Gondwana research, v.10, pp 86-98.
Manimaran, D (2012) Groundwater Geochmistry Study Using GIS in and Around
Vallanadu Hills, Tamilnadu, India , Research journal recent sciences V.1(7), p 52-
58.
Manimaran, D and Manimaran, G (2013) Arsenic contamination of groundwater
in Vallanadu region of Ttuticorin district, Tamilnadu, India, Online international
interdisciplinary research journal, v.III, p230-242.
Manimaran, G. (2009) Three-dimensional finite Strain Pattern from Achankovil
Transpression Zone, South India. Outreach v.2 pp. 70-75.
Manimaran, G. and Roy Chacko, P.T. (1996). Shear lineaments and tectonic
setting of Massive and incipient charnockites of Tambraparni shear zone southern
India. In: Ram Mohan, V. (Ed). International symposium on charnockite and
graulite facies rocks, Aug. 1996. Abstract, Univ. of Madras, Madras, India, pp.12-
13.
Rajendra Prasad, B., Kesava Rao., Mall, D.M., Koteswara Rao, P., Raju, S.,
Reddy, M.S., Rao, G.P.S., Sridhar, V. Prasad, A.S.S.R.S., (2007) Tectonic
implication of seismic reflectivity pattern observed over the Precambrian southern
Granulite Terrain, India. Precambrian Res. V.153, p.86-98.
Rajesh, V.J., Arima, M. and Santosh, M., 2001. Geology of the Achankovil Shear
zone, southern India Gondwana Research 4, 744-745.
Ramakrishnan, M. (1993). Tectonic evolution of the granulite terrain of Southern
India. In: Radhakrishna, P.B. (Ed.), Continental crust of South India, Jou, Geol.
Soc. India Memoir No.25, pp.35-44.
Ravindrakumar.G.R. and Subbash sugumaran(2003). Petrology and Geochemistry
of gneiss, charnockite and charno-enderbite of palghat Region, southern India. In:
Ramakrishnan,M.(Ed.), Teckoincs of southern Granulite Terrain, Memoir 50.
Geol.Soc. of India pp. 409-434.
Santosh, M. and Drury, S.A. (1988). Alkali granites with Pan-African affinities
from Kerala, South India. Jou. Geol. V.96. pp.616-626.
Santosh, M. (1984) Fluid inclusions petrography of Charnockites form the
granulite facies terrain of Kerala, South India. N. Jb. Mineral, Mh., H-8, 337-348.
Srikantappa, C., Raith, M. and Spiering, B. (1985). Progressive charnockitisation
of leptynite-Khondalite suite in Southern Kerala, India. Evidence for formation of
Charnockite through decrease in the fluid pressure. Jr. Geol, Soc. India. V.96.
pp.1-10.
12. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 126
TABLE 6: COMPOSITE GNEISS – MODAL ANALYSIS
Minerals Volume %
Specific
Gravity
Weight Weight %
Approximate
Weight %
Quartz 33.33 2.65 88.32 32.58 33
Orthoclase 34.35 2.55 87.59 32.32 32
Plagioclase 18.26 2.65 48.38 17.85 18
Apatite 3.48 3.20 11.13 4.11 4
Magnetite 0.24 5.20 1.24 0.45 1
Perthite 5.71 2.56 14.61 5.39 5
Ilmenite 2.55 4.5 11.47 4.23 4
Biotite 0.26 3.10 0.81 0.29 0
Albite 0.31 2.63 0.802 0.29 0
Zircon 1.45 4.6 6.67 2.46 3
271.02 99.97 100
TABLE 7: GARNET BIOTITE GNEISS – MAJOR ANALYSIS
Minerals Volume %
Specific
Gravity
Weight Weight %
Approximate
Weight %
Quartz 10.79 2.65 28.59 10.38 10
Orthoclase 9.72 2.55 24.79 9.00 9
Plagioclase 9.04 2.65 23.96 8.70 9
Biotite 3.49 3.10 10.82 3.93 4
Calcite 47.84 2.71 129.65 47.07 47
Magnetite 2.46 5.20 12.79 4.64 5
Apatite 1.58 3.20 5.06 1.84 2
Enstatite 1.15 3.21 3.69 1.34 1
Limestone 0.86 2.32 1.99 0.72 1
Kaolin 13.05 2.61 34.06 12.37 12
275.4 99.94 100
TABLE 8: Major constituents of various rocks of Vallandadu area
Oxide
s
Pink
granit
e
Cordierit
e gneiss
Charnockit
e
CORDIERIT
E
GNEISS
COMPOSIT
E
GNEISS
garnitiferro
us
biotite gneiss
SiO2 73.84 70.88 76.78 59.04 75.02 24.64
Al2O3 6.45 11.61 4.38 13.12 0.8 15.4
Fe2O3 1.0 - 2.5 - 0.5 2.5
FeO 1.5 2.62 5.75 7.28 2.5 3.08
MgO 0.4 5.91 2.75 9.18 - 0.79
CaO 7.08 3.48 4.5 4.52 5.25 26.63
Na2O 1.56 1.06 1.13 0.56 1.44 0.56
K2O 3.81 2.71 1.0 2.38 4.31 1.42
P2O5 1.25 0.25 0.75 0.5 1.0 0.5
F2 2.0 - - - - -
H2O 0.32 1.42 - 2.0 - 0.58
CO2 - - - - - 24
13. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 127
TiO2 0.83 - 0.5 1.5 2.0 -
TABLE 9: NIGGLI VALUES FOR VARIOUS ROCK TYPES
OXIDES Si al fm alk C
Pink granite 413.09 21.14 14.42 22.15 42.28
Cordierite gneiss 290.88 28.07 45.32 11.33 15.27
Charnockite 384.38 12.91 54.35 8.70 24.02
Cordierite gneiss 171.13 22.43 57.56 5.91 14.08
Composite gneiss 443.26 27.65 14.53 24.46 33.33
Garnet biotite gneiss 55.09 20.24 12.73 3.21 63.80
Figure 1
14. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 128
Figure 1a Figure 2
Figure 3 Figure 4
Figure 5 Figure 6
15. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 129
Figure 7 Figure 8
Figure 9 Figure 10
Figure 11 Figure 12
16. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 130
Figure 13 Figure 14
Figure 25 Figure 36
Figure 17 Figure 48
17. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 131
Figure 59 Figure 20
Figure 21
18. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 132
Figure 22
Figure 23
19. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 133
Figure 24 Figure 25
Figure 26
20. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 134
Figure 27
Figure 28
Figure 29
21. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 135
Fig.30 (a) (b) Fig.31 (a) (b)
Fig. 32 (a) (b) Fig.33 (a) (b)
.
CAPTIONS
Fig.1 Study area
Fig.1a Lithotypes
Fig.2 Cordierite
Fig.3 Biotite flakes
Fig.4 Garnet
Fig.5 Sinisterly deformed biotite flakes
Fig.6 Four generation of quartz in cordierite gneiss
Fig.7 Altered hypersthenes, perthite, quartz and potash feldspar.
Fig.8 Altered hypersthenes under crossed nicols.
Fig.9 Charnockite.
Fig.10 Charnockite under crossed nicols.
Fig.11 Granite-feldspathic material through shear planes.
Fig.12 Grey granite-graphite within the feldspar-sinistral shearing.
Fig.13 Pink granite
Fig.14 Pink granite with shearing of mineral grains.
Fig. 15 Pink granite with fluorite
Fig.16 Rod perthite with sinistral shearing
Fig.17 Composite gneiss
Fig.18 Concretionary kankar
Fig.19 Filamentous kankar
Fig.20 Calcrite formation
Fig.21 Variation diagram
Fig.22 Variation diagram
22. Online International Interdisciplinary Research Journal, {Bi-Monthly}, ISSN2249-9598, Volume-IV, Issue-I, Jan-Feb 2014
w w w . o i i r j . o r g I S S N 2 2 4 9 - 9 5 9 8 Page 136
Fig.23 Variation diagram
Fig.24 Variation diagram
Fig.25 Variation diagram
Fig.26 Variation diagram
Fig.27 Variation diagram
Fig.28 Variation diagram
Fig.29 Four Tectonic domains based on fold axes
Fig.30 Joints (a) - Equal area contour plot and (b) - Rose diagram
Fig.31 Joints (a) - Equal area contour plot and (b) - Rose diagram
Fig.32 Joints (a) - Equal area contour plot and (b) - Rose diagram
Fig.33 Joints (a) - Equal area contour plot and (b) - Rose diagram
