Permaculture an experiment in urban living
- 1. Urban Permaculture Some ideas from Bangalore India S.Vishwanath www.biome-solutions.com www.rainwaterclub.org You-tube, Twitter, Slide-share, Face-book : zenrainman 1
- 2. What is permaculture ? • One definition (there are many ) • CREATING SUSTAINABLE HUMAN HABITATS BY FOLLOWING NATURE'S PATTERNS • Comes from permanent agriculture and then permanent culture 2

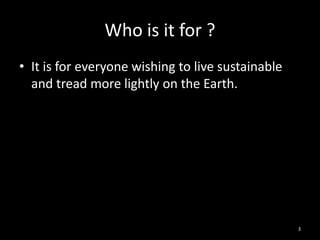

- 3. Who is it for ? • It is for everyone wishing to live sustainable and tread more lightly on the Earth. 3

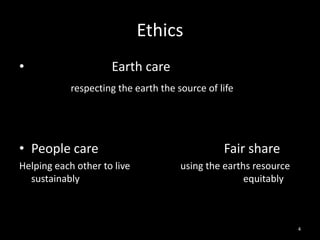

- 4. Ethics • Earth care respecting the earth the source of life • People care Fair share Helping each other to live using the earths resource sustainably equitably 4
- 5. Permaculture principles • Work with nature not against • See solutions not problems • Seek diversity not monoculture • Every element should serve many functions • Yield is limited only by imagination • Work in cycles and zones – Source Permaculture a beginners guide –G.Burnett 5

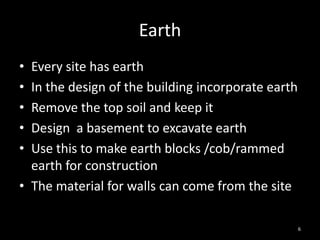

- 6. Earth • Every site has earth • In the design of the building incorporate earth • Remove the top soil and keep it • Design a basement to excavate earth • Use this to make earth blocks /cob/rammed earth for construction • The material for walls can come from the site 6
- 7. A basement provides earth for the house 7

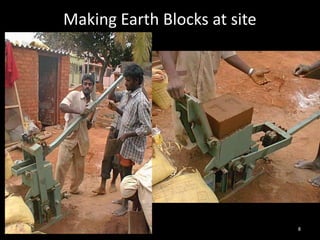

- 8. Making Earth Blocks at site 8

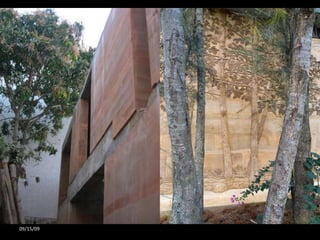

- 10. 09/15/09

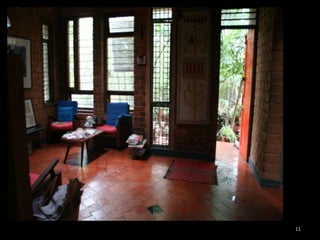

- 11. 11

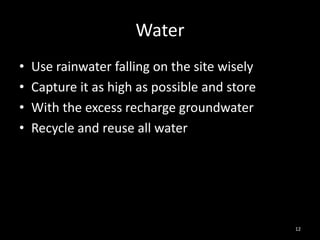

- 12. Water • Use rainwater falling on the site wisely • Capture it as high as possible and store • With the excess recharge groundwater • Recycle and reuse all water 12

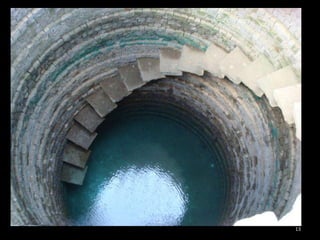

- 13. 13

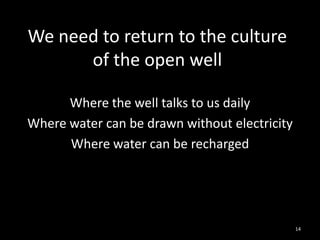

- 14. We need to return to the culture of the open well Where the well talks to us daily Where water can be drawn without electricity Where water can be recharged 14

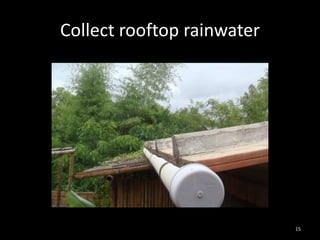

- 15. Collect rooftop rainwater 15

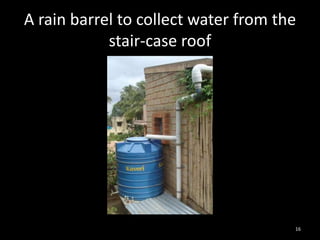

- 16. A rain barrel to collect water from the stair-case roof 16

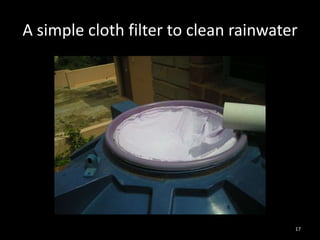

- 17. A simple cloth filter to clean rainwater 17

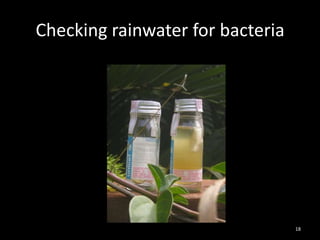

- 18. Checking rainwater for bacteria 18

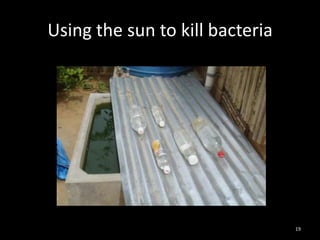

- 19. Using the sun to kill bacteria 19

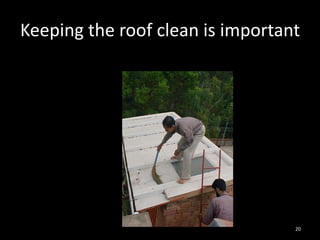

- 20. Keeping the roof clean is important 20

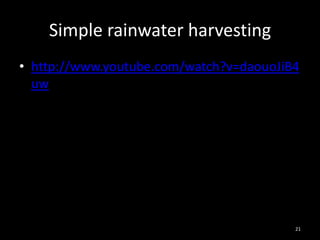

- 21. Simple rainwater harvesting • http://www.youtube.com/watch?v=daouoJiB4 uw 21

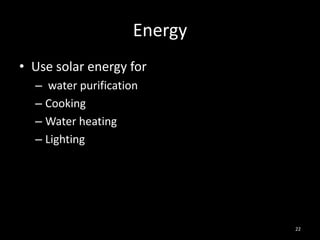

- 22. Energy • Use solar energy for – water purification – Cooking – Water heating – Lighting 22

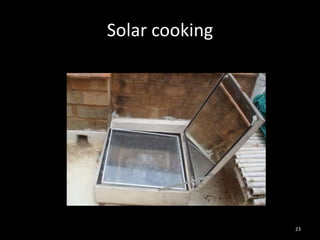

- 23. Solar cooking 23

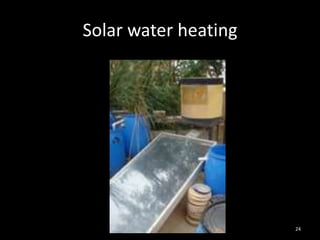

- 24. Solar water heating 24

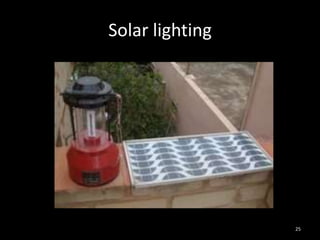

- 25. Solar lighting 25

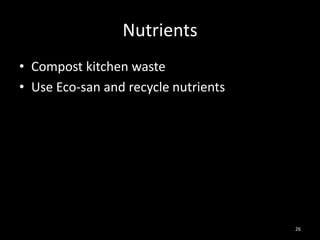

- 26. Nutrients • Compost kitchen waste • Use Eco-san and recycle nutrients 26

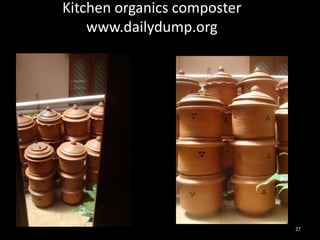

- 27. Kitchen organics composter www.dailydump.org 27

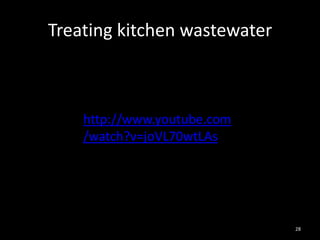

- 28. Treating kitchen wastewater http://www.youtube.com /watch?v=joVL70wtLAs 28

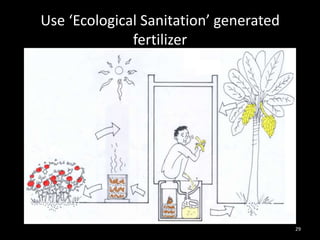

- 29. Use ‘Ecological Sanitation’ generated fertilizer 29

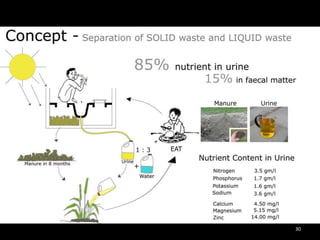

- 30. 30

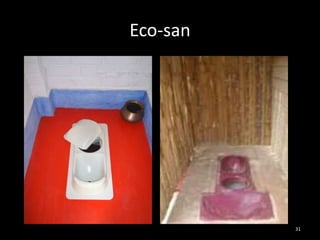

- 31. Eco-san 31

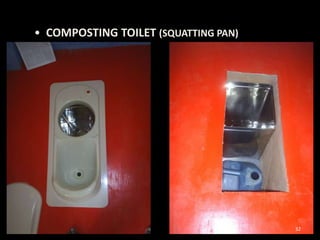

- 32. • COMPOSTING TOILET (SQUATTING PAN) 32

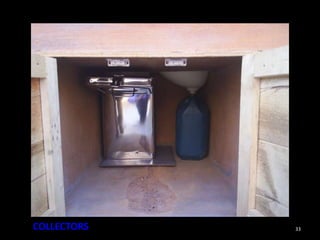

- 33. COLLECTORS 33

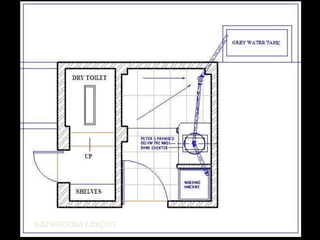

- 34. BATHROOM LAYOUT 34

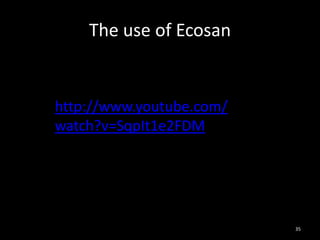

- 35. The use of Ecosan http://www.youtube.com/ watch?v=SqpIt1e2FDM 35

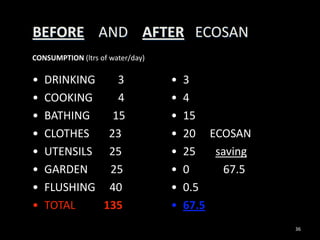

- 36. BEFORE AND AFTER ECOSAN CONSUMPTION (ltrs of water/day) • DRINKING 3 • 3 • COOKING 4 • 4 • BATHING 15 • 15 • CLOTHES 23 • 20 ECOSAN • UTENSILS 25 • 25 saving • GARDEN 25 • 0 67.5 • FLUSHING 40 • 0.5 • TOTAL 135 • 67.5 36

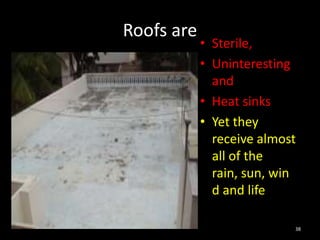

- 38. Roofs are • Sterile, • Uninteresting and • Heat sinks • Yet they receive almost all of the rain, sun, win d and life 38

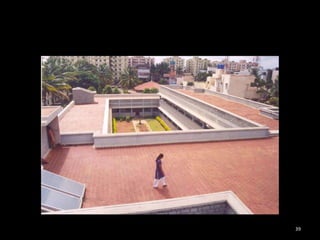

- 39. 39

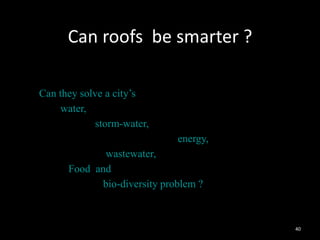

- 40. Can roofs be smarter ? Since they receive – maximum – Can they solve a city’s – water, – storm-water, – energy, – wastewater, – Food and – bio-diversity problem ? 40
- 41. How about? A roof that grows rice 41

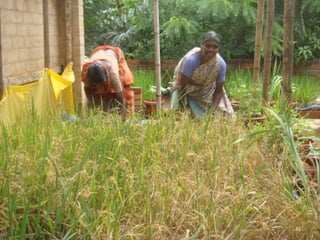

- 42. 42

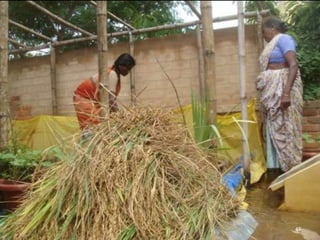

- 43. 43

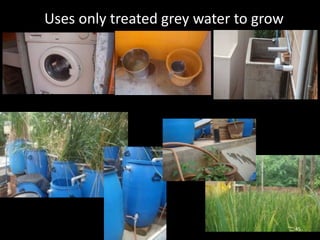

- 45. Uses only treated grey water to grow 45

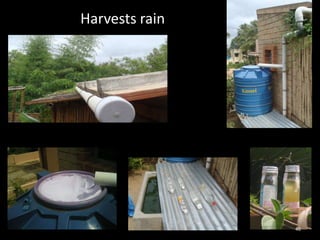

- 46. Harvests rain 46

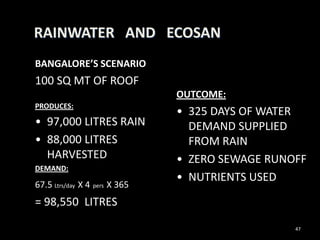

- 47. RAINWATER AND ECOSAN BANGALORE’S SCENARIO 100 SQ MT OF ROOF OUTCOME: PRODUCES: • 325 DAYS OF WATER • 97,000 LITRES RAIN DEMAND SUPPLIED • 88,000 LITRES FROM RAIN HARVESTED • ZERO SEWAGE RUNOFF DEMAND: • NUTRIENTS USED 67.5 Ltrs/day X 4 pers X 365 = 98,550 LITRES 47

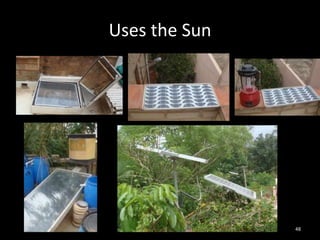

- 48. Uses the Sun 48

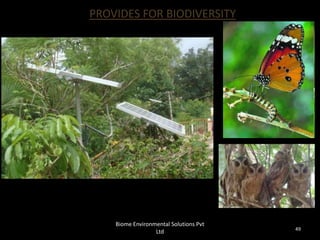

- 49. PROVIDES FOR BIODIVERSITY Biome Environmental Solutions Pvt 49 Ltd
- 50. 50
- 51. 51
- 52. 52
- 53. 53

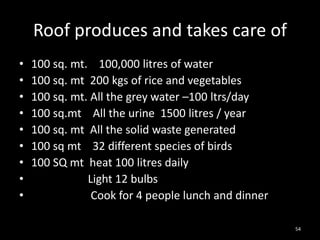

- 54. Roof produces and takes care of • 100 sq. mt. 100,000 litres of water • 100 sq. mt 200 kgs of rice and vegetables • 100 sq. mt. All the grey water –100 ltrs/day • 100 sq.mt All the urine 1500 litres / year • 100 sq. mt All the solid waste generated • 100 sq mt 32 different species of birds • 100 SQ mt heat 100 litres daily • Light 12 bulbs • Cook for 4 people lunch and dinner 54

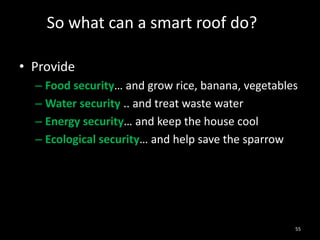

- 55. So what can a smart roof do? • Provide – Food security… and grow rice, banana, vegetables – Water security .. and treat waste water – Energy security… and keep the house cool – Ecological security… and help save the sparrow 55
- 56. 56
- 57. 57

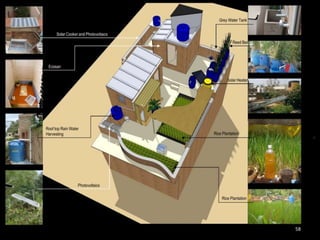

- 58. 58
- 59. The future then… 60% of built Bangalore or any metropolis is roofs. What do we do about them? Heat sinks or Designed Ecological spaces The choice is ours. 59
- 60. 60
