Paging Library provides an efficient way to load and display large datasets from a remote data source or database. It uses pagination to only load small chunks of data at a time into memory. The key components are PagedList, DataSource and DataSource.Factory. DataSource loads pages of data and can be invalidated to trigger reloading. DataSource.Factory creates DataSources. LivePagedListBuilder connects a DataSource.Factory to a PagedList, which can be observed to update the UI. This allows efficiently loading and listening for changes to large datasets.

1. Paging Like A Pro
Android Architecture Components: Paging
Gabor Varadi
@zhuinden

2. Recap: What’s in the AAC?
• Lifecycle (LifecycleObserver, @OnLifecycleEvent)
• ViewModel (ViewModelProviders, ViewModelStore)
• LiveData (liveData.observe(lifecycleOwner,
observer))
• Room (ORM - @Entity, @ForeignKey, etc.)

3. What’s the end game?
Simplified data loading:
- if database exposes an observable query
which is re-queried when a write „invalidates”
the table, then we don’t need to manage „data
loading callbacks”
- threading is simplified: data loading is
automatic and occurs on a background thread
(initial evaluation + triggered by future writes)

4. How do the pieces fit together?
• Room exposes query result as LiveData (which
retains previous value and can be observed) and updates it
• ViewModel caches the LiveData across
configuration changes
• LiveData pauses operations after onStop until
onStart via Lifecycle events, and automatically
unsubscribes on onDestroy, emits new values

5. Where’s the catch?
• LiveData<List<T>>
@Dao
interface CatDao {
@Query("SELECT * FROM ${Cat.TABLE_NAME}
ORDER BY ${Cat.COLUMN_RANK}")
fun listenForCats(): LiveData<List<Cat>>
}
• What if I have MANY (10000+) cats?
• What if I update it often?
• How many items should I read to memory?
Should I read all items when a write happens?

6. Possible solutions:
• 1.) implement pagination manually:
„load more” button
• 2.) lazy-load everything!!1!
• 3.) ???

7. 1.) Paginating manually
• „Load more” callbacks: appending to already
loaded list
• Doesn’t listen for database writes
automatically at all
• Must load and keep all previous items in
memory

8. 2.) Lazy loading
• does this approach
• Every query result is a lazy-loaded „cursor”
• Cursors are invalidated and re-calculated on
writes, making „listening for changes” possible
• Everything is a proxy, no data is kept in
memory – everything is loaded from DB

9. private Realm realm;
private RealmResults<City> cities;
private RealmChangeListener<RealmResults<City>>
realmChangeListener = cities -> {
adapter.setData(cities);
};
realm = Realm.getDefaultInstance();
cities = realm.where(City.class).findAllAsync();
cities.addChangeListener(realmChangeListener);
// ...
cities.removeAllChangeListeners();
realm.close();

10. 2.) Lazy loading
• Downside:
– Evaluation of the „lazy” data set must still
evaluate the entirety of the cursor
(in SQLite’s case, only a window is filled up, but
subsequent loads would happen on UI thread)
– Query result is evaluated on background thread,
but in Realm’s case, the accessors are on main
thread, and it is not a completely free operation

11. 3.) ???

12. 3.) Black magic

13. 3.) Async loading pages of a data
source
• a.) AsyncListUtil: added in support v24.1.0
• b.) Paging Library: currently 1.0.0-RC1

14. 3.b) PagedList + DataSource
• Idea:
– only load small pages to memory that we actually need
– reading the pages (and elements) should occur on
background thread
• Paging Library gives us:
– PagedList: exposes data
– DataSource: fills paged list
– DataSource.Factory: creates a data source
– PagedListAdapter: consumes paged list
– LivePagedListBuilder: creates new datasource
after invalidation

15. DataSource types
• Positional: pages can be indexed [0...n-1],
then [n, n+1, ...]
• ItemKeyed: item in page at index[n-1] has a
value that allows us to load the page that
contains [n, n+1, ...]
• PageKeyed: page contains a „cursor” value
that allows us to request „the next page”

16. Positional data sources
• Used for accessing data that supports
limit+offset (skip+take)
• Most common usage is to fill the paged list
from a database
• (Room has its own: LimitOffsetDataSource)

17. Can we still listen for changes?
• DataSource can be invalidated
• With a DataSource.Factory, the
DataSource can be re-created when it is
invalidated
• (Invalidation happens when a write has
changed the data set in such a way that a re-
evaluation is required)

18. How do I listen for changes?
private val liveResults: LiveData<PagedList<Cat>>
fun getCats() = liveResults
class TaskViewModel: ViewModel() {
init {
...
liveResults = LivePagedListBuilder<>(
catDao.listenForCats(),
PagedList.Config.Builder()
.setPageSize(20)
.setPrefetchDistance(20)
.setEnablePlaceholders(true)
.build())
.setInitialLoadKey(0)
.build()
}

19. Listening for changes
@Dao
interface CatDao {
@Query("SELECT * FROM ${Cat.TABLE_NAME}
ORDER BY ${Cat.COLUMN_RANK}")
fun listenForCats(): DataSource.Factory<Int, Cat>
}

20. class CatFragment: Fragment() {
override fun onViewCreated(view: View, icicle: Bundle?) {
...
val viewModel = ViewModelProviders.of(this)
.get<CatViewModel>();
...
recyclerView.setAdapter(catAdapter);
viewModel.getCats().observe(this) { pagedList ->
catAdapter.submitList(pagedList)
}
}
}
class CatAdapter: PagedListAdapter<Cat,
CatAdapter.ViewHolder>(Cat.DIFF_CALLBACK) {
override fun onBindViewHolder(holder: ViewHolder, pos: Int) {
val cat = getItem(pos);
if(cat != null) { // null makes datasource fetch page
holder.bind(cat);
}
}
...
}

21. What about network requests?
• Typically, we must fetch new items from the
server when we’re scrolling down to the
bottom (we’ve reached the end of our data
set)
• Solution: PagedList.BoundaryCallback

22. PagedList.BoundaryCallback
• onItemAtEndLoaded(T itemAtEnd)
• onItemAtFrontLoaded(T itemAtFront)
• onZeroItemsLoaded()
• This is where we can start network requests to fetch the
next batch of cats when we’ve reached the end of what’s
stored in the database
• The callback can be called multiple times, so we should
ensure that we don’t execute the same network request
multiple times
• We can set this on the LivePagedListBuilder

23. Custom Datasources
• Each data source type has a
LoadInitialCallback and a
LoadCallback
(or LoadRangeCallback for positional)
• We can extend PositionalDataSource,
ItemKeyedDataSource or
PageKeyedDataSource, and implement
the right methods

24. ItemKeyed / PagedKeyed Datasources
• It is possible to fetch pages from network, and
keep them in memory (without storing them
in the database)
• The keyed data sources make this use-case
easier

25. Load callbacks
• PagedKeyedDataSource:
– Initial load callback:
public abstract void onResult(
@NonNull List<Value> data,
@Nullable Key previousPageKey,
@Nullable Key nextPageKey);
– Load callback:
public abstract void onResult(
@NonNull List<Value> data,
@Nullable Key adjacentPageKey);
// adjacent is „next” or „previous”
depending on „loadAfter” or „loadBefore”

26. Load callbacks
• ItemKeyedDataSource:
– Initial load callback:
public abstract void onResult(
@NonNull List<Value> data,
int position, int totalCount);
– Load callback:
public abstract void onResult(
@NonNull List<Value> data);
– Also: it also has Key getKey(T item) that lets us
obtain the item key as a load parameter

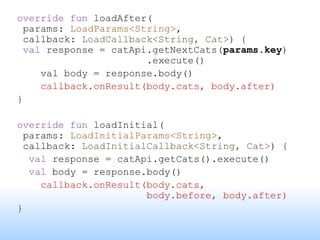

27. override fun loadAfter(
params: LoadParams<String>,
callback: LoadCallback<String, Cat>) {
val response = catApi.getNextCats(params.key)
.execute()
val body = response.body()
callback.onResult(body.cats, body.after)
}
override fun loadInitial(
params: LoadInitialParams<String>,
callback: LoadInitialCallback<String, Cat>) {
val response = catApi.getCats().execute()
val body = response.body()
callback.onResult(body.cats,
body.before, body.after)
}

28. Pull to refresh?
• If we expose our keyed data source via a
DataSource.Factory that is wrapped in a
LivePagedListBuilder, then we can
invalidate the data source, and re-retrieve the
initial page
class CatDataSourceFactory(
private val catApi: CatApi
) : DataSource.Factory<String, Cat>() {
override fun create(): DataSource<String, Cat> =
CatDataSource(catApi)
}

29. Network load status?
• We might want to show a loading indicator while
the datasource is retrieving data (especially if
downloading from network)
• Solution:
– we need to expose the „latest loading status” of „the
latest data source” that was created by the factory
– The data source can expose status via LiveData
– The factory can expose data source via LiveData

30. class CatDataSourceFactory(
private val catApi: CatApi
) : DataSource.Factory<String, Cat>() {
val lastDataSource =
MutableLiveData<CatDataSource>()
override fun create(): DataSource<String, Cat> =
CatDataSource(catApi).also { source ->
lastDataSource.postValue(source)
}
}
Transformations.switchMap(srcFactory.lastDataSource){
source ->
source.networkState
}

31. class CatDataSource(
private val catApi: CatApi
) : PageKeyedDataSource<String, Cat>() {
val networkState: MutableLiveData<NetworkState>()
override fun loadAfter(
params: LoadParams<String>,
callback: LoadCallback<String, Cat>) {
networkState.postValue(NetworkState.LOADING)
val response = catApi.getNextCats(params.key)
.execute()
val body = response.body()
networkState.postValue(NetworkState.SUCCESS)
callback.onResult(body.cats, body.after)
}
}

32. Retry request?
• As we made data source factory expose latest data
source, it is possible to expose a callback that fetches the
next page
Retry:
dataSourceFactory.latestLiveData.value?
.retry()
Refresh:
dataSourceFactory.latestLiveData.value?
.refresh() // invalidate

33. Error handling?
• Similarly to exposing load state, we can
expose “current error value” as a LiveData
from the DataSource
• Transformations.switchMap() from the
DataSource within the DataSource.Factory’s
LiveData, again

34. We have everything! 

35. The end game
• Room exposes DataSource.Factory<Key, T>, the
entity provides DiffUtil.ItemCallback
• ViewModel holds DataSource.Factory, builds
LiveData<PagedList<T>> using
LivePagedListProvider (with provided
PagedList.BoundaryCallback for fetching
new data), exposes DataSource’s LiveDatas via
switchMap()
• Fragment observes LiveData exposed from
ViewModel, feeds PagedList to
PagedListAdapter

36. Additional resources
https://github.com/googlesamples/android-
architecture-components/
https://developer.android.com/topic/libraries/ar
chitecture/guide

37. Thank you for your attention!
Q/A?
