Cleaning your architecture with android architecture components

Débora Gomez
@dgomezdebora
22 noviembre 2019
CLEANING YOUR
ARCHITECTURE
WITH ANDROID
ARCHITECTURE
COMPONENTS

Who am I?
Team & Technical Lead
myToys Group GmbH
https://github.com/dgomez-developer
dgomez.developer@gmail.com
@dgomezdebora
www.linkedin.com/in/deboragomezbertoli

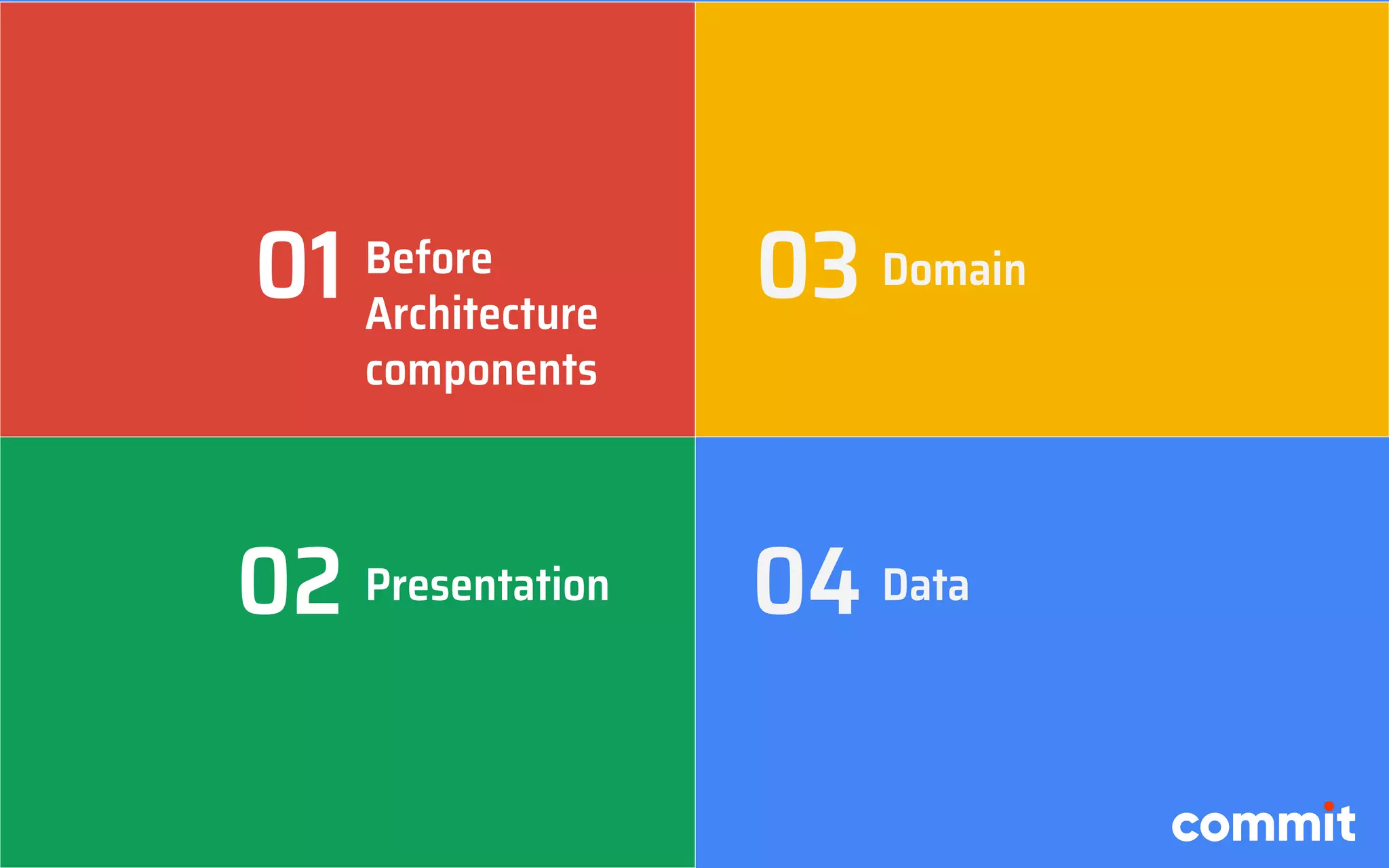

01
02
03
04
Before
Architecture
components
Presentation
Domain
Data

Disclaimer
This talk is not about explaining
Clean Architecture.
Disclaimer!
@dgomezdebora#commitconf

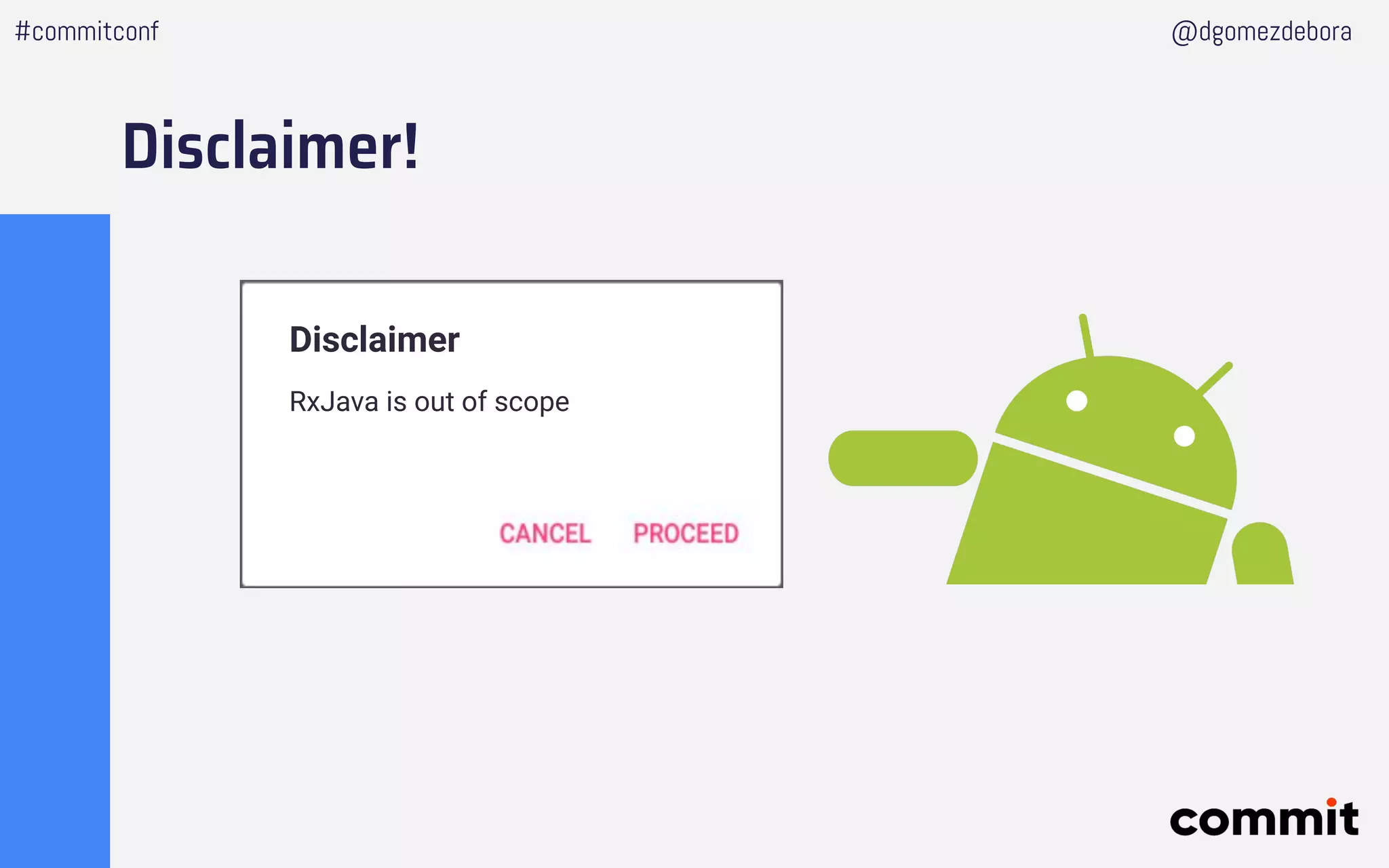

Disclaimer
RxJava is out of scope
Disclaimer!
#commitconf @dgomezdebora

Before Architecture
components
01

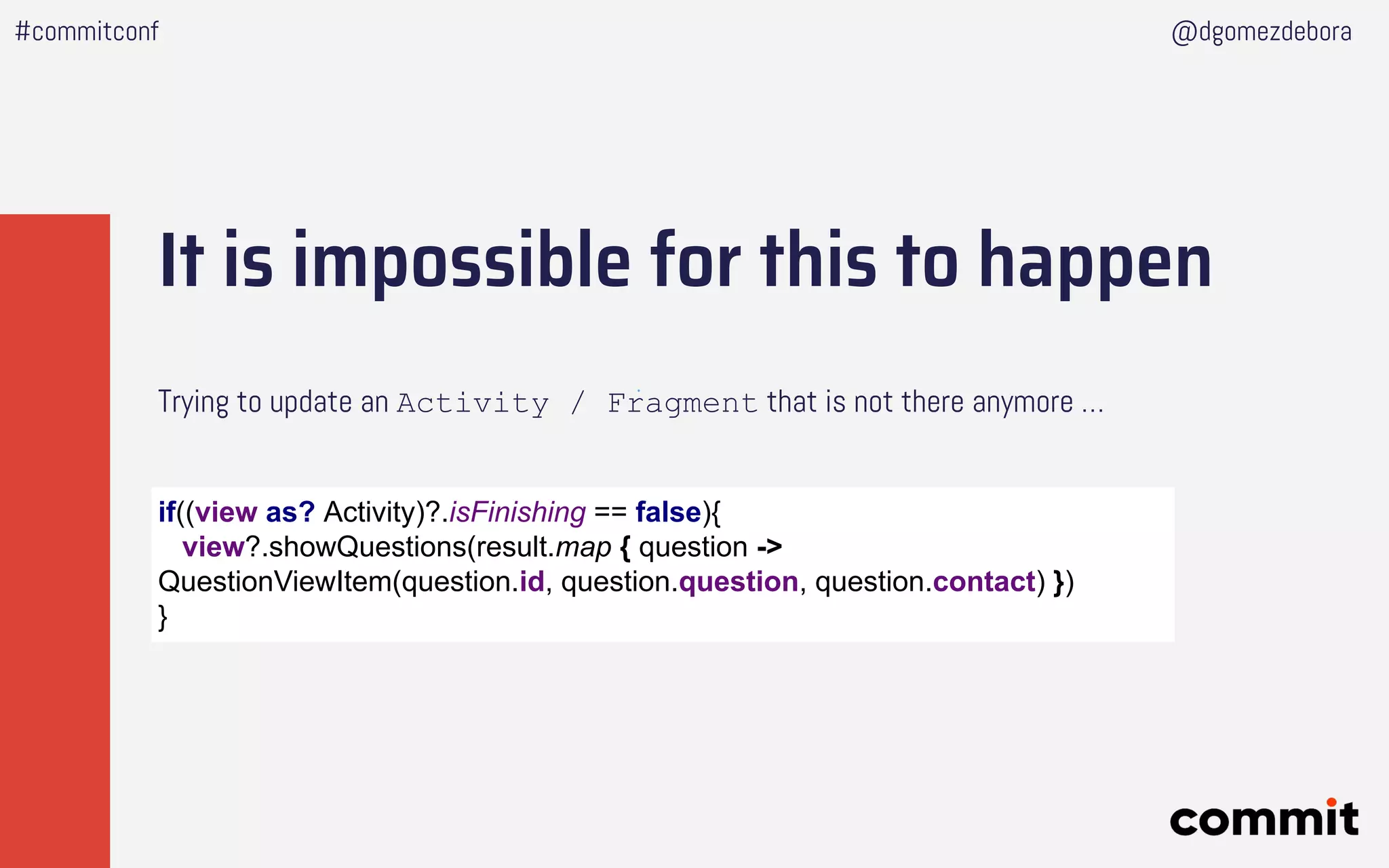

It is impossible for this to happen
Trying to update an Activity / Fragment that is not there anymore …
if((view as? Activity)?.isFinishing == false){
view?.showQuestions(result.map { question ->
QuestionViewItem(question.id, question.question, question.contact) })
}

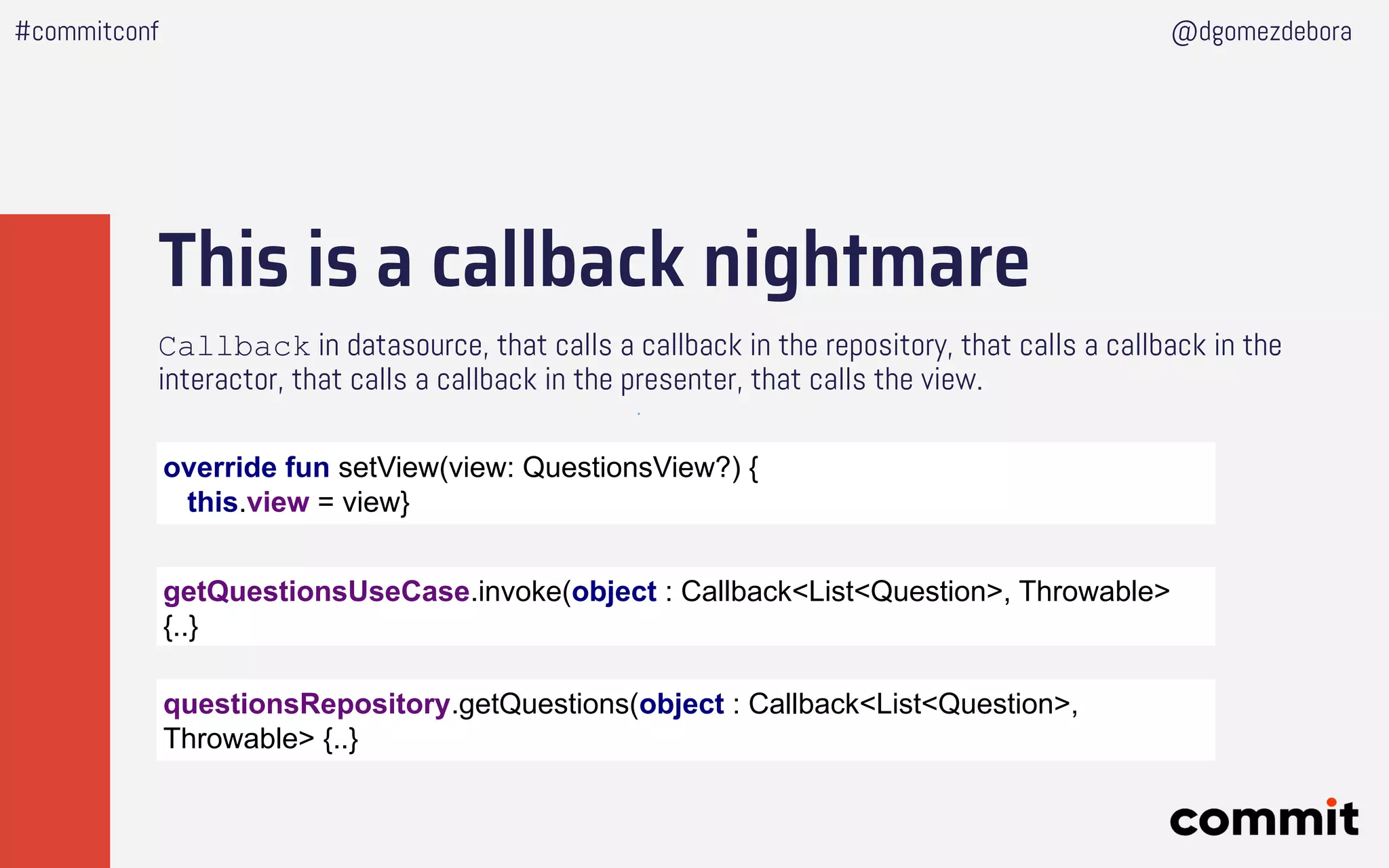

This is a callback nightmare
Callback in datasource, that calls a callback in the repository, that calls a callback in the
interactor, that calls a callback in the presenter, that calls the view.
getQuestionsUseCase.invoke(object : Callback<List<Question>, Throwable>
{..}
questionsRepository.getQuestions(object : Callback<List<Question>,
Throwable> {..}
override fun setView(view: QuestionsView?) {
this.view = view}

Implementation
https://github.com/dgomez-developer/qa-c
lient/tree/feature/example-with-no-archite
cture-components

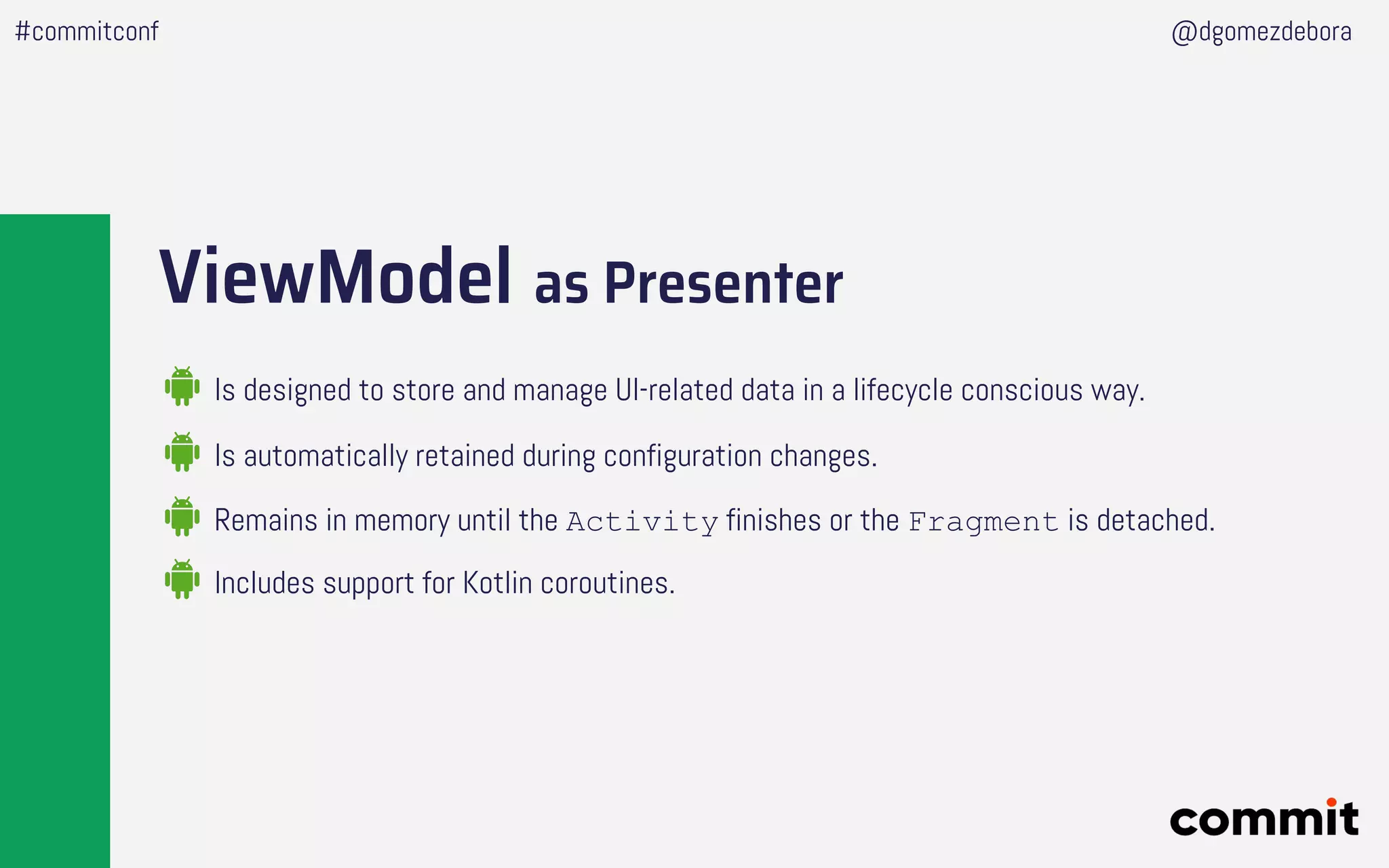

ViewModel as Presenter
Is designed to store and manage UI-related data in a lifecycle conscious way.
Is automatically retained during configuration changes.
Remains in memory until the Activity finishes or the Fragment is detached.
Includes support for Kotlin coroutines.

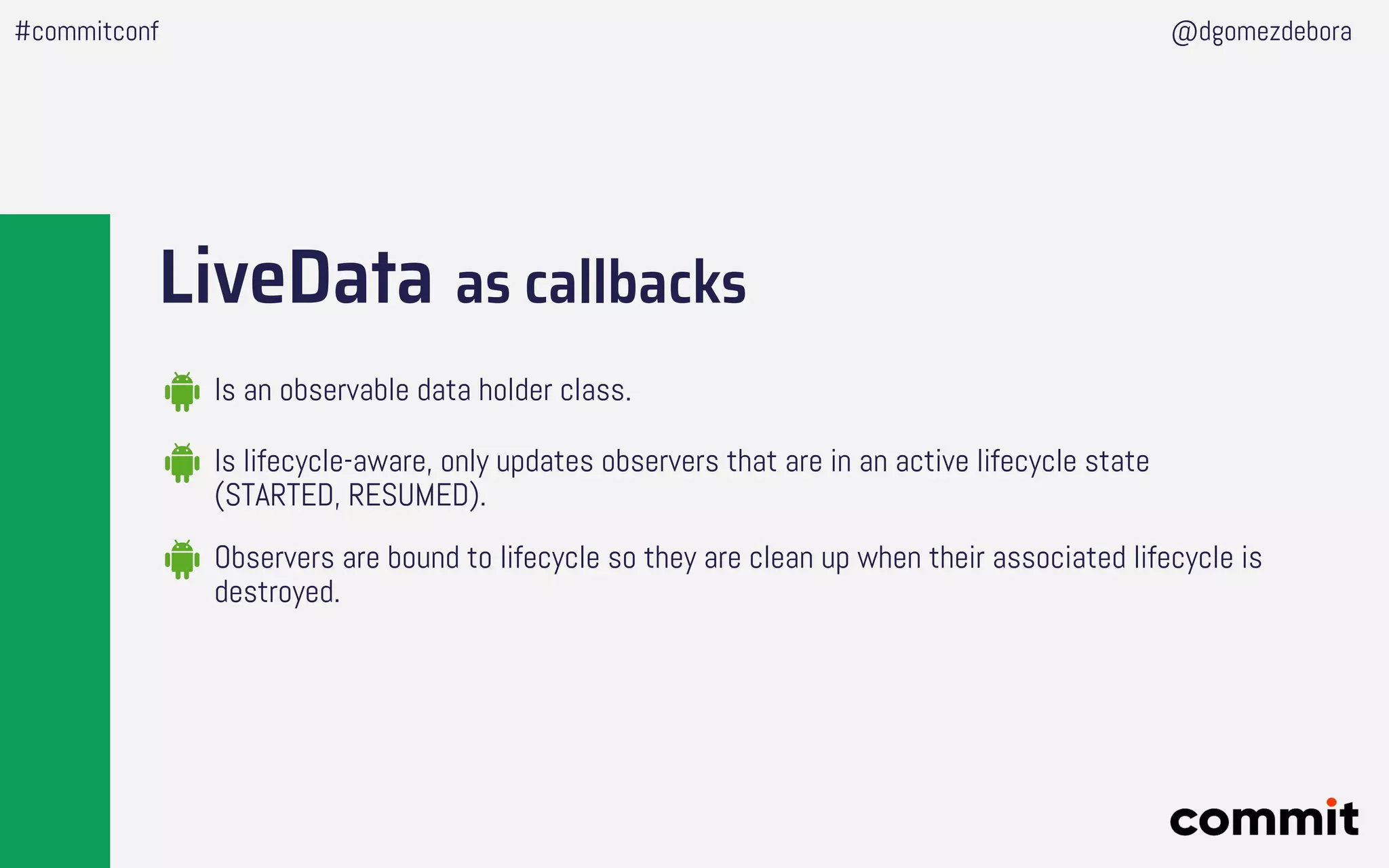

LiveData as callbacks
Is an observable data holder class.
Is lifecycle-aware, only updates observers that are in an active lifecycle state
(STARTED, RESUMED).
Observers are bound to lifecycle so they are clean up when their associated lifecycle is
destroyed.

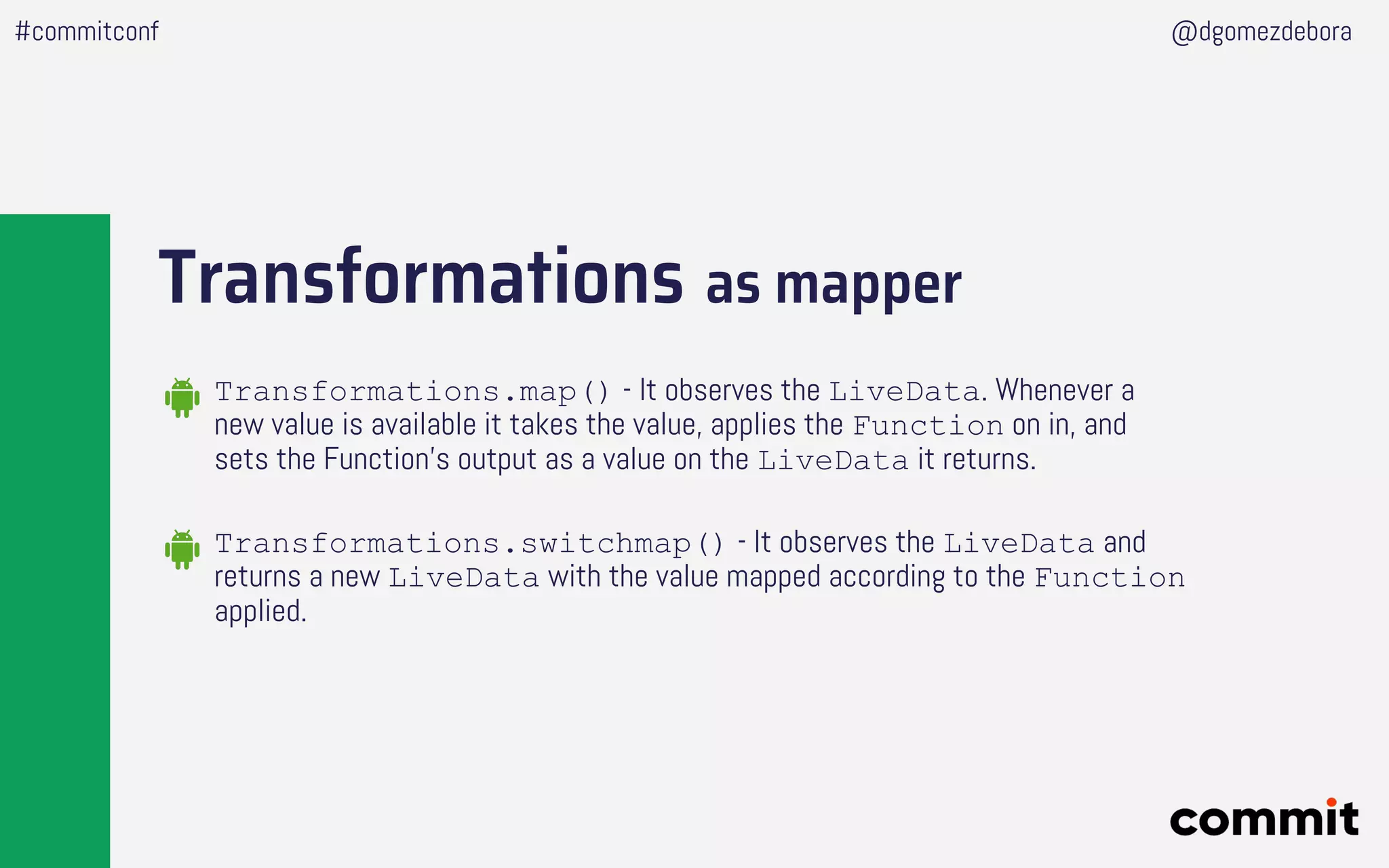

Transformations as mapper
Transformations.map() - It observes the LiveData. Whenever a
new value is available it takes the value, applies the Function on in, and
sets the Function’s output as a value on the LiveData it returns.
Transformations.switchmap() - It observes the LiveData and
returns a new LiveData with the value mapped according to the Function
applied.

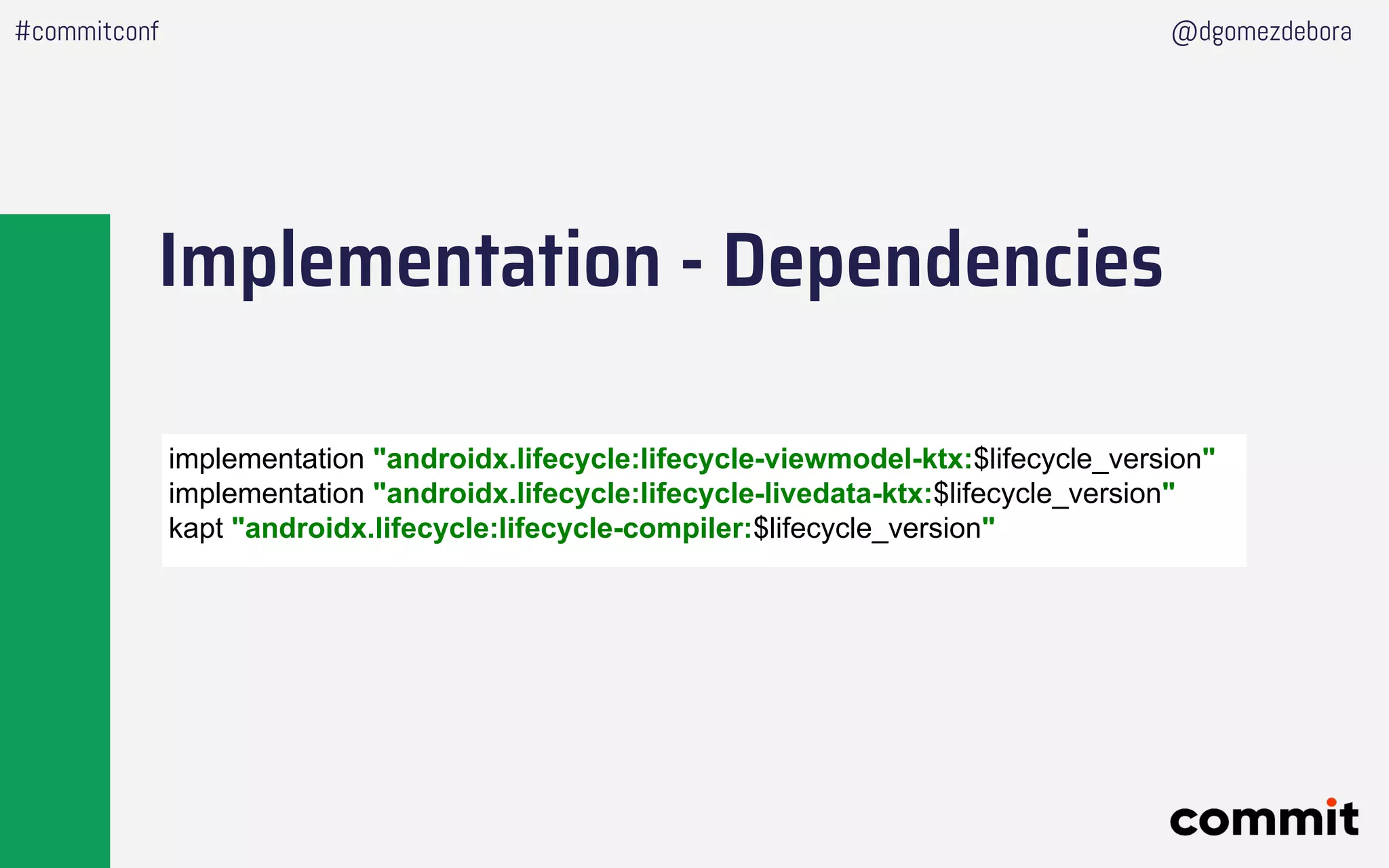

Implementation - Dependencies
implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:$lifecycle_version"
implementation "androidx.lifecycle:lifecycle-livedata-ktx:$lifecycle_version"
kapt "androidx.lifecycle:lifecycle-compiler:$lifecycle_version"

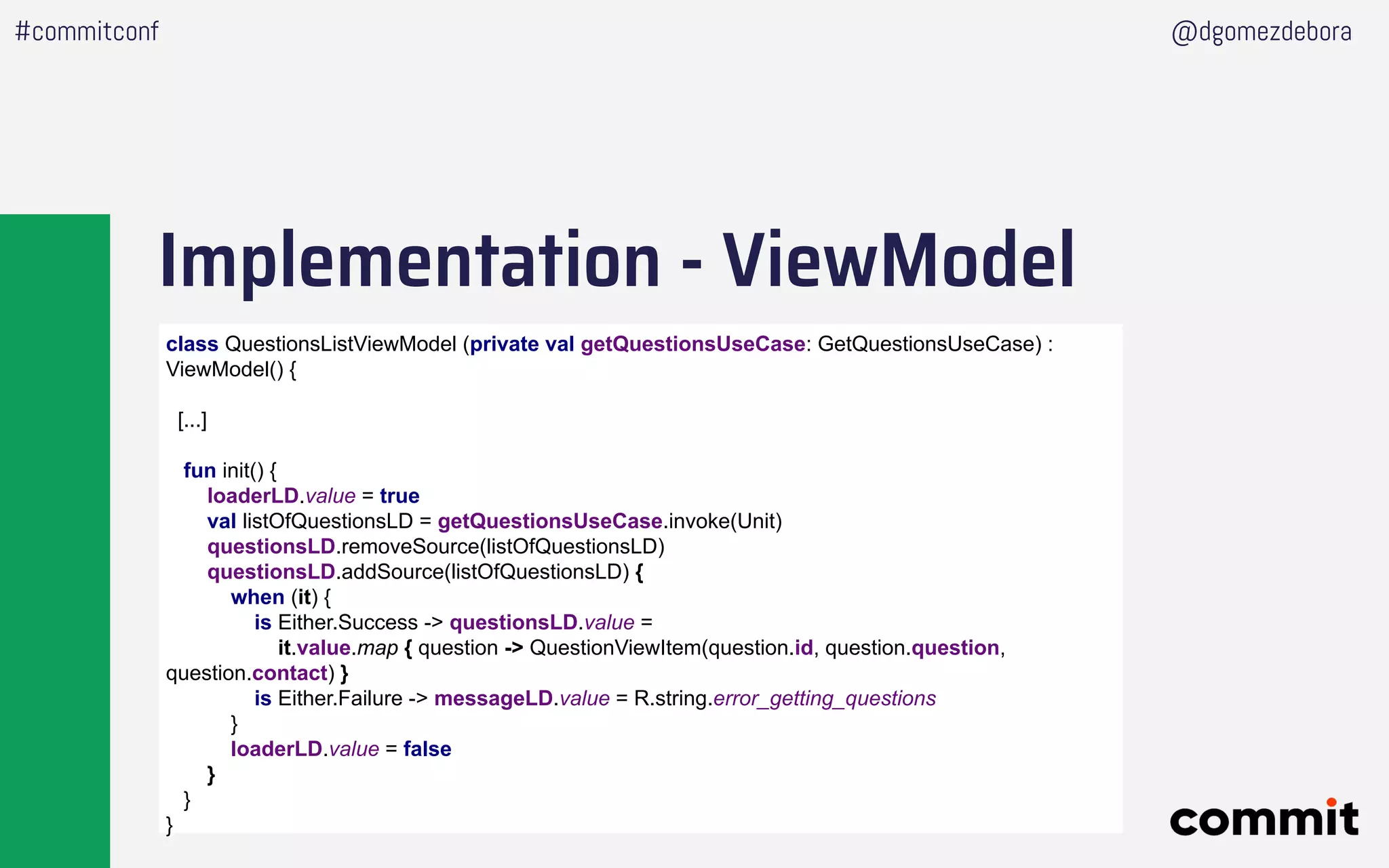

Implementation - ViewModel
class QuestionsListViewModel (private val getQuestionsUseCase: GetQuestionsUseCase) :
ViewModel() {
[...]
fun init() {
loaderLD.value = true
val listOfQuestionsLD = getQuestionsUseCase.invoke(Unit)
questionsLD.removeSource(listOfQuestionsLD)
questionsLD.addSource(listOfQuestionsLD) {
when (it) {
is Either.Success -> questionsLD.value =
it.value.map { question -> QuestionViewItem(question.id, question.question,
question.contact) }
is Either.Failure -> messageLD.value = R.string.error_getting_questions
}
loaderLD.value = false
}
}
}

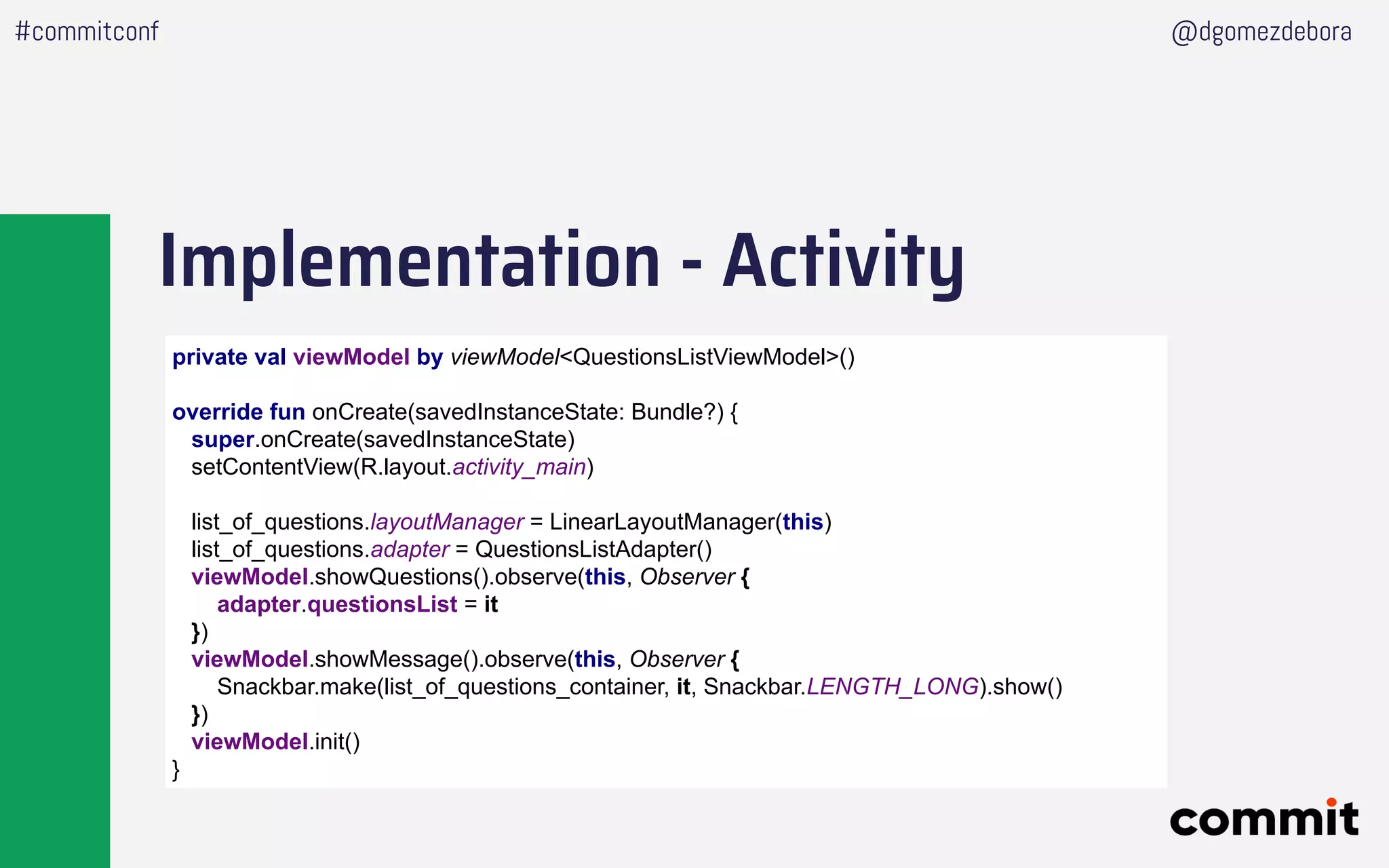

Implementation - Activity
private val viewModel by viewModel<QuestionsListViewModel>()
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
list_of_questions.layoutManager = LinearLayoutManager(this)
list_of_questions.adapter = QuestionsListAdapter()
viewModel.showQuestions().observe(this, Observer {
adapter.questionsList = it
})
viewModel.showMessage().observe(this, Observer {
Snackbar.make(list_of_questions_container, it, Snackbar.LENGTH_LONG).show()
})
viewModel.init()
}

Considerations - ViewModel
ViewModel shouldn’t be referenced in any object that can outlive the Activity,
so the ViewModel can be garbage collected.
A ViewModel must never reference a view, Lifecycle, or any class that may hold a
reference to the Activity context.
ViewModel is not an eternal thing, they also get killed when the OS is low on
resources and kills our process.
.... don’t panic! Google is already working on a safe state module for
ViewModel. (still in alpha)

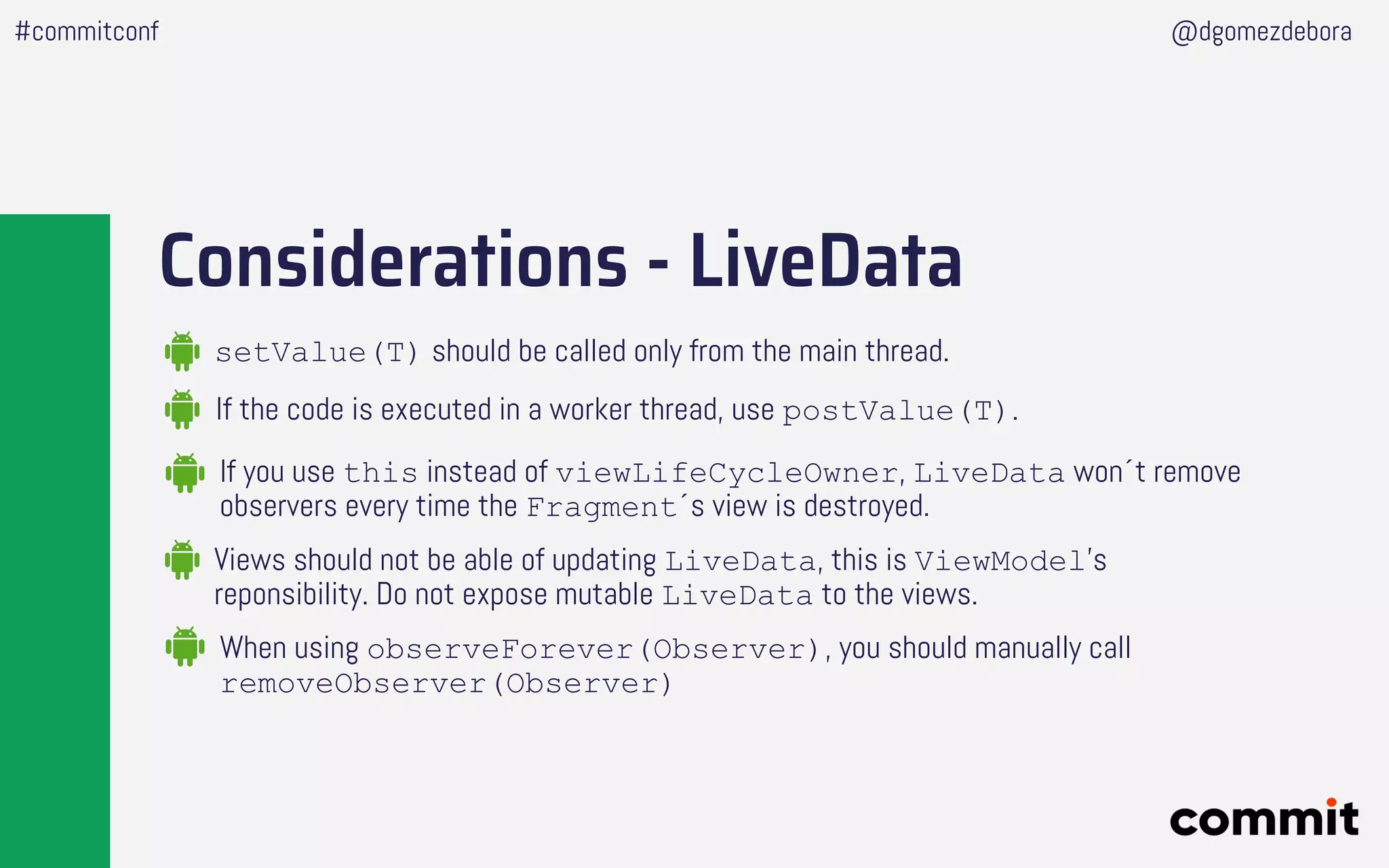

Considerations - LiveData
If the code is executed in a worker thread, use postValue(T).
setValue(T) should be called only from the main thread.
If you use this instead of viewLifeCycleOwner, LiveData won´t remove
observers every time the Fragment´s view is destroyed.
Views should not be able of updating LiveData, this is ViewModel’s
reponsibility. Do not expose mutable LiveData to the views.
When using observeForever(Observer), you should manually call
removeObserver(Observer)

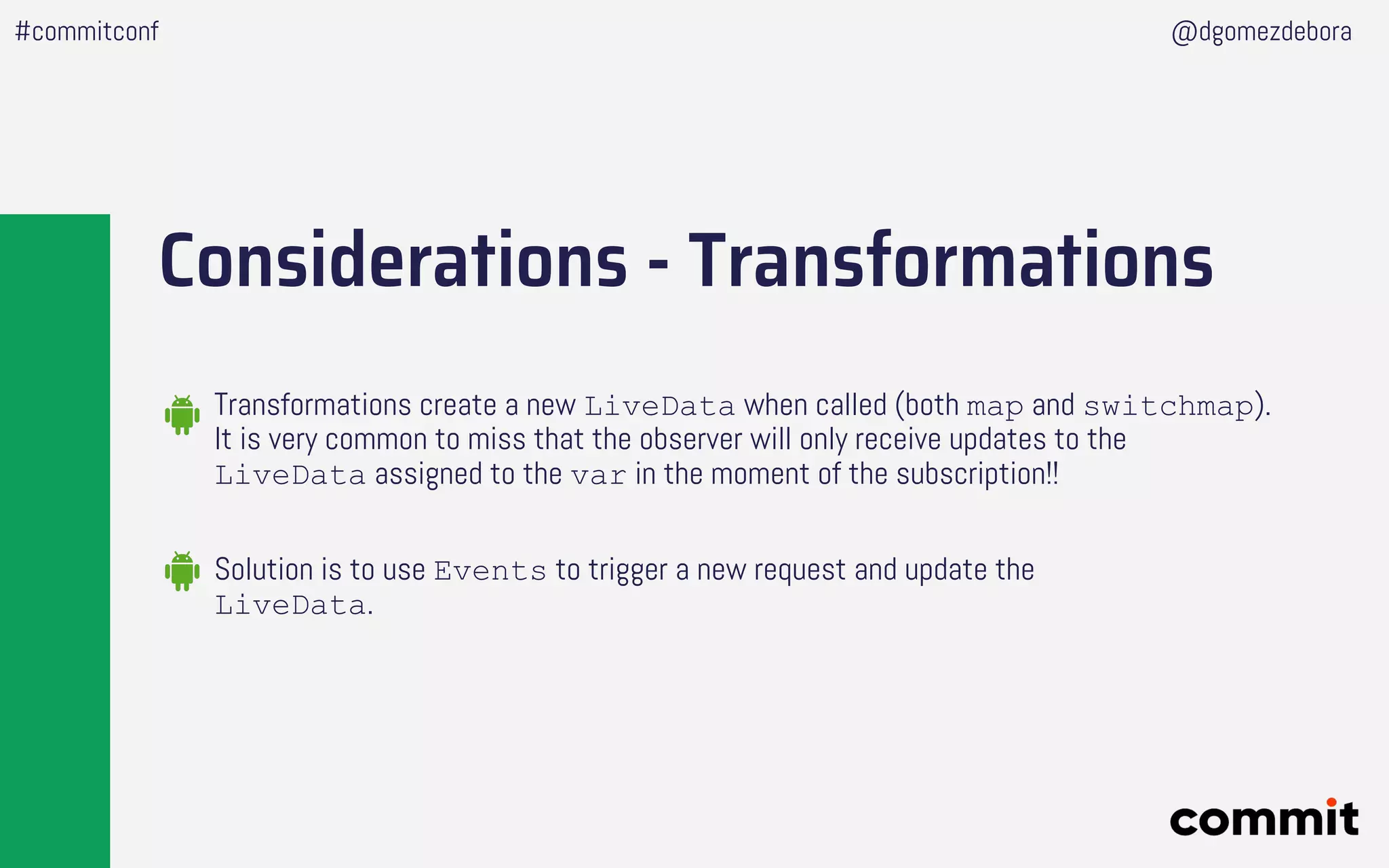

Considerations - Transformations
Solution is to use Events to trigger a new request and update the
LiveData.
Transformations create a new LiveData when called (both map and switchmap).
It is very common to miss that the observer will only receive updates to the
LiveData assigned to the var in the moment of the subscription!!

Easy right?

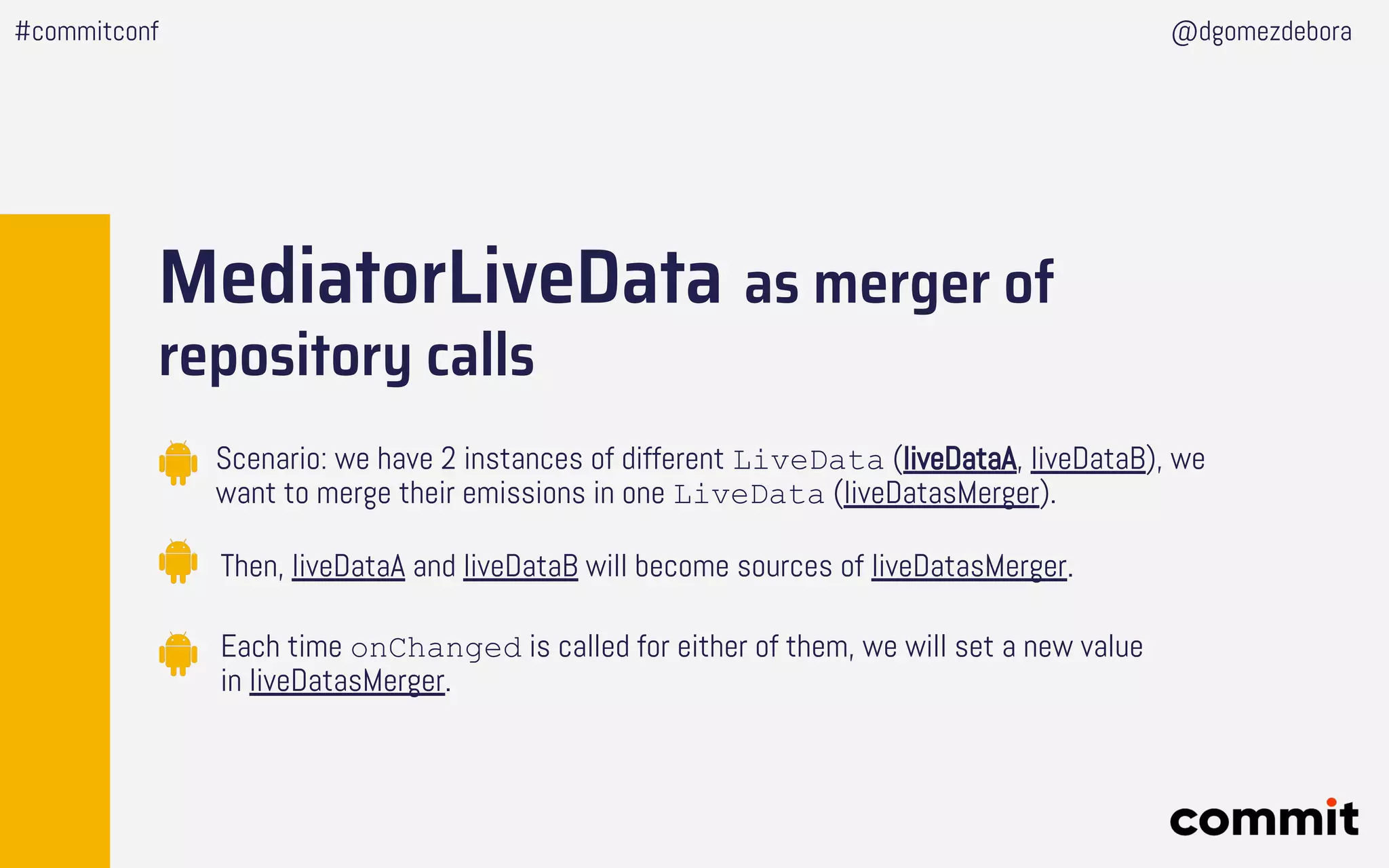

MediatorLiveData as merger of
repository calls
Scenario: we have 2 instances of different LiveData (liveDataA, liveDataB), we
want to merge their emissions in one LiveData (liveDatasMerger).
Then, liveDataA and liveDataB will become sources of liveDatasMerger.
Each time onChanged is called for either of them, we will set a new value
in liveDatasMerger.

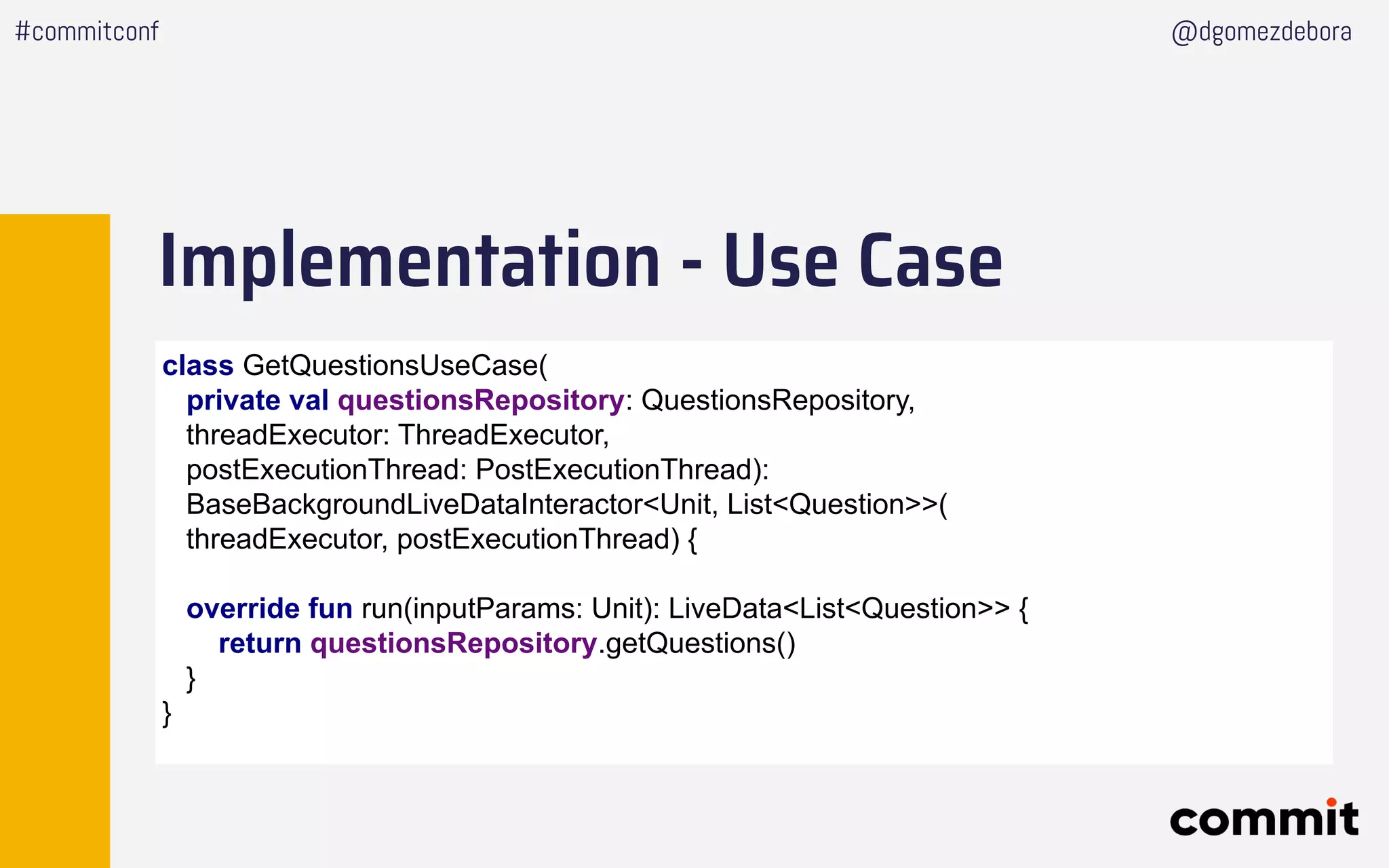

Implementation - Use Case
class GetQuestionsUseCase(
private val questionsRepository: QuestionsRepository,
threadExecutor: ThreadExecutor,
postExecutionThread: PostExecutionThread):
BaseBackgroundLiveDataInteractor<Unit, List<Question>>(
threadExecutor, postExecutionThread) {
override fun run(inputParams: Unit): LiveData<List<Question>> {
return questionsRepository.getQuestions()
}
}

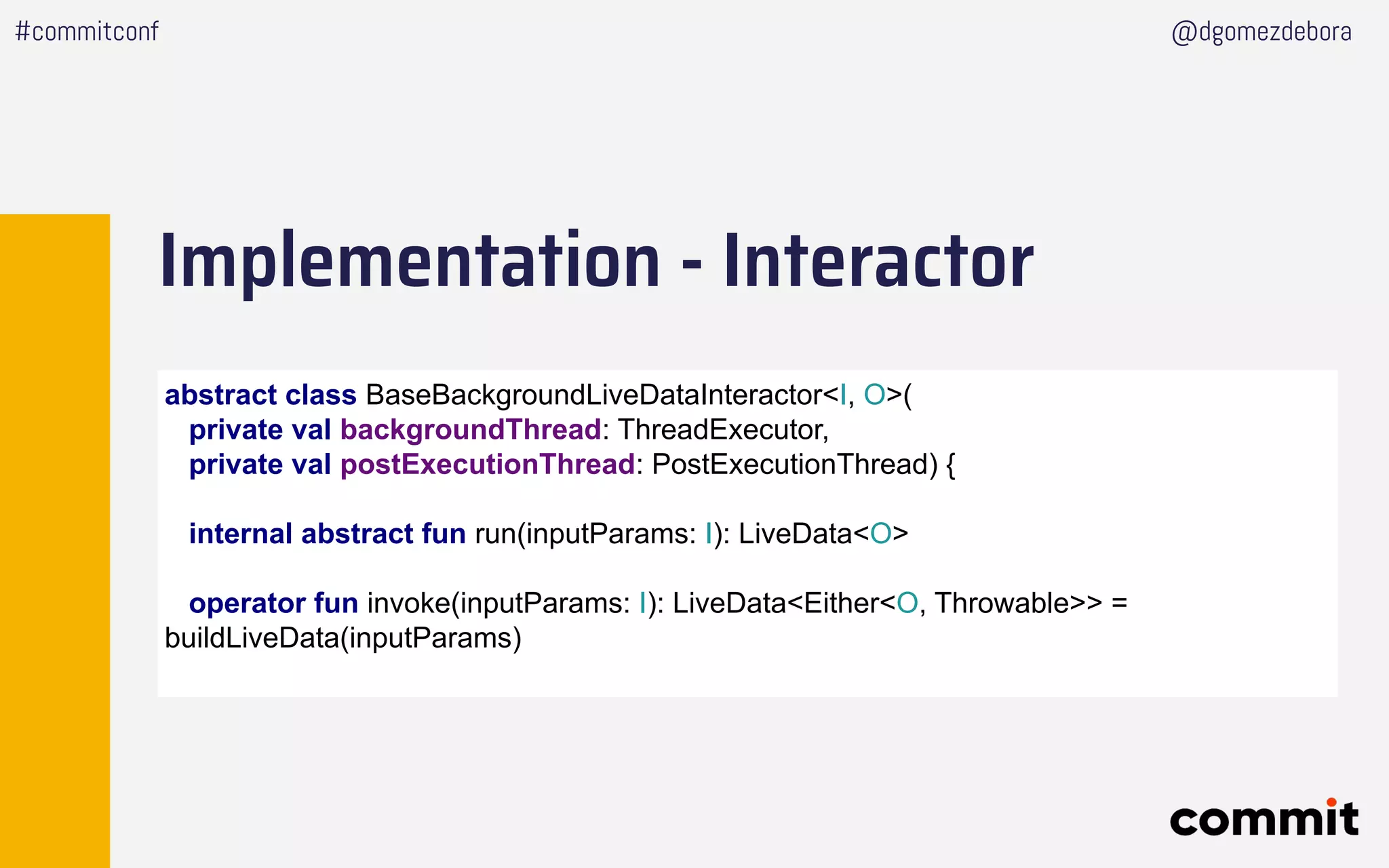

Implementation - Interactor
abstract class BaseBackgroundLiveDataInteractor<I, O>(
private val backgroundThread: ThreadExecutor,
private val postExecutionThread: PostExecutionThread) {
internal abstract fun run(inputParams: I): LiveData<O>
operator fun invoke(inputParams: I): LiveData<Either<O, Throwable>> =
buildLiveData(inputParams)

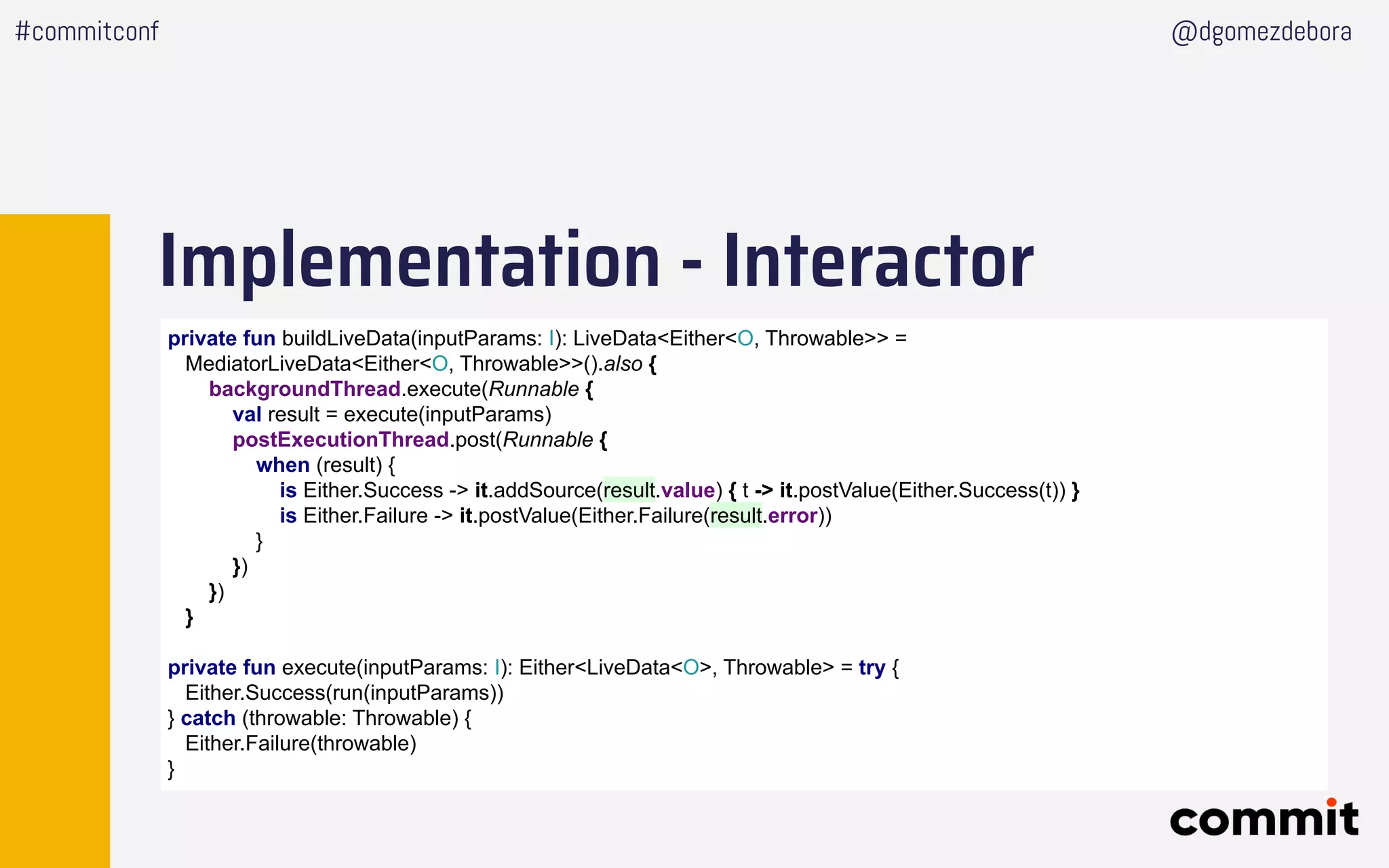

Implementation - Interactor
private fun buildLiveData(inputParams: I): LiveData<Either<O, Throwable>> =
MediatorLiveData<Either<O, Throwable>>().also {
backgroundThread.execute(Runnable {
val result = execute(inputParams)
postExecutionThread.post(Runnable {
when (result) {
is Either.Success -> it.addSource(result.value) { t -> it.postValue(Either.Success(t)) }
is Either.Failure -> it.postValue(Either.Failure(result.error))
}
})
})
}
private fun execute(inputParams: I): Either<LiveData<O>, Throwable> = try {
Either.Success(run(inputParams))
} catch (throwable: Throwable) {
Either.Failure(throwable)
}

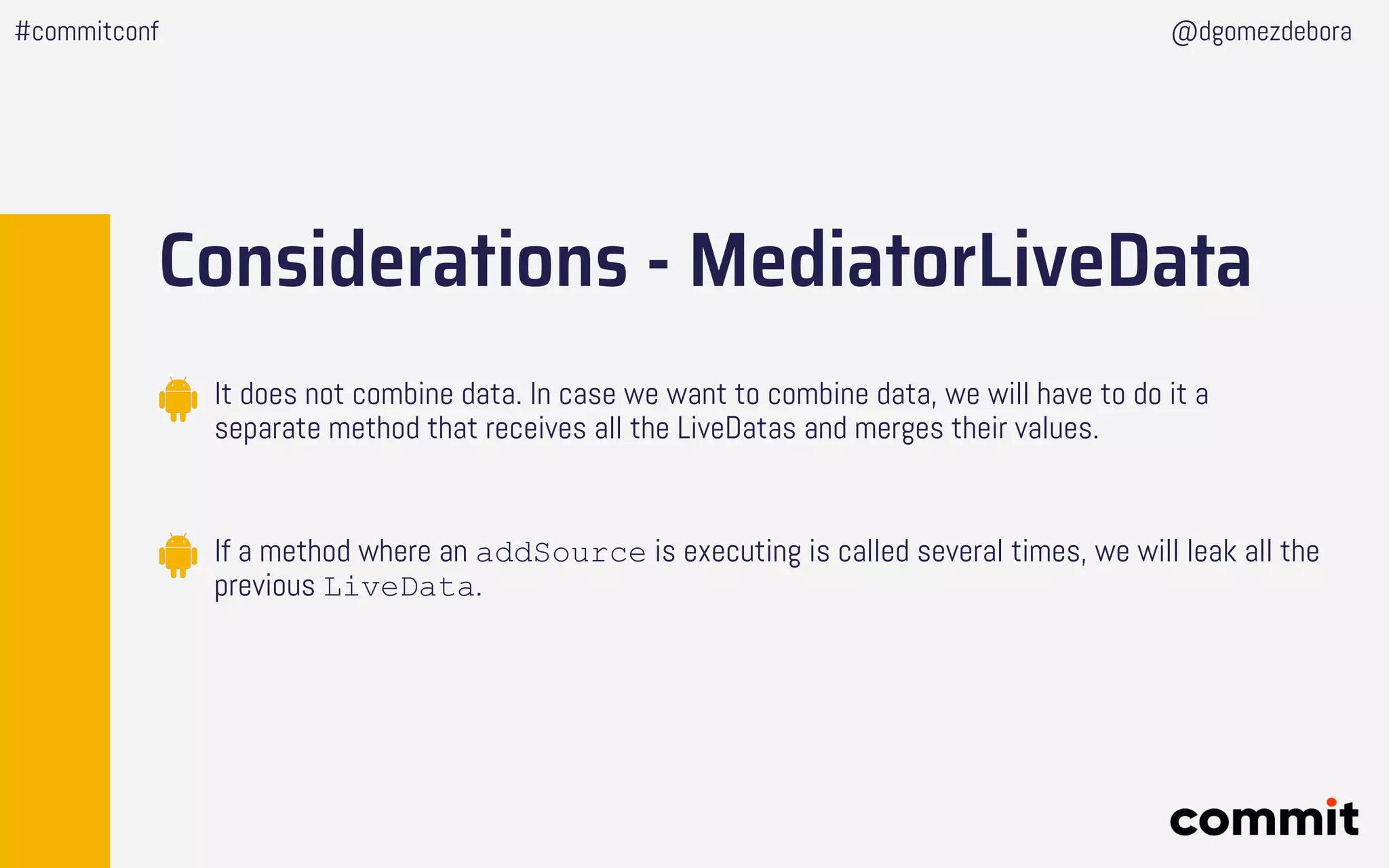

Considerations - MediatorLiveData
It does not combine data. In case we want to combine data, we will have to do it a
separate method that receives all the LiveDatas and merges their values.
If a method where an addSource is executing is called several times, we will leak all the
previous LiveData.

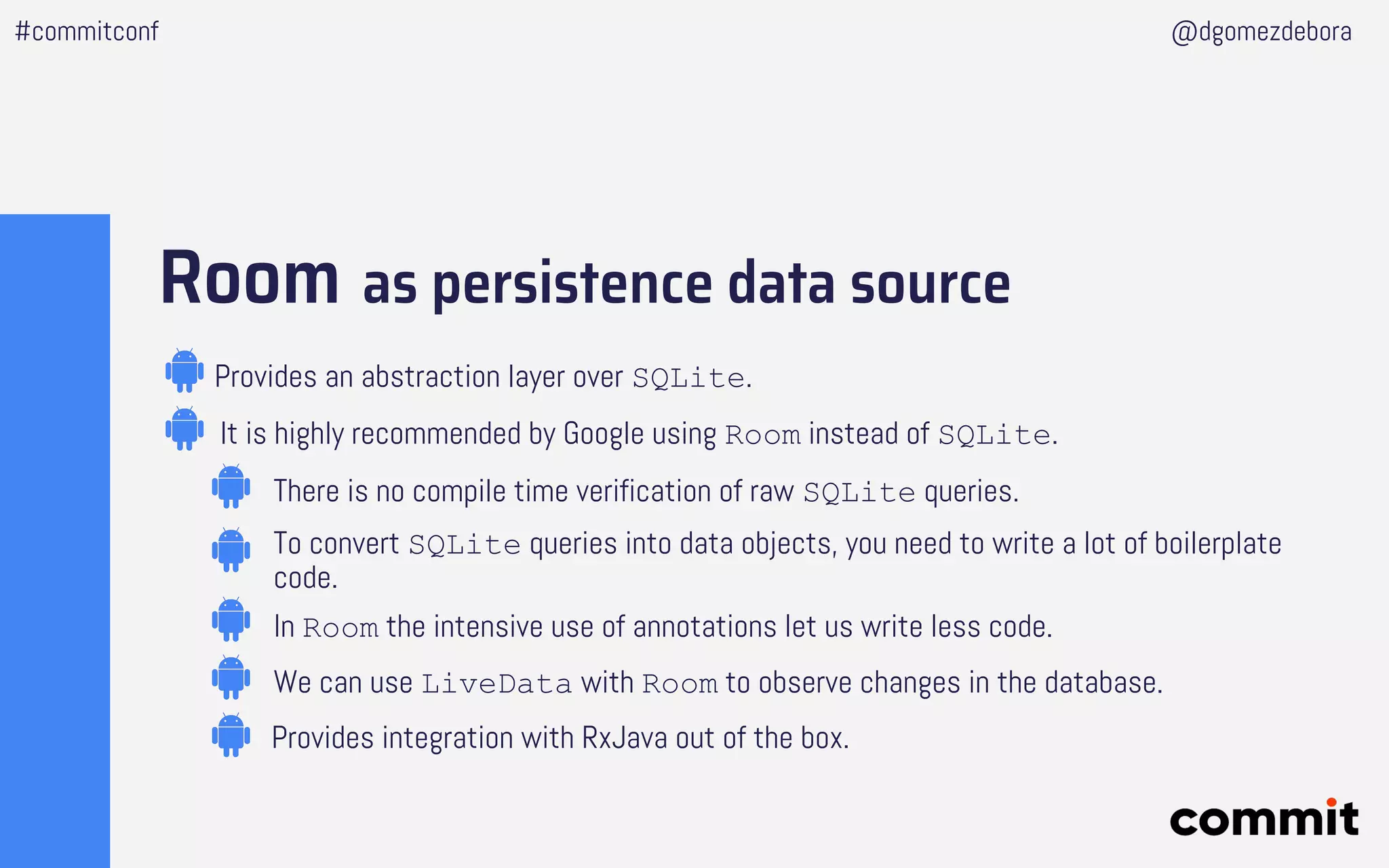

Room as persistence data source
Provides an abstraction layer over SQLite.
It is highly recommended by Google using Room instead of SQLite.
We can use LiveData with Room to observe changes in the database.
In Room the intensive use of annotations let us write less code.
Provides integration with RxJava out of the box.
There is no compile time verification of raw SQLite queries.
To convert SQLite queries into data objects, you need to write a lot of boilerplate
code.

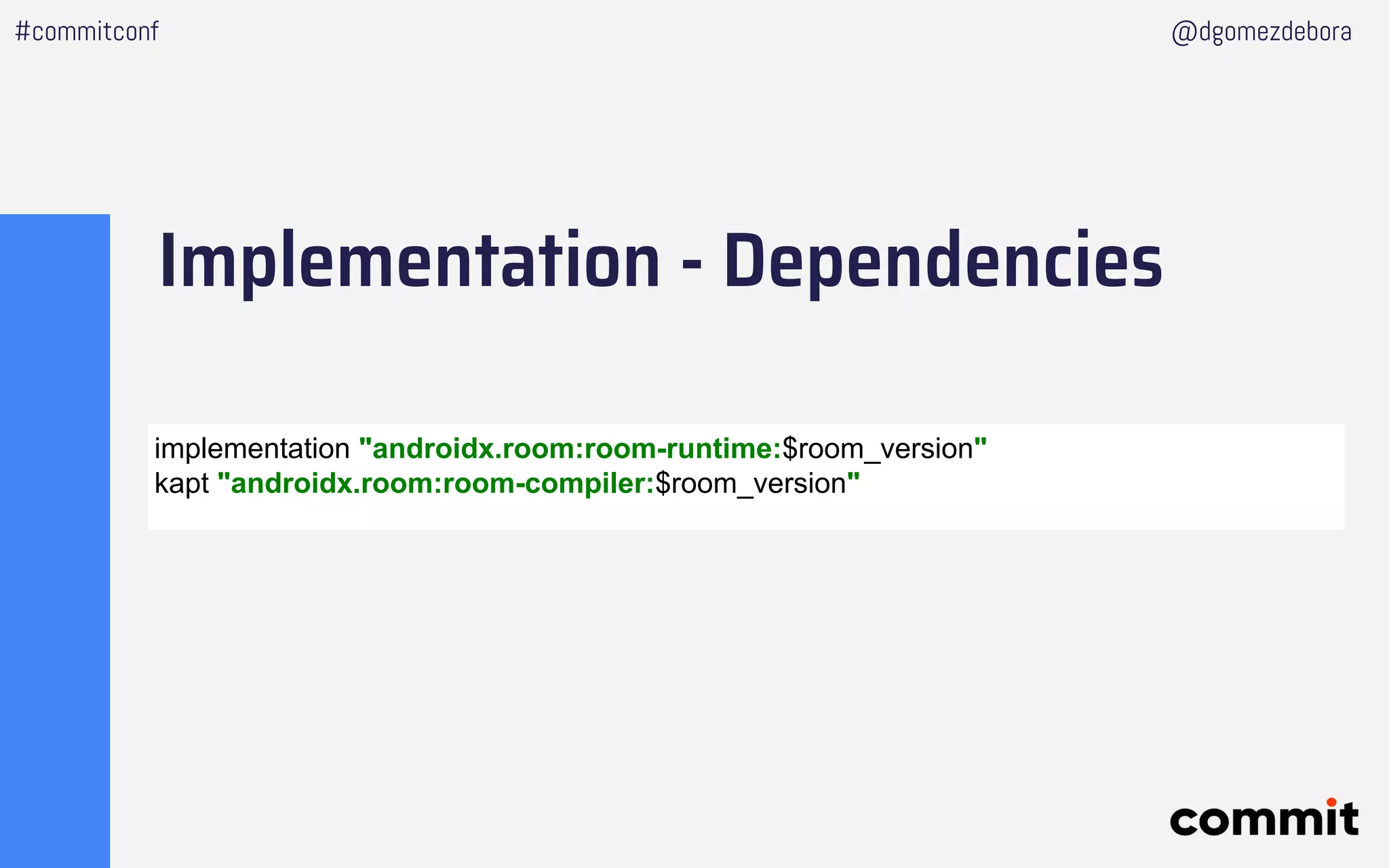

Implementation - Dependencies
implementation "androidx.room:room-runtime:$room_version"
kapt "androidx.room:room-compiler:$room_version"

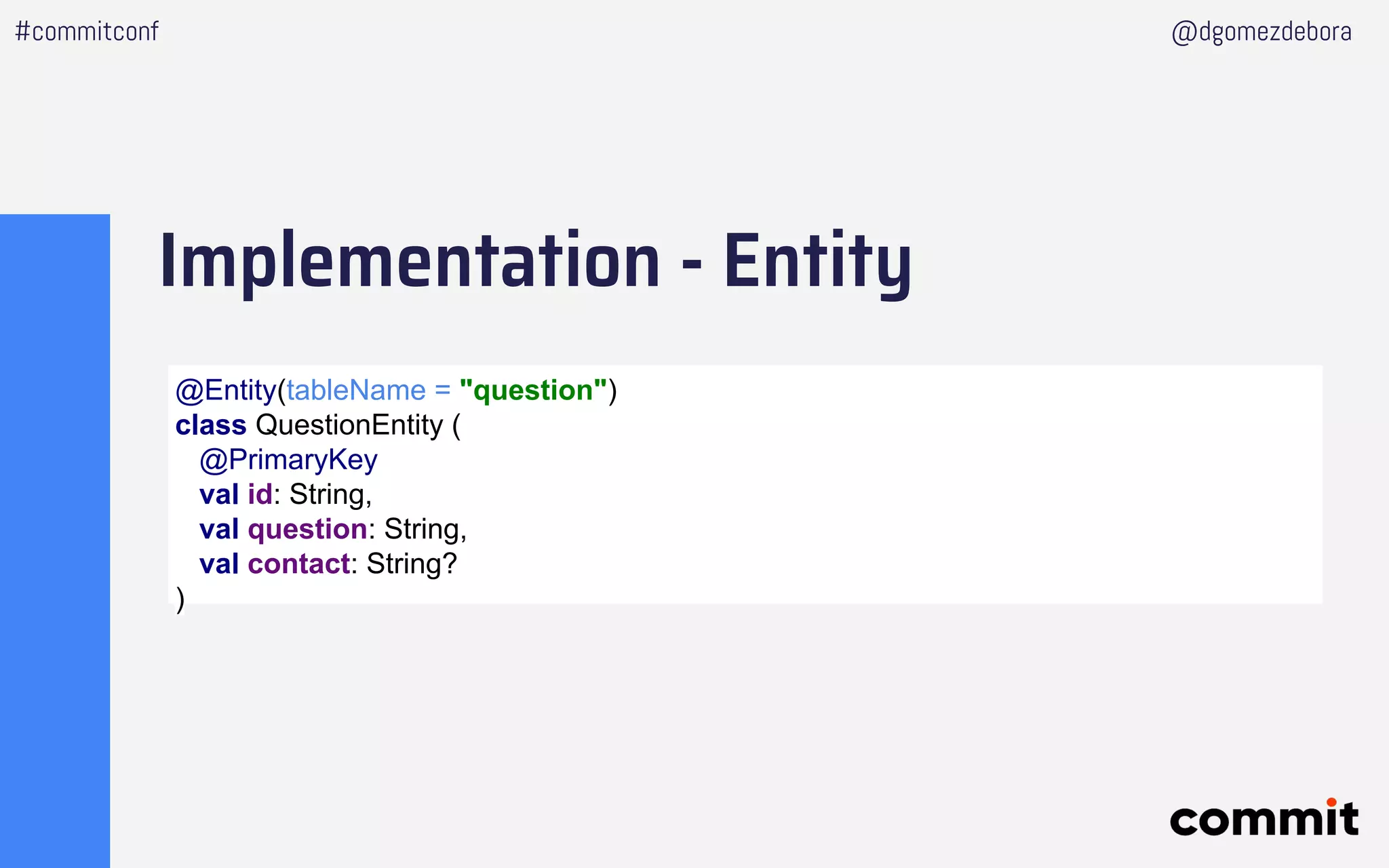

Implementation - Entity
@Entity(tableName = "question")
class QuestionEntity (
@PrimaryKey
val id: String,
val question: String,
val contact: String?
)

Implementation - DAO
@Dao
interface QuestionsDao {
@Query("SELECT * from question")
fun getAll(): LiveData<List<QuestionEntity>>
@Insert(onConflict = OnConflictStrategy.REPLACE)
fun insertAll(map: List<QuestionEntity>)
}

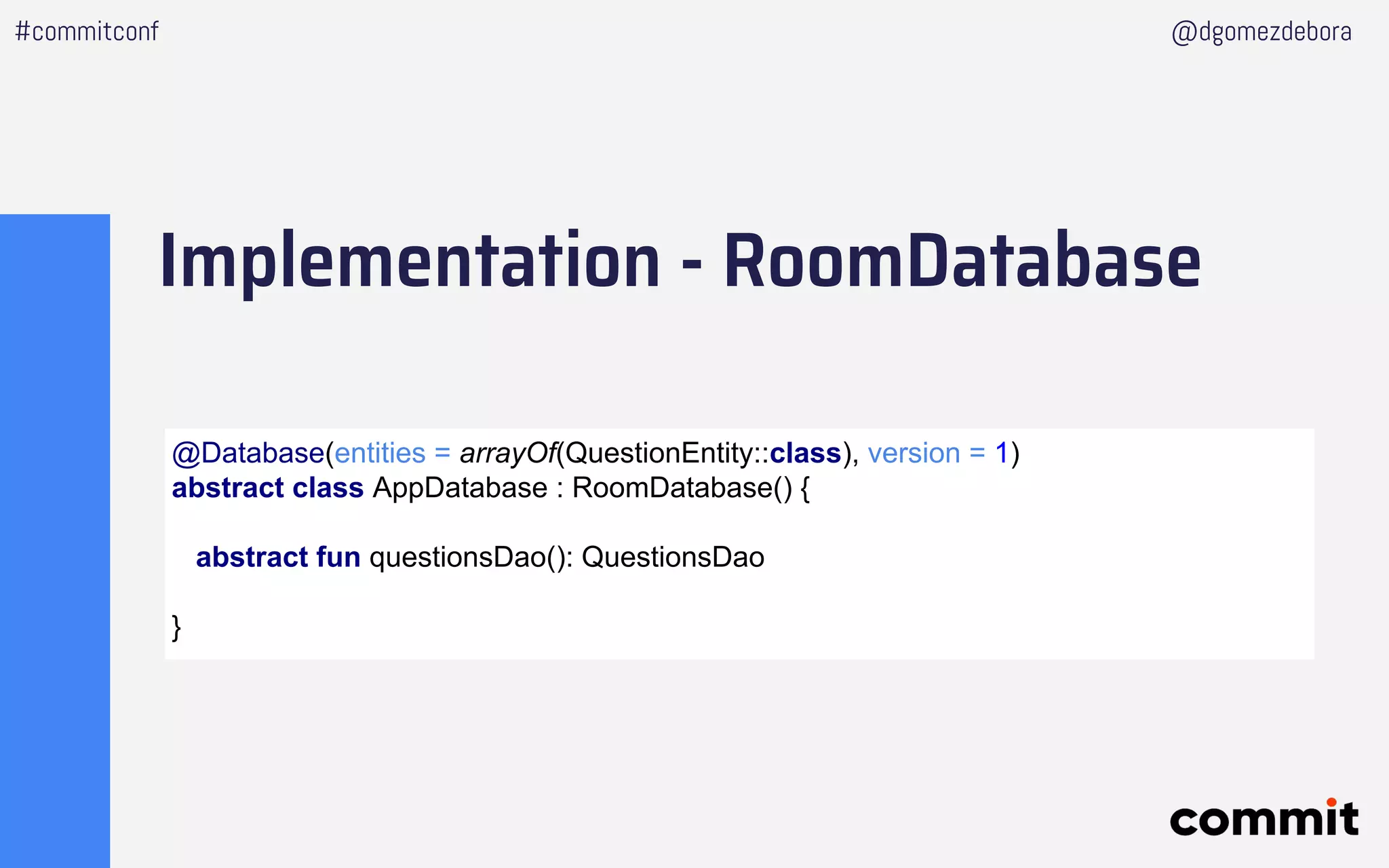

Implementation - RoomDatabase
@Database(entities = arrayOf(QuestionEntity::class), version = 1)
abstract class AppDatabase : RoomDatabase() {
abstract fun questionsDao(): QuestionsDao
}

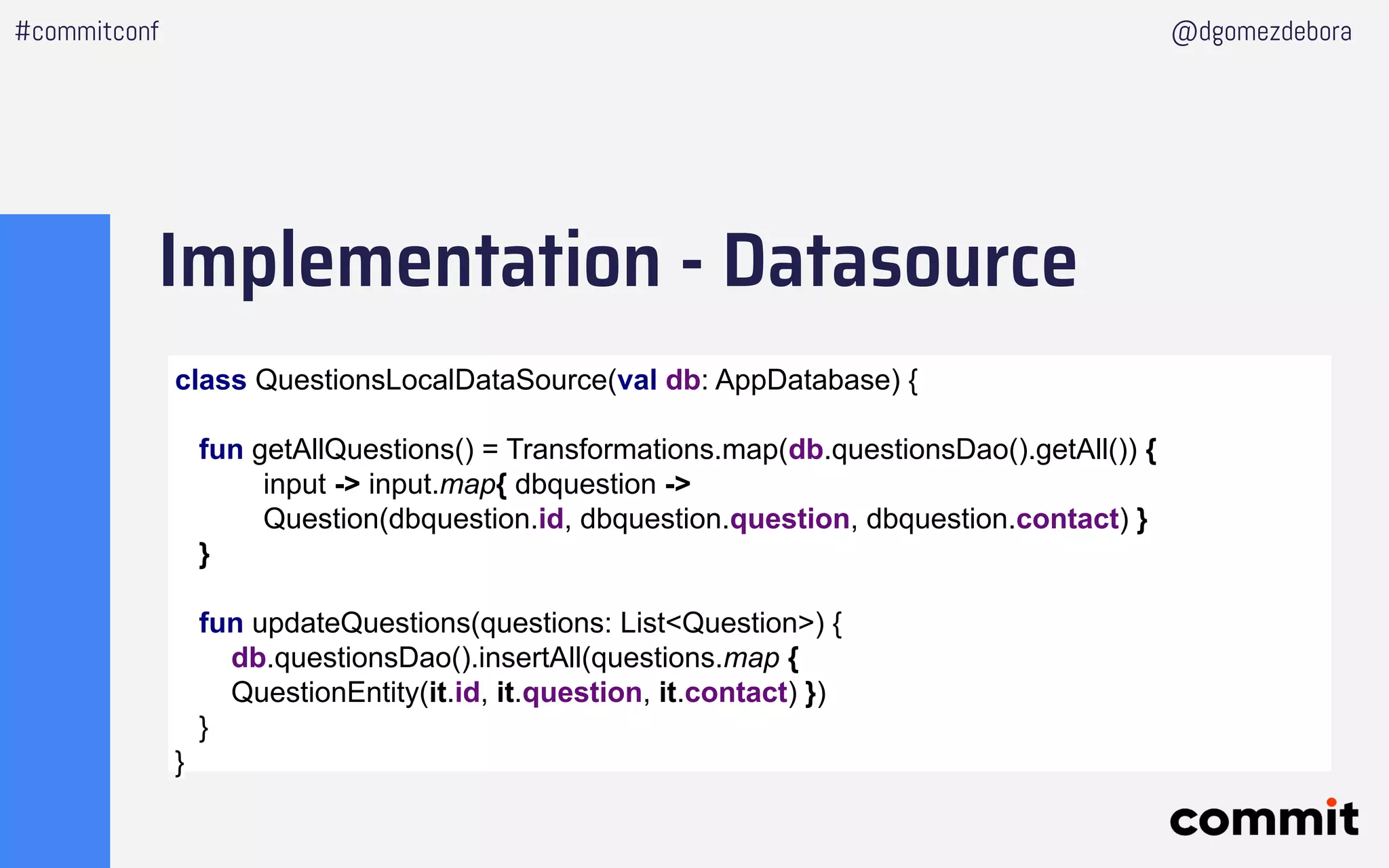

Implementation - Datasource
class QuestionsLocalDataSource(val db: AppDatabase) {
fun getAllQuestions() = Transformations.map(db.questionsDao().getAll()) {
input -> input.map{ dbquestion ->
Question(dbquestion.id, dbquestion.question, dbquestion.contact) }
}
fun updateQuestions(questions: List<Question>) {
db.questionsDao().insertAll(questions.map {
QuestionEntity(it.id, it.question, it.contact) })
}
}

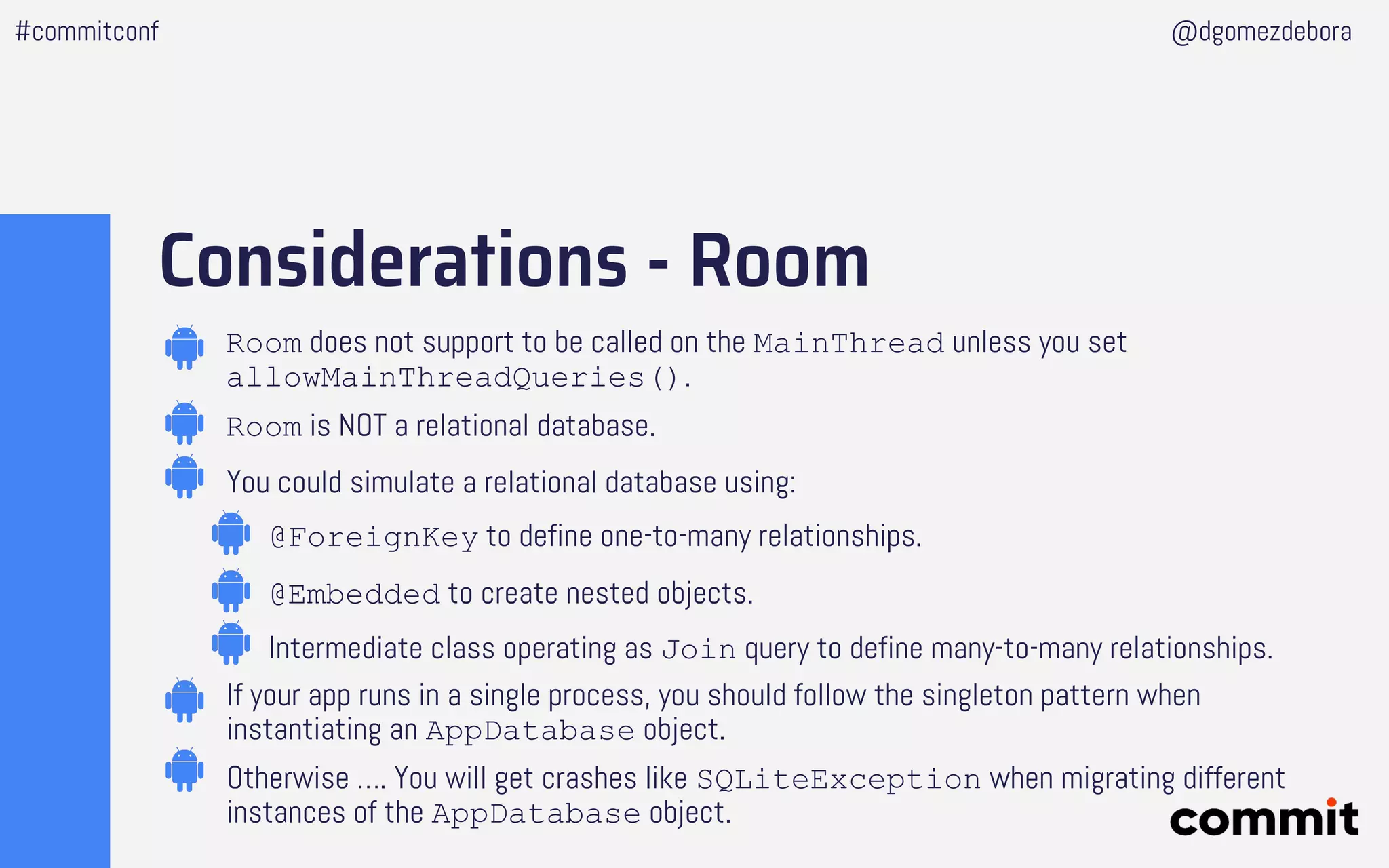

Considerations - Room
Room does not support to be called on the MainThread unless you set
allowMainThreadQueries().
Room is NOT a relational database.
You could simulate a relational database using:
@ForeignKey to define one-to-many relationships.
@Embedded to create nested objects.
Intermediate class operating as Join query to define many-to-many relationships.
If your app runs in a single process, you should follow the singleton pattern when
instantiating an AppDatabase object.
Otherwise …. You will get crashes like SQLiteException when migrating different
instances of the AppDatabase object.

Show me the code
https://github.com/dgomez-developer/qa-clien
t

Data Layer04
Pagination use case

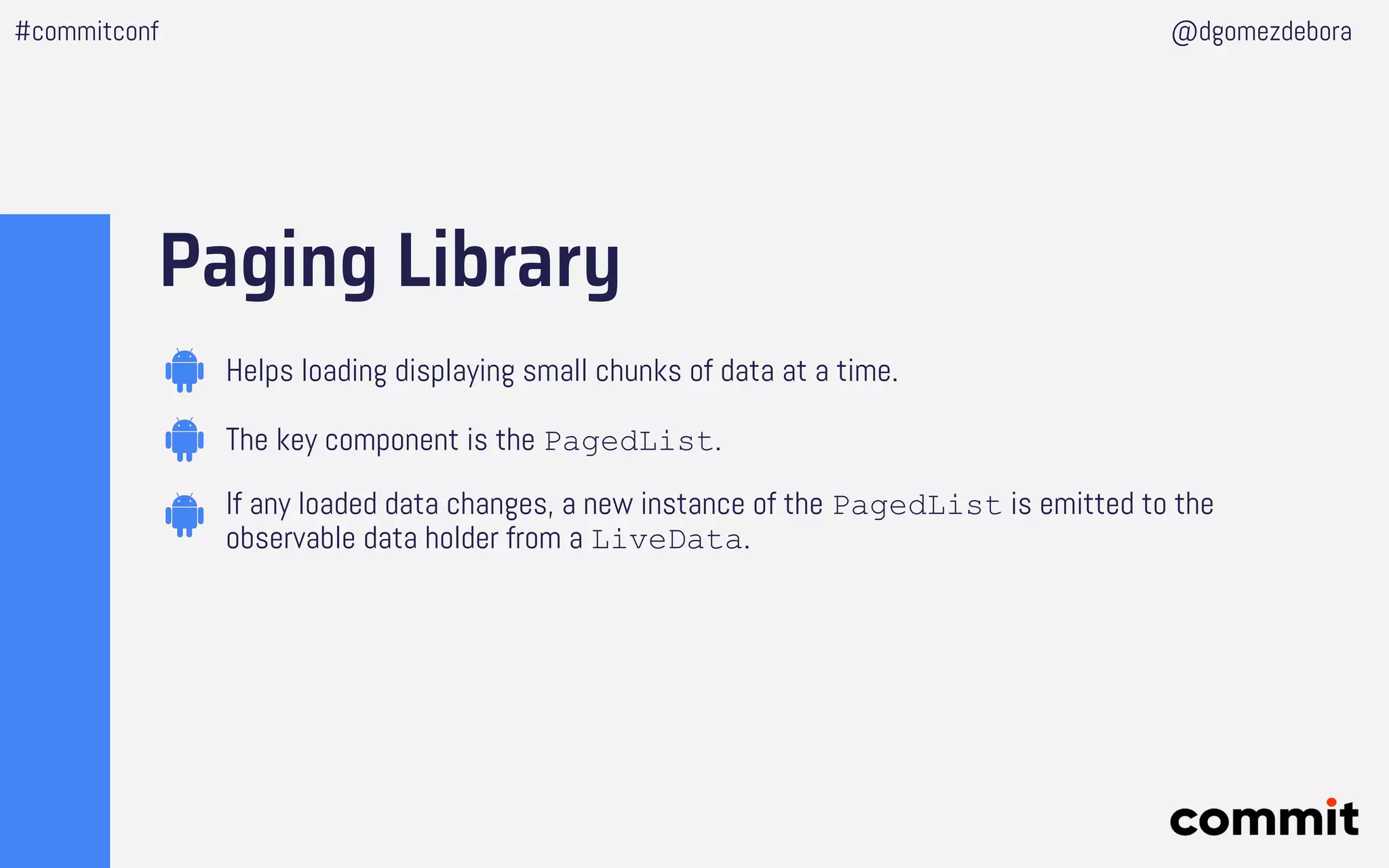

Paging Library
Helps loading displaying small chunks of data at a time.
The key component is the PagedList.
If any loaded data changes, a new instance of the PagedList is emitted to the
observable data holder from a LiveData.

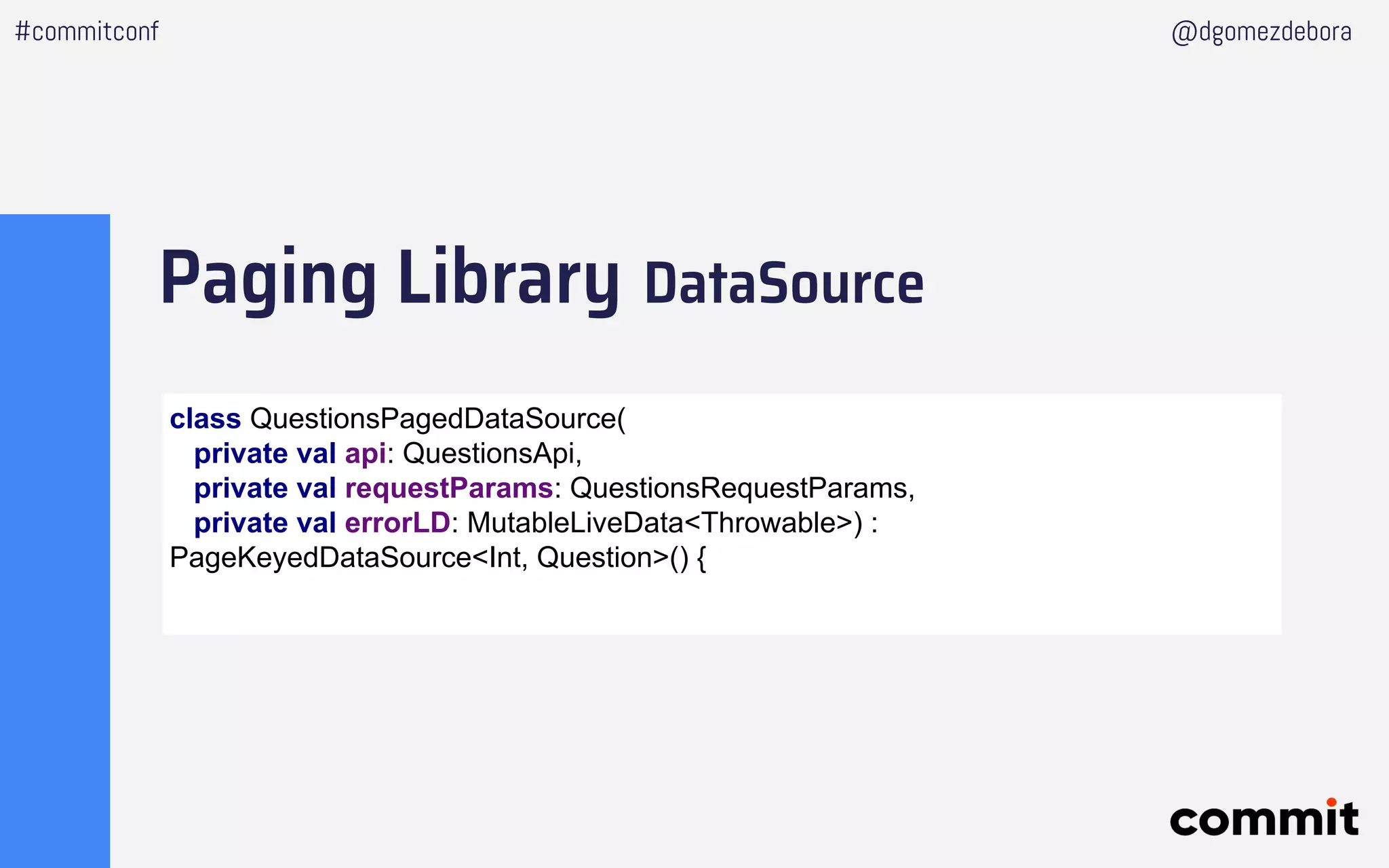

Paging Library DataSource
class QuestionsPagedDataSource(
private val api: QuestionsApi,
private val requestParams: QuestionsRequestParams,
private val errorLD: MutableLiveData<Throwable>) :
PageKeyedDataSource<Int, Question>() {

override fun loadInitial(params: LoadInitialParams<Int>, callback: LoadInitialCallback<Int,
Question>) {
val questionsCall = api.getQuestions(requestParams.page, requestParams.pageSize)
val response = questionsCall.execute()
return if (response.isSuccessful) {
callback.onResult(
response.body()?.toMutableList() ?: mutableListOf(), null, requestParams.page + 1)
} else {
errorLD.postValue(Throwable())
}
}

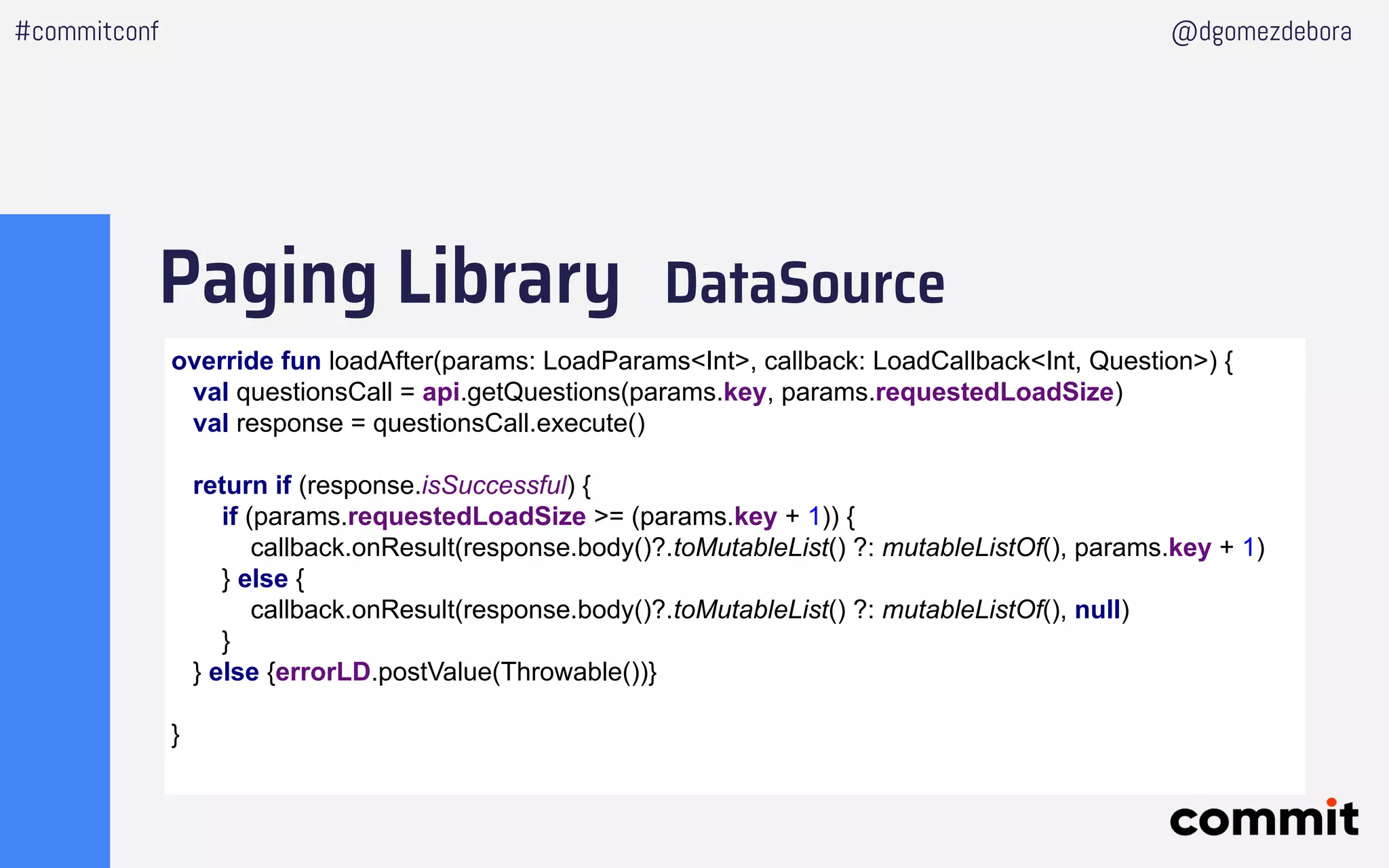

override fun loadAfter(params: LoadParams<Int>, callback: LoadCallback<Int, Question>) {
val questionsCall = api.getQuestions(params.key, params.requestedLoadSize)
val response = questionsCall.execute()
return if (response.isSuccessful) {
if (params.requestedLoadSize >= (params.key + 1)) {
callback.onResult(response.body()?.toMutableList() ?: mutableListOf(), params.key + 1)
} else {
callback.onResult(response.body()?.toMutableList() ?: mutableListOf(), null)
}
} else {errorLD.postValue(Throwable())}
}

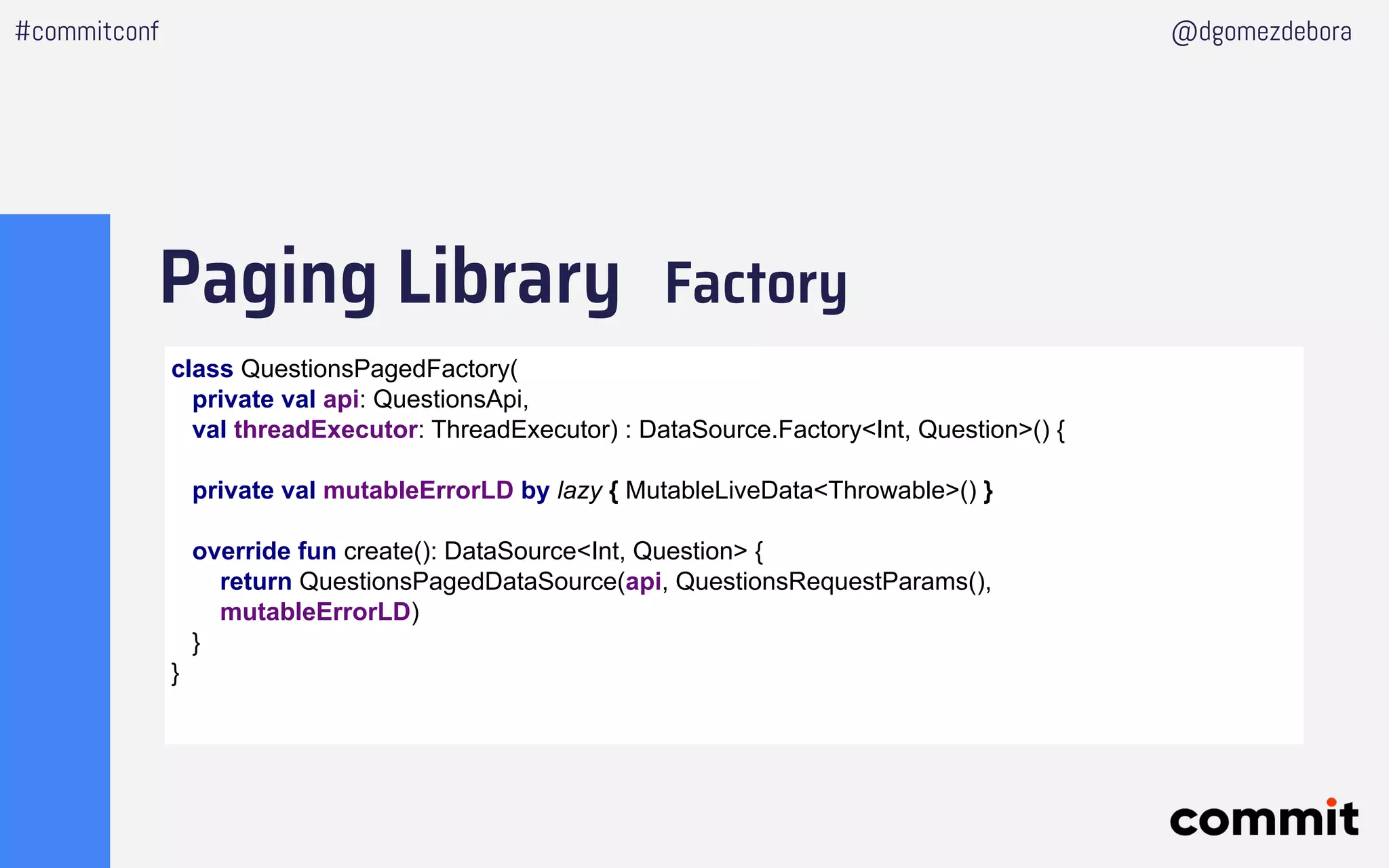

Paging Library Factory
class QuestionsPagedFactory(
private val api: QuestionsApi,
val threadExecutor: ThreadExecutor) : DataSource.Factory<Int, Question>() {
private val mutableErrorLD by lazy { MutableLiveData<Throwable>() }
override fun create(): DataSource<Int, Question> {
return QuestionsPagedDataSource(api, QuestionsRequestParams(),
mutableErrorLD)
}
}

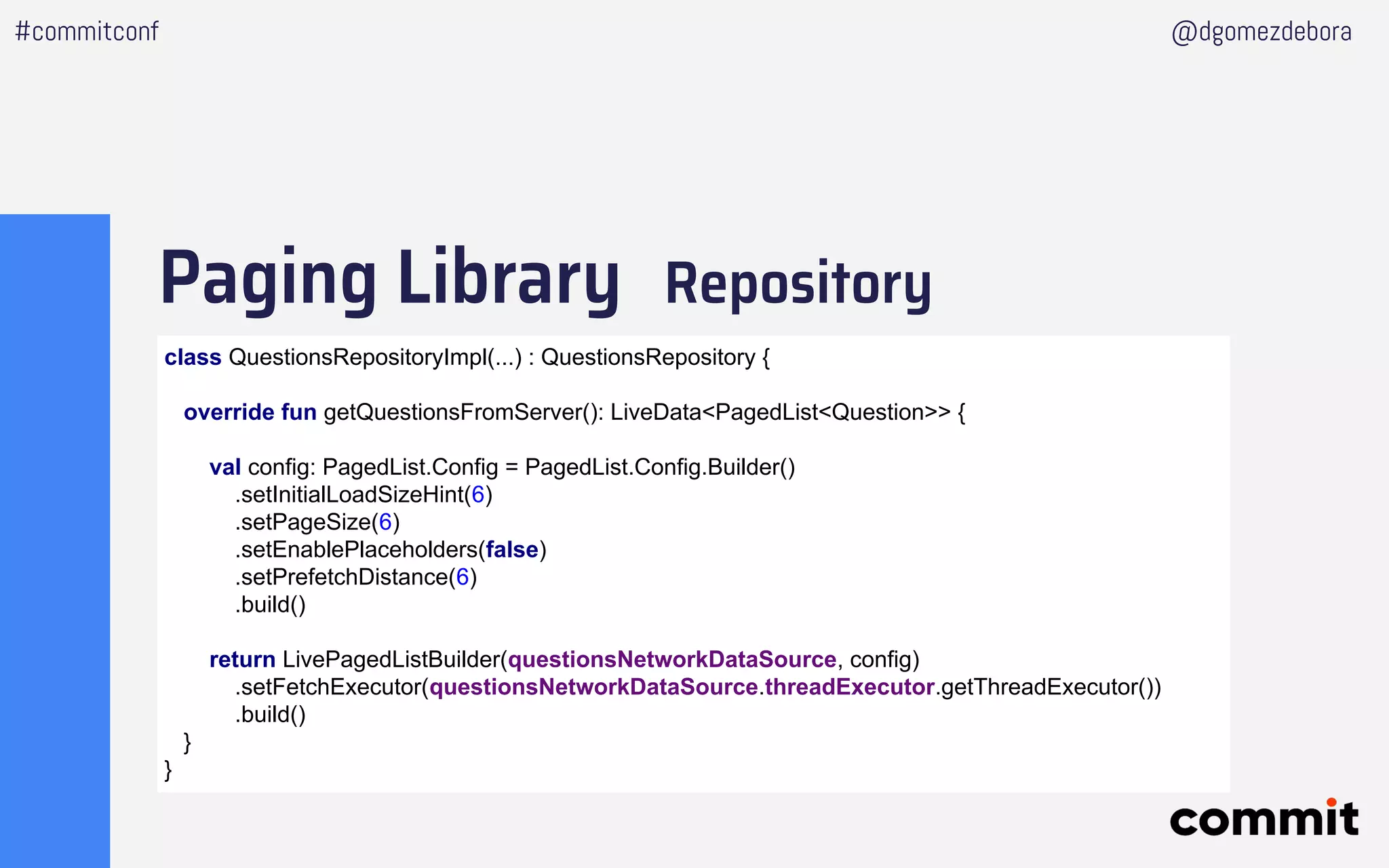

Paging Library Repository
class QuestionsRepositoryImpl(...) : QuestionsRepository {
override fun getQuestionsFromServer(): LiveData<PagedList<Question>> {
val config: PagedList.Config = PagedList.Config.Builder()
.setInitialLoadSizeHint(6)
.setPageSize(6)
.setEnablePlaceholders(false)
.setPrefetchDistance(6)
.build()
return LivePagedListBuilder(questionsNetworkDataSource, config)
.setFetchExecutor(questionsNetworkDataSource.threadExecutor.getThreadExecutor())
.build()
}
}

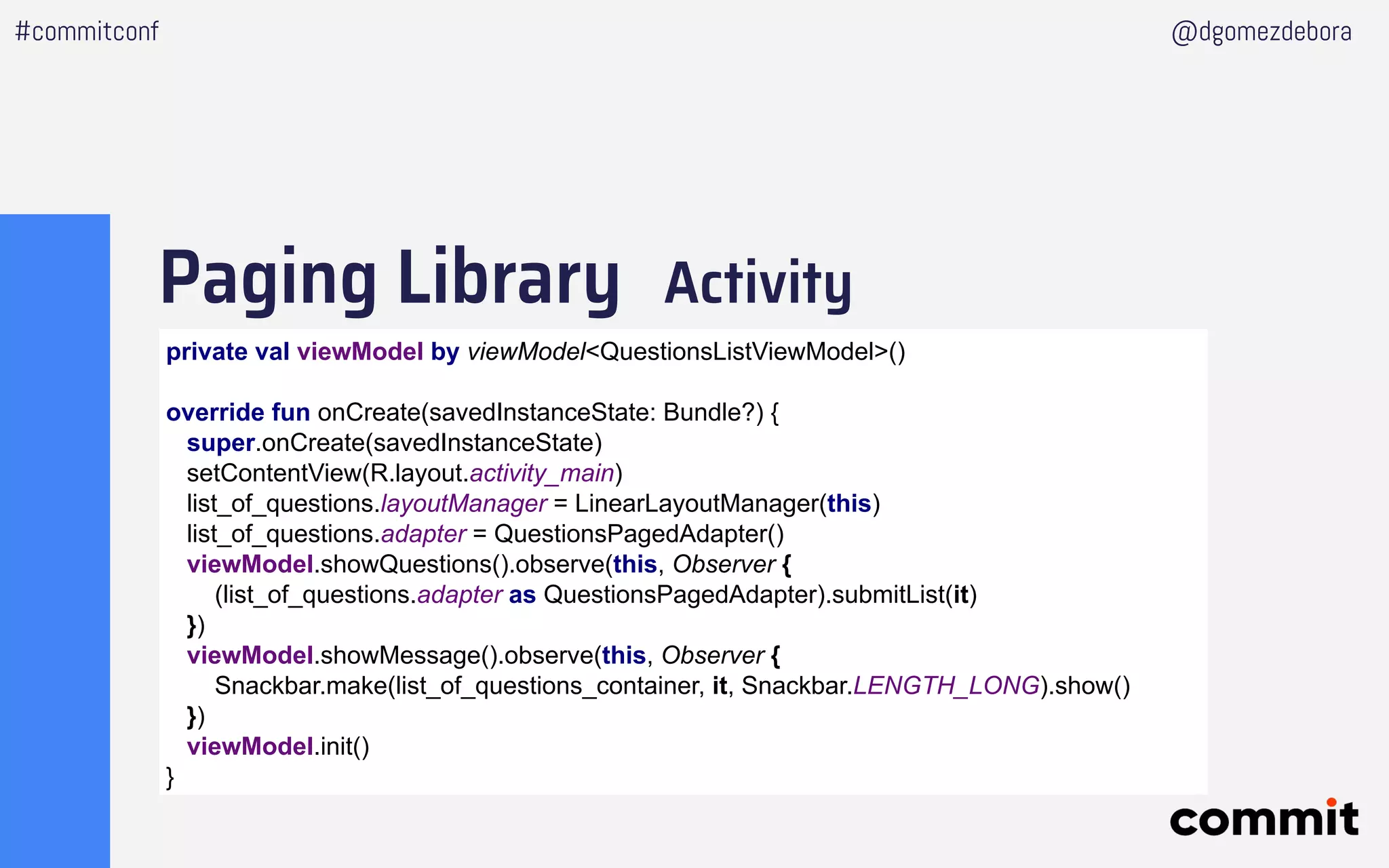

Paging Library Activity
private val viewModel by viewModel<QuestionsListViewModel>()
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
list_of_questions.layoutManager = LinearLayoutManager(this)
list_of_questions.adapter = QuestionsPagedAdapter()
viewModel.showQuestions().observe(this, Observer {
(list_of_questions.adapter as QuestionsPagedAdapter).submitList(it)
})
viewModel.showMessage().observe(this, Observer {
Snackbar.make(list_of_questions_container, it, Snackbar.LENGTH_LONG).show()
})
viewModel.init()
}

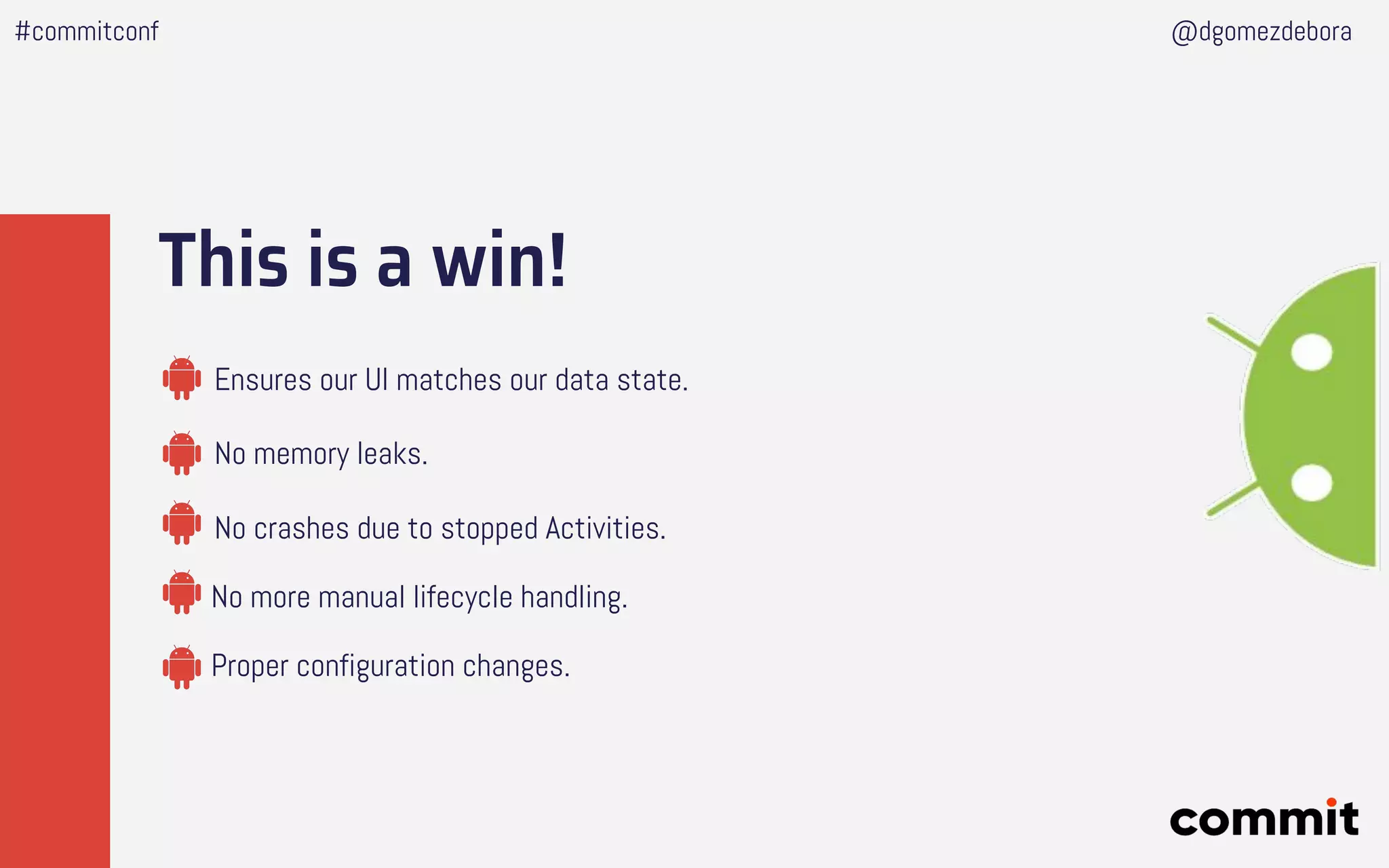

This is a win!
No memory leaks.
Ensures our UI matches our data state.
No crashes due to stopped Activities.
No more manual lifecycle handling.
Proper configuration changes.

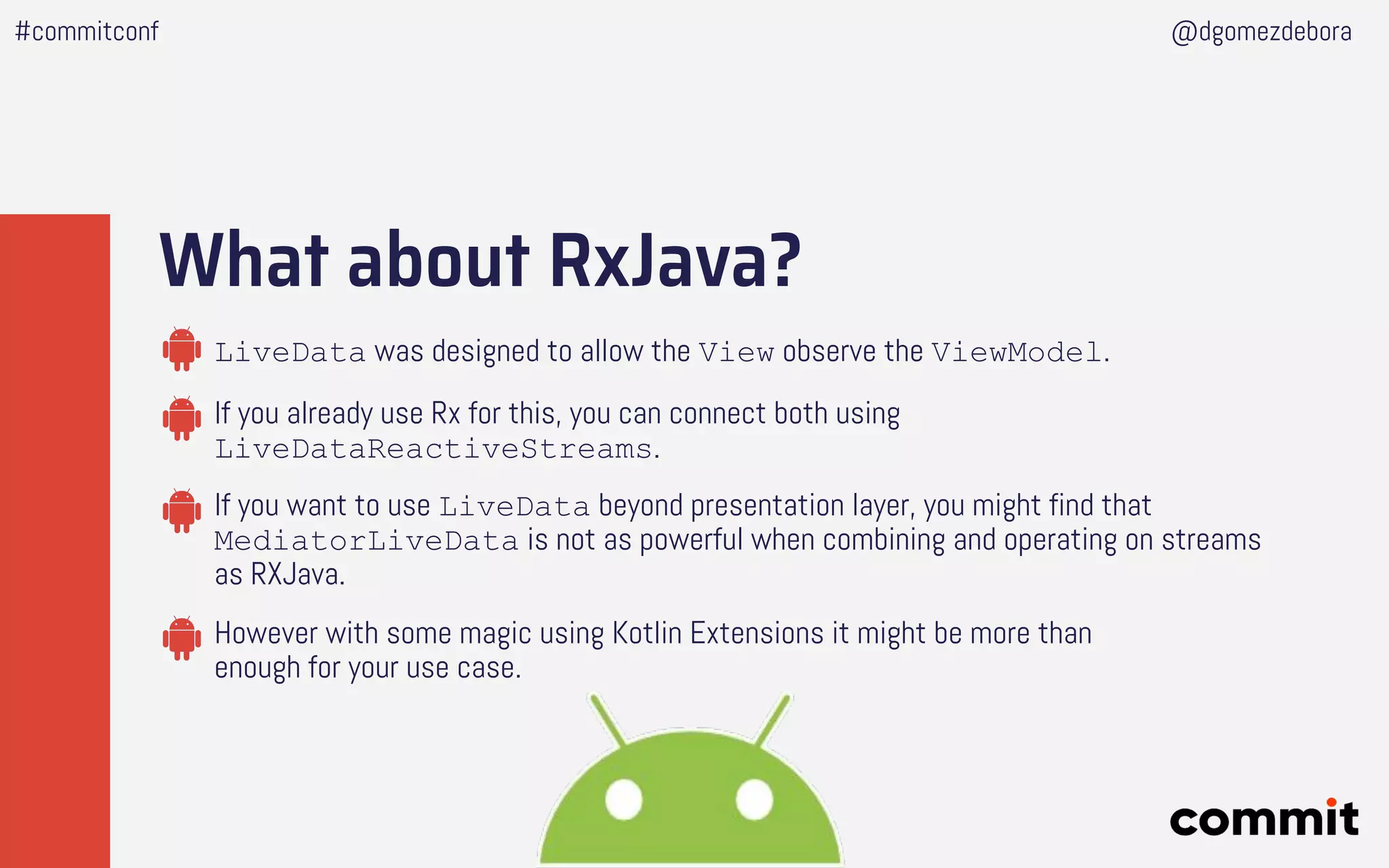

What about RxJava?
If you already use Rx for this, you can connect both using
LiveDataReactiveStreams.
LiveData was designed to allow the View observe the ViewModel.
If you want to use LiveData beyond presentation layer, you might find that
MediatorLiveData is not as powerful when combining and operating on streams
as RXJava.
However with some magic using Kotlin Extensions it might be more than
enough for your use case.

Thanks!
#commitconf
https://github.com/dgomez-developer/qa-client
dgomez.developer@gmail.com
@dgomezdebora
www.linkedin.com/in/deboragomezbertoli

Cleaning your architecture with android architecture components

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Cleaning your architecture with android architecture components

Similar to Cleaning your architecture with android architecture components (20)

Cleaning your architecture with android architecture components
