Over 9000: JRuby in 2015
The document discusses JRuby 9000, highlighting its compatibility with Ruby 2.2 and improvements such as a new optimizing runtime and better concurrency support. It outlines challenges in concurrency, language integration, and performance, while also emphasizing the benefits of using JRuby over MRI for certain tasks. The presentation also touches on future enhancements for language and library integration, alongside JVM tooling capabilities.
More Related Content
Over 9000: JRuby in 2015
- 1.
- 2. Me • Charles OliverNutter • headius@headius.com • @headius • Red Hat

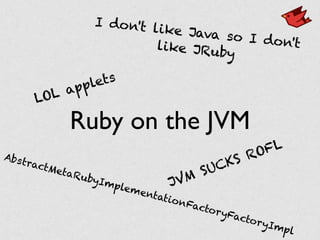

- 4. Ruby on theJVM JVM SUCKS ROFL AbstractMetaRubyImplementationFactoryFactoryImpl I don't like Java so I don'tlike JRuby LOL applets
- 5. JRuby is Ruby! onthe JVM... shhh!

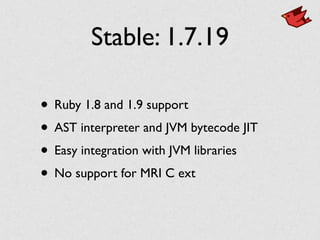

- 6. Stable: 1.7.19 • Ruby1.8 and 1.9 support • AST interpreter and JVM bytecode JIT • Easy integration with JVM libraries • No support for MRI C ext

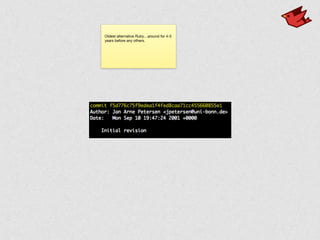

- 7. Oldest alternative Ruby…aroundfor 4-5 years before any others.
- 8. Aaron Patterson Aditya Bhardwaj AkinoriMUSHA Alan Moore Alex Coles Alex Dowad Alex Tambellini Aliaksei Palkanau Aman Gupta Anders Bengtsson Andreas Woess Andrew Grimm Andrew Kiellor Andy Lindeman Anil Wadghule Anoop Sankar Anthony W. Juckel Antoine Toulme Arne Hormann Arun Agrawal Aslak Hellesøy AtsuhikoYamanaka Ben Browning Benoit Cerrina Benoit Daloze Bernerd Schaefer Bernhard Urban Bill Dortch Bob Beaty Bob McWhirter Bob Potter Bohuslav Kabrda Brad Heller Brandur Brian Browning Brice Figureau Bruce Adams Bruno Oliveira Chad Fowler Charles Oliver Nutter Charlie Somerville Chris Andrews Chris Heald Chris Jester-Young Chris Price Chris Seaton Chris Sinjakli Chris White Christian Christian Meier Christoffer Sawicki Clayton O'Neill Clayton Wheeler Colin Jones Conrad Irwin Daniel Azuma Daniel Hahn Daniel Lucraft Daniel Luz Daniel Marcotte Daniel Noll Daniel Pittman Dario Bertini Dave Thomas David Calavera David Corbin David Grayson David Hudson David Kellum David Masover David Pollak Deepak Giridharagopal Dennis Ranke Dmitry Ratnikov Don Schwartz Douglas Campos Dwayne Litzenberger Ed Sinjiashvili Edward Anderson Eric Sendelbach Erik Michaels-Ober Frederic Jean Garrett Conaty Gerard Fowley Gino Lucero Greg Mefford Gustav Munkby Gustavo Frederico Temple Pedrosa Heiko W. Rupp Hiro Asari Hironobu Nishikokura Hiroshi Nakamura Hongli Lai (Phusion) Iain Barnett Ian Dees Isaiah Peng Jacob Evans Jake Goulding James Abley James Pickering Jan Arne Petersen Jan Graichen Jan Xie Jason Karns Jason Staten JasonVoegele Javier Jay Jeff Pace Jeff Simpson Jeff Stone Jeremy Evans Jez Ng Joe Joe Kutner Joey Gibson John Croisant John F. Douthat John Firebaugh John Shahid Jon Zeppieri Jonathan Adams Jordan Sissel Jose Rivera Josef Haider Joseph LaFata Josh Ballanco Josh Matthews Joshua Go Juergen Herzog Kamil Bednarz Karol Bucek Kenichi Kamiya Ketan Padegaonkar Kevin Menard Kohsuke Kawaguchi Koichiro Ohba Konstantin Haase Kouhei Sutou Kristian Meier Kubo Takehiro Kyrylo Silin Lars Westergren Lelon Stoldt Leonardo Borges Lin Jen-Shin Loren Segal Luca Simone Lucas Allan Amorim Malte Swart Manish Marcin Mielzynski Marcin Mielżyński Mark McCraw Mark Rada Mark Triggs Mark Warren Martin Harriman Martin Ott Martin Traverso Mateusz Lenik Matjaz Gregoric Matt Hauck Matt Wilbur Matt Wilson Matthew Denner Matthew Kerwin Matthias Grimmer Maximilian Konzack MenTaLguY Micah Martin Michael J. Cohen Michael Klishin Michael Kohl Michal Papis Mike Dalessio NAKAMURA NARUSE,Yui Naoto "Kevin" IMAI TOYODA Nicholas Jefferson Nick Howard Nick Klauer Nick Klauer (a03182) Nick Muerdter Nick Sieger Ola Bini Ole Christian Rynning Olov Lassus Ori Kremer PabloVarela Patrick Mahoney Patrick Plenefisch Patrick Toomey Paul Brown Paul Mucur Paul Phillips Pekka Enberg Peter Suschlik PeterVandenabeele Phil Smith Philip Jenvey Pierre-Yves Ritschard Pierrick Rouxel Prathamesh Sonpatki Rajarshi Das Rhett Sutphin Rick Ohnemus Riley Lynch Robert Glaser Robin Dupret Robin Message Rohit Arondekar Ron Dahlgren Ryan Blue Ryan Brown Ryan Fowler Sakumatti Luukkonen SamuVoutilainen Satoru Chinen Scott Blum Scott Clasen Seamus Abshere Sebastian Staudt Sebastien Le Callonnec Seth Wright Shugo Maeda Smit Shah Stefan Huber Stefan Matthias Aust Stephen Bannasch Steven Cook Steven Parkes Subramanya Sastry Syver Enstad Sébastien Le Callonnec Ted Pennings Teemu Theo Theo Hultberg Thomas E Enebo Thomas E. Enebo Thomas Enebo Thomas Wuerthinger Tim Felgentreff TobiVollebregt Tobias Crawley Travis Tilley Tristan Hill Unbit Uwe Kubosch Vipul A M Vishnu Gopal Vitor de Lima Vladimir Sizikov Vít Ondruch Wayne Meissner William Thurston Xavier Shay Xb Yoko Harada Yosuke Zach Anker amuino areman arkxu donv elcubo enebo eregon geemus hmalphettes james jc00ke john muhl jonforums josedonizetti kares kiichi kristian lfstad-bren mkristian mohamed peter royal qbproger rdp retnuh rogerdpack rohit ryenus sglee77 simonjsmithuk takeru tduehr the8472 thedarkone timfel tnarik uid41545 unknown wayne williamd wpc yousuke zszugyi
- 10.

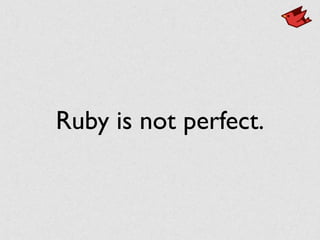

- 11. Ruby is notperfect.
- 12. Sometimes, Ruby isthe wrong tool.
- 13. We can makeRuby the right tool for more jobs.

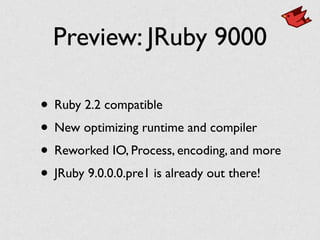

- 15. Preview: JRuby 9000 •Ruby 2.2 compatible • New optimizing runtime and compiler • Reworked IO, Process, encoding, and more • JRuby 9.0.0.0.pre1 is already out there!

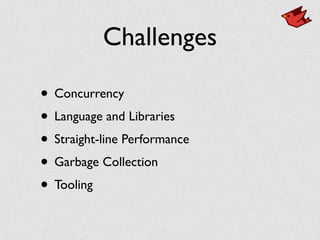

- 16. Challenges • Concurrency • Languageand Libraries • Straight-line Performance • Garbage Collection • Tooling
- 17.

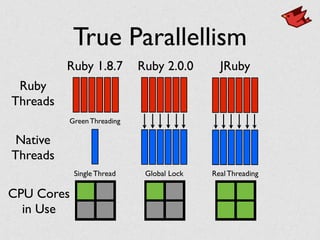

- 18. True Parallellism Ruby Threads Native Threads Ruby 1.8.7Ruby 2.0.0 Green Threading CPU Cores in Use JRuby Global LockSingle Thread Real Threading
- 19. Multicore in MRI 200MBMRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance Ten-way concurrency * 200MB = 2GB

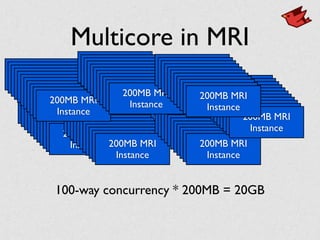

- 20. Multicore in MRI 200MBMRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 100-way concurrency * 200MB = 20GB 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance 200MB MRI Instance

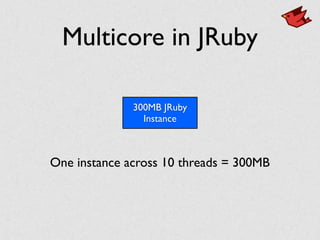

- 21. Multicore in JRuby 300MBJRuby Instance One instance across 10 threads = 300MB

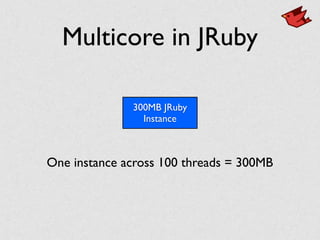

- 22. Multicore in JRuby 300MBJRuby Instance One instance across 100 threads = 300MB
- 23. MRI 1.9.3+, EightThreads
- 24.
- 25.
- 26.
- 27.
- 28.

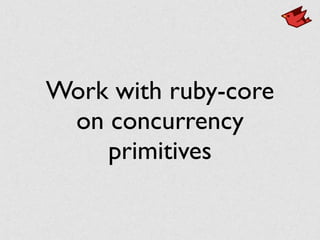

- 29. Work with ruby-core onconcurrency primitives
- 30.

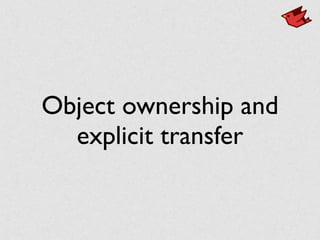

- 31. Object ownership and explicittransfer
- 32.
- 33. In MRI, twochoices
- 34.
- 35.

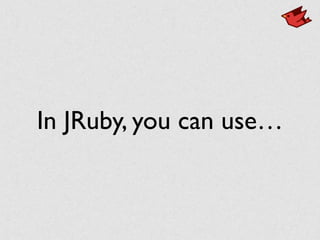

- 36. In JRuby, youcan use…
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.
- 43. And dozens ofothers
- 44. And any language callablewith FFI

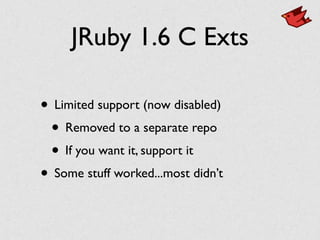

- 45. JRuby 1.6 CExts • Limited support (now disabled) • Removed to a separate repo • If you want it, support it • Some stuff worked...most didn’t

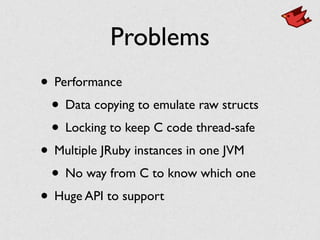

- 46. Problems • Performance • Datacopying to emulate raw structs • Locking to keep C code thread-safe • Multiple JRuby instances in one JVM • No way from C to know which one • Huge API to support
- 47.
- 48. Java Integration • CallJava (Scala, Clojure, ...) from Ruby • Smart mapping of method names • Type conversions as appropriate • Super easy and fun

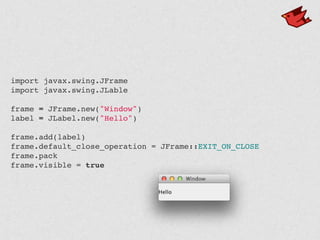

- 49. import javax.swing.JFrame import javax.swing.JLable frame= JFrame.new("Window") label = JLabel.new("Hello") frame.add(label) frame.default_close_operation = JFrame::EXIT_ON_CLOSE frame.pack frame.visible = true
- 50. Java Native Extensions •Similar to C ext for MRI, but with Java • Fast call protocol...basically free • Same GC for all objects • Have to keep in sync if C version too
- 51. @JRubyMethod public IRubyObject each(ThreadContextcontext, Block block) { if (!block.isGiven()) { return enumeratorizeWithSize(context, this, "each", enumLengthFn()); } for (int i = 0; i < realLength; i++) { block.yield(context, safeArrayRef(values, begin + i)); } return this; }
- 52. FFI • Ruby API/DSLfor calling native code • Came from Rubinius • Runs on all Ruby impls • Solves "access" use case • Works well for coarse-grained calls

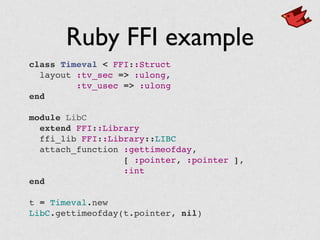

- 53. Ruby FFI example classTimeval < FFI::Struct layout :tv_sec => :ulong, :tv_usec => :ulong end module LibC extend FFI::Library ffi_lib FFI::Library::LIBC attach_function :gettimeofday, [ :pointer, :pointer ], :int end t = Timeval.new LibC.gettimeofday(t.pointer, nil)
- 54.
- 55.

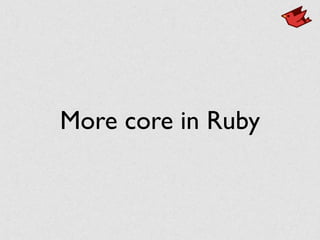

- 56. More core inRuby
- 57.
- 58. Better two-way integration withJVM languages
- 59. Better FFI toolingin JRuby and JVM
- 60.
- 61.
- 62. MRI 1.9 ~2-3x 1.8
- 63. MRI 2.1 ~2-3x 1.9
- 64. Faster than most interpretedlanguages
- 65. Not even closeto compiled/jitted speed

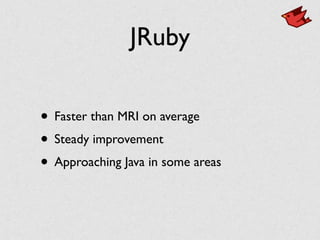

- 66. JRuby • Faster thanMRI on average • Steady improvement • Approaching Java in some areas
- 67. JVM Over Time 0 6 12 18 24 Java1.4 Java 5 Java 6 Java 7 JRuby 1.0.3 (bm_red_black_tree.rb)

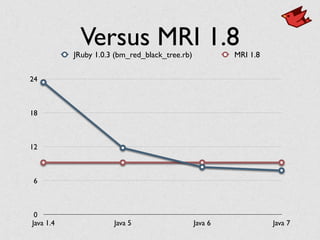

- 68. Versus MRI 1.8 0 6 12 18 24 Java1.4 Java 5 Java 6 Java 7 JRuby 1.0.3 (bm_red_black_tree.rb) MRI 1.8

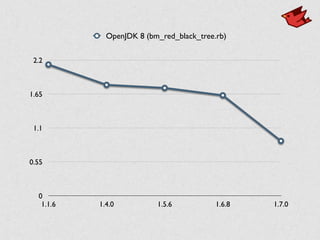

- 69. 0 0.55 1.1 1.65 2.2 1.1.6 1.4.0 1.5.61.6.8 1.7.0 OpenJDK 8 (bm_red_black_tree.rb)

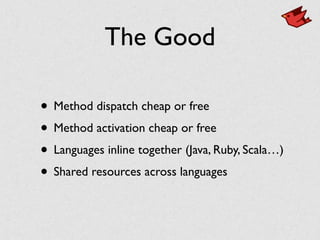

- 70. The Good • Methoddispatch cheap or free • Method activation cheap or free • Languages inline together (Java, Ruby, Scala…) • Shared resources across languages

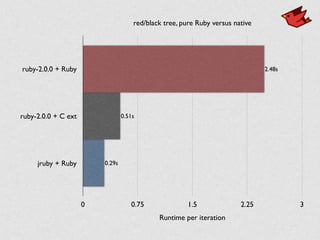

- 71. red/black tree, pureRuby versus native ruby-2.0.0 + Ruby ruby-2.0.0 + C ext jruby + Ruby Runtime per iteration 0 0.75 1.5 2.25 3 0.29s 0.51s 2.48s

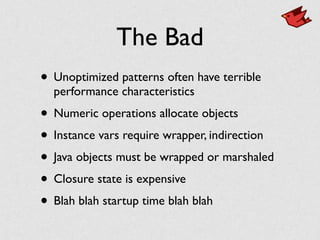

- 72. The Bad • Unoptimizedpatterns often have terrible performance characteristics • Numeric operations allocate objects • Instance vars require wrapper, indirection • Java objects must be wrapped or marshaled • Closure state is expensive • Blah blah startup time blah blah
- 73.

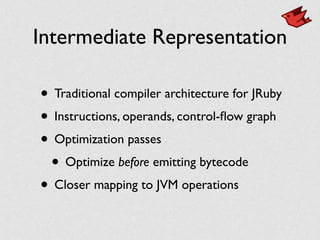

- 74. Intermediate Representation • Traditionalcompiler architecture for JRuby • Instructions, operands, control-flow graph • Optimization passes • Optimize before emitting bytecode • Closer mapping to JVM operations

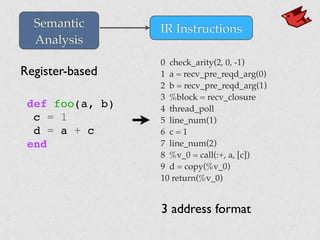

- 75. def foo(a, b) c= 1 d = a + c end 0 check_arity(2, 0, -1) 1 a = recv_pre_reqd_arg(0) 2 b = recv_pre_reqd_arg(1) 3 %block = recv_closure 4 thread_poll 5 line_num(1) 6 c = 1 7 line_num(2) 8 %v_0 = call(:+, a, [c]) 9 d = copy(%v_0) 10 return(%v_0) Register-based 3 address format IR InstructionsSemantic Analysis

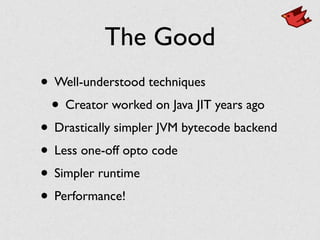

- 76. The Good • Well-understoodtechniques • Creator worked on Java JIT years ago • Drastically simpler JVM bytecode backend • Less one-off opto code • Simpler runtime • Performance!

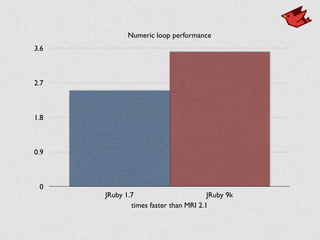

- 77. Numeric loop performance 0 0.9 1.8 2.7 3.6 timesfaster than MRI 2.1 JRuby 1.7 JRuby 9k

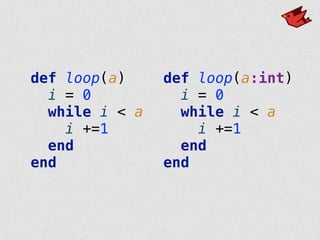

- 78. def loop(a) i =0 while i < a i +=1 end end def loop(a:int) i = 0 while i < a i +=1 end end

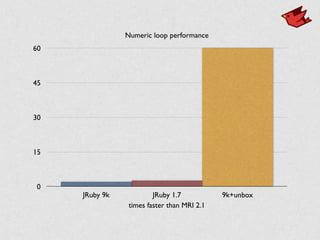

- 79. Numeric loop performance 0 15 30 45 60 timesfaster than MRI 2.1 JRuby 9k JRuby 1.7 9k+unbox

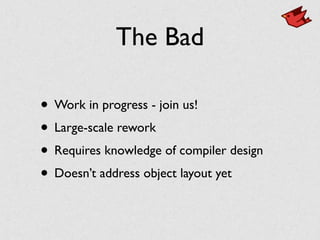

- 80. The Bad • Workin progress - join us! • Large-scale rework • Requires knowledge of compiler design • Doesn’t address object layout yet

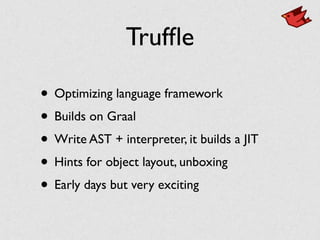

- 81. Truffle • Optimizing languageframework • Builds on Graal • Write AST + interpreter, it builds a JIT • Hints for object layout, unboxing • Early days but very exciting

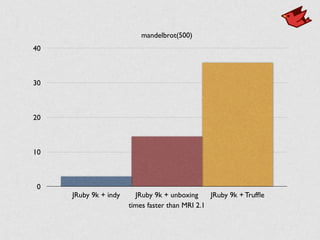

- 82. mandelbrot(500) 0 10 20 30 40 times faster thanMRI 2.1 JRuby 9k + indy JRuby 9k + unboxing JRuby 9k + Truffle
- 83.

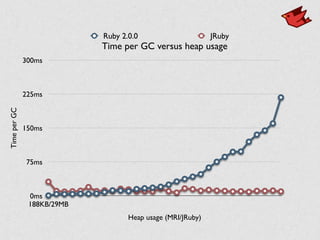

- 84. Time per GCversus heap usage TimeperGC 0ms 75ms 150ms 225ms 300ms Heap usage (MRI/JRuby) 188KB/29MB Ruby 2.0.0 JRuby

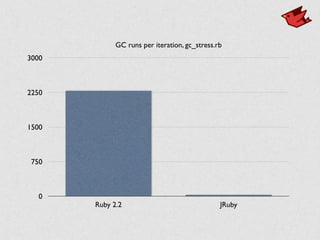

- 85. GC runs periteration, gc_stress.rb 0 750 1500 2250 3000 Ruby 2.2 JRuby

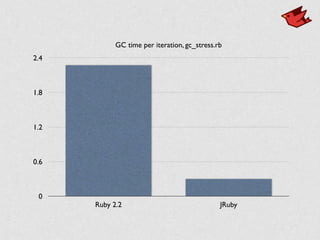

- 86. GC time periteration, gc_stress.rb 0 0.6 1.2 1.8 2.4 Ruby 2.2 JRuby
- 87. Many GCs • Serialcollector • Parallel collector • Concurrent collector (CMS) • Concurrent region collector (G1) • Continuously concurrent collector (Azul)
- 88.
- 89.

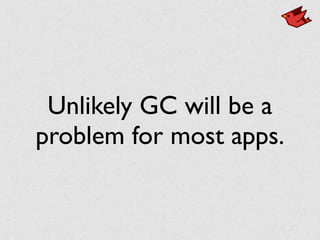

- 90. Unlikely GC willbe a problem for most apps.
- 91.

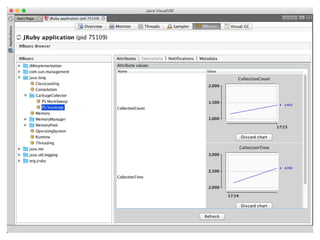

- 92. JVM tools areawesome
- 94.

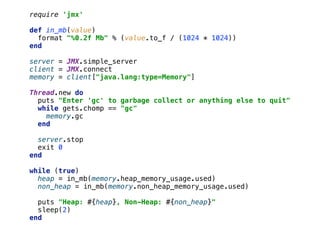

- 97. require 'jmx' def in_mb(value) format"%0.2f Mb" % (value.to_f / (1024 * 1024)) end server = JMX.simple_server client = JMX.connect memory = client["java.lang:type=Memory"] Thread.new do puts "Enter 'gc' to garbage collect or anything else to quit" while gets.chomp == "gc" memory.gc end server.stop exit 0 end while (true) heap = in_mb(memory.heap_memory_usage.used) non_heap = in_mb(memory.non_heap_memory_usage.used) puts "Heap: #{heap}, Non-Heap: #{non_heap}" sleep(2) end

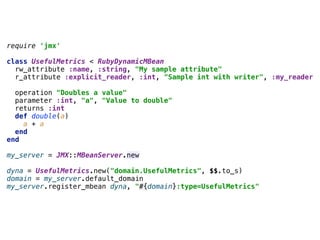

- 98. require 'jmx' class UsefulMetrics< RubyDynamicMBean rw_attribute :name, :string, "My sample attribute" r_attribute :explicit_reader, :int, "Sample int with writer", :my_reader operation "Doubles a value" parameter :int, "a", "Value to double" returns :int def double(a) a + a end end my_server = JMX::MBeanServer.new dyna = UsefulMetrics.new("domain.UsefulMetrics", $$.to_s) domain = my_server.default_domain my_server.register_mbean dyna, "#{domain}:type=UsefulMetrics"

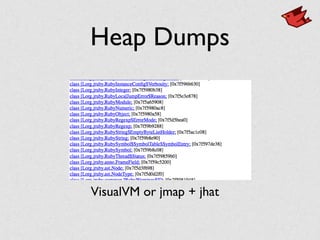

- 99. Heap Dumps VisualVM orjmap + jhat
- 100.
- 101.
- 102.

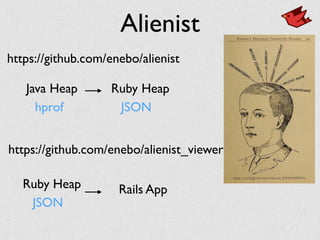

- 103. Alienist Java Heap RubyHeap hprof JSON https://github.com/enebo/alienist_viewer https://github.com/enebo/alienist Ruby Heap JSON Rails App

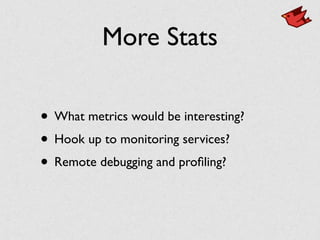

- 104. More Stats • Whatmetrics would be interesting? • Hook up to monitoring services? • Remote debugging and profiling?

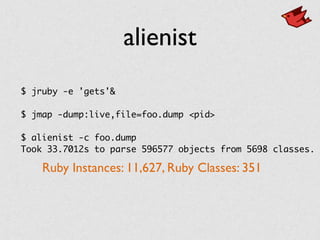

- 105. alienist $ jruby -e'gets'& $ jmap -dump:live,file=foo.dump <pid> $ alienist -c foo.dump Took 33.7012s to parse 596577 objects from 5698 classes. Ruby Instances: 11,627, Ruby Classes: 351

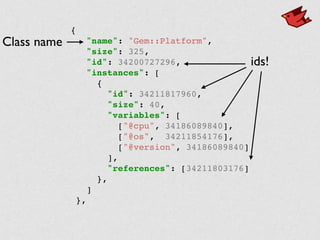

- 106. { "name": "Gem::Platform", "size": 325, "id":34200727296, "instances": [ { "id": 34211817960, "size": 40, "variables": [ ["@cpu", 34186089840], ["@os", 34211854176], ["@version", 34186089840] ], "references": [34211803176] }, ] }, Class name ids!
- 107.
- 108.

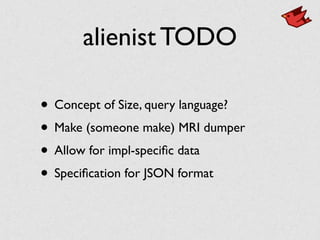

- 109. alienist TODO • Conceptof Size, query language? • Make (someone make) MRI dumper • Allow for impl-specific data • Specification for JSON format
- 110.
- 111. Excluding merges, 24authors have pushed 790 commits to master and 909 commits to all branches. On master, 1,880 files have changed and there have been 69,878 additions and 66,549 deletions.
- 112.
- 113. Use 'jruby-9000' in Rubyinstallers

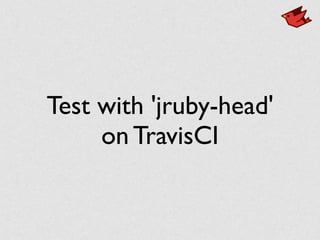

- 114. Test with 'jruby-head' onTravisCI
- 115.
- 116. Help us build Ruby’sFuture!
- 117.
