1. www.immobilienscout24.de
Berlin | 28.04.2016 | Schlomo Schapiro
Systems Architect / Open Source Evangelist
http://creativecommons.org/licenses/by-nd/4.0
Hybrid Cloud
A Cloud Migration Strategy
@schlomoschapiro
go.schapiro.org/slides

2. Why should I care?
The cloud is here - let's
make the best out of it!

4. Our goal is to join
a vibrant technical eco-
system to accelerate our
own innovation speed.

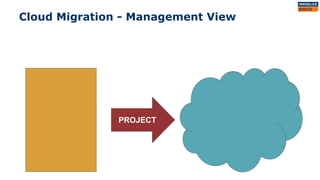

5. PROJECT
Cloud Migration - Management View

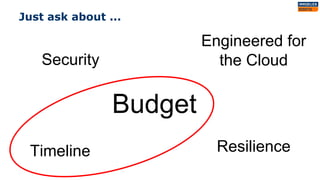

7. Just ask about ...
Timeline
Budget
Engineered for
the CloudSecurity
Resilience

8. Time & Money

9. Data Center Costs
SAN Storage Server Hardware
Server Hardware Core & Rack Switches
SAN StorageBackup Solution
Core & Rack Switchesware Backup Solution
5 years writing off
BUDGET

10. Cloud Costs - Quick Migration
BUDGET
1st
year 2nd
year 3rd
year

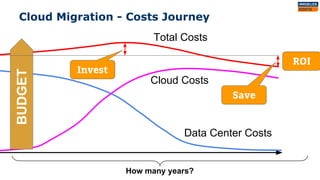

11. Cloud Migration - Costs Journey
Data Center Costs
Cloud Costs
Total Costs
BUDGET
Invest
Save
ROI
How many years?

12. Engineering

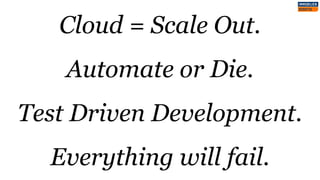

13. Cloud = Scale Out.
Automate or Die.
Test Driven Development.
Everything will fail.

14. Live Staging Play Search User ...

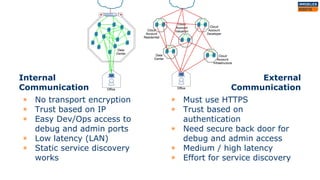

16. Internal
Communication
◉ No transport encryption
◉ Trust based on IP
◉ Easy Dev/Ops access to
debug and admin ports
◉ Low latency (LAN)
◉ Static service discovery
works
External
Communication
◉ Must use HTTPS
◉ Trust based on
authentication
◉ Need secure back door for
debug and admin access
◉ Medium / high latency
◉ Effort for service discovery

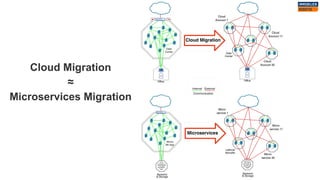

17. Cloud Migration
≈
Microservices Migration

18. Automate
Automate
Automate
Automate
Automate
Automate
Automate

19. Data Center
Hardware Network Storage
Virtualization
Operating System
Application
Configuration
Load Balancer
Automation

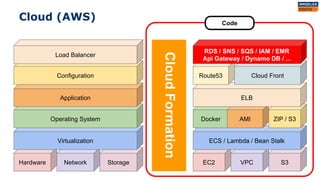

20. Code
Cloud (AWS)
Hardware Network Storage
Virtualization
Operating System
Application
Configuration
Load Balancer
CloudFormation EC2 VPC S3
ECS / Lambda / Bean Stalk
Docker AMI ZIP / S3
ELB
Route53 Cloud Front
RDS / SNS / SQS / IAM / EMR
Api Gateway / Dynamo DB / ...

21. Resilience

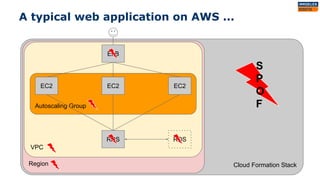

22. Cloud Formation StackRegion
VPC
RDS
A typical web application on AWS ...
Autoscaling Group
EC2 EC2 EC2
ELB
RDS
S
P
O
F

23. More resilience
Cloud Formation Stack
Region
VPC RDS
Autoscaling Group
EC2 EC2 EC2
ELB
RDS
Cloud Formation Stack
Region
VPC RDS
Autoscaling Group
EC2 EC2 EC2
ELB
RDS

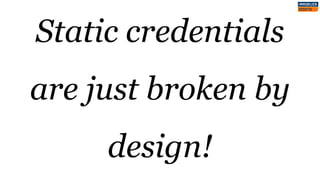

25. Static credentials
are just broken by
design!

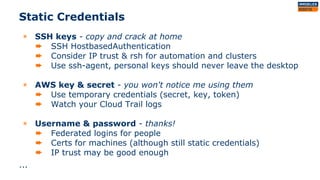

26. Static Credentials
◉ SSH keys - copy and crack at home
➨ SSH HostbasedAuthentication
➨ Consider IP trust & rsh for automation and clusters
➨ Use ssh-agent, personal keys should never leave the desktop
◉ AWS key & secret - you won't notice me using them
➨ Use temporary credentials (secret, key, token)
➨ Watch your Cloud Trail logs
◉ Username & password - thanks!
➨ Federated logins for people
➨ Certs for machines (although still static credentials)
➨ IP trust may be good enough
...

27. Private
Connec-
tion to DCNo
Authenti-
cation
Perimeter
Security
Blind
Trust
Firewall
=
Security
Federated
employee
login
Watch logs
for anomalies
App is fully
responsible
for security
Jump host for
dev & admin
access
Local firewalls
everywhere,
explicit access
only.
AWS:
Security Groups

28. Service⇔Service
Communication
over public Internet
HTTPS only. Setup
identity management
for services (OAuth2)

29. Hybrid
Cloud

30. Hybrid Cloud?
My Virtual Machine / Docker Container
can run on premise or in the cloud.
1
Use the best tool for the job:
Some apps run better on premise and
some apps benefit more from the cloud.
Embrace Cloud services as part of our
applications and integrate with them.
2

31. Hybrid Cloud Comparison
Run VMs/Docker anywhere
+ No vendor lock in
+ Write once, run anywhere
+ Easily support multiple
platforms
+ Unified tooling over all
platforms
+ Unified tooling also for data
center hosting
+ Shift workloads based on
cost and demand
Use best tool for the job
+ Benefit from external
innovation
+ Ready-made services instead
of roll-your-own
+ "Serverless" applications
+ Significantly reduce OPS
+ Use platform migration to
refactor applications
+ Costs scale well with
application usage
+ Small things are very cheap
+ More options to optimize costs

32. 80% 20%
Benefit Work
Work Benefit
AWS Managed
Services
VM Hosting
(EC2, ECS)

33. Cloud
Enablement

34. A Cloud Migration Strategy
1. Establish Cloud platform besides data center
2. Integrate Cloud platform with data center
3. Build new applications into the cloud
4. Migrate existing services into the cloud
5. Repeat until done

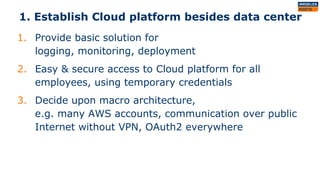

35. 1. Establish Cloud platform besides data center
1. Solve common problems:
security, compliance and cost control
2. Provide basic solution for
logging, monitoring, deployment
3. Easy & secure access to Cloud platform for all
employees, using temporary credentials
4. Decide upon macro architecture,
e.g. many AWS accounts, communication over public
Internet without VPN, OAuth2 everywhere

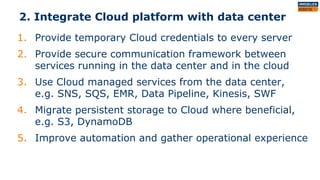

36. 2. Integrate Cloud platform with data center
1. Provide temporary Cloud credentials to every server
2. Provide secure communication framework between
services running in the data center and in the cloud
3. Use Cloud managed services from the data center,
e.g. SNS, SQS, EMR, Data Pipeline, Kinesis, SWF
4. Migrate persistent storage to Cloud where beneficial,
e.g. S3, DynamoDB
5. Improve automation and gather operational experience

37. 3. Build new applications into the cloud
1. Learn working with full stack responsibility
2. Learn how to architect and develop to benefit
from cloud platform
3. Learn how to optimize development and
operational costs
4. Improve automation and gather operational
experience

38. 4. Migrate existing services into the cloud
1. Keep total cost (data center + cloud) in check,
e.g. prioritize service migrations by data center
hardware replacement / investment plan
2. Prioritize cloud migration against feature development
3. Migrate application into Cloud together with new feature
4. Improve automation and gather operational experience

39. 5. Repeat until done
1. After the migration is before the next migration,
e.g. to the next Cloud platform
2. "Remaining" services in data center have to pay for all
the data center
3. Optimize between costs and availability requirements
4. Improve automation and gather operational experience
…
…
…
5. Always change the running system

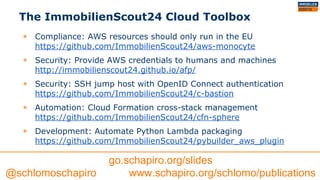

40. The ImmobilienScout24 Cloud Toolbox

41. The ImmobilienScout24 Cloud Toolbox
◉ Compliance: AWS resources should only run in the EU
https://github.com/ImmobilienScout24/aws-monocyte
◉ Security: Provide AWS credentials to humans and machines
http://immobilienscout24.github.io/afp/
◉ Security: SSH jump host with OpenID Connect authentication
https://github.com/ImmobilienScout24/c-bastion
◉ Automation: Cloud Formation cross-stack management
https://github.com/ImmobilienScout24/cfn-sphere
◉ Development: Automate Python Lambda packaging
https://github.com/ImmobilienScout24/pybuilder_aws_plugin
go.schapiro.org/slides
@schlomoschapiro www.schapiro.org/schlomo/publications
