This document provides information about various types of textile machines from a university department of textile engineering. It describes circular knitting machines, jacquard machines, and frames for different applications. The machines have various features like diameters of 30-36 inches, speeds of 20-36 RPM, and capabilities to produce interlock, jacquard, or rib fabrics with different numbers of feeds or colors. Specifications are provided for individual machines along with descriptions of standard equipment and optional accessories.

1. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
1

2. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
WWW.ORIZIOsrl.COM
2

3. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
• Introduction
• History
• Location
• Customer care in
Bangladesh.
3

4. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
4

5. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
5

6. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
•
•
•
•
Production
versatility
Equipment
specification
6

7. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Features:
 High production
 Massive quality
 Cleaning system
 Yarn measuring device
 Feeding
 Frame type
 specification
7

8. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Features:
• Produce 4 cam track jersey
• Positive feeding
• Types of yarn carriage
• Cleaning system
• Types of creel
• specification
8

9. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Double jersey circular machine is used for the production of fabric with points
for rib and interlock stripers to 5 colors and 4 electronic traces on the cylinder
and two on the plate.
Optional accessories:
• Elastomeric yarns kit.
• ORISTRIPER programmer software.
• MEMMINGER K20L1 units.
9

10. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
•
•
•
•
•
•
Four cam track on the cylinder and two on the dial.
Needle selection by three ways.
Diameter is about 30-34 inch's.
Peripheral speed 1,20 mt/second.
R.P.M of the cylinder is about 23.
Produce rib and interlock basic structure.
10

11. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Feature of MJD-C:
• MJD-C machine is more versatile.
• The Machine has large diameter 30”-36”.
• The machine gauge is normally used 14-28
needles per inch.
• Maximum R.P.M of this machine 25/22.
• Peripheral speed of the machine 1.0 mt/sec
• It has 72-84 feeders.
• The production of the machine is mini jacquard
fabrics.
11

12. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
• Eight-lock double knit circular knitting machine for the production of
interlock and interlock fabric based structures on 4 + 2 cam tracks.
Optional accessories:
• Elastomer kit
• Cams for the production of various stitches
• Circular creel with or without yarn air threading
device
• Side creel with automatic yarn air threading
device
• Yarn measuring device
12

13. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
13

14. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
DEPLIANT CO5N
Standard equipment:
• Storage type positive yarn feeding
system.
• Cylinder and dial needles automatic
lubrication by means of an impulse oiler.
• Cleaning system for cylinder and dial
needles, also for yarns passages.
• Modular side creels, double-tie, fully
tubed. Micrometrical stitch adjustment at
each feed.
• Cams placed on two races on both
cylinder and dial, for the production of
Punto Roma and Interlock.
14

15. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Diameter
Gauge
R.P.M (Max)
Peripherical
speed mt/ sec
Number of
feeders
30 inchs
16
18
20
22
24
26
28
30/32
1,20
72
34 inchs
16
18
20
22
24
26
28
24/26
1,20
82
15

16. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Feature:
• Diagnostic warning signals.
• RPM limitable from pattern.
• Setting of take-down percentage.
• Selection and setting of the RESET pattern.
• Automatic needles and sinkers lubrication
• Cleaning system on needles, sinker and yarn
passages by combined compressed air and
fans
• Open latch kit for drop-stitch designs
• Actuators for the needle-by-needle selection
in the three way technique
16

17. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Specification:
Fabric pattern:
17

18. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Versatility:
 Machine with 1,5 feeds per diametrical inch.
 Double nib sinkers, electronically selected on three
ways technique give the possibility to knit at the
same feed.
 Modular, double-tie side creels.
 Needles and sinkers automatic lubricator.
18

19. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
specification:
Fabric pattern:
19

20. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Electronic Double Jersey(Depliant MJD-CE)
Standard equipment:
•Positive feeding
units IRO-SFE.
•Cylinder and dial needles automatic
lubrication by means of an impulse
oiler.
• Cleaning system for cylinder and
dial needles, also for yarns passages.
•Dial camming set on Interlock and
for 2-3-4 colours Jacquards.
•Modular side creels, double-tie, fully
tubed.
20

21. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Specification:
Fabric pattern:
21

22. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering

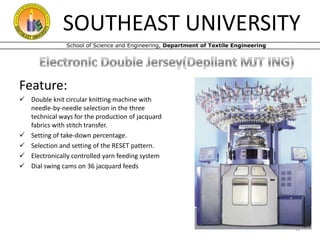

Feature:
 Double knit circular knitting machine with
needle-by-needle selection in the three
technical ways for the production of jacquard
fabrics with stitch transfer.
 Setting of take-down percentage.
 Selection and setting of the RESET pattern.
 Electronically controlled yarn feeding system
 Dial swing cams on 36 jacquard feeds
22

23. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Specification:
Fabric pattern:
23

24. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Frame (Basamento-chiuso)
• Feature of ALTO high frame:
• The machine diameter is
normally used 24-36 inchs.
• Maximum fabric width is
450 mm.
• Speed of the machine is 36.
• Maximum fabric roll is 900
mm.
• Space required with creel is
4700x3600.
24

25. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering

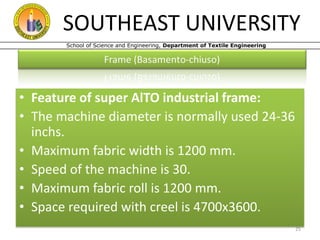

• Feature of super AlTO industrial frame:
• The machine diameter is normally used 24-36
inchs.
• Maximum fabric width is 1200 mm.
• Speed of the machine is 30.
• Maximum fabric roll is 1200 mm.
• Space required with creel is 4700x3600.
25

26. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
Frame (Basamento)
Feature:
26

27. SOUTHEAST UNIVERSITY
School of Science and Engineering, Department of Textile Engineering
27
