Create customized dashboards for non-local or remote servers data using the ords service. The complete description on youtube : https://www.youtube.com/watch?v=ueioHTdMMDA
Human Factors of XR: Using Human Factors to Design XR Systems
Oracle restful api & data live charting by Oracle Apex - داشبورد آنلاین (داده ی غیر محلی)
1. Introduce ORDS and Data Live Charting
Project by this service
Mahdi Ahmadi

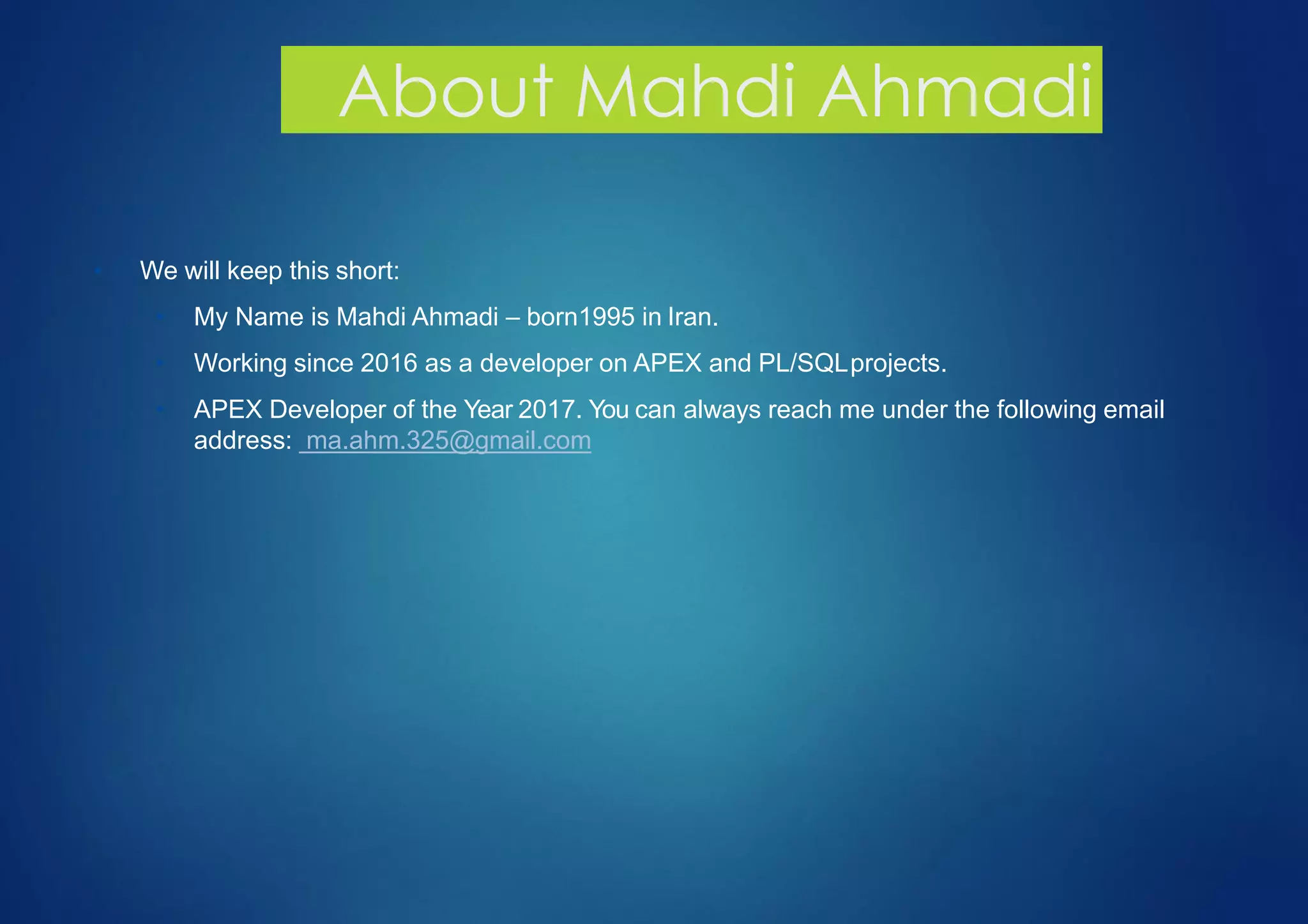

2. About Mahdi Ahmadi
• We will keep this short:
• My Name is Mahdi Ahmadi – born1995 in Iran.
• Working since 2016 as a developer on APEX and PL/SQLprojects.
• APEX Developer of the Year 2017. You can always reach me under the following email
address: ma.ahm.325@gmail.com
3. ■ Why using ORDS?
■ Things to consider
■ Understanding the Architecture
■ Rest Data Live Charting
Agenda
5. Why ORDS ??
▪ Oracle REST Data Services (ORDS) is a Java EE-based alternative
for Oracle HTTP Server (OHS) and mod_plsql.
▪ The Java EE implementation offers increased functionality including
command line based configuration, enhanced security, file caching
and RESTful Web Services.
▪ Oracle REST Data Services also provides increased flexibility by
supporting deployments using Oracle WebLogic Server, Oracle
Glassfish Server, Apache Tomcat, and a standalone mode.
6. This is my Resource page for Oracle REST Data Services (ORDS),
formerly known as the APEX Listener.
ORDS doesn’t require APEX, and you can run APEX without
ORDS. My posts here concentrate on core ORDS features,
generally REST enabling your Oracle Database.
ORDS is our middle tier JAVA application that allows you to access
your Oracle Database resources via REST. In the tiniest and
simplest of nutshells, GET|POST|PUT|DELETE|HEAD /db_stuff/ –
ORDS maps a URI to something in your Oracle Database (a query,
an object, an anonymous block, etc.), runs the appropriate
SQL/PLSQL, and returns any output as JSON.
7. By using a stateless protocol and standard operations, REST
resources are created to optimize for fast performance, reliability,
portability, and growth. This is achieved by creating reusable
underlying components that can be managed and updated without
affecting the system, even while REST is running.
RESTful services, is divided into two sections: Consuming RESTful
services and Providing RESTful services.
While consuming RESTful Services uses the standard HTTP
operations, processing the data returned through a RESTful service
is different. Oracle Application Express 18.1 provides a
comprehensive set of components to make consuming RESTful
services easier.
8. MANAGE ORDS FROM YOUR TERMINAL, VIA PL/SQL APIS, OR OUR GUI IN SQL DEVELOPER.
9. ▪ If using a setup with Oracle RDS, you can provide RESTFul Web
Services using APEX Builder interface.
▪ If using Oracle RDS, you can use native Excel file upload in your
APEX applications by extending the defaults.xml file:
<properties>
...
<entry key="apex.excel2collection">true</entry>
<entry key="apex.excel2collection.onecollection">true</entry>
<entry key="apex.excel2collection.name">EXCEL_COLLECTION</entry>
<entry key="apex.excel2collection.useSheetName">true</entry>
</properties>
10. Why this kind of setup at all?
▪ Infrastructure for Oracle APEX production environments often poorly
configured:
▪ Still use the embedded PL/SQL gateway
▪ ORDS connection pool not properly configured
▪ People find it hard to implement the recommended setup with an
Apache http server and ORDS, because it seems to be complicated
▪ My personal interest:
▪ Want to have a step-by-step guide to implement the recommended
architecture
▪ Want to have a presentation to educate my clients regarding the
architecture and the best setup
11. ▪ Download Oracle REST Data Services (ORDS) here:
▪ http://www.oracle.com/technetwork/developer-tools/rest-data-
services/downloads/index.html
▪ Download Glassfish here:
▪ http://www.oracle.com/technetwork/java/javaee/downloads/ogs-3-1-
1-downloads-439803.html
▪ You will need Java installed on your server, in order to configure ORDS
▪ Download Tomcat (newest version) here:
▪ http://tomcat.apache.org/
Prerequisites
13. Understanding the Architecture
Representational State Transfer, or REST, is an architecture used
for Web Services that is rapidly becoming an important standard for
Web data access. RESTful Web Services operates over HTTP/S
frequently in the form of a set of data. Oracle REST Data Services
provide a RESTful interface to data and logic in an Oracle Database
and was formerly known as “Oracle APEX Listener”.
Installed into any J2EE compliant Web Server such as Apache
Tomcat or Weblogic, Oracle REST Data Services provide Explorer
with the ability to open up APEX applications to external and remote
data sources and tightly integrate applications.
15. http http JDBC
Oracle
Browser Webserver PL/SQL Gateway Oracle DB
Serve static files
SSL termination
Cache / Proxy
Translate URL
/ords/f?p=100:1
=>
APEX:
Execute Logic
https AJP SQLNet
Compression
...
call to stored
procedure
&
Generate HTML
Apache Http Server,
Nginx,
IIS / Windows
Apache Tomcat,
Oracle XML DB
ORDS
mod_plsql
dbms_epg
...
Oracle 11.1.0.7
and higher
Oracle XE 11g
Understanding the Architecture
16. ▪ The WORK is done IN THE DATABASE
▪ The Webserver and PL/SQL gateway don’t need a lot of
processing power, most of the time idle
17. ▪ The components in this presentation:
▪ Windows 8 64 bit (virtual machine)
▪ ORDS 3.0
▪ Oracle XE 11g
▪ APEX 5.0.0
18. saTESnt Reurrncoo cgdinoracceSi
sona iepoTSERor aol fopnoectnonCTSRE
)4.2.2+XEPAhwiR (ESU_CLIBUP_STERX_EPA
002400_XEPy Aorosipeom rs fnon tDe iTESs RdaReads RES Definitions from repository APEX 040200e
+)24.2.XEPAhwitR (ENETLISX_EPAPEX_LISTENER( WITH APEX 4.2.2+)
OPTIONALLY installed
when using
REST services
APEX_PUBLIC_USER
APEX / OWA main connection pool
Size according to number of concurrent apex users
i
t
ORDS2.0
r t
z
i ll
t c ll
■ Users APEX_LISTENER and APEX_REST_PUBLIC_USER were
created using the script apex_rest_config.sql as part of the
APEX installation.
19. R:ESU_CLIBPU_TSER_XEPA
ndaRENTESLI_XEPAsersuehor td feenehst te iserhyntleurrC
ORDS3.0
■ ORDS 3.0 support RESTful Webservices even without APEX
APEX_PUBLIC_USER
APEX / OWA main connection pool
Size according to number of concurrent apex users
ORDS_METADATA
Stores REST Definitions
ORDS_PUBLIC_USER
REST Connection pool for all REST operations
Size according to concurent REST calls
■ t ill
■ The new download of static application files and static workspace files require it
■ So that you can continue to use the management interface in the SQL
Workshop (else you have to use SQL Developer)
20. They get copied over from APEX_050000 =>
ORDS_METADATA
Now they exist in two places redundantly
In this situation the definition stored in
ORDS_METADATA “wins” over the definition stored in
APEX
Through the management interface in APEX you still
manage the “OLD”
■ Should we migrate the existing RESTful definitions in our APEX environment?
■ => !!! NO !!!
■ What happens?
definition
■ This is too confusing, thus:
■ Keep the definitions separate
■ Either create new ones with SQL Dev directly or still using the SQL Workshop in
APEX
22. Purpose of this app
The science of statistics is one of the branches of mathematical science that studies
and analyzes statistical data. The statistical data is a collection of numbers that are
derived from measurements and counting
Different planning in social and economic affairs is not possible without the use of
statistics and statistical analysis. Collection and adjustment of data is the first stage
in statistical studies
Charts are images that can quickly access existing information; you've heard that a
good image worth a thousand words. By looking at a graph at a glance, you can see
many features of a set of information. Today, the use of charts is very common.
Graphs or curves show numerical and statistical information on a regular basis and
map the relationship between two or more factors
23. Type Of Charts :
You can put all sorts of charts in a few categories: linear, columnar, circular, and
gauge.
There are other types, but the basis of each of them is more and less in the form
of one of three categories. For example, a graphic illustration of images of
individuals and objects in relation to one of the three categories mentioned above.
24. JET Charts in Application Express 5.1
One of the most-mentioned new features in Application Express 5.1 are the new charts
based on Oracle JET. JET is the abbreviation for Javascript Extension Toolkit. It is
targeted at intermediate to advanced JavaScript developers working on client-side
applications. It's a collection of open source JavaScript libraries along with a set of
Oracle contributed JavaScript libraries that make it as simple and efficient as possible
to build applications that consume and interact with Oracle products and services,
especially Oracle Cloud services
Oracle JET contains a lot of components
for data visualization - and these are the
foundation for the new chart types in
Application Express 5.1. Note that not all
JET visualizations are available as
Application Express charts (at least at this
time)
25. Describe Data Live Charting : Add Rest Services
This application enables you to access RESTful services defined in your
workspace as well as public services. The application provides metadata-driven
mapping from service response data to SQL result set columns. Generated SQL
and PL/SQL code can be and used in own applications.
The examples in this application illustrate how to create a simple report on REST
service data, how to filter, and how to add pagination. REST data can also be
downloaded as csv file and staged into a local table for further processing,
analysis, usage and creating customized any type of charts by Oracle Application
Express components.
26. As shown in the below screenshots, you must do the following to get the data
associated with the service:
Naming the service and giving information related to its authentication
Getting data in the selected response type
Selecting the desired columns
Selecting the service created and getting relevant data
27.
28. By adjusting and setting values in the “Chart Settings” section to any of the chart types,
you can have dashboard like below images.
29. Describe Data Live Charting : Page Settings
Each chart type has its own customizable item in “Chart Setting” section
For example : Orientation, Label, Value, Aggregation, Sort by, Direction,…
and other items settings in Gauge chart type are Value Type, color or value
ranges, …
The values of the selected list for the items listed are completely dynamically
generated, and each one varies depending on the Rest Services.
30.
31. Describe Data Live Charting : Other Settings
In the final section of this professional program we can point out:
Ability to save settings of different type of charts
Ability to save different settings of one type of charts
Ability to select and activate one of the settings you are looking for
Possibility to comment on the settings
…
