This document provides steps to install Oracle Apex, a rapid application development tool, on Oracle 11g Express Edition. It outlines 8 steps including installing Oracle 11g XE, creating a tablespace, unzipping the Apex files, running installation scripts, configuring users and passwords, setting the HTTP port, and accessing Apex in a web browser.

1. Oracle Apex
RAPID APPLICATION DEVELOPMENT TOOLS
Installation and Configuration

2. Oracle Apex Installation (EPG)
Version5.1.4
 Oracle 11g Express Edition (XE)
 Oracle Apex Latest 5.1.04
Requirements

3. Installation Steps
Step 1
 Install oracle 11g XE and Remember Your Password.
 Create Table Space
Create Tablespace Apex_DT
Datafile 'C:oraclexeapporacleoradataXEApex_DT.dbf' SIZE 2048M
EXTENT MANAGEMENT LOCAL
SEGMENT SPACE MANAGEMENT AUTO;
1

4. Installation Steps

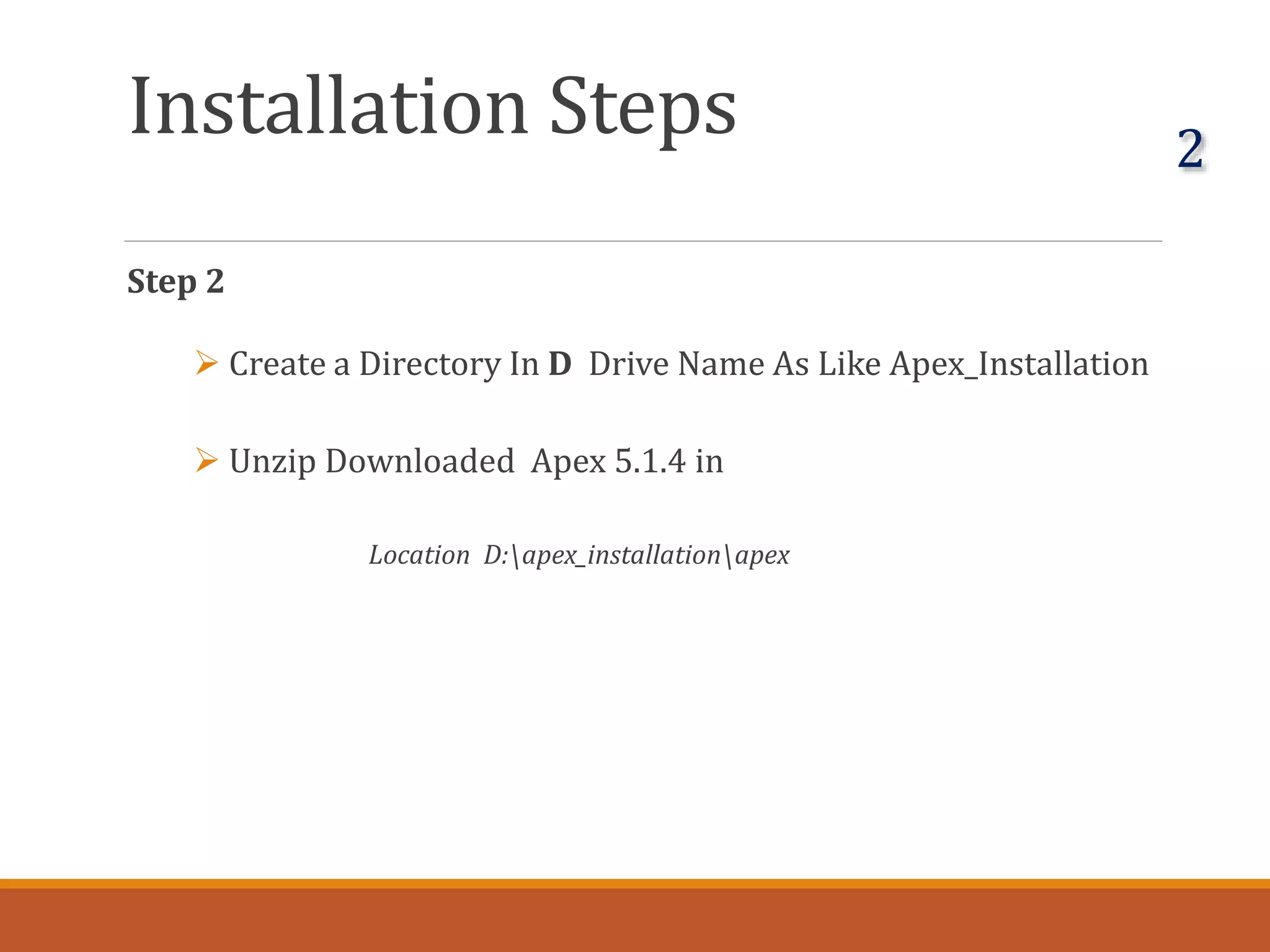

Step 2
 Create a Directory In D Drive Name As Like Apex_Installation
 Unzip Downloaded Apex 5.1.4 in
Location D:apex_installationapex
2

5. Installation Steps
Step 3
 Go the Apex Directory
cd /d D:apex_installationapex
 Login sqlplus
sys as sysdba
 Run Following Script
@apexins.sql Apex_DT Apex_DT temp /i/
Wait few Minutes approximately 10 to 15mnts
3

6. Installation Steps

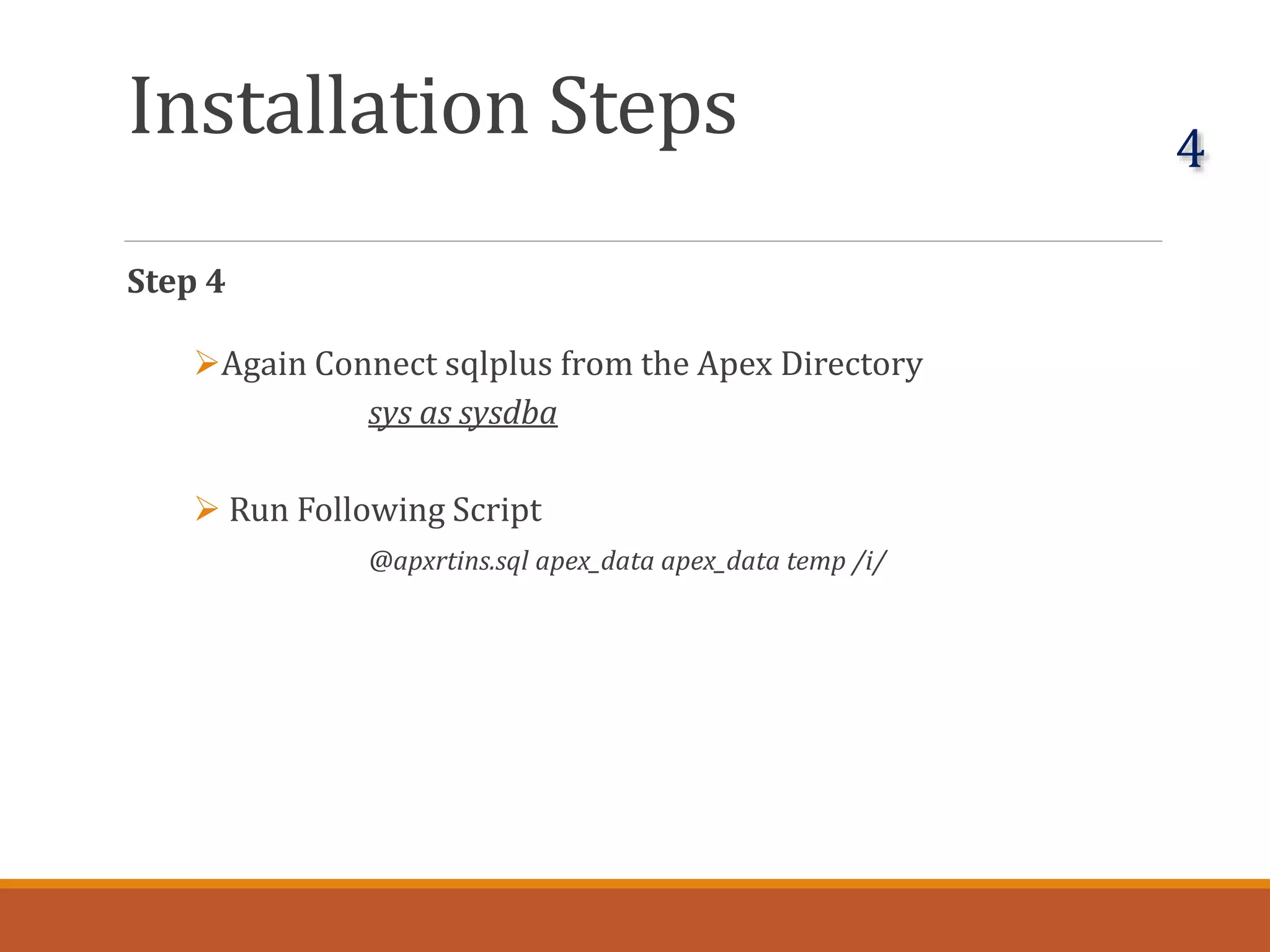

Step 4
Again Connect sqlplus from the Apex Directory
sys as sysdba
 Run Following Script
@apxrtins.sql apex_data apex_data temp /i/
4

7. Installation Steps

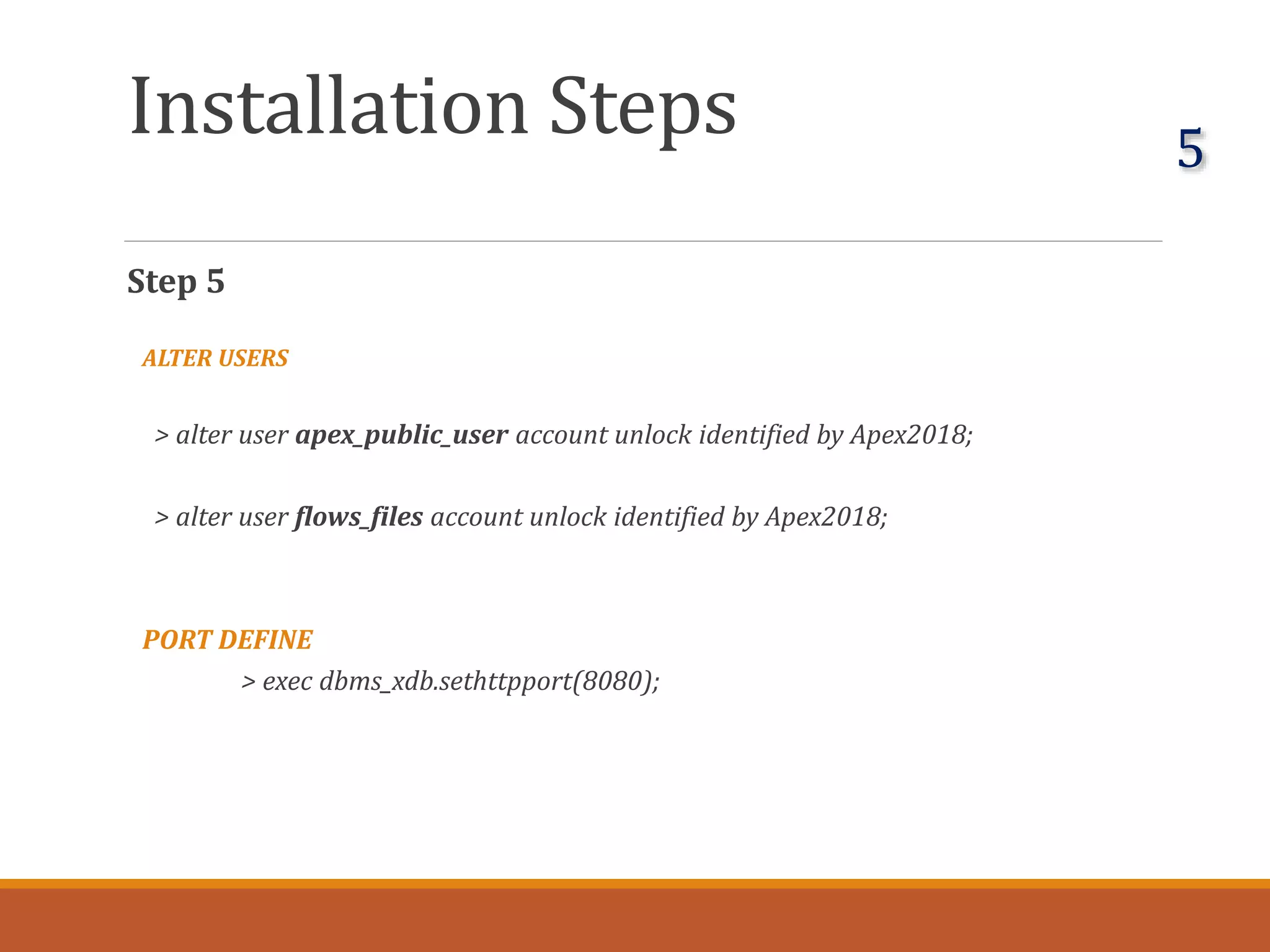

Step 5
ALTER USERS
> alter user apex_public_user account unlock identified by Apex2018;
> alter user flows_files account unlock identified by Apex2018;
PORT DEFINE
> exec dbms_xdb.sethttpport(8080);
5

8. Installation Steps

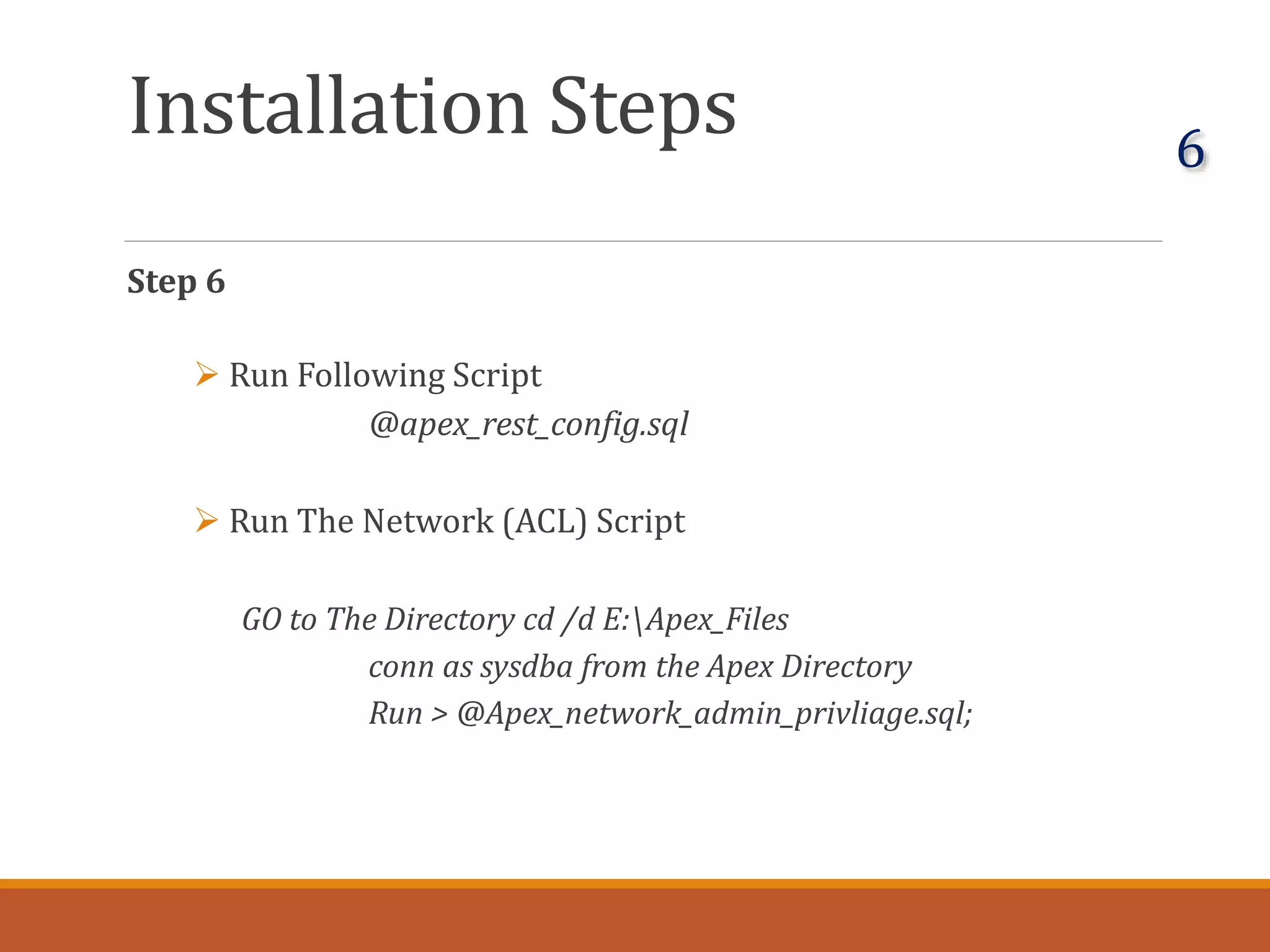

Step 6
 Run Following Script
@apex_rest_config.sql
 Run The Network (ACL) Script
GO to The Directory cd /d E:Apex_Files
conn as sysdba from the Apex Directory
Run > @Apex_network_admin_privliage.sql;
6

9. Installation Steps

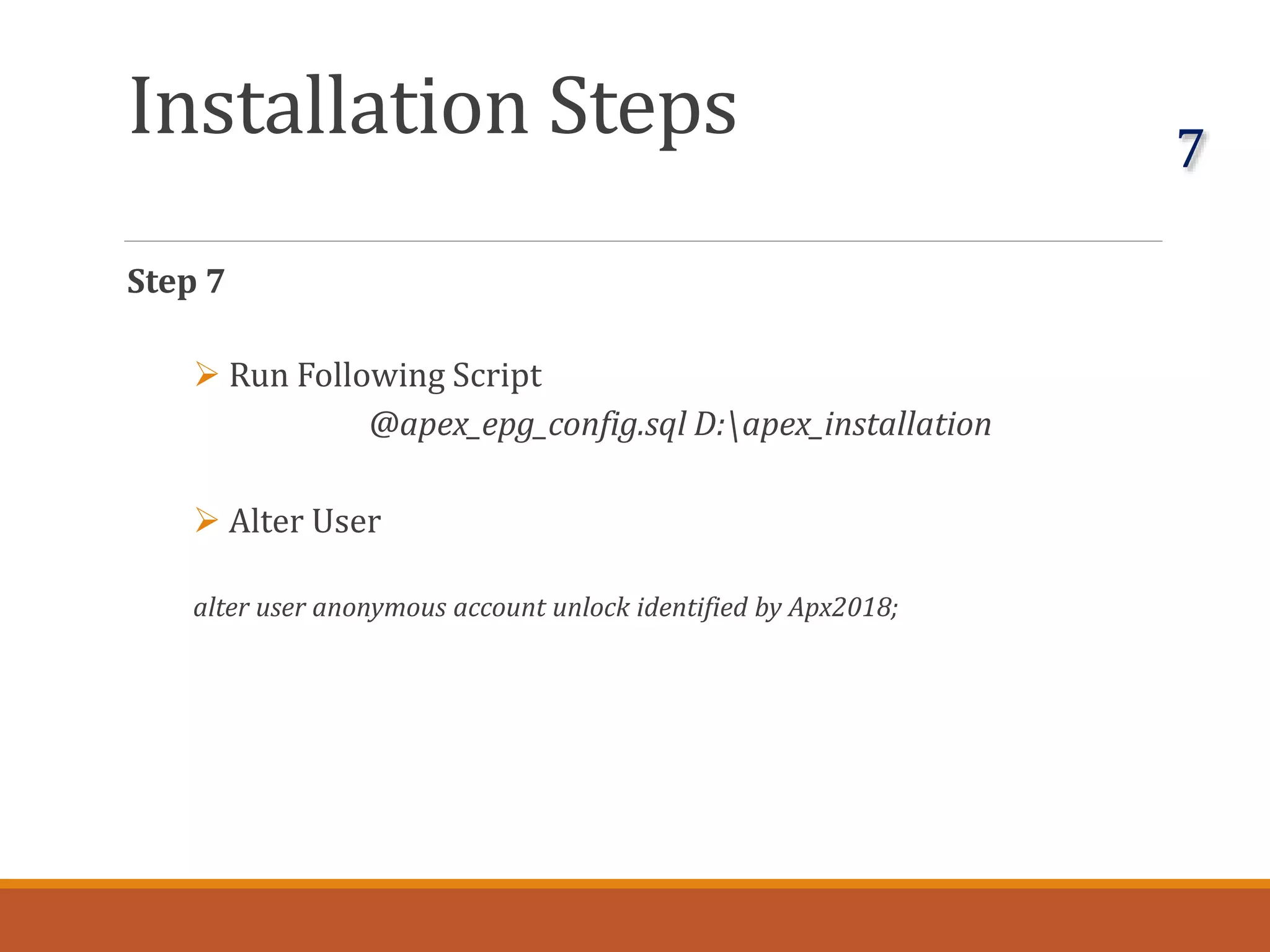

Step 7
 Run Following Script
@apex_epg_config.sql D:apex_installation
 Alter User
alter user anonymous account unlock identified by Apx2018;
7

10. Installation Steps

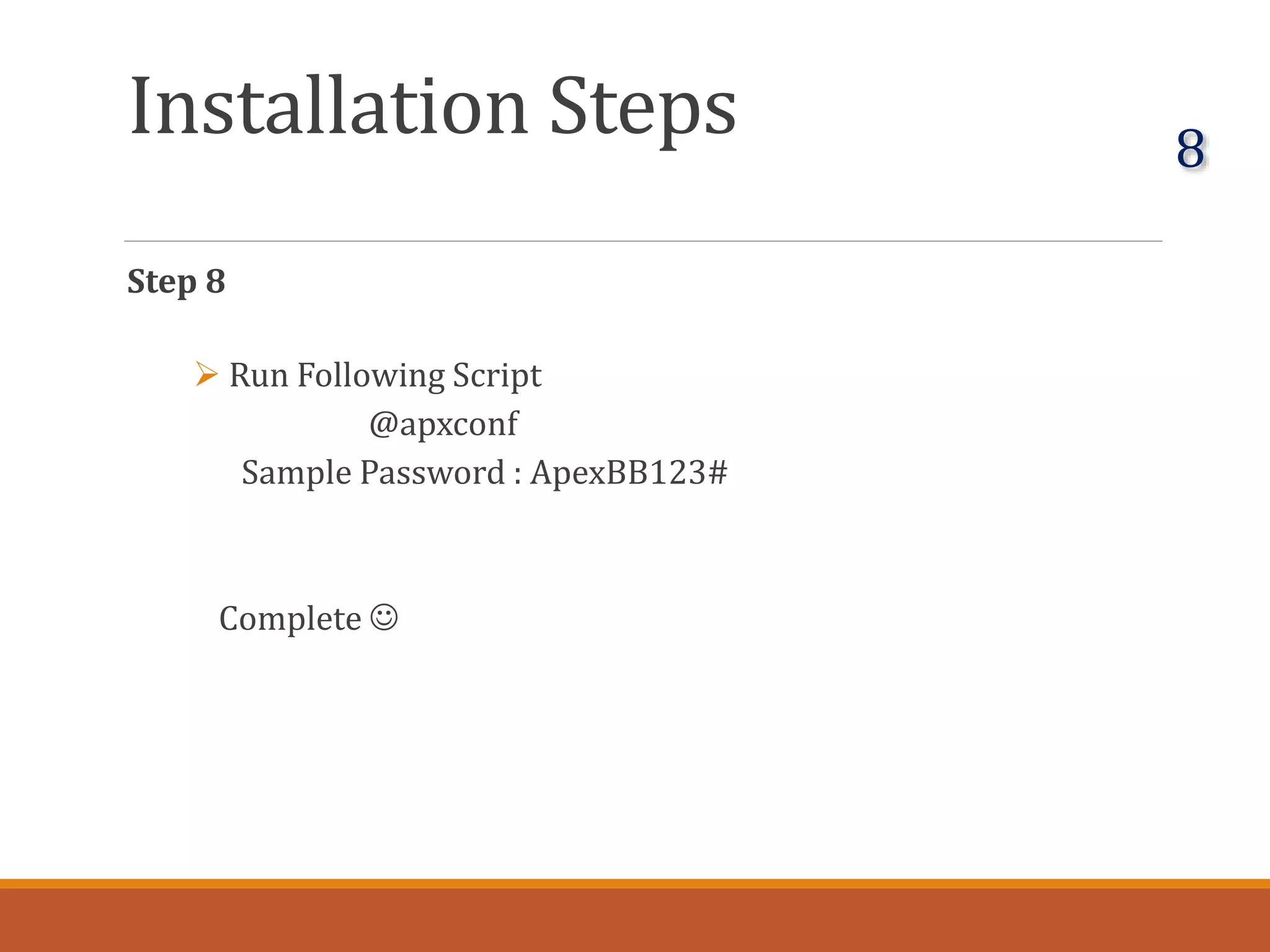

Step 8
 Run Following Script
@apxconf
Sample Password : ApexBB123#
Complete 
8

11. Welcome To Oracle Apex
Open Your Browser :
Write on Address Bar : localhost:8080/apex
