1. Installing Oracle GoldenGate 19c
on Docker
Bobby Curtis
Director, Product Management
Oracle GoldenGate Product Management
Copyright © 2019 Oracle and/or its affiliates.

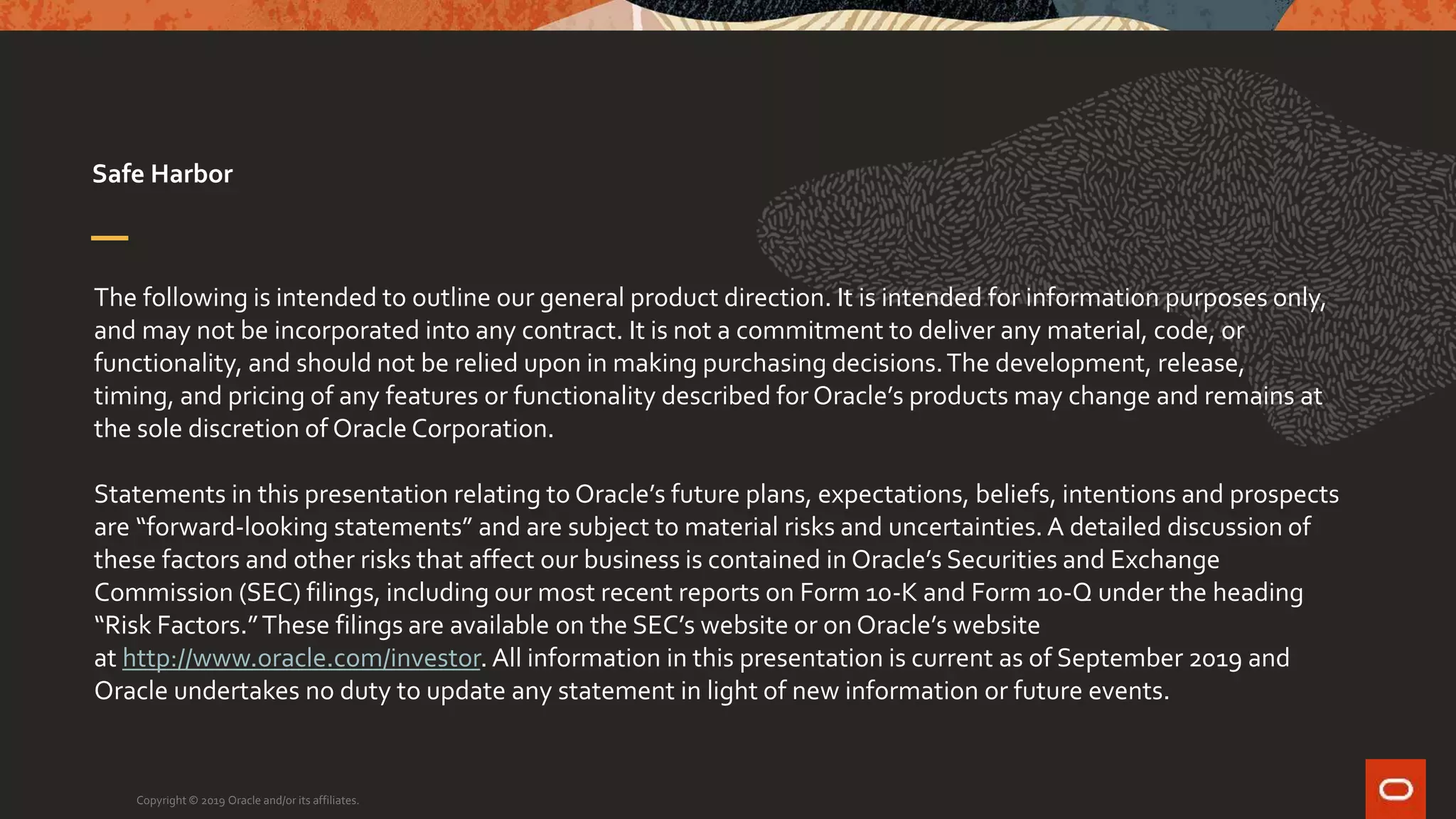

2. The following is intended to outline our general product direction. It is intended for information purposes only,
and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making purchasing decisions.The development, release,
timing, and pricing of any features or functionality described for Oracle’s products may change and remains at
the sole discretion of Oracle Corporation.
Statements in this presentation relating to Oracle’s future plans, expectations, beliefs, intentions and prospects
are “forward-looking statements” and are subject to material risks and uncertainties. A detailed discussion of
these factors and other risks that affect our business is contained in Oracle’s Securities and Exchange
Commission (SEC) filings, including our most recent reports on Form 10-K and Form 10-Q under the heading
“Risk Factors.”These filings are available on the SEC’s website or on Oracle’s website
at http://www.oracle.com/investor. All information in this presentation is current as of September 2019 and
Oracle undertakes no duty to update any statement in light of new information or future events.
Safe Harbor
Copyright © 2019 Oracle and/or its affiliates.

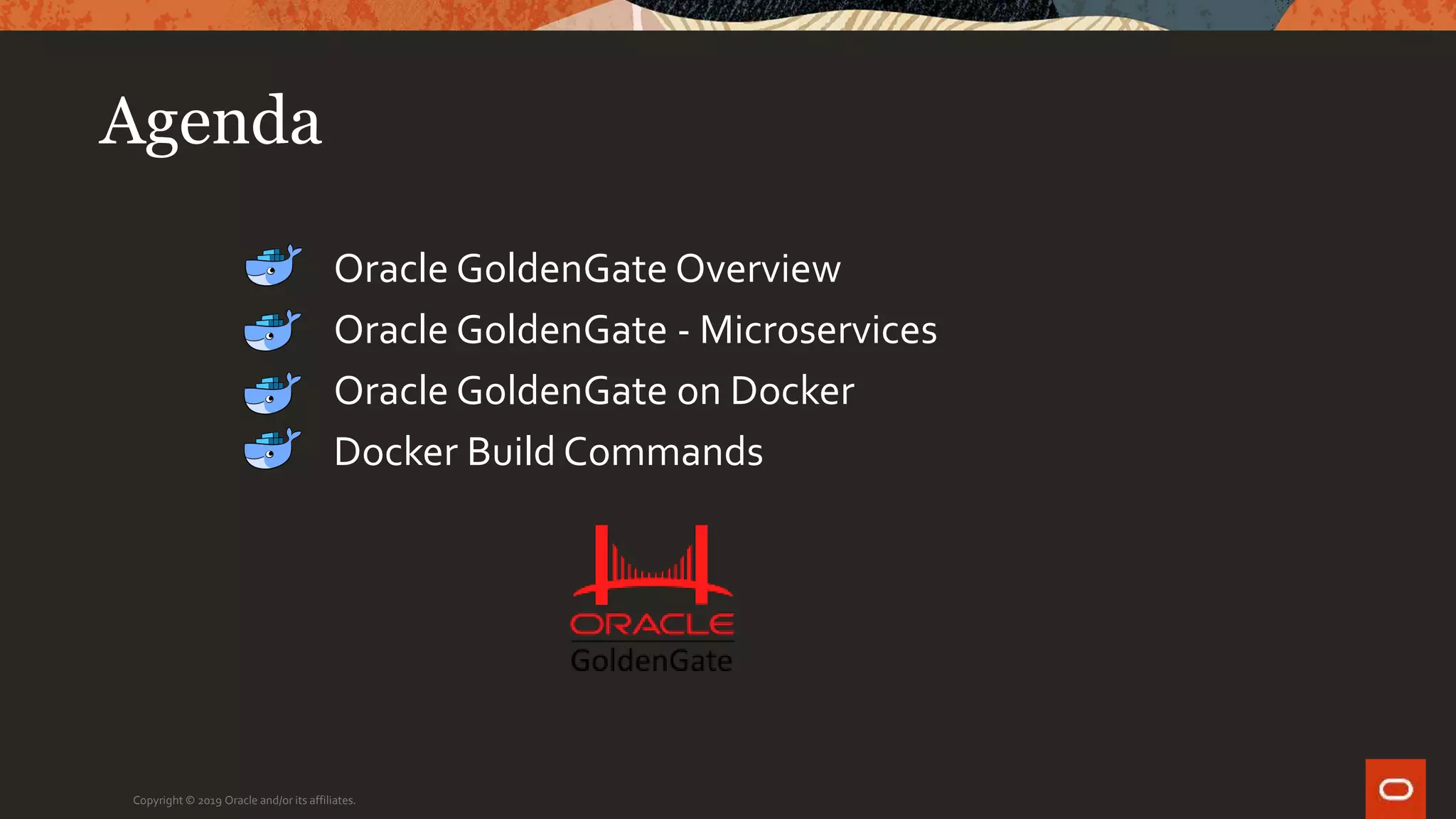

3. Agenda
Copyright © 2019 Oracle and/or its affiliates.
Oracle GoldenGate Overview
Oracle GoldenGate - Microservices
Oracle GoldenGate on Docker
Docker Build Commands

4. More than 20 Years of Innovation
4
1000’S OF CUSTOMERS GLOBALLY
1990’s – Database HA/DR
2000’s – OLTP Replication
2010 – Data Warehouse
2015 – Data Lake
& Cloud
KEY USE CASES
& GROWTH PHASES:
http://www.oracle.com/us/products/middleware/data-
integration/oracle-goldengate-innovations-wp-5093027.pdf
More than 20 Years of Innovation

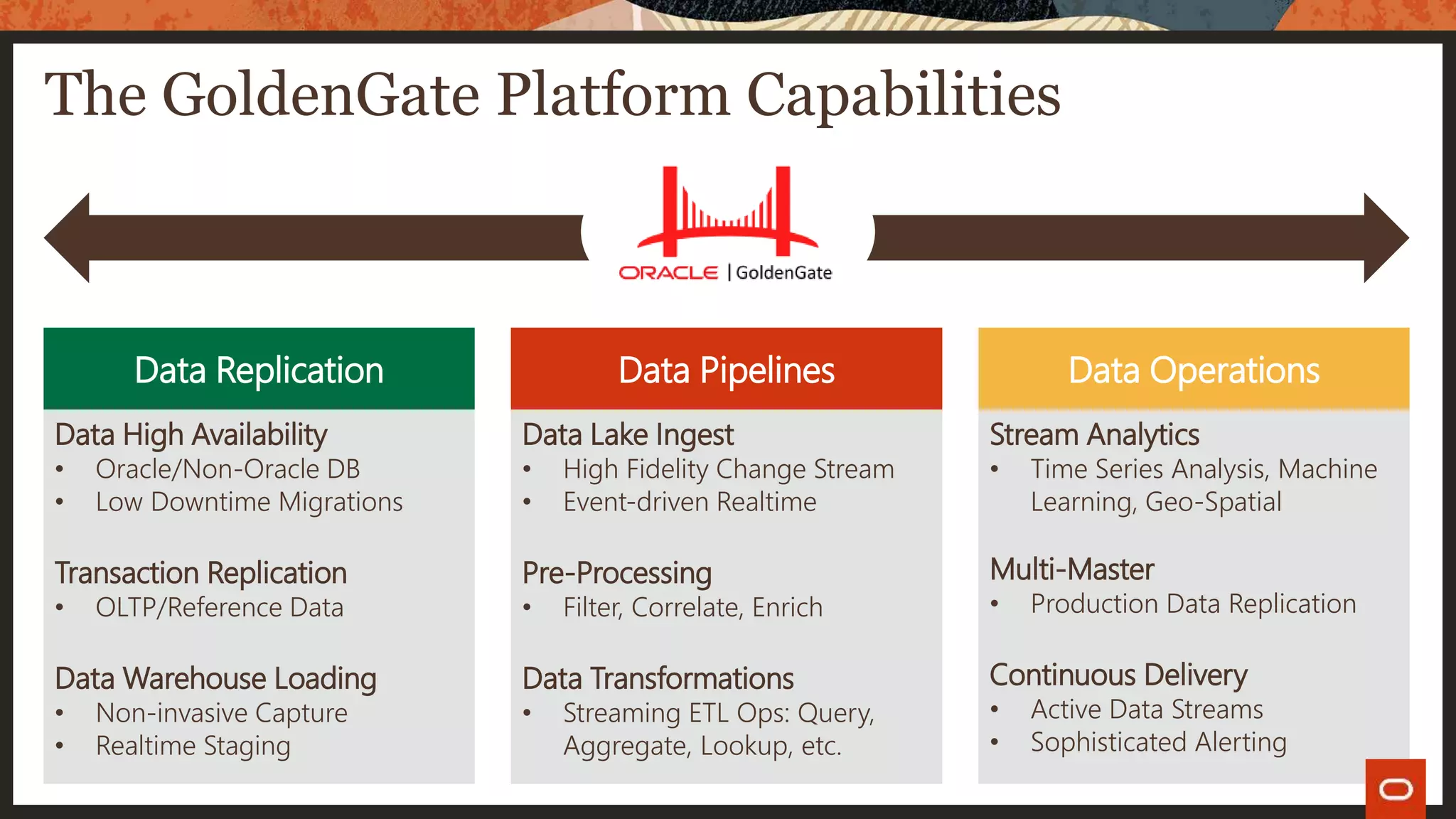

5. The GoldenGate Platform Capabilities
Data Replication Data Pipelines Data Operations
Data High Availability
• Oracle/Non-Oracle DB
• Low Downtime Migrations
Transaction Replication
• OLTP/Reference Data
Data Warehouse Loading
• Non-invasive Capture
• Realtime Staging
Data Lake Ingest
• High Fidelity Change Stream
• Event-driven Realtime
Pre-Processing
• Filter, Correlate, Enrich
Data Transformations
• Streaming ETL Ops: Query,
Aggregate, Lookup, etc.
Stream Analytics
• Time Series Analysis, Machine
Learning, Geo-Spatial
Multi-Master
• Production Data Replication
Continuous Delivery
• Active Data Streams
• Sophisticated Alerting

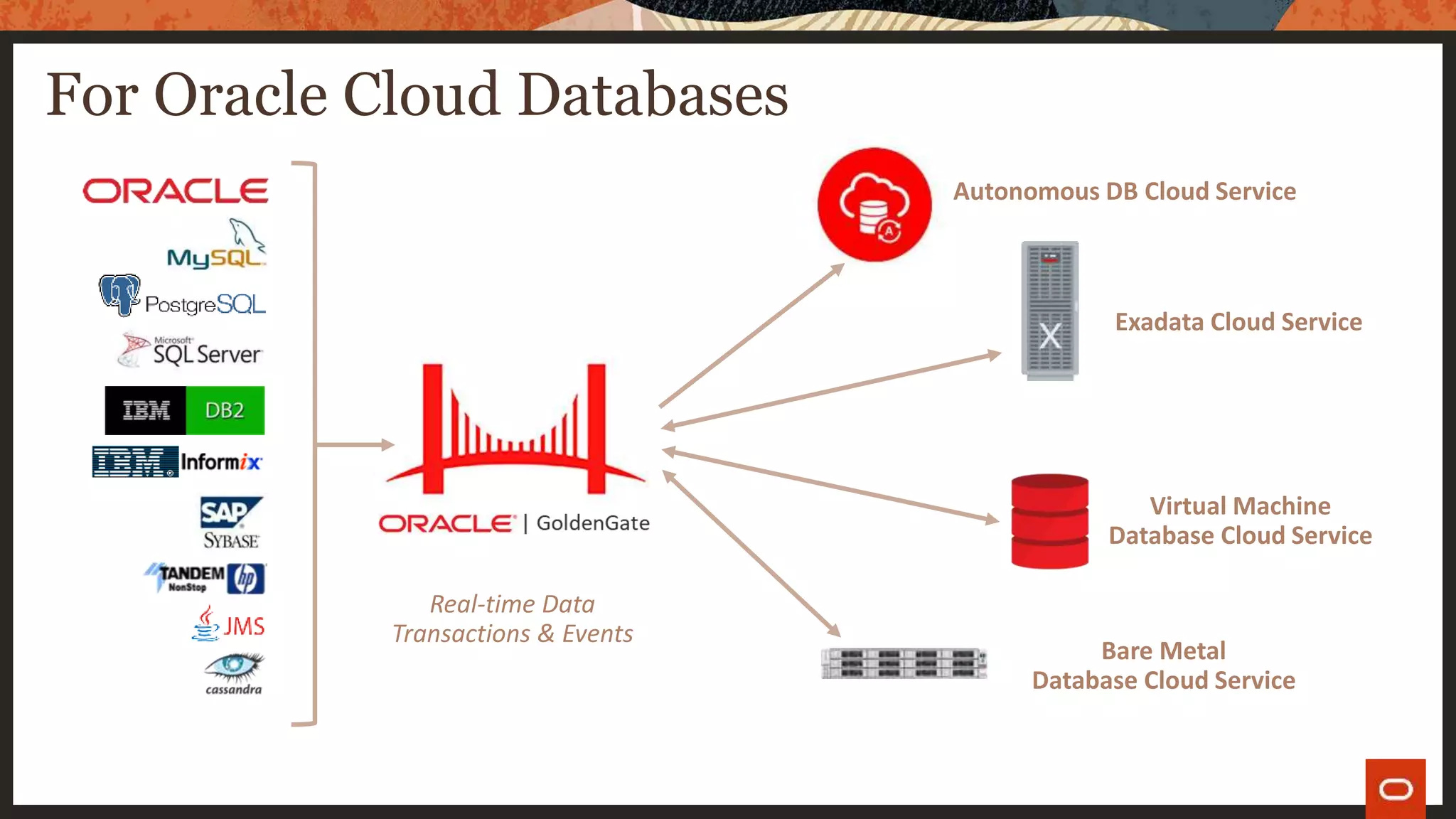

6. For Oracle Cloud Databases
Real-time Data
Transactions & Events
Virtual Machine
Database Cloud Service
Bare Metal
Database Cloud Service
Exadata Cloud Service
Autonomous DB Cloud Service

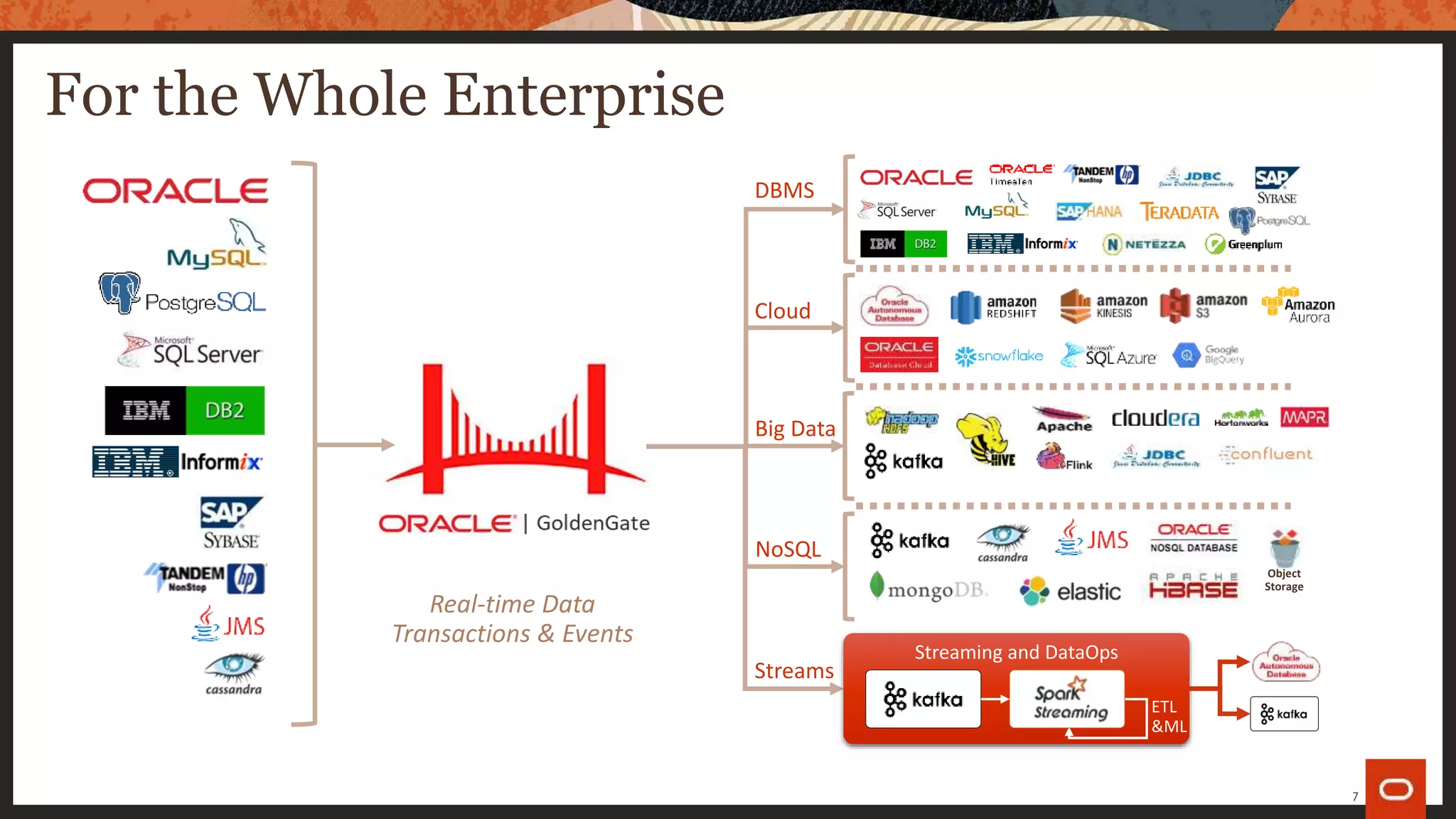

7. For the Whole Enterprise
7
Real-time Data
Transactions & Events
Streaming and DataOps
ETL
&ML
DBMS
Cloud
Big Data
NoSQL
Streams
Object
Storage

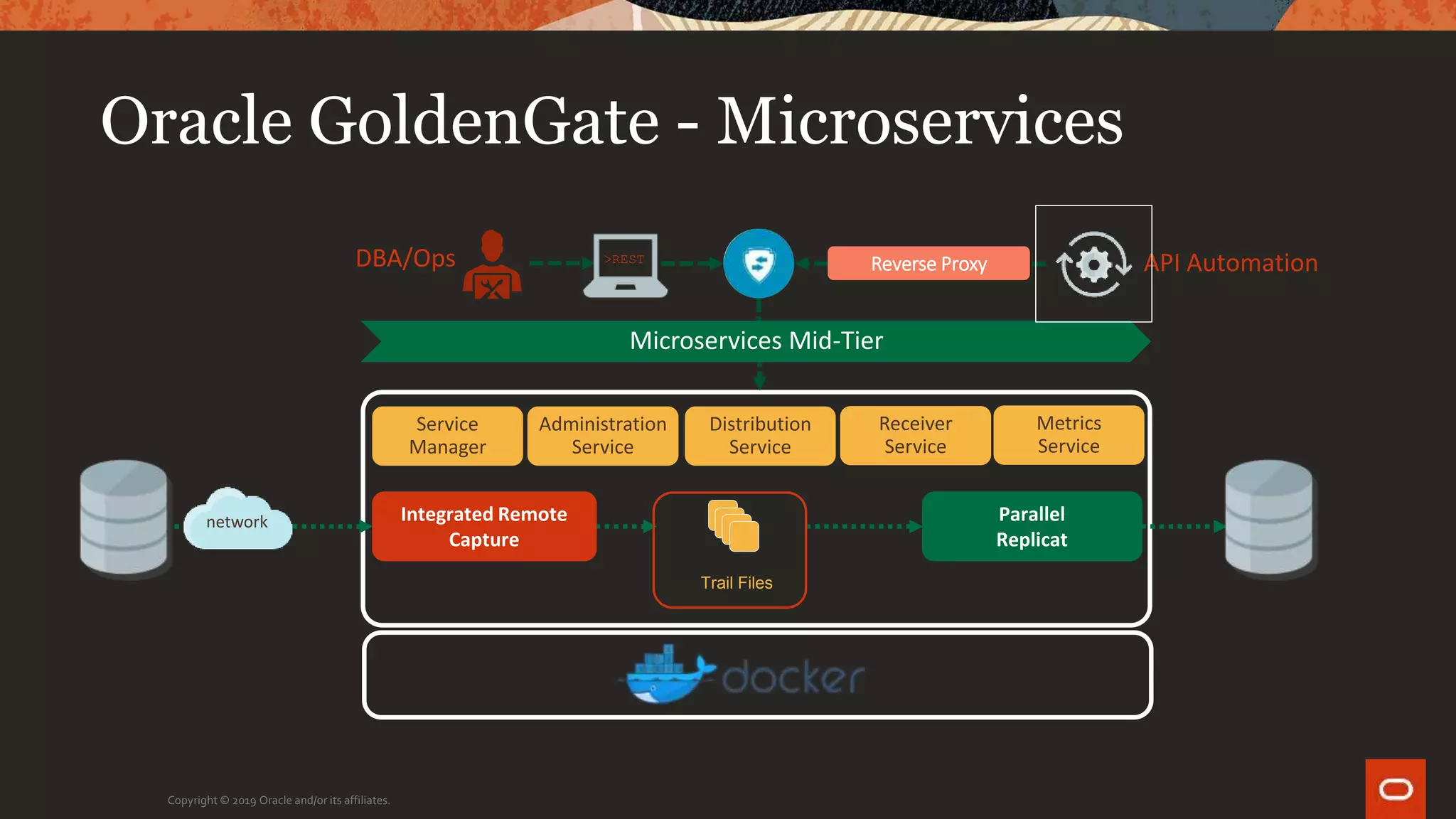

8. Oracle GoldenGate - Microservices
Copyright © 2019 Oracle and/or its affiliates.
Trail Files
Administration
Service
Metrics
Service
Service
Manager
>REST
Parallel
Replicat
Integrated Remote
Capture
network
DBA/Ops Reverse Proxy API Automation
Microservices Mid-Tier
Distribution
Service
Receiver
Service

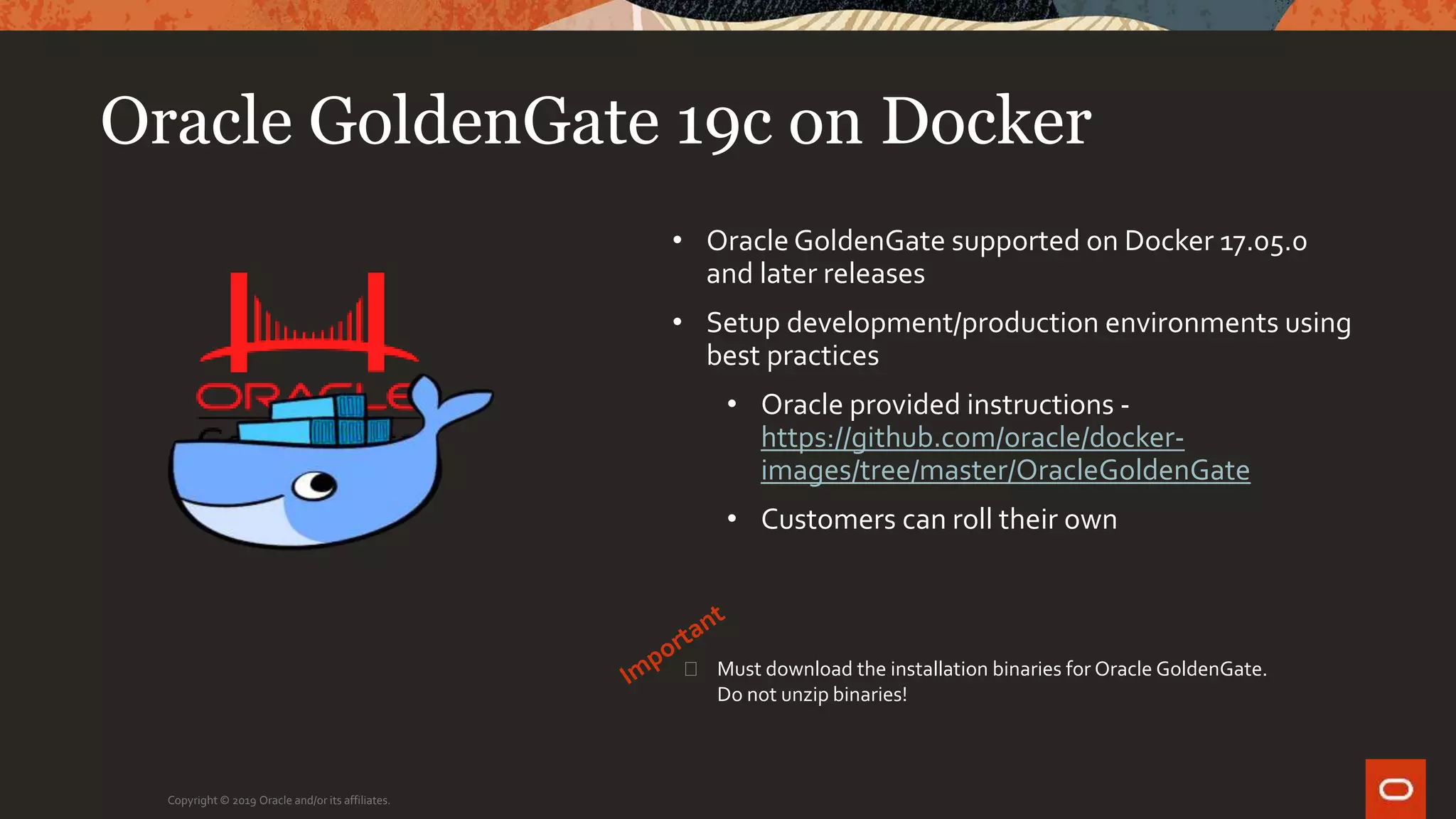

9. Oracle GoldenGate 19c on Docker
Copyright © 2019 Oracle and/or its affiliates.
• Oracle GoldenGate supported on Docker 17.05.0
and later releases
• Setup development/production environments using
best practices
• Oracle provided instructions -
https://github.com/oracle/docker-
images/tree/master/OracleGoldenGate
• Customers can roll their own
� Must download the installation binaries for Oracle GoldenGate.
Do not unzip binaries!

10. Build Oracle GoldenGate 19c
on Docker
Copyright © 2019 Oracle and/or its affiliates.
Dockerfile
Required Files
Build Image Run Container GoldenGate
• Oracle GoldenGate – OTN or Edelivery
• Clone from GitHub – github.com/oracle/docker-images
• Use Base Image (such as oracle/instantclient:19)

11. Oracle GoldenGate 19c on Docker
Copyright © 2019 Oracle and/or its affiliates.
Physical Hardware
Docker Daemon
Database Database
GoldenGate GoldenGate
Network
Guest OS Guest OS
• Guest OS layer is any supported operating system
• GoldenGate layer provides the support and connections
for replication to occur
• Network layer provides a bridged network between
running containers
• Used a custom bridged network – Allows DNS resolution
� Run GoldenGate and Database in separate
containers unless for test/demo environments

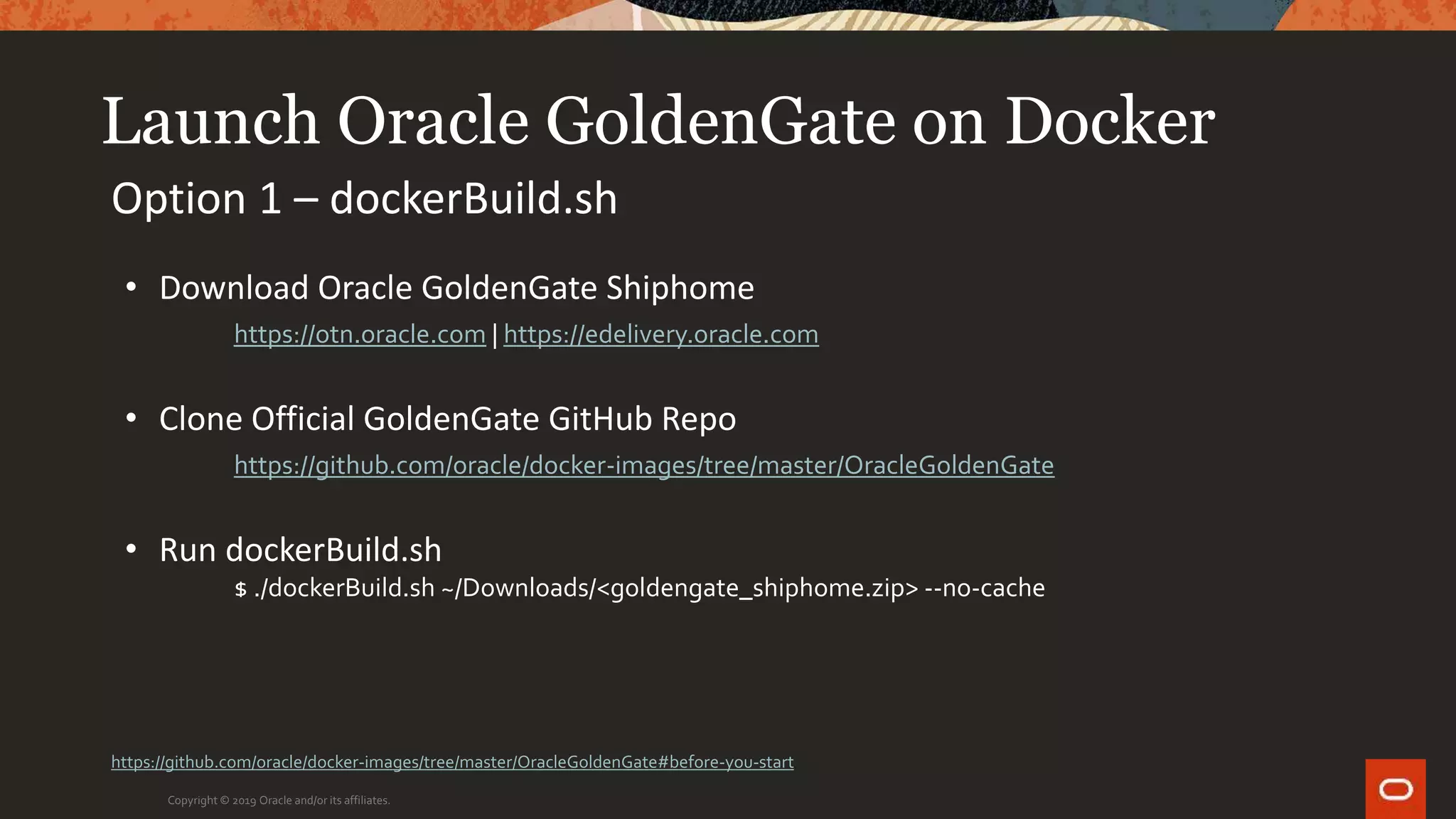

12. Launch Oracle GoldenGate on Docker
Copyright © 2019 Oracle and/or its affiliates.
Option 1 – dockerBuild.sh
• Download Oracle GoldenGate Shiphome
https://otn.oracle.com | https://edelivery.oracle.com
• Clone Official GoldenGate GitHub Repo
https://github.com/oracle/docker-images/tree/master/OracleGoldenGate
• Run dockerBuild.sh
$ ./dockerBuild.sh ~/Downloads/<goldengate_shiphome.zip> --no-cache
https://github.com/oracle/docker-images/tree/master/OracleGoldenGate#before-you-start

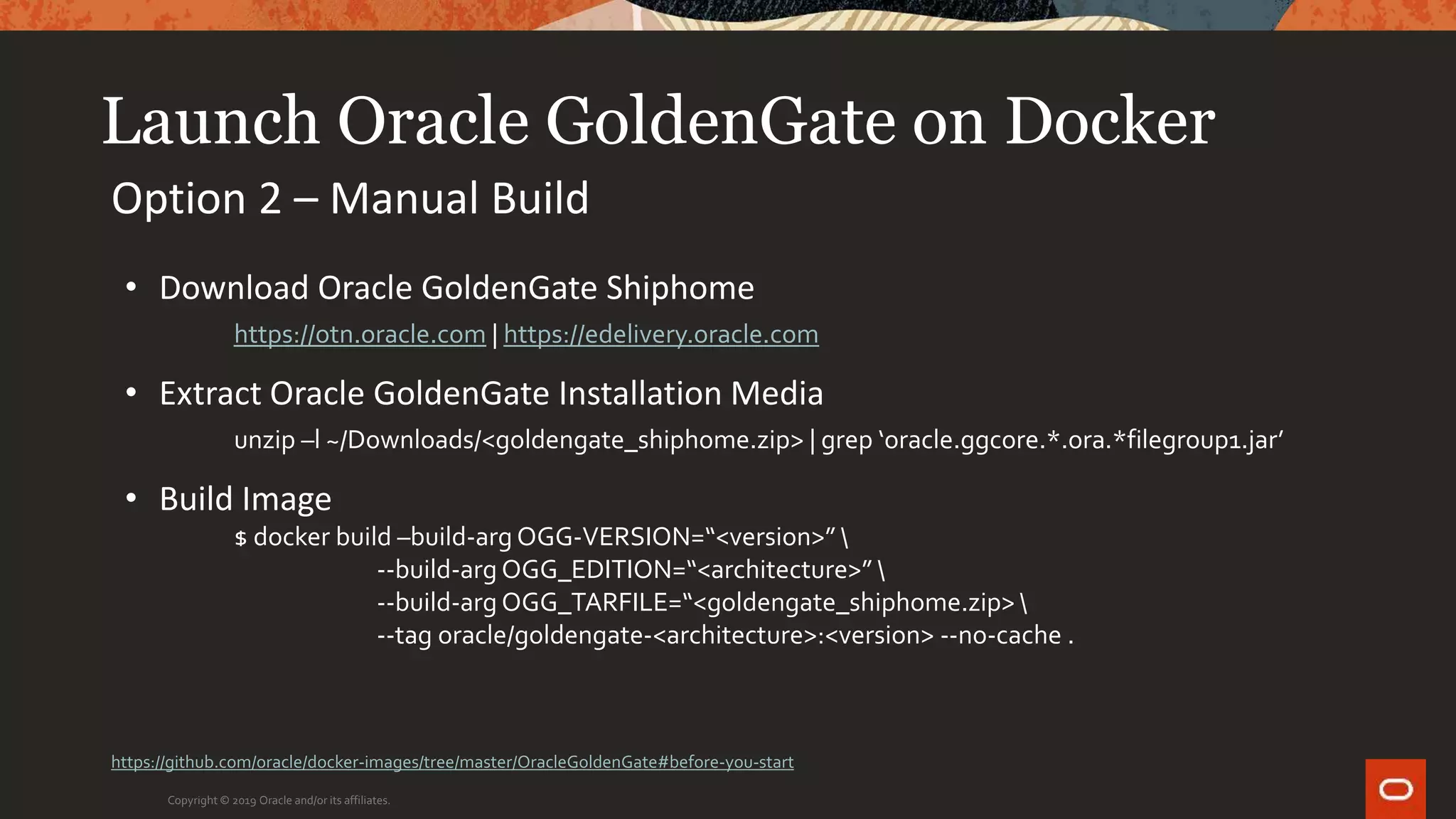

13. Launch Oracle GoldenGate on Docker
Copyright © 2019 Oracle and/or its affiliates.
Option 2 – Manual Build
• Download Oracle GoldenGate Shiphome
https://otn.oracle.com | https://edelivery.oracle.com
• Extract Oracle GoldenGate Installation Media
unzip –l ~/Downloads/<goldengate_shiphome.zip> | grep ‘oracle.ggcore.*.ora.*filegroup1.jar’
• Build Image
$ docker build –build-arg OGG-VERSION=“<version>”
--build-arg OGG_EDITION=“<architecture>”
--build-arg OGG_TARFILE=“<goldengate_shiphome.zip>
--tag oracle/goldengate-<architecture>:<version> --no-cache .
https://github.com/oracle/docker-images/tree/master/OracleGoldenGate#before-you-start
