Oracle GoldenGate provides real-time data integration and replication capabilities. It uses non-intrusive change data capture to replicate transactional changes in real-time across heterogeneous database environments with sub-second latency. GoldenGate has over 500 customers across various industries and supports workloads involving terabytes of data movement per day. It extends Oracle's data integration and high availability capabilities beyond Oracle databases to other platforms like SQL Server and MySQL.

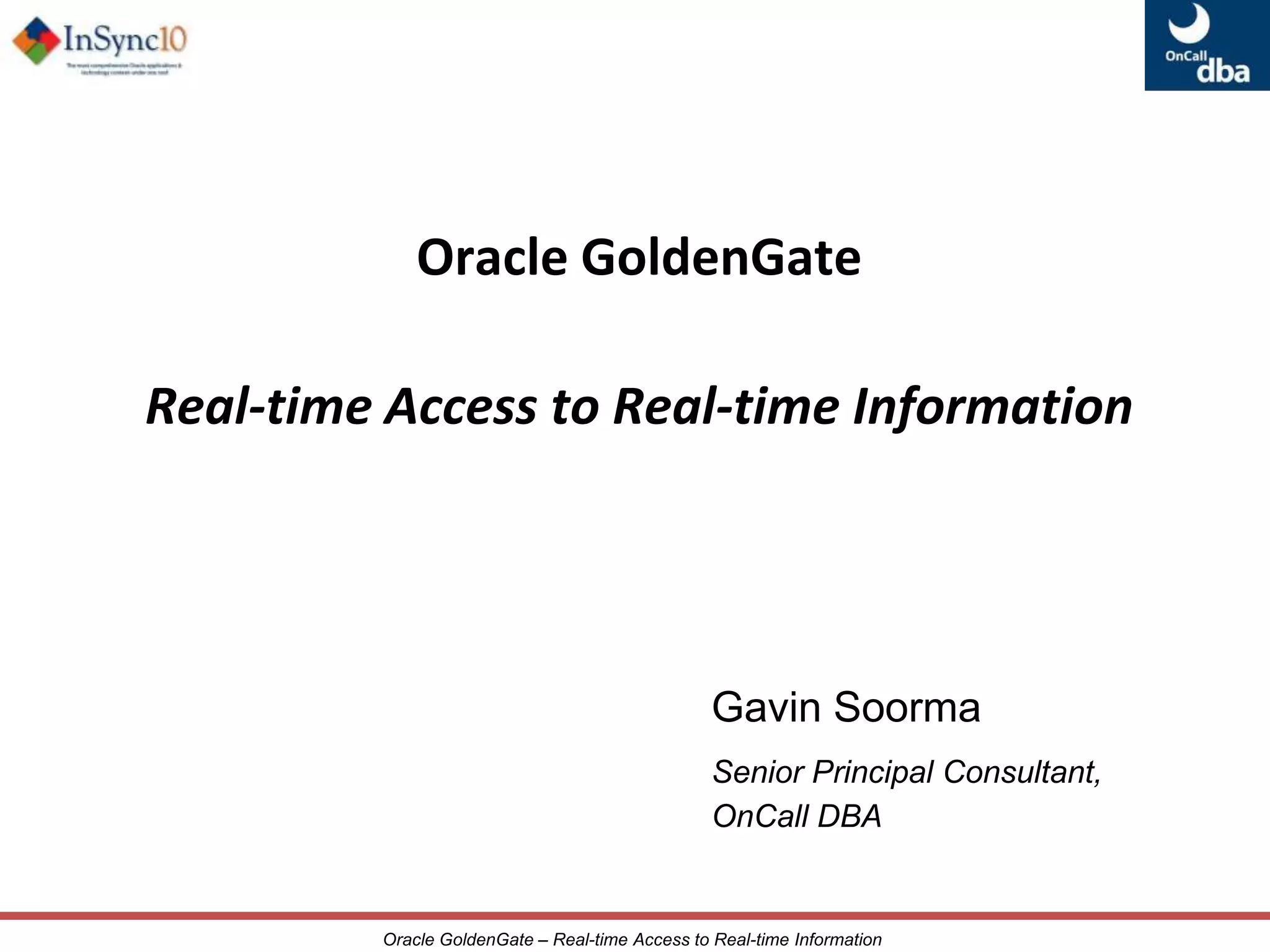

1. Oracle GoldenGate Real-time Access to Real-time InformationGavin SoormaSenior Principal Consultant, OnCall DBA

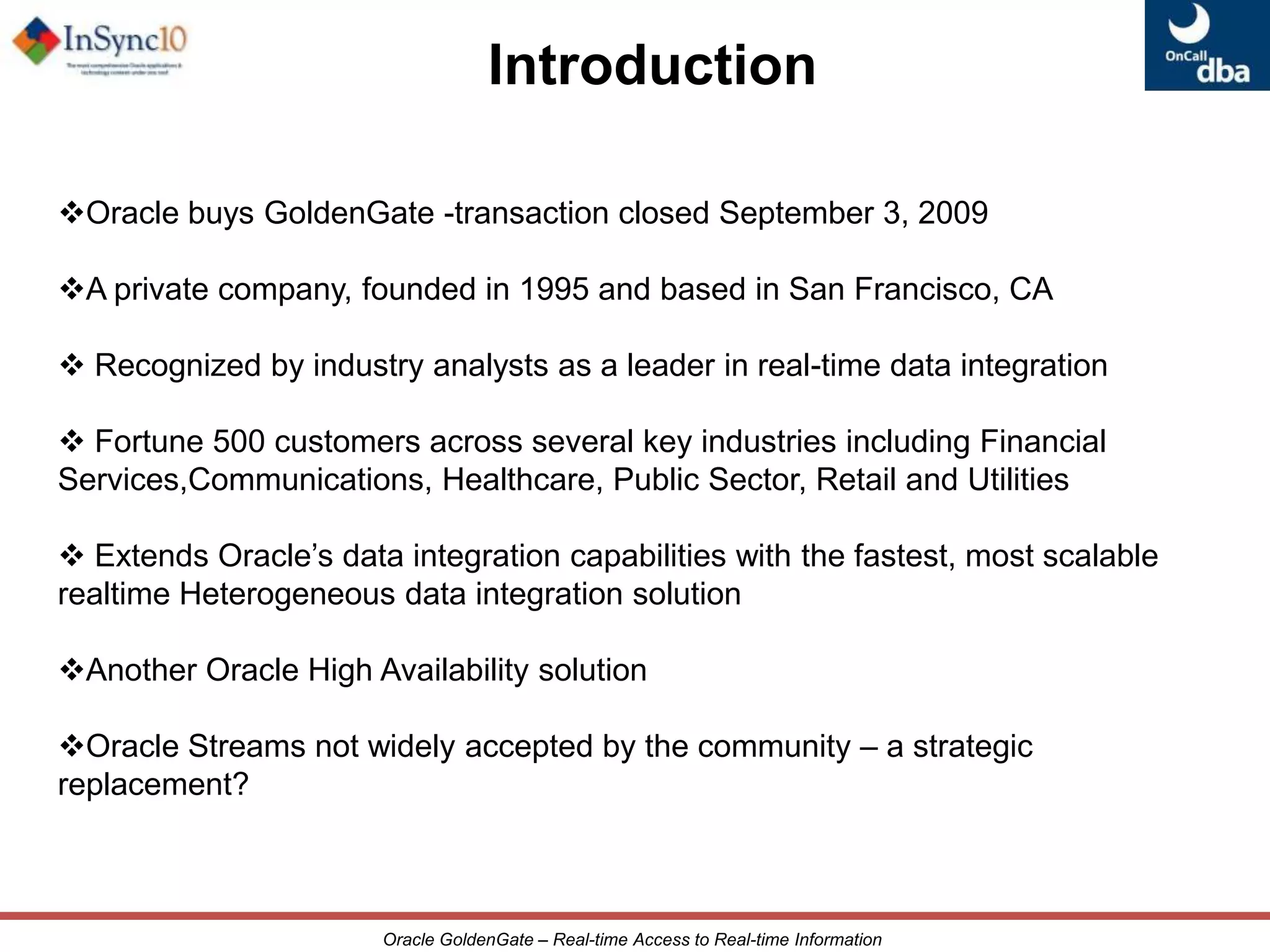

2. IntroductionOracle buys GoldenGate -transaction closed September 3, 2009

3. A private company, founded in 1995 and based in San Francisco, CA

4. Recognized by industry analysts as a leader in real-time data integration

5. Fortune 500 customers across several key industries including Financial Services,Communications, Healthcare, Public Sector, Retail and Utilities

6. Extends Oracle’s data integration capabilities with the fastest, most scalable realtime Heterogeneous data integration solution

7. Another Oracle High Availability solution

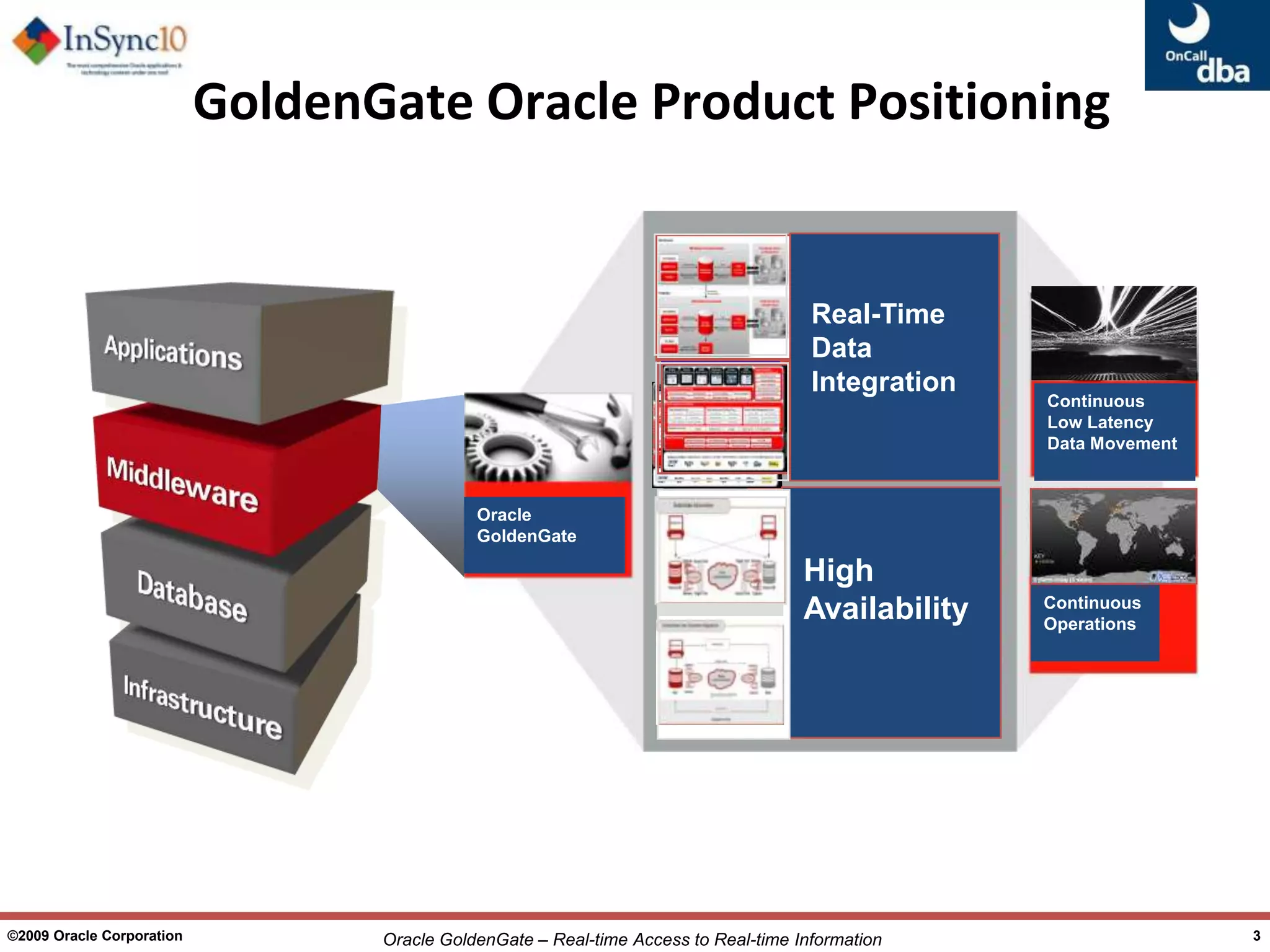

8. Oracle Streams not widely accepted by the community – a strategic replacement?Real-Time Data IntegrationHigh AvailabilityGoldenGate Oracle Product PositioningContinuous Low Latency Data MovementOracle GoldenGateContinuous Operations©2009 Oracle Corporation3

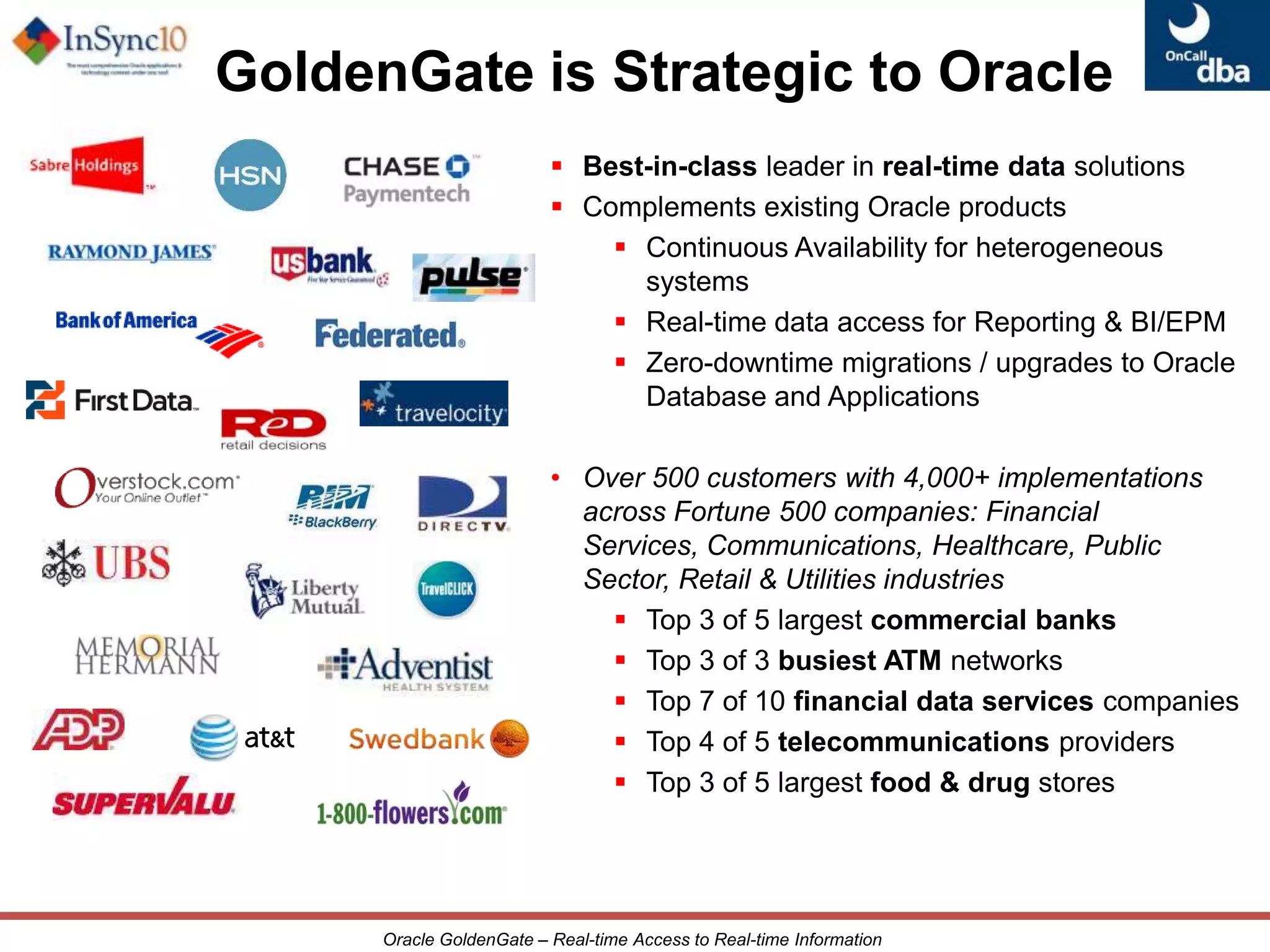

9. GoldenGate is Strategic to OracleBest-in-class leader in real-time data solutions

10. Complements existing Oracle products

11. Continuous Availability for heterogeneous systems

12. Real-time data access for Reporting & BI/EPM

13. Zero-downtime migrations / upgrades to Oracle Database and Applications

14. Over 500 customers with 4,000+ implementations across Fortune 500 companies: Financial Services, Communications, Healthcare, Public Sector, Retail & Utilities industries

15. Top 3 of 5 largest commercial banks

16. Top 3 of 3 busiest ATM networks

17. Top 7 of 10 financial data services companies

18. Top 4 of 5 telecommunications providers

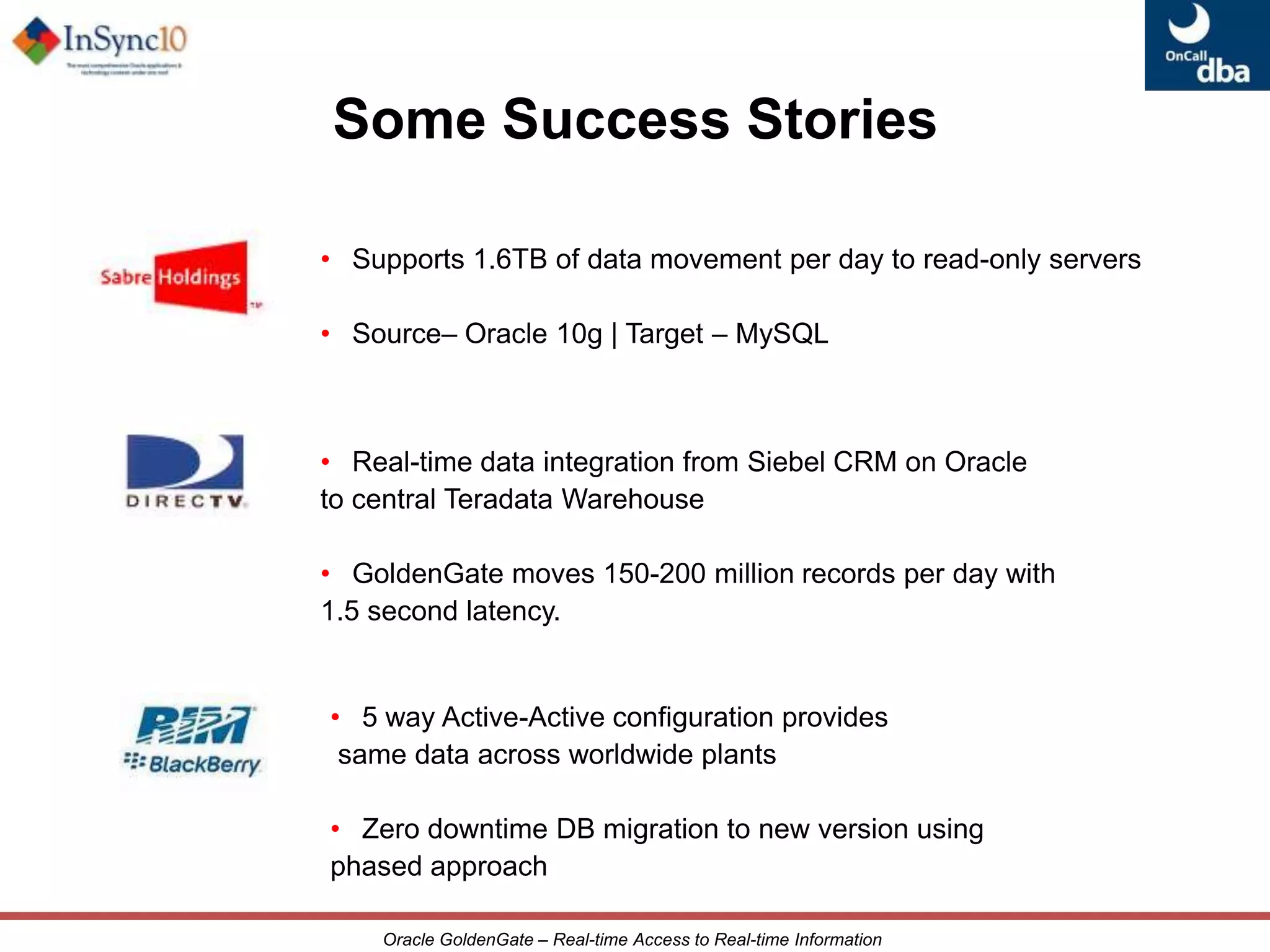

19. Top 3 of 5 largest food & drug storesSome Success StoriesSupports 1.6TB of data movement per day to read-only servers

20. Source– Oracle 10g | Target – MySQL

21. Real-time data integration from Siebel CRM on Oracle to central TeradataWarehouseGoldenGatemoves 150-200 million records per day with 1.5 second latency.5 way Active-Active configuration providessame data across worldwide plantsZero downtime DB migration to new version using phased approach

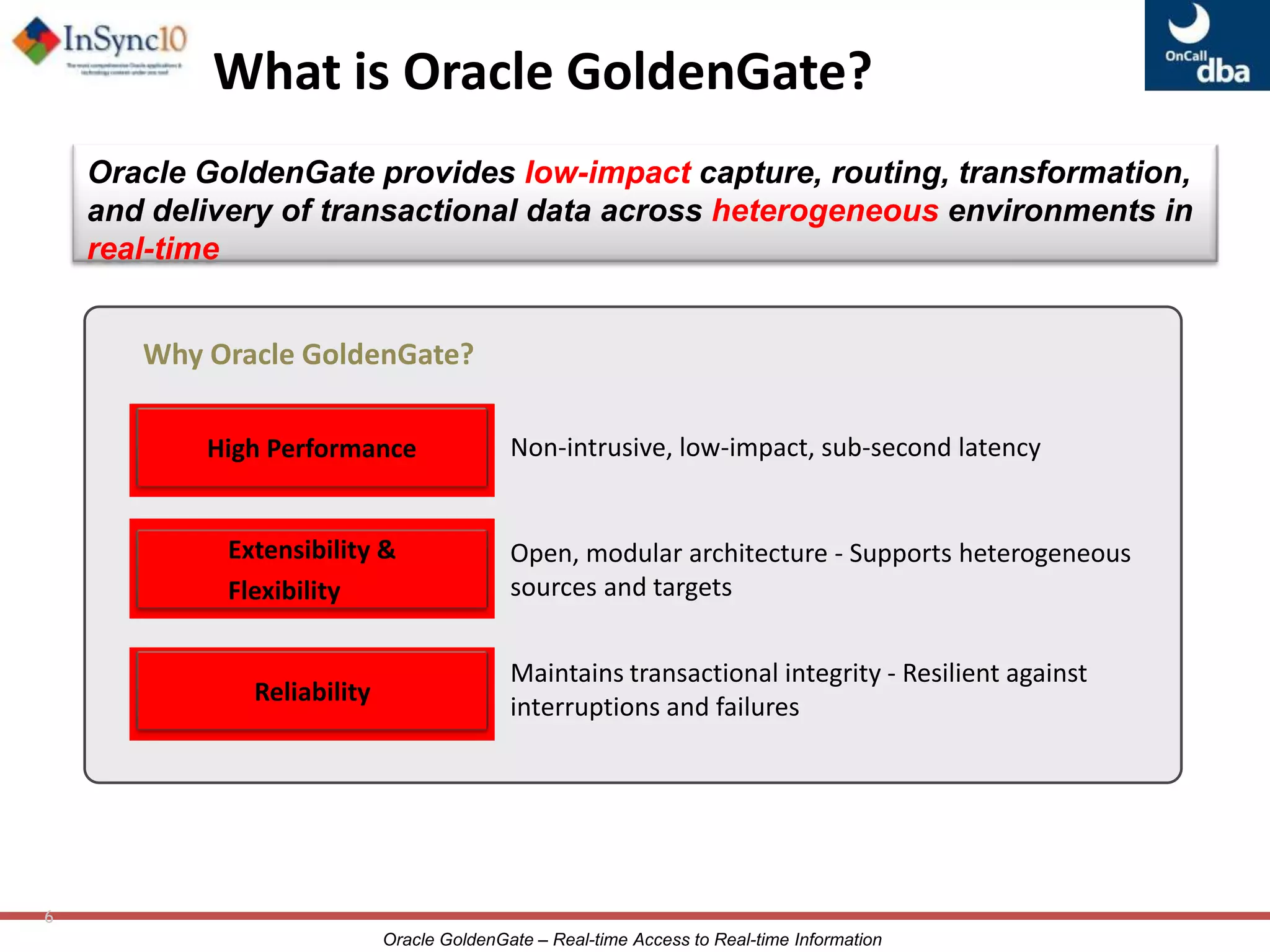

22. High PerformanceExtensibility &FlexibilityReliabilityWhat is Oracle GoldenGate?Oracle GoldenGate provides low-impact capture, routing, transformation, and delivery of transactional dataacross heterogeneous environments in real-timeWhy Oracle GoldenGate?Non-intrusive, low-impact, sub-second latencyOpen, modular architecture - Supports heterogeneous sources and targetsMaintains transactional integrity - Resilient against interruptions and failures6

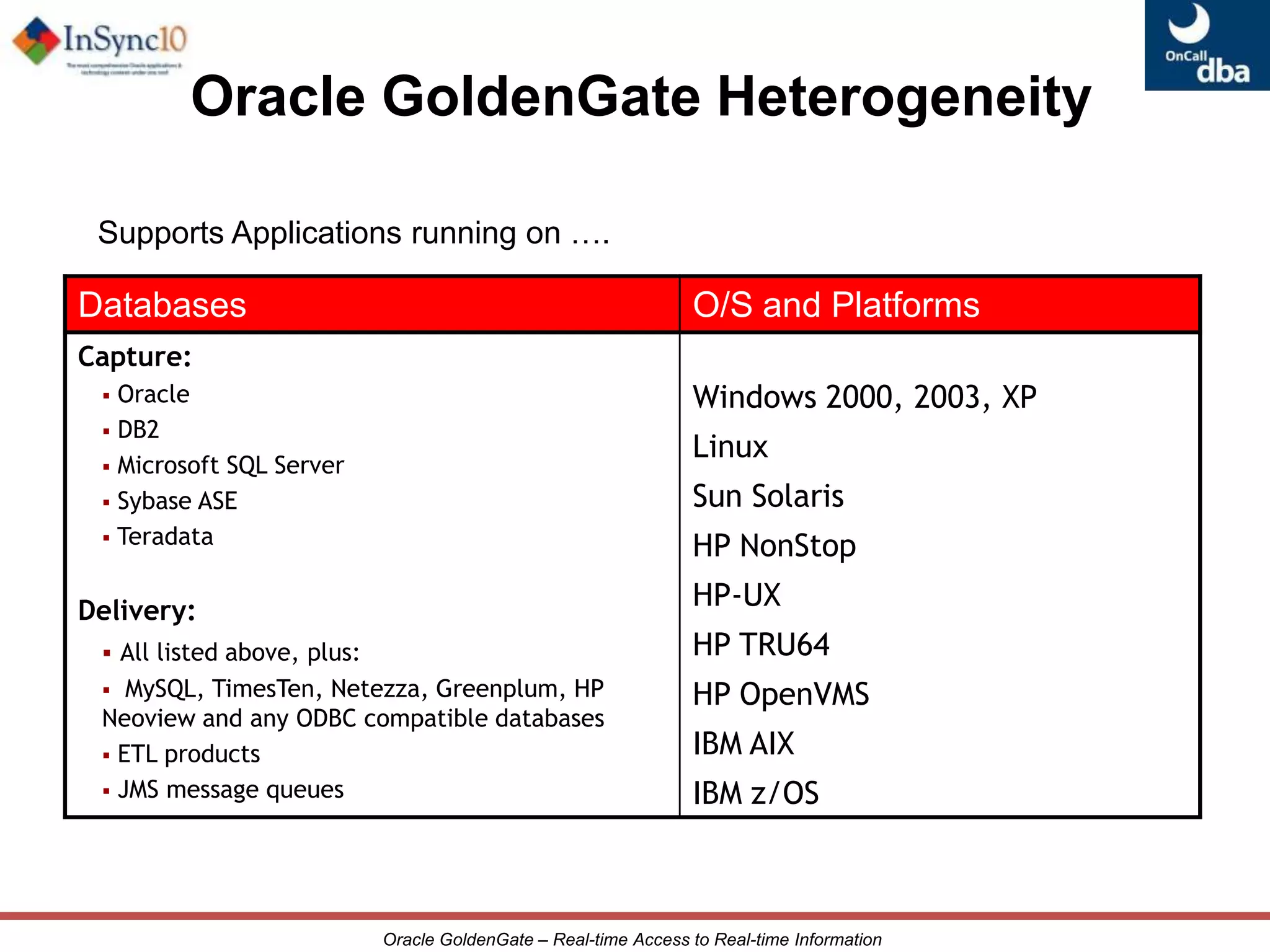

23. Oracle GoldenGate HeterogeneitySupports Applications running on ….

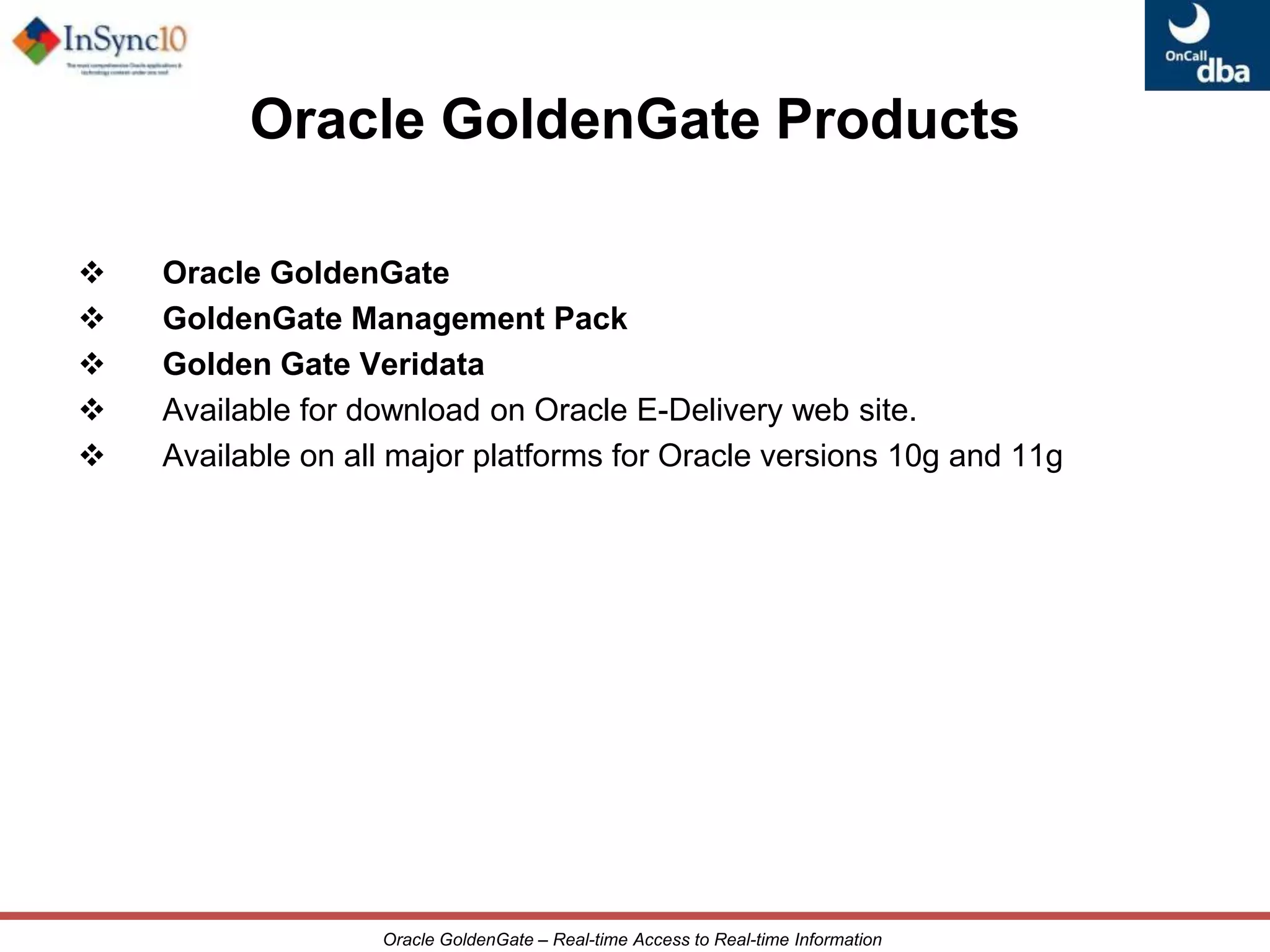

24. Oracle GoldenGate ProductsOracle GoldenGate

25. GoldenGate Management Pack

26. Golden Gate Veridata

27. Available for download on Oracle E-Delivery web site.

28. Available on all major platforms for Oracle versions 10g and 11g Oracle GoldenGate SolutionsEnterprise-wide Solution for Real Time Data NeedsDisaster Recovery, Data ProtectionStandby(Open & Active)Microsoft SQL ServerZero Downtime Migration and UpgradesLog Based, Real-Time Change Data CaptureOracleOperational ReportingReportingDatabaseGoldenGateETLEDWODSETLSybaseHeterogeneous Source SystemsReal-time BIEDWQuery OffloadingData Distribution

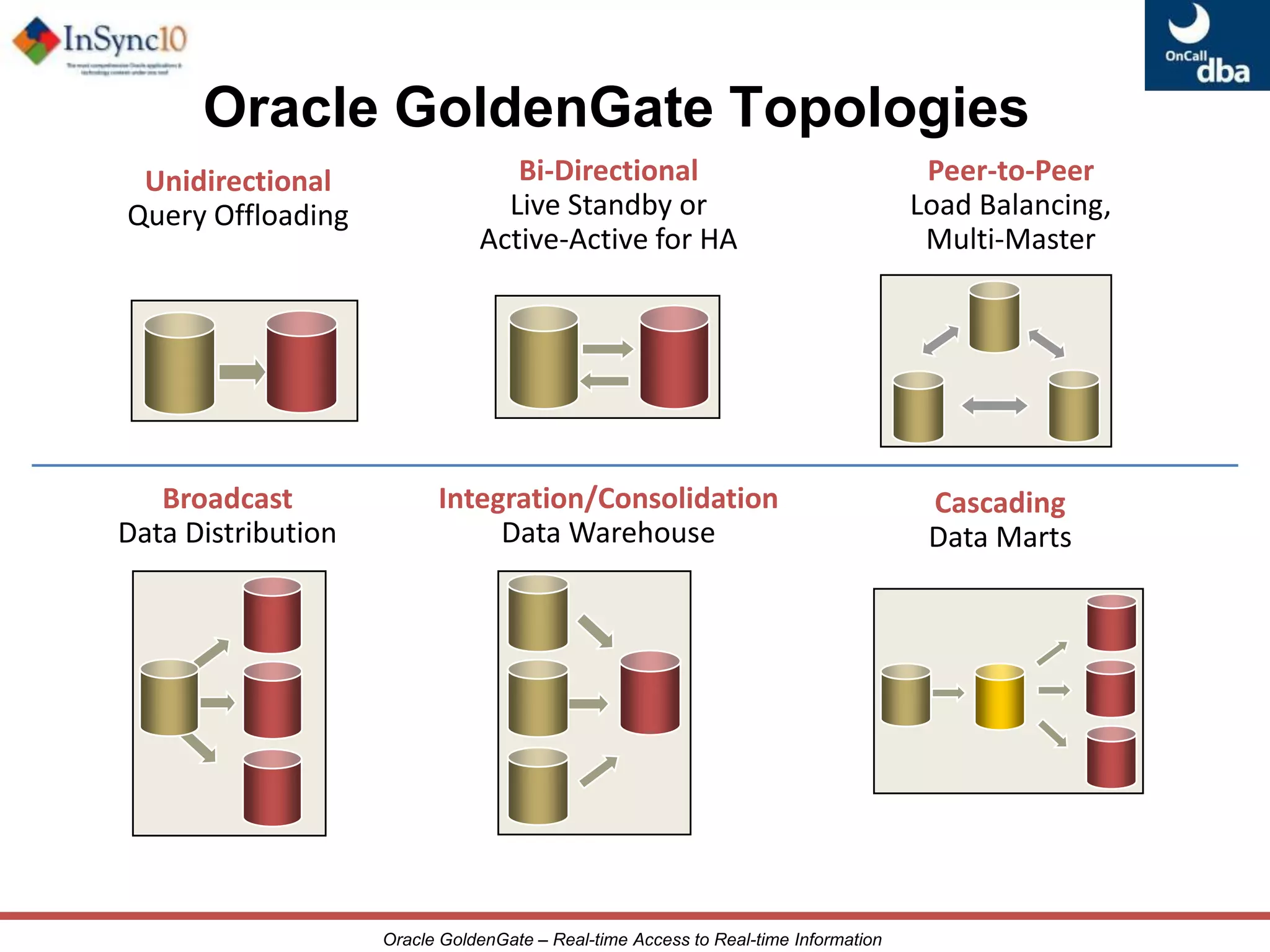

29. Oracle GoldenGate TopologiesBi-DirectionalLive Standby orActive-Active for HAPeer-to-PeerLoad Balancing, Multi-MasterUnidirectionalQuery OffloadingBroadcast Data DistributionIntegration/ConsolidationData WarehouseCascadingData Marts

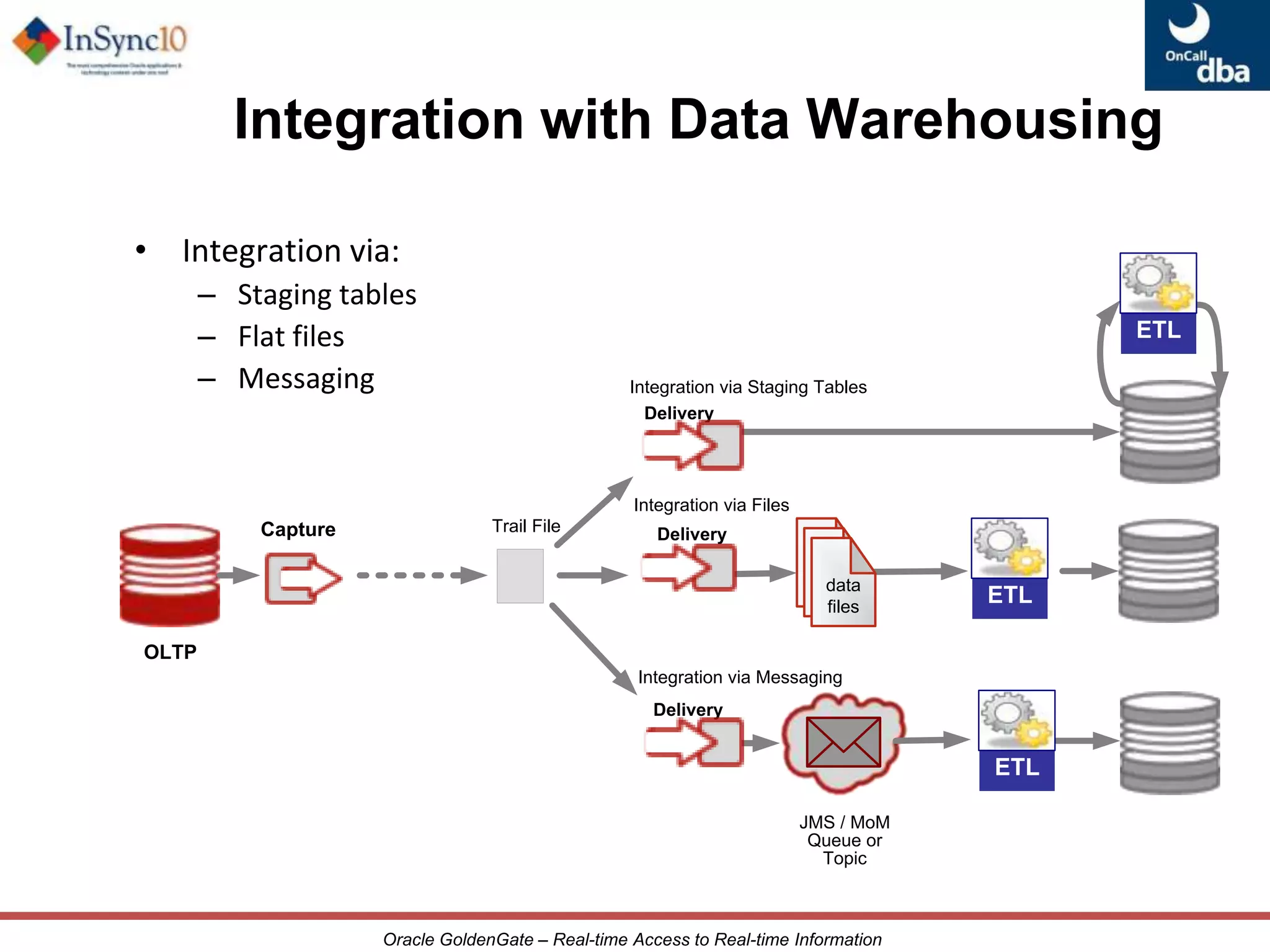

30. Integration with Data WarehousingIntegration via:Staging tablesFlat filesMessaging

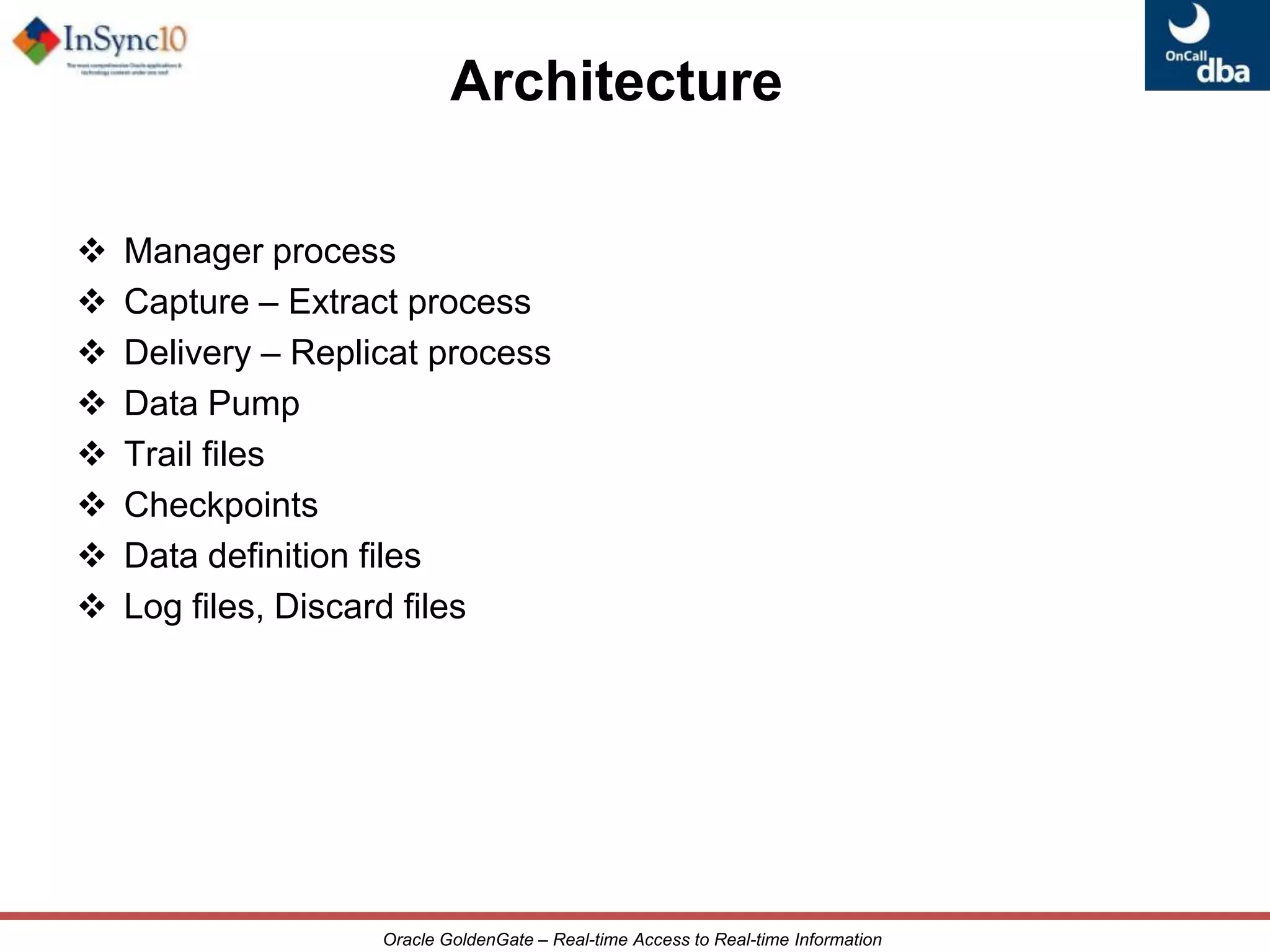

31. ArchitectureManager process

32. Capture – Extract process

33. Delivery – Replicat process

34. Data Pump

35. Trail files

36. Checkpoints

37. Data definition files

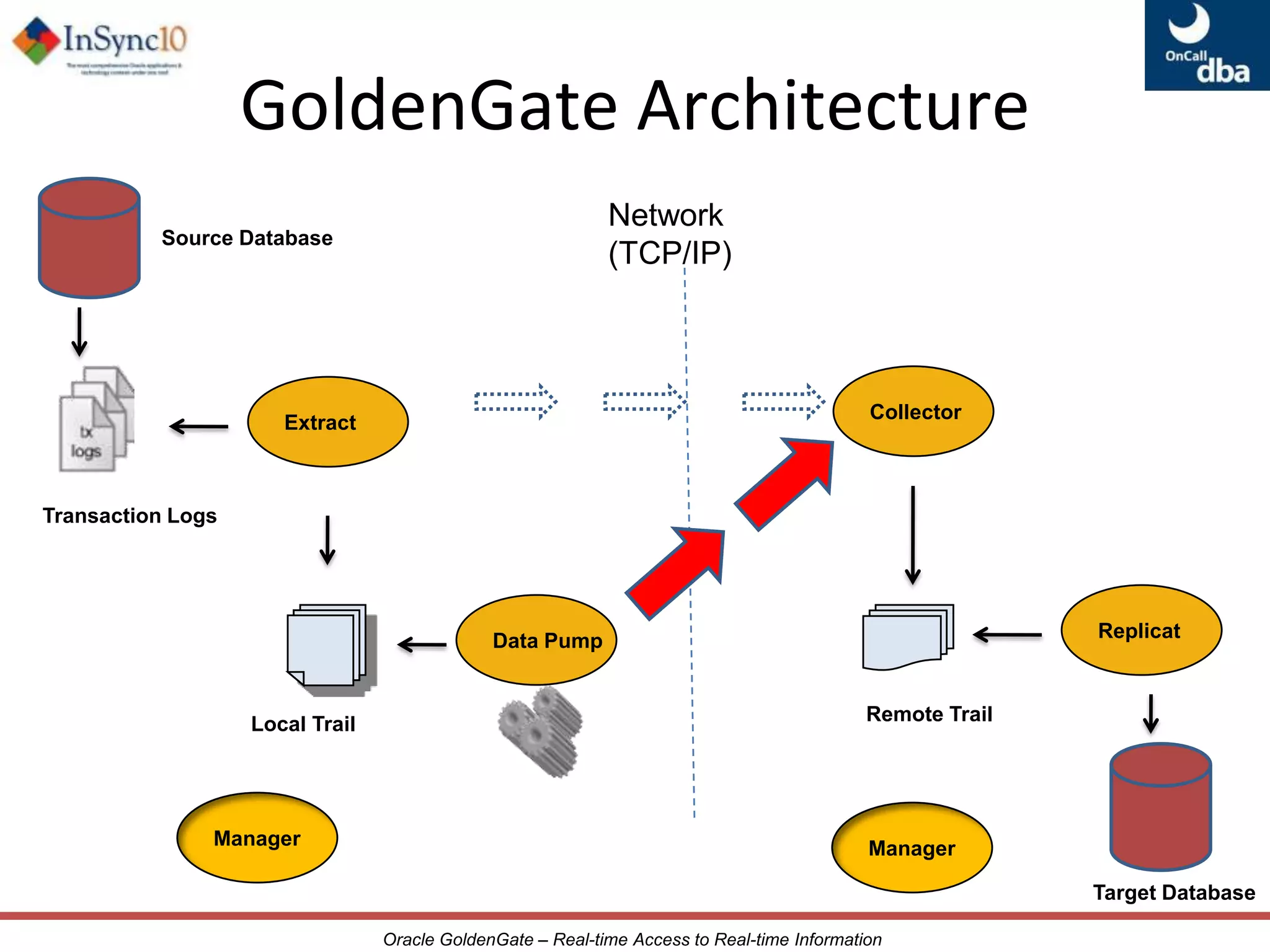

38. Log files, Discard filesGoldenGate ArchitectureNetwork (TCP/IP)Source DatabaseCollectorExtractTransaction LogsReplicatData PumpRemote TrailLocal TrailManagerManagerTarget Database

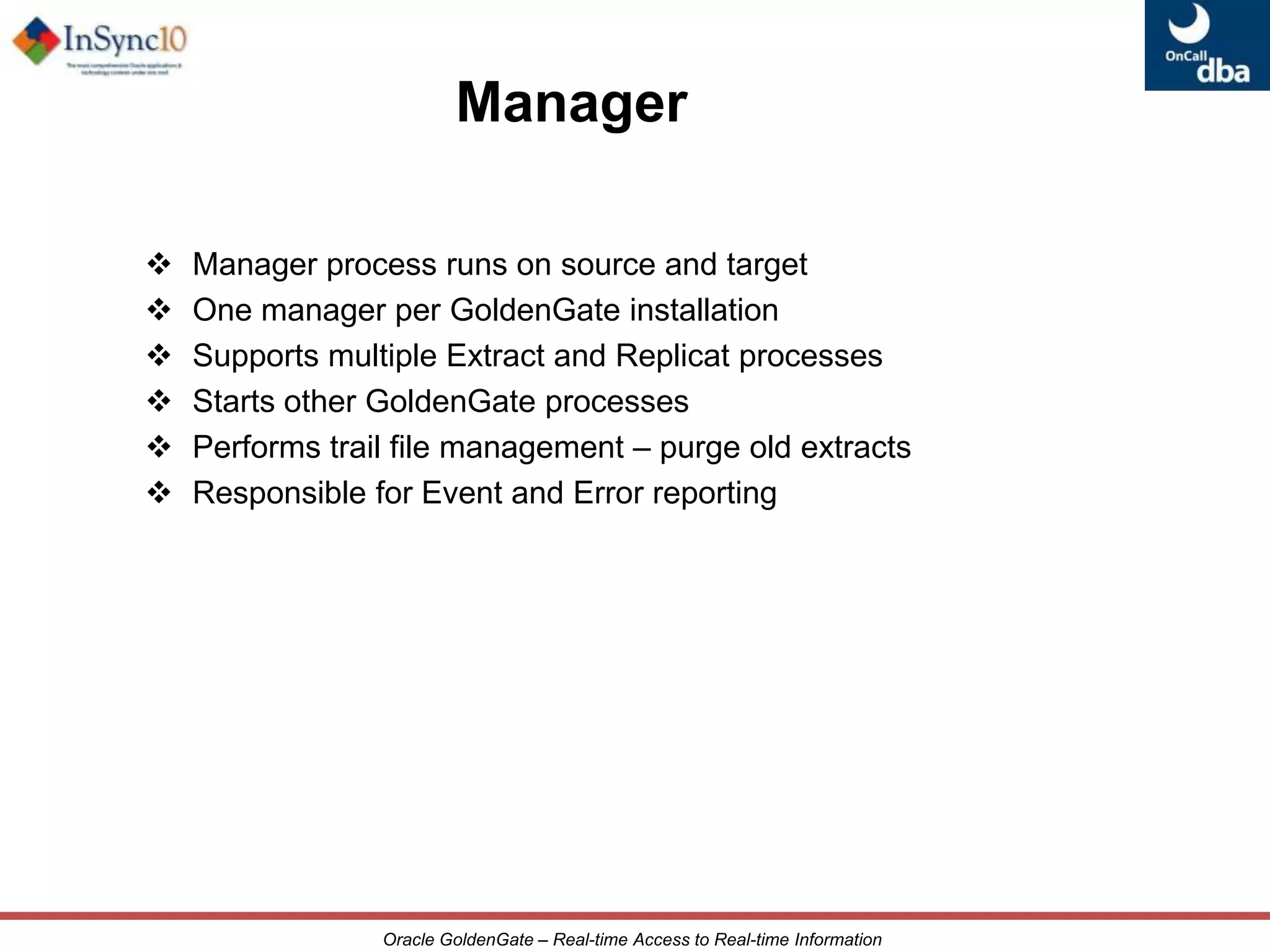

39. ManagerManager process runs on source and target

40. One manager per GoldenGate installation

41. Supports multiple Extract and Replicat processes

42. Starts other GoldenGate processes

43. Performs trail file management – purge old extracts

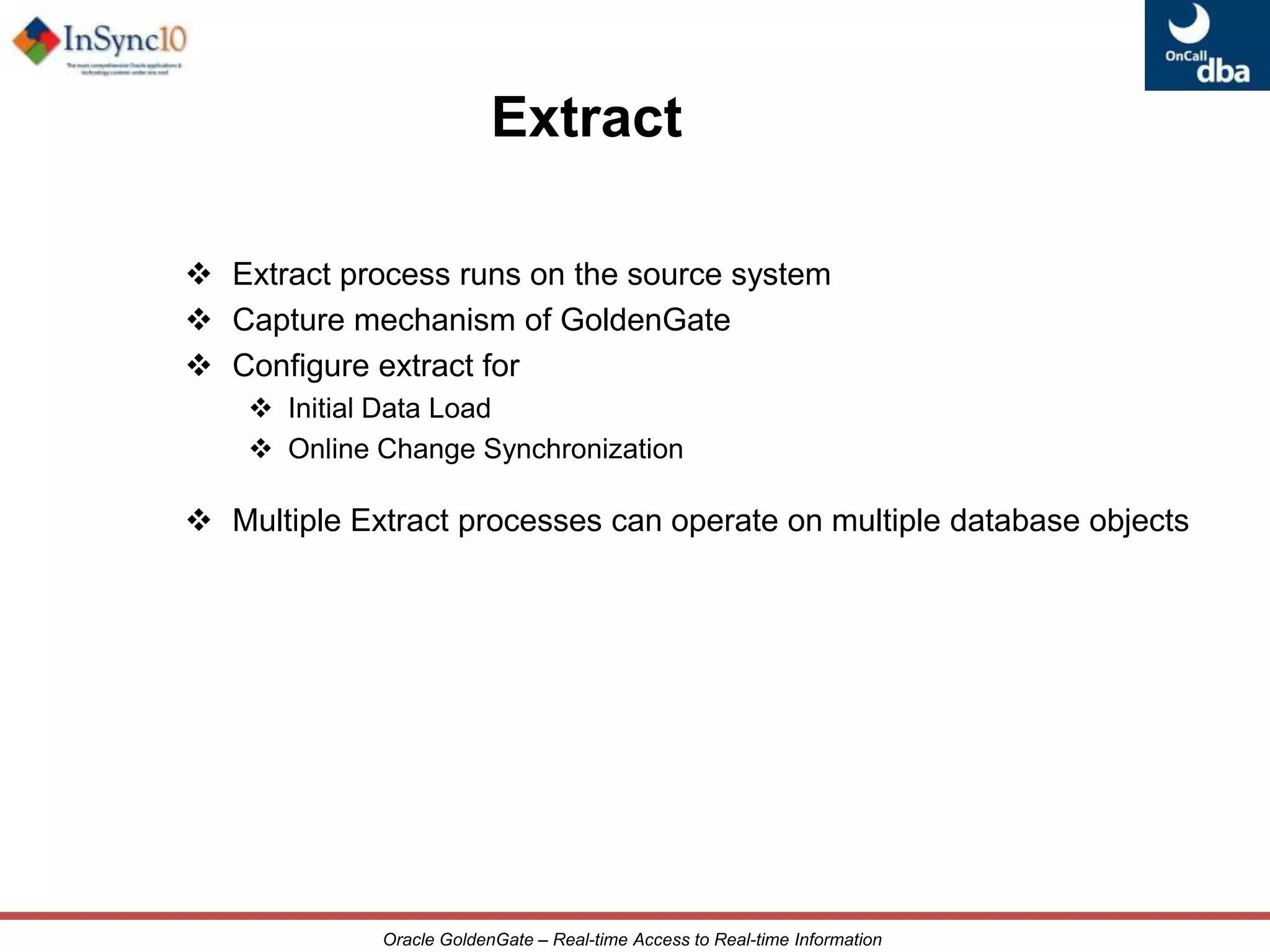

44. Responsible for Event and Error reporting ExtractExtract process runs on the source system

45. Capture mechanism of GoldenGate

46. Configure extract for

47. Initial Data Load

48. Online Change Synchronization

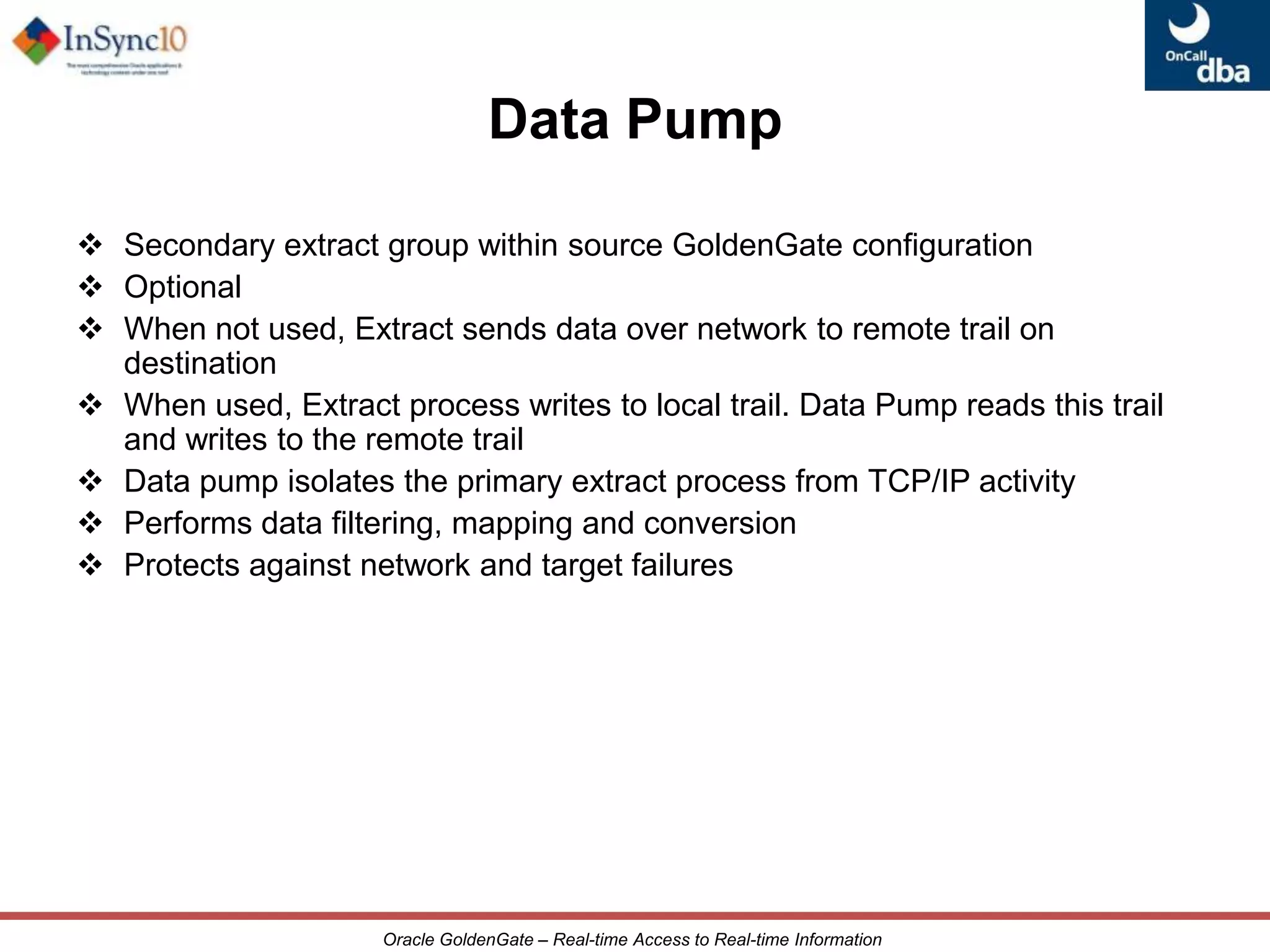

49. Multiple Extract processes can operate on multiple database objectsData PumpSecondary extract group within source GoldenGate configuration

50. Optional

51. When not used, Extract sends data over network to remote trail on destination

52. When used, Extract process writes to local trail. Data Pump reads this trail and writes to the remote trail

53. Data pump isolates the primary extract process from TCP/IP activity

54. Performs data filtering, mapping and conversion

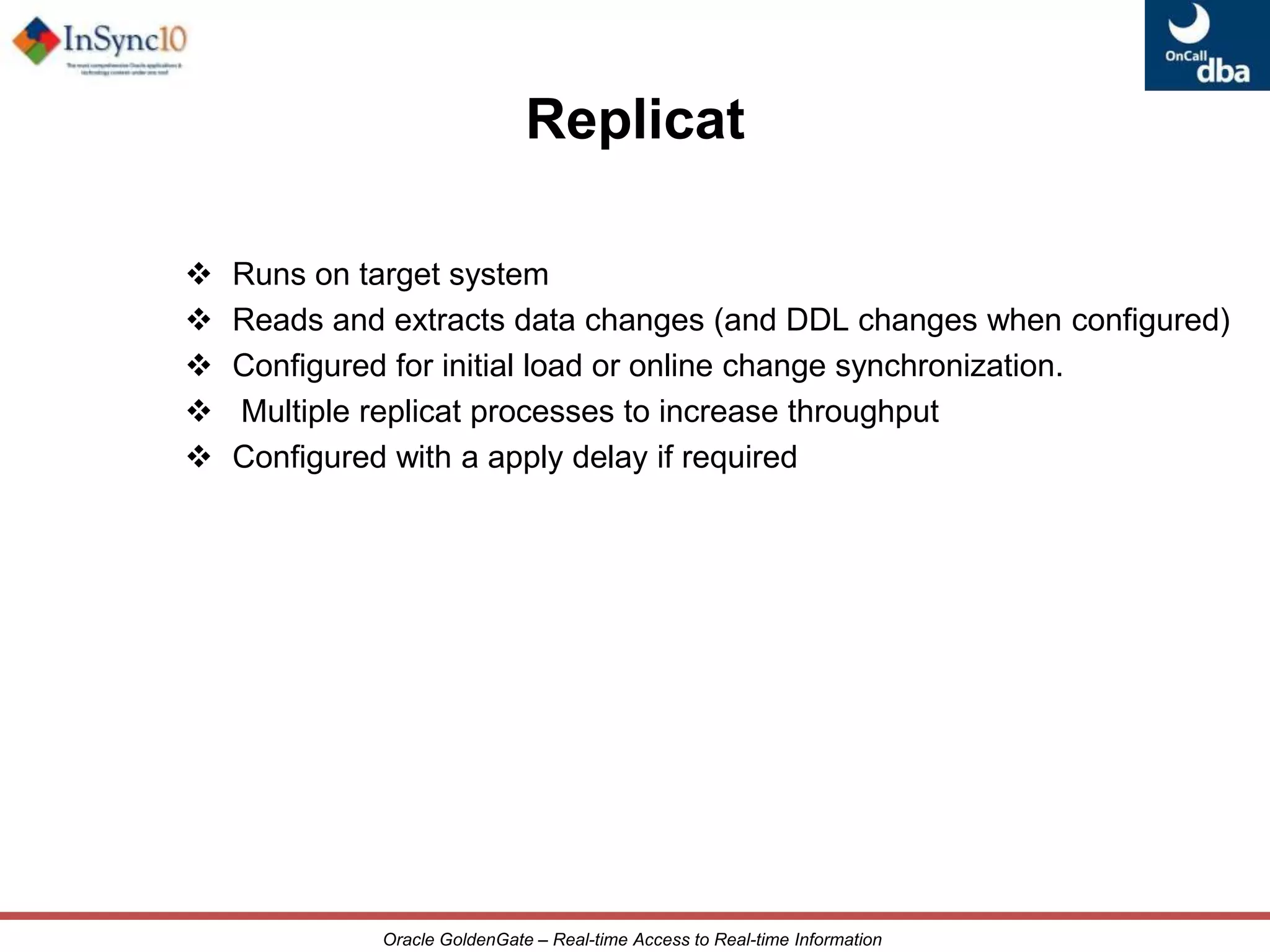

55. Protects against network and target failuresReplicatRuns on target system

56. Reads and extracts data changes (and DDL changes when configured)

57. Configured for initial load or online change synchronization.

58. Multiple replicat processes to increase throughput

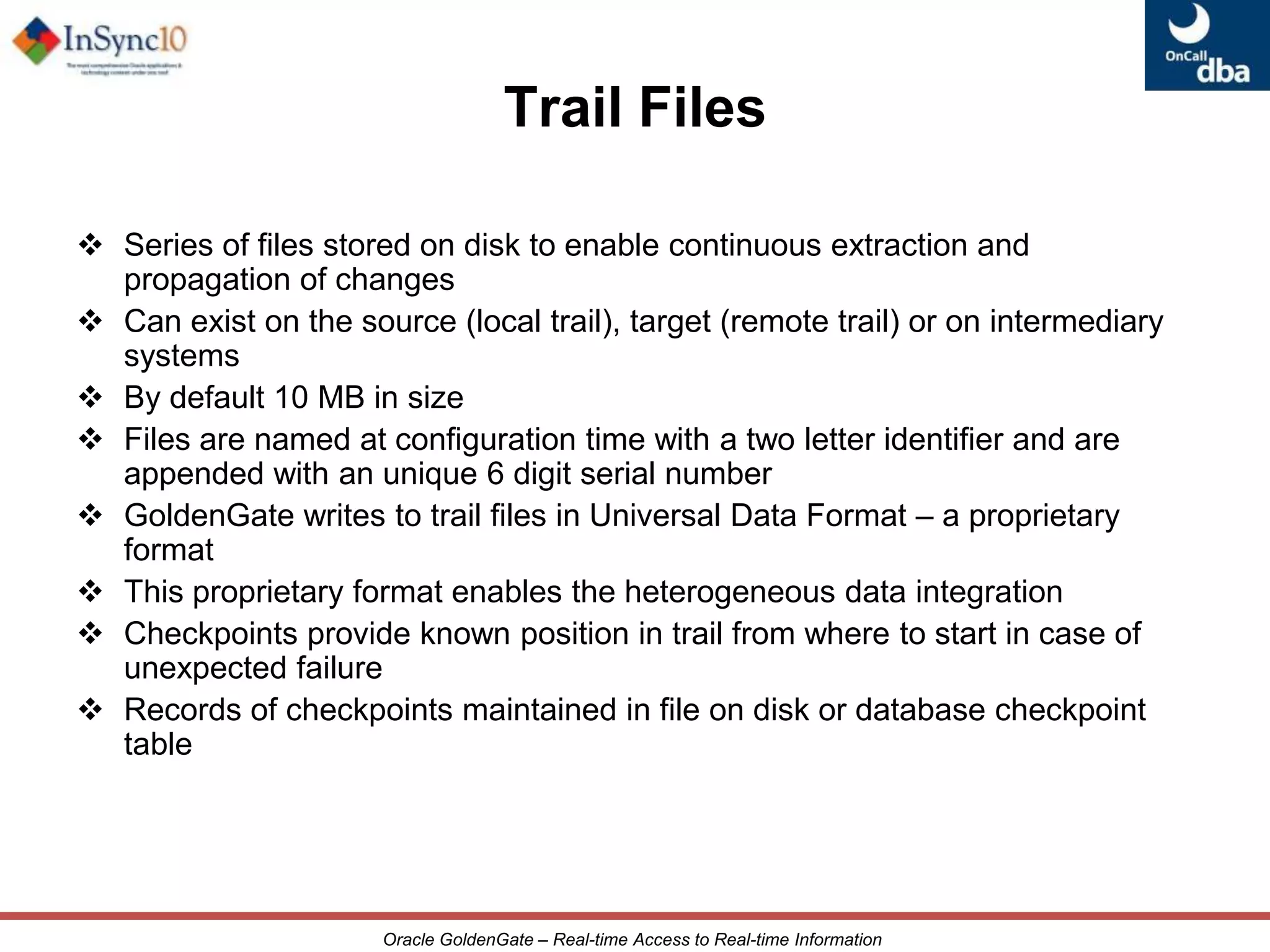

59. Configured with a apply delay if requiredTrail FilesSeries of files stored on disk to enable continuous extraction and propagation of changes

60. Can exist on the source (local trail), target (remote trail) or on intermediary systems

61. By default 10 MB in size

62. Files are named at configuration time with a two letter identifier and are appended with an unique 6 digit serial number

63. GoldenGate writes to trail files in Universal Data Format – a proprietary format

64. This proprietary format enables the heterogeneous data integration

65. Checkpoints provide known position in trail from where to start in case of unexpected failure

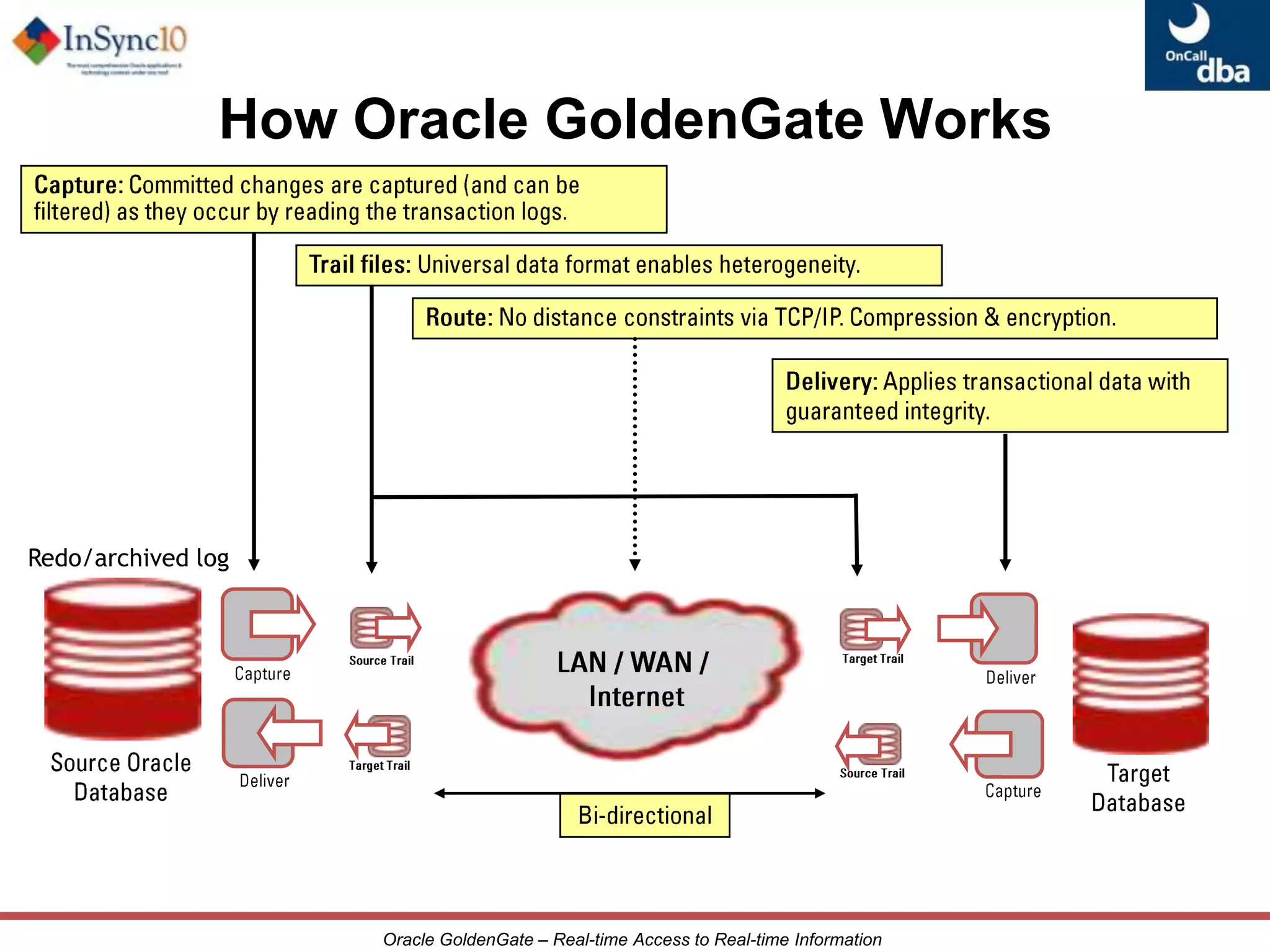

66. Records of checkpoints maintained in file on disk or database checkpoint table How Oracle GoldenGate WorksCaptureDeliverSource TrailTarget TrailDeliverCaptureSource TrailTarget TrailBi-directionalCapture: Committed changes are captured (and can be filtered) as they occur by reading the transaction logs.Trail files: Universal data format enables heterogeneity.Route: No distance constraints via TCP/IP. Compression & encryption. Delivery: Applies transactional data with guaranteed integrity.Redo/archived logLAN / WAN / InternetSource Oracle Database TargetDatabase

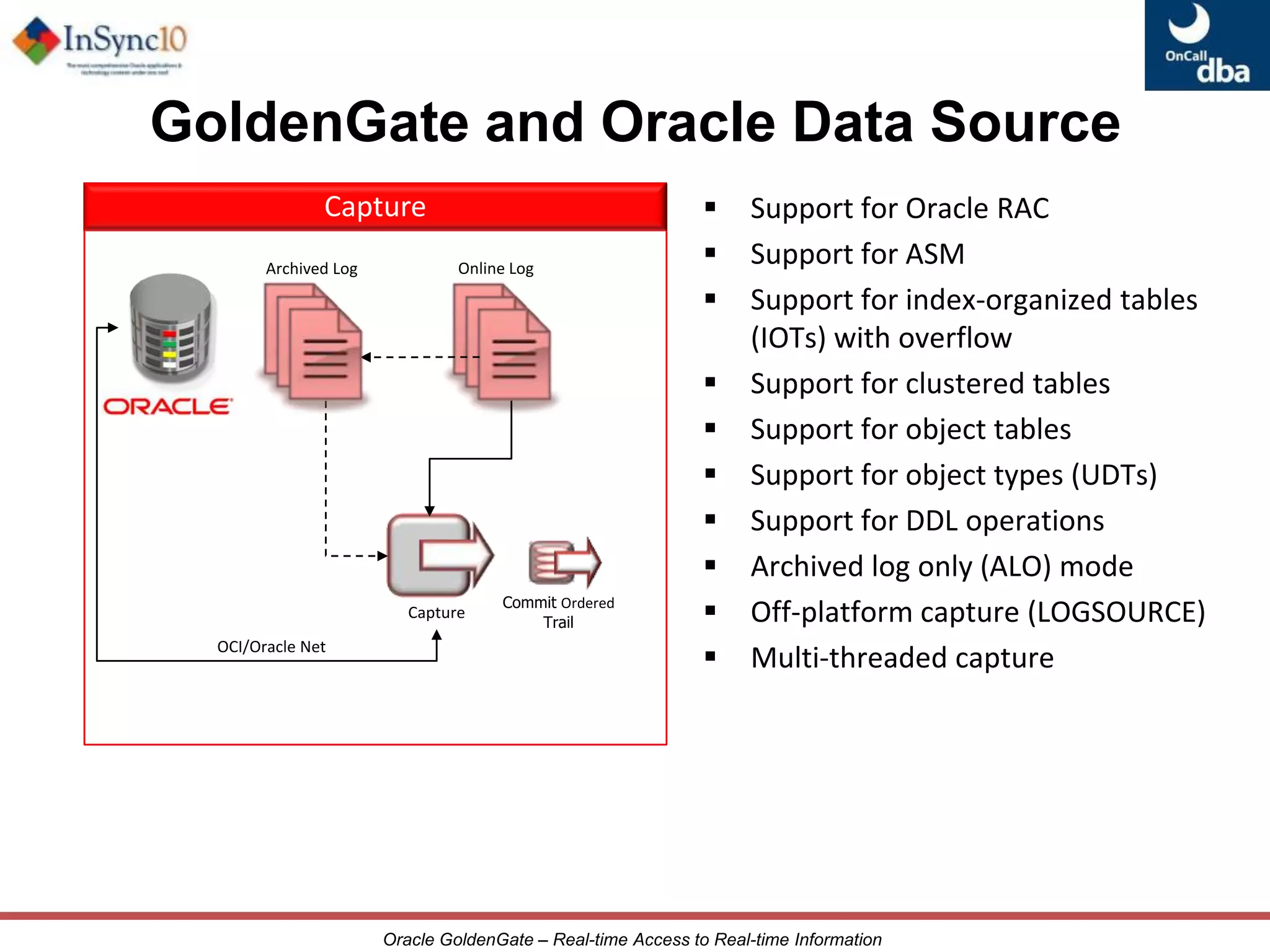

67. GoldenGate and Oracle Data SourceCaptureCommit Ordered TrailSupport for Oracle RAC

68. Support for ASM

69. Support for index-organized tables (IOTs) with overflow

70. Support for clustered tables

71. Support for object tables

72. Support for object types (UDTs)

73. Support for DDL operations

74. Archived log only (ALO) mode

75. Off-platform capture (LOGSOURCE)

76. Multi-threaded captureCaptureOnline LogArchived LogOCI/Oracle Net

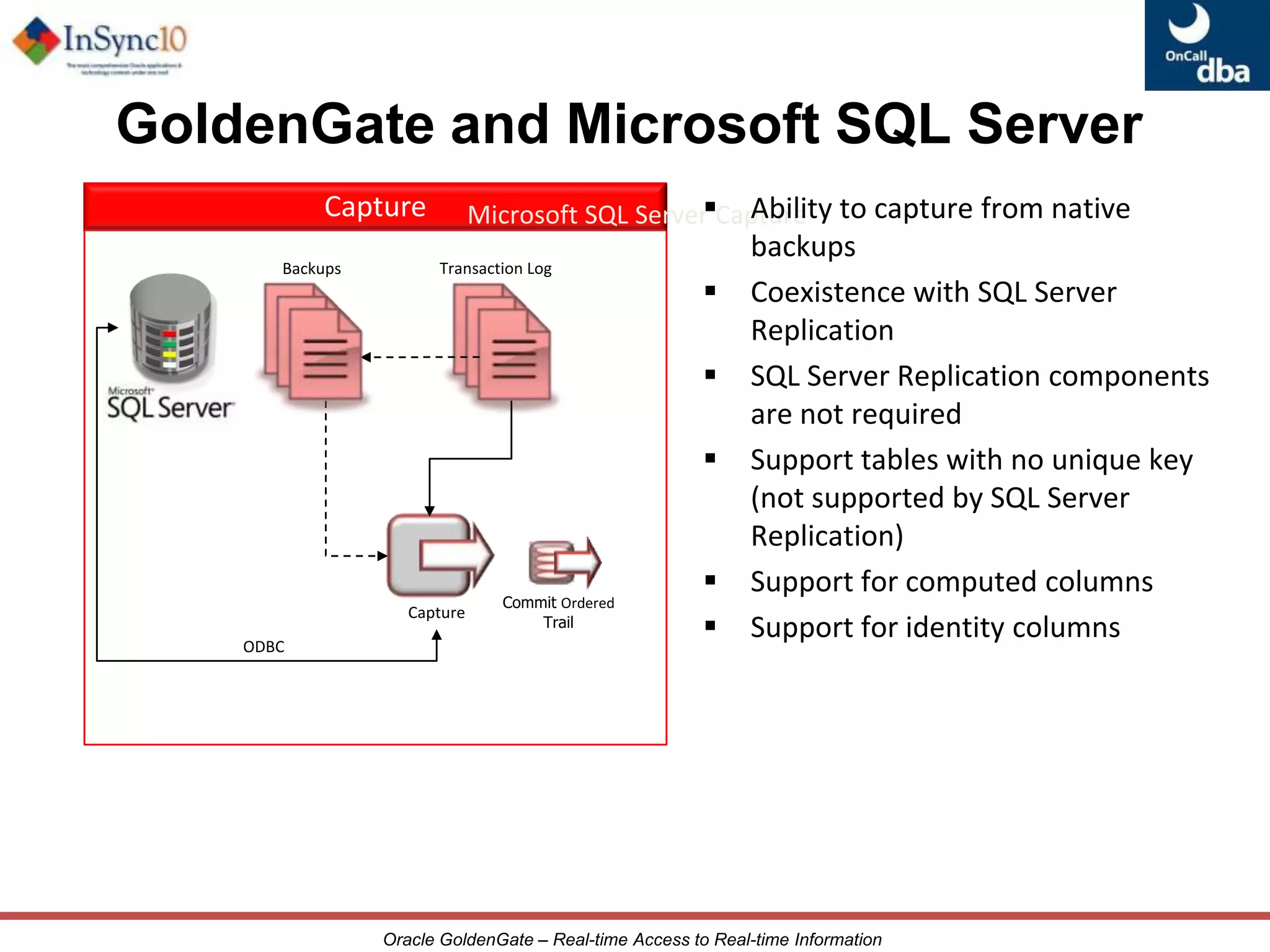

77. CaptureCommit Ordered TrailGoldenGate and Microsoft SQL ServerMicrosoft SQL Server Capture Ability to capture from native backups

78. Coexistence with SQL Server Replication

79. SQL Server Replication components are not required

80. Support tables with no unique key (not supported by SQL Server Replication)

81. Support for computed columns

82. Support for identity columnsCaptureTransaction LogBackupsODBC

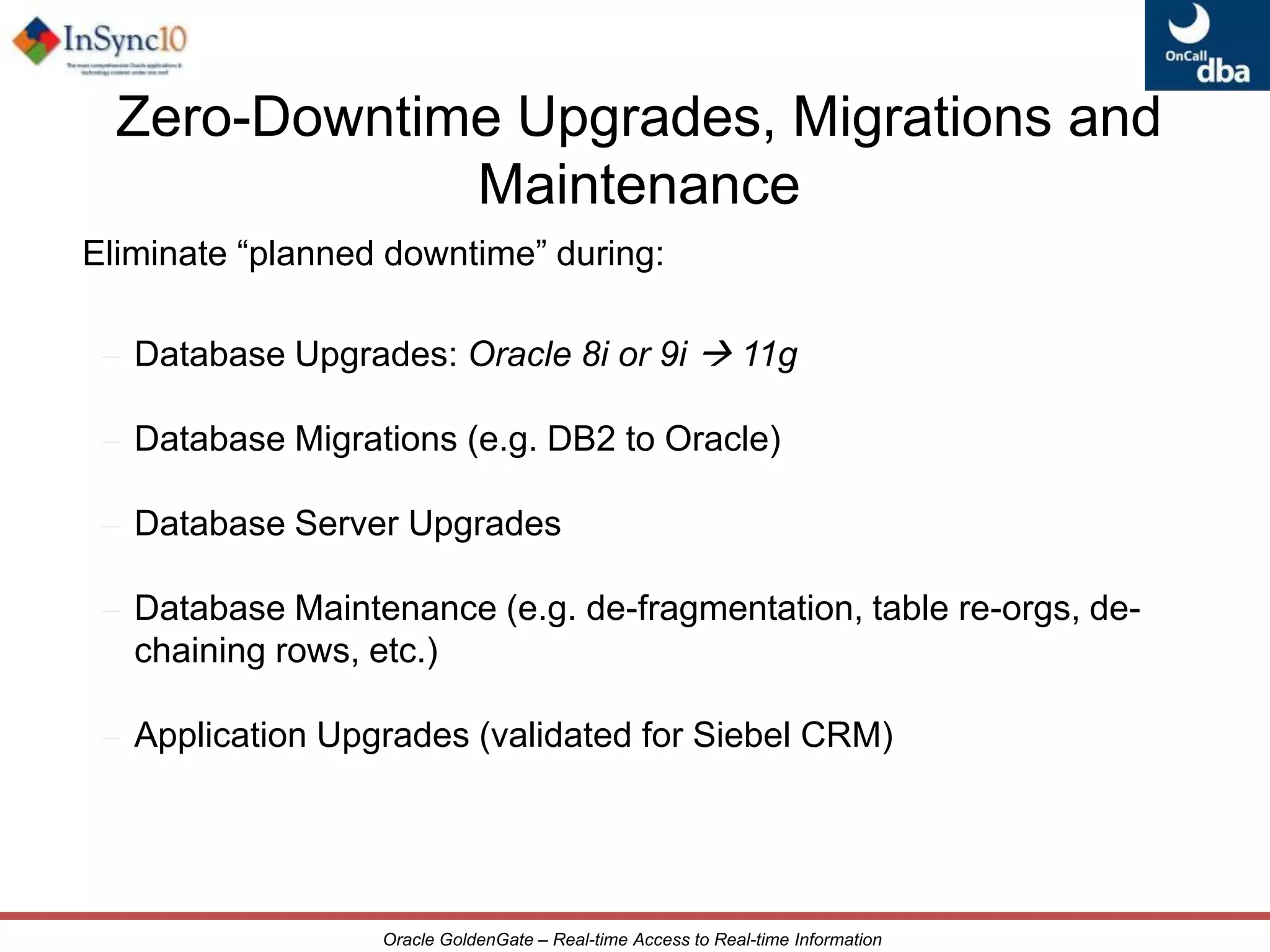

83. Zero-Downtime Upgrades, Migrations and MaintenanceEliminate “planned downtime” during:Database Upgrades: Oracle 8i or 9i  11g

84. Database Migrations (e.g. DB2 to Oracle)

85. Database Server Upgrades

86. Database Maintenance (e.g. de-fragmentation, table re-orgs, de-chaining rows, etc.)

87. Application Upgrades (validated for Siebel CRM)Oracle 8i or 9i to 10/11g Upgrades/MigrationsWhat GoldenGate TDM offers:

88. Minimal impact and continuous availability during the project

89. Technology solution for eliminating database downtime

90. Improved capabilities for data integrity, accuracy

91. Fail-back solution in the event of unexpected issues/downtime

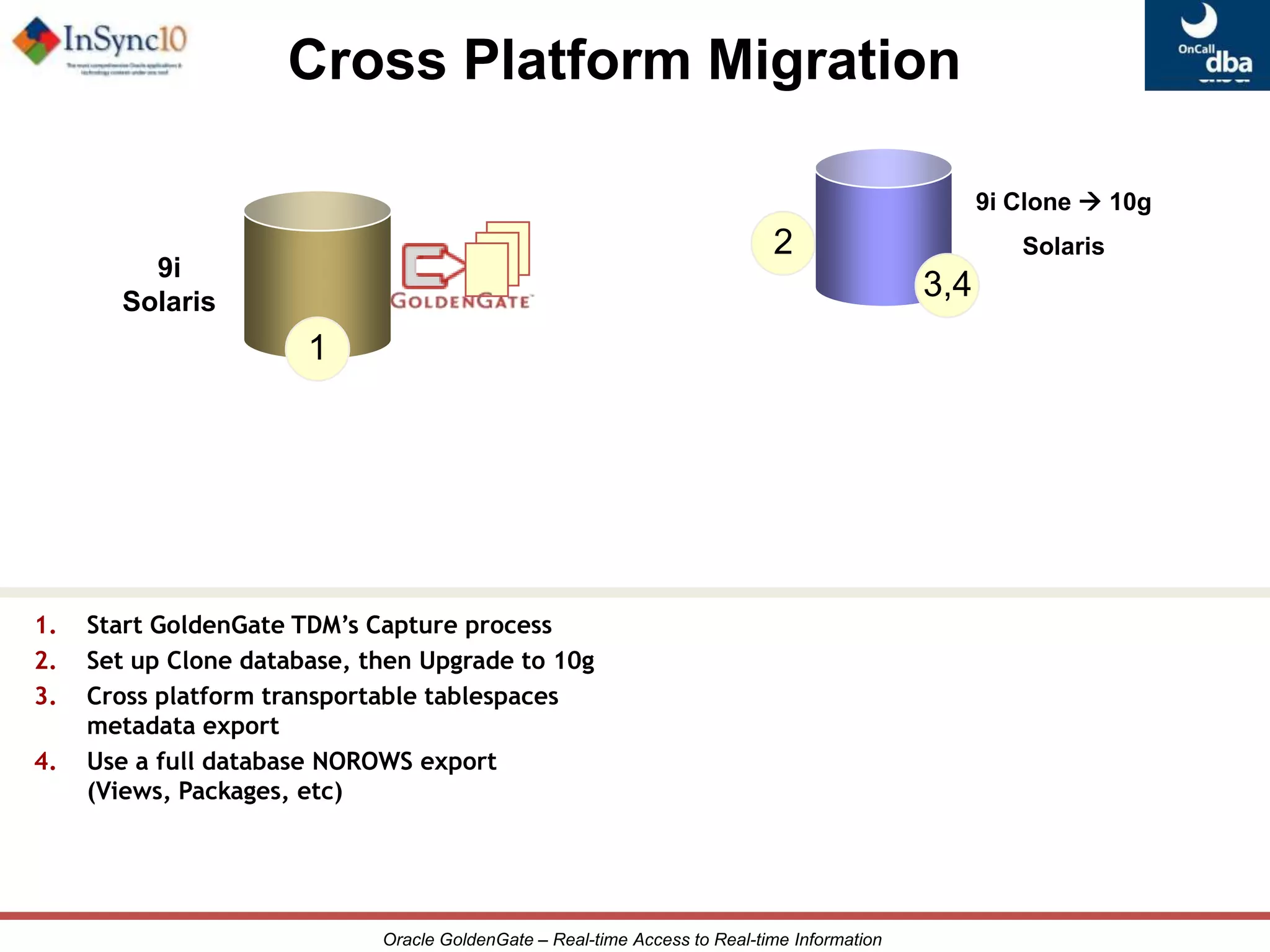

92. Proven – with customers in productionCross Platform Migration123,49i Clone  10gSolaris9i SolarisStart GoldenGate TDM’s Capture processSet up Clone database, then Upgrade to 10g Cross platform transportable tablespaces metadata exportUse a full database NOROWS export (Views, Packages, etc)

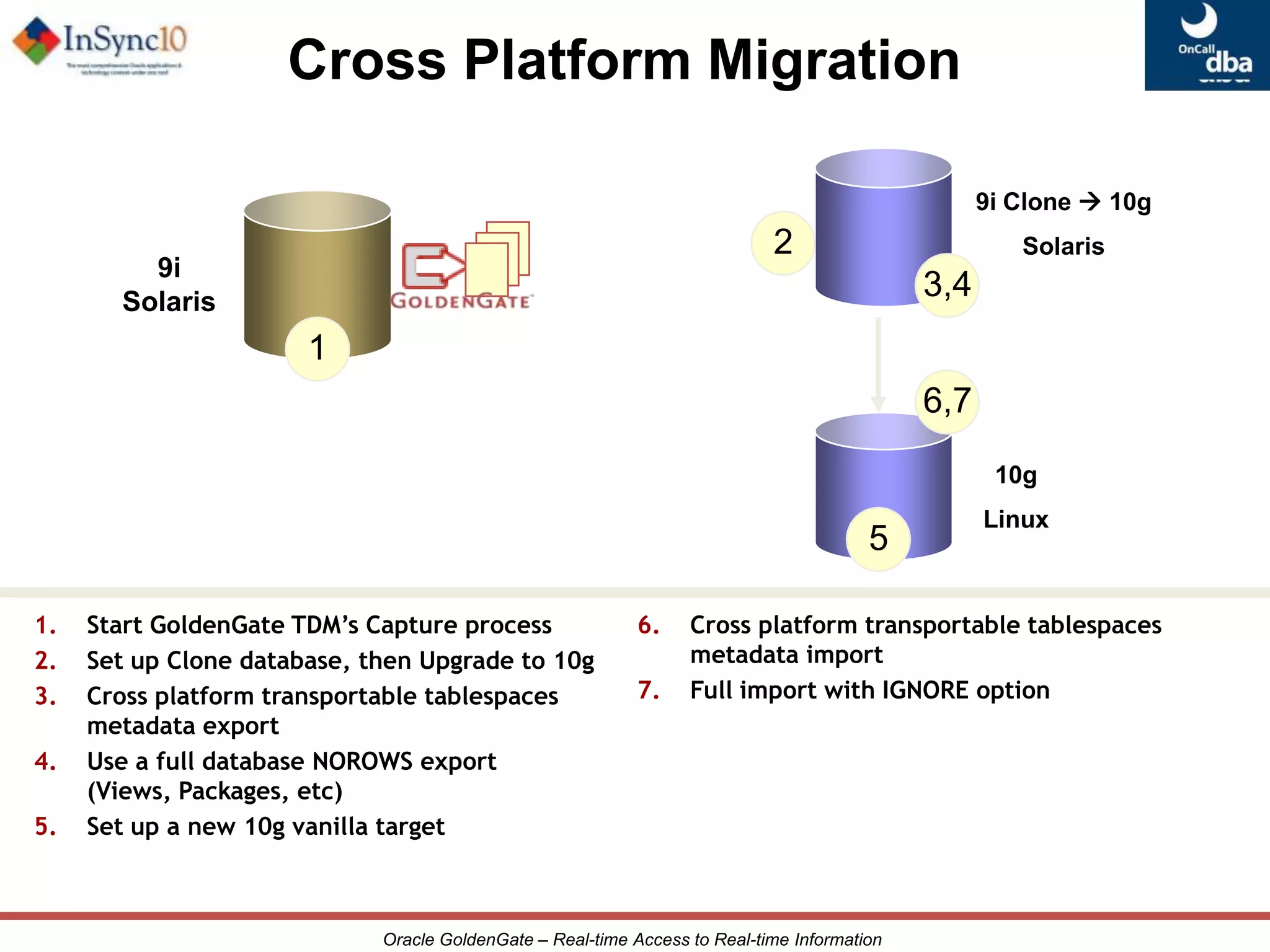

93. Cross Platform Migration123,456,79i Clone  10gSolaris9i Solaris10gLinuxStart GoldenGate TDM’s Capture processSet up Clone database, then Upgrade to 10g Cross platform transportable tablespaces metadata exportUse a full database NOROWS export (Views, Packages, etc)Set up a new 10g vanilla target Cross platform transportable tablespaces metadata importFull import with IGNORE option

94. Cross Platform Migration12583,46,79i Clone  10gSolaris9i Solaris10gLinuxStart GoldenGate TDM’s Capture processSet up Clone database, then Upgrade to 10g Cross platform transportable tablespaces metadata exportUse a full database NOROWS export (Views, Packages, etc)Set up a new 10g vanilla target Cross platform transportable tablespaces metadata importFull import with IGNORE optionStart GoldenGate TDM Apply process at target **SWITCHOVER** (not depicted)

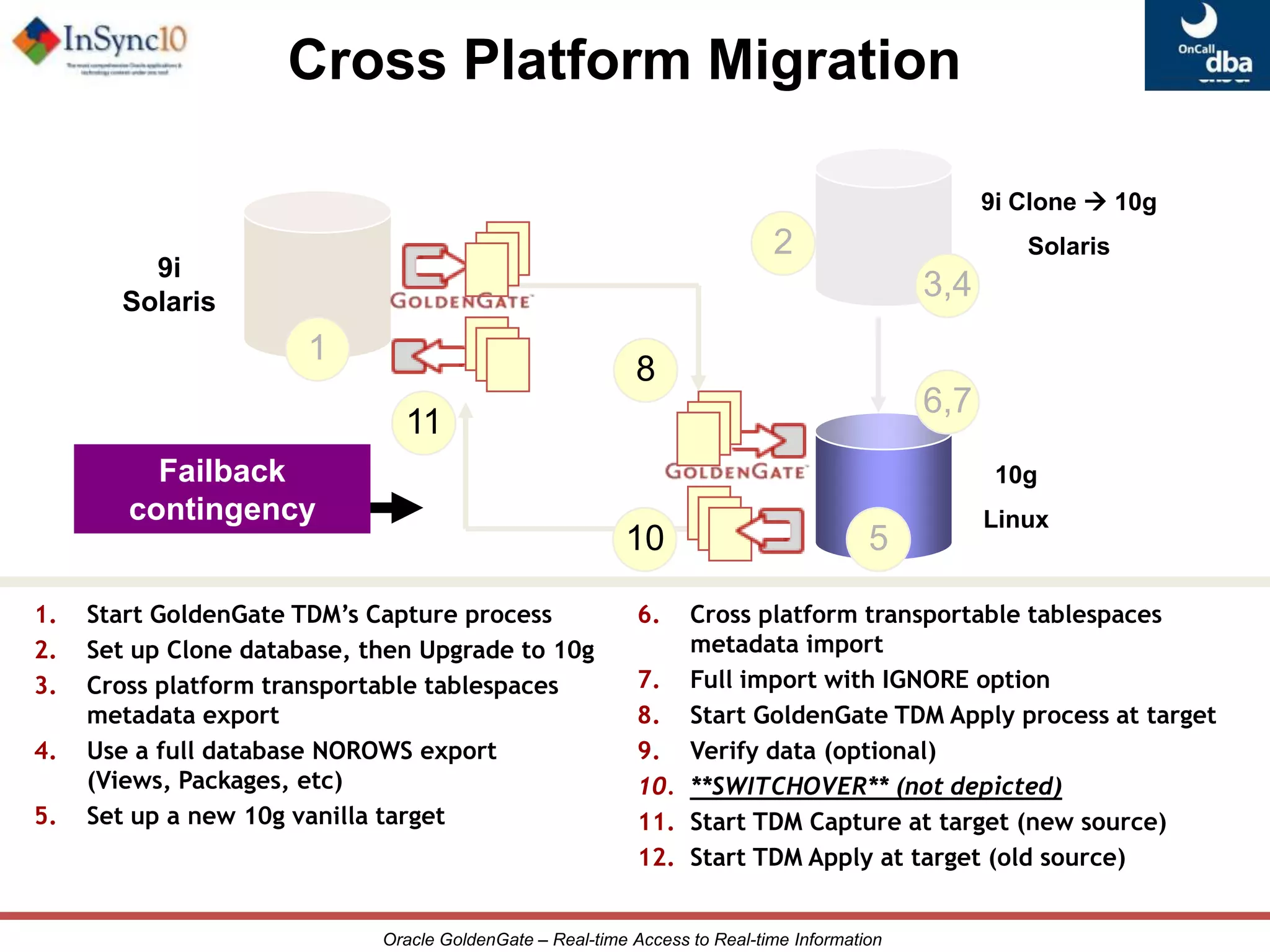

95. Cross Platform Migration158101123,46,79i Clone  10gSolaris9i SolarisFailback contingency10gLinuxStart GoldenGate TDM’s Capture processSet up Clone database, then Upgrade to 10g Cross platform transportable tablespaces metadata exportUse a full database NOROWS export (Views, Packages, etc)Set up a new 10g vanilla target Cross platform transportable tablespaces metadata importFull import with IGNORE optionStart GoldenGate TDM Apply process at targetVerify data (optional)**SWITCHOVER** (not depicted)Start TDM Capture at target (new source)Start TDM Apply at target (old source)

96. GoldenGate Management Pack Graphical interface for designing, configuring, managing, monitoring, and reporting on the Oracle GoldenGate components.Golden Gate Director Server

97. GoldenGate Director Client

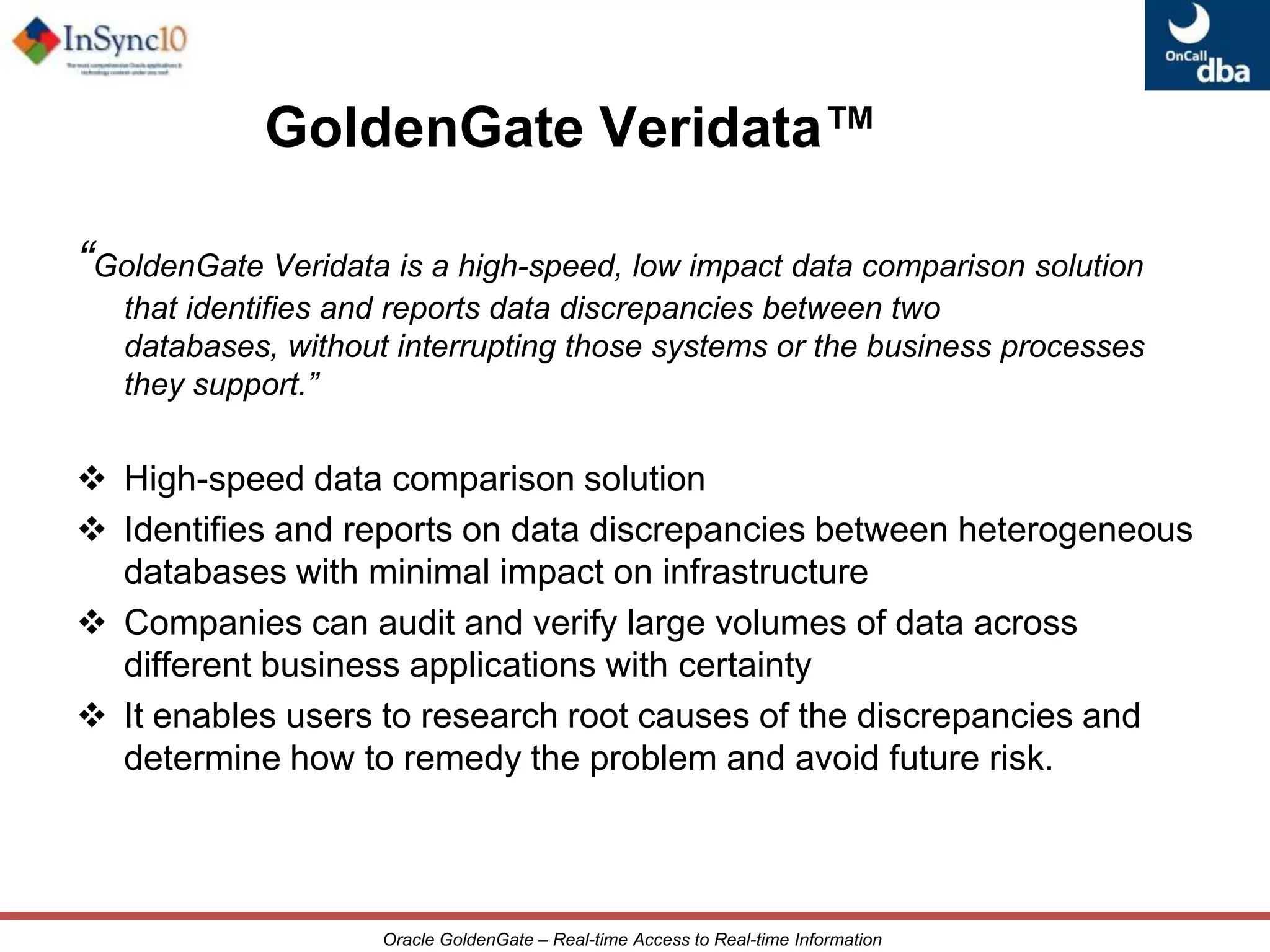

98. GoldenGate Web DirectorGoldenGateVeridata™“GoldenGate Veridata is a high-speed, low impact data comparison solution that identifies and reports data discrepancies between two databases, without interrupting those systems or the business processes they support.”High-speed data comparison solution

99. Identifies and reports on data discrepancies between heterogeneous databases with minimal impact on infrastructure

100. Companies can audit and verify large volumes of data across different business applications with certainty

101. It enables users to research root causes of the discrepancies and determine how to remedy the problem and avoid future risk. GoldenGateVeridata™

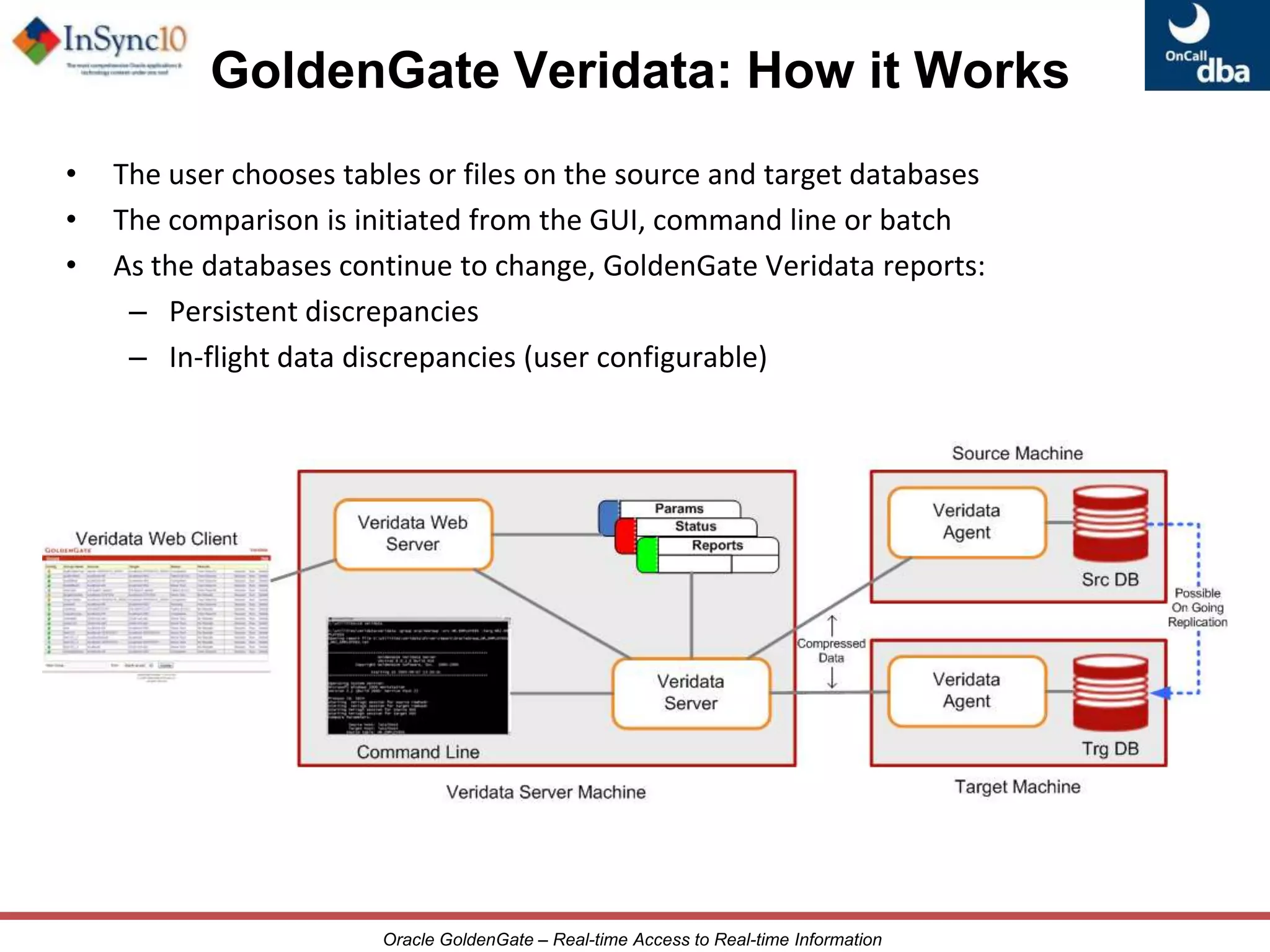

102. GoldenGate Veridata: How it WorksThe user chooses tables or files on the source and target databasesThe comparison is initiated from the GUI, command line or batchAs the databases continue to change, GoldenGate Veridata reports: Persistent discrepancies In-flight data discrepancies (user configurable)

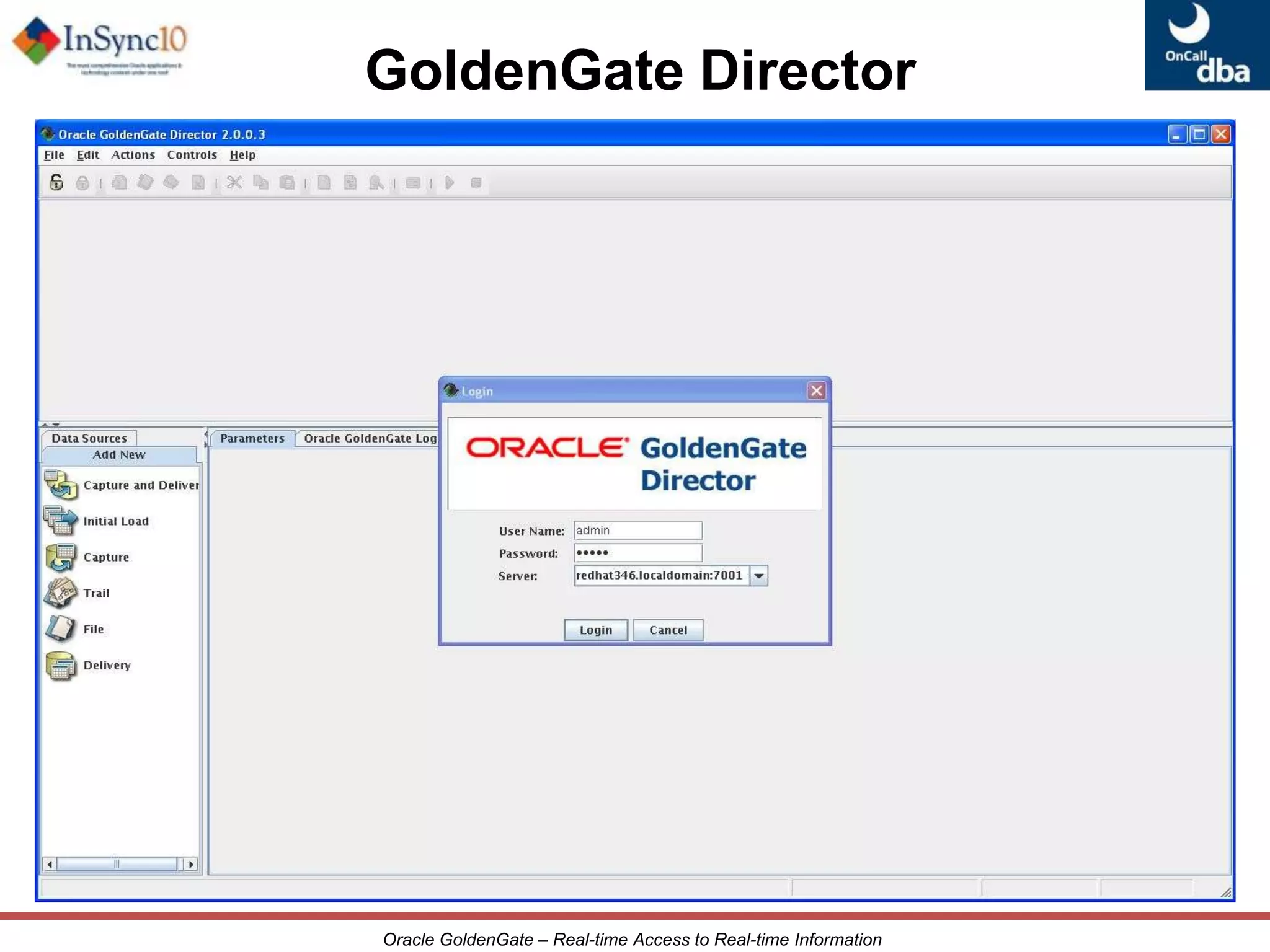

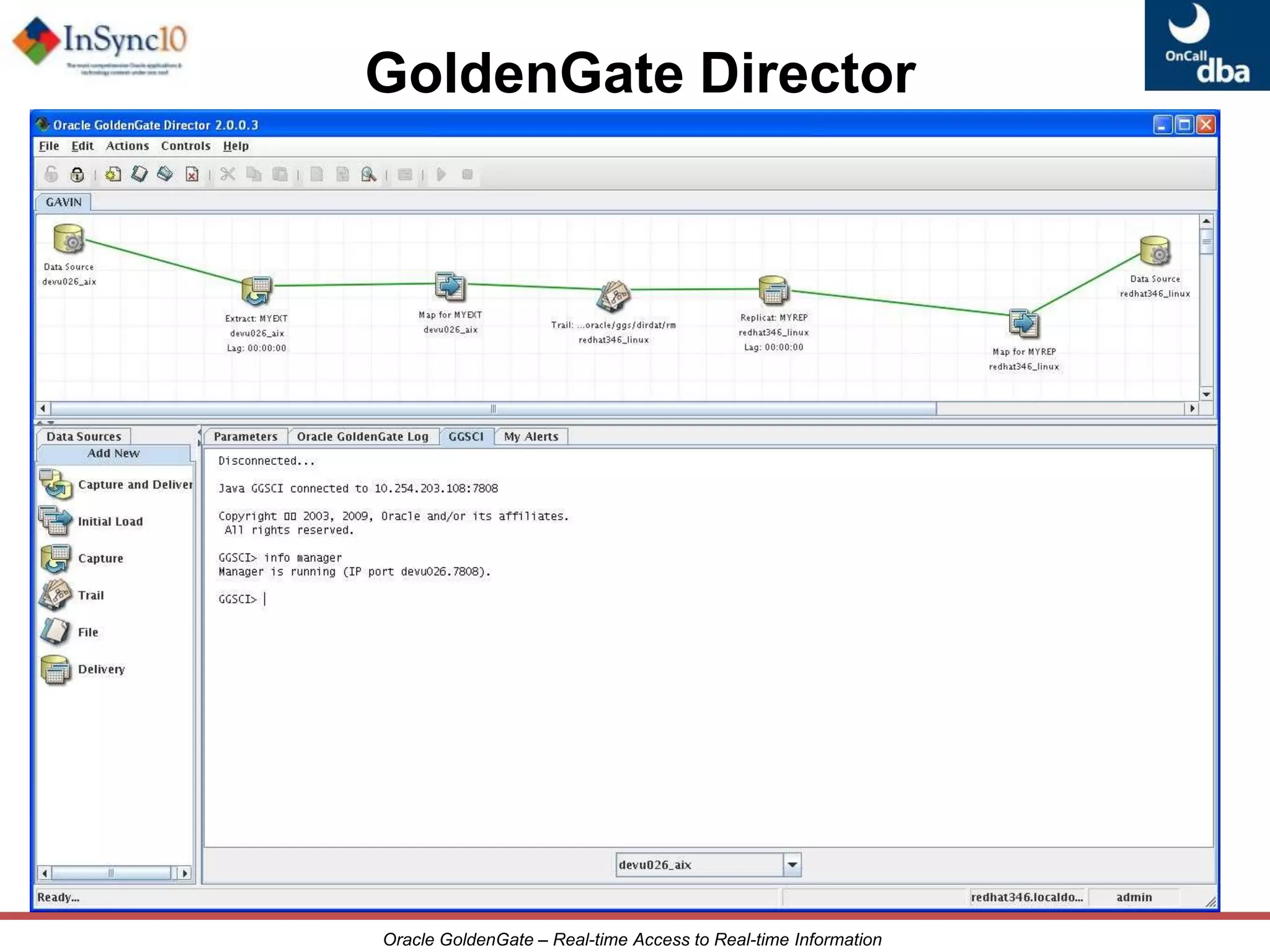

103. GoldenGate Director

104. GoldenGate Director

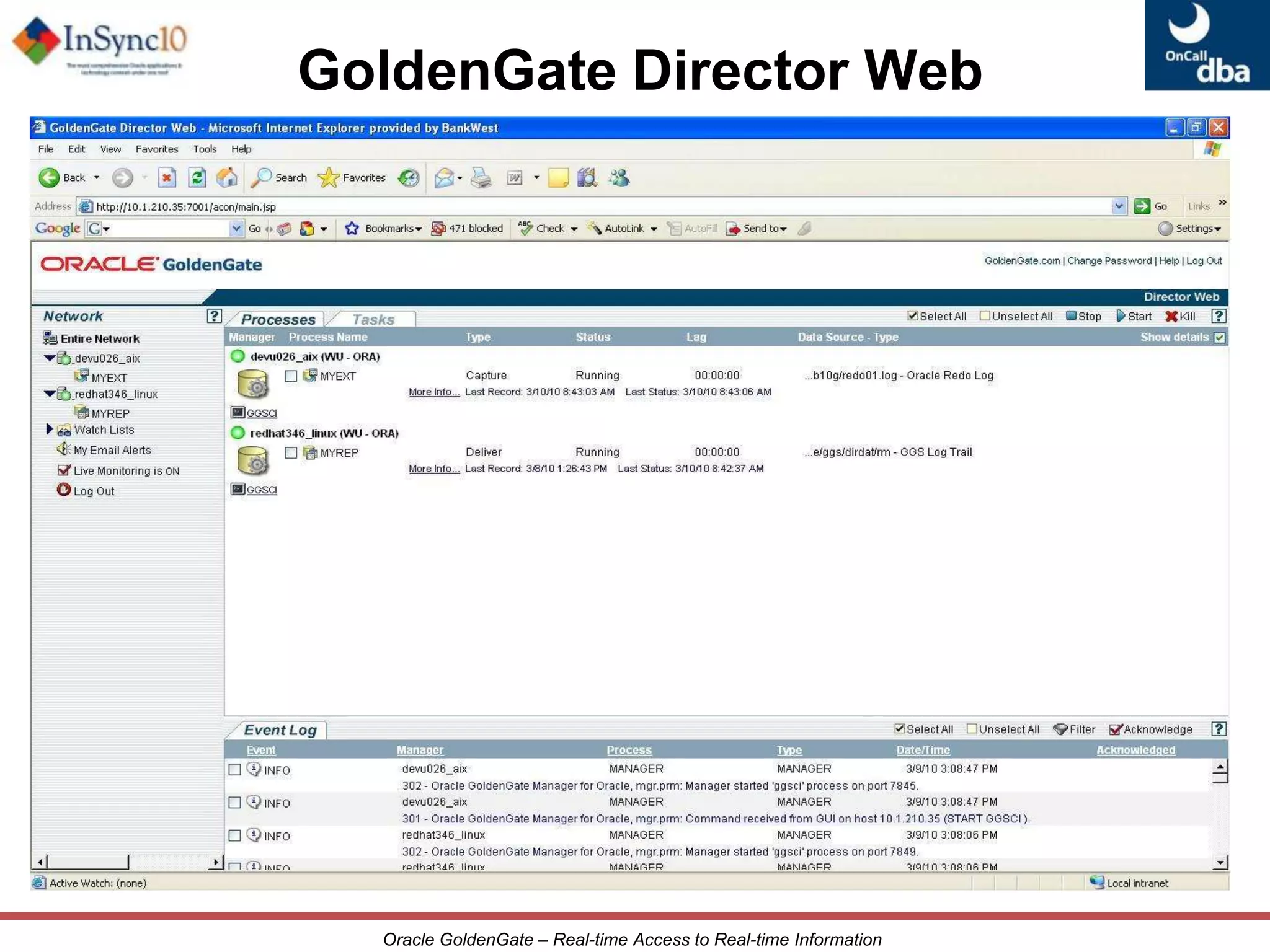

105. GoldenGate Director Web

106. GoldenGate Demo

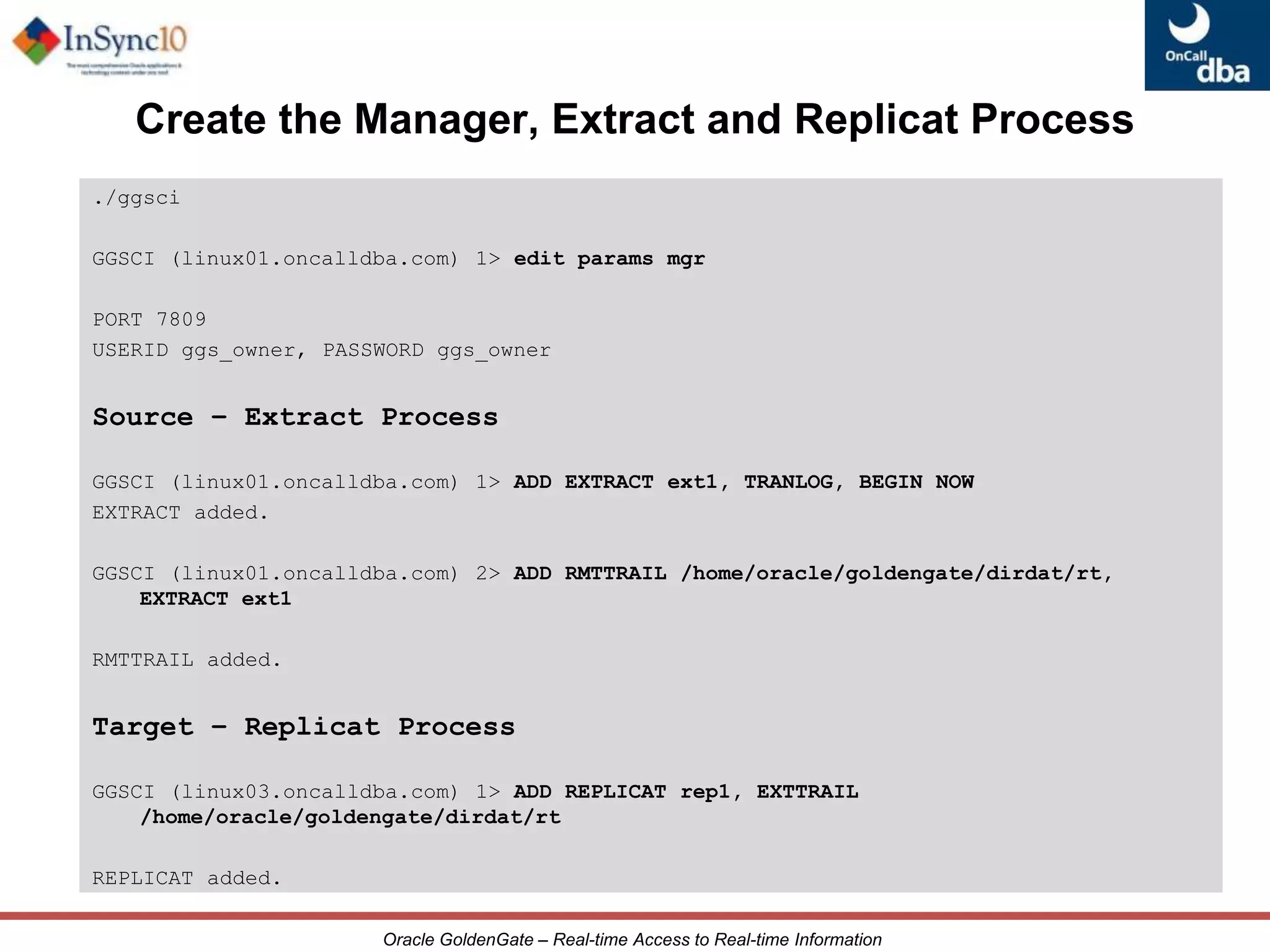

107. Create the Manager, Extract and Replicat Process./ggsciGGSCI (linux01.oncalldba.com) 1> edit params mgrPORT 7809USERID ggs_owner, PASSWORD ggs_ownerSource – Extract ProcessGGSCI (linux01.oncalldba.com) 1> ADD EXTRACT ext1, TRANLOG, BEGIN NOWEXTRACT added.GGSCI (linux01.oncalldba.com) 2> ADD RMTTRAIL /home/oracle/goldengate/dirdat/rt, EXTRACT ext1RMTTRAIL added.Target – Replicat ProcessGGSCI (linux03.oncalldba.com) 1> ADD REPLICAT rep1, EXTTRAIL /home/oracle/goldengate/dirdat/rtREPLICAT added.

108. Start Manager (Source)[oracle@linux01 goldengate]$ ./ggsciOracle GoldenGate Command Interpreter for OracleVersion 10.4.0.19 Build 002Linux, x86, 32bit (optimized), Oracle 10 on Sep 17 2009 23:49:42Copyright (C) 1995, 2009, Oracle and/or its affiliates. All rights reserved.GGSCI (linux01.oncalldba.com) 1> start managerManager started.GGSCI (linux01.oncalldba.com) 2> info allProgram Status Group Lag Time Since ChkptMANAGER RUNNING

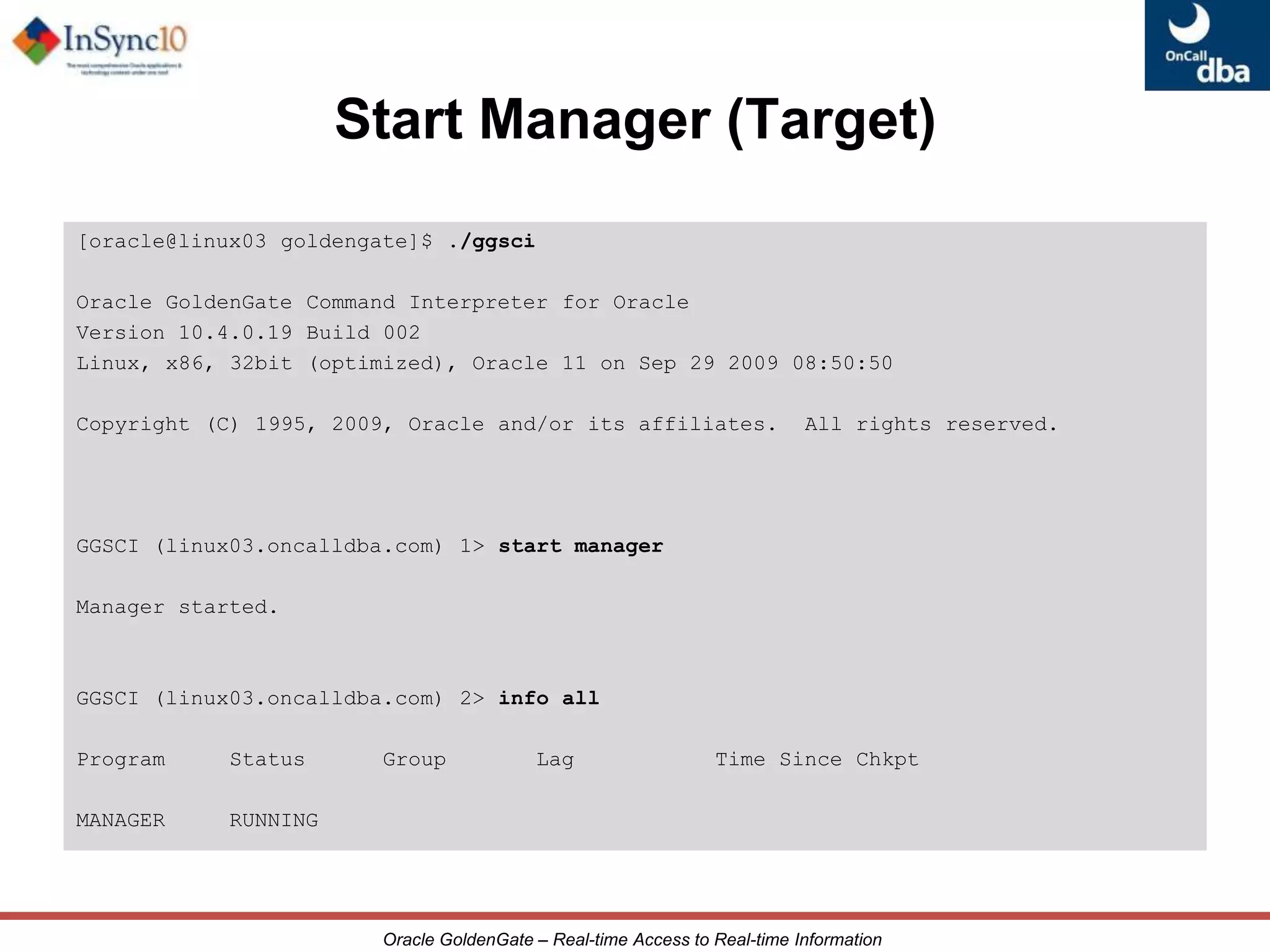

109. Start Manager (Target)[oracle@linux03 goldengate]$ ./ggsciOracle GoldenGate Command Interpreter for OracleVersion 10.4.0.19 Build 002Linux, x86, 32bit (optimized), Oracle 11 on Sep 29 2009 08:50:50Copyright (C) 1995, 2009, Oracle and/or its affiliates. All rights reserved.GGSCI (linux03.oncalldba.com) 1> start managerManager started.GGSCI (linux03.oncalldba.com) 2> info allProgram Status Group Lag Time Since ChkptMANAGER RUNNING

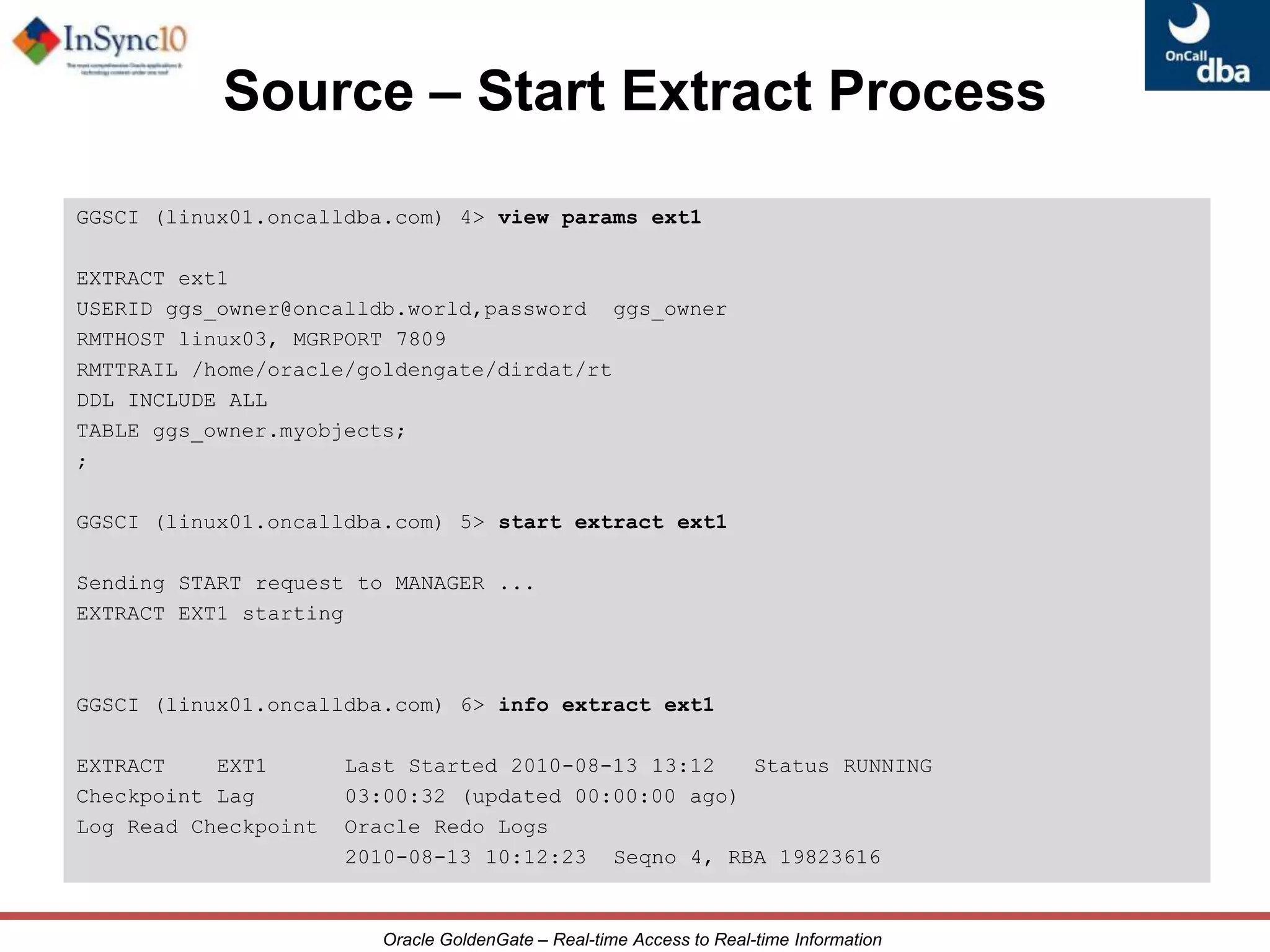

110. Source – Start Extract ProcessGGSCI (linux01.oncalldba.com) 4> view params ext1EXTRACT ext1USERID ggs_owner@oncalldb.world,passwordggs_ownerRMTHOST linux03, MGRPORT 7809RMTTRAIL /home/oracle/goldengate/dirdat/rtDDL INCLUDE ALLTABLE ggs_owner.myobjects;;GGSCI (linux01.oncalldba.com) 5> start extract ext1Sending START request to MANAGER ...EXTRACT EXT1 startingGGSCI (linux01.oncalldba.com) 6> info extract ext1EXTRACT EXT1 Last Started 2010-08-13 13:12 Status RUNNINGCheckpoint Lag 03:00:32 (updated 00:00:00 ago)Log Read Checkpoint Oracle Redo Logs 2010-08-13 10:12:23 Seqno 4, RBA 19823616

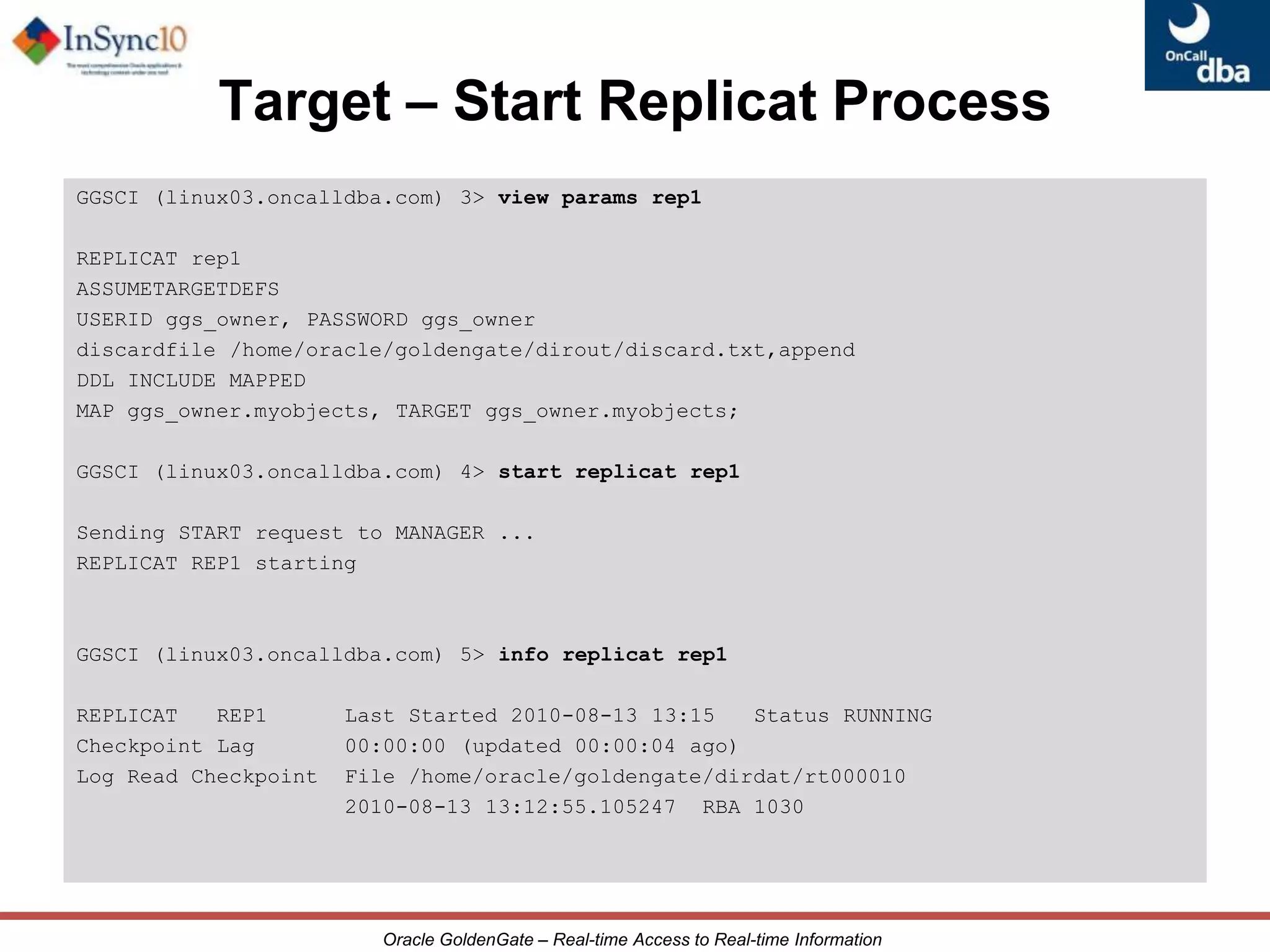

111. Target – Start Replicat ProcessGGSCI (linux03.oncalldba.com) 3> view params rep1REPLICAT rep1ASSUMETARGETDEFSUSERID ggs_owner, PASSWORD ggs_ownerdiscardfile /home/oracle/goldengate/dirout/discard.txt,appendDDL INCLUDE MAPPEDMAP ggs_owner.myobjects, TARGET ggs_owner.myobjects;GGSCI (linux03.oncalldba.com) 4> start replicat rep1Sending START request to MANAGER ...REPLICAT REP1 startingGGSCI (linux03.oncalldba.com) 5> info replicat rep1REPLICAT REP1 Last Started 2010-08-13 13:15 Status RUNNINGCheckpoint Lag 00:00:00 (updated 00:00:04 ago)Log Read Checkpoint File /home/oracle/goldengate/dirdat/rt000010 2010-08-13 13:12:55.105247 RBA 1030

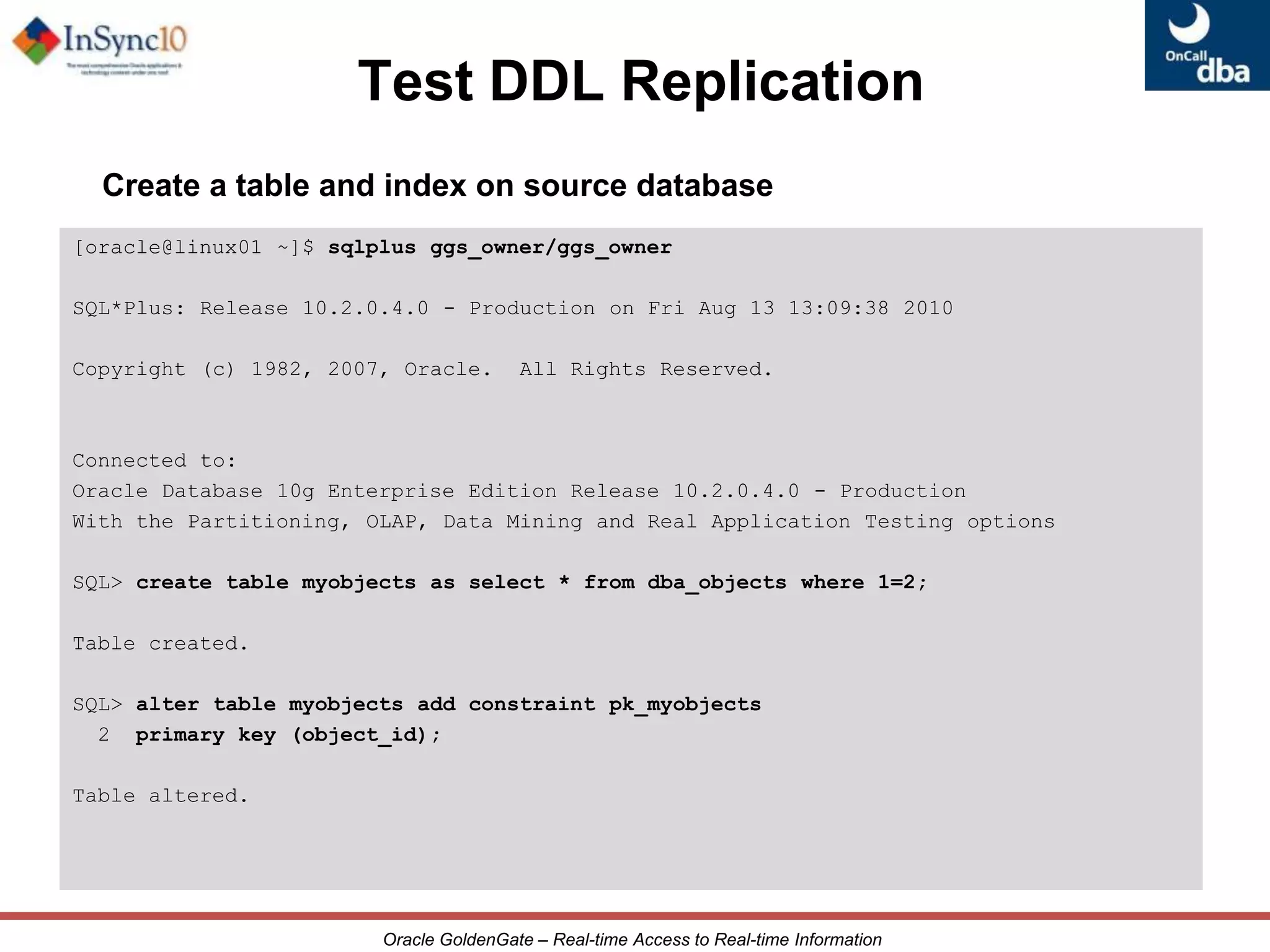

112. Test DDL ReplicationCreate a table and index on source database[oracle@linux01 ~]$ sqlplusggs_owner/ggs_ownerSQL*Plus: Release 10.2.0.4.0 - Production on Fri Aug 13 13:09:38 2010Copyright (c) 1982, 2007, Oracle. All Rights Reserved.Connected to:Oracle Database 10g Enterprise Edition Release 10.2.0.4.0 - ProductionWith the Partitioning, OLAP, Data Mining and Real Application Testing optionsSQL> create table myobjects as select * from dba_objects where 1=2;Table created.SQL> alter table myobjects add constraint pk_myobjects 2 primary key (object_id);Table altered.

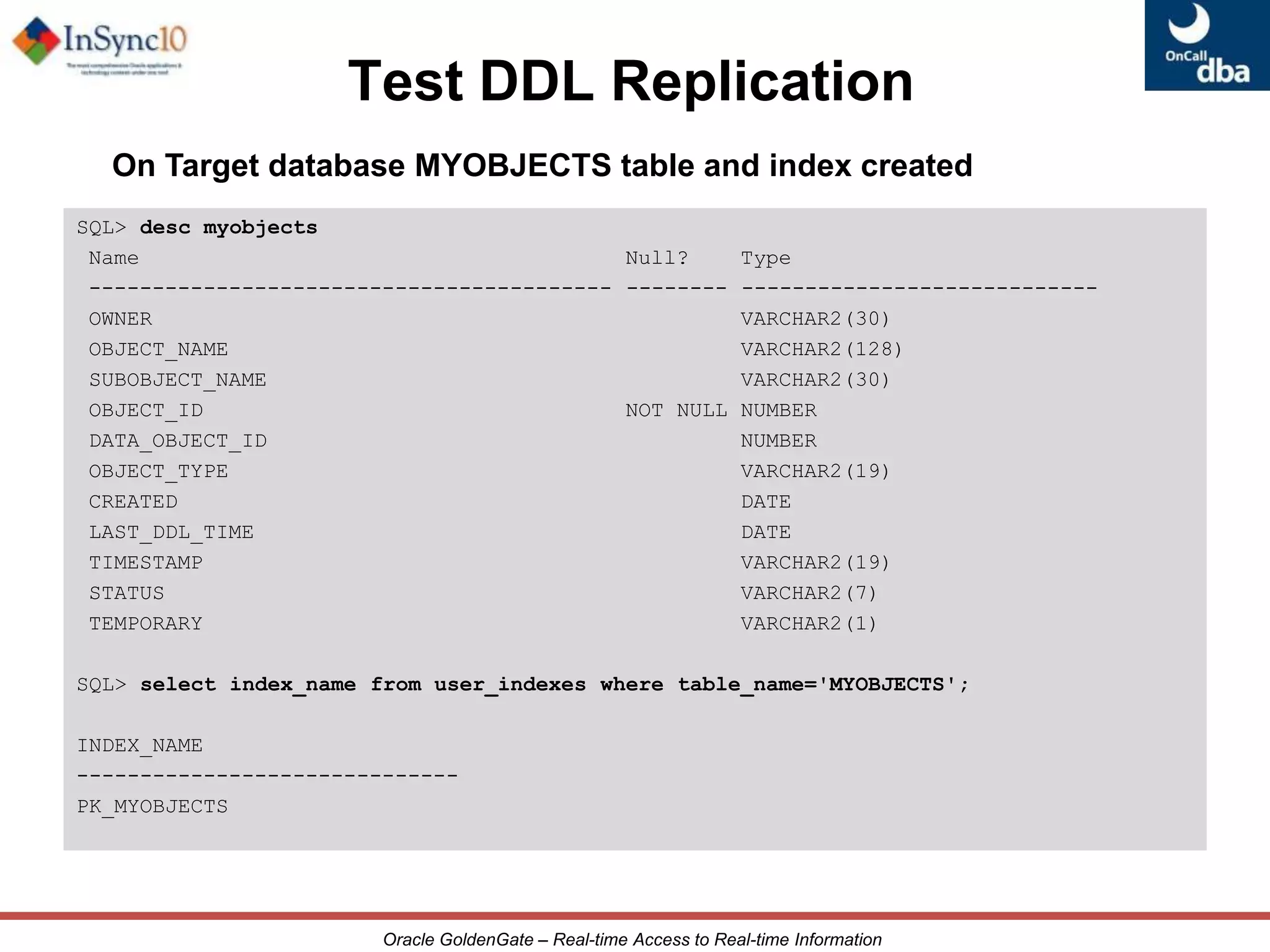

113. Test DDL ReplicationOn Target database MYOBJECTS table and index createdSQL> descmyobjects Name Null? Type ----------------------------------------- -------- ---------------------------- OWNER VARCHAR2(30) OBJECT_NAME VARCHAR2(128) SUBOBJECT_NAME VARCHAR2(30) OBJECT_ID NOT NULL NUMBER DATA_OBJECT_ID NUMBER OBJECT_TYPE VARCHAR2(19) CREATED DATE LAST_DDL_TIME DATE TIMESTAMP VARCHAR2(19) STATUS VARCHAR2(7) TEMPORARY VARCHAR2(1)SQL> select index_name from user_indexes where table_name='MYOBJECTS';INDEX_NAME------------------------------PK_MYOBJECTS

114. Test Online Change SynchronizationINSERT rows on source tablesSQL> !dateFri Aug 13 13:24:14 WST 2010SQL> insert into myobjects select * from dba_objects where owner='SYSMAN';1341 rows created.SQL> commit;Commit complete.SQL> !dateFri Aug 13 13:27:01 WST 2010SQL> insert into myobjects select * from dba_objects where owner='SYS';22937 rows created.SQL> commit;Commit complete.

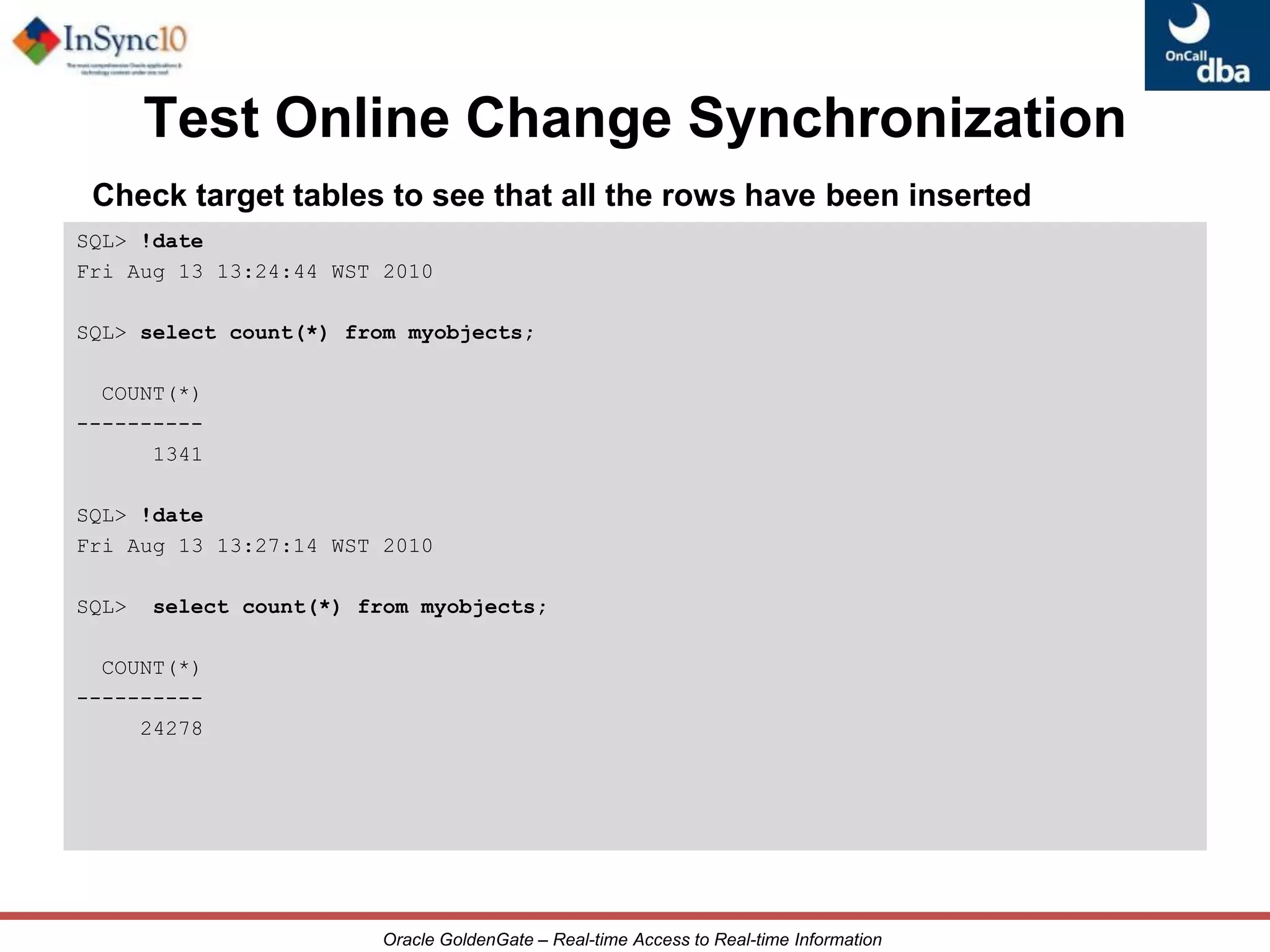

115. Test Online Change SynchronizationSQL> !dateFri Aug 13 13:24:44 WST 2010SQL> select count(*) from myobjects; COUNT(*)---------- 1341SQL> !dateFri Aug 13 13:27:14 WST 2010SQL> select count(*) from myobjects; COUNT(*)---------- 24278Check target tables to see that all the rows have been inserted

116. Monitor Replicat ProgressGGSCI (linux03.oncalldba.com) 8> stats replicat rep1Start of Statistics at 2010-08-13 13:35:39.DDL replication statistics:*** Total statistics since replicat started *** Operations 2.00 Mapped operations 2.00 Unmapped operations 0.00 Other operations 0.00 Excluded operations 0.00 Errors 0.00 Retried errors 0.00 Discarded errors 0.00 Ignored errors 0.00Replicating from GGS_OWNER.MYOBJECTS to GGS_OWNER.MYOBJECTS:*** Total statistics since 2010-08-13 13:24:33 ***Total inserts 24278.00 Total updates 0.00 Total deletes 0.00 Total discards 0.00 Total operations 24278.00

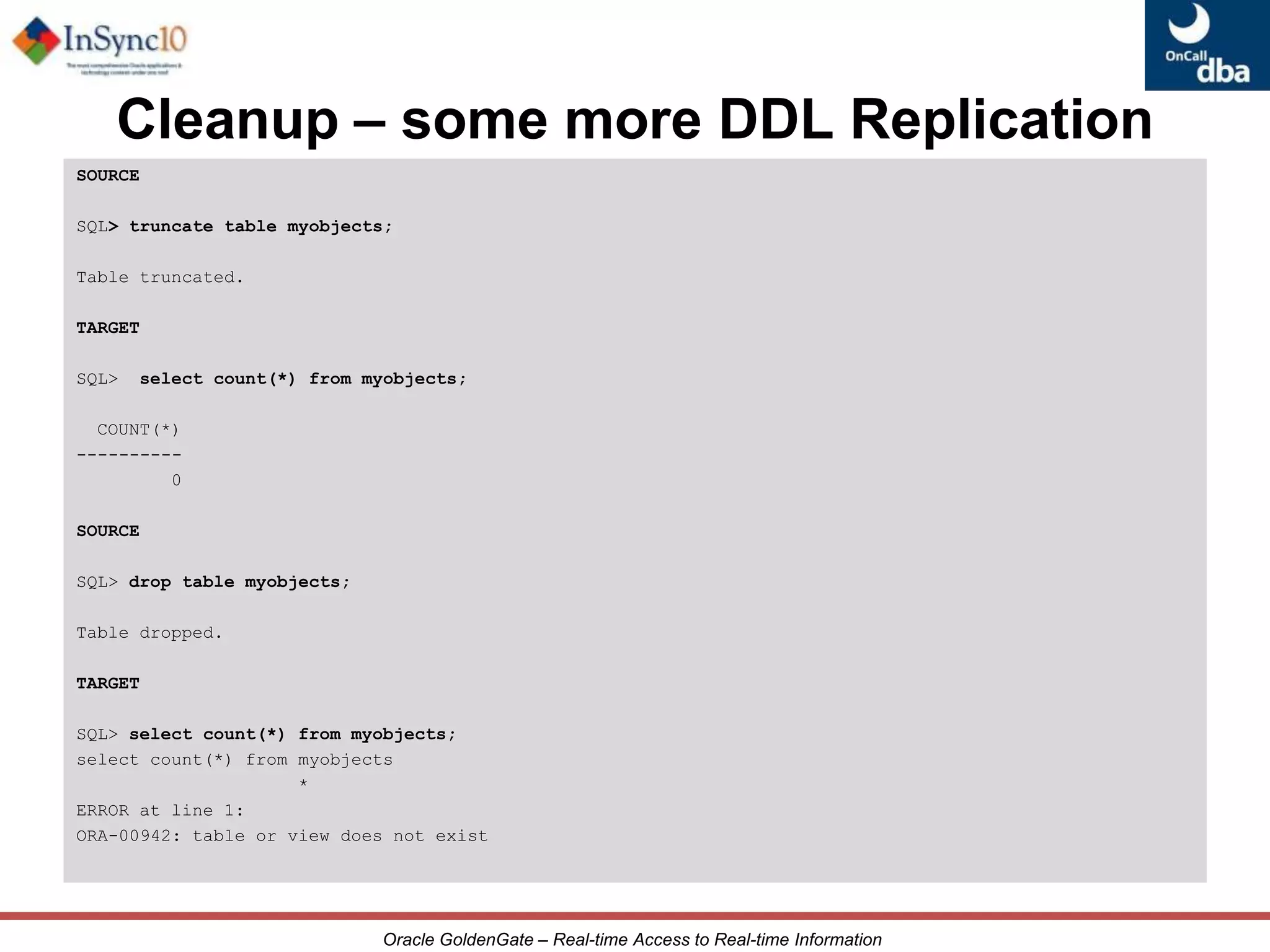

117. Cleanup – some more DDL ReplicationSOURCESQL> truncate table myobjects;Table truncated.TARGET SQL> select count(*) from myobjects; COUNT(*)---------- 0SOURCESQL> drop table myobjects;Table dropped.TARGETSQL> select count(*) from myobjects;select count(*) from myobjects *ERROR at line 1:ORA-00942: table or view does not exist
