2. 16 – 17 November, SofiaISTACON.ORG
Running Kubernetes at Scale
Across Multiple Cloud Providers
by Iliyan Nenov, Krasimir Semerdzhiev
SAP

3. 16 – 17 November, SofiaISTACON.ORG
Kubernetes 101

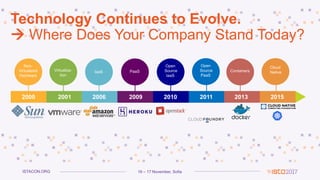

4. 16 – 17 November, SofiaISTACON.ORG
Technology Continues to Evolve.
 Where Does Your Company Stand Today?
Containers
Cloud
Native
Open
Source
IaaS
PaaS
Open
Source
PaaS
Virtualiza-
tion
2000 2001 2006 2009 2010 2011
Non-
Virtualized
Hardware
2013 2015
IaaS

5. 16 – 17 November, SofiaISTACON.ORG
Run anywhere
Highly efficient
Lightweight
Standardized
delivery
Cloud ready
Easy to
assemble
Dynamically
managed
Kubernetes 101: The Container Promise

6. 16 – 17 November, SofiaISTACON.ORG

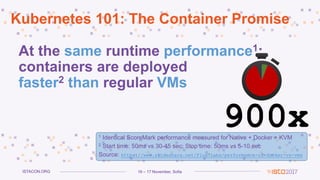

At the same runtime performance1:
containers are deployed
faster2 than regular VMs
1 Identical ScoreMark performance measured for Native + Docker + KVM
2 Start time: 50ms vs 30-45 sec; Stop time: 50ms vs 5-10 sec
Source: https://www.slideshare.net/Flux7Labs/performance-of-docker-vs-vms
900x
Kubernetes 101: The Container Promise

7. 16 – 17 November, SofiaISTACON.ORG

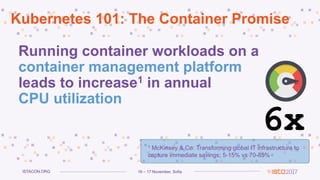

Kubernetes 101: The Container Promise
Running container workloads on a
container management platform
leads to increase1 in annual
CPU utilization
1 McKinsey & Co: Transforming global IT infrastructure to
capture immediate savings; 5-15% vs 70-85%
6x

8. 16 – 17 November, SofiaISTACON.ORG
Kubernetes 101: The Container Promise
All containers on a host
share the same IP address
Container management platforms
resolve that challenge: IP per
container
Host (10.10.10.5)
Proxy
WebApp
#1
WebApp
#2
:80
:80
:8080
:8081

9. 16 – 17 November, SofiaISTACON.ORG

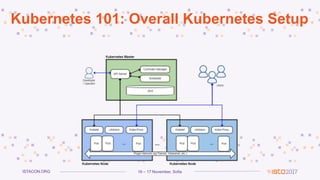

Kubernetes 101: Overall Kubernetes Setup

10. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma

11. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 To Leverage or Not to Leverage
You can use the cloud or spend
your career catching up…

12. 16 – 17 November, SofiaISTACON.ORG

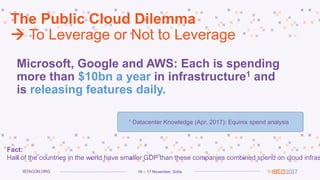

The Public Cloud Dilemma
 To Leverage or Not to Leverage
Microsoft, Google and AWS: Each is spending
more than $10bn a year in infrastructure1 and
is releasing features daily.
1 Datacenter Knowledge (Apr, 2017): Equinix spend analysis
Fact:
Half of the countries in the world have smaller GDP than these companies combined spend on cloud infras

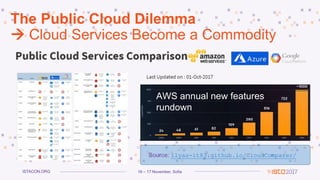

13. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Cloud Services Become a Commodity
Source: ilyas-it83.github.io/CloudComparer/
AWS annual new features
rundown

14. 16 – 17 November, SofiaISTACON.ORG

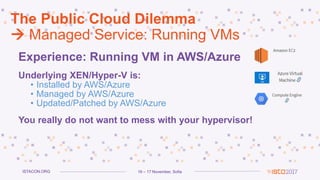

The Public Cloud Dilemma
 Managed Service: Running VMs
Experience: Running VM in AWS/Azure
Underlying XEN/Hyper-V is:
• Installed by AWS/Azure
• Managed by AWS/Azure
• Updated/Patched by AWS/Azure
You really do not want to mess with your hypervisor!

15. 16 – 17 November, SofiaISTACON.ORG

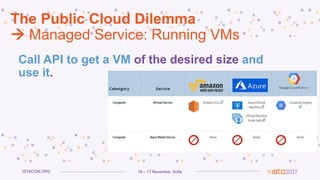

The Public Cloud Dilemma
 Managed Service: Running VMs
Call API to get a VM of the desired size and
use it.

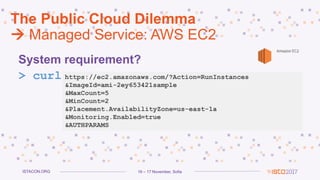

16. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Managed Service: AWS EC2
System requirement?
> curl https://ec2.amazonaws.com/?Action=RunInstances
&ImageId=ami-2ey653421sample
&MaxCount=5
&MinCount=2
&Placement.AvailabilityZone=us-east-1a
&Monitoring.Enabled=true
&AUTHPARAMS

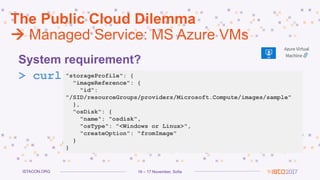

17. 16 – 17 November, SofiaISTACON.ORG
System requirement?
> curl
The Public Cloud Dilemma
 Managed Service: MS Azure VMs
"storageProfile": {
"imageReference": {
"id":
"/SID/resourceGroups/providers/Microsoft.Compute/images/sample"
},
"osDisk": {
"name": "osdisk",
"osType": "<Windows or Linux>",
"createOption": "fromImage"
}
}

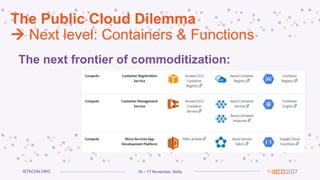

18. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Next level: Containers & Functions
The next frontier of commoditization:

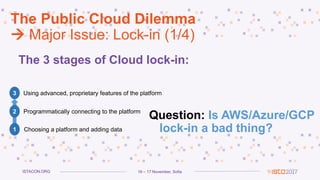

19. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Major Issue: Lock-in (1/4)
The 3 stages of Cloud lock-in:
1
3
2
Choosing a platform and adding data
Programmatically connecting to the platform
Using advanced, proprietary features of the platform
Question: Is AWS/Azure/GCP
lock-in a bad thing?

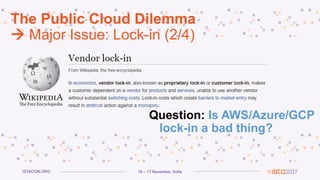

20. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Major Issue: Lock-in (2/4)
Question: Is AWS/Azure/GCP
lock-in a bad thing?

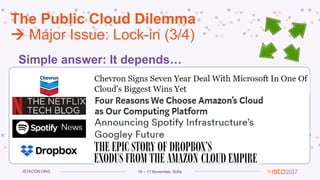

21. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Major Issue: Lock-in (3/4)
Simple answer: It depends…

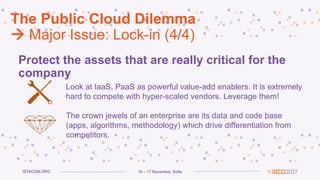

22. 16 – 17 November, SofiaISTACON.ORG
The Public Cloud Dilemma
 Major Issue: Lock-in (4/4)
Protect the assets that are really critical for the
company
Look at IaaS, PaaS as powerful value-add enablers. It is extremely
hard to compete with hyper-scaled vendors. Leverage them!
The crown jewels of an enterprise are its data and code base
(apps, algorithms, methodology) which drive differentiation from
competitors.

23. 16 – 17 November, SofiaISTACON.ORG
Options for
Cloud Delivery at Scale
with Kubernetes

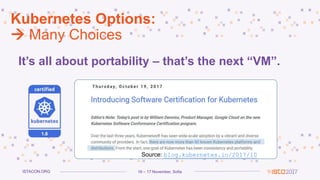

24. 16 – 17 November, SofiaISTACON.ORG
Kubernetes Options:
 Many Choices
It’s all about portability – that’s the next “VM”.
Source: blog.kubernetes.io/2017/10

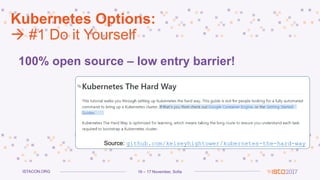

25. 16 – 17 November, SofiaISTACON.ORG
Kubernetes Options:
 #1 Do it Yourself
100% open source – low entry barrier!
Source: github.com/kelseyhightower/kubernetes-the-hard-way

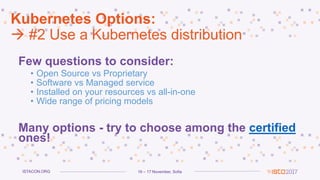

26. 16 – 17 November, SofiaISTACON.ORG
Kubernetes Options:
 #2 Use a Kubernetes distribution
Few questions to consider:
• Open Source vs Proprietary
• Software vs Managed service
• Installed on your resources vs all-in-one
• Wide range of pricing models
Many options - try to choose among the certified
ones!

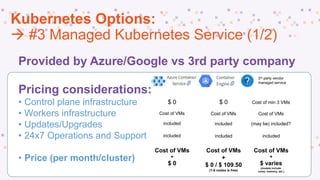

27. 16 – 17 November, SofiaISTACON.ORG
Kubernetes Options:
 #3 Managed Kubernetes Service (1/2)
Provided by Azure/Google vs 3rd party company
Pricing considerations:
• Control plane infrastructure
• Workers infrastructure
• Updates/Upgrades
• 24x7 Operations and Support
• Price (per month/cluster)
3rd party vendor
managed service
included
included
included
included
(may be) included?
included
Cost of VMs Cost of VMs Cost of VMs
Cost of min 3 VMs
Cost of VMs
+
$ 0
$ 0 $ 0
Cost of VMs
+
$ 0 / $ 109.50
(1-6 nodes is free)
Cost of VMs
+
$ varies
(models include
cores, memory, etc.)

28. 16 – 17 November, SofiaISTACON.ORG

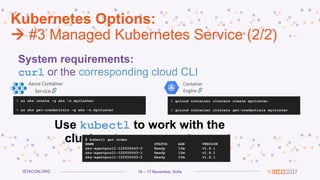

Kubernetes Options:
 #3 Managed Kubernetes Service (2/2)
System requirements:
curl or the corresponding cloud CLI
$ az aks create –g aks –n mycluster
$ az aks get-credentials –g aks –n mycluster
Use kubectl to work with the
cluster
$ gcloud container clusters create mycluster
$ gcloud container clusters get-credentials mycluster
$ kubectl get nodes
NAME STATUS AGE VERSION
aks-agentpool1-125550043-0 Ready 10m v1.8.1
aks-agentpool1-125550043-1 Ready 10m v1.8.1
aks-agentpool1-125550043-2 Ready 10m v1.8.1

29. 16 – 17 November, SofiaISTACON.ORG
Kubernetes Options:
 Key Point: Focus on Portability
Kubernetes does not address every challenge:
• Deliver your software in containers
• Consider the end-to-end system setup
• On-premise connectivity
• Complex network setups
Kubernetes is the “new VM” w.r.t. cloud portability

30. 16 – 17 November, SofiaISTACON.ORG
Further Materials

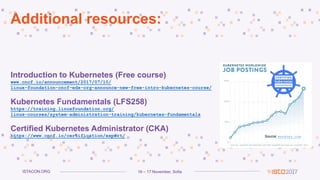

31. 16 – 17 November, SofiaISTACON.ORG
Additional resources:
Introduction to Kubernetes (Free course)
www.cncf.io/announcement/2017/07/10/
linux-foundation-cncf-edx-org-announce-new-free-intro-kubernetes-course/
Kubernetes Fundamentals (LFS258)
https://training.linuxfoundation.org/
linux-courses/system-administration-training/kubernetes-fundamentals
Certified Kubernetes Administrator (CKA)
https://www.cncf.io/certification/expert/ Source: monster.com

32. 16 – 17 November, SofiaISTACON.ORG
Questions?
Iliyan Nenov
SAP Cloud Platform
@iliyan_nenov
Krasimir Semerdzhiev
SAP Hybris Cloud Services
@evilyeti
