The document discusses MySQL Document Store, which allows users to work with both SQL relational tables and schema-less JSON collections using CRUD operations. It provides the flexibility of NoSQL with the consistency of a relational database management system (RDBMS). Key components include the MySQL Shell, X DevAPI, X Protocol, and X Plugin. The X Plugin enables communication using the X Protocol for both relational and document operations, mapping CRUD operations to tables.

1. MySQL Document Store
Sankalita Chakraborty
Senior Member Technical Staff
sankalita.chakraborty@oracle.com
11th
October 2018

2. Copyright © 2016, Oracle and/or its affiliates. All rights reserved. |

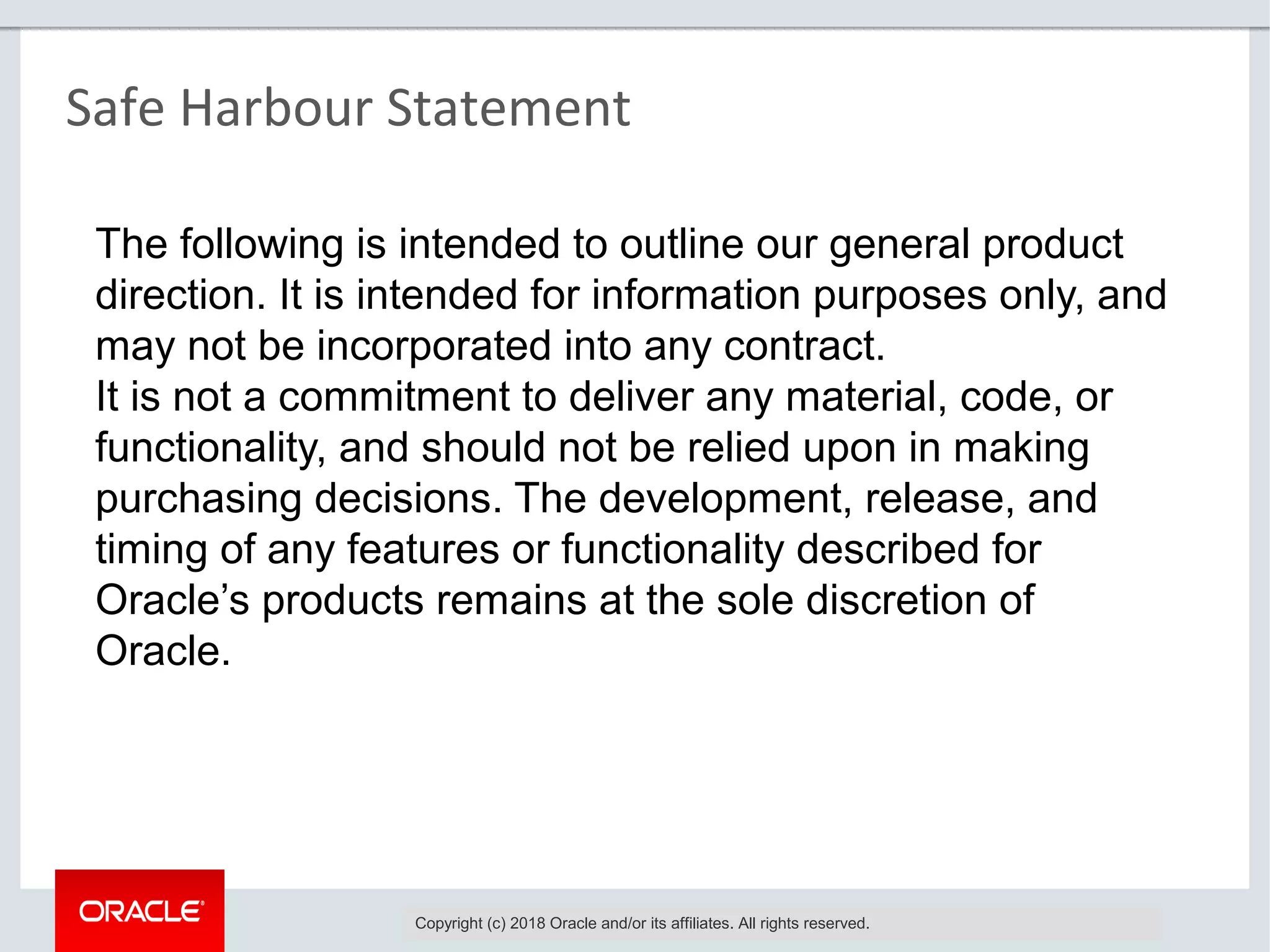

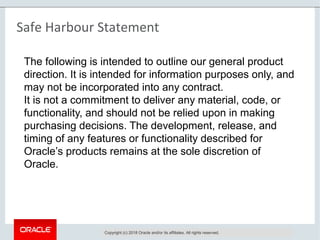

Safe Harbour Statement
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.
The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract.
It is not a commitment to deliver any material, code, or
functionality, and should not be relied upon in making
purchasing decisions. The development, release, and
timing of any features or functionality described for
Oracle’s products remains at the sole discretion of
Oracle.

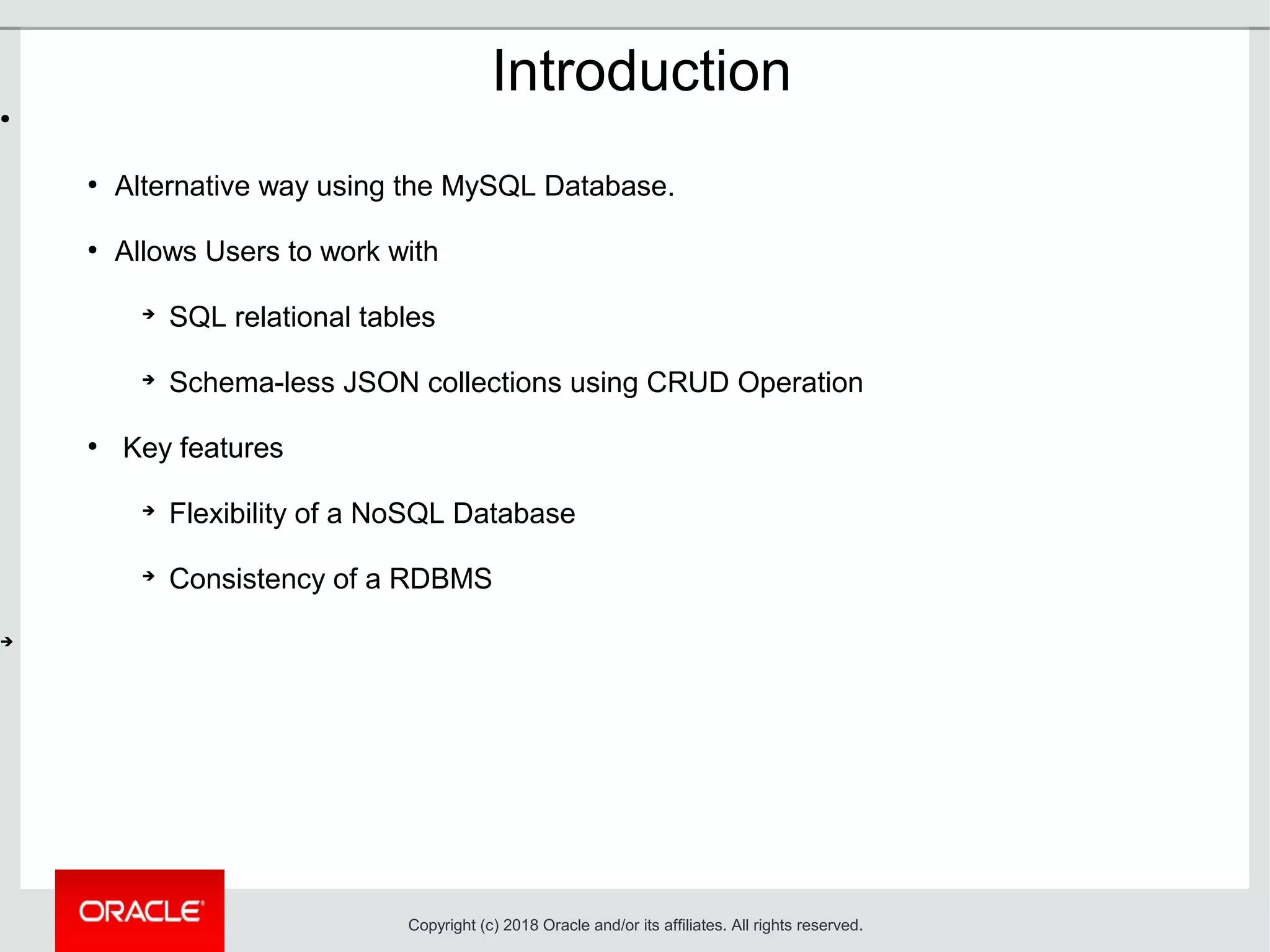

3. Introduction
●
●
Alternative way using the MySQL Database.
●
Allows Users to work with
➔
SQL relational tables
➔
Schema-less JSON collections using CRUD Operation
●
Key features
➔
Flexibility of a NoSQL Database
➔
Consistency of a RDBMS
➔
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

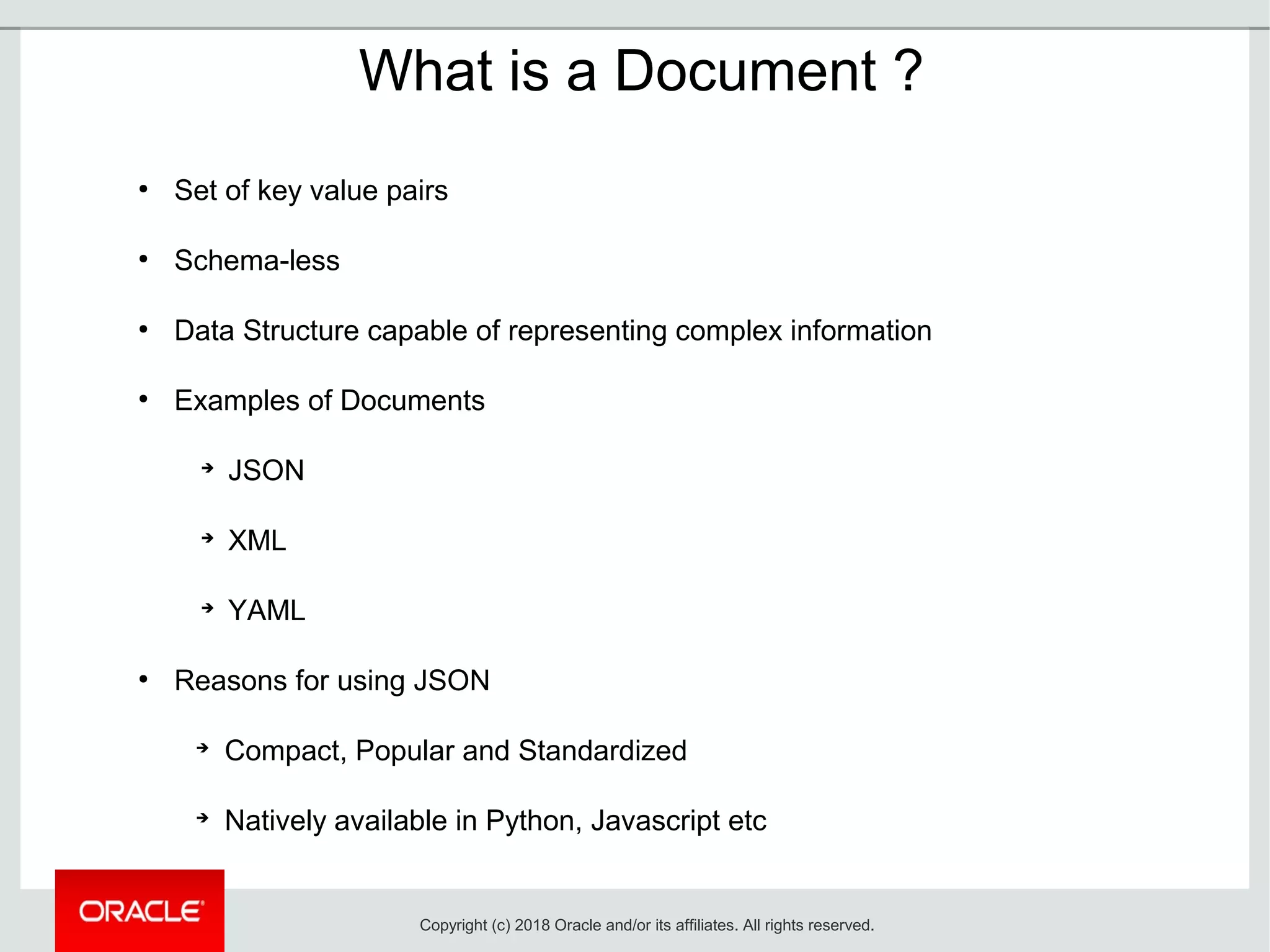

4. What is a Document ?
●
Set of key value pairs
●
Schema-less
●
Data Structure capable of representing complex information
●
Examples of Documents
➔
JSON
➔
XML
➔
YAML
●
Reasons for using JSON
➔
Compact, Popular and Standardized
➔
Natively available in Python, Javascript etc
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

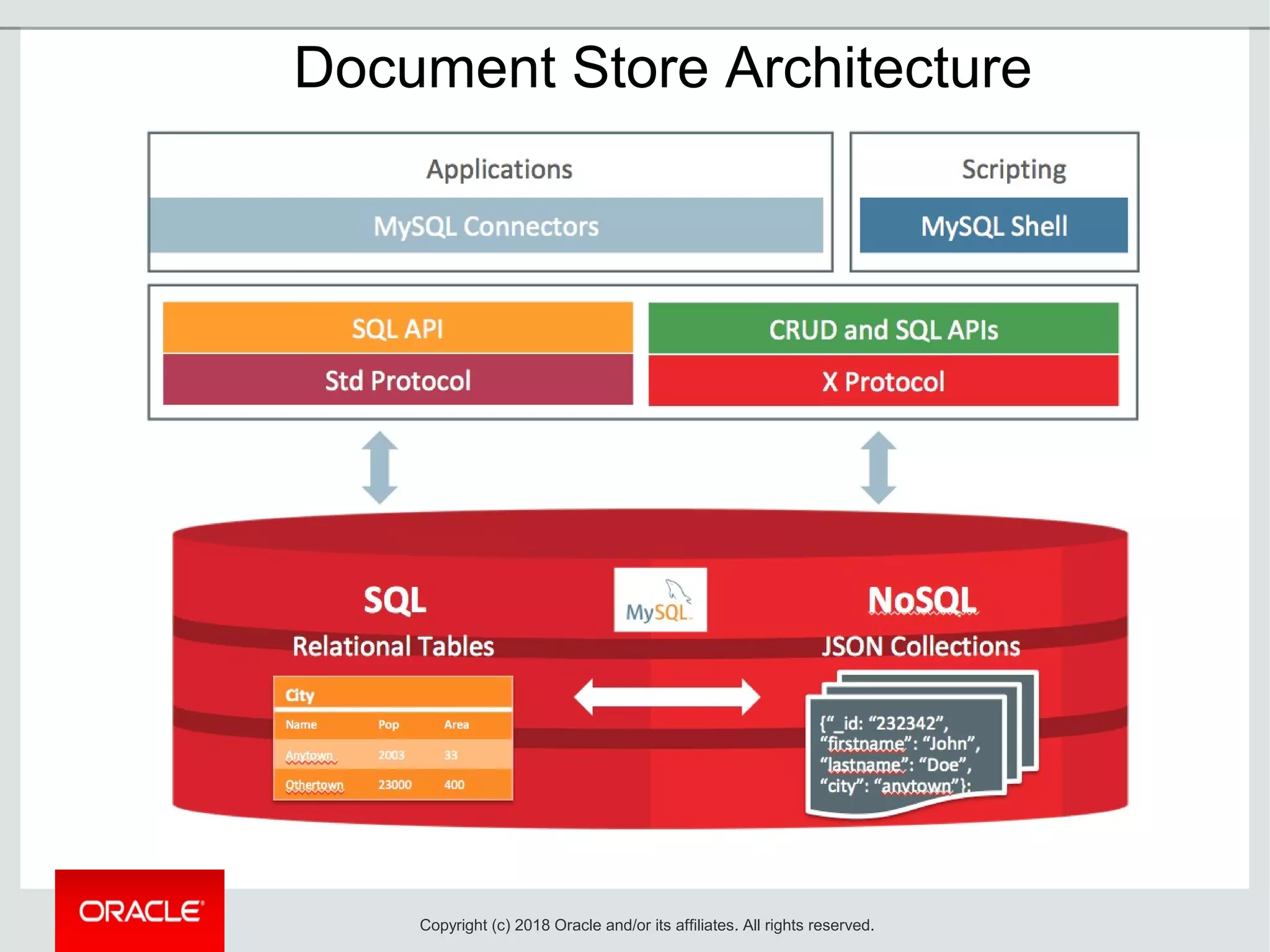

5. Document Store Architecture
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

6. MySQL Document Store –Components
●
MySQL Shell/Connectors
➔
Interactive Shell allowing execution of CRUD operation
➔
Provides DevAPI and Standard API support in Specific Languages
●
X Dev API
➔
New, standard APIs for CRUD and SQL operations on top of X Protocol
➔
Introduces Collections as new Schema object.
●
X Protocol
➔
New MySQL client protocol on top of TCP layer
➔
Uses Protobuf
➔
Works for both CRUD and SQL operations
●
X Plugin
➔
Enables the communication using X Protocol for relational and document operations
➔
Maps CRUD operation to tables
➔
Supports clients that implement X DevAPI and enables use of MySQL as a document
store.
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

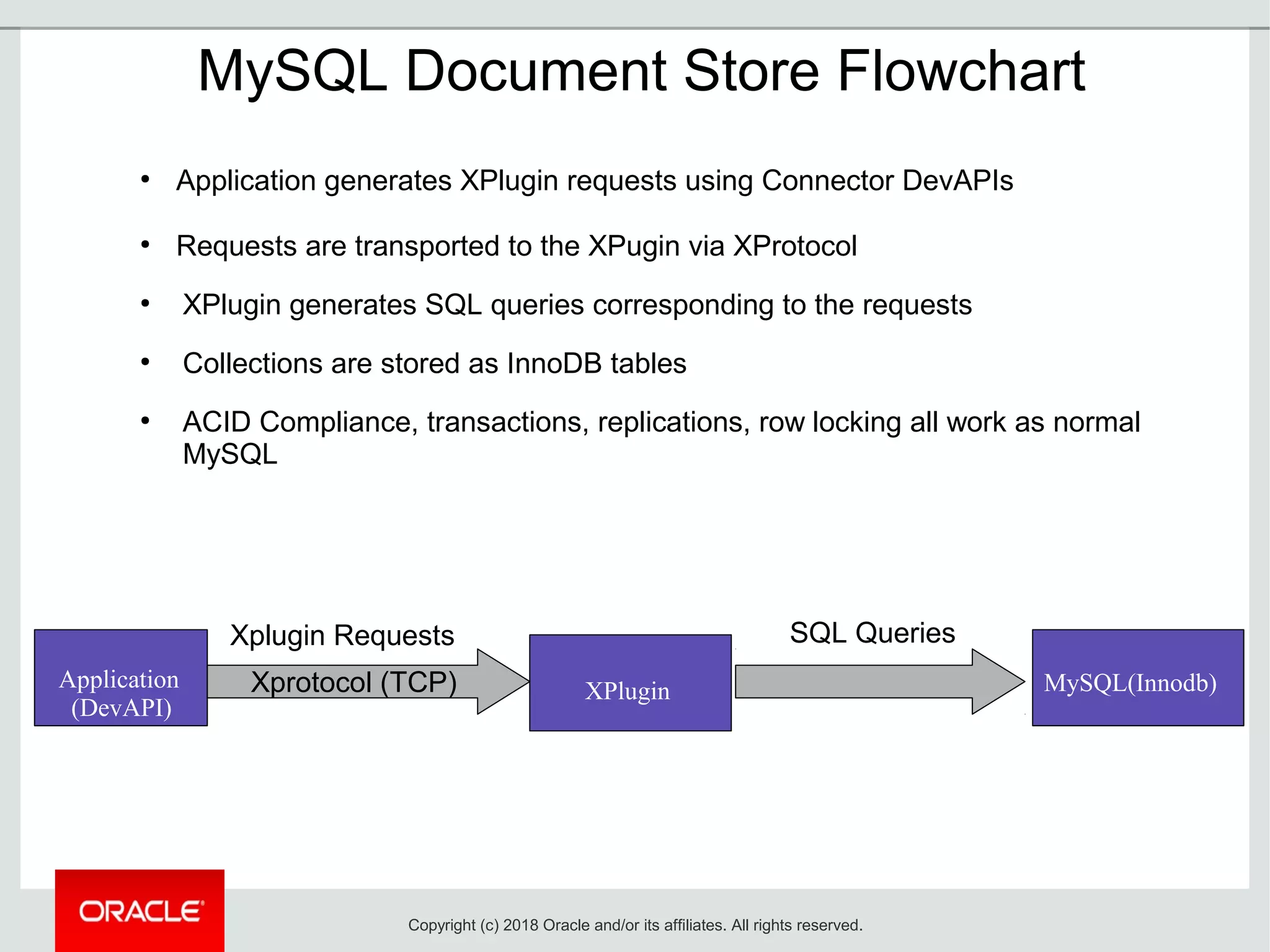

7. MySQL Document Store Flowchart
●
Application generates XPlugin requests using Connector DevAPIs
●
Requests are transported to the XPugin via XProtocol
●
XPlugin generates SQL queries corresponding to the requests
●
Collections are stored as InnoDB tables
●
ACID Compliance, transactions, replications, row locking all work as normal
MySQL
Application
(DevAPI)
XPlugin MySQL(Innodb)Xprotocol (TCP)
Xplugin Requests SQL Queries
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

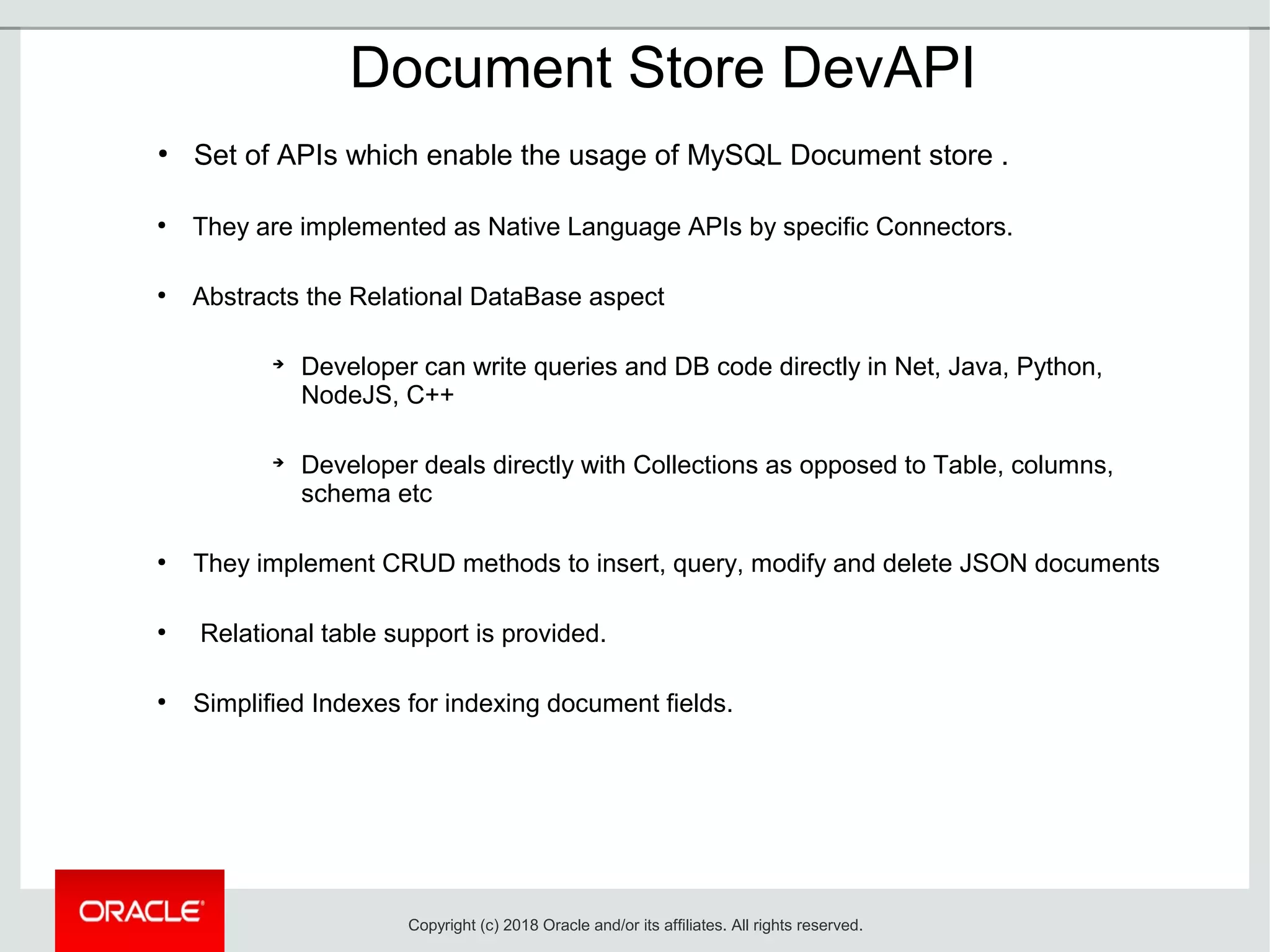

8. Document Store DevAPI
●
Set of APIs which enable the usage of MySQL Document store .
●
They are implemented as Native Language APIs by specific Connectors.
●
Abstracts the Relational DataBase aspect
➔
Developer can write queries and DB code directly in Net, Java, Python,
NodeJS, C++
➔
Developer deals directly with Collections as opposed to Table, columns,
schema etc
●
They implement CRUD methods to insert, query, modify and delete JSON documents
●
Relational table support is provided.
●
Simplified Indexes for indexing document fields.
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

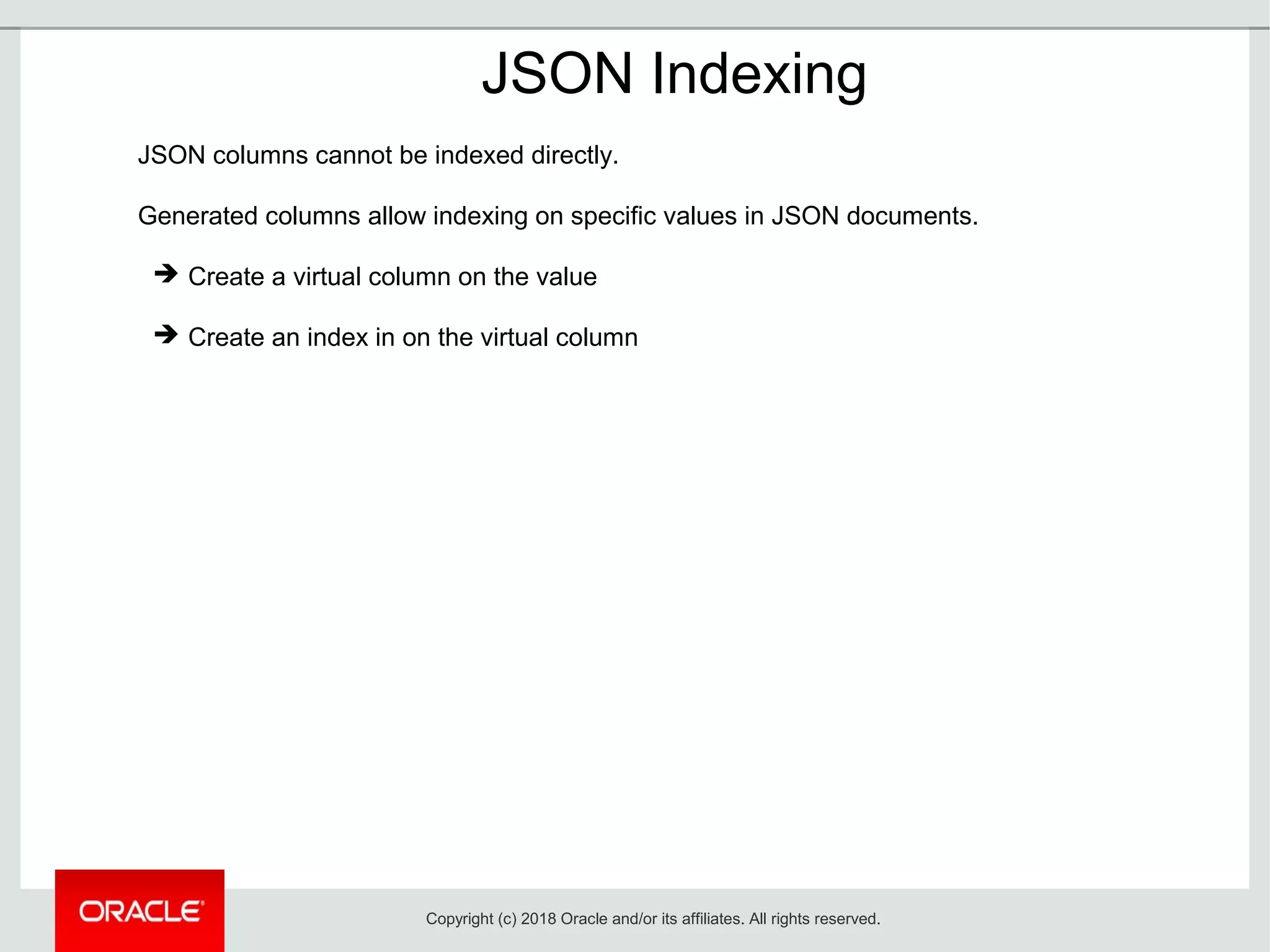

9. JSON Indexing
JSON columns cannot be indexed directly.
Generated columns allow indexing on specific values in JSON documents.
➔ Create a virtual column on the value
➔ Create an index in on the virtual column
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

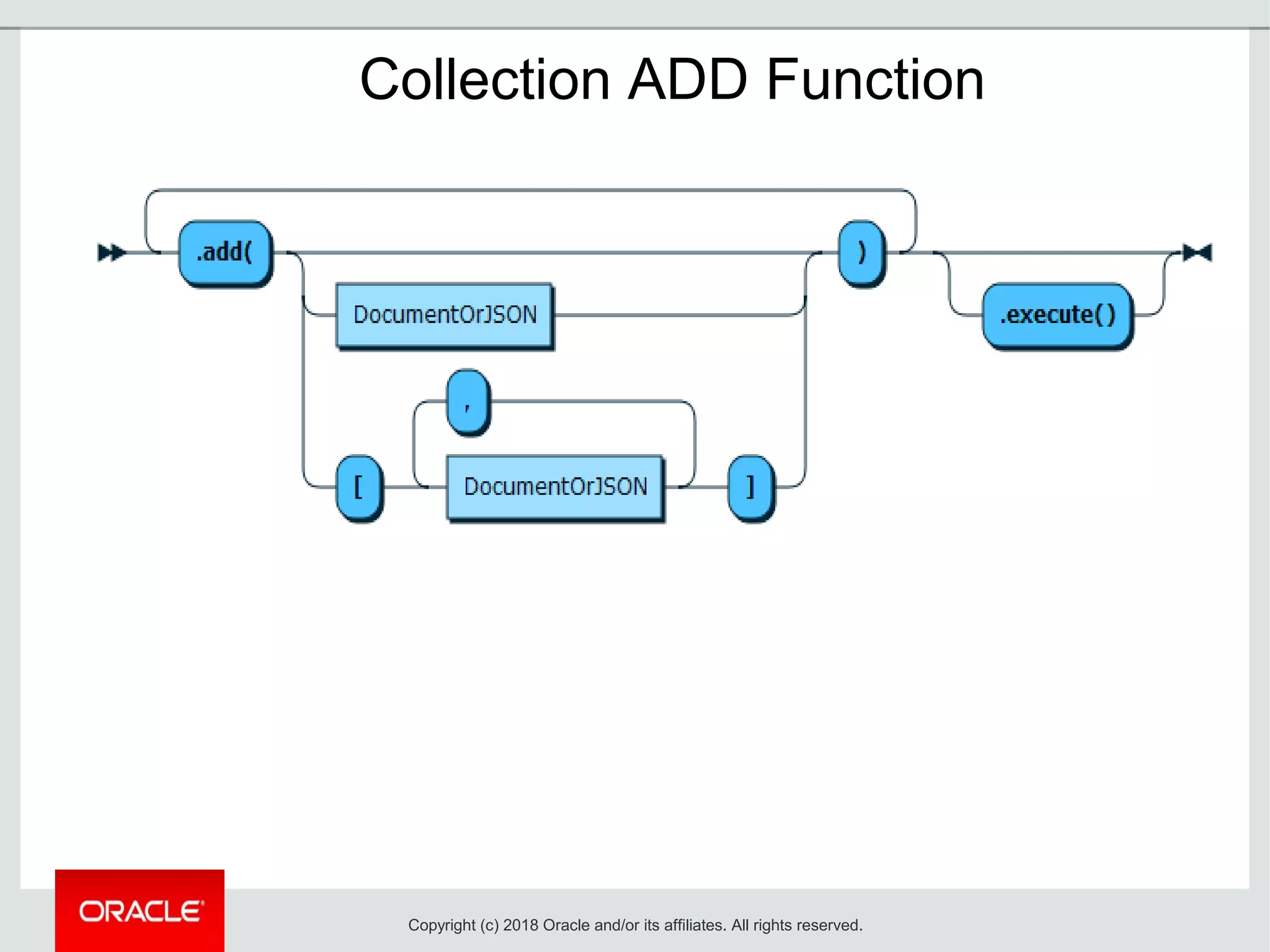

10. Collection ADD Function
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

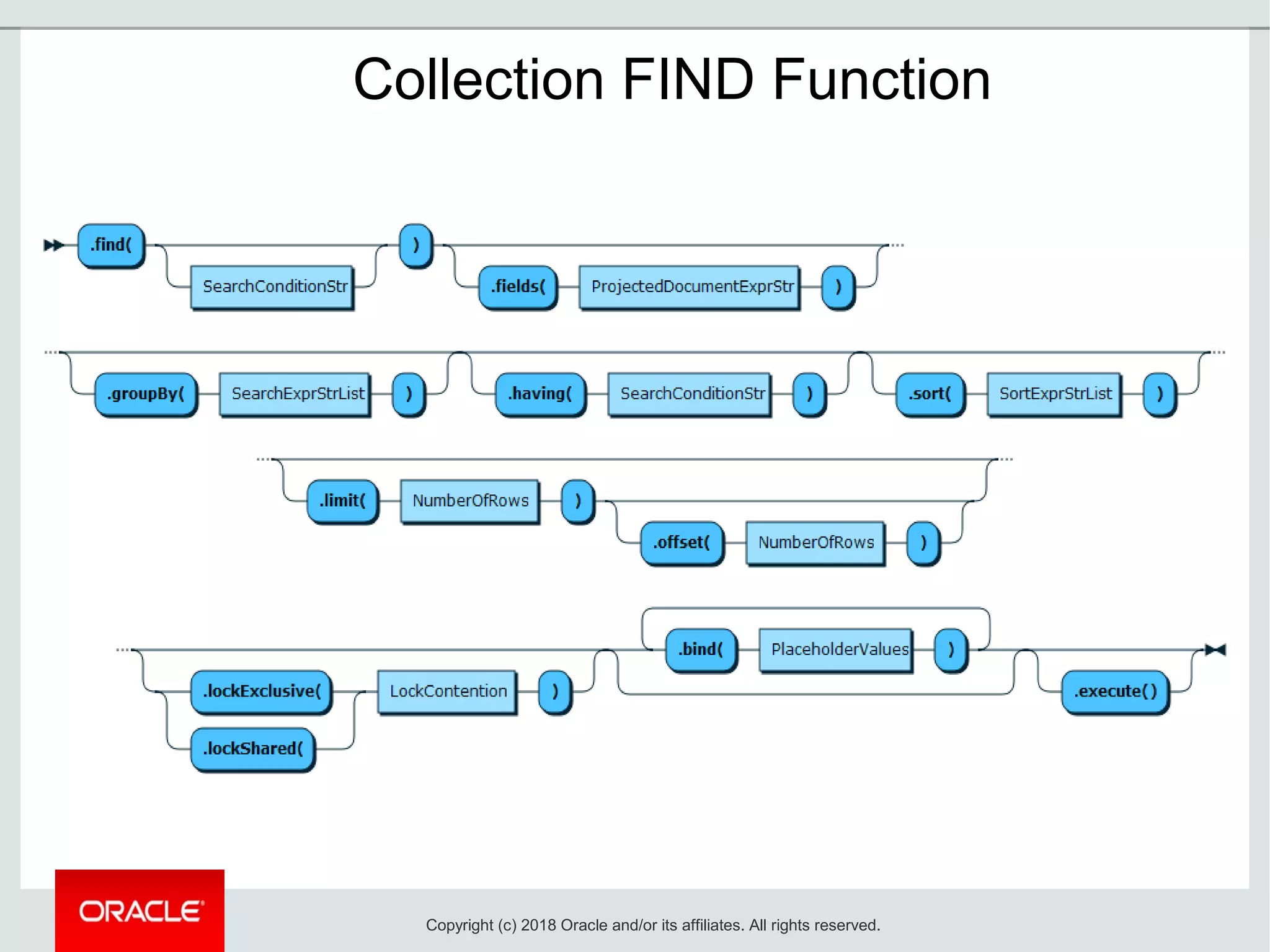

11. Collection FIND Function
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

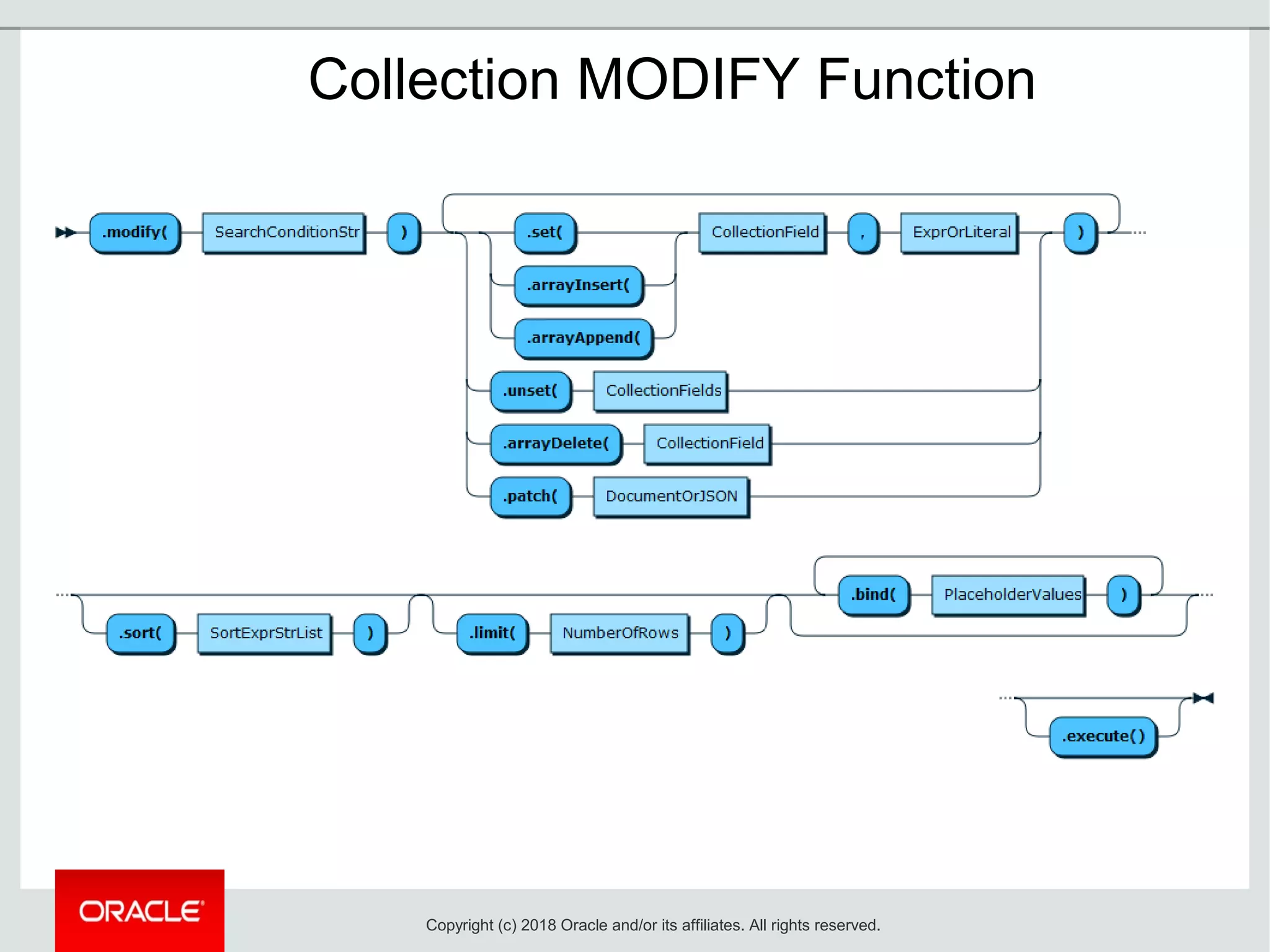

12. Collection MODIFY Function
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

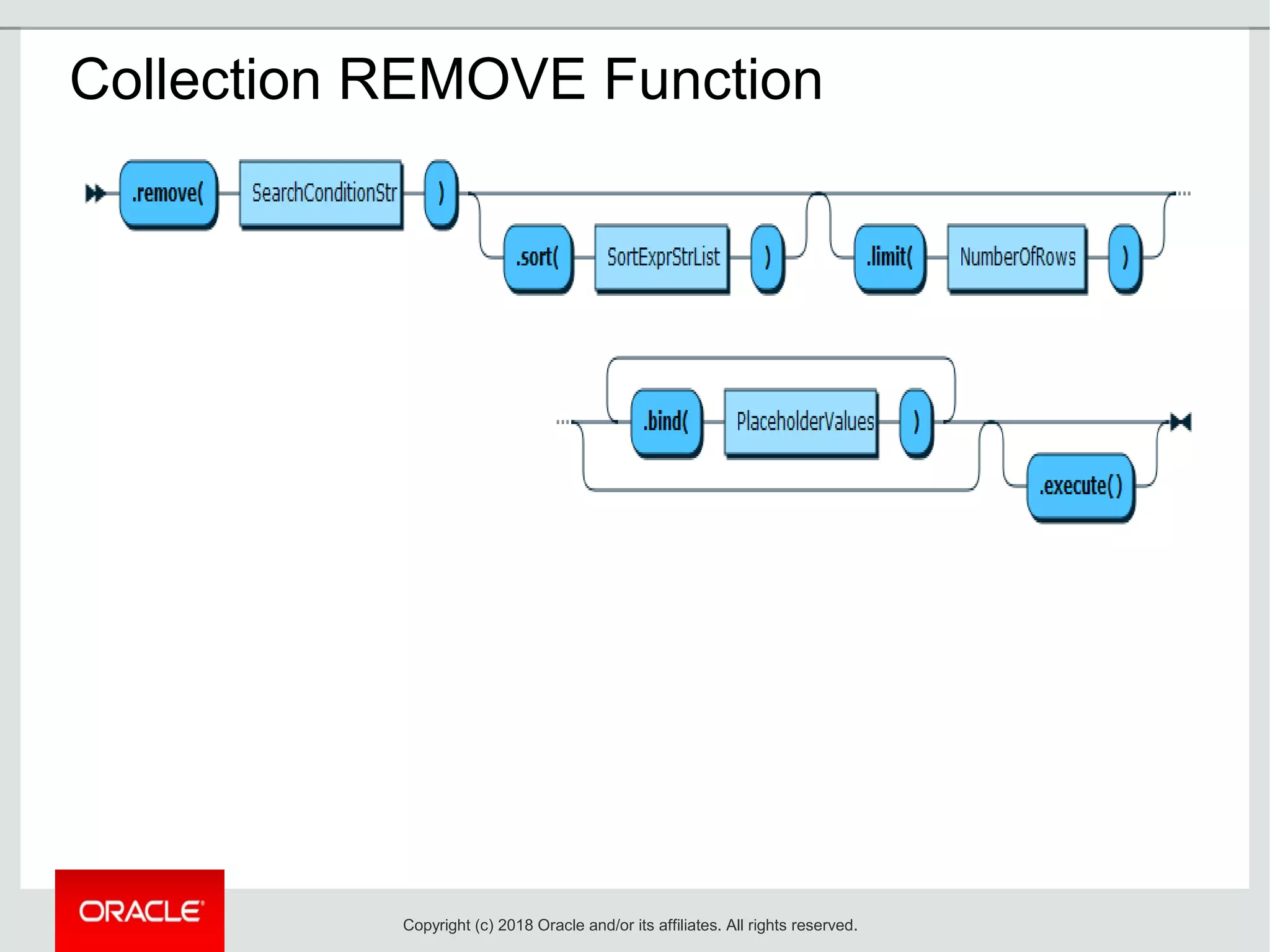

13. Collection REMOVE Function
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

14. Examples of CRUD Operation
(using C/JAVA)
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

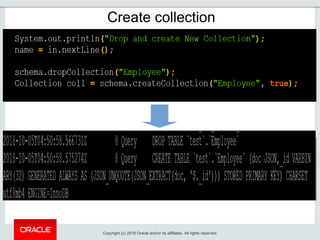

15. Create collection
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

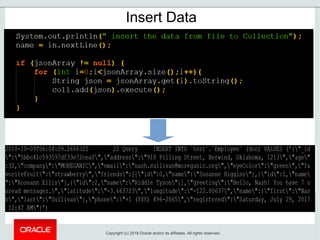

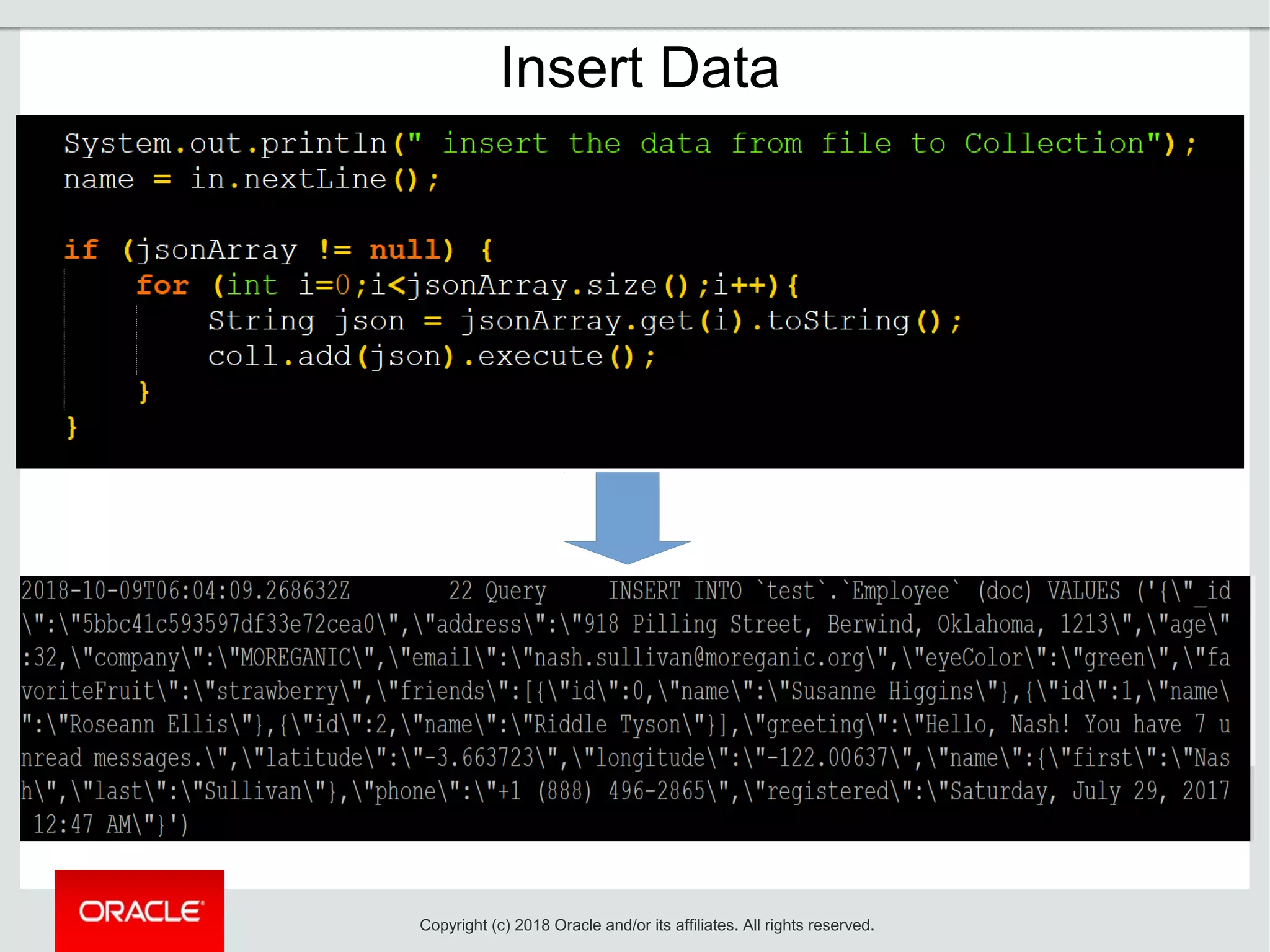

16. Insert Data
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

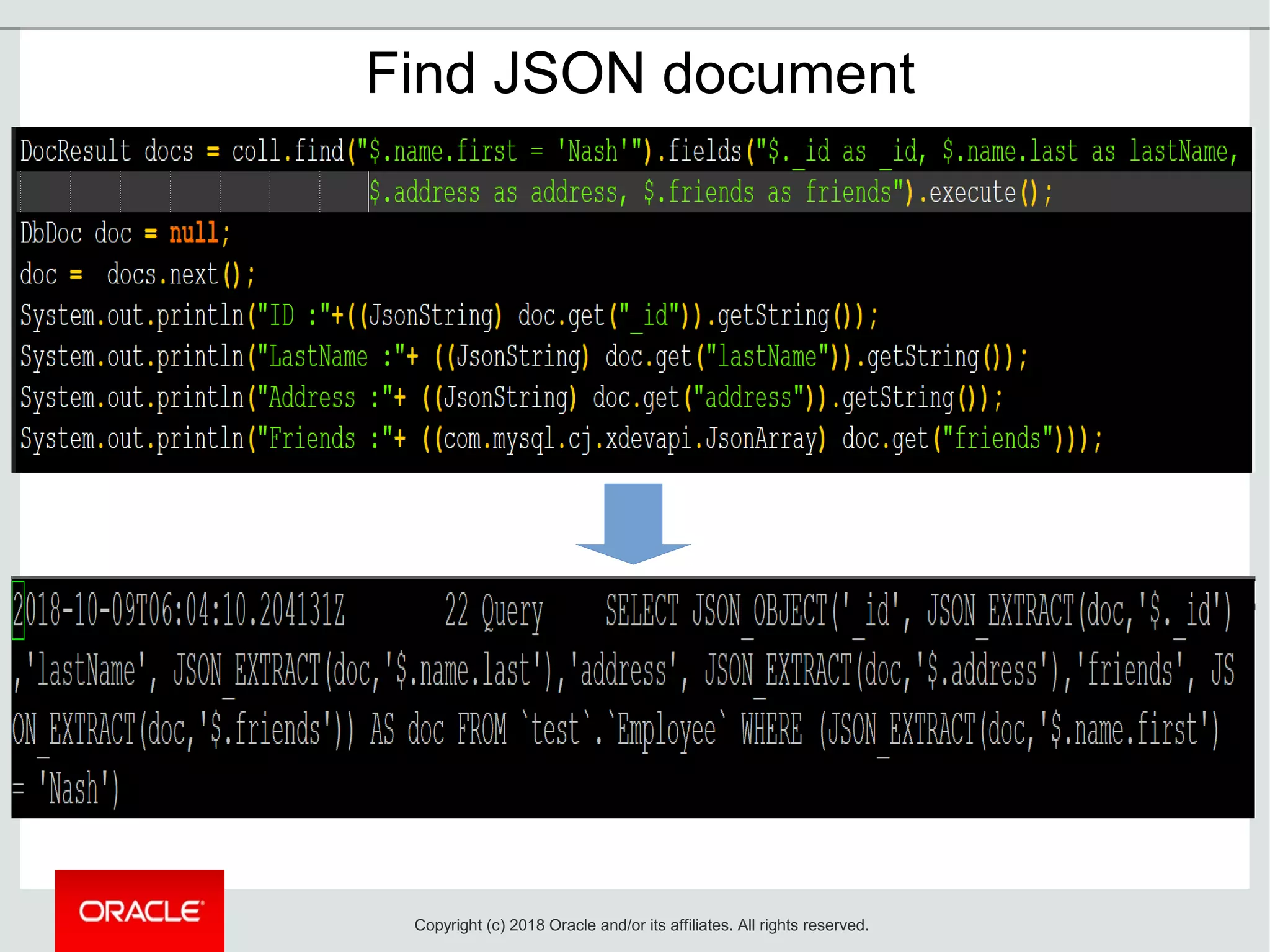

17. Find JSON document
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

18. Modify JSON document
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

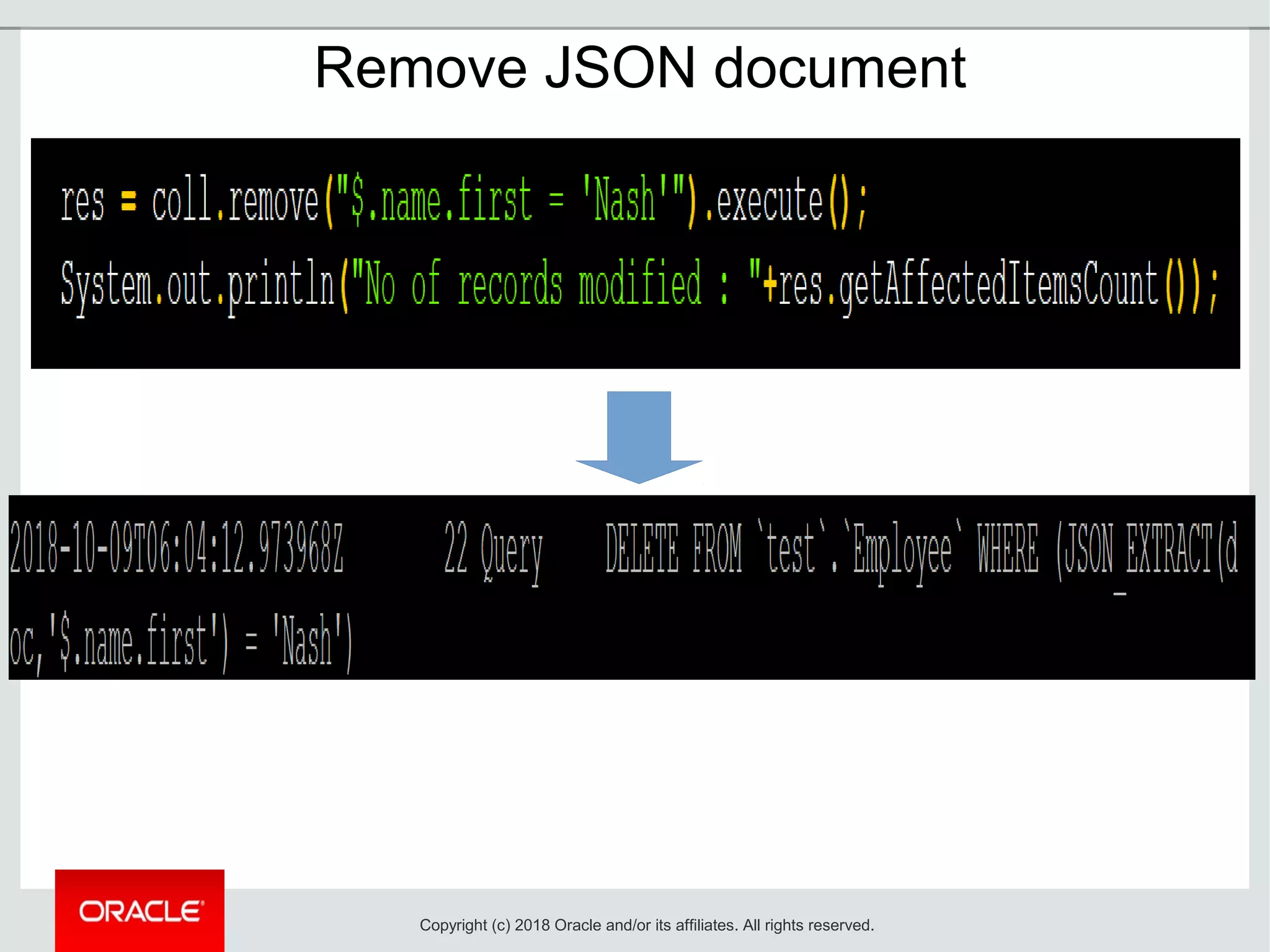

19. Remove JSON document
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

20. Demo of CRUD Operation
(using C/JAVA)
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.

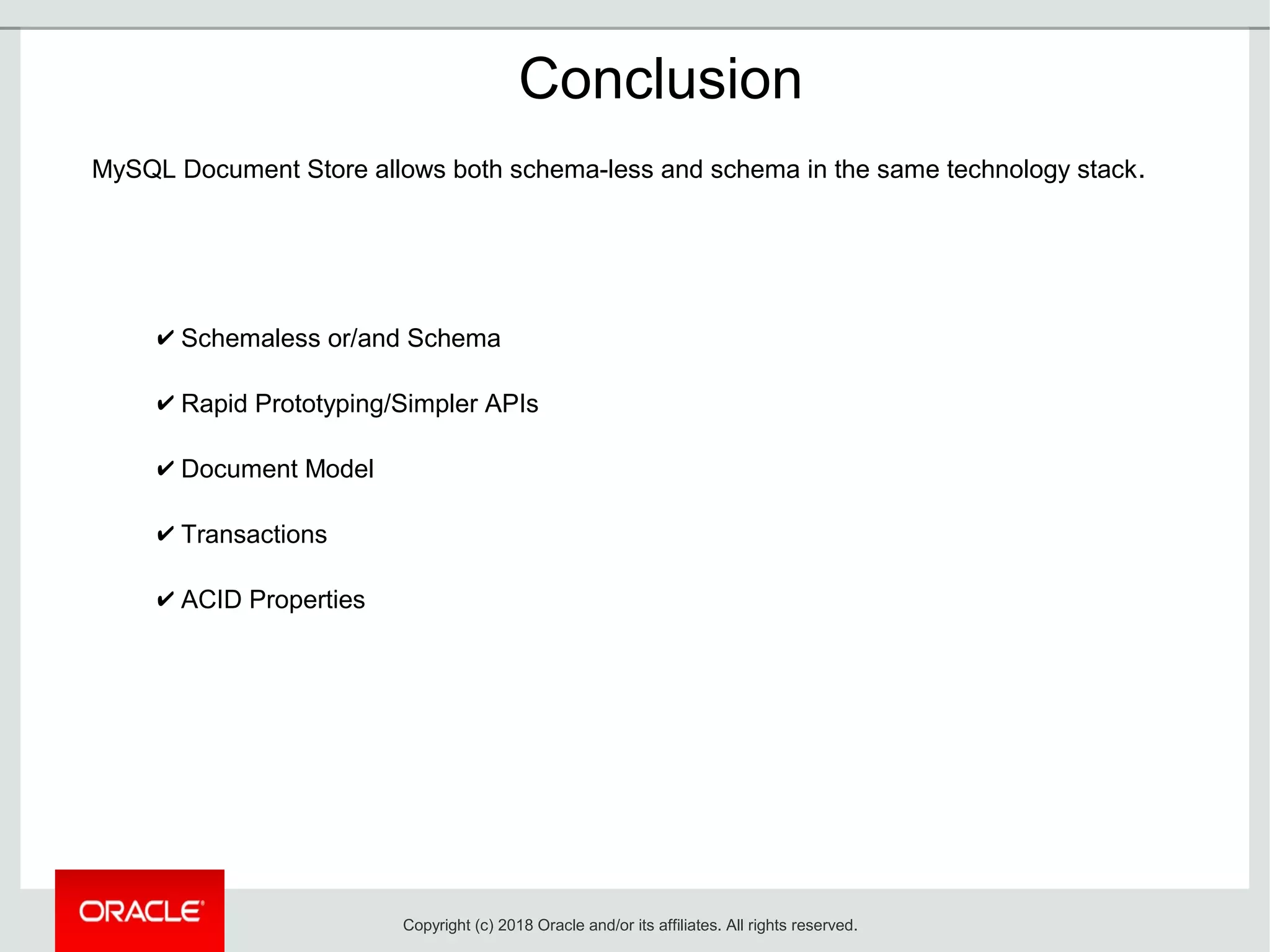

21. ✔ Schemaless or/and Schema
✔ Rapid Prototyping/Simpler APIs
✔ Document Model
✔ Transactions
✔ ACID Properties
Conclusion
MySQL Document Store allows both schema-less and schema in the same technology stack.
Copyright (c) 2018 Oracle and/or its affiliates. All rights reserved.
