1. Optimization in the world of 64-bit
errors
Author: Andrey Karpov
Date: 11.01.2010
In the previous blog-post I promised to tell you why it is difficult to demonstrate 64-bit errors by simple
examples. We spoke about operator[] and I told that in simple cases even incorrect code might work.
Here is such an example:
class MyArray
{
public:
char *m_p;
size_t m_n;
MyArray(const size_t n)
{
m_n = n;
m_p = new char[n];
}
~MyArray() { delete [] m_p; }
char &operator[](int index)
{ return m_p[index]; }
char &operator()(ptrdiff_t index)
{ return m_p[index]; }
ptrdiff_t CalcSum()
{
ptrdiff_t sum = 0;
for (size_t i = 0; i != m_n; ++i)
sum += m_p[i];
return sum;
}

2. };

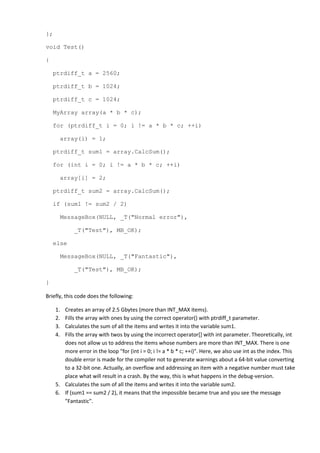

void Test()
{
ptrdiff_t a = 2560;
ptrdiff_t b = 1024;
ptrdiff_t c = 1024;
MyArray array(a * b * c);
for (ptrdiff_t i = 0; i != a * b * c; ++i)
array(i) = 1;
ptrdiff_t sum1 = array.CalcSum();
for (int i = 0; i != a * b * c; ++i)
array[i] = 2;
ptrdiff_t sum2 = array.CalcSum();
if (sum1 != sum2 / 2)
MessageBox(NULL, _T("Normal error"),
_T("Test"), MB_OK);
else
MessageBox(NULL, _T("Fantastic"),
_T("Test"), MB_OK);
}
Briefly, this code does the following:
1. Creates an array of 2.5 Gbytes (more than INT_MAX items).
2. Fills the array with ones by using the correct operator() with ptrdiff_t parameter.
3. Calculates the sum of all the items and writes it into the variable sum1.
4. Fills the array with twos by using the incorrect operator[] with int parameter. Theoretically, int
does not allow us to address the items whose numbers are more than INT_MAX. There is one
more error in the loop "for (int i = 0; i != a * b * c; ++i)". Here, we also use int as the index. This
double error is made for the compiler not to generate warnings about a 64-bit value converting
to a 32-bit one. Actually, an overflow and addressing an item with a negative number must take
place what will result in a crash. By the way, this is what happens in the debug-version.
5. Calculates the sum of all the items and writes it into the variable sum2.
6. If (sum1 == sum2 / 2), it means that the impossible became true and you see the message
"Fantastic".

3. Despite the two errors in this code, it successfully works in the 64-bit release-version and prints the
message "Fantastic"!
Now let us make out why. The point is that the compiler guessed our wish to fill the array with the
values 1 and 2. And in the both cases it optimized our code by calling memset function:
The first conclusion is: the compiler is a clever guy in the questions of optimization. The second
conclusion - stay watchful.
This error might be easily detected in the debug-version where there is no optimization and the code
writing twos into the array leads to a crash. What is dangerous, this code behaves incorrectly only when
dealing with large arrays. Most likely, processing of more than two milliards of items will not be present
in the unit-tests run for the debug-version. And the release-version might keep this error a secret for a
long time. The error can occur quite unexpectedly at a slightest change of the code. Look what can
happen if we introduce one more variable, n:
void Test()
{
ptrdiff_t a = 2560;
ptrdiff_t b = 1024;
ptrdiff_t c = 1024;
ptrdiff_t n = a * b * c;
MyArray array(n);
for (ptrdiff_t i = 0; i != n; ++i)
array(i) = 1;
ptrdiff_t sum1 = array.CalcSum();
for (int i = 0; i != n; ++i)
array[i] = 2;
ptrdiff_t sum2 = array.CalcSum();
...

4. }
The release-version crashed this time. Look at the assembler code.
The compiler again built the code with a memset call for the correct operator(). This part still works well
as before. But in the code where operator[] is used, an overflow occurs because "i != n" condition does
not hold. It is not quite the code I wished to create but it is difficult to implement what I wanted in a
small code while a large code is difficult to examine. Anyways, the fact remains. The code now crashes
as it should be.
Why have I devoted so much time to this topic? Perhaps I am tormented with the problem that I cannot
demonstrate 64-bit errors by simple examples. I write something simple for the purpose of
demonstration and what a pity it is when one tries it and it works well in the release-version. And
therefore it seems that there is no error. But there are errors and they are very insidious and difficult to
detect. So, I will repeat once again. You might easily miss such errors during debugging and while
running unit-tests for the debug-version. Hardly has anyone so much patience to debug a program or
wait for the tests to complete when they process gigabytes. The release-version might pass a large
serious testing. But if there is a slight change in the code or a new version of the compiler is used, the
next build will fail to work at a large data amount.
To learn about diagnosis of this error, see the previous post where the new warning V302 is described.
