1. Operating Guidelines for Finite-State Service Karsten Wolf Institut für Informatik Universität Rostock Niels Lohmann, Peter Massuthe Institut für Informatik Humboldt-Universität zu Berlin

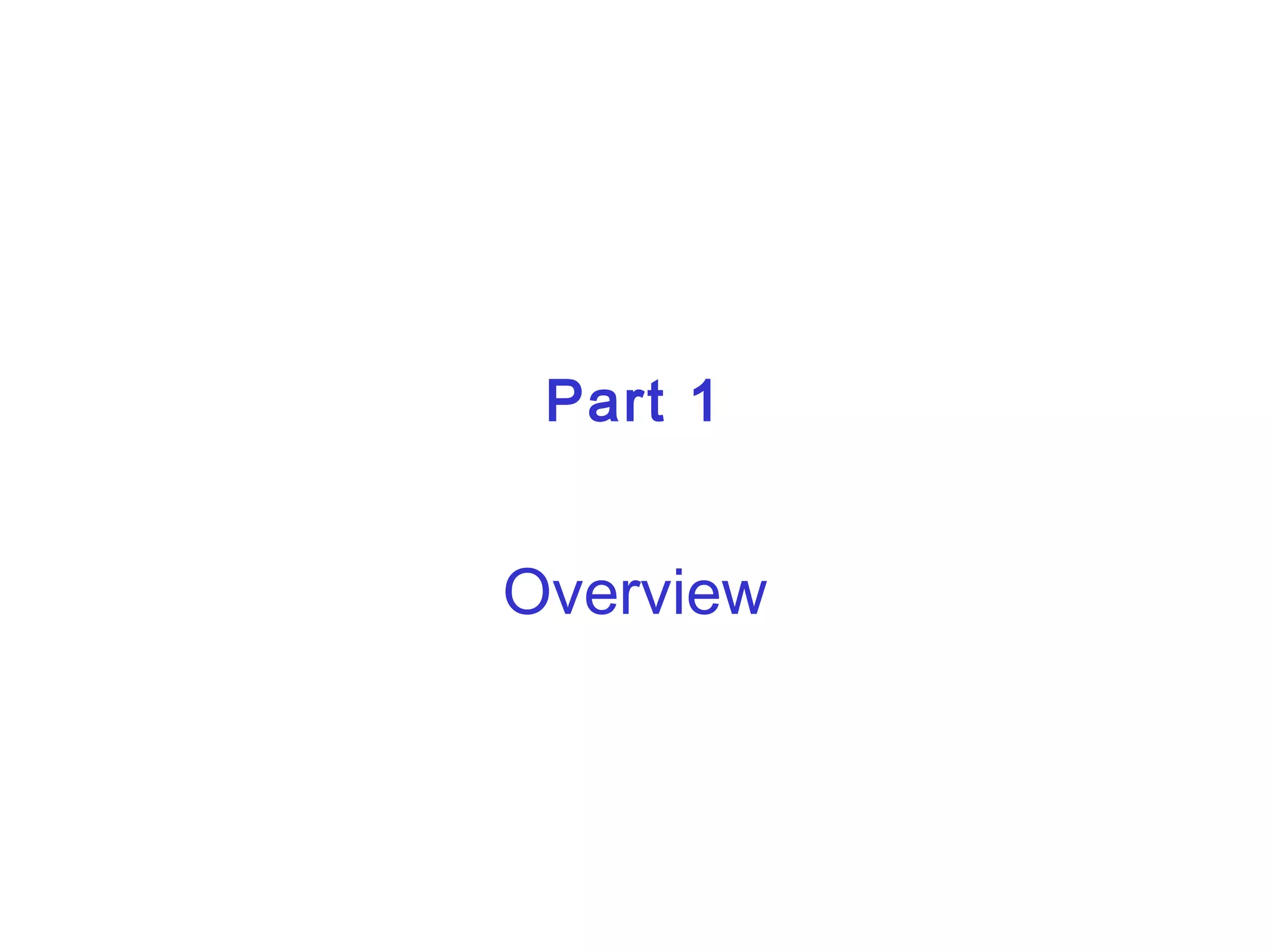

2. Part 1 Overview

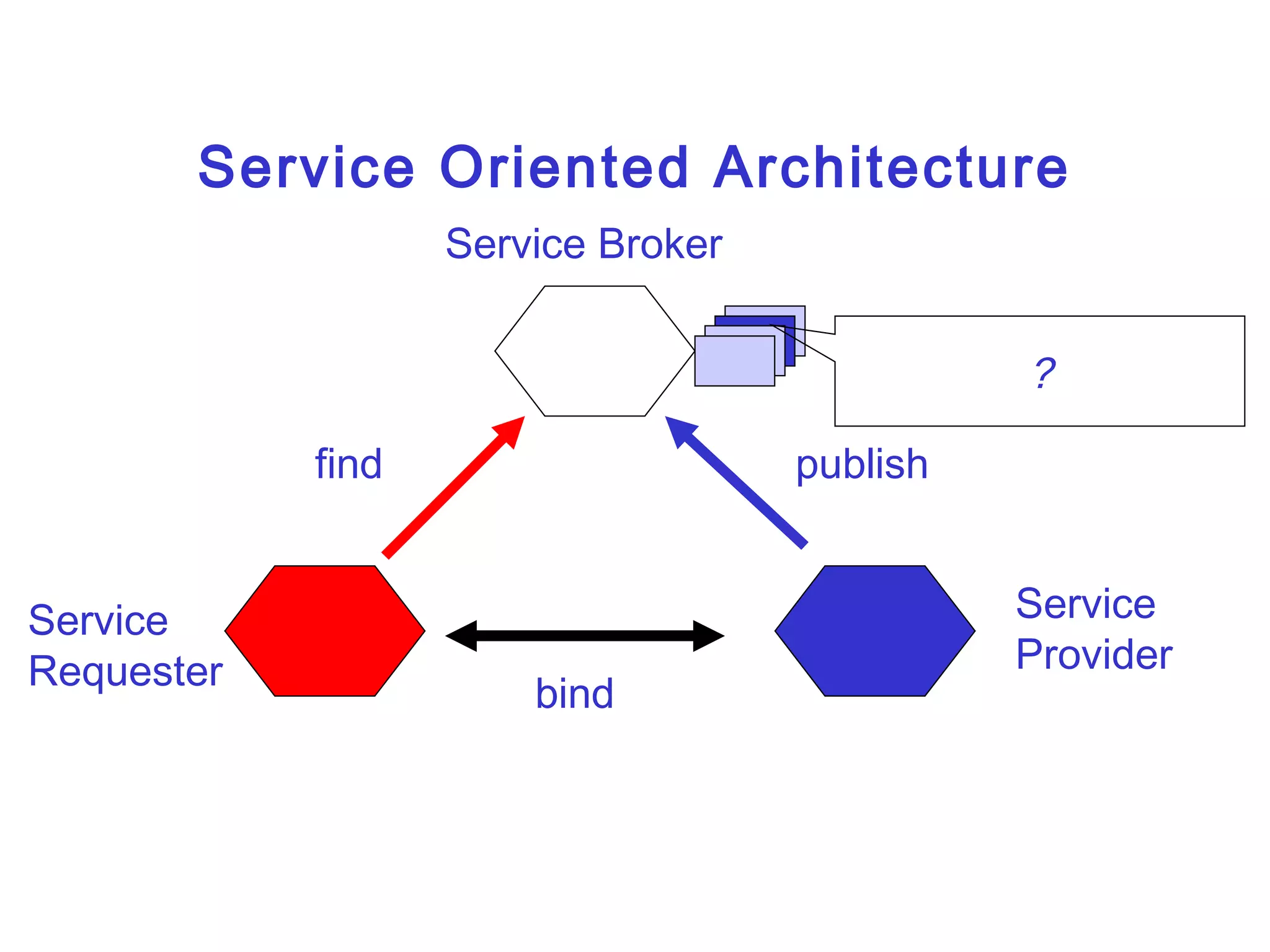

3. Service Oriented Architecture Service Provider Service Broker Service Requester publish find bind ?

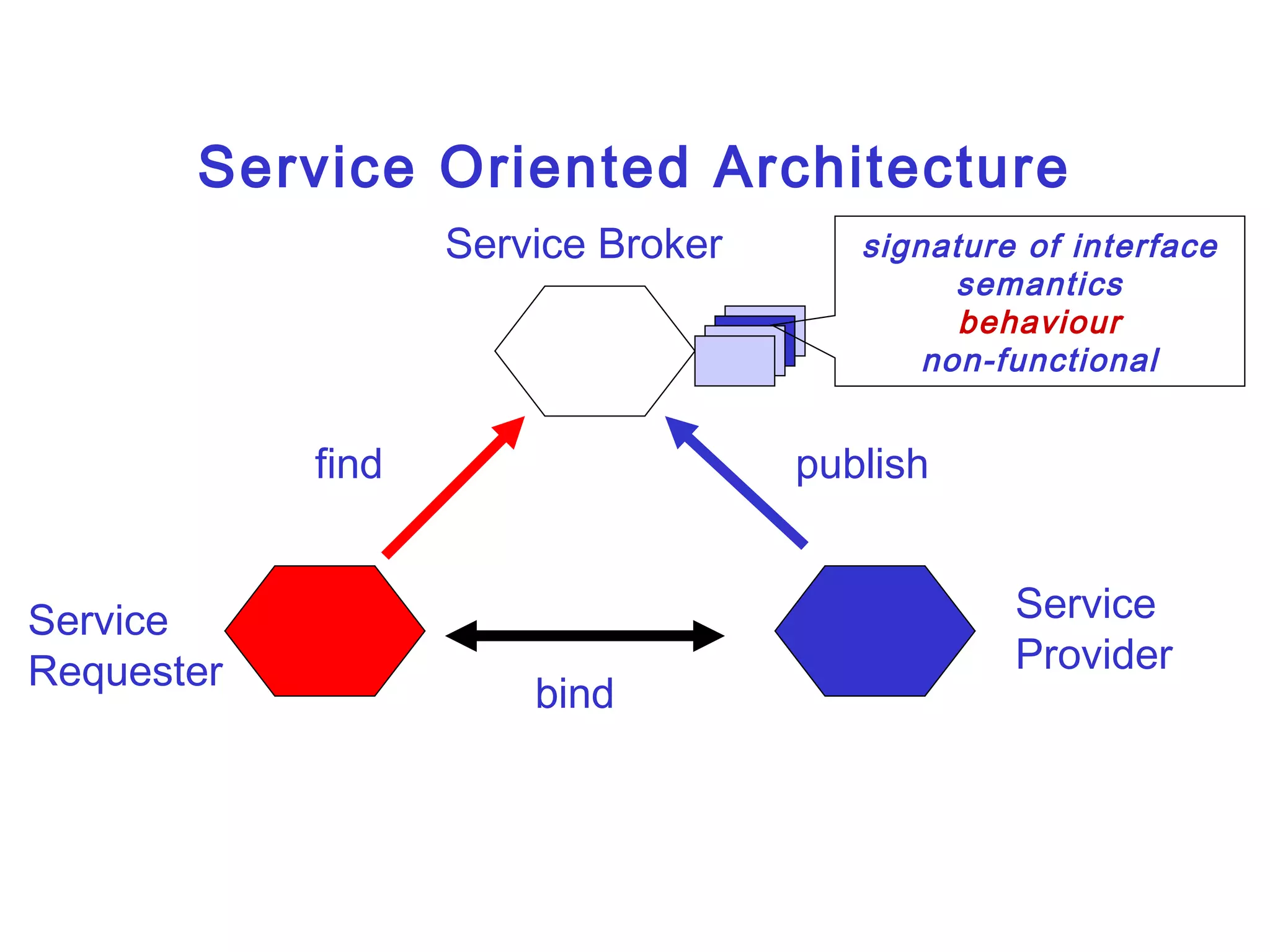

4. Service Oriented Architecture Service Provider Service Broker Service Requester publish find bind signature of interface semantics behaviour non-functional

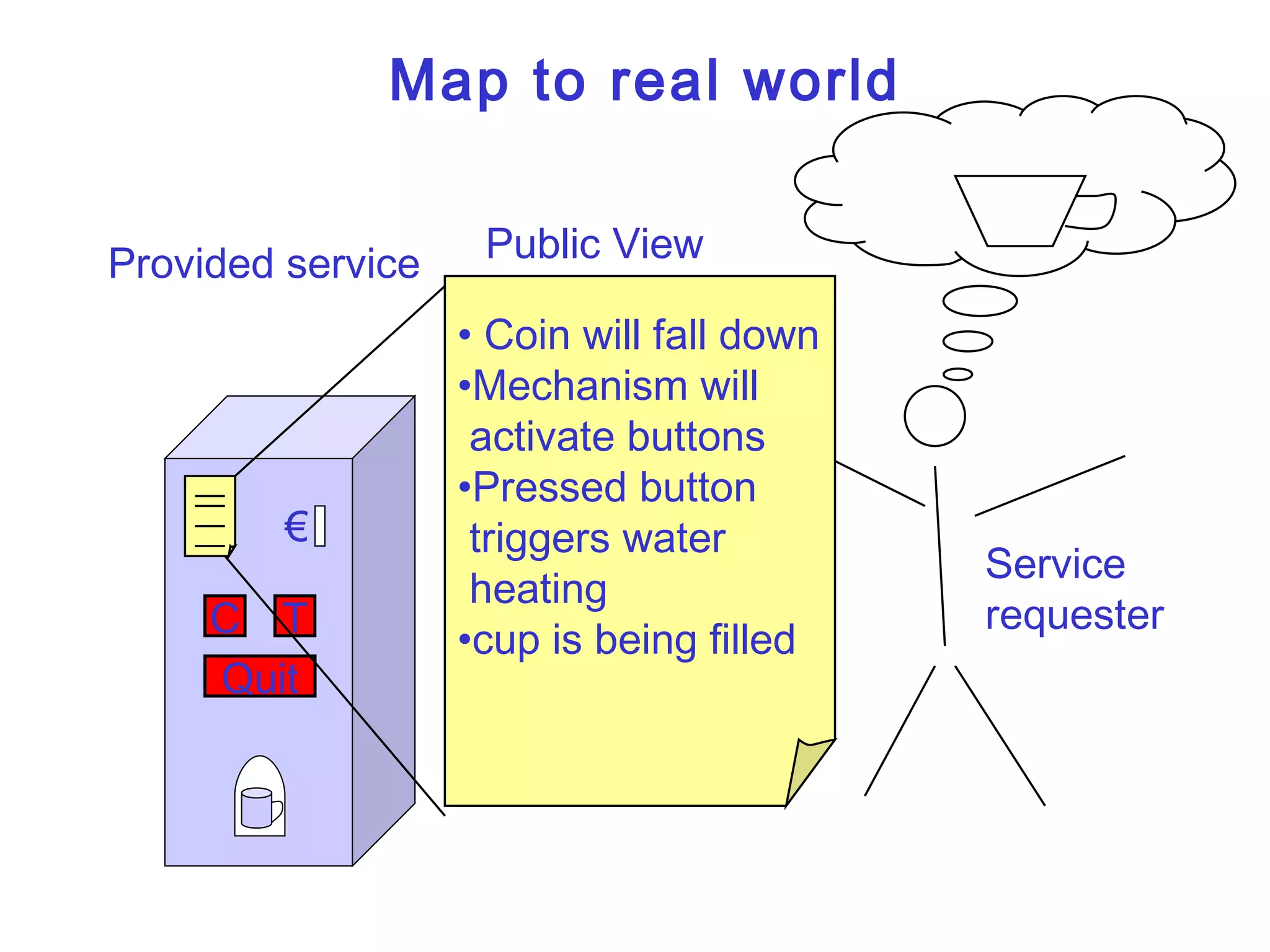

5. Map to real world Provided service € C T Quit Service requester Public View Coin will fall down Mechanism will activate buttons Pressed button triggers water heating cup is being filled

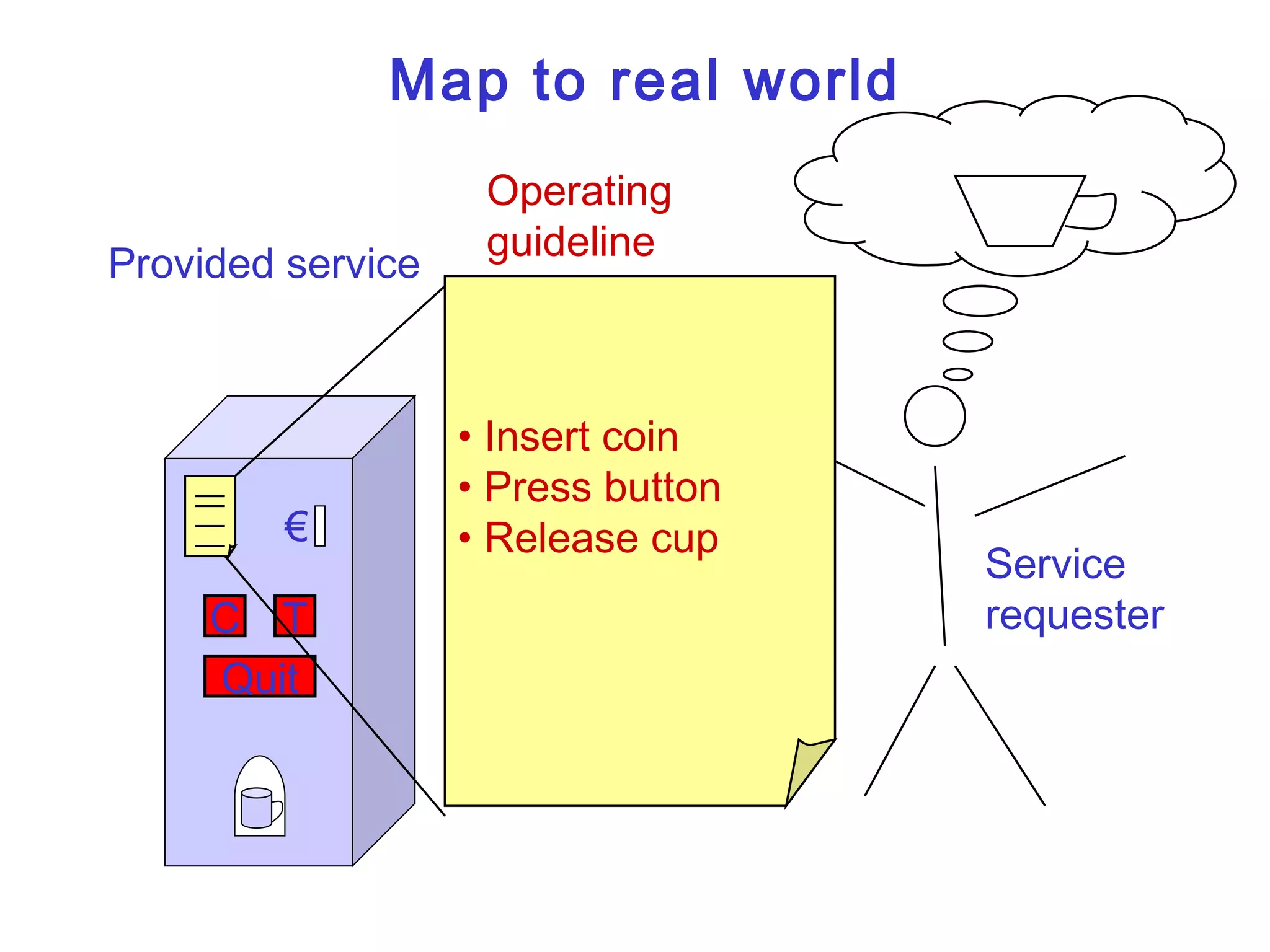

6. Map to real world Provided service € C T Quit Service requester Operating guideline Insert coin Press button Release cup

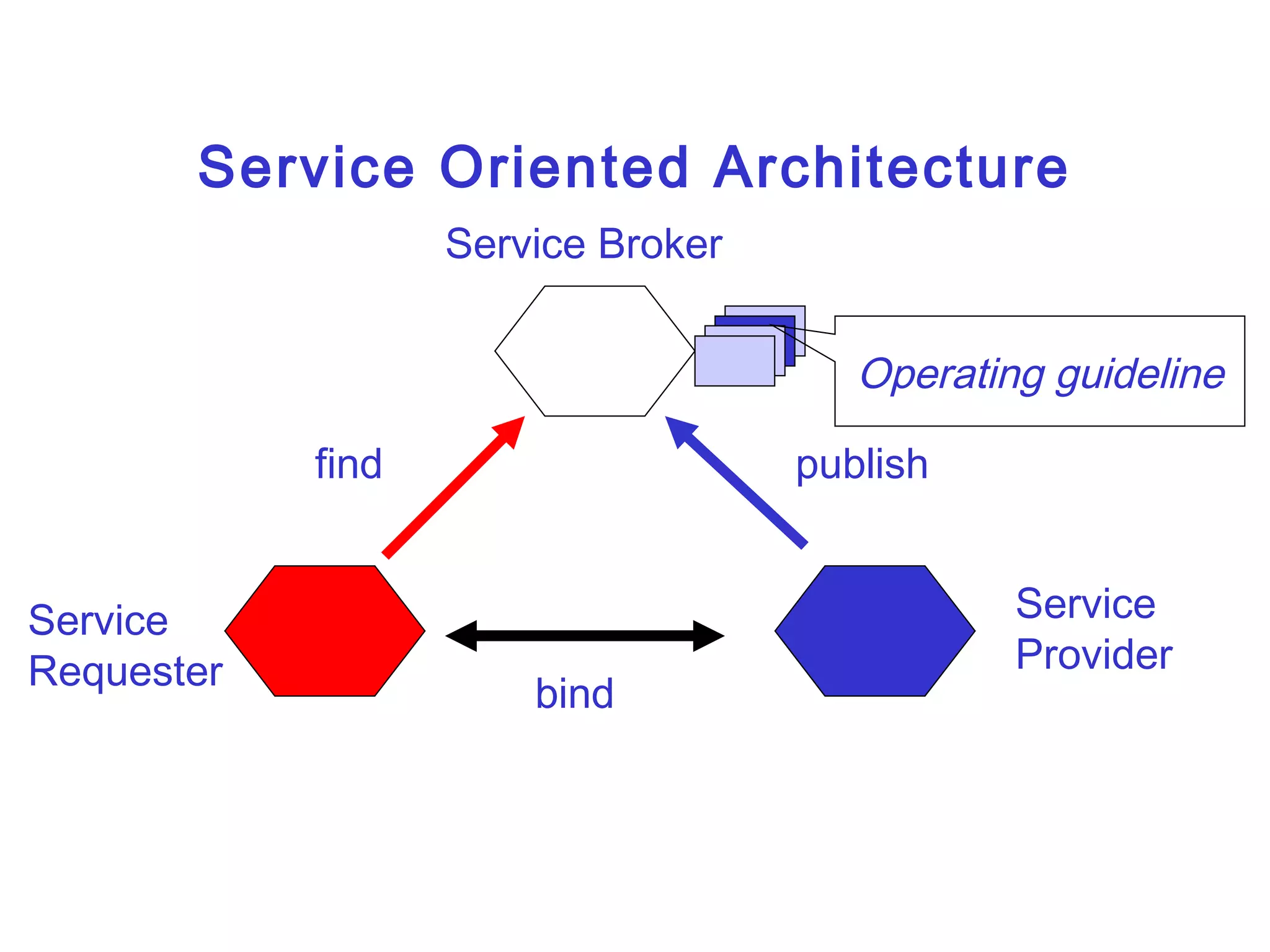

7. Service Oriented Architecture Service Provider Service Broker Service Requester publish find bind Operating guideline

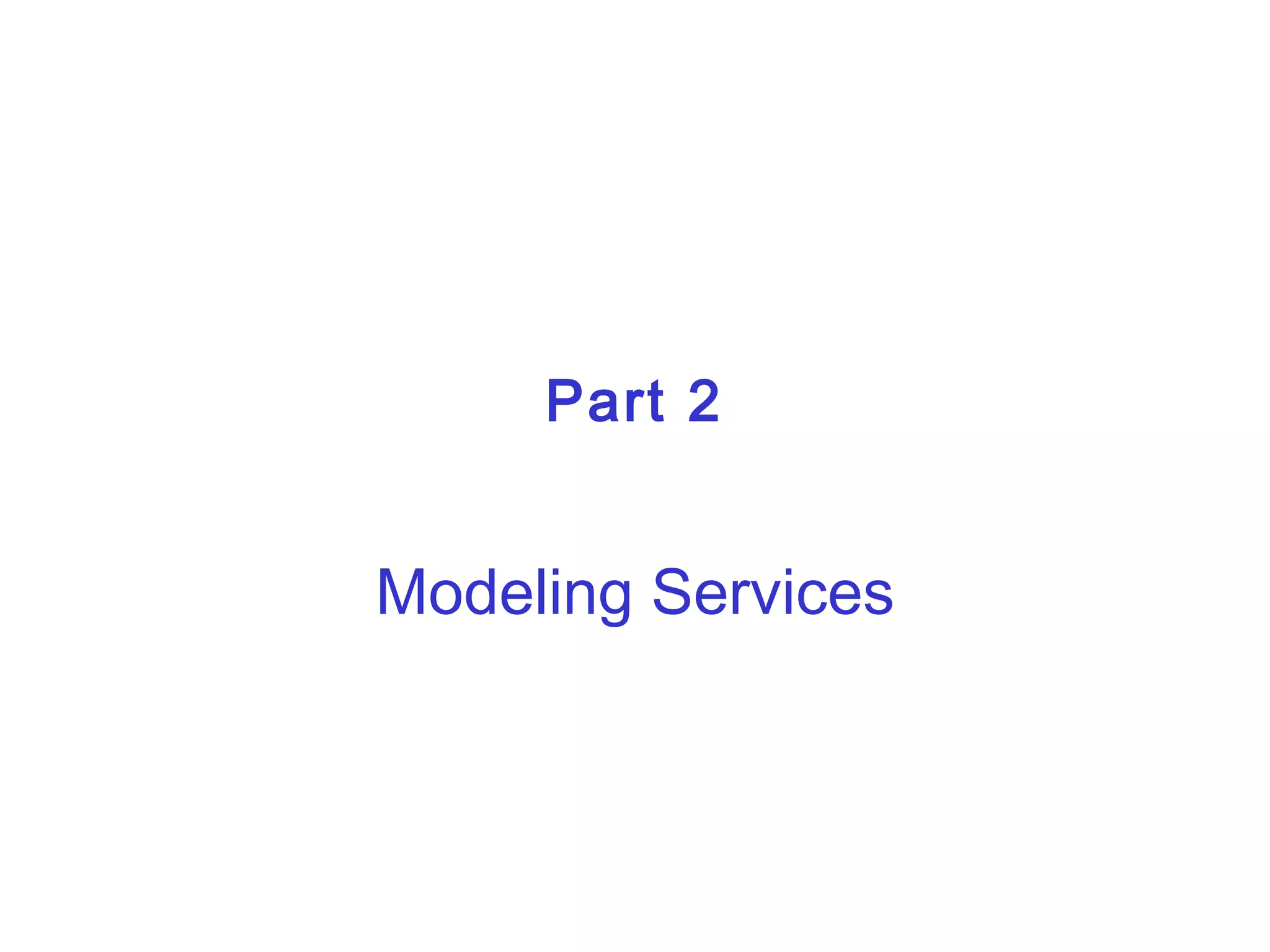

8. Part 2 Modeling Services

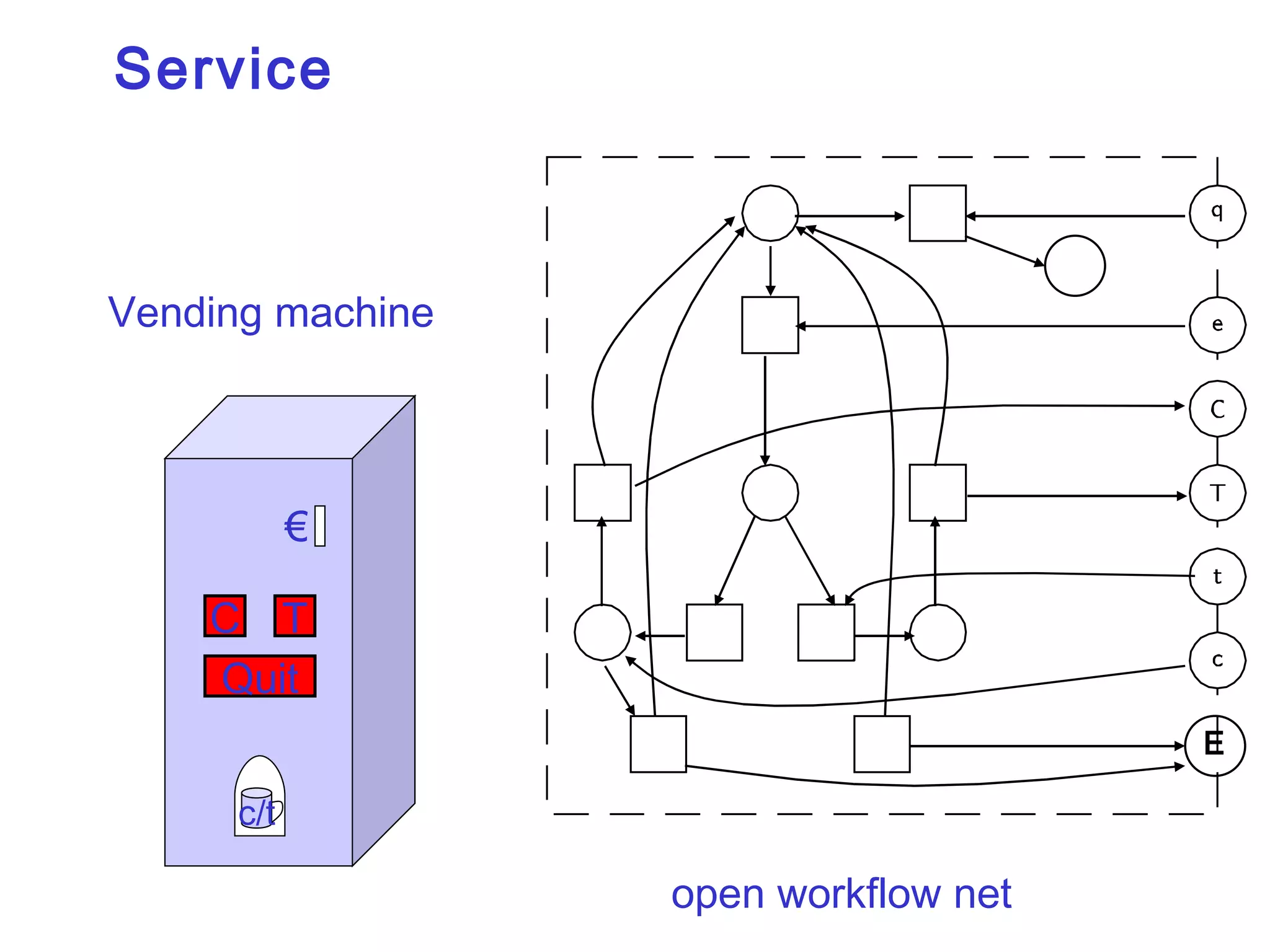

9. Service Vending machine € C T c/t Quit open workflow net E

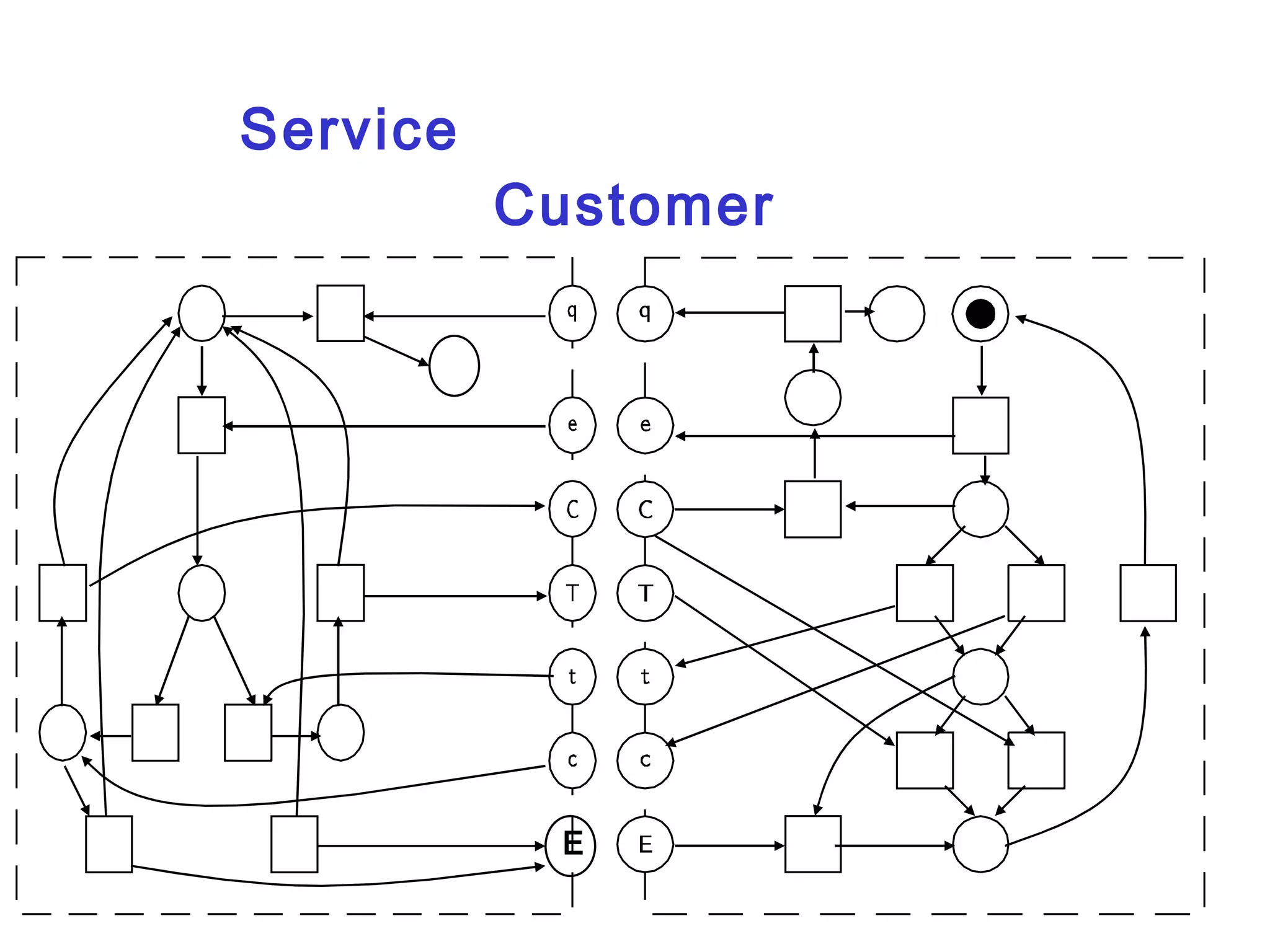

10. Service Customer E

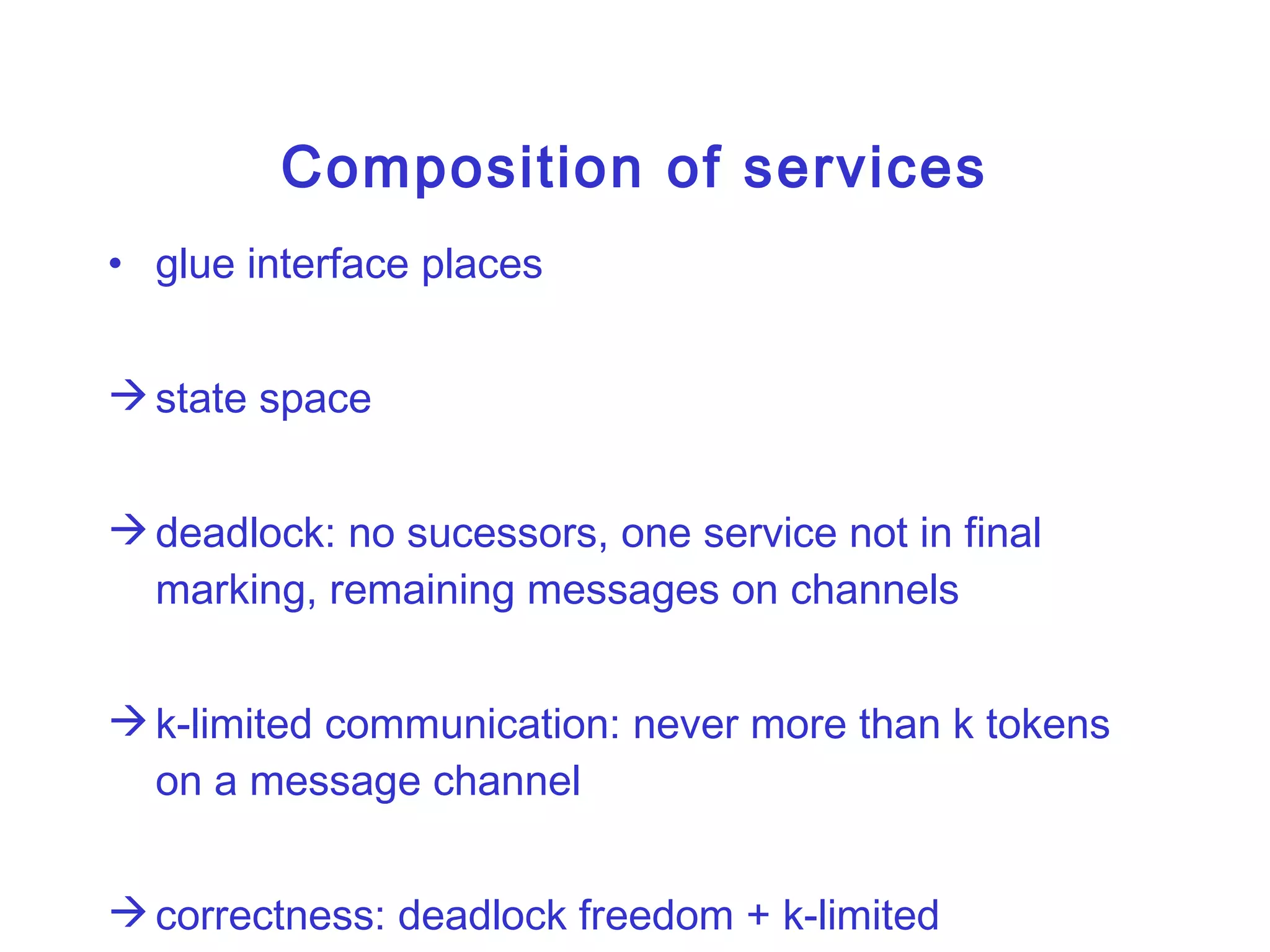

11. Composition of services glue interface places state space deadlock: no sucessors, one service not in final marking, remaining messages on channels k-limited communication: never more than k tokens on a message channel correctness: deadlock freedom + k-limited communication, for some given k

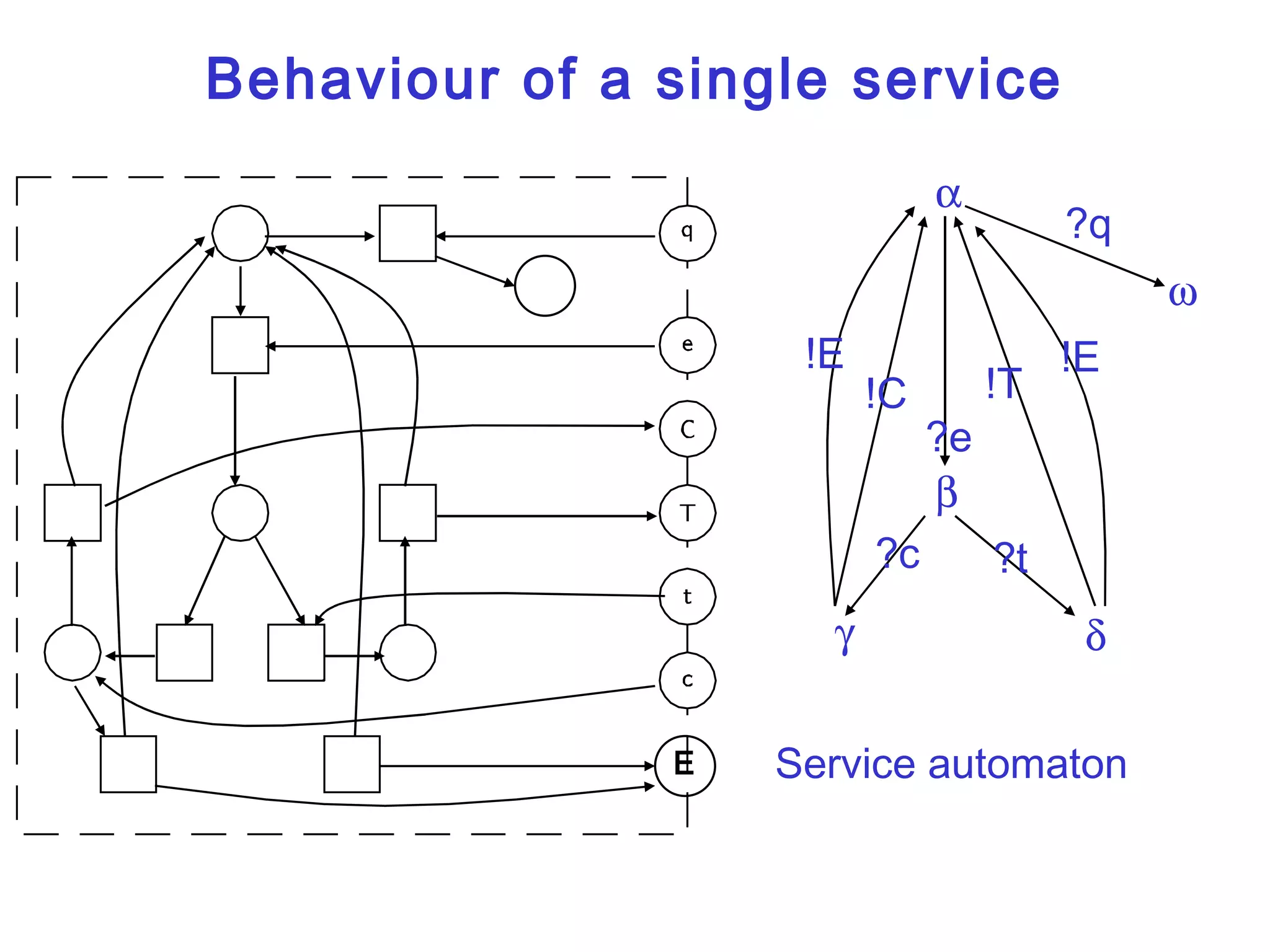

12. Behaviour of a single service E      ?q ?e ?c ?t !C !T !E !E Service automaton

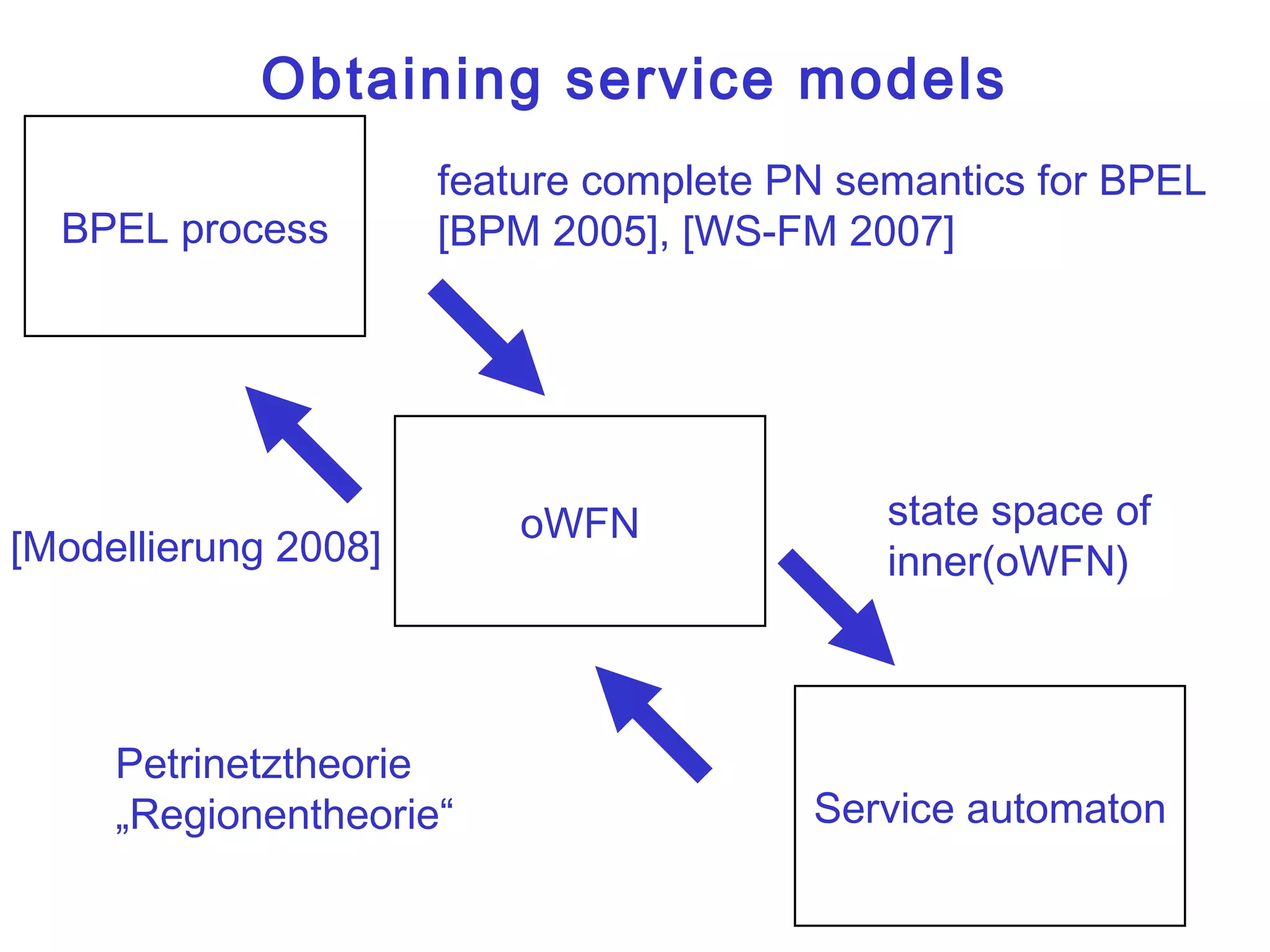

13. Obtaining service models BPEL process oWFN Service automaton feature complete PN semantics for BPEL [BPM 2005], [WS-FM 2007] state space of inner(oWFN) Petrinetztheorie „ Regionentheorie“ [Modellierung 2008]

14. Part 3 A canonical partner

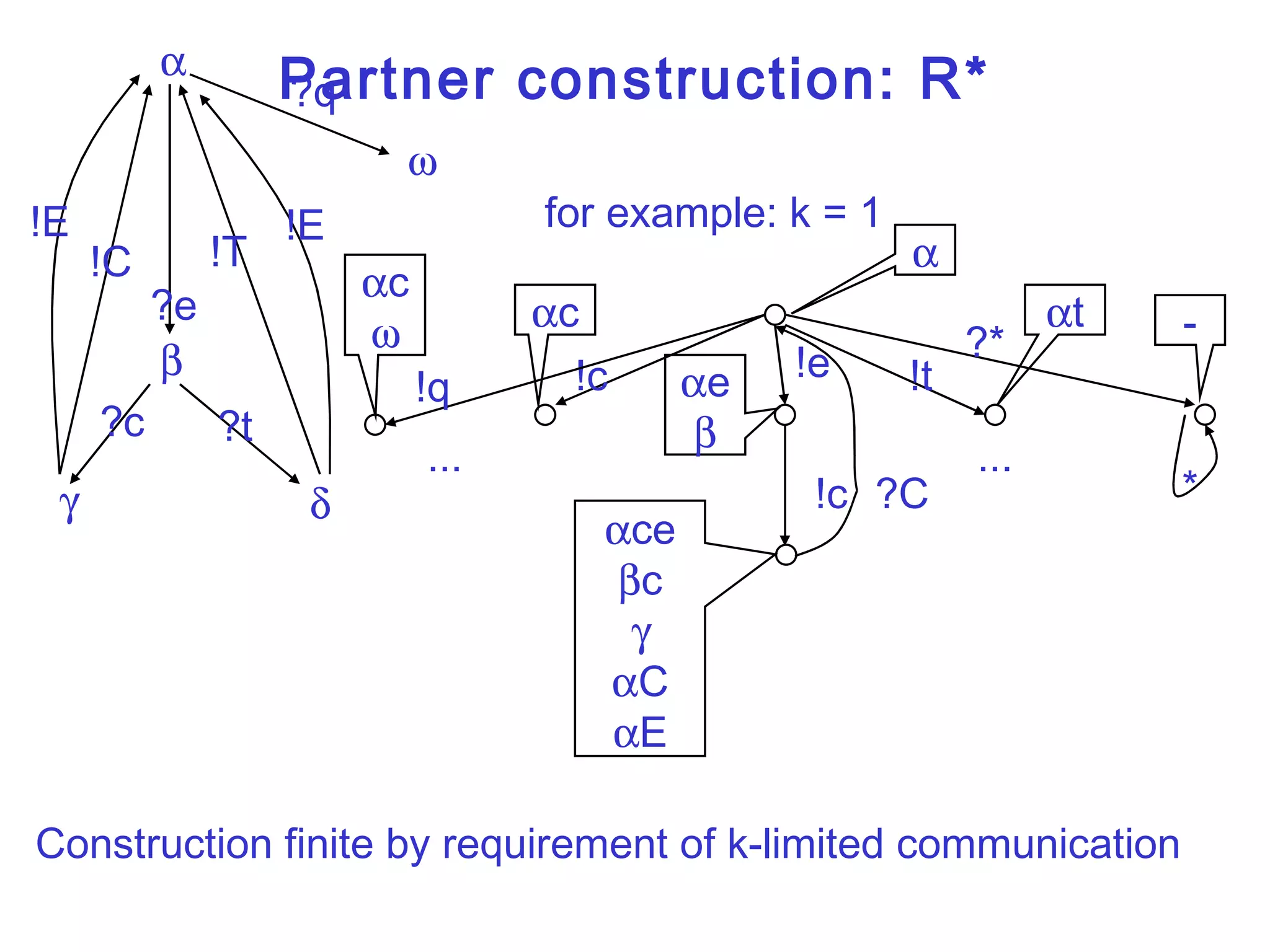

15. Partner construction: R*      ?q ?e ?c ?t !C !T !E !E for example: k = 1   c  Construction finite by requirement of k-limited communication ?* * - !c  c !t  t !e  e  !q  ce  c   C  E !c ?C ... ...

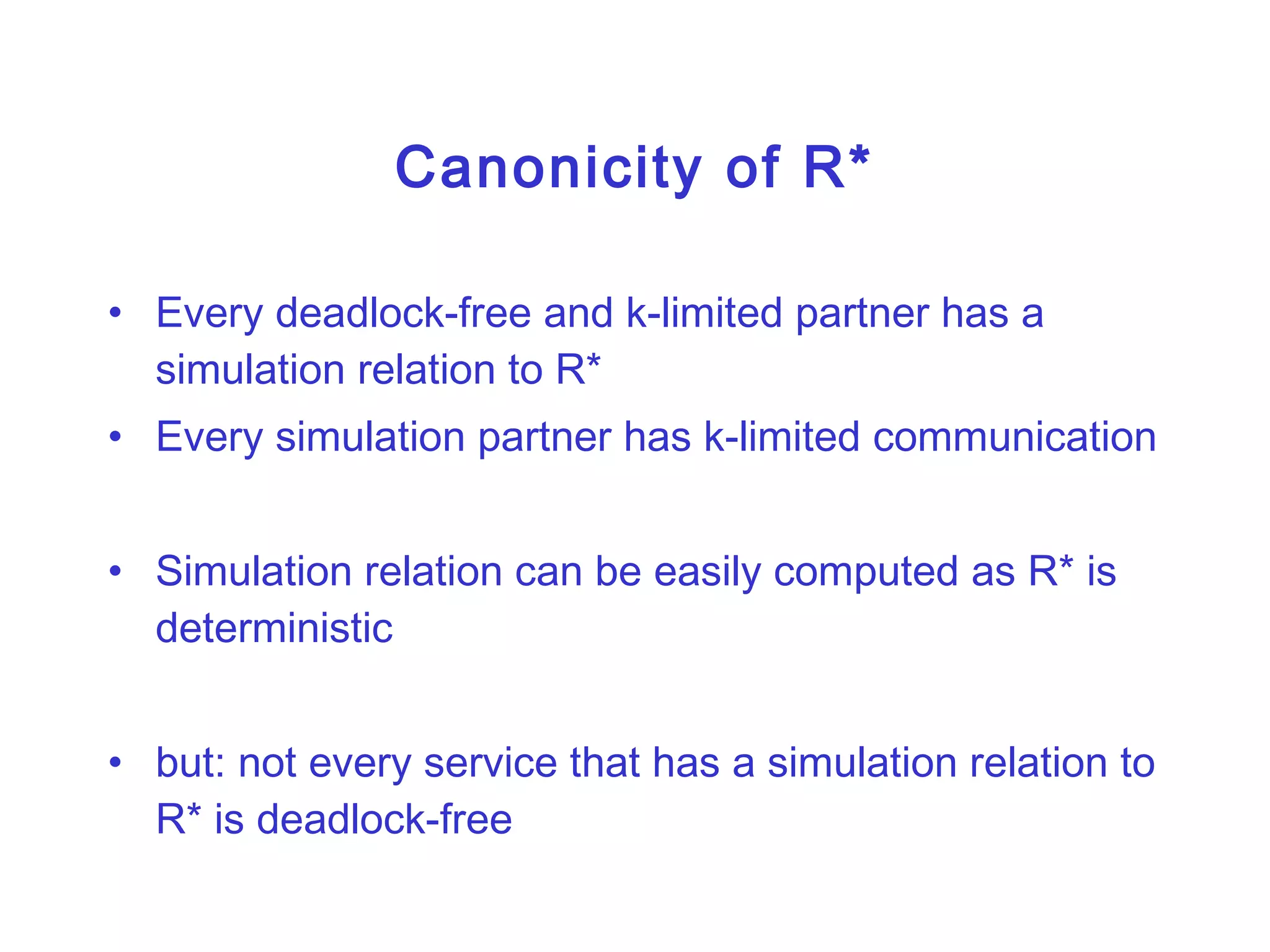

16. Canonicity of R* Every deadlock-free and k-limited partner has a simulation relation to R* Every simulation partner has k-limited communication Simulation relation can be easily computed as R* is deterministic but: not every service that has a simulation relation to R* is deadlock-free

17. Part 4 Operating guideline and matching

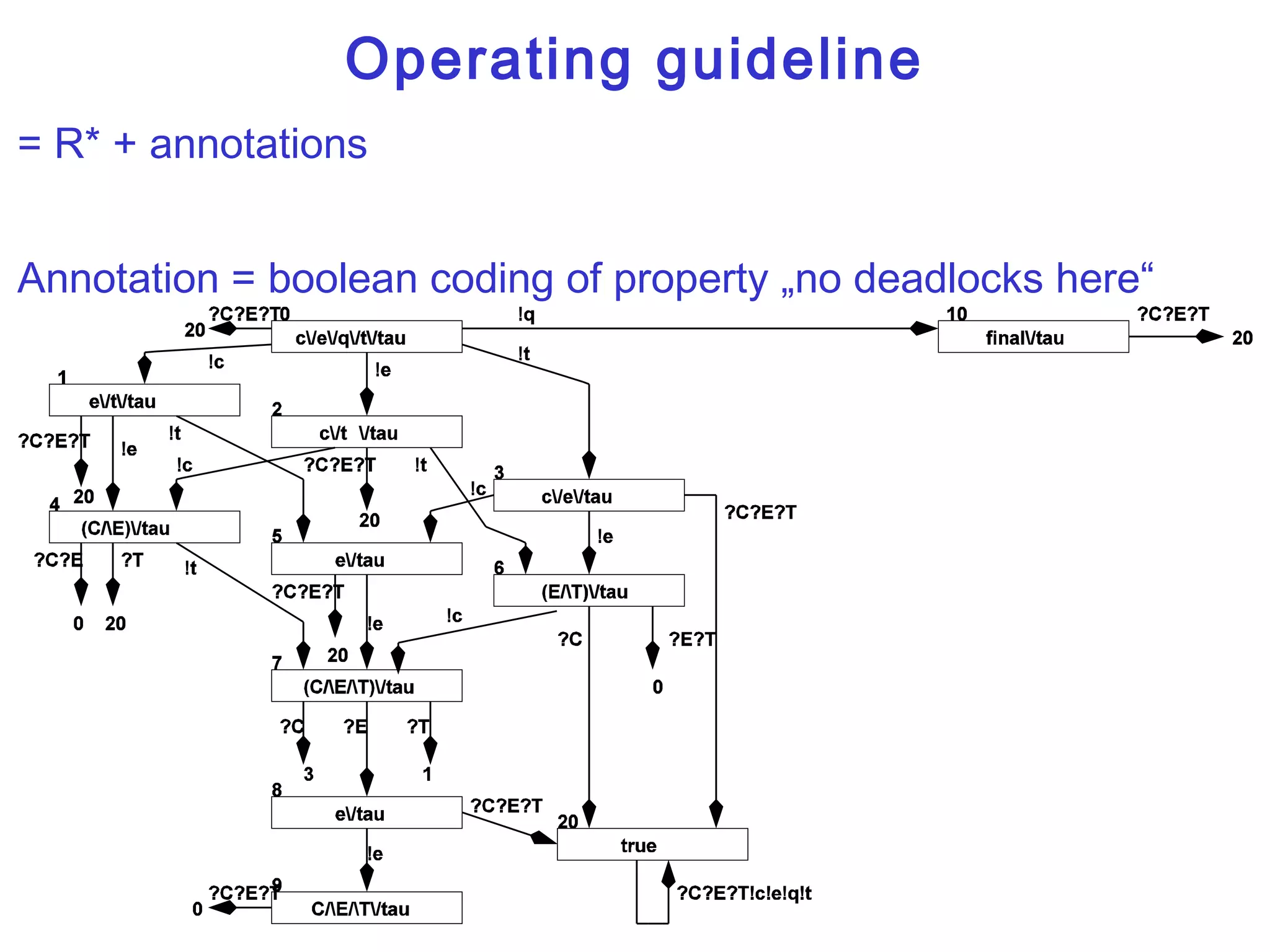

18. Operating guideline = R* + annotations Annotation = boolean coding of property „no deadlocks here“

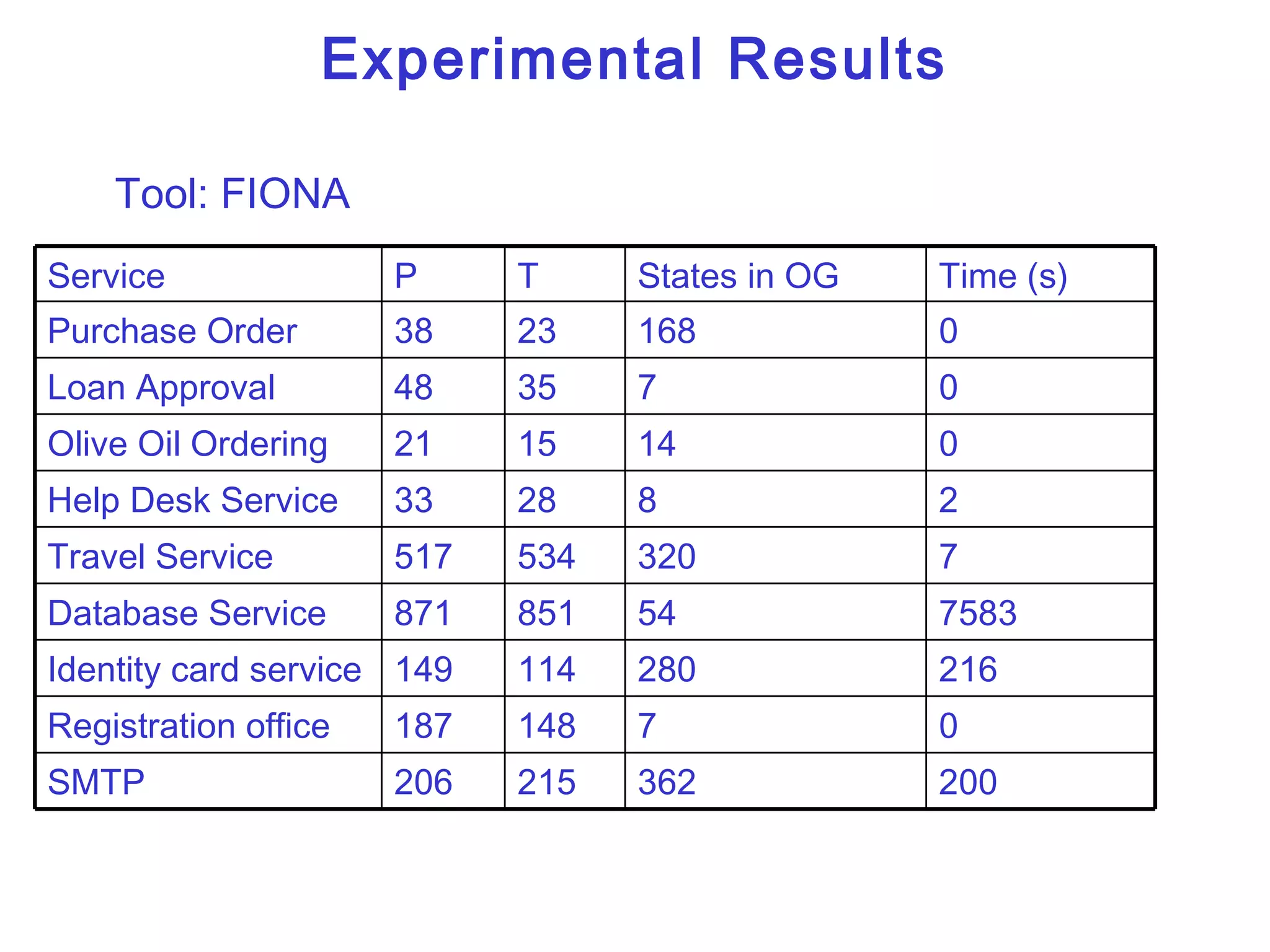

19. Experimental Results Tool: FIONA 200 362 215 206 SMTP 0 7 148 187 Registration office 216 280 114 149 Identity card service 7583 54 851 871 Database Service 7 320 534 517 Travel Service 2 8 28 33 Help Desk Service 0 14 15 21 Olive Oil Ordering 0 7 35 48 Loan Approval 0 168 23 38 Purchase Order Time (s) States in OG T P Service

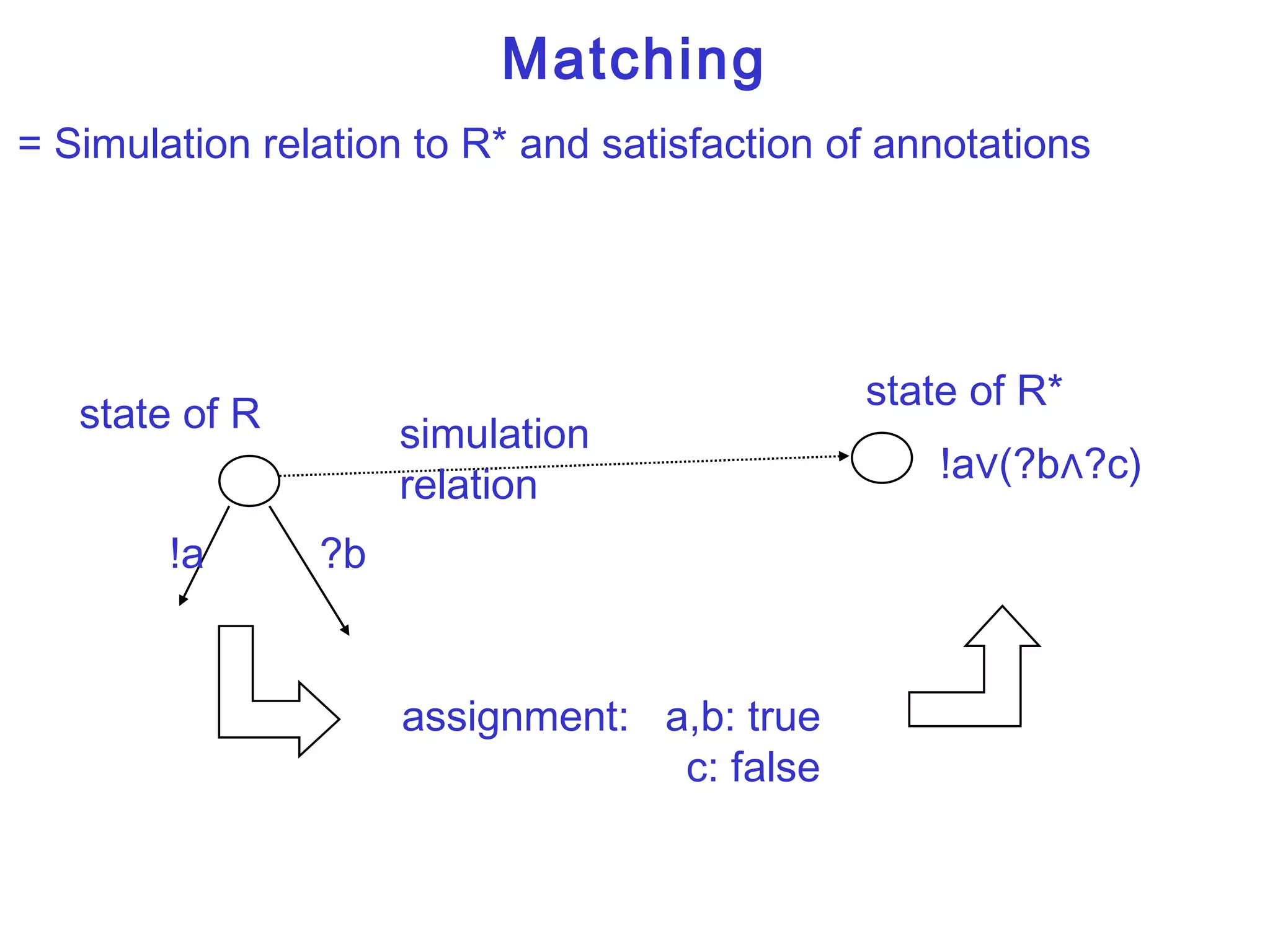

20. Matching = Simulation relation to R* and satisfaction of annotations state of R state of R* !a ∨(?b∧?c) simulation relation !a ?b assignment: a,b: true c: false
