The document discusses mapping design artifacts like UML class and collaboration diagrams to code in Java. It provides examples of how classes, attributes, methods, and messages between objects shown in design diagrams can be translated to code elements like classes, constructor methods, reference attributes, method calls, etc. Key aspects covered include adding constructors, reference attributes named after roles, writing method bodies based on message sequences in collaboration diagrams, and handling changes from design to code.

1. MAPPING DESIGNS TO CODE Atoi Software System Bangalore [email_address]

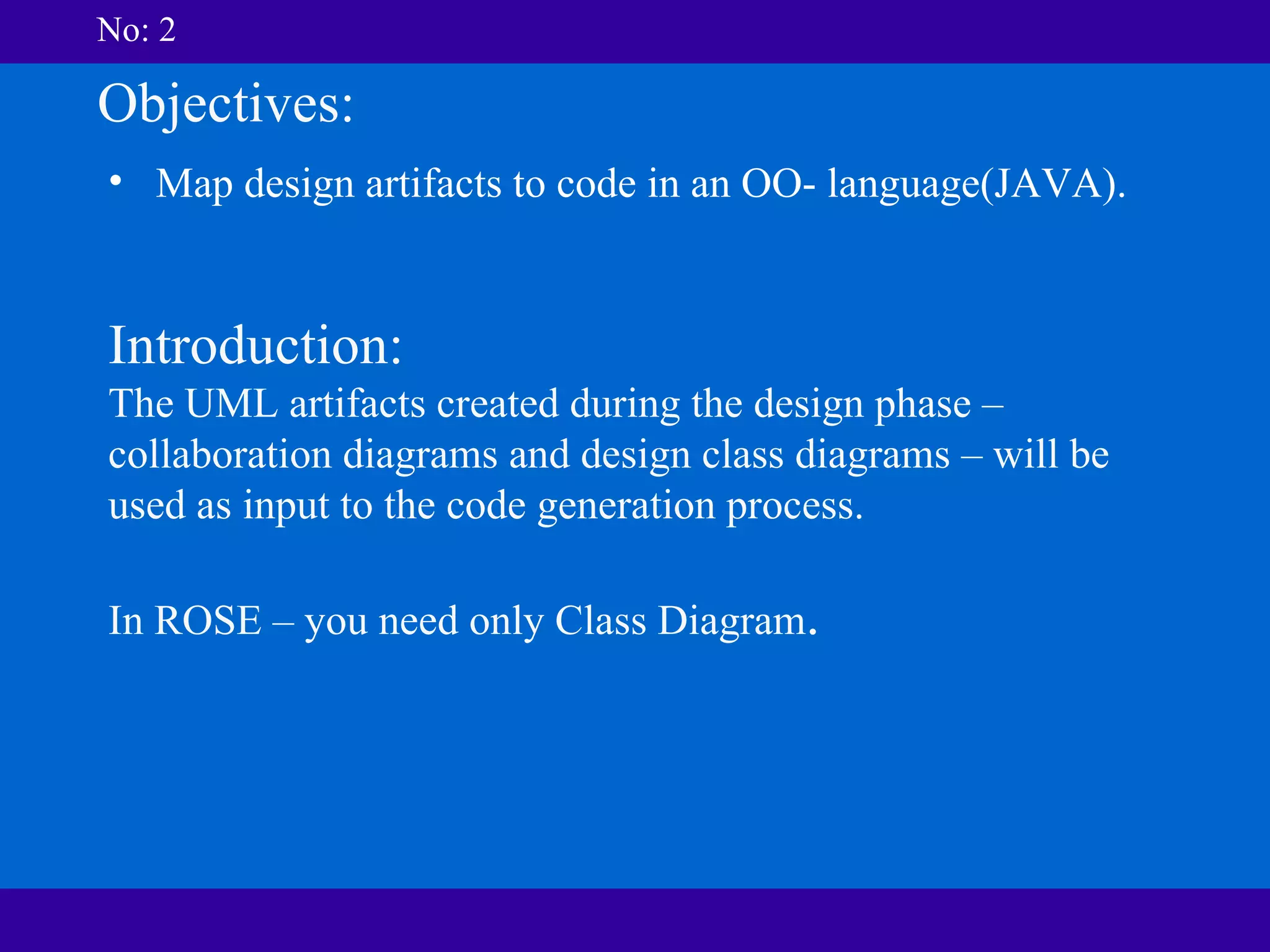

2. Objectives: Map design artifacts to code in an OO- language(JAVA). Introduction: The UML artifacts created during the design phase – collaboration diagrams and design class diagrams – will be used as input to the code generation process. In ROSE – you need only Class Diagram .

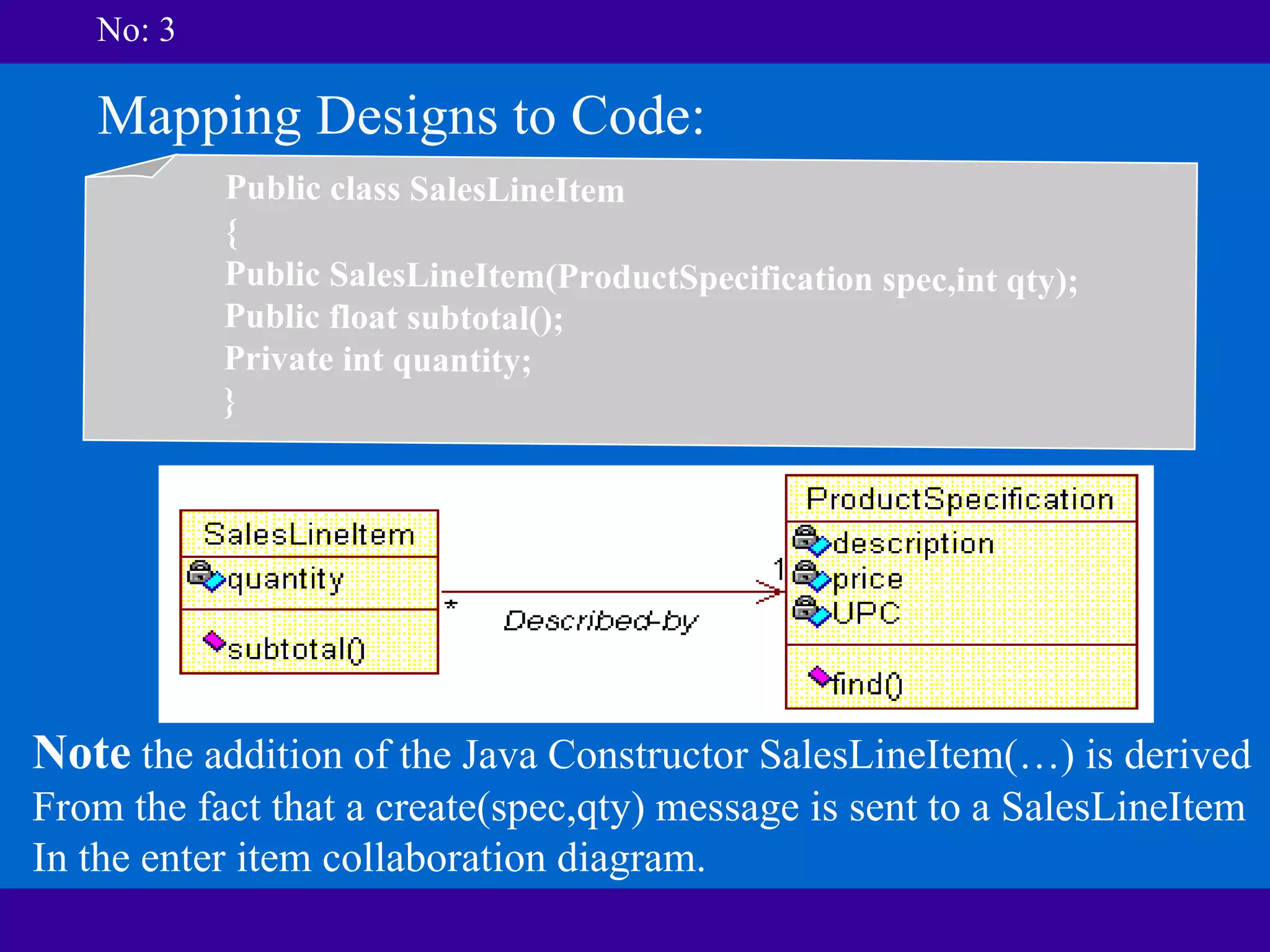

3. Mapping Designs to Code: Public class SalesLineItem { Public SalesLineItem(ProductSpecification spec,int qty); Public float subtotal(); Private int quantity; } Note the addition of the Java Constructor SalesLineItem(…) is derived From the fact that a create(spec,qty) message is sent to a SalesLineItem In the enter item collaboration diagram.

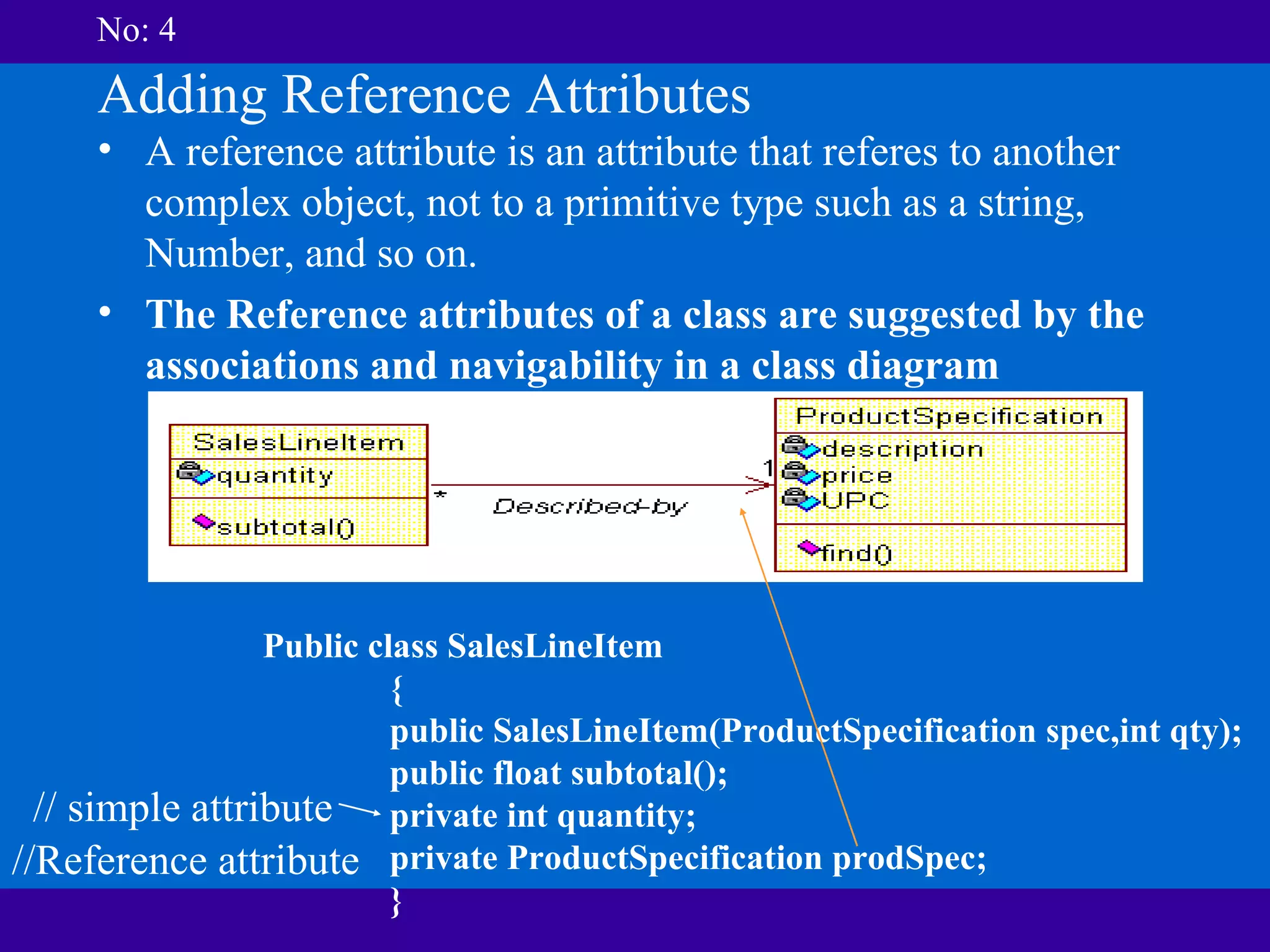

4. Adding Reference Attributes A reference attribute is an attribute that referes to another complex object, not to a primitive type such as a string, Number, and so on. The Reference attributes of a class are suggested by the associations and navigability in a class diagram Public class SalesLineItem { public SalesLineItem(ProductSpecification spec,int qty); public float subtotal(); private int quantity; private ProductSpecification prodSpec; } // simple attribute //Reference attribute

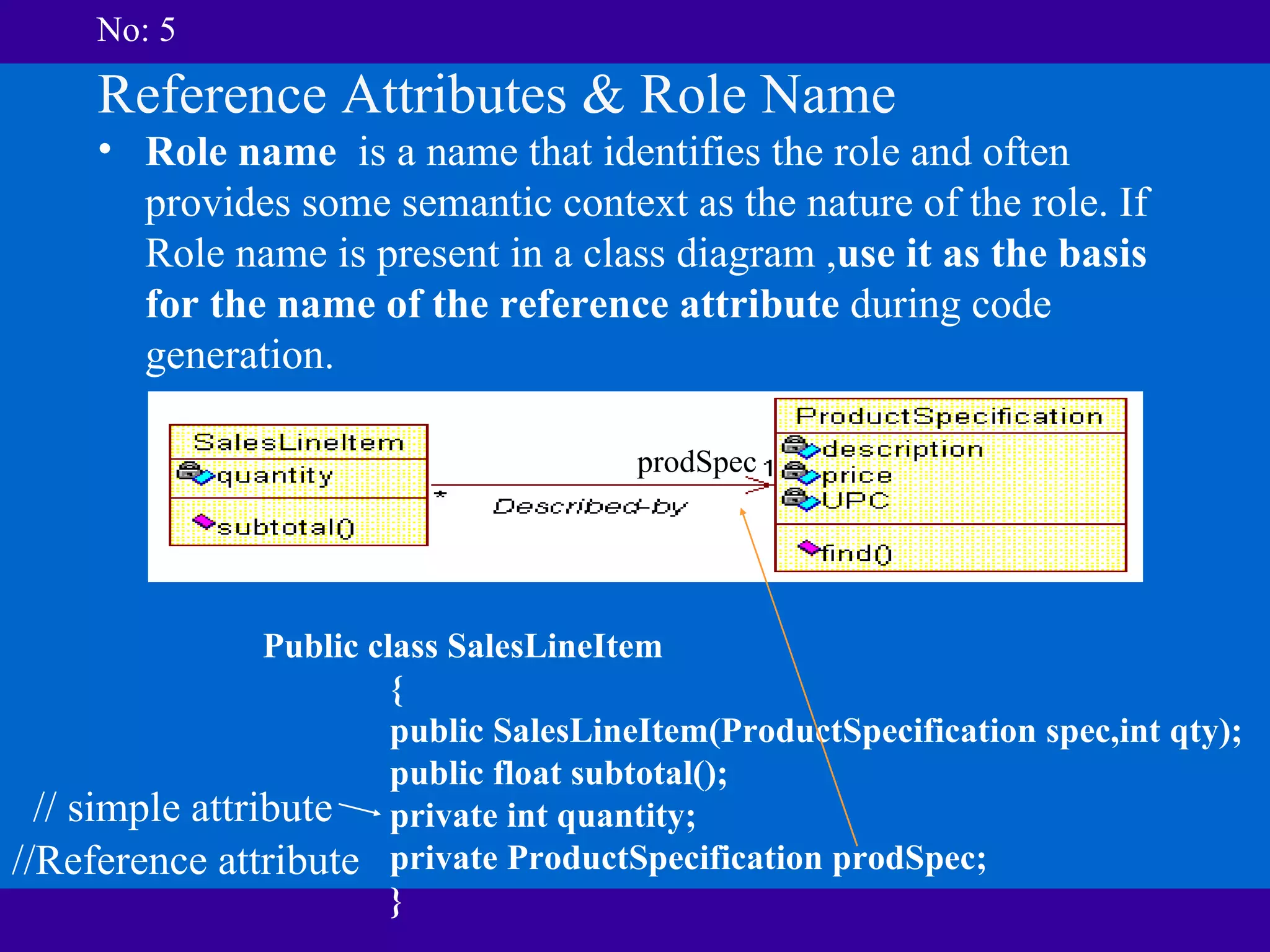

5. Reference Attributes & Role Name Role name is a name that identifies the role and often provides some semantic context as the nature of the role. If Role name is present in a class diagram , use it as the basis for the name of the reference attribute during code generation. prodSpec Public class SalesLineItem { public SalesLineItem(ProductSpecification spec,int qty); public float subtotal(); private int quantity; private ProductSpecification prodSpec; } // simple attribute //Reference attribute

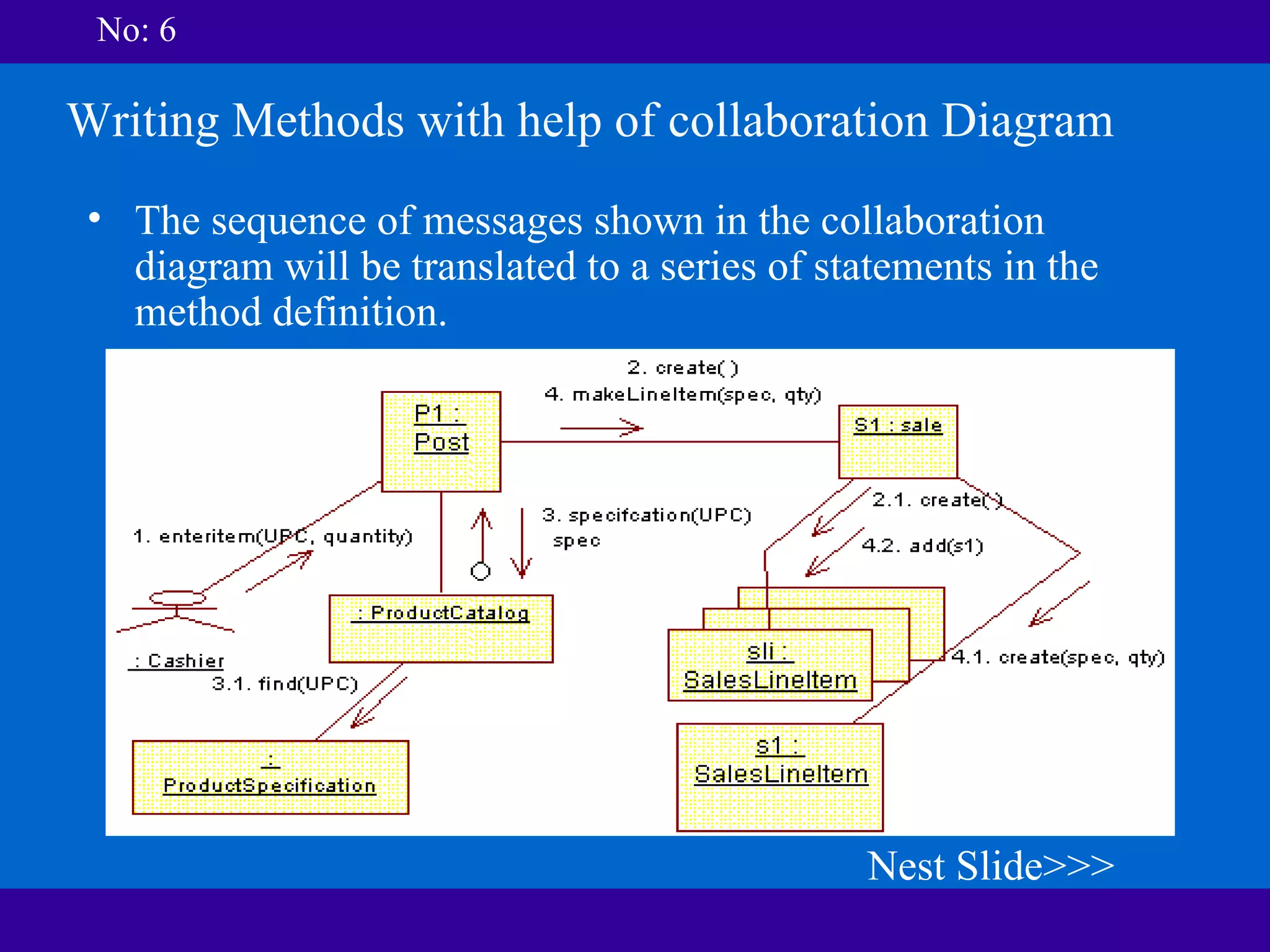

6. Writing Methods with help of collaboration Diagram The sequence of messages shown in the collaboration diagram will be translated to a series of statements in the method definition. Nest Slide>>>

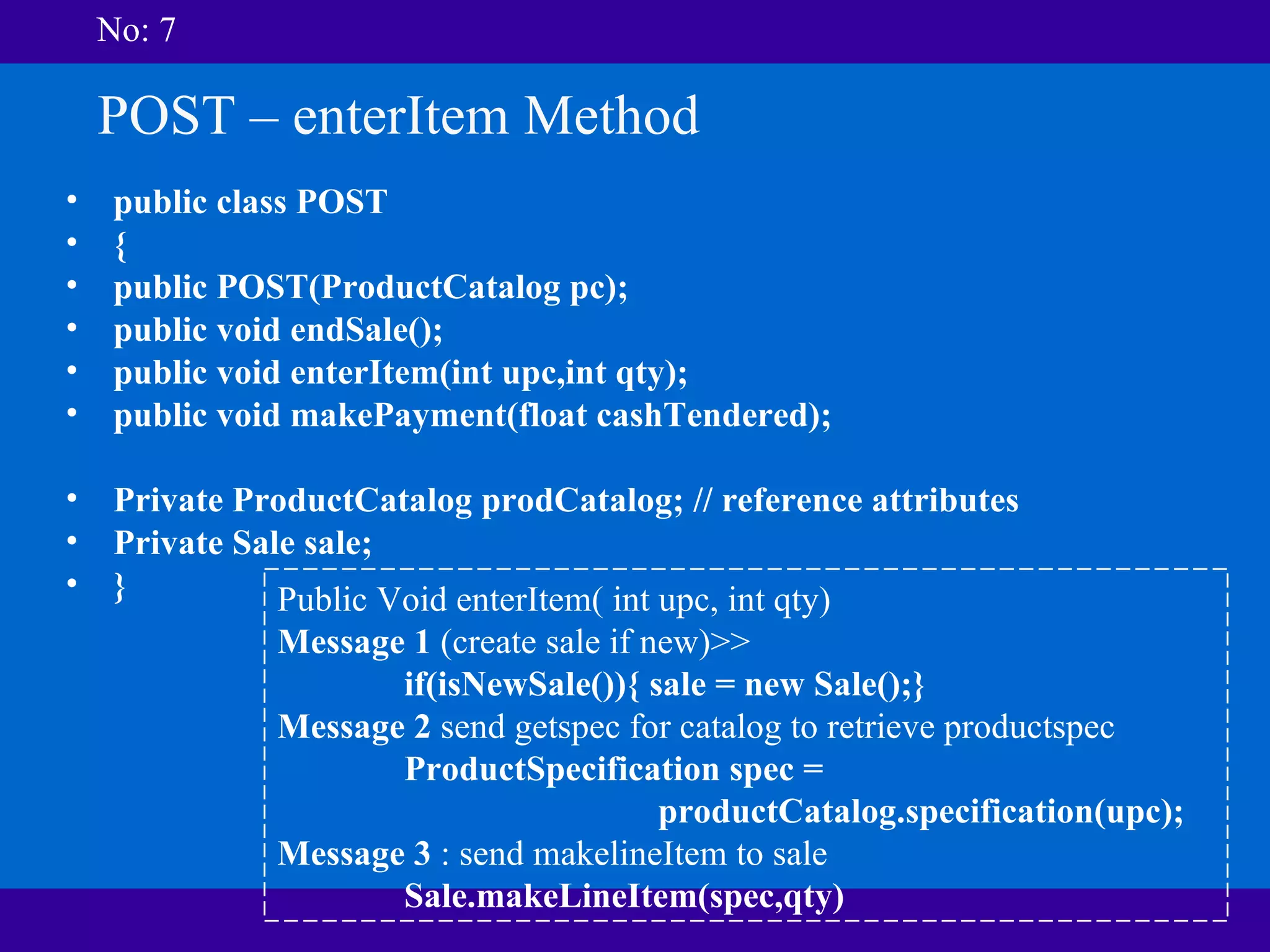

7. POST – enterItem Method public class POST { public POST(ProductCatalog pc); public void endSale(); public void enterItem(int upc,int qty); public void makePayment(float cashTendered); Private ProductCatalog prodCatalog; // reference attributes Private Sale sale; } Public Void enterItem( int upc, int qty) Message 1 (create sale if new)>> if(isNewSale()){ sale = new Sale();} Message 2 send getspec for catalog to retrieve productspec ProductSpecification spec = productCatalog.specification(upc); Message 3 : send makelineItem to sale Sale.makeLineItem(spec,qty)

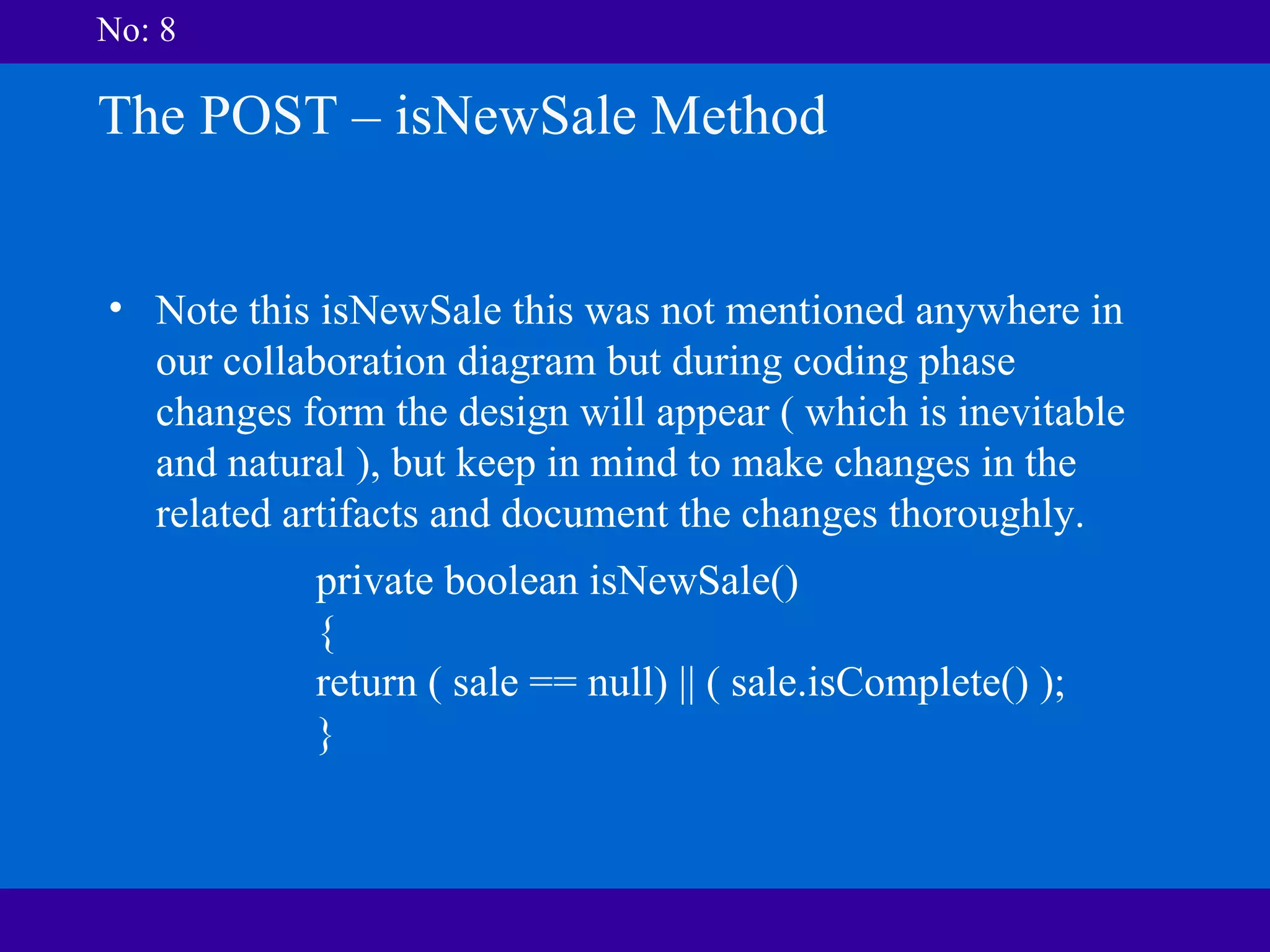

8. The POST – isNewSale Method Note this isNewSale this was not mentioned anywhere in our collaboration diagram but during coding phase changes form the design will appear ( which is inevitable and natural ), but keep in mind to make changes in the related artifacts and document the changes thoroughly. private boolean isNewSale() { return ( sale == null) || ( sale.isComplete() ); }

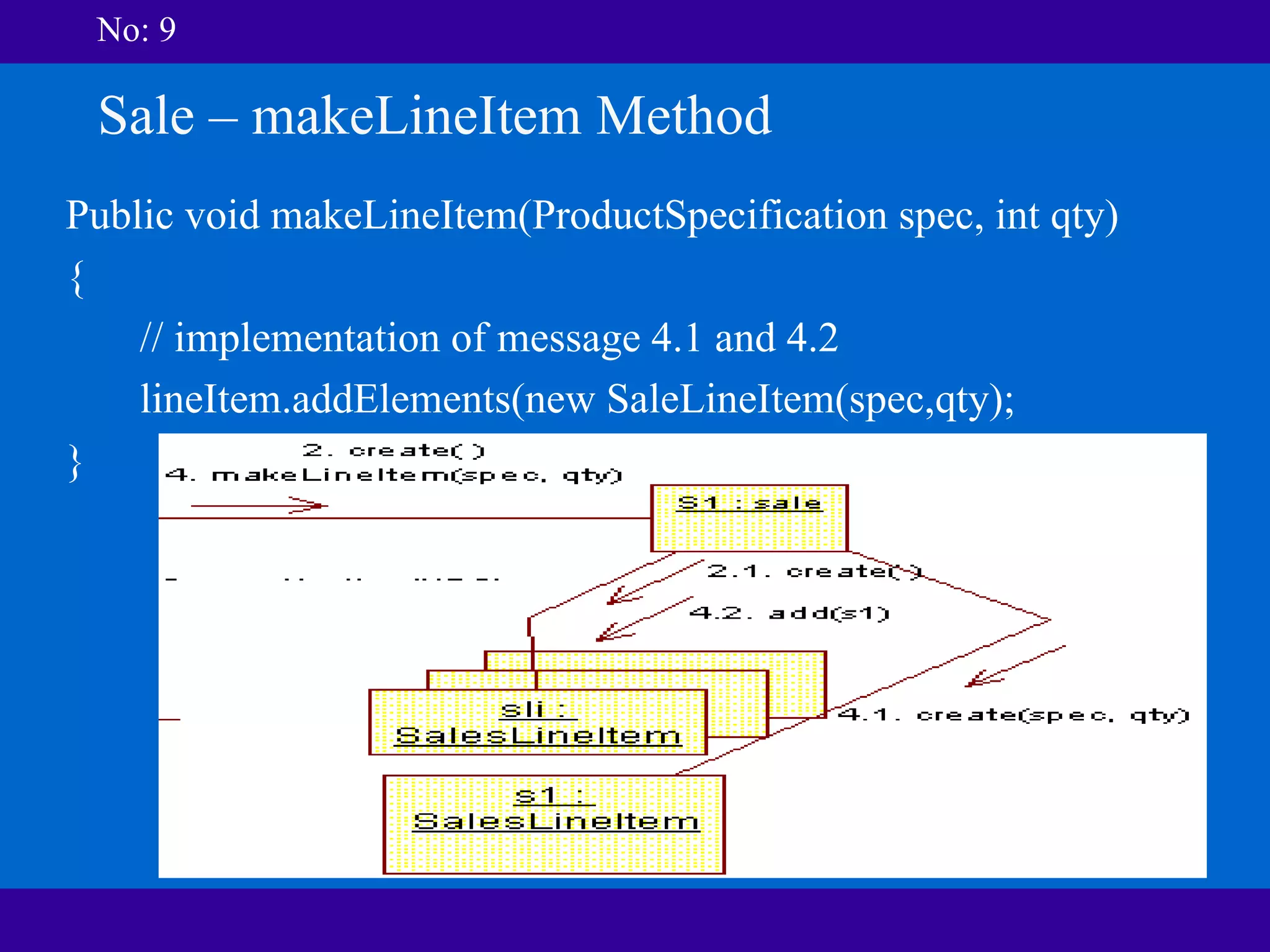

9. Sale – makeLineItem Method Public void makeLineItem(ProductSpecification spec, int qty) { // implementation of message 4.1 and 4.2 lineItem.addElements(new SaleLineItem(spec,qty); }
