On Growth and Software

Carlo Pescio @CarloPescio http://physicsofsoftware.com
Carlo Pescio
On Growth and Software
(or: applying some Physics of Software)

Inspired by a classic

Form as a Diagram of Forces

Form as a Recipe for Reaction
My own little step – don’t blame D’Arcy 
Material and shape encode reactions to “forces”

Form as a Recipe for Growth

Good ol’ book
+ - U
U

The ring binder
U
D
D
U
U
C
C

Growth Model

[Mis]Aligned Growth Model
(ideal) growth in
decision space
(actual) growth in
artifact space

“Growth” in computing
Extensibility Scalability
C/D features in code C/D run-time load
Code as artifacts Run-time behavior
C/D feature -> C/D load ->
C/D artifact C/D machines / CPU

Extensibility?

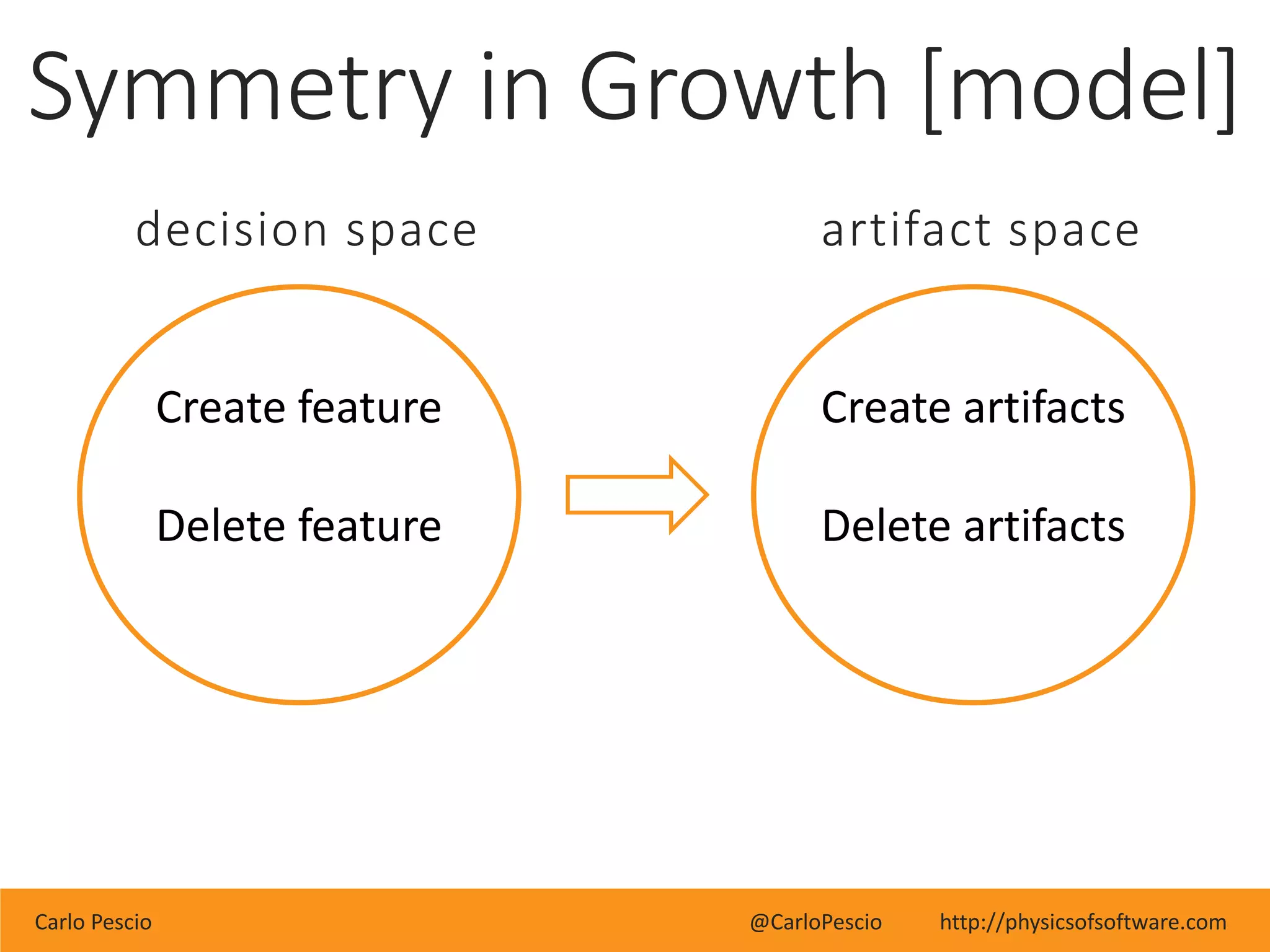

Symmetry in Growth [model]
Create feature
Delete feature
decision space
Create artifacts
Delete artifacts
artifact space

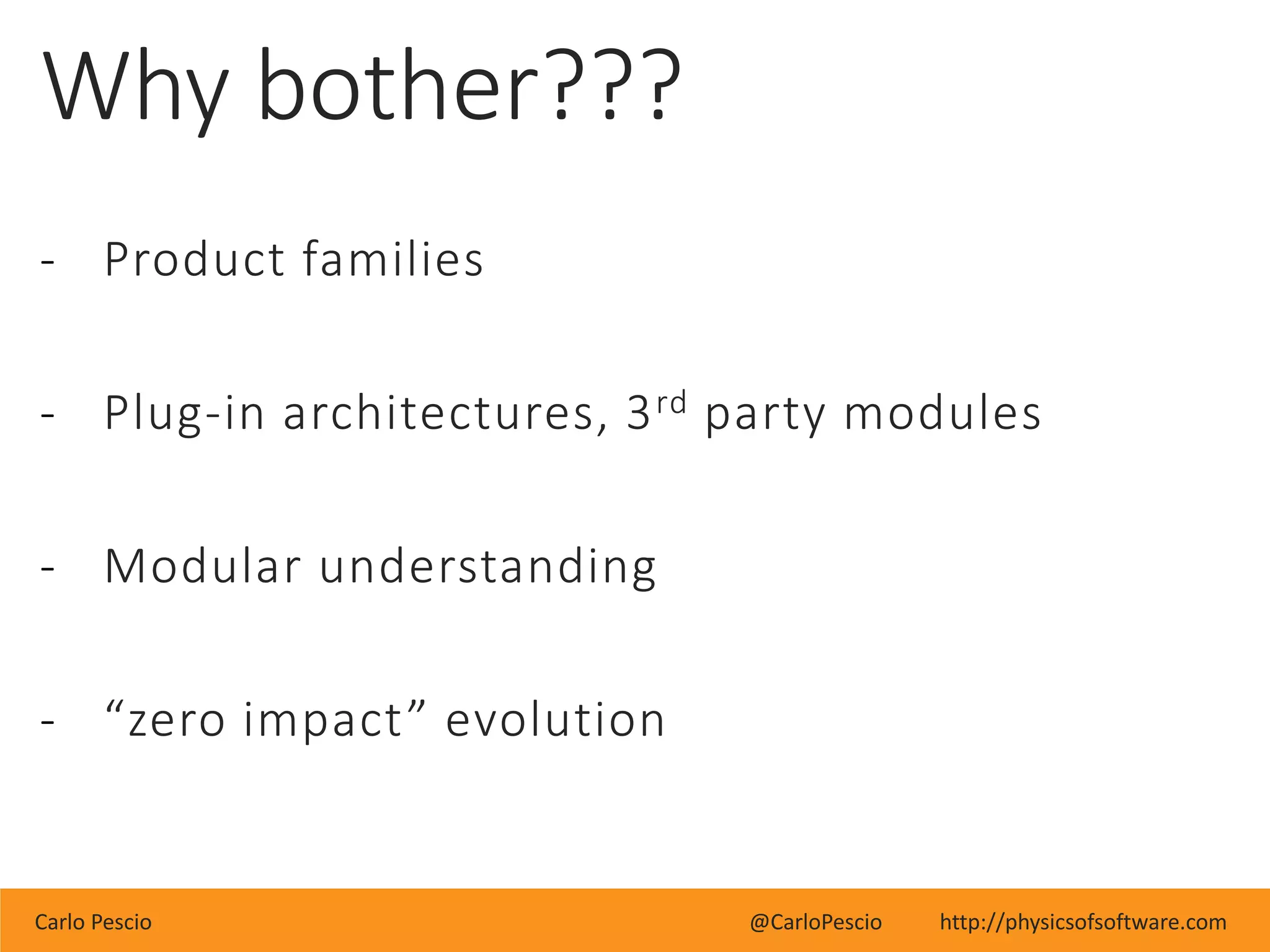

Why bother???
- Product families
- Plug-in architectures, 3rd party modules
- Modular understanding
- “zero impact” evolution

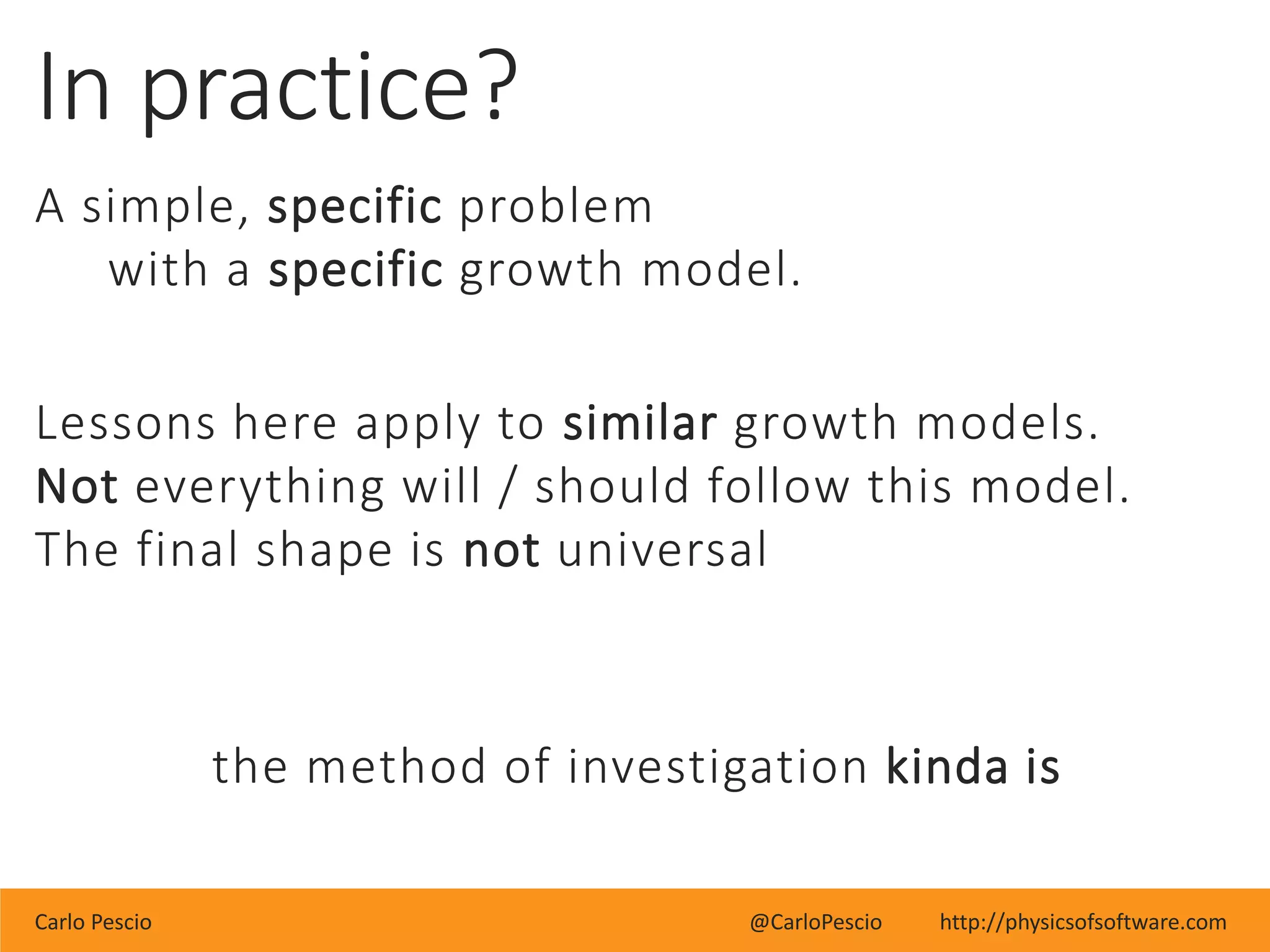

In practice?
A simple, specific problem
with a specific growth model.
Lessons here apply to similar growth models.
Not everything will / should follow this model.
The final shape is not universal
the method of investigation kinda is

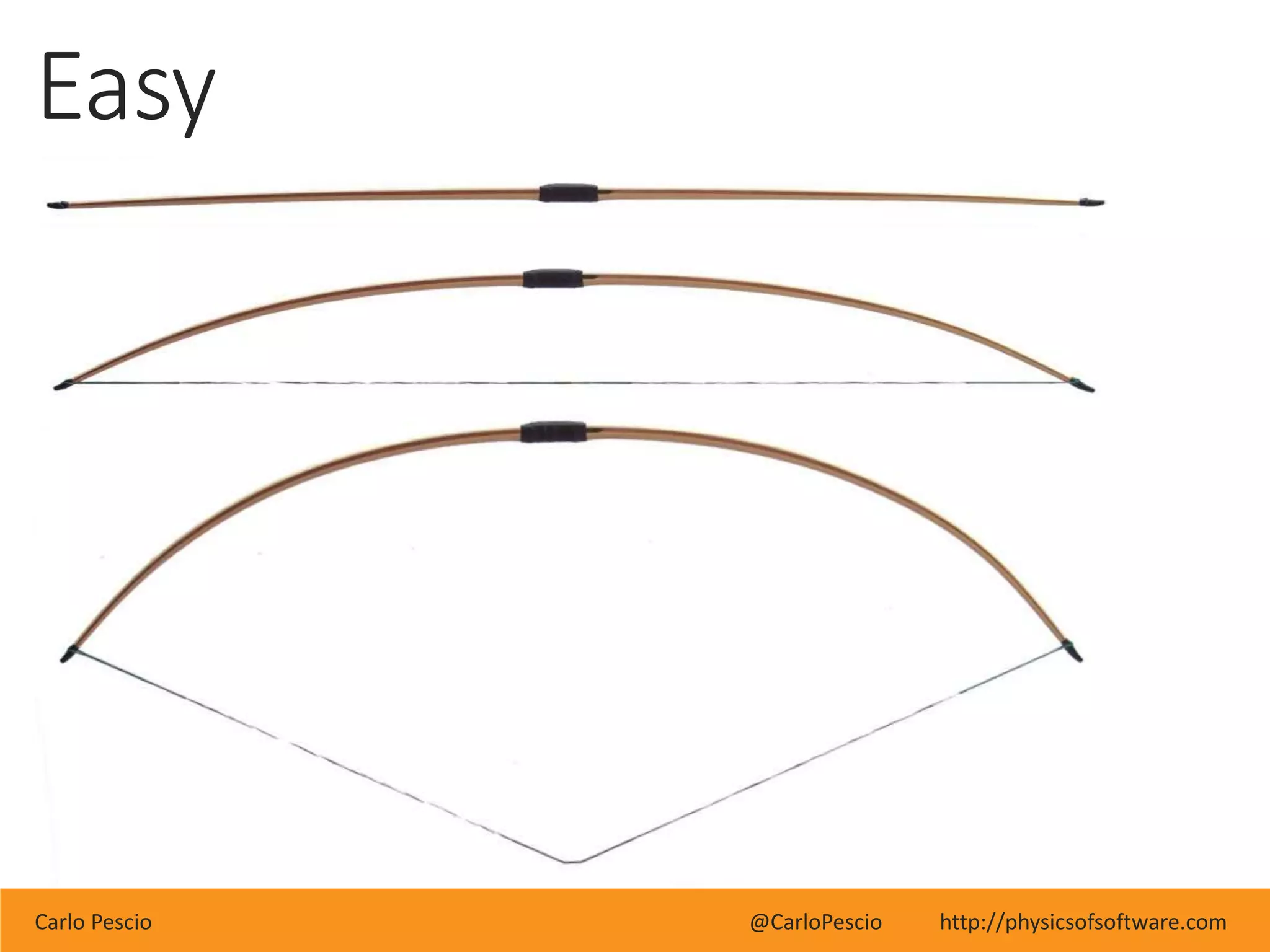

Easy

Some physics required 

Vector drawing for dummies

Growth Model
- New shape types will come over time
- New behaviors will come over time
- Behaviors can be composed out of a fixed core
- That entire menu only requires {bounding box, move}
I’m dealing only with geometry right now

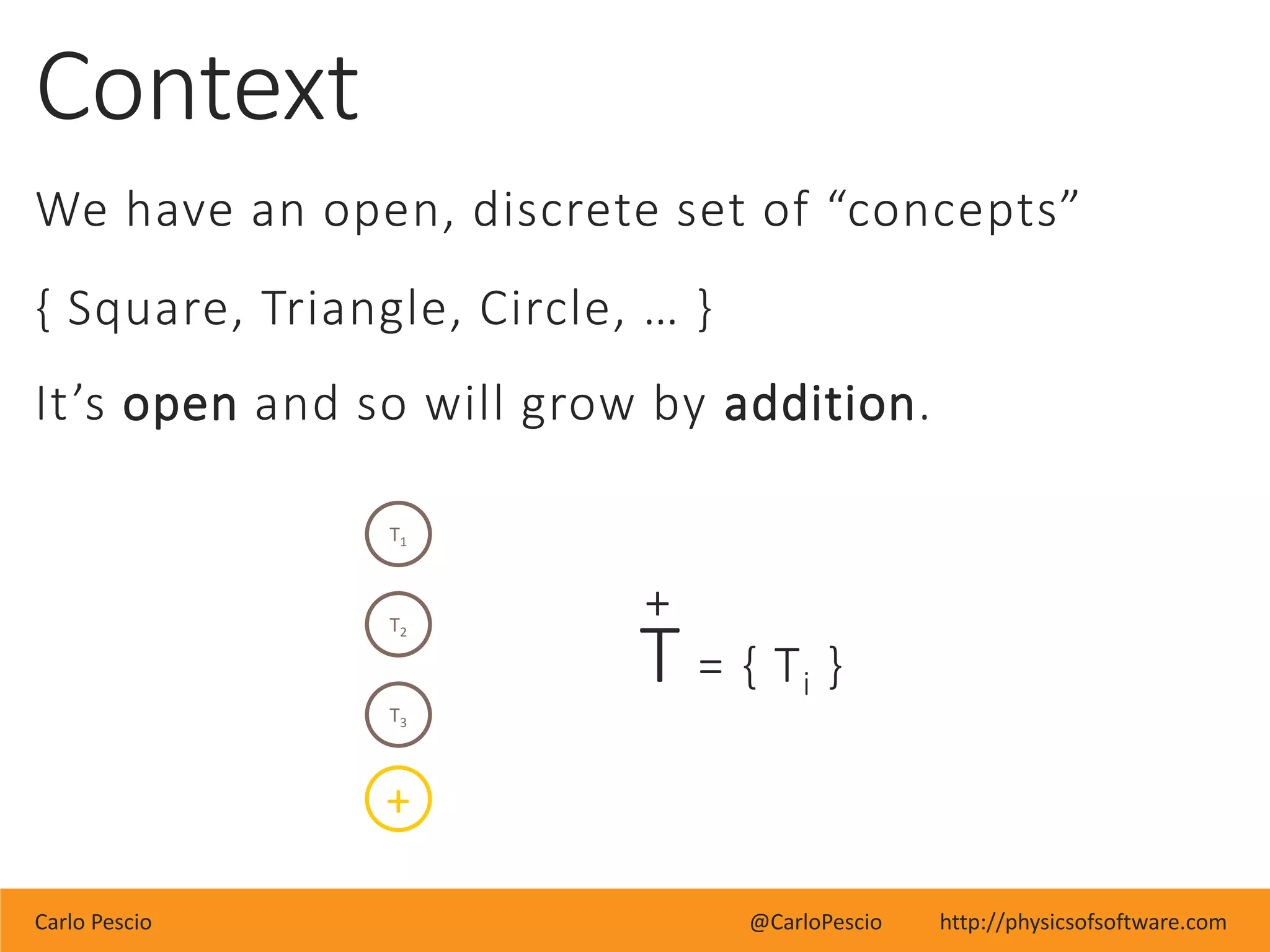

Context
We have an open, discrete set of “concepts”
{ Square, Triangle, Circle, … }
It’s open and so will grow by addition.
T3
T2
T1
+
+
T = { Ti }

In code?
How do we mirror in code?
• N types: OK
• N classes: OK
• N objects / prototypes: OK
• through closures / records of functions: ok as well
• Case classes: Maybe
• 1 sum type: NO
+
T = { Ti }

N trivial classes (Scala)
class Point( var x : Float,
var y : Float ) {}
class Box( var topLeft : Point,
var bottomRight : Point ) {}
class Circle( var center : Point,
var radius : Float ) {}
class Square( var topLeft : Point,
var side : Float ) {}
+

1 sum type (Haskell): nope
type Point = (Float,Float)
type Radius = Float
type Side = Float
data Shape =
Circle Point Radius |
Square Point Side
+ U

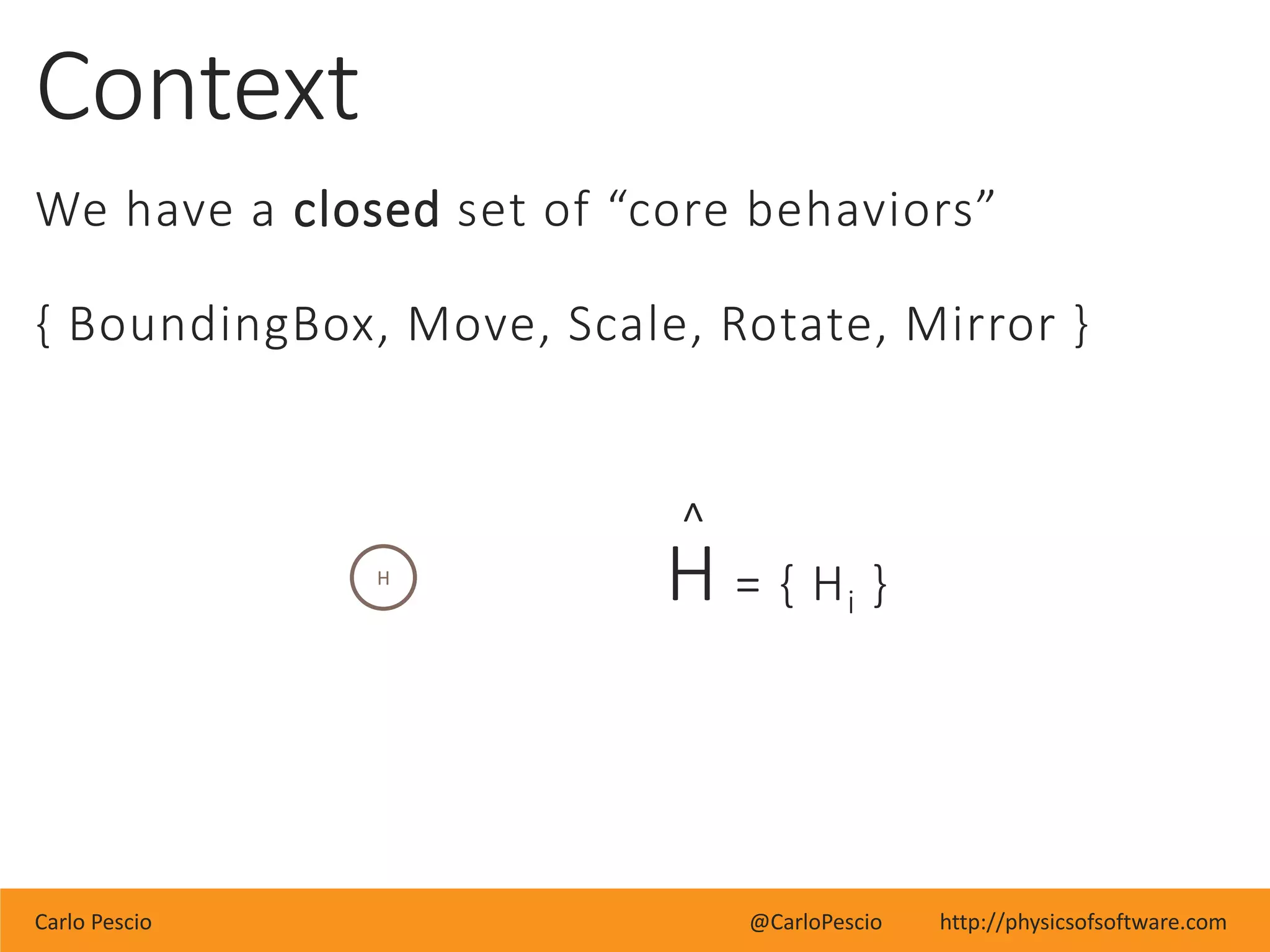

Context
We have a closed set of “core behaviors”
{ BoundingBox, Move, Scale, Rotate, Mirror }
^
H = { Hi }H

Context
“Core behaviors” depends on concepts.
More precisely: when we create/delete a concept,
we create/delete its implementation of core
behaviors.
^
Ti
C/D > HTi
T3
T2
T1
+
HT3
HT2
HT1
+

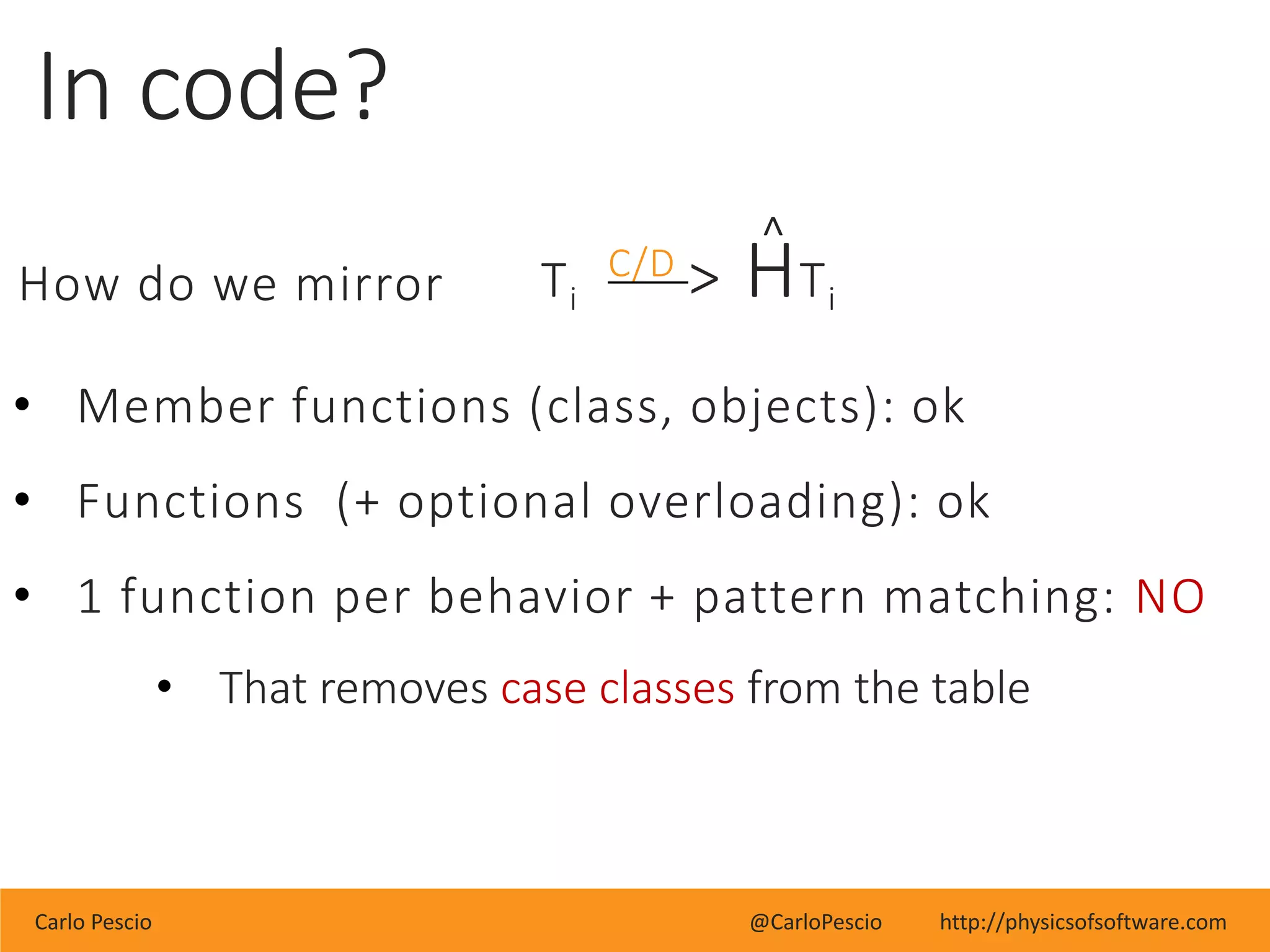

In code?
How do we mirror
• Member functions (class, objects): ok
• Functions (+ optional overloading): ok
• 1 function per behavior + pattern matching: NO
• That removes case classes from the table
^
Ti
C/D > HTi

Case classes (Scala): nope
abstract class Shape
case class Circle(center:Point, radius:Float) extends Shape
case class Square(topLeft:Point, side:Float) extends Shape
+
U
object moveTool {
def move( sh : Shape, newCenter : Point ) : Shape = {
sh match {
case Circle(center, radius) =>
new Circle( newCenter, radius);
case Square( topLeft, side) =>
new Square(Point(topLeft.x-side/2,
topLeft.y-side/2), side);
}
}
}

Context
We can:
a) create instances of those concepts and keep
them available for selection
b) select some of those instances (mixed
concepts) from a bounding box
c) apply composite behaviors to those (mixed)
instances

Context
a) We want to create instances and
keep them “available” for selection
In code:
• A single collection: OK
• A collection for each type: OK
A collection for each type is ok, as we still transfer
creation (of concept) into creation (of a new list).

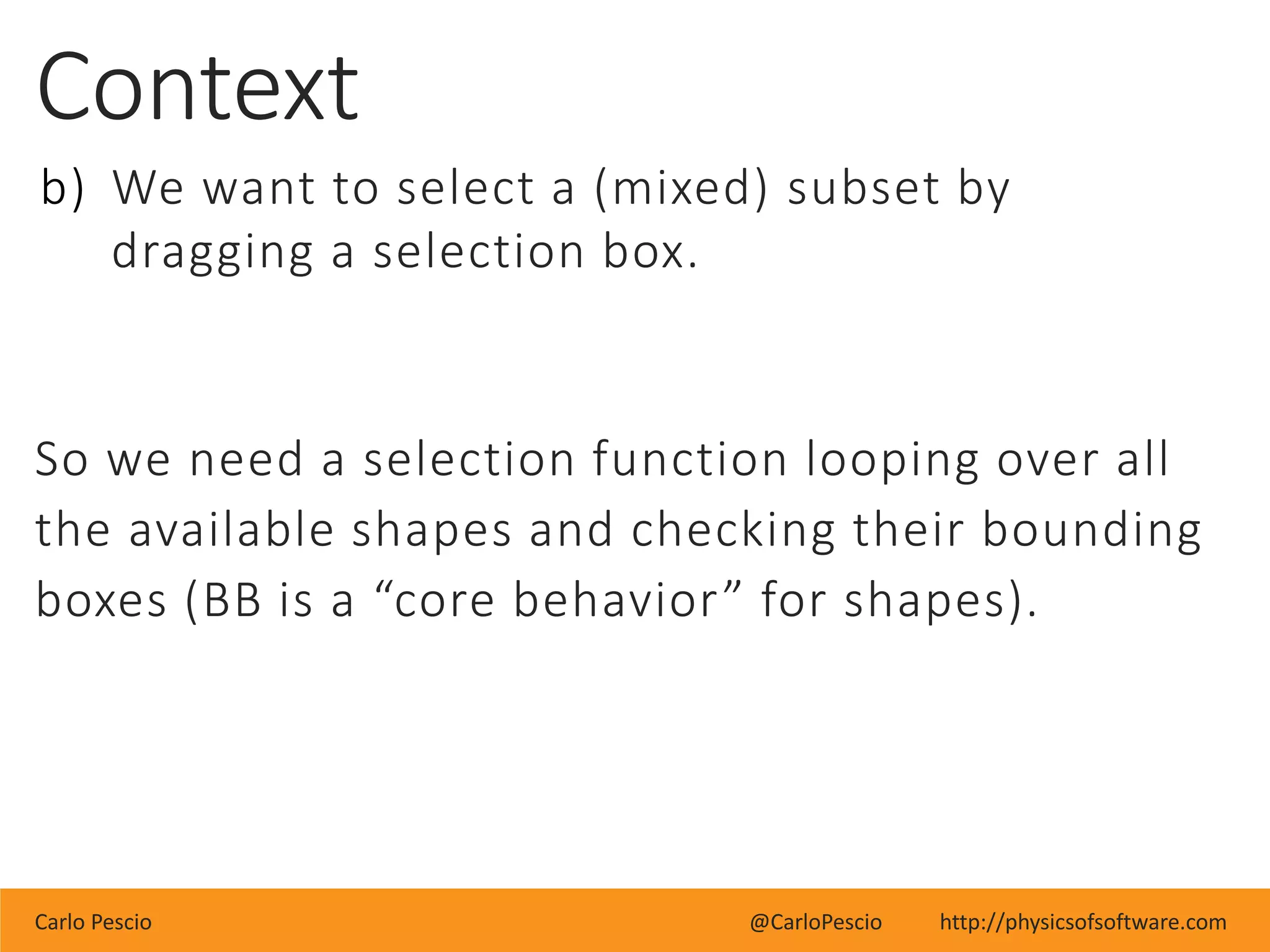

Context
b) We want to select a (mixed) subset by
dragging a selection box.
So we need a selection function looping over all
the available shapes and checking their bounding
boxes (BB is a “core behavior” for shapes).

selection
box
f
selection
1 collection per type won’t work anymore
+
+
U
Same reasoning applies
to any of the composite
behaviors
shapes
selected
shapes

Context
We have an open set of “composite behaviors”
+
B = { Bi }
e.g.
{ align left, distribute horizontally, flip vertical}
They operate on collections of concepts
(instances).
^
Bi ≡ ·(H)

Context
+
T = { Ti }
*
+
B = { Bi }
^ +
(HTi)
·
C/D
Two problems with Bi here:
1) Works on a set of shapes
(same as selection)
2) Composed from a set of
type-dependent core
behaviors (same as
selection w/ BB)

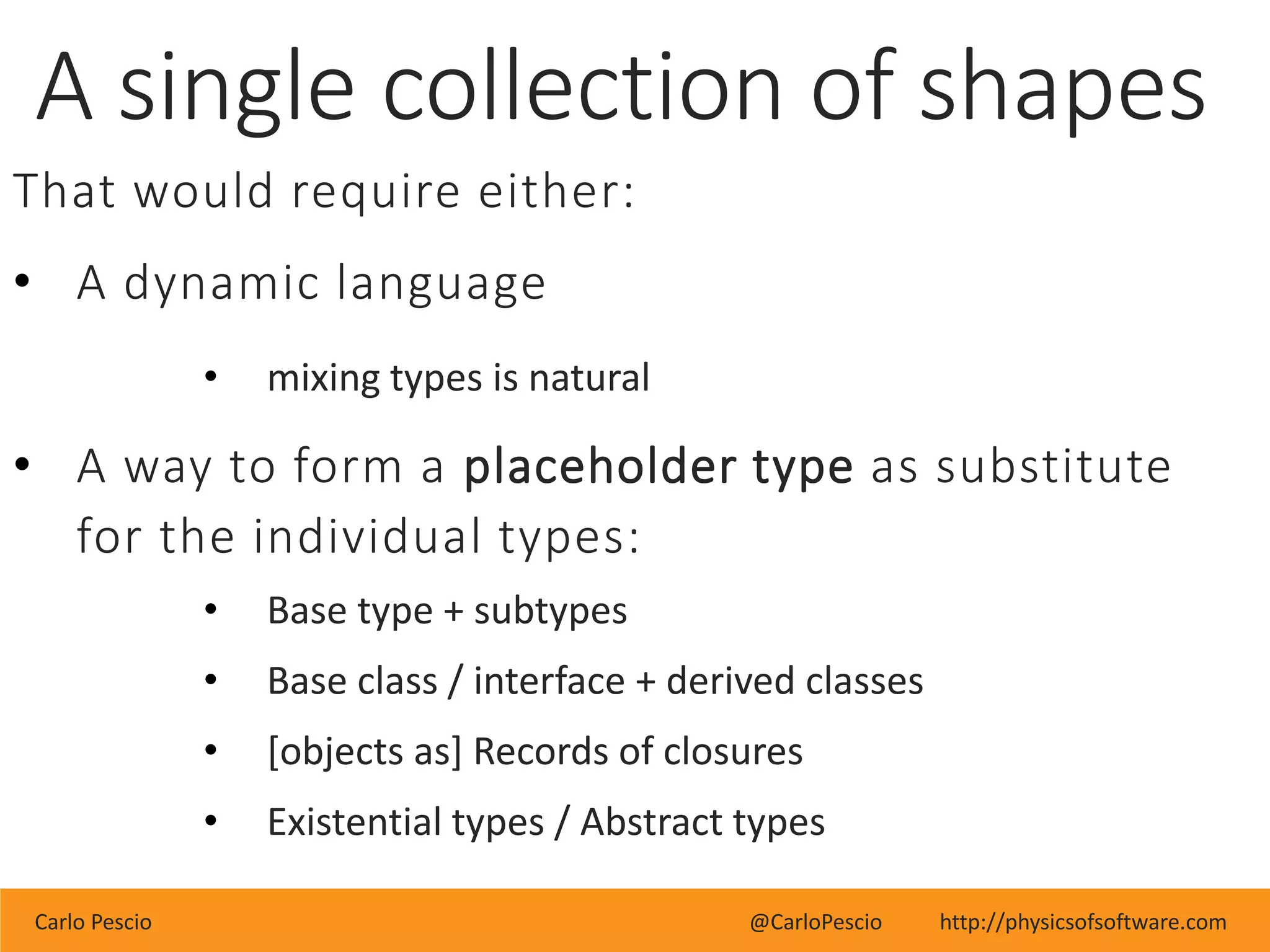

A single collection of shapes
That would require either:
• A dynamic language
• mixing types is natural
• A way to form a placeholder type as substitute
for the individual types:
• Base type + subtypes
• Base class / interface + derived classes
• [objects as] Records of closures
• Existential types / Abstract types

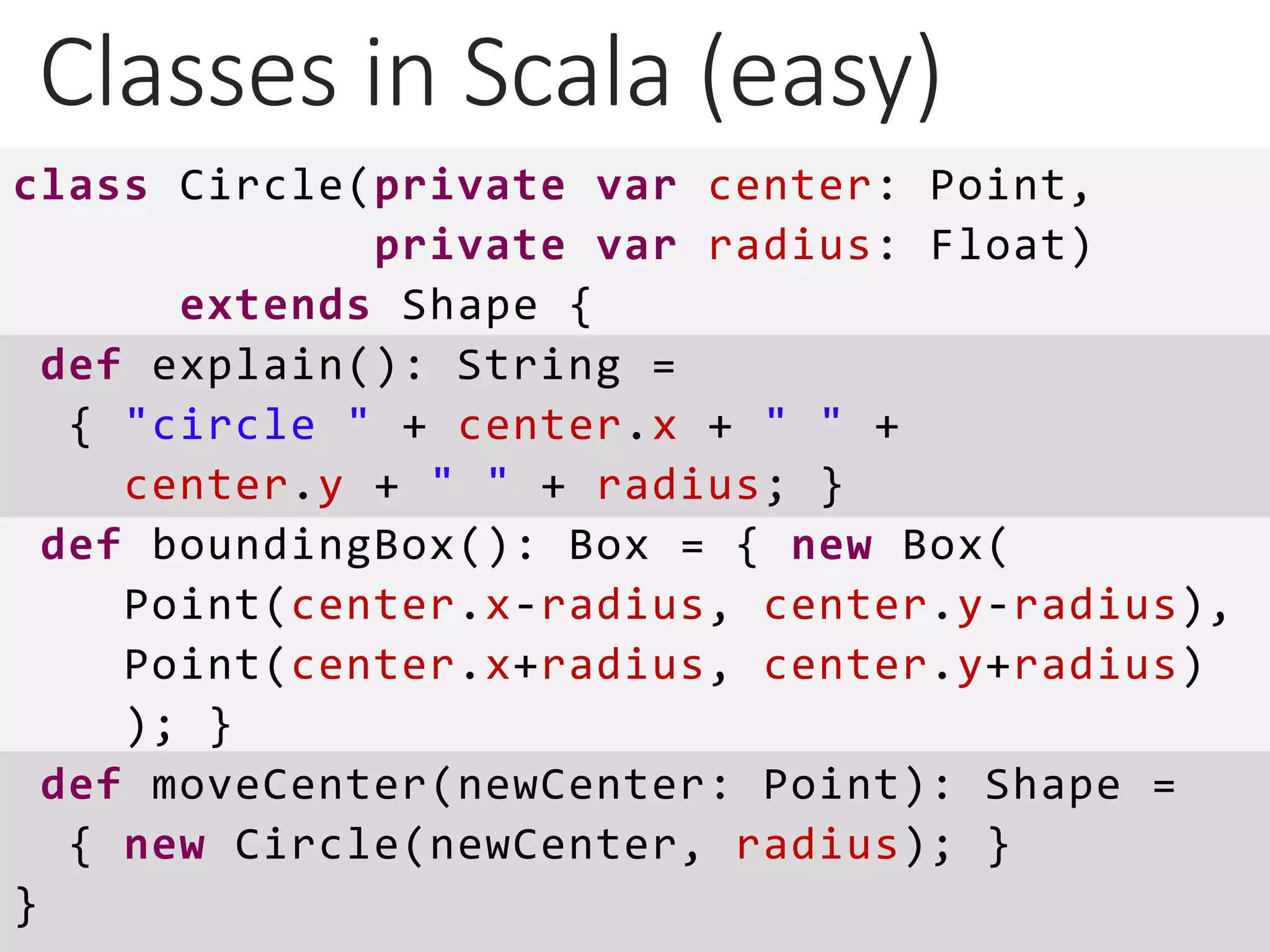

Classes in Scala (easy)
abstract class Shape {
def explain() : String;
def boundingBox() : Box;
def moveCenter(newCenter:Point) :
Shape;
}

class Circle(private var center: Point,
private var radius: Float)
extends Shape {
def explain(): String =
{ "circle " + center.x + " " +
center.y + " " + radius; }
def boundingBox(): Box = { new Box(
Point(center.x-radius, center.y-radius),
Point(center.x+radius, center.y+radius)
); }
def moveCenter(newCenter: Point): Shape =
{ new Circle(newCenter, radius); }
}

class Square(private var topLeft: Point,
private var side: Float)
extends Shape {
def explain(): String =
{ "square " + topLeft.x + " " +
topLeft.y + " " + side; }
def boundingBox(): Box = { new Box(
topLeft,
Point(topLeft.x+side, topLeft.y+side)); }
def moveCenter(newCenter: Point): Shape =
{ new Square(Point(topLeft.x-side/2,
topLeft.y-side/2), side); }
}

object MainObject {
def main(args: Array[String]): Unit = {
val c1 = new Circle( Point(1,1), 4 ) ;
val s1 = new Square( Point(0,0), 4 ) ;
val sh : List[Shape] = List( c1, s1 );
var d : String = sh.map( s =>
s.moveCenter(Point(5,5)).explain()
).reduce((s1,s2) => s1 + " ; " + s2) ;
println( d ) ;
}
}

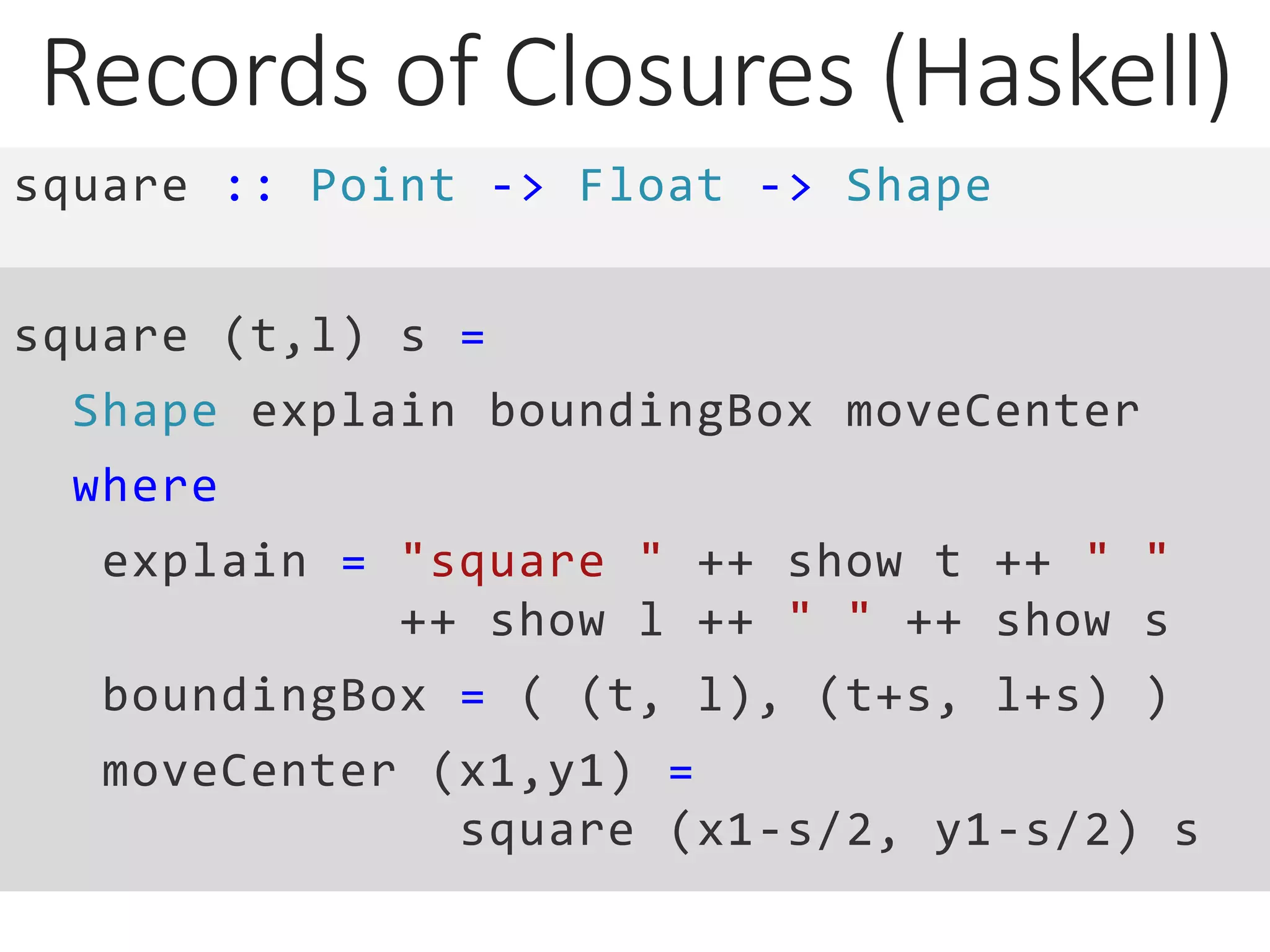

Records of Closures (Haskell)
type Box = (Point,Point)
data Shape = Shape {
explain :: String,
boundingBox :: Box,
moveCenter :: Point -> Shape
}

circle :: Point -> Float -> Shape
circle (x,y) r =
Shape explain boundingBox moveCenter
where
explain = "circle " ++ show x ++ " "
++ show y ++ " " ++ show r
boundingBox = ( (x-r, y-r),
(x+r, y+r) )
moveCenter (x1,y1) = circle (x1, y1) r

square :: Point -> Float -> Shape
square (t,l) s =
Shape explain boundingBox moveCenter
where
explain = "square " ++ show t ++ " "
++ show l ++ " " ++ show s
boundingBox = ( (t, l), (t+s, l+s) )
moveCenter (x1,y1) =
square (x1-s/2, y1-s/2) s

main = do
let c1 = circle (1,1) 3
let s1 = square (1,1) 3
let sh = [ c1, s1 ]
putStrLn
(concat ( map (s ->
(explain (moveCenter s (5,5)))
++ " ; ") sh ) )

Existential type (Haskell)
type Box = (Point,Point)
class ShapeTC a where
explain :: a -> String
boundingBox :: a -> Box
moveCenter :: a -> Point -> Shape
data Shape = forall a. ShapeTC a => Shape a
instance ShapeTC Shape where
explain (Shape shape) = explain shape
boundingBox (Shape shape) = boundingBox shape
moveCenter (Shape shape) = moveCenter shape

data Circle = Circle Point Float
instance ShapeTC Circle where
explain (Circle (x,y) r ) =
"circle " ++ show x ++ " " ++ show y ++
" " ++ show r
boundingBox (Circle (x,y) r) =
( (x-r, y-r), (x+r, y+r) )
moveCenter (Circle (x,y) r) (x1,y1) =
circle (x1, y1) r
circle :: Point -> Float -> Shape
circle (x,y) r = Shape (Circle (x,y) r)

data Square = Square Point Float
instance ShapeTC Square where
explain (Square (t,l) s) =
"square " ++ show t ++ " " ++ show l ++
" " ++ show s
boundingBox (Square (t,l) s) =
( (t, l), (t+s, l+s) )
moveCenter (Square (t,l) s) (x1,y1) =
square (x1-s/2, y1-s/2) s
square :: Point -> Float -> Shape
square (t,l) s = Shape (Square (t,l) s)

main = do
let c1 = circle (2,2) 3
let s1 = square (2,2) 3
let sh = [ c1, s1 ]
putStrLn
(concat ( map (s ->
(explain (moveCenter s (6,6)))
++ " ; ") sh ) )

“misaligned” growth model
B3
B2
B1
+
T3
T2
T1
+
HT3
HT2
HT1
+
UU

(madness)
B3
B2
B1
+
T3
T2
T1
+
HT3
HT2
HT1
+

OK 
H
B3
B2
B1
+
T
T3
T2
T1
+
HT3
HT2
HT1
+

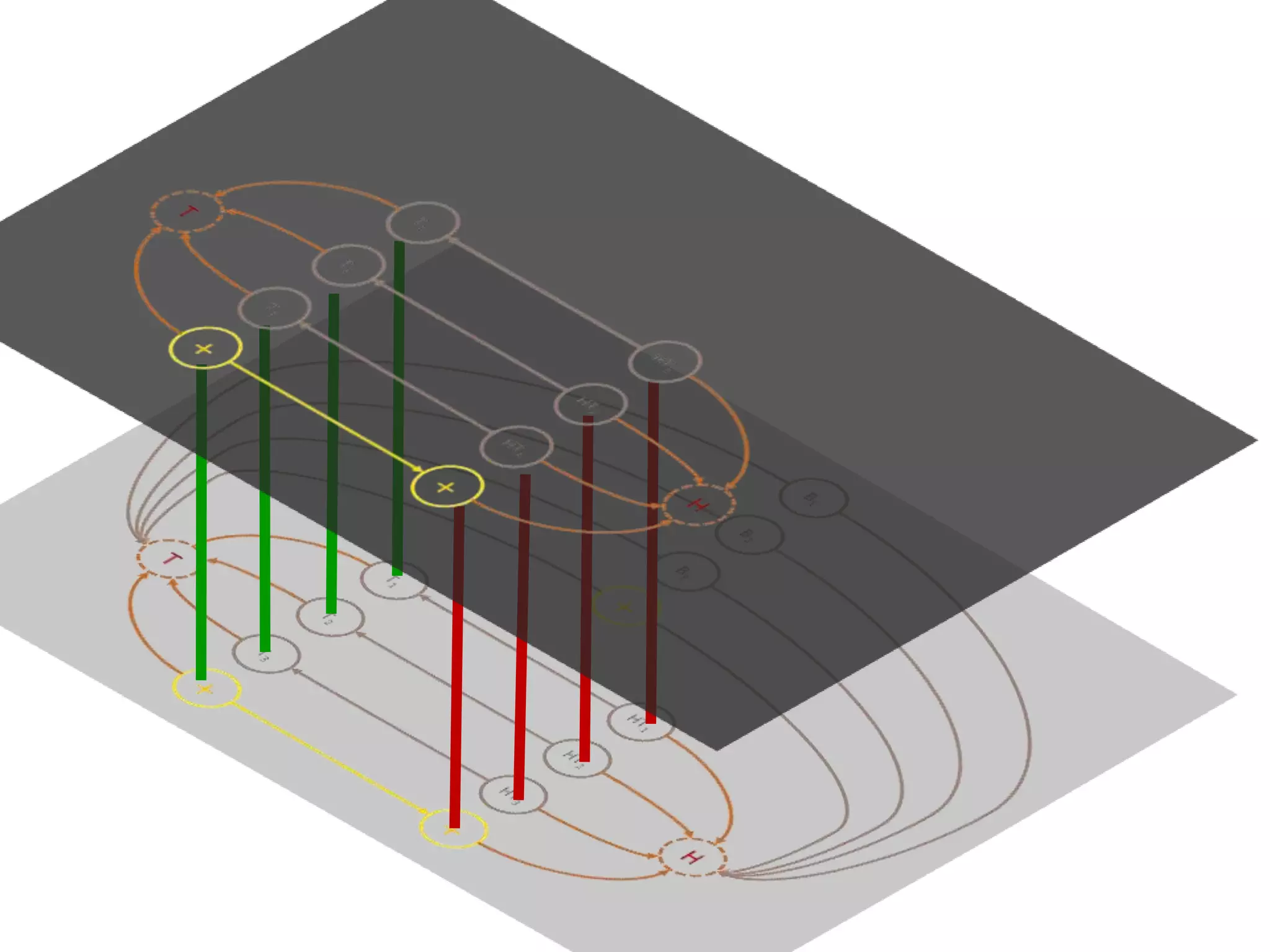

Work in progress
^
Ha = { Hi }
+
T = { Ti }
*
+
B = { Bi }
^ +
HTi
·
C/D
^
Ta
+
T = { Ti }
*
+
B = { Bi }
^ +
(HTi)
·
C/D

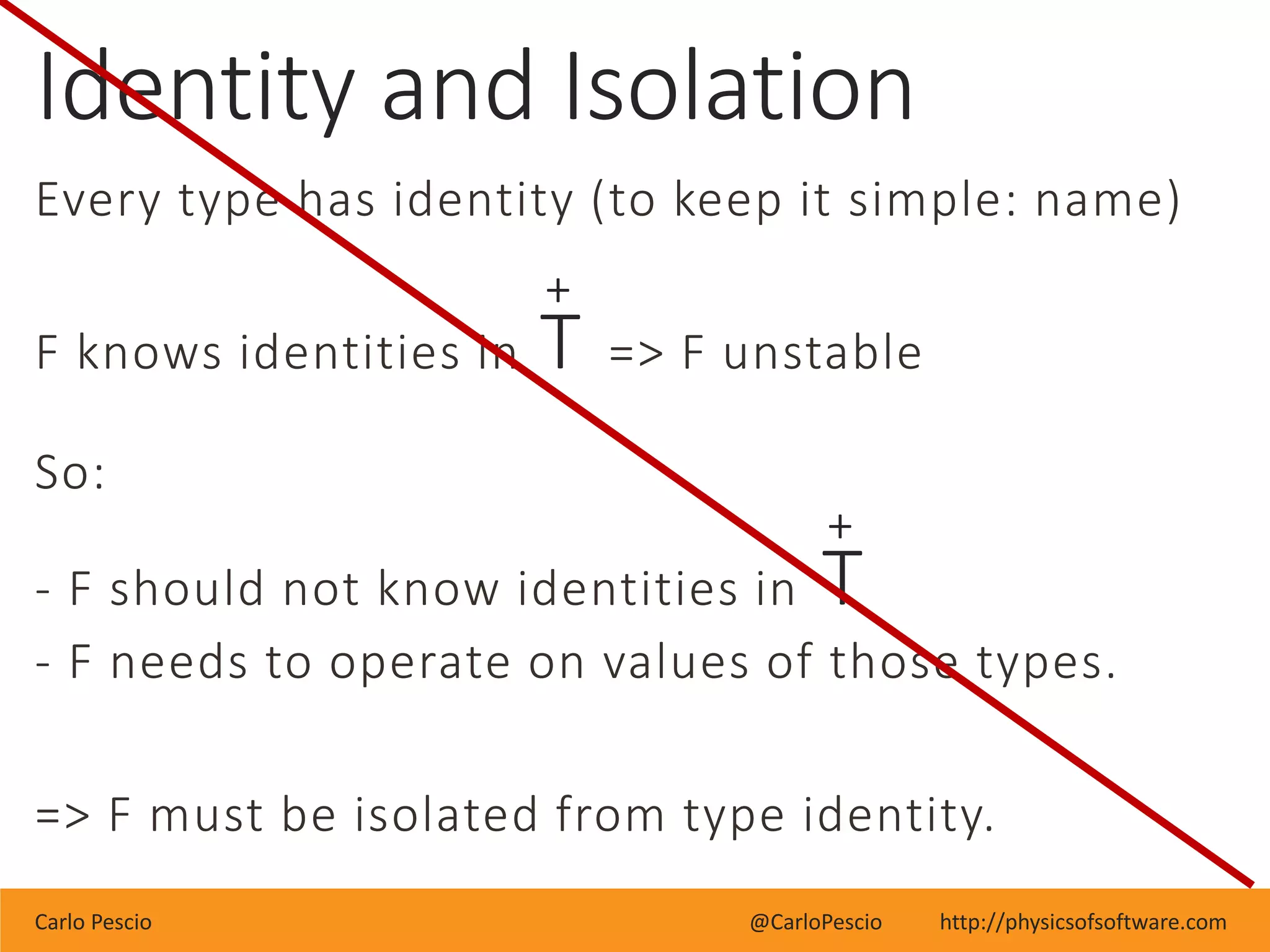

Every type has identity (to keep it simple: name)
F knows identities in => F unstable
So:
- F should not know identities in
- F needs to operate on values of those types.
=> F must be isolated from type identity.
Identity and Isolation
+
T
+
T

Common techniques for isolation:
- Add a new “abstract type” Ta, make every Ti an
instance or subtype of Ta
- Requires late binding as F will only know Ta
- Relationship between Ti and Ta can be implicit
(structural conformance)
- Add a new concrete type Tc exposing only
functions, and bind every instance of Ti to an
instance of Tc
- That’s again providing late binding as F won’t know
the identity of the functions it’s calling
Isolation Techniques

structures vs paradigms

OO
SUCKS!

Get your trick question ready
1. The next time someone shows you a decent use
for OO-like polymorphism & encapsulation, what
can you say?
what about serialization in multiple formats?

Remember this?

Elastic yet bent !?

We only have geometry so far
I want rendering (new core behaviors!)
I may want only geometry
I may want only rendering
I may want both
=> Geometry and Rendering in distinct artifacts
Breaking the growth model

Growing and Breaking

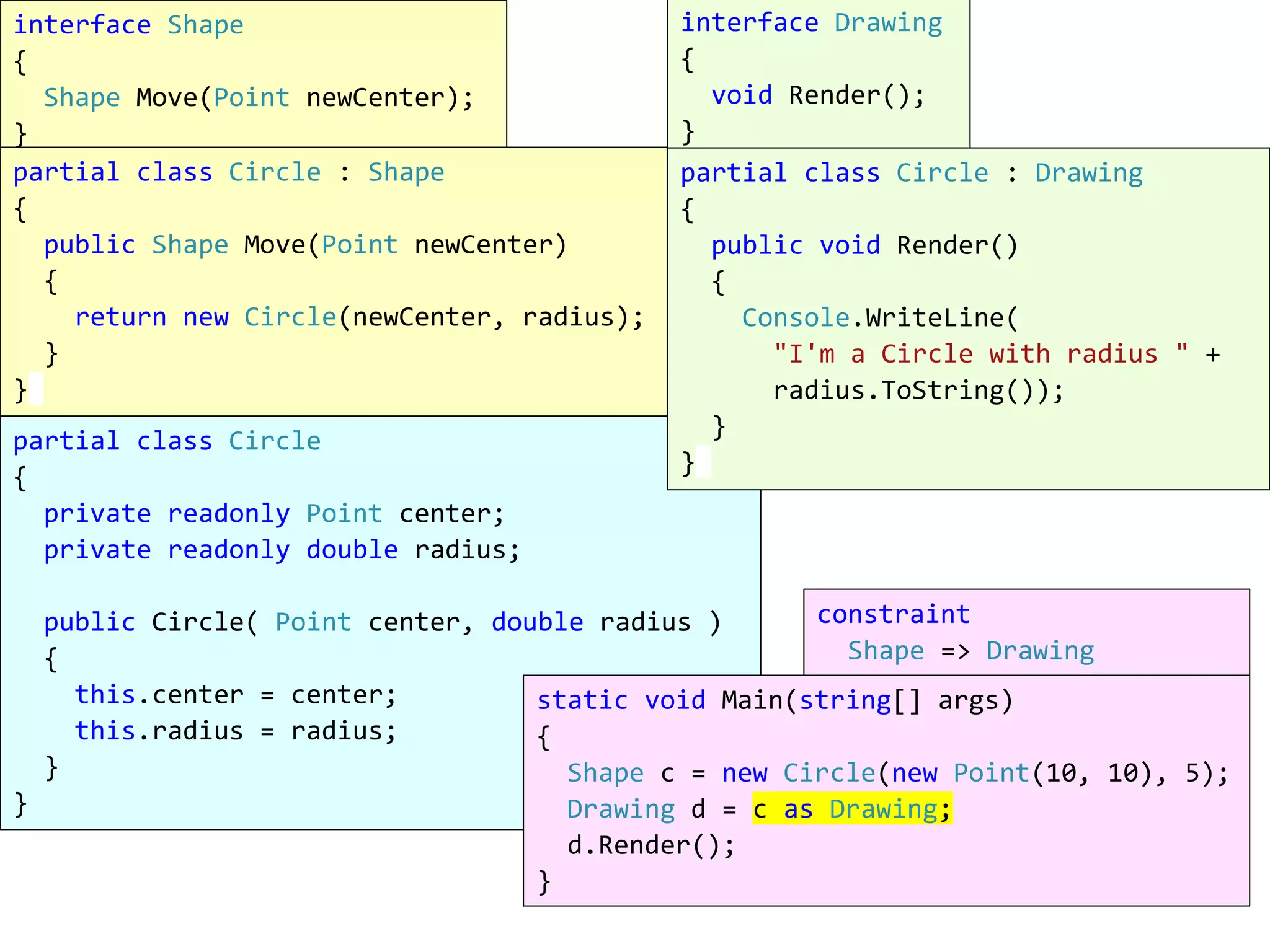

partial class Circle
{
private readonly Point center;
private readonly double radius;
public Circle( Point center, double radius )
{
this.center = center;
this.radius = radius;
}
}
interface Shape
{
Shape Move(Point newCenter);
}
partial class Circle : Shape
{
public Shape Move(Point newCenter)
{
return new Circle(newCenter, radius);
}
}
interface Drawing
{
void Render();
}
partial class Circle : Drawing
{
public void Render()
{
Console.WriteLine(
"I'm a Circle with radius " +
radius.ToString());
}
}
static void Main(string[] args)
{
Shape c = new Circle(new Point(10, 10), 5);
Drawing d = c as Drawing;
d.Render();
}
constraint
Shape => Drawing

“Design Process”
I didn’t use
- Design principles
- Patterns
- Tests
- Religion
I only aimed for symmetry
- Features growth model
- Artifacts growth model
Break a symmetry
to get a symmetry 

…Monads 
Or polymorphism
Or existential types
Or type system constraints
Or many things yet to be invented
Just by understanding forces 
You may have invented…

Get in touch
@CarloPescio
carlo.pescio@gmail.com
http://physicsofsoftware.com
/forum

On Growth and Software

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to On Growth and Software

Similar to On Growth and Software (20)

Recently uploaded

Recently uploaded (20)

On Growth and Software
