International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
DOI: 10.5121/ijgca.2012.3301 1
ON FAULT TOLERANCE OF RESOURCES IN
COMPUTATIONAL GRIDS
Arindam Das1
and Ajanta De Sarkar2
1
Department of MCA, MCKV Institute of Engineering, Howrah, India
arindamdas.mckv@gmail.com
2
Department of Computer Science & Engineering, Birla Institute of Technology, Mesra,
Kolkata Campus, Kolkata 700 107
adsarkar@bitmesra.ac.in
ABSTRACT
Grid computing or computational grid is always a vast research field in academic, as well as in industry
also. Computational grid provides resource sharing through multi-institutional virtual organizations for
dynamic problem solving. Various heterogeneous resources of different administrative domain are virtually
distributed through different network in computational grids. Thus any type of failure can occur at any
point of time and job running in grid environment might fail. Hence fault tolerance is an important and
challenging issue in grid computing as the dependability of individual grid resources may not be
guaranteed. In order to make computational grids more effective and reliable fault tolerant system is
necessary. The objective of this paper is to review different existing fault tolerance techniques applicable in
grid computing. This paper presents state of the art of various fault tolerance technique and comparative
study of the existing algorithms.
KEYWORDS
Component, Computational grids, Fault tolerance, Failure, Checkpointing
1. INTRODUCTION
Grid is an association of computer resources from several administrative domains to reach a
mutual goal with an abstraction of service origination to the user. This view is often put to as an
analogy to power grids where consumers get access to electricity through sockets on wall with no
care for where and how that electricity is generated. Similarly, in computational grid the users can
access any resources like, process, storage, data and applications with little or no knowledge of
physical locations of those resources and the underlying technologies used.
Grid computing is special because here the nodes can be purchased as commodity hardware.
These nodes are easily combined to produce a similar computing resource like multiprocessor
supercomputer but at a lower cost. The large number of processors to be managed and lack of
high-speed connections in grid can be complemented well by multiple independent parallel
computations. Grid computing involves the aggregation of large-scale cluster computing based
systems.
As resources in grid are used outside of organizational boundaries, it becomes increasingly
difficult to guarantee that a resource being used is not malicious in some way or failure of
resources is uncertain. Fault tolerance in grid computing is necessary to preserve the delivery of
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
2
expected services despite the presence of fault caused errors within the system itself. It aims at the
avoidance of failures in the presence of faults, as availability of grid resources is dynamic.
The objective of this paper is to review a few fault tolerant techniques in grid computing. This
paper presents state of the art of various existing fault tolerance technique and comparative study
of the fault tolerant algorithms. Brief overview of grid computing is discussed in Section 2.
Section 3 explains faults and failure and concepts of fault tolerance in grid computing. Review of
a few algorithms related to fault tolerance is explained in Section 4. Section 5 concludes the paper
with directives of future work.
2. GRID COMPUTING
A grid [3], known to be a large-scale virtual organization, is enabling to solve complex scientific
and compute-intensive problems. The virtual organization is formed with geographically
distributed hardware and software infrastructure of flexible, secure and coordinated shared vast
amounts of heterogeneous resources from multiple administrative domains. Computational grid
environment is shown in Figure 1. Heterogeneous computational nodes have connected to form a
Grid test-bed. In this test-bed registered resource database and Grid resources server is also
shown. Server or database might be accessed during computation of large job. User can submit
job through any node among Node A, Node B, Node C, Node D or Node E in Grid. Job might
necessitate adapting the changed resource scenario in Grid environment. Hence, fault tolerance of
resources is major challenging issue in dynamic virtual computational Grids.
Considering multiple administrative domains owned by multiple individuals/organizations the
intension of participation or volunteering might not always be trustworthy. Besides, the duration
of participation might also not be consistent. As in grid, all the resources are connected through
heterogeneous network. There might be no guarantee that the nodes would not be dropped out of
the network at random times. The impacts of trust and availability on performance and
development difficulty can influence the choice of whether to deploy on to a dedicated computer
cluster in the developing organizations or to an open external network of contractors.

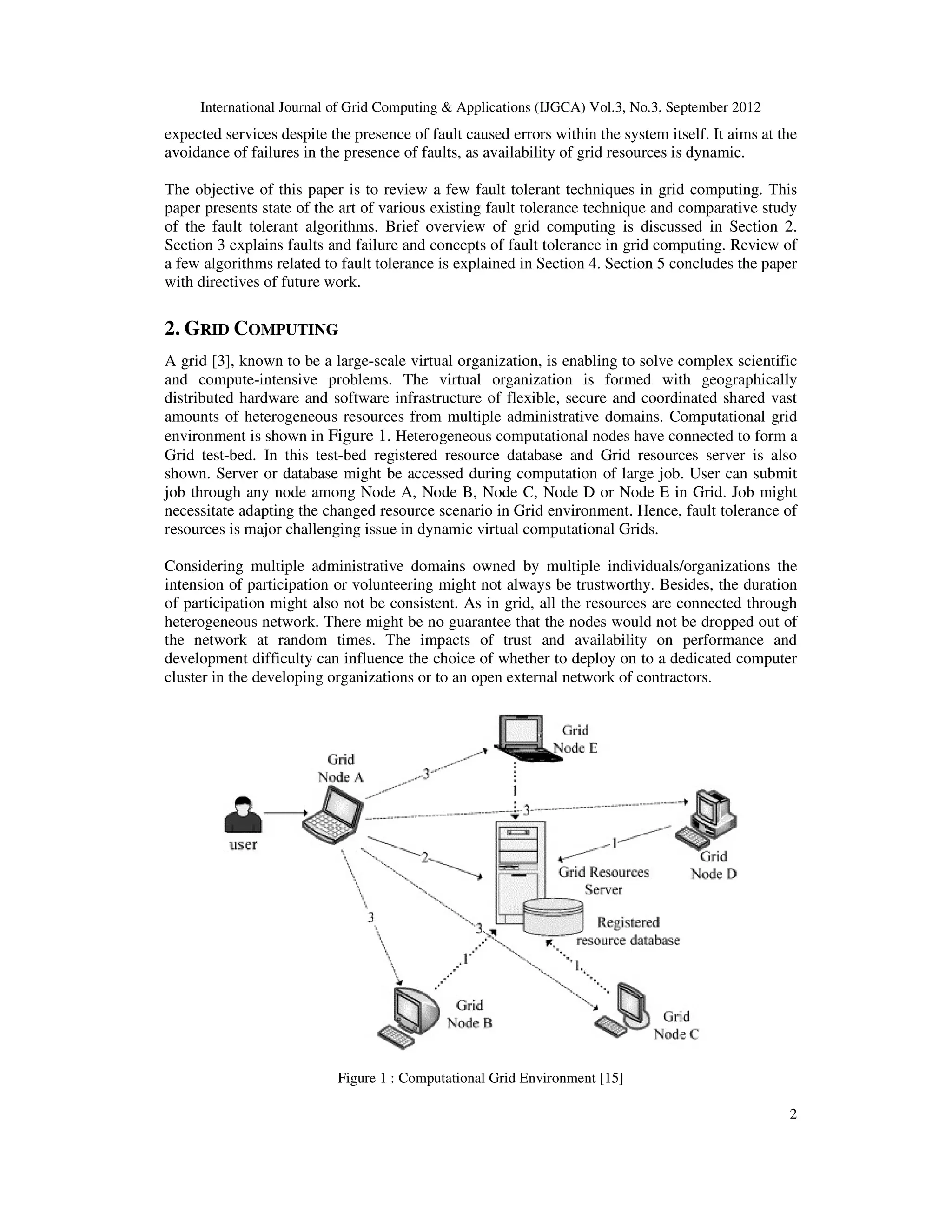

Figure 1 : Computational Grid Environment [15]
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
3
On the other side, with many languages in place, there has been a tradeoff between investment in
software development and the number of platforms that can be supported. Cross-platform
languages can reduce the need to make this tradeoff. Various middleware based projects have
created genuine infrastructure to allow diverse scientific and commercial projects to harness a
particular associated grid or for the purpose of setting up new grids. Middleware can be seen as a
layer between the hardware and software. SLA management, License management, portals and
data management are major research issues in grid middleware.
Due to unavailability of network or development difficulty or faulty resources, fault may occur in
the results or performance may be degraded. Fault tolerance is the ability to preserve the delivery
of expected services despite the presence of fault caused errors within the system itself. It aims at
the avoidance of failures in the presence of faults. A fault tolerant service detects errors and
recovers them without participation of any external agents, such as humans. Errors are detected
and corrected and permanent faults are located and removed while the system continues to deliver
acceptable services.
Faults and failure in grid are explained in the next section.
3. FAULTS AND FAILURES IN GRID
Fault tolerance is an important property in grid computing as the dependability of individual grid
resources may not be guaranteed. In many cases, an organization may send out jobs for remote
execution on resources upon which no trust can be placed; for example, the resources may be
outside of its organizational boundaries, or may be shared by different users at the same time. A
fault tolerant approach may therefore be useful in order to potentially prevent a malicious node
affecting the overall performance of the application. As applications scale to take advantage of
Grid resources, their size and complexity will increase dramatically.
A major challenge in a dynamic grid with thousands of nodes connected to each other is fault
tolerance. The more resources and components involved the more complicated and error-prone
becomes the system. To comprehend fault tolerance mechanisms, it is important to point out the
difference between faults, errors and failures.
Fault: A fault is a violation of a system’s underlying assumptions.
Error: An error is an internal data state that reflects a fault.
Failure: A failure is an externally visible deviation from specifications.
In reality, a fault need not result in an error, or an error in a failure.
Different types of faults, classified based on several factors, are mentioned in the following:
• Physical faults: faulty storage, faulty CPUs, faulty memory.
• Unconditional termination: Mostly, user pressed Ctrl+c.
• Network faults: packet corruption, faults due to network partition, packet loss.
• Lifecycle faults: Legacy or versioning faults.
• Processor faults: Machine or operating system crashes.
• Media faults: Disk head crashes.
• Service expiry fault: The service time of a resource may expire while application is using
the resources in grid.
• Process faults: software bug, resource shortage.
• Interaction faults: timing overhead, protocol incompatibilities, security incompatibilities,
policy problems.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
4
A failure, irrespective of its cause (either error or fault), is observed or reported first in a grid
system. Three types of failures such as, Permanent, Intermittent and Transient, which can occur in
computer systems with respect to time. Due to these failures system may behave in different
ways. Three types of behaviors are possible in systems after a failure:
• Failstop system: The system does not output any data once it has failed. It immediately
stops sending any events or messages and does not respond to any messages.
• Failfast system: The system behaves like a Byzantine system for some time but moves
into a failstop mode after a short period of time. It does not matter what type of fault or
failure has caused this behavior but it is necessary that the system does not perform any
operation once it has failed.
• Byzantine system: The system does not stop after a failure, instead behaves in a
inconsistent way. It may send out wrong results of the application.
4. REVIEW OF FAULT TOLERANCE TECHNIQUES
The main objective of grid computing is to maintain the workflows or services in presence of
faults so that no failure stage is reached. This section presents a few fault tolerant techniques in
the following:
4.1. Job and Data Replication
The term, replication implies making copies or replicas of an existing entity. In grid environment,
job/task or data are replicated to tackle the faults. Workflows can be executed with a rule-based
system with a framework operating dynamically taking an appropriate fault tolerance technique.
The framework considers [2] the user’s preferences and the grid resource allocation situation to
decide, using a binary tree, the most appropriate fault tolerant technique to be used for each task
that can compose a workflow.
Besides, most of the existing replication-based algorithms use a fixed number of replications for
each job which consumes more grid resources. To overcome this, Adaptive Job Replication (AJR)
algorithm is proposed to adaptively determine the number of job replicas [10] according to the
grid failure history followed by Backup Resources Selection (BRS) algorithm to schedule these
replicas.
Moreover, Fault Tolerance using Adaptive Replication in Grid Computing (FTARG) [14] is an
adaptive replication middleware which addresses the fault tolerance of grid based applications by
providing data replication at different sites. FTARG is an Aneka based grid middleware designed
for high-performance grid based applications. FTARG enables data synchronization between
multiple heterogeneous databases located in the grid by supporting a variety of synchronization
modes. However, it can delay the job execution if the number of replicas [11] to be generated is
not reasonably determined for data or task replication.
Resubmission Impact, a heuristic, for fault tolerance in workflow executions [8] is a new
technique applicable for distributed environment. This heuristic is based on a combination of task
replication and task resubmission using a resubmission impact metric which measures the impact
of repeated task resubmission on the execution time of a workflow. The metric used in the
heuristic is to define the number of replications generated for each workflow task. In contrast to
related approaches, this method can be used effectively on systems even in the absence of historic
failure trace data.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
5
So, in a replication based fault recovery, availability of replicated data at different sites of
computing increases the fault tolerance adaptability. Data synchronization among cross vendor
databases should also be addressed. In case of job/task replication, heuristic method based on task
resubmission impact measures can be better than the traditional approach with little or no
dependency on failure of historic data. However, in both data and job replication, determination
of the appropriate number of replicas plays a significant role.
4.2. Checkpointing
Checkpointing [14] is the process of saving the state of an application in execution to a stable
storage for future utilization. In case of any fault, this saved state is to be referred to resume
execution of the application from the point in the computation where it was last checkpointed.
In addition to the traditional fault tolerance techniques, specific checkpoint-recovery schemes are
needed in grid workflow management systems of present time to address the new reliability
challenges. A Fault Tolerance and Recovery component that extends the ActiveBPEL workflow
engine [2] has been proposed to develop mechanisms for building an autonomic workflow
management system that effectively detects, diagnoses, notifies, reacts and recovers automatically
from failures during workflow execution. The detection mechanism inspects the messages
exchanged between the workflow and the synchronized Web Service components for the search
of faults. The default behavior of ActiveBPEL can be modified in order to recover a process from
a faulty state, using a non-intrusive checkpointing mechanism.
Further, a new strategy named Resource Fault Occurrence History (RFOH) [9] for fault tolerant
job scheduling in computational grid is proposed. This strategy maintains the history of fault
occurrence of resources in Grid Information Server (GIS). A resource broker with jobs to
schedule, it uses this GIS information in Genetic Algorithm and looks for a near optimal solution
for the problem. Next, it raises the percentage of jobs executed within specified deadline. Using
checkpoint techniques, the proposed strategy can make grid scheduling more reliable and
efficient.
A proposition is also there to present an experience to endow with fault tolerance support parallel
executions on grids through the integration of ComPiler for Portable Checkpointing (CPPC) [1], a
checkpointing tool for parallel applications, and GridWay: a meta-scheduler provided with the
Globus Toolkit. One of the strengths of this proposal is, transparency and ease of use i.e. the
CPPC-GW infrastructure will take care of all viz. automatically submitting and monitoring the
application, making remote backups of checkpoint files, detecting faults and migrating and
restarting failed executions.
Periodic job checkpointing, being very robust, it can detain job execution if checkpointing
intervals are inappropriately chosen. Moreover, fault tolerance poses an important problem in the
scope of grid computing environments. The heuristics have been evaluated in Dynamic
Scheduling in Distributed Environments (DSiDE) grid simulator under changing system load and
availability. In [11] the results have shown that the runtime overhead characteristic to periodic
checkpointing can significantly be reduced when the checkpointing frequency is dynamically
adapted in function of resource stability and remaining job execution time.
Reducing the number of crashed node can cut down the number of faulty tasks by efficient node
allocation. To improve fault tolerance and decrease price cost of a job with an acceptable
completion time [1], a predictive method to select the best nodes and sites is proposed.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
6
4.3. Scheduling/Agent based migration
To overcome the drawbacks present with checkpointing and replication mechanisms, fault
tolerance is factored into grid scheduling. Scheduling policies for grid systems can be classified
into space sharing and time sharing [14] policies. It is also possible to combine these two types of
policies into a hybrid policy.
Security-aware and fault-tolerant job scheduling is crucial to achieve high performance in an open
grid computing environment. On the contrary, the fixed fault-tolerant strategy in job scheduling
may improperly exploit excessive resources. A cloud model is proposed [13] to manage the
fuzziness and uncertainties of task scheduling while deciding the kind of fault-tolerance strategy
to be selected, at the same time, for each individual job to ensure more reliability of computation
and shorter makespan.
In fault-tolerant scheduling, primary-backup approach is a practiced methodology used for fault
tolerance where each task holds a primary copy and a backup copy submitted to two different
processors. For independent tasks, a backup copy can be overloaded with other backup copies on
the same processor while for dependent tasks, precedence constraint among tasks must be
considered during scheduling of backup copies and overloading backups. Two algorithms: the
Minimum Replication Cost with Early Completion Time (MRC-ECT) algorithm and the
Minimum Completion Time with Less Replication Cost (MCT-LRC) algorithm has been
proposed to schedule backups of independent jobs and dependent jobs, respectively [13].
Algorithm MRC-ECT is observed guarantee an optimal backup schedule in terms of replication
cost for an independent task, while MCT-LRC can schedule a backup of a dependent task with
minimum completion time and less replication cost.
4.4. Load balancing
In general, the P2P system has similar objective to that of the grid system since both of them
coordinate the large sets of distributed resources. Therefore, many projects keep on integrating
these two complementary technologies i.e. P2P grid to perform as an ideal distributed computing
system.
Besides, despite many load-balancing approaches has been proposed for real-time applications in
parallel and distributed systems, there are very less work found on the impact of fault tolerance
policies for load balancing mechanisms. A fault tolerant policy has been proposed to balance
loads dynamically in the P2P grid system, named the Fault Tolerant policy on Dynamic Load
Balancing (FTDLB) [17]. In order to minimize the job turnaround time, mostly, is the primary the
goal of load balancing and FTDLB could adaptively adjust the load of real-time applications to
achieve the job’s minimal turnaround time.
FTDLB policy can tolerate the node’s permanent failures while balancing load of real-time
applications on P2P grids. It calculates the job turnaround time in each node and dynamically
allocates job to the befitting node for execution as per the evaluation. The existing job migration
time estimation has been improved here. The policy can tolerate the node’s permanent failures
while balancing load of real-time applications on P2P grids. For improving the system reliability,
FTDLB duplicates jobs (copy approach) into different sites to tolerate failures by keeping a high
availability rate at the increase of error rate. Experimental results reveal that FTDLB policy
indeed improves the job completion rate.
Load balancing strategies are classified as dynamic and static. In general, the static load balancing
strategy [19] needs the prior information to make decisions, such as the execution rate of each
node, for load distribution.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
7
On the other hand, the dynamic load balancing strategy [6] exploits the system information to
make decisions at run time. Load balancing strategies could also be categorised as centralized or
decentralized [12]. The centralized strategy selects a single processor to handle load scheduling,
while the distributed strategy welcomes each participating node to handle load balancing.
4.5. Global behaviour modelling
One of the most confusing aspects of grid systems is that theoretically they are considered as
single elements but, when it comes to practice, especially in management related issues, they are
considered as a set of independent, loosely related elements.
To illustrate this idea, it is interesting first to analyze the case of a single desktop computer. It
apparently looks a much simpler system and is commonly regarded as a single device but, in fact,
it is composed of a large set of sophisticated elements that cooperate themselves. Elements like
CPUs, memory and its controllers, video cards, hard drives; network interfaces etc. have
distinctive functionalities and are technologically complex. Still, they are seen as parts of a single
entity, instead of a set of heterogeneous resources. This change of perspective is due to the use of
high-level software tools (basically the Operating System) that provide an abstraction layer
between the real, heterogeneous and complex hardware range and the user. Several generic
parameters are defined, such as CPU load or network usage, in order to express the system state
in a standard manner. Even though this abstraction carries some loss of information, it allows the
managing techniques to be standardized, regarding all desktop computers by the same parameters.
Considering fault tolerance, generic procedures are developed in the same way.
Distinguished by its point of view, fault tolerance techniques in grid systems can be split into two
categories: resource-level (focused on every machine) and service-level (focused on global
behavior). In order to optimize performance and increase system dependability the correct
combination of these two types of techniques should be applied.
However, some important aspects must be considered. The resource-level fault tolerance involves
the application of standard fault tolerance techniques in each and every one of the resources in the
system. This might seem very straightforward, but careful consideration reveals that most of
typical grid characteristics could limit its efficiency. The heterogeneous and non-dedicated nature
of the system increase complexity, but it is the non-centralized aspect the one that becomes the
great difficulty.
In many cases, the global management system has so limited control of each resource that the
only suitable solution seems to increase redundancy.
The service-level fault tolerance, on the other hand, deals with system-wide policies aiming to
increase dependability of the services provided. This is particularly important in utility computing
systems, where the quality-of-service (QoS) is the key factor. However, as the fault tolerance
policies have to deal with the whole system, it is important to find ways to efficiently manage this
complexity. It is also important to understand that, as the nature of the system is different from
resource-level fault tolerance, the terms in which this fault tolerance is expressed certainly differ.
In resource-level fault tolerance basic concepts such as fault or failure are directly inherited from
traditional distributed systems. Events such as a machine turning unexpectedly off or the
temporary loss of a network link are clearly regarded as faults. But in a non-dedicated, non-
centralized distributed system like a grid, each partner that shares resources keeps full control
over its property (computing nodes, storage elements, network links, etc). Resource providers can
change the state of its own resources, without consent from the grid global management. For
instance, some machines could be turned off, originating an event that would be probably
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
8
considered a fault in traditional distributed systems fault tolerance. But in grid systems these
events are by no means considered as undesirable or unexpected. They are more likely accepted
situations that not only may, but will occur as part of the natural evolution of the grid. Therefore,
service-level fault tolerance can never regard them as faults.
The service-level fault tolerance should focus on QoS issues and global behavior. It can benefit
from a representation of the grid global state in a service oriented form. This would become a
behavior model based on globally service-relevant states instead of the multiple specifics of each
resource. This representation not only seems ideal for service-level fault tolerance, but also
provides the abstraction layer mentioned in the previous subsection. With such a model, grid
management tools could finally have the previously mentioned single entity perspective,
incorporating the system’s complexity without being overwhelmed by it. This could also take
service-level fault tolerance a step further, better understanding and improving the systems
behaviour and dependability.
5. CONCLUSION AND FUTURE WORK
This paper presents a comparative survey of fault tolerance in grid environment. The accepted
techniques of fault-tolerance in grid environment with their importance, combinations and
variations have been discussed.Replication of job/data is necessary in order to increase the
resource availability to the computing nodes. An application of checkpointing is important to
formulate organized policies to recover from a system under errors or faults. It effectively
prevents system from being led to a failure state. Security aware scheduling of grid jobs migrated
through agents improves grid performance significantly. A newer concept, service level behavior
or global behavior on understanding the grid services representing a one unified service system
has changed the whole understanding perspective of fault scenario in grid computing.
Additionally, grid resource management in terms of deploying load balancing techniques
enhances grid performance, too.
However, accepting the importance of all the aforesaid areas, to put forward a future direction of
work, this research would next focus on checkpointing technique for better performance of
applications running in grid. It would address the following issues as next course of work:
• Checkpoint fixation level: either at system level (i.e. at OS or middleware level) or at
application level.
• In-transit and Orphan message management with checkpoint: latency and resources held up
for this reason would be freed if applied with a suitable policy.
• Scope of Checkpoint: local – for each process instance or global – for each parallel program in
execution.
• Storage space requirement for checkpointing: light – only the first/top level assignment is
stored thereby less storage and communication overhead and heavy – in addition to light,
newly learnt clauses saved atop the decision stack.
• Granularity of checkpointing: full – entire state of application saved and incremental –
application state saved from previous checkpoints only.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
9
REFERENCES
[1] Asgarali Bouyer, Abdul Hanan Abdullah, Hasan Ebrahimpour and Firouz Nasrollahi," Fault-
Tolerance Scheduling by Using Rough Set based Multi-Checkpointing on Economic Grids",
International Conference on Computational Science and Engineering, 2009, IEEE Computer Society,
pp.103-109.
[2] Elvin Sindrilaru, Alexandru Costan and Valentin Cristea, "Fault Tolerance and Recovery in Grid
Workflow Management Systems," International Conference on Complex, Intelligent and Software
Intensive Systems, 2010, IEEE Computer Society, pp.475-480.
[3] Felipe Pontes Guimaraes and Alba Cristina Magalhaes Alves de Melo, “User-Defined Adaptive Fault-
Tolerant Execution of Workflows in the Grid,” 11th IEEE International Conference on Computer and
Information Technology, 2011, IEEE Computer Society, pp.356-362.
[4] Ian Foster, “What is the Grid? A Three Point Checklist”, Argonne National Laboratory & University
of Chicago, July 20, 2002.
[5] Ivan Cores, Gabriel Rodriguez, Maria J. Martin and Patricia Gonzalez,"Achieving Fault Tolerance on
Grids with the CPPC Framework and the GridWay Metascheduler", 22nd International Symposium
on Computer Architecture and High Performance Computing, 2010, IEEE Computer Society, pp.119-
126.
[6] J. Chen, B. Lu, “Load Balancing Oriented Economic Grid Resource Scheduling”, IEEE Pacific-Asia
Workshop on Computational Intelligence and Industrial Application, 2008, pp.813-817.
[7] Jesus Montes, Alberto Sanchez and Maria S. Perez, "Improving grid fault tolerance by means of
global behavior modeling", Ninth International Symposium on Parallel and Distributed Computing,
2010, IEEE Computer Society, pp.101-108.
[8] Kassian Plankensteiner, Radu Prodan and Thomas Fahringer, "A New Fault Tolerance Heuristic for
Scientific Workflows in Highly Distributed Environments based on Resubmission Impact," Fifth
IEEE International Conference on e-Science,2009, IEEE Computer Society, pp.313-320.
[9] Leili Mohammad Khanli,Maryam Etminan Far,Amir Masoud Rahmani, "RFOH: A New Fault
Tolerant Job Scheduler in Grid Computing," Second International Conference on Computer
Engineering and Applications, 2010, IEEE Computer Society, pp.422-425.
[10] M. Amoon, “Design of a Fault-Tolerant Scheduling System for Grid Computing,” Second
International Conference on Networking and Distributed Computing, 2011, IEEE Computer Society,
pp. 104-108.
[11] Maria Chtepen, Filip H.A. Claeys, Bart Dhoedt, Filip De Turck, Piet Demeester and Peter A.
Vanrolleghem, "Adaptive Task Checkpointing and Replication: Toward Efficient Fault-Tolerant
Grids," IEEE TRANSACTIONS ON PARALLEL AND DISTRIBUTED SYSTEMS, VOL. 20, NO.
2, FEBRUARY 2009. IEEE Computer Society, pp.180-190.
[12] P. Krueger, M. Livny, “A Comparison of Preemptive and Non-Preemptive Load Balancing,” 8th
International Conference on Distributes Computing Systems, Jun 1988, pp 123-130.
[13] Qin Zheng, Bharadwaj Veeravalli and Chen-Khong Tham, "On the Design of Fault-Tolerant
Scheduling Strategies Using Primary-Backup Approach for Computational Grids with Low
Replication Costs," IEEE TRANSACTIONS ON COMPUTERS, VOL. 58, NO. 3, MARCH 2009,
IEEE Computer Society, pp.380-393.
[14] S. Siva Sathya, K. Syam Babu, "Survey of fault tolerant techniques for grid," ELSEVIER
ScienceDirect, COMPUTER SCIENCE REVIEW 4(2010) pp.101 -120.
International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012
10
[15] Shen et al, “System design and implementation of digital-image processing using computational
grids”, Computers & Geosciences, volume 31, Issue 5, pp: 619-630
[16] Srinivasa K G, Siddesh G M and Sijo Cherian, "Fault-Tolerant middleware for Grid Computing,"
12th IEEE International Conference on High Performance Computing and Communications, 2010,
IEEE Computer Society, pp.635-640.
[17] Tian-Liang Huang, Tian-An Hsieh, Kuan-Chou Lai, Kuan-Ching Li, Ching-Hsien Hsu and Hsi-Ya
Chang,"Fault Tolerance Policy on Dynamic Load Balancing in P2P Grids," International Joint
Conference of IEEE TrustCom-11/IEEE ICESS-11/FCST-11, 2011, IEEE Computer Society,
pp.1413-1420.
[18] Yi Hu, Bin Gong and Fengyu Wang, "Cloud Model-Based Security-aware and Fault-Tolerant Job
Scheduling for Computing Grid,",The Fifth Annual ChinaGrid Conference, IEEE Computer Society,
pp.25-30.
[19] Y. Pan, W. Lu, Y. Zhang, K. Chiu, “A Static Load-Balancing Scheme for Parallel XML Parsing on
Multicore CPUs”, Seventh IEEE International Symposium on Cluster Computing and the Grid
(CCGrid '07), 2007, pp.351-362.
Authors
Arindam Das is presently working as Assistant Professor in MCKV Institute of
Engineering, Howrah, India. After graduating in Science from Calcutta University in
1997, he started his career as Laboratory Instructor in a leading Engineering Institution.
Later, he completed his MCA from Indira Gandhi National Open University in 2004. He
completed his MTech in Information Technology from Bengal Engineering and Science
University in 2009. Currently he is pursuing PhD in the field of Grid Computing.
Ajanta De Sarkar is working as Associate Professor in the department of CSE in Birla
Institute of Technology, Mesra. She is having altogether 16 years of experience
including 6 years of Industry experience. Having graduated from Bethune College,
University of Calcutta in B.Sc. (Mathematics) in 1993, and obtained MCA degree in
1996 from Jadavpur University. She has been awarded PhD in Engg. from Jadavpur
University in 2009. Her field of Specialization is Distributed Computing, specifically
Grid Computing. Her focused research area includes Grid Computing, Cloud Computing and Wireless
Sensor Network.

More Related Content

What's hot

50120140503020
5012014050302050120140503020
50120140503020
IAEME Publication

EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...
EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...
EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...
IJNSA Journal

Cloud Storage and Security
Cloud Storage and SecurityCloud Storage and Security
Cloud Storage and Security
Shashank Srivastava

CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION
CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATIONCIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION
CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION
ijcsit

IRJET- Methodologies to the Strategy of Computer Networking Research laboratory
IRJET- Methodologies to the Strategy of Computer Networking Research laboratoryIRJET- Methodologies to the Strategy of Computer Networking Research laboratory
IRJET- Methodologies to the Strategy of Computer Networking Research laboratory
IRJET Journal

Edadc
EdadcEdadc
Edadc
ragh6

CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-
CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-
CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-
Lillian Ekwosi-Egbulem

Design & Development of a Trustworthy and Secure Billing System for Cloud Com...
Design & Development of a Trustworthy and Secure Billing System for Cloud Com...Design & Development of a Trustworthy and Secure Billing System for Cloud Com...
Design & Development of a Trustworthy and Secure Billing System for Cloud Com...
iosrjce

An approach for secured data transmission at client end in cloud computing
An approach for secured data transmission at client end in cloud computingAn approach for secured data transmission at client end in cloud computing
An approach for secured data transmission at client end in cloud computing
IAEME Publication

Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...
Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...
Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...
INFOGAIN PUBLICATION

Distributed reflection denial of service attack: A critical review
Distributed reflection denial of service attack: A critical review Distributed reflection denial of service attack: A critical review
Distributed reflection denial of service attack: A critical review
IJECEIAES

An enhanced wireless presentation system for large scale content distribution
An enhanced wireless presentation system for large scale content distribution An enhanced wireless presentation system for large scale content distribution
An enhanced wireless presentation system for large scale content distribution
Conference Papers

Adaptive authentication to determine login attempt penalty from multiple inpu...
Adaptive authentication to determine login attempt penalty from multiple inpu...Adaptive authentication to determine login attempt penalty from multiple inpu...
Adaptive authentication to determine login attempt penalty from multiple inpu...
Conference Papers

Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...
Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...
Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...
ijccsa

A study on security responsibilities and adoption in
A study on security responsibilities and adoption inA study on security responsibilities and adoption in
A study on security responsibilities and adoption in
eSAT Publishing House

A study on security responsibilities and adoption in cloud
A study on security responsibilities and adoption in cloudA study on security responsibilities and adoption in cloud
A study on security responsibilities and adoption in cloud
eSAT Journals

IRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse
IRJET- An Effective Protection on Content based Retrieval in Cloud StorehouseIRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse
IRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse
IRJET Journal

Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage
Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud StoragePrivacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage
Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage
1crore projects

FRAMEWORK FOR SECURE CLOUD COMPUTING
FRAMEWORK FOR SECURE CLOUD COMPUTINGFRAMEWORK FOR SECURE CLOUD COMPUTING
FRAMEWORK FOR SECURE CLOUD COMPUTING
ijccsa

A Novel privacy preserving public auditing for shared data in cloud
A Novel privacy preserving public auditing for shared data in cloudA Novel privacy preserving public auditing for shared data in cloud
A Novel privacy preserving public auditing for shared data in cloud
JAVVAJI VENKATA RAO


What's hot (20)

50120140503020
5012014050302050120140503020
50120140503020

EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...
EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...
EFFECTIVE METHOD FOR MANAGING AUTOMATION AND MONITORING IN MULTI-CLOUD COMPUT...

Cloud Storage and Security
Cloud Storage and SecurityCloud Storage and Security
Cloud Storage and Security

CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION
CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATIONCIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION
CIRCUIT BREAK CONNECT MONITORING TO 5G MOBILE APPLICATION

IRJET- Methodologies to the Strategy of Computer Networking Research laboratory
IRJET- Methodologies to the Strategy of Computer Networking Research laboratoryIRJET- Methodologies to the Strategy of Computer Networking Research laboratory
IRJET- Methodologies to the Strategy of Computer Networking Research laboratory

Edadc
EdadcEdadc
Edadc

CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-
CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-
CLOUD COMPUTING -Risks, Countermeasures, Costs and Benefits-

Design & Development of a Trustworthy and Secure Billing System for Cloud Com...
Design & Development of a Trustworthy and Secure Billing System for Cloud Com...Design & Development of a Trustworthy and Secure Billing System for Cloud Com...
Design & Development of a Trustworthy and Secure Billing System for Cloud Com...

An approach for secured data transmission at client end in cloud computing
An approach for secured data transmission at client end in cloud computingAn approach for secured data transmission at client end in cloud computing
An approach for secured data transmission at client end in cloud computing

Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...
Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...
Privacy Preserving Public Auditing and Data Integrity for Secure Cloud Storag...

Distributed reflection denial of service attack: A critical review
Distributed reflection denial of service attack: A critical review Distributed reflection denial of service attack: A critical review
Distributed reflection denial of service attack: A critical review

An enhanced wireless presentation system for large scale content distribution
An enhanced wireless presentation system for large scale content distribution An enhanced wireless presentation system for large scale content distribution
An enhanced wireless presentation system for large scale content distribution

Adaptive authentication to determine login attempt penalty from multiple inpu...
Adaptive authentication to determine login attempt penalty from multiple inpu...Adaptive authentication to determine login attempt penalty from multiple inpu...
Adaptive authentication to determine login attempt penalty from multiple inpu...

Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...
Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...
Security Issues in Cloud Computing Solution of DDOS and Introducing Two-Tier ...

A study on security responsibilities and adoption in
A study on security responsibilities and adoption inA study on security responsibilities and adoption in
A study on security responsibilities and adoption in

A study on security responsibilities and adoption in cloud
A study on security responsibilities and adoption in cloudA study on security responsibilities and adoption in cloud
A study on security responsibilities and adoption in cloud

IRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse
IRJET- An Effective Protection on Content based Retrieval in Cloud StorehouseIRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse
IRJET- An Effective Protection on Content based Retrieval in Cloud Storehouse

Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage
Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud StoragePrivacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage
Privacy-Preserving Public Auditing for Regenerating-Code-Based Cloud Storage

FRAMEWORK FOR SECURE CLOUD COMPUTING
FRAMEWORK FOR SECURE CLOUD COMPUTINGFRAMEWORK FOR SECURE CLOUD COMPUTING
FRAMEWORK FOR SECURE CLOUD COMPUTING

A Novel privacy preserving public auditing for shared data in cloud
A Novel privacy preserving public auditing for shared data in cloudA Novel privacy preserving public auditing for shared data in cloud
A Novel privacy preserving public auditing for shared data in cloud


Similar to ON FAULT TOLERANCE OF RESOURCES IN COMPUTATIONAL GRIDS

An Investigation of Fault Tolerance Techniques in Cloud Computing
An Investigation of Fault Tolerance Techniques in Cloud ComputingAn Investigation of Fault Tolerance Techniques in Cloud Computing
An Investigation of Fault Tolerance Techniques in Cloud Computing
ijtsrd

Efficient architectural framework of cloud computing
Efficient architectural framework of cloud computing Efficient architectural framework of cloud computing
Efficient architectural framework of cloud computing
Souvik Pal

Excellent Manner of Using Secure way of data storage in cloud computing
Excellent Manner of Using Secure way of data storage in cloud computingExcellent Manner of Using Secure way of data storage in cloud computing
Excellent Manner of Using Secure way of data storage in cloud computing
Editor IJMTER

Grid computing
Grid computingGrid computing
Grid computing
Tapas Palei

IRJET- Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...
IRJET-  	  Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...IRJET-  	  Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...
IRJET- Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...
IRJET Journal

Effective Information Flow Control as a Service: EIFCaaS
Effective Information Flow Control as a Service: EIFCaaSEffective Information Flow Control as a Service: EIFCaaS
Effective Information Flow Control as a Service: EIFCaaS
IRJET Journal

Security for Effective Data Storage in Multi Clouds
Security for Effective Data Storage in Multi CloudsSecurity for Effective Data Storage in Multi Clouds
Security for Effective Data Storage in Multi Clouds
Editor IJCATR

TermPaper
TermPaperTermPaper
TermPaper
Viral Savani

Distributed system
Distributed systemDistributed system
Distributed system
chirag patil

Evaluation Of The Data Security Methods In Cloud Computing Environments
Evaluation Of The Data Security Methods In Cloud Computing EnvironmentsEvaluation Of The Data Security Methods In Cloud Computing Environments
Evaluation Of The Data Security Methods In Cloud Computing Environments
ijfcstjournal

Rep on grid computing
Rep on grid computingRep on grid computing
Rep on grid computing
shweta-sharma99

Role of Cloud Computing Technology in Agriculture Fields
Role of Cloud Computing Technology in Agriculture FieldsRole of Cloud Computing Technology in Agriculture Fields
Role of Cloud Computing Technology in Agriculture Fields
sushil Choudhary

An efficient scheduling policy for load balancing model for computational gri...
An efficient scheduling policy for load balancing model for computational gri...An efficient scheduling policy for load balancing model for computational gri...
An efficient scheduling policy for load balancing model for computational gri...
Alexander Decker

50620130101004
5062013010100450620130101004
50620130101004
IAEME Publication

Distributed Scheme to Authenticate Data Storage Security in Cloud Computing
Distributed Scheme to Authenticate Data Storage Security in Cloud ComputingDistributed Scheme to Authenticate Data Storage Security in Cloud Computing
Distributed Scheme to Authenticate Data Storage Security in Cloud Computing
AIRCC Publishing Corporation

DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTINGDISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
ijcsit

DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTINGDISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
AIRCC Publishing Corporation

A Prolific Scheme for Load Balancing Relying on Task Completion Time
A Prolific Scheme for Load Balancing Relying on Task Completion Time A Prolific Scheme for Load Balancing Relying on Task Completion Time
A Prolific Scheme for Load Balancing Relying on Task Completion Time
IJECEIAES

publishable paper
publishable paperpublishable paper
publishable paper
chaitanya451336

Kamal Jyoti V3I5-0161
Kamal Jyoti V3I5-0161Kamal Jyoti V3I5-0161
Kamal Jyoti V3I5-0161
Kamal Jyoti


Similar to ON FAULT TOLERANCE OF RESOURCES IN COMPUTATIONAL GRIDS (20)

An Investigation of Fault Tolerance Techniques in Cloud Computing
An Investigation of Fault Tolerance Techniques in Cloud ComputingAn Investigation of Fault Tolerance Techniques in Cloud Computing
An Investigation of Fault Tolerance Techniques in Cloud Computing

Efficient architectural framework of cloud computing
Efficient architectural framework of cloud computing Efficient architectural framework of cloud computing
Efficient architectural framework of cloud computing

Excellent Manner of Using Secure way of data storage in cloud computing
Excellent Manner of Using Secure way of data storage in cloud computingExcellent Manner of Using Secure way of data storage in cloud computing
Excellent Manner of Using Secure way of data storage in cloud computing

Grid computing
Grid computingGrid computing
Grid computing

IRJET- Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...
IRJET-  	  Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...IRJET-  	  Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...
IRJET- Analysis of Micro Inversion to Improve Fault Tolerance in High Spe...

Effective Information Flow Control as a Service: EIFCaaS
Effective Information Flow Control as a Service: EIFCaaSEffective Information Flow Control as a Service: EIFCaaS
Effective Information Flow Control as a Service: EIFCaaS

Security for Effective Data Storage in Multi Clouds
Security for Effective Data Storage in Multi CloudsSecurity for Effective Data Storage in Multi Clouds
Security for Effective Data Storage in Multi Clouds

TermPaper
TermPaperTermPaper
TermPaper

Distributed system
Distributed systemDistributed system
Distributed system

Evaluation Of The Data Security Methods In Cloud Computing Environments
Evaluation Of The Data Security Methods In Cloud Computing EnvironmentsEvaluation Of The Data Security Methods In Cloud Computing Environments
Evaluation Of The Data Security Methods In Cloud Computing Environments

Rep on grid computing
Rep on grid computingRep on grid computing
Rep on grid computing

Role of Cloud Computing Technology in Agriculture Fields
Role of Cloud Computing Technology in Agriculture FieldsRole of Cloud Computing Technology in Agriculture Fields
Role of Cloud Computing Technology in Agriculture Fields

An efficient scheduling policy for load balancing model for computational gri...
An efficient scheduling policy for load balancing model for computational gri...An efficient scheduling policy for load balancing model for computational gri...
An efficient scheduling policy for load balancing model for computational gri...

50620130101004
5062013010100450620130101004
50620130101004

Distributed Scheme to Authenticate Data Storage Security in Cloud Computing
Distributed Scheme to Authenticate Data Storage Security in Cloud ComputingDistributed Scheme to Authenticate Data Storage Security in Cloud Computing
Distributed Scheme to Authenticate Data Storage Security in Cloud Computing

DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTINGDISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING

DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTINGDISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING
DISTRIBUTED SCHEME TO AUTHENTICATE DATA STORAGE SECURITY IN CLOUD COMPUTING

A Prolific Scheme for Load Balancing Relying on Task Completion Time
A Prolific Scheme for Load Balancing Relying on Task Completion Time A Prolific Scheme for Load Balancing Relying on Task Completion Time
A Prolific Scheme for Load Balancing Relying on Task Completion Time

publishable paper
publishable paperpublishable paper
publishable paper

Kamal Jyoti V3I5-0161
Kamal Jyoti V3I5-0161Kamal Jyoti V3I5-0161
Kamal Jyoti V3I5-0161


More from ijgca

11th International Conference on Computer Science, Engineering and Informati...
11th International Conference on Computer Science, Engineering and  Informati...11th International Conference on Computer Science, Engineering and  Informati...
11th International Conference on Computer Science, Engineering and Informati...
ijgca

SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
ijgca

SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
ijgca

11th International Conference on Computer Science, Engineering and Informatio...
11th International Conference on Computer Science, Engineering and Informatio...11th International Conference on Computer Science, Engineering and Informatio...
11th International Conference on Computer Science, Engineering and Informatio...
ijgca

Topology Aware Load Balancing for Grids.
Topology Aware Load Balancing for Grids.Topology Aware Load Balancing for Grids.
Topology Aware Load Balancing for Grids.
ijgca

11th International Conference on Computer Science and Information Technology ...
11th International Conference on Computer Science and Information Technology ...11th International Conference on Computer Science and Information Technology ...
11th International Conference on Computer Science and Information Technology ...
ijgca

AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...
AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...
AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...
ijgca

13th International Conference on Data Mining & Knowledge Management Process (...
13th International Conference on Data Mining & Knowledge Management Process (...13th International Conference on Data Mining & Knowledge Management Process (...
13th International Conference on Data Mining & Knowledge Management Process (...
ijgca

Call for Papers - 15th International Conference on Wireless & Mobile Networks...
Call for Papers - 15th International Conference on Wireless & Mobile Networks...Call for Papers - 15th International Conference on Wireless & Mobile Networks...
Call for Papers - 15th International Conference on Wireless & Mobile Networks...
ijgca

Call for Papers - 4th International Conference on Big Data (CBDA 2023)
Call for Papers - 4th International Conference on Big Data (CBDA 2023)Call for Papers - 4th International Conference on Big Data (CBDA 2023)
Call for Papers - 4th International Conference on Big Data (CBDA 2023)
ijgca

Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...
ijgca

Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...
ijgca

Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...
ijgca

Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...
ijgca

Call for Papers - 4th International Conference on Machine learning and Cloud ...
Call for Papers - 4th International Conference on Machine learning and Cloud ...Call for Papers - 4th International Conference on Machine learning and Cloud ...
Call for Papers - 4th International Conference on Machine learning and Cloud ...
ijgca

Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...
Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...
Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...
ijgca

Call for Papers - 4th International Conference on Blockchain and Internet of ...
Call for Papers - 4th International Conference on Blockchain and Internet of ...Call for Papers - 4th International Conference on Blockchain and Internet of ...
Call for Papers - 4th International Conference on Blockchain and Internet of ...
ijgca

Call for Papers - International Conference IOT, Blockchain and Cryptography (...
Call for Papers - International Conference IOT, Blockchain and Cryptography (...Call for Papers - International Conference IOT, Blockchain and Cryptography (...
Call for Papers - International Conference IOT, Blockchain and Cryptography (...
ijgca

Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...
Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...
Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...
ijgca

Call for Papers - International Journal of Database Management Systems (IJDMS)
Call for Papers - International Journal of Database Management Systems (IJDMS)Call for Papers - International Journal of Database Management Systems (IJDMS)
Call for Papers - International Journal of Database Management Systems (IJDMS)
ijgca


More from ijgca (20)

11th International Conference on Computer Science, Engineering and Informati...
11th International Conference on Computer Science, Engineering and  Informati...11th International Conference on Computer Science, Engineering and  Informati...
11th International Conference on Computer Science, Engineering and Informati...

SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...

SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...
SERVICE LEVEL AGREEMENT BASED FAULT TOLERANT WORKLOAD SCHEDULING IN CLOUD COM...

11th International Conference on Computer Science, Engineering and Informatio...
11th International Conference on Computer Science, Engineering and Informatio...11th International Conference on Computer Science, Engineering and Informatio...
11th International Conference on Computer Science, Engineering and Informatio...

Topology Aware Load Balancing for Grids.
Topology Aware Load Balancing for Grids.Topology Aware Load Balancing for Grids.
Topology Aware Load Balancing for Grids.

11th International Conference on Computer Science and Information Technology ...
11th International Conference on Computer Science and Information Technology ...11th International Conference on Computer Science and Information Technology ...
11th International Conference on Computer Science and Information Technology ...

AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...
AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...
AN INTELLIGENT SYSTEM FOR THE ENHANCEMENT OF VISUALLY IMPAIRED NAVIGATION AND...

13th International Conference on Data Mining & Knowledge Management Process (...
13th International Conference on Data Mining & Knowledge Management Process (...13th International Conference on Data Mining & Knowledge Management Process (...
13th International Conference on Data Mining & Knowledge Management Process (...

Call for Papers - 15th International Conference on Wireless & Mobile Networks...
Call for Papers - 15th International Conference on Wireless & Mobile Networks...Call for Papers - 15th International Conference on Wireless & Mobile Networks...
Call for Papers - 15th International Conference on Wireless & Mobile Networks...

Call for Papers - 4th International Conference on Big Data (CBDA 2023)
Call for Papers - 4th International Conference on Big Data (CBDA 2023)Call for Papers - 4th International Conference on Big Data (CBDA 2023)
Call for Papers - 4th International Conference on Big Data (CBDA 2023)

Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...

Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...Call for Papers - 15th International Conference on Computer Networks & Commun...
Call for Papers - 15th International Conference on Computer Networks & Commun...

Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...

Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...Call for Papers - 9th International Conference on Cryptography and Informatio...
Call for Papers - 9th International Conference on Cryptography and Informatio...

Call for Papers - 4th International Conference on Machine learning and Cloud ...
Call for Papers - 4th International Conference on Machine learning and Cloud ...Call for Papers - 4th International Conference on Machine learning and Cloud ...
Call for Papers - 4th International Conference on Machine learning and Cloud ...

Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...
Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...
Call for Papers - 11th International Conference on Data Mining & Knowledge Ma...

Call for Papers - 4th International Conference on Blockchain and Internet of ...
Call for Papers - 4th International Conference on Blockchain and Internet of ...Call for Papers - 4th International Conference on Blockchain and Internet of ...
Call for Papers - 4th International Conference on Blockchain and Internet of ...

Call for Papers - International Conference IOT, Blockchain and Cryptography (...
Call for Papers - International Conference IOT, Blockchain and Cryptography (...Call for Papers - International Conference IOT, Blockchain and Cryptography (...
Call for Papers - International Conference IOT, Blockchain and Cryptography (...

Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...
Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...
Call for Paper - 4th International Conference on Cloud, Big Data and Web Serv...

Call for Papers - International Journal of Database Management Systems (IJDMS)
Call for Papers - International Journal of Database Management Systems (IJDMS)Call for Papers - International Journal of Database Management Systems (IJDMS)
Call for Papers - International Journal of Database Management Systems (IJDMS)


Recently uploaded

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
eBook.com.bd (প্রয়োজনীয় বাংলা বই)

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
S. Raj Kumar

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf
WaniBasim

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
สมใจ จันสุกสี

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx
adhitya5119

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx
Denish Jangid

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
National Information Standards Organization (NISO)

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training
Katrina Pritchard

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17
Celine George

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad
AyyanKhan40


Recently uploaded (20)

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdfবাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf
বাংলাদেশ অর্থনৈতিক সমীক্ষা (Economic Review) ২০২৪ UJS App.pdf

UGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching AptitudeUGC NET Exam Paper 1- Unit 1:Teaching Aptitude
UGC NET Exam Paper 1- Unit 1:Teaching Aptitude

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

Liberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdfLiberal Approach to the Study of Indian Politics.pdf
Liberal Approach to the Study of Indian Politics.pdf

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1
คำศัพท์ คำพื้นฐานการอ่าน ภาษาอังกฤษ ระดับชั้น ม.1

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx

Advanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docxAdvanced Java[Extra Concepts, Not Difficult].docx
Advanced Java[Extra Concepts, Not Difficult].docx

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

Chapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptxChapter wise All Notes of First year Basic Civil Engineering.pptx
Chapter wise All Notes of First year Basic Civil Engineering.pptx

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie

BBR 2024 Summer Sessions Interview Training
BBR  2024 Summer Sessions Interview TrainingBBR  2024 Summer Sessions Interview Training
BBR 2024 Summer Sessions Interview Training

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad


ON FAULT TOLERANCE OF RESOURCES IN COMPUTATIONAL GRIDS

  • 1. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 DOI: 10.5121/ijgca.2012.3301 1 ON FAULT TOLERANCE OF RESOURCES IN COMPUTATIONAL GRIDS Arindam Das1 and Ajanta De Sarkar2 1 Department of MCA, MCKV Institute of Engineering, Howrah, India arindamdas.mckv@gmail.com 2 Department of Computer Science & Engineering, Birla Institute of Technology, Mesra, Kolkata Campus, Kolkata 700 107 adsarkar@bitmesra.ac.in ABSTRACT Grid computing or computational grid is always a vast research field in academic, as well as in industry also. Computational grid provides resource sharing through multi-institutional virtual organizations for dynamic problem solving. Various heterogeneous resources of different administrative domain are virtually distributed through different network in computational grids. Thus any type of failure can occur at any point of time and job running in grid environment might fail. Hence fault tolerance is an important and challenging issue in grid computing as the dependability of individual grid resources may not be guaranteed. In order to make computational grids more effective and reliable fault tolerant system is necessary. The objective of this paper is to review different existing fault tolerance techniques applicable in grid computing. This paper presents state of the art of various fault tolerance technique and comparative study of the existing algorithms. KEYWORDS Component, Computational grids, Fault tolerance, Failure, Checkpointing 1. INTRODUCTION Grid is an association of computer resources from several administrative domains to reach a mutual goal with an abstraction of service origination to the user. This view is often put to as an analogy to power grids where consumers get access to electricity through sockets on wall with no care for where and how that electricity is generated. Similarly, in computational grid the users can access any resources like, process, storage, data and applications with little or no knowledge of physical locations of those resources and the underlying technologies used. Grid computing is special because here the nodes can be purchased as commodity hardware. These nodes are easily combined to produce a similar computing resource like multiprocessor supercomputer but at a lower cost. The large number of processors to be managed and lack of high-speed connections in grid can be complemented well by multiple independent parallel computations. Grid computing involves the aggregation of large-scale cluster computing based systems. As resources in grid are used outside of organizational boundaries, it becomes increasingly difficult to guarantee that a resource being used is not malicious in some way or failure of resources is uncertain. Fault tolerance in grid computing is necessary to preserve the delivery of
  • 2. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 2 expected services despite the presence of fault caused errors within the system itself. It aims at the avoidance of failures in the presence of faults, as availability of grid resources is dynamic. The objective of this paper is to review a few fault tolerant techniques in grid computing. This paper presents state of the art of various existing fault tolerance technique and comparative study of the fault tolerant algorithms. Brief overview of grid computing is discussed in Section 2. Section 3 explains faults and failure and concepts of fault tolerance in grid computing. Review of a few algorithms related to fault tolerance is explained in Section 4. Section 5 concludes the paper with directives of future work. 2. GRID COMPUTING A grid [3], known to be a large-scale virtual organization, is enabling to solve complex scientific and compute-intensive problems. The virtual organization is formed with geographically distributed hardware and software infrastructure of flexible, secure and coordinated shared vast amounts of heterogeneous resources from multiple administrative domains. Computational grid environment is shown in Figure 1. Heterogeneous computational nodes have connected to form a Grid test-bed. In this test-bed registered resource database and Grid resources server is also shown. Server or database might be accessed during computation of large job. User can submit job through any node among Node A, Node B, Node C, Node D or Node E in Grid. Job might necessitate adapting the changed resource scenario in Grid environment. Hence, fault tolerance of resources is major challenging issue in dynamic virtual computational Grids. Considering multiple administrative domains owned by multiple individuals/organizations the intension of participation or volunteering might not always be trustworthy. Besides, the duration of participation might also not be consistent. As in grid, all the resources are connected through heterogeneous network. There might be no guarantee that the nodes would not be dropped out of the network at random times. The impacts of trust and availability on performance and development difficulty can influence the choice of whether to deploy on to a dedicated computer cluster in the developing organizations or to an open external network of contractors. Figure 1 : Computational Grid Environment [15]
  • 3. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 3 On the other side, with many languages in place, there has been a tradeoff between investment in software development and the number of platforms that can be supported. Cross-platform languages can reduce the need to make this tradeoff. Various middleware based projects have created genuine infrastructure to allow diverse scientific and commercial projects to harness a particular associated grid or for the purpose of setting up new grids. Middleware can be seen as a layer between the hardware and software. SLA management, License management, portals and data management are major research issues in grid middleware. Due to unavailability of network or development difficulty or faulty resources, fault may occur in the results or performance may be degraded. Fault tolerance is the ability to preserve the delivery of expected services despite the presence of fault caused errors within the system itself. It aims at the avoidance of failures in the presence of faults. A fault tolerant service detects errors and recovers them without participation of any external agents, such as humans. Errors are detected and corrected and permanent faults are located and removed while the system continues to deliver acceptable services. Faults and failure in grid are explained in the next section. 3. FAULTS AND FAILURES IN GRID Fault tolerance is an important property in grid computing as the dependability of individual grid resources may not be guaranteed. In many cases, an organization may send out jobs for remote execution on resources upon which no trust can be placed; for example, the resources may be outside of its organizational boundaries, or may be shared by different users at the same time. A fault tolerant approach may therefore be useful in order to potentially prevent a malicious node affecting the overall performance of the application. As applications scale to take advantage of Grid resources, their size and complexity will increase dramatically. A major challenge in a dynamic grid with thousands of nodes connected to each other is fault tolerance. The more resources and components involved the more complicated and error-prone becomes the system. To comprehend fault tolerance mechanisms, it is important to point out the difference between faults, errors and failures. Fault: A fault is a violation of a system’s underlying assumptions. Error: An error is an internal data state that reflects a fault. Failure: A failure is an externally visible deviation from specifications. In reality, a fault need not result in an error, or an error in a failure. Different types of faults, classified based on several factors, are mentioned in the following: • Physical faults: faulty storage, faulty CPUs, faulty memory. • Unconditional termination: Mostly, user pressed Ctrl+c. • Network faults: packet corruption, faults due to network partition, packet loss. • Lifecycle faults: Legacy or versioning faults. • Processor faults: Machine or operating system crashes. • Media faults: Disk head crashes. • Service expiry fault: The service time of a resource may expire while application is using the resources in grid. • Process faults: software bug, resource shortage. • Interaction faults: timing overhead, protocol incompatibilities, security incompatibilities, policy problems.
  • 4. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 4 A failure, irrespective of its cause (either error or fault), is observed or reported first in a grid system. Three types of failures such as, Permanent, Intermittent and Transient, which can occur in computer systems with respect to time. Due to these failures system may behave in different ways. Three types of behaviors are possible in systems after a failure: • Failstop system: The system does not output any data once it has failed. It immediately stops sending any events or messages and does not respond to any messages. • Failfast system: The system behaves like a Byzantine system for some time but moves into a failstop mode after a short period of time. It does not matter what type of fault or failure has caused this behavior but it is necessary that the system does not perform any operation once it has failed. • Byzantine system: The system does not stop after a failure, instead behaves in a inconsistent way. It may send out wrong results of the application. 4. REVIEW OF FAULT TOLERANCE TECHNIQUES The main objective of grid computing is to maintain the workflows or services in presence of faults so that no failure stage is reached. This section presents a few fault tolerant techniques in the following: 4.1. Job and Data Replication The term, replication implies making copies or replicas of an existing entity. In grid environment, job/task or data are replicated to tackle the faults. Workflows can be executed with a rule-based system with a framework operating dynamically taking an appropriate fault tolerance technique. The framework considers [2] the user’s preferences and the grid resource allocation situation to decide, using a binary tree, the most appropriate fault tolerant technique to be used for each task that can compose a workflow. Besides, most of the existing replication-based algorithms use a fixed number of replications for each job which consumes more grid resources. To overcome this, Adaptive Job Replication (AJR) algorithm is proposed to adaptively determine the number of job replicas [10] according to the grid failure history followed by Backup Resources Selection (BRS) algorithm to schedule these replicas. Moreover, Fault Tolerance using Adaptive Replication in Grid Computing (FTARG) [14] is an adaptive replication middleware which addresses the fault tolerance of grid based applications by providing data replication at different sites. FTARG is an Aneka based grid middleware designed for high-performance grid based applications. FTARG enables data synchronization between multiple heterogeneous databases located in the grid by supporting a variety of synchronization modes. However, it can delay the job execution if the number of replicas [11] to be generated is not reasonably determined for data or task replication. Resubmission Impact, a heuristic, for fault tolerance in workflow executions [8] is a new technique applicable for distributed environment. This heuristic is based on a combination of task replication and task resubmission using a resubmission impact metric which measures the impact of repeated task resubmission on the execution time of a workflow. The metric used in the heuristic is to define the number of replications generated for each workflow task. In contrast to related approaches, this method can be used effectively on systems even in the absence of historic failure trace data.
  • 5. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 5 So, in a replication based fault recovery, availability of replicated data at different sites of computing increases the fault tolerance adaptability. Data synchronization among cross vendor databases should also be addressed. In case of job/task replication, heuristic method based on task resubmission impact measures can be better than the traditional approach with little or no dependency on failure of historic data. However, in both data and job replication, determination of the appropriate number of replicas plays a significant role. 4.2. Checkpointing Checkpointing [14] is the process of saving the state of an application in execution to a stable storage for future utilization. In case of any fault, this saved state is to be referred to resume execution of the application from the point in the computation where it was last checkpointed. In addition to the traditional fault tolerance techniques, specific checkpoint-recovery schemes are needed in grid workflow management systems of present time to address the new reliability challenges. A Fault Tolerance and Recovery component that extends the ActiveBPEL workflow engine [2] has been proposed to develop mechanisms for building an autonomic workflow management system that effectively detects, diagnoses, notifies, reacts and recovers automatically from failures during workflow execution. The detection mechanism inspects the messages exchanged between the workflow and the synchronized Web Service components for the search of faults. The default behavior of ActiveBPEL can be modified in order to recover a process from a faulty state, using a non-intrusive checkpointing mechanism. Further, a new strategy named Resource Fault Occurrence History (RFOH) [9] for fault tolerant job scheduling in computational grid is proposed. This strategy maintains the history of fault occurrence of resources in Grid Information Server (GIS). A resource broker with jobs to schedule, it uses this GIS information in Genetic Algorithm and looks for a near optimal solution for the problem. Next, it raises the percentage of jobs executed within specified deadline. Using checkpoint techniques, the proposed strategy can make grid scheduling more reliable and efficient. A proposition is also there to present an experience to endow with fault tolerance support parallel executions on grids through the integration of ComPiler for Portable Checkpointing (CPPC) [1], a checkpointing tool for parallel applications, and GridWay: a meta-scheduler provided with the Globus Toolkit. One of the strengths of this proposal is, transparency and ease of use i.e. the CPPC-GW infrastructure will take care of all viz. automatically submitting and monitoring the application, making remote backups of checkpoint files, detecting faults and migrating and restarting failed executions. Periodic job checkpointing, being very robust, it can detain job execution if checkpointing intervals are inappropriately chosen. Moreover, fault tolerance poses an important problem in the scope of grid computing environments. The heuristics have been evaluated in Dynamic Scheduling in Distributed Environments (DSiDE) grid simulator under changing system load and availability. In [11] the results have shown that the runtime overhead characteristic to periodic checkpointing can significantly be reduced when the checkpointing frequency is dynamically adapted in function of resource stability and remaining job execution time. Reducing the number of crashed node can cut down the number of faulty tasks by efficient node allocation. To improve fault tolerance and decrease price cost of a job with an acceptable completion time [1], a predictive method to select the best nodes and sites is proposed.
  • 6. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 6 4.3. Scheduling/Agent based migration To overcome the drawbacks present with checkpointing and replication mechanisms, fault tolerance is factored into grid scheduling. Scheduling policies for grid systems can be classified into space sharing and time sharing [14] policies. It is also possible to combine these two types of policies into a hybrid policy. Security-aware and fault-tolerant job scheduling is crucial to achieve high performance in an open grid computing environment. On the contrary, the fixed fault-tolerant strategy in job scheduling may improperly exploit excessive resources. A cloud model is proposed [13] to manage the fuzziness and uncertainties of task scheduling while deciding the kind of fault-tolerance strategy to be selected, at the same time, for each individual job to ensure more reliability of computation and shorter makespan. In fault-tolerant scheduling, primary-backup approach is a practiced methodology used for fault tolerance where each task holds a primary copy and a backup copy submitted to two different processors. For independent tasks, a backup copy can be overloaded with other backup copies on the same processor while for dependent tasks, precedence constraint among tasks must be considered during scheduling of backup copies and overloading backups. Two algorithms: the Minimum Replication Cost with Early Completion Time (MRC-ECT) algorithm and the Minimum Completion Time with Less Replication Cost (MCT-LRC) algorithm has been proposed to schedule backups of independent jobs and dependent jobs, respectively [13]. Algorithm MRC-ECT is observed guarantee an optimal backup schedule in terms of replication cost for an independent task, while MCT-LRC can schedule a backup of a dependent task with minimum completion time and less replication cost. 4.4. Load balancing In general, the P2P system has similar objective to that of the grid system since both of them coordinate the large sets of distributed resources. Therefore, many projects keep on integrating these two complementary technologies i.e. P2P grid to perform as an ideal distributed computing system. Besides, despite many load-balancing approaches has been proposed for real-time applications in parallel and distributed systems, there are very less work found on the impact of fault tolerance policies for load balancing mechanisms. A fault tolerant policy has been proposed to balance loads dynamically in the P2P grid system, named the Fault Tolerant policy on Dynamic Load Balancing (FTDLB) [17]. In order to minimize the job turnaround time, mostly, is the primary the goal of load balancing and FTDLB could adaptively adjust the load of real-time applications to achieve the job’s minimal turnaround time. FTDLB policy can tolerate the node’s permanent failures while balancing load of real-time applications on P2P grids. It calculates the job turnaround time in each node and dynamically allocates job to the befitting node for execution as per the evaluation. The existing job migration time estimation has been improved here. The policy can tolerate the node’s permanent failures while balancing load of real-time applications on P2P grids. For improving the system reliability, FTDLB duplicates jobs (copy approach) into different sites to tolerate failures by keeping a high availability rate at the increase of error rate. Experimental results reveal that FTDLB policy indeed improves the job completion rate. Load balancing strategies are classified as dynamic and static. In general, the static load balancing strategy [19] needs the prior information to make decisions, such as the execution rate of each node, for load distribution.
  • 7. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 7 On the other hand, the dynamic load balancing strategy [6] exploits the system information to make decisions at run time. Load balancing strategies could also be categorised as centralized or decentralized [12]. The centralized strategy selects a single processor to handle load scheduling, while the distributed strategy welcomes each participating node to handle load balancing. 4.5. Global behaviour modelling One of the most confusing aspects of grid systems is that theoretically they are considered as single elements but, when it comes to practice, especially in management related issues, they are considered as a set of independent, loosely related elements. To illustrate this idea, it is interesting first to analyze the case of a single desktop computer. It apparently looks a much simpler system and is commonly regarded as a single device but, in fact, it is composed of a large set of sophisticated elements that cooperate themselves. Elements like CPUs, memory and its controllers, video cards, hard drives; network interfaces etc. have distinctive functionalities and are technologically complex. Still, they are seen as parts of a single entity, instead of a set of heterogeneous resources. This change of perspective is due to the use of high-level software tools (basically the Operating System) that provide an abstraction layer between the real, heterogeneous and complex hardware range and the user. Several generic parameters are defined, such as CPU load or network usage, in order to express the system state in a standard manner. Even though this abstraction carries some loss of information, it allows the managing techniques to be standardized, regarding all desktop computers by the same parameters. Considering fault tolerance, generic procedures are developed in the same way. Distinguished by its point of view, fault tolerance techniques in grid systems can be split into two categories: resource-level (focused on every machine) and service-level (focused on global behavior). In order to optimize performance and increase system dependability the correct combination of these two types of techniques should be applied. However, some important aspects must be considered. The resource-level fault tolerance involves the application of standard fault tolerance techniques in each and every one of the resources in the system. This might seem very straightforward, but careful consideration reveals that most of typical grid characteristics could limit its efficiency. The heterogeneous and non-dedicated nature of the system increase complexity, but it is the non-centralized aspect the one that becomes the great difficulty. In many cases, the global management system has so limited control of each resource that the only suitable solution seems to increase redundancy. The service-level fault tolerance, on the other hand, deals with system-wide policies aiming to increase dependability of the services provided. This is particularly important in utility computing systems, where the quality-of-service (QoS) is the key factor. However, as the fault tolerance policies have to deal with the whole system, it is important to find ways to efficiently manage this complexity. It is also important to understand that, as the nature of the system is different from resource-level fault tolerance, the terms in which this fault tolerance is expressed certainly differ. In resource-level fault tolerance basic concepts such as fault or failure are directly inherited from traditional distributed systems. Events such as a machine turning unexpectedly off or the temporary loss of a network link are clearly regarded as faults. But in a non-dedicated, non- centralized distributed system like a grid, each partner that shares resources keeps full control over its property (computing nodes, storage elements, network links, etc). Resource providers can change the state of its own resources, without consent from the grid global management. For instance, some machines could be turned off, originating an event that would be probably
  • 8. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 8 considered a fault in traditional distributed systems fault tolerance. But in grid systems these events are by no means considered as undesirable or unexpected. They are more likely accepted situations that not only may, but will occur as part of the natural evolution of the grid. Therefore, service-level fault tolerance can never regard them as faults. The service-level fault tolerance should focus on QoS issues and global behavior. It can benefit from a representation of the grid global state in a service oriented form. This would become a behavior model based on globally service-relevant states instead of the multiple specifics of each resource. This representation not only seems ideal for service-level fault tolerance, but also provides the abstraction layer mentioned in the previous subsection. With such a model, grid management tools could finally have the previously mentioned single entity perspective, incorporating the system’s complexity without being overwhelmed by it. This could also take service-level fault tolerance a step further, better understanding and improving the systems behaviour and dependability. 5. CONCLUSION AND FUTURE WORK This paper presents a comparative survey of fault tolerance in grid environment. The accepted techniques of fault-tolerance in grid environment with their importance, combinations and variations have been discussed.Replication of job/data is necessary in order to increase the resource availability to the computing nodes. An application of checkpointing is important to formulate organized policies to recover from a system under errors or faults. It effectively prevents system from being led to a failure state. Security aware scheduling of grid jobs migrated through agents improves grid performance significantly. A newer concept, service level behavior or global behavior on understanding the grid services representing a one unified service system has changed the whole understanding perspective of fault scenario in grid computing. Additionally, grid resource management in terms of deploying load balancing techniques enhances grid performance, too. However, accepting the importance of all the aforesaid areas, to put forward a future direction of work, this research would next focus on checkpointing technique for better performance of applications running in grid. It would address the following issues as next course of work: • Checkpoint fixation level: either at system level (i.e. at OS or middleware level) or at application level. • In-transit and Orphan message management with checkpoint: latency and resources held up for this reason would be freed if applied with a suitable policy. • Scope of Checkpoint: local – for each process instance or global – for each parallel program in execution. • Storage space requirement for checkpointing: light – only the first/top level assignment is stored thereby less storage and communication overhead and heavy – in addition to light, newly learnt clauses saved atop the decision stack. • Granularity of checkpointing: full – entire state of application saved and incremental – application state saved from previous checkpoints only.
  • 9. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 9 REFERENCES [1] Asgarali Bouyer, Abdul Hanan Abdullah, Hasan Ebrahimpour and Firouz Nasrollahi," Fault- Tolerance Scheduling by Using Rough Set based Multi-Checkpointing on Economic Grids", International Conference on Computational Science and Engineering, 2009, IEEE Computer Society, pp.103-109. [2] Elvin Sindrilaru, Alexandru Costan and Valentin Cristea, "Fault Tolerance and Recovery in Grid Workflow Management Systems," International Conference on Complex, Intelligent and Software Intensive Systems, 2010, IEEE Computer Society, pp.475-480. [3] Felipe Pontes Guimaraes and Alba Cristina Magalhaes Alves de Melo, “User-Defined Adaptive Fault- Tolerant Execution of Workflows in the Grid,” 11th IEEE International Conference on Computer and Information Technology, 2011, IEEE Computer Society, pp.356-362. [4] Ian Foster, “What is the Grid? A Three Point Checklist”, Argonne National Laboratory & University of Chicago, July 20, 2002. [5] Ivan Cores, Gabriel Rodriguez, Maria J. Martin and Patricia Gonzalez,"Achieving Fault Tolerance on Grids with the CPPC Framework and the GridWay Metascheduler", 22nd International Symposium on Computer Architecture and High Performance Computing, 2010, IEEE Computer Society, pp.119- 126. [6] J. Chen, B. Lu, “Load Balancing Oriented Economic Grid Resource Scheduling”, IEEE Pacific-Asia Workshop on Computational Intelligence and Industrial Application, 2008, pp.813-817. [7] Jesus Montes, Alberto Sanchez and Maria S. Perez, "Improving grid fault tolerance by means of global behavior modeling", Ninth International Symposium on Parallel and Distributed Computing, 2010, IEEE Computer Society, pp.101-108. [8] Kassian Plankensteiner, Radu Prodan and Thomas Fahringer, "A New Fault Tolerance Heuristic for Scientific Workflows in Highly Distributed Environments based on Resubmission Impact," Fifth IEEE International Conference on e-Science,2009, IEEE Computer Society, pp.313-320. [9] Leili Mohammad Khanli,Maryam Etminan Far,Amir Masoud Rahmani, "RFOH: A New Fault Tolerant Job Scheduler in Grid Computing," Second International Conference on Computer Engineering and Applications, 2010, IEEE Computer Society, pp.422-425. [10] M. Amoon, “Design of a Fault-Tolerant Scheduling System for Grid Computing,” Second International Conference on Networking and Distributed Computing, 2011, IEEE Computer Society, pp. 104-108. [11] Maria Chtepen, Filip H.A. Claeys, Bart Dhoedt, Filip De Turck, Piet Demeester and Peter A. Vanrolleghem, "Adaptive Task Checkpointing and Replication: Toward Efficient Fault-Tolerant Grids," IEEE TRANSACTIONS ON PARALLEL AND DISTRIBUTED SYSTEMS, VOL. 20, NO. 2, FEBRUARY 2009. IEEE Computer Society, pp.180-190. [12] P. Krueger, M. Livny, “A Comparison of Preemptive and Non-Preemptive Load Balancing,” 8th International Conference on Distributes Computing Systems, Jun 1988, pp 123-130. [13] Qin Zheng, Bharadwaj Veeravalli and Chen-Khong Tham, "On the Design of Fault-Tolerant Scheduling Strategies Using Primary-Backup Approach for Computational Grids with Low Replication Costs," IEEE TRANSACTIONS ON COMPUTERS, VOL. 58, NO. 3, MARCH 2009, IEEE Computer Society, pp.380-393. [14] S. Siva Sathya, K. Syam Babu, "Survey of fault tolerant techniques for grid," ELSEVIER ScienceDirect, COMPUTER SCIENCE REVIEW 4(2010) pp.101 -120.
  • 10. International Journal of Grid Computing & Applications (IJGCA) Vol.3, No.3, September 2012 10 [15] Shen et al, “System design and implementation of digital-image processing using computational grids”, Computers & Geosciences, volume 31, Issue 5, pp: 619-630 [16] Srinivasa K G, Siddesh G M and Sijo Cherian, "Fault-Tolerant middleware for Grid Computing," 12th IEEE International Conference on High Performance Computing and Communications, 2010, IEEE Computer Society, pp.635-640. [17] Tian-Liang Huang, Tian-An Hsieh, Kuan-Chou Lai, Kuan-Ching Li, Ching-Hsien Hsu and Hsi-Ya Chang,"Fault Tolerance Policy on Dynamic Load Balancing in P2P Grids," International Joint Conference of IEEE TrustCom-11/IEEE ICESS-11/FCST-11, 2011, IEEE Computer Society, pp.1413-1420. [18] Yi Hu, Bin Gong and Fengyu Wang, "Cloud Model-Based Security-aware and Fault-Tolerant Job Scheduling for Computing Grid,",The Fifth Annual ChinaGrid Conference, IEEE Computer Society, pp.25-30. [19] Y. Pan, W. Lu, Y. Zhang, K. Chiu, “A Static Load-Balancing Scheme for Parallel XML Parsing on Multicore CPUs”, Seventh IEEE International Symposium on Cluster Computing and the Grid (CCGrid '07), 2007, pp.351-362. Authors Arindam Das is presently working as Assistant Professor in MCKV Institute of Engineering, Howrah, India. After graduating in Science from Calcutta University in 1997, he started his career as Laboratory Instructor in a leading Engineering Institution. Later, he completed his MCA from Indira Gandhi National Open University in 2004. He completed his MTech in Information Technology from Bengal Engineering and Science University in 2009. Currently he is pursuing PhD in the field of Grid Computing. Ajanta De Sarkar is working as Associate Professor in the department of CSE in Birla Institute of Technology, Mesra. She is having altogether 16 years of experience including 6 years of Industry experience. Having graduated from Bethune College, University of Calcutta in B.Sc. (Mathematics) in 1993, and obtained MCA degree in 1996 from Jadavpur University. She has been awarded PhD in Engg. from Jadavpur University in 2009. Her field of Specialization is Distributed Computing, specifically Grid Computing. Her focused research area includes Grid Computing, Cloud Computing and Wireless Sensor Network.
