Hammerite paint offers a range of products designed for protecting and rejuvenating metal surfaces, available in various finishes including smooth, hammered, and satin. Their 'direct to rust' and 'direct to galv' paints promise strong adhesion, easy application, and long-lasting corrosion resistance, with recommended film thickness and application methods. The technical guide provides detailed instructions on usage, compatibility, and maintenance advice to achieve optimal performance.

1. THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C
www.hammerite.co.nz / www.hobeca.co.nz
Hobeca Trading Co. Ltd., PO Box 10060, Auckland 1446, New Zealand
Phone: (09) 630-4602

2. THE
METAL PAINT
SPECIALISTS
LON RE
G LASTING METAL CA
HAMMERITE PAINT TECHNICAL GUIDE

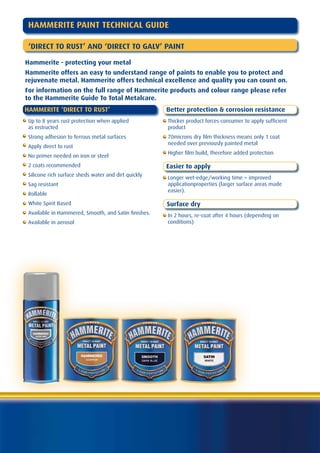

3. HAMMERITE PAINT TECHNICAL GUIDE
‘DIRECT TO RUST’ AND ‘DIRECT TO GALV’ PAINT
Hammerite - protecting your metal
Hammerite offers an easy to understand range of paints to enable you to protect and
rejuvenate metal. Hammerite offers technical excellence and quality you can count on.
For information on the full range of Hammerite products and colour range please refer
to the Hammerite Guide To Total Metalcare.
HAMMERITE ‘DIRECT TO RUST’ Better protection & corrosion resistance
Up to 8 years rust protection when applied Thicker product forces consumer to apply sufficient
as instructed product
• Strong adhesion to ferrous metal surfaces 70microns dry film thickness means only 1 coat
needed over previously painted metal
Apply direct to rust
Higher film build, therefore added protection
No primer needed on iron or steel
2 coats recommended Easier to apply
Silicone rich surface sheds water and dirt quickly
Longer wet-edge/working time = improved
Sag resistant applicationproperties (larger surface areas made
easier).
Rollable
White Spirit Based Surface dry
Available in Hammered, Smooth, and Satin finishes. In 2 hours, re-coat after 4 hours (depending on
Available in aerosol conditions)

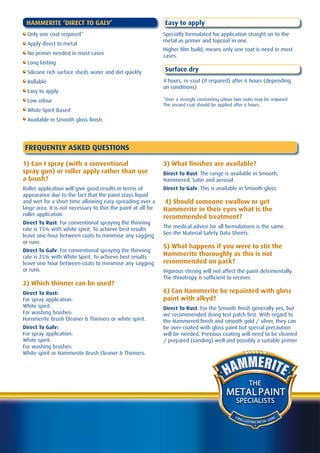

4. HAMMERITE ‘DIRECT TO GALV’ Easy to apply
Only one coat required* Specially formulated for application straight on to the
metal as primer and topcoat in one.
Apply direct to metal
Higher film build, means only one coat is need in most
No primer needed in most cases cases.
Long lasting
Silicone rich surface sheds water and dirt quickly Surface dry
Rollable 4 hours, re-coat (if required) after 6 hours (depending
on conditions)
Easy to apply
Low odour *Over a strongly contrasting colour two coats may be required.
The second coat should be applied after 6 hours.
White Spirit Based
Available in Smooth gloss finish.
FREQUENTLY ASKED QUESTIONS
1) Can I spray (with a conventional 3) What finishes are available?
spray gun) or roller apply rather than use Direct To Rust: The range is available in Smooth,
a brush? Hammered, Satin and aerosol.
Roller application will give good results in terms of Direct To Galv: This is available in Smooth gloss.
appearance due to the fact that the paint stays liquid
and wet for a short time allowing easy spreading over a 4) Should someone swallow or get
large area. It is not necessary to thin the paint at all for Hammerite in their eyes what is the
roller application recommended treatment?
Direct To Rust: For conventional spraying the thinning
rate is 15% with white spirit. To achieve best results The medical advice for all formulations is the same.
leave one hour between coats to minimise any sagging See the Material Safety Data Sheets.
or runs.
5) What happens if you were to stir the
Direct To Galv: For conventional spraying the thinning
rate is 25% with White Spirit. To achieve best results
Hammerite thoroughly as this is not
leave one hour between coats to minimise any sagging recommended on pack?
or runs. Vigorous stirring will not affect the paint detrimentally.
The thixotropy is sufficient to recover.
2) Which thinner can be used?
Direct To Rust: 6) Can Hammerite be repainted with gloss
For spray application: paint with alkyd?
White spirit. Direct To Rust: For the Smooth finish generally yes, but
For washing brushes: we recommended doing test patch first. With regard to
Hammerite Brush Cleaner & Thinners or white spirit. the Hammered finish and smooth gold / silver, they can
Direct To Galv: be over-coated with gloss paint but special precaution
For spray application: will be needed. Previous coating will need to be cleaned
White spirit. / prepared (sanding) well and possibly a suitable primer
For washing brushes:
White spirit or Hammerite Brush Cleaner & Thinners.
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

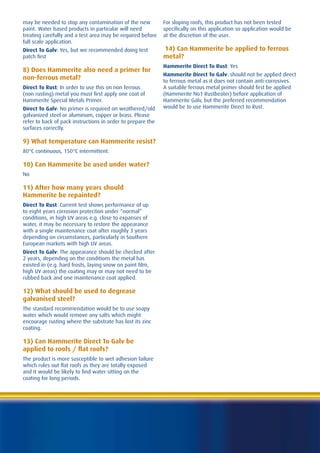

5. may be needed to stop any contamination of the new For sloping roofs, this product has not been tested
paint. Water based products in particular will need specifically on this application so application would be
treating carefully and a test area may be required before at the discretion of the user.
full scale application.
Direct To Galv: Yes, but we recommended doing test 14) Can Hammerite be applied to ferrous
patch first metal?
Hammerite Direct To Rust: Yes
8) Does Hammerite also need a primer for
Hammerite Direct To Galv: should not be applied direct
non-ferrous metal? to ferrous metal as it does not contain anti-corrosives.
Direct To Rust: In order to use this on non ferrous A suitable ferrous metal primer should first be applied
(non rusting) metal you must first apply one coat of (Hammerite No1 Rustbeater) before application of
Hammerite Special Metals Primer. Hammerite Galv, but the preferred recommendation
Direct To Galv: No primer is required on weathered/old would be to use Hammerite Direct to Rust.
galvanized steel or aluminum, copper or brass. Please
refer to back of pack instructions in order to prepare the
surfaces correctly.
9) What temperature can Hammerite resist?
80°C continuous, 150°C intermittent.
10) Can Hammerite be used under water?
No
11) After how many years should
Hammerite be repainted?
Direct To Rust: Current test shows performance of up
to eight years corrosion protection under “normal”
conditions, in high UV areas e.g. close to expanses of
water, it may be necessary to restore the appearance
with a single maintenance coat after roughly 3 years
depending on circumstances, particularly in Southern
European markets with high UV areas.
Direct To Galv: The appearance should be checked after
2 years, depending on the conditions the metal has
existed in (e.g. hard frosts, laying snow on paint film,
high UV areas) the coating may or may not need to be
rubbed back and one maintenance coat applied.
12) What should be used to degrease
galvanised steel?
The standard recommendation would be to use soapy
water which would remove any salts which might
encourage rusting where the substrate has lost its zinc
coating.
13) Can Hammerite Direct To Galv be
applied to roofs / flat roofs?
The product is more susceptible to wet adhesion failure
which rules out flat roofs as they are totally exposed
and it would be likely to find water sitting on the
coating for long periods.

6. TECHNICAL DATA
HAMMERITE DIRECT TO RUST METAL PAINT
Smooth • Hammered • Satin • Aerosol
Gloss
at
Pr
rco
im
de
er
Un
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

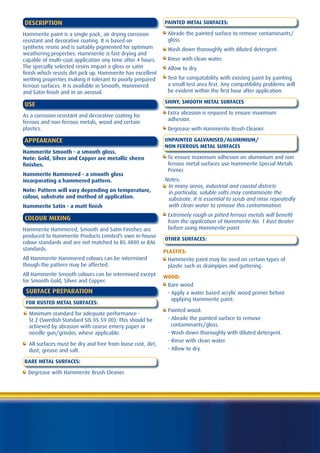

7. DESCRIPTION PAINTED METAL SURFACES:
Hammerite paint is a single pack, air drying corrosion Abrade the painted surface to remove contaminants/
resistant and decorative coating. It is based on gloss.
synthetic resins and is suitably pigmented for optimum Wash down thoroughly with diluted detergent.
weathering properties. Hammerite is fast drying and
capable of multi-coat application any time after 4 hours. Rinse with clean water.
The specially selected resins impart a gloss or satin Allow to dry.
finish which resists dirt pick up. Hammerite has excellent
wetting properties making it tolerant to poorly prepared Test for compatability with existing paint by painting
ferrous surfaces. It is available in Smooth, Hammered a small test area first. Any compatibility problems will
and Satin finish and in an aerosol. be evident within the first hour after application.
SHINY, SMOOTH METAL SURFACES
USE
Extra abrasion is required to ensure maximum
As a corrosion resistant and decorative coating for
adhesion.
ferrous and non-ferrous metals, wood and certain
plastics. Degrease with Hammerite Brush Cleaner.
APPEARANCE UNPAINTED GALVANISED/ALUMINIUM/
NON FERROUS METAL SURFACES
Hammerite Smooth - a smooth gloss.
Note: Gold, Silver and Copper are metallic sheen To ensure maximum adhesion on aluminium and non
finishes. ferrous metal surfaces use Hammerite Special Metals
Primer.
Hammerite Hammered - a smooth gloss
incorporating a hammered pattern. Notes:
In many areas, industrial and coastal districts
Note: Pattern will vary depending on temperature, in particular, soluble salts may contaminate the
colour, substrate and method of application. substrate. It is essential to scrub and rinse repeatedly
Hammerite Satin - a matt finish with clean water to remove this contamination.
Extremely rough or pitted ferrous metals will benefit
COLOUR MIXING from the application of Hammerite No. 1 Rust Beater
Hammerite Hammered, Smooth and Satin Finishes are before using Hammerite paint.
produced to Hammerite Products Limited’s own in-house
OTHER SURFACES:
colour standards and are not matched to BS 4800 or RAL
standards. PLASTICS:
All Hammerite Hammered colours can be intermixed Hammerite paint may be used on certain types of
though the pattern may be affected. plastic such as drainpipes and guttering.
All Hammerite Smooth colours can be intermixed except WOOD:
for Smooth Gold, Silver and Copper.
Bare wood
SURFACE PREPARATION - Apply a water based acrylic wood primer before
applying Hammerite paint.
FOR RUSTED METAL SURFACES:
Painted wood:
Minimum standard for adequate performance -
St 2 (Swedish Standard SIS 05 59 00). This should be - Abrade the painted surface to remove
achieved by abrasion with coarse emery paper or contaminants/gloss.
needle gun/grinder, where applicable. - Wash down thoroughly with diluted detergent.
- Rinse with clean water.
All surfaces must be dry and free from loose rust, dirt,
dust, grease and salt. - Allow to dry.
BARE METAL SURFACES:
Degrease with Hammerite Brush Cleaner.

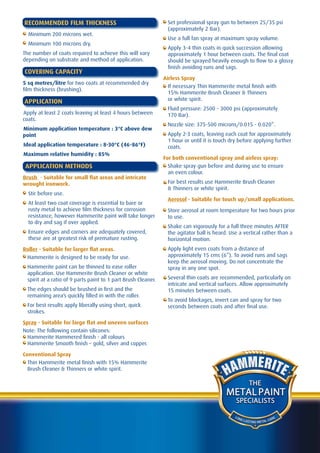

8. RECOMMENDED FILM THICKNESS Set professional spray gun to between 25/35 psi
(approximately 2 Bar).
Minimum 200 microns wet.
Use a full fan spray at maximum spray volume.
Minimum 100 microns dry.
Apply 3-4 thin coats in quick succession allowing
The number of coats required to achieve this will vary approximately 1 hour between coats. The final coat
depending on substrate and method of application. should be sprayed heavily enough to flow to a glossy
finish avoiding runs and sags.
COVERING CAPACITY
Airless Spray
5 sq metres/litre for two coats at recommended dry
If necessary Thin Hammerite metal finish with
film thickness (brushing).
15% Hammerite Brush Cleaner & Thinners
APPLICATION or white spirit.
Fluid pressure: 2500 - 3000 psi (approximately
Apply at least 2 coats leaving at least 4 hours between 170 Bar).
coats.
Nozzle size: 375-500 microns/0.015 - 0.020”.
Minimum application temperature : 3°C above dew
point Apply 2-3 coats, leaving each coat for approximately
1 hour or until it is touch dry before applying further
Ideal application temperature : 8-30°C (46-86°F) coats.
Maximum relative humidity : 85%
For both conventional spray and airless spray:
APPLICATION METHODS Shake spray gun before and during use to ensure
an even colour.
Brush - Suitable for small flat areas and intricate
wrought ironwork. For best results use Hammerite Brush Cleaner
& Thinners or white spirit.
Stir before use.
Aerosol - Suitable for touch up/small applications.
At least two coat coverage is essential to bare or
rusty metal to achieve film thickness for corrosion Store aerosol at room temperature for two hours prior
resistance, however Hammerite paint will take longer to use.
to dry and sag if over applied.
Shake can vigorously for a full three minutes AFTER
Ensure edges and corners are adequately covered, the agitator ball is heard. Use a vertical rather than a
these are at greatest risk of premature rusting. horizontal motion.
Roller - Suitable for larger flat areas. Apply light even coats from a distance of
Hammerite is designed to be ready for use. approximately 15 cms (6”). To avoid runs and sags
keep the aerosol moving. Do not concentrate the
Hammerite paint can be thinned to ease roller spray in any one spot.
application. Use Hammerite Brush Cleaner or white
spirit at a ratio of 9 parts paint to 1 part Brush Cleaner. Several thin coats are recommended, particularly on
intricate and vertical surfaces. Allow approximately
The edges should be brushed in first and the 15 minutes between coats.
remaining area’s quickly filled in with the roller.
To avoid blockages, invert can and spray for two
For best results apply liberally using short, quick seconds between coats and after final use.
strokes.
Spray - Suitable for large flat and uneven surfaces
Note: The following contain silicones:
Hammerite Hammered finish - all colours
Hammerite Smooth finish – gold, silver and copper.
Conventional Spray
Thin Hammerite metal finish with 15% Hammerite
Brush Cleaner & Thinners or white spirit.
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

9. HOW TO ENSURE MAXIMUM PERFORMANCE WHEN SPRAY FINISHING
Problem Cause Remedy
1. Colours or shade varies. Pigment settling in gun. Shake gun more frequently and
apply further coats.
2. Rough ‘sandpapery’ appearance Paint drying too quickly. Check for blocked jets or air vents in
lacking gloss. Gun pressure may be too high. container.
Reduce gun pressure.
3. Excessive consumption. Pressure too high causing ‘bounce’. Reduce gun pressure.
Conditions too windy. Wait for still conditions.
4. Paint runs. Excessive thickness in one coat. If not too severe wait 60 minutes
and re-spray.
If very bad, allow to full dry, level
off with emery and re-spray
Hammered Finish Only
5. Pattern very small or no pattern Final coat too thin. Apply a thicker coat.
at all.
6. Surface is uneven with pin-holes Temperature too low causing pattern Minimum recommended application
or craters. drift. temperature 10°C (50°F).
DRYING TIME (120°F). Do not pierce or burn even after use.
Touch/Surface Dry: 2 hours approximately CORROSION RESISTANCE
Intercoat Period: After 4 hours
Passes 1600hours (8 year equivalent) ASTM B117 1973
Note: Times may change depending on weather at 100 microns dry film thickness ASTM D609, Type2
conditions A366 steel panels.
CLEANING EQUIPMENT IMPACT RESISTANCE
Use Hammerite Brush Cleaner. Passes 15cm (face) BS3900, E7 falling ball 15”/lb 7 days
at 100 microns dry film thickness.
SHELF LIFE AND STORAGE CONDITIONS
Tins ADHESION
Minimum two years at 20°C (70°F) stored in original Passes BS 3900 E6, 7 days at 100 microns dry film
unopened containers. Hammerite paint should be stored thickness.
in a dry, well ventilated area. Protect from extremes of
temperature, ie frost and strong sunlight. CHEMICAL RESISTANCE
Aerosol
Resists splashing by dilute acids/alkalis (10% max),
Minimum two years at 20°C (70°F) in original unopened
petrol, diesel and all common building materials when
containers. Pressurised container - protect from sunlight
fully cured.
and do not expose to temperatures exceeding 50°C

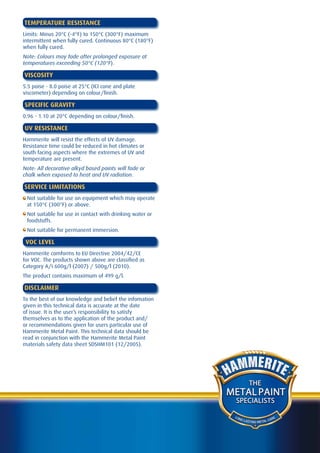

10. TEMPERATURE RESISTANCE
Limits: Minus 20°C (-4°F) to 150°C (300°F) maximum
intermittent when fully cured. Continuous 80°C (180°F)
when fully cured.
Note: Colours may fade after prolonged exposure at
temperatures exceeding 50°C (120°F).
VISCOSITY
5.5 poise - 8.0 poise at 25°C (ICI cone and plate
viscometer) depending on colour/finish.
SPECIFIC GRAVITY
0.96 - 1.10 at 20°C depending on colour/finish.
UV RESISTANCE
Hammerite will resist the effects of UV damage.
Resistance time could be reduced in hot climates or
south facing aspects where the extremes of UV and
temperature are present.
Note: All decorative alkyd based paints will fade or
chalk when exposed to heat and UV radiation.
SERVICE LIMITATIONS
Not suitable for use on equipment which may operate
at 150°C (300°F) or above.
Not suitable for use in contact with drinking water or
foodstuffs.
Not suitable for permanent immersion.
VOC LEVEL
Hammerite comforms to EU Directive 2004/42/CE
for VOC. The products shown above are classified as
Category A/i 600g/l (2007) / 500g/l (2010).
The product contains maximum of 499 g/l.
DISCLAIMER
To the best of our knowledge and belief the infomation
given in this technical data is accurate at the date
of issue. It is the user’s responsibility to satisfy
themselves as to the application of the product and/
or recommendations given for users particular use of
Hammerite Metal Paint. This technical data should be
read in conjunction with the Hammerite Metal Paint
materials safety data sheet SDSHM101 (12/2005).
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

11. TECHNICAL DATA
HAMMERITE DIRECT TO GALV PAINT
Gloss
at
Pr
rco
im
de
er
Un

12. DESCRIPTION PAINTED METAL SURFACES:
Hammerite Direct to Galv Paint is a single pack, air Abrade the painted surface to remove contaminants/
drying decorative coating for application to Galvanised gloss.
Steel and other non-ferrous metals without the need
Wash down thoroughly with Hammerite Brush Cleaner,
for a primer. The product uses an alkyd designed for
metal degreaser or diluted detergent (preferred
general purpose high quality air-drying and force
option) both for removal of surface contaminants and
drying industrial finishes and exhibits properties of fast
soluble salts.
surface dry, excellent through dry in thick films, early
recoatability and minimum yellowing. Hammerite Direct Rinse with clean water.
to Galv can be applied by brush, roller and spray. The
Allow to dry.
specially selected resin imparts a gloss finish which
resists dirt pick up. Hammerite Direct to Galv Paint is Test for compatibility with existing paint by painting a
designed to give excellent one coat coverage. small test area first. Any compatibility problems will
be evident within the first hour after application.
USE
SHINY, SMOOTH METAL SURFACES
As a decorative coating for galvanised and non-ferrous
metals, wood and certain plastics. Abrasion is required to ensure maximum adhesion.
Degrease with Hammerite Brush Cleaner, metal
APPEARANCE degreaser or diluted detergent (preferred option) both
for removal of surface contaminants and soluble salts.
Hammerite Direct to Galv Paint - a smooth gloss.
Note: Bronze, Silver and Copper are metallic sheen Rinse with clean water.
finishes..
Allow to dry.
COLOUR RANGE Apply a phosphoric acid etch primer (mordant
solution) to convert the galvanised steel zinc surface
See colour chart. before application of DTG.
Note: Hammerite Direct to Galv Paint Finishes are
produced to Hammerite Products Limited’s own FOR RUSTED METAL SURFACES:
in-house colour standards and are not matched to
BS 4800 or RAL standards. For rusty steel or iron: Hammerite Direct To Galv is not
suitable for ferrous metal. Use Hammerite Direct To Rust
COLOUR MIXING Paint.
Do not mix Hammerite Direct to Galv Paint with any For light white rust on galvanised steel (light powdery
other Hammerite finish’s. deposit): Wipe clean with a paint brush, abrade, and
degrease as above.
SURFACE PREPARATION For moderate white rust on galvanised steel (darkening
and apparent etching of the surface): Wire brush
BARE METAL SURFACES: affected area to remove white corrosion, then use a
cloth which has been wet with a standard aluminium
New galvanised steel should be weathered until dull
paint to wipe a thin film on to the affected area. Then
before application of DTG (this is true of both spangled
abrade, and degrease as above.
and non-spangled galvanised steel).
For severe corrosion on galvanised steel (severe oxide
Abrade giving a key to subsequent coatings. This is
deposits which look brown or black and/or red rust,
essential to remove any pre-treatment factory finish
(this means the zinc coating has been lost). Apply a
(chromate pretreatment). Abrasion should be with
standard zinc rich paint follow the on pack instructions.
coarse sandpaper rather than fine to ensure removal
Then following the zinc rich paint over coating
of this coating.
instructions apply Hammerite Direct To Galv on top. It is
Degrease with Hammerite Brush Cleaner, metal advisable to test patch a small area before applying to
degreaser or diluted detergent (preffered option) both the entire surface.
for removal of surface contaminants and soluble salts.
Rinse with clean water.
Allow to dry.
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

13. UNPAINTED ALUMINIUM/NON FERROUS APPLICATION METHODS
METAL SURFACES
Brush - Suitable for small areas.
To ensure maximum adhesion on aluminium and non Stir before use.
ferrous metal surfaces use Hammerite Special Metals
Primer. One coat will normally be sufficient but additional
coats may be required when applying over contrasting
Notes: In many areas, industrial and coastal districts in colours.
particular, soluble salts may contaminate the substrate.
It is essential to scrub and rinse repeatedly with dilute Ensure edges and corners are adequately covered.
detergent and rinse with clean water to remove this
Roller - Suitable for larger flat areas.
contamination.
Hammerite Direct to Galv Paint is designed to be
OTHER SURFACES: ready for use.
PLASTICS Hammerite Direct to Galv Paint can be thinned to ease
roller application. Use Hammerite Brush Cleaner or
Hammerite paint may be used on certain types of white spirit at a ratio of 9 parts paint to 1 part Brush
plastic such as drainpipes and guttering. Cleaner or white spirit.
WOOD The edges should be brushed in first and the
Bare wood remaining area’s quickly filled in with the roller.
- apply a water based acrylic wood primer before For best results apply liberally using short, quick
applying Hammerite paint. strokes.
Painted wood:
Spray - Suitable for large flat and uneven surfaces
- Abrade the painted surface to remove
contaminants/gloss. Note: The following contain silicones:
- Wash down thoroughly with diluted detergent. Hammerite Direct to Galv Paint – bronze, silver and
copper.
- Rinse with clean water.
Conventional Spray
- Allow to dry.
Thin Hammerite Direct to Galv Paint with up to 25%
RECOMMENDED FILM THICKNESS white spirit
Minimum 100 microns wet. Set professional spray gun to between 25/35 psi
(approximately 2 Bar).
Minimum 50 microns dry.
Use a full fan spray at maximum spray volume.
One coat will normally be sufficient although additional
coats may be required when applying over contrasting One coat will normally give full coverage but where
colours. additional coats are required over contrasting colours
leave approximately 1 hour between coats. The final
COVERING CAPACITY coat should be sprayed heavily enough to flow to a
glossy finish avoiding runs and sags.
Up to 14sq metres/litre for one coat at recommended
Airless Spray
dry film thickness (brushing).
Thinning not required but if necessary thin Hammerite
APPLICATION Direct to Galv Paint with up to 25% white spirit.
Only one coat is usually required. However when Fluid pressure: 2500 - 3000 psi (approximately
applying over a contrasting colour a 2nd coat may be 170 Bar).
needed. Leave at least 4 hours between coats. Nozzle size: 375-500 microns/0.015 - 0.020”.
Minimum application temperature: 3°C above One coat will normally give full coverage but where
dew point additional coats are required over contrasting colours
Ideal application temperature: 8-30°C (46-86°F) leave approximately 1 hour between coats or until
Maximum relative humidity: 85% it is touch dry before applying further coats.

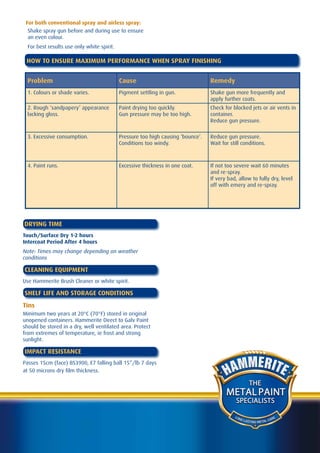

14. For both conventional spray and airless spray:
Shake spray gun before and during use to ensure
an even colour.
For best results use only white spirit.
HOW TO ENSURE MAXIMUM PERFORMANCE WHEN SPRAY FINISHING
Problem Cause Remedy
1. Colours or shade varies. Pigment settling in gun. Shake gun more frequently and
apply further coats.
2. Rough ‘sandpapery’ appearance Paint drying too quickly. Check for blocked jets or air vents in
lacking gloss. Gun pressure may be too high. container.
Reduce gun pressure.
3. Excessive consumption. Pressure too high causing ‘bounce’. Reduce gun pressure.
Conditions too windy. Wait for still conditions.
4. Paint runs. Excessive thickness in one coat. If not too severe wait 60 minutes
and re-spray.
If very bad, allow to fully dry, level
off with emery and re-spray.
DRYING TIME
Touch/Surface Dry 1-2 hours
Intercoat Period After 4 hours
Note: Times may change depending on weather
conditions
CLEANING EQUIPMENT
Use Hammerite Brush Cleaner or white spirit.
SHELF LIFE AND STORAGE CONDITIONS
Tins
Minimum two years at 20°C (70°F) stored in original
unopened containers. Hammerite Direct to Galv Paint
should be stored in a dry, well ventilated area. Protect
from extremes of temperature, ie frost and strong
sunlight.
IMPACT RESISTANCE
Passes 15cm (face) BS3900, E7 falling ball 15”/lb 7 days
at 50 microns dry film thickness.
THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C

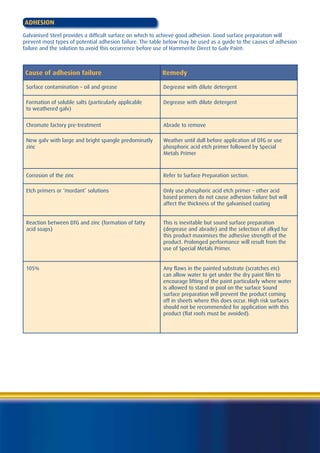

15. ADHESION
Galvanised Steel provides a difficult surface on which to achieve good adhesion. Good surface preparation will
prevent most types of potential adhesion failure. The table below may be used as a guide to the causes of adhesion
failure and the solution to avoid this occurrence before use of Hammerite Direct to Galv Paint:
Cause of adhesion failure Remedy
Surface contamination – oil and grease Degrease with dilute detergent
Formation of soluble salts (particularly applicable Degrease with dilute detergent
to weathered galv)
Chromate factory pre-treatment Abrade to remove
New galv with large and bright spangle predominatly Weather until dull before application of DTG or use
zinc phosphoric acid etch primer followed by Special
Metals Primer
Corrosion of the zinc Refer to Surface Preparation section.
Etch primers or ‘mordant’ solutions Only use phosphoric acid etch primer – other acid
based primers do not cause adhesion failure but will
affect the thickness of the galvanised coating
Reaction between DTG and zinc (formation of fatty This is inevitable but sound surface preparation
acid soaps) (degrease and abrade) and the selection of alkyd for
this product maximises the adhesive strength of the
product. Prolonged performance will result from the
use of Special Metals Primer.
105% Any flaws in the painted substrate (scratches etc)
can allow water to get under the dry paint film to
encourage lifting of the paint particularly where water
is allowed to stand or pool on the surface Sound
surface preparation will prevent the product coming
off in sheets where this does occur. High risk surfaces
should not be recommended for application with this
product (flat roofs must be avoided).

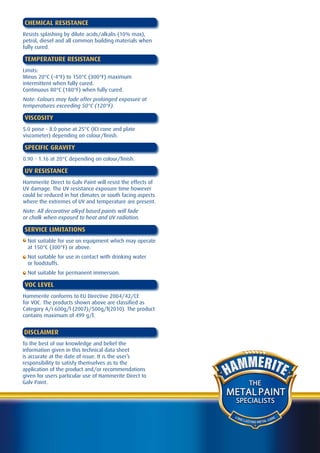

16. CHEMICAL RESISTANCE
Resists splashing by dilute acids/alkalis (10% max),
petrol, diesel and all common building materials when
fully cured.
TEMPERATURE RESISTANCE
Limits:
Minus 20°C (-4°F) to 150°C (300°F) maximum
intermittent when fully cured.
Continuous 80°C (180°F) when fully cured.
Note: Colours may fade after prolonged exposure at
temperatures exceeding 50°C (120°F).
VISCOSITY
5.0 poise - 8.0 poise at 25°C (ICI cone and plate
viscometer) depending on colour/finish.
SPECIFIC GRAVITY
0.90 - 1.16 at 20°C depending on colour/finish.
UV RESISTANCE
Hammerite Direct to Galv Paint will resist the effects of
UV damage. The UV resistance exposure time however
could be reduced in hot climates or south facing aspects
where the extremes of UV and temperature are present.
Note: All decorative alkyd based paints will fade
or chalk when exposed to heat and UV radiation.
SERVICE LIMITATIONS
Not suitable for use on equipment which may operate
at 150°C (300°F) or above.
Not suitable for use in contact with drinking water
or foodstuffs.
Not suitable for permanent immersion.
VOC LEVEL
Hammerite conforms to EU Directive 2004/42/CE
for VOC. The products shown above are classified as
Category A/i 600g/l (2007)/500g/l(2010). The product
contains maximum of 499 g/l.
DISCLAIMER
To the best of our knowledge and belief the
information given in this technical data sheet
is accurate at the date of issue. It is the user’s
responsibility to satisfy themselves as to the
application of the product and/or recommendations
given for users particular use of Hammerite Direct to
Galv Paint. THE
METAL PAINT
SPECIALISTS
LO N
G LA A RE
STING METAL C
