Samnang Chhun (samnang@wowkhmer.com)
Software Engineer,
http://tech.wowkhmer.com

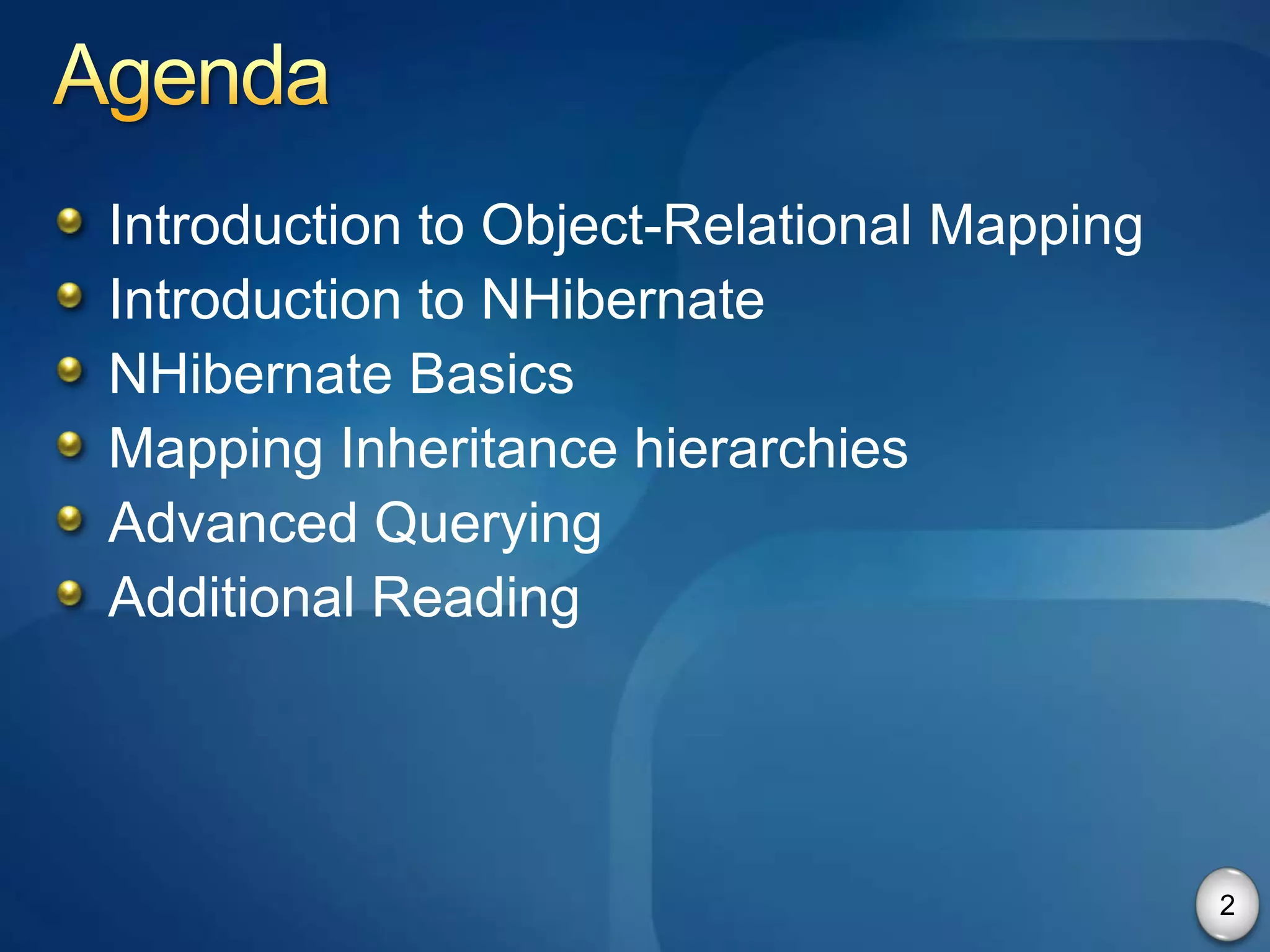

Introduction to Object-Relational Mapping
Introduction to NHibernate
NHibernate Basics

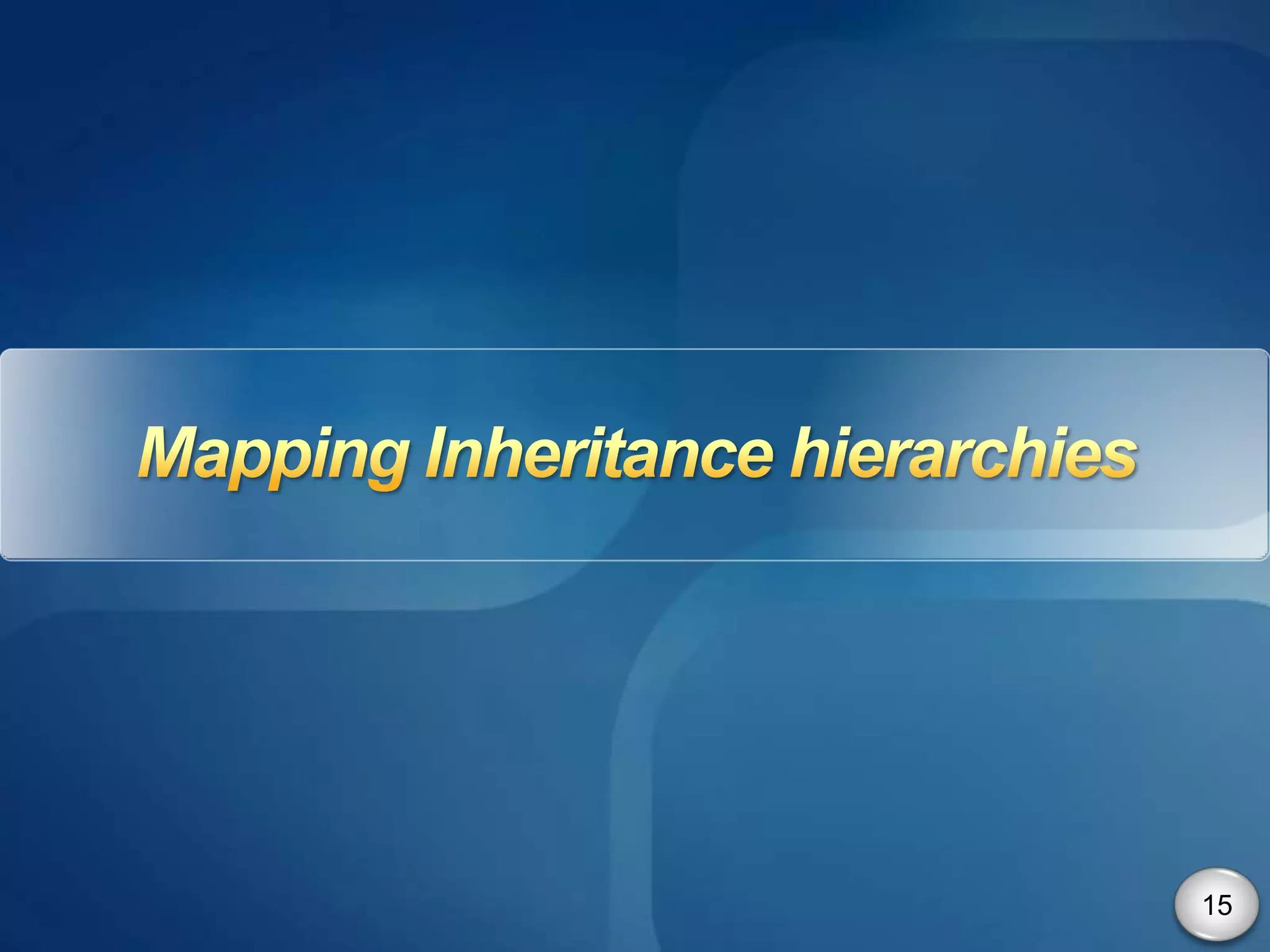

Mapping Inheritance hierarchies
Advanced Querying
Additional Reading




                                            2
3

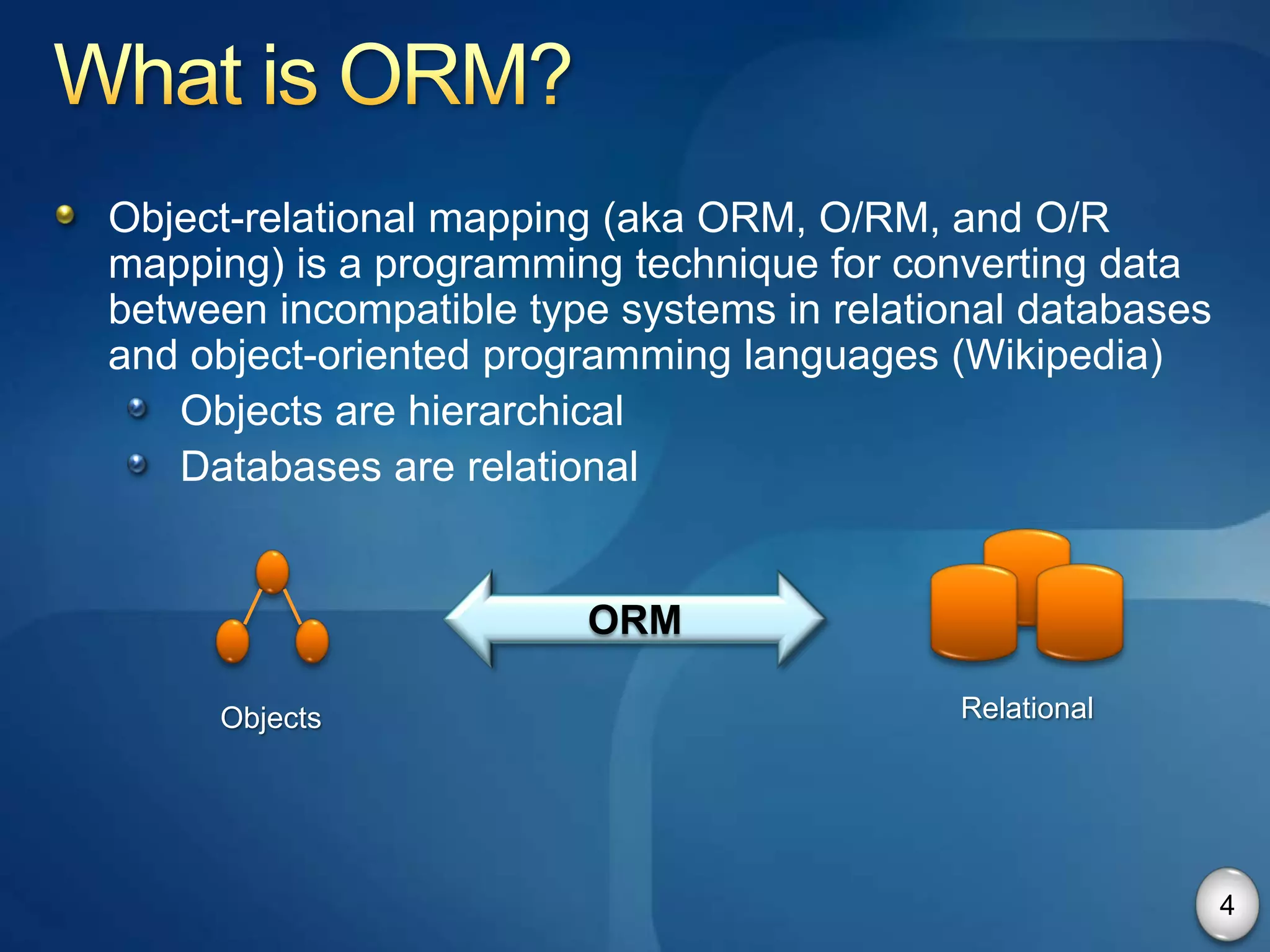

Object-relational mapping (aka ORM, O/RM, and O/R
mapping) is a programming technique for converting data
between incompatible type systems in relational databases
and object-oriented programming languages (Wikipedia)
   Objects are hierarchical
   Databases are relational


                        ORM

     Objects                                Relational




                                                            4

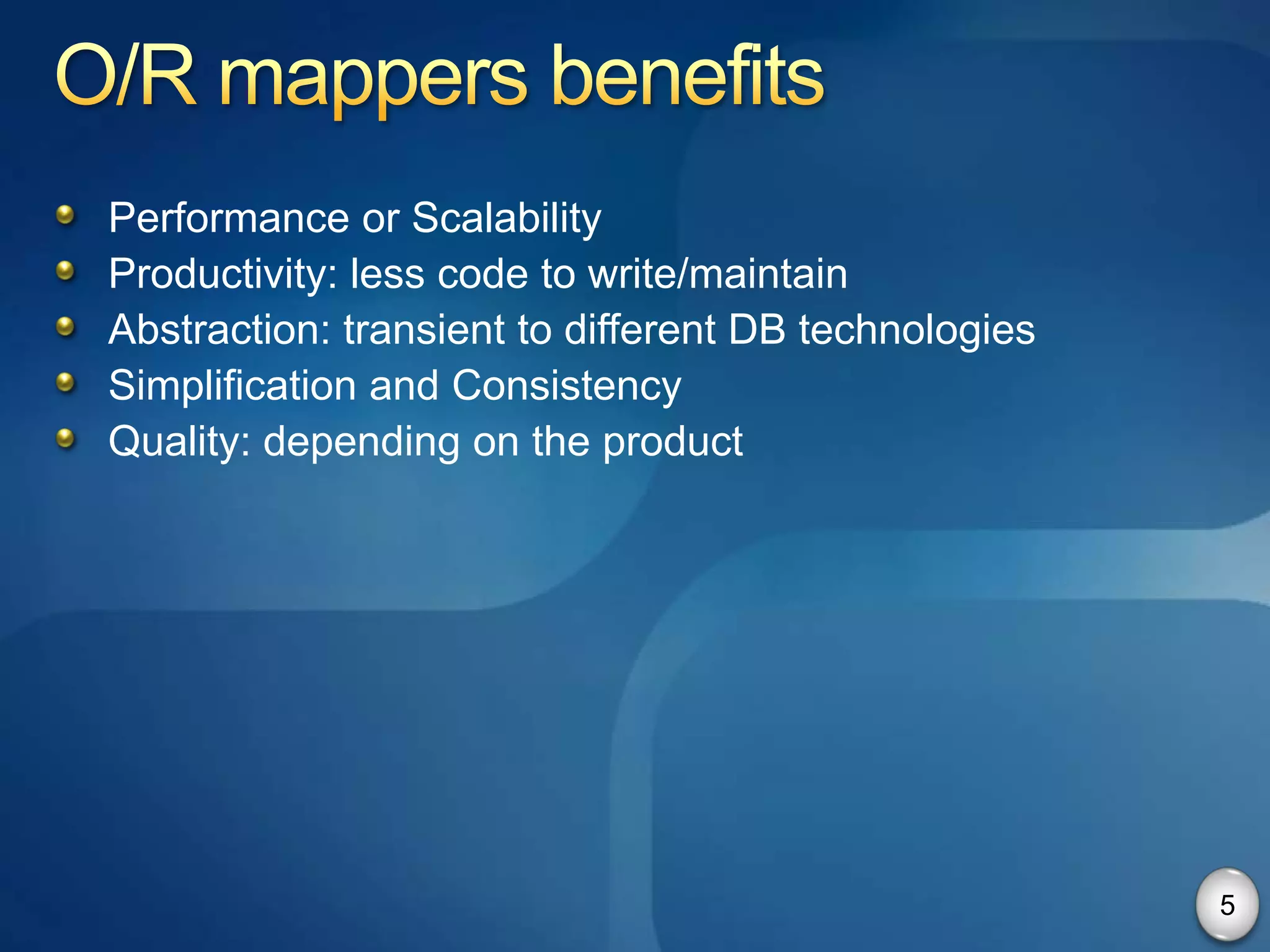

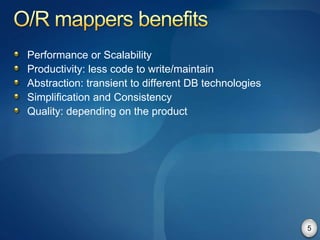

Performance or Scalability
Productivity: less code to write/maintain
Abstraction: transient to different DB technologies
Simplification and Consistency
Quality: depending on the product




                                                      5

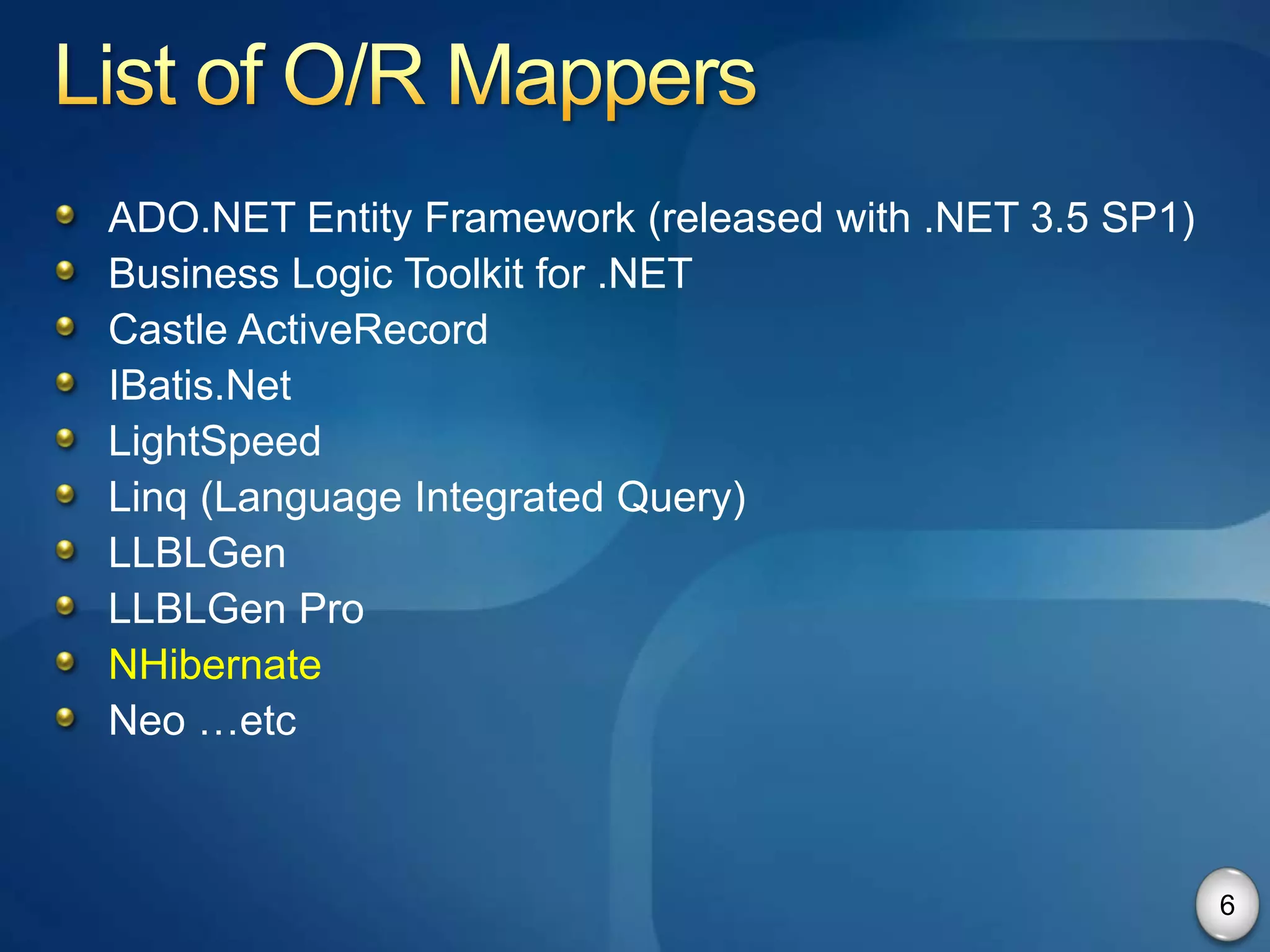

ADO.NET Entity Framework (released with .NET 3.5 SP1)
Business Logic Toolkit for .NET
Castle ActiveRecord
IBatis.Net
LightSpeed
Linq (Language Integrated Query)
LLBLGen
LLBLGen Pro
NHibernate
Neo …etc



                                                        6
7

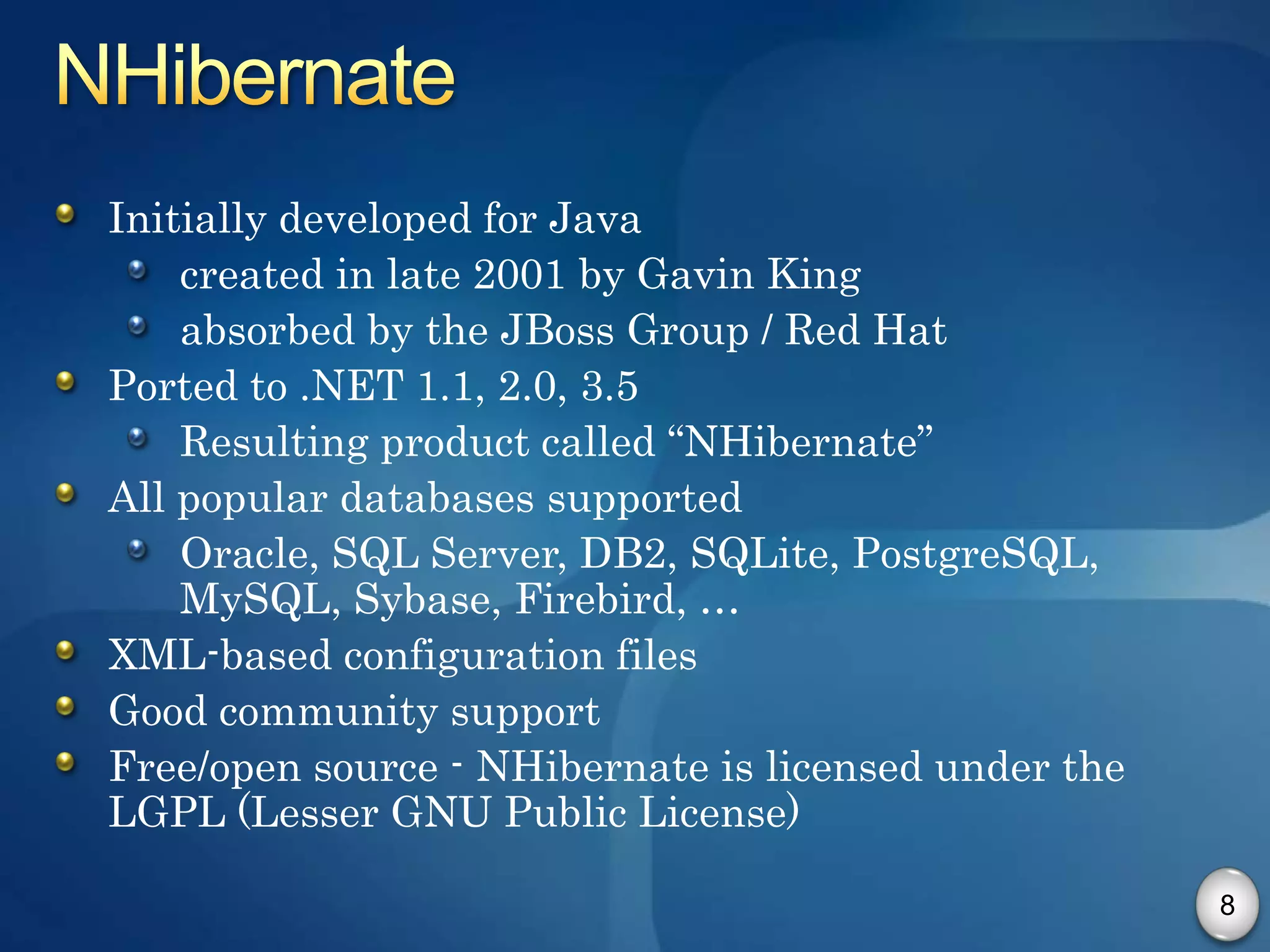

Initially developed for Java
    created in late 2001 by Gavin King
    absorbed by the JBoss Group / Red Hat
Ported to .NET 1.1, 2.0, 3.5
    Resulting product called “NHibernate”
All popular databases supported
    Oracle, SQL Server, DB2, SQLite, PostgreSQL,
    MySQL, Sybase, Firebird, …
XML-based configuration files
Good community support
Free/open source - NHibernate is licensed under the
LGPL (Lesser GNU Public License)

                                                      8

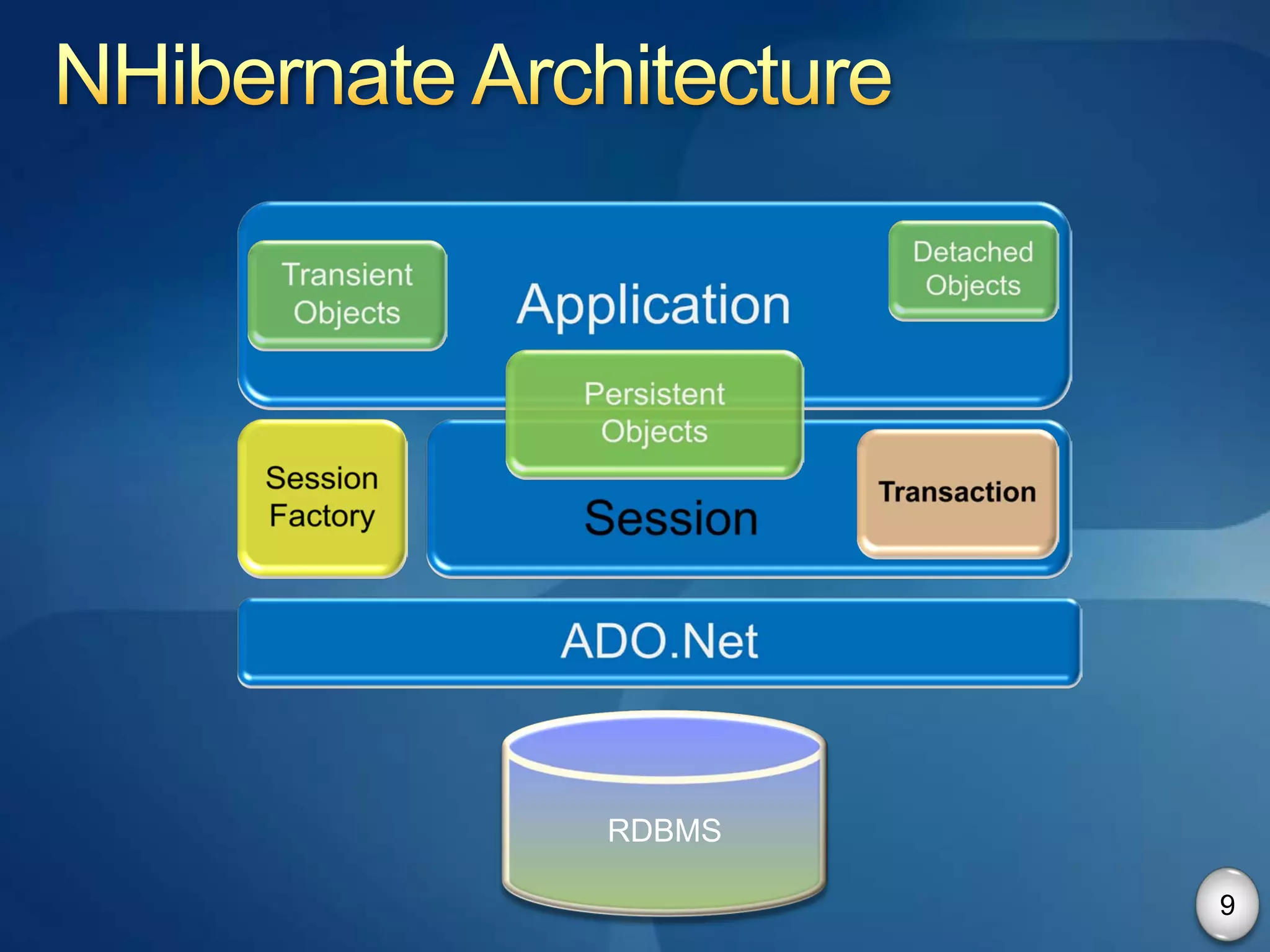

RDBMS

        9

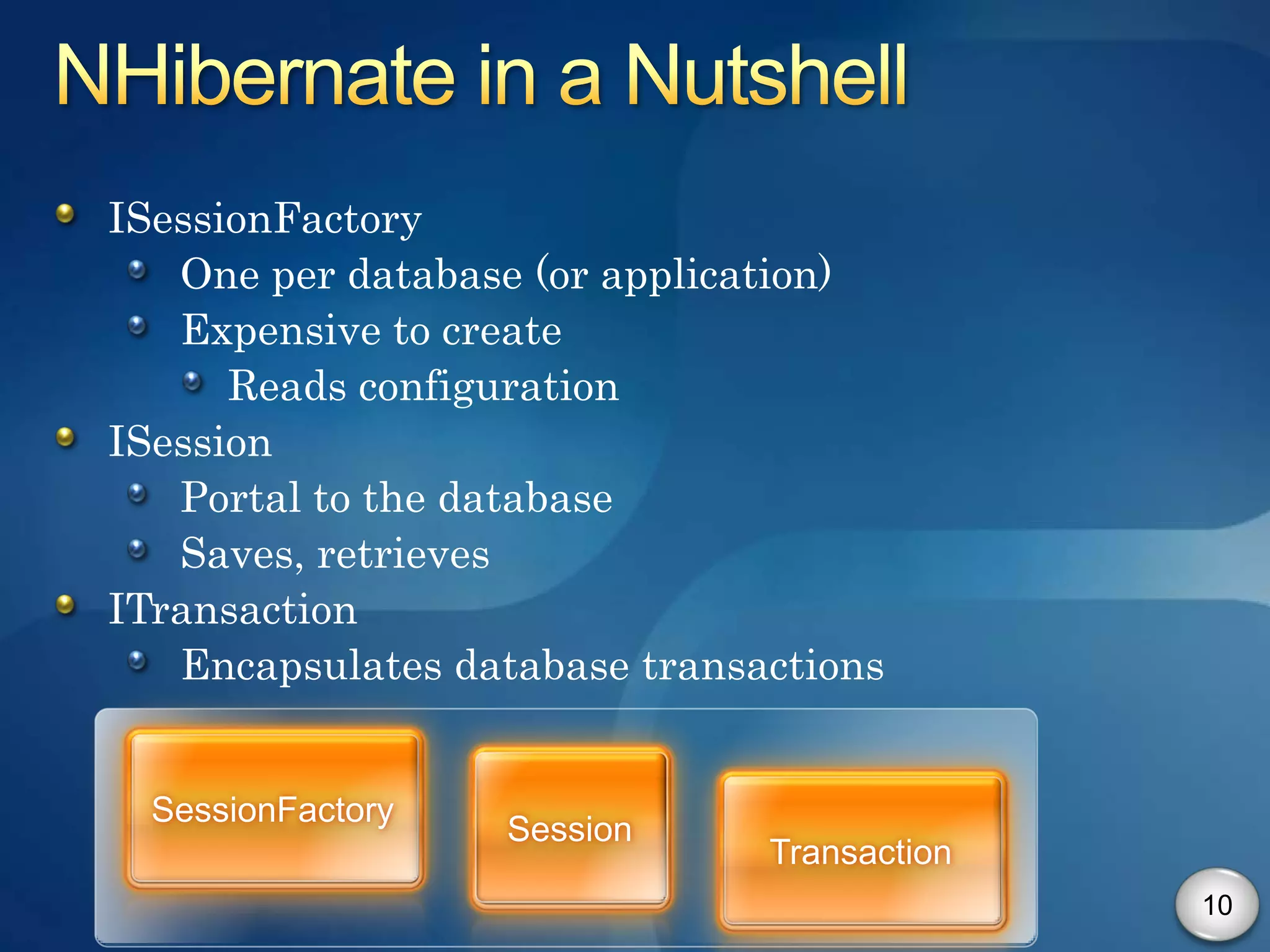

ISessionFactory
   One per database (or application)
   Expensive to create
      Reads configuration
ISession
   Portal to the database
   Saves, retrieves
ITransaction
   Encapsulates database transactions


  SessionFactory
                   Session
                               Transaction
                                             10
11
12

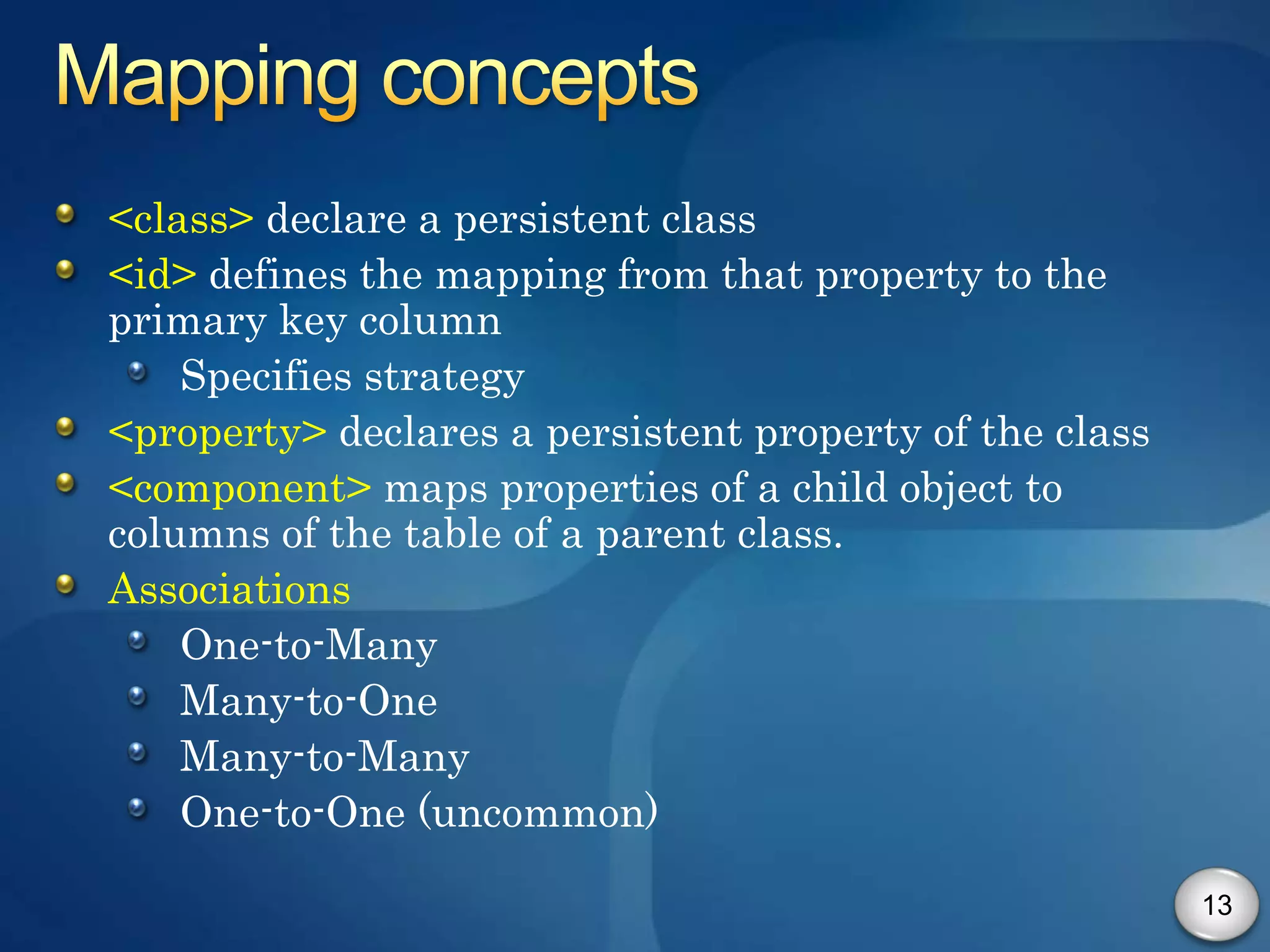

<class> declare a persistent class
<id> defines the mapping from that property to the
primary key column
    Specifies strategy
<property> declares a persistent property of the class
<component> maps properties of a child object to
columns of the table of a parent class.
Associations
    One-to-Many
    Many-to-One
    Many-to-Many
    One-to-One (uncommon)

                                                         13

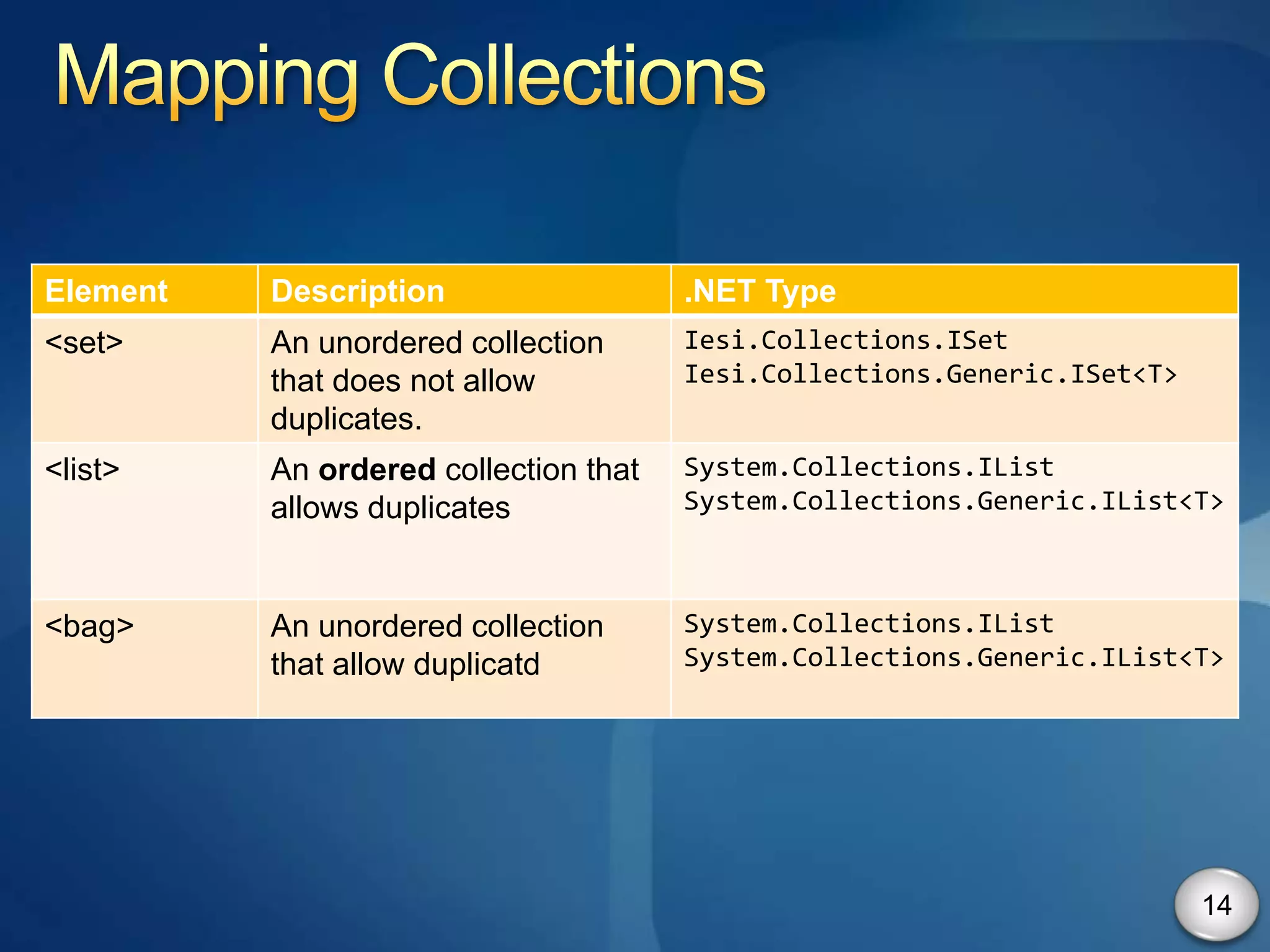

Element   Description                  .NET Type
<set>     An unordered collection      Iesi.Collections.ISet
          that does not allow          Iesi.Collections.Generic.ISet<T>
          duplicates.
<list>    An ordered collection that   System.Collections.IList
          allows duplicates            System.Collections.Generic.IList<T>



<bag>     An unordered collection      System.Collections.IList
          that allow duplicatd         System.Collections.Generic.IList<T>




                                                                          14
15

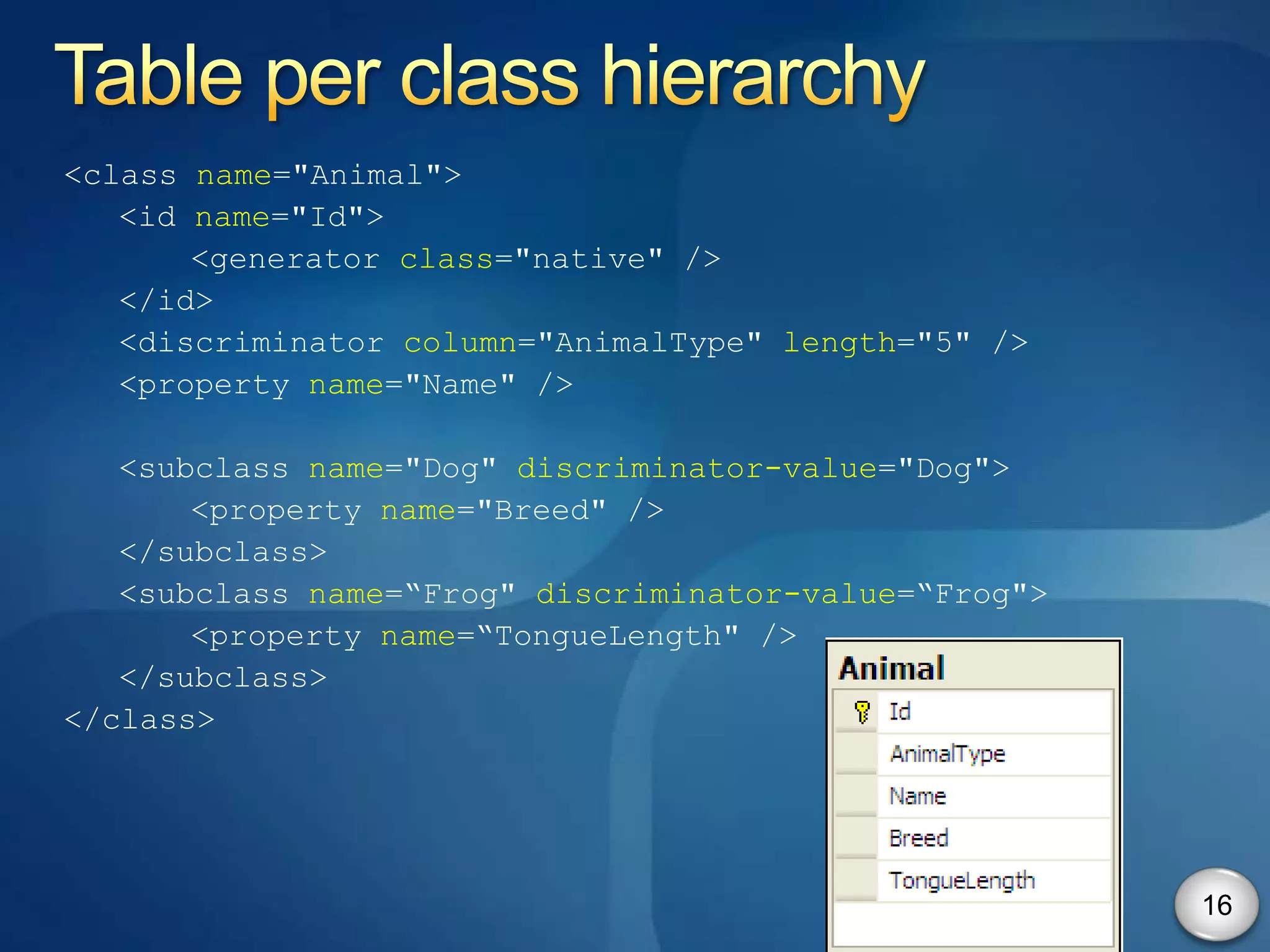

<class name=quot;Animalquot;>
   <id name=quot;Idquot;>
       <generator class=quot;nativequot; />
   </id>
   <discriminator column=quot;AnimalTypequot; length=quot;5quot; />
   <property name=quot;Namequot; />

   <subclass name=quot;Dogquot; discriminator-value=quot;Dogquot;>
       <property name=quot;Breedquot; />
   </subclass>
   <subclass name=“Frogquot; discriminator-value=“Frogquot;>
       <property name=“TongueLengthquot; />
   </subclass>
</class>




                                                       16

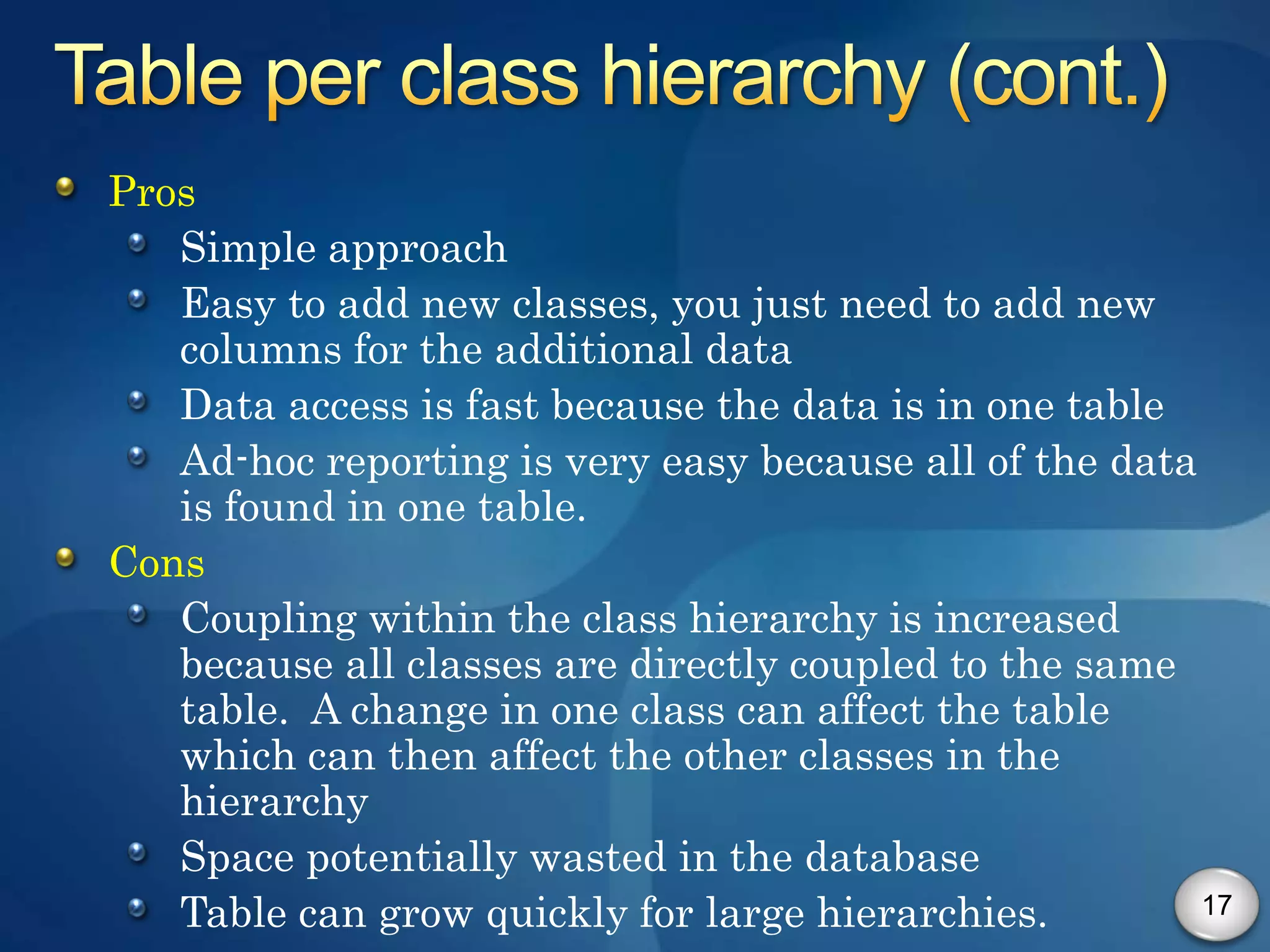

Pros
   Simple approach
   Easy to add new classes, you just need to add new
   columns for the additional data
   Data access is fast because the data is in one table
   Ad-hoc reporting is very easy because all of the data
   is found in one table.
Cons
   Coupling within the class hierarchy is increased
   because all classes are directly coupled to the same
   table. A change in one class can affect the table
   which can then affect the other classes in the
   hierarchy
   Space potentially wasted in the database
   Table can grow quickly for large hierarchies.         17

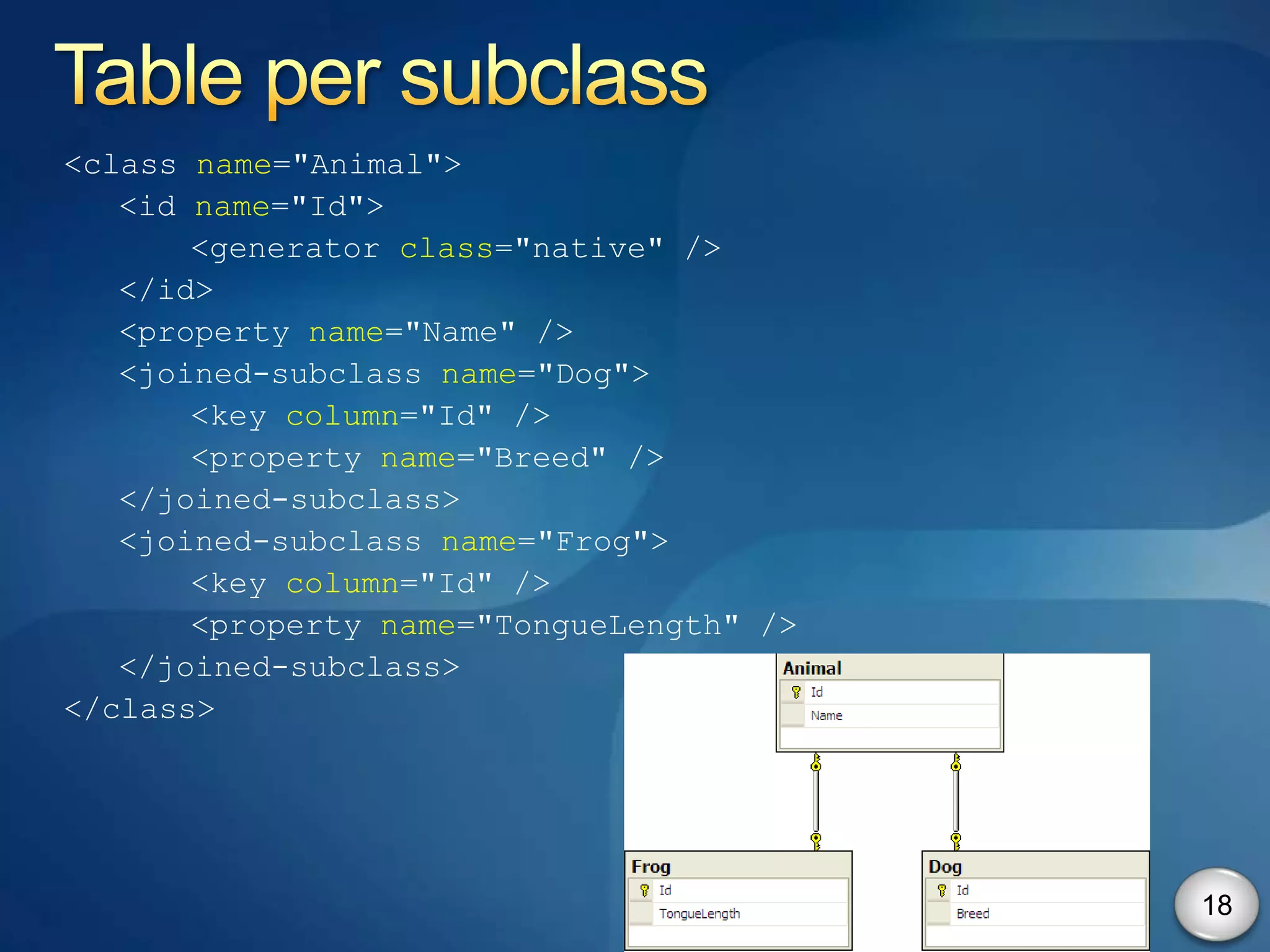

<class name=quot;Animalquot;>
   <id name=quot;Idquot;>
       <generator class=quot;nativequot; />
   </id>
   <property name=quot;Namequot; />
   <joined-subclass name=quot;Dogquot;>
       <key column=quot;Idquot; />
       <property name=quot;Breedquot; />
   </joined-subclass>
   <joined-subclass name=quot;Frogquot;>
       <key column=quot;Idquot; />
       <property name=quot;TongueLengthquot; />
   </joined-subclass>
</class>




                                          18

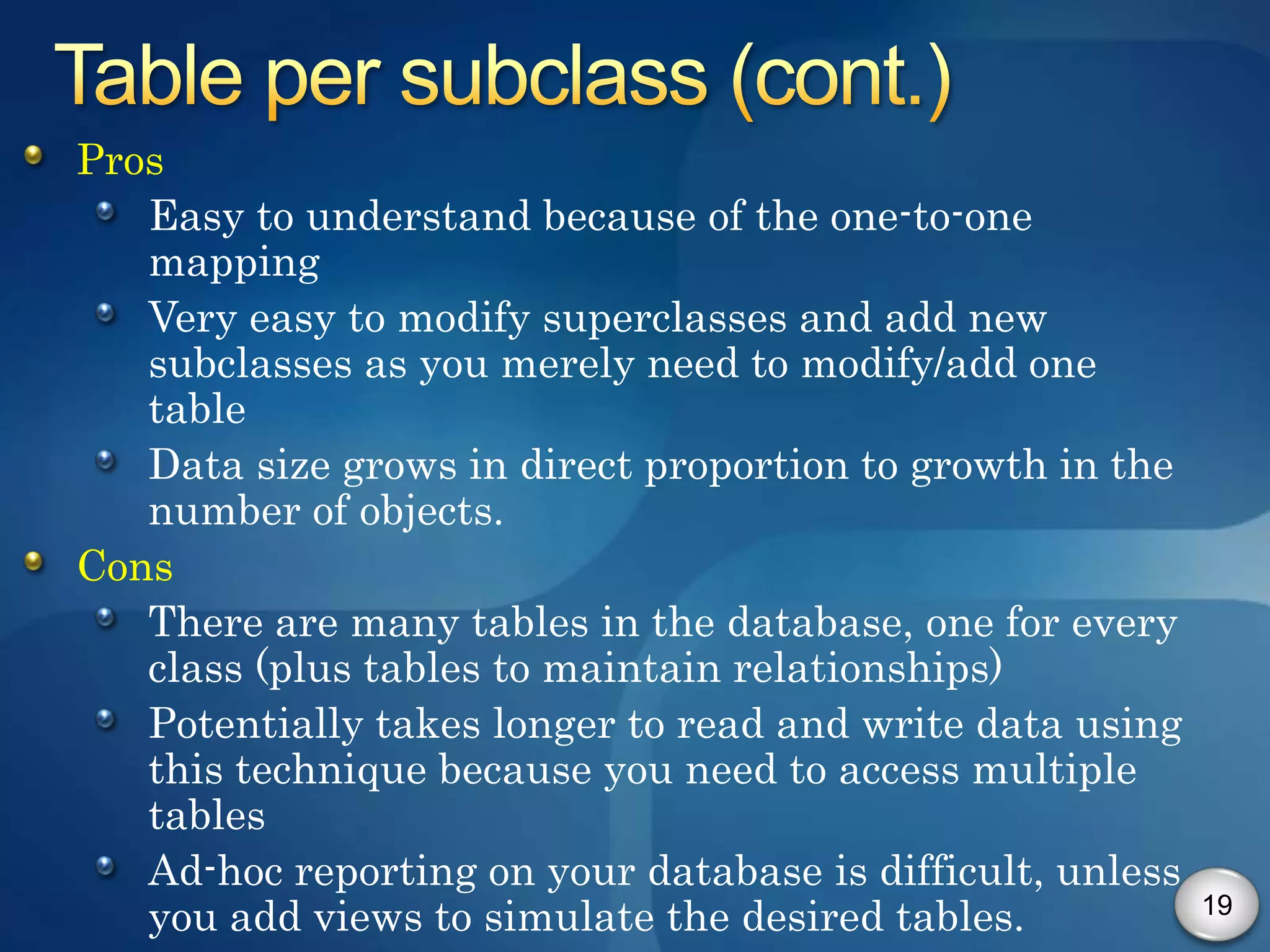

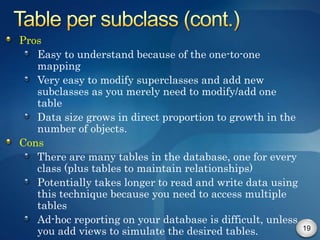

Pros
   Easy to understand because of the one-to-one
   mapping
   Very easy to modify superclasses and add new
   subclasses as you merely need to modify/add one
   table
   Data size grows in direct proportion to growth in the
   number of objects.
Cons
   There are many tables in the database, one for every
   class (plus tables to maintain relationships)
   Potentially takes longer to read and write data using
   this technique because you need to access multiple
   tables
   Ad-hoc reporting on your database is difficult, unless
   you add views to simulate the desired tables.            19

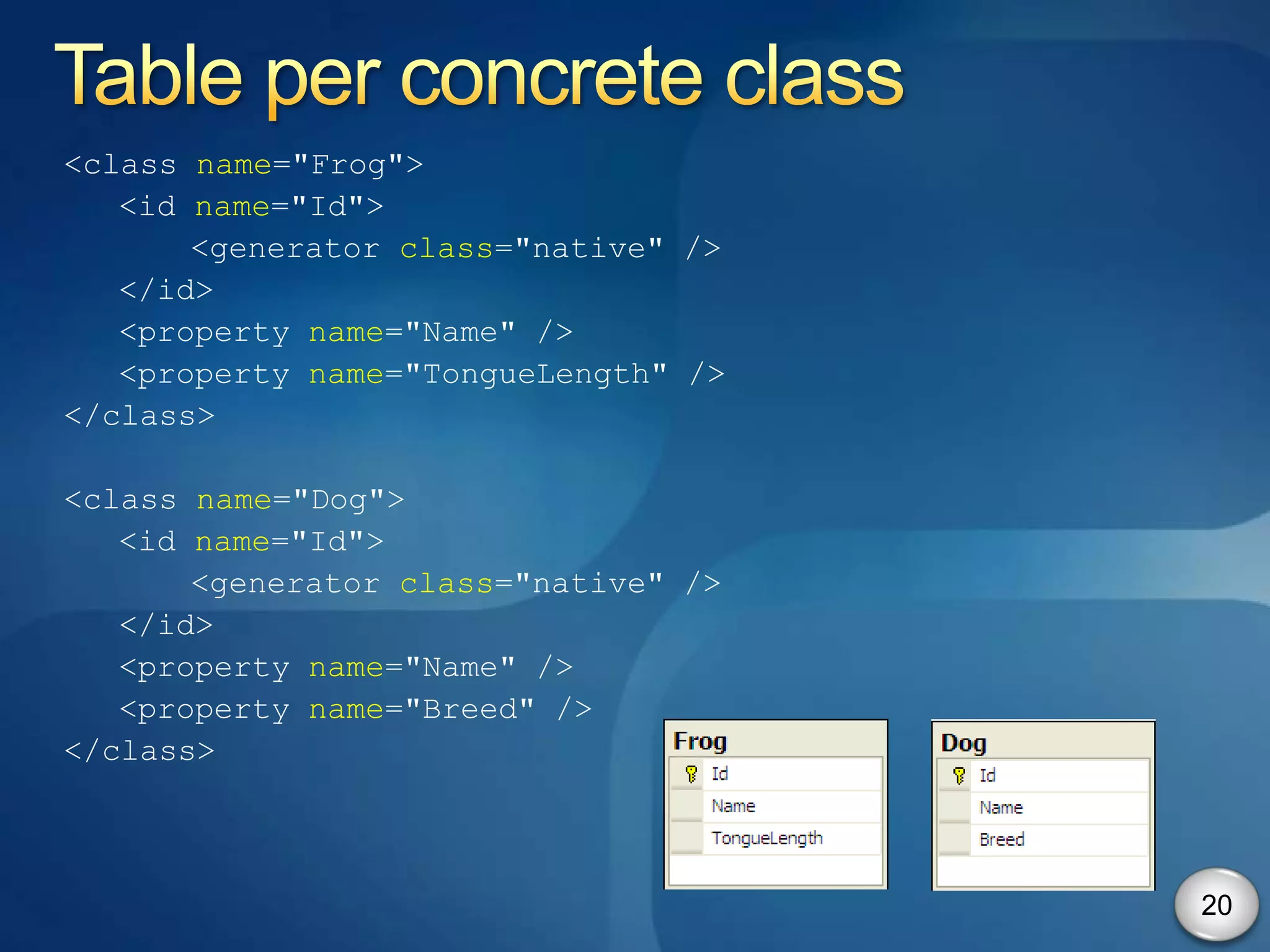

<class name=quot;Frogquot;>
   <id name=quot;Idquot;>
       <generator class=quot;nativequot; />
   </id>
   <property name=quot;Namequot; />
   <property name=quot;TongueLengthquot; />
</class>

<class name=quot;Dogquot;>
   <id name=quot;Idquot;>
       <generator class=quot;nativequot; />
   </id>
   <property name=quot;Namequot; />
   <property name=quot;Breedquot; />
</class>



                                      20

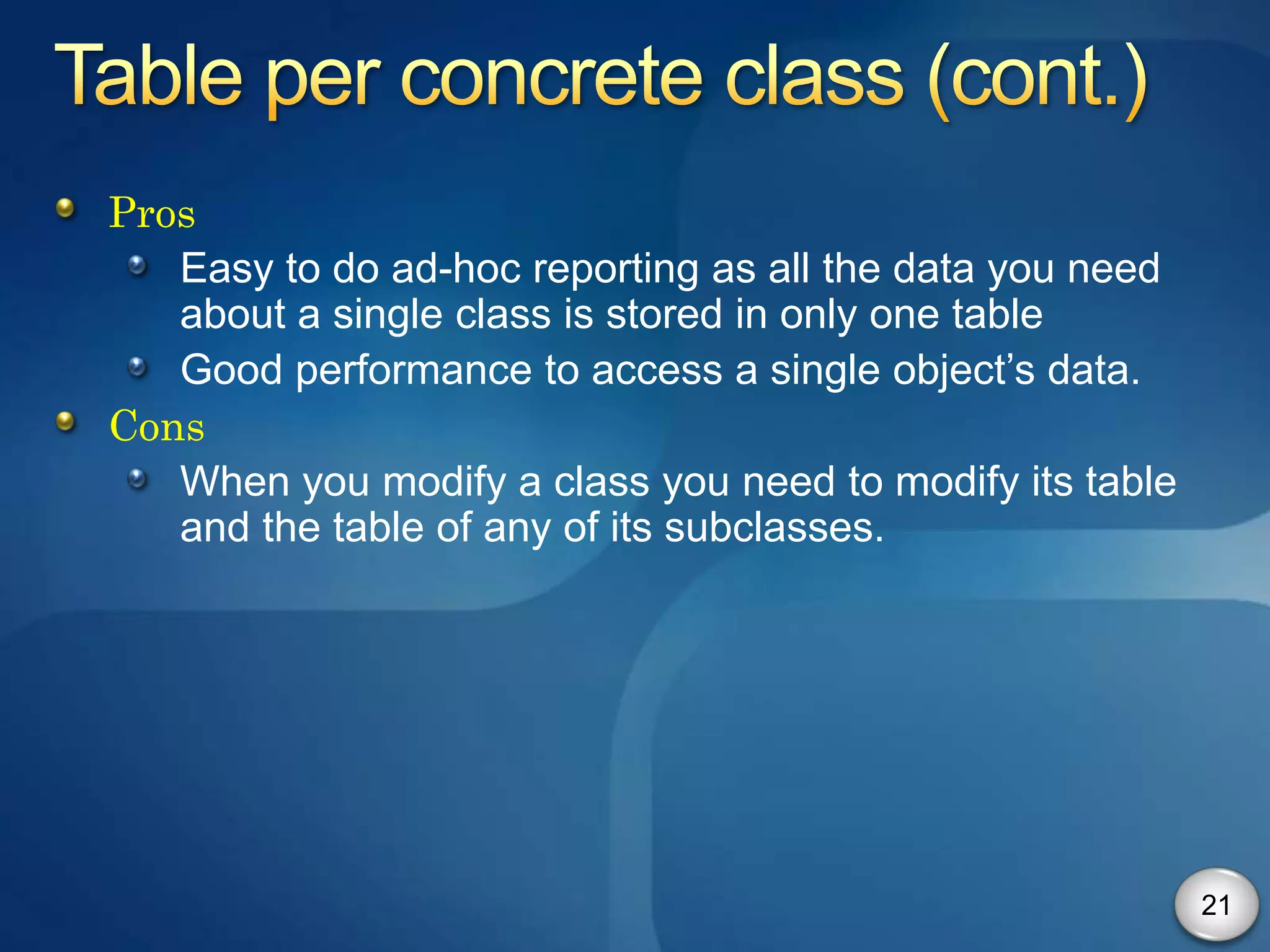

Pros
   Easy to do ad-hoc reporting as all the data you need
   about a single class is stored in only one table
   Good performance to access a single object’s data.
Cons
   When you modify a class you need to modify its table
   and the table of any of its subclasses.




                                                          21
22
23

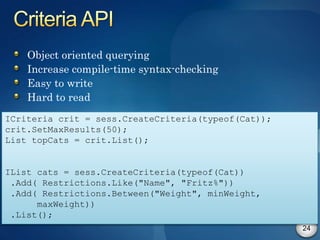

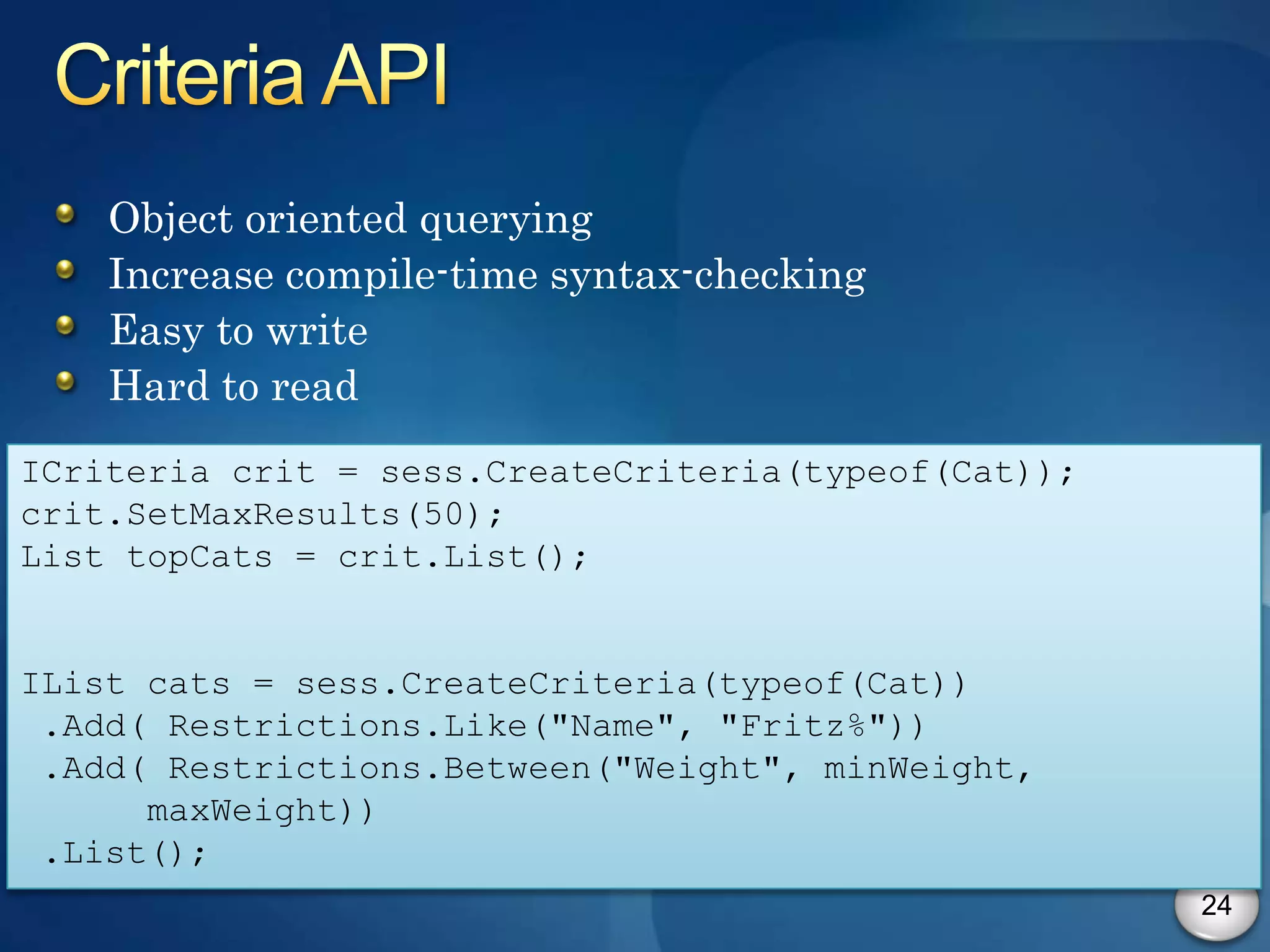

Object oriented querying
    Increase compile-time syntax-checking
    Easy to write
    Hard to read
ICriteria crit = sess.CreateCriteria(typeof(Cat));
crit.SetMaxResults(50);
List topCats = crit.List();


IList cats = sess.CreateCriteria(typeof(Cat))
 .Add( Restrictions.Like(quot;Namequot;, quot;Fritz%quot;))
 .Add( Restrictions.Between(quot;Weightquot;, minWeight,
      maxWeight))
 .List();
                                                     24

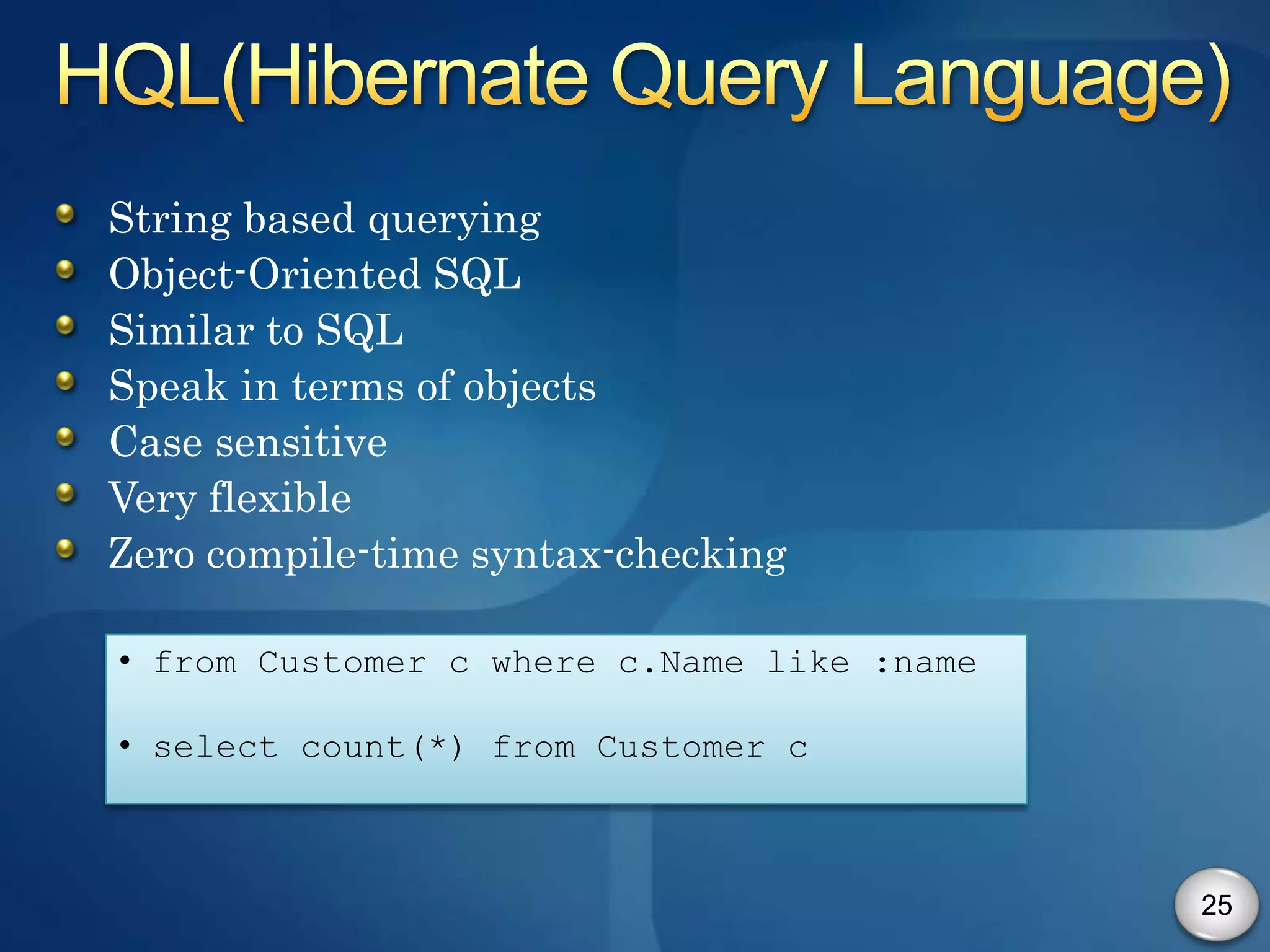

String based querying
Object-Oriented SQL
Similar to SQL
Speak in terms of objects
Case sensitive
Very flexible
Zero compile-time syntax-checking

• from Customer c where c.Name like :name

• select count(*) from Customer c



                                            25

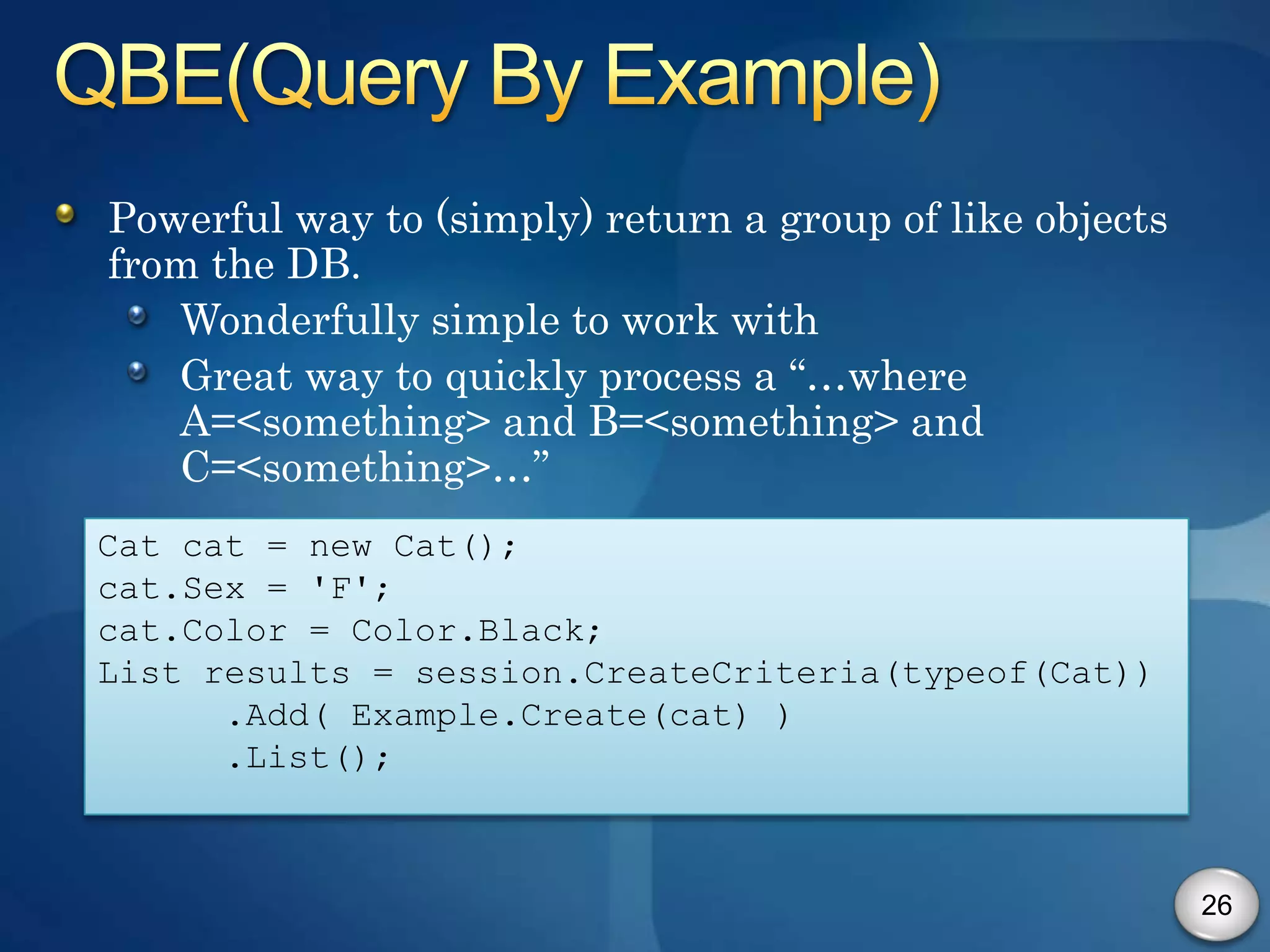

Powerful way to (simply) return a group of like objects
from the DB.
   Wonderfully simple to work with
   Great way to quickly process a “…where
   A=<something> and B=<something> and
   C=<something>…”
Cat cat = new Cat();
cat.Sex = 'F';
cat.Color = Color.Black;
List results = session.CreateCriteria(typeof(Cat))
      .Add( Example.Create(cat) )
      .List();



                                                          26

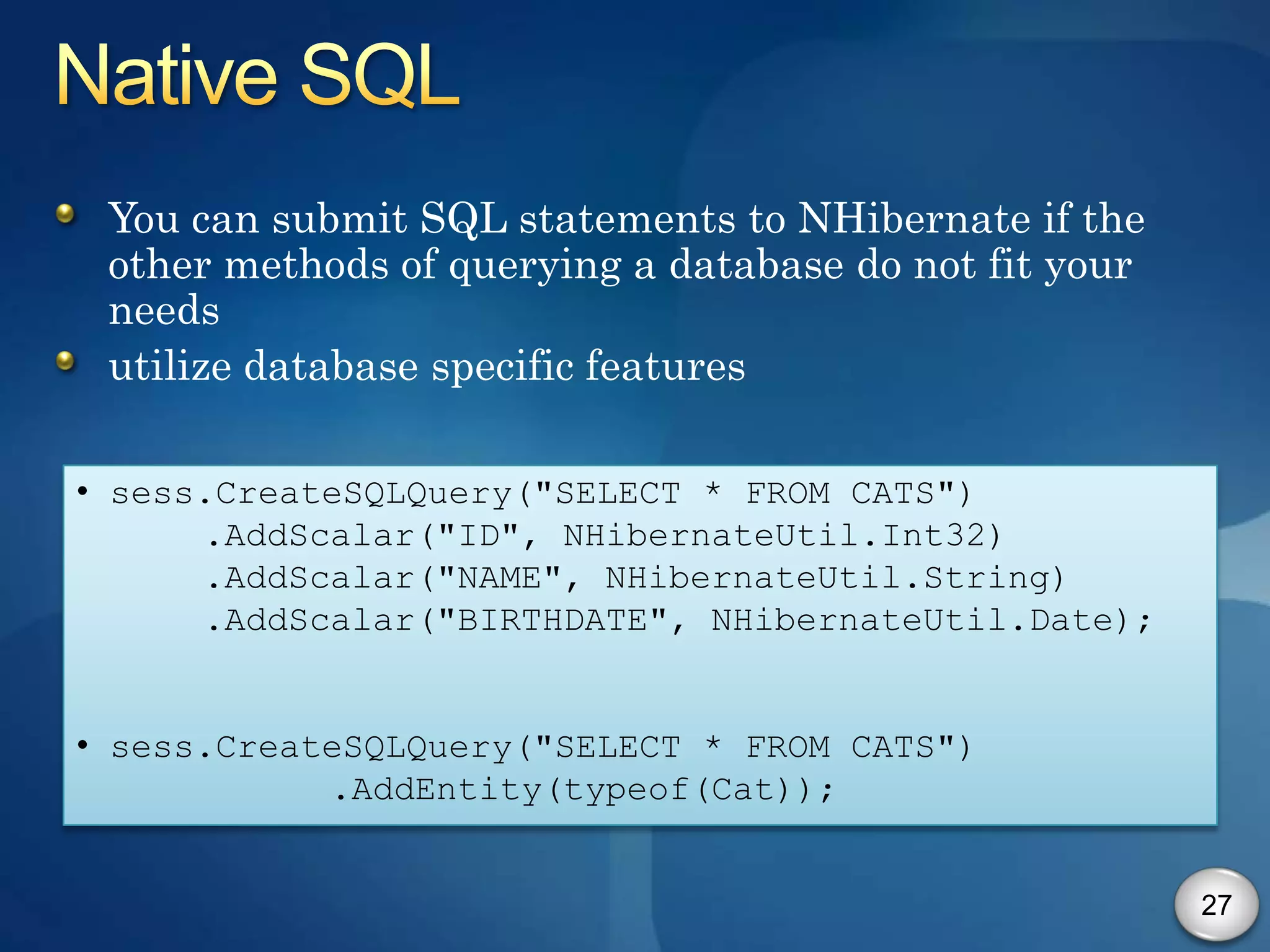

You can submit SQL statements to NHibernate if the
 other methods of querying a database do not fit your
 needs
 utilize database specific features

• sess.CreateSQLQuery(quot;SELECT * FROM CATSquot;)
      .AddScalar(quot;IDquot;, NHibernateUtil.Int32)
      .AddScalar(quot;NAMEquot;, NHibernateUtil.String)
      .AddScalar(quot;BIRTHDATEquot;, NHibernateUtil.Date);


• sess.CreateSQLQuery(quot;SELECT * FROM CATSquot;)
            .AddEntity(typeof(Cat));


                                                        27
28
29

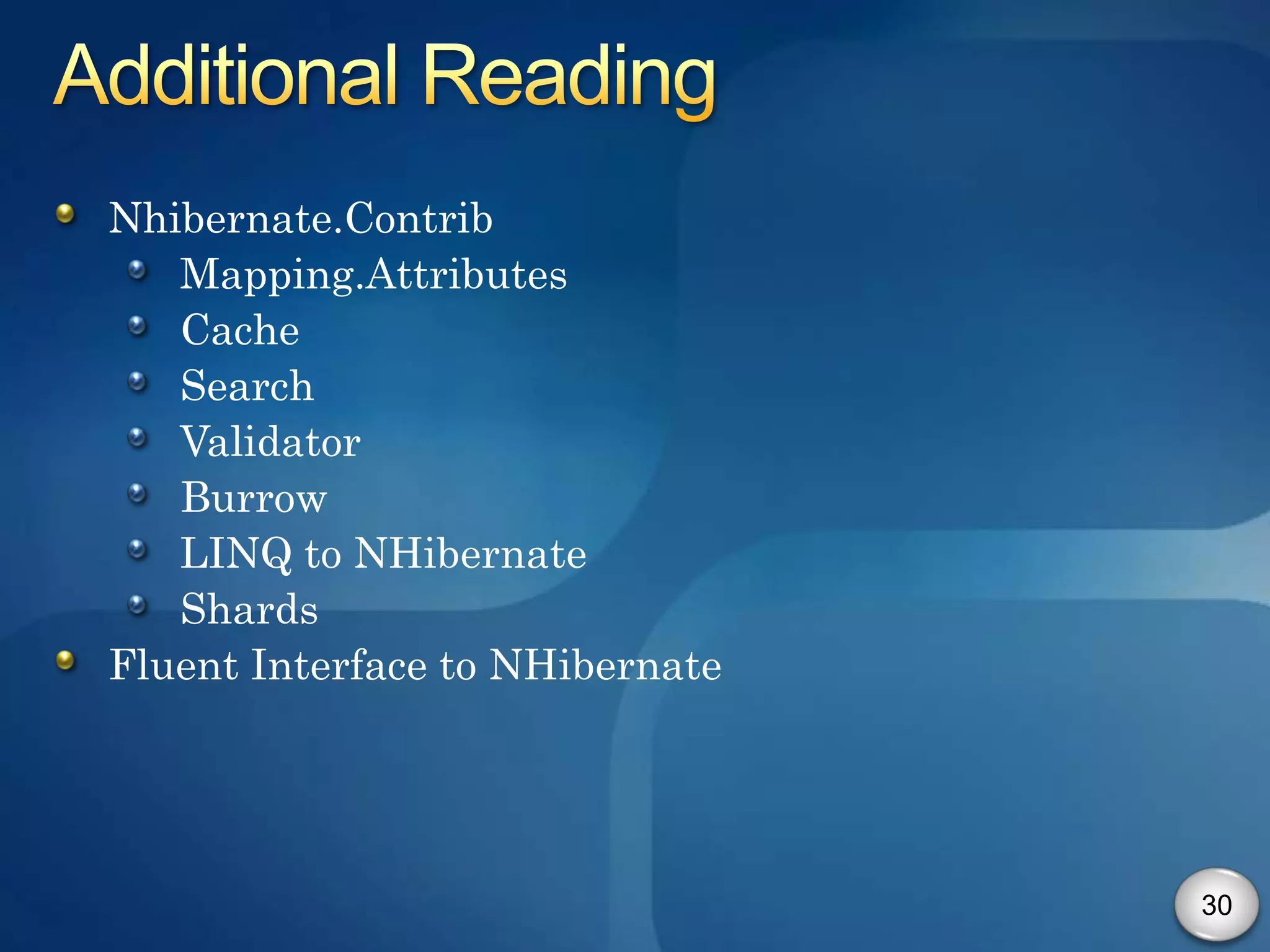

Nhibernate.Contrib
   Mapping.Attributes
   Cache
   Search
   Validator
   Burrow
   LINQ to NHibernate
   Shards
Fluent Interface to NHibernate




                                 30

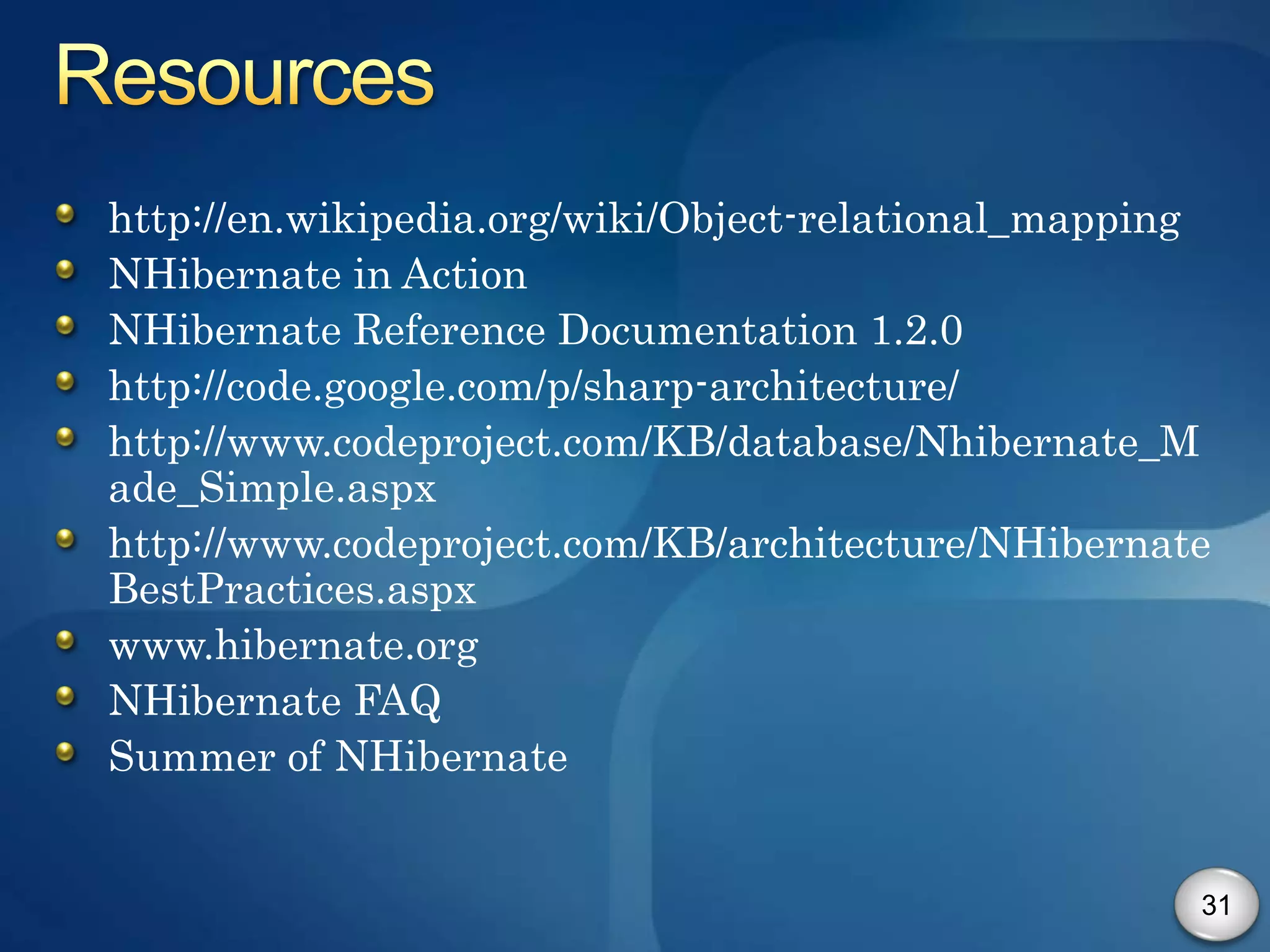

http://en.wikipedia.org/wiki/Object-relational_mapping
NHibernate in Action
NHibernate Reference Documentation 1.2.0
http://code.google.com/p/sharp-architecture/
http://www.codeproject.com/KB/database/Nhibernate_M
ade_Simple.aspx
http://www.codeproject.com/KB/architecture/NHibernate
BestPractices.aspx
www.hibernate.org
NHibernate FAQ
Summer of NHibernate


                                                     31
NHibernate (The ORM For .NET Platform)

More Related Content

What's hot

Hibernate tutorial
Hibernate tutorialHibernate tutorial
Hibernate tutorial
Mumbai Academisc

Introduction to hibernate
Introduction to hibernateIntroduction to hibernate
Introduction to hibernate
hr1383

Hibernate presentation
Hibernate presentationHibernate presentation
Hibernate presentation
Manav Prasad

OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2
OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2
OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2
Marco Gralike

Hibernate
HibernateHibernate
Hibernate
Prashant Kalkar

Database Programming Techniques
Database Programming TechniquesDatabase Programming Techniques
Database Programming Techniques
Raji Ghawi

Hibernate 3
Hibernate 3Hibernate 3
Hibernate 3
Rajiv Gupta

Hibernate in Action
Hibernate in ActionHibernate in Action
Hibernate in Action
Akshay Ballarpure

ODTUG Webcast - Thinking Clearly about XML
ODTUG Webcast - Thinking Clearly about XMLODTUG Webcast - Thinking Clearly about XML
ODTUG Webcast - Thinking Clearly about XML
Marco Gralike

Hibernate Basic Concepts - Presentation
Hibernate Basic Concepts - PresentationHibernate Basic Concepts - Presentation
Hibernate Basic Concepts - Presentation
Khoa Nguyen

XFILES, The APEX 4 version - The truth is in there
XFILES, The APEX 4 version - The truth is in thereXFILES, The APEX 4 version - The truth is in there
XFILES, The APEX 4 version - The truth is in there
Marco Gralike

Entity Framework
Entity FrameworkEntity Framework
Entity Framework
vrluckyin

Hibernate ppt
Hibernate pptHibernate ppt
Hibernate ppt
Aneega

XML Amsterdam - Creating structure in unstructured data
XML Amsterdam - Creating structure in unstructured dataXML Amsterdam - Creating structure in unstructured data
XML Amsterdam - Creating structure in unstructured data
Marco Gralike

Hibernate Tutorial
Hibernate TutorialHibernate Tutorial
Hibernate Tutorial
Ram132

Intro To Hibernate
Intro To HibernateIntro To Hibernate
Intro To Hibernate
Amit Himani

BGOUG 2012 - XML Index Strategies
BGOUG 2012 - XML Index StrategiesBGOUG 2012 - XML Index Strategies
BGOUG 2012 - XML Index Strategies
Marco Gralike

Miracle Open World 2011 - XML Index Strategies
Miracle Open World 2011  -  XML Index StrategiesMiracle Open World 2011  -  XML Index Strategies
Miracle Open World 2011 - XML Index Strategies
Marco Gralike

Entity framework
Entity frameworkEntity framework
Entity framework
icubesystem

UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...
UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...
UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...
Marco Gralike


What's hot (20)

Hibernate tutorial
Hibernate tutorialHibernate tutorial
Hibernate tutorial

Introduction to hibernate
Introduction to hibernateIntroduction to hibernate
Introduction to hibernate

Hibernate presentation
Hibernate presentationHibernate presentation
Hibernate presentation

OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2
OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2
OPP2010 (Brussels) - Programming with XML in PL/SQL - Part 2

Hibernate
HibernateHibernate
Hibernate

Database Programming Techniques
Database Programming TechniquesDatabase Programming Techniques
Database Programming Techniques

Hibernate 3
Hibernate 3Hibernate 3
Hibernate 3

Hibernate in Action
Hibernate in ActionHibernate in Action
Hibernate in Action

ODTUG Webcast - Thinking Clearly about XML
ODTUG Webcast - Thinking Clearly about XMLODTUG Webcast - Thinking Clearly about XML
ODTUG Webcast - Thinking Clearly about XML

Hibernate Basic Concepts - Presentation
Hibernate Basic Concepts - PresentationHibernate Basic Concepts - Presentation
Hibernate Basic Concepts - Presentation

XFILES, The APEX 4 version - The truth is in there
XFILES, The APEX 4 version - The truth is in thereXFILES, The APEX 4 version - The truth is in there
XFILES, The APEX 4 version - The truth is in there

Entity Framework
Entity FrameworkEntity Framework
Entity Framework

Hibernate ppt
Hibernate pptHibernate ppt
Hibernate ppt

XML Amsterdam - Creating structure in unstructured data
XML Amsterdam - Creating structure in unstructured dataXML Amsterdam - Creating structure in unstructured data
XML Amsterdam - Creating structure in unstructured data

Hibernate Tutorial
Hibernate TutorialHibernate Tutorial
Hibernate Tutorial

Intro To Hibernate
Intro To HibernateIntro To Hibernate
Intro To Hibernate

BGOUG 2012 - XML Index Strategies
BGOUG 2012 - XML Index StrategiesBGOUG 2012 - XML Index Strategies
BGOUG 2012 - XML Index Strategies

Miracle Open World 2011 - XML Index Strategies
Miracle Open World 2011  -  XML Index StrategiesMiracle Open World 2011  -  XML Index Strategies
Miracle Open World 2011 - XML Index Strategies

Entity framework
Entity frameworkEntity framework
Entity framework

UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...
UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...
UKOUG 2010 (Birmingham) - XML Indexing strategies - Choosing the Right Index ...


Similar to NHibernate (The ORM For .NET Platform)

Nhibernatethe Orm For Net Platform 1226744632929962 8
Nhibernatethe Orm For Net Platform 1226744632929962 8Nhibernatethe Orm For Net Platform 1226744632929962 8
Nhibernatethe Orm For Net Platform 1226744632929962 8
Nicolas Thon

Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...
Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...
Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...
Baruch Sadogursky

Struts2
Struts2Struts2
Compass Framework
Compass FrameworkCompass Framework
Compass Framework
Lukas Vlcek

Building AOL's High Performance, Enterprise Wide Mail Application With Silver...
Building AOL's High Performance, Enterprise Wide Mail Application With Silver...Building AOL's High Performance, Enterprise Wide Mail Application With Silver...
Building AOL's High Performance, Enterprise Wide Mail Application With Silver...
goodfriday

Practical catalyst
Practical catalystPractical catalyst
Practical catalyst
dwm042

Introducing Struts 2
Introducing Struts 2Introducing Struts 2
Introducing Struts 2
wiradikusuma

Defense Against the Dark Arts: Protecting Your Data from ORMs
Defense Against the Dark Arts: Protecting Your Data from ORMsDefense Against the Dark Arts: Protecting Your Data from ORMs
Defense Against the Dark Arts: Protecting Your Data from ORMs
Vanessa Hurst

ORM JPA
ORM JPAORM JPA
Intro to Rails ActiveRecord
Intro to Rails ActiveRecordIntro to Rails ActiveRecord
Intro to Rails ActiveRecord
Mark Menard

Extending MySQL Enterprise Monitor
Extending MySQL Enterprise MonitorExtending MySQL Enterprise Monitor
Extending MySQL Enterprise Monitor
Mark Leith

REST dojo Comet
REST dojo CometREST dojo Comet
REST dojo Comet
Carol McDonald

Linq 1224887336792847 9
Linq 1224887336792847 9Linq 1224887336792847 9
Linq 1224887336792847 9
google

Struts Tags Speakernoted
Struts Tags SpeakernotedStruts Tags Speakernoted
Struts Tags Speakernoted
Harjinder Singh

Basic Hibernate Final
Basic Hibernate FinalBasic Hibernate Final
Basic Hibernate Final
Rafael Coutinho

Linq To The Enterprise
Linq To The EnterpriseLinq To The Enterprise
Linq To The Enterprise
Daniel Egan

ASP.NET 08 - Data Binding And Representation
ASP.NET 08 - Data Binding And RepresentationASP.NET 08 - Data Binding And Representation
ASP.NET 08 - Data Binding And Representation
Randy Connolly

WPF and Databases
WPF and DatabasesWPF and Databases
WPF and Databases
Doncho Minkov

Intro Open Social and Dashboards
Intro Open Social and DashboardsIntro Open Social and Dashboards
Intro Open Social and Dashboards
Atlassian

What's New for Data?
What's New for Data?What's New for Data?
What's New for Data?
ukdpe


Similar to NHibernate (The ORM For .NET Platform) (20)

Nhibernatethe Orm For Net Platform 1226744632929962 8
Nhibernatethe Orm For Net Platform 1226744632929962 8Nhibernatethe Orm For Net Platform 1226744632929962 8
Nhibernatethe Orm For Net Platform 1226744632929962 8

Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...
Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...
Persisting Your Objects In The Database World @ AlphaCSP Professional OSS Con...

Struts2
Struts2Struts2
Struts2

Compass Framework
Compass FrameworkCompass Framework
Compass Framework

Building AOL's High Performance, Enterprise Wide Mail Application With Silver...
Building AOL's High Performance, Enterprise Wide Mail Application With Silver...Building AOL's High Performance, Enterprise Wide Mail Application With Silver...
Building AOL's High Performance, Enterprise Wide Mail Application With Silver...

Practical catalyst
Practical catalystPractical catalyst
Practical catalyst

Introducing Struts 2
Introducing Struts 2Introducing Struts 2
Introducing Struts 2

Defense Against the Dark Arts: Protecting Your Data from ORMs
Defense Against the Dark Arts: Protecting Your Data from ORMsDefense Against the Dark Arts: Protecting Your Data from ORMs
Defense Against the Dark Arts: Protecting Your Data from ORMs

ORM JPA
ORM JPAORM JPA
ORM JPA

Intro to Rails ActiveRecord
Intro to Rails ActiveRecordIntro to Rails ActiveRecord
Intro to Rails ActiveRecord

Extending MySQL Enterprise Monitor
Extending MySQL Enterprise MonitorExtending MySQL Enterprise Monitor
Extending MySQL Enterprise Monitor

REST dojo Comet
REST dojo CometREST dojo Comet
REST dojo Comet

Linq 1224887336792847 9
Linq 1224887336792847 9Linq 1224887336792847 9
Linq 1224887336792847 9

Struts Tags Speakernoted
Struts Tags SpeakernotedStruts Tags Speakernoted
Struts Tags Speakernoted

Basic Hibernate Final
Basic Hibernate FinalBasic Hibernate Final
Basic Hibernate Final

Linq To The Enterprise
Linq To The EnterpriseLinq To The Enterprise
Linq To The Enterprise

ASP.NET 08 - Data Binding And Representation
ASP.NET 08 - Data Binding And RepresentationASP.NET 08 - Data Binding And Representation
ASP.NET 08 - Data Binding And Representation

WPF and Databases
WPF and DatabasesWPF and Databases
WPF and Databases

Intro Open Social and Dashboards
Intro Open Social and DashboardsIntro Open Social and Dashboards
Intro Open Social and Dashboards

What's New for Data?
What's New for Data?What's New for Data?
What's New for Data?


More from Samnang Chhun

Find your passion
Find your passionFind your passion
Find your passion
Samnang Chhun

Software developer career growth
Software developer career growthSoftware developer career growth
Software developer career growth
Samnang Chhun

Why i love ruby than x
Why i love ruby than xWhy i love ruby than x
Why i love ruby than x
Samnang Chhun

12 Things Every Programmer Should Know
12 Things Every Programmer Should Know12 Things Every Programmer Should Know
12 Things Every Programmer Should Know
Samnang Chhun

The visitor design pattern
The visitor design patternThe visitor design pattern
The visitor design pattern
Samnang Chhun

Peforming Code Katas
Peforming Code KatasPeforming Code Katas
Peforming Code Katas
Samnang Chhun

Introduction To Share Vision
Introduction To Share VisionIntroduction To Share Vision
Introduction To Share Vision
Samnang Chhun

Test Driven Development
Test Driven DevelopmentTest Driven Development
Test Driven Development
Samnang Chhun

Version Control With Subversion
Version Control With SubversionVersion Control With Subversion
Version Control With Subversion
Samnang Chhun

Layering
LayeringLayering
Layering
Samnang Chhun


More from Samnang Chhun (10)

Find your passion
Find your passionFind your passion
Find your passion

Software developer career growth
Software developer career growthSoftware developer career growth
Software developer career growth

Why i love ruby than x
Why i love ruby than xWhy i love ruby than x
Why i love ruby than x

12 Things Every Programmer Should Know
12 Things Every Programmer Should Know12 Things Every Programmer Should Know
12 Things Every Programmer Should Know

The visitor design pattern
The visitor design patternThe visitor design pattern
The visitor design pattern

Peforming Code Katas
Peforming Code KatasPeforming Code Katas
Peforming Code Katas

Introduction To Share Vision
Introduction To Share VisionIntroduction To Share Vision
Introduction To Share Vision

Test Driven Development
Test Driven DevelopmentTest Driven Development
Test Driven Development

Version Control With Subversion
Version Control With SubversionVersion Control With Subversion
Version Control With Subversion

Layering
LayeringLayering
Layering


Recently uploaded

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf
Shinana2

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server
Antonios Katsarakis

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining
LucaBarbaro3

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz

Azure API Management to expose backend services securely
Azure API Management to expose backend services securelyAzure API Management to expose backend services securely
Azure API Management to expose backend services securely
Dinusha Kumarasiri

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
saastr

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho


Recently uploaded (20)

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency

Dandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity serverDandelion Hashtable: beyond billion requests per second on a commodity server
Dandelion Hashtable: beyond billion requests per second on a commodity server

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus

Azure API Management to expose backend services securely
Azure API Management to expose backend services securelyAzure API Management to expose backend services securely
Azure API Management to expose backend services securely

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf


NHibernate (The ORM For .NET Platform)

  • 1. Samnang Chhun (samnang@wowkhmer.com) Software Engineer, http://tech.wowkhmer.com
  • 2. Introduction to Object-Relational Mapping Introduction to NHibernate NHibernate Basics Mapping Inheritance hierarchies Advanced Querying Additional Reading 2
  • 3. 3
  • 4. Object-relational mapping (aka ORM, O/RM, and O/R mapping) is a programming technique for converting data between incompatible type systems in relational databases and object-oriented programming languages (Wikipedia) Objects are hierarchical Databases are relational ORM Objects Relational 4
  • 5. Performance or Scalability Productivity: less code to write/maintain Abstraction: transient to different DB technologies Simplification and Consistency Quality: depending on the product 5
  • 6. ADO.NET Entity Framework (released with .NET 3.5 SP1) Business Logic Toolkit for .NET Castle ActiveRecord IBatis.Net LightSpeed Linq (Language Integrated Query) LLBLGen LLBLGen Pro NHibernate Neo …etc 6
  • 7. 7
  • 8. Initially developed for Java created in late 2001 by Gavin King absorbed by the JBoss Group / Red Hat Ported to .NET 1.1, 2.0, 3.5 Resulting product called “NHibernate” All popular databases supported Oracle, SQL Server, DB2, SQLite, PostgreSQL, MySQL, Sybase, Firebird, … XML-based configuration files Good community support Free/open source - NHibernate is licensed under the LGPL (Lesser GNU Public License) 8
  • 9. RDBMS 9
  • 10. ISessionFactory One per database (or application) Expensive to create Reads configuration ISession Portal to the database Saves, retrieves ITransaction Encapsulates database transactions SessionFactory Session Transaction 10

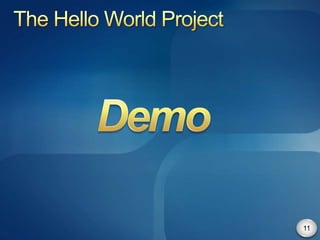

  • 11. 11
  • 12. 12
  • 13. <class> declare a persistent class <id> defines the mapping from that property to the primary key column Specifies strategy <property> declares a persistent property of the class <component> maps properties of a child object to columns of the table of a parent class. Associations One-to-Many Many-to-One Many-to-Many One-to-One (uncommon) 13
  • 14. Element Description .NET Type <set> An unordered collection Iesi.Collections.ISet that does not allow Iesi.Collections.Generic.ISet<T> duplicates. <list> An ordered collection that System.Collections.IList allows duplicates System.Collections.Generic.IList<T> <bag> An unordered collection System.Collections.IList that allow duplicatd System.Collections.Generic.IList<T> 14
  • 15. 15
  • 16. <class name=quot;Animalquot;> <id name=quot;Idquot;> <generator class=quot;nativequot; /> </id> <discriminator column=quot;AnimalTypequot; length=quot;5quot; /> <property name=quot;Namequot; /> <subclass name=quot;Dogquot; discriminator-value=quot;Dogquot;> <property name=quot;Breedquot; /> </subclass> <subclass name=“Frogquot; discriminator-value=“Frogquot;> <property name=“TongueLengthquot; /> </subclass> </class> 16
  • 17. Pros Simple approach Easy to add new classes, you just need to add new columns for the additional data Data access is fast because the data is in one table Ad-hoc reporting is very easy because all of the data is found in one table. Cons Coupling within the class hierarchy is increased because all classes are directly coupled to the same table. A change in one class can affect the table which can then affect the other classes in the hierarchy Space potentially wasted in the database Table can grow quickly for large hierarchies. 17
  • 18. <class name=quot;Animalquot;> <id name=quot;Idquot;> <generator class=quot;nativequot; /> </id> <property name=quot;Namequot; /> <joined-subclass name=quot;Dogquot;> <key column=quot;Idquot; /> <property name=quot;Breedquot; /> </joined-subclass> <joined-subclass name=quot;Frogquot;> <key column=quot;Idquot; /> <property name=quot;TongueLengthquot; /> </joined-subclass> </class> 18
  • 19. Pros Easy to understand because of the one-to-one mapping Very easy to modify superclasses and add new subclasses as you merely need to modify/add one table Data size grows in direct proportion to growth in the number of objects. Cons There are many tables in the database, one for every class (plus tables to maintain relationships) Potentially takes longer to read and write data using this technique because you need to access multiple tables Ad-hoc reporting on your database is difficult, unless you add views to simulate the desired tables. 19
  • 20. <class name=quot;Frogquot;> <id name=quot;Idquot;> <generator class=quot;nativequot; /> </id> <property name=quot;Namequot; /> <property name=quot;TongueLengthquot; /> </class> <class name=quot;Dogquot;> <id name=quot;Idquot;> <generator class=quot;nativequot; /> </id> <property name=quot;Namequot; /> <property name=quot;Breedquot; /> </class> 20
  • 21. Pros Easy to do ad-hoc reporting as all the data you need about a single class is stored in only one table Good performance to access a single object’s data. Cons When you modify a class you need to modify its table and the table of any of its subclasses. 21
  • 22. 22
  • 23. 23
  • 24. Object oriented querying Increase compile-time syntax-checking Easy to write Hard to read ICriteria crit = sess.CreateCriteria(typeof(Cat)); crit.SetMaxResults(50); List topCats = crit.List(); IList cats = sess.CreateCriteria(typeof(Cat)) .Add( Restrictions.Like(quot;Namequot;, quot;Fritz%quot;)) .Add( Restrictions.Between(quot;Weightquot;, minWeight, maxWeight)) .List(); 24
  • 25. String based querying Object-Oriented SQL Similar to SQL Speak in terms of objects Case sensitive Very flexible Zero compile-time syntax-checking • from Customer c where c.Name like :name • select count(*) from Customer c 25
  • 26. Powerful way to (simply) return a group of like objects from the DB. Wonderfully simple to work with Great way to quickly process a “…where A=<something> and B=<something> and C=<something>…” Cat cat = new Cat(); cat.Sex = 'F'; cat.Color = Color.Black; List results = session.CreateCriteria(typeof(Cat)) .Add( Example.Create(cat) ) .List(); 26
  • 27. You can submit SQL statements to NHibernate if the other methods of querying a database do not fit your needs utilize database specific features • sess.CreateSQLQuery(quot;SELECT * FROM CATSquot;) .AddScalar(quot;IDquot;, NHibernateUtil.Int32) .AddScalar(quot;NAMEquot;, NHibernateUtil.String) .AddScalar(quot;BIRTHDATEquot;, NHibernateUtil.Date); • sess.CreateSQLQuery(quot;SELECT * FROM CATSquot;) .AddEntity(typeof(Cat)); 27
  • 28. 28
  • 29. 29
  • 30. Nhibernate.Contrib Mapping.Attributes Cache Search Validator Burrow LINQ to NHibernate Shards Fluent Interface to NHibernate 30
  • 31. http://en.wikipedia.org/wiki/Object-relational_mapping NHibernate in Action NHibernate Reference Documentation 1.2.0 http://code.google.com/p/sharp-architecture/ http://www.codeproject.com/KB/database/Nhibernate_M ade_Simple.aspx http://www.codeproject.com/KB/architecture/NHibernate BestPractices.aspx www.hibernate.org NHibernate FAQ Summer of NHibernate 31
