1. Entity Framework

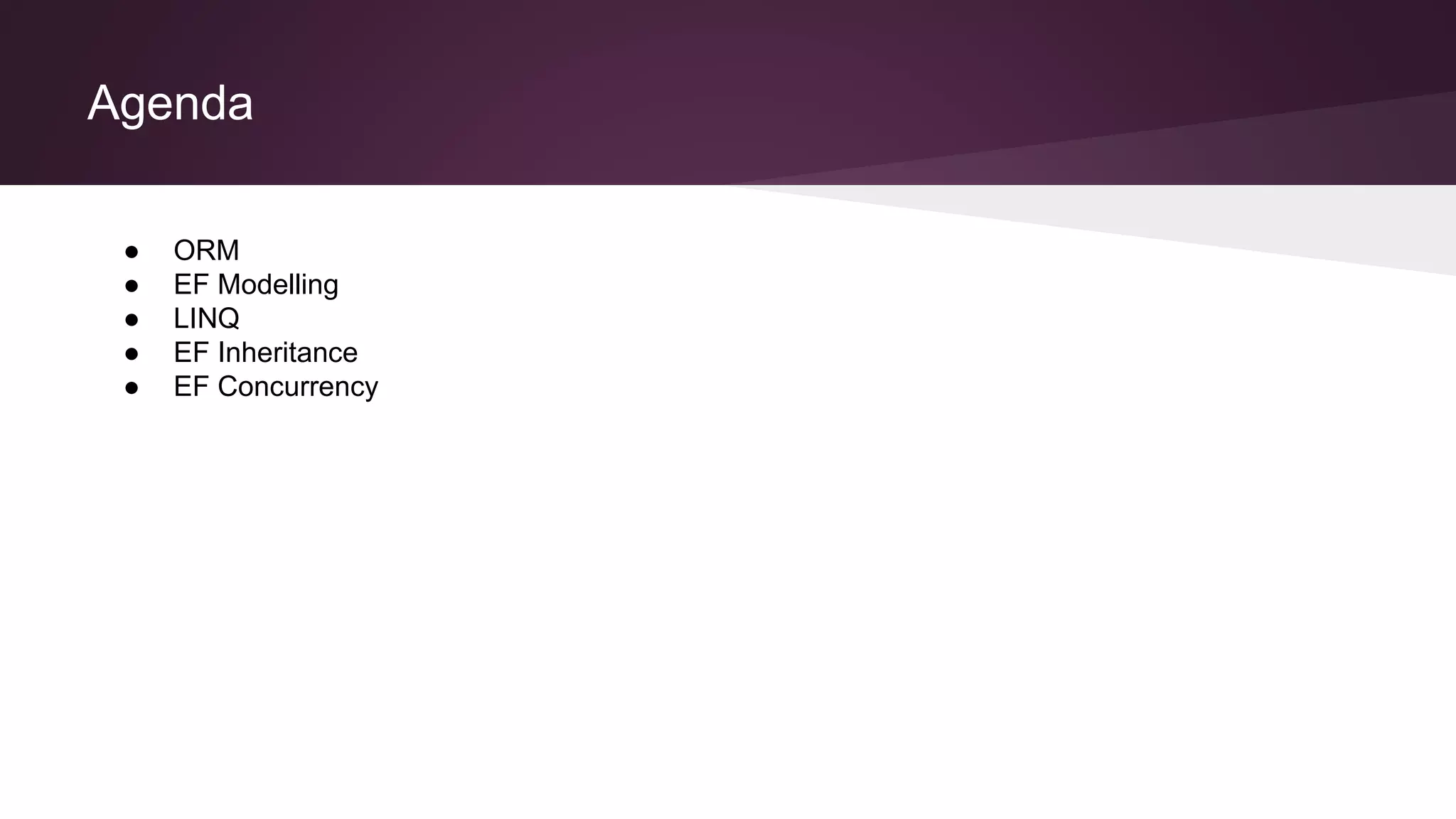

2. Agenda
● ORM
● EF Modelling
● LINQ
● EF Inheritance
● EF Concurrency

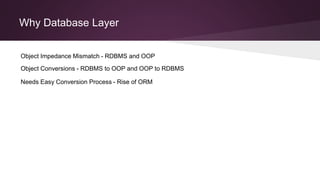

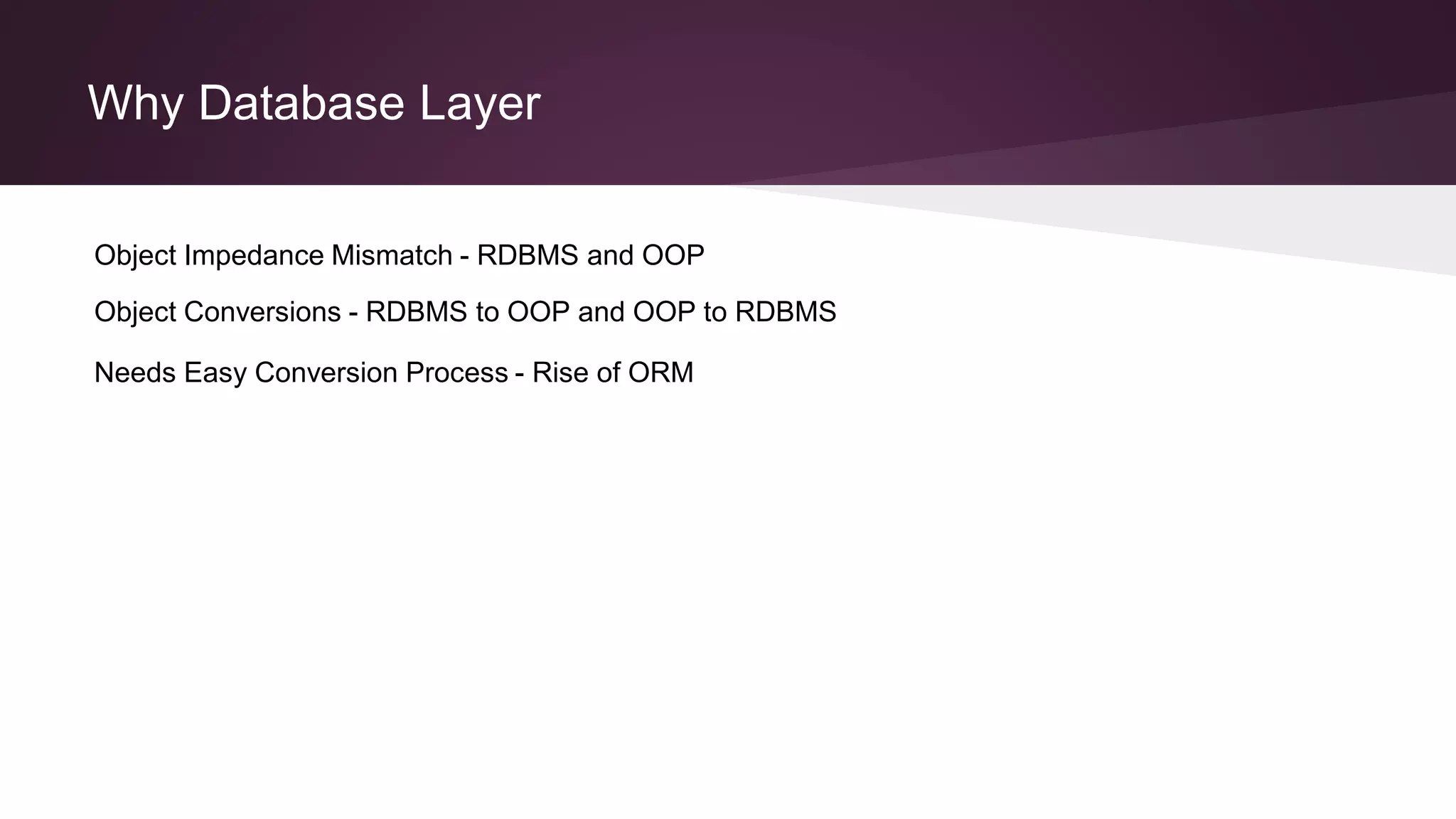

3. Why Database Layer
Object Impedance Mismatch - RDBMS and OOP
Object Conversions - RDBMS to OOP and OOP to RDBMS
Needs Easy Conversion Process - Rise of ORM

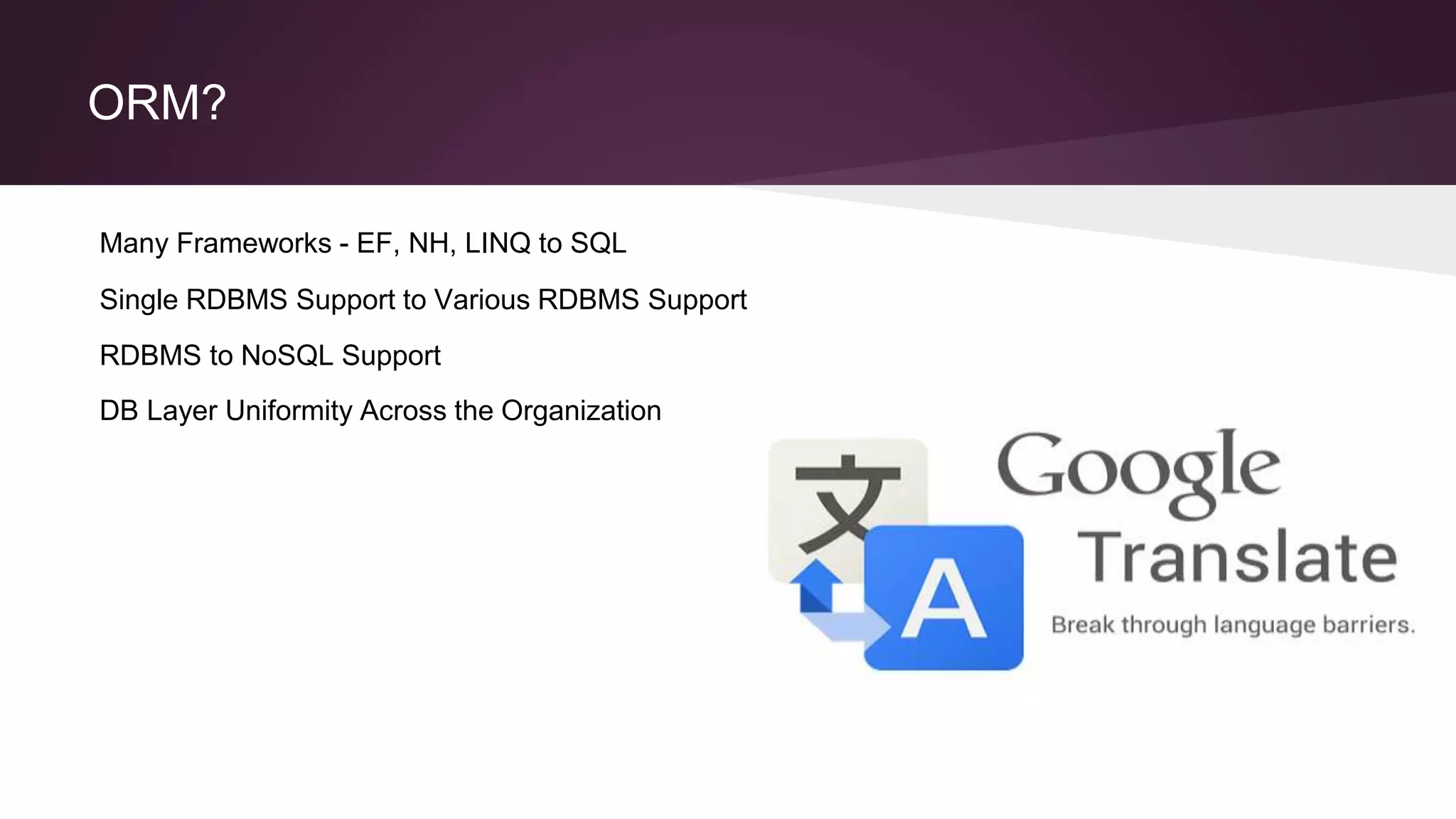

4. ORM?
Many Frameworks - EF, NH, LINQ to SQL
RDBMS to NoSQL Support
Single RDBMS Support to Various RDBMS Support
DB Layer Uniformity Across the Organization

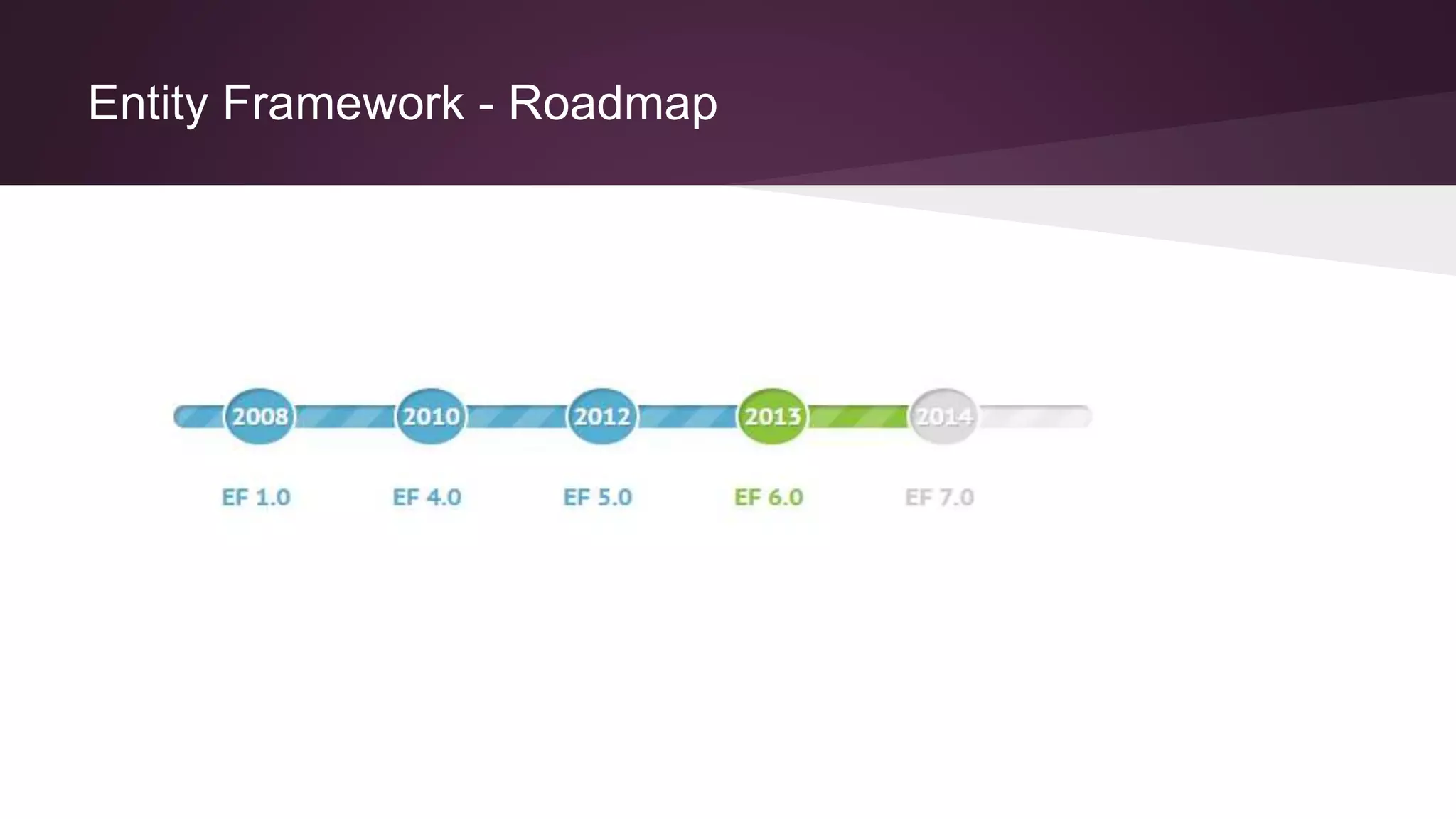

5. Entity Framework - Roadmap

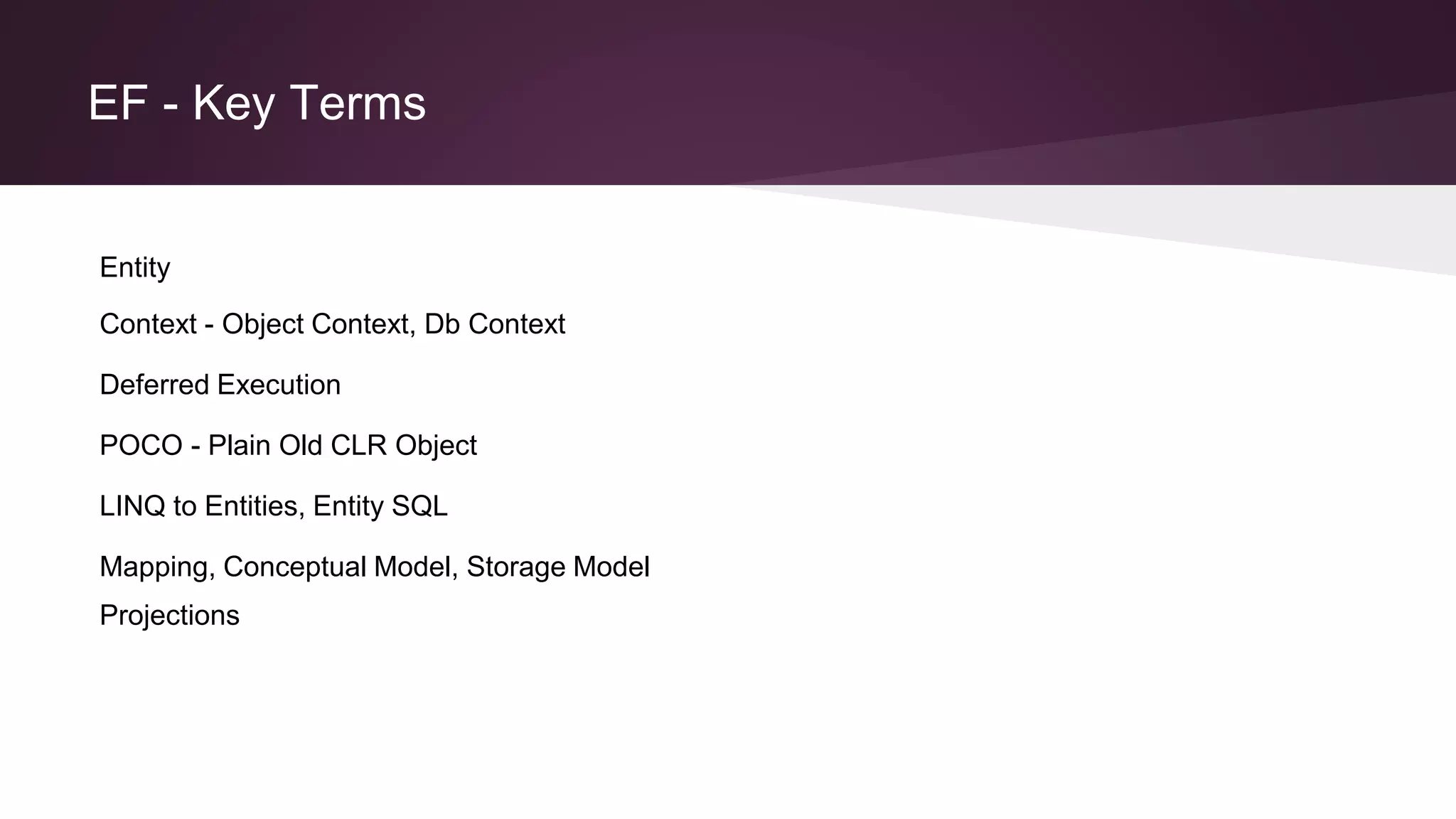

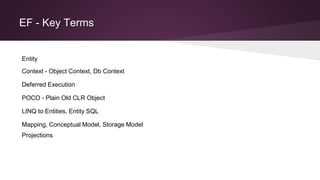

6. EF - Key Terms
Entity
Context - Object Context, Db Context
Deferred Execution
POCO - Plain Old CLR Object
LINQ to Entities, Entity SQL
Mapping, Conceptual Model, Storage Model
Projections

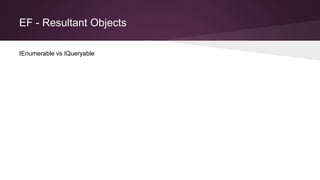

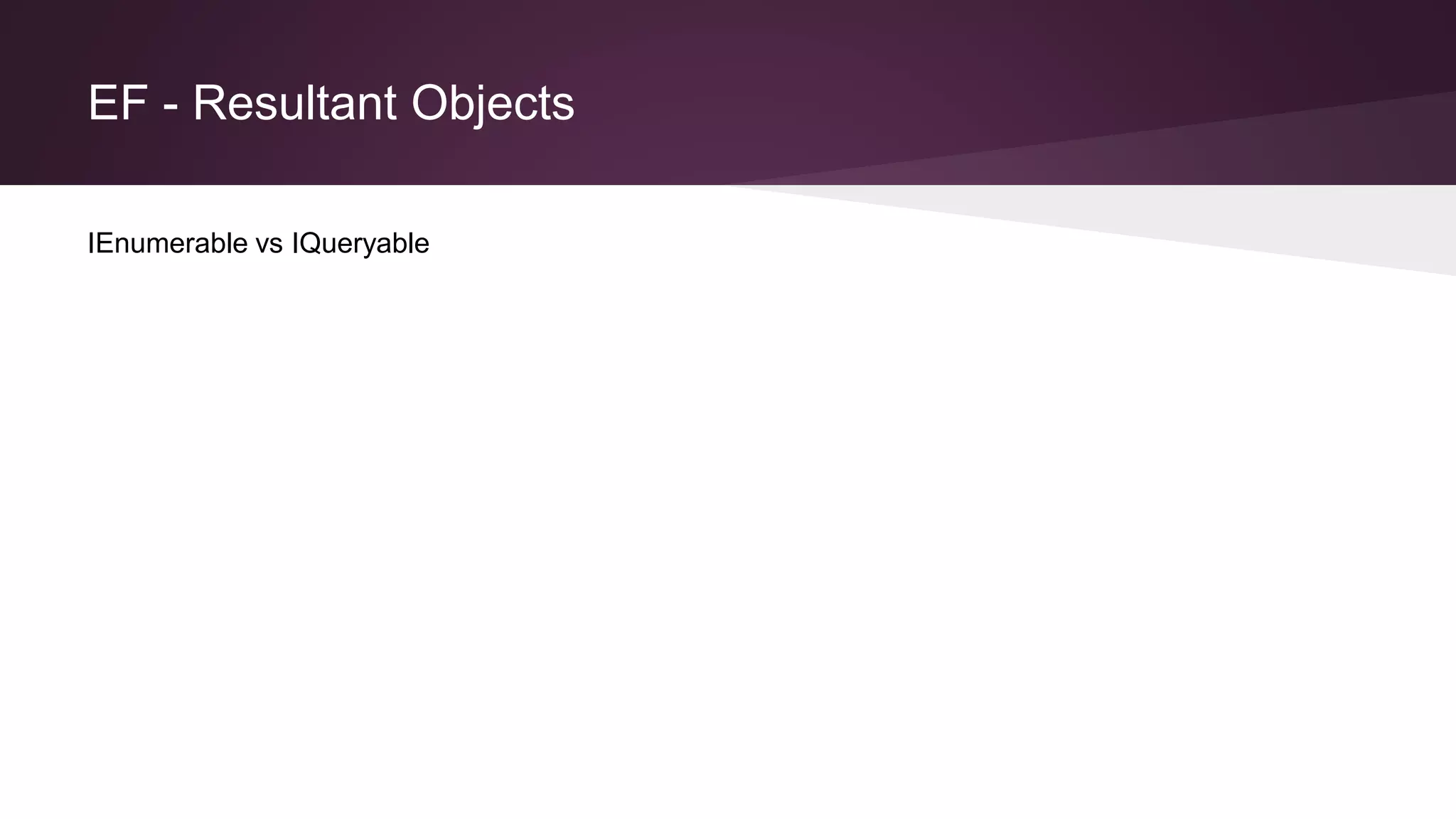

7. EF - Resultant Objects
IEnumerable vs IQueryable

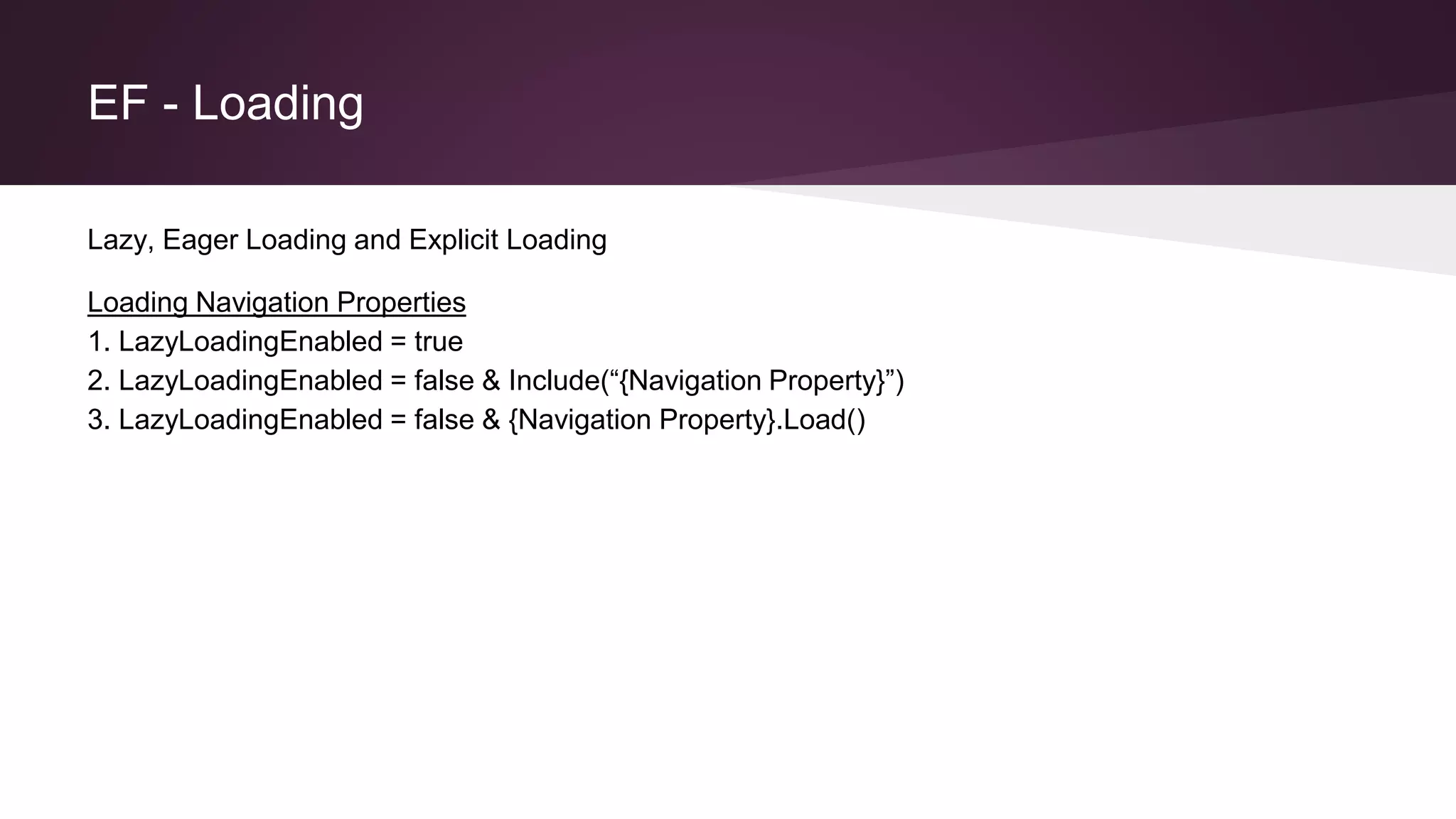

8. EF - Loading
Lazy, Eager Loading and Explicit Loading
Loading Navigation Properties
1. LazyLoadingEnabled = true
2. LazyLoadingEnabled = false & Include(“{Navigation Property}”)
3. LazyLoadingEnabled = false & {Navigation Property}.Load()

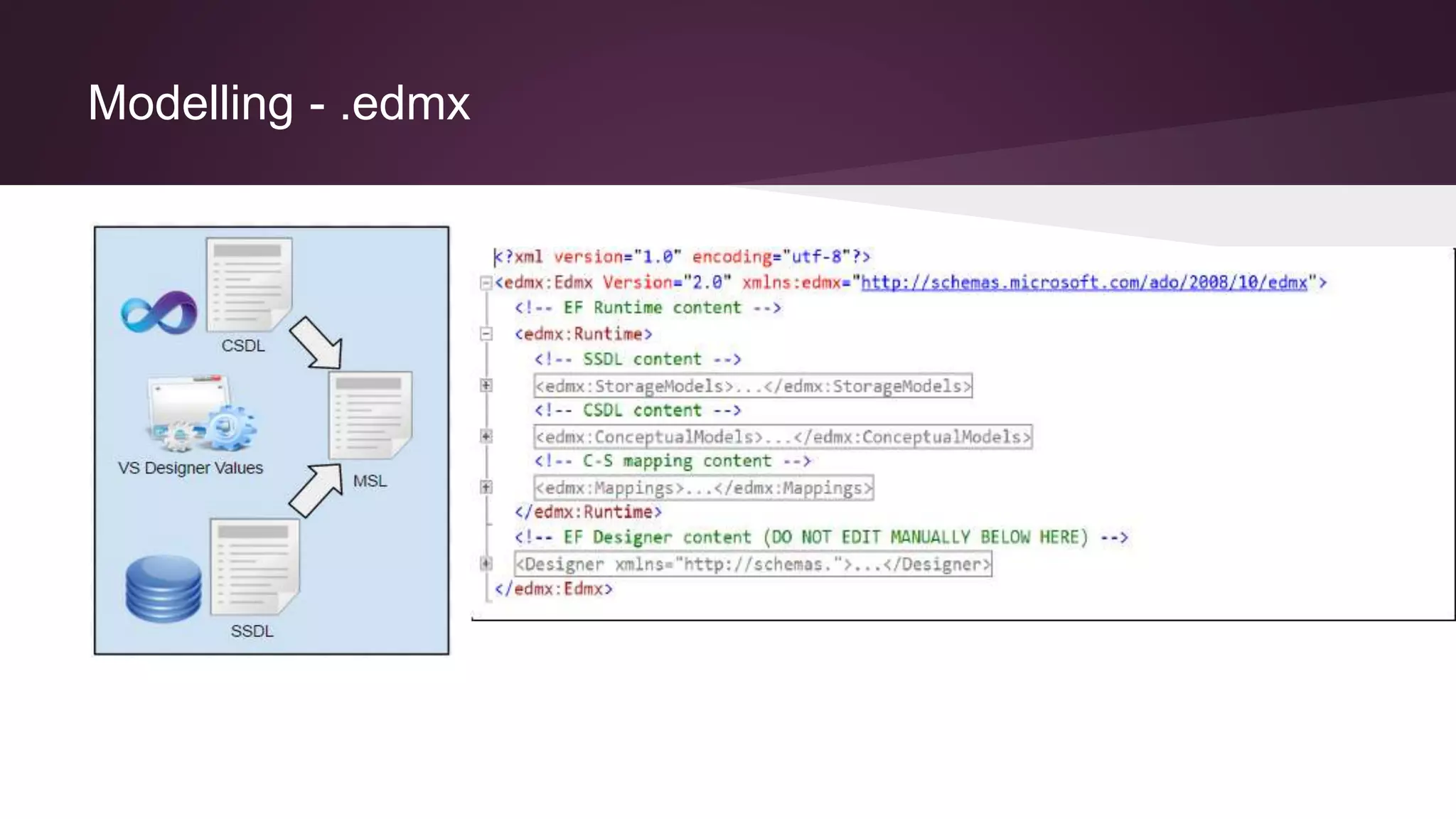

9. Modelling - .edmx

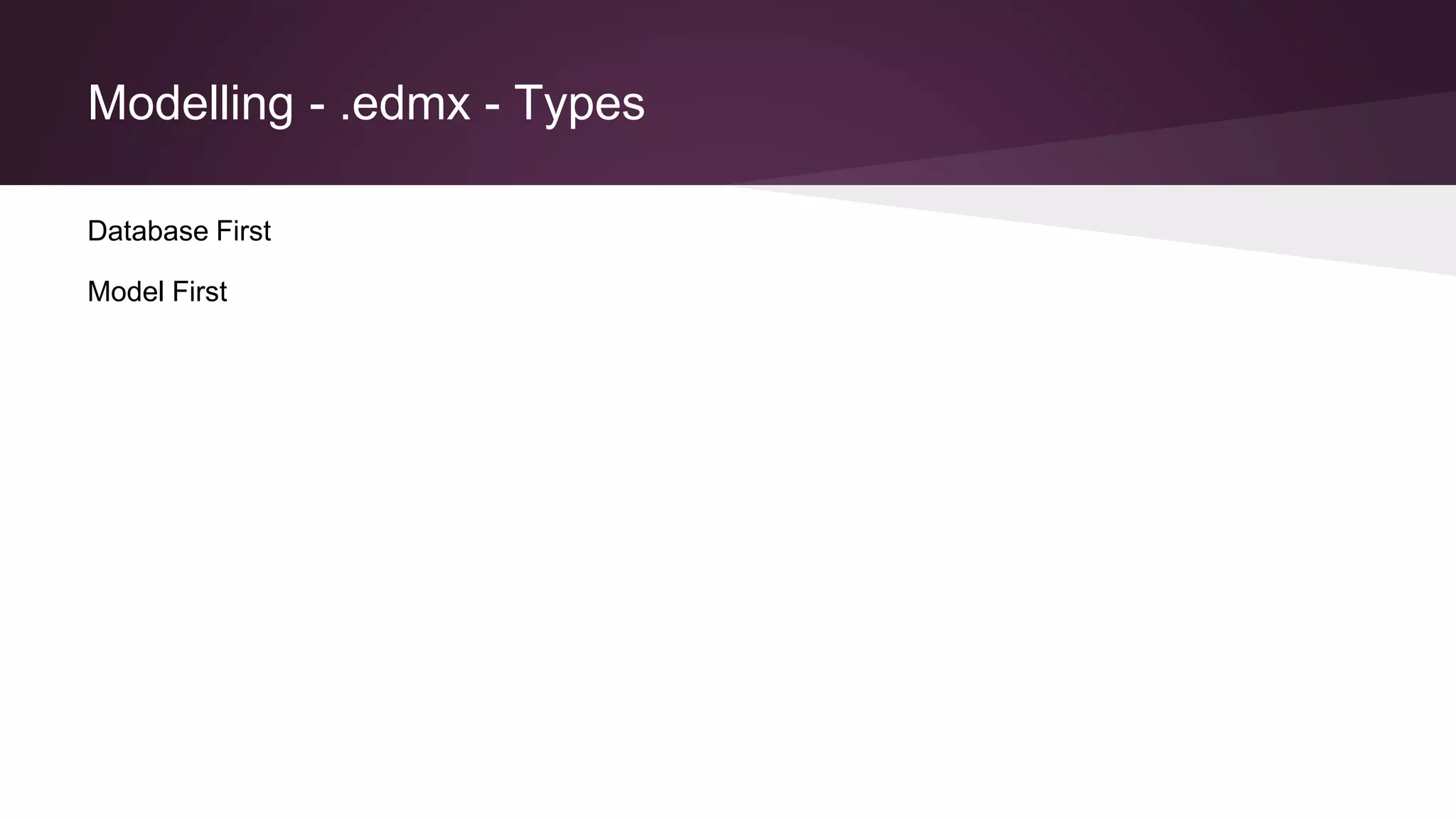

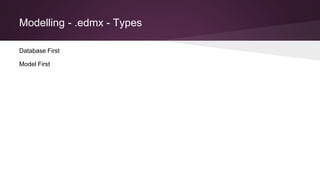

10. Modelling - .edmx - Types
Database First
Model First

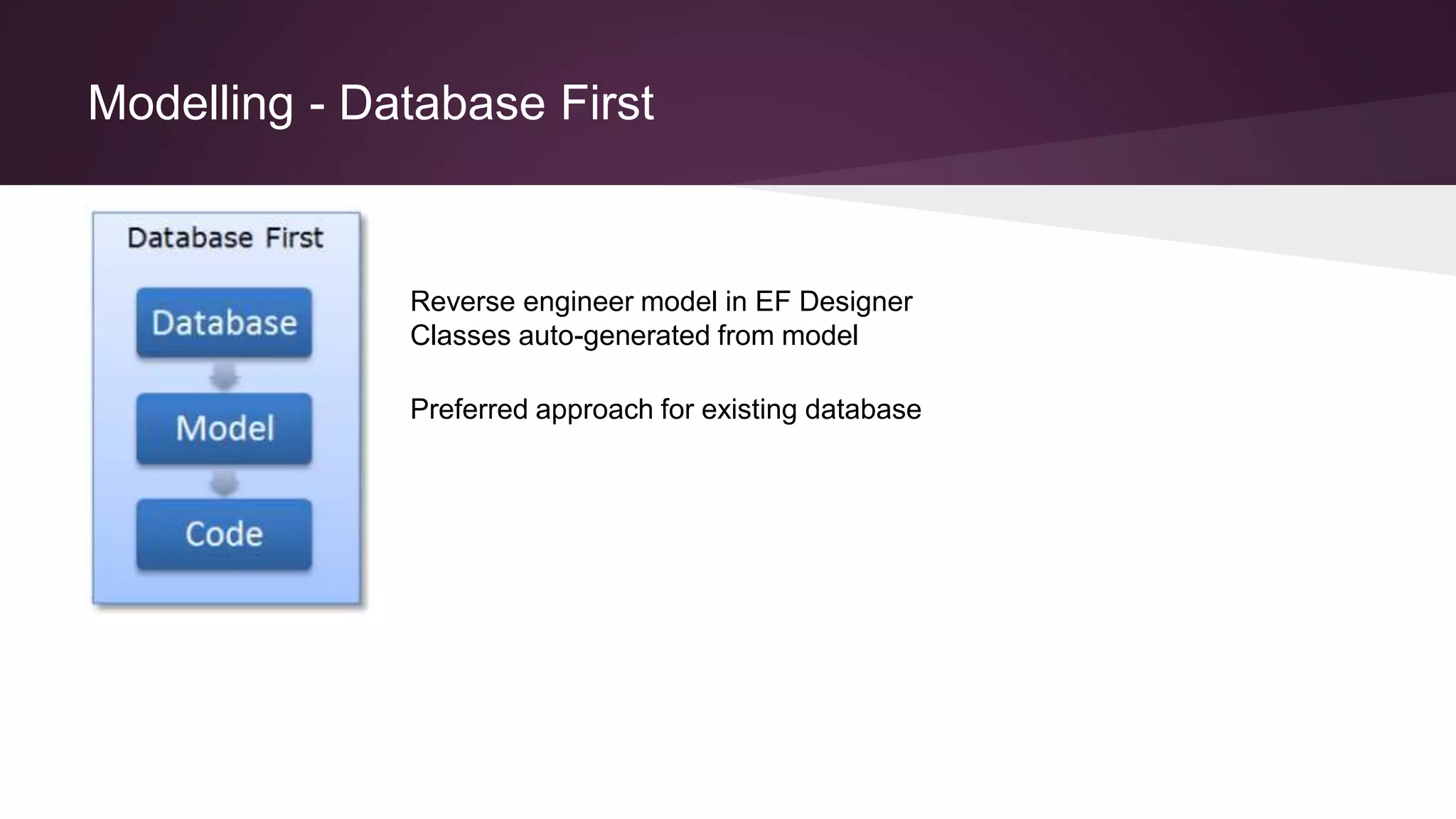

11. Modelling - Database First
Reverse engineer model in EF Designer
Classes auto-generated from model
Preferred approach for existing database

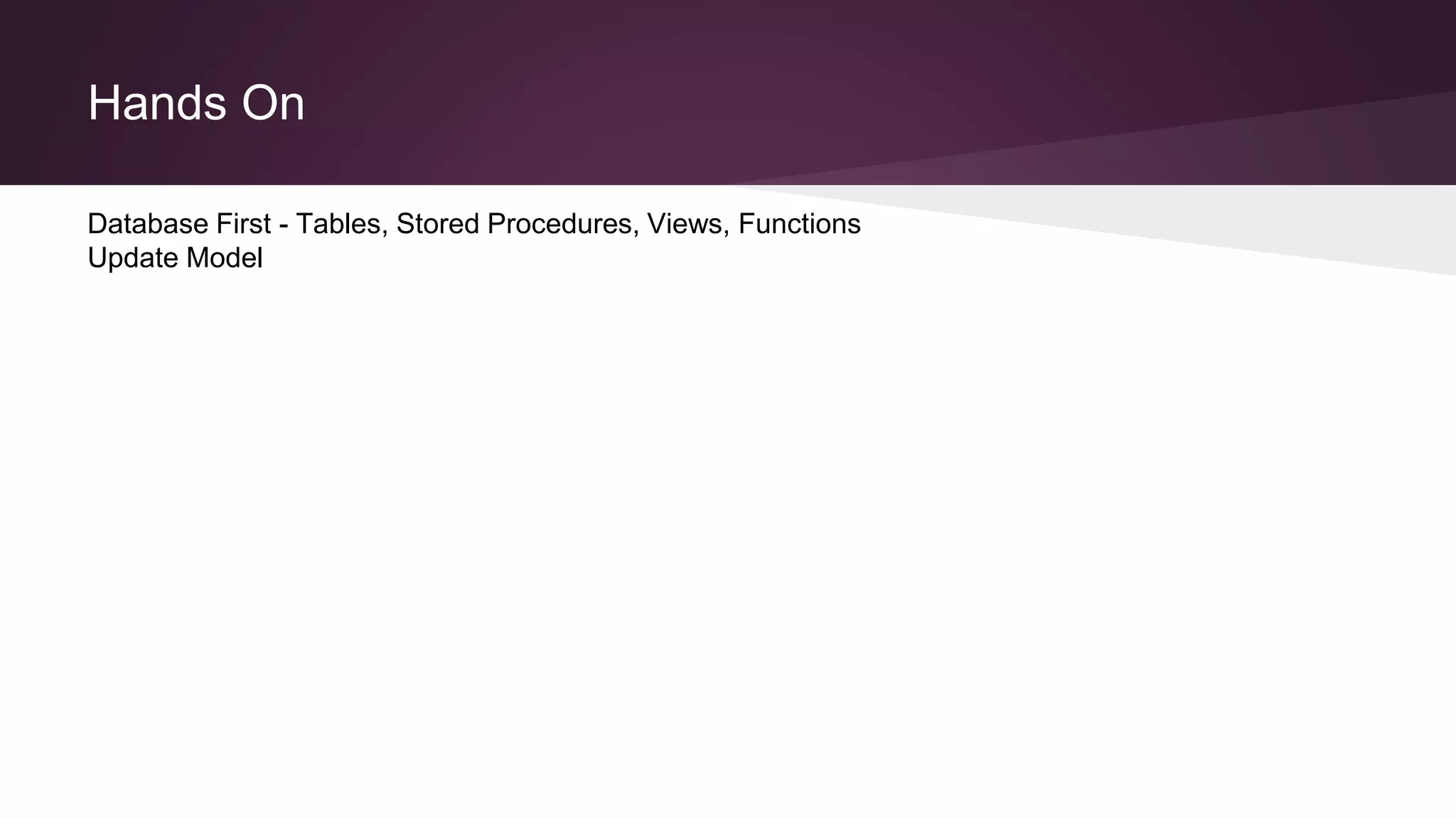

12. Hands On
Database First - Tables, Stored Procedures, Views, Functions
Update Model

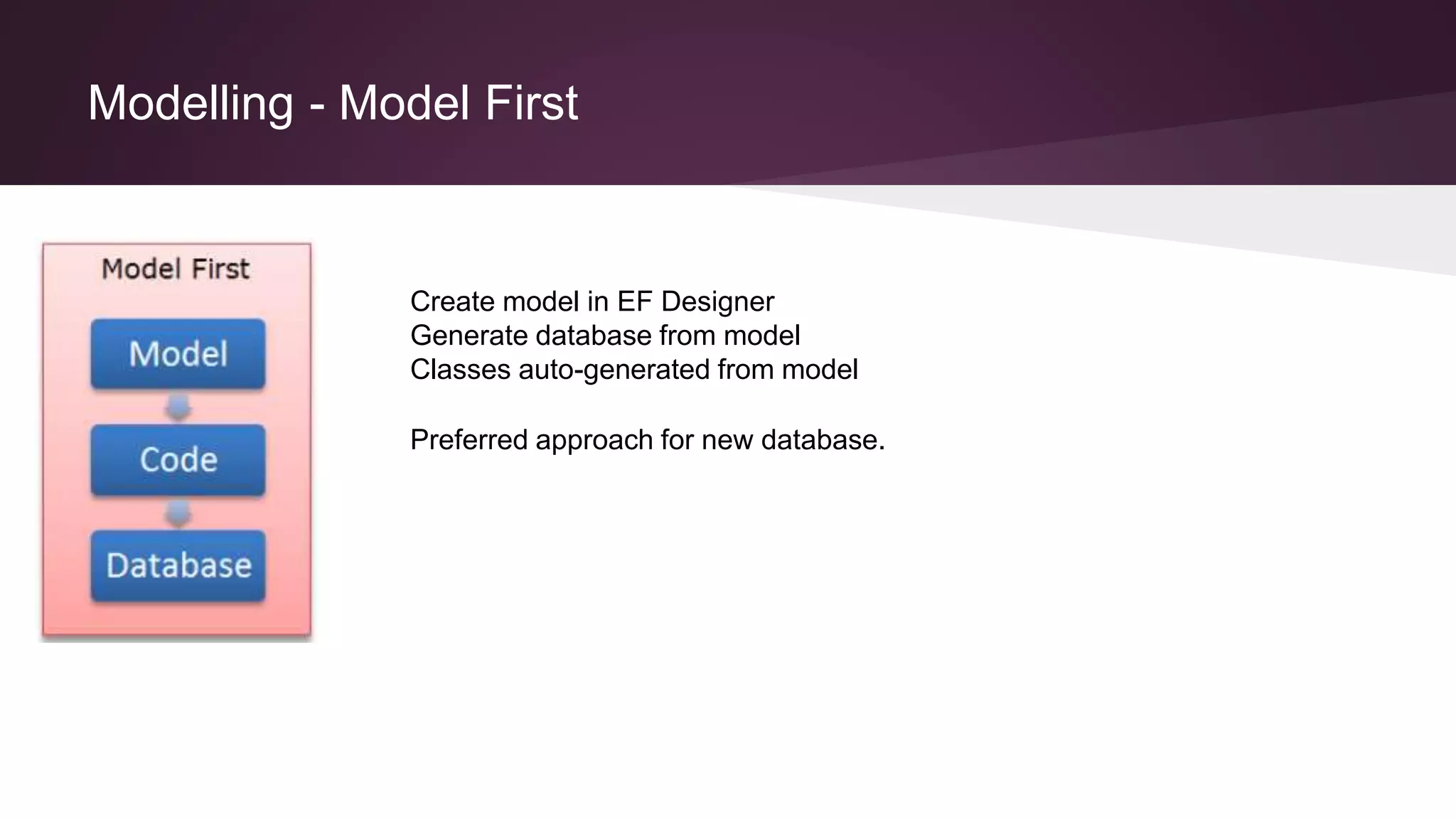

13. Modelling - Model First
Create model in EF Designer
Generate database from model
Classes auto-generated from model
Preferred approach for new database.

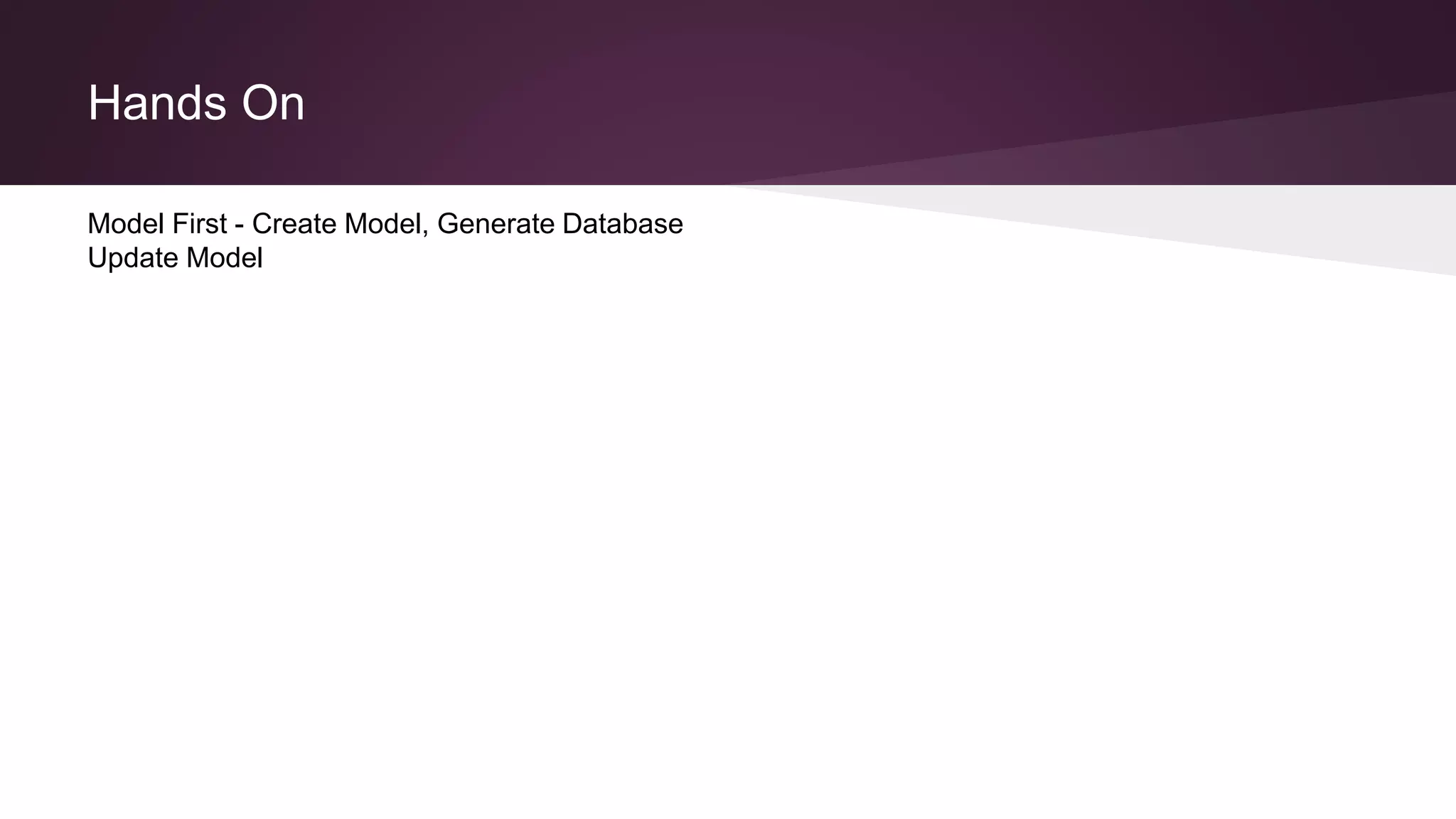

14. Hands On
Model First - Create Model, Generate Database
Update Model

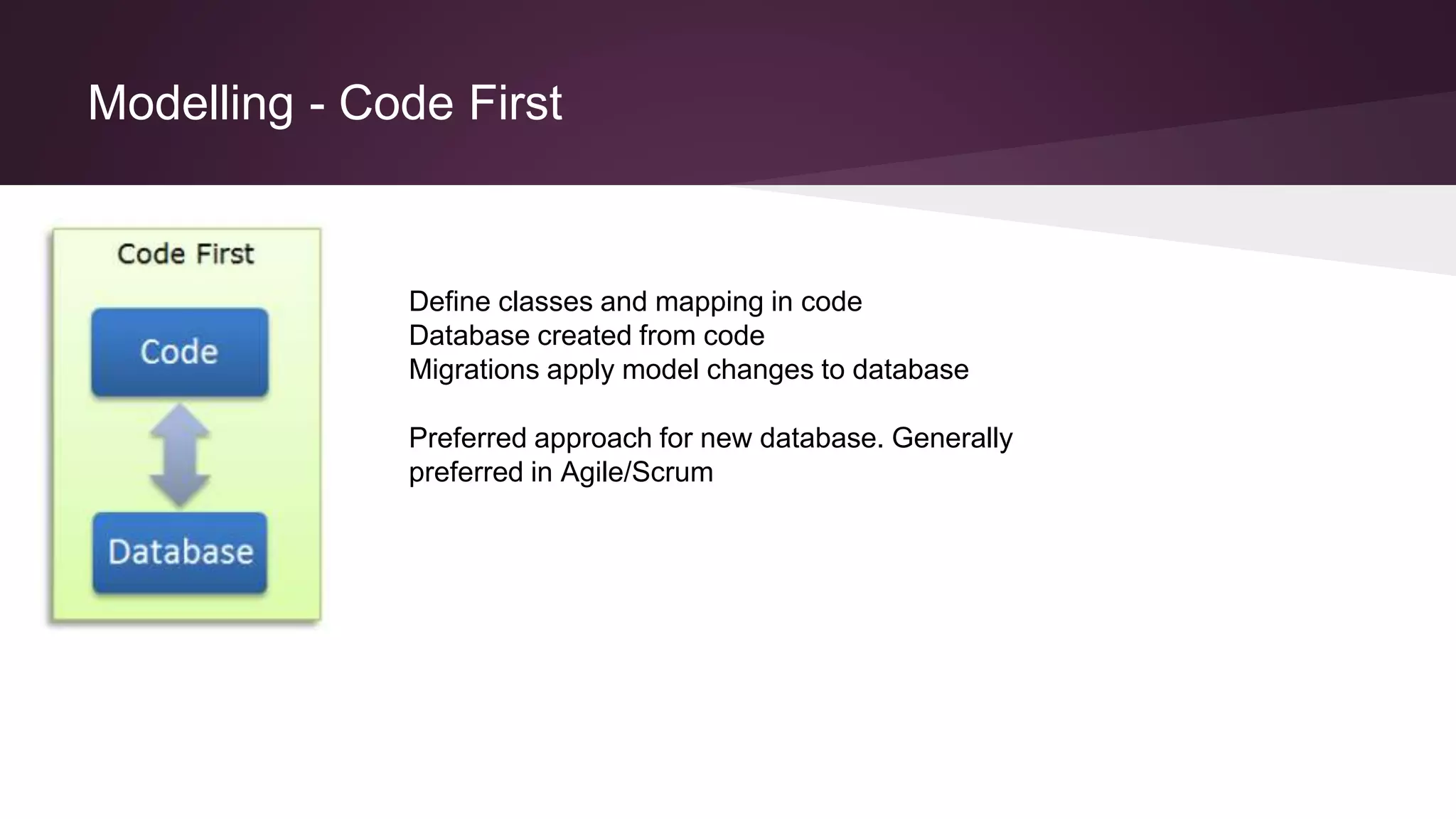

15. Modelling - Code First
Define classes and mapping in code
Database created from code
Migrations apply model changes to database
Preferred approach for new database. Generally
preferred in Agile/Scrum

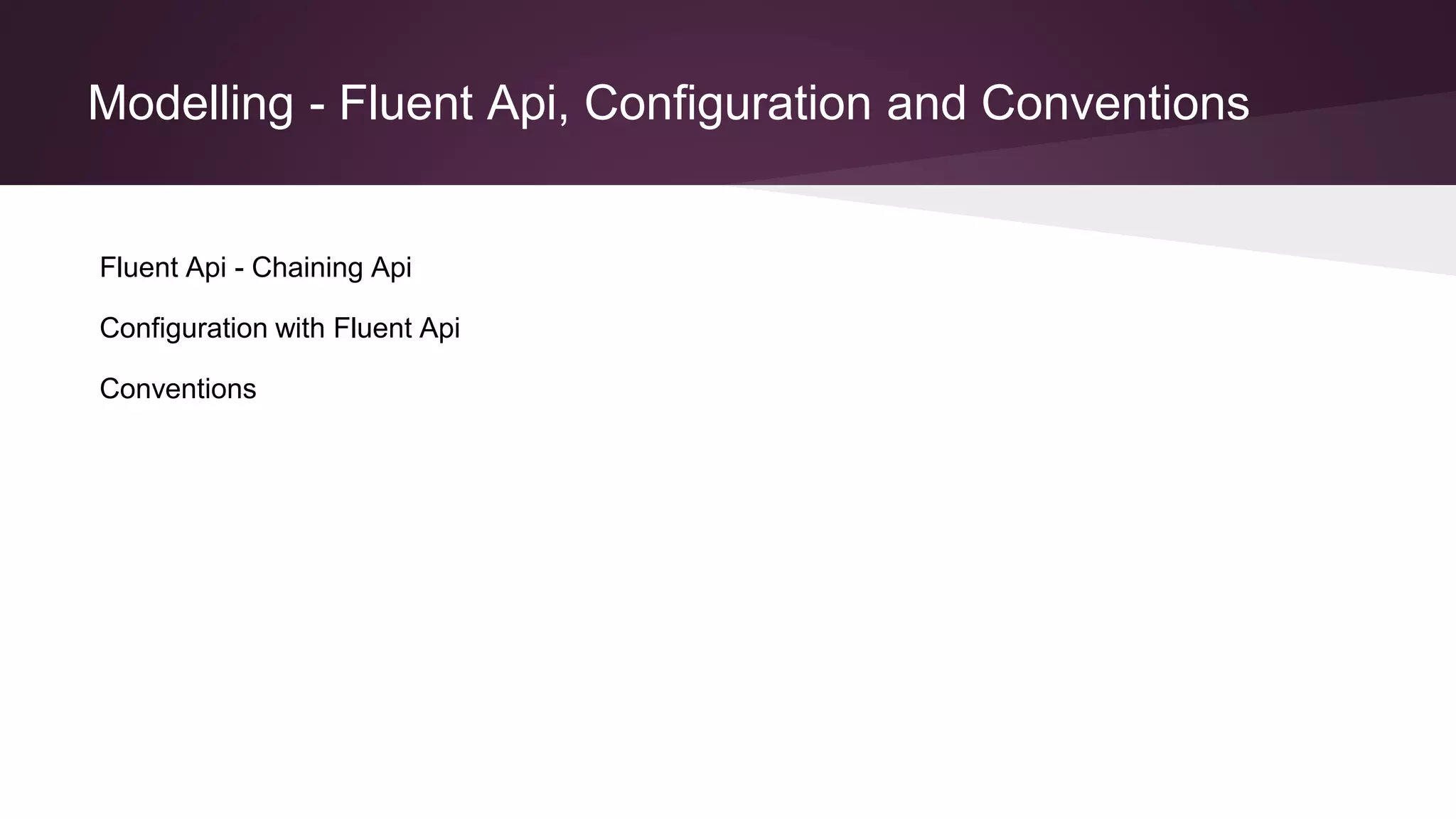

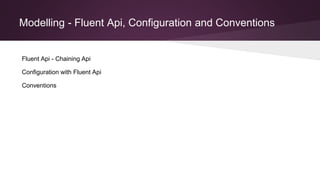

16. Modelling - Fluent Api, Configuration and Conventions
Fluent Api - Chaining Api
Configuration with Fluent Api
Conventions

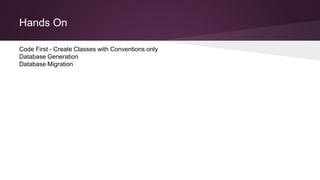

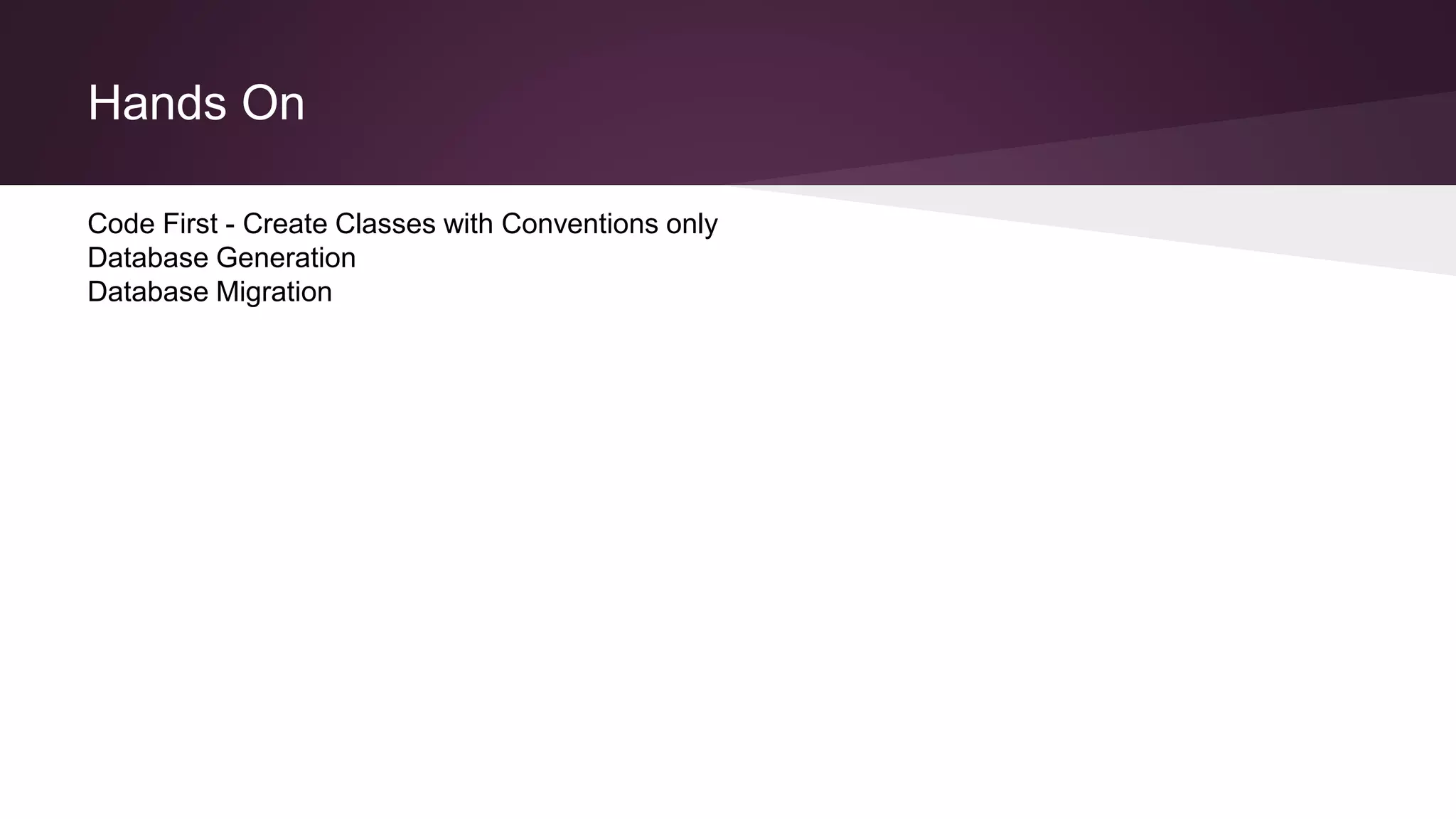

17. Hands On
Code First - Create Classes with Conventions only
Database Generation
Database Migration

18. EF - CRUD

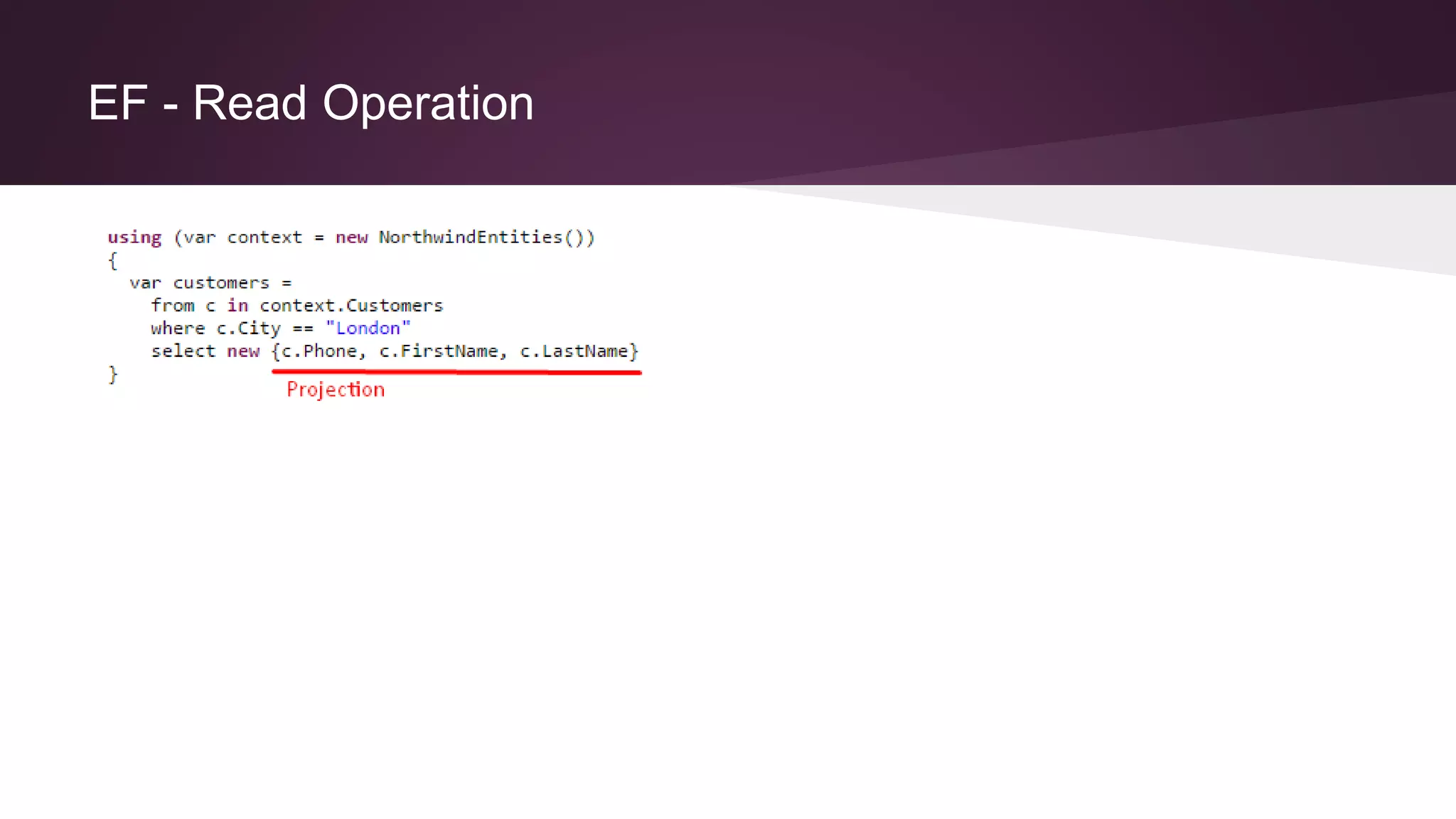

19. EF - Read Operation

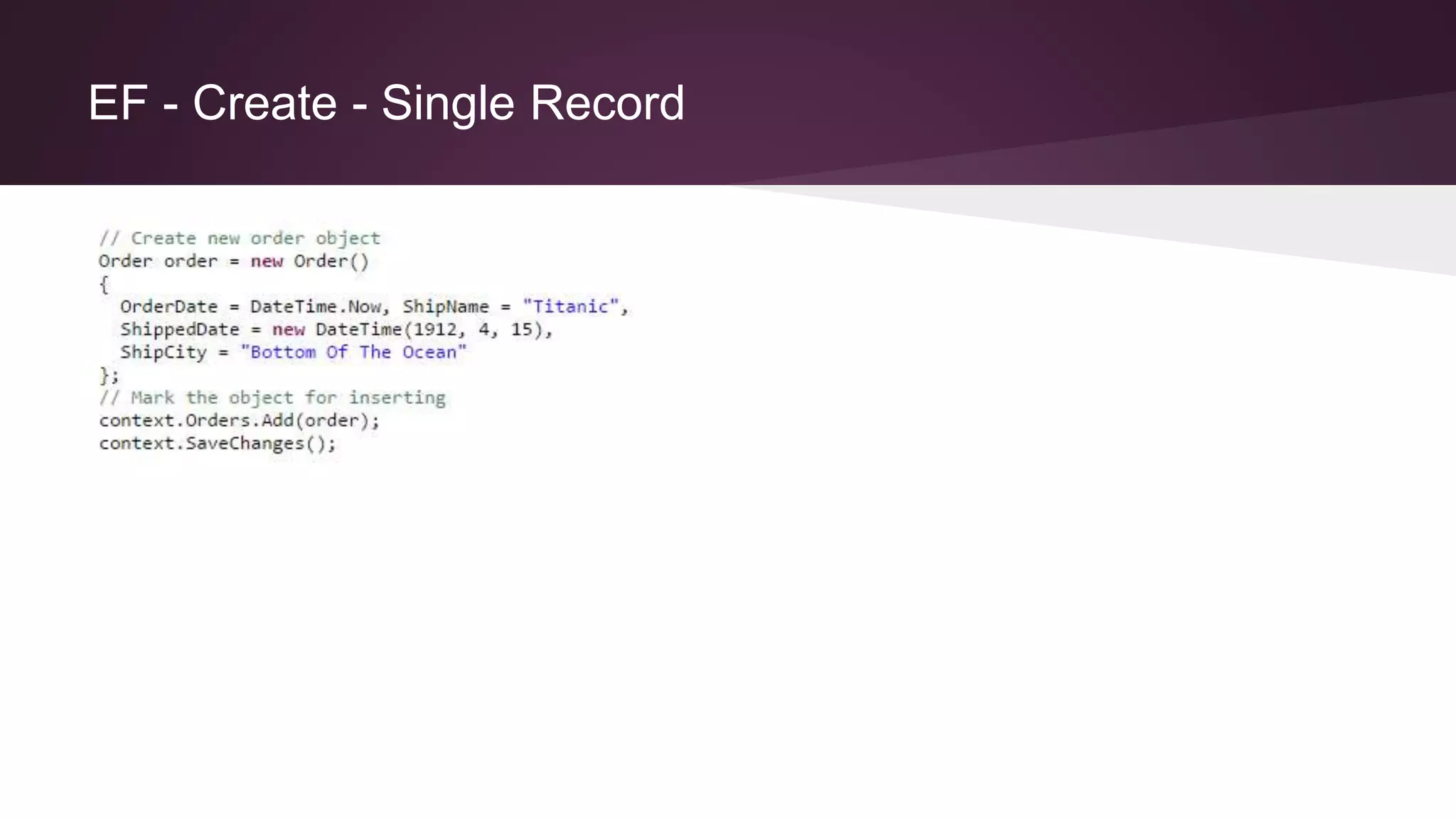

20. EF - Create - Single Record

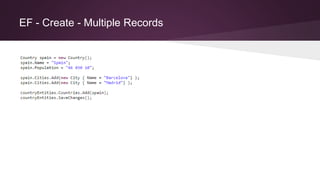

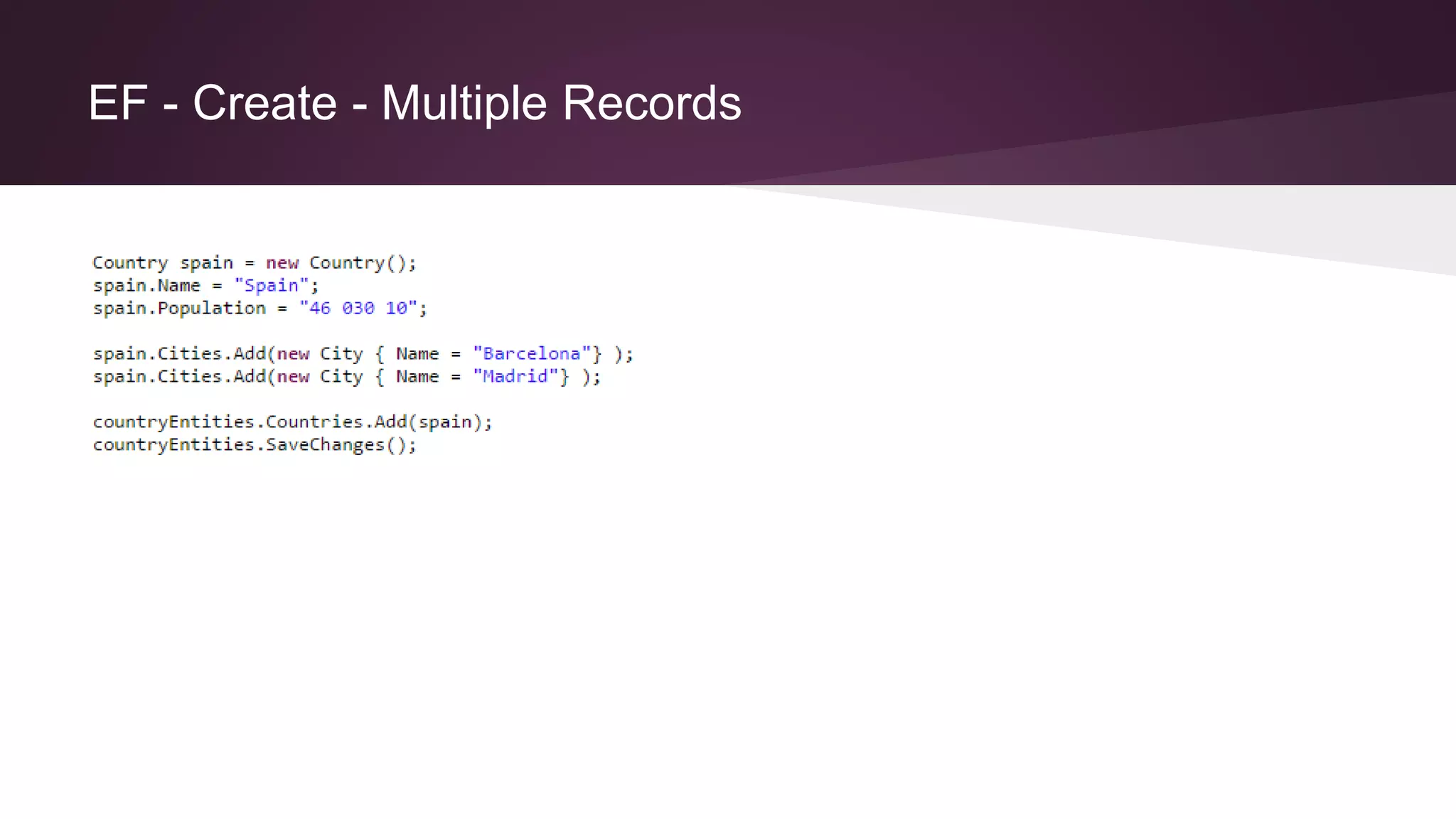

21. EF - Create - Multiple Records

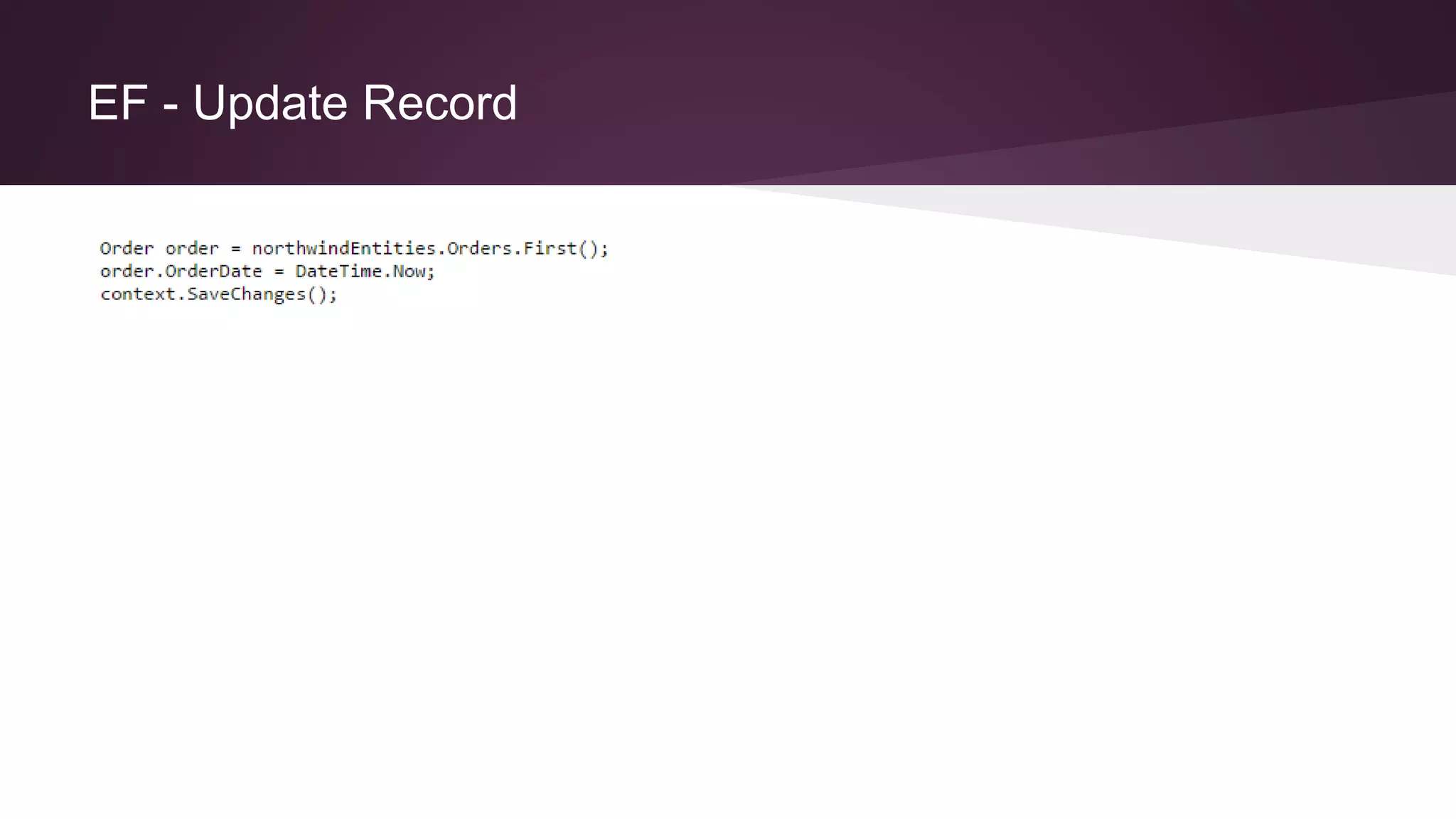

22. EF - Update Record

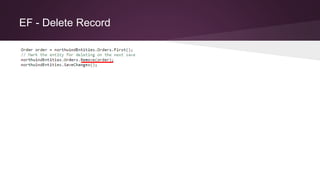

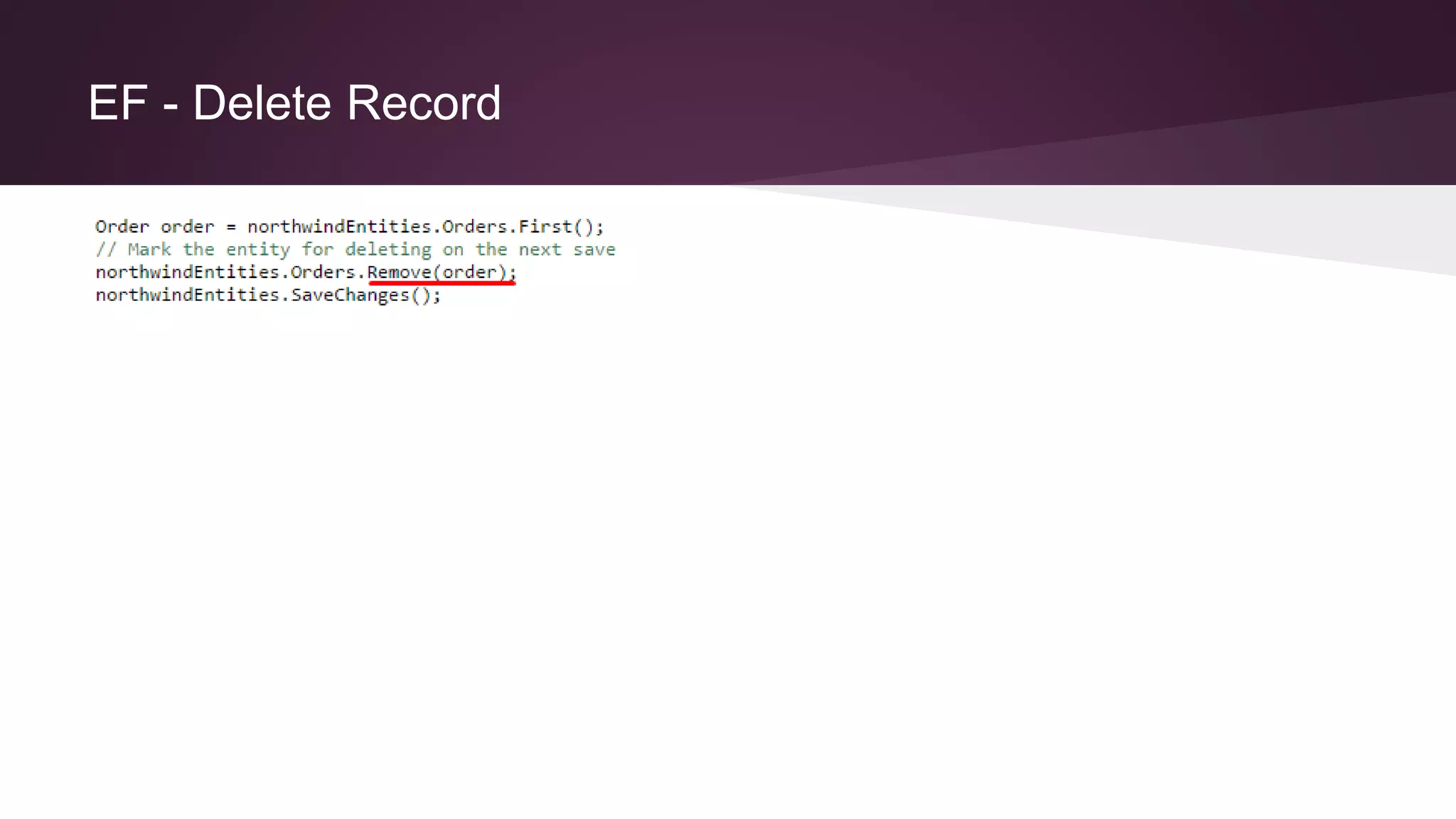

23. EF - Delete Record

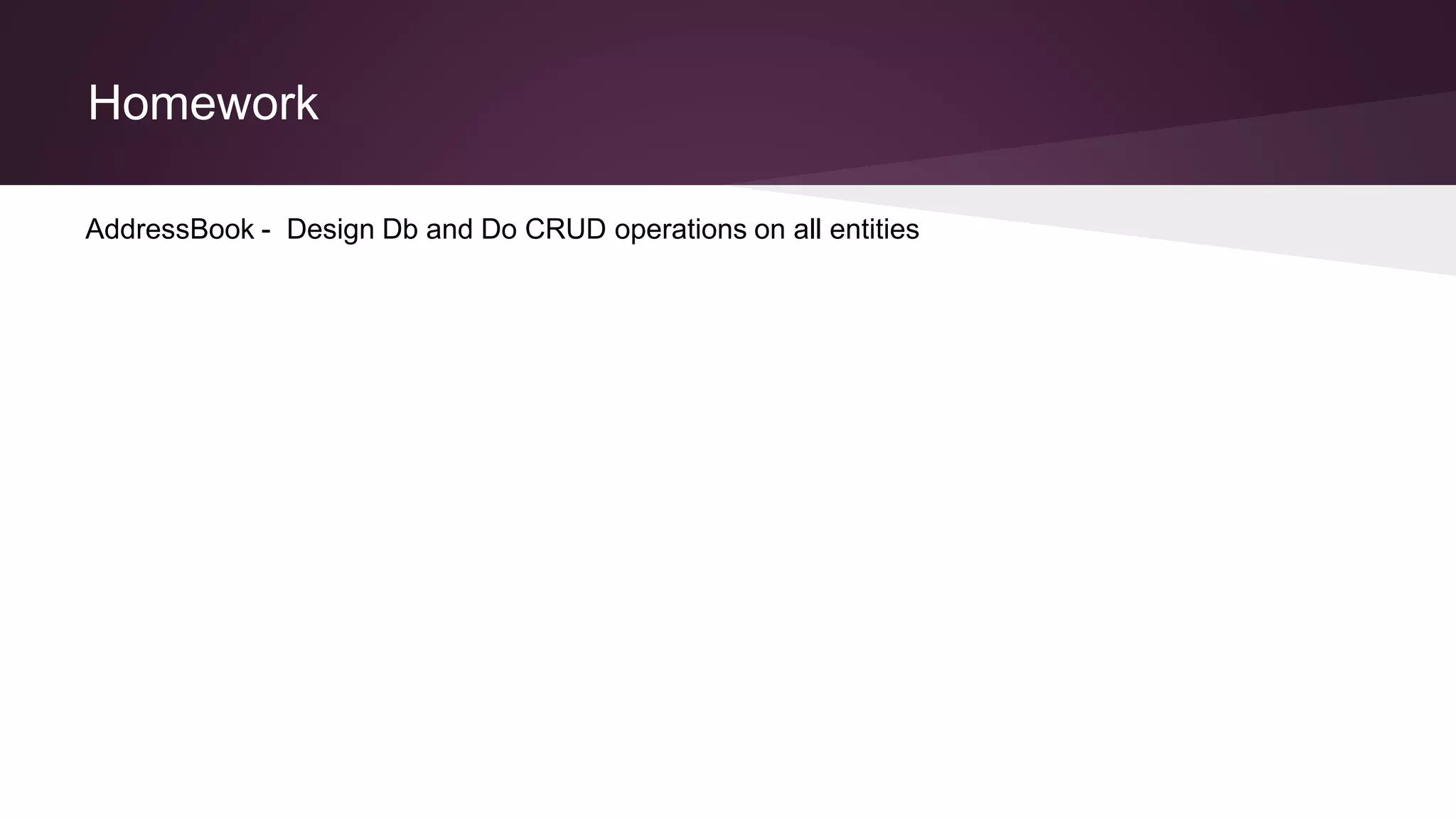

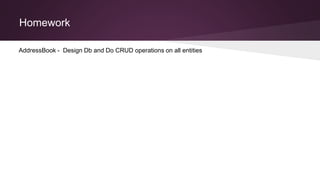

24. Homework
AddressBook - Design Db and Do CRUD operations on all entities

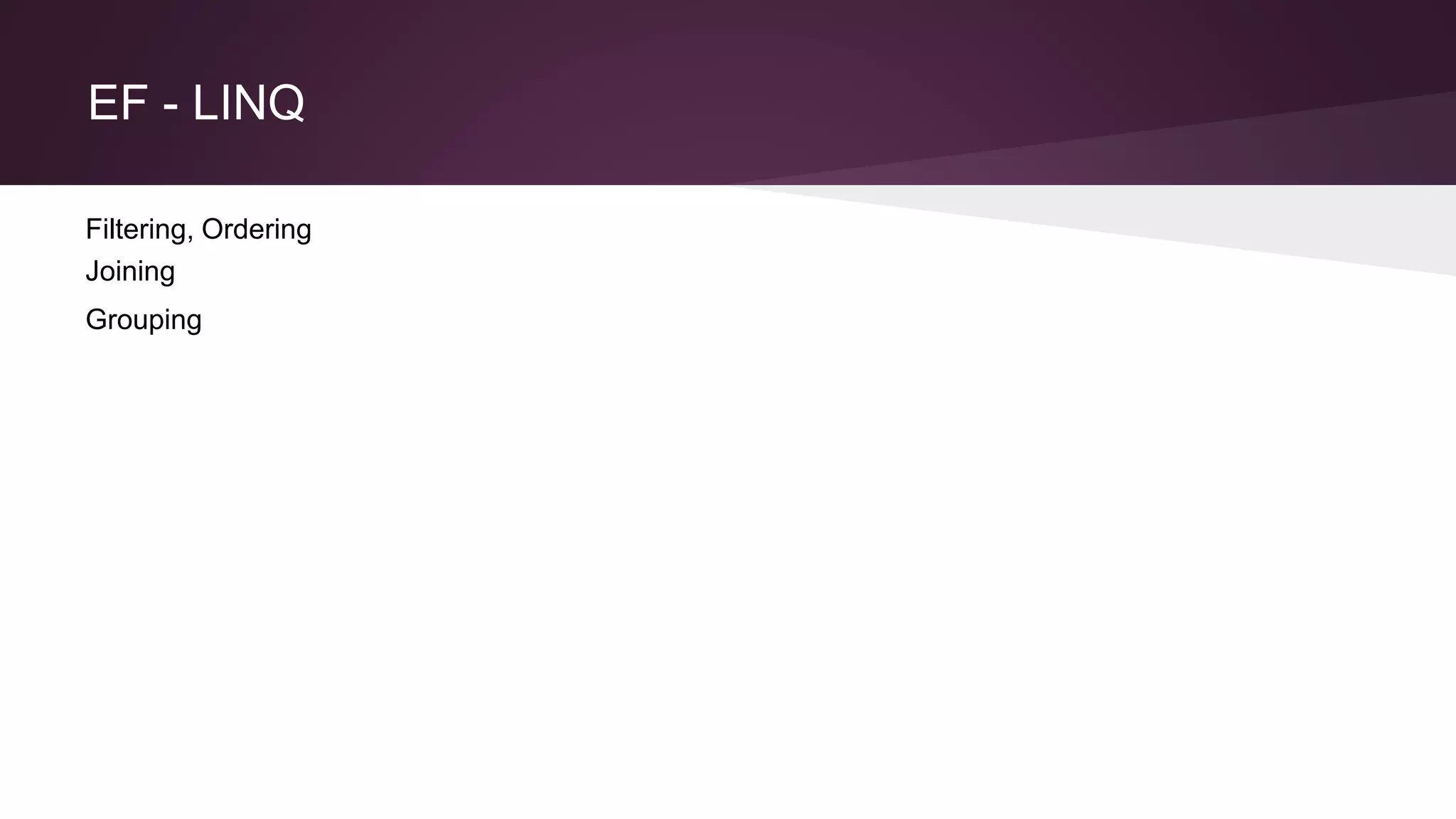

25. EF - LINQ
Filtering, Ordering
Joining
Grouping

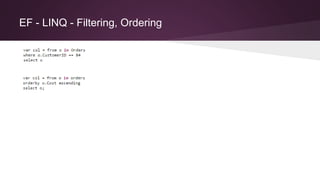

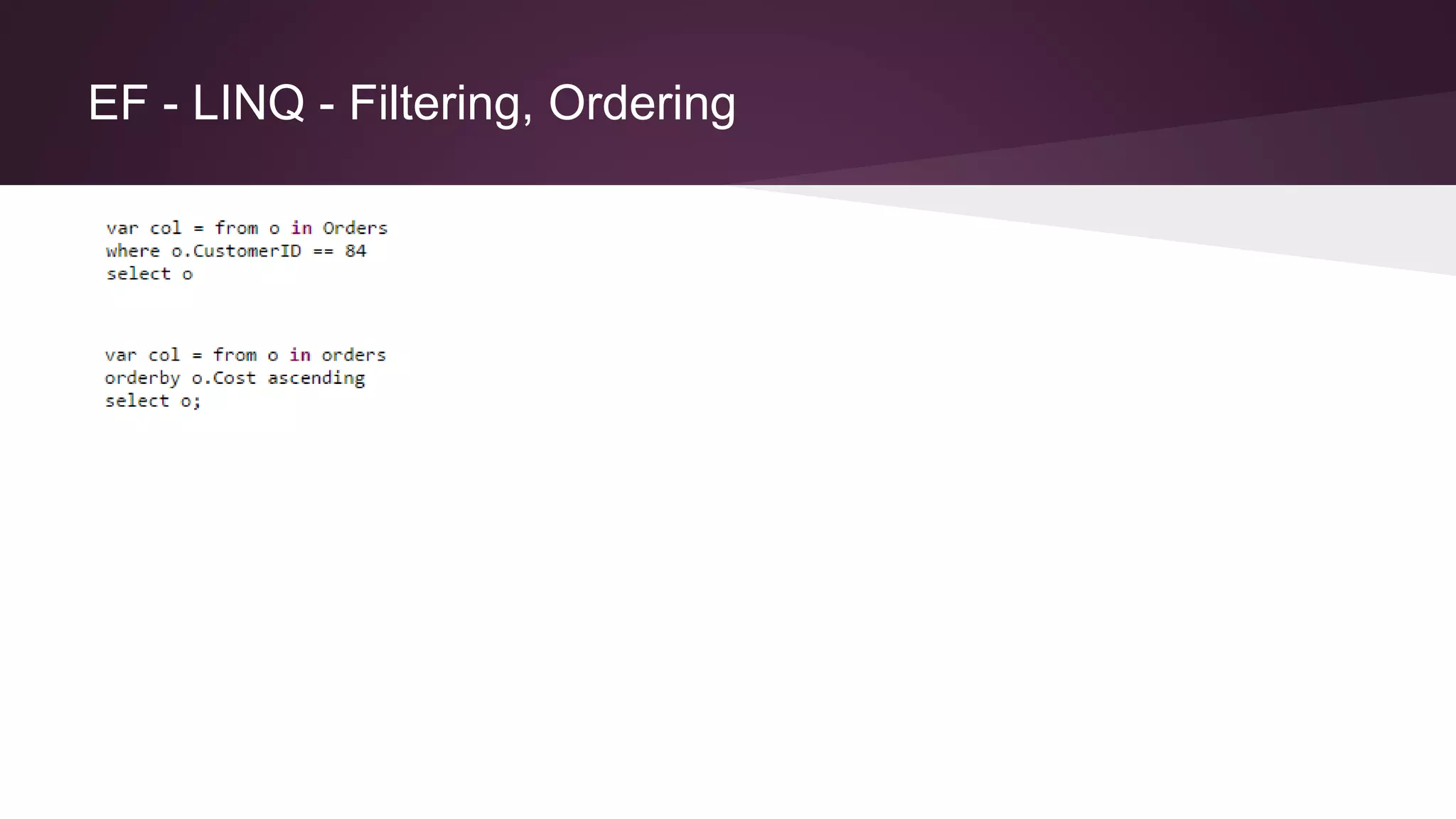

26. EF - LINQ - Filtering, Ordering

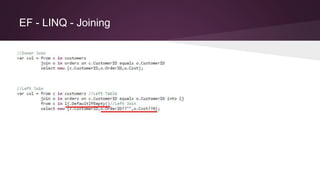

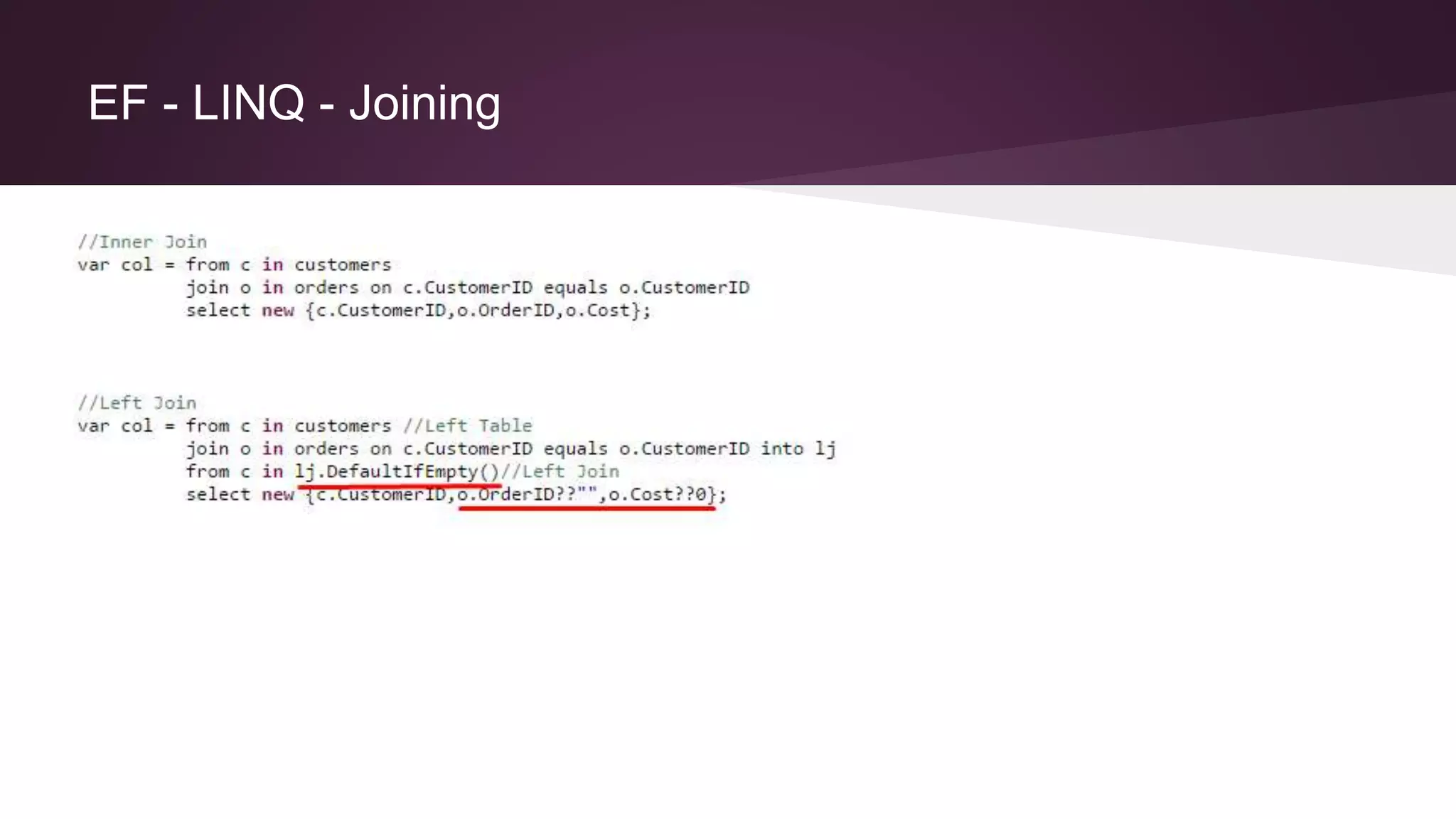

27. EF - LINQ - Joining

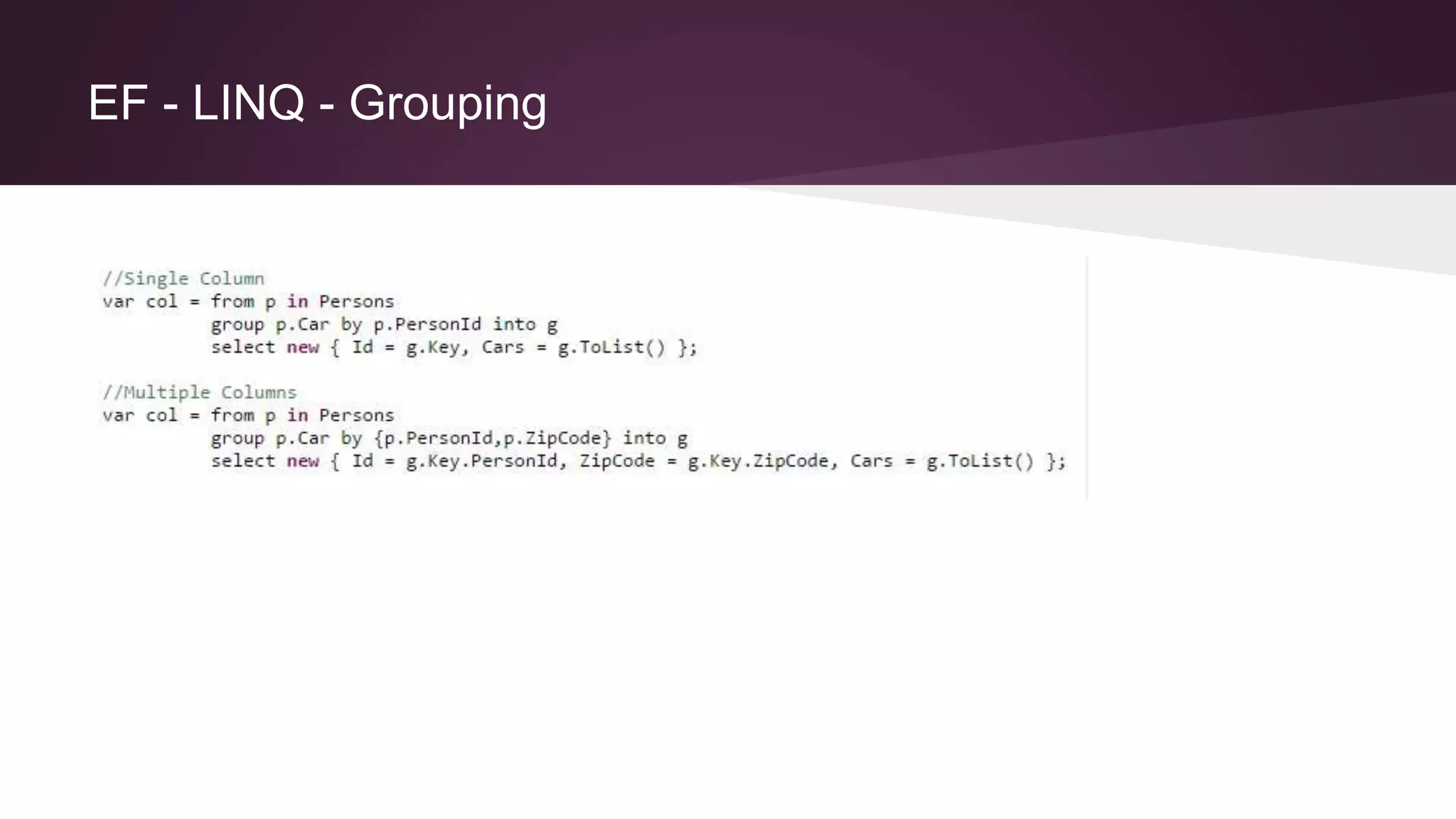

28. EF - LINQ - Grouping

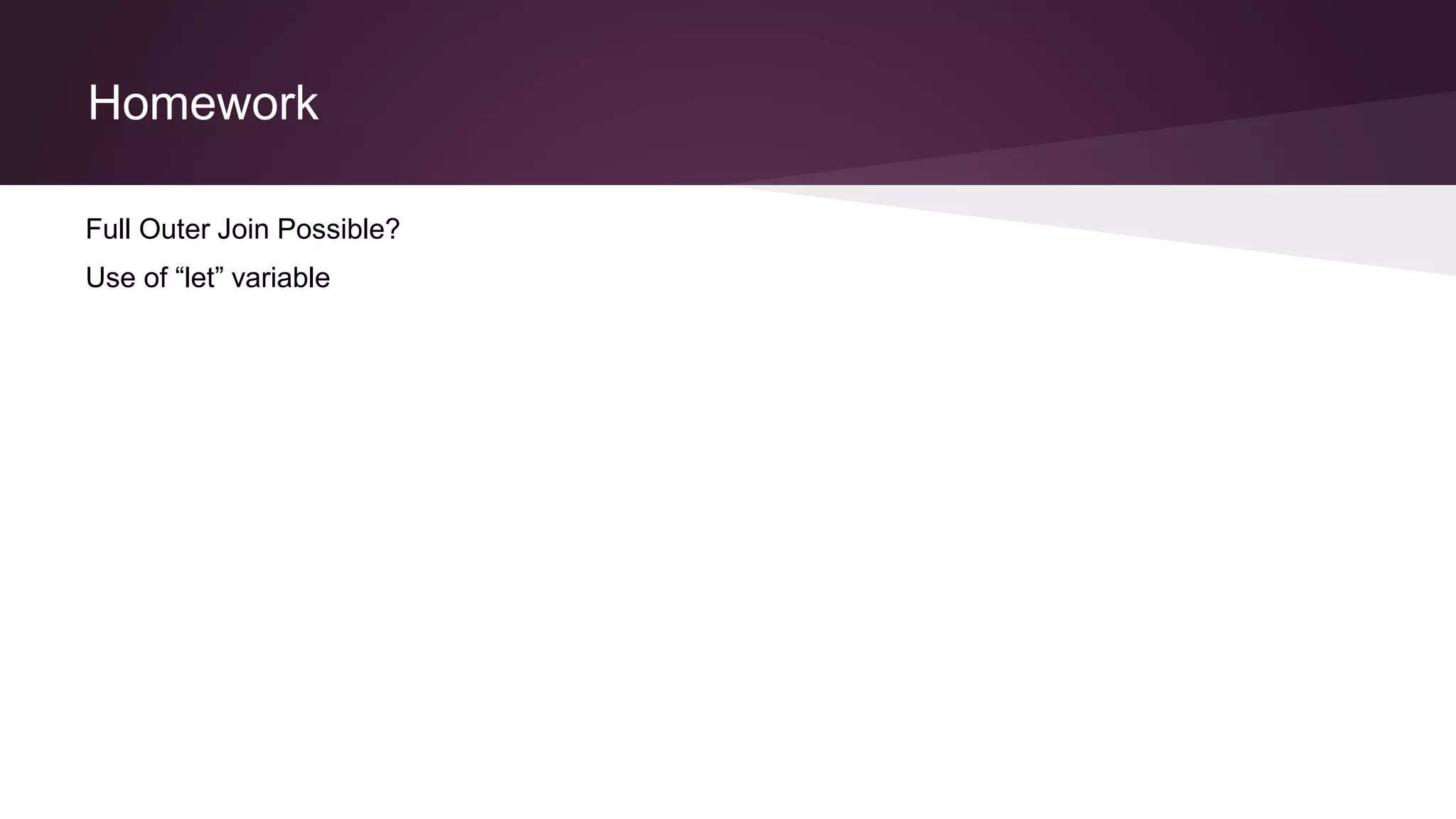

29. Homework
Full Outer Join Possible?
Use of “let” variable

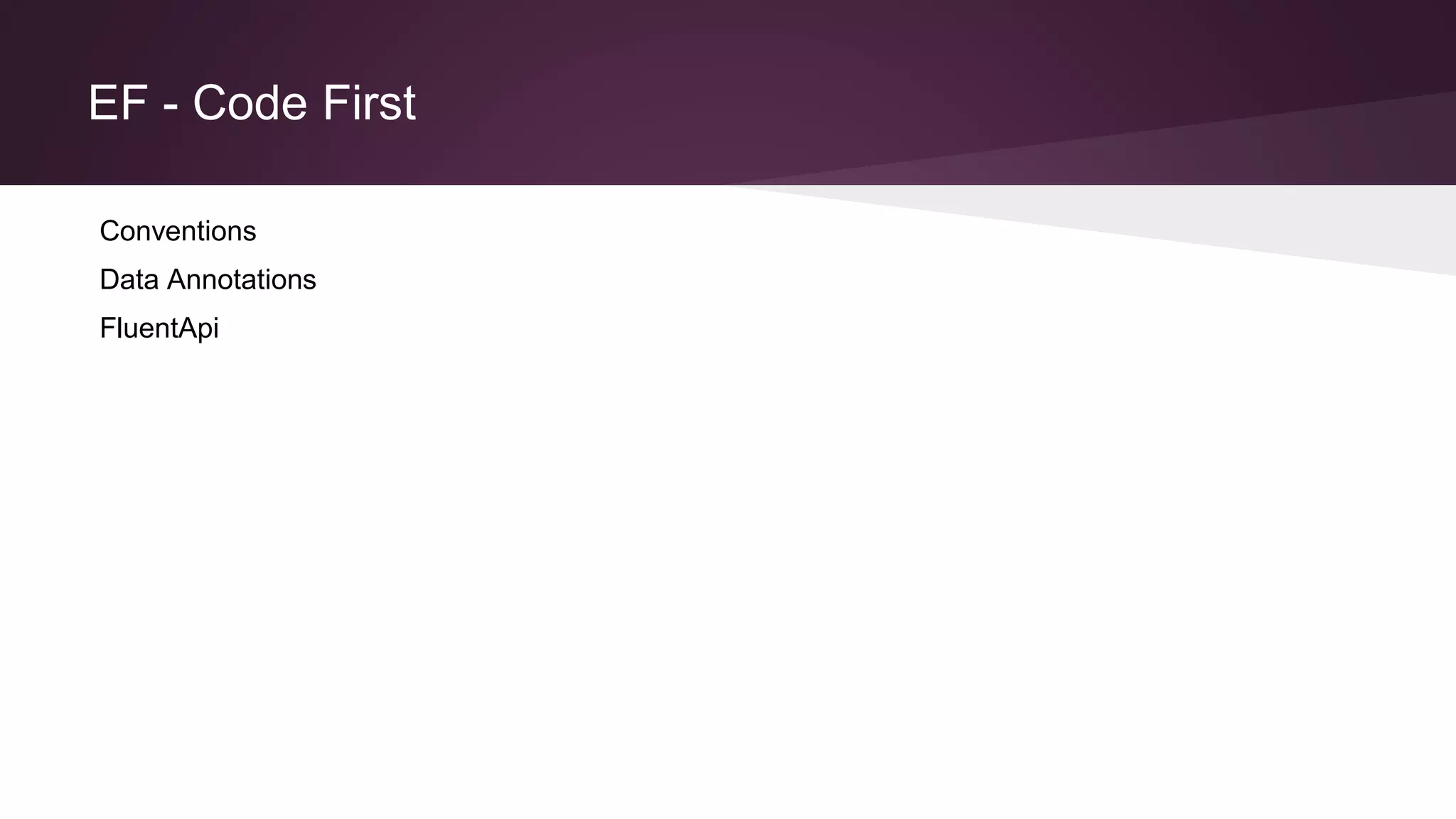

30. EF - Code First
Conventions
Data Annotations
FluentApi

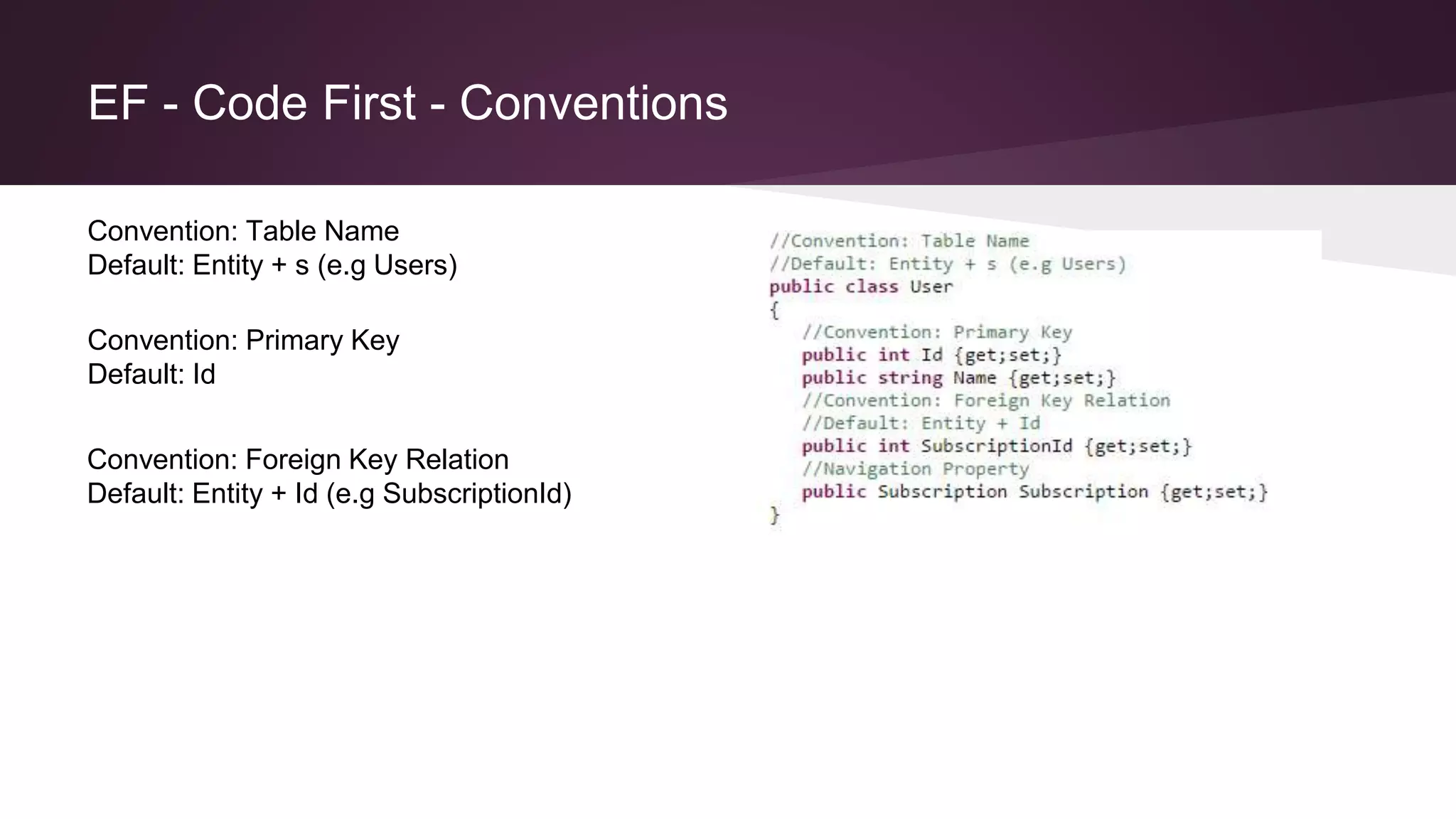

31. EF - Code First - Conventions
Convention: Table Name
Default: Entity + s (e.g Users)
Convention: Primary Key
Default: Id
Convention: Foreign Key Relation
Default: Entity + Id (e.g SubscriptionId)

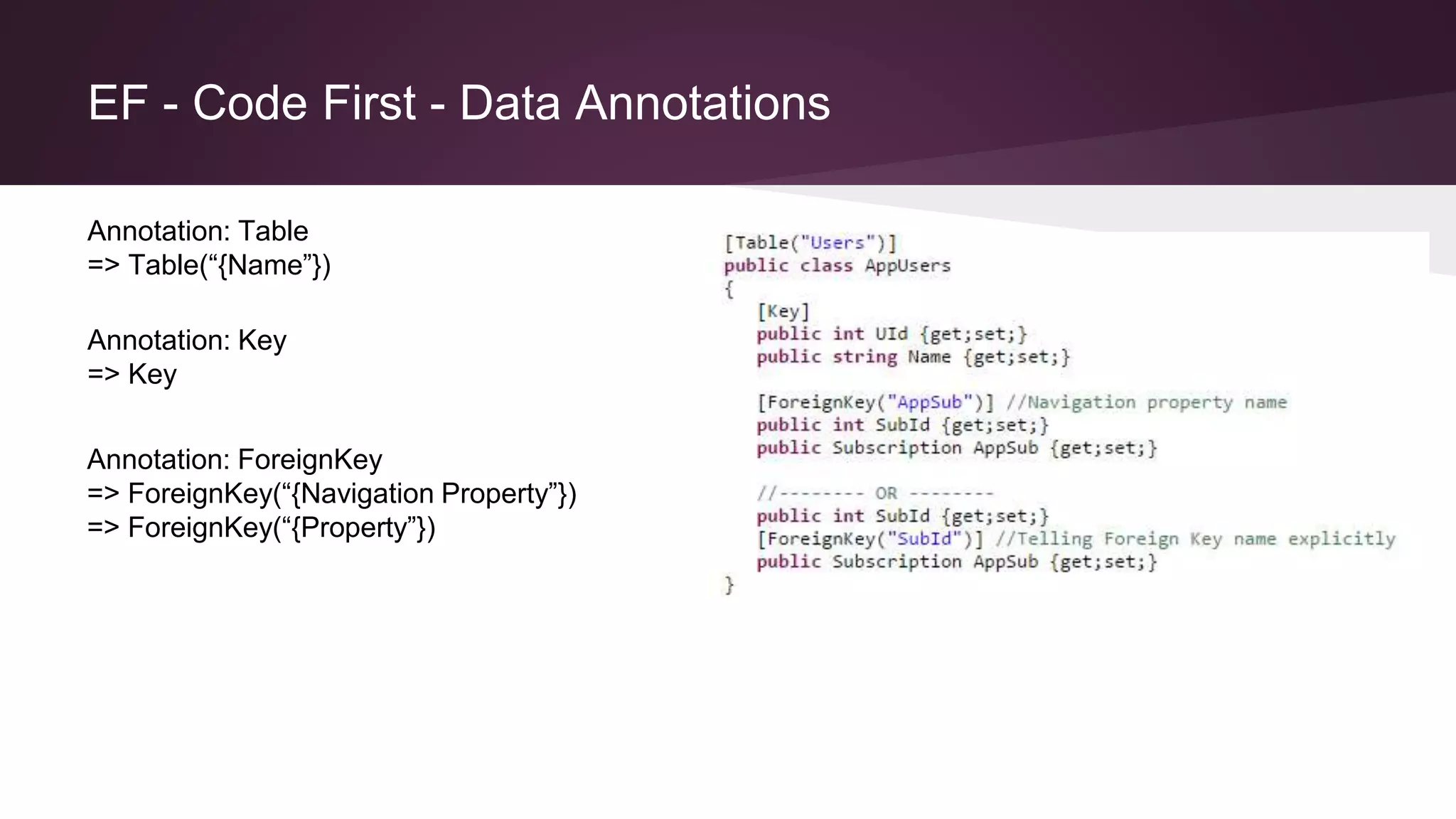

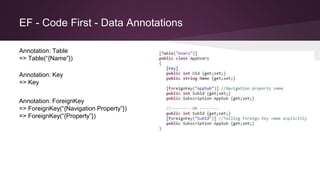

32. EF - Code First - Data Annotations
Annotation: Table
=> Table(“{Name”})
Annotation: Key
=> Key
Annotation: ForeignKey
=> ForeignKey(“{Navigation Property”})
=> ForeignKey(“{Property”})

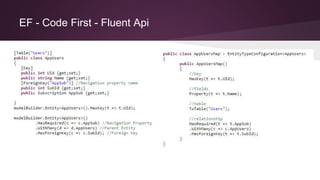

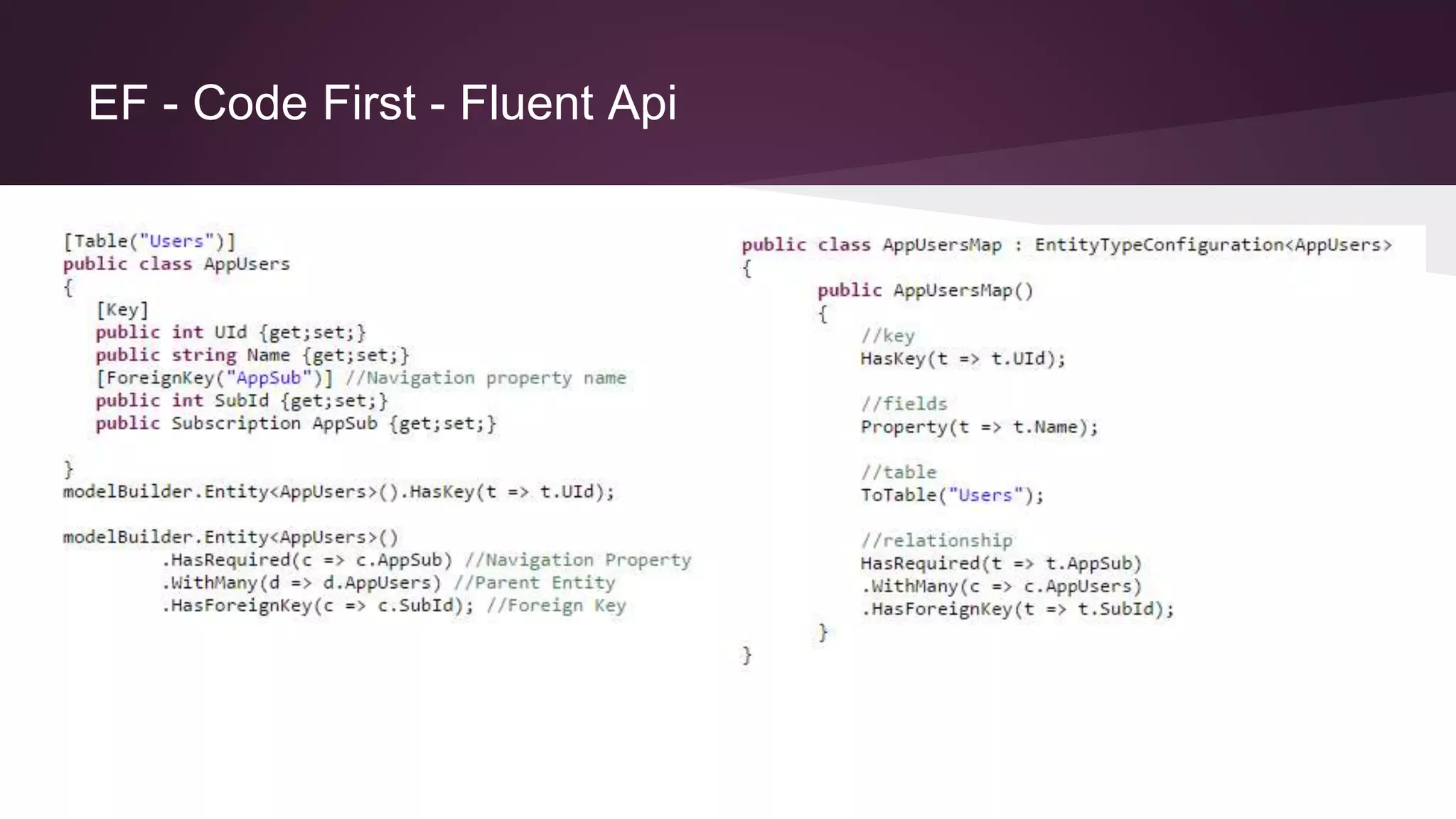

33. EF - Code First - Fluent Api

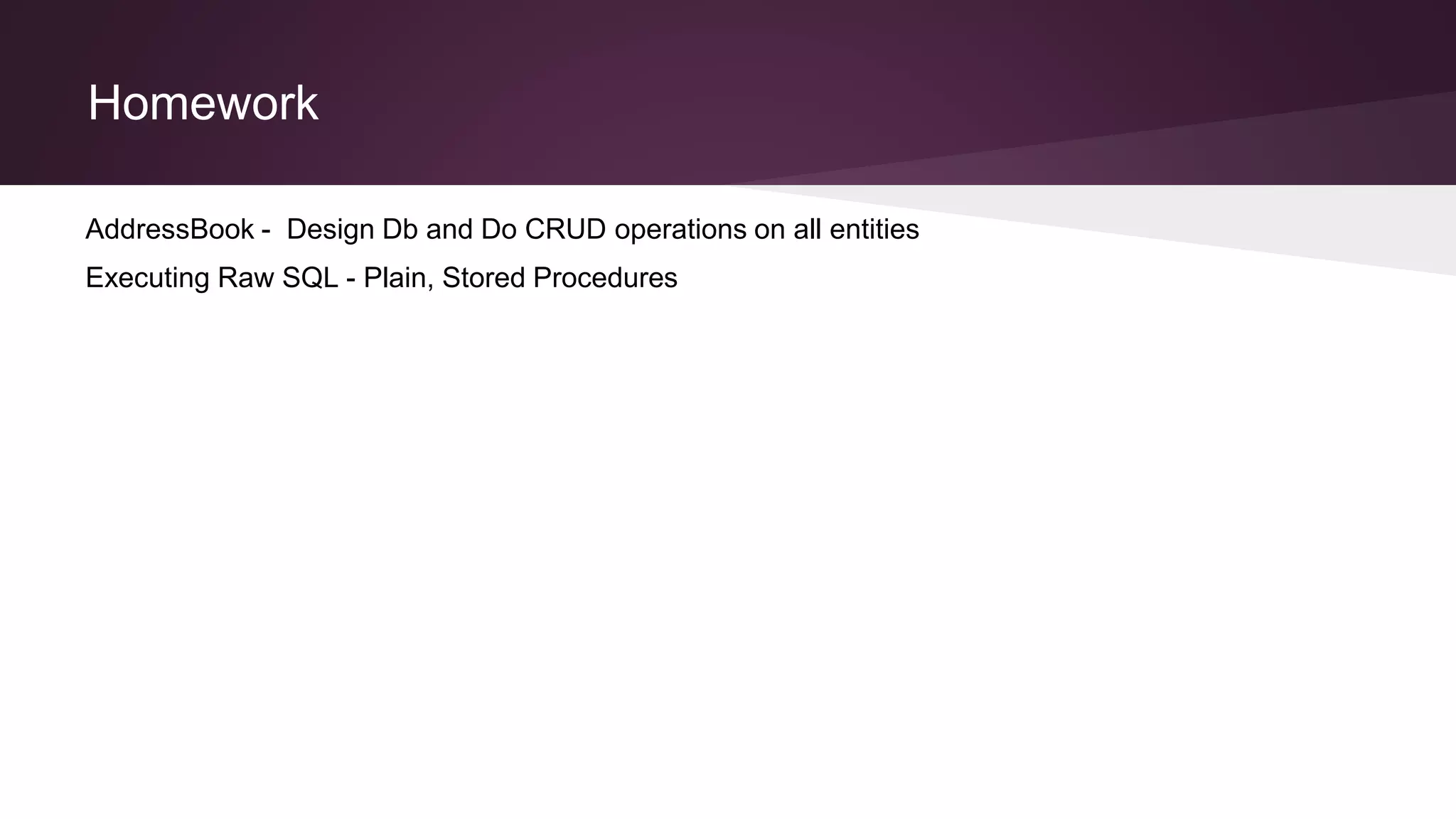

34. Homework
AddressBook - Design Db and Do CRUD operations on all entities
Executing Raw SQL - Plain, Stored Procedures

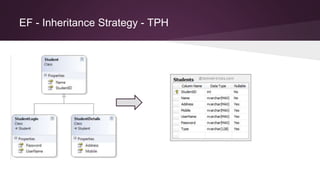

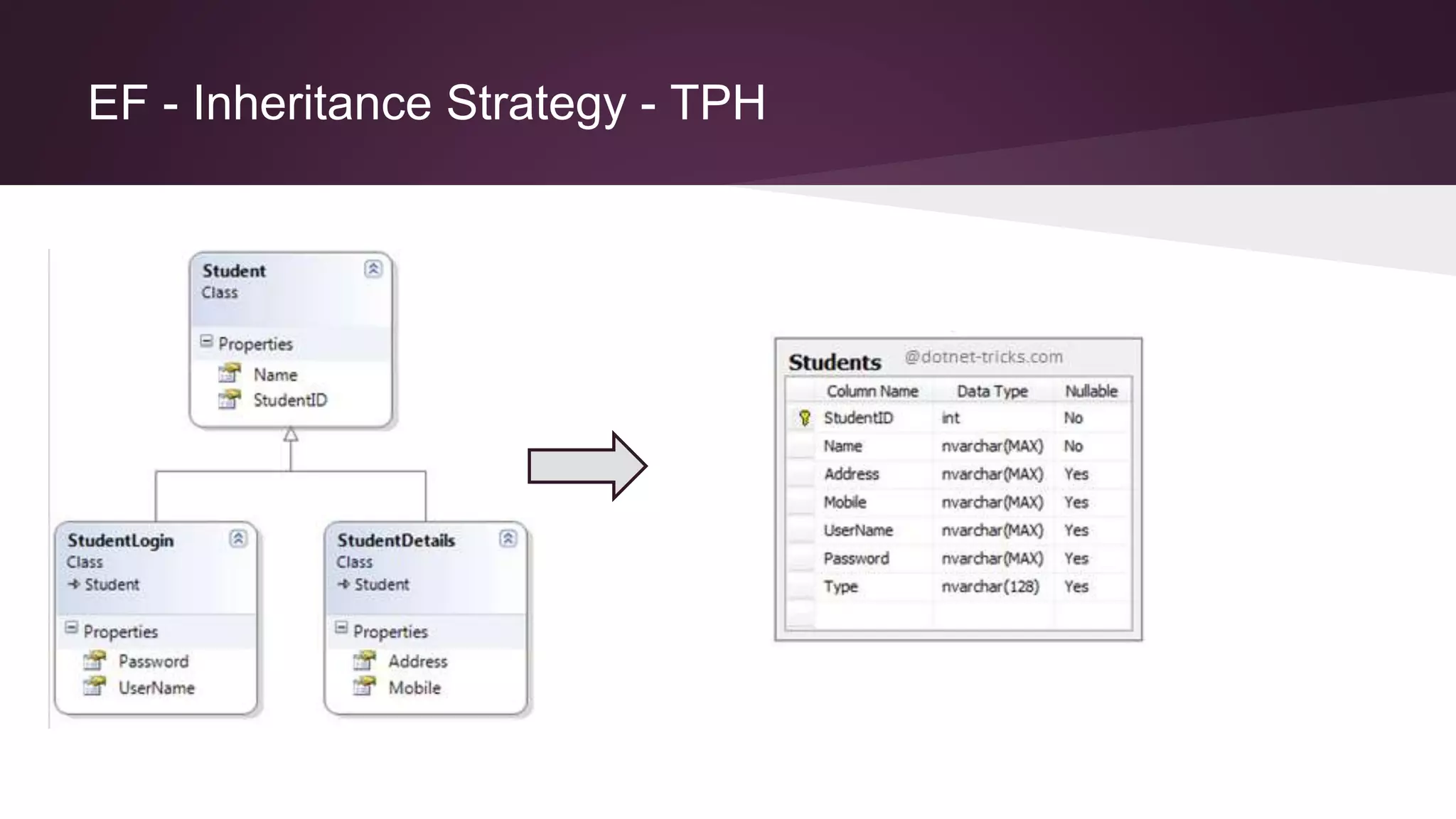

35. EF - Inheritance Strategy - TPH

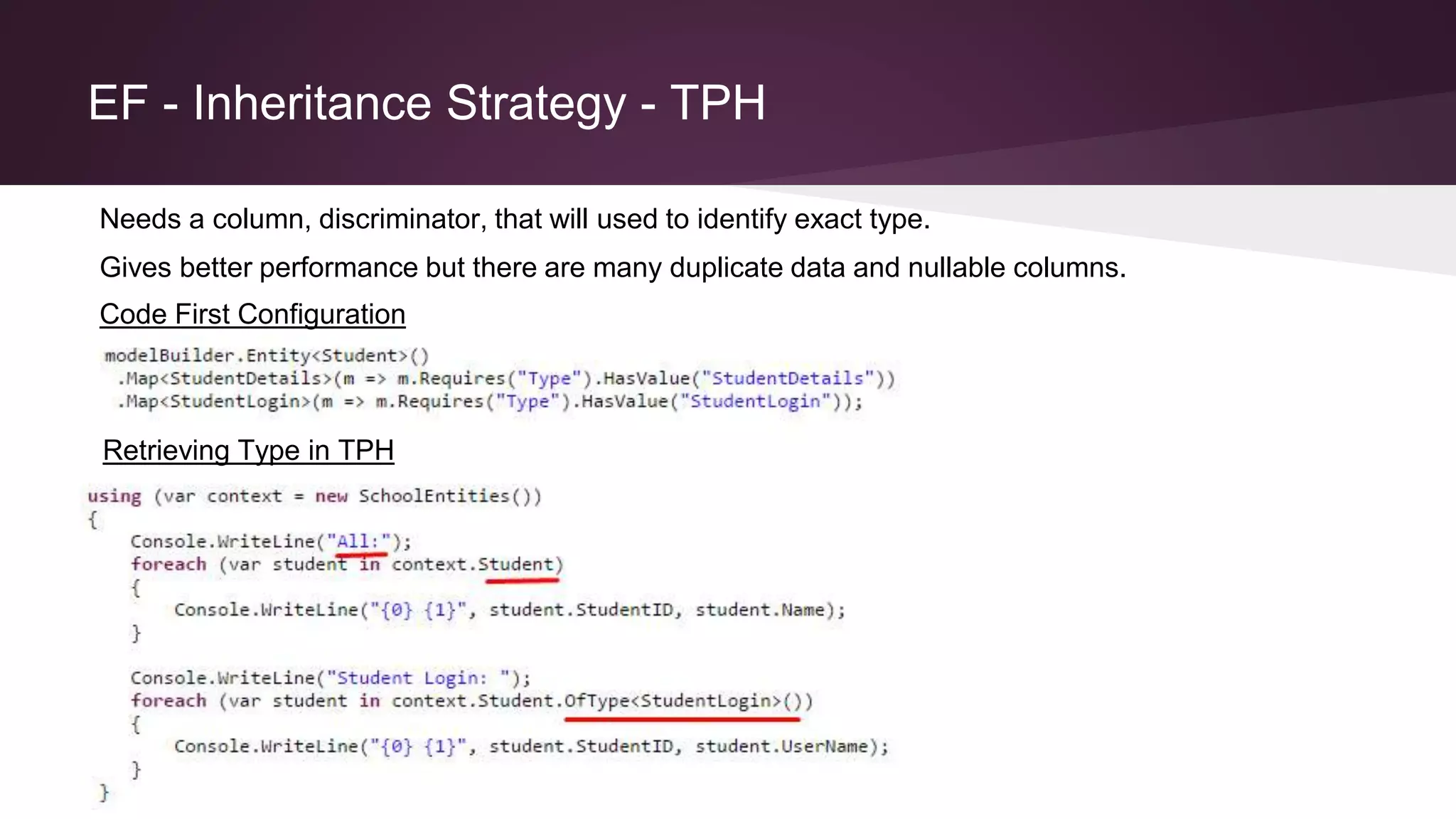

36. EF - Inheritance Strategy - TPH
Needs a column, discriminator, that will used to identify exact type.
Retrieving Type in TPH
Code First Configuration
Gives better performance but there are many duplicate data and nullable columns.

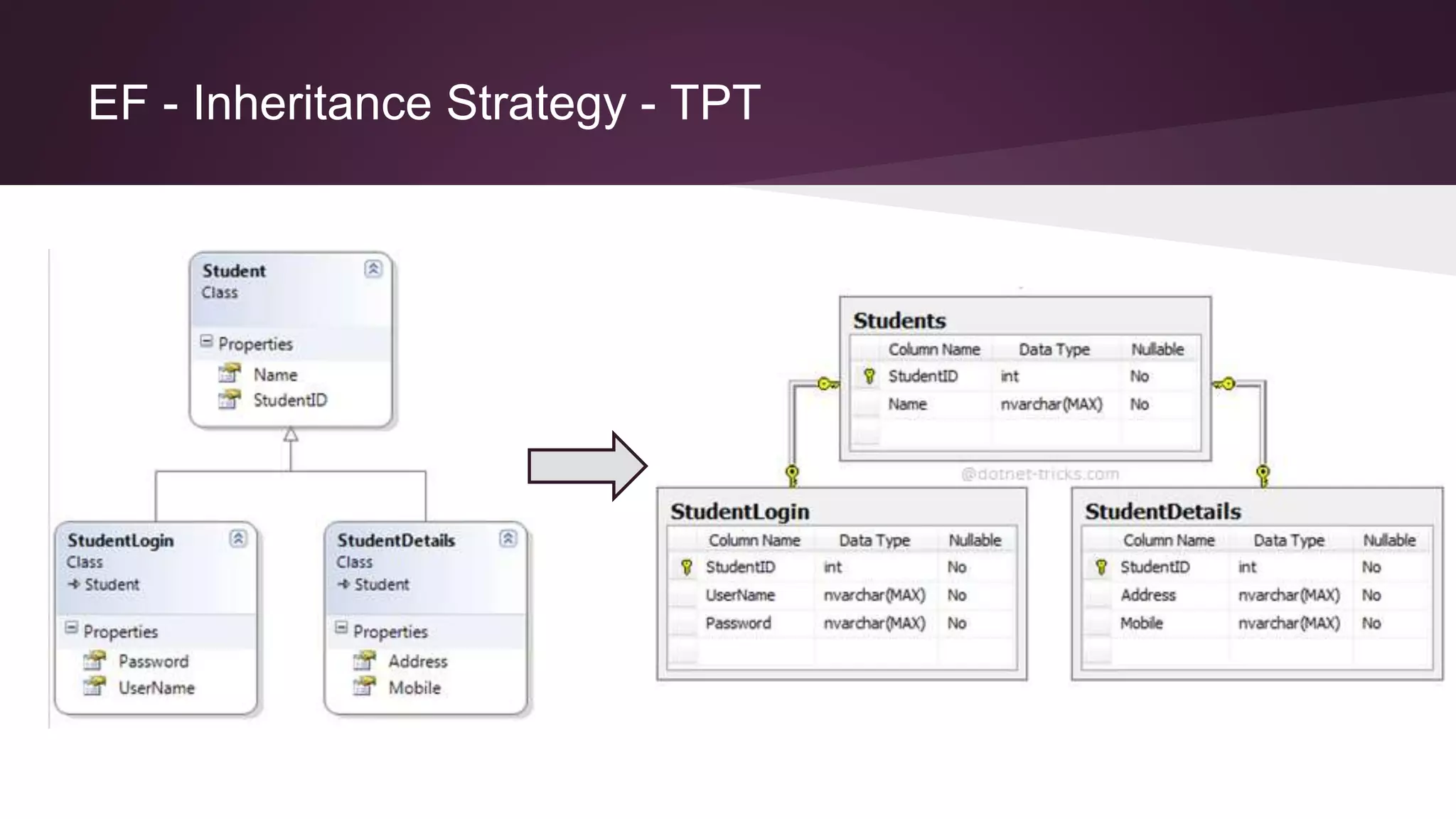

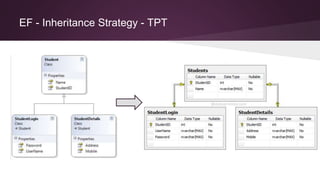

37. EF - Inheritance Strategy - TPT

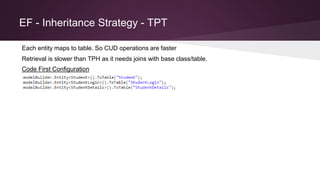

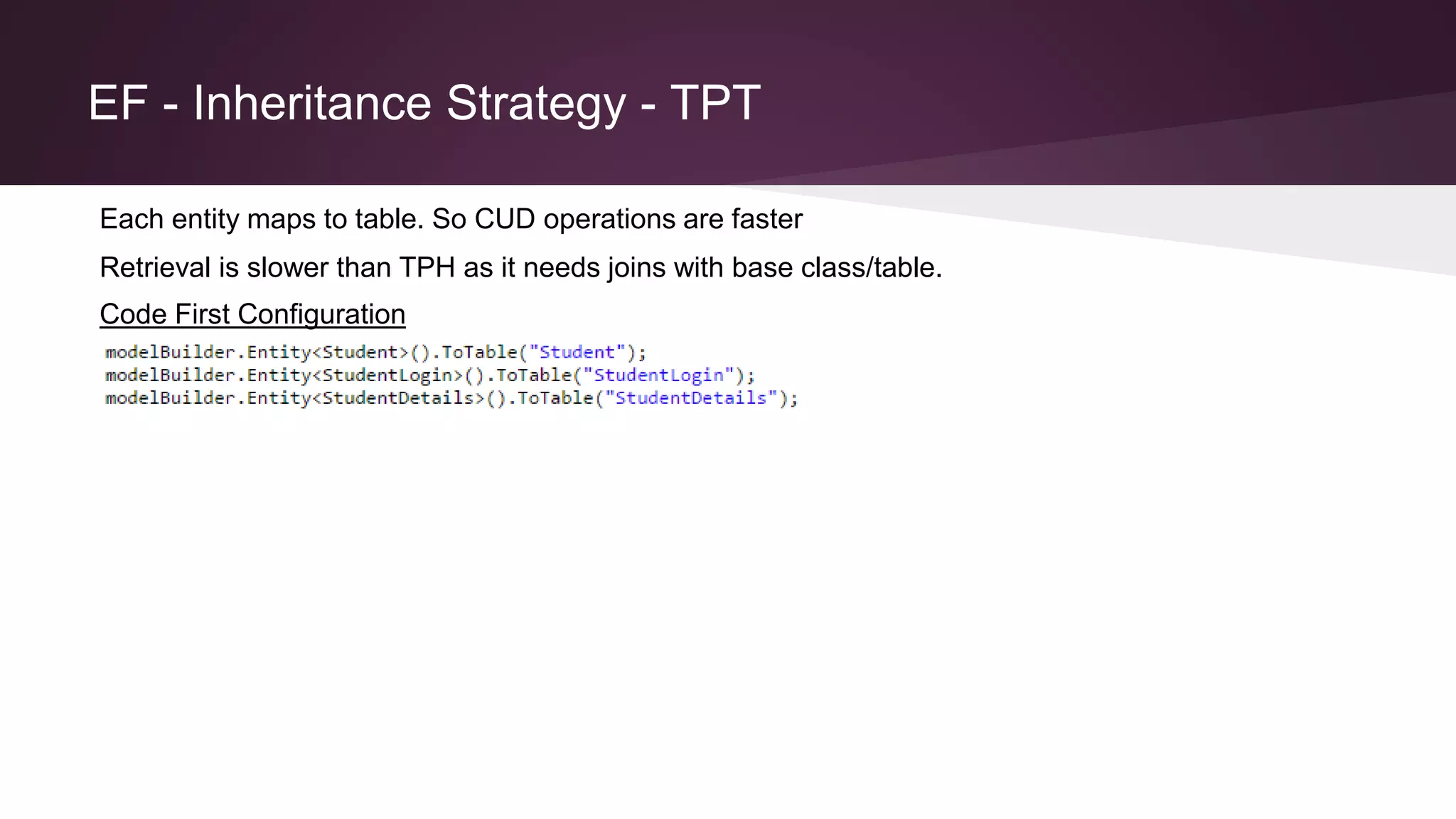

38. EF - Inheritance Strategy - TPT
Each entity maps to table. So CUD operations are faster
Code First Configuration
Retrieval is slower than TPH as it needs joins with base class/table.

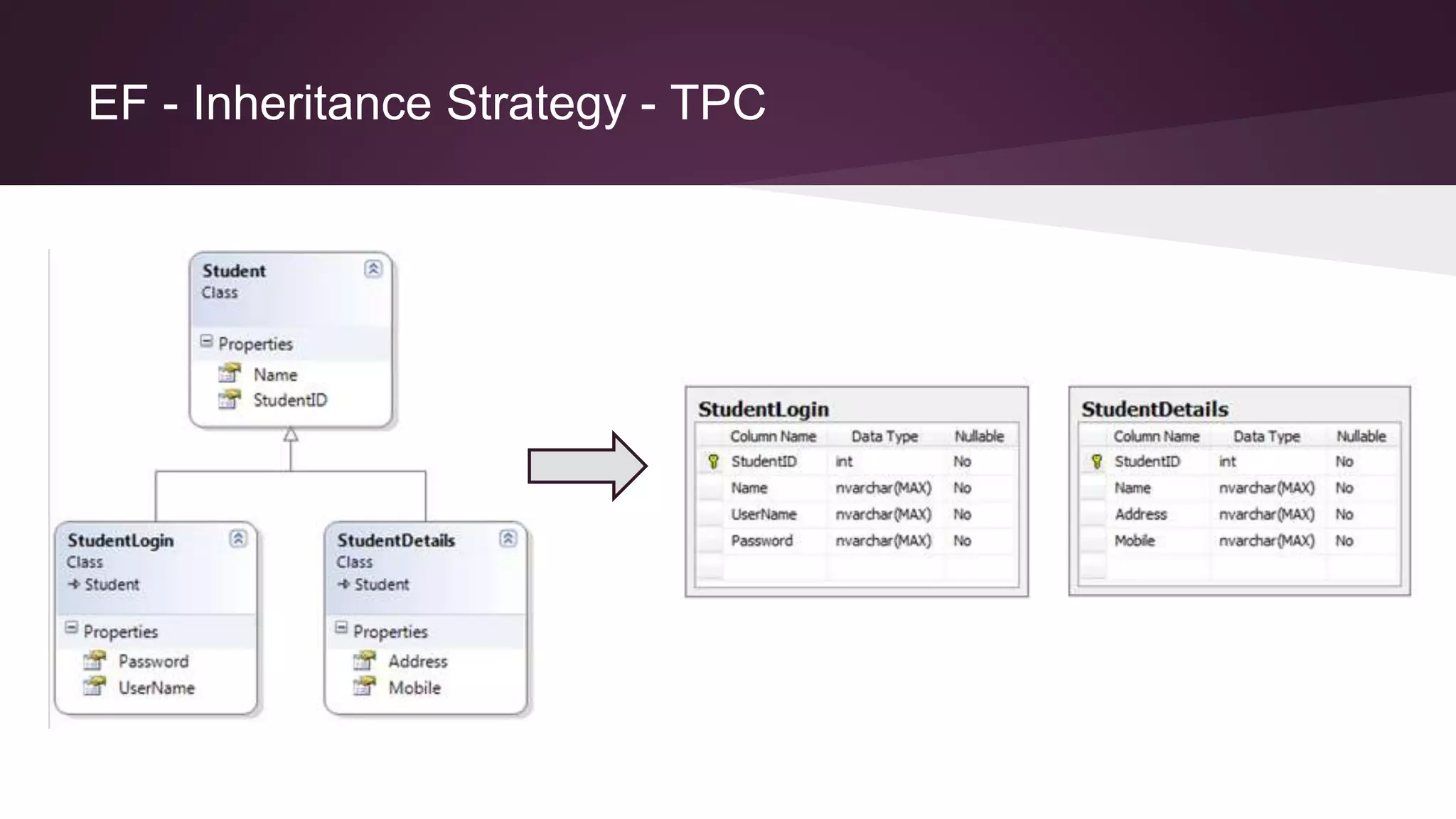

39. EF - Inheritance Strategy - TPC

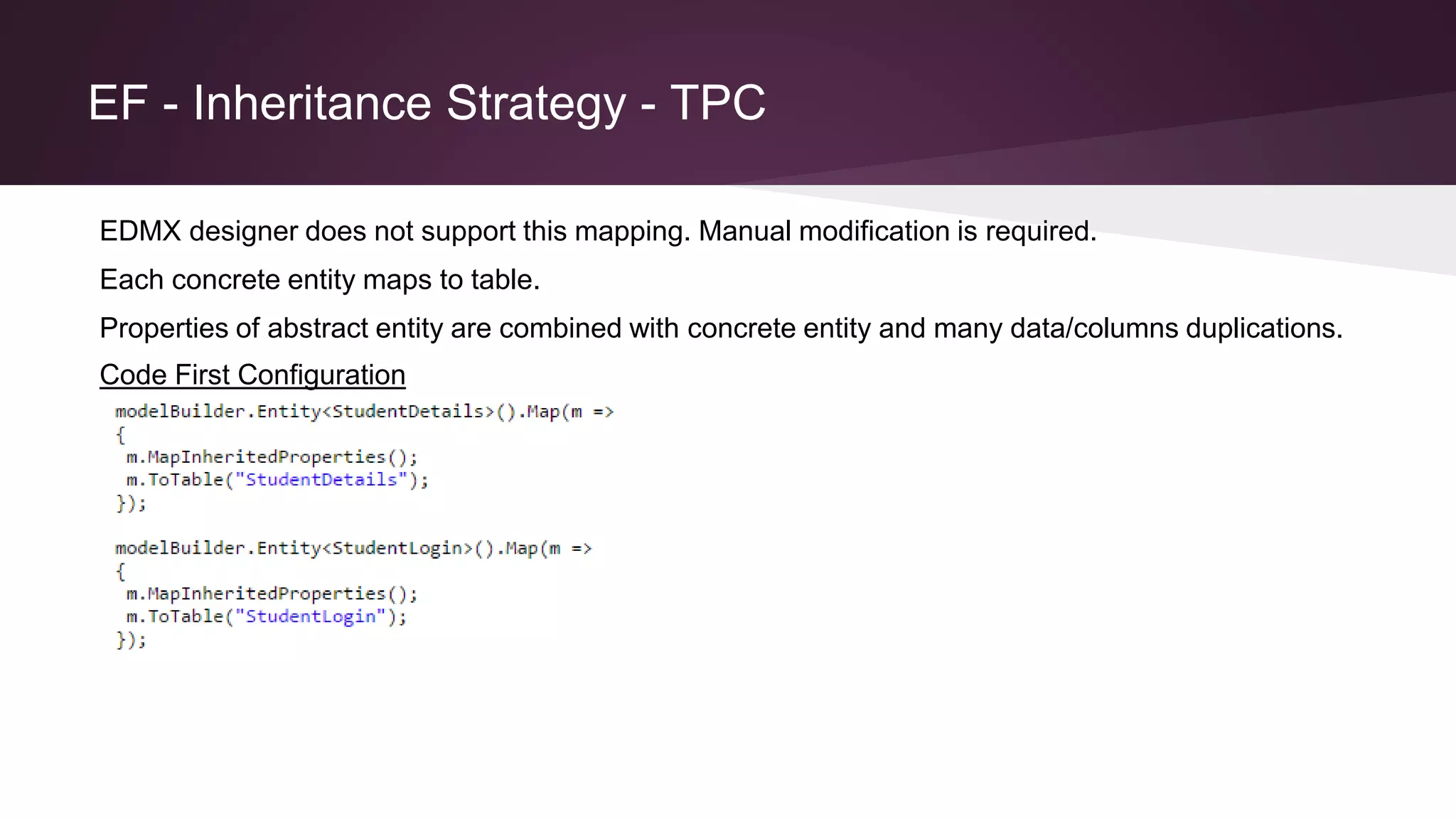

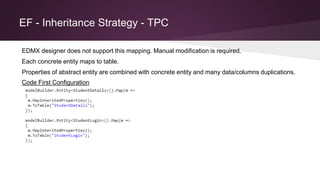

40. EF - Inheritance Strategy - TPC
Each concrete entity maps to table.
Code First Configuration
Properties of abstract entity are combined with concrete entity and many data/columns duplications.
EDMX designer does not support this mapping. Manual modification is required.

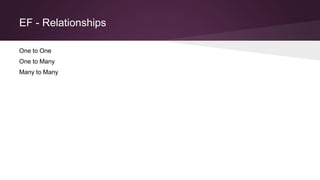

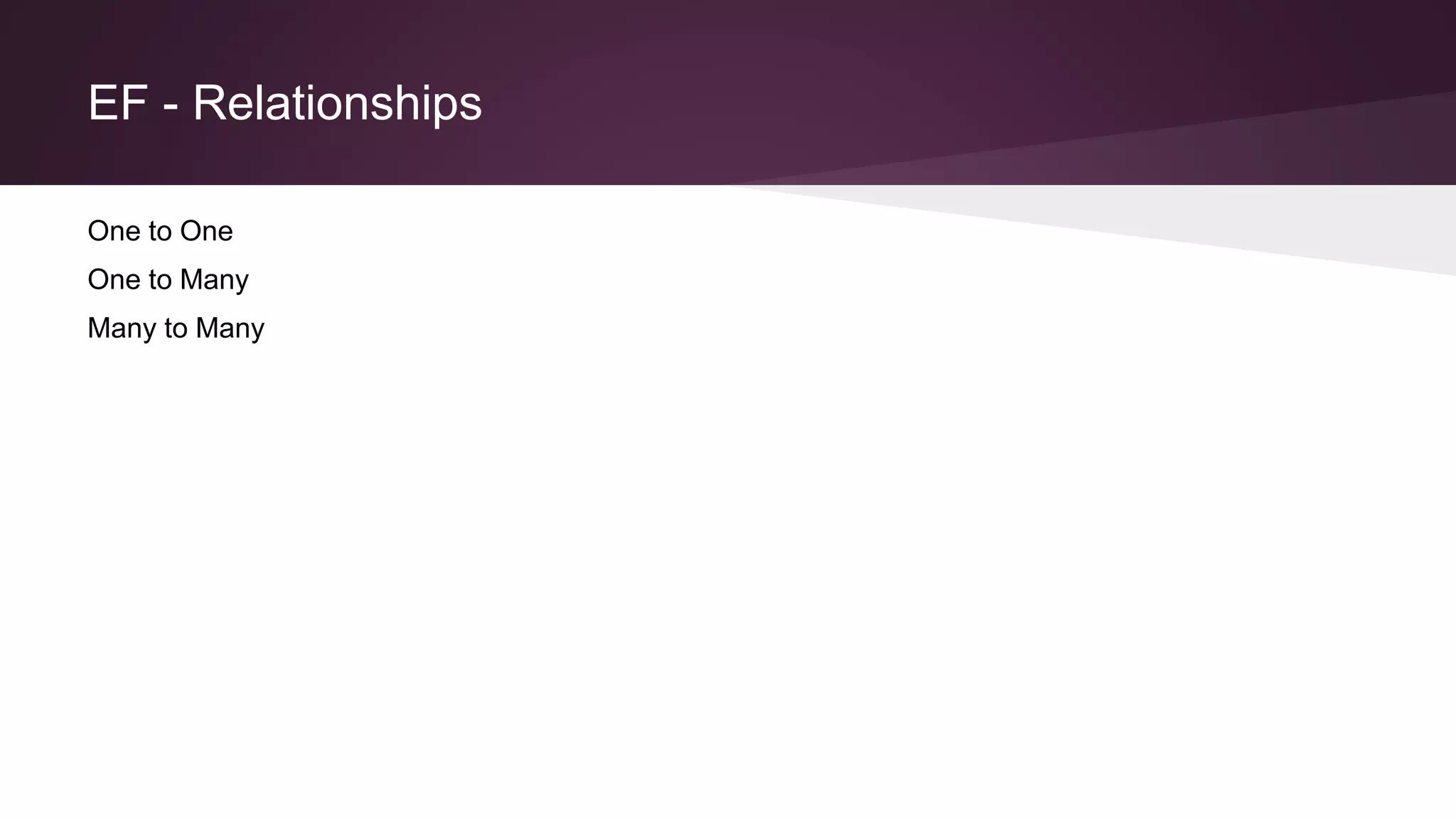

41. EF - Relationships
One to One
One to Many
Many to Many

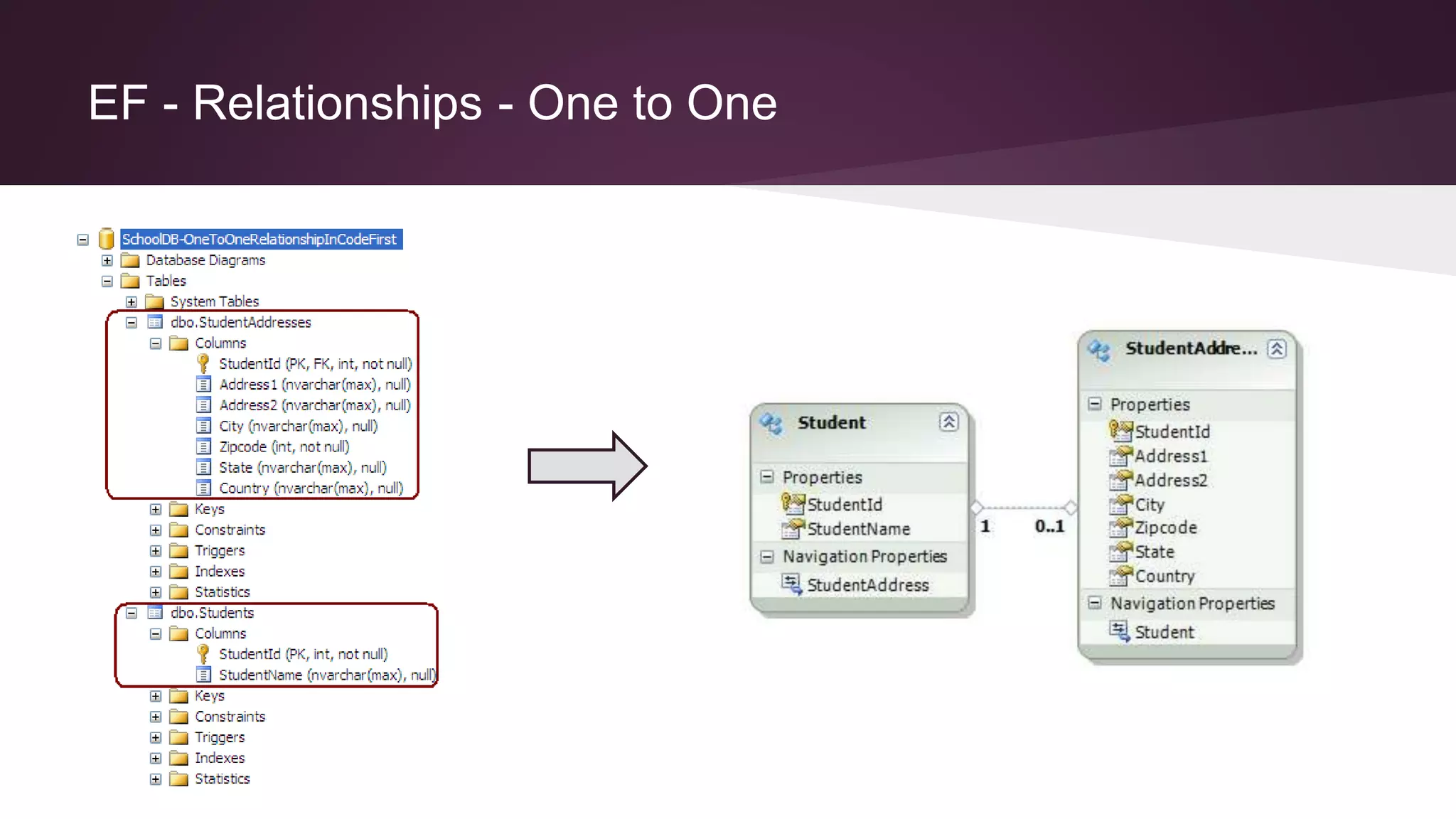

42. EF - Relationships - One to One

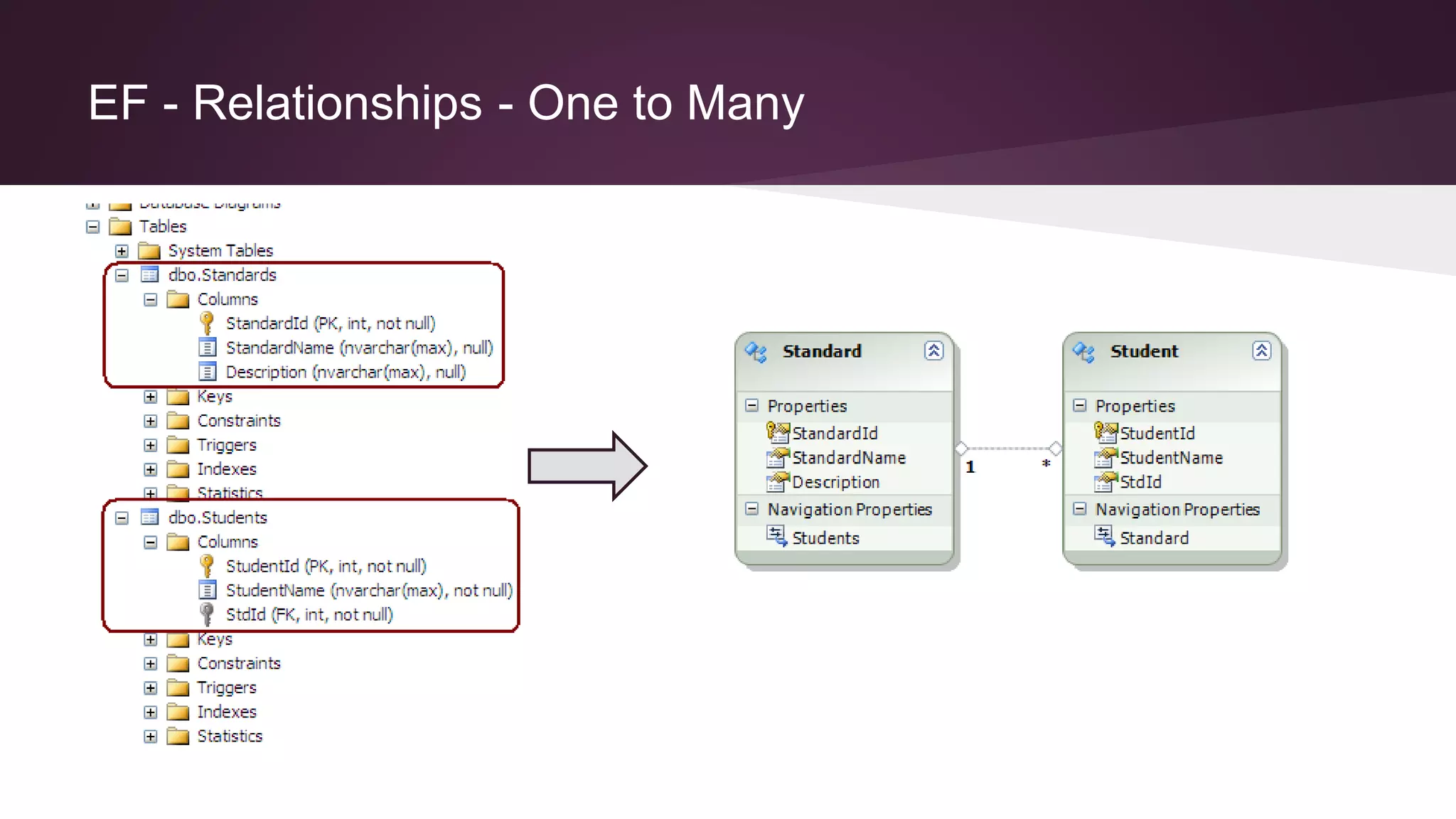

43. EF - Relationships - One to Many

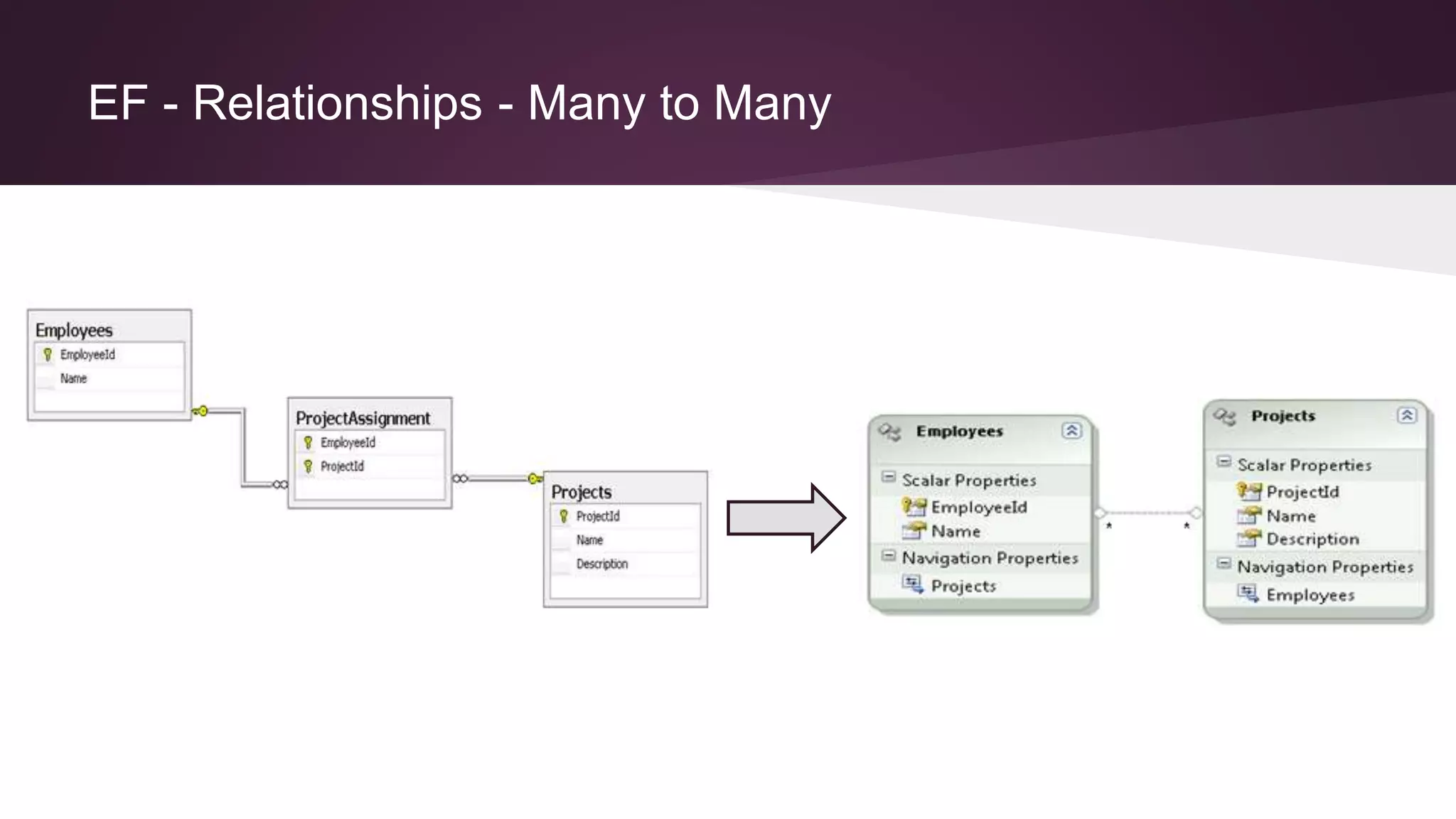

44. EF - Relationships - Many to Many

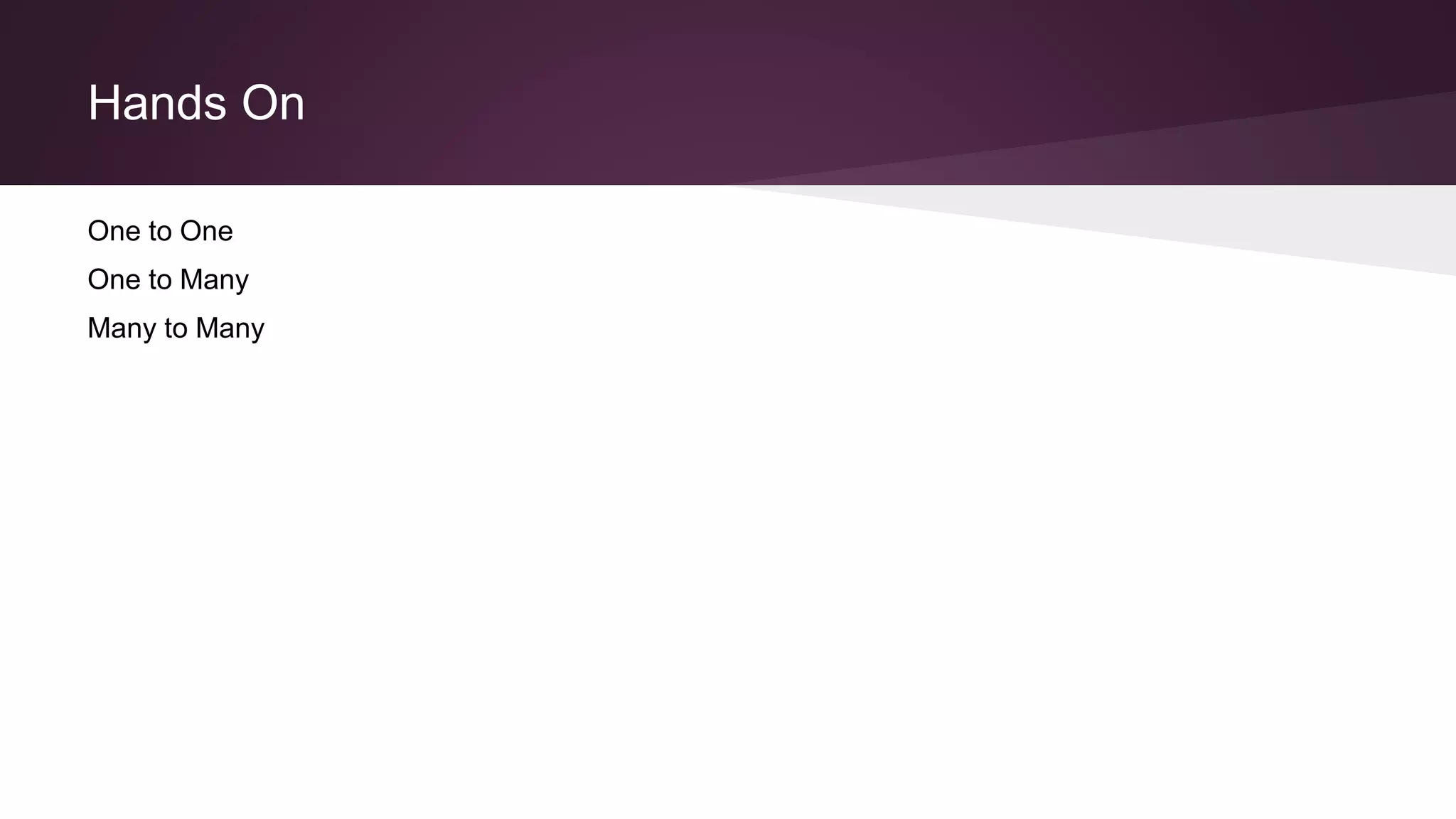

45. Hands On
One to One
One to Many
Many to Many

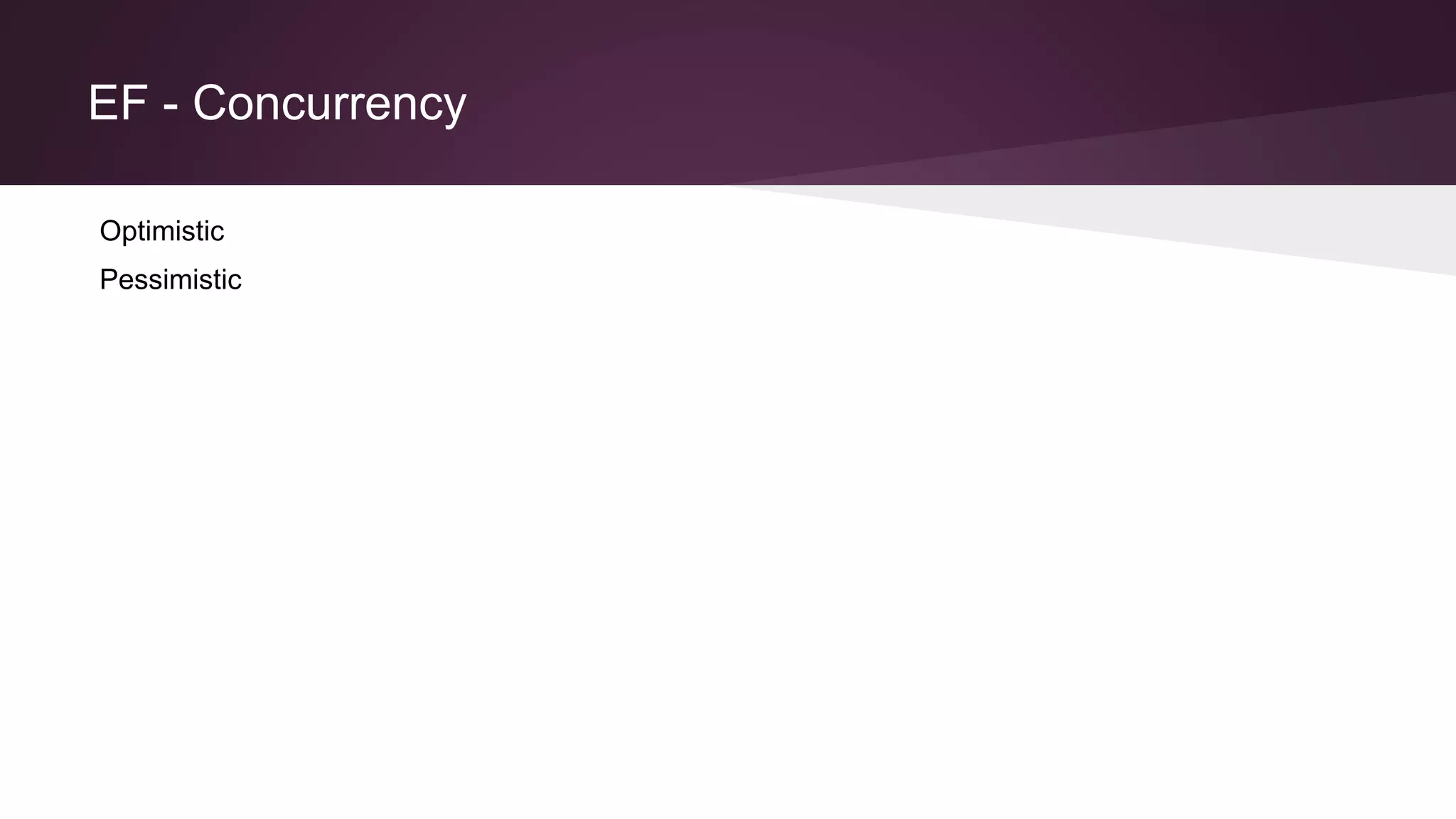

46. EF - Concurrency
Optimistic
Pessimistic

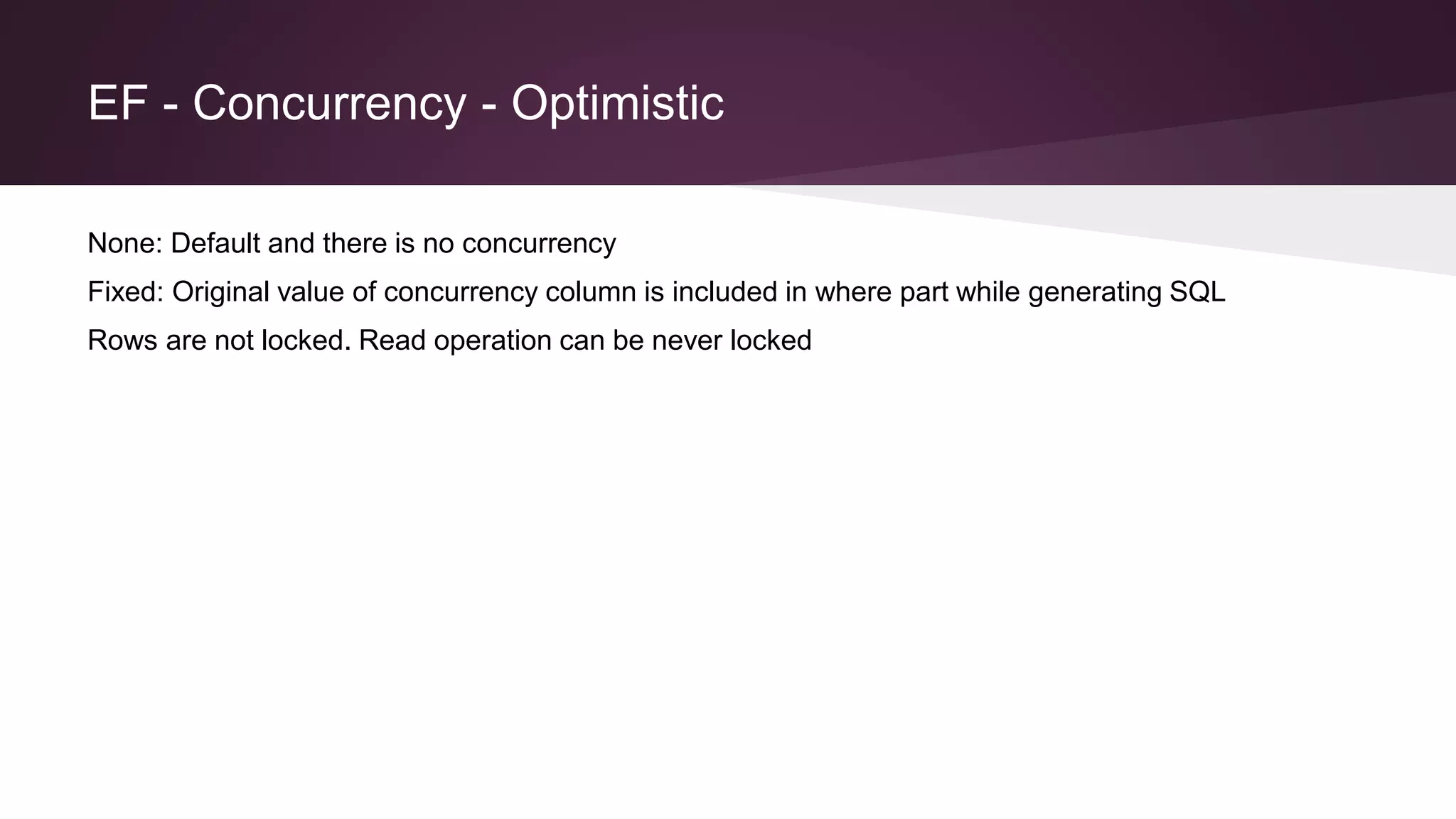

47. EF - Concurrency - Optimistic
None: Default and there is no concurrency
Fixed: Original value of concurrency column is included in where part while generating SQL
Rows are not locked. Read operation can be never locked

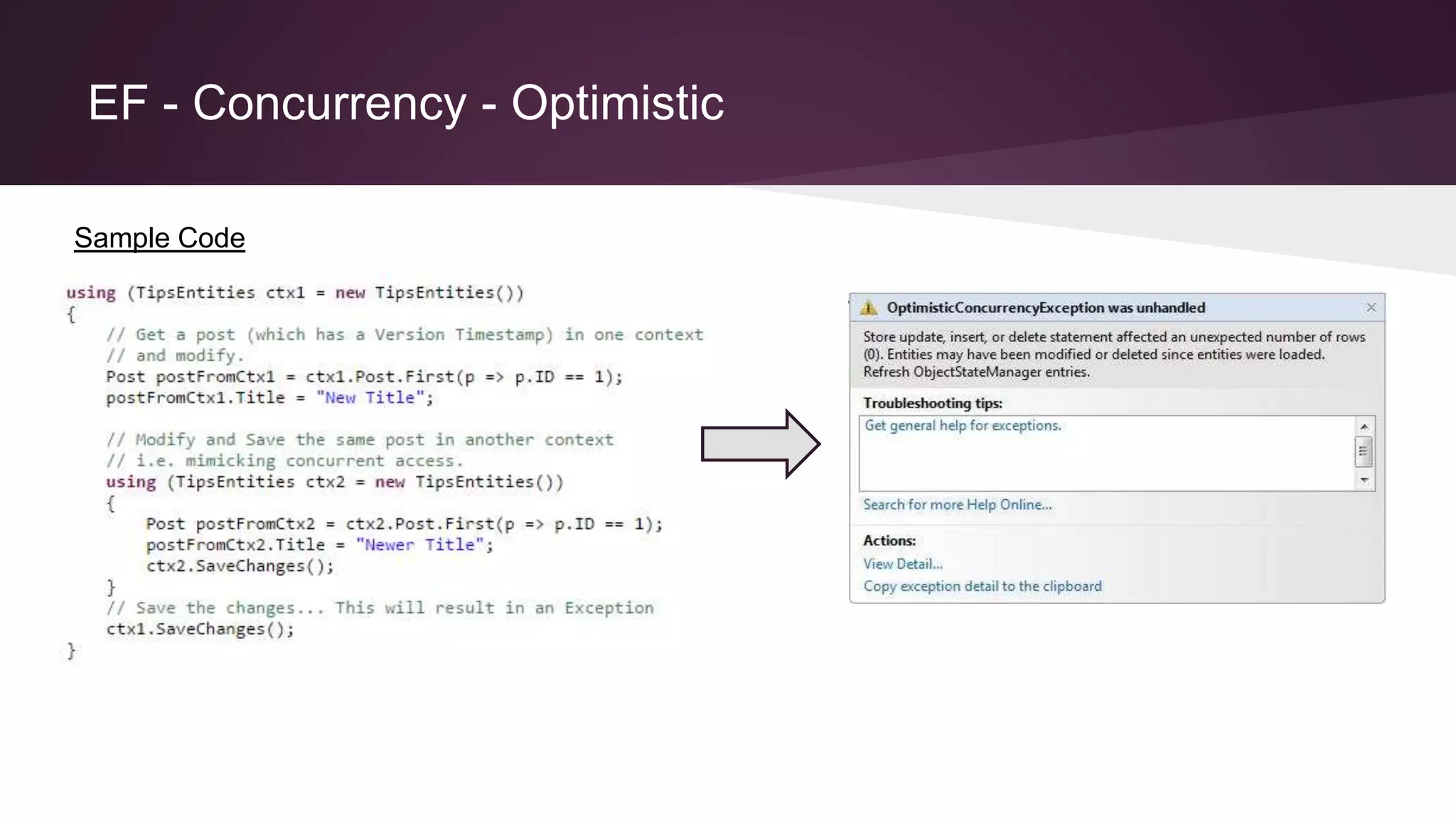

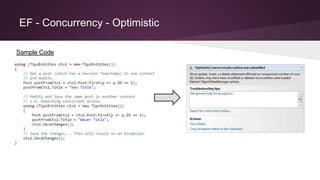

48. EF - Concurrency - Optimistic
Sample Code

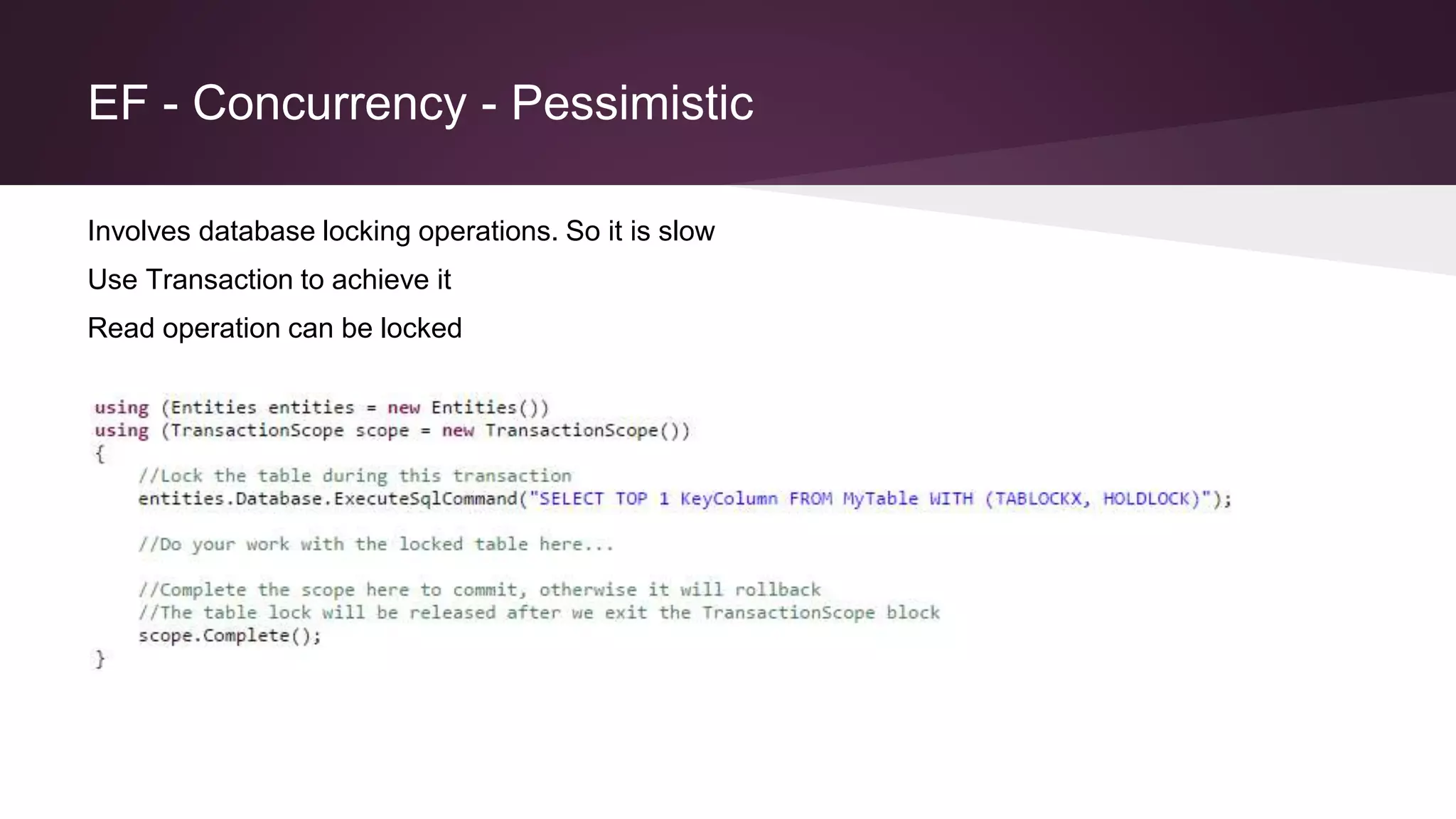

49. EF - Concurrency - Pessimistic
Involves database locking operations. So it is slow
Use Transaction to achieve it
Read operation can be locked

50. Questions

51. Thank you

52. EF - Advance

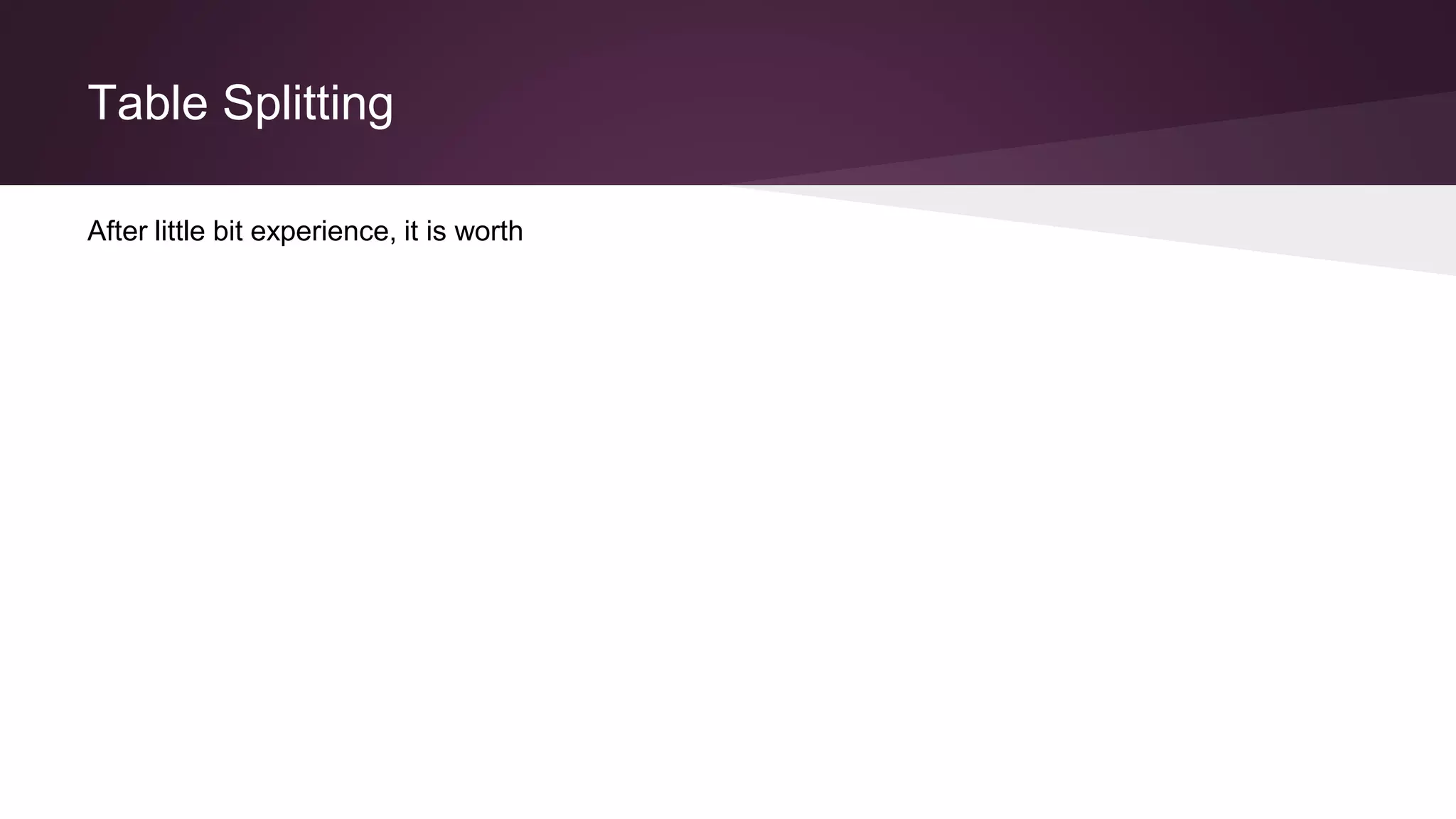

53. Table Splitting
After little bit experience, it is worth

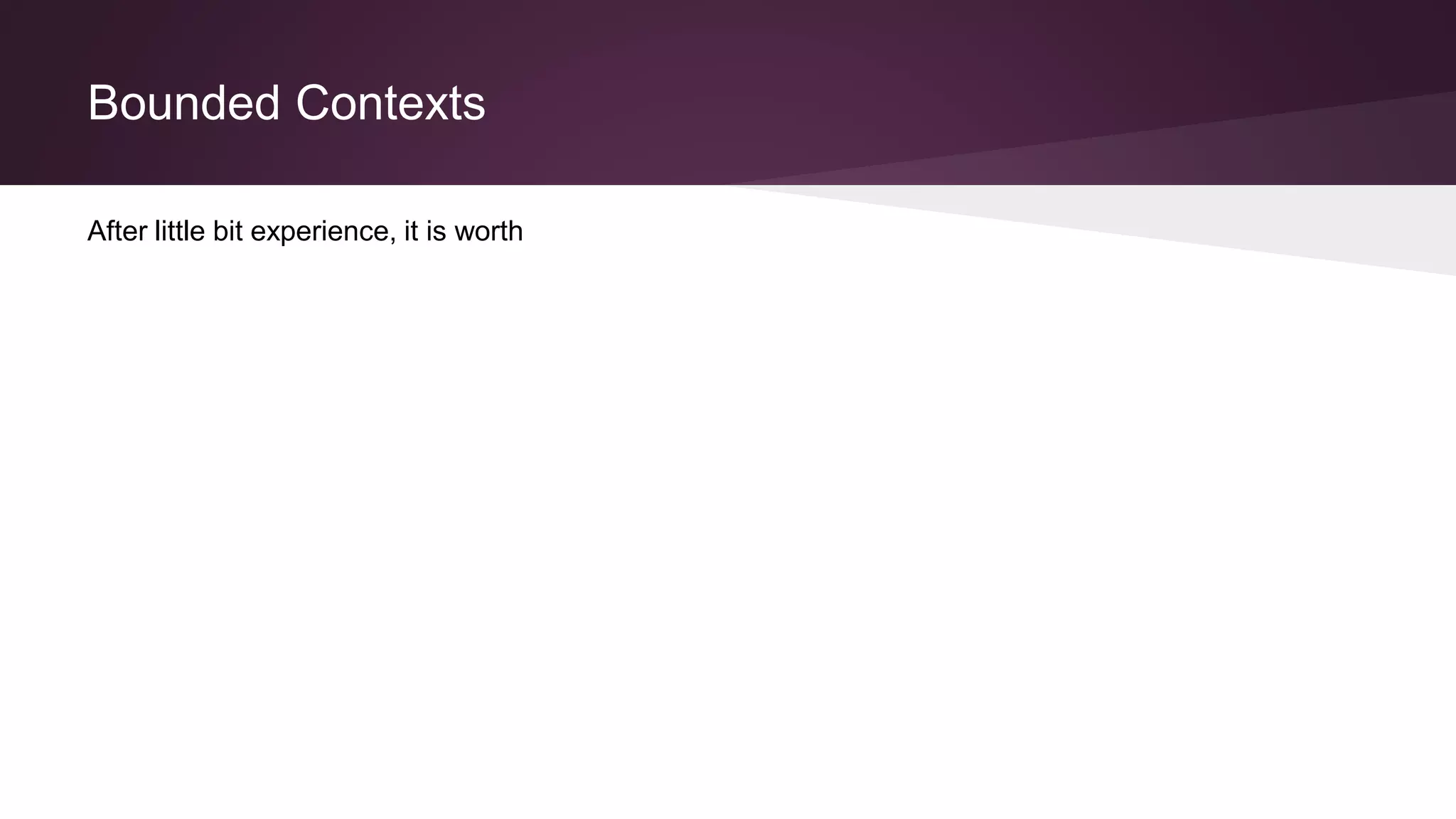

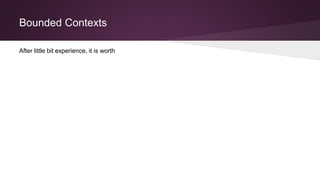

54. Bounded Contexts
After little bit experience, it is worth

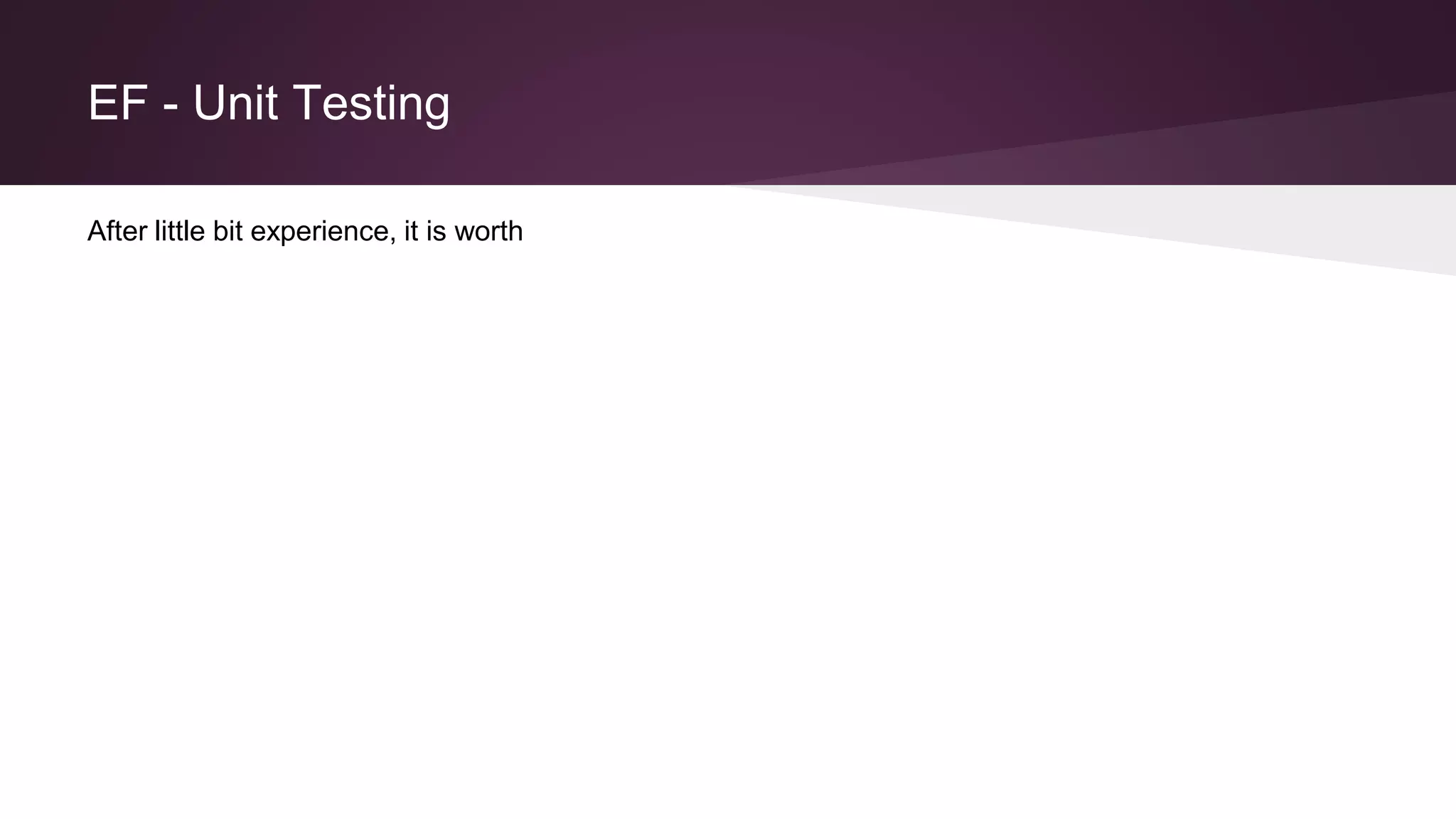

55. EF - Unit Testing
After little bit experience, it is worth

56. EF - Patterns
After little bit experience, it is worth
