Daniel N. Egan Microsoft Regional Director – California Microsoft MVP – ASP.Net Partner/Chief Architect - Odyssey Consulting Group

Daniel Egan MCSD, Microsoft Regional Director Microsoft MVP – ASP.Net MCSD, MCT [email_address] INETA President INETA Speakers Bureau President Chief Architect for OCG Author : Building Websites with VB.Net and DotNetNuke 3.0 Packt Publishing .Net Certificate Instructor California State University Fullerton CSUF .Net Advisory Board Member Run DotNetDoc.com Co-Founder – SoCalDotNet Southern California .Net Developers group. http://www.SoCalDotNet.org http://www.LaCSharp.org

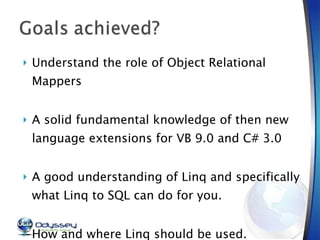

Understand the role of Object Relational Mappers A solid fundamental knowledge of then new language extensions for VB 9.0 and C# 3.0 A good understanding of Linq and specifically what Linq to SQL can do for you. How and where Linq should be used.

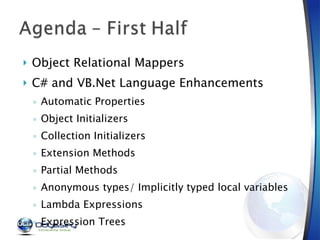

Object Relational Mappers C# and VB.Net Language Enhancements Automatic Properties Object Initializers Collection Initializers Extension Methods Partial Methods Anonymous types/ Implicitly typed local variables Lambda Expressions Expression Trees

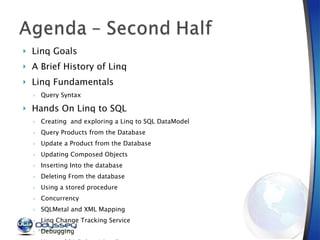

Linq Goals A Brief History of Linq Linq Fundamentals Query Syntax Hands On Linq to SQL Creating and exploring a Linq to SQL DataModel Query Products from the Database Update a Product from the Database Updating Composed Objects Inserting Into the database Deleting From the database Using a stored procedure Concurrency SQLMetal and XML Mapping Linq Change Tracking Service Debugging Linq to SQL Debug Visualizer

“ Object/relational mapping is the Vietnam of Computer Science". ~Ted Neward (http://blogs.tedneward.com/2006/06/26/The+Vietnam+Of+Computer+Science.aspx)

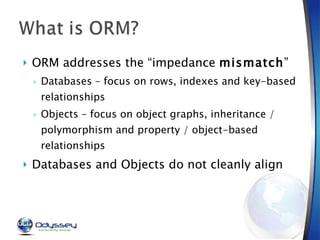

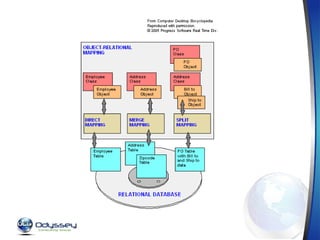

ORM addresses the “impedance mismatch ” Databases – focus on rows, indexes and key-based relationships Objects – focus on object graphs, inheritance / polymorphism and property / object-based relationships Databases and Objects do not cleanly align

What are the advantages of ORM? Can radically reduce the amount of code you need to write (-30% compared to ADO.Net is not unusual) Boost in productivity Makes the application easier to maintain Fosters thinking about an OO model compared to the more procedural SQL approach What are the disadvantages? Some loss of control over the persistence process May be more difficult to tune queries Can get unruly

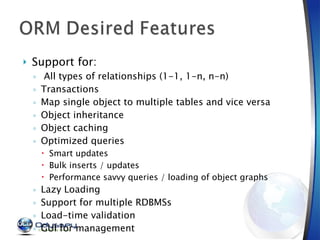

Support for: All types of relationships (1-1, 1-n, n-n) Transactions Map single object to multiple tables and vice versa Object inheritance Object caching Optimized queries Smart updates Bulk inserts / updates Performance savvy queries / loading of object graphs Lazy Loading Support for multiple RDBMSs Load-time validation GUI for management

Code Generation focuses on generating all mappings and code at design-time Pros Avoids black box Often provides ability to modify / extend generations Everything is packaged together Normally provides GUI Quickly up and running Cons Less flexible – changes require regeneration Difficult to provide more complex ORM features Tied to specific patterns / constructs Can bloat projects

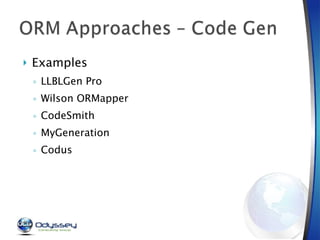

Examples LLBLGen Pro Wilson ORMapper CodeSmith MyGeneration Codus

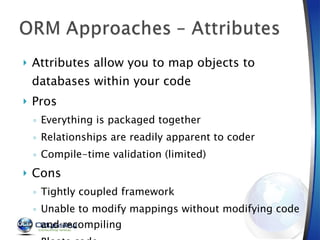

Attributes allow you to map objects to databases within your code Pros Everything is packaged together Relationships are readily apparent to coder Compile-time validation (limited) Cons Tightly coupled framework Unable to modify mappings without modifying code and recompiling Bloats code

Examples Gentle.NET Linq to SQL (Dlink)(Demo)

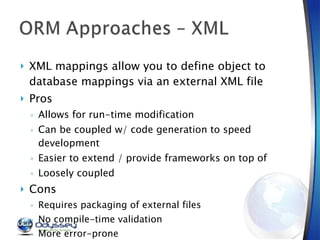

XML mappings allow you to define object to database mappings via an external XML file Pros Allows for run-time modification Can be coupled w/ code generation to speed development Easier to extend / provide frameworks on top of Loosely coupled Cons Requires packaging of external files No compile-time validation More error-prone Syntax to learn if no GUI provided

Examples NHibernate Linq to SQL (Dlinq) Wilson ORMapper

“ Language is the source of misunderstandings.” ~ Antoine de Saint-Exupery (1900 - 1944)

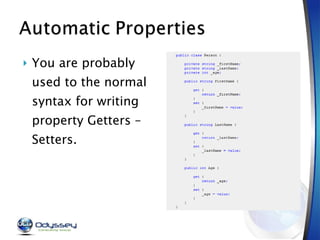

You are probably used to the normal syntax for writing property Getters – Setters.

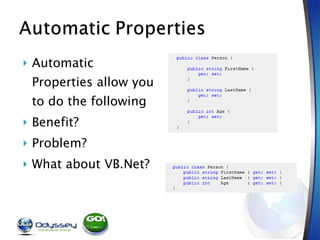

Automatic Properties allow you to do the following Benefit? Problem? What about VB.Net?

1 using System; 2 3 namespace ConsoleApplication1 4 { 5 class Program 6 { 7 public string Name { get ; set ; } 8 9 static void Main( string [] args) 10 { 11 var p = new Program(); 12 p.Name = "Bart" ; 13 } 14 } 15 }

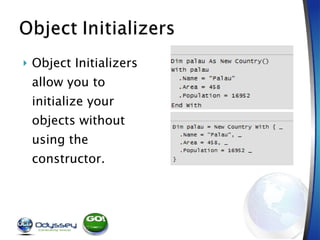

Object Initializers allow you to initialize your objects without using the constructor.

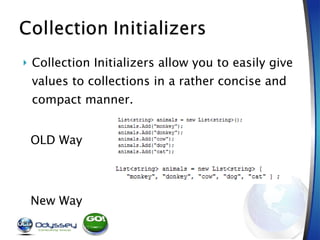

Collection Initializers allow you to easily give values to collections in a rather concise and compact manner. OLD Way New Way

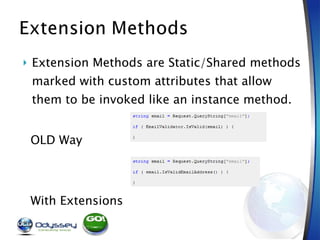

Extension Methods are Static/Shared methods marked with custom attributes that allow them to be invoked like an instance method. OLD Way With Extensions

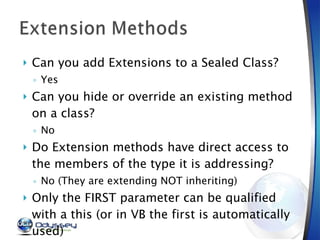

Can you add Extensions to a Sealed Class? Yes Can you hide or override an existing method on a class? No Do Extension methods have direct access to the members of the type it is addressing? No (They are extending NOT inheriting) Only the FIRST parameter can be qualified with a this (or in VB the first is automatically used)

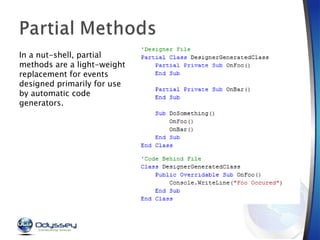

In a nut-shell, partial methods are a light-weight replacement for events designed primarily for use by automatic code generators.

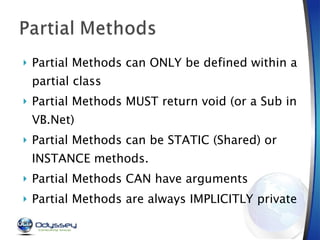

Partial Methods can ONLY be defined within a partial class Partial Methods MUST return void (or a Sub in VB.Net) Partial Methods can be STATIC (Shared) or INSTANCE methods. Partial Methods CAN have arguments Partial Methods are always IMPLICITLY private

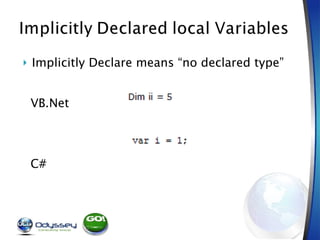

Implicitly Declare means “no declared type” VB.Net C#

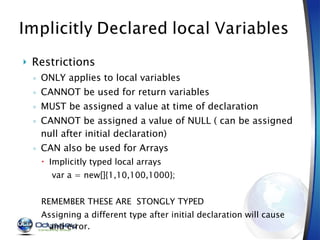

Restrictions ONLY applies to local variables CANNOT be used for return variables MUST be assigned a value at time of declaration CANNOT be assigned a value of NULL ( can be assigned null after initial declaration) CAN also be used for Arrays Implicitly typed local arrays var a = new[]{1,10,100,1000}; REMEMBER THESE ARE STONGLY TYPED Assigning a different type after initial declaration will cause and error.

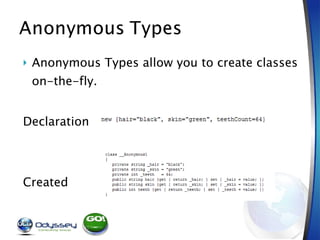

Anonymous Types allow you to create classes on-the-fly. Declaration Created

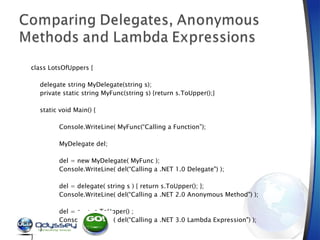

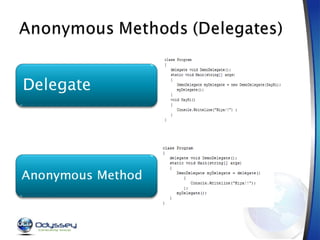

class LotsOfUppers { delegate string MyDelegate(string s); private static string MyFunc(string s) {return s.ToUpper();} static void Main() { Console.WriteLine( MyFunc(“Calling a Function”); MyDelegate del; del = new MyDelegate( MyFunc ); Console.WriteLine( del(“Calling a .NET 1.0 Delegate") ); del = delegate( string s ) { return s.ToUpper(); }; Console.WriteLine( del(“Calling a .NET 2.0 Anonymous Method") ); del = s => s.ToUpper() ; Console.WriteLine( del(“Calling a .NET 3.0 Lambda Expression") ); } }

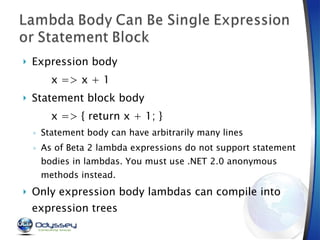

Expression body x => x + 1 Statement block body x => { return x + 1; } Statement body can have arbitrarily many lines As of Beta 2 lambda expressions do not support statement bodies in lambdas. You must use .NET 2.0 anonymous methods instead. Only expression body lambdas can compile into expression trees

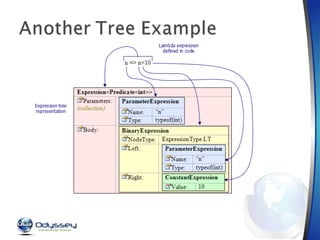

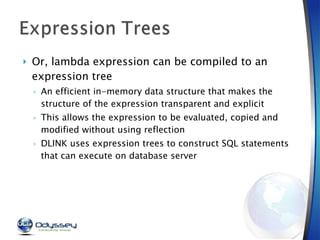

Or, lambda expression can be compiled to an expression tree An efficient in-memory data structure that makes the structure of the expression transparent and explicit This allows the expression to be evaluated, copied and modified without using reflection DLINK uses expression trees to construct SQL statements that can execute on database server

Let’s Take a 15 Minute Break After the break we will start looking at Linq

“ It is a mistake to try to look too far ahead. The chain of destiny can only be grasped one LINQ at a time.” ~Sir Winston Churchill (1874 - 1965) – modified slightly ;)

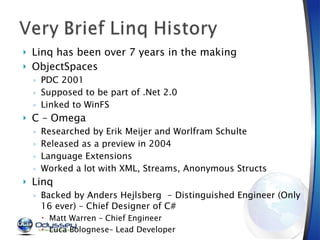

Linq has been over 7 years in the making ObjectSpaces PDC 2001 Supposed to be part of .Net 2.0 Linked to WinFS C – Omega Researched by Erik Meijer and Worlfram Schulte Released as a preview in 2004 Language Extensions Worked a lot with XML, Streams, Anonymous Structs Linq Backed by Anders Hejlsberg - Distinguished Engineer (Only 16 ever) – Chief Designer of C# Matt Warren – Chief Engineer Luca Bolognese– Lead Developer

Integrate Objects, Relational Data & XML SQL and Xquery-like power in C# and VB Extensible Model for languages Type Safety Extensive IntelliSense support Debugger Support Run on the .Net 2.0 CLR 100% backwards compatible

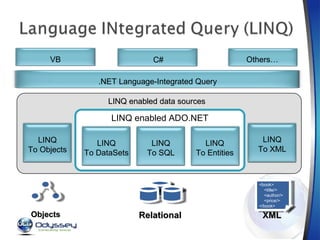

LINQ enabled data sources LINQ To Objects Objects LINQ To XML <book> <title/> <author/> <price/> </book> XML LINQ enabled ADO.NET LINQ To DataSets LINQ To SQL LINQ To Entities Relational Others… VB C# .NET Language-Integrated Query

“ Syntax, my lad. It has been restored to the highest place in the republic.” ~John Steinbeck

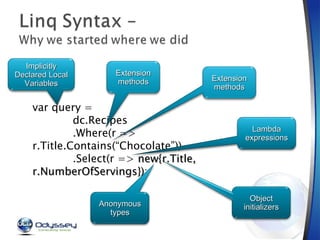

var query = dc.Recipes .W here (r => r.Title.Contains( “Chocolate” ) ) .S elect (r => new{ r .Title, r.NumberOfServings}) ; Extension methods Lambda expressions Object initializers Anonymous types Implicitly Declared Local Variables Extension methods

These work similarly to their SQL counterparts Select Where OrderBy/ThenBy OrderByDescending/ThenByDescending GroupBy Count Sum/Min/Max/Average

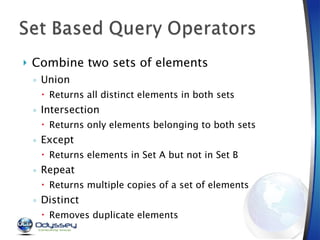

Combine two sets of elements Union Returns all distinct elements in both sets Intersection Returns only elements belonging to both sets Except Returns elements in Set A but not in Set B Repeat Returns multiple copies of a set of elements Distinct Removes duplicate elements

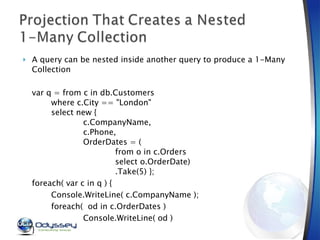

A query can be nested inside another query to produce a 1-Many Collection var q = from c in db.Customers where c.City == "London" select new { c.CompanyName, c.Phone, OrderDates = ( from o in c.Orders select o.OrderDate) .Take(5) }; foreach( var c in q ) { Console.WriteLine( c.CompanyName ); foreach( od in c.OrderDates ) Console.WriteLine( od ) }

Assigning a query to an IEnumerable<T> variable doesn’t execute the query When user iterates over members of the collection, each query operator executes as many times as needed to retrieve the next element Hence the data can change while elements are still being retrieved Use .ToList<T> or .ToArray<T> to force iteration over the entire query in one statement Creates a snapshot copy of the original data

Every syntactic query expression in C# begins with a " from " clause and ends with either a " select " or " group " clause. The " from " clause indicates what data you want to query. The " select " clause indicates what data you want returned, and what shape it should be in. For example, let's look again at the query against the List<Person> collection:

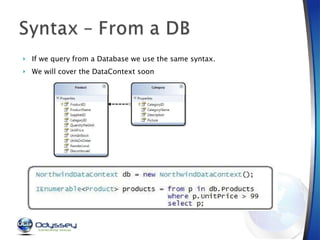

If we query from a Database we use the same syntax. We will cover the DataContext soon

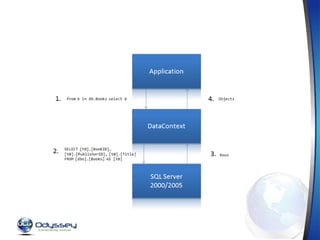

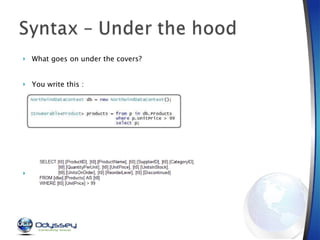

What goes on under the covers? You write this : Linq sends this to the database

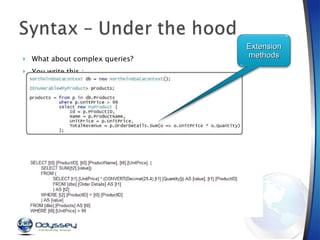

What about complex queries? You write this : Linq sends this to the database Extension methods

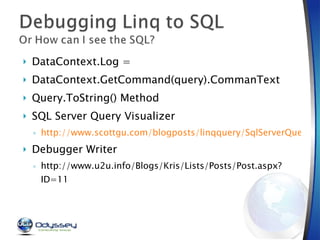

DataContext.Log = DataContext.GetCommand(query).CommanText Query.ToString() Method SQL Server Query Visualizer http://www.scottgu.com/blogposts/linqquery/SqlServerQueryVisualizer.zip Debugger Writer http://www.u2u.info/Blogs/Kris/Lists/Posts/Post.aspx?ID=11

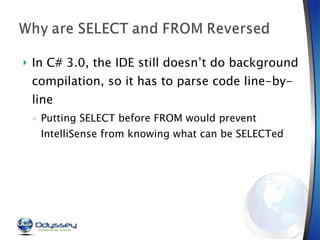

In C# 3.0, the IDE still doesn’t do background compilation, so it has to parse code line-by-line Putting SELECT before FROM would prevent IntelliSense from knowing what can be SELECTed

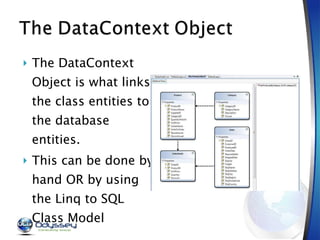

The DataContext Object is what links the class entities to the database entities. This can be done by hand OR by using the Linq to SQL Class Model

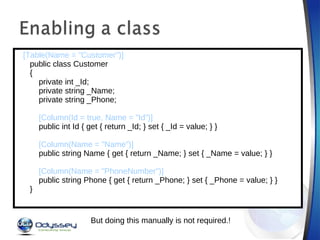

[Table(Name = "Customer")] public class Customer { private int _Id; private string _Name; private string _Phone; [Column(Id = true, Name = "Id”)] public int Id { get { return _Id; } set { _Id = value; } } [Column(Name = "Name")] public string Name { get { return _Name; } set { _Name = value; } } [Column(Name = "PhoneNumber")] public string Phone { get { return _Phone; } set { _Phone = value; } } } But doing this manually is not required.!

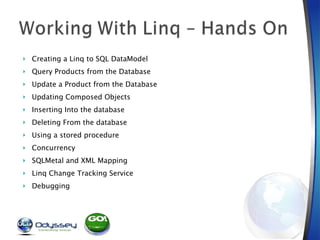

Creating a Linq to SQL DataModel Query Products from the Database Update a Product from the Database Updating Composed Objects Inserting Into the database Deleting From the database Using a stored procedure Concurrency SQLMetal and XML Mapping Linq Change Tracking Service Debugging

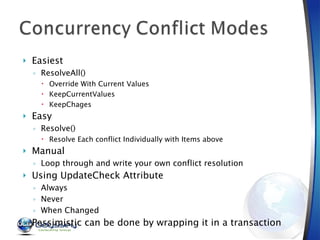

Easiest ResolveAll() Override With Current Values KeepCurrentValues KeepChages Easy Resolve() Resolve Each conflict Individually with Items above Manual Loop through and write your own conflict resolution Using UpdateCheck Attribute Always Never When Changed Pessimistic can be done by wrapping it in a transaction

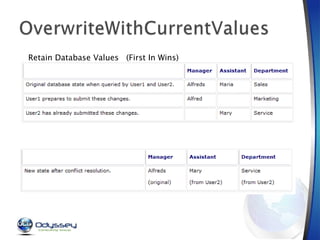

Retain Database Values (First In Wins)

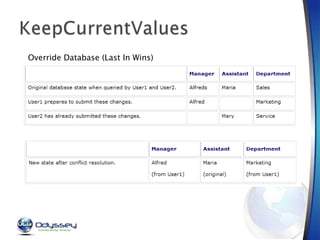

Override Database (Last In Wins)

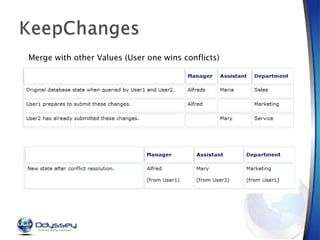

Merge with other Values (User one wins conflicts)

Command line utility provided to automate creation of annotated entity classes to match a database schema SqlMetal /server:.\SQLExpress /database:Northwind /delayfetch /pluralize /namespace:nwind /code:Northwind.cs

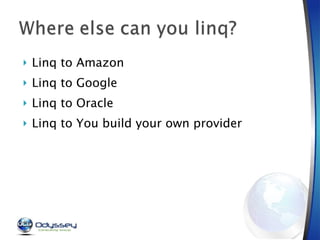

Linq to Amazon Linq to Google Linq to Oracle Linq to You build your own provider

Please fill out your Evaluations ;)

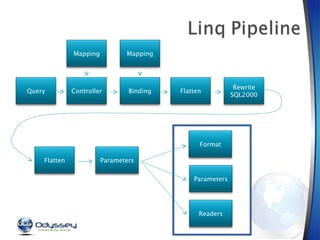

Query Controller Binding Flatten Mapping Mapping Rewrite SQL2000 Parameters Flatten Parameters Readers Format

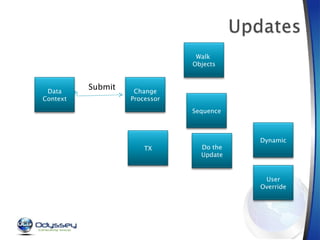

Submit Data Context Change Processor Walk Objects TX Sequence Do the Update Dynamic User Override
