1. LED TRIAC Dimming driver DIM6001
Updated 2013-11-10 1 DIM6001 SPEC V1.1
Model: DIM6001
Features
 Single-channel constant current output, each
Channel 350mA
 Wide range of input voltage 40VAC - 240VAC
 Dimming range from 40VAC to 240V AC
 Support Leading edge (ELV)/ trailing edge (TRIAC)
dimmer
 Over current protection, over load protection
 Dimming curve difference can be adjusted
by adjustable resistance.
Technical Parameter
Channels 1 channel
Input Voltage (Frequency) 40-240VAC (50/60Hz)
Dimming Voltage Range 40-240VAC
Output Voltage 3-18VDC
Output Current 350mA ± 2%
Output Power 6W Max
Power factor 0.7
Efficiency 75%
Dimension (mm) L118.2*W42.8* H21.4
Packing(mm) L136 *W46 * H24
G.W. 85g
Working Temperature -20℃ ~ +50℃
Dimensions:

2. LED TRIAC Dimming driver DIM6001
Updated 2013-11-10 2 DIM6001 SPEC V1.1

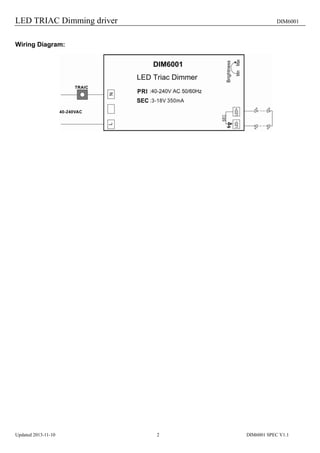

Wiring Diagram:
