The SR series solar UPS is a multifunctional inverter with AVR that protects electronic devices from power issues. It provides uninterruptible power supply using lead-acid or lithium batteries, features intelligent battery management, and includes numerous protection mechanisms. Its applications range from home appliances to communication systems, and it supports various input voltages and wattages, making it versatile for different environments.

1. SR Series solar UPS With AVR Function
Key Features:
Brief Introduction:
SR series solar UPS is a smart multifunctional solar inverter, consisting of inverters,
automatic voltage regulator, conversion circuit, main control circuit and display alarm
circuits, etc. designed to protect your computer and other important electronic equipment
from power failure, brownouts, sags and surges. The solar UPS can filter out the small
voltage fluctuations, when meeting big voltage disturbance, solar UPS can disconnect AC
input by solar ups internal circuit, so that avoid influencing your equipment. SOLAR UPS can
offer uninterruptible power supply by lead acid battery or lithium battery until the utility power
recover normally. when the utility power is normal, SOLAR UPS has voltage regulation
function by internal automatic voltage regulator. meantime charge the battery. When the
utility power is unnormal, solar inverter can change the battery energy into pure sine wave
AC power, make the load work.
Apply to Computer center, Network management center, Communication system, Automatic control system, Precision instrument and equipment, household
appliances etc. widely apply to home inverter power supply and solar energy off grid inverter power supply (configurate solar panels and solar controller) etc.

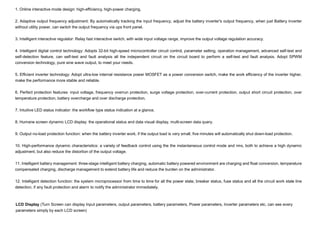

2. LCD Display (Turn Screen can display Input parameters, output parameters, battery parameters, Power parameters, Inverter parameters etc, can see every
parameters simply by each LCD screen)
1. Online interactive mode design: high-efficiency, high-power charging.
2. Adaptive output frequency adjustment: By automatically tracking the input frequency, adjust the battery inverter's output frequency, when just Battery inverter
without utility power, can switch the output frequency via ups front panel.
3. Intelligent interactive regulator: Relay fast interactive switch, with wide input voltage range, improve the output voltage regulation accuracy.
4. Intelligent digital control technology: Adopts 32-bit high-speed microcontroller circuit control, parameter setting, operation management, advanced self-test and
self-detection feature, can self-test and fault analysis all the independent circuit on the circuit board to perform a self-test and fault analysis. Adopt SPWM
conversion technology, pure sine wave output, to meet your needs.
5. Efficient inverter technology: Adopt ultra-low internal resistance power MOSFET as a power conversion switch, make the work efficiency of the inverter higher,
make the performance more stable and reliable.
6. Perfect protection features: input voltage, frequency overrun protection, surge voltage protection, over-current protection, output short circuit protection, over
temperature protection, battery overcharge and over discharge protection.
7. Intuitive LED status indicator: the workflow type status indication at a glance.
8. Humane screen dynamic LCD display: the operational status and data visual display, multi-screen data query.
9. Output no-load protection function: when the battery inverter work, if the output load is very small, five minutes will automatically shut down-load protection.
10. High-performance dynamic characteristics: a variety of feedback control using the the instantaneous control mode and rms, both to achieve a high dynamic
adjustment, but also reduce the distortion of the output voltage.
11. Intelligent battery management: three-stage intelligent battery charging, automatic battery powered environment are charging and float conversion, temperature
compensated charging, discharge management to extend battery life and reduce the burden on the administrator.
12. Intelligent detection function: the system microprocessor from time to time for all the power state, breaker status, fuse status and all the circuit work state line
detection, if any fault protection and alarm to notify the administrator immediately.

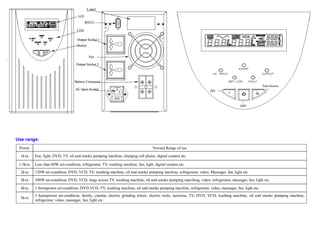

3. Use range:
Power Normal Range of use
1kva Fan, light, DVD, TV, oil and smoke pumping machine, charging cell phone, digital camera etc.
1.5kva Less than 80W air-condition, refrigerator, TV, washing machine, fan, light, digital camera etc.
2kva 120W air-condition, DVD, VCD, TV, washing machine, oil and smoke pumping machine, refrigerator, video, Massager, fan, light etc.
3kva 300W air-condition, DVD, VCD, large screen TV, washing machine, oil and smoke pumping marching, video, refrigerator, massager, fan, light etc.
4kva 1 horsepower air-condition, DVD,VCD, TV, washing machine, oil and smoke pumping machine, refrigerator, video, massager, fan, light etc.
5kva
1 horsepower air-condition, family, cinema, electric grinding wheel, electric tools, sartorius, TV, DVD, VCD, washing machine, oil and smoke pumping machine,
refrigerator, video, massager, fan, light etc.

4. Specification:
Rated Capacity（VA） SR-500VA SR-750VA SR-1000VA SR-1200VA SR-1500VA SR-2000VA SR-3000VA SR-4000VA SR-5000VA
Output voltage（W） Rated Capacity*0.8
Work mode Low frequency online interactive
Phase Single phase( L+N+G )
Rated Input voltage 100/110/115/127V；220/230/240V ( According to the user's power standard )
Input voltage range ±25%
Input nominal frequency 50/60Hz ( adaptive adjustment )
Input voltage range ±5%
Voltage stabilizing function Adopt Relay smart multi-gear adjusting voltage
Voltage stabilizing output
precision
±5%
Rated Battery Voltage
12V/24V/48V/96V/110V/220V (12V only used for 500VA~750VA，24V only used for 1000VA~1500VA, 48V only used for
2000VA~5000VA )
Charge mode three-stage intelligent battery charging
Float charging voltage 13.5V/27V/54V/108V/121.5V/243V
Equalized charging
voltage (optional)
14.1V/28.2V/56.4V/112.8V/126.9V/253.8V
Temp. Compensation
voltage
3mV/℃（cell battery）
Charge power Rated capacity*20%
Output phase Single phase（L+N＋G）
Nominal voltage Equal to input rated voltage
Inverter output voltage 100/110/115/127V；220/230/240V ( According to the user's power standard )
Inverter voltage stability ±1%（steady load ), ±3% (fluctuation of load )
Inverter frequency stability 50Hz, 60Hz＜±0. 5%
Crest factor ＞3:1
Inverter output waveform
distortion degree
Pure sine wave, Linear load＜3%; non-linear load＜5%
Transfer time ＜5ms
Overload protection
Overload level utility power mode Battery mode
105%～125% ＞10mins ＞1mins
125%～150% ＞1mins Immediate protection
＞150% Immediate protection
Input protection Voltage, frequency ultralimit protection

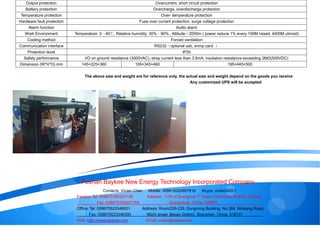

5. The above size and weight are for reference only, the actual size and weight depend on the goods you receive
Any customized UPS will be accepted
Output protection Overcurrent, short circuit protection
Battery protection Overcharge, overdischarge protection
Temperature protection Over- temperature protection
Hardware fault protection Fuse over current protection, surge voltage protection
Alarm function Audio alarm
Work Environment Temperature: 0～40 , Relative humidity: 30%℃ ～90% , Altitude＜2000m ( power reduce 1% every 100M raised, 4000M utmost)
Cooling method Forced ventilation
Communication interface RS232（optional usb, snmp card ）
Protection level IP30
Safety performance I/O on ground resistance (3000VAC), stray current less than 3.5mA, insulation resistance exceeding 2MΩ(500VDC)
Dimension (W*H*D) mm 145×225×360 195×345×460 195×445×500
