New Neo4j Auto HA Cluster
The document discusses the Neo4j high availability (HA) auto-cluster system, which replaces the previous use of Apache Zookeeper by implementing a multi-Paxos consensus algorithm for cluster management and master election. This approach simplifies the architecture by addressing previous challenges such as unreliable operations and the need for separate components. The implementation focuses on using state machines for HA functionality, including notifications, heartbeat management, and reliability through timeouts.
More Related Content
Similar to New Neo4j Auto HA Cluster
New Neo4j Auto HA Cluster
- 1. Neo4j High Availability New Auto-Cluster Michael Hunger - @mesirii 1
- 2. High Availability Cluster ๏Neo4j Enterprise ๏Master-Slave Replication ๏read-scaling and fault-tolerance ๏eventual consistency • write to master (push_factor) • write to slaves 2

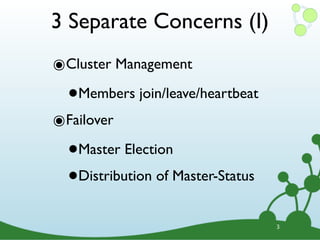

- 3. 3 Separate Concerns(I) ๏Cluster Management • Members join/leave/heartbeat ๏Failover • Master Election • Distribution of Master-Status 3

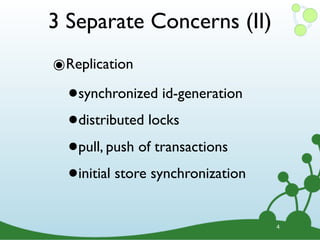

- 4. 3 Separate Concerns(II) ๏Replication •synchronized id-generation • distributed locks • pull, push of transactions • initial store synchronization 4

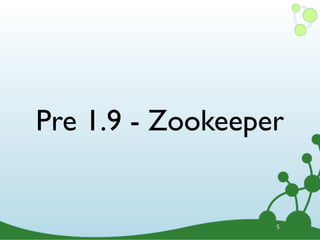

- 5. Pre 1.9 -Zookeeper 5

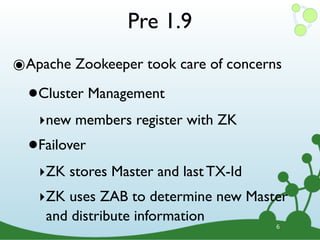

- 6. Pre 1.9 ๏Apache Zookeepertook care of concerns • Cluster Management ‣new members register with ZK • Failover ‣ZK stores Master and last TX-Id ‣ZK uses ZAB to determine new Master and distribute information 6

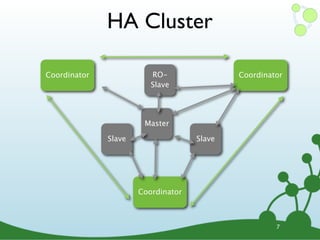

- 7. HA Cluster Coordinator RO- Coordinator Slave Master Slave Slave Coordinator 7
- 8. Pre 1.9 -Problems ๏Additional setup and operations of a separate component ๏unreliable operation / hiccups ๏longterm stability ๏no dynamic reconfig of the ZK cluster important for cloud setup 8

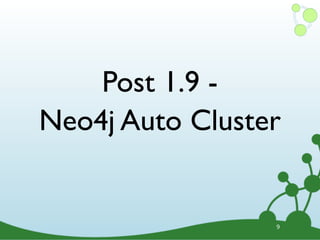

- 9. Post 1.9 - Neo4jAuto Cluster 9

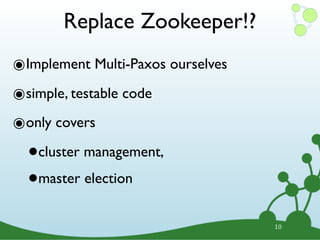

- 10. Replace Zookeeper!? ๏Implement Multi-Paxosourselves ๏simple, testable code ๏only covers • cluster management, • master election 10
- 11. HA Cluster 11

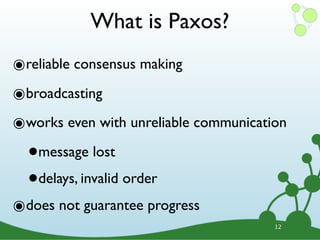

- 12. What is Paxos? ๏reliableconsensus making ๏broadcasting ๏works even with unreliable communication •message lost • delays, invalid order ๏does not guarantee progress 12
- 13.

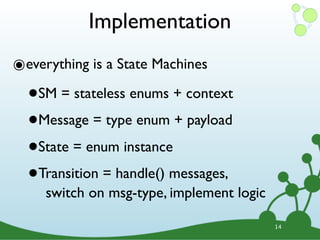

- 14. Implementation ๏everything is aState Machines • SM = stateless enums + context • Message = type enum + payload • State = enum instance • switch on msg-type, implement logic Transition = handle() messages, 14

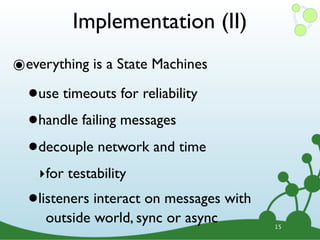

- 15. Implementation (II) ๏everything isa State Machines • use timeouts for reliability • handle failing messages • decouple network and time ‣for testability • listeners interact on messages with outside world, sync or async 15

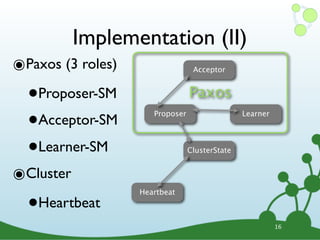

- 16. Implementation (II) ๏Paxos (3roles) Acceptor • Proposer-SM Paxos • Acceptor-SM Proposer Learner • Learner-SM ClusterState ๏Cluster • Heartbeat Heartbeat 16
- 17. Multi-Paxos (happy path) Acceptor Learner Proposer (2 * f + 1) PREPARE PREPARE TIMEOUT VALUE PROMISE MATCH OR REJECT NO MATCH ACCEPT MATCHES TIMEOUT PROMISE? CHECK , STORE STORE ACCEPTED VALUE RESPONSES OR IF QUORUM REJECTED NO MET, CANCEL TIMEOUT STORE ... VALUE LEARN OUT OF ORDER MSG HANDLING other DELIVER A VALUE IS Learner ALL VALID MISSING ATOMIC BC LEARN TIMEOUT WE STILL 17 LEARN TIMEOUT DON'T KNOW

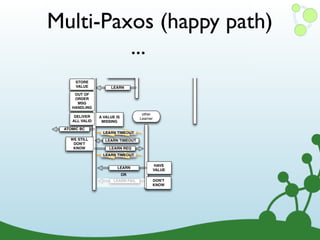

- 18. TIMEOUT Multi-Paxos (happy path) PROMISE ACCEPT ... MATCHES TIMEOUT PROMISE? CHECK , STORE STORE ACCEPTED VALUE RESPONSES OR IF QUORUM REJECTED NO MET, CANCEL TIMEOUT STORE VALUE LEARN OUT OF ORDER MSG HANDLING other DELIVER A VALUE IS Learner ALL VALID MISSING ATOMIC BC LEARN TIMEOUT WE STILL LEARN TIMEOUT DON'T KNOW LEARN REQ LEARN TIMEOUT HAVE LEARN VALUE OR LEARN FAIL DON'T KNOW 18
- 19.
- 20.

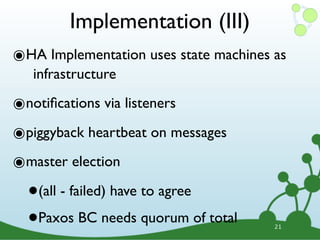

- 21. Implementation (III) ๏HA Implementationuses state machines as infrastructure ๏notifications via listeners ๏piggyback heartbeat on messages ๏master election • (all - failed) have to agree • Paxos BC needs quorum of total 21

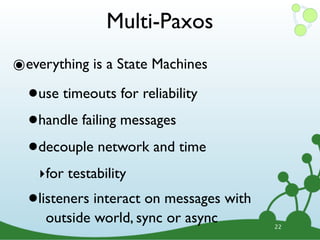

- 22. Multi-Paxos ๏everything is aState Machines • use timeouts for reliability • handle failing messages • decouple network and time ‣for testability • listeners interact on messages with outside world, sync or async 22

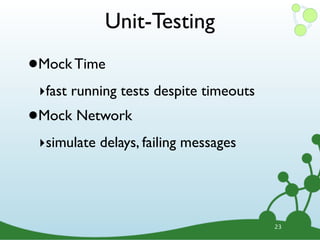

- 23. Unit-Testing • Mock Time ‣fast running tests despite timeouts • Mock Network ‣simulate delays, failing messages 23
- 24.

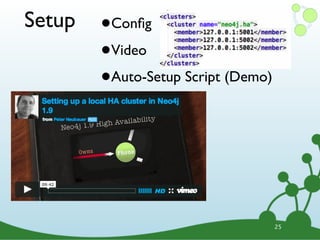

- 25. Setup •Config • Video • Auto-Setup Script (Demo) 25
- 26. Thank You -Questions? 26
