POLYGLOT
WITH
GRAALVM
O S C O N 2 0 1 9 / M I C H A E L H U N G E R / @ M E S I R I I

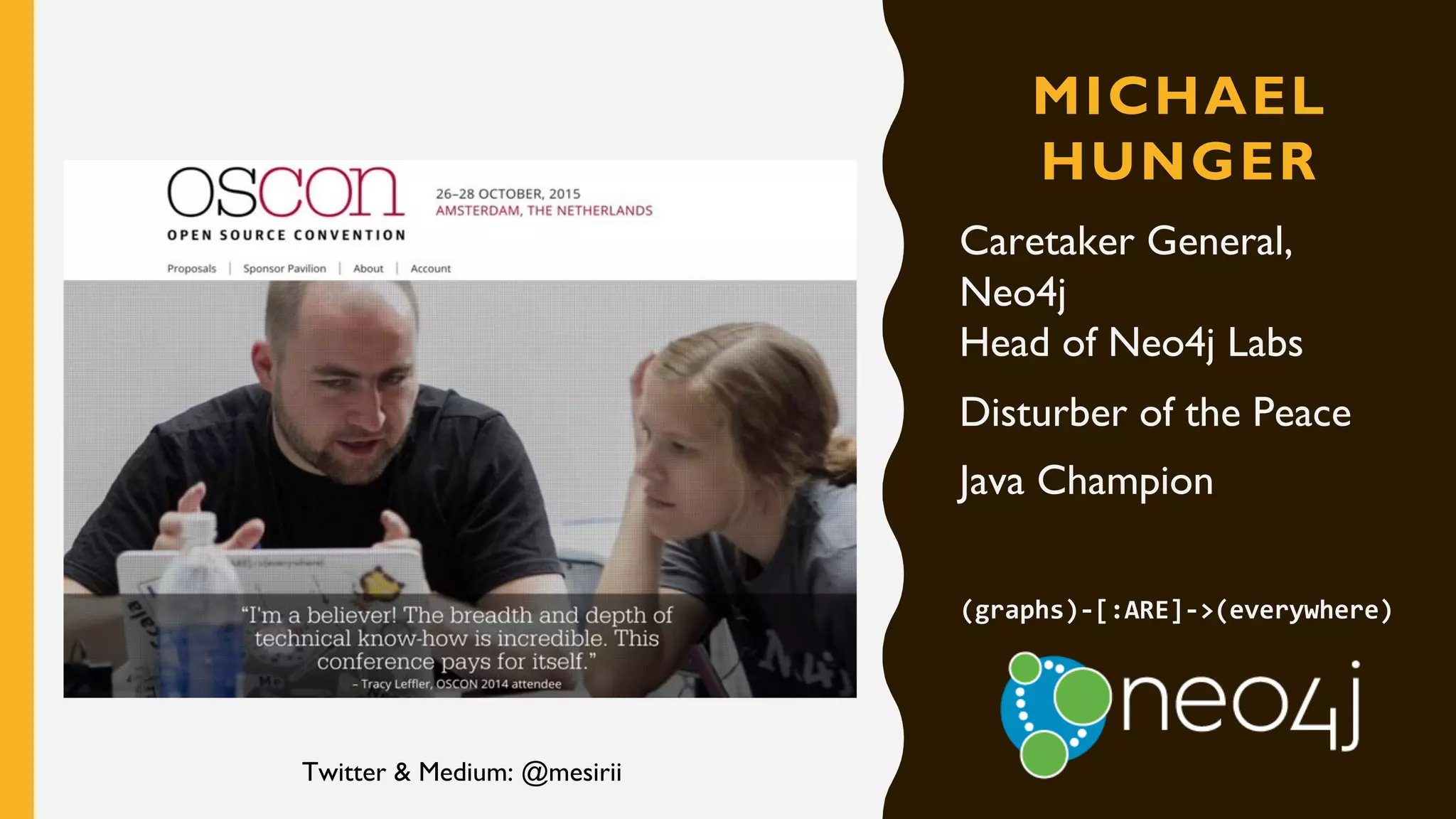

MICHAEL
HUNGER
Caretaker General,
Neo4j
Head of Neo4j Labs
Disturber of the Peace
Java Champion
(graphs)-[:ARE]->(everywhere)
Twitter & Medium: @mesirii

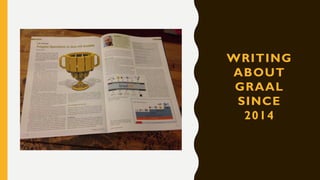

WRITING
ABOUT
GRAAL
SINCE
2014
WARNING:
WHIRLWIND
TOUR
DONT‘T
READ THE
CODE

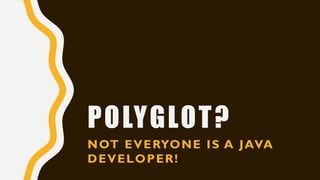

POLYGLOT?
NOT EVERYONE IS A JAVA
DEVELOPER!

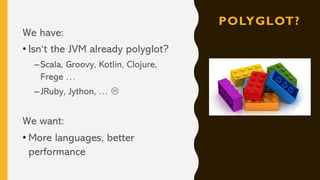

POLYGLOT?
We have:
• Isn‘t the JVM already polyglot?
–Scala, Groovy, Kotlin, Clojure,
Frege …
–JRuby, Jython, … L
We want:
• More languages, better
performance
WHY SHOULD I
CARE?
WHATS IN
FOR ME?• Better JVM performance
• Maintainable JIT compiler
• Faster evolution of Java
• With Truffle Language Runtime
–Run JavaScript, Ruby, R, Python,
LLVM code efficiently on the JVM
• With Substrate VM
–Binaries for Language Runtimes
–AOT compiled native images of
your applications
Lego box
GETTING
STARTED
WHO READS THE
INSTRUCTIONS
HOW CAN
I USE IT?• Dedicated GraalVM Download
or using sdkman
gu (graal-updater) Utility
js/node, ruby, python, R runtimes
native-image tool
• Java 11 with command line flags
-XX:+UnlockExperimentalVMOptions
-XX:+EnableJVMCI -XX:+UseJVMCICompiler
https://www.graalvm.org/downloads/

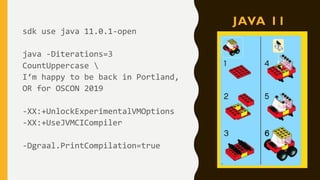

JAVA 11
sdk use java 11.0.1-open
java -Diterations=3
CountUppercase
I‘m happy to be back in Portland,
OR for OSCON 2019
-XX:+UnlockExperimentalVMOptions
-XX:+UseJVMCICompiler
-Dgraal.PrintCompilation=true

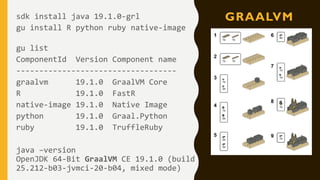

GRAALVMsdk install java 19.1.0-grl
gu install R python ruby native-image
gu list
ComponentId Version Component name
-----------------------------------
graalvm 19.1.0 GraalVM Core
R 19.1.0 FastR
native-image 19.1.0 Native Image
python 19.1.0 Graal.Python
ruby 19.1.0 TruffleRuby
java –version
OpenJDK 64-Bit GraalVM CE 19.1.0 (build
25.212-b03-jvmci-20-b04, mixed mode)
Lego Instructions built

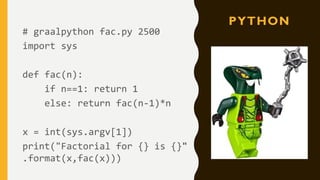

PYTHON
# graalpython fac.py 2500
import sys
def fac(n):
if n==1: return 1
else: return fac(n-1)*n
x = int(sys.argv[1])
print("Factorial for {} is {}"
.format(x,fac(x)))

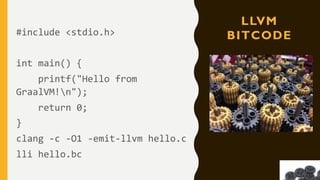

LLVM
BITCODE#include <stdio.h>
int main() {
printf("Hello from
GraalVM!n");
return 0;
}
clang -c -O1 -emit-llvm hello.c
lli hello.bc

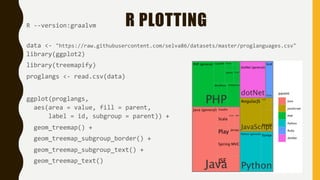

R PLOTTINGR --version:graalvm
data <- "https://raw.githubusercontent.com/selva86/datasets/master/proglanguages.csv"
library(ggplot2)
library(treemapify)
proglangs <- read.csv(data)
ggplot(proglangs,
aes(area = value, fill = parent,
label = id, subgroup = parent)) +
geom_treemap() +
geom_treemap_subgroup_border() +
geom_treemap_subgroup_text() +
geom_treemap_text()
JS POLYGLOT
node --version:graalvm
node --jvm
const BigInteger =
Java.type("java.math.BigInteger")
let a = new BigInteger("10")
.add(new BigInteger("8")
.multiply(new BigInteger("4")))
console.log(a.toString())
> 42
GRAAL
COMPILER
OPTIMIZING COMPILER
IN JAVA

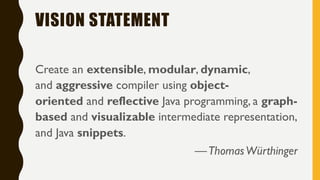

VISION STATEMENT
Create an extensible, modular, dynamic,
and aggressive compiler using object-
oriented and reflective Java programming, a graph-
based and visualizable intermediate representation,
and Java snippets.
—ThomasWürthinger

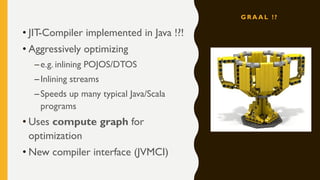

G R A A L ! ?
• JIT-Compiler implemented in Java !?!
• Aggressively optimizing
–e.g. inlining POJOS/DTOS
–Inlining streams
–Speeds up many typical Java/Scala
programs
• Uses compute graph for
optimization
• New compiler interface (JVMCI)

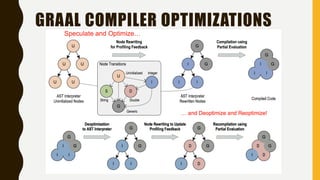

GRAAL COMPILER OPTIMIZATIONS

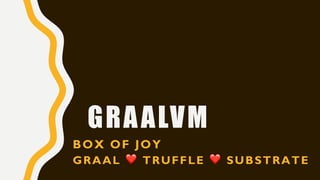

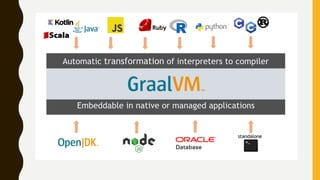

GRAALVM
BOX OF JOY
GRAAL ❤ TRUFFLE ❤ SUBSTRATE
GraalVM is a high-performance,
embeddable, polyglotVirtual Machine for
running applications written in JavaScript,
Python, Ruby, R, JVM-based languages like
Java, Scala, Kotlin, and LLVM-based
languages such as C and C++.
Additionally, GraalVM allows efficient
interoperability between programming
languages and compiling Java applications
ahead-of-time into native executables for
faster startup time and lower memory
overhead. https://github.com/oracle/graal/releases
BIGGER ON
THE INSIDE
• Collection of Research Projects
– TruffleRuby / FastR
• Maxine (Research)VM in Java
• „A Joke?“
• „Java-on-Java“ John Rose
– Project Metropolis
• Power Combo:
– Substrate-VM
– Truffle
– Graal Compiler
– AOT Compilation
HISTORY
GRAALVM
• Oracle Labs Project
• Versions
– 19.1.1 (quarterly release)
• Integrated
– JVM 1.8.x
– Node.js 10.x / ECMAScript 2019
– LLVM bitcode runtime
• Supports
– Truffle Runtime
– Language Packs (via gu)
– Native Image AOT
• Editions
– Community (GPL v2 w/ CP-Exception
– Enterprise (faster, sandboxing, commercial
support)
– Oracle Database Engine

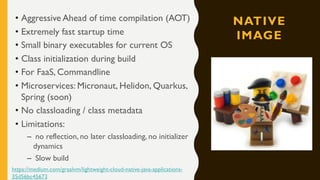

NATIVE IMAGE
MACHINE CODE BABY
NATIVE
• Aggressive Ahead of time compilation (AOT)
• Extremely fast startup time
• Small binary executables for current OS
• Class initialization during build
• For FaaS, Commandline
• Microservices: Micronaut, Helidon, Quarkus,
Spring (soon)
• No classloading / class metadata
• Limitations:
– no reflection, no later classloading, no initializer
dynamics
– Slow build
https://medium.com/graalvm/lightweight-cloud-native-java-applications-
35d56bc45673
TRUFFLE
L A N G U A G E R U N T I M E
TRUFFLE
• Language Runtime
• API & Type system
• Implement language constructs
• Annotated Java Methods
– Tooling,Testing
• Generic or specialized operations

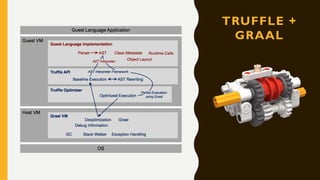

TRUFFLE +
GRAAL
TRUFFLE
GRAAL• Integrates with Graal Compiler
• Partial Evaluation
• Optimize special cases based on
steady state assumption
• Deoptimize (trap) on failed
assumptions
SAMPLE
LANGUAGE
T R U F F L E E X A M P L E L A N G U A G E

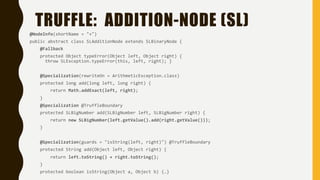

TRUFFLE: ADDITION-NODE (SL)
@NodeInfo(shortName = "+")
public abstract class SLAdditionNode extends SLBinaryNode {
@Fallback
protected Object typeError(Object left, Object right) {
throw SLException.typeError(this, left, right); }
@Specialization(rewriteOn = ArithmeticException.class)
protected long add(long left, long right) {
return Math.addExact(left, right);
}
@Specialization @TruffleBoundary
protected SLBigNumber add(SLBigNumber left, SLBigNumber right) {
return new SLBigNumber(left.getValue().add(right.getValue()));
}
@Specialization(guards = "isString(left, right)") @TruffleBoundary
protected String add(Object left, Object right) {
return left.toString() + right.toString();
}
protected boolean isString(Object a, Object b) {…}

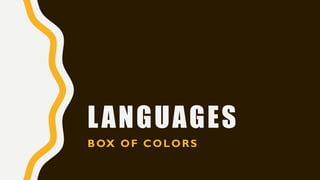

LANGUAGES
BOX OF COLORS

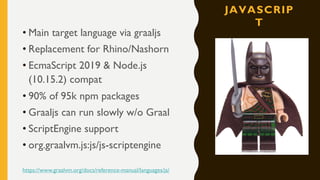

JAVASCRIP
T
• Main target language via graaljs
• Replacement for Rhino/Nashorn
• EcmaScript 2019 & Node.js
(10.15.2) compat
• 90% of 95k npm packages
• Graaljs can run slowly w/o Graal
• ScriptEngine support
• org.graalvm.js:js/js-scriptengine
https://www.graalvm.org/docs/reference-manual/languages/js/

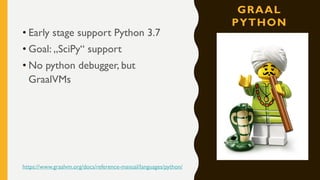

GRAAL
PYTHON
• Early stage support Python 3.7
• Goal: „SciPy“ support
• No python debugger, but
GraalVMs
https://www.graalvm.org/docs/reference-manual/languages/python/

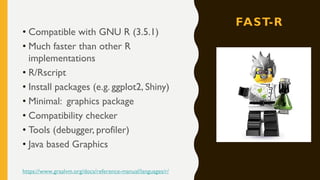

FAST-R
• Compatible with GNU R (3.5.1)
• Much faster than other R
implementations
• R/Rscript
• Install packages (e.g. ggplot2, Shiny)
• Minimal: graphics package
• Compatibility checker
• Tools (debugger, profiler)
• Java based Graphics
https://www.graalvm.org/docs/reference-manual/languages/r/

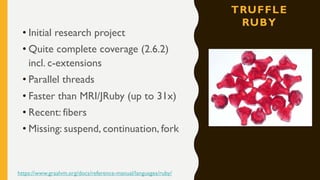

TRUFFLE
RUBY
• Initial research project
• Quite complete coverage (2.6.2)
incl. c-extensions
• Parallel threads
• Faster than MRI/JRuby (up to 31x)
• Recent: fibers
• Missing: suspend, continuation, fork
https://www.graalvm.org/docs/reference-manual/languages/ruby/

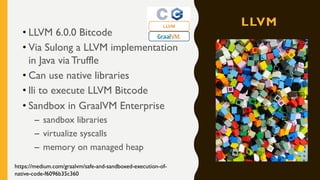

LLVM
• LLVM 6.0.0 Bitcode
• Via Sulong a LLVM implementation
in Java via Truffle
• Can use native libraries
• lli to execute LLVM Bitcode
• Sandbox in GraalVM Enterprise
– sandbox libraries
– virtualize syscalls
– memory on managed heap
https://medium.com/graalvm/safe-and-sandboxed-execution-of-
native-code-f6096b35c360

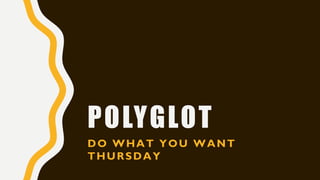

POLYGLOT
DO WHAT YOU WANT

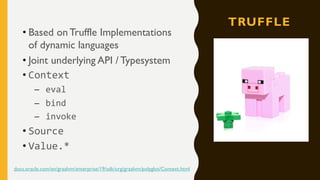

THURSDAY
TRUFFLE
• Based on Truffle Implementations
of dynamic languages
• Joint underlying API / Typesystem
• Context
– eval
– bind
– invoke
• Source
• Value.*
docs.oracle.com/en/graalvm/enterprise/19/sdk/org/graalvm/polyglot/Context.html

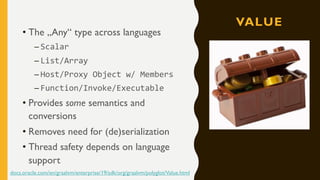

VALUE
• The „Any“ type across languages
– Scalar
– List/Array
– Host/Proxy Object w/ Members
– Function/Invoke/Executable
• Provides some semantics and
conversions
• Removes need for (de)serialization
• Thread safety depends on language
support
docs.oracle.com/en/graalvm/enterprise/19/sdk/org/graalvm/polyglot/Value.html

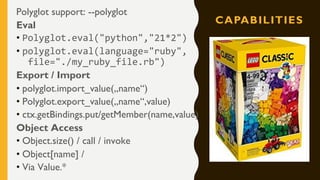

CAPABILITIES
Polyglot support: --polyglot
Eval
• Polyglot.eval("python","21*2")
• polyglot.eval(language="ruby",
file="./my_ruby_file.rb")
Export / Import
• polyglot.import_value(„name“)
• Polyglot.export_value(„name“,value)
• ctx.getBindings.put/getMember(name,value)
Object Access
• Object.size() / call / invoke
• Object[name] /
• Via Value.*

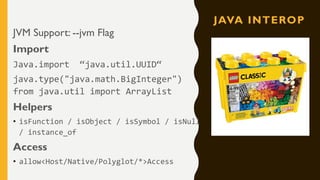

JAVA INTEROP
JVM Support: --jvm Flag
Import
Java.import “java.util.UUID“
java.type("java.math.BigInteger")
from java.util import ArrayList
Helpers
• isFunction / isObject / isSymbol / isNull
/ instance_of
Access
• allow<Host/Native/Polyglot/*>Access
POLYGLOT
EXAMPLES

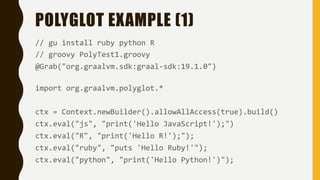

POLYGLOT EXAMPLE (1)
// gu install ruby python R
// groovy PolyTest1.groovy
@Grab("org.graalvm.sdk:graal-sdk:19.1.0")
import org.graalvm.polyglot.*
ctx = Context.newBuilder().allowAllAccess(true).build()
ctx.eval("js", "print('Hello JavaScript!');")
ctx.eval("R", "print('Hello R!');");
ctx.eval("ruby", "puts 'Hello Ruby!'");
ctx.eval("python", "print('Hello Python!')");

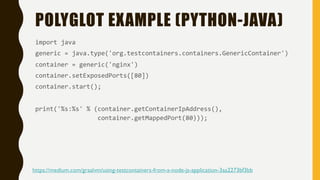

POLYGLOT EXAMPLE (PYTHON-JAVA)
import java
generic = java.type('org.testcontainers.containers.GenericContainer')
container = generic('nginx')
container.setExposedPorts([80])
container.start();
print('%s:%s' % (container.getContainerIpAddress(),
container.getMappedPort(80)));
https://medium.com/graalvm/using-testcontainers-from-a-node-js-application-3aa2273bf3bb

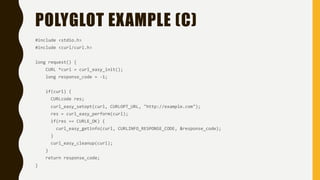

POLYGLOT EXAMPLE (C)
#include <stdio.h>
#include <curl/curl.h>
long request() {
CURL *curl = curl_easy_init();
long response_code = -1;
if(curl) {
CURLcode res;
curl_easy_setopt(curl, CURLOPT_URL, "http://example.com");
res = curl_easy_perform(curl);
if(res == CURLE_OK) {
curl_easy_getinfo(curl, CURLINFO_RESPONSE_CODE, &response_code);
}
curl_easy_cleanup(curl);
}
return response_code;
}
POLYGLOT EXAMPLE (JAVA+C-LLVM)
// clang -c -O1 -emit-llvm use-curl.c && groovy CurlTest.groovy
@Grab("org.graalvm.sdk:graal-sdk:1.9.10")
import org.graalvm.polyglot.*
polyglot = Context.newBuilder()
.allowAllAccess(true)
.option("llvm.libraries", "/usr/lib/libcurl.dylib")
.build()
source = Source
.newBuilder("llvm", new File("use-curl.bc"))
.build()
result = polyglot.eval(source)
responseValue = result.getMember("request").execute()
responseCode = responseValue.asLong()
print(responseCode)
R+PYTHON
pycode <-
‚
library polyglot
PI=polyglot.import("PI")
def area(radius):
return 2*radius*PI
area
'
export("PI",pi)
area <- eval.polyglot("python",pycode)
print(area(5))

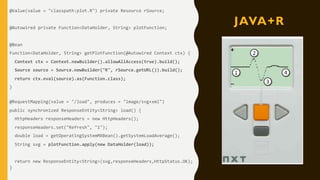

JAVA+R
@Value(value = "classpath:plot.R") private Resource rSource;
@Autowired private Function<DataHolder, String> plotFunction;
@Bean
Function<DataHolder, String> getPlotFunction(@Autowired Context ctx) {
Context ctx = Context.newBuilder().allowAllAccess(true).build();
Source source = Source.newBuilder("R", rSource.getURL()).build();
return ctx.eval(source).as(Function.class);
}
@RequestMapping(value = "/load", produces = "image/svg+xml")
public synchronized ResponseEntity<String> load() {
HttpHeaders responseHeaders = new HttpHeaders();
responseHeaders.set("Refresh", "1");
double load = getOperatingSystemMXBean().getSystemLoadAverage();
String svg = plotFunction.apply(new DataHolder(load));
return new ResponseEntity<String>(svg,responseHeaders,HttpStatus.OK);
}
POLYGLOT EXAMPLE (JAVA+R)
library(ggplot2)
data <<- numeric(100)
function(dataHolder) {
svg()
data <<-
c(data[2:100],dataHolder$value)
plot <- ggplot(data=
data.frame(systemLoad=data,
time =-99:0),
aes(x=time, y=systemLoad, group=1)) +
geom_line(color="orange") +
expand_limits(x=0, y=0)
print(plot)
svg.off()
}

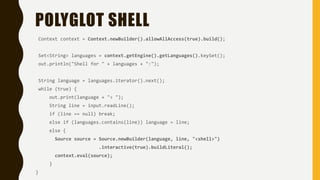

POLYGLOT SHELL
Context context = Context.newBuilder().allowAllAccess(true).build();
Set<String> languages = context.getEngine().getLanguages().keySet();
out.println("Shell for " + languages + ":");
String language = languages.iterator().next();
while (true) {
out.print(language + "> ");
String line = input.readLine();
if (line == null) break;
else if (languages.contains(line)) language = line;
else {
Source source = Source.newBuilder(language, line, "<shell>")
.interactive(true).buildLiteral();
context.eval(source);
}
}
POLYGLOT
OPTIONS
Print GraalVM version information and exit.
--version:graalvm
Print GraalVM version information and continue execution.
--show-version:graalvm
Start with Debugger
--inspect
Run using the native launcher with limited Java access
--native
Run on the JVM with Java access.
--jvm
Run with all other guest languages accessible.
--polyglot
Pass options to the host VM
--vm.[option]
Options for all installed languages, tools, host VM
--help:languages,tools,vm,expert
Internal options for debugging language impl and tools.
--help:internal
TOOLING
MAKING OUR LIFES EASIER

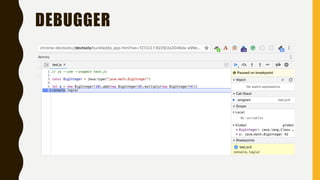

DEBUGGER

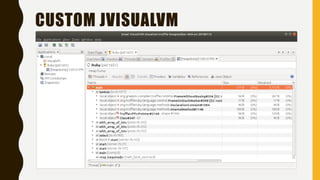

CUSTOM JVISUALVM

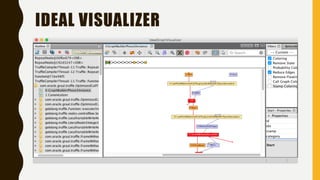

IDEAL VISUALIZER
EXTENDING
DATABASES
MORE POWER TO THE
MACHINE

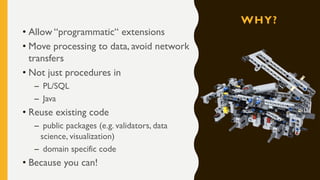

WHY?
• Allow “programmatic“ extensions
• Move processing to data, avoid network
transfers
• Not just procedures in
– PL/SQL
– Java
• Reuse existing code
– public packages (e.g. validators, data
science, visualization)
– domain specific code
• Because you can!

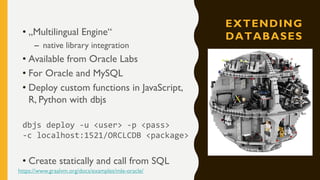

EXTENDING
DATABASES• „Multilingual Engine“
– native library integration
• Available from Oracle Labs
• For Oracle and MySQL
• Deploy custom functions in JavaScript,
R, Python with dbjs
dbjs deploy -u <user> -p <pass>
-c localhost:1521/ORCLCDB <package>
• Create statically and call from SQL
https://www.graalvm.org/docs/examples/mle-oracle/
SQL FUNCTION IN JAVASCRIPT
CREATE OR REPLACE JAVASCRIPT SOURCE NAMED "hello.js" AS
module.exports.greet = function(a) { return "Hello " + a; };
CREATE OR REPLACE FUNCTION greet(a IN VARCHAR2) RETURN VARCHAR2 AS
LANGUAGE JAVASCRIPT NAME 'hello.js.greet(a string) return string‘;
SELECT greet('GraalVM') FROM DUAL;
Hello GraalVM
NEO4J
(GRAPHS)-[:ARE]->(EVERYWHERE)

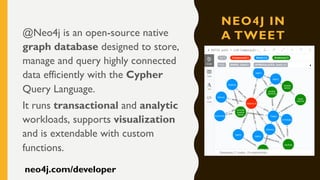

NEO4J IN
A TWEET@Neo4j is an open-source native
graph database designed to store,
manage and query highly connected
data efficiently with the Cypher
Query Language.
It runs transactional and analytic
workloads, supports visualization
and is extendable with custom
functions.
neo4j.com/developer
NEO4J
• Runs on the JVM
• Full Stack database
• Declarative Graph Query
Language
• Binary Protocol
• Drivers for most languages
• Visual Browser
• Integrations like GraphQL, Kafka
• Custom Procedures and Functions

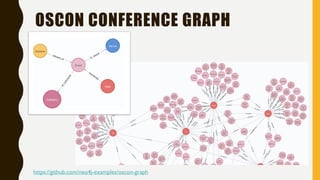

OSCON CONFERENCE GRAPH
https://github.com/neo4j-examples/oscon-graph

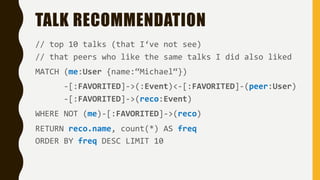

TALK RECOMMENDATION
// top 10 talks (that I‘ve not see)
// that peers who like the same talks I did also liked
MATCH (me:User {name:“Michael“})
-[:FAVORITED]->(:Event)<-[:FAVORITED]-(peer:User)
-[:FAVORITED]->(reco:Event)
WHERE NOT (me)-[:FAVORITED]->(reco)
RETURN reco.name, count(*) AS freq
ORDER BY freq DESC LIMIT 10
TALK RECOMMENDATION
NEO4J
CUSTOM
PROCEDURES
P U T YO U R S M A RT S I N T H E DATA B A S E
NEO4J
CUSTOM
FUNCTIONS• Annotated Java Methods
• Loaded at startup
• Computation or Aggregation
with Functions
• Data processing & streaming with
Procedures
• Accessible from Cypher Query
Language

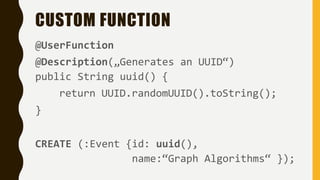

CUSTOM FUNCTION
@UserFunction
@Description(„Generates an UUID“)
public String uuid() {
return UUID.randomUUID().toString();
}
CREATE (:Event {id: uuid(),
name:“Graph Algorithms“ });
POLYGLOT
FUNCTIONS
U S I N G T R U F F L E A P I S & G R A A L V M
POLYGLOT
FUNCTIONS
• Using Truffle API
• Declare + invoke function with
params, or
• Execute code with bindings
1. Use Context to run polyglot code
2. Use Cypher to declare dynamic
language functions
3. Install language files from directory
4. Store code in db to restore at
restart / in cluster

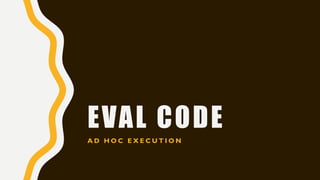

EVAL CODE
A D H O C E X E C U T I O N

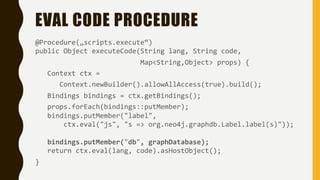

EVAL CODE PROCEDURE
@Procedure(„scripts.execute“)
public Object executeCode(String lang, String code,
Map<String,Object> props) {
Context ctx =
Context.newBuilder().allowAllAccess(true).build();
Bindings bindings = ctx.getBindings();
props.forEach(bindings::putMember);
bindings.putMember("label",
ctx.eval("js", "s => org.neo4j.graphdb.Label.label(s)"));
bindings.putMember("db", graphDatabase);
return ctx.eval(lang, code).asHostObject();
}

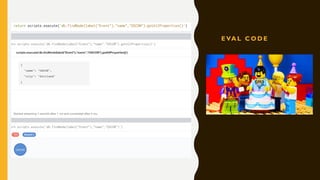

E VA L C O D E

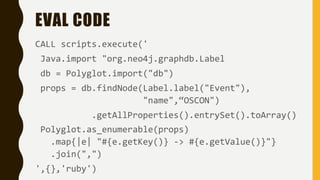

EVAL CODE
CALL scripts.execute('
Java.import "org.neo4j.graphdb.Label
db = Polyglot.import("db")
props = db.findNode(Label.label("Event"),
"name",“OSCON")
.getAllProperties().entrySet().toArray()
Polyglot.as_enumerable(props)
.map{|e| "#{e.getKey()} -> #{e.getValue()}"}
.join(",")
',{},'ruby')
REGISTER
FUNCTIONS
DY N A M I C A L LY
INSTALL FUNCTION (2)
Context ctx =
Context.newBuilder().allowAllAccess(true).build()
@Procedure(„scripts.register“)
public void registerFunction(String lang,
String name, String code) {
Value function = ctx.eval(lang, code);
ctx.getBindings(lang)
.putMember(name, function);
}

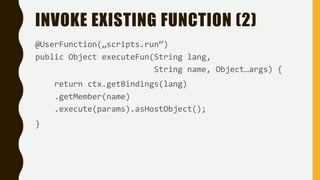

INVOKE EXISTING FUNCTION (2)
@UserFunction(„scripts.run“)
public Object executeFun(String lang,
String name, Object…args) {
return ctx.getBindings(lang)
.getMember(name)
.execute(params).asHostObject();
}

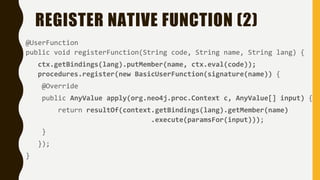

REGISTER NATIVE FUNCTION (2)
@UserFunction
public void registerFunction(String code, String name, String lang) {
ctx.getBindings(lang).putMember(name, ctx.eval(code));
procedures.register(new BasicUserFunction(signature(name)) {
@Override
public AnyValue apply(org.neo4j.proc.Context c, AnyValue[] input) {
return resultOf(context.getBindings(lang).getMember(name)
.execute(paramsFor(input)));
}
});
}
SCRIPT
DIRECTORY
A U TO L O A D S C R I P T F I L E S

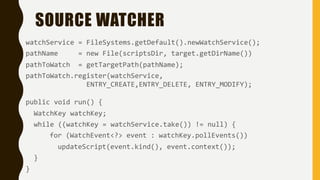

SOURCE WATCHER
watchService = FileSystems.getDefault().newWatchService();
pathName = new File(scriptsDir, target.getDirName())
pathToWatch = getTargetPath(pathName);
pathToWatch.register(watchService,
ENTRY_CREATE,ENTRY_DELETE, ENTRY_MODIFY);
public void run() {
WatchKey watchKey;
while ((watchKey = watchService.take()) != null) {
for (WatchEvent<?> event : watchKey.pollEvents())
updateScript(event.kind(), event.context());
}
}

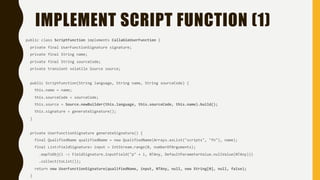

IMPLEMENT SCRIPT FUNCTION (1)
public class ScriptFunction implements CallableUserFunction {
private final UserFunctionSignature signature;
private final String name;
private final String sourceCode;
private transient volatile Source source;
public ScriptFunction(String language, String name, String sourceCode) {
this.name = name;
this.sourceCode = sourceCode;
this.source = Source.newBuilder(this.language, this.sourceCode, this.name).build();
this.signature = generateSignature();
}
private UserFunctionSignature generateSignature() {
final QualifiedName qualifiedName = new QualifiedName(Arrays.asList("scripts", "fn"), name);
final List<FieldSignature> input = IntStream.range(0, numberOfArguments);
.mapToObj(i -> FieldSignature.inputField("p" + i, NTAny, DefaultParameterValue.nullValue(NTAny)))
.collect(toList());
return new UserFunctionSignature(qualifiedName, input, NTAny, null, new String[0], null, false);
}

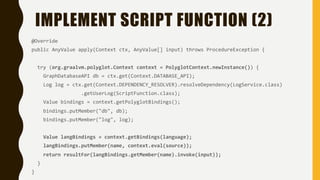

IMPLEMENT SCRIPT FUNCTION (2)
@Override
public AnyValue apply(Context ctx, AnyValue[] input) throws ProcedureException {
try (org.graalvm.polyglot.Context context = PolyglotContext.newInstance()) {
GraphDatabaseAPI db = ctx.get(Context.DATABASE_API);
Log log = ctx.get(Context.DEPENDENCY_RESOLVER).resolveDependency(LogService.class)
.getUserLog(ScriptFunction.class);
Value bindings = context.getPolyglotBindings();
bindings.putMember("db", db);
bindings.putMember("log", log);
Value langBindings = context.getBindings(language);
langBindings.putMember(name, context.eval(source));
return resultFor(langBindings.getMember(name).invoke(input));
}
}

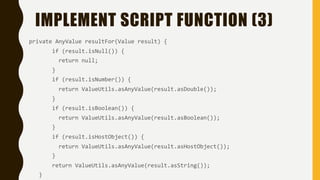

IMPLEMENT SCRIPT FUNCTION (3)
private AnyValue resultFor(Value result) {
if (result.isNull()) {
return null;
}
if (result.isNumber()) {
return ValueUtils.asAnyValue(result.asDouble());
}
if (result.isBoolean()) {
return ValueUtils.asAnyValue(result.asBoolean());
}
if (result.isHostObject()) {
return ValueUtils.asAnyValue(result.asHostObject());
}
return ValueUtils.asAnyValue(result.asString());
}
NEXT STEPS

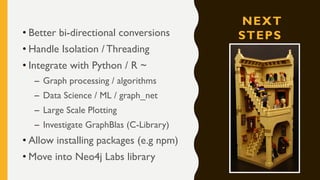

NEXT
STEPS• Better bi-directional conversions
• Handle Isolation / Threading
• Integrate with Python / R ~
– Graph processing / algorithms
– Data Science / ML / graph_net
– Large Scale Plotting
– Investigate GraphBlas (C-Library)
• Allow installing packages (e.g npm)
• Move into Neo4j Labs library
THE GOOD
AND EXCELLENT
THE GOOD
• It works!
– All the languages
– JVM Interop
– Polyglot Interop
• Continuous improvements by the
Oracle Team
• Lots of great docs & articles
• Adding those database extensions
was really easy
THE BAD
AND UGLY

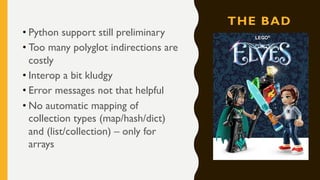

THE BAD
• Python support still preliminary
• Too many polyglot indirections are
costly
• Interop a bit kludgy
• Error messages not that helpful
• No automatic mapping of
collection types (map/hash/dict)
and (list/collection) – only for
arrays

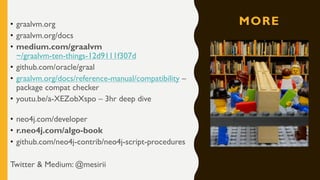

FIND MORE
ALL THE THINGS
MORE• graalvm.org
• graalvm.org/docs
• medium.com/graalvm
~/graalvm-ten-things-12d9111f307d
• github.com/oracle/graal
• graalvm.org/docs/reference-manual/compatibility –
package compat checker
• youtu.be/a-XEZobXspo – 3hr deep dive
• neo4j.com/developer
• r.neo4j.com/algo-book
• github.com/neo4j-contrib/neo4j-script-procedures
Twitter & Medium: @mesirii
Graphs in AI and ML
Alicia Frame, Senior Data Scientist, Neo4j
Jake Graham, Lead Product Manager for AI and Graph Analytics
Intro to Neo4j for Developers
Jennifer Reif, Developer Relations Engineer, Neo4j
Neo4j Bolt Driver Architecture Now and inThe Future
Nigel Small,Tech Lead for Neo4j Drivers team
GRANDstack: Graphs ALL the Way Down
William Lyon, Software Engineer, Neo4j Labs
All-new SDN-RX: Reactive Spring Data Neo4j
Gerrit Meier, Software Engineer, Neo4j
Graph Embeddings
Alicia Frame, Senior Data Scientist, Neo4j
Graph ModelingTips andTricks
Max De Marzi, Field Engineer and Graph Expert, Neo4j
APOC Pearls -The bestTips andTricks
Michael Hunger, Director of Neo4j Labs
Visualizing Graph Data in JavaScript
Will Lyon, Software Engineer, Neo4j Labs
Creating a Data Marvel (Comics) with Spring and Neo4j
Jennifer Reif, Developer Relations Engineer, Neo4j
Keynote and Announcements
Emil Eifrem, CEO and Co-Creator of Neo4j
October 10
8am NYC, 1pm London, 530pm Mumbai
PLEASE RATE MY SESSION
THANK YOU!
QUESTIONS IN HALLWAY

More Related Content

What's hot

CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~
CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~
CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~
Yuki Ando


What's hot (20)

Neo4j: The path to success with Graph Database and Graph Data Science
Neo4j: The path to success with Graph Database and Graph Data ScienceNeo4j: The path to success with Graph Database and Graph Data Science
Neo4j: The path to success with Graph Database and Graph Data Science

Kafka・Storm・ZooKeeperの認証と認可について #kafkajp
Kafka・Storm・ZooKeeperの認証と認可について #kafkajpKafka・Storm・ZooKeeperの認証と認可について #kafkajp
Kafka・Storm・ZooKeeperの認証と認可について #kafkajp

Amazon GameLift FlexMatch
Amazon GameLift FlexMatchAmazon GameLift FlexMatch
Amazon GameLift FlexMatch

第6回zabbix jp勉強会資料
第6回zabbix jp勉強会資料第6回zabbix jp勉強会資料
第6回zabbix jp勉強会資料

Software design and team design
Software design and team designSoftware design and team design
Software design and team design

アプリケーション開発者のためのAzure Databricks入門
アプリケーション開発者のためのAzure Databricks入門アプリケーション開発者のためのAzure Databricks入門
アプリケーション開発者のためのAzure Databricks入門

Jmespathをもっと広めたい
Jmespathをもっと広めたいJmespathをもっと広めたい
Jmespathをもっと広めたい

AWS Expert Online appsyncを使ったServerlessアーキテクチャ
AWS Expert Online appsyncを使ったServerlessアーキテクチャAWS Expert Online appsyncを使ったServerlessアーキテクチャ
AWS Expert Online appsyncを使ったServerlessアーキテクチャ

GCP Best Practices for SRE Team
GCP Best Practices for SRE TeamGCP Best Practices for SRE Team
GCP Best Practices for SRE Team

AWSのセキュリティについて
AWSのセキュリティについてAWSのセキュリティについて
AWSのセキュリティについて

Splunkで実践するKubernetesの運用監視とオブザーバビリティ
Splunkで実践するKubernetesの運用監視とオブザーバビリティSplunkで実践するKubernetesの運用監視とオブザーバビリティ
Splunkで実践するKubernetesの運用監視とオブザーバビリティ

LIFFとの連携でさらに強力に。こんなに使えるLINEログイン
LIFFとの連携でさらに強力に。こんなに使えるLINEログインLIFFとの連携でさらに強力に。こんなに使えるLINEログイン
LIFFとの連携でさらに強力に。こんなに使えるLINEログイン

Why we chose Argo Workflow to scale DevOps at InVision
Why we chose Argo Workflow to scale DevOps at InVisionWhy we chose Argo Workflow to scale DevOps at InVision
Why we chose Argo Workflow to scale DevOps at InVision

AWS Lambdaによるデータ処理理の⾃自動化とコモディティ化
AWS Lambdaによるデータ処理理の⾃自動化とコモディティ化AWS Lambdaによるデータ処理理の⾃自動化とコモディティ化
AWS Lambdaによるデータ処理理の⾃自動化とコモディティ化

負荷試験ツールlocustを使おう
負荷試験ツールlocustを使おう負荷試験ツールlocustを使おう
負荷試験ツールlocustを使おう

多要素認証による Amazon WorkSpaces の利用
多要素認証による Amazon WorkSpaces の利用多要素認証による Amazon WorkSpaces の利用
多要素認証による Amazon WorkSpaces の利用

AlloyDBを触ってみた!(第33回PostgreSQLアンカンファレンス@オンライン 発表資料)
AlloyDBを触ってみた!(第33回PostgreSQLアンカンファレンス@オンライン 発表資料)AlloyDBを触ってみた!(第33回PostgreSQLアンカンファレンス@オンライン 発表資料)
AlloyDBを触ってみた!(第33回PostgreSQLアンカンファレンス@オンライン 発表資料)

CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~
CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~
CODT2020 ビジネスプラットフォームを支えるCI/CDパイプライン ~エンタープライズのDevOpsを加速させる運用改善Tips~

AWS Lambdaのテストで役立つ各種ツール
AWS Lambdaのテストで役立つ各種ツールAWS Lambdaのテストで役立つ各種ツール
AWS Lambdaのテストで役立つ各種ツール

入門Ansible
入門Ansible入門Ansible
入門Ansible


Similar to Polyglot Applications with GraalVM

Jruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-javaJruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-java
Keith Bennett


Similar to Polyglot Applications with GraalVM (20)

GraalVM - MadridJUG 2019-10-22
GraalVM - MadridJUG 2019-10-22GraalVM - MadridJUG 2019-10-22
GraalVM - MadridJUG 2019-10-22

GraalVM - OpenSlava 2019-10-18
GraalVM - OpenSlava 2019-10-18GraalVM - OpenSlava 2019-10-18
GraalVM - OpenSlava 2019-10-18

Polygot Java EE on the GraalVM
Polygot Java EE on the GraalVMPolygot Java EE on the GraalVM
Polygot Java EE on the GraalVM

Discover Quarkus and GraalVM
Discover Quarkus and GraalVMDiscover Quarkus and GraalVM
Discover Quarkus and GraalVM

Drools, jBPM OptaPlanner presentation
Drools, jBPM OptaPlanner presentationDrools, jBPM OptaPlanner presentation
Drools, jBPM OptaPlanner presentation

GraalVM - JBCNConf 2019-05-28
GraalVM - JBCNConf 2019-05-28GraalVM - JBCNConf 2019-05-28
GraalVM - JBCNConf 2019-05-28

GraalVM
GraalVMGraalVM
GraalVM

Peru JUG Micronaut & GraalVM
Peru JUG Micronaut & GraalVMPeru JUG Micronaut & GraalVM
Peru JUG Micronaut & GraalVM

Clojure in real life 17.10.2014
Clojure in real life 17.10.2014Clojure in real life 17.10.2014
Clojure in real life 17.10.2014

GWT-Basics
GWT-BasicsGWT-Basics
GWT-Basics

GWT-Basics
GWT-BasicsGWT-Basics
GWT-Basics

[JOI] TOTVS Developers Joinville - Java #1
[JOI] TOTVS Developers Joinville - Java #1[JOI] TOTVS Developers Joinville - Java #1
[JOI] TOTVS Developers Joinville - Java #1

Polyglot and Functional Programming (OSCON 2012)
Polyglot and Functional Programming (OSCON 2012)Polyglot and Functional Programming (OSCON 2012)
Polyglot and Functional Programming (OSCON 2012)

Jruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-javaJruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-java

Run Scala Faster with GraalVM on any Platform / GraalVMで、どこでもScalaを高速実行しよう by...
Run Scala Faster with GraalVM on any Platform / GraalVMで、どこでもScalaを高速実行しよう by...Run Scala Faster with GraalVM on any Platform / GraalVMで、どこでもScalaを高速実行しよう by...
Run Scala Faster with GraalVM on any Platform / GraalVMで、どこでもScalaを高速実行しよう by...

Google App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and GaelykGoogle App Engine Java, Groovy and Gaelyk
Google App Engine Java, Groovy and Gaelyk

Going to Mars with Groovy Domain-Specific Languages
Going to Mars with Groovy Domain-Specific LanguagesGoing to Mars with Groovy Domain-Specific Languages
Going to Mars with Groovy Domain-Specific Languages

MWLUG - Universal Java
MWLUG  -  Universal JavaMWLUG  -  Universal Java
MWLUG - Universal Java

Golang workshop - Mindbowser
Golang workshop - MindbowserGolang workshop - Mindbowser
Golang workshop - Mindbowser

"Xapi-lang For declarative code generation" By James Nelson
"Xapi-lang For declarative code generation" By James Nelson"Xapi-lang For declarative code generation" By James Nelson
"Xapi-lang For declarative code generation" By James Nelson


More from jexp

Graphs & Neo4j - Past Present Future
Graphs & Neo4j - Past Present FutureGraphs & Neo4j - Past Present Future
Graphs & Neo4j - Past Present Future
jexp

Intro to Graphs and Neo4j
Intro to Graphs and Neo4jIntro to Graphs and Neo4j
Intro to Graphs and Neo4j
jexp


More from jexp (20)

Looming Marvelous - Virtual Threads in Java Javaland.pdf
Looming Marvelous - Virtual Threads in Java Javaland.pdfLooming Marvelous - Virtual Threads in Java Javaland.pdf
Looming Marvelous - Virtual Threads in Java Javaland.pdf

Easing the daily grind with the awesome JDK command line tools
Easing the daily grind with the awesome JDK command line toolsEasing the daily grind with the awesome JDK command line tools
Easing the daily grind with the awesome JDK command line tools

Looming Marvelous - Virtual Threads in Java
Looming Marvelous - Virtual Threads in JavaLooming Marvelous - Virtual Threads in Java
Looming Marvelous - Virtual Threads in Java

GraphConnect 2022 - Top 10 Cypher Tuning Tips & Tricks.pptx
GraphConnect 2022 - Top 10 Cypher Tuning Tips & Tricks.pptxGraphConnect 2022 - Top 10 Cypher Tuning Tips & Tricks.pptx
GraphConnect 2022 - Top 10 Cypher Tuning Tips & Tricks.pptx

Neo4j Connector Apache Spark FiNCENFiles
Neo4j Connector Apache Spark FiNCENFilesNeo4j Connector Apache Spark FiNCENFiles
Neo4j Connector Apache Spark FiNCENFiles

How Graphs Help Investigative Journalists to Connect the Dots
How Graphs Help Investigative Journalists to Connect the DotsHow Graphs Help Investigative Journalists to Connect the Dots
How Graphs Help Investigative Journalists to Connect the Dots

The Home Office. Does it really work?
The Home Office. Does it really work?The Home Office. Does it really work?
The Home Office. Does it really work?

Neo4j Graph Streaming Services with Apache Kafka
Neo4j Graph Streaming Services with Apache KafkaNeo4j Graph Streaming Services with Apache Kafka
Neo4j Graph Streaming Services with Apache Kafka

How Graph Databases efficiently store, manage and query connected data at s...
How Graph Databases efficiently  store, manage and query  connected data at s...How Graph Databases efficiently  store, manage and query  connected data at s...
How Graph Databases efficiently store, manage and query connected data at s...

APOC Pearls - Whirlwind Tour Through the Neo4j APOC Procedures Library
APOC Pearls - Whirlwind Tour Through the Neo4j APOC Procedures LibraryAPOC Pearls - Whirlwind Tour Through the Neo4j APOC Procedures Library
APOC Pearls - Whirlwind Tour Through the Neo4j APOC Procedures Library

Refactoring, 2nd Edition
Refactoring, 2nd EditionRefactoring, 2nd Edition
Refactoring, 2nd Edition

New Features in Neo4j 3.4 / 3.3 - Graph Algorithms, Spatial, Date-Time & Visu...
New Features in Neo4j 3.4 / 3.3 - Graph Algorithms, Spatial, Date-Time & Visu...New Features in Neo4j 3.4 / 3.3 - Graph Algorithms, Spatial, Date-Time & Visu...
New Features in Neo4j 3.4 / 3.3 - Graph Algorithms, Spatial, Date-Time & Visu...

GraphQL - The new "Lingua Franca" for API-Development
GraphQL - The new "Lingua Franca" for API-DevelopmentGraphQL - The new "Lingua Franca" for API-Development
GraphQL - The new "Lingua Franca" for API-Development

A whirlwind tour of graph databases
A whirlwind tour of graph databasesA whirlwind tour of graph databases
A whirlwind tour of graph databases

Practical Graph Algorithms with Neo4j
Practical Graph Algorithms with Neo4jPractical Graph Algorithms with Neo4j
Practical Graph Algorithms with Neo4j

A Game of Data and GraphQL
A Game of Data and GraphQLA Game of Data and GraphQL
A Game of Data and GraphQL

Querying Graphs with GraphQL
Querying Graphs with GraphQLQuerying Graphs with GraphQL
Querying Graphs with GraphQL

Graphs & Neo4j - Past Present Future
Graphs & Neo4j - Past Present FutureGraphs & Neo4j - Past Present Future
Graphs & Neo4j - Past Present Future

Intro to Graphs and Neo4j
Intro to Graphs and Neo4jIntro to Graphs and Neo4j
Intro to Graphs and Neo4j

Class graph neo4j and software metrics
Class graph neo4j and software metricsClass graph neo4j and software metrics
Class graph neo4j and software metrics


Recently uploaded

%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...
%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...
%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...
masabamasaba

Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
VictoriaMetrics


Recently uploaded (20)

%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...
%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...
%+27788225528 love spells in Atlanta Psychic Readings, Attraction spells,Brin...

AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfAzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf

WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...

WSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in UgandaWSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in Uganda

What Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the SituationWhat Goes Wrong with Language Definitions and How to Improve the Situation
What Goes Wrong with Language Definitions and How to Improve the Situation

WSO2Con2024 - From Blueprint to Brilliance: WSO2's Guide to API-First Enginee...
WSO2Con2024 - From Blueprint to Brilliance: WSO2's Guide to API-First Enginee...WSO2Con2024 - From Blueprint to Brilliance: WSO2's Guide to API-First Enginee...
WSO2Con2024 - From Blueprint to Brilliance: WSO2's Guide to API-First Enginee...

WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital TransformationWSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation

AI & Machine Learning Presentation Template
AI & Machine Learning Presentation TemplateAI & Machine Learning Presentation Template
AI & Machine Learning Presentation Template

WSO2Con2024 - GitOps in Action: Navigating Application Deployment in the Plat...
WSO2Con2024 - GitOps in Action: Navigating Application Deployment in the Plat...WSO2Con2024 - GitOps in Action: Navigating Application Deployment in the Plat...
WSO2Con2024 - GitOps in Action: Navigating Application Deployment in the Plat...

WSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security ProgramWSO2CON 2024 - How to Run a Security Program
WSO2CON 2024 - How to Run a Security Program

Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024
Large-scale Logging Made Easy: Meetup at Deutsche Bank 2024

WSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - KanchanaWSO2Con2024 - Hello Choreo Presentation - Kanchana
WSO2Con2024 - Hello Choreo Presentation - Kanchana

WSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaSWSO2CON 2024 Slides - Open Source to SaaS
WSO2CON 2024 Slides - Open Source to SaaS

WSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAMWSO2Con2024 - Organization Management: The Revolution in B2B CIAM
WSO2Con2024 - Organization Management: The Revolution in B2B CIAM

WSO2CON 2024 - Designing Event-Driven Enterprises: Stories of Transformation
WSO2CON 2024 - Designing Event-Driven Enterprises: Stories of TransformationWSO2CON 2024 - Designing Event-Driven Enterprises: Stories of Transformation
WSO2CON 2024 - Designing Event-Driven Enterprises: Stories of Transformation

Announcing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK SoftwareAnnouncing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK Software

WSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next IntegrationWSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration

Crypto Cloud Review - How To Earn Up To $500 Per DAY Of Bitcoin 100% On AutoP...
Crypto Cloud Review - How To Earn Up To $500 Per DAY Of Bitcoin 100% On AutoP...Crypto Cloud Review - How To Earn Up To $500 Per DAY Of Bitcoin 100% On AutoP...
Crypto Cloud Review - How To Earn Up To $500 Per DAY Of Bitcoin 100% On AutoP...

WSO2CON 2024 - Architecting AI in the Enterprise: APIs and Applications
WSO2CON 2024 - Architecting AI in the Enterprise: APIs and ApplicationsWSO2CON 2024 - Architecting AI in the Enterprise: APIs and Applications
WSO2CON 2024 - Architecting AI in the Enterprise: APIs and Applications

WSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go PlatformlessWSO2CON2024 - It's time to go Platformless
WSO2CON2024 - It's time to go Platformless


Polyglot Applications with GraalVM

  • 1. POLYGLOT WITH GRAALVM O S C O N 2 0 1 9 / M I C H A E L H U N G E R / @ M E S I R I I
  • 2. MICHAEL HUNGER Caretaker General, Neo4j Head of Neo4j Labs Disturber of the Peace Java Champion (graphs)-[:ARE]->(everywhere) Twitter & Medium: @mesirii
  • 5. POLYGLOT? NOT EVERYONE IS A JAVA DEVELOPER!
  • 6. POLYGLOT? We have: • Isn‘t the JVM already polyglot? –Scala, Groovy, Kotlin, Clojure, Frege … –JRuby, Jython, … L We want: • More languages, better performance
  • 8. WHATS IN FOR ME?• Better JVM performance • Maintainable JIT compiler • Faster evolution of Java • With Truffle Language Runtime –Run JavaScript, Ruby, R, Python, LLVM code efficiently on the JVM • With Substrate VM –Binaries for Language Runtimes –AOT compiled native images of your applications Lego box
  • 10. HOW CAN I USE IT?• Dedicated GraalVM Download or using sdkman gu (graal-updater) Utility js/node, ruby, python, R runtimes native-image tool • Java 11 with command line flags -XX:+UnlockExperimentalVMOptions -XX:+EnableJVMCI -XX:+UseJVMCICompiler https://www.graalvm.org/downloads/
  • 11. JAVA 11 sdk use java 11.0.1-open java -Diterations=3 CountUppercase I‘m happy to be back in Portland, OR for OSCON 2019 -XX:+UnlockExperimentalVMOptions -XX:+UseJVMCICompiler -Dgraal.PrintCompilation=true
  • 12. GRAALVMsdk install java 19.1.0-grl gu install R python ruby native-image gu list ComponentId Version Component name ----------------------------------- graalvm 19.1.0 GraalVM Core R 19.1.0 FastR native-image 19.1.0 Native Image python 19.1.0 Graal.Python ruby 19.1.0 TruffleRuby java –version OpenJDK 64-Bit GraalVM CE 19.1.0 (build 25.212-b03-jvmci-20-b04, mixed mode) Lego Instructions built
  • 13. PYTHON # graalpython fac.py 2500 import sys def fac(n): if n==1: return 1 else: return fac(n-1)*n x = int(sys.argv[1]) print("Factorial for {} is {}" .format(x,fac(x)))
  • 14. LLVM BITCODE#include <stdio.h> int main() { printf("Hello from GraalVM!n"); return 0; } clang -c -O1 -emit-llvm hello.c lli hello.bc
  • 15. R PLOTTINGR --version:graalvm data <- "https://raw.githubusercontent.com/selva86/datasets/master/proglanguages.csv" library(ggplot2) library(treemapify) proglangs <- read.csv(data) ggplot(proglangs, aes(area = value, fill = parent, label = id, subgroup = parent)) + geom_treemap() + geom_treemap_subgroup_border() + geom_treemap_subgroup_text() + geom_treemap_text()
  • 16. JS POLYGLOT node --version:graalvm node --jvm const BigInteger = Java.type("java.math.BigInteger") let a = new BigInteger("10") .add(new BigInteger("8") .multiply(new BigInteger("4"))) console.log(a.toString()) > 42
  • 18. VISION STATEMENT Create an extensible, modular, dynamic, and aggressive compiler using object- oriented and reflective Java programming, a graph- based and visualizable intermediate representation, and Java snippets. —ThomasWürthinger
  • 19. G R A A L ! ? • JIT-Compiler implemented in Java !?! • Aggressively optimizing –e.g. inlining POJOS/DTOS –Inlining streams –Speeds up many typical Java/Scala programs • Uses compute graph for optimization • New compiler interface (JVMCI)
  • 21. GRAALVM BOX OF JOY GRAAL ❤ TRUFFLE ❤ SUBSTRATE
  • 22. GraalVM is a high-performance, embeddable, polyglotVirtual Machine for running applications written in JavaScript, Python, Ruby, R, JVM-based languages like Java, Scala, Kotlin, and LLVM-based languages such as C and C++. Additionally, GraalVM allows efficient interoperability between programming languages and compiling Java applications ahead-of-time into native executables for faster startup time and lower memory overhead. https://github.com/oracle/graal/releases BIGGER ON THE INSIDE
  • 23.
  • 24. • Collection of Research Projects – TruffleRuby / FastR • Maxine (Research)VM in Java • „A Joke?“ • „Java-on-Java“ John Rose – Project Metropolis • Power Combo: – Substrate-VM – Truffle – Graal Compiler – AOT Compilation HISTORY
  • 25. GRAALVM • Oracle Labs Project • Versions – 19.1.1 (quarterly release) • Integrated – JVM 1.8.x – Node.js 10.x / ECMAScript 2019 – LLVM bitcode runtime • Supports – Truffle Runtime – Language Packs (via gu) – Native Image AOT • Editions – Community (GPL v2 w/ CP-Exception – Enterprise (faster, sandboxing, commercial support) – Oracle Database Engine
  • 27. NATIVE IMAGE • Aggressive Ahead of time compilation (AOT) • Extremely fast startup time • Small binary executables for current OS • Class initialization during build • For FaaS, Commandline • Microservices: Micronaut, Helidon, Quarkus, Spring (soon) • No classloading / class metadata • Limitations: – no reflection, no later classloading, no initializer dynamics – Slow build https://medium.com/graalvm/lightweight-cloud-native-java-applications- 35d56bc45673
  • 28. TRUFFLE L A N G U A G E R U N T I M E
  • 29. TRUFFLE • Language Runtime • API & Type system • Implement language constructs • Annotated Java Methods – Tooling,Testing • Generic or specialized operations
  • 31. TRUFFLE GRAAL• Integrates with Graal Compiler • Partial Evaluation • Optimize special cases based on steady state assumption • Deoptimize (trap) on failed assumptions
  • 32. SAMPLE LANGUAGE T R U F F L E E X A M P L E L A N G U A G E
  • 33. TRUFFLE: ADDITION-NODE (SL) @NodeInfo(shortName = "+") public abstract class SLAdditionNode extends SLBinaryNode { @Fallback protected Object typeError(Object left, Object right) { throw SLException.typeError(this, left, right); } @Specialization(rewriteOn = ArithmeticException.class) protected long add(long left, long right) { return Math.addExact(left, right); } @Specialization @TruffleBoundary protected SLBigNumber add(SLBigNumber left, SLBigNumber right) { return new SLBigNumber(left.getValue().add(right.getValue())); } @Specialization(guards = "isString(left, right)") @TruffleBoundary protected String add(Object left, Object right) { return left.toString() + right.toString(); } protected boolean isString(Object a, Object b) {…}
  • 35. JAVASCRIP T • Main target language via graaljs • Replacement for Rhino/Nashorn • EcmaScript 2019 & Node.js (10.15.2) compat • 90% of 95k npm packages • Graaljs can run slowly w/o Graal • ScriptEngine support • org.graalvm.js:js/js-scriptengine https://www.graalvm.org/docs/reference-manual/languages/js/
  • 36. GRAAL PYTHON • Early stage support Python 3.7 • Goal: „SciPy“ support • No python debugger, but GraalVMs https://www.graalvm.org/docs/reference-manual/languages/python/
  • 37. FAST-R • Compatible with GNU R (3.5.1) • Much faster than other R implementations • R/Rscript • Install packages (e.g. ggplot2, Shiny) • Minimal: graphics package • Compatibility checker • Tools (debugger, profiler) • Java based Graphics https://www.graalvm.org/docs/reference-manual/languages/r/
  • 38. TRUFFLE RUBY • Initial research project • Quite complete coverage (2.6.2) incl. c-extensions • Parallel threads • Faster than MRI/JRuby (up to 31x) • Recent: fibers • Missing: suspend, continuation, fork https://www.graalvm.org/docs/reference-manual/languages/ruby/
  • 39. LLVM • LLVM 6.0.0 Bitcode • Via Sulong a LLVM implementation in Java via Truffle • Can use native libraries • lli to execute LLVM Bitcode • Sandbox in GraalVM Enterprise – sandbox libraries – virtualize syscalls – memory on managed heap https://medium.com/graalvm/safe-and-sandboxed-execution-of- native-code-f6096b35c360
  • 40. POLYGLOT DO WHAT YOU WANT THURSDAY
  • 41. TRUFFLE • Based on Truffle Implementations of dynamic languages • Joint underlying API / Typesystem • Context – eval – bind – invoke • Source • Value.* docs.oracle.com/en/graalvm/enterprise/19/sdk/org/graalvm/polyglot/Context.html
  • 42. VALUE • The „Any“ type across languages – Scalar – List/Array – Host/Proxy Object w/ Members – Function/Invoke/Executable • Provides some semantics and conversions • Removes need for (de)serialization • Thread safety depends on language support docs.oracle.com/en/graalvm/enterprise/19/sdk/org/graalvm/polyglot/Value.html
  • 43. CAPABILITIES Polyglot support: --polyglot Eval • Polyglot.eval("python","21*2") • polyglot.eval(language="ruby", file="./my_ruby_file.rb") Export / Import • polyglot.import_value(„name“) • Polyglot.export_value(„name“,value) • ctx.getBindings.put/getMember(name,value) Object Access • Object.size() / call / invoke • Object[name] / • Via Value.*
  • 44. JAVA INTEROP JVM Support: --jvm Flag Import Java.import “java.util.UUID“ java.type("java.math.BigInteger") from java.util import ArrayList Helpers • isFunction / isObject / isSymbol / isNull / instance_of Access • allow<Host/Native/Polyglot/*>Access
  • 46. POLYGLOT EXAMPLE (1) // gu install ruby python R // groovy PolyTest1.groovy @Grab("org.graalvm.sdk:graal-sdk:19.1.0") import org.graalvm.polyglot.* ctx = Context.newBuilder().allowAllAccess(true).build() ctx.eval("js", "print('Hello JavaScript!');") ctx.eval("R", "print('Hello R!');"); ctx.eval("ruby", "puts 'Hello Ruby!'"); ctx.eval("python", "print('Hello Python!')");
  • 47. POLYGLOT EXAMPLE (PYTHON-JAVA) import java generic = java.type('org.testcontainers.containers.GenericContainer') container = generic('nginx') container.setExposedPorts([80]) container.start(); print('%s:%s' % (container.getContainerIpAddress(), container.getMappedPort(80))); https://medium.com/graalvm/using-testcontainers-from-a-node-js-application-3aa2273bf3bb
  • 48. POLYGLOT EXAMPLE (C) #include <stdio.h> #include <curl/curl.h> long request() { CURL *curl = curl_easy_init(); long response_code = -1; if(curl) { CURLcode res; curl_easy_setopt(curl, CURLOPT_URL, "http://example.com"); res = curl_easy_perform(curl); if(res == CURLE_OK) { curl_easy_getinfo(curl, CURLINFO_RESPONSE_CODE, &response_code); } curl_easy_cleanup(curl); } return response_code; }
  • 49. POLYGLOT EXAMPLE (JAVA+C-LLVM) // clang -c -O1 -emit-llvm use-curl.c && groovy CurlTest.groovy @Grab("org.graalvm.sdk:graal-sdk:1.9.10") import org.graalvm.polyglot.* polyglot = Context.newBuilder() .allowAllAccess(true) .option("llvm.libraries", "/usr/lib/libcurl.dylib") .build() source = Source .newBuilder("llvm", new File("use-curl.bc")) .build() result = polyglot.eval(source) responseValue = result.getMember("request").execute() responseCode = responseValue.asLong() print(responseCode)
  • 50. R+PYTHON pycode <- ‚ library polyglot PI=polyglot.import("PI") def area(radius): return 2*radius*PI area ' export("PI",pi) area <- eval.polyglot("python",pycode) print(area(5))
  • 51. JAVA+R @Value(value = "classpath:plot.R") private Resource rSource; @Autowired private Function<DataHolder, String> plotFunction; @Bean Function<DataHolder, String> getPlotFunction(@Autowired Context ctx) { Context ctx = Context.newBuilder().allowAllAccess(true).build(); Source source = Source.newBuilder("R", rSource.getURL()).build(); return ctx.eval(source).as(Function.class); } @RequestMapping(value = "/load", produces = "image/svg+xml") public synchronized ResponseEntity<String> load() { HttpHeaders responseHeaders = new HttpHeaders(); responseHeaders.set("Refresh", "1"); double load = getOperatingSystemMXBean().getSystemLoadAverage(); String svg = plotFunction.apply(new DataHolder(load)); return new ResponseEntity<String>(svg,responseHeaders,HttpStatus.OK); }
  • 52. POLYGLOT EXAMPLE (JAVA+R) library(ggplot2) data <<- numeric(100) function(dataHolder) { svg() data <<- c(data[2:100],dataHolder$value) plot <- ggplot(data= data.frame(systemLoad=data, time =-99:0), aes(x=time, y=systemLoad, group=1)) + geom_line(color="orange") + expand_limits(x=0, y=0) print(plot) svg.off() }
  • 53. POLYGLOT SHELL Context context = Context.newBuilder().allowAllAccess(true).build(); Set<String> languages = context.getEngine().getLanguages().keySet(); out.println("Shell for " + languages + ":"); String language = languages.iterator().next(); while (true) { out.print(language + "> "); String line = input.readLine(); if (line == null) break; else if (languages.contains(line)) language = line; else { Source source = Source.newBuilder(language, line, "<shell>") .interactive(true).buildLiteral(); context.eval(source); } }
  • 54. POLYGLOT OPTIONS Print GraalVM version information and exit. --version:graalvm Print GraalVM version information and continue execution. --show-version:graalvm Start with Debugger --inspect Run using the native launcher with limited Java access --native Run on the JVM with Java access. --jvm Run with all other guest languages accessible. --polyglot Pass options to the host VM --vm.[option] Options for all installed languages, tools, host VM --help:languages,tools,vm,expert Internal options for debugging language impl and tools. --help:internal
  • 60. WHY? • Allow “programmatic“ extensions • Move processing to data, avoid network transfers • Not just procedures in – PL/SQL – Java • Reuse existing code – public packages (e.g. validators, data science, visualization) – domain specific code • Because you can!
  • 61. EXTENDING DATABASES• „Multilingual Engine“ – native library integration • Available from Oracle Labs • For Oracle and MySQL • Deploy custom functions in JavaScript, R, Python with dbjs dbjs deploy -u <user> -p <pass> -c localhost:1521/ORCLCDB <package> • Create statically and call from SQL https://www.graalvm.org/docs/examples/mle-oracle/
  • 62. SQL FUNCTION IN JAVASCRIPT CREATE OR REPLACE JAVASCRIPT SOURCE NAMED "hello.js" AS module.exports.greet = function(a) { return "Hello " + a; }; CREATE OR REPLACE FUNCTION greet(a IN VARCHAR2) RETURN VARCHAR2 AS LANGUAGE JAVASCRIPT NAME 'hello.js.greet(a string) return string‘; SELECT greet('GraalVM') FROM DUAL; Hello GraalVM
  • 64. NEO4J IN A TWEET@Neo4j is an open-source native graph database designed to store, manage and query highly connected data efficiently with the Cypher Query Language. It runs transactional and analytic workloads, supports visualization and is extendable with custom functions. neo4j.com/developer
  • 65. NEO4J • Runs on the JVM • Full Stack database • Declarative Graph Query Language • Binary Protocol • Drivers for most languages • Visual Browser • Integrations like GraphQL, Kafka • Custom Procedures and Functions
  • 67. TALK RECOMMENDATION // top 10 talks (that I‘ve not see) // that peers who like the same talks I did also liked MATCH (me:User {name:“Michael“}) -[:FAVORITED]->(:Event)<-[:FAVORITED]-(peer:User) -[:FAVORITED]->(reco:Event) WHERE NOT (me)-[:FAVORITED]->(reco) RETURN reco.name, count(*) AS freq ORDER BY freq DESC LIMIT 10
  • 69. NEO4J CUSTOM PROCEDURES P U T YO U R S M A RT S I N T H E DATA B A S E
  • 70. NEO4J CUSTOM FUNCTIONS• Annotated Java Methods • Loaded at startup • Computation or Aggregation with Functions • Data processing & streaming with Procedures • Accessible from Cypher Query Language
  • 71. CUSTOM FUNCTION @UserFunction @Description(„Generates an UUID“) public String uuid() { return UUID.randomUUID().toString(); } CREATE (:Event {id: uuid(), name:“Graph Algorithms“ });
  • 72. POLYGLOT FUNCTIONS U S I N G T R U F F L E A P I S & G R A A L V M
  • 73. POLYGLOT FUNCTIONS • Using Truffle API • Declare + invoke function with params, or • Execute code with bindings 1. Use Context to run polyglot code 2. Use Cypher to declare dynamic language functions 3. Install language files from directory 4. Store code in db to restore at restart / in cluster
  • 74. EVAL CODE A D H O C E X E C U T I O N
  • 75. EVAL CODE PROCEDURE @Procedure(„scripts.execute“) public Object executeCode(String lang, String code, Map<String,Object> props) { Context ctx = Context.newBuilder().allowAllAccess(true).build(); Bindings bindings = ctx.getBindings(); props.forEach(bindings::putMember); bindings.putMember("label", ctx.eval("js", "s => org.neo4j.graphdb.Label.label(s)")); bindings.putMember("db", graphDatabase); return ctx.eval(lang, code).asHostObject(); }
  • 76. E VA L C O D E
  • 77. EVAL CODE CALL scripts.execute(' Java.import "org.neo4j.graphdb.Label db = Polyglot.import("db") props = db.findNode(Label.label("Event"), "name",“OSCON") .getAllProperties().entrySet().toArray() Polyglot.as_enumerable(props) .map{|e| "#{e.getKey()} -> #{e.getValue()}"} .join(",") ',{},'ruby')
  • 79. INSTALL FUNCTION (2) Context ctx = Context.newBuilder().allowAllAccess(true).build() @Procedure(„scripts.register“) public void registerFunction(String lang, String name, String code) { Value function = ctx.eval(lang, code); ctx.getBindings(lang) .putMember(name, function); }
  • 80. INVOKE EXISTING FUNCTION (2) @UserFunction(„scripts.run“) public Object executeFun(String lang, String name, Object…args) { return ctx.getBindings(lang) .getMember(name) .execute(params).asHostObject(); }
  • 81. REGISTER NATIVE FUNCTION (2) @UserFunction public void registerFunction(String code, String name, String lang) { ctx.getBindings(lang).putMember(name, ctx.eval(code)); procedures.register(new BasicUserFunction(signature(name)) { @Override public AnyValue apply(org.neo4j.proc.Context c, AnyValue[] input) { return resultOf(context.getBindings(lang).getMember(name) .execute(paramsFor(input))); } }); }
  • 82. SCRIPT DIRECTORY A U TO L O A D S C R I P T F I L E S
  • 83. SOURCE WATCHER watchService = FileSystems.getDefault().newWatchService(); pathName = new File(scriptsDir, target.getDirName()) pathToWatch = getTargetPath(pathName); pathToWatch.register(watchService, ENTRY_CREATE,ENTRY_DELETE, ENTRY_MODIFY); public void run() { WatchKey watchKey; while ((watchKey = watchService.take()) != null) { for (WatchEvent<?> event : watchKey.pollEvents()) updateScript(event.kind(), event.context()); } }
  • 84. IMPLEMENT SCRIPT FUNCTION (1) public class ScriptFunction implements CallableUserFunction { private final UserFunctionSignature signature; private final String name; private final String sourceCode; private transient volatile Source source; public ScriptFunction(String language, String name, String sourceCode) { this.name = name; this.sourceCode = sourceCode; this.source = Source.newBuilder(this.language, this.sourceCode, this.name).build(); this.signature = generateSignature(); } private UserFunctionSignature generateSignature() { final QualifiedName qualifiedName = new QualifiedName(Arrays.asList("scripts", "fn"), name); final List<FieldSignature> input = IntStream.range(0, numberOfArguments); .mapToObj(i -> FieldSignature.inputField("p" + i, NTAny, DefaultParameterValue.nullValue(NTAny))) .collect(toList()); return new UserFunctionSignature(qualifiedName, input, NTAny, null, new String[0], null, false); }
  • 85. IMPLEMENT SCRIPT FUNCTION (2) @Override public AnyValue apply(Context ctx, AnyValue[] input) throws ProcedureException { try (org.graalvm.polyglot.Context context = PolyglotContext.newInstance()) { GraphDatabaseAPI db = ctx.get(Context.DATABASE_API); Log log = ctx.get(Context.DEPENDENCY_RESOLVER).resolveDependency(LogService.class) .getUserLog(ScriptFunction.class); Value bindings = context.getPolyglotBindings(); bindings.putMember("db", db); bindings.putMember("log", log); Value langBindings = context.getBindings(language); langBindings.putMember(name, context.eval(source)); return resultFor(langBindings.getMember(name).invoke(input)); } }
  • 86. IMPLEMENT SCRIPT FUNCTION (3) private AnyValue resultFor(Value result) { if (result.isNull()) { return null; } if (result.isNumber()) { return ValueUtils.asAnyValue(result.asDouble()); } if (result.isBoolean()) { return ValueUtils.asAnyValue(result.asBoolean()); } if (result.isHostObject()) { return ValueUtils.asAnyValue(result.asHostObject()); } return ValueUtils.asAnyValue(result.asString()); }
  • 88. NEXT STEPS• Better bi-directional conversions • Handle Isolation / Threading • Integrate with Python / R ~ – Graph processing / algorithms – Data Science / ML / graph_net – Large Scale Plotting – Investigate GraphBlas (C-Library) • Allow installing packages (e.g npm) • Move into Neo4j Labs library
  • 90. THE GOOD • It works! – All the languages – JVM Interop – Polyglot Interop • Continuous improvements by the Oracle Team • Lots of great docs & articles • Adding those database extensions was really easy
  • 92. THE BAD • Python support still preliminary • Too many polyglot indirections are costly • Interop a bit kludgy • Error messages not that helpful • No automatic mapping of collection types (map/hash/dict) and (list/collection) – only for arrays
  • 94. MORE• graalvm.org • graalvm.org/docs • medium.com/graalvm ~/graalvm-ten-things-12d9111f307d • github.com/oracle/graal • graalvm.org/docs/reference-manual/compatibility – package compat checker • youtu.be/a-XEZobXspo – 3hr deep dive • neo4j.com/developer • r.neo4j.com/algo-book • github.com/neo4j-contrib/neo4j-script-procedures Twitter & Medium: @mesirii
  • 95. Graphs in AI and ML Alicia Frame, Senior Data Scientist, Neo4j Jake Graham, Lead Product Manager for AI and Graph Analytics Intro to Neo4j for Developers Jennifer Reif, Developer Relations Engineer, Neo4j Neo4j Bolt Driver Architecture Now and inThe Future Nigel Small,Tech Lead for Neo4j Drivers team GRANDstack: Graphs ALL the Way Down William Lyon, Software Engineer, Neo4j Labs All-new SDN-RX: Reactive Spring Data Neo4j Gerrit Meier, Software Engineer, Neo4j Graph Embeddings Alicia Frame, Senior Data Scientist, Neo4j Graph ModelingTips andTricks Max De Marzi, Field Engineer and Graph Expert, Neo4j APOC Pearls -The bestTips andTricks Michael Hunger, Director of Neo4j Labs Visualizing Graph Data in JavaScript Will Lyon, Software Engineer, Neo4j Labs Creating a Data Marvel (Comics) with Spring and Neo4j Jennifer Reif, Developer Relations Engineer, Neo4j Keynote and Announcements Emil Eifrem, CEO and Co-Creator of Neo4j October 10 8am NYC, 1pm London, 530pm Mumbai

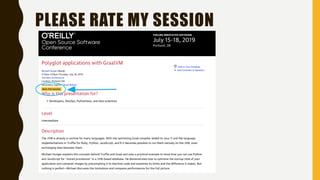

  • 96. PLEASE RATE MY SESSION
