NEW LG พำอ.pptx

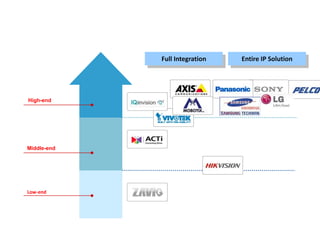

Entire IP Solution
Full Integration
Middle-end
High-end
Low-end
Position

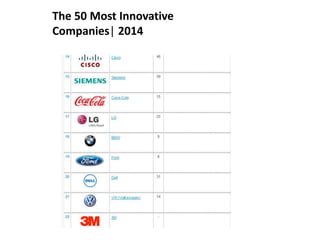

The 50 Most Innovative
Companies| 2014

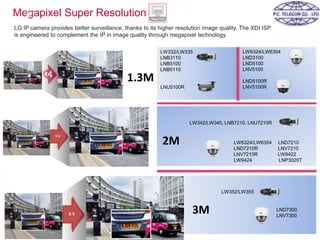

3 Megapixel Super Resolution
LG Network Camera provides better surveillance, thanks to its higher resolution image quality.
The XDI ISP chip is engineered to complement the IP in image quality through megapixel technology.

LG IP camera provides better surveillance, thanks to its higher resolution image quality. The XDI ISP
is engineered to complement the IP in image quality through megapixel technology.
Megapixel Super Resolution
1.3M
LW332/LW335
LNB3110
LNB5100
LNB5110
LNU5100R
LW6324/LW6354
LND3100
LND5100
LNV5100
LND5100R
LNV5100R
LW342/LW345, LNB7210, LNU7210R
LW6324/LW6354 LND7210
LND7210R LNV7210
LNV7210R LW9422
LW9424 LNP3020T
LW352/LW355
LND7300
LNV7300
2M
3M

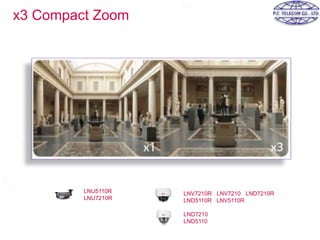

x3 Compact Zoom
LNU5110R
LNU7210R
LNV7210R LNV7210 LND7210R
LND5110R LNV5110R
LND7210
LND5110

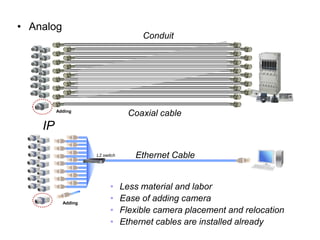

• Analog
IP
Adding
Coaxial cable
Conduit
Adding
Ethernet Cable
L2 switch
• Less material and labor
• Ease of adding camera
• Flexible camera placement and relocation
• Ethernet cables are installed already
Less Cabling

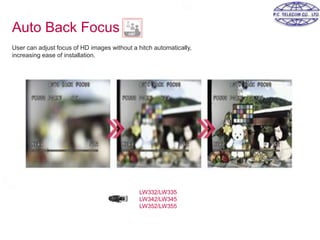

Auto Back Focus
User can adjust focus of HD images without a hitch automatically,
increasing ease of installation.
LW332/LW335
LW342/LW345
LW352/LW355

Auto Back Focus (ABF)
under Focus assi
st m ode
0
200
400
600
800
1000
1200
1400
1600
1800
2000
1 3 5 7 9 11 13 15 17 19 21 23 25 27
Lens f
ocus posi
t
i
on
Focus
Level
（
VL)
VGA / NTSC
1.3M
3M

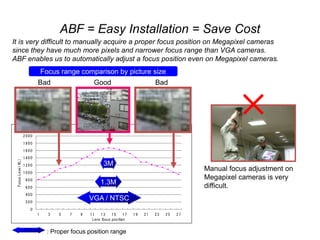

Focus range comparison by picture size
: Proper focus position range
Good Bad
Bad
Manual focus adjustment on
Megapixel cameras is very
difficult.
It is very difficult to manually acquire a proper focus position on Megapixel cameras
since they have much more pixels and narrower focus range than VGA cameras.
ABF enables us to automatically adjust a focus position even on Megapixel cameras.
ABF = Easy Installation = Save Cost

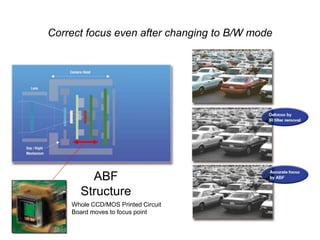

Auto Back Focus (ABF)
Correct focus even after changing to B/W mode
ABF
Structure
Whole CCD/MOS Printed Circuit
Board moves to focus point

WDR(80/120/130dB)
XDI ISP offers 80/120/130dB of Dynamic Range and creates nearly no noise, enabling
users to better see objects even with backlight.
LW332/LW335 LNB3100 LNB5100
LW342/LW345 LW352/LW355
LW6324/LW6354 LND5100 LNV5100
LW6424/LW6454 LW9424 LW9422
LNP2810T LNP2810 LNP3700T
LNP2800 LNP2800I
LNU7210R LNB7210 LNV7210R
LNV7210 LND7210R LND7210
LNU5110R LNB5110 LND5110
LND5110R

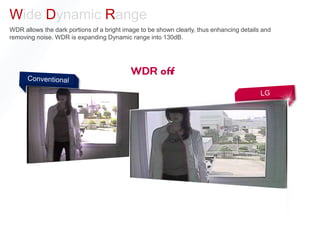

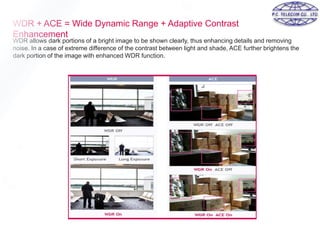

WDR + ACE = Wide Dynamic Range + Adaptive Contrast
Enhancement
WDR allows dark portions of a bright image to be shown clearly, thus enhancing details and removing
noise. In a case of extreme difference of the contrast between light and shade, ACE further brightens the
dark portion of the image with enhanced WDR function.

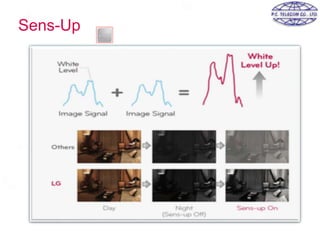

Digital Day & Night
Color mode is set in daytime and automatically swiches to black and white mode at night to
monitor dark indoor space with optimal picture quality.
LNB3100
LND3100

ICR Day & Night
LW332/LW335
LNB5100
LW342/LW345
LW352/LW355
LW6324/LW6354 LW6424/LW6454
LND5100 LNV5100
LNP3700T LNP2800
LNP2800I LNP2810T
LNP2810 LW9424
LW9422

0 Lux
LNU5100R
LND5100R
LNV5100R

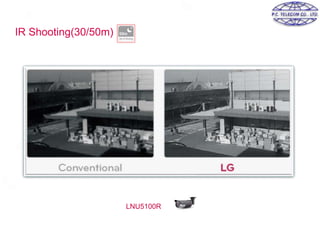

IR Anti-Saturation
LNU5100R LND5100R
LNV5100R

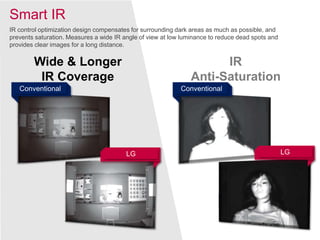

Smart IR
LNU5110R
LNU7210R
LND5100R
LNV5100R

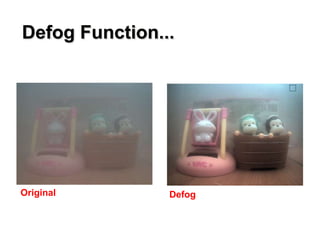

Original Defog
Defog Function...

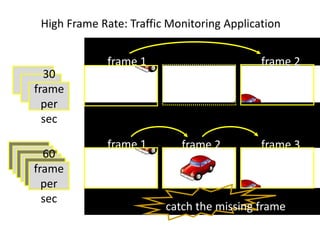

High Frame Rate: Traffic Monitoring Application
60
frame
per
sec
30
frame
per
sec
frame 1 frame 3
missing frame
at 30fps
catch the missing frame
frame 1 frame 2
60fps
frame 2

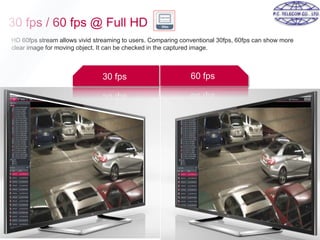

30 fps / 60 fps @ Full HD
30 fps 60 fps
HD 60fps stream allows vivid streaming to users. Comparing conventional 30fps, 60fps can show more
clear image for moving object. It can be checked in the captured image.

High Frame Rate
30fps (HD/Full HD)
Smooth video suitable for a casino, traffic surveillance, etc.
60fps (HD/Full HD)

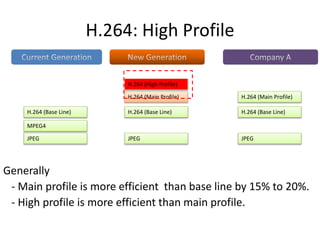

Generally
- Main profile is more efficient than base line by 15% to 20%.
- High profile is more efficient than main profile.
H.264: High Profile
H.264 (Base Line)
MPEG4
JPEG
H.264 (Base Line)
H.264 (High Profile)
H.264 (Main Profile)
JPEG
H.264 (Base Line)
JPEG
H.264 (Main Profile)

H.264 High Profile

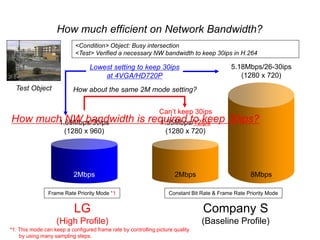

How much efficient on Network Bandwidth?
LG
(High Profile)
Company S
(Baseline Profile)
<Condition> Object: Busy intersection
<Test> Verified a necessary NW bandwidth to keep 30ips in H.264
Test Object
5.18Mbps/26-30ips
(1280 x 720)
Frame Rate Priority Mode *1 Constant Bit Rate & Frame Rate Priority Mode
1.69Mbps/30ips
(1280 x 960)
*1: This mode can keep a configured frame rate by controlling picture quality
by using many sampling steps.
1.55Mbps/12ips
(1280 x 720)
How much NW bandwidth is required to keep 30ips?
2Mbps 2Mbps 8Mbps
Can’t keep 30ips
How about the same 2M mode setting?
Lowest setting to keep 30ips
at 4VGA/HD720P

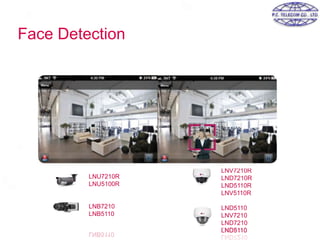

Face Detection
LNU7210R
LNU5100R
LNB7210
LNB5110
LNV7210R
LND7210R
LND5110R
LNV5110R
LND5110
LNV7210
LND7210
LND5110

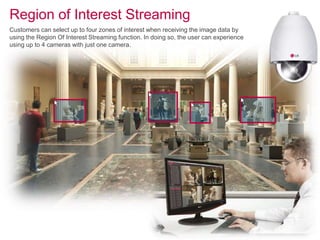

Region of Interest Streaming
Customers can select up to four zones of interest when receiving the image data by
using the Region Of Interest Streaming function. In doing so, the user can experience
using up to 4 cameras with just one camera.

SD SLOT
We provide SD SLOT for video buffering and backup event video separately
(SD Memory chip is not included).

Advanced Audio Detection
Microphone Connection to Camera
Ambient noise is sampled and a threshold is set Noise peaking above threshold triggers an alarm
Sampled Audio
Peak
Threshold
Sampled Audio

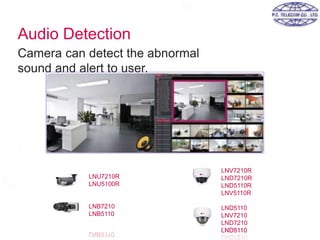

Audio Detection
Camera can detect the abnormal
sound and alert to user.
LNU7210R
LNU5100R
LNB7210
LNB5110
LNV7210R
LND7210R
LND5110R
LNV5110R
LND5110
LNV7210
LND7210
LND5110

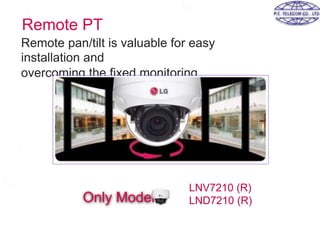

Remote PT
Remote pan/tilt is valuable for easy
installation and
overcoming the fixed monitoring
Only Model
LNV7210 (R)
LND7210 (R)

Network Camera Box Camera
3 ~ 9mm Vari-focal Lens, F1.2
60 fps @ 1920 x 1080
0 Lux(IR LED ON), 0.03 Lux(color)
H.264 (High Profile Supported) / MJPEG
Dynamic Profile(Up to 7)
Region Of Interest Streaming
Video Analytics Embedded
Micro SD Slot
Alarm In / Out
Audio In / Out
-40 -50 C (7210RH)
60 fps @ 1920 x 1080)
Min. Illumination
- 0.003 Lux (BW)
- 0.03 Lux (Color)
Dynamic Profile (Up to 7)
Micro SD Slot
ABF
LNU7210R(H)
LNB7210

60 fps @ 1280 x 1024
Micro SD Slot
Alarm In / Out
Audio In / Out
WDR 130dB
30 fps @ 1920 x 1080) (LNB5220)
60 fps @ 1280 x 1024 (LNB5110)
Min. Illumination
- 0.003 Lux (LNB5110)
Micro SD Slot
Alarm In / Out (LNB5110)
Audio In / Out (LNB5110)
WDR 130 dB

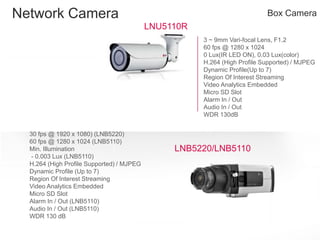

LNU5110R
LNB5220/LNB5110

30 fps @ 1920 x 1080 (3220,3210)
30 fps @ 1280 x 1024 (3110)
Micro SD Slot
POE(3220R only)

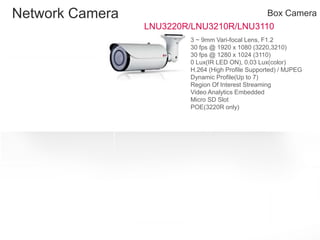

LNU3220R/LNU3210R/LNU3110

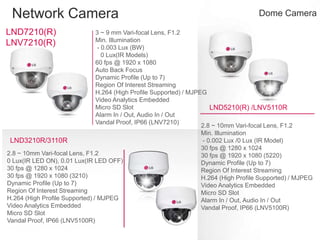

Network Camera Dome Camera
3 ~ 9 mm Vari-focal Lens, F1.2
Min. Illumination
- 0.003 Lux (BW)
0 Lux(IR Models)
60 fps @ 1920 x 1080
Auto Back Focus
Micro SD Slot
Alarm In / Out, Audio In / Out
Vandal Proof, IP66 (LNV7210)
2.8 ~ 10mm Vari-focal Lens, F1.2
Min. Illumination
- 0.002 Lux /0 Lux (IR Model)
30 fps @ 1280 x 1024
30 fps @ 1920 x 1080 (5220)
Micro SD Slot
Alarm In / Out, Audio In / Out
Vandal Proof, IP66 (LNV5100R)
2.8 ~ 10mm Vari-focal Lens, F1.2
0 Lux(IR LED ON), 0.01 Lux(IR LED OFF)
30 fps @ 1280 x 1024
30 fps @ 1920 x 1080 (3210)
Micro SD Slot
Vandal Proof, IP66 (LNV5100R)
LND7210(R)
LNV7210(R)
LND5210(R) /LNV5110R
LND3210R/3110R

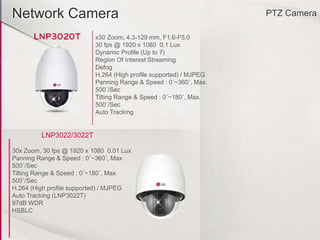

Network Camera PTZ Camera
x30 Zoom, 4.3-129 mm, F1.6-F5.0
30 fps @ 1920 x 1080 0.1 Lux
Defog
H.264 (High profile supported) / MJPEG
Panning Range & Speed : 0˚~360˚, Max.
500˚/Sec
Tilting Range & Speed : 0˚~180˚, Max.
500˚/Sec
Auto Tracking
30x Zoom, 30 fps @ 1920 x 1080 0.01 Lux
Panning Range & Speed : 0˚~360˚, Max
500˚/Sec
Tilting Range & Speed : 0˚~180˚, Max
500˚/Sec
H.264 (High profile supported) / MJPEG
Auto Tracking (LNP3022T)
97dB WDR
HSBLC
LNP3022/3022T

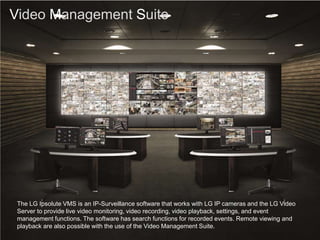

Video Management Suite
The LG Ipsolute VMS is an IP-Surveillance software that works with LG IP cameras and the LG Video
Server to provide live video monitoring, video recording, video playback, settings, and event
management functions. The software has search functions for recorded events. Remote viewing and
playback are also possible with the use of the Video Management Suite.

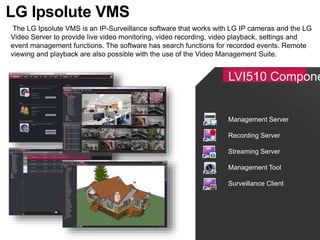

Video Management Suite BY P.C. TELECOM

LVI510 Compone
The LG Ipsolute VMS is an IP-Surveillance software that works with LG IP cameras and the LG
Video Server to provide live video monitoring, video recording, video playback, settings and
event management functions. The software has search functions for recorded events. Remote
viewing and playback are also possible with the use of the Video Management Suite.

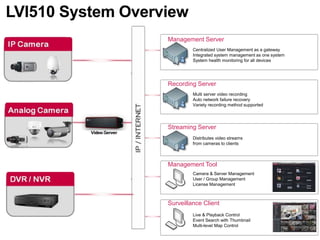

LG Ipsolute VMS
Management Server
Recording Server
Streaming Server
Management Tool
Surveillance Client

Management Server
Centralized User Management as a gateway
Integrated system management as one system
System health monitoring for all devices
Management Tool
Camera & Server Management
User / Group Management
License Management
Surveillance Client
Live & Playback Control
Event Search with Thumbnail
Multi-level Map Control
Recording Server
Multi server video recording
Auto network failure recovery
Variety recording method supported
Streaming Server
Distributes video streams
from cameras to clients
LVI510 System Overview

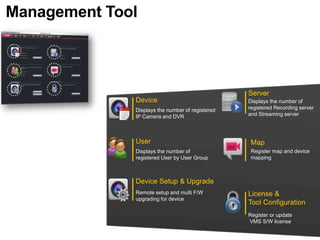

Management Tool
Device
Displays the number of registered
IP Camera and DVR
Server
Displays the number of
registered Recording server
and Streaming server
User
Displays the number of
registered User by User Group
Map
Register map and device
mapping
Device Setup & Upgrade
Remote setup and multi F/W
upgrading for device
License &
Tool Configuration
Register or update
VMS S/W license

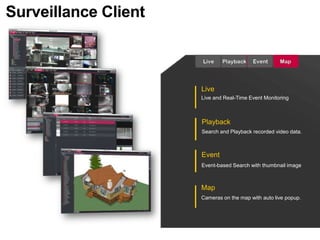

Surveillance Client
Live
Live and Real-Time Event Monitoring
Playback
Search and Playback recorded video data.
Event
Event-based Search with thumbnail image
Map
Cameras on the map with auto live popup.

Software VMS
• Device Finder
• Device (IP Camera & DVR) Remote Setup
• Real-Time Recording Server Monitoring

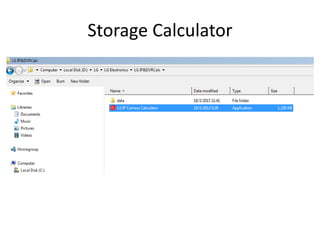

• Recording Calculator
• Real-Time Streaming Server Monitoring
• Multiple Device Firmware Update
• 256 Channels Live Monitoring with Video
Buffering
• Multiple Playback at the Same Time
• Event Thumbnail Search
• Instant Playback
• Digital Zoom
• Camera Pan/Tilt/Zoom Control (Mouse,
Joystick Support)
• Map Support
• AVI File Export
• Intelligent Video Analytics Event Detection
• Map and Event Live Popup Display
• 320 channels Recording
• 256 Channels Streaming

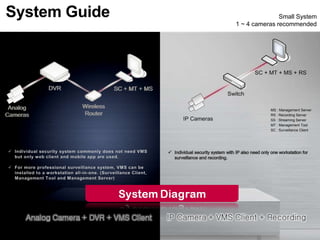

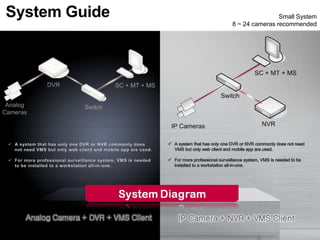

System Guide Small System
1 ~ 4 cameras recommended
MS : Management Server
RS : Recording Server
SS : Streaming Server
MT : Management Tool
SC : Surveillance Client

System Guide Small System

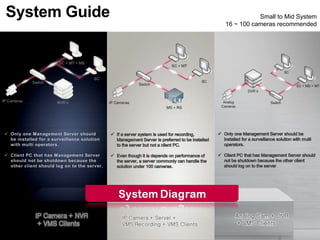

System Guide Small to Mid System

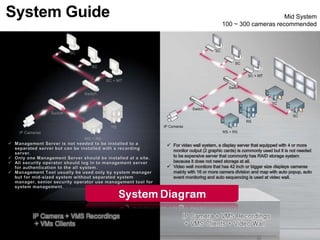

System Guide Mid System

System Guide Mid to High Local Area System
300~ cameras recommended

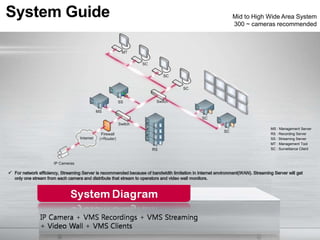

System Guide Mid to High Wide Area System
300 ~ cameras recommended

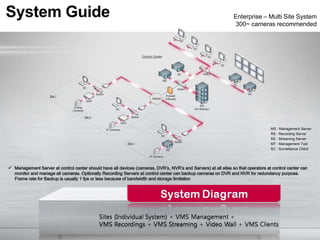

System Guide Enterprise – Multi Site System
300~ cameras recommended

Ipsolute Mobile Application
LG mobile monitoring is the mobile application
connecting with LG network cameras and DVRs.
Mobile smart phone users can monitor & manage
security devices remotely through wireless public
& private network.

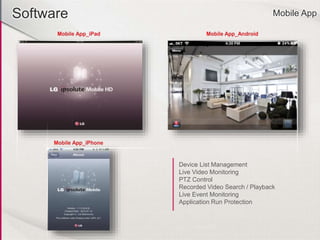

Software Mobile App
Device List Management
Live Video Monitoring
PTZ Control
Recorded Video Search / Playback
Live Event Monitoring
Application Run Protection

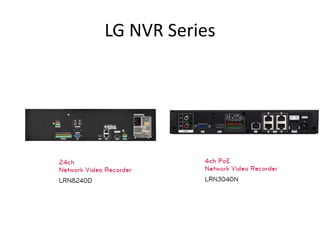

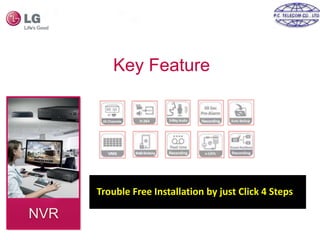

NVR
Key Feature

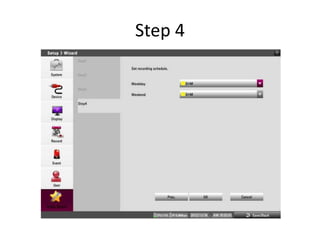

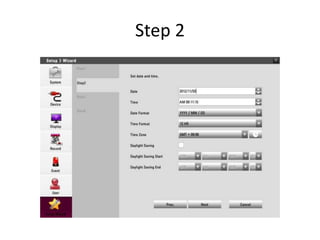

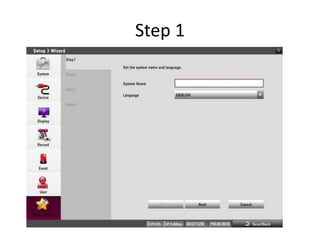

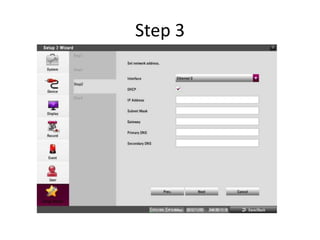

Trouble Free Installation by just Click 4 Steps

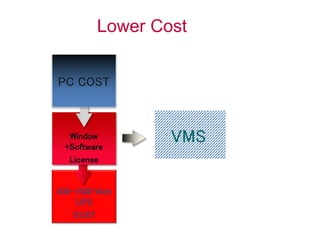

400-1500 Watt
UPS
COST
Window
+Software
License
PC COST
VMS
Lower Cost

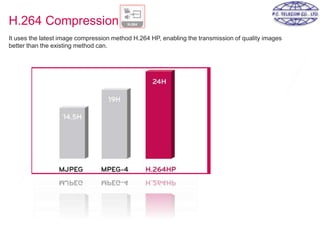

H.264 Compression
It uses the latest image compression method H.264 HP, enabling the transmission of quality images
better than the existing method can.

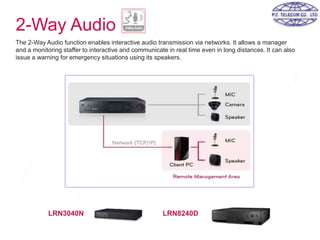

2-Way Audio
The 2-Way Audio function enables interactive audio transmission via networks. It allows a manager
and a monitoring staffer to interactive and communicate in real time even in long distances. It can also
issue a warning for emergency situations using its speakers.

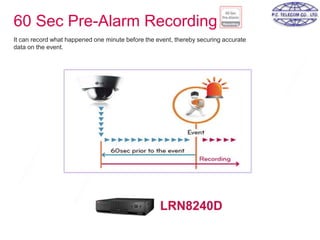

60 Sec Pre-Alarm Recording
It can record what happened one minute before the event, thereby securing accurate
data on the event.

Automatic Backup by Schedule
The backup schedule function registers image and other data backup schedule in order
to connect to a large-capacity backup system in performing daily, weekly, or monthly backup.
All Model

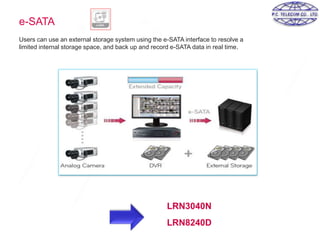

e-SATA
Users can use an external storage system using the e-SATA interface to resolve a
limited internal storage space, and back up and record e-SATA data in real time.

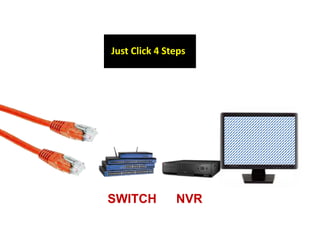

NVR
SWITCH
Easy to configuration
Just Click 4 Steps

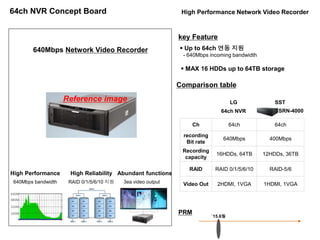

High Performance Network Video Recorder
64ch NVR Concept Board
PRM
`15.6월
Abundant functions
3ea video output
High Reliability
640Mbps bandwidth
High Performance
RAID 0/1/5/6/10 지원
Comparison table
key Feature
SST
640Mbps Network Video Recorder  Up to 64ch 연동 지원
- 640Mbps incoming bandwidth
Ch 64ch 64ch
recording
Bit rate
640Mbps 400Mbps
Recording
capacity
16HDDs, 64TB 12HDDs, 36TB
RAID RAID 0/1/5/6/10 RAID-5/6
Video Out 2HDMI, 1VGA 1HDMI, 1VGA
LG
64ch NVR
Reference image
 MAX 16 HDDs up to 64TB storage
SRN-4000
640M
320M
480M
160M

eXtreme Dynamic Image processor
XDI ISP technology allows LG camera to process high resolution images
to be viewed in diverse environments.

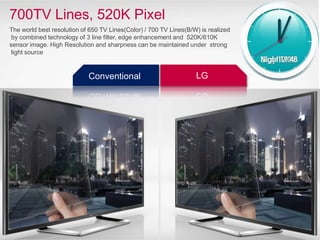

700TV Lines, 520K Pixel
The world best resolution of 650 TV Lines(Color) / 700 TV Lines(B/W) is realized
by combined technology of 3 line filter, edge enhancement and 520K/610K
sensor image. High Resolution and sharpness can be maintained under strong
light source
LG
Conventional

Wide Dynamic Range
WDR allows the dark portions of a bright image to be shown clearly, thus enhancing details and
removing noise. WDR is expanding Dynamic range into 130dB.

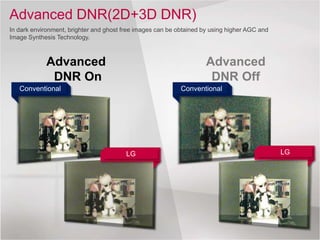

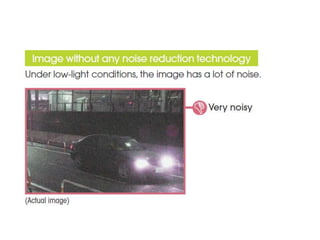

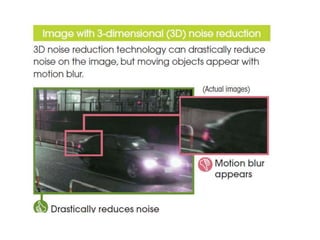

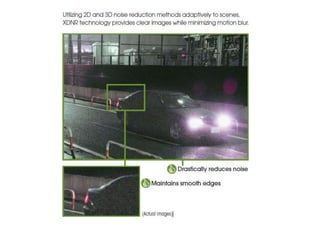

Advanced DNR(2D+3D DNR)
In dark environment, brighter and ghost free images can be obtained by using higher AGC and
Image Synthesis Technology.
Conventional
LG
Conventional
LG
Advanced
DNR Off
Advanced
DNR On

Conventional
LG
Conventional
LG
IR
Anti-Saturation
Wide & Longer
IR Coverage
Smart IR
IR control optimization design compensates for surrounding dark areas as much as possible, and
prevents saturation. Measures a wide IR angle of view at low luminance to reduce dead spots and
provides clear images for a long distance.

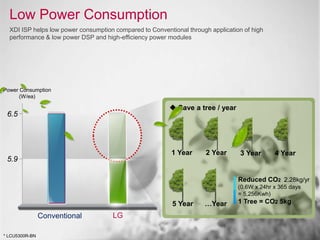

6.5
5.9
Power Consumption
(W/ea)
Conventional LG
Reduced CO2 2.28kg/yr
(0.6W x 24hr x 365 days
= 5,256Kwh)
1 Tree = CO2 5kg
5 Year …Year
1 Year 2 Year 3 Year 4 Year
 Save a tree / year
* LCU5300R-BN
Low Power Consumption
XDI ISP helps low power consumption compared to Conventional through application of high
performance & low power DSP and high-efficiency power modules

Analog Camera Box Camera
2.8 ~ 11 mm Vari-focal Lens, F1.2
IR LED : 50 m, 32 ea
650TVL @ Color / 700TVL @ B/W
0 Lux (IR LED ON),0.0001 Lux(IR LED OFF)
2D + 3D DNR, ICR Day & Night
14 Privacy Zone Masking
8 Motion Detection Zones
Wide Dynamic Range(LCU5500R)
RS-485, Coaxial Communication
520k / 610k Pixels (NTSC / PAL)
Min. Illumination
- 0.00001 Lux (LCB5500)
- 0.000001 Lux (LCB5300, LCB5100)
2D + 3D DNR
ICR Day & Night (LCB5500, LCB5300)
Wide Dynamic Range(LCB5500)
RS-485(LCB5500, LCB5300)
Coaxial Communication

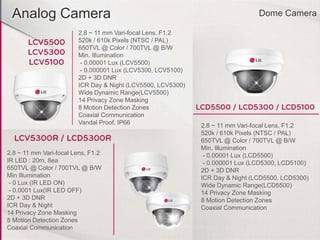

Analog Camera Dome Camera
Min. Illumination
- 0.00001 Lux (LCV5500)
- 0.000001 Lux (LCV5300, LCV5100)
2D + 3D DNR
ICR Day & Night (LCV5500, LCV5300)
Wide Dynamic Range(LCV5500)
Vandal Proof, IP66 2.8 ~ 11 mm Vari-focal Lens, F1.2
Min. Illumination
- 0.00001 Lux (LCD5500)
- 0.000001 Lux (LCD5300, LCD5100)
2D + 3D DNR
ICR Day & Night (LCD5500, LCD5300)
Wide Dynamic Range(LCD5500)
IR LED : 20m, 8ea
Min Illumination
- 0 Lux (IR LED ON)
- 0.0001 Lux(IR LED OFF)
2D + 3D DNR
ICR Day & Night

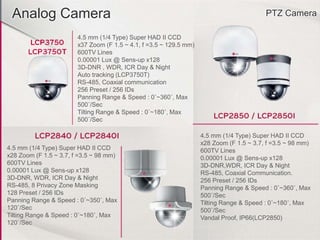

Analog Camera PTZ Camera
4.5 mm (1/4 Type) Super HAD II CCD
x37 Zoom (F 1.5 ~ 4.1, f =3.5 ~ 129.5 mm)
600TV Lines
0.00001 Lux @ Sens-up x128
3D-DNR , WDR, ICR Day & Night
Auto tracking (LCP3750T)
RS-485, Coaxial communication
256 Preset / 256 IDs
500˚/Sec
500˚/Sec
x28 Zoom (F 1.5 ~ 3.7, f =3.5 ~ 98 mm)
600TV Lines
0.00001 Lux @ Sens-up x128
3D-DNR,WDR, ICR Day & Night
RS-485, Coaxial Communication.
500˚/Sec
500˚/Sec
Vandal Proof, IP66(LCP2850)
x28 Zoom (F 1.5 ~ 3.7, f =3.5 ~ 98 mm)
600TV Lines
0.00001 Lux @ Sens-up x128
3D-DNR, WDR, ICR Day & Night
RS-485, 8 Privacy Zone Masking
120˚/Sec
120˚/Sec

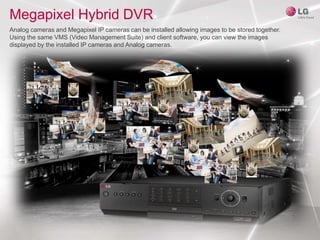

Megapixel Hybrid DVR
Analog cameras and Megapixel IP cameras can be installed allowing images to be stored together.
Using the same VMS (Video Management Suite) and client software, you can view the images
displayed by the installed IP cameras and Analog cameras.

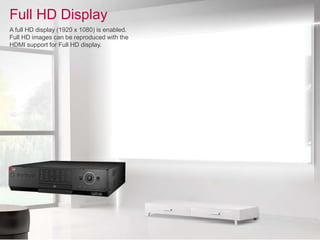

Full HD Display
A full HD display (1920 x 1080) is enabled.
Full HD images can be reproduced with the
HDMI support for Full HD display.

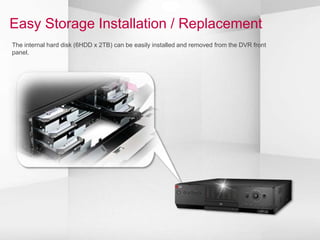

Easy Storage Installation / Replacement
The internal hard disk (6HDD x 2TB) can be easily installed and removed from the DVR front
panel.

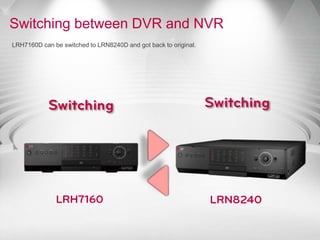

Switching between DVR and NVR
LRH7160D can be switched to LRN8240D and got back to original.

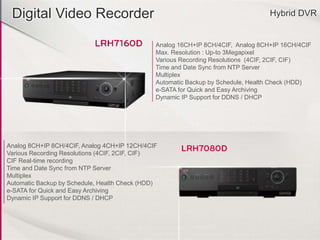

Digital Video Recorder Hybrid DVR
Analog 16CH+IP 8CH/4CIF, Analog 8CH+IP 16CH/4CIF
Max. Resolution : Up-to 3Megapixel
Various Recording Resolutions (4CIF, 2CIF, CIF)
Time and Date Sync from NTP Server
Multiplex
Automatic Backup by Schedule, Health Check (HDD)
e-SATA for Quick and Easy Archiving
Dynamic IP Support for DDNS / DHCP
Analog 8CH+IP 8CH/4CIF, Analog 4CH+IP 12CH/4CIF
CIF Real-time recording
Multiplex

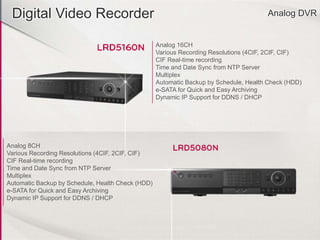

Digital Video Recorder Analog DVR
Analog 16CH
Multiplex
Analog 8CH
Multiplex

NEW LG พำอ.pptx

More Related Content

Similar to NEW LG พำอ.pptx

More from PawachMetharattanara

Recently uploaded

NEW LG พำอ.pptx
