1. TYPES OF NETWORK
By-
JEEVAN RAO
ARAVINDHAN
LOGESH
10/19/2024 1

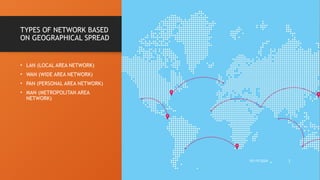

2. TYPES OF NETWORK BASED
ON GEOGRAPHICAL SPREAD
• LAN (LOCAL AREA NETWORK)
• WAN (WIDE AREA NETWORK)
• PAN (PERSONAL AREA NETWORK)
• MAN (METROPOLITAN AREA
NETWORK)
10/19/2024 2

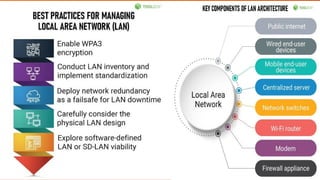

3. LOCAL AREA NETWORK

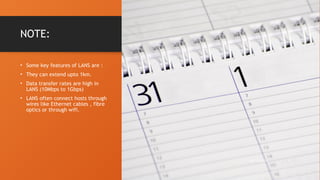

5. NOTE:
• Some key features of LANS are :
• They can extend upto 1km.
• Data transfer rates are high in
LANS (10Mbps to 1Gbps)
• LANS often connect hosts through
wires like Ethernet cables , fibre
optics or through wifi.
10/19/2024 5

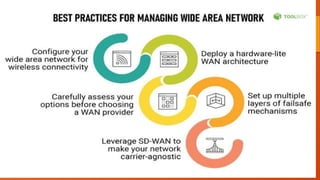

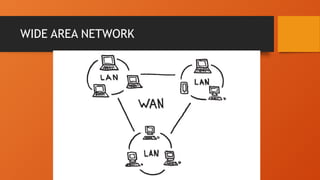

6. WIDE AREA NETWORK

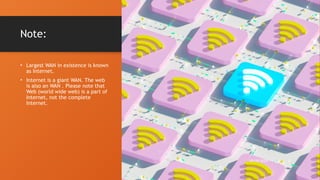

8. Note:
• Largest WAN in existence is known
as Internet.
• Internet is a giant WAN. The web
is also an WAN . Please note that
Web (world wide web) is a part of
Internet, not the complete
Internet.
10/19/2024 8

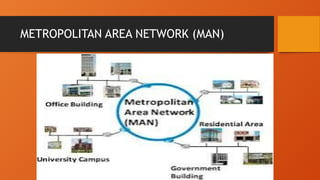

9. METROPOLITAN AREA NETWORK (MAN)

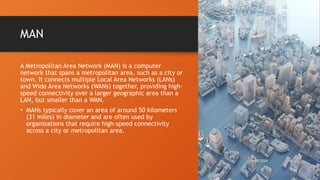

10. MAN
A Metropolitan Area Network (MAN) is a computer
network that spans a metropolitan area, such as a city or
town. It connects multiple Local Area Networks (LANs)
and Wide Area Networks (WANs) together, providing high-
speed connectivity over a larger geographic area than a
LAN, but smaller than a WAN.
• MANs typically cover an area of around 50 kilometers
(31 miles) in diameter and are often used by
organizations that require high-speed connectivity
across a city or metropolitan area.
10/19/2024 10

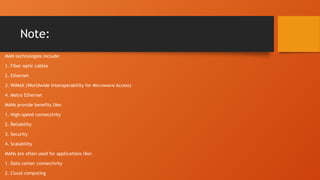

11. Note:
MAN technologies include:
1. Fiber optic cables
2. Ethernet
3. WiMAX (Worldwide Interoperability for Microwave Access)
4. Metro Ethernet
MANs provide benefits like:
1. High-speed connectivity
2. Reliability
3. Security
4. Scalability
MANs are often used for applications like:
1. Data center connectivity
2. Cloud computing

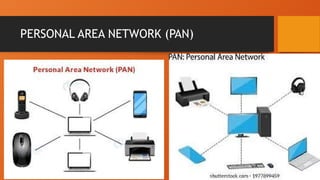

12. PERSONAL AREA NETWORK (PAN)

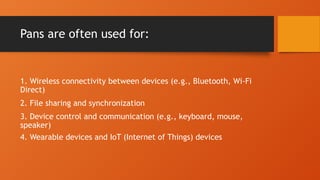

13. Pans are often used for:
1. Wireless connectivity between devices (e.g., Bluetooth, Wi-Fi
Direct)
2. File sharing and synchronization
3. Device control and communication (e.g., keyboard, mouse,
speaker)
4. Wearable devices and IoT (Internet of Things) devices

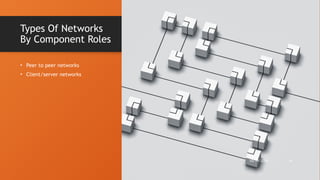

14. Types Of Networks
By Component Roles
• Peer to peer networks
• Client/server networks
10/19/2024 14

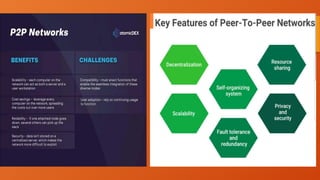

15. PEER TO PEER
NETWORKS
10/19/2024 15

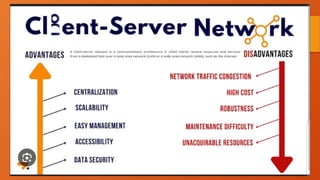

17. Client/Server Network
