Network project

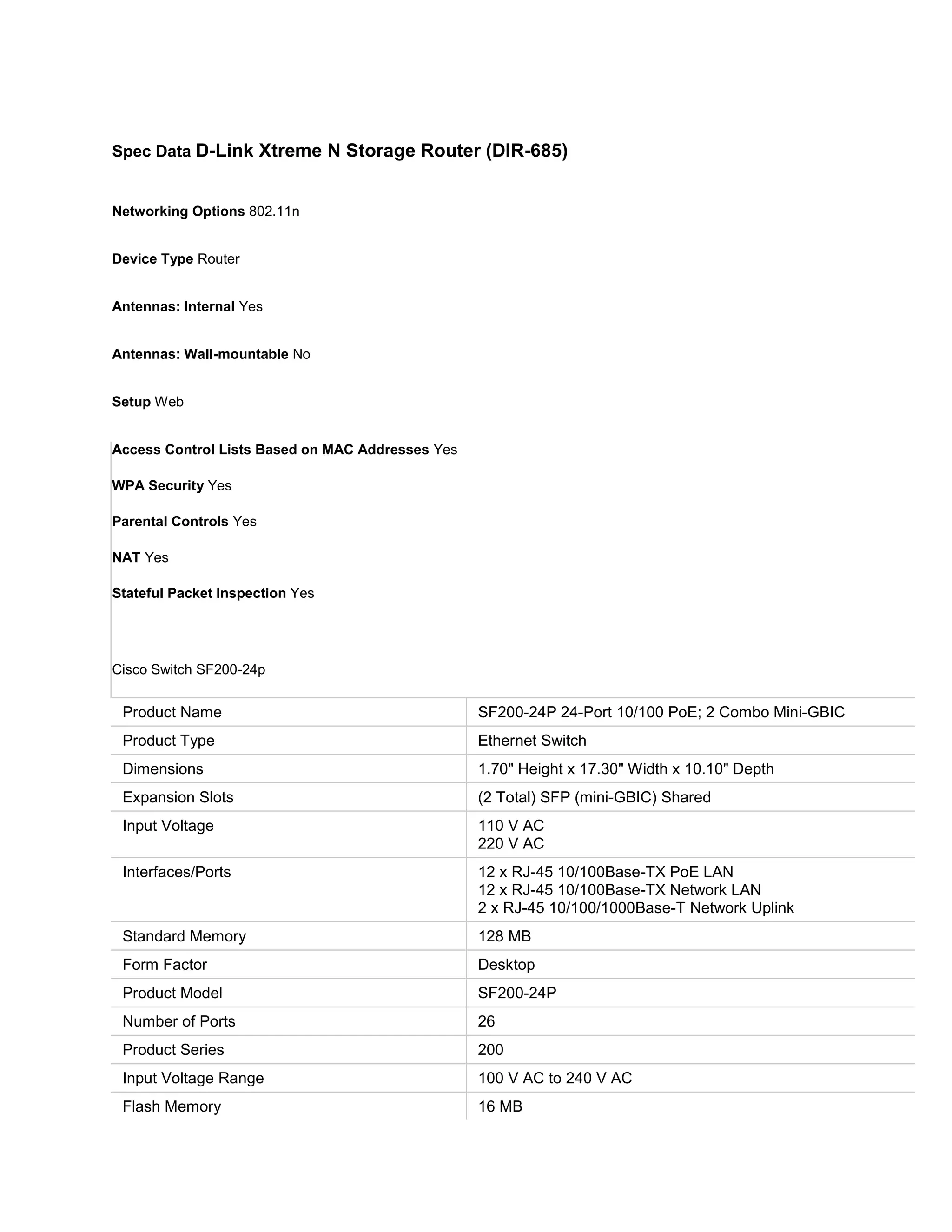

Spec Data D-Link Xtreme N Storage Router (DIR-685)

Networking Options 802.11n

Device Type Router

Antennas: Internal Yes

Antennas: Wall-mountable No

Setup Web

Access Control Lists Based on MAC Addresses Yes

WPA Security Yes

Parental Controls Yes

NAT Yes

Stateful Packet Inspection Yes

Cisco Switch SF200-24p

Product Name SF200-24P 24-Port 10/100 PoE; 2 Combo Mini-GBIC
Product Type Ethernet Switch
Dimensions 1.70" Height x 17.30" Width x 10.10" Depth
Expansion Slots (2 Total) SFP (mini-GBIC) Shared
Input Voltage 110 V AC
220 V AC
Interfaces/Ports 12 x RJ-45 10/100Base-TX PoE LAN
12 x RJ-45 10/100Base-TX Network LAN
2 x RJ-45 10/100/1000Base-T Network Uplink
Standard Memory 128 MB
Form Factor Desktop
Product Model SF200-24P
Number of Ports 26
Product Series 200
Input Voltage Range 100 V AC to 240 V AC
Flash Memory 16 MB

Power Source Power Supply
Layer Support 2
Management DHCP
VLAN
Syslog
QoS
HTTP
RMON
Network Technology 10/100Base-TX
10/100/1000Base-T
Standard Warranty Lifetime Limited

Cisco Systems

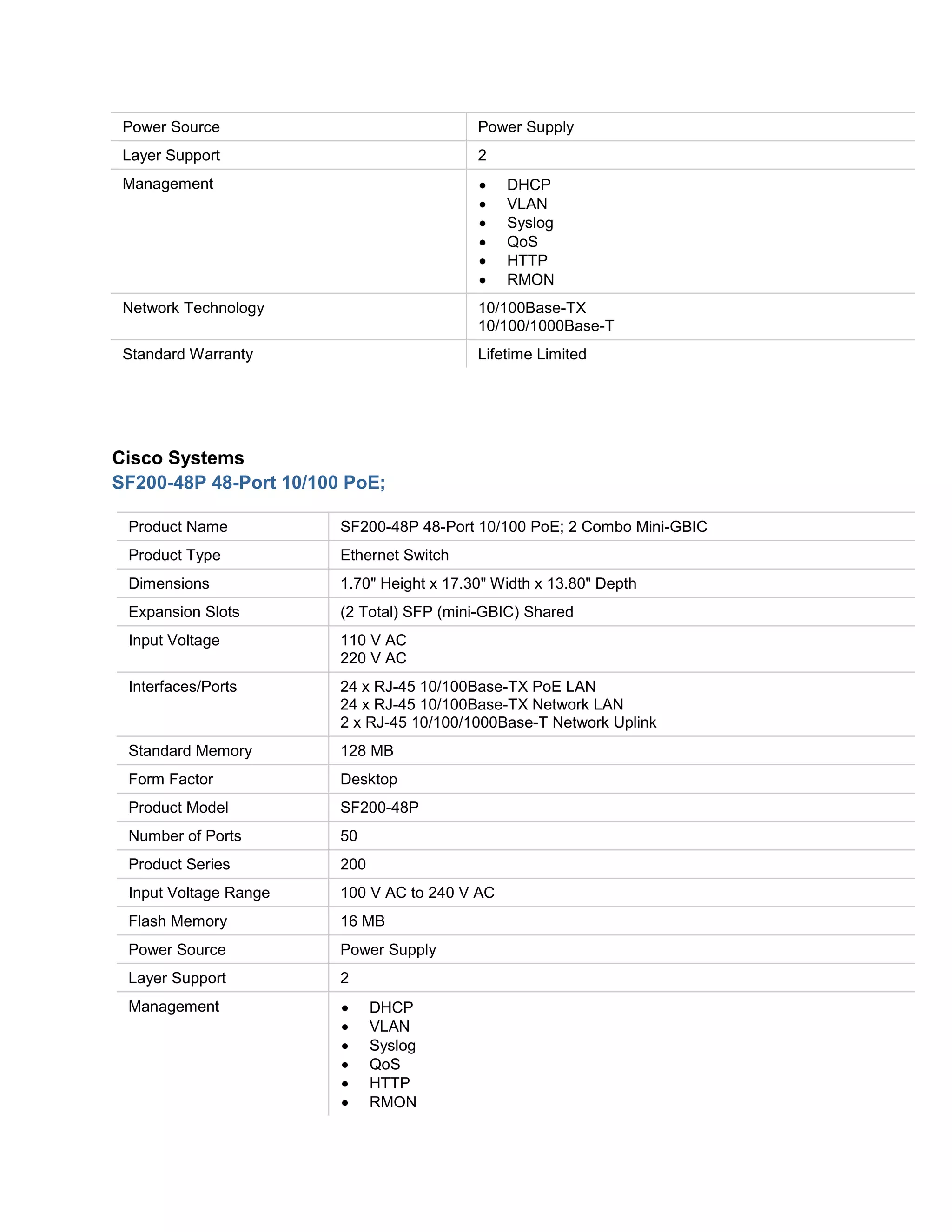

SF200-48P 48-Port 10/100 PoE;

Product Name SF200-48P 48-Port 10/100 PoE; 2 Combo Mini-GBIC
Product Type Ethernet Switch
Dimensions 1.70" Height x 17.30" Width x 13.80" Depth
Expansion Slots (2 Total) SFP (mini-GBIC) Shared
Input Voltage 110 V AC
220 V AC
Interfaces/Ports 24 x RJ-45 10/100Base-TX PoE LAN
24 x RJ-45 10/100Base-TX Network LAN
2 x RJ-45 10/100/1000Base-T Network Uplink
Standard Memory 128 MB
Form Factor Desktop
Product Model SF200-48P
Number of Ports 50
Product Series 200
Input Voltage Range 100 V AC to 240 V AC
Flash Memory 16 MB
Power Source Power Supply
Layer Support 2
Management DHCP
VLAN
Syslog
QoS
HTTP
RMON

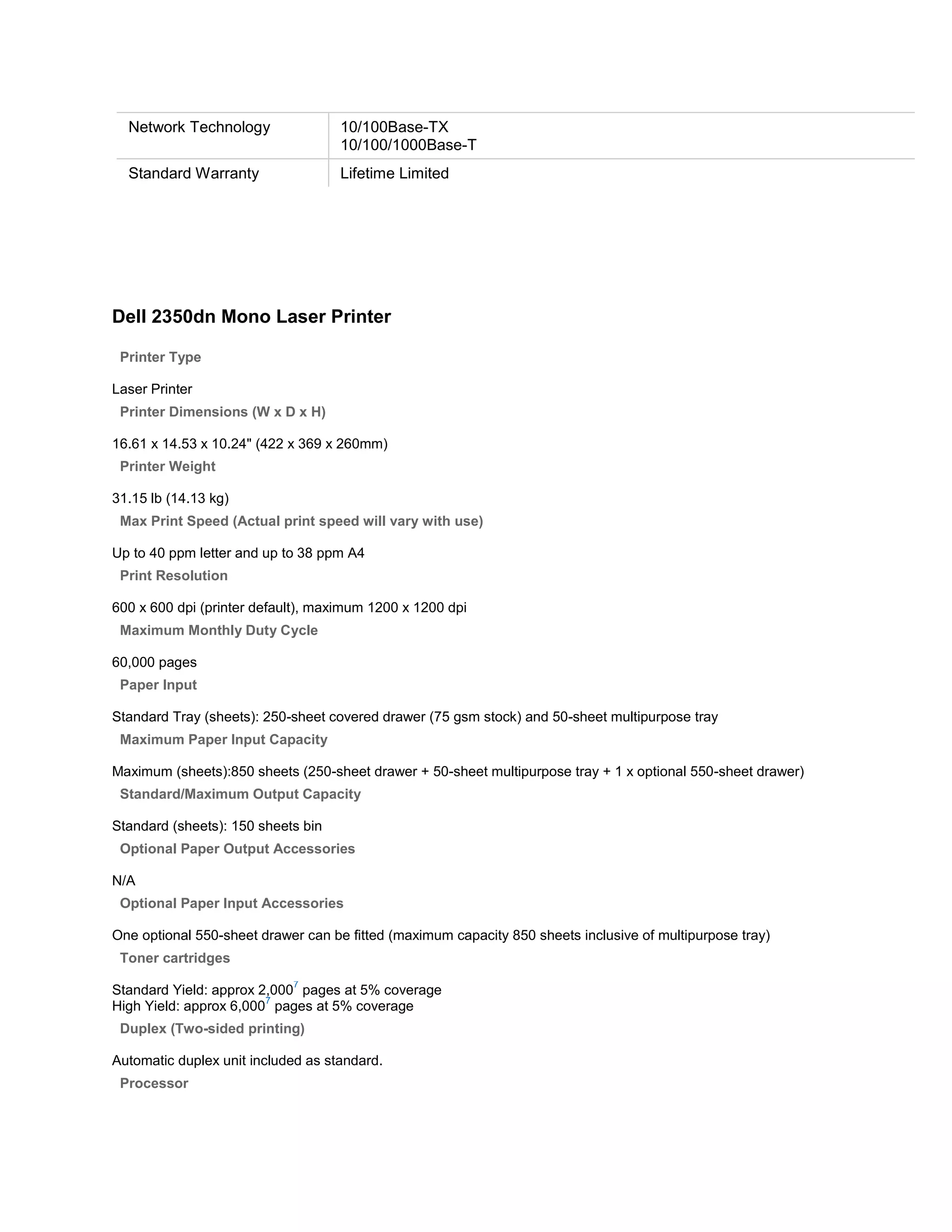

Network Technology 10/100Base-TX
10/100/1000Base-T
Standard Warranty Lifetime Limited

Dell 2350dn Mono Laser Printer

Printer Type

Laser Printer
Printer Dimensions (W x D x H)

16.61 x 14.53 x 10.24" (422 x 369 x 260mm)
Printer Weight

31.15 lb (14.13 kg)
Max Print Speed (Actual print speed will vary with use)

Up to 40 ppm letter and up to 38 ppm A4
Print Resolution

600 x 600 dpi (printer default), maximum 1200 x 1200 dpi
Maximum Monthly Duty Cycle

60,000 pages
Paper Input

Standard Tray (sheets): 250-sheet covered drawer (75 gsm stock) and 50-sheet multipurpose tray
Maximum Paper Input Capacity

Maximum (sheets):850 sheets (250-sheet drawer + 50-sheet multipurpose tray + 1 x optional 550-sheet drawer)
Standard/Maximum Output Capacity

Standard (sheets): 150 sheets bin
Optional Paper Output Accessories

N/A
Optional Paper Input Accessories

One optional 550-sheet drawer can be fitted (maximum capacity 850 sheets inclusive of multipurpose tray)
Toner cartridges
7
Standard Yield: approx 2,000 pages at 5% coverage
7
High Yield: approx 6,000 pages at 5% coverage
Duplex (Two-sided printing)

Automatic duplex unit included as standard.

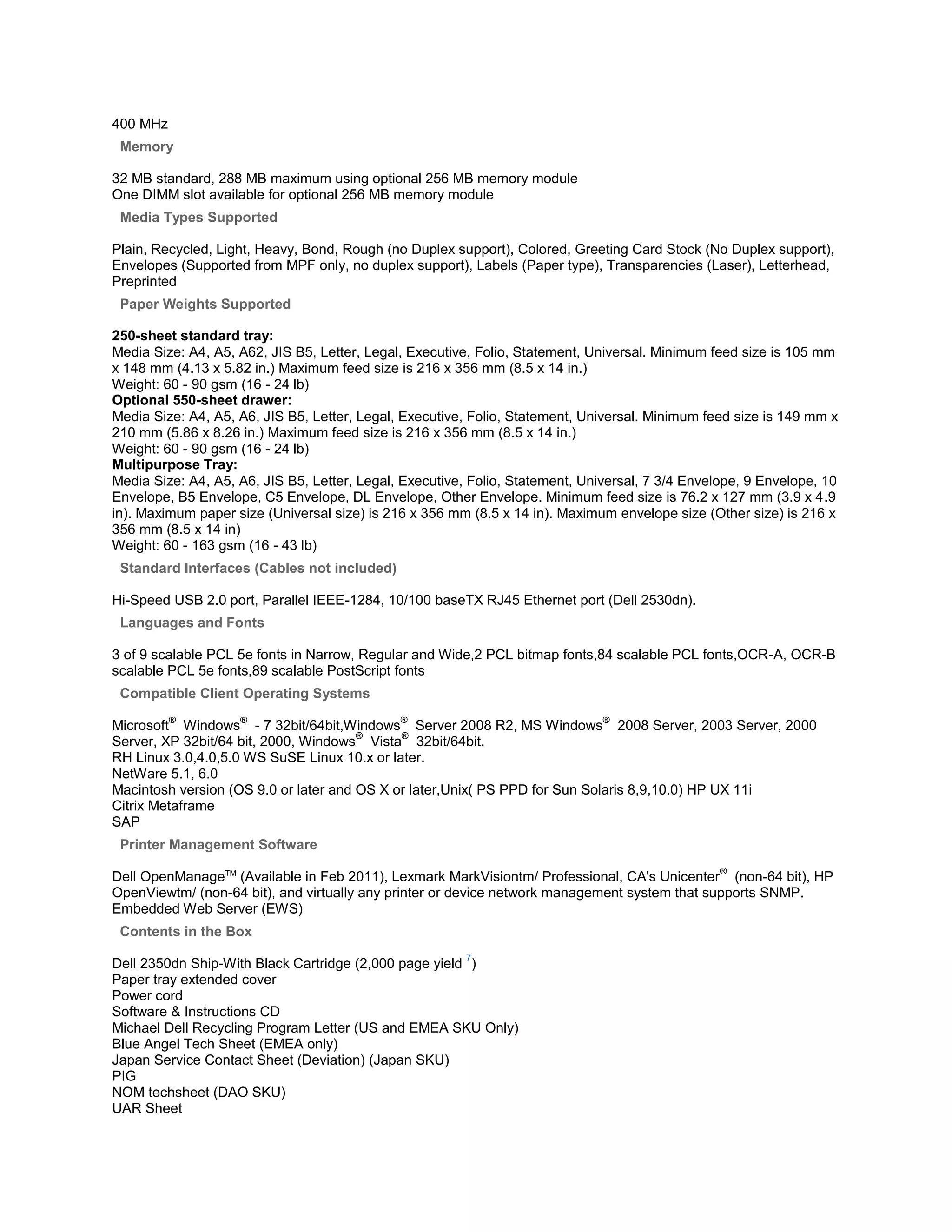

Processor

400 MHz
Memory

32 MB standard, 288 MB maximum using optional 256 MB memory module
One DIMM slot available for optional 256 MB memory module
Media Types Supported

Plain, Recycled, Light, Heavy, Bond, Rough (no Duplex support), Colored, Greeting Card Stock (No Duplex support),
Envelopes (Supported from MPF only, no duplex support), Labels (Paper type), Transparencies (Laser), Letterhead,
Preprinted
Paper Weights Supported

250-sheet standard tray:
Media Size: A4, A5, A62, JIS B5, Letter, Legal, Executive, Folio, Statement, Universal. Minimum feed size is 105 mm
x 148 mm (4.13 x 5.82 in.) Maximum feed size is 216 x 356 mm (8.5 x 14 in.)
Weight: 60 - 90 gsm (16 - 24 lb)
Optional 550-sheet drawer:
Media Size: A4, A5, A6, JIS B5, Letter, Legal, Executive, Folio, Statement, Universal. Minimum feed size is 149 mm x
210 mm (5.86 x 8.26 in.) Maximum feed size is 216 x 356 mm (8.5 x 14 in.)
Weight: 60 - 90 gsm (16 - 24 lb)
Multipurpose Tray:
Media Size: A4, A5, A6, JIS B5, Letter, Legal, Executive, Folio, Statement, Universal, 7 3/4 Envelope, 9 Envelope, 10
Envelope, B5 Envelope, C5 Envelope, DL Envelope, Other Envelope. Minimum feed size is 76.2 x 127 mm (3.9 x 4.9
in). Maximum paper size (Universal size) is 216 x 356 mm (8.5 x 14 in). Maximum envelope size (Other size) is 216 x
356 mm (8.5 x 14 in)
Weight: 60 - 163 gsm (16 - 43 lb)
Standard Interfaces (Cables not included)

Hi-Speed USB 2.0 port, Parallel IEEE-1284, 10/100 baseTX RJ45 Ethernet port (Dell 2530dn).
Languages and Fonts

3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide,2 PCL bitmap fonts,84 scalable PCL fonts,OCR-A, OCR-B
scalable PCL 5e fonts,89 scalable PostScript fonts
Compatible Client Operating Systems
® ® ® ®
Microsoft Windows - 7 32bit/64bit,Windows Server 2008 R2, MS Windows 2008 Server, 2003 Server, 2000
® ®
Server, XP 32bit/64 bit, 2000, Windows Vista 32bit/64bit.
RH Linux 3.0,4.0,5.0 WS SuSE Linux 10.x or later.
NetWare 5.1, 6.0
Macintosh version (OS 9.0 or later and OS X or later,Unix( PS PPD for Sun Solaris 8,9,10.0) HP UX 11i
Citrix Metaframe
SAP
Printer Management Software
®
Dell OpenManageTM (Available in Feb 2011), Lexmark MarkVisiontm/ Professional, CA's Unicenter (non-64 bit), HP
OpenViewtm/ (non-64 bit), and virtually any printer or device network management system that supports SNMP.
Embedded Web Server (EWS)
Contents in the Box
7
Dell 2350dn Ship-With Black Cartridge (2,000 page yield )
Paper tray extended cover
Power cord
Software & Instructions CD
Michael Dell Recycling Program Letter (US and EMEA SKU Only)
Blue Angel Tech Sheet (EMEA only)
Japan Service Contact Sheet (Deviation) (Japan SKU)
PIG
NOM techsheet (DAO SKU)
UAR Sheet

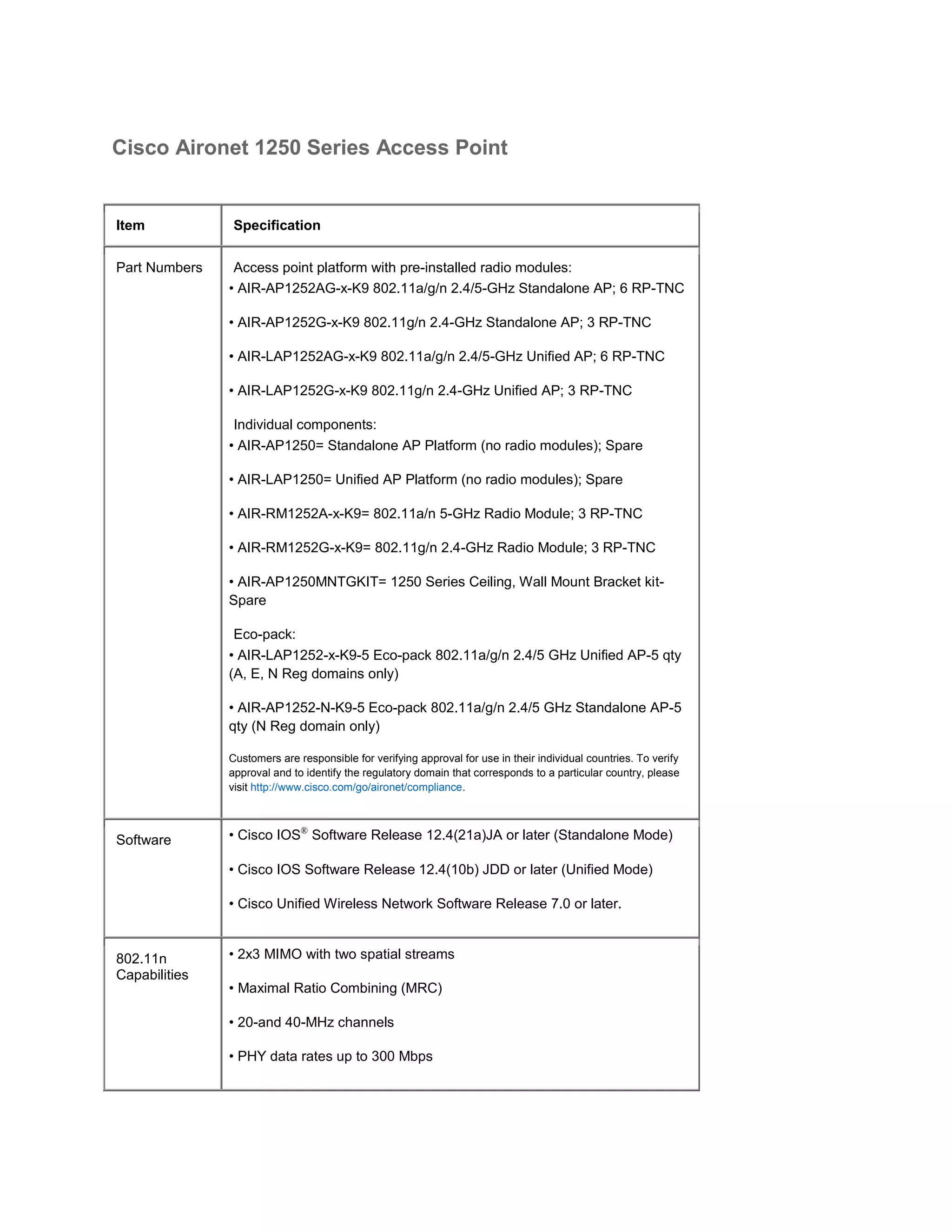

Cisco Aironet 1250 Series Access Point

Item Specification

Part Numbers Access point platform with pre-installed radio modules:
• AIR-AP1252AG-x-K9 802.11a/g/n 2.4/5-GHz Standalone AP; 6 RP-TNC

• AIR-AP1252G-x-K9 802.11g/n 2.4-GHz Standalone AP; 3 RP-TNC

• AIR-LAP1252AG-x-K9 802.11a/g/n 2.4/5-GHz Unified AP; 6 RP-TNC

• AIR-LAP1252G-x-K9 802.11g/n 2.4-GHz Unified AP; 3 RP-TNC

Individual components:
• AIR-AP1250= Standalone AP Platform (no radio modules); Spare

• AIR-LAP1250= Unified AP Platform (no radio modules); Spare

• AIR-RM1252A-x-K9= 802.11a/n 5-GHz Radio Module; 3 RP-TNC

• AIR-RM1252G-x-K9= 802.11g/n 2.4-GHz Radio Module; 3 RP-TNC

• AIR-AP1250MNTGKIT= 1250 Series Ceiling, Wall Mount Bracket kit-
Spare

Eco-pack:
• AIR-LAP1252-x-K9-5 Eco-pack 802.11a/g/n 2.4/5 GHz Unified AP-5 qty
(A, E, N Reg domains only)

• AIR-AP1252-N-K9-5 Eco-pack 802.11a/g/n 2.4/5 GHz Standalone AP-5
qty (N Reg domain only)

Customers are responsible for verifying approval for use in their individual countries. To verify
approval and to identify the regulatory domain that corresponds to a particular country, please
visit http://www.cisco.com/go/aironet/compliance.

Software • Cisco IOS® Software Release 12.4(21a)JA or later (Standalone Mode)

• Cisco IOS Software Release 12.4(10b) JDD or later (Unified Mode)

• Cisco Unified Wireless Network Software Release 7.0 or later.

802.11n • 2x3 MIMO with two spatial streams
Capabilities
• Maximal Ratio Combining (MRC)

• 20-and 40-MHz channels

• PHY data rates up to 300 Mbps

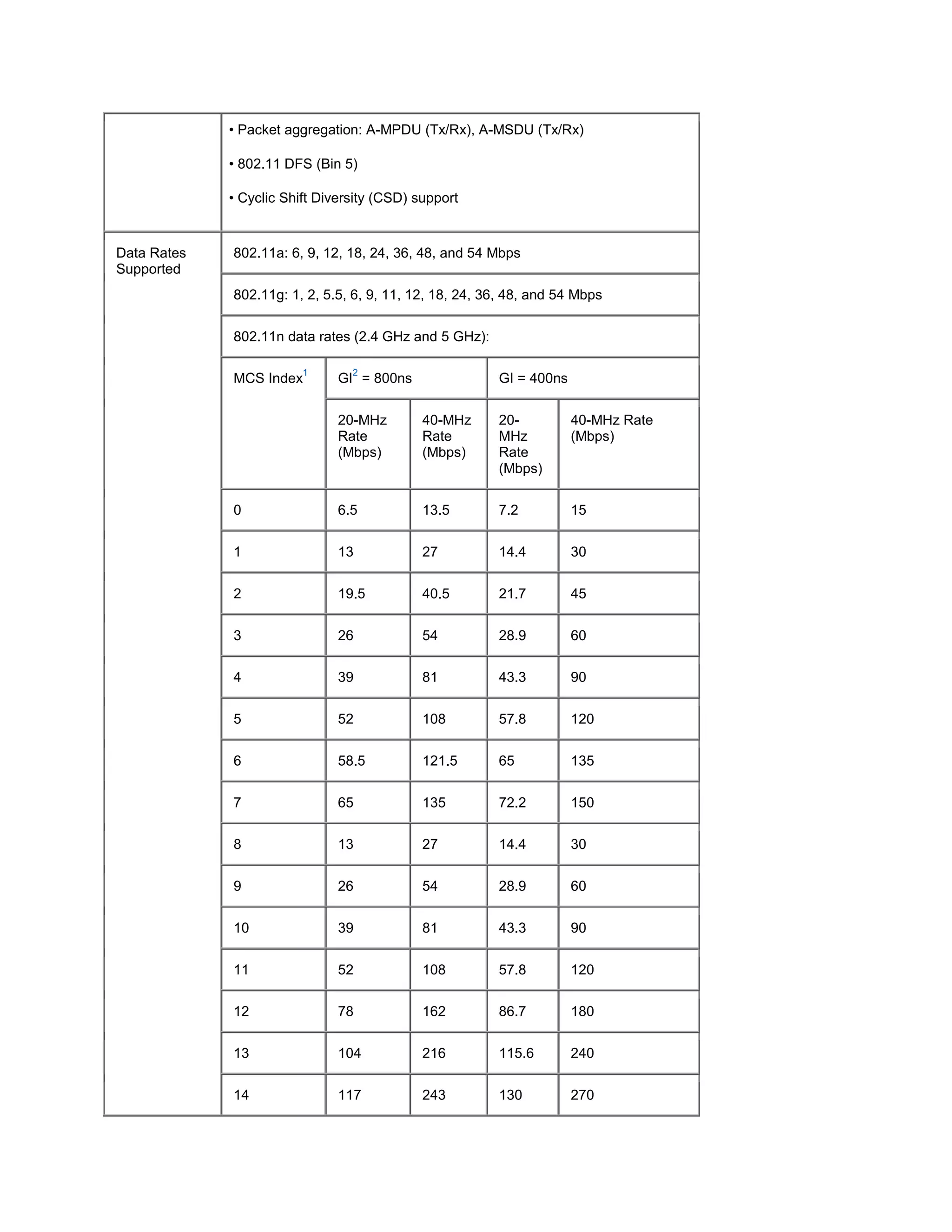

• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

• 802.11 DFS (Bin 5)

• Cyclic Shift Diversity (CSD) support

Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
Supported
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates (2.4 GHz and 5 GHz):

1 2
MCS Index GI = 800ns GI = 400ns

20-MHz 40-MHz 20- 40-MHz Rate
Rate Rate MHz (Mbps)
(Mbps) (Mbps) Rate
(Mbps)

0 6.5 13.5 7.2 15

1 13 27 14.4 30

2 19.5 40.5 21.7 45

3 26 54 28.9 60

4 39 81 43.3 90

5 52 108 57.8 120

6 58.5 121.5 65 135

7 65 135 72.2 150

8 13 27 14.4 30

9 26 54 28.9 60

10 39 81 43.3 90

11 52 108 57.8 120

12 78 162 86.7 180

13 104 216 115.6 240

14 117 243 130 270

15 130 270 144.4 300

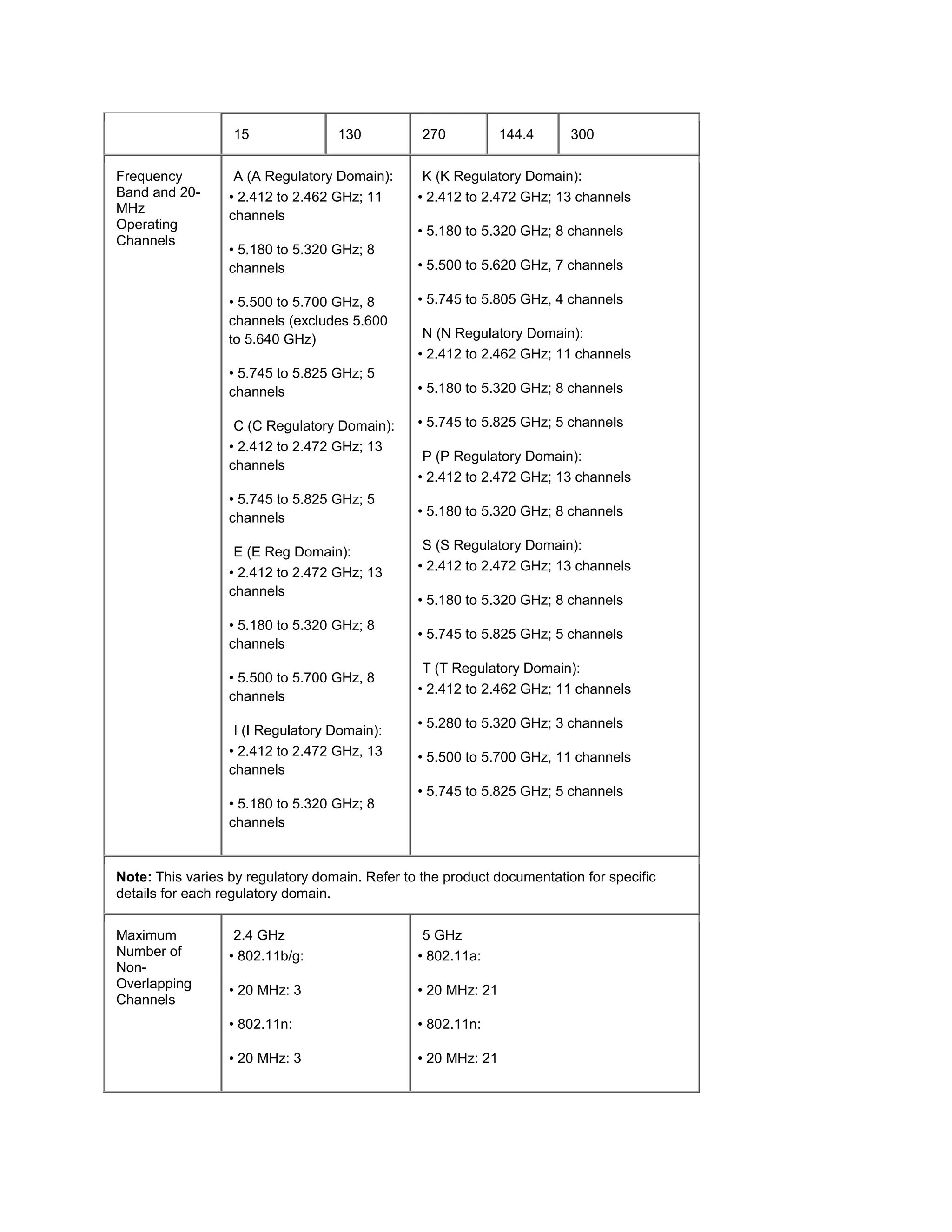

Frequency A (A Regulatory Domain): K (K Regulatory Domain):
Band and 20- • 2.412 to 2.462 GHz; 11 • 2.412 to 2.472 GHz; 13 channels
MHz
channels
Operating • 5.180 to 5.320 GHz; 8 channels
Channels
• 5.180 to 5.320 GHz; 8
channels • 5.500 to 5.620 GHz, 7 channels

• 5.500 to 5.700 GHz, 8 • 5.745 to 5.805 GHz, 4 channels
channels (excludes 5.600
to 5.640 GHz) N (N Regulatory Domain):
• 2.412 to 2.462 GHz; 11 channels
• 5.745 to 5.825 GHz; 5
channels • 5.180 to 5.320 GHz; 8 channels

C (C Regulatory Domain): • 5.745 to 5.825 GHz; 5 channels
• 2.412 to 2.472 GHz; 13
P (P Regulatory Domain):
channels
• 2.412 to 2.472 GHz; 13 channels
• 5.745 to 5.825 GHz; 5
channels • 5.180 to 5.320 GHz; 8 channels

E (E Reg Domain): S (S Regulatory Domain):
• 2.412 to 2.472 GHz; 13 • 2.412 to 2.472 GHz; 13 channels
channels
• 5.180 to 5.320 GHz; 8 channels
• 5.180 to 5.320 GHz; 8
channels
T (T Regulatory Domain):
• 5.500 to 5.700 GHz, 8
• 2.412 to 2.462 GHz; 11 channels
channels
I (I Regulatory Domain):
• 2.412 to 2.472 GHz, 13 • 5.500 to 5.700 GHz, 11 channels
channels
• 5.180 to 5.320 GHz; 8
channels

Note: This varies by regulatory domain. Refer to the product documentation for specific
details for each regulatory domain.

Maximum 2.4 GHz 5 GHz
Number of • 802.11b/g: • 802.11a:
Non-
Overlapping • 20 MHz: 3 • 20 MHz: 21
Channels
• 802.11n: • 802.11n:

• 20 MHz: 3 • 20 MHz: 21

• 40 MHz: 9

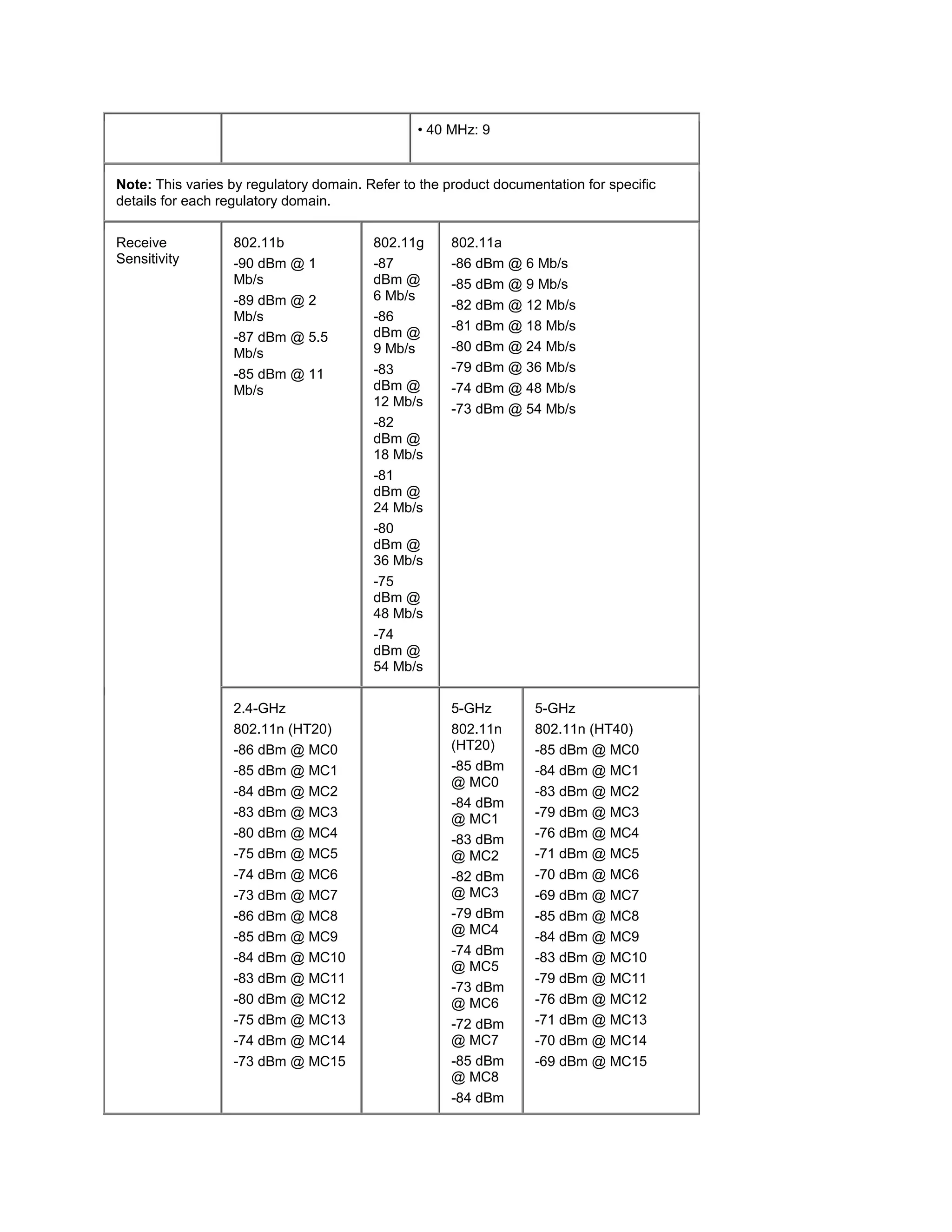

Note: This varies by regulatory domain. Refer to the product documentation for specific
details for each regulatory domain.

Receive 802.11b 802.11g 802.11a
Sensitivity -90 dBm @ 1 -87 -86 dBm @ 6 Mb/s
Mb/s dBm @ -85 dBm @ 9 Mb/s
-89 dBm @ 2 6 Mb/s
-82 dBm @ 12 Mb/s
Mb/s -86
dBm @ -81 dBm @ 18 Mb/s
-87 dBm @ 5.5
Mb/s 9 Mb/s -80 dBm @ 24 Mb/s
-85 dBm @ 11 -83 -79 dBm @ 36 Mb/s
Mb/s dBm @ -74 dBm @ 48 Mb/s
12 Mb/s
-73 dBm @ 54 Mb/s
-82
dBm @
18 Mb/s
-81
dBm @
24 Mb/s
-80
dBm @
36 Mb/s
-75
dBm @
48 Mb/s
-74
dBm @
54 Mb/s

2.4-GHz 5-GHz 5-GHz
802.11n (HT20) 802.11n 802.11n (HT40)
-86 dBm @ MC0 (HT20) -85 dBm @ MC0
-85 dBm @ MC1 -85 dBm -84 dBm @ MC1
@ MC0
-84 dBm @ MC2 -83 dBm @ MC2
-84 dBm
-83 dBm @ MC3 @ MC1 -79 dBm @ MC3
-80 dBm @ MC4 -83 dBm -76 dBm @ MC4
-75 dBm @ MC5 @ MC2 -71 dBm @ MC5
-74 dBm @ MC6 -82 dBm -70 dBm @ MC6
-73 dBm @ MC7 @ MC3 -69 dBm @ MC7
-86 dBm @ MC8 -79 dBm -85 dBm @ MC8
@ MC4
-85 dBm @ MC9 -84 dBm @ MC9
-74 dBm
-84 dBm @ MC10 -83 dBm @ MC10
@ MC5
-83 dBm @ MC11 -79 dBm @ MC11
-73 dBm
-80 dBm @ MC12 @ MC6 -76 dBm @ MC12
-75 dBm @ MC13 -72 dBm -71 dBm @ MC13
-74 dBm @ MC14 @ MC7 -70 dBm @ MC14
-73 dBm @ MC15 -85 dBm -69 dBm @ MC15
@ MC8
-84 dBm

@ MC9
-83 dBm
@ MC10
-82 dBm
@ MC11
-79 dBm
@ MC12
-74 dBm
@ MC13
-73 dBm
@ MC14
-72 dBm
@ MC15

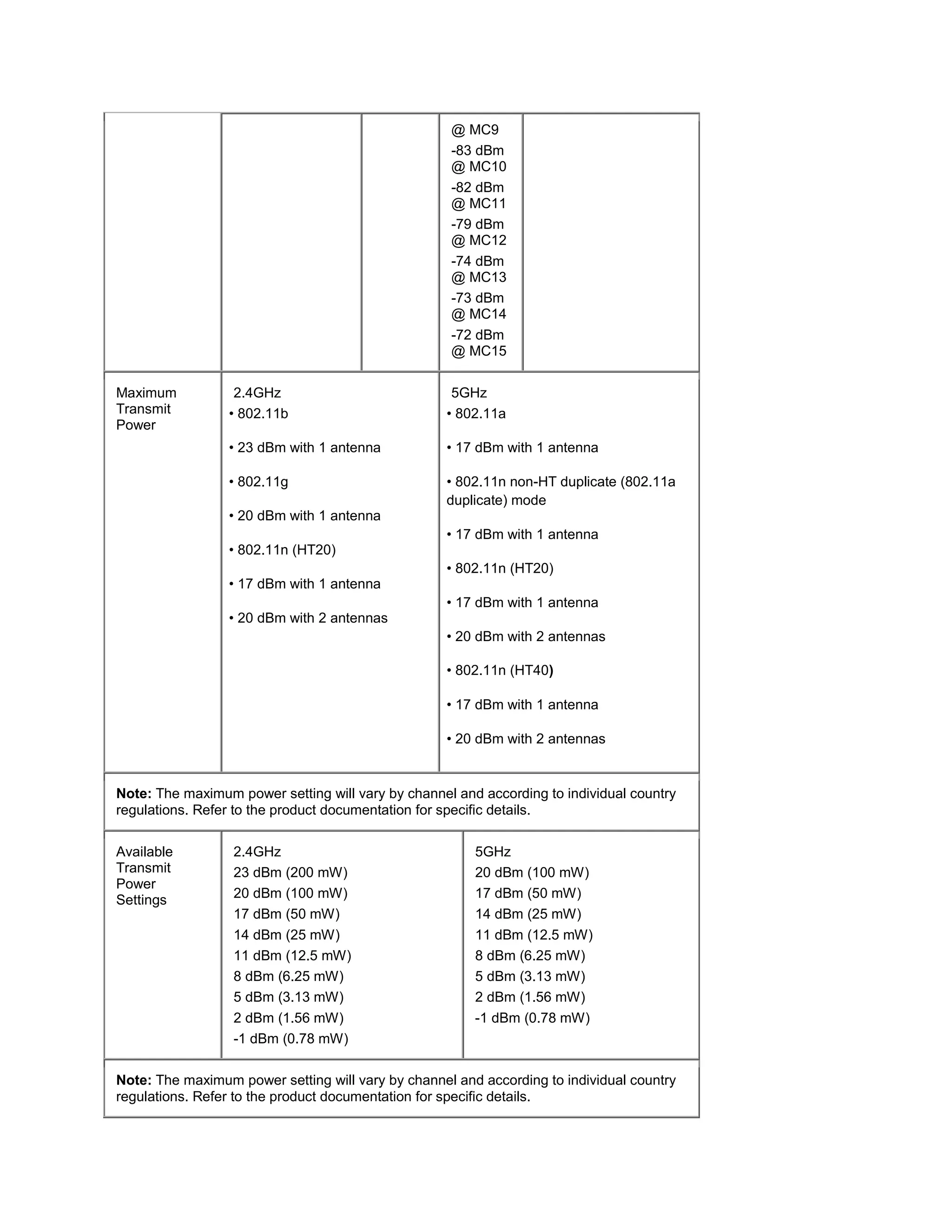

Maximum 2.4GHz 5GHz
Transmit • 802.11b • 802.11a
Power
• 23 dBm with 1 antenna • 17 dBm with 1 antenna

• 802.11g • 802.11n non-HT duplicate (802.11a
duplicate) mode
• 20 dBm with 1 antenna
• 802.11n (HT20)
• 802.11n (HT20)
• 20 dBm with 2 antennas

• 802.11n (HT40)



Note: The maximum power setting will vary by channel and according to individual country
regulations. Refer to the product documentation for specific details.

Available 2.4GHz 5GHz
Transmit 23 dBm (200 mW) 20 dBm (100 mW)
Power
Settings 20 dBm (100 mW) 17 dBm (50 mW)
17 dBm (50 mW) 14 dBm (25 mW)
14 dBm (25 mW) 11 dBm (12.5 mW)
11 dBm (12.5 mW) 8 dBm (6.25 mW)
8 dBm (6.25 mW) 5 dBm (3.13 mW)
5 dBm (3.13 mW) 2 dBm (1.56 mW)
2 dBm (1.56 mW) -1 dBm (0.78 mW)
-1 dBm (0.78 mW)

Note: The maximum power setting will vary by channel and according to individual country
regulations. Refer to the product documentation for specific details.

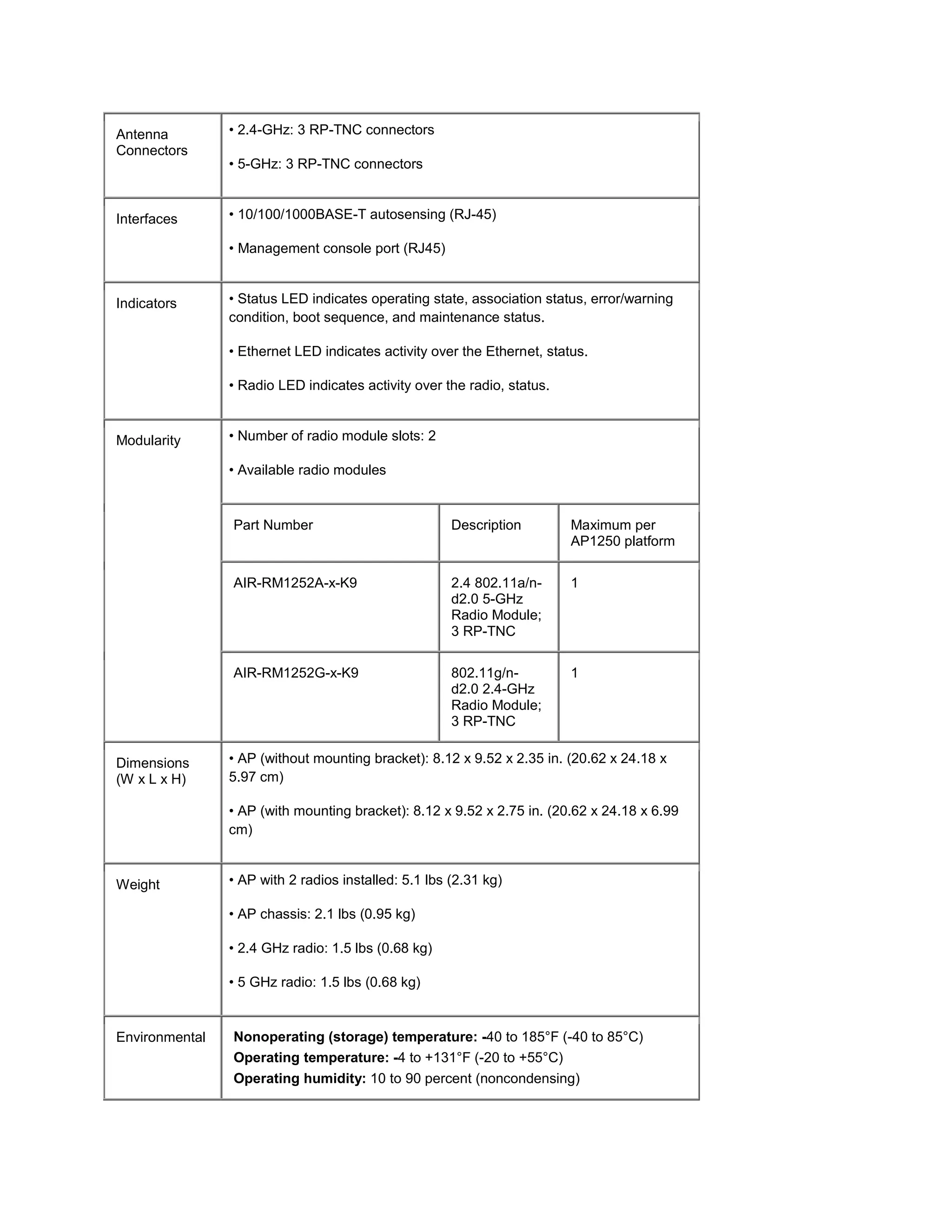

Antenna • 2.4-GHz: 3 RP-TNC connectors
Connectors
• 5-GHz: 3 RP-TNC connectors

Interfaces • 10/100/1000BASE-T autosensing (RJ-45)

• Management console port (RJ45)

Indicators • Status LED indicates operating state, association status, error/warning
condition, boot sequence, and maintenance status.

• Ethernet LED indicates activity over the Ethernet, status.

• Radio LED indicates activity over the radio, status.

Modularity • Number of radio module slots: 2

• Available radio modules

Part Number Description Maximum per
AP1250 platform

AIR-RM1252A-x-K9 2.4 802.11a/n- 1
d2.0 5-GHz
Radio Module;
3 RP-TNC

AIR-RM1252G-x-K9 802.11g/n- 1
d2.0 2.4-GHz
Radio Module;
3 RP-TNC

Dimensions • AP (without mounting bracket): 8.12 x 9.52 x 2.35 in. (20.62 x 24.18 x
(W x L x H) 5.97 cm)

• AP (with mounting bracket): 8.12 x 9.52 x 2.75 in. (20.62 x 24.18 x 6.99
cm)

Weight • AP with 2 radios installed: 5.1 lbs (2.31 kg)

• AP chassis: 2.1 lbs (0.95 kg)

• 2.4 GHz radio: 1.5 lbs (0.68 kg)

• 5 GHz radio: 1.5 lbs (0.68 kg)

Environmental Nonoperating (storage) temperature: -40 to 185°F (-40 to 85°C)
Operating temperature: -4 to +131°F (-20 to +55°C)
Operating humidity: 10 to 90 percent (noncondensing)

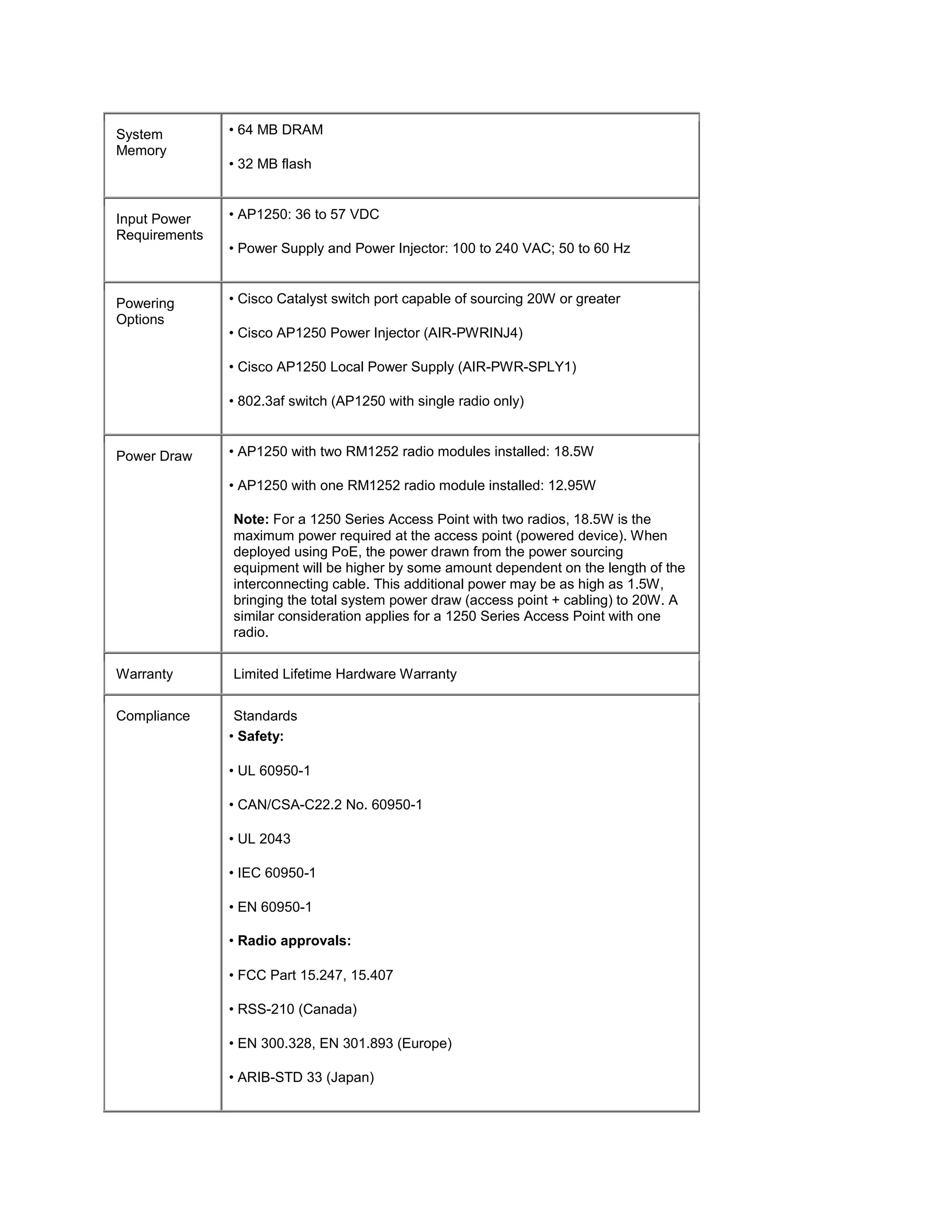

System • 64 MB DRAM
Memory
• 32 MB flash

Input Power • AP1250: 36 to 57 VDC
Requirements
• Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz

Powering • Cisco Catalyst switch port capable of sourcing 20W or greater
Options
• Cisco AP1250 Power Injector (AIR-PWRINJ4)

• Cisco AP1250 Local Power Supply (AIR-PWR-SPLY1)

• 802.3af switch (AP1250 with single radio only)

Power Draw • AP1250 with two RM1252 radio modules installed: 18.5W

• AP1250 with one RM1252 radio module installed: 12.95W

Note: For a 1250 Series Access Point with two radios, 18.5W is the
maximum power required at the access point (powered device). When
deployed using PoE, the power drawn from the power sourcing
equipment will be higher by some amount dependent on the length of the
interconnecting cable. This additional power may be as high as 1.5W,
bringing the total system power draw (access point + cabling) to 20W. A
similar consideration applies for a 1250 Series Access Point with one
radio.

Warranty Limited Lifetime Hardware Warranty

Compliance Standards
• Safety:

• UL 60950-1

• CAN/CSA-C22.2 No. 60950-1

• UL 2043

• IEC 60950-1

• EN 60950-1

• Radio approvals:

• FCC Part 15.247, 15.407

• RSS-210 (Canada)

• EN 300.328, EN 301.893 (Europe)

• ARIB-STD 33 (Japan)

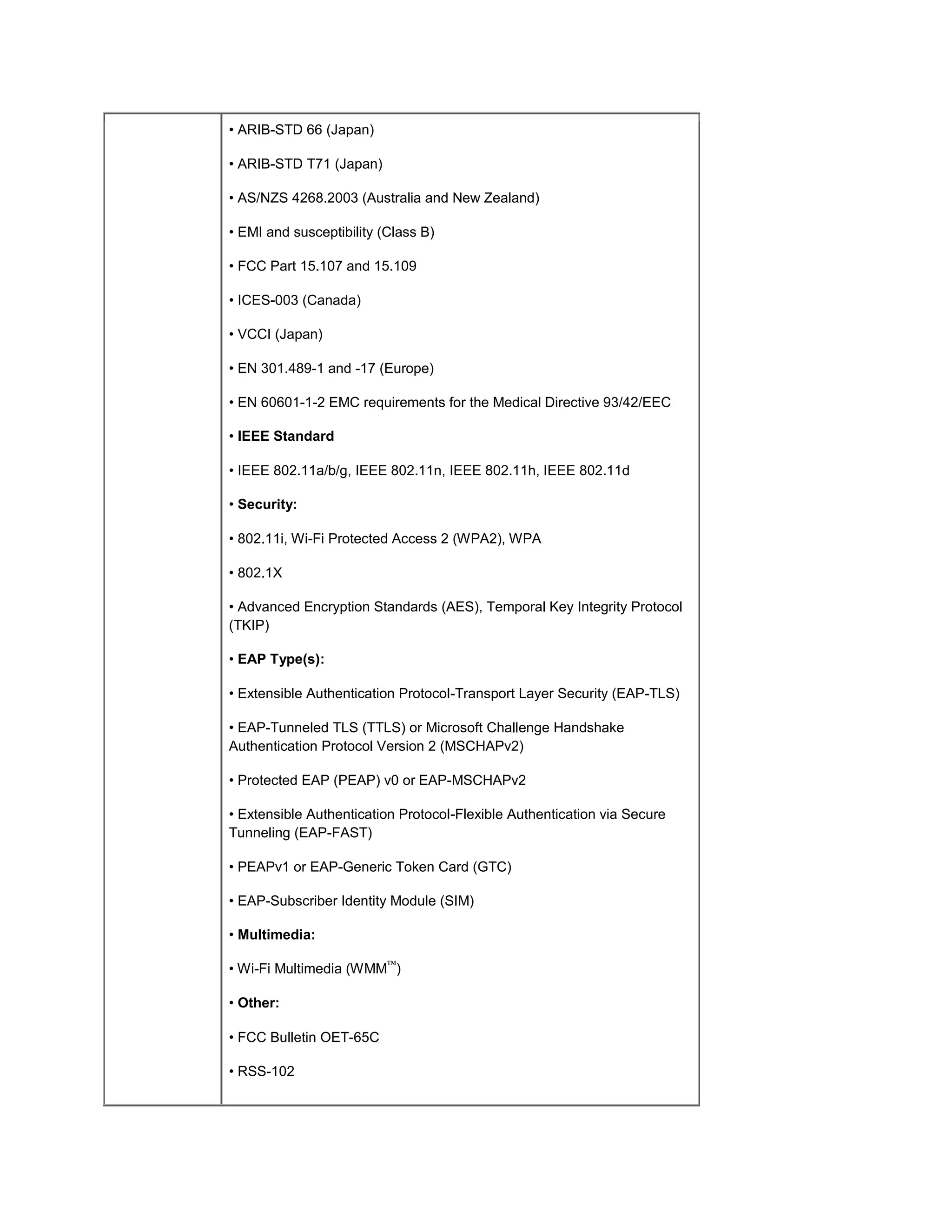

• ARIB-STD 66 (Japan)

• ARIB-STD T71 (Japan)

• AS/NZS 4268.2003 (Australia and New Zealand)

• EMI and susceptibility (Class B)

• FCC Part 15.107 and 15.109

• ICES-003 (Canada)

• VCCI (Japan)

• EN 301.489-1 and -17 (Europe)

• EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

• IEEE Standard

• IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d

• Security:

• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

• 802.1X

• Advanced Encryption Standards (AES), Temporal Key Integrity Protocol
(TKIP)

• EAP Type(s):

• Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)

• EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake
Authentication Protocol Version 2 (MSCHAPv2)

• Protected EAP (PEAP) v0 or EAP-MSCHAPv2

• Extensible Authentication Protocol-Flexible Authentication via Secure
Tunneling (EAP-FAST)

• PEAPv1 or EAP-Generic Token Card (GTC)

• EAP-Subscriber Identity Module (SIM)

• Multimedia:

• Wi-Fi Multimedia (WMM™)

• Other:

• FCC Bulletin OET-65C

• RSS-102

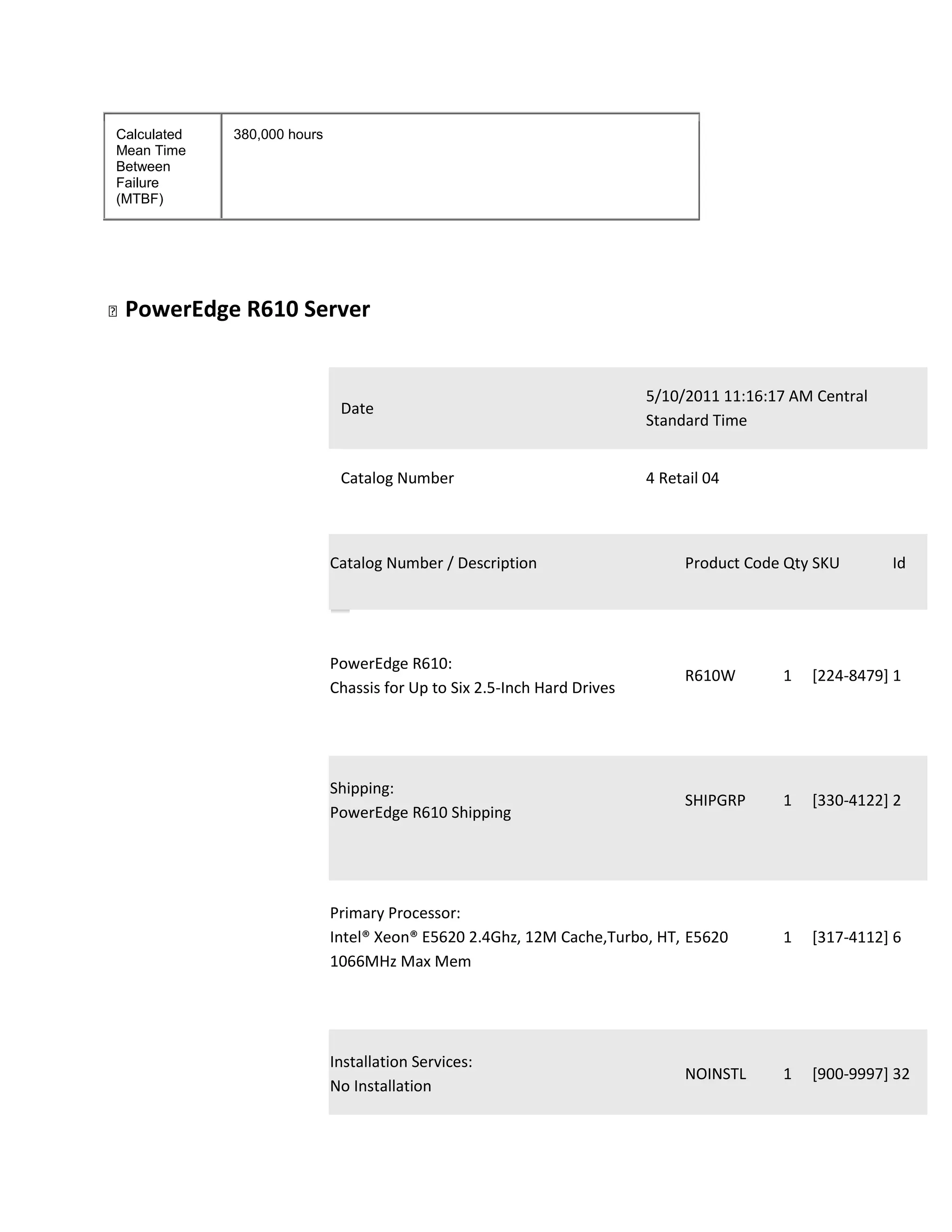

Calculated 380,000 hours
Mean Time
Between
Failure
(MTBF)

PowerEdge R610 Server

5/10/2011 11:16:17 AM Central
Date
Standard Time

Catalog Number 4 Retail 04

Catalog Number / Description Product Code Qty SKU Id

PowerEdge R610:
R610W 1 [224-8479] 1
Chassis for Up to Six 2.5-Inch Hard Drives

Shipping:
SHIPGRP 1 [330-4122] 2
PowerEdge R610 Shipping

Primary Processor:
Intel® Xeon® E5620 2.4Ghz, 12M Cache,Turbo, HT, E5620 1 [317-4112] 6
1066MHz Max Mem

Installation Services:
NOINSTL 1 [900-9997] 32
No Installation

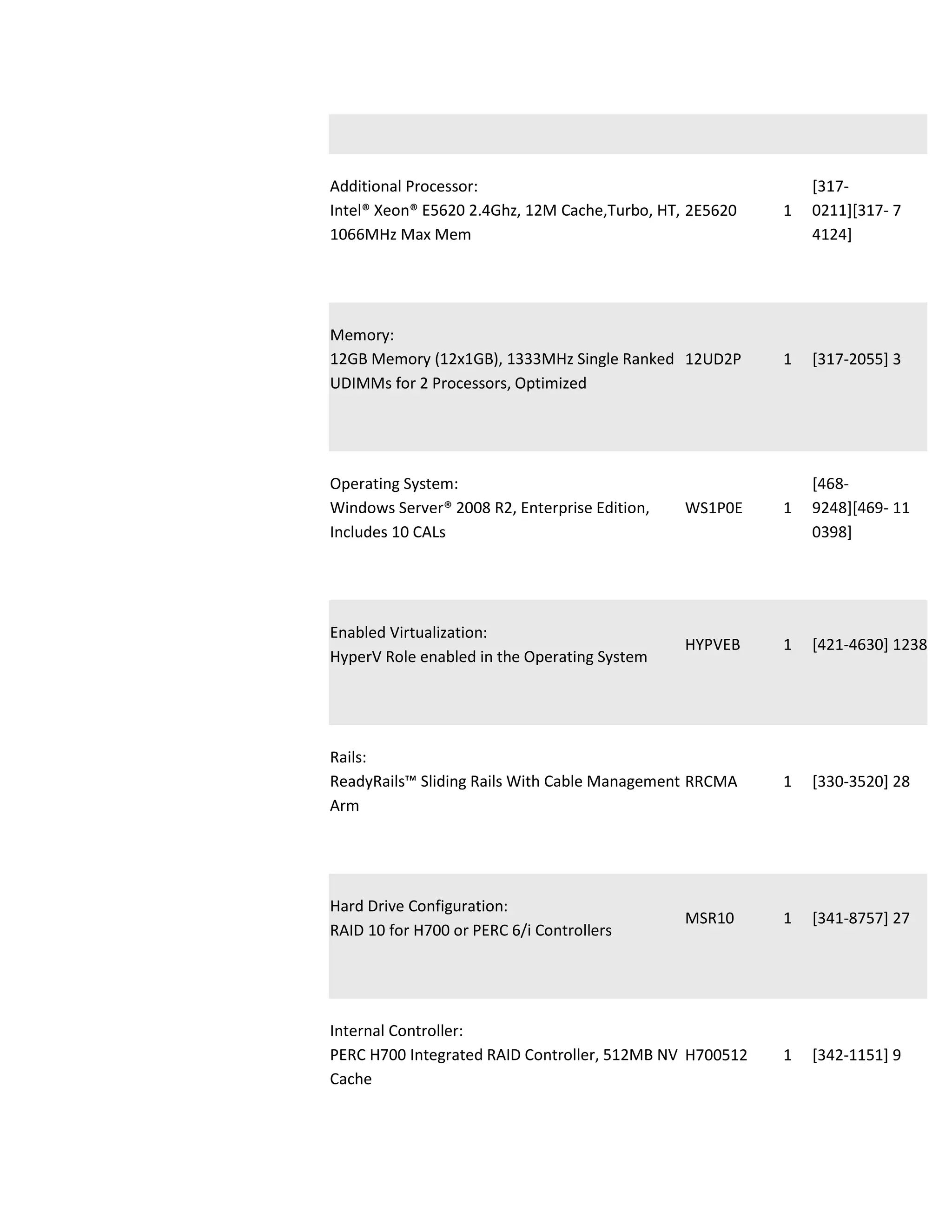

Additional Processor: [317-
Intel® Xeon® E5620 2.4Ghz, 12M Cache,Turbo, HT, 2E5620 1 0211][317- 7
1066MHz Max Mem 4124]

Memory:
12GB Memory (12x1GB), 1333MHz Single Ranked 12UD2P 1 [317-2055] 3
UDIMMs for 2 Processors, Optimized

Operating System: [468-
Windows Server® 2008 R2, Enterprise Edition, WS1P0E 1 9248][469- 11
Includes 10 CALs 0398]

Enabled Virtualization:
HYPVEB 1 [421-4630] 1238
HyperV Role enabled in the Operating System

Rails:
ReadyRails™ Sliding Rails With Cable Management RRCMA 1 [330-3520] 28
Arm

Hard Drive Configuration:
MSR10 1 [341-8757] 27
RAID 10 for H700 or PERC 6/i Controllers

Internal Controller:
PERC H700 Integrated RAID Controller, 512MB NV H700512 1 [342-1151] 9
Cache

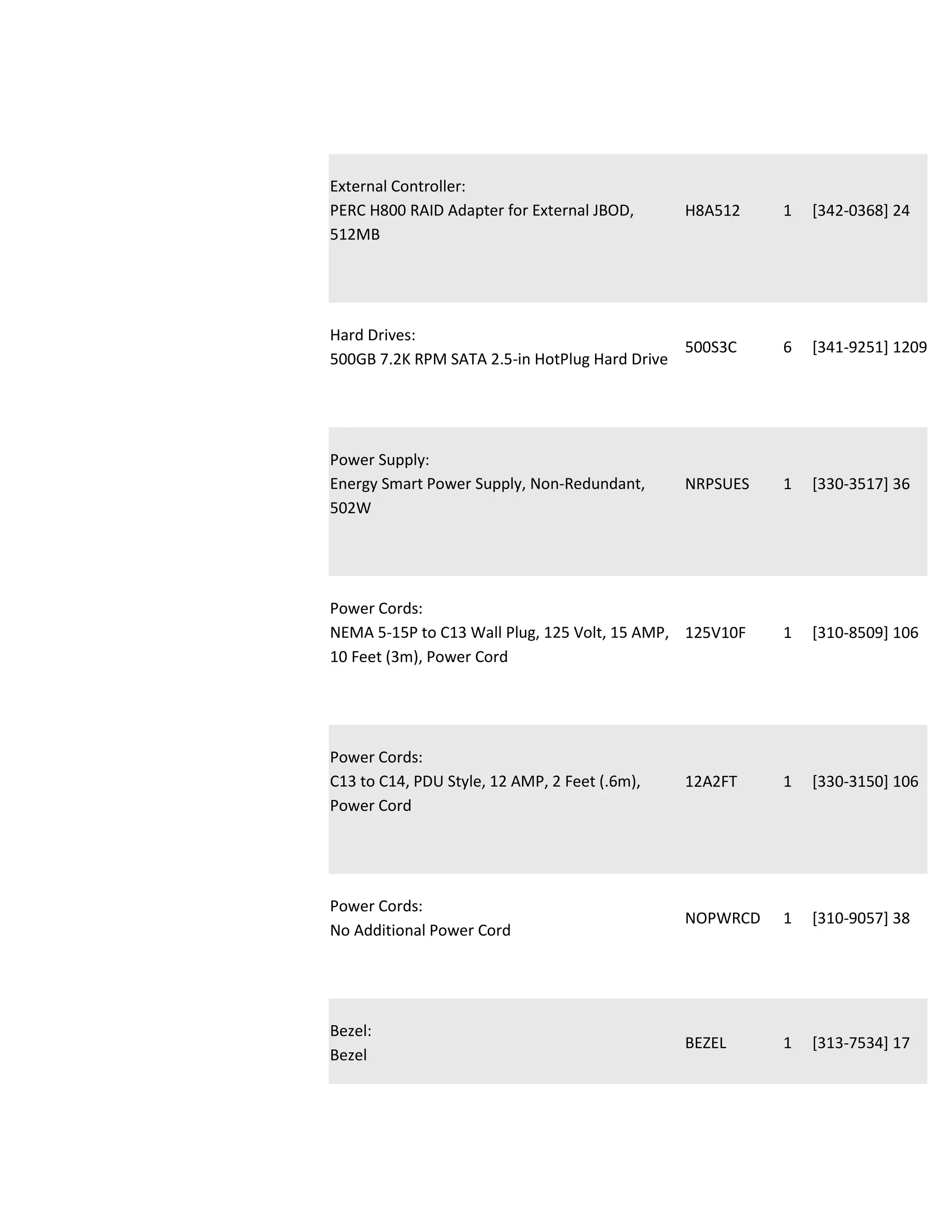

External Controller:
PERC H800 RAID Adapter for External JBOD, H8A512 1 [342-0368] 24
512MB

Hard Drives:
500S3C 6 [341-9251] 1209
500GB 7.2K RPM SATA 2.5-in HotPlug Hard Drive

Power Supply:
Energy Smart Power Supply, Non-Redundant, NRPSUES 1 [330-3517] 36
502W

Power Cords:
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 125V10F 1 [310-8509] 106
10 Feet (3m), Power Cord

Power Cords:
C13 to C14, PDU Style, 12 AMP, 2 Feet (.6m), 12A2FT 1 [330-3150] 106
Power Cord

Power Cords:
NOPWRCD 1 [310-9057] 38
No Additional Power Cord

Bezel:
BEZEL 1 [313-7534] 17
Bezel

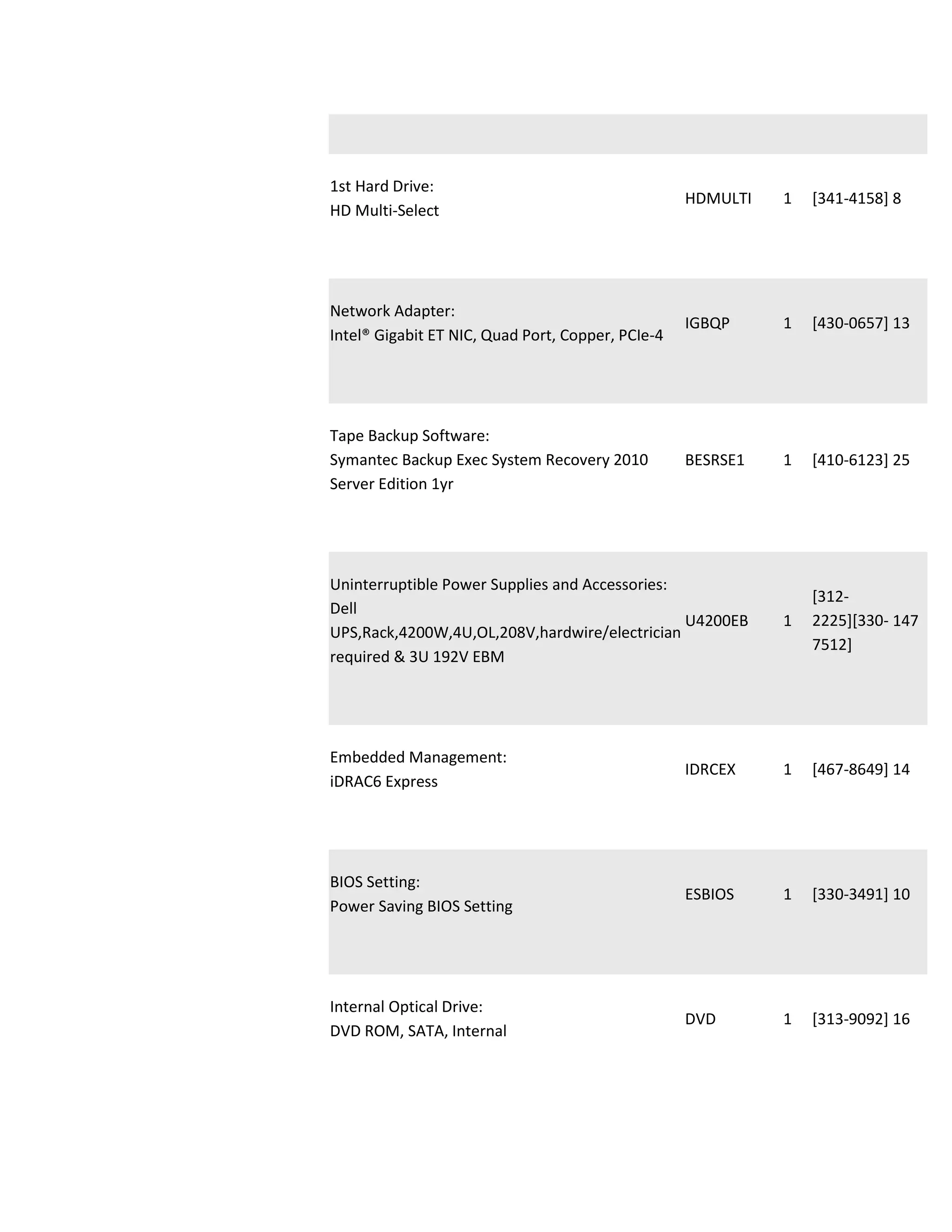

1st Hard Drive:
HDMULTI 1 [341-4158] 8
HD Multi-Select

Network Adapter:
IGBQP 1 [430-0657] 13
Intel® Gigabit ET NIC, Quad Port, Copper, PCIe-4

Tape Backup Software:
Symantec Backup Exec System Recovery 2010 BESRSE1 1 [410-6123] 25
Server Edition 1yr

Uninterruptible Power Supplies and Accessories:
[312-
Dell
U4200EB 1 2225][330- 147
UPS,Rack,4200W,4U,OL,208V,hardwire/electrician
7512]
required & 3U 192V EBM

Embedded Management:
IDRCEX 1 [467-8649] 14
iDRAC6 Express

BIOS Setting:
ESBIOS 1 [330-3491] 10
Power Saving BIOS Setting

Internal Optical Drive:
DVD 1 [313-9092] 16
DVD ROM, SATA, Internal

[320-

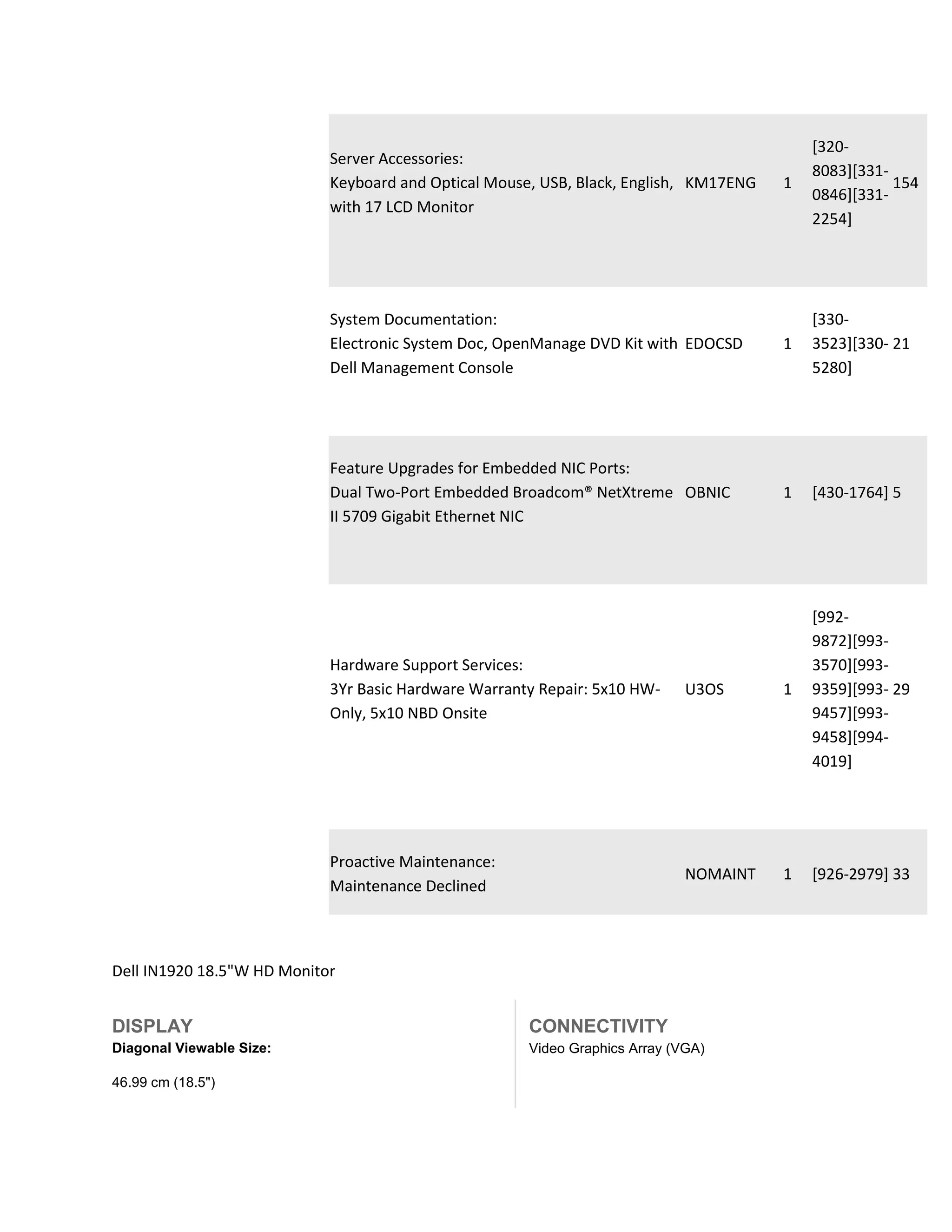

Server Accessories:
8083][331-
Keyboard and Optical Mouse, USB, Black, English, KM17ENG 1 154
0846][331-
with 17 LCD Monitor
2254]

System Documentation: [330-
Electronic System Doc, OpenManage DVD Kit with EDOCSD 1 3523][330- 21
Dell Management Console 5280]

Feature Upgrades for Embedded NIC Ports:
Dual Two-Port Embedded Broadcom® NetXtreme OBNIC 1 [430-1764] 5
II 5709 Gigabit Ethernet NIC

[992-
9872][993-
Hardware Support Services: 3570][993-
3Yr Basic Hardware Warranty Repair: 5x10 HW- U3OS 1 9359][993- 29
Only, 5x10 NBD Onsite 9457][993-
9458][994-
4019]

Proactive Maintenance:
NOMAINT 1 [926-2979] 33
Maintenance Declined

Dell IN1920 18.5"W HD Monitor

DISPLAY CONNECTIVITY
Diagonal Viewable Size: Video Graphics Array (VGA)

46.99 cm (18.5")

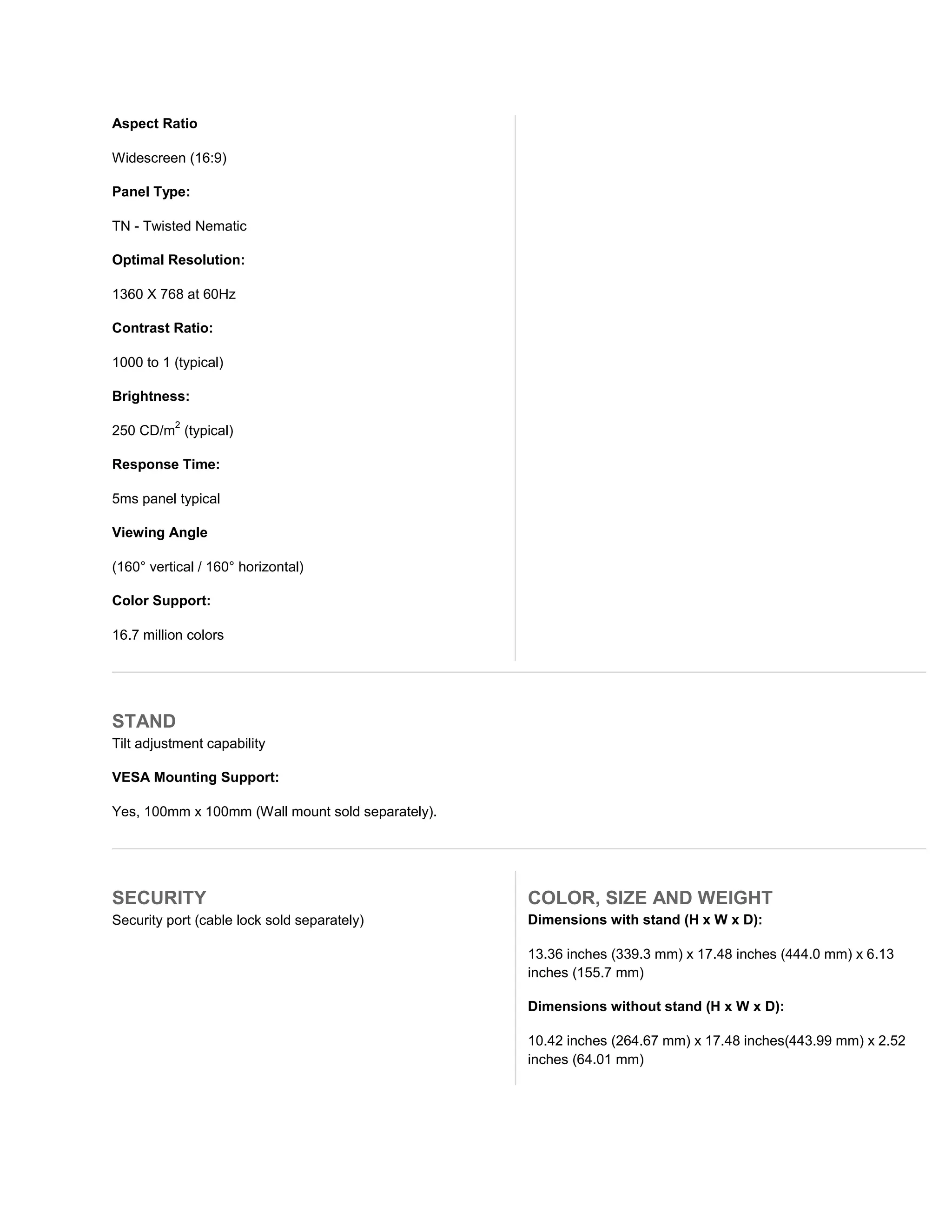

Aspect Ratio

Widescreen (16:9)

Panel Type:

TN - Twisted Nematic

Optimal Resolution:

1360 X 768 at 60Hz

Contrast Ratio:

1000 to 1 (typical)

Brightness:
2
250 CD/m (typical)

Response Time:

5ms panel typical

Viewing Angle

(160° vertical / 160° horizontal)

Color Support:

16.7 million colors

STAND
Tilt adjustment capability

VESA Mounting Support:

Yes, 100mm x 100mm (Wall mount sold separately).

SECURITY COLOR, SIZE AND WEIGHT
Security port (cable lock sold separately) Dimensions with stand (H x W x D):

13.36 inches (339.3 mm) x 17.48 inches (444.0 mm) x 6.13
inches (155.7 mm)

Dimensions without stand (H x W x D):

10.42 inches (264.67 mm) x 17.48 inches(443.99 mm) x 2.52
inches (64.01 mm)

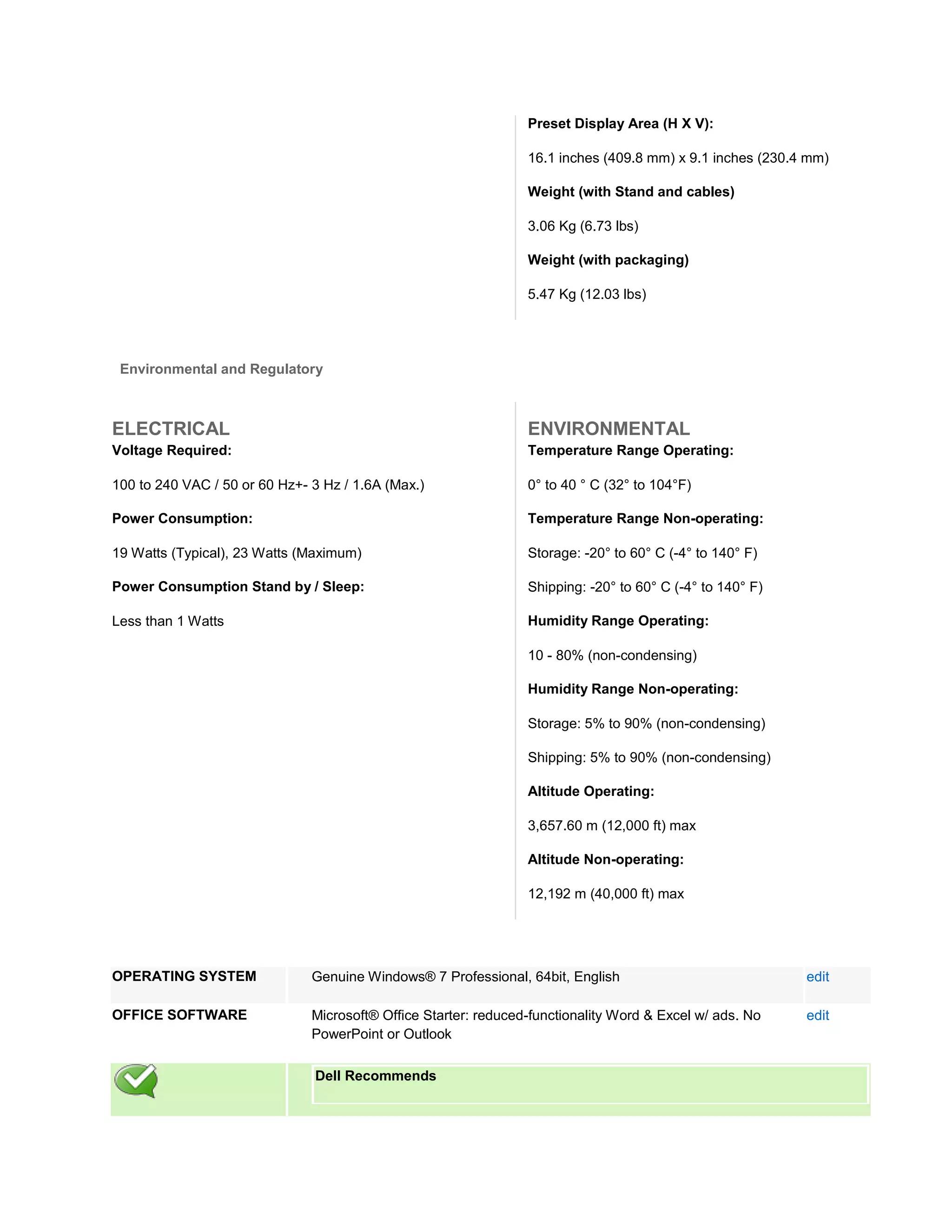

Preset Display Area (H X V):

16.1 inches (409.8 mm) x 9.1 inches (230.4 mm)

Weight (with Stand and cables)

3.06 Kg (6.73 lbs)

Weight (with packaging)

5.47 Kg (12.03 lbs)

Environmental and Regulatory

ELECTRICAL ENVIRONMENTAL
Voltage Required: Temperature Range Operating:

100 to 240 VAC / 50 or 60 Hz+- 3 Hz / 1.6A (Max.) 0° to 40 ° C (32° to 104°F)

Power Consumption: Temperature Range Non-operating:

19 Watts (Typical), 23 Watts (Maximum) Storage: -20° to 60° C (-4° to 140° F)

Power Consumption Stand by / Sleep: Shipping: -20° to 60° C (-4° to 140° F)

Less than 1 Watts Humidity Range Operating:

10 - 80% (non-condensing)

Humidity Range Non-operating:

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Altitude Operating:

3,657.60 m (12,000 ft) max

Altitude Non-operating:

12,192 m (40,000 ft) max

OPERATING SYSTEM Genuine Windows® 7 Professional, 64bit, English edit

OFFICE SOFTWARE Microsoft® Office Starter: reduced-functionality Word & Excel w/ ads. No edit
PowerPoint or Outlook

Dell Recommends

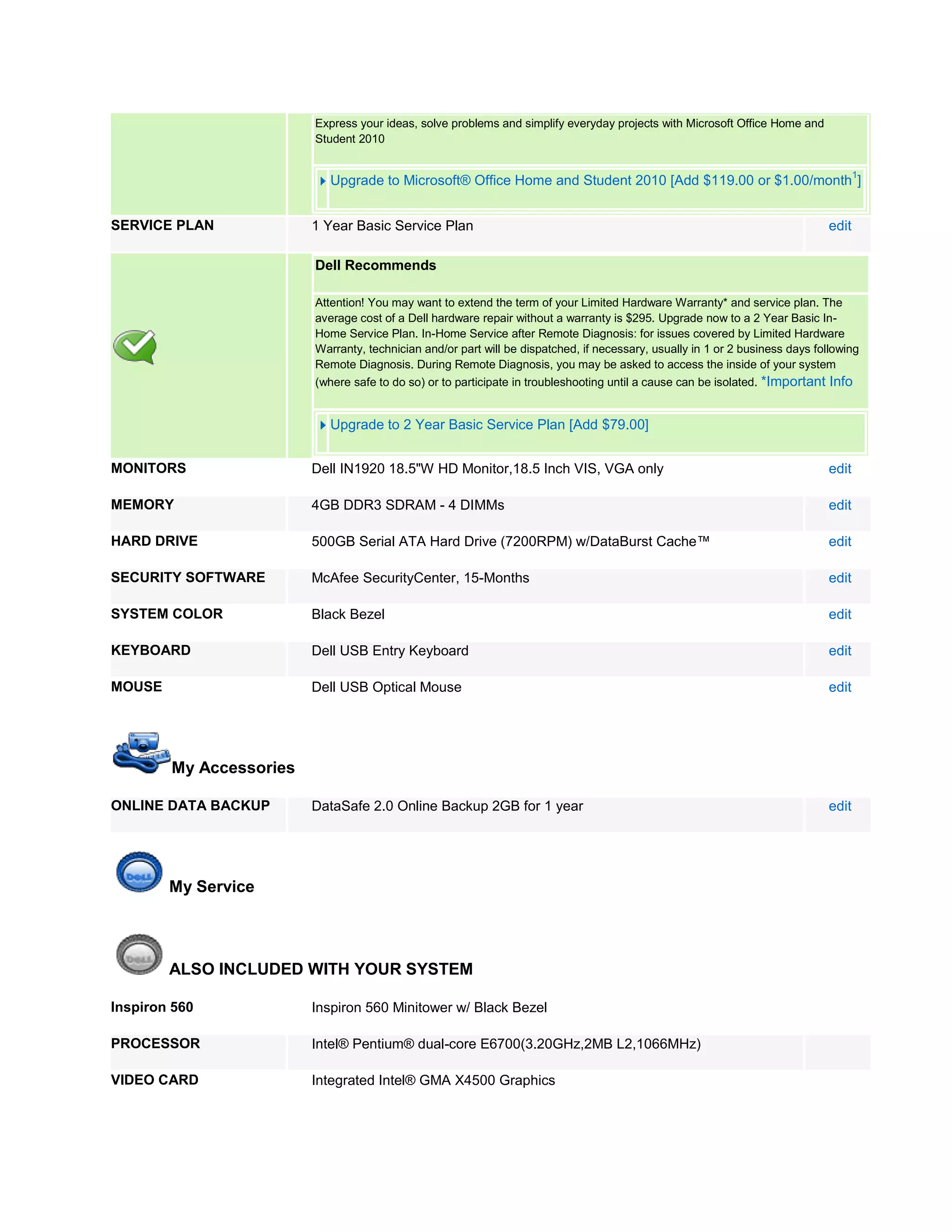

Express your ideas, solve problems and simplify everyday projects with Microsoft Office Home and
Student 2010

1
Upgrade to Microsoft® Office Home and Student 2010 [Add $119.00 or $1.00/month ]

SERVICE PLAN 1 Year Basic Service Plan edit

Dell Recommends

Attention! You may want to extend the term of your Limited Hardware Warranty* and service plan. The
average cost of a Dell hardware repair without a warranty is $295. Upgrade now to a 2 Year Basic In-
Home Service Plan. In-Home Service after Remote Diagnosis: for issues covered by Limited Hardware
Warranty, technician and/or part will be dispatched, if necessary, usually in 1 or 2 business days following
Remote Diagnosis. During Remote Diagnosis, you may be asked to access the inside of your system
(where safe to do so) or to participate in troubleshooting until a cause can be isolated. *Important Info

Upgrade to 2 Year Basic Service Plan [Add $79.00]

MONITORS Dell IN1920 18.5"W HD Monitor,18.5 Inch VIS, VGA only edit

MEMORY 4GB DDR3 SDRAM - 4 DIMMs edit

HARD DRIVE 500GB Serial ATA Hard Drive (7200RPM) w/DataBurst Cache™ edit

SECURITY SOFTWARE McAfee SecurityCenter, 15-Months edit

SYSTEM COLOR Black Bezel edit

KEYBOARD Dell USB Entry Keyboard edit

MOUSE Dell USB Optical Mouse edit

My Accessories

ONLINE DATA BACKUP DataSafe 2.0 Online Backup 2GB for 1 year edit

My Service

ALSO INCLUDED WITH YOUR SYSTEM

Inspiron 560 Inspiron 560 Minitower w/ Black Bezel

PROCESSOR Intel® Pentium® dual-core E6700(3.20GHz,2MB L2,1066MHz)

VIDEO CARD Integrated Intel® GMA X4500 Graphics

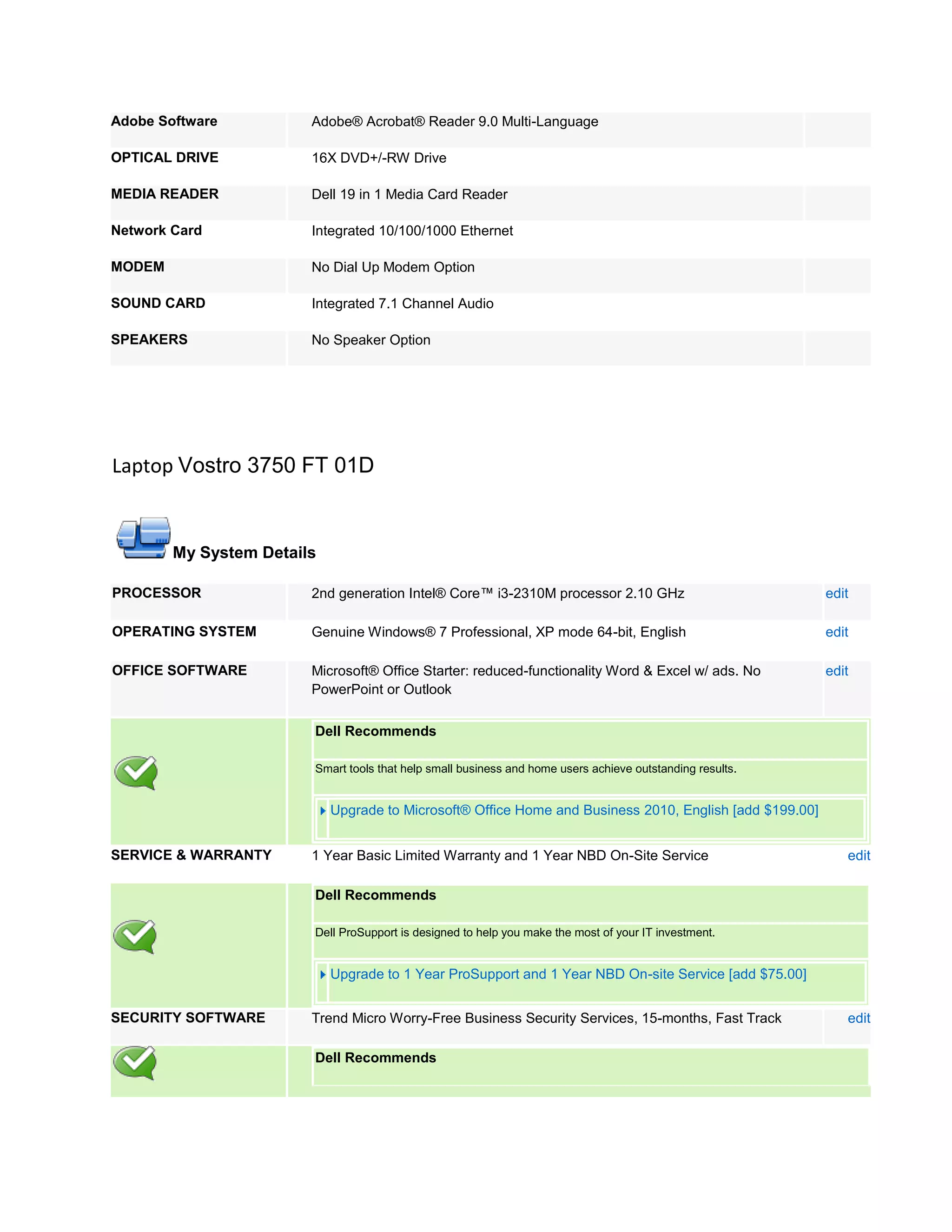

Adobe Software Adobe® Acrobat® Reader 9.0 Multi-Language

OPTICAL DRIVE 16X DVD+/-RW Drive

MEDIA READER Dell 19 in 1 Media Card Reader

Network Card Integrated 10/100/1000 Ethernet

MODEM No Dial Up Modem Option

SOUND CARD Integrated 7.1 Channel Audio

SPEAKERS No Speaker Option

Laptop Vostro 3750 FT 01D

My System Details

PROCESSOR 2nd generation Intel® Core™ i3-2310M processor 2.10 GHz edit

OPERATING SYSTEM Genuine Windows® 7 Professional, XP mode 64-bit, English edit

OFFICE SOFTWARE Microsoft® Office Starter: reduced-functionality Word & Excel w/ ads. No edit
PowerPoint or Outlook

Dell Recommends

Smart tools that help small business and home users achieve outstanding results.

Upgrade to Microsoft® Office Home and Business 2010, English [add $199.00]

SERVICE & WARRANTY 1 Year Basic Limited Warranty and 1 Year NBD On-Site Service edit

Dell Recommends

Dell ProSupport is designed to help you make the most of your IT investment.

Upgrade to 1 Year ProSupport and 1 Year NBD On-site Service [add $75.00]

SECURITY SOFTWARE Trend Micro Worry-Free Business Security Services, 15-months, Fast Track edit

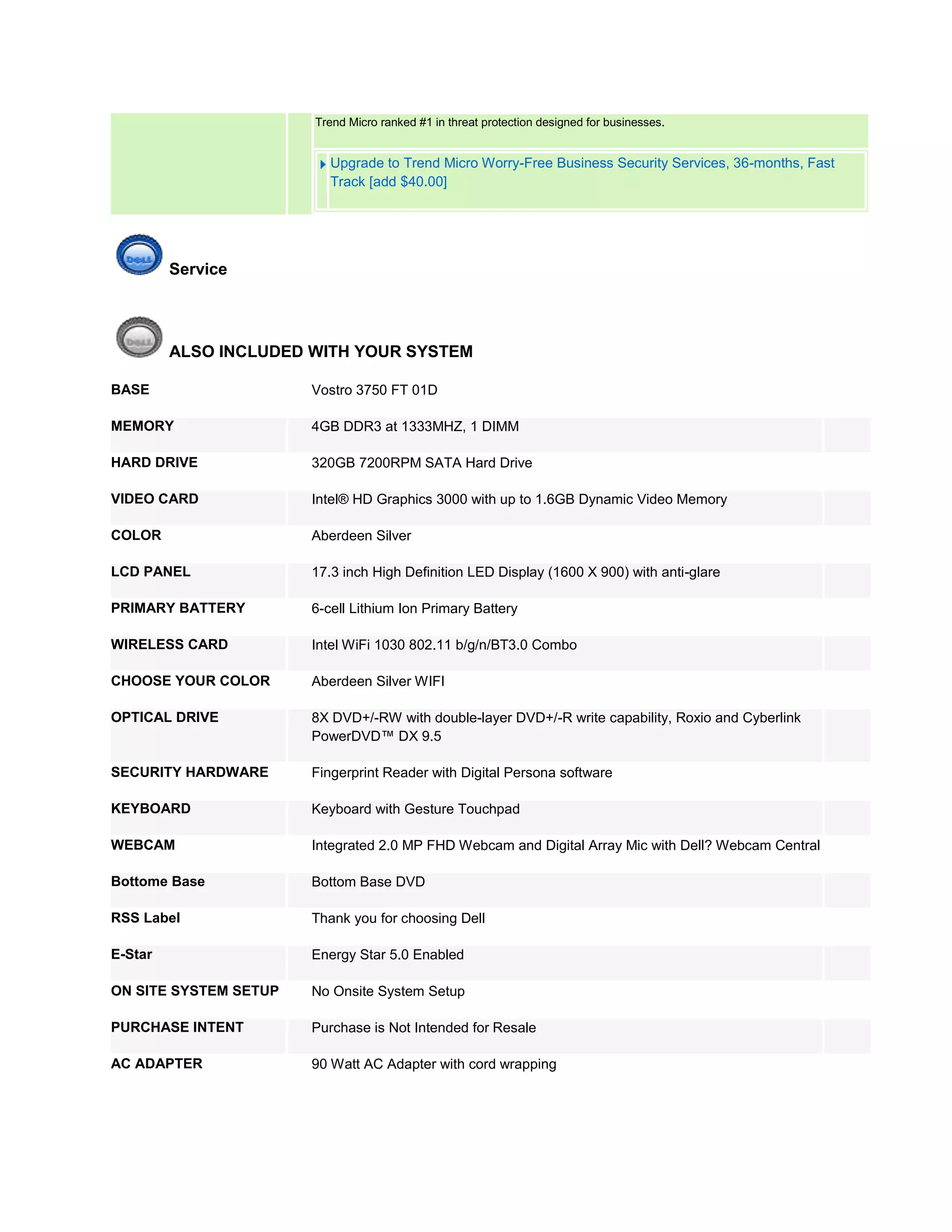

Dell Recommends

Trend Micro ranked #1 in threat protection designed for businesses.

Upgrade to Trend Micro Worry-Free Business Security Services, 36-months, Fast
Track [add $40.00]

Service

ALSO INCLUDED WITH YOUR SYSTEM

BASE Vostro 3750 FT 01D

MEMORY 4GB DDR3 at 1333MHZ, 1 DIMM

HARD DRIVE 320GB 7200RPM SATA Hard Drive

VIDEO CARD Intel® HD Graphics 3000 with up to 1.6GB Dynamic Video Memory

COLOR Aberdeen Silver

LCD PANEL 17.3 inch High Definition LED Display (1600 X 900) with anti-glare

PRIMARY BATTERY 6-cell Lithium Ion Primary Battery

WIRELESS CARD Intel WiFi 1030 802.11 b/g/n/BT3.0 Combo

CHOOSE YOUR COLOR Aberdeen Silver WIFI

OPTICAL DRIVE 8X DVD+/-RW with double-layer DVD+/-R write capability, Roxio and Cyberlink
PowerDVD™ DX 9.5

SECURITY HARDWARE Fingerprint Reader with Digital Persona software

KEYBOARD Keyboard with Gesture Touchpad

WEBCAM Integrated 2.0 MP FHD Webcam and Digital Array Mic with Dell? Webcam Central

Bottome Base Bottom Base DVD

RSS Label Thank you for choosing Dell

E-Star Energy Star 5.0 Enabled

ON SITE SYSTEM SETUP No Onsite System Setup

PURCHASE INTENT Purchase is Not Intended for Resale

AC ADAPTER 90 Watt AC Adapter with cord wrapping

Network project

More Related Content

What's hot

Viewers also liked

Similar to Network project

Recently uploaded

Network project
