Wireless Technologies Catalog - 2016
4G // Router // Switch // Vehicle WiFi // Bluetooth

2. Page 1
Table of Contents
Index ..........................................................................................................................................................................1
Introduction ...............................................................................................................................................................2
Outdoor Wireless Series.............................................................................................................................................3
Router Series..............................................................................................................................................................4
Portable Modem Series..............................................................................................................................................5
USB Dongle Series ......................................................................................................................................................6
Access Point/Ceiling Series.........................................................................................................................................7
Power-line Adapter Series..........................................................................................................................................8
Managed/Unmanaged Switch Series .........................................................................................................................9

3. Page 2

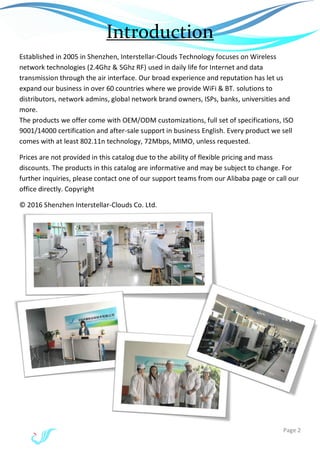

Introduction
Established in 2005 in Shenzhen, Interstellar-Clouds Technology focuses on Wireless
network technologies (2.4Ghz & 5Ghz RF) used in daily life for Internet and data
transmission through the air interface. Our broad experience and reputation has let us
expand our business in over 60 countries where we provide WiFi & BT. solutions to
distributors, network admins, global network brand owners, ISPs, banks, universities and
more.
The products we offer come with OEM/ODM customizations, full set of specifications, ISO
9001/14000 certification and after-sale support in business English. Every product we sell
comes with at least 802.11n technology, 72Mbps, MIMO, unless requested.
Prices are not provided in this catalog due to the ability of flexible pricing and mass
discounts. The products in this catalog are informative and may be subject to change. For
further inquiries, please contact one of our support teams from our Alibaba page or call our
office directly. Copyright
© 2016 Shenzhen Interstellar-Clouds Co. Ltd.

4. Page 3

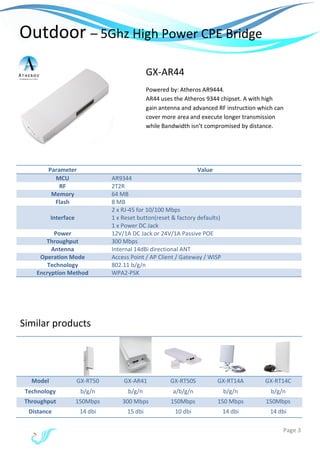

Outdoor – 5Ghz High Power CPE Bridge
Parameter Value
MCU AR9344
RF 2T2R
Memory 64 MB
Flash 8 MB
Interface
2 x RJ-45 for 10/100 Mbps
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power 12V/1A DC Jack or 24V/1A Passive POE
Throughput 300 Mbps
Antenna Internal 14dBi directional ANT
Operation Mode Access Point / AP Client / Gateway / WISP
Technology 802.11 b/g/n
Encryption Method WPA2-PSK
Model GX-RT50 GX-AR41 GX-RT50S GX-RT14A GX-RT14C
Technology b/g/n b/g/n a/b/g/n b/g/n b/g/n
Throughput 150Mbps 300 Mbps 150Mbps 150 Mbps 150Mbps
Distance 14 dbi 15 dbi 10 dbi 14 dbi 14 dbi
GX-AR44
Powered by: Atheros AR9444.
AR44 uses the Atheros 9344 chipset. A with high
gain antenna and advanced RF instruction which can
cover more area and execute longer transmission
while Bandwidth isn’t compromised by distance.
Similar products

5. Page 4

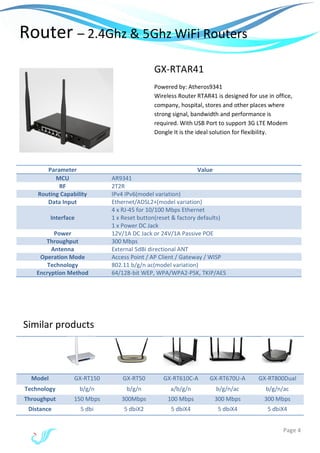

Router – 2.4Ghz & 5Ghz WiFi Routers
Parameter Value
MCU AR9341
RF 2T2R
Routing Capability IPv4 IPv6(model variation)
Data Input Ethernet/ADSL2+(model variation)
Interface
4 x RJ-45 for 10/100 Mbps Ethernet
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power 12V/1A DC Jack or 24V/1A Passive POE
Throughput 300 Mbps
Antenna External 5dBi directional ANT
Operation Mode Access Point / AP Client / Gateway / WISP
Technology 802.11 b/g/n ac(model variation)
Encryption Method 64/128-bit WEP, WPA/WPA2-PSK, TKIP/AES
Model GX-RT150 GX-RT50 GX-RT610C-A GX-RT670U-A GX-RT800Dual
Technology b/g/n b/g/n a/b/g/n b/g/n/ac b/g/n/ac
Throughput 150 Mbps 300Mbps 100 Mbps 300 Mbps 300 Mbps
Distance 5 dbi 5 dbiX2 5 dbiX4 5 dbiX4 5 dbiX4
GX-RTAR41
Powered by: Atheros9341
Wireless Router RTAR41 is designed for use in office,
company, hospital, stores and other places where
strong signal, bandwidth and performance is
required. With USB Port to support 3G LTE Modem
Dongle It is the ideal solution for flexibility.
Similar products

6. Page 5

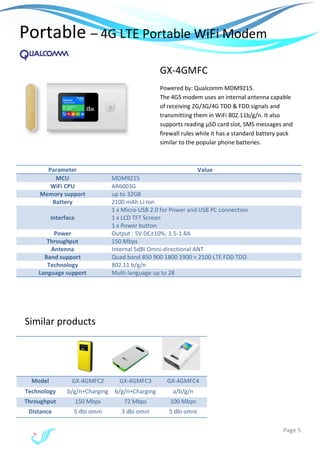

Portable – 4G LTE Portable WiFi Modem
Parameter Value
MCU MDM9215
WiFi CPU AR6003G
Memory support up to 32GB
Battery 2100 mAh Li-Ion
Interface
1 x Micro-USB 2.0 for Power and USB PC connection
1 x LCD TFT Screen
1 x Power button
Power Output : 5V DC±10%; 1.5-1.8A
Throughput 150 Mbps
Antenna Internal 5dBi Omni-directional ANT
Band support Quad band 850 900 1800 1900 + 2100 LTE FDD TDD
Technology 802.11 b/g/n
Language support Multi-language up to 28
Model GX-4GMFC2 GX-4GMFC3 GX-4GMFC4
Technology b/g/n+Charging b/g/n+Charging a/b/g/n
Throughput 150 Mbps 72 Mbps 100 Mbps
Distance 5 dbi omni 3 dbi omni 5 dbi omni
GX-4GMFC
Powered by: Qualcomm MDM9215.
The 4GS modem uses an internal antenna capable
of receiving 2G/3G/4G TDD & FDD signals and
transmitting them in WiFi 802.11b/g/n. It also
supports reading µSD card slot, SMS messages and
firewall rules while it has a standard battery pack
similar to the popular phone batteries.
Similar products

7. Page 6

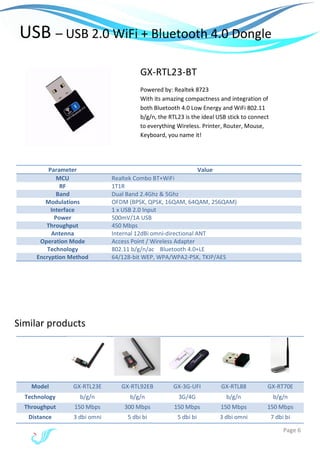

USB – USB 2.0 WiFi + Bluetooth 4.0 Dongle
Parameter Value
MCU Realtek Combo BT+WiFi
RF 1T1R
Band Dual Band 2.4Ghz & 5Ghz
Modulations OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM)
Interface 1 x USB 2.0 Input
Power 500mV/1A USB
Throughput 450 Mbps
Antenna Internal 12dBi omni-directional ANT
Operation Mode Access Point / Wireless Adapter
Technology 802.11 b/g/n/ac Bluetooth 4.0+LE
Encryption Method 64/128-bit WEP, WPA/WPA2-PSK, TKIP/AES
Model GX-RTL23E GX-RTL92EB GX-3G-UFI GX-RTL88 GX-RT70E
Technology b/g/n b/g/n 3G/4G b/g/n b/g/n
Throughput 150 Mbps 300 Mbps 150 Mbps 150 Mbps 150 Mbps
Distance 3 dbi omni 5 dbi bi 5 dbi bi 3 dbi omni 7 dbi bi
GX-RTL23-BT
Powered by: Realtek 8723
With its amazing compactness and integration of
both Bluetooth 4.0 Low Energy and WiFi 802.11
b/g/n, the RTL23 is the ideal USB stick to connect
to everything Wireless. Printer, Router, Mouse,
Keyboard, you name it!
Similar products

8. Page 7
AP – Ceiling/Car Access Point (PoE)
Parameter Value
MCU AR9341
RF 2T2R
Modulations OFDM, DSSS, MIMO-OFDM
Frequencies 2.4Ghz
Interface
2 x RJ-45 for 10/100 Mbps
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power 12V/1A DC Jack or 48V 802.3af POE
Throughput 300 Mbps
Antenna Internal 5dBi PCB trace ANT
Operation Mode Access Point / AP Client / Gateway / WISP
Technology 802.11 b/g/n
Encryption Method WPA2-PSK, WPA-Enterprise (TKIP), WEP
Model GX-CRAR45 GX-CRARX Car GX-AR100 GX-AR150 GX-AR450
Technology b/g/n b/g/n a/b/g/n b/g/n b/g/n/ac
Throughput 100 Mbps 300 Mbps 300 Mbps 300 Mbps 750 Mbps
Distance 7 dbi 5 dbi omni 5 dbi 5 dbi 5 dbi
GX-CRAR41
Powered by: AR9341
There are times where your Wireless setup just
shouldn’t be noticed at all, so for this, there is the
CRAR41 Access point. Powered by either P. jack or
PoE, it is the ideal setup in universities, shops,
kitchens and offices.

9. Page 8

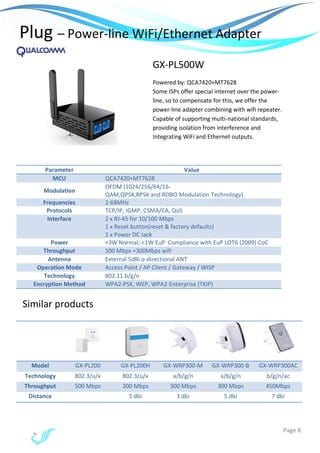

Plug – Power-line WiFi/Ethernet Adapter
Model GX-PL200 GX-PL200H GX-WRP300-M GX-WRP300-B GX-WRP300AC
Technology 802.3/u/x 802.3/u/x a/b/g/n a/b/g/n b/g/n/ac
Throughput 500 Mbps 200 Mbps 300 Mbps 300 Mbps 450Mbps
Distance 5 dbi 3 dbi 5 dbi 7 dbi
Parameter Value
MCU QCA7420+MT7628
Modulation
OFDM (1024/256/64/16-
QAM,QPSK,BPSK and ROBO Modulation Technology)
Frequencies 2-68MHz
Protocols TCP/IP, IGMP, CSMA/CA, QoS
Interface 2 x RJ-45 for 10/100 Mbps
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power <3W Normal; <1W EuP Compliance with EuP LOT6 (2009) CoC
Throughput 500 Mbps +300Mbps wifi
Antenna External 5dBi o-directional ANT
Operation Mode Access Point / AP Client / Gateway / WISP
Technology 802.11 b/g/n
Encryption Method WPA2-PSK, WEP, WPA2-Enterprise (TKIP)
GX-PL500W
Powered by: QCA7420+MT7628
Some ISPs offer special internet over the power-
line, so to compensate for this, we offer the
power-line adapter combining with wifi repeater.
Capable of supporting multi-national standards,
providing isolation from interference and
Integrating WiFi and Ethernet outputs.
Similar products

10. Page 9

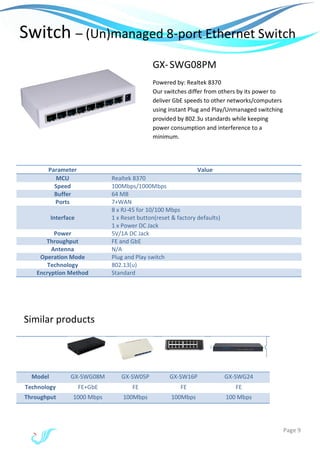

Switch – (Un)managed 8-port Ethernet Switch
Parameter Value
MCU Realtek 8370
Speed 100Mbps/1000Mbps
Buffer 64 MB
Ports 7+WAN
Interface
8 x RJ-45 for 10/100 Mbps
1 x Reset button(reset & factory defaults)
1 x Power DC Jack
Power 5V/1A DC Jack
Throughput FE and GbE
Antenna N/A
Operation Mode Plug and Play switch
Technology 802.13(u)
Encryption Method Standard
Model GX-SWG08M GX-SW05P GX-SW16P GX-SWG24
Technology FE+GbE FE FE FE
Throughput 1000 Mbps 100Mbps 100Mbps 100 Mbps
GX-SWG08PM
Powered by: Realtek 8370
Our switches differ from others by its power to
deliver GbE speeds to other networks/computers
using instant Plug and Play/Unmanaged switching
provided by 802.3u standards while keeping
power consumption and interference to a
minimum.
Similar products

11. Page 10

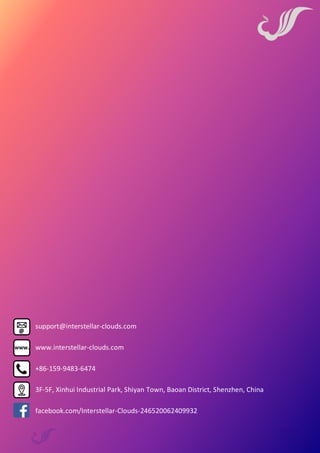

support@interstellar-clouds.com
