1. © 2015 Nebulaworks, Inc., All rights reserved.
DOCKER:
THE ANYWHERE FRAMEWORK
Chris Ciborowski
September, 22 2015

2. © 2015 Nebulaworks, Inc., All rights reserved.
A BIT ABOUT @CHRISCIBOROWSKI
§ Founder & Managing Partner at Nebulaworks
̶ Technology & Engineering
§ Been working with UNIX my entire career
̶ Solaris and Linux, automation
̶ Open source supporter
§ Large-scale enterprise challenges are my thing
̶ DevOps, scale, performance
2

3. © 2015 Nebulaworks, Inc., All rights reserved.

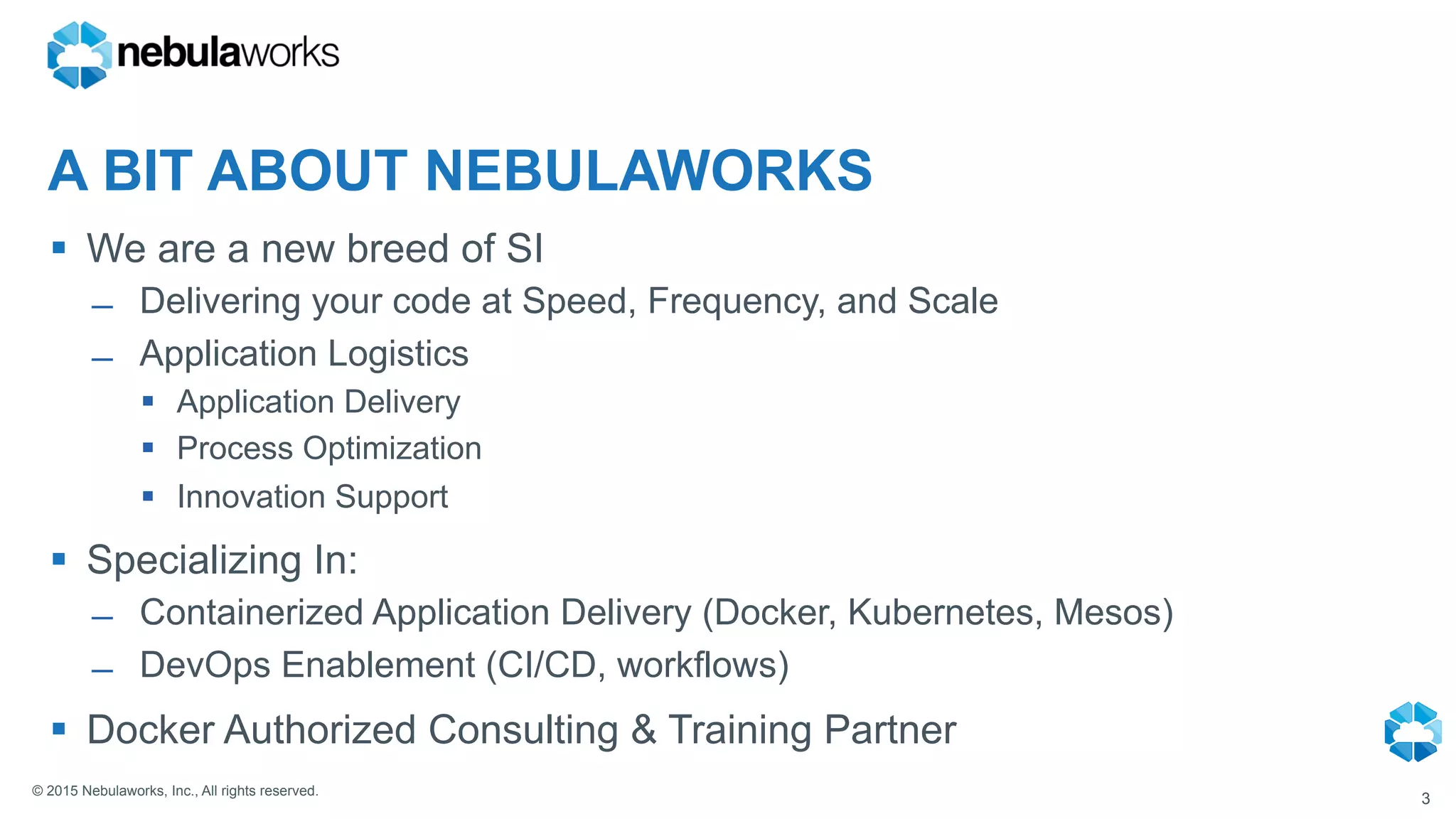

A BIT ABOUT NEBULAWORKS
§ We are a new breed of SI
̶ Delivering your code at Speed, Frequency, and Scale
̶ Application Logistics
§ Application Delivery
§ Process Optimization
§ Innovation Support
§ Specializing In:
̶ Containerized Application Delivery (Docker, Kubernetes, Mesos)
̶ DevOps Enablement (CI/CD, workflows)
§ Docker Authorized Consulting & Training Partner
3

4. © 2015 Nebulaworks, Inc., All rights reserved.
AGENDA
§ Today’s challenges, how does Docker help?
§ Docker, the platform
§ DevOps workflows & challenges
§ Containers in production
§ Extended technology ecosystem
4

5. © 2015 Nebulaworks, Inc., All rights reserved.

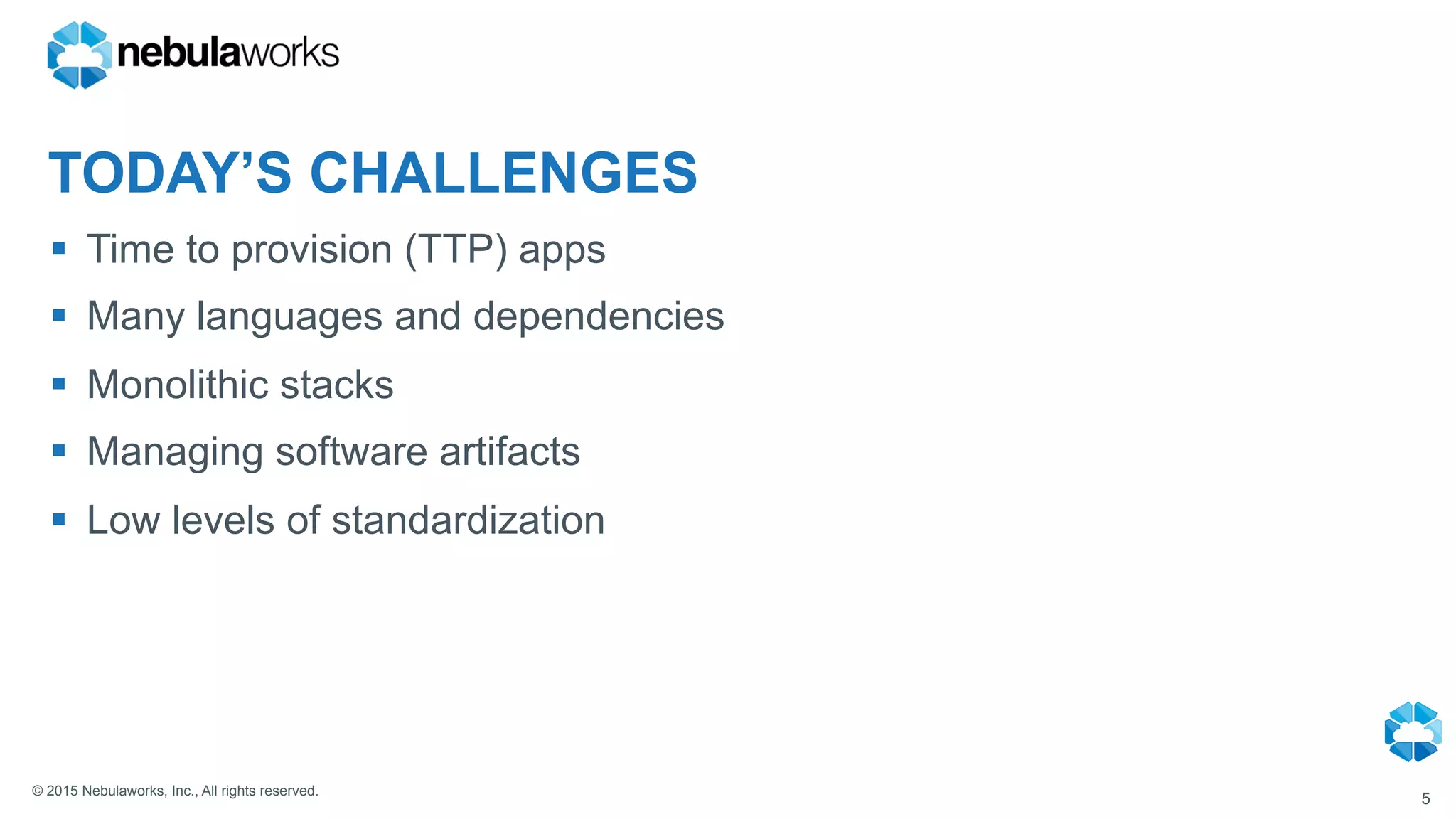

TODAY’S CHALLENGES
§ Time to provision (TTP) apps
§ Many languages and dependencies
§ Monolithic stacks
§ Managing software artifacts
§ Low levels of standardization
5

6. © 2015 Nebulaworks, Inc., All rights reserved.

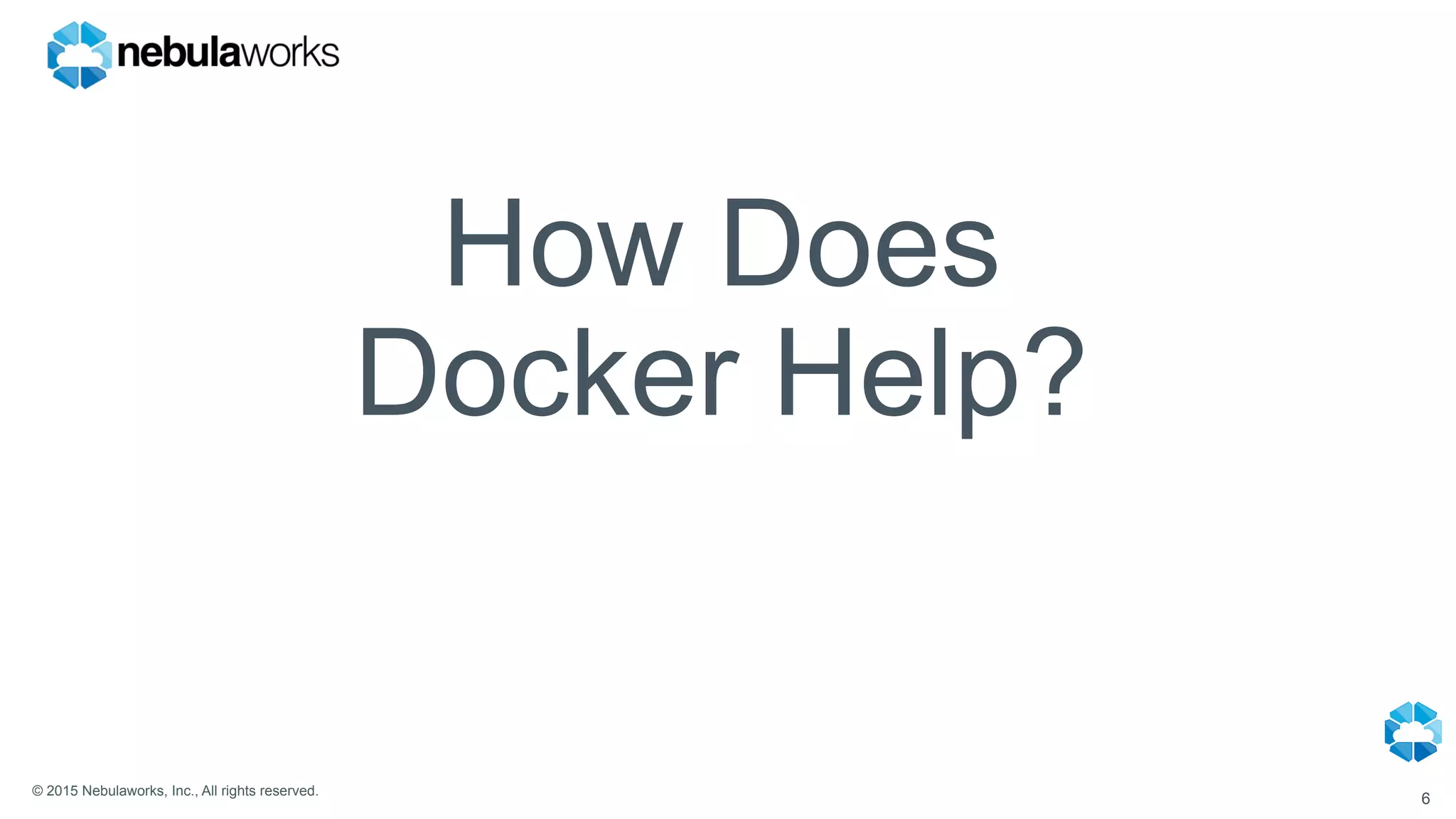

How Does
Docker Help?
6

7. © 2015 Nebulaworks, Inc., All rights reserved.

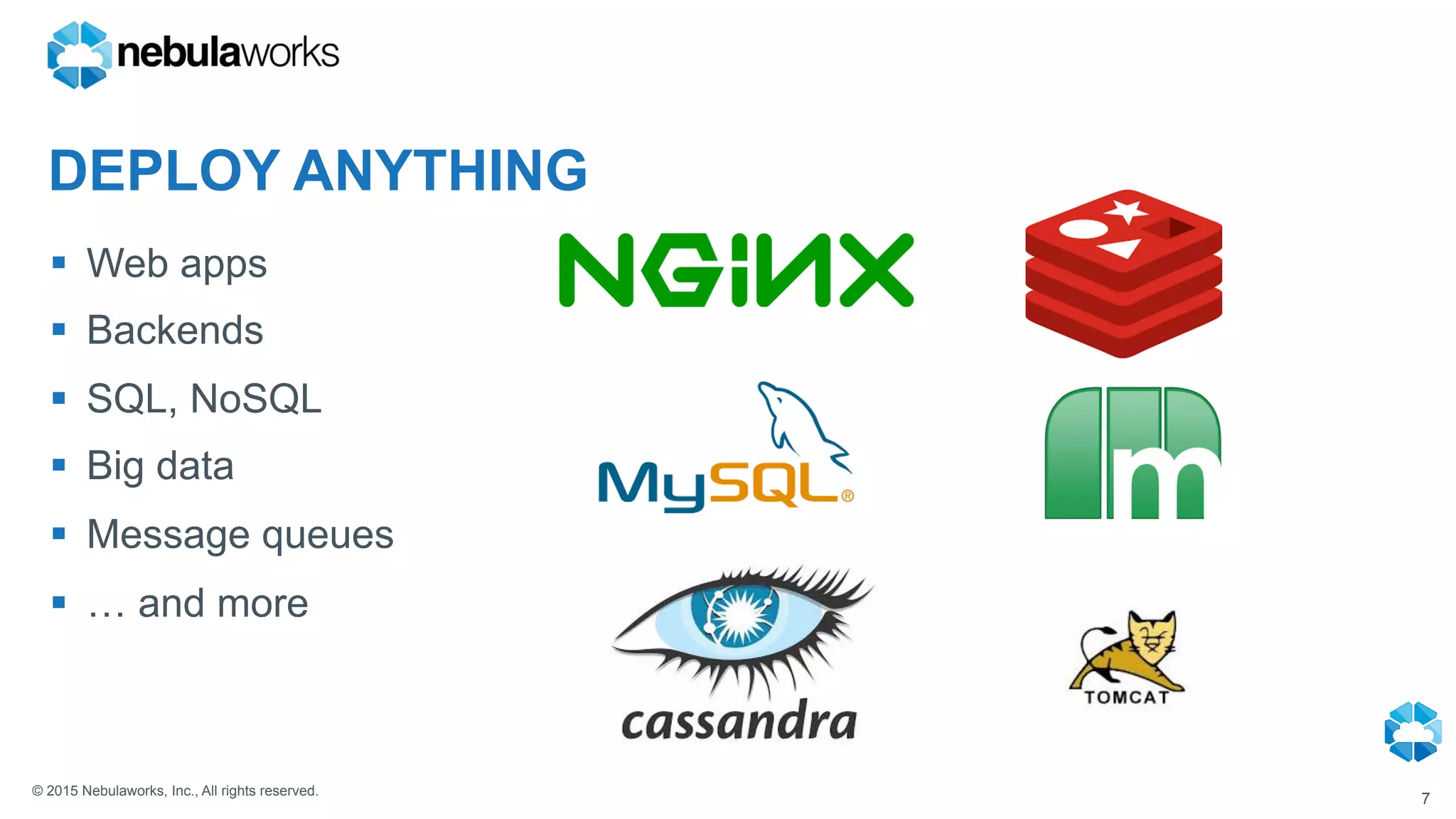

DEPLOY ANYTHING
§ Web apps
§ Backends
§ SQL, NoSQL
§ Big data
§ Message queues
§ … and more
7

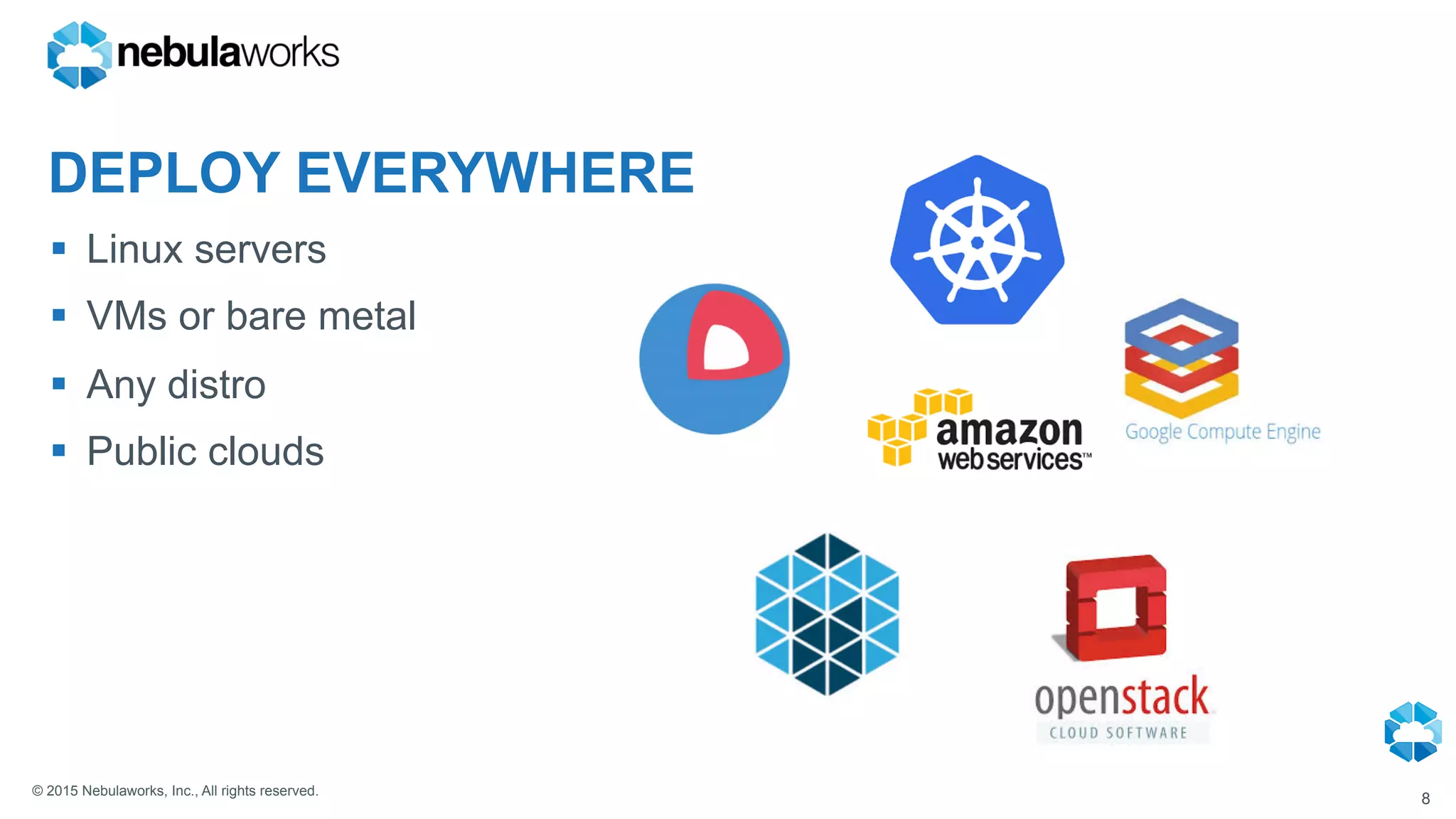

8. © 2015 Nebulaworks, Inc., All rights reserved.
DEPLOY EVERYWHERE
§ Linux servers
§ VMs or bare metal
§ Any distro
§ Public clouds
8

9. © 2015 Nebulaworks, Inc., All rights reserved.

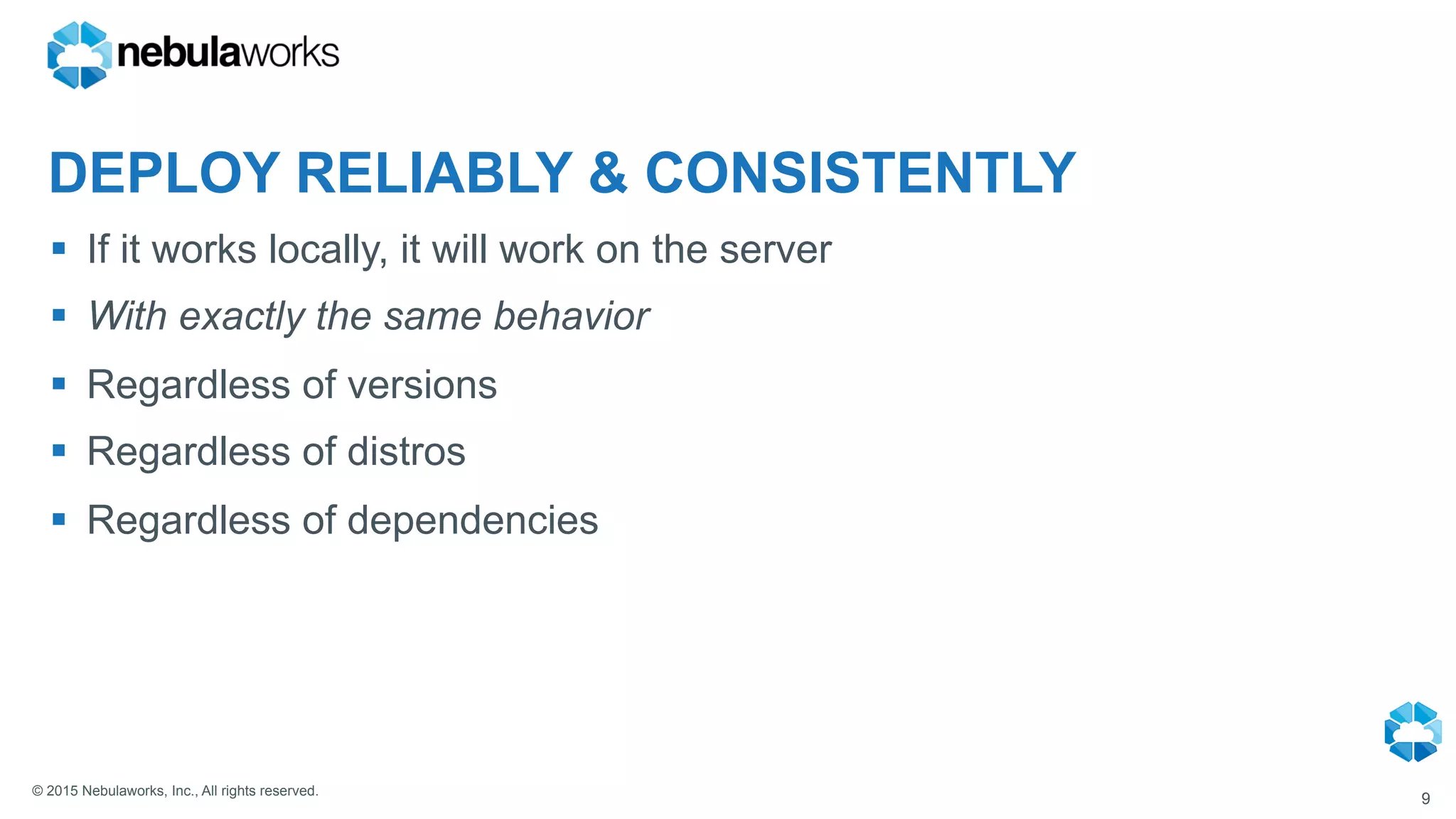

DEPLOY RELIABLY & CONSISTENTLY
§ If it works locally, it will work on the server
§ With exactly the same behavior
§ Regardless of versions
§ Regardless of distros
§ Regardless of dependencies
9

10. © 2015 Nebulaworks, Inc., All rights reserved.

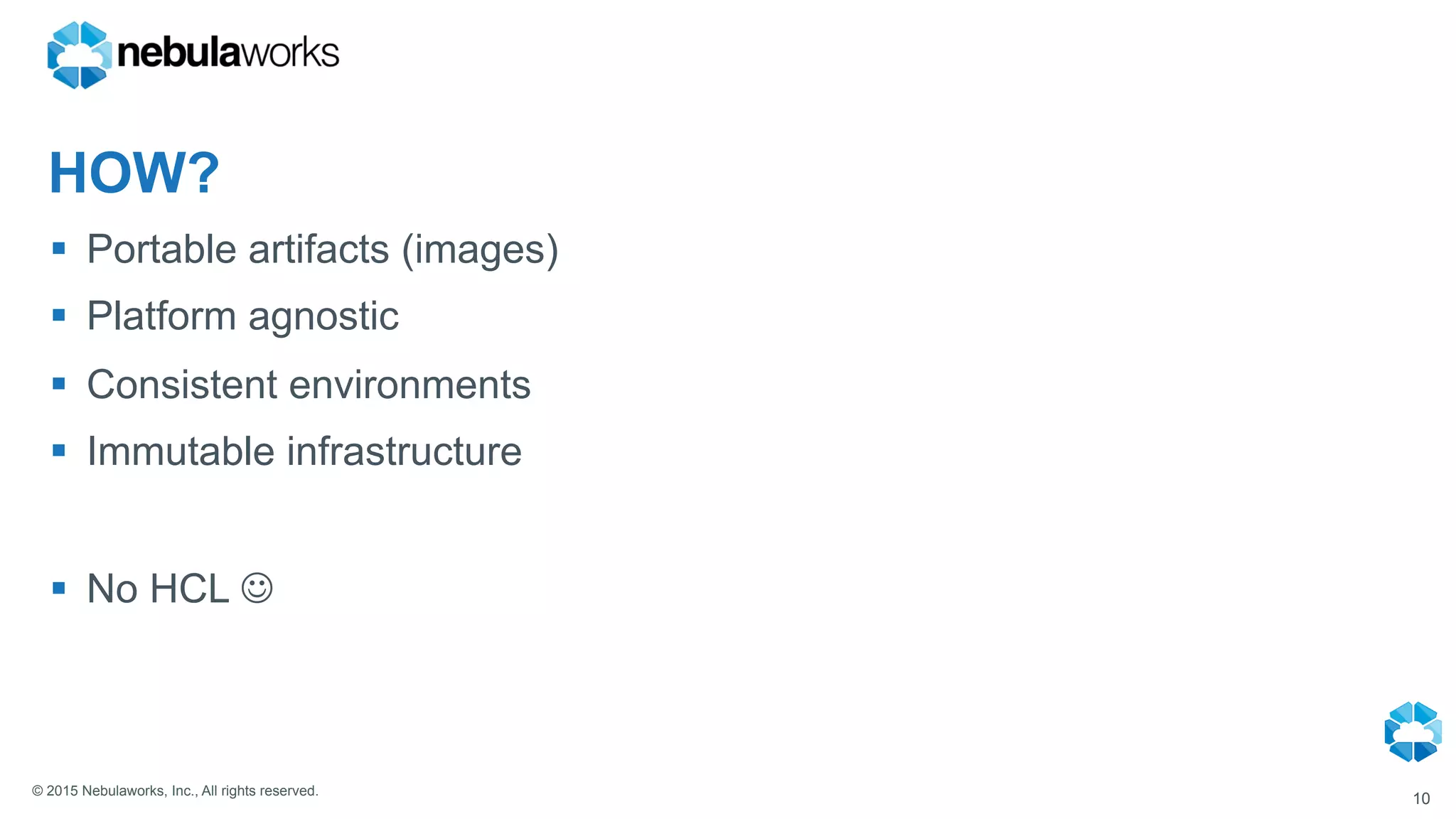

HOW?
§ Portable artifacts (images)
§ Platform agnostic
§ Consistent environments
§ Immutable infrastructure
§ No HCL J
10

11. © 2015 Nebulaworks, Inc., All rights reserved.

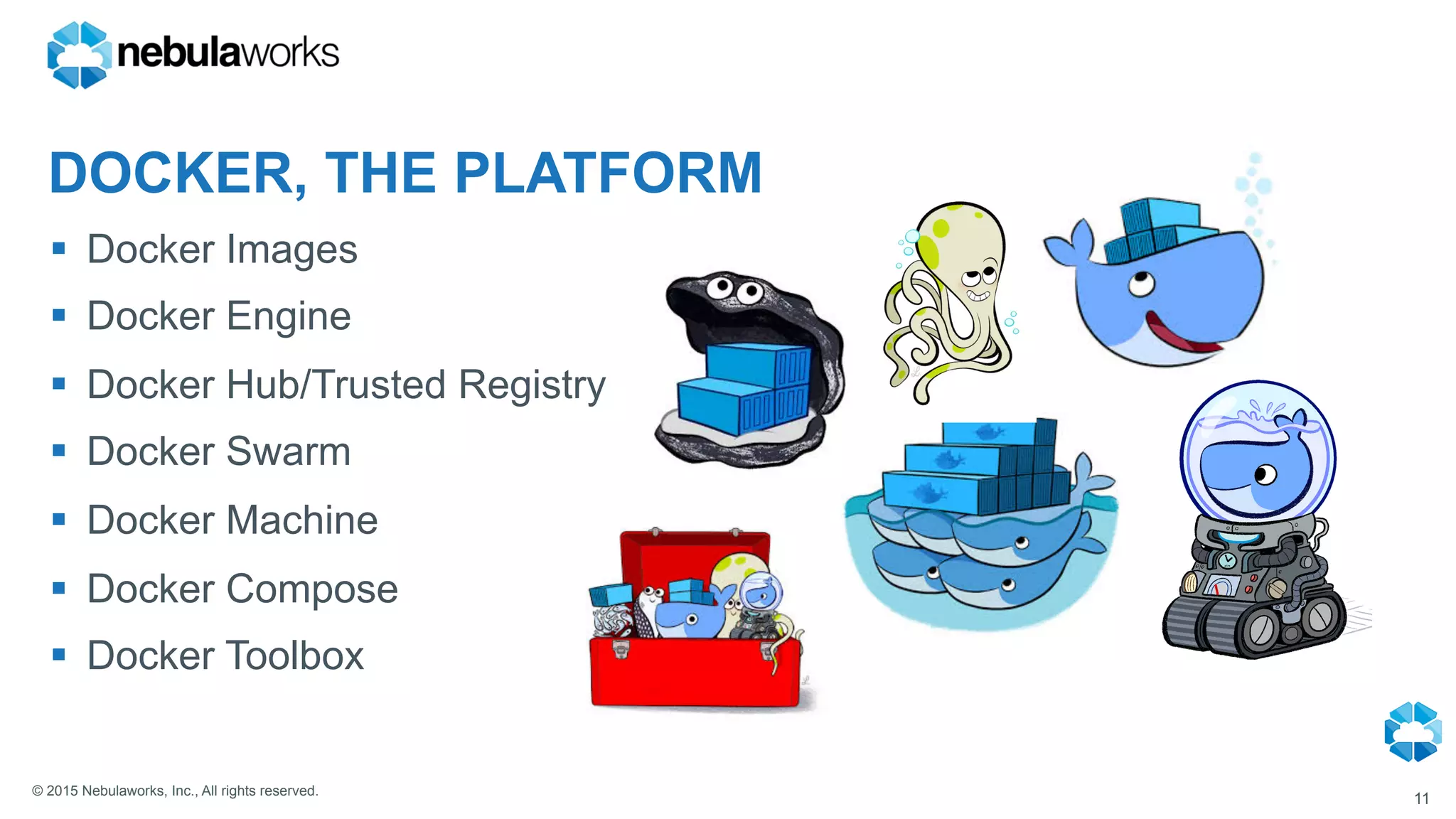

DOCKER, THE PLATFORM
§ Docker Images
§ Docker Engine
§ Docker Hub/Trusted Registry
§ Docker Swarm
§ Docker Machine
§ Docker Compose
§ Docker Toolbox
11

12. © 2015 Nebulaworks, Inc., All rights reserved.

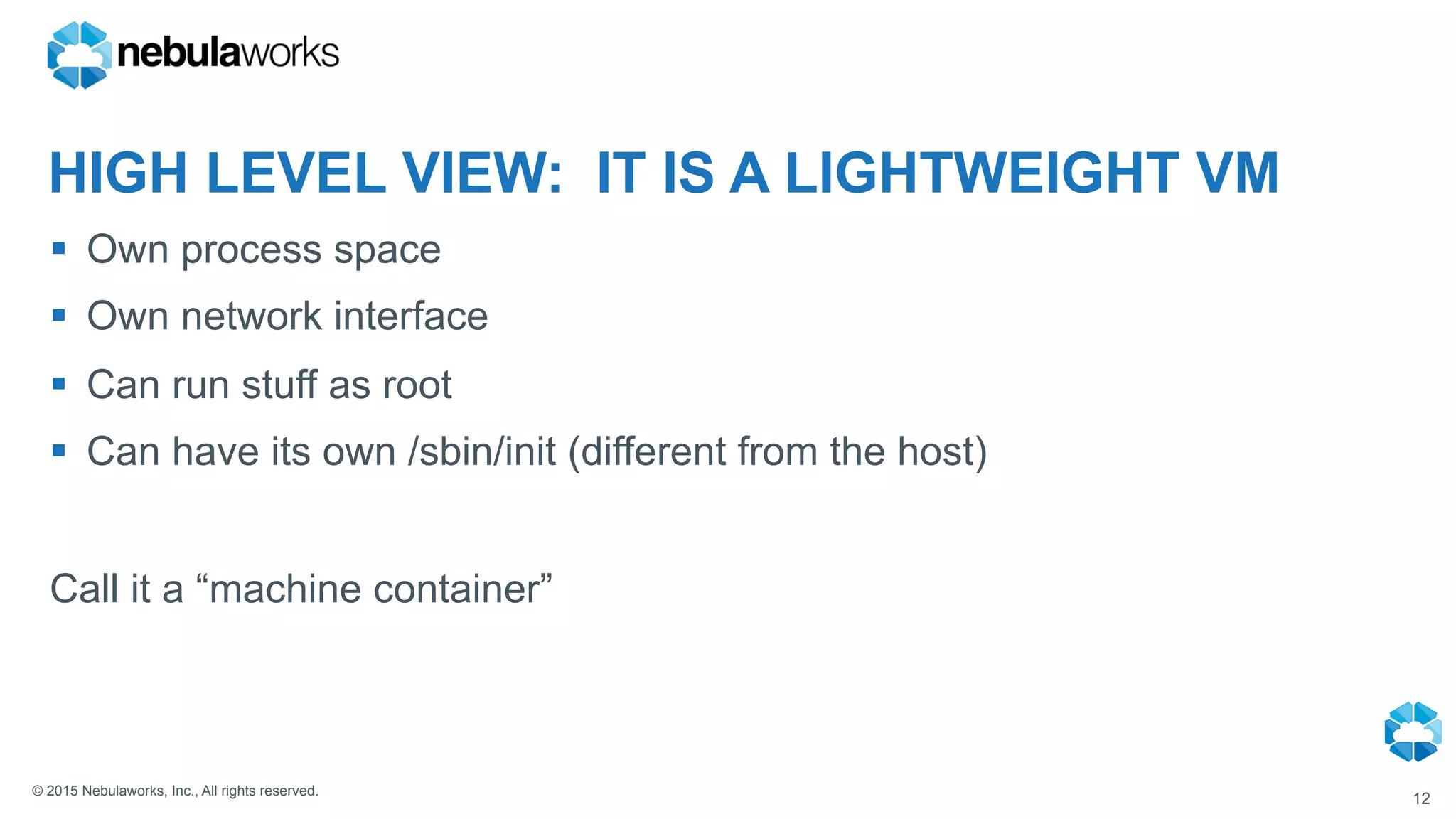

HIGH LEVEL VIEW: IT IS A LIGHTWEIGHT VM
§ Own process space
§ Own network interface
§ Can run stuff as root
§ Can have its own /sbin/init (different from the host)
Call it a “machine container”
12

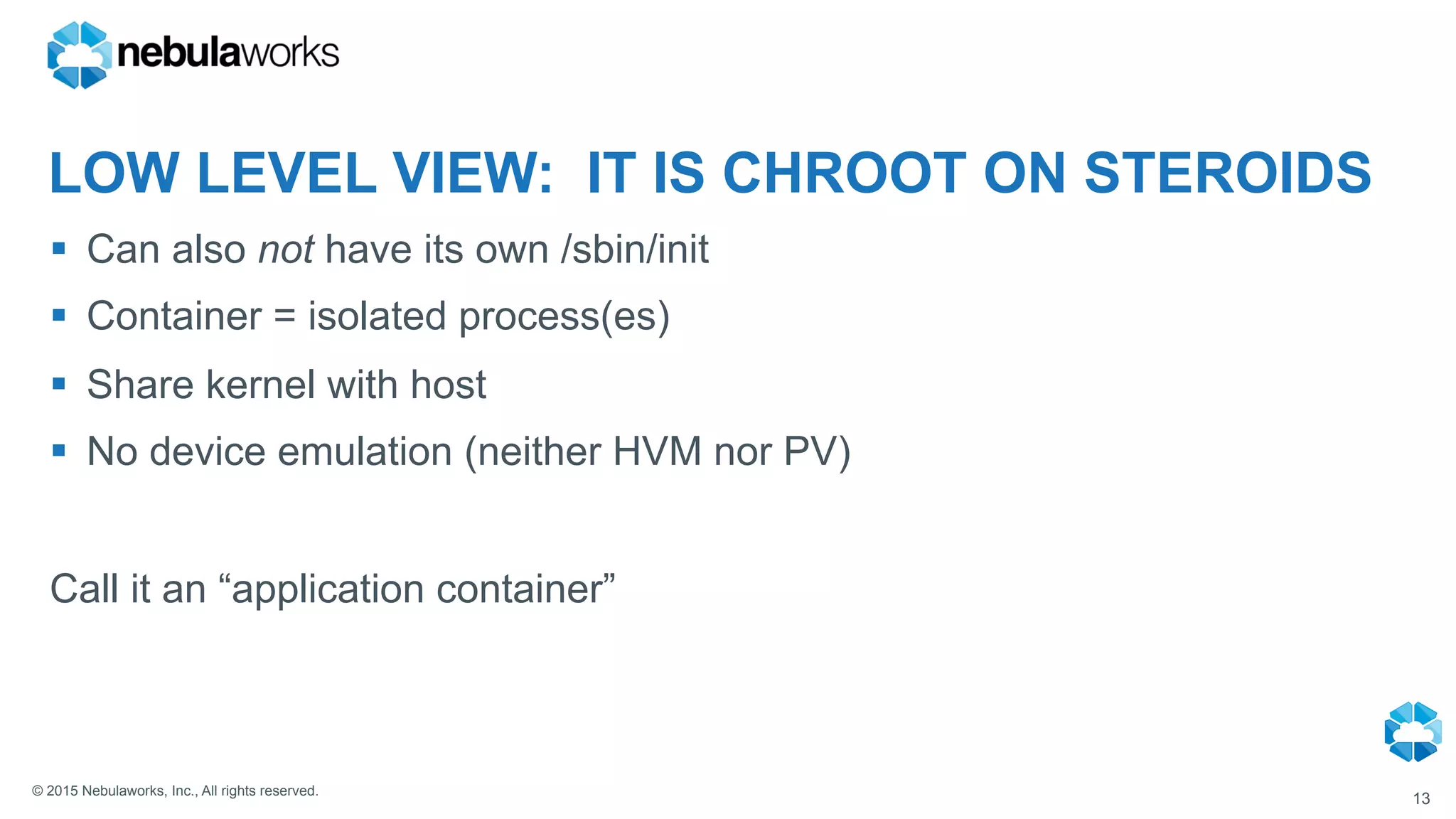

13. © 2015 Nebulaworks, Inc., All rights reserved.
LOW LEVEL VIEW: IT IS CHROOT ON STEROIDS
§ Can also not have its own /sbin/init
§ Container = isolated process(es)
§ Share kernel with host
§ No device emulation (neither HVM nor PV)
Call it an “application container”
13

14. © 2015 Nebulaworks, Inc., All rights reserved.

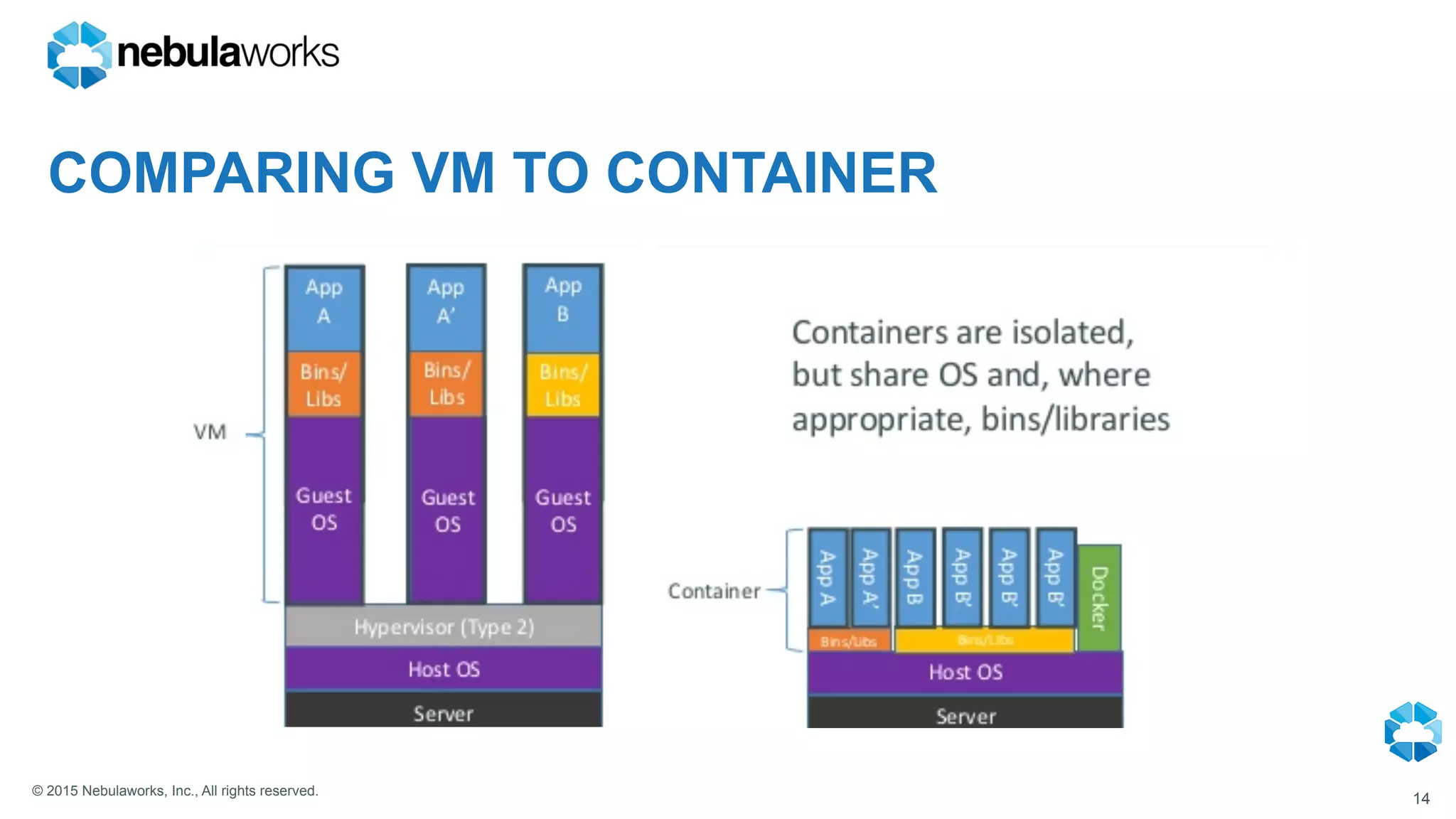

COMPARING VM TO CONTAINER
14

15. © 2015 Nebulaworks, Inc., All rights reserved.

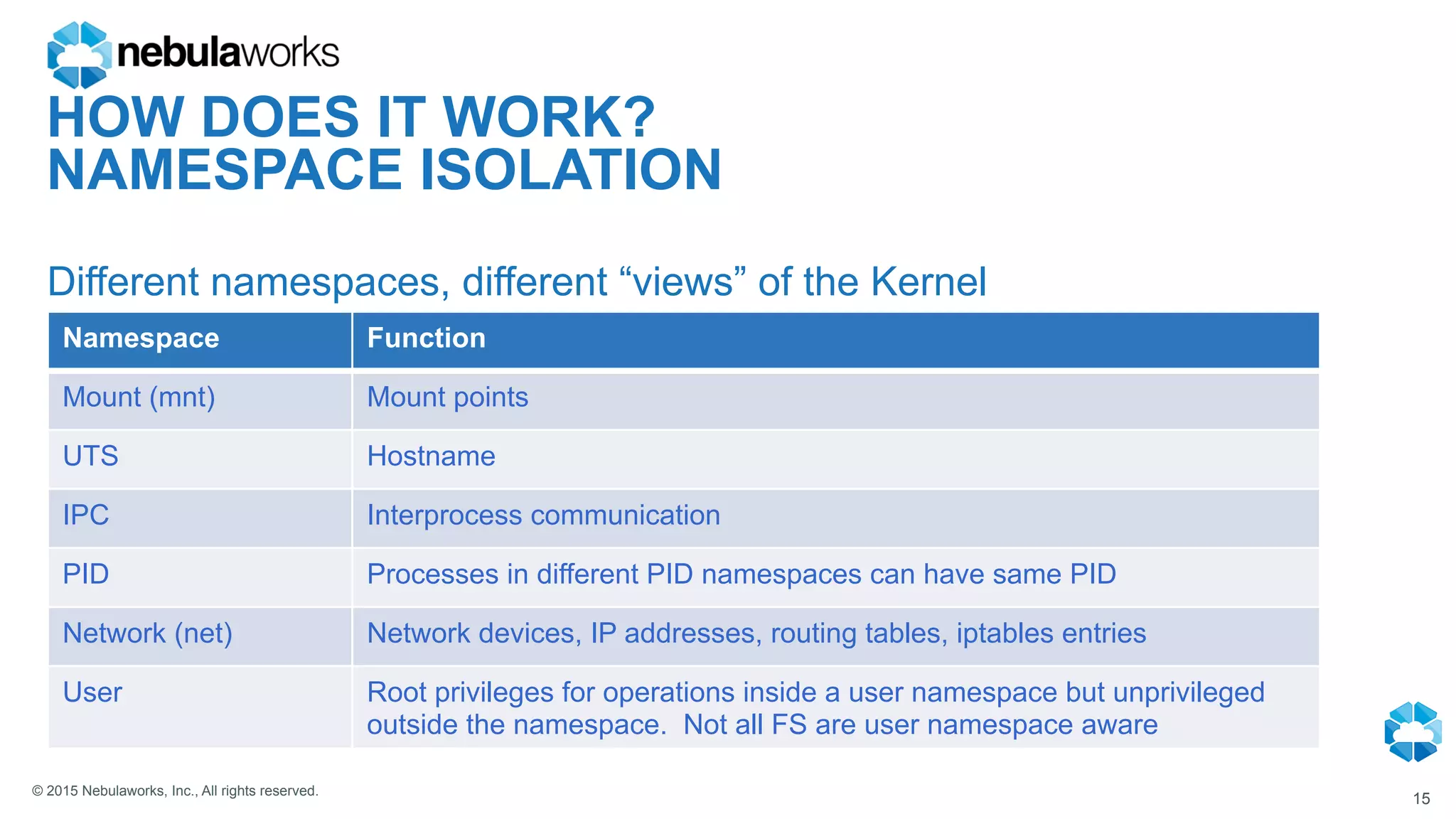

Different namespaces, different “views” of the Kernel
15
HOW DOES IT WORK?
NAMESPACE ISOLATION
Namespace Function
Mount (mnt) Mount points
UTS Hostname
IPC Interprocess communication
PID Processes in different PID namespaces can have same PID
Network (net) Network devices, IP addresses, routing tables, iptables entries
User Root privileges for operations inside a user namespace but unprivileged
outside the namespace. Not all FS are user namespace aware

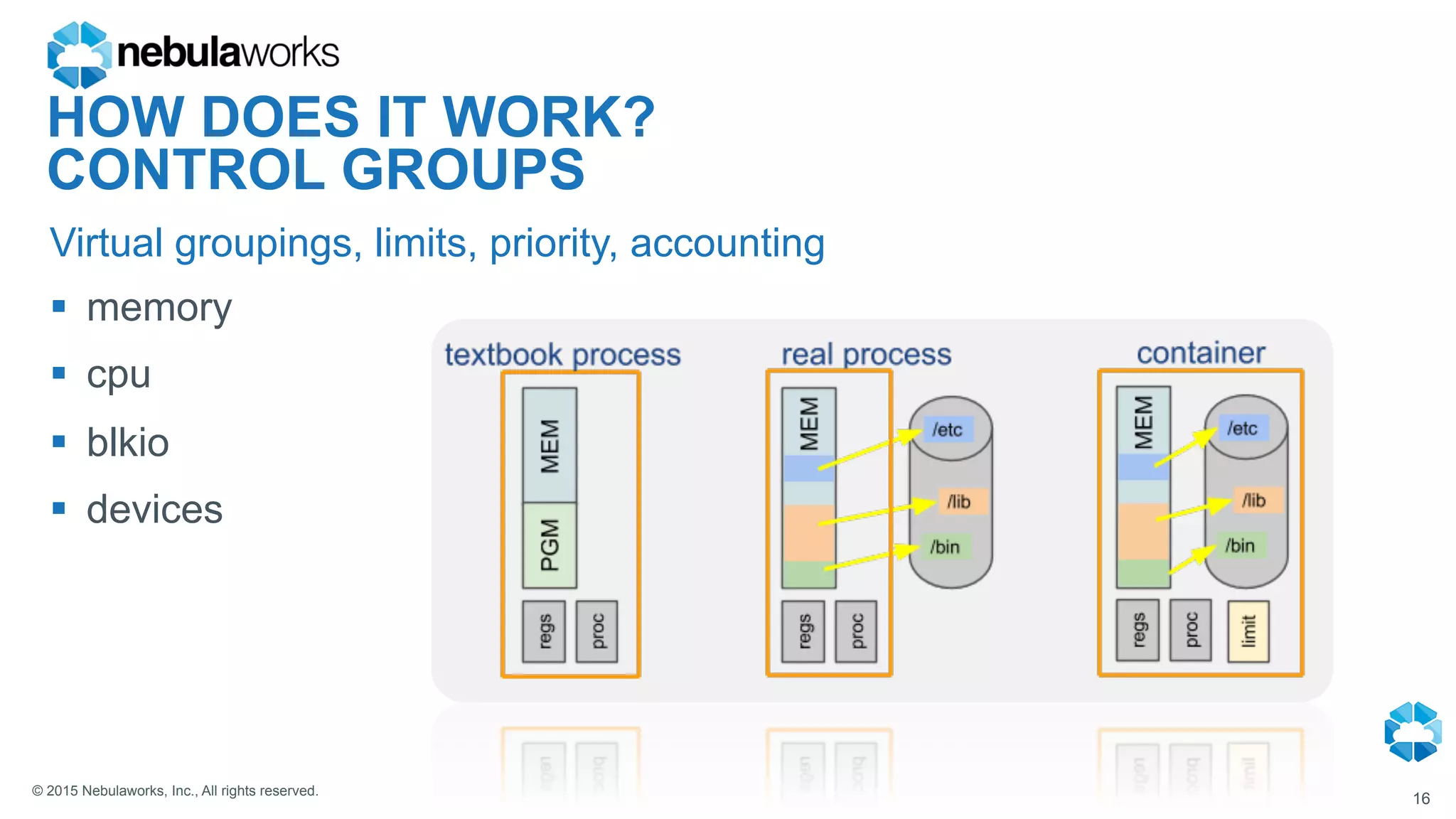

16. © 2015 Nebulaworks, Inc., All rights reserved.
Virtual groupings, limits, priority, accounting
16
§ memory
§ cpu
§ blkio
§ devices
HOW DOES IT WORK?
CONTROL GROUPS

17. © 2015 Nebulaworks, Inc., All rights reserved.
Let’s Talk
Workflows
17

18. © 2015 Nebulaworks, Inc., All rights reserved.

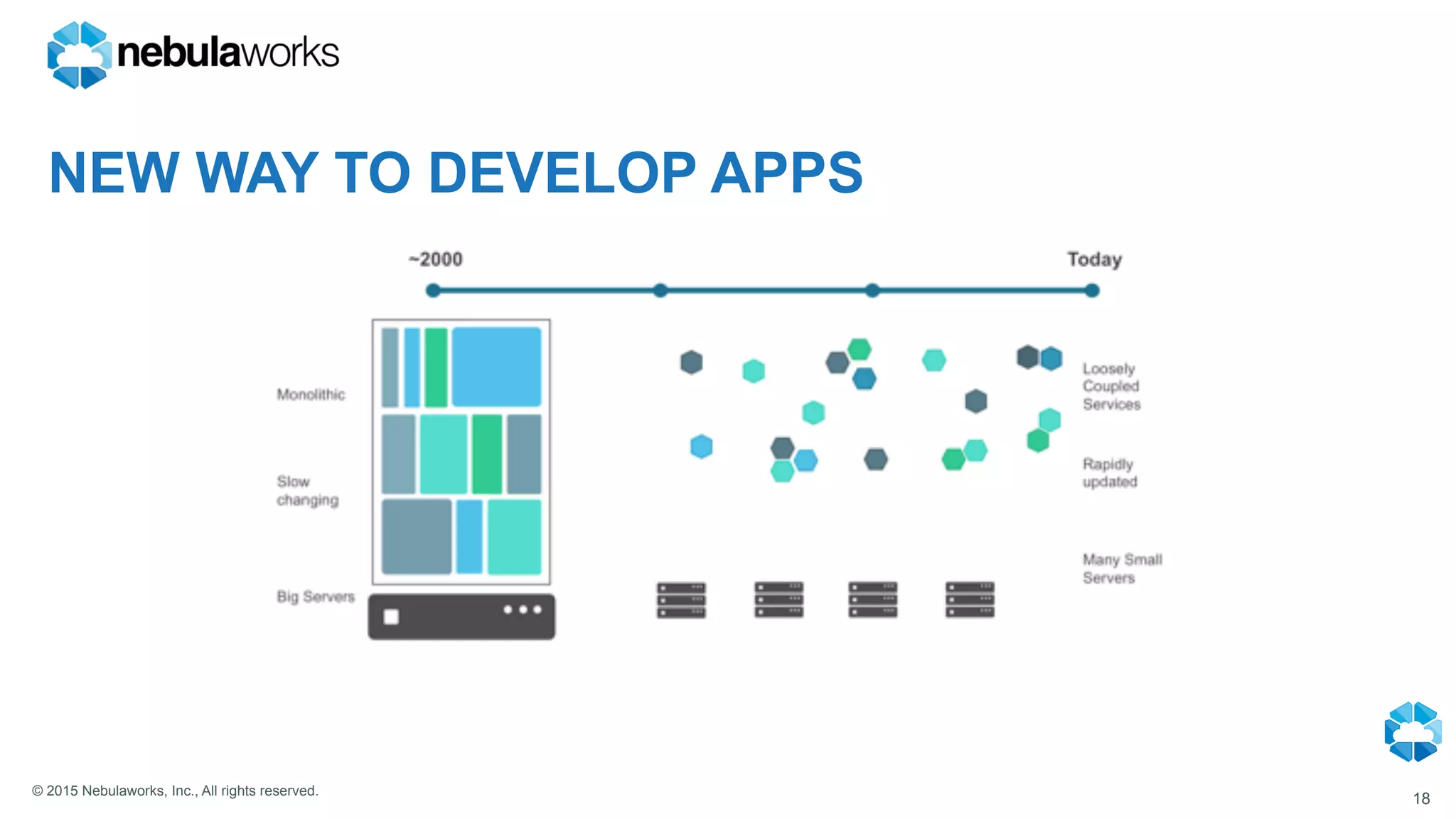

NEW WAY TO DEVELOP APPS
18

19. © 2015 Nebulaworks, Inc., All rights reserved.

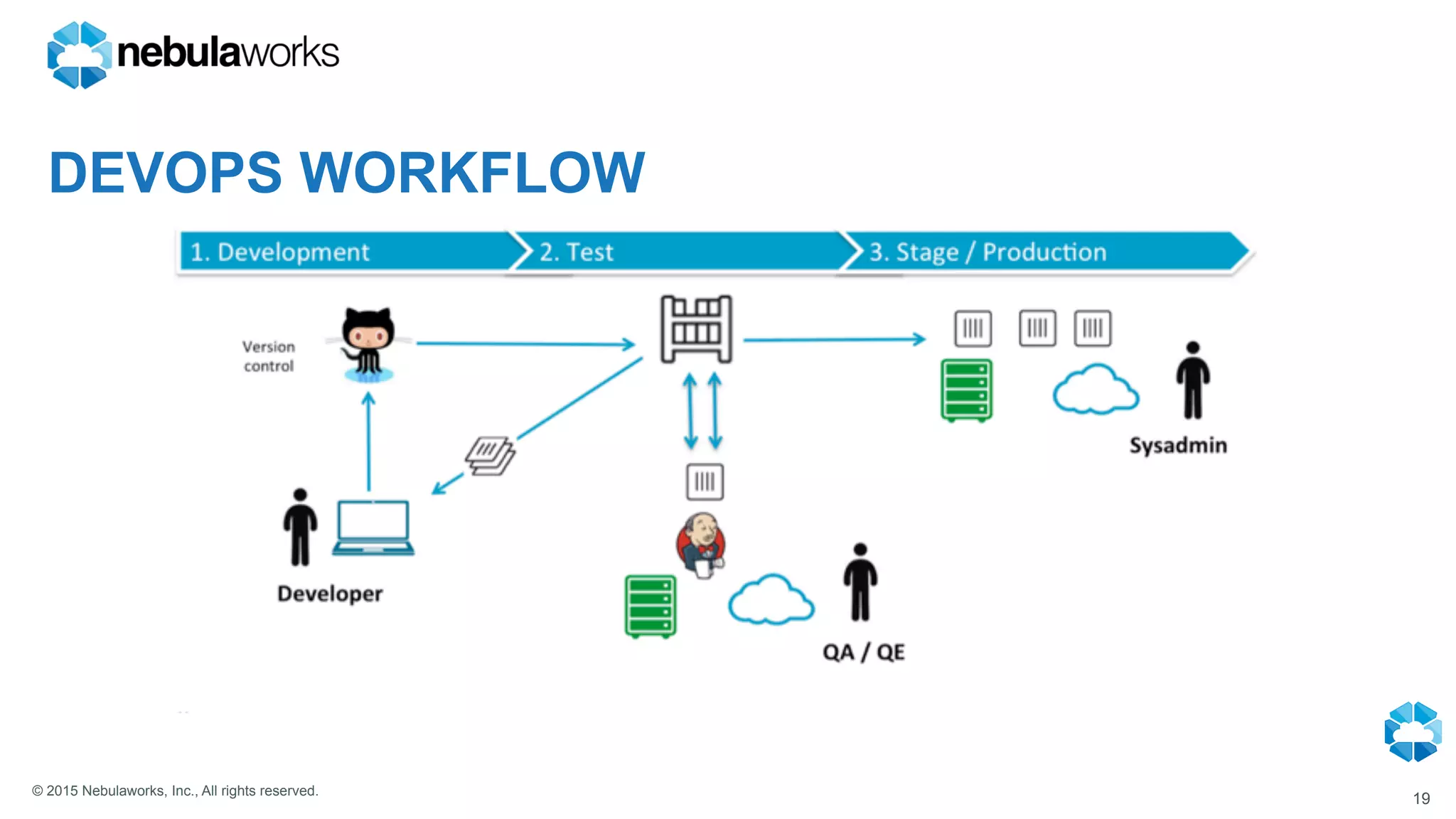

DEVOPS WORKFLOW
19

20. © 2015 Nebulaworks, Inc., All rights reserved.

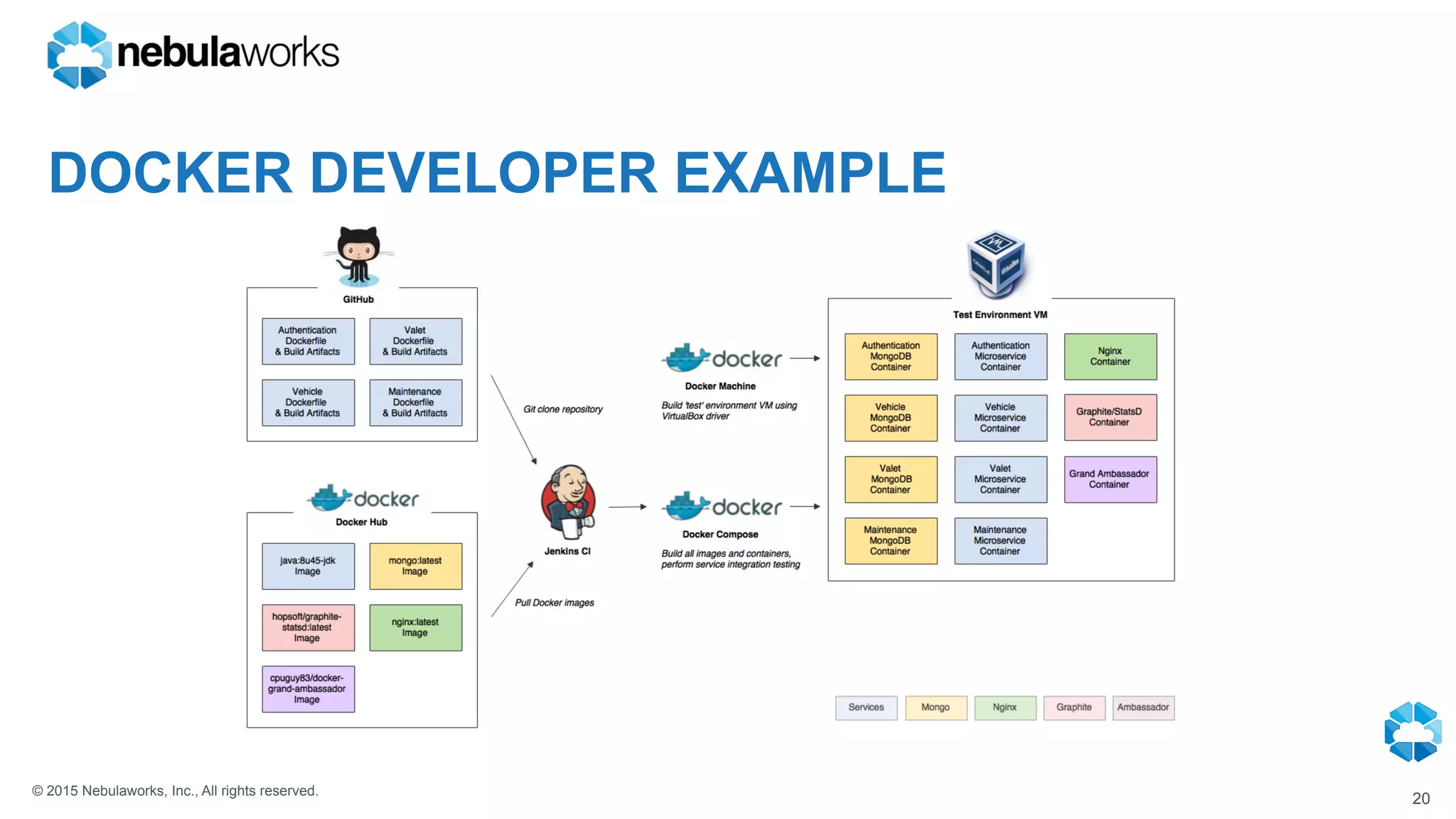

DOCKER DEVELOPER EXAMPLE
20

21. © 2015 Nebulaworks, Inc., All rights reserved.

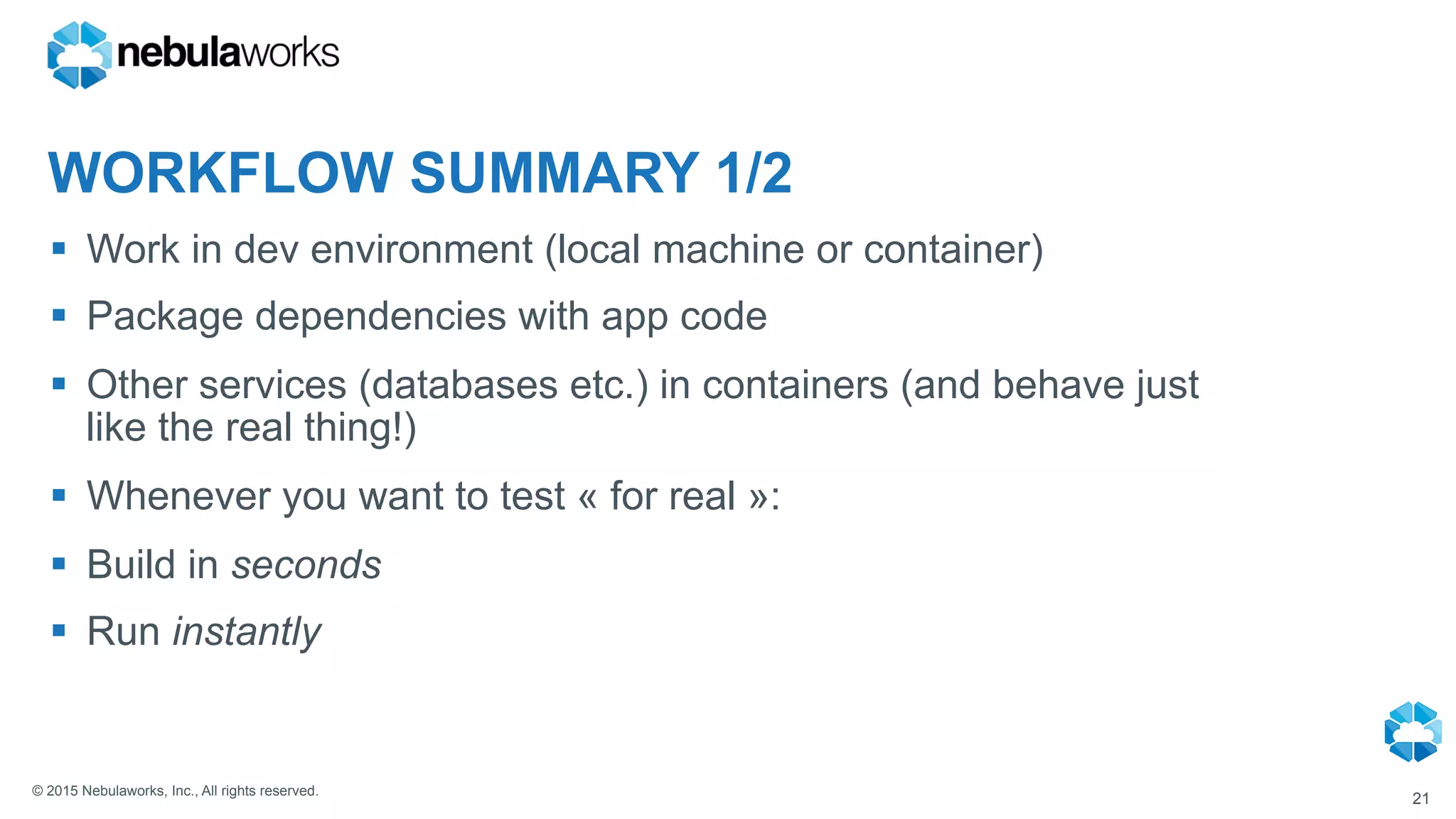

WORKFLOW SUMMARY 1/2
§ Work in dev environment (local machine or container)
§ Package dependencies with app code
§ Other services (databases etc.) in containers (and behave just
like the real thing!)
§ Whenever you want to test « for real »:
§ Build in seconds
§ Run instantly
21

22. © 2015 Nebulaworks, Inc., All rights reserved.

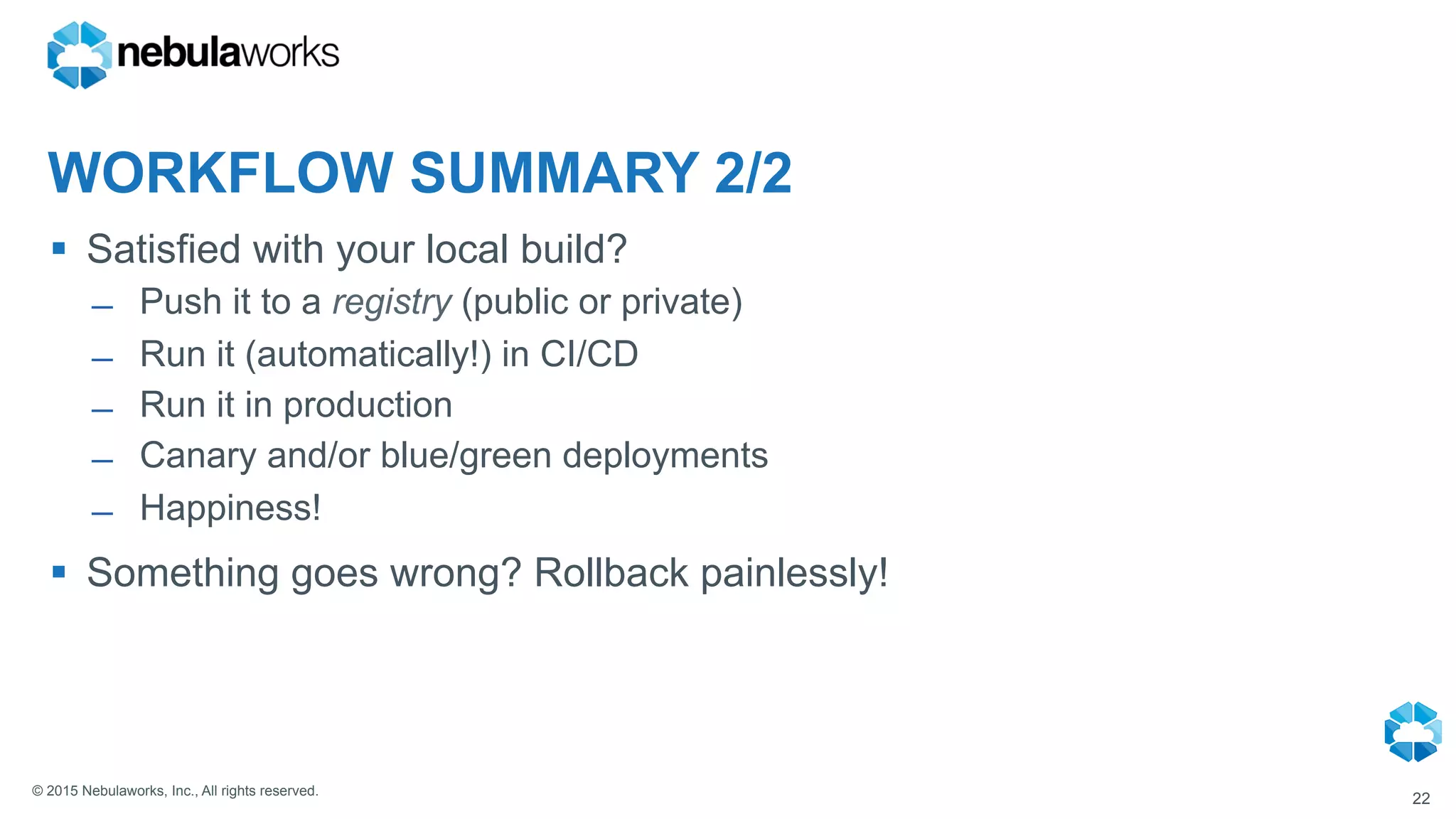

WORKFLOW SUMMARY 2/2
§ Satisfied with your local build?
̶ Push it to a registry (public or private)
̶ Run it (automatically!) in CI/CD
̶ Run it in production
̶ Canary and/or blue/green deployments
̶ Happiness!
§ Something goes wrong? Rollback painlessly!
22

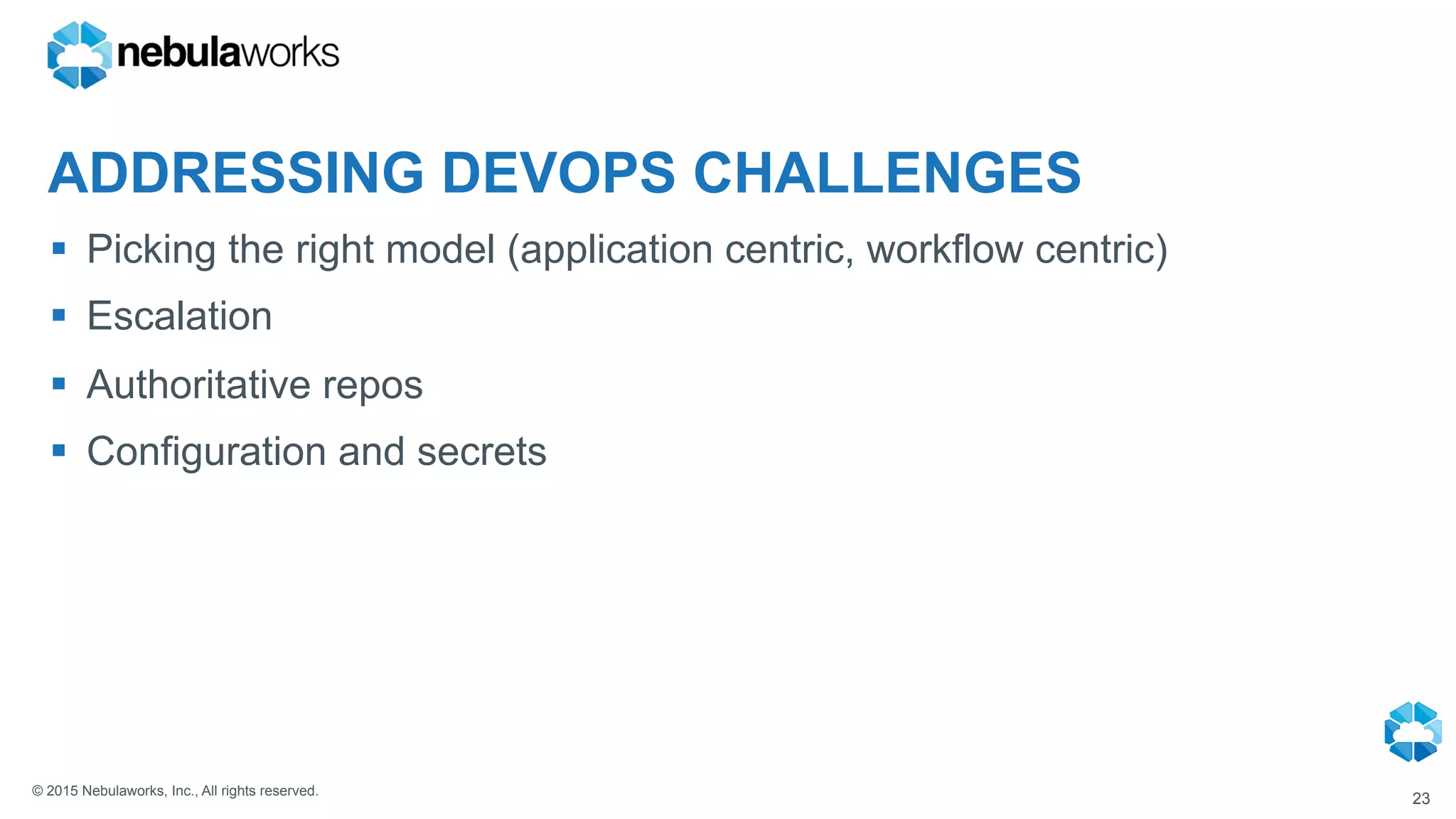

23. © 2015 Nebulaworks, Inc., All rights reserved.
ADDRESSING DEVOPS CHALLENGES
§ Picking the right model (application centric, workflow centric)
§ Escalation
§ Authoritative repos
§ Configuration and secrets
23

24. © 2015 Nebulaworks, Inc., All rights reserved.
What About
Production?
24

25. © 2015 Nebulaworks, Inc., All rights reserved.

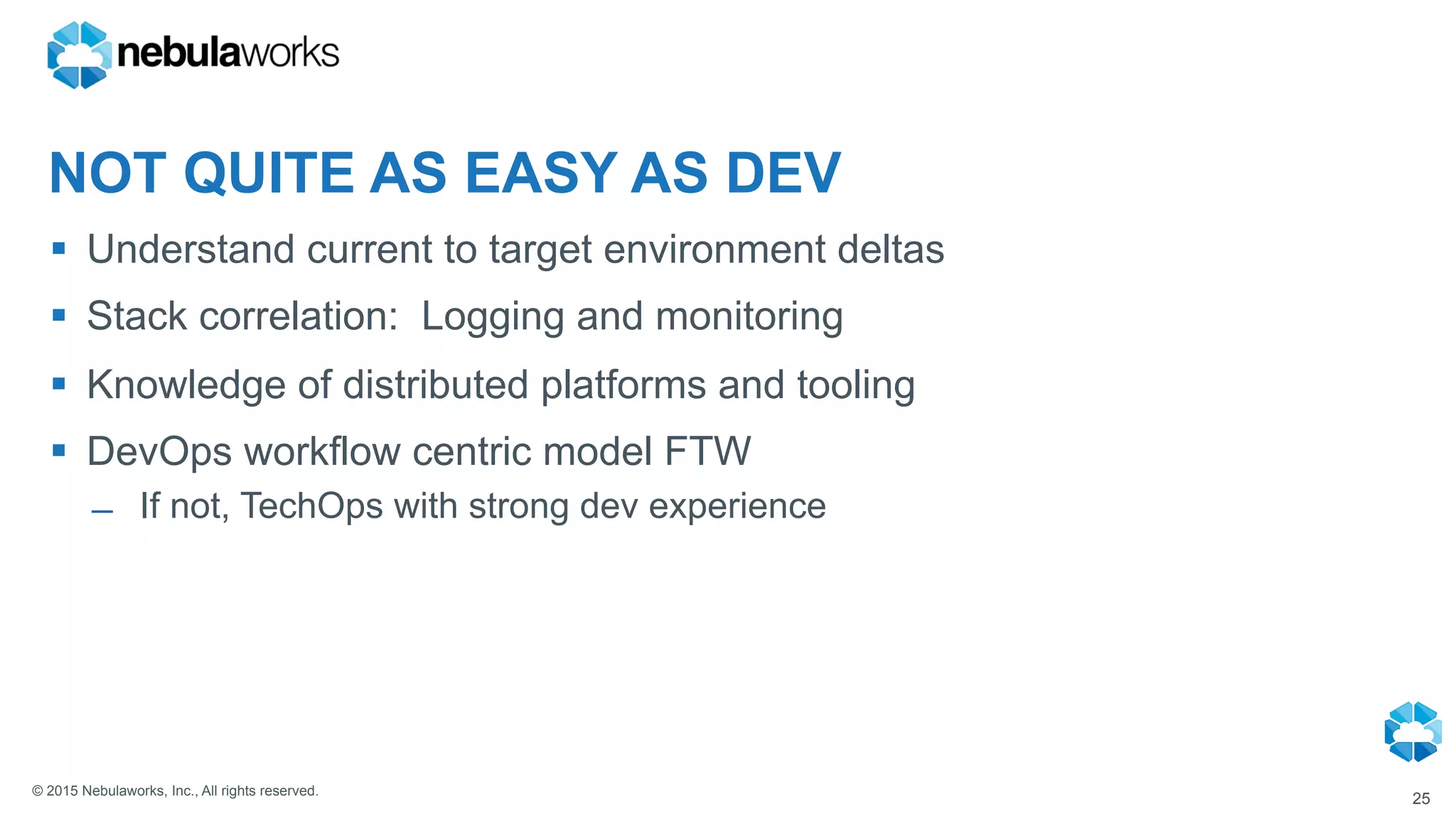

NOT QUITE AS EASY AS DEV
§ Understand current to target environment deltas
§ Stack correlation: Logging and monitoring
§ Knowledge of distributed platforms and tooling
§ DevOps workflow centric model FTW
̶ If not, TechOps with strong dev experience
25

26. © 2015 Nebulaworks, Inc., All rights reserved.

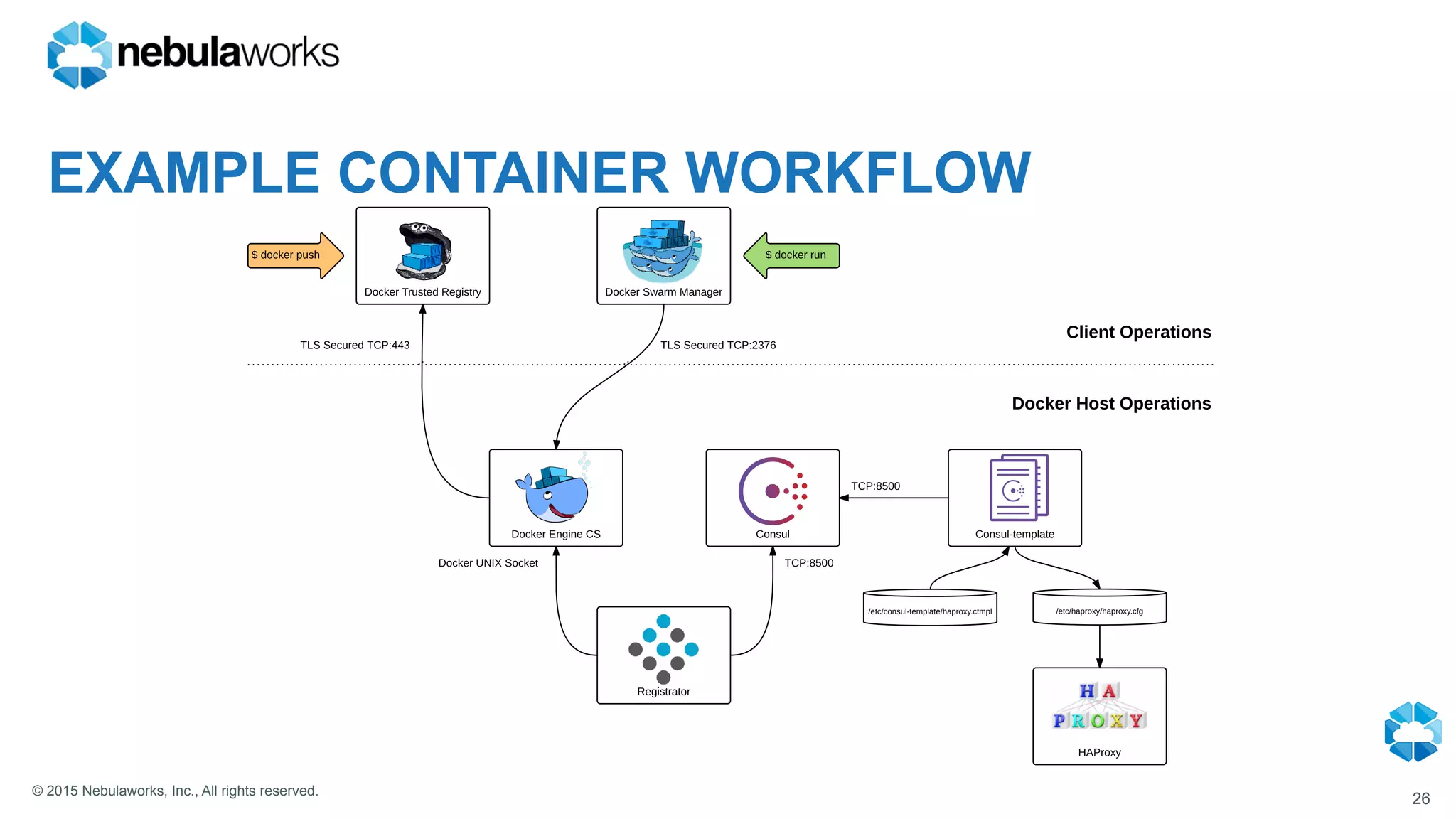

EXAMPLE CONTAINER WORKFLOW
26
Consul Consul-template
/etc/consul-template/haproxy.ctmpl /etc/haproxy/haproxy.cfg
Docker Engine CS
Docker Swarm ManagerDocker Trusted Registry
HAProxy
Registrator
$ docker push $ docker run
TLS Secured TCP:443 TLS Secured TCP:2376
Docker UNIX Socket TCP:8500
TCP:8500
Client Operations
Docker Host Operations

27. © 2015 Nebulaworks, Inc., All rights reserved.

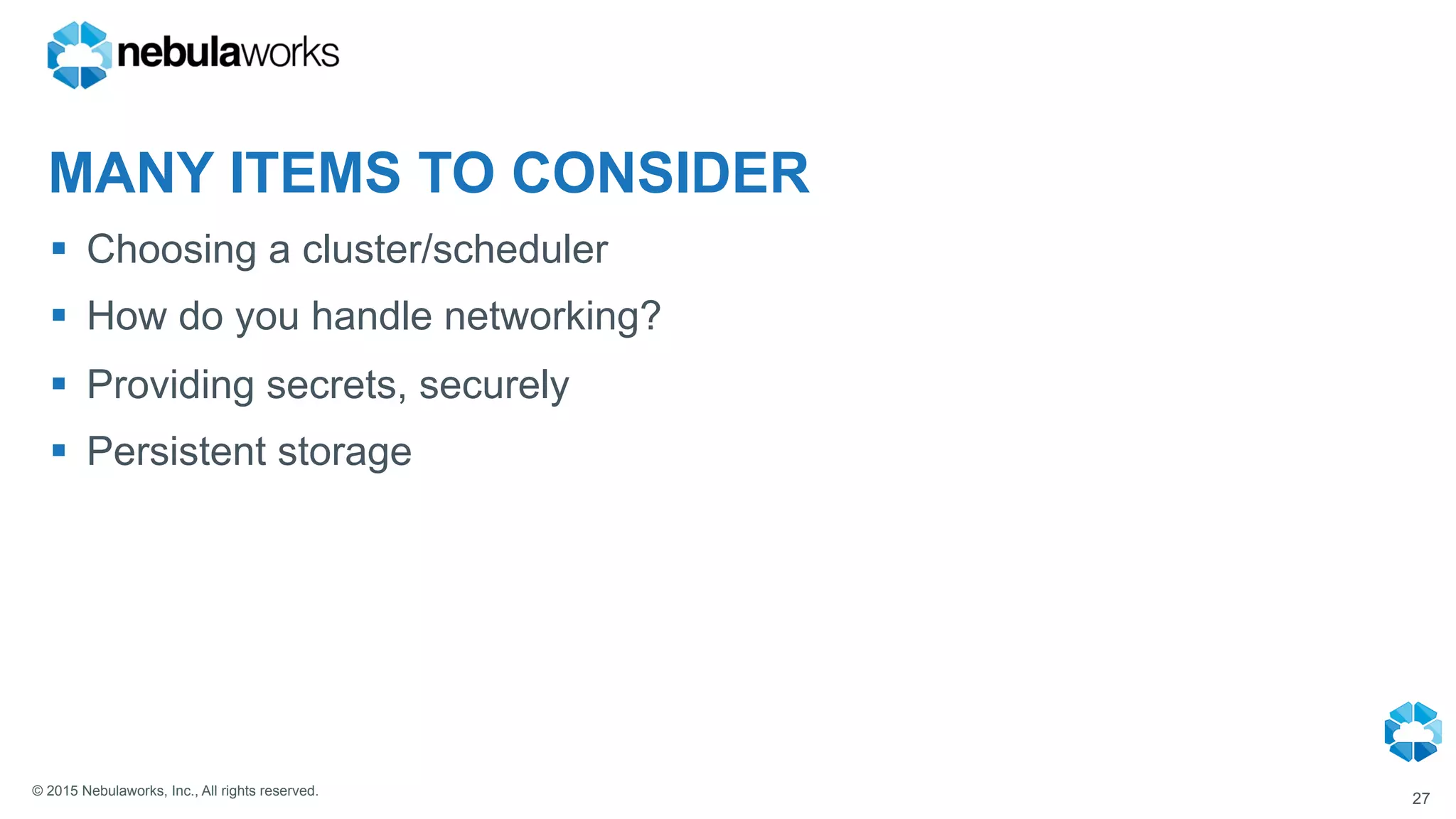

MANY ITEMS TO CONSIDER
§ Choosing a cluster/scheduler
§ How do you handle networking?
§ Providing secrets, securely
§ Persistent storage
27

28. © 2015 Nebulaworks, Inc., All rights reserved.

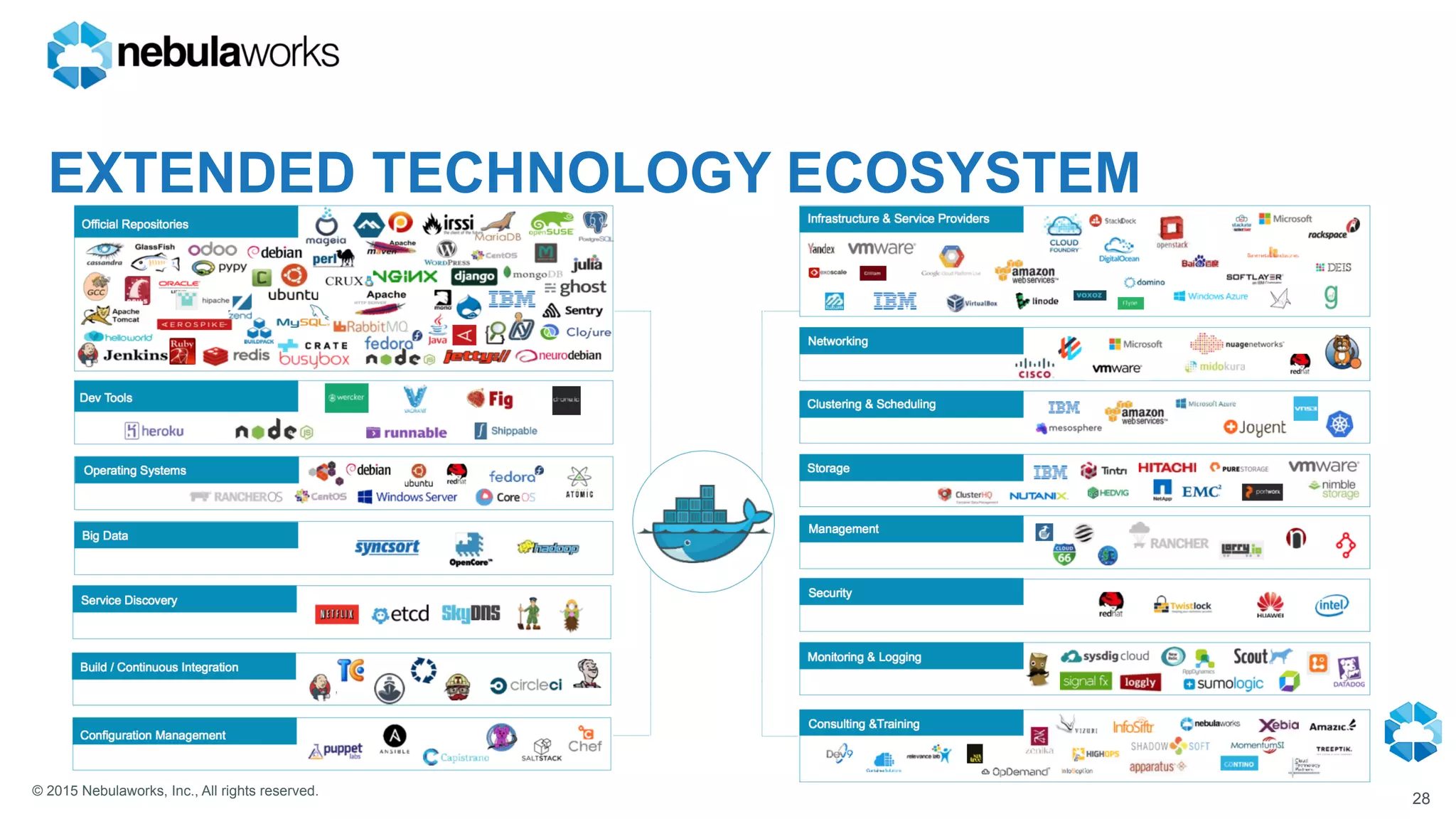

EXTENDED TECHNOLOGY ECOSYSTEM
28

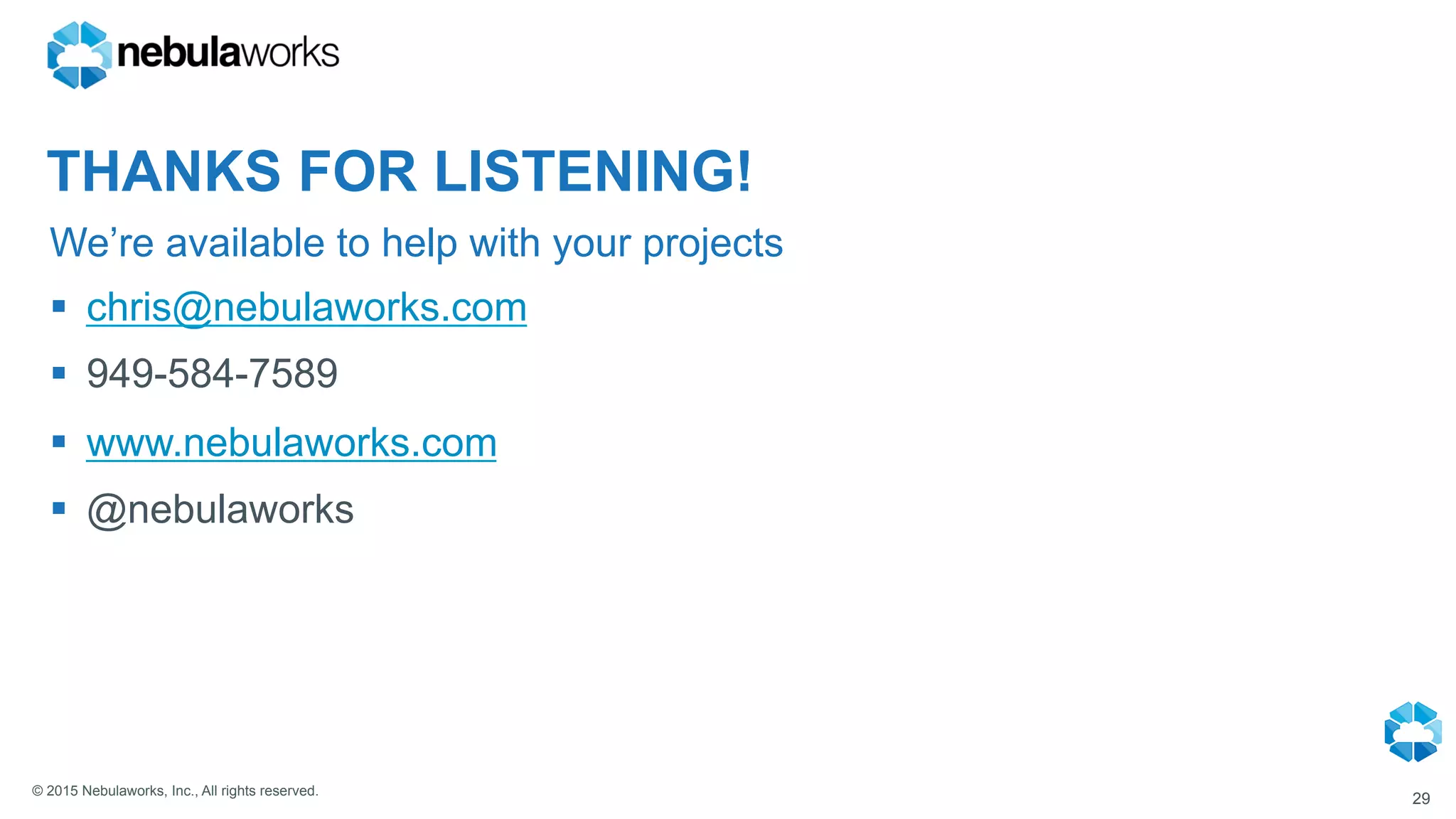

29. © 2015 Nebulaworks, Inc., All rights reserved.
We’re available to help with your projects
29
§ chris@nebulaworks.com
§ 949-584-7589
§ www.nebulaworks.com
§ @nebulaworks
THANKS FOR LISTENING!

30. © 2015 Nebulaworks, Inc., All rights reserved.

31. © 2015 Nebulaworks, Inc., All rights reserved.

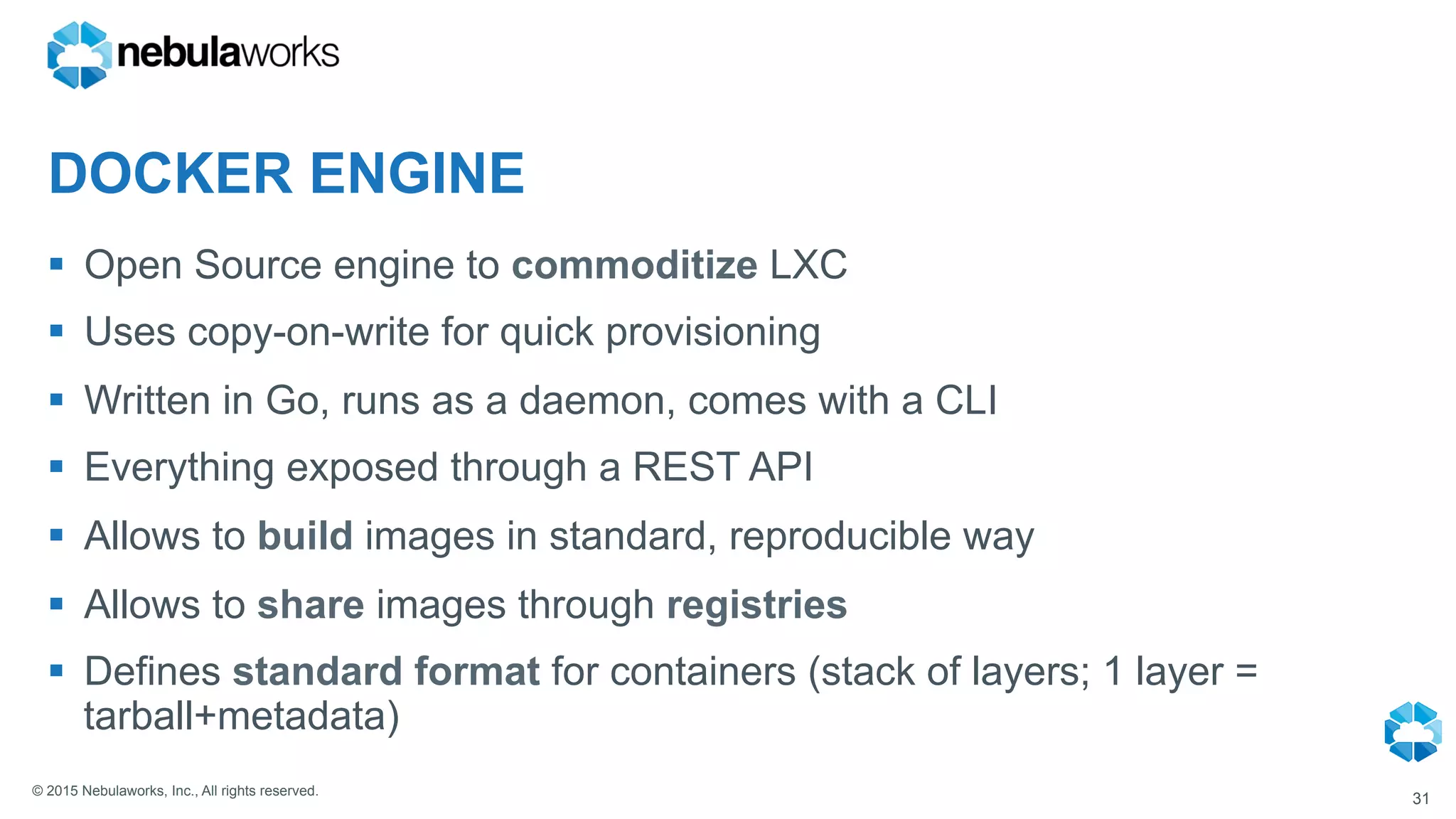

DOCKER ENGINE
§ Open Source engine to commoditize LXC
§ Uses copy-on-write for quick provisioning
§ Written in Go, runs as a daemon, comes with a CLI
§ Everything exposed through a REST API
§ Allows to build images in standard, reproducible way
§ Allows to share images through registries
§ Defines standard format for containers (stack of layers; 1 layer =
tarball+metadata)
31

32. © 2015 Nebulaworks, Inc., All rights reserved.

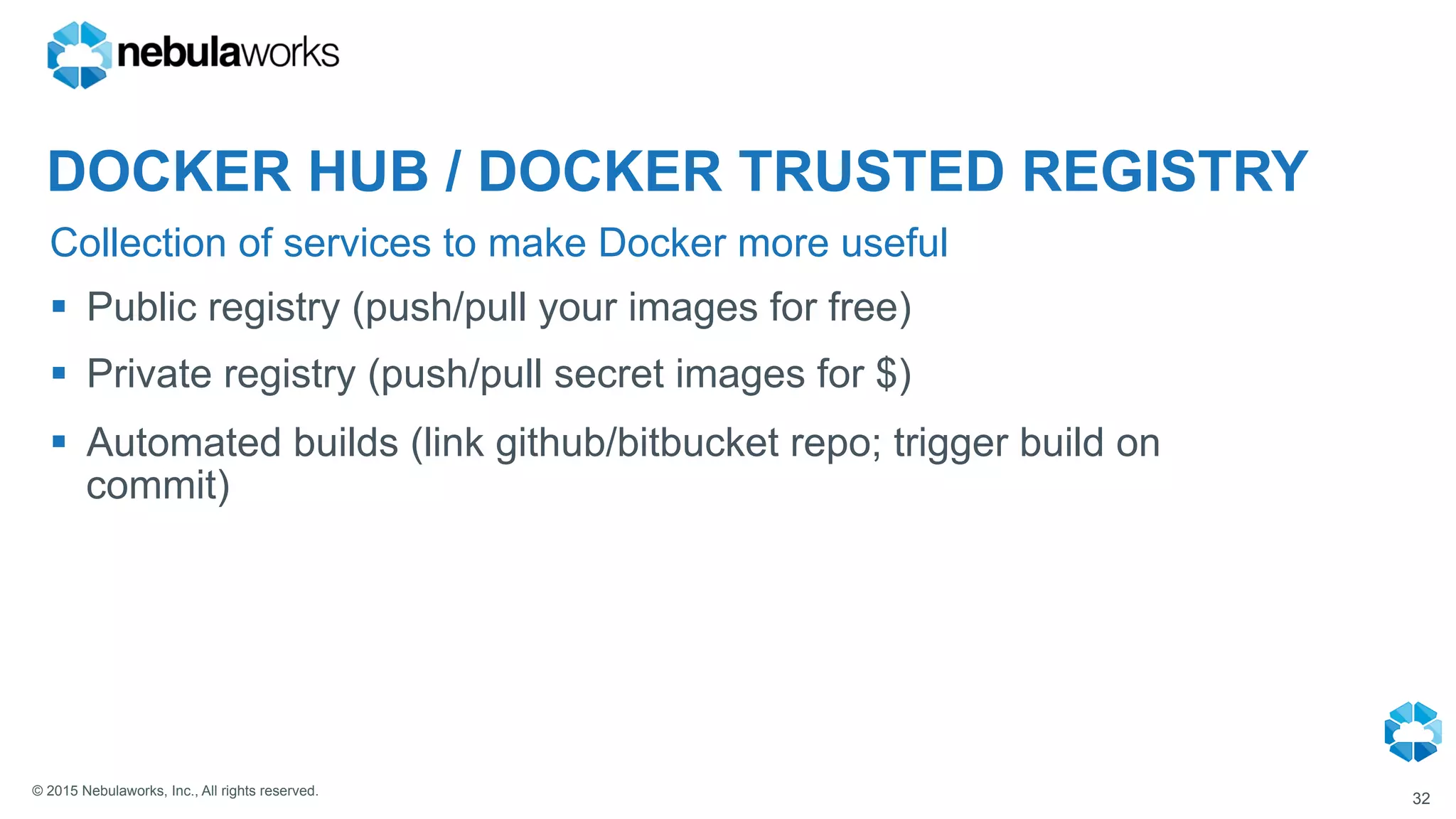

Collection of services to make Docker more useful
32
§ Public registry (push/pull your images for free)
§ Private registry (push/pull secret images for $)
§ Automated builds (link github/bitbucket repo; trigger build on
commit)
DOCKER HUB / DOCKER TRUSTED REGISTRY

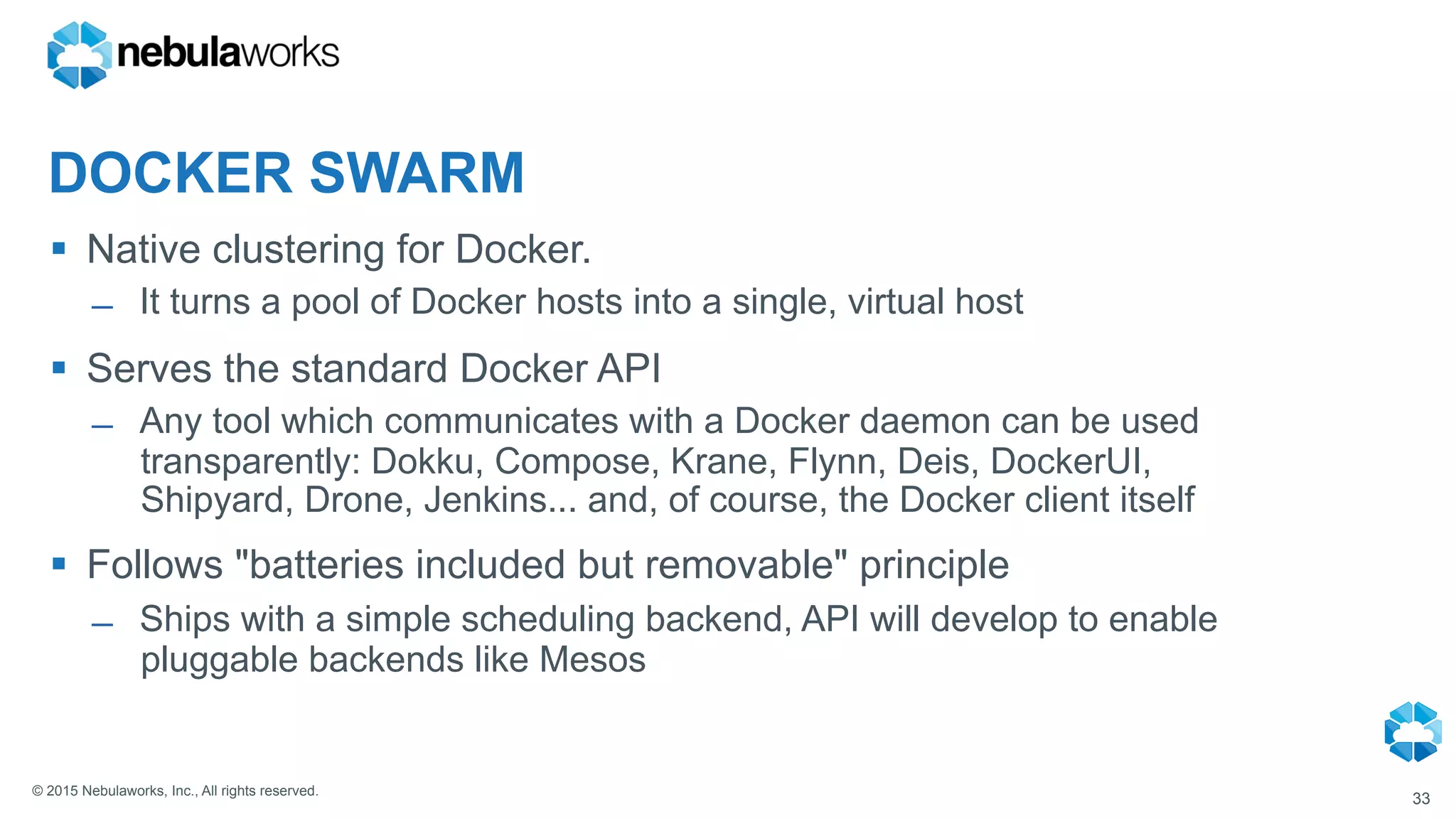

33. © 2015 Nebulaworks, Inc., All rights reserved.
DOCKER SWARM
§ Native clustering for Docker.
̶ It turns a pool of Docker hosts into a single, virtual host
§ Serves the standard Docker API
̶ Any tool which communicates with a Docker daemon can be used
transparently: Dokku, Compose, Krane, Flynn, Deis, DockerUI,
Shipyard, Drone, Jenkins... and, of course, the Docker client itself
§ Follows "batteries included but removable" principle
̶ Ships with a simple scheduling backend, API will develop to enable
pluggable backends like Mesos
33

34. © 2015 Nebulaworks, Inc., All rights reserved.

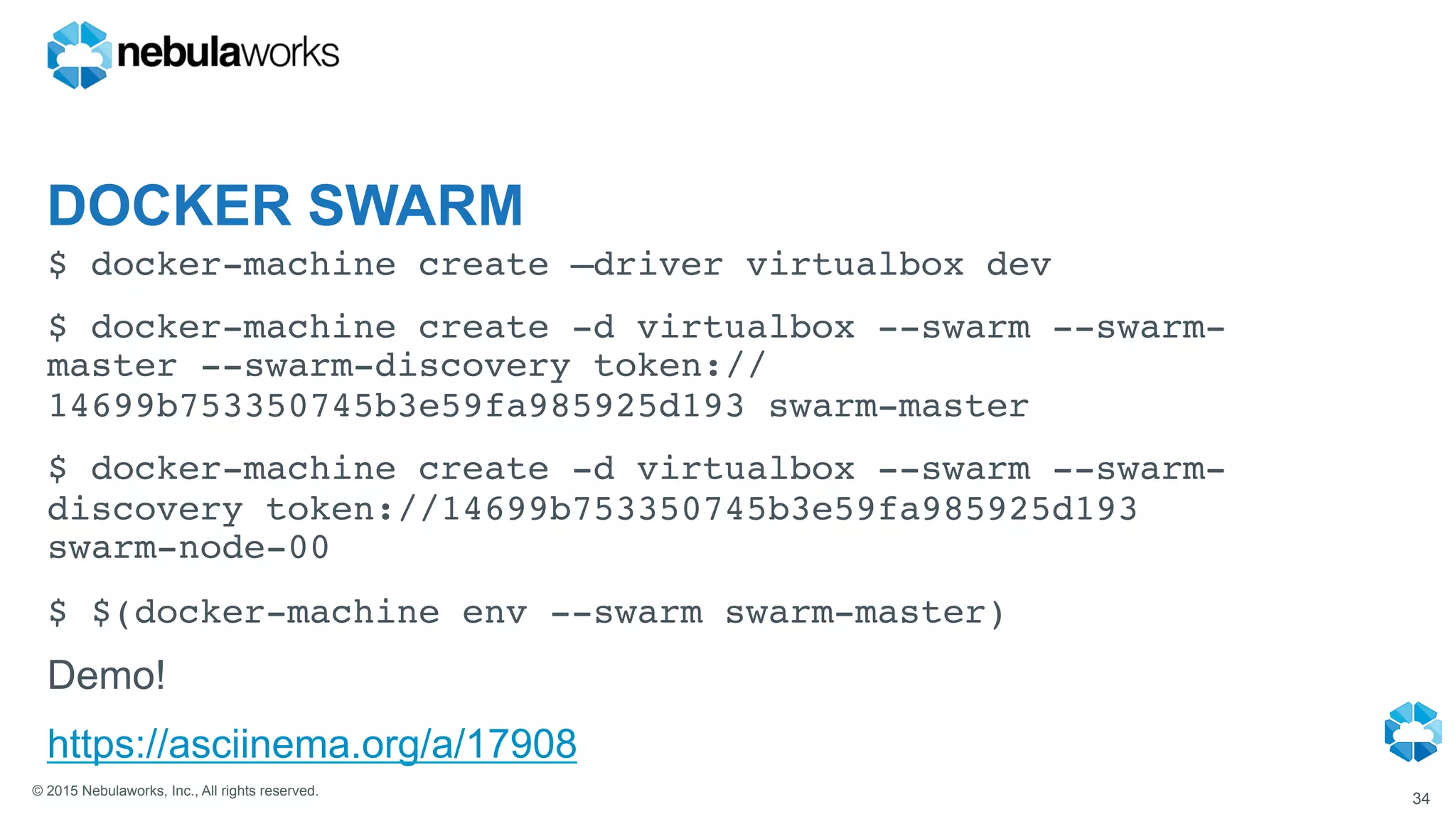

DOCKER SWARM
$ docker-machine create –driver virtualbox dev
$ docker-machine create -d virtualbox --swarm --swarm-
master --swarm-discovery token://
14699b753350745b3e59fa985925d193 swarm-master
$ docker-machine create -d virtualbox --swarm --swarm-
discovery token://14699b753350745b3e59fa985925d193
swarm-node-00
$ $(docker-machine env --swarm swarm-master)
Demo!
https://asciinema.org/a/17908
34

35. © 2015 Nebulaworks, Inc., All rights reserved.

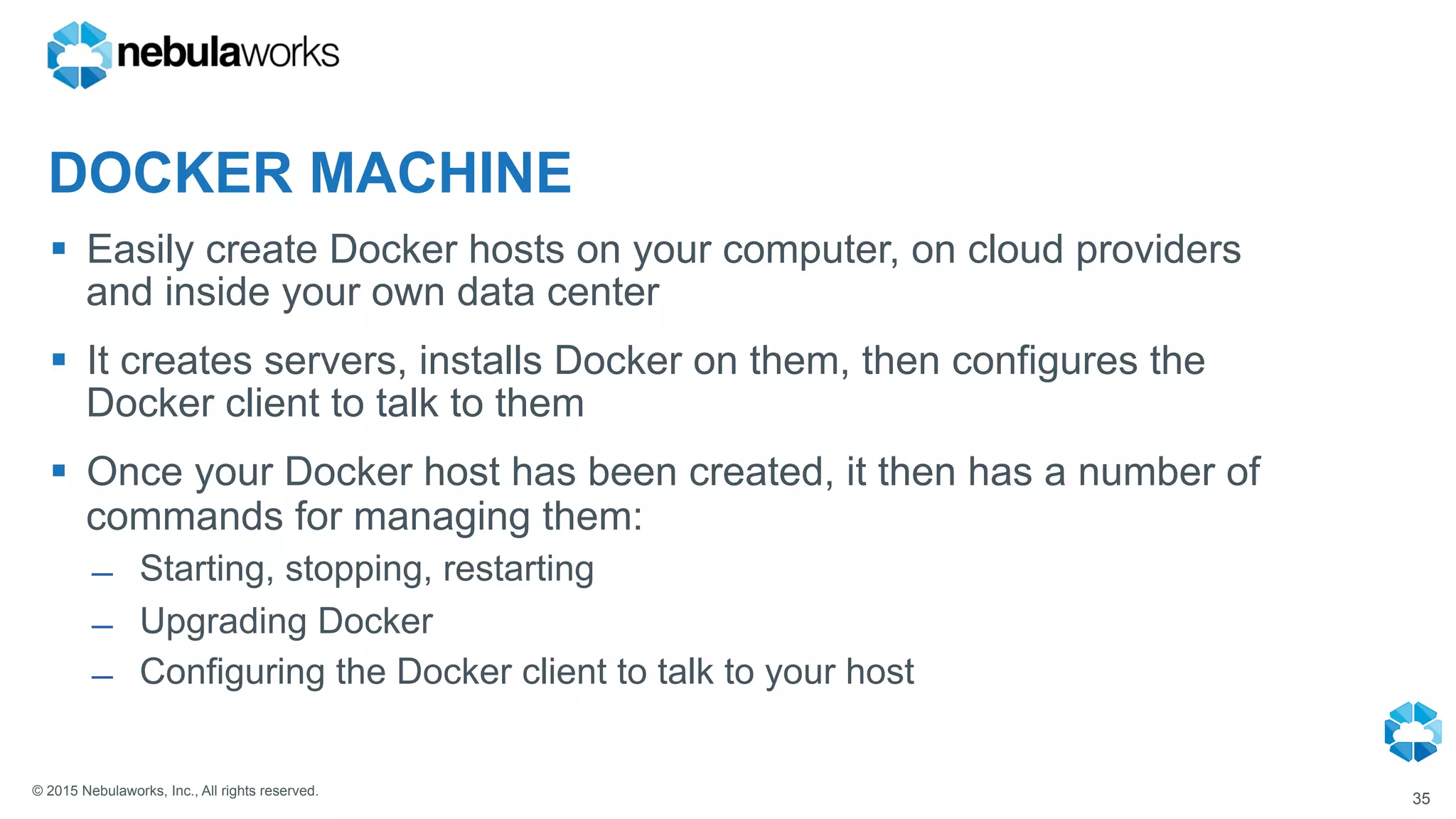

DOCKER MACHINE
§ Easily create Docker hosts on your computer, on cloud providers
and inside your own data center
§ It creates servers, installs Docker on them, then configures the
Docker client to talk to them
§ Once your Docker host has been created, it then has a number of
commands for managing them:
̶ Starting, stopping, restarting
̶ Upgrading Docker
̶ Configuring the Docker client to talk to your host
35

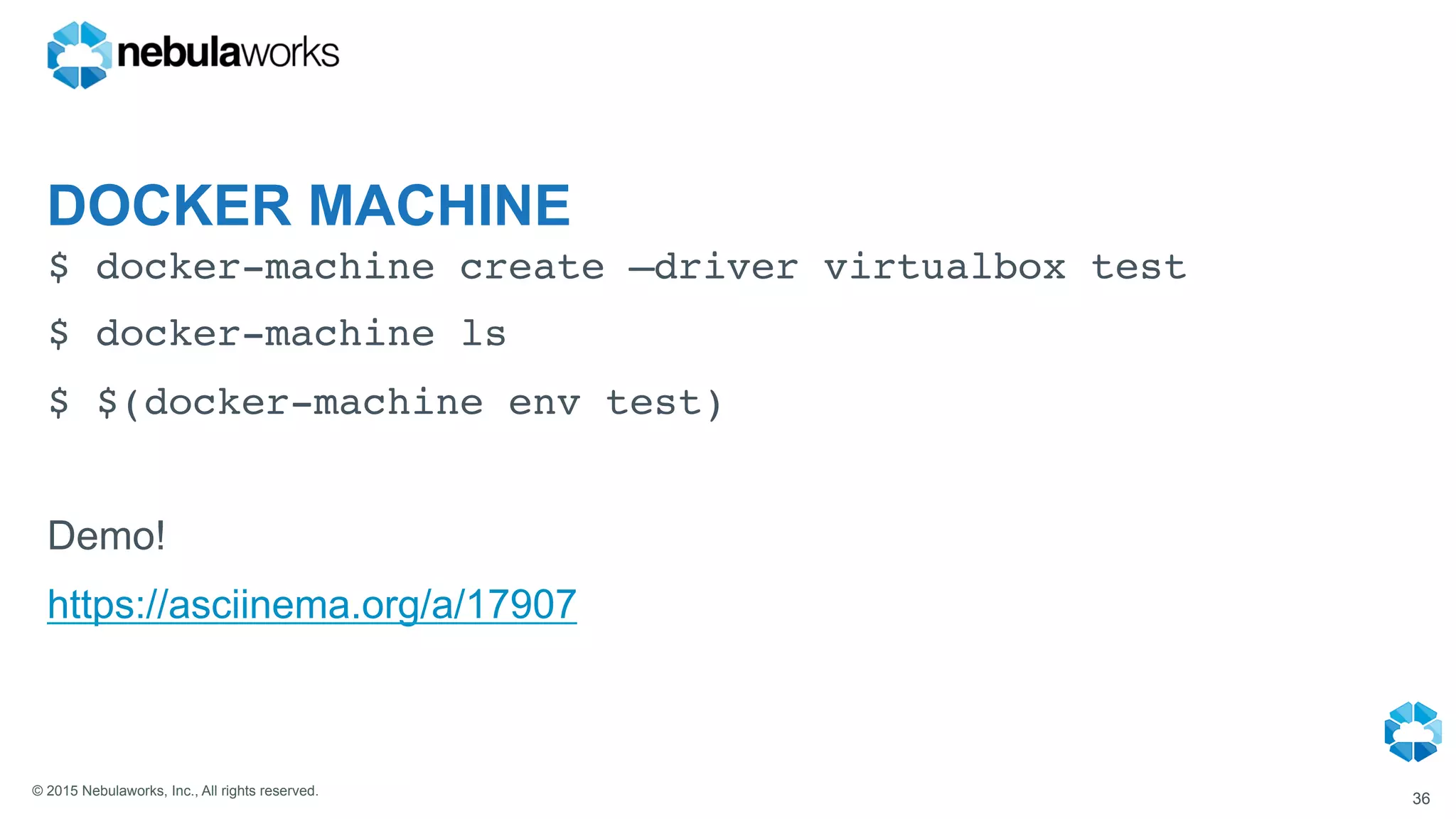

36. © 2015 Nebulaworks, Inc., All rights reserved.
DOCKER MACHINE
$ docker-machine create –driver virtualbox test
$ docker-machine ls
$ $(docker-machine env test)
Demo!
https://asciinema.org/a/17907
36

37. © 2015 Nebulaworks, Inc., All rights reserved.

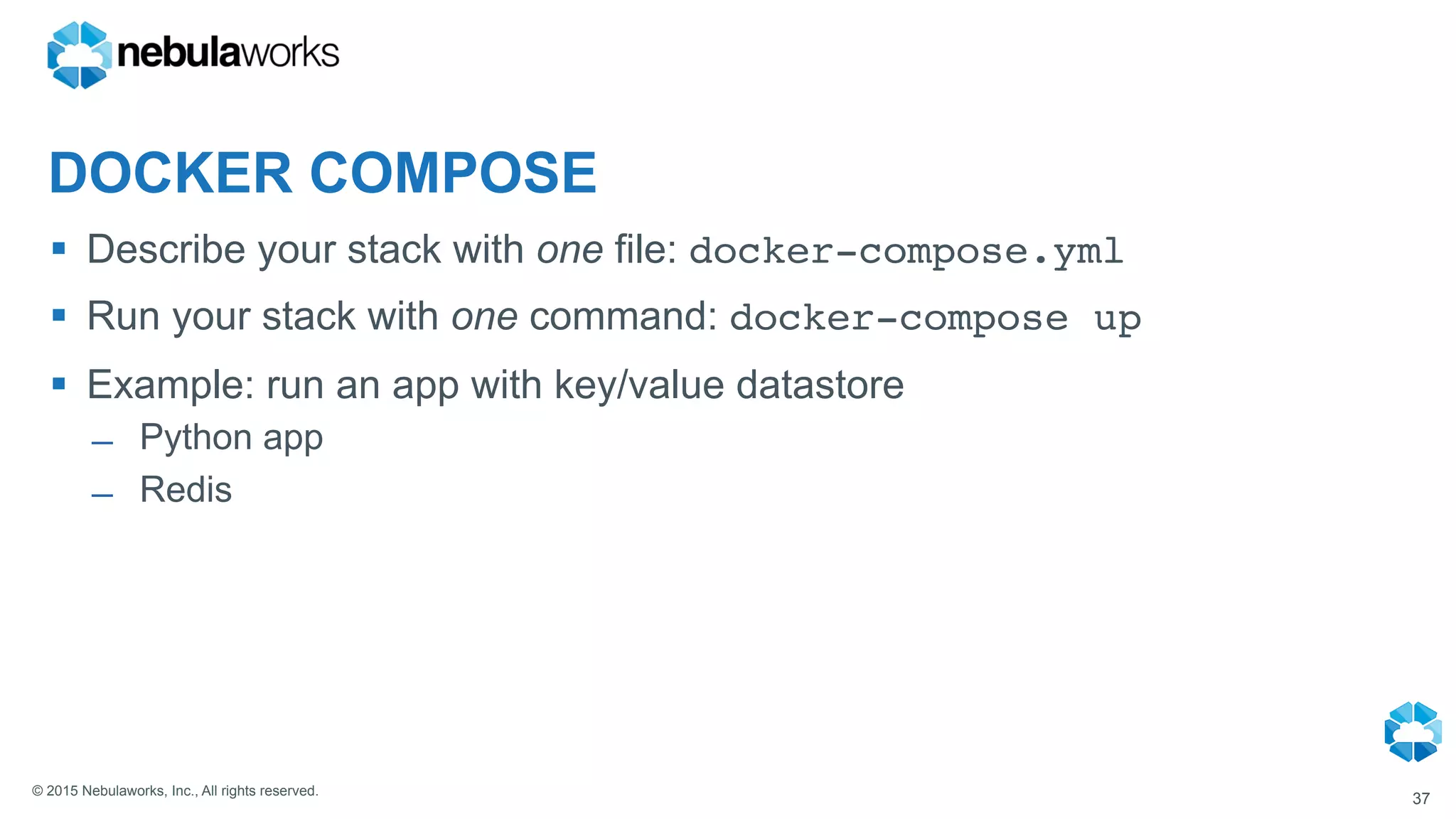

DOCKER COMPOSE
§ Describe your stack with one file: docker-compose.yml
§ Run your stack with one command: docker-compose up
§ Example: run an app with key/value datastore
̶ Python app
̶ Redis
37

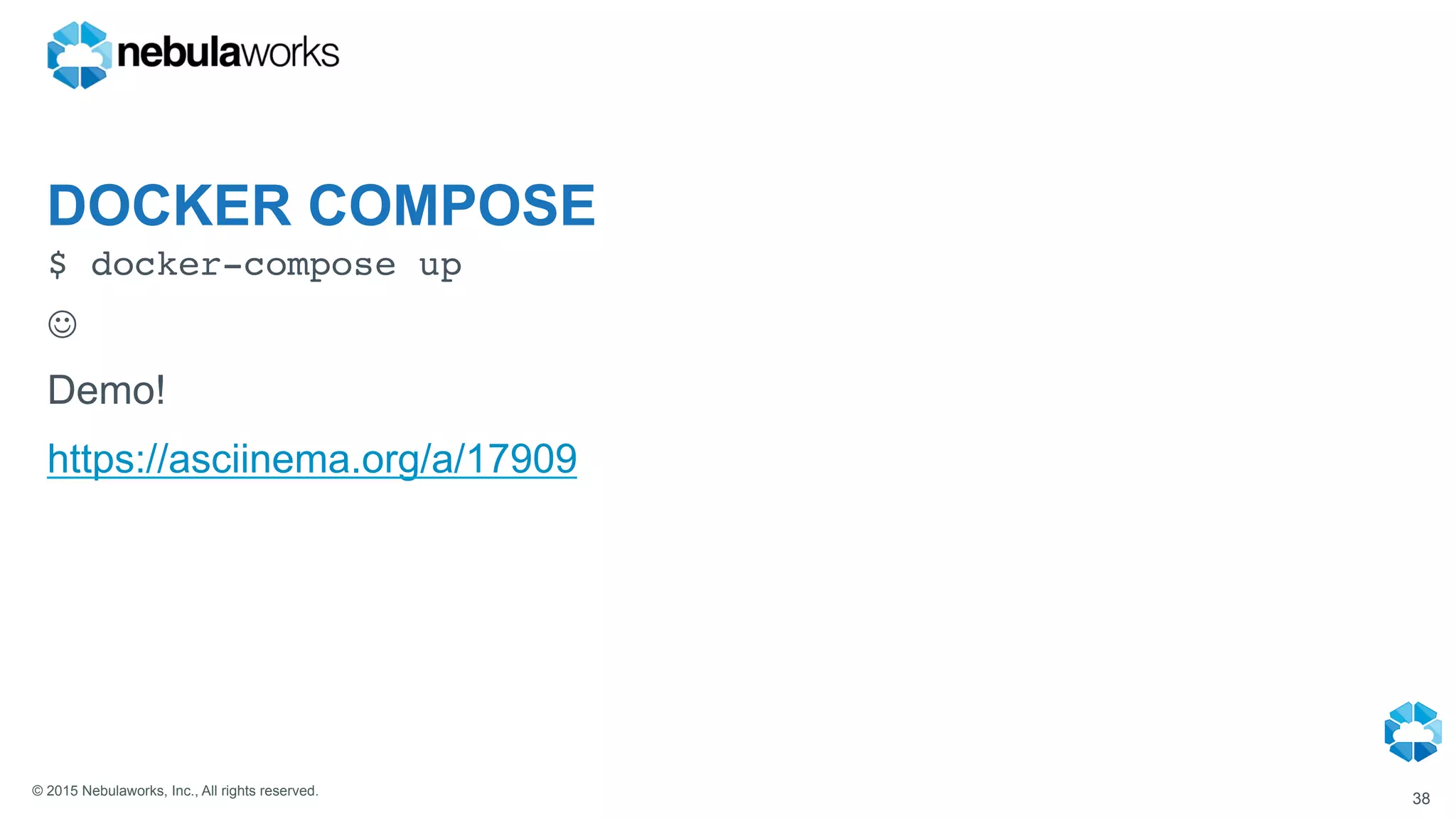

38. © 2015 Nebulaworks, Inc., All rights reserved.
DOCKER COMPOSE
$ docker-compose up
J
Demo!
https://asciinema.org/a/17909
38

39. © 2015 Nebulaworks, Inc., All rights reserved.

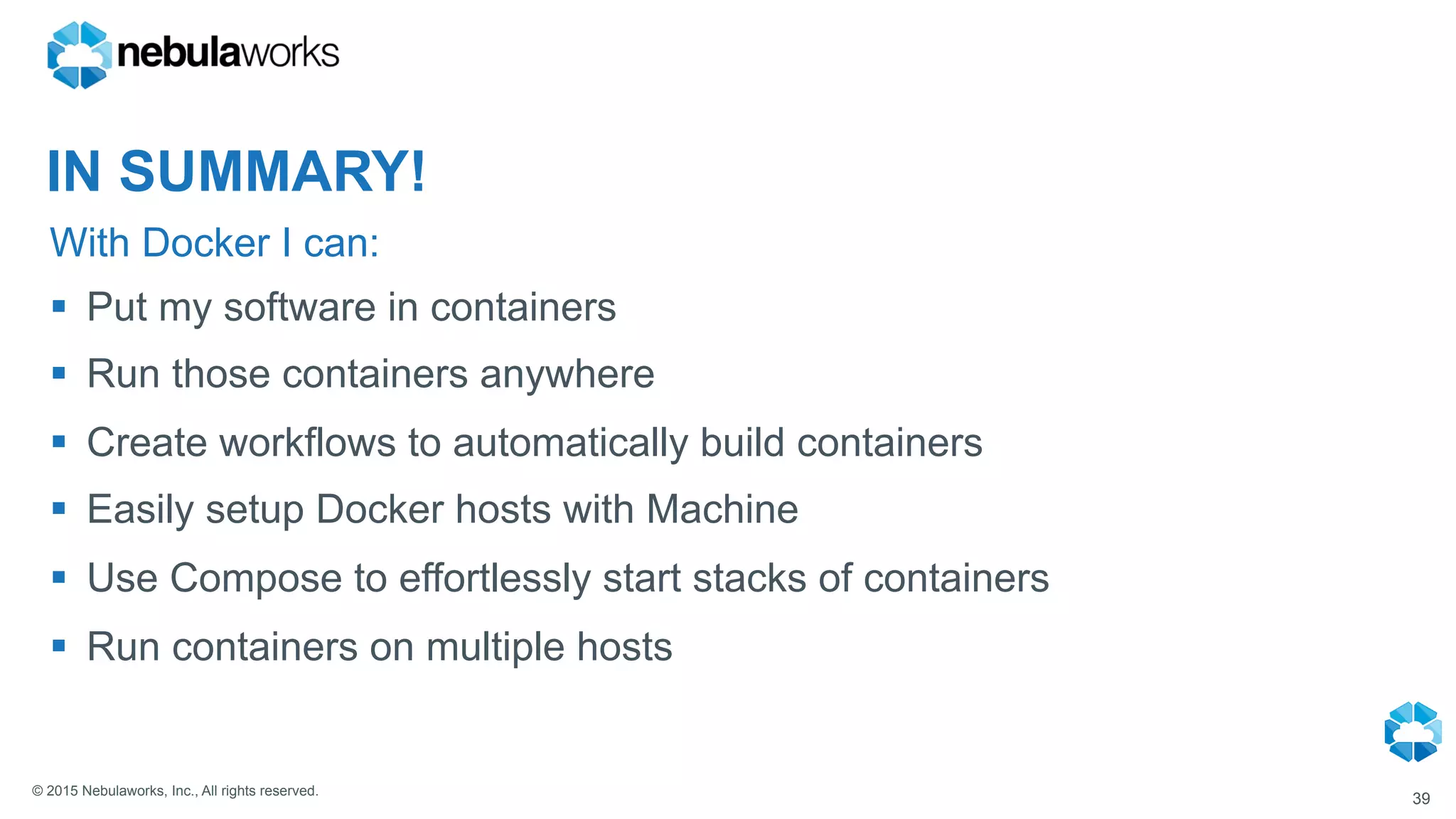

With Docker I can:
39
§ Put my software in containers
§ Run those containers anywhere
§ Create workflows to automatically build containers
§ Easily setup Docker hosts with Machine
§ Use Compose to effortlessly start stacks of containers
§ Run containers on multiple hosts
IN SUMMARY!
