3. 1/17/2024
Tutorial on Network Security: Sep
2003
3

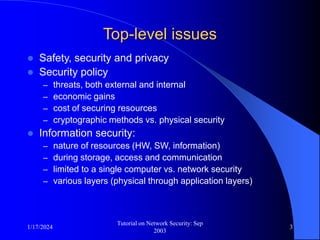

Top-level issues
Safety, security and privacy
Security policy
– threats, both external and internal
– economic gains
– cost of securing resources
– cryptographic methods vs. physical security
Information security:
– nature of resources (HW, SW, information)
– during storage, access and communication
– limited to a single computer vs. network security
– various layers (physical through application layers)
4. 1/17/2024
Tutorial on Network Security: Sep
2003
4

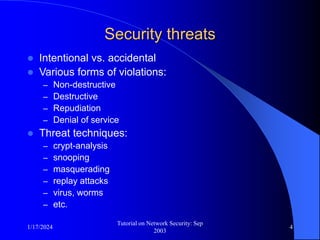

Security threats
Intentional vs. accidental
Various forms of violations:
– Non-destructive
– Destructive
– Repudiation
– Denial of service
Threat techniques:
– crypt-analysis
– snooping
– masquerading
– replay attacks
– virus, worms
– etc.

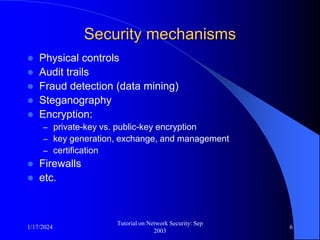

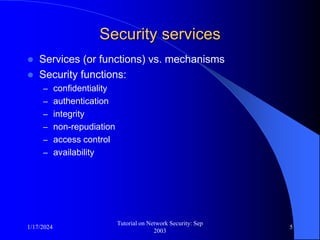

8. 1/17/2024
Tutorial on Network Security: Sep
2003
8

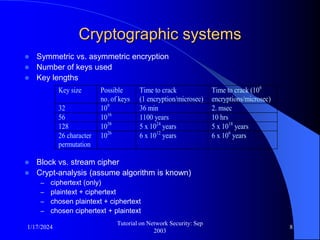

Cryptographic systems
Symmetric vs. asymmetric encryption
Number of keys used
Key lengths
Block vs. stream cipher
Crypt-analysis (assume algorithm is known)
– ciphertext (only)
– plaintext + ciphertext
– chosen plaintext + ciphertext
– chosen ciphertext + plaintext
Key size Possible
no. of keys
Time to crack
(1 encryption/microsec)
Time to crack (106
encryptions/microsec)
32 109
36 min 2. msec
56 1016
1100 years 10 hrs
128 1038
5 x 1024
years 5 x 1018
years
26 character
permutation
1026
6 x 1012
years 6 x 106
years
9. 1/17/2024
Tutorial on Network Security: Sep
2003
9
Symmetric cryptographic system
Symmetric encryption
– Plaintext, X
– Ciphertext, Y
– Secret keys for encryption, decryption, K
Secret
key, K
Encrypt
EK(X)
Decrypt
DK(X)
Crypt-
analysis
X Y X
K K
Secure channel
Insecure
channel
10. 1/17/2024
Tutorial on Network Security: Sep
2003
10

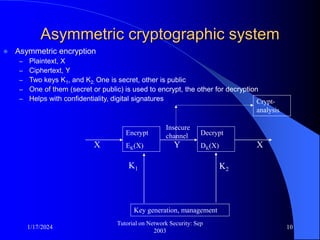

Asymmetric cryptographic system
Asymmetric encryption
– Plaintext, X
– Ciphertext, Y
– Two keys K1, and K2. One is secret, other is public
– One of them (secret or public) is used to encrypt, the other for decryption
– Helps with confidentiality, digital signatures
Key generation, management
Encrypt
EK(X)
Decrypt
DK(X)
Crypt-
analysis
X Y X
K1 K2
Insecure
channel
11. 1/17/2024
Tutorial on Network Security: Sep
2003
11

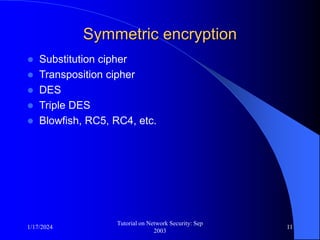

Symmetric encryption
Substitution cipher
Transposition cipher
DES
Triple DES
Blowfish, RC5, RC4, etc.
12. 1/17/2024
Tutorial on Network Security: Sep
2003
12

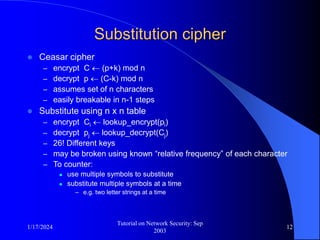

Substitution cipher
Ceasar cipher
– encrypt C (p+k) mod n
– decrypt p (C-k) mod n
– assumes set of n characters
– easily breakable in n-1 steps
Substitute using n x n table
– encrypt Ci lookup_encrypt(pi)
– decrypt pj lookup_decrypt(Cj)
– 26! Different keys
– may be broken using known “relative frequency” of each character
– To counter:
use multiple symbols to substitute
substitute multiple symbols at a time
– e.g. two letter strings at a time
13. 1/17/2024
Tutorial on Network Security: Sep
2003
13
Transposition cipher
Transposition example:
To make it more secure:
– transposition it multiple times
– combine it with substitution ciphers
Key 4 3 1 2 5 6 7
Plaintext a t t a c k p
o s t p o n e
d u n t I l t
w o a m x y z
Ciphertext:
TTNAAPTMTSUOAODWCOIXKNLYPETZ
14. 1/17/2024
Tutorial on Network Security: Sep
2003
14

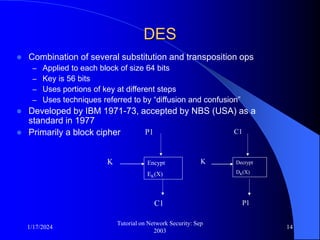

DES
Combination of several substitution and transposition ops
– Applied to each block of size 64 bits
– Key is 56 bits
– Uses portions of key at different steps
– Uses techniques referred to by “diffusion and confusion”
Developed by IBM 1971-73, accepted by NBS (USA) as a
standard in 1977
Primarily a block cipher
Decrypt
DK(X)
P1
K
C1
Encypt
EK(X)
C1
K
P1
15. 1/17/2024
Tutorial on Network Security: Sep
2003
15

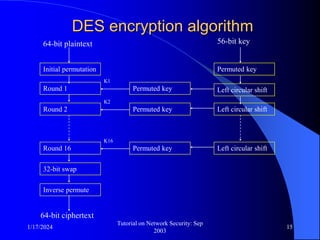

DES encryption algorithm
Initial permutation
Round 1
Round 2
Round 16
32-bit swap
Inverse permute
K1
K2
K16
Permuted key
Permuted key
Permuted key
Left circular shift
Left circular shift
Left circular shift
Permuted key
64-bit plaintext
64-bit ciphertext
56-bit key
16. 1/17/2024
Tutorial on Network Security: Sep
2003
16
Cipher Block Chaining
Encrypt
EK(X)
C1
IV
K
+
P1
Encrypt
EK(X)
C2
+
P2
K
Decrypt
DK(X)
P1
IV
K
+
C1
P2
C2
Decrypt
DK(X)
K
+
Primarily a block cipher
–May be used in “block chaining mode”

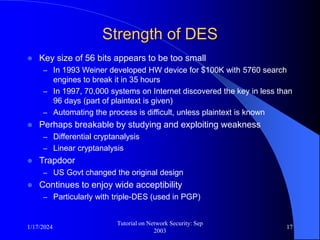

17. 1/17/2024
Tutorial on Network Security: Sep
2003
17
Strength of DES
Key size of 56 bits appears to be too small
– In 1993 Weiner developed HW device for $100K with 5760 search
engines to break it in 35 hours
– In 1997, 70,000 systems on Internet discovered the key in less than
96 days (part of plaintext is given)
– Automating the process is difficult, unless plaintext is known
Perhaps breakable by studying and exploiting weakness
– Differential cryptanalysis
– Linear cryptanalysis
Trapdoor
– US Govt changed the original design
Continues to enjoy wide acceptibility
– Particularly with triple-DES (used in PGP)
18. 1/17/2024
Tutorial on Network Security: Sep
2003
18
Double-DES
Two stages of encryption, using two different keys
Decrypt
EK2(X)
X
K2
Encypt
EK1(X)
C
P
K1

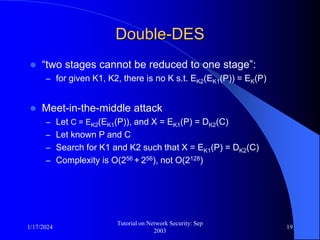

19. 1/17/2024
Tutorial on Network Security: Sep
2003
19
Double-DES
“two stages cannot be reduced to one stage”:
– for given K1, K2, there is no K s.t. EK2(EK1(P)) = EK(P)
Meet-in-the-middle attack
– Let C = EK2(EK1(P)), and X = EK1(P) = DK2(C)
– Let known P and C
– Search for K1 and K2 such that X = EK1(P) = DK2(C)
– Complexity is O(256 + 256), not O(2128)
20. 1/17/2024
Tutorial on Network Security: Sep
2003
20

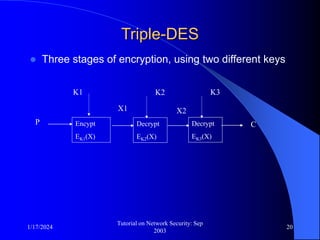

Triple-DES
Three stages of encryption, using two different keys
Decrypt
EK2(X)
X1
K2
Encypt
EK1(X)
C
P
K1
X2
Decrypt
EK3(X)
K3
21. 1/17/2024
Tutorial on Network Security: Sep
2003
21
IDEA
International data encryption algorithm (IDEA)
developed in 1991, gaining ground
block cipher
better understood
US government has had no role in its design
design principle:
– block size 64 bits
– key length 128 bits
– more emphasis on “diffusion” and “confusion”
uses three operations:
– “exclusive-OR”, “addition”, “multiplication”
– some effort to make HW implementation easier
22. 1/17/2024
Tutorial on Network Security: Sep
2003
22

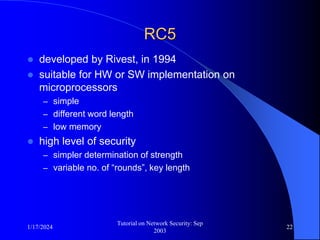

RC5
developed by Rivest, in 1994
suitable for HW or SW implementation on
microprocessors
– simple
– different word length
– low memory
high level of security
– simpler determination of strength
– variable no. of “rounds”, key length
23. 1/17/2024
Tutorial on Network Security: Sep
2003
23

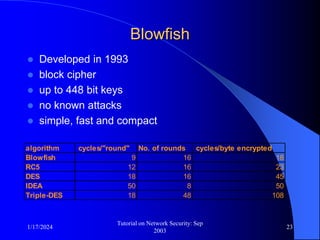

Blowfish
Developed in 1993
block cipher
up to 448 bit keys
no known attacks
simple, fast and compact
algorithm cycles/"round" No. of rounds cycles/byte encrypted
Blowfish 9 16 18
RC5 12 16 23
DES 18 16 45
IDEA 50 8 50
Triple-DES 18 48 108
24. 1/17/2024
Tutorial on Network Security: Sep
2003
24

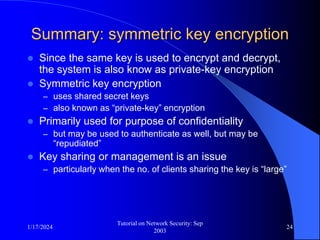

Summary: symmetric key encryption
Since the same key is used to encrypt and decrypt,
the system is also know as private-key encryption
Symmetric key encryption
– uses shared secret keys
– also known as “private-key” encryption
Primarily used for purpose of confidentiality
– but may be used to authenticate as well, but may be
“repudiated”
Key sharing or management is an issue
– particularly when the no. of clients sharing the key is “large”

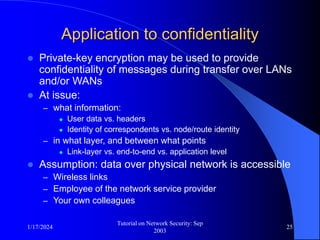

25. 1/17/2024
Tutorial on Network Security: Sep
2003
25
Application to confidentiality
Private-key encryption may be used to provide
confidentiality of messages during transfer over LANs
and/or WANs
At issue:
– what information:
User data vs. headers
Identity of correspondents vs. node/route identity
– in what layer, and between what points
Link-layer vs. end-to-end vs. application level
Assumption: data over physical network is accessible
– Wireless links
– Employee of the network service provider
– Your own colleagues
26. 1/17/2024
Tutorial on Network Security: Sep
2003
26

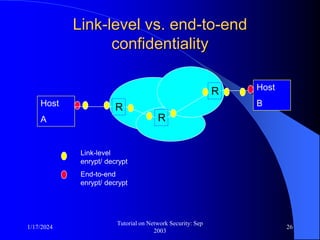

Link-level vs. end-to-end
confidentiality
Host
A
Host
B
R
R
R
Link-level
enrypt/ decrypt
End-to-end
enrypt/ decrypt
27. 1/17/2024
Tutorial on Network Security: Sep
2003
27

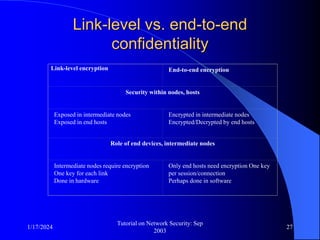

Link-level vs. end-to-end
confidentiality
Link-level encryption End-to-end encryption
Security within nodes, hosts
Exposed in intermediate nodes
Exposed in end hosts
Encrypted in intermediate nodes
Encrypted/Decrypted by end hosts
Role of end devices, intermediate nodes
Intermediate nodes require encryption
One key for each link
Done in hardware
Only end hosts need encryption One key
per session/connection
Perhaps done in software
28. 1/17/2024
Tutorial on Network Security: Sep
2003
28

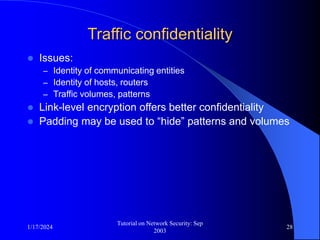

Traffic confidentiality
Issues:
– Identity of communicating entities
– Identity of hosts, routers
– Traffic volumes, patterns
Link-level encryption offers better confidentiality
Padding may be used to “hide” patterns and volumes
29. 1/17/2024
Tutorial on Network Security: Sep
2003
29
Key distribution
Secret key must be distributed between the communicating
entities, say A and B
Link level encryption requires L number of keys to be distributed,
one for each device at the end of a link
Host-to-host encryption requires N*(N-1)/2 keys to be distributed
Two techniques:
– Physical delivery (works only in a very limited environs)
A delivers it to B
A trusted third party C delivers the key to A and to B
– Electronic delivery using an established secure connection or
session
A delivers it to B after suitably encrypting it
A trusted third party C delivers the key to A and to B using secure
channels to A and to B.
30. 1/17/2024
Tutorial on Network Security: Sep
2003
30

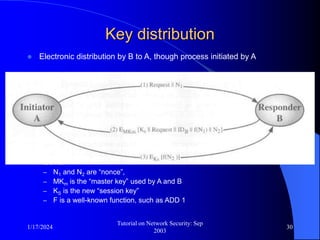

Key distribution
Electronic distribution by B to A, though process initiated by A
Above:
– N1 and N2 are “nonce”,
– MKm is the “master key” used by A and B
– KS is the new “session key”
– F is a well-known function, such as ADD 1
31. 1/17/2024
Tutorial on Network Security: Sep
2003
31

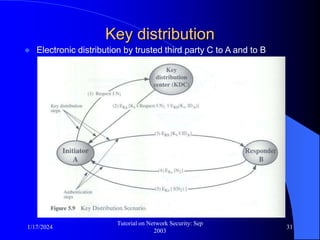

Key distribution
Electronic distribution by trusted third party C to A and to B
32. 1/17/2024
Tutorial on Network Security: Sep
2003
32
Key distribution
Above:
– KA and KB are keys used by A and B, respectively, to communicate
with C
– IDA identifies entity A

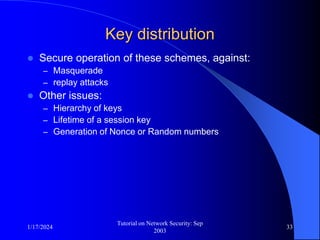

33. 1/17/2024
Tutorial on Network Security: Sep
2003
33
Key distribution
Secure operation of these schemes, against:
– Masquerade
– replay attacks
Other issues:
– Hierarchy of keys
– Lifetime of a session key
– Generation of Nonce or Random numbers
