1. Mysterious c++
Traps, Pitfalls and Secrets
Kent Wang
Jun 1, 2012

2. Why this talk
• 警惕靠巧合编程
• 勿在浮沙筑高台
• 了若指掌方可收放自如
• 见山非山, 见水非水

4. C++很____

5. C++很____

6. 简单
C++很____

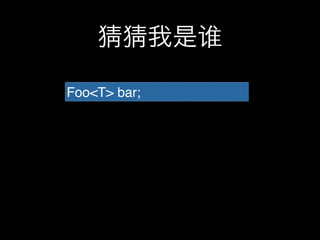

7. 猜猜我是谁
Foo<T> bar;

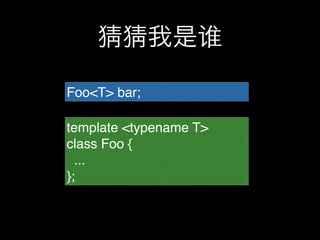

8. 猜猜我是谁
Foo<T> bar;
template <typename T>
class Foo {
...
};

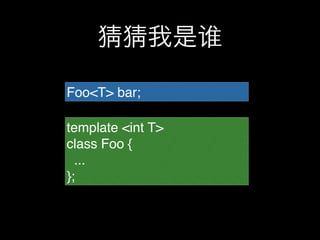

9. 猜猜我是谁
Foo<T> bar;
template <int T>
class Foo {
...
};

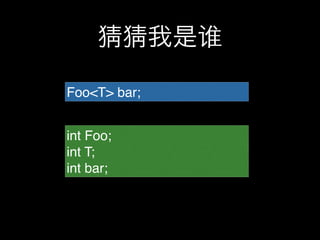

10. 猜猜我是谁
Foo<T> bar;
int Foo;
int T;
int bar;

11. 仇者联盟大战超人
Foo<T> bar;
Superman Foo;
Spiderman T;
Ironman bar;

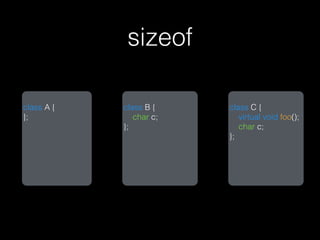

12. sizeof
class A { class B { class C {
}; char c; virtual void foo();
}; char c;
};

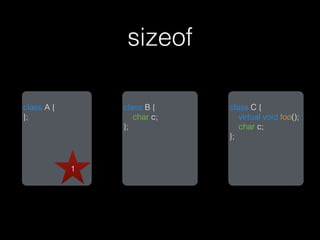

13. sizeof
class A { class B { class C {
}; char c; virtual void foo();
}; char c;
};
1

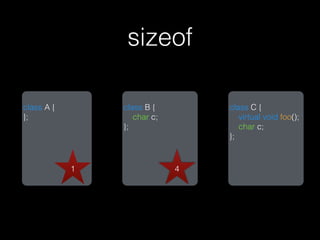

14. sizeof
class A { class B { class C {
}; char c; virtual void foo();
}; char c;
};
1 4

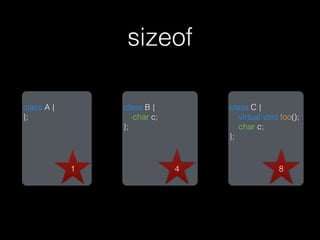

15. sizeof
class A { class B { class C {
}; char c; virtual void foo();
}; char c;
};
1 4 8

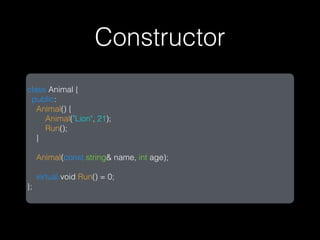

16. Constructor
class Animal {
public:
Animal() {
Animal("Lion", 21);
Run();
}
Animal(const string& name, int age);
virtual void Run() = 0;
};

17. Constructor
class Animal {
public:
Animal() {
Animal("Lion", 21);
Run();
}
Animal(const string& name, int age);
virtual void Run() = 0;
};

19. 颤抖吧! 地球人!

20. 简单
C++很____

21. C++很____

22. C++很____

23. 恐怖
C++很____

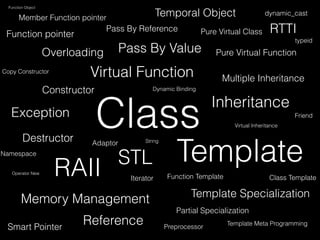

24. Function Object
Member Function pointer Temporal Object dynamic_cast
Function pointer
Pass By Reference Pure Virtual Class RTTI
typeid
Overloading Pass By Value Pure Virtual Function
Copy Constructor
Virtual Function Multiple Inheritance
Constructor Dynamic Binding
Inheritance
Exception
Destructor
Class Virtual Inheritance
Friend
Template
String
Adaptor
Namespace
STL
Operator New RAII Iterator Function Template Class Template
Template Specialization
Memory Management
Partial Specialization
Smart Pointer
Reference Preprocessor
Template Meta Programming

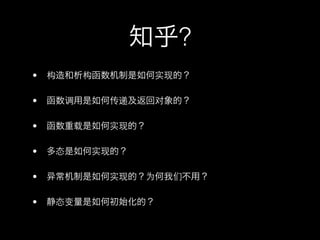

25. 知乎?
• 构造和析构函数机制是如何实现的？
• 函数调用是如何传递及返回对象的？
• 函数重载是如何实现的？
• 多态是如何实现的？
• 常机制是如何实现的？为何我们不用？
• 静态变量是如何初始化的？

26. Tips 1
Don't live with
unknown unknowns

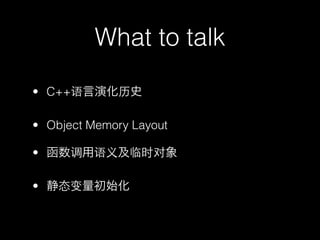

27. What to talk
• C++语言演化历史
• Object Memory Layout
• 函数调用语义及临时对象
• 静态变量初始化

28. What NOT to talk
• 语法细节
• 二进制兼容性
• Exception Handling
• Template & Generic Programming
• C++11 (C++0x)

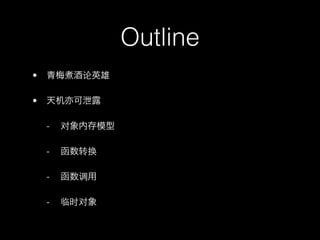

29. Outline
• 青梅煮酒论英雄
• 天机亦可泄露
- 对象内存模型
- 函数转换
- 函数调用
- 临时对象

30. 青梅煮酒论英雄

31. Timeline
2011
1980 1989 C++11
C with class CFront 2.0 1992
HP C++ Lambda Expression
Class Multiple Inheritance Automatic Type
Inheritance Abstract Class Exception Threading
1983 - 1986 1991 1996
C++ - CFront 1.1 CFront 3.0 C++ 98/03
Virtual Function Template STL
Overloading Namespace
Reference

32. C++看起来像是...

33. C++看起来像是...

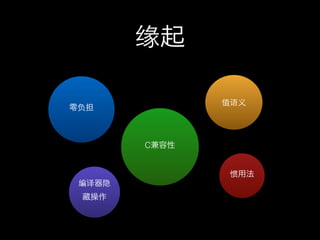

34. 缘起
值语义
零负担
C兼容性
惯用法
编译器隐
藏操作

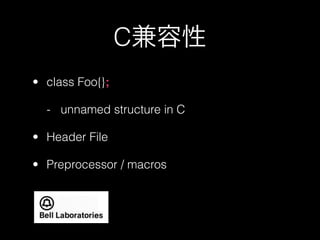

35. C兼容性
• class Foo{};
- unnamed structure in C
• Header File
• Preprocessor / macros

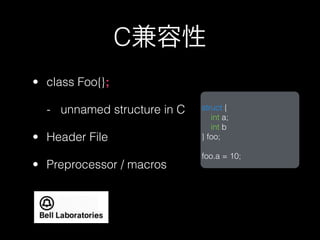

36. C兼容性
• class Foo{};
- unnamed structure in C struct {
int a;
int b
• Header File } foo;
foo.a = 10;
• Preprocessor / macros

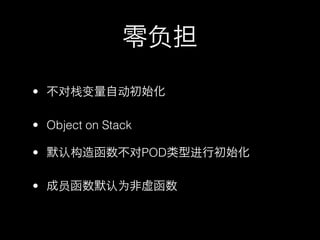

37. 零负担
• 不对栈变量自动初始化
• Object on Stack
• 默认构造函数不对POD类型进行初始化
• 成员函数默认为非虚函数

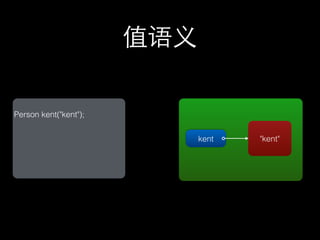

38. 值语义
Person kent("kent");
kent "kent"

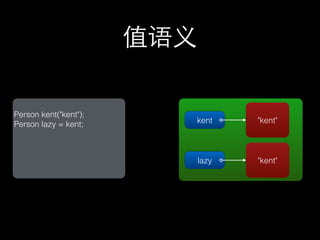

39. 值语义
Person kent("kent");
Person lazy = kent; kent "kent"
lazy "kent"

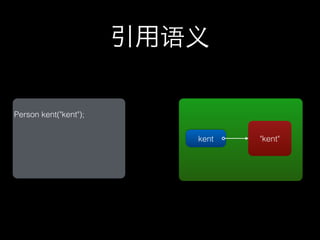

40. 引用语义
Person kent("kent");
kent "kent"

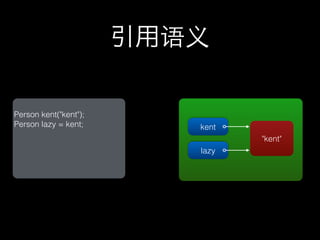

41. 引用语义
Person kent("kent");
Person lazy = kent; kent
"kent"
lazy

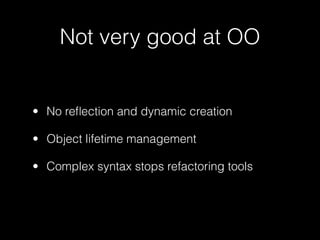

42. Not very good at OO
• No reflection and dynamic creation
• Object lifetime management
• Complex syntax stops refactoring tools

44. 既然如此，
为什么我们还要用C++

46. C++ is deterministic

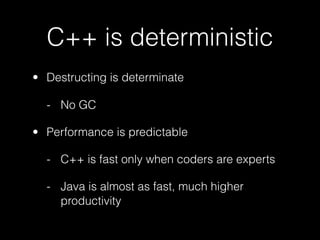

47. C++ is deterministic
• Destructing is determinate
- No GC
• Performance is predictable
- C++ is fast only when coders are experts
- Java is almost as fast, much higher
productivity

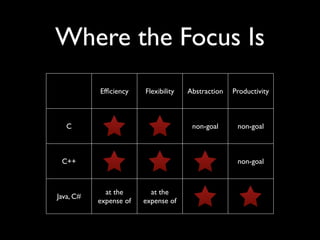

48. Where the Focus Is
Efficiency Flexibility Abstraction Productivity
C non-goal non-goal
C++ non-goal
at the at the
Java, C#
expense of expense of

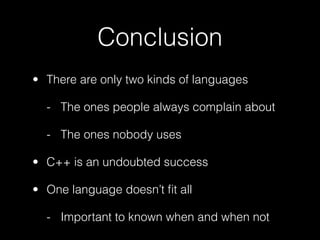

49. Conclusion
• There are only two kinds of languages
- The ones people always complain about
- The ones nobody uses
• C++ is an undoubted success
• One language doesn’t fit all
- Important to known when and when not

50. 天机亦可泄漏

51. 对象内存模型

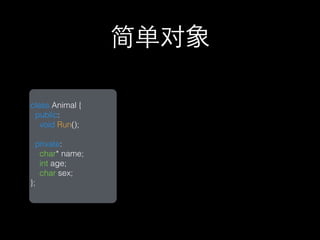

52. 简单对象
class Animal {
public:
void Run();
private:
char* name;
int age;
char sex;
};

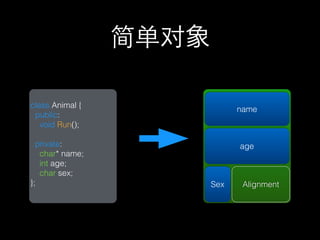

53. 简单对象
class Animal { name
public:
void Run();
private: age
char* name;
int age;
char sex;
}; Sex Alignment

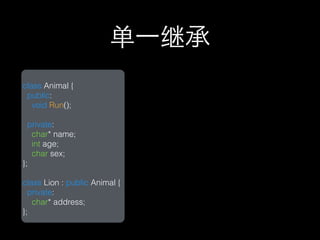

54. 单一继承
class Animal {
public:
void Run();
private:
char* name;
int age;
char sex;
};
class Lion : public Animal {
private:
char* address;
};

55. 单一继承
class Animal { address
public:
void Run();
private: name
char* name;
int age;
char sex;
}; age
class Lion : public Animal {
private:
char* address; Sex Alignment
};

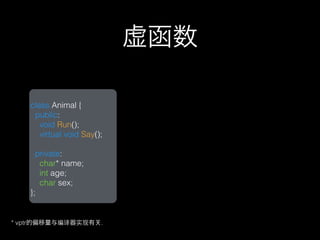

56. 虚函数
class Animal {
public:
void Run();
virtual void Say();
private:
char* name;
int age;
char sex;
};
* vptr的偏移量与编译器实现有 .

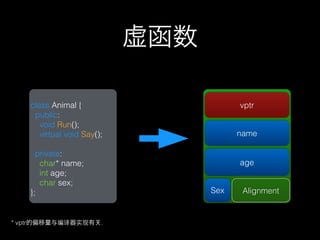

57. 虚函数
class Animal { vptr
public:
void Run();
virtual void Say(); name
private:
char* name; age
int age;
char sex;
}; Sex Alignment
* vptr的偏移量与编译器实现有 .

58. vptr and vtbl
vptr
name
age
Sex Alignment

59. vptr and vtbl
vptr 0 type_info type_info
name 1 Say &Animal::Say
age
Sex Alignment
vtbl$Animal

60. 带虚函数的继承
class Animal {
public:
virtual void Run();
virtual void Say();
private:
char* name;
int age;
char sex;
};
class Lion {
public:
virtual void Say();
};

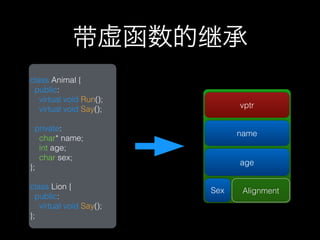

61. 带虚函数的继承
class Animal {
public:
virtual void Run();
virtual void Say(); vptr
private:
name
char* name;
int age;
char sex;
age
};
class Lion { Sex Alignment
public:
virtual void Say();
};

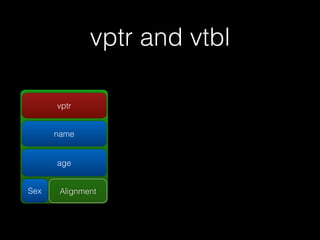

62. vptr and vtbl
vptr
name
age
Sex Alignment

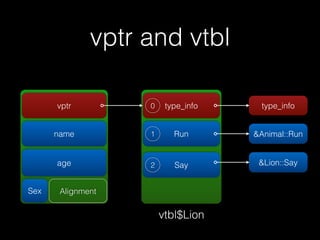

63. vptr and vtbl
vptr 0 type_info type_info
name 1 Run &Animal::Run
age 2 Say &Lion::Say
Sex Alignment
vtbl$Lion

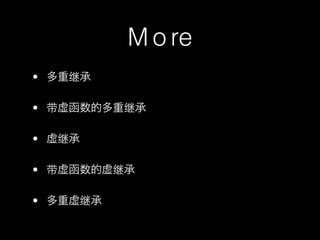

64. M o re
• 多重继承
• 带虚函数的多重继承
• 虚继承
• 带虚函数的虚继承
• 多重虚继承

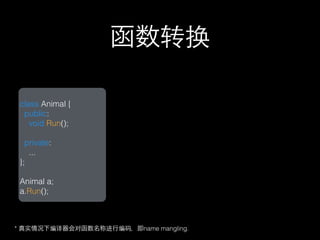

65. 函数转换
class Animal {
public:
void Run();
private:
...
};
Animal a;
a.Run();
* 真实情况下编译器会对函数名称进行编码，即name mangling.

66. 函数转换
class Animal {
public:
void Run();
private:
...
};
Animal a;
a.Run();
* 真实情况下编译器会对函数名称进行编码，即name mangling.

67. 函数转换
class Animal { void Animal_Run(Animal* this)
public: {
void Run(); ...
}
private:
... Animal a;
}; Animal_Run(&a);
Animal a;
a.Run();
* 真实情况下编译器会对函数名称进行编码，即name mangling.

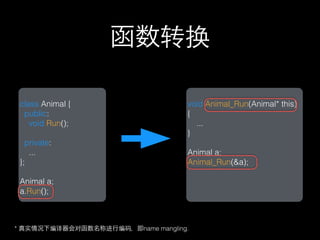

68. 函数转换
class Animal { void Animal_Run(Animal* this)
public: {
void Run(); ...
}
private:
... Animal a;
}; Animal_Run(&a);
Animal a;
a.Run();
* 真实情况下编译器会对函数名称进行编码，即name mangling.

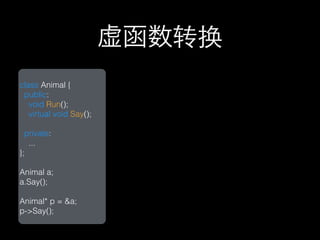

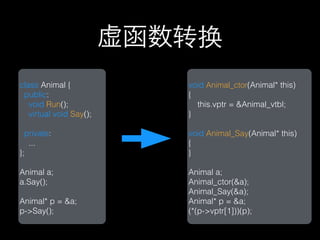

69. 虚函数转换
class Animal {
public:
void Run();
virtual void Say();
private:
...
};
Animal a;
a.Say();
Animal* p = &a;
p->Say();

70. 虚函数转换
class Animal { void Animal_ctor(Animal* this)
public: {
void Run(); this.vptr = &Animal_vtbl;
virtual void Say(); }
private: void Animal_Say(Animal* this)
... {
}; }
Animal a; Animal a;
a.Say(); Animal_ctor(&a);
Animal_Say(&a);
Animal* p = &a; Animal* p = &a;
p->Say(); (*(p->vptr[1]))(p);

71. 虚函数转换
class Animal { void Animal_ctor(Animal* this)
public: {
void Run(); this.vptr = &Animal_vtbl;
virtual void Say(); }
private: void Animal_Say(Animal* this)
... {
}; }
Animal a; Animal a;
a.Say(); Animal_ctor(&a);
Animal_Say(&a);
Animal* p = &a; Animal* p = &a;
p->Say(); (*(p->vptr[1]))(p);

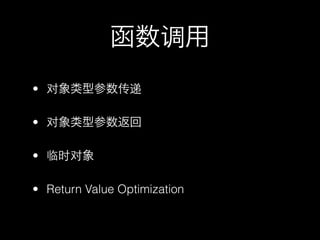

72. 函数调用
• 对象类型参数传递
• 对象类型参数返回
• 临时对象
• Return Value Optimization

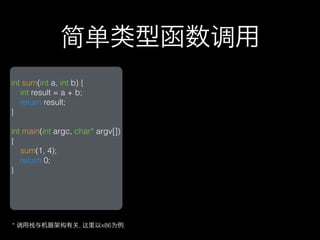

73. 简单类型函数调用
int sum(int a, int b) {
int result = a + b;
return result;
}
int main(int argc, char* argv[])
{
sum(1, 4);
return 0;
}
* 调用栈与机器架构有 , 这里以x86为例.

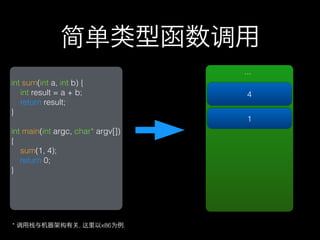

74. 简单类型函数调用
...
int sum(int a, int b) {
int result = a + b; 4
return result;
}
1
int main(int argc, char* argv[])
{
sum(1, 4);
return 0;
}
* 调用栈与机器架构有 , 这里以x86为例.

75. 简单类型函数调用
...
int sum(int a, int b) {
int result = a + b; 4
return result;
}
1
int main(int argc, char* argv[])
{ Return Address
sum(1, 4);
return 0;
}
* 调用栈与机器架构有 , 这里以x86为例.

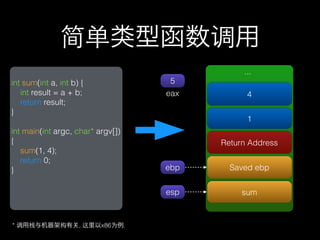

76. 简单类型函数调用
...
int sum(int a, int b) { 5
int result = a + b; eax 4
return result;
}
1
int main(int argc, char* argv[])
{ Return Address
sum(1, 4);
return 0;
} ebp Saved ebp
esp sum
* 调用栈与机器架构有 , 这里以x86为例.

77. 类类型参数传递
class Money {
public:
Money Add(Money money);
private:
uint64_t amount;
};
Money item(700);
Money freight(10);
Money total = item.Add(freight);

78. 类类型参数传递
...
class Money {
public:
Money Add(Money money); temp - Money(10)
private:
uint64_t amount;
};
Money item(700);
Money freight(10);
Money total = item.Add(freight);

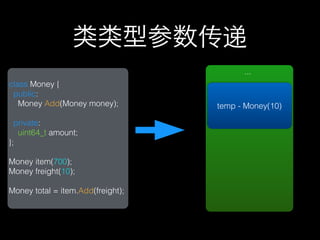

79. 类类型参数传递
...
class Money {
public:
Money Add(Money money); temp - Money(10)
private:
uint64_t amount;
}; Return Address
Money item(700);
Money freight(10);
Money total = item.Add(freight);

80. 类类型参数传递
...
class Money {
public:
Money Add(Money money); temp - Money(10)
private:
uint64_t amount;
}; Return Address
Money item(700);
Money freight(10); ebp Saved ebp
Money total = item.Add(freight); esp sum

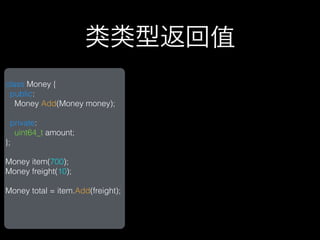

81. 类类型返回值
class Money {
public:
Money Add(Money money);
private:
uint64_t amount;
};
Money item(700);
Money freight(10);
Money total = item.Add(freight);

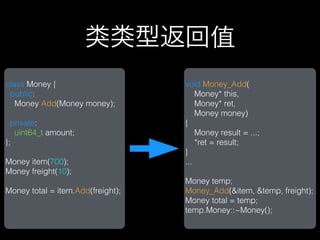

82. 类类型返回值
class Money { void Money_Add(
public: Money* this,
Money Add(Money money); Money* ret,
Money money)
private: {
uint64_t amount; Money result = ...;
}; *ret = result;
}
Money item(700); ...
Money freight(10);
Money temp;
Money total = item.Add(freight); Money_Add(&item, &temp, freight);
Money total = temp;
temp.Money::~Money();

83. 类类型返回值
class Money { void Money_Add(
public: Money* this,
Money Add(Money money); Money* ret,
Money money)
private: {
uint64_t amount; Money result = ...;
}; *ret = result;
}
Money item(700); ...
Money freight(10);
Money temp;
Money total = item.Add(freight); Money_Add(&item, &temp, freight);
Money total = temp;
temp.Money::~Money();

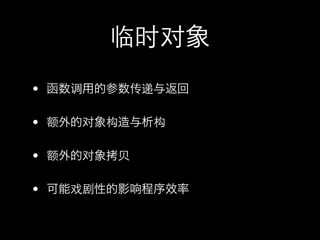

84. 临时对象
• 函数调用的参数传递与返回
• 额外的对象构造与析构
• 额外的对象拷贝
• 可能戏剧性的影响程序效率

85. Tips 2
Prefer pass-by-reference
to pass-by-value

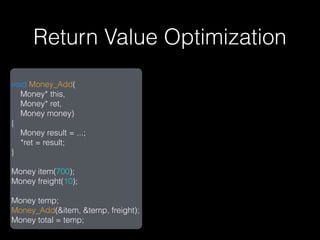

86. Return Value Optimization
void Money_Add(
Money* this,
Money* ret,
Money money)
{
Money result = ...;
*ret = result;
}
Money item(700);
Money freight(10);
Money temp;
Money_Add(&item, &temp, freight);
Money total = temp;

87. Return Value Optimization
void Money_Add( void Money_Add(
Money* this, Money* this,
Money* ret, Money* ret,
Money money) Money money)
{ {
Money result = ...; *ret = ...;
*ret = result; }
}
Money item(700);
Money item(700); Money freight(10);
Money freight(10);
Money temp;
Money temp; Money total;
Money_Add(&item, &temp, freight); Money_Add(&item, &total, freight);
Money total = temp;

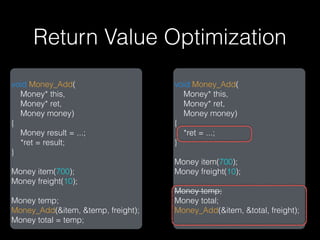

88. Return Value Optimization
void Money_Add( void Money_Add(
Money* this, Money* this,
Money* ret, Money* ret,
Money money) Money money)
{ {
Money result = ...; *ret = ...;
*ret = result; }
}
Money item(700);
Money item(700); Money freight(10);
Money freight(10);
Money temp;
Money temp; Money total;
Money_Add(&item, &temp, freight); Money_Add(&item, &total, freight);
Money total = temp;

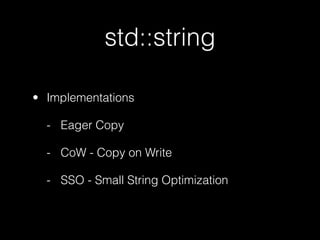

89. std::string
• Implementations
- Eager Copy
- CoW - Copy on Write
- SSO - Small String Optimization

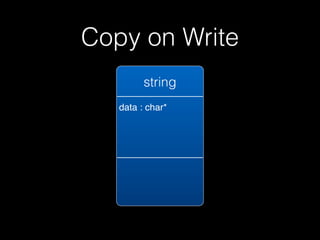

90. Copy on Write
string
data : char*

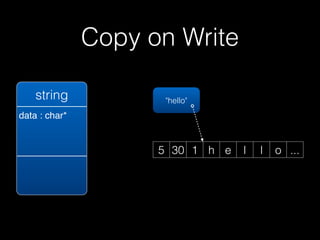

91. Copy on Write
string "hello"
data : char*
5 30 1 h e l l o ...

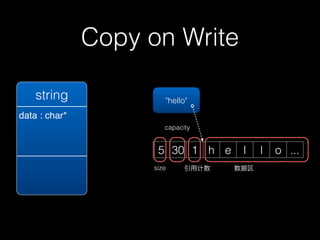

92. Copy on Write
string "hello"
data : char*
capacity
5 30 1 h e l l o ...
size 引用计数 数据区

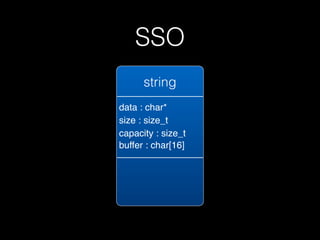

93. SSO
string
data : char*
size : size_t
capacity : size_t
buffer : char[16]

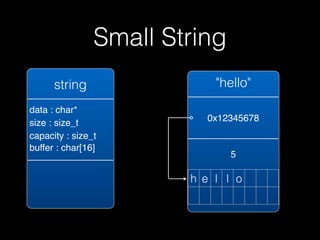

94. Small String
string "hello"
data : char*
0x12345678
size : size_t
capacity : size_t
buffer : char[16]
5
h e l l o

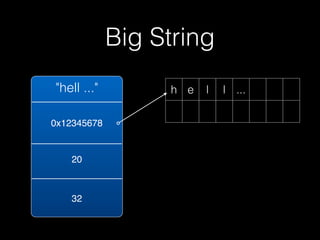

95. Big String
"hell ..." h e l l ...
0x12345678
20
32

96. Tips 3
Critically Analyze What
You Read And Hear

97. 静态变量初始化
Animal animal("Lion");
int Foo() {
...
}
int num = Foo();

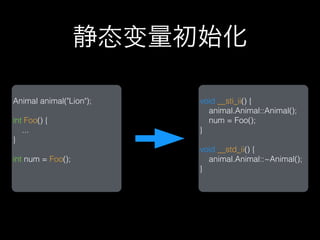

98. 静态变量初始化
Animal animal("Lion"); void __sti_ii() {
animal.Animal::Animal();
int Foo() { num = Foo();
... }
}
void __std_ii() {
int num = Foo(); animal.Animal::~Animal();
}

99. inline vs. iterator
vector<int>::iterator it = vec.begin();
vector<int>::iterator end = vec.end(); for (vector<int>::iterator it = vec.begin();
for (; it != end; ++it) { it != vec.end(); ++it) {
} }

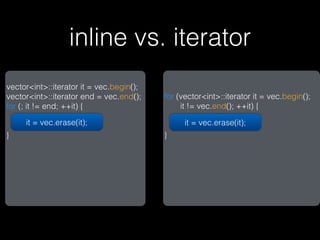

100. inline vs. iterator
vector<int>::iterator it = vec.begin();
vector<int>::iterator end = vec.end(); for (vector<int>::iterator it = vec.begin();
for (; it != end; ++it) { it != vec.end(); ++it) {
it = vec.erase(it); it = vec.erase(it);
} }

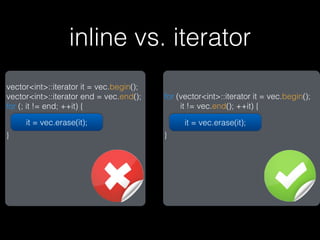

101. inline vs. iterator
vector<int>::iterator it = vec.begin();
vector<int>::iterator end = vec.end(); for (vector<int>::iterator it = vec.begin();
for (; it != end; ++it) { it != vec.end(); ++it) {
it = vec.erase(it); it = vec.erase(it);
} }

102. Tips 4
Don't Assume It,
Prove It

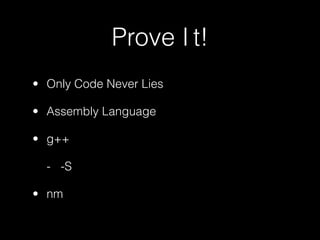

103. Prove I t!
• Only Code Never Lies
• Assembly Language
• g++
- -S
• nm

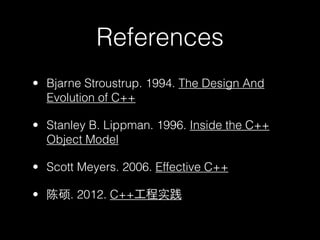

104. References
• Bjarne Stroustrup. 1994. The Design And
Evolution of C++
• Stanley B. Lippman. 1996. Inside the C++
Object Model
• Scott Meyers. 2006. Effective C++
• 陈硕. 2012. C++工程实践

105. Q&A

106. Thanks for your time
