I Know Kung Fu – Writing Java
Bytecode

Alexander Shopov <ash@kambanaria.org>

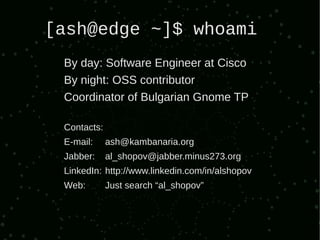

[ash@edge ~]$ whoami
By day: Software Engineer at Cisco
By night: OSS contributor
Coordinator of Bulgarian Gnome TP

Contacts:
E-mail: ash@kambanaria.org
Jabber: al_shopov@jabber.minus273.org
LinkedIn: http://www.linkedin.com/in/alshopov
Web: Just search “al_shopov”

Please Learn And Share

License: CC-BY v3.0Creative Common

Disclaimer

My opinions, knowledge and experience!
Not my employer's.

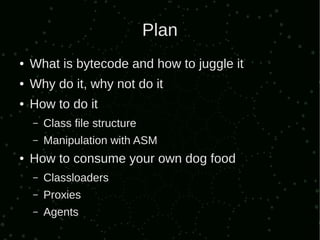

Plan
● What is bytecode and how to juggle it
● Why do it, why not do it
● How to do it
– Class file structure
– Manipulation with ASM
● How to consume your own dog food
– Classloaders
– Proxies
– Agents

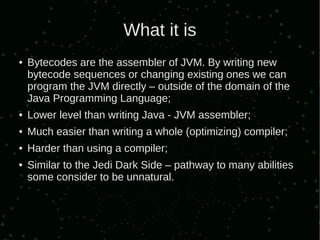

What it is
● Bytecodes are the assembler of JVM. By writing new
bytecode sequences or changing existing ones we can
program the JVM directly – outside of the domain of the
Java Programming Language;
● Lower level than writing Java - JVM assembler;
● Much easier than writing a whole (optimizing) compiler;
● Harder than using a compiler;
● Similar to the Jedi Dark Side – pathway to many abilities
some consider to be unnatural.

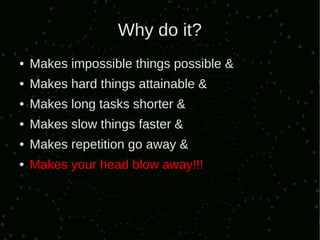

Why do it?
● Makes impossible things possible &
● Makes hard things attainable &
● Makes long tasks shorter &
● Makes slow things faster &
● Makes repetition go away &
● Makes your head blow away!!!

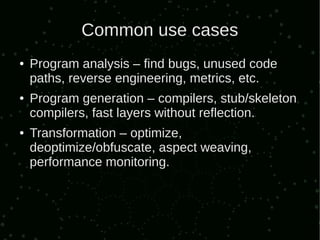

Common use cases
● Program analysis – find bugs, unused code
paths, reverse engineering, metrics, etc.
● Program generation – compilers, stub/skeleton
compilers, fast layers without reflection.
● Transformation – optimize,
deoptimize/obfuscate, aspect weaving,
performance monitoring.

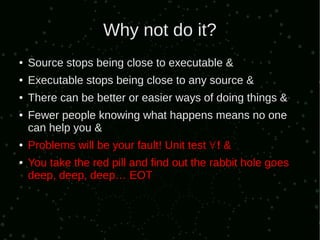

Why not do it?
● Source stops being close to executable &
● Executable stops being close to any source &
● There can be better or easier ways of doing things &
● Fewer people knowing what happens means no one
can help you &
● Problems will be your fault! Unit test ∀ ! &
● You take the red pill and find out the rabbit hole goes
deep, deep, deep… EOT

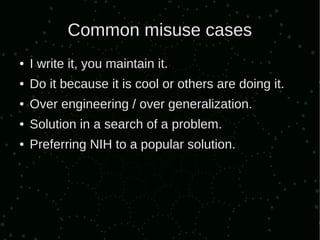

Common misuse cases
● I write it, you maintain it.
● Do it because it is cool or others are doing it.
● Over engineering / over generalization.
● Solution in a search of a problem.
● Preferring NIH to a popular solution.

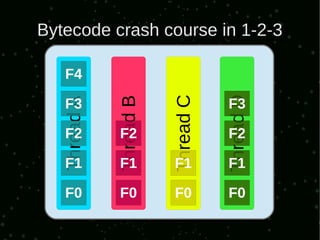

Bytecode crash course in 1-2-3

F4

Thread D
Thread C
Thread B
F3 F3
Thread A

F2 F2 F2

F1 F1 F1 F1

F0 F0 F0 F0

JVM (heap)
0 1 2 3 4 5 6 … Class
PC
Local variables Method code

F0

Class
Pool of
constants

Stack

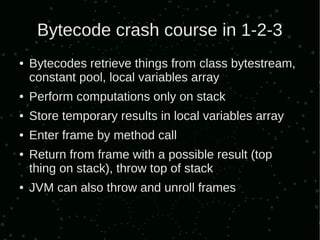

● Bytecodes retrieve things from class bytestream,
constant pool, local variables array
● Perform computations only on stack
● Store temporary results in local variables array
● Enter frame by method call
● Return from frame with a possible result (top
thing on stack), throw top of stack
● JVM can also throw and unroll frames

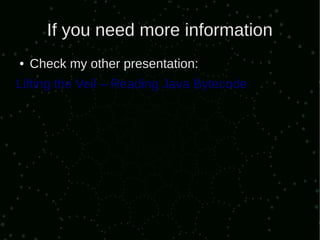

If you need more information
● Check my other presentation:
Lifting the Veil – Reading Java Bytecode

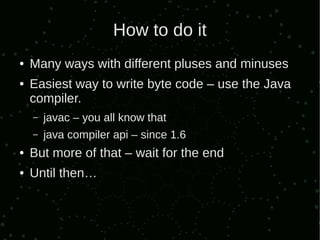

How to do it
● Many ways with different pluses and minuses
● Easiest way to write byte code – use the Java
compiler.
– javac – you all know that
– java compiler api – since 1.6
● But more of that – wait for the end
● Until then…

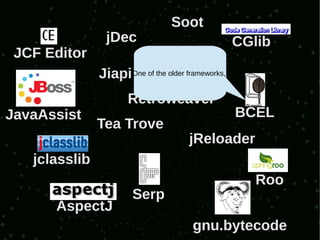

Soot
jDec CGlib
JCF Editor cojen
Jiapi
Retroweaver
JavaAssist BCEL
Tea Trove
jReloader
jclasslib
Roo
Serp
AspectJ
gnu.bytecode

Soot
jDec CGlib
JCF Editor cojen
Jiapi One of the older frameworks,
Retroweaver
JavaAssist BCEL
Tea Trove
jReloader
jclasslib
Roo
Serp
AspectJ
gnu.bytecode

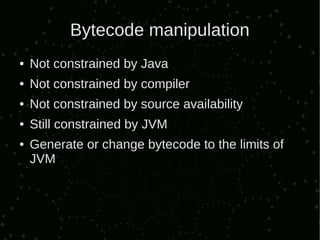

Bytecode manipulation
● Not constrained by Java
● Not constrained by compiler
● Not constrained by source availability
● Still constrained by JVM
● Generate or change bytecode to the limits of
JVM

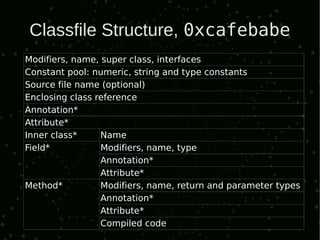

Classfile Structure, 0xcafebabe
Modifiers, name, super class, interfaces
Constant pool: numeric, string and type constants
Source file name (optional)
Enclosing class reference
Annotation*
Attribute*
Inner class* Name
Field* Modifiers, name, type
Annotation*
Attribute*
Method* Modifiers, name, return and parameter types
Annotation*
Attribute*
Compiled code

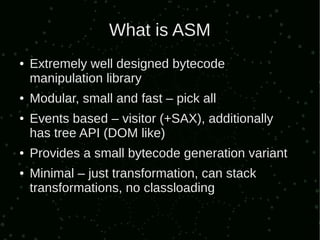

What is ASM
● Extremely well designed bytecode
manipulation library
● Modular, small and fast – pick all
● Events based – visitor (+SAX), additionally
has tree API (DOM like)
● Provides a small bytecode generation variant
● Minimal – just transformation, can stack
transformations, no classloading

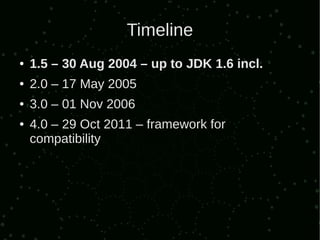

Timeline
● 1.5 – 30 Aug 2004 – up to JDK 1.6 incl.
● 2.0 – 17 May 2005
● 3.0 – 01 Nov 2006
● 4.0 – 29 Oct 2011 – framework for
compatibility

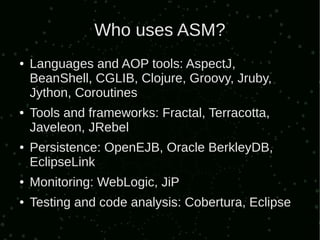

Who uses ASM?
● Languages and AOP tools: AspectJ,
BeanShell, CGLIB, Clojure, Groovy, Jruby,
Jython, Coroutines
● Tools and frameworks: Fractal, Terracotta,
Javeleon, JRebel
● Persistence: OpenEJB, Oracle BerkleyDB,
EclipseLink
● Monitoring: WebLogic, JiP
● Testing and code analysis: Cobertura, Eclipse

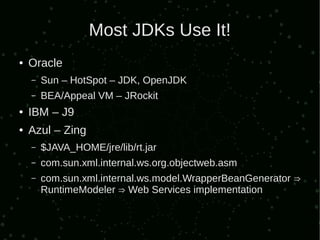

Most JDKs Use It!
● Oracle
– Sun – HotSpot – JDK, OpenJDK
– BEA/Appeal VM – JRockit
● IBM – J9
● Azul – Zing
– $JAVA_HOME/jre/lib/rt.jar
– com.sun.xml.internal.ws.org.objectweb.asm
– com.sun.xml.internal.ws.model.WrapperBeanGenerator ⇒
RuntimeModeler ⇒ Web Services implementation

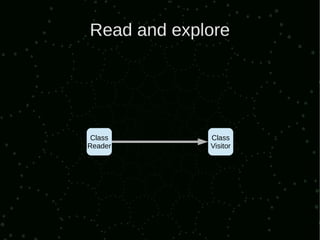

Read and explore

Class Class
Reader Visitor

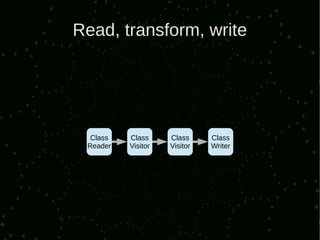

Read, transform, write

Class Class Class Class
Reader Visitor Visitor Writer

I know what I am doing

Class Class Class Class Class Class Class Class
Reader Visitor Visitor Visitor Visitor Visitor Visitor Writer

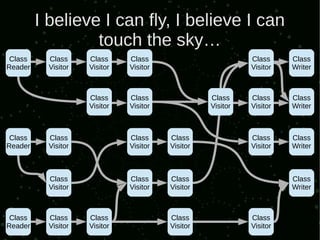

I believe I can fly, I believe I can
touch the sky…
Class Class Class Class Class Class
Reader Visitor Visitor Visitor Visitor Writer

Class Class Class Class Class
Visitor Visitor Visitor Visitor Writer

Class Class Class Class Class Class
Reader Visitor Visitor Visitor Visitor Writer

Class Class Class Class
Visitor Visitor Visitor Writer

Class Class Class Class Class
Reader Visitor Visitor Visitor Visitor

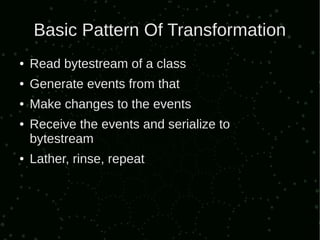

Basic Pattern Of Transformation
● Read bytestream of a class
● Generate events from that
● Make changes to the events
● Receive the events and serialize to
bytestream
● Lather, rinse, repeat

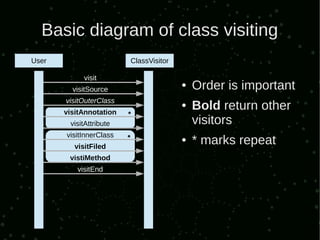

Basic diagram of class visiting
User ClassVisitor

visit
visitSource
● Order is important
visitOuterClass
visitAnnotation
● Bold return other
*
visitAttribute visitors
visitInnerClass
visitFiled
* ● * marks repeat
vistiMethod
visitEnd

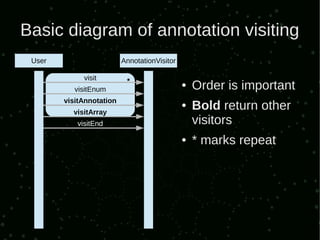

Basic diagram of annotation visiting
User AnnotationVisitor

visit *
visitEnum
visitAnnotation
visitArray
visitEnd visitors
● * marks repeat

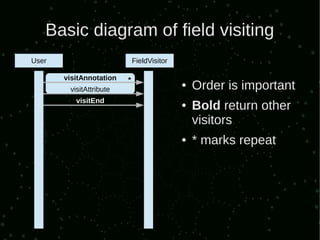

Basic diagram of field visiting
User FieldVisitor

visitAnnotation *
visitAttribute
visitEnd
visitors
● * marks repeat

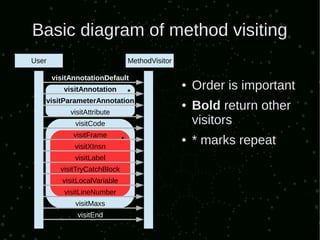

Basic diagram of method visiting
User MethodVisitor

visitAnnotationDefault
visitAnnotation *
visitParameterAnnotation
visitAttribute
visitCode visitors
visitFrame
visitXInsn
* ● * marks repeat
visitLabel
visitTryCatchBlock
visitLocalVariable
visitLineNumber
visitMaxs
visitEnd

Our humble beginning

package org.kambanaria.writebytecode.asm;
public class Zombunny { //Зомбайо

public Integer getVersion() {
return Integer.valueOf(1);
}

}

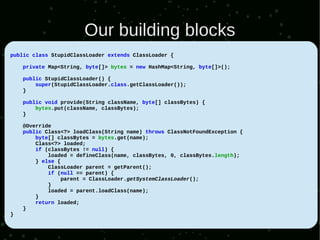

Our building blocks
public class StupidClassLoader extends ClassLoader {

private Map<String, byte[]> bytes = new HashMap<String, byte[]>();

public StupidClassLoader() {
super(StupidClassLoader.class.getClassLoader());
}

public void provide(String className, byte[] classBytes) {
bytes.put(className, classBytes);
}

@Override
public Class<?> loadClass(String name) throws ClassNotFoundException {
byte[] classBytes = bytes.get(name);
Class<?> loaded;
if (classBytes != null) {
loaded = defineClass(name, classBytes, 0, classBytes.length);
} else {
ClassLoader parent = getParent();
if (null == parent) {
parent = ClassLoader.getSystemClassLoader();
}
loaded = parent.loadClass(name);
}
return loaded;
}
}

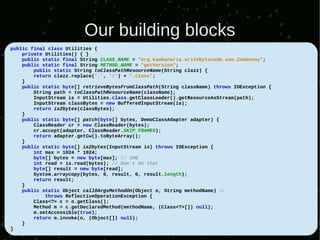

Our building blocks
public final class Utilities {
private Utilities() { }
public static final String CLASS_NAME = "org.kambanaria.writebytecode.asm.Zombunny";
public static final String METHOD_NAME = "getVersion";
public static String toClassPathResourceName(String clazz) {
return clazz.replace('.', '/') + ".class";
}
public static byte[] retrieveBytesFromClassPath(String className) throws IOException {
String path = toClassPathResourceName(className);
InputStream is = Utilities.class.getClassLoader().getResourceAsStream(path);
InputStream classBytes = new BufferedInputStream(is);
return is2bytes(classBytes);
}
public static byte[] patch(byte[] bytes, DemoClassAdapter adapter) {
ClassReader cr = new ClassReader(bytes);
cr.accept(adapter, ClassReader.SKIP_FRAMES);
return adapter.getCw().toByteArray();
}
public static byte[] is2bytes(InputStream is) throws IOException {
int max = 1024 * 1024;
byte[] bytes = new byte[max]; // 1MB
int read = is.read(bytes); // Don't do that
byte[] result = new byte[read];
System.arraycopy(bytes, 0, result, 0, result.length);
return result;
}
public static Object call0ArgsMethodOn(Object o, String methodName) //
throws ReflectiveOperationException {
Class<?> c = o.getClass();
Method m = c.getDeclaredMethod(methodName, (Class<?>[]) null);
m.setAccessible(true);
return m.invoke(o, (Object[]) null);
}
}

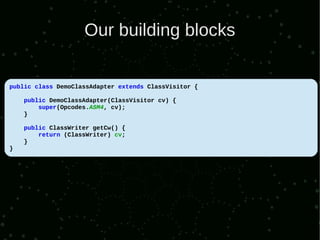

Our building blocks

public class DemoClassAdapter extends ClassVisitor {

public DemoClassAdapter(ClassVisitor cv) {
super(Opcodes.ASM4, cv);
}

public ClassWriter getCw() {
return (ClassWriter) cv;
}
}

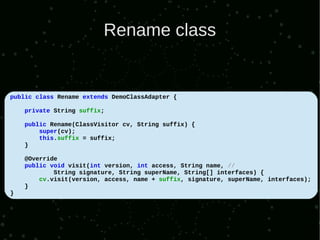

Rename class

public class Rename extends DemoClassAdapter {

private String suffix;

public Rename(ClassVisitor cv, String suffix) {
super(cv);
this.suffix = suffix;
}

@Override
public void visit(int version, int access, String name, //
String signature, String superName, String[] interfaces) {
cv.visit(version, access, name + suffix, signature, superName, interfaces);
}
}

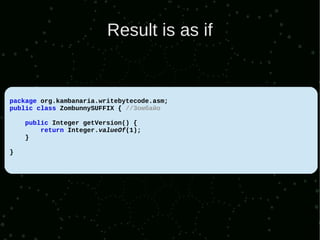

Result is as if

public class ZombunnySUFFIX { //Зомбайо

}

}

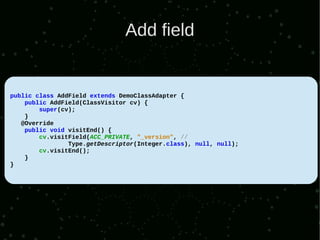

Add field

public class AddField extends DemoClassAdapter {
public AddField(ClassVisitor cv) {
super(cv);
}
@Override
public void visitEnd() {
cv.visitField(ACC_PRIVATE, "_version", //
Type.getDescriptor(Integer.class), null, null);
cv.visitEnd();
}
}

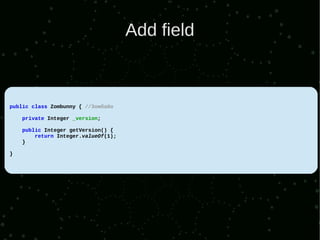

Add field


private Integer _version;

}

}

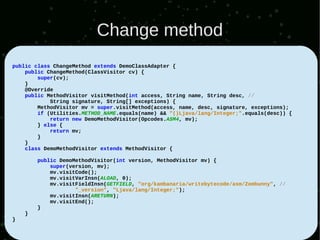

Change method
public class ChangeMethod extends DemoClassAdapter {
public ChangeMethod(ClassVisitor cv) {
super(cv);
}
@Override
public MethodVisitor visitMethod(int access, String name, String desc, //
String signature, String[] exceptions) {
MethodVisitor mv = super.visitMethod(access, name, desc, signature, exceptions);
if (Utilities.METHOD_NAME.equals(name) && "()Ljava/lang/Integer;".equals(desc)) {
return new DemoMethodVisitor(Opcodes.ASM4, mv);
} else {
return mv;
}
}
class DemoMethodVisitor extends MethodVisitor {

public DemoMethodVisitor(int version, MethodVisitor mv) {
super(version, mv);
mv.visitCode();
mv.visitVarInsn(ALOAD, 0);
mv.visitFieldInsn(GETFIELD, "org/kambanaria/writebytecode/asm/Zombunny", //
"_version", "Ljava/lang/Integer;");
mv.visitInsn(ARETURN);
mv.visitEnd();
}
}
}

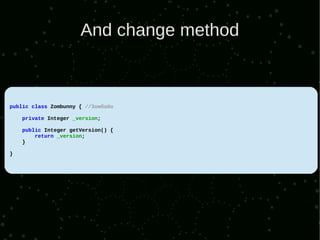

And change method



return _version;
}

}

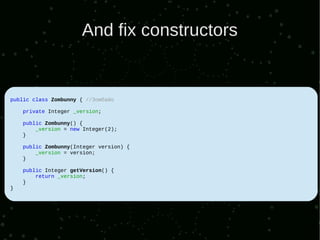

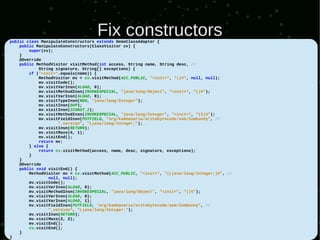

Fix constructors
public class ManipulateConstructors extends DemoClassAdapter {
public ManipulateConstructors(ClassVisitor cv) {
super(cv);
}
@Override
public MethodVisitor visitMethod(int access, String name, String desc, //
String signature, String[] exceptions) {
if ("<init>".equals(name)) {
MethodVisitor mv = cv.visitMethod(ACC_PUBLIC, "<init>", "()V", null, null);
mv.visitCode();
mv.visitMethodInsn(INVOKESPECIAL, "java/lang/Object", "<init>", "()V");
mv.visitTypeInsn(NEW, "java/lang/Integer");
mv.visitInsn(DUP);
mv.visitInsn(ICONST_2);
mv.visitMethodInsn(INVOKESPECIAL, "java/lang/Integer", "<init>", "(I)V");
mv.visitFieldInsn(PUTFIELD, "org/kambanaria/writebytecode/asm/Zombunny", //
mv.visitInsn(RETURN);
mv.visitMaxs(4, 1);
mv.visitEnd();
return mv;
} else {
return cv.visitMethod(access, name, desc, signature, exceptions);
}
}
@Override
MethodVisitor mv = cv.visitMethod(ACC_PUBLIC, "<init>", "(Ljava/lang/Integer;)V", //
null, null);
mv.visitCode();
mv.visitMethodInsn(INVOKESPECIAL, "java/lang/Object", "<init>", "()V");
mv.visitFieldInsn(PUTFIELD, "org/kambanaria/writebytecode/asm/Zombunny", //
mv.visitInsn(RETURN);
mv.visitMaxs(2, 2);
mv.visitEnd();
cv.visitEnd();
}
}

And fix constructors



public Zombunny() {
_version = new Integer(2);
}

public Zombunny(Integer version) {
_version = version;
}

return _version;
}
}

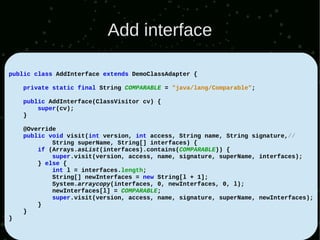

Add interface

public class AddInterface extends DemoClassAdapter {

private static final String COMPARABLE = "java/lang/Comparable";

public AddInterface(ClassVisitor cv) {
super(cv);
}

@Override
public void visit(int version, int access, String name, String signature,//
String superName, String[] interfaces) {
if (Arrays.asList(interfaces).contains(COMPARABLE)) {
super.visit(version, access, name, signature, superName, interfaces);
} else {
int l = interfaces.length;
String[] newInterfaces = new String[l + 1];
System.arraycopy(interfaces, 0, newInterfaces, 0, l);
newInterfaces[l] = COMPARABLE;
super.visit(version, access, name, signature, superName, newInterfaces);
}
}
}

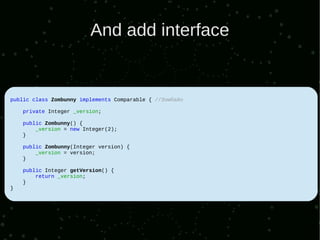

And add interface

public class Zombunny implements Comparable { //Зомбайо


public Zombunny() {
}

_version = version;
}

return _version;
}
}

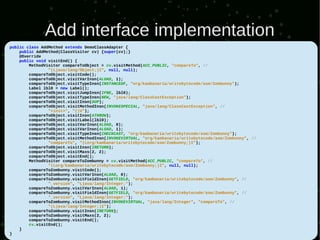

Add interface implementation
public class AddMethod extends DemoClassAdapter {
public AddMethod(ClassVisitor cv) {super(cv);}
@Override
MethodVisitor compareToObject = cv.visitMethod(ACC_PUBLIC, "compareTo", //
"(Ljava/lang/Object;)I", null, null);
compareToObject.visitCode();
compareToObject.visitVarInsn(ALOAD, 1);
compareToObject.visitTypeInsn(INSTANCEOF, "org/kambanaria/writebytecode/asm/Zombunny");
Label lbl0 = new Label();
compareToObject.visitJumpInsn(IFNE, lbl0);
compareToObject.visitTypeInsn(NEW, "java/lang/ClassCastException");
compareToObject.visitInsn(DUP);
compareToObject.visitMethodInsn(INVOKESPECIAL, "java/lang/ClassCastException", //
"<init>", "()V");
compareToObject.visitInsn(ATHROW);
compareToObject.visitLabel(lbl0);
compareToObject.visitTypeInsn(CHECKCAST, "org/kambanaria/writebytecode/asm/Zombunny");
compareToObject.visitMethodInsn(INVOKEVIRTUAL, "org/kambanaria/writebytecode/asm/Zombunny", //
"compareTo", "(Lorg/kambanaria/writebytecode/asm/Zombunny;)I");
compareToObject.visitInsn(IRETURN);
compareToObject.visitMaxs(2, 2);
compareToObject.visitEnd();
MethodVisitor compareToZombunny = cv.visitMethod(ACC_PUBLIC, "compareTo", //
"(Lorg/kambanaria/writebytecode/asm/Zombunny;)I", null, null);
compareToZombunny.visitCode();
compareToZombunny.visitVarInsn(ALOAD, 0);
compareToZombunny.visitFieldInsn(GETFIELD, "org/kambanaria/writebytecode/asm/Zombunny", //
compareToZombunny.visitVarInsn(ALOAD, 1);
compareToZombunny.visitFieldInsn(GETFIELD, "org/kambanaria/writebytecode/asm/Zombunny", //
compareToZombunny.visitMethodInsn(INVOKEVIRTUAL, "java/lang/Integer", "compareTo", //
"(Ljava/lang/Integer;)I");
compareToZombunny.visitInsn(IRETURN);
compareToZombunny.visitMaxs(2, 2);
compareToZombunny.visitEnd();
cv.visitEnd();
}
}

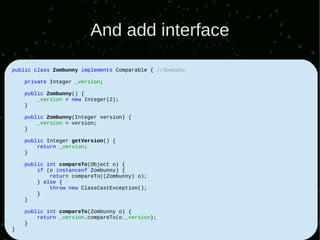

And add interface



public Zombunny() {
}

_version = version;
}

return _version;
}

public int compareTo(Object o) {
if (o instanceof Zombunny) {
return compareTo((Zombunny) o);
} else {
throw new ClassCastException();
}
}

public int compareTo(Zombunny o) {
return _version.compareTo(o._version);
}
}

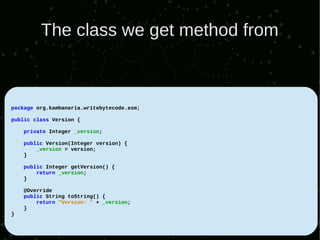

The class we get method from


public class Version {


public Version(Integer version) {
_version = version;
}

return _version;
}

@Override
public String toString() {
return "Version: " + _version;
}
}

Chimerization
public class Chimerize extends DemoClassAdapter {

protected ClassNode twig;
protected MethodNode nm;
private static final String TWIG_NAME = "org.kambanaria.writebytecode.asm.Version";
public Chimerize(ClassVisitor cv) throws IOException {
super(cv);
ClassReader rdr = new ClassReader(TWIG_NAME);
twig = new ClassNode();
rdr.accept(twig, 0);
for (Object o : twig.methods) {
MethodNode method = (MethodNode) o;
if (method.name.equals("toString")) {
// Guess what is missing?
nm = method;
}
}
}
@Override
MethodVisitor chimeric =cv.visitMethod(nm.access, nm.name, nm.desc,
nm.signature, null);
nm.instructions.resetLabels();
Remapper remapper = new Remapper() {
@Override
public String map(String name) {
return name.replace("Version", "Zombunny");
}
};
nm.accept(new RemappingMethodAdapter(nm.access, nm.desc, chimeric, remapper));
cv.visitEnd();
}
}

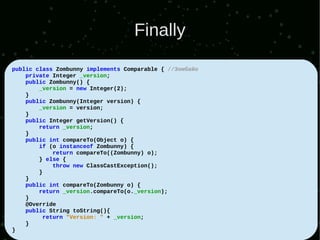

Finally
public Zombunny() {
}
_version = version;
}
return _version;
}
public int compareTo(Object o) {
if (o instanceof Zombunny) {
return compareTo((Zombunny) o);
} else {
throw new ClassCastException();
}
}
public int compareTo(Zombunny o) {
return _version.compareTo(o._version);
}
@Override
public String toString(){
return "Version: " + _version;
}
}

Peek at test construction chain

public class ChimerizeTest {
Comparable sut;
@Before
public void setUp() throws IOException, ReflectiveOperationException {
ClassWriter cw = new ClassWriter(ClassWriter.COMPUTE_FRAMES + //
ClassWriter.COMPUTE_MAXS);
ClassVisitor cv = new AddField(new ManipulateConstructors( //
new AddMethod(new AddInterface(new Chimerize(cw)))));
ClassReader rdr = new ClassReader(Utilities.CLASS_NAME);
rdr.accept(cv, 0);
byte[] newClassBytes = cw.toByteArray();
StupidClassLoader ldr = new StupidClassLoader();
ldr.provide(Utilities.CLASS_NAME, newClassBytes);
Class<?> newClass = ldr.loadClass(Utilities.CLASS_NAME);
Constructor<?> constructor = newClass.getDeclaredConstructor(Integer.class);
sut = (Comparable) constructor.newInstance(new Integer(42));
}
}

Utilities
● Type
● Generate the visitors with: Asmfier
– java -classpath asm.jar:asm-util.jar:OUR_CP
org.objectweb.asm.util.ASMifier CLASS
● TraceClassVisitor
● CheckClassAdapter

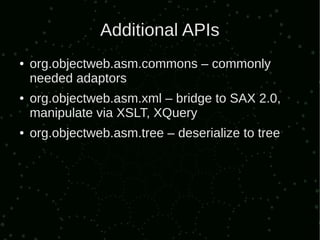

Additional APIs
● org.objectweb.asm.commons – commonly
needed adaptors
● org.objectweb.asm.xml – bridge to SAX 2.0,
manipulate via XSLT, XQuery
● org.objectweb.asm.tree – deserialize to tree

Classloaders
● Dynamically load software components for
Java platform
● Lazy – loaded on demand, as late as possible
● Type-safe linkage – must not violate type
safety, no runtime checks
● User-defined extensibility – normal, user
controlled objects
● Multiple communicating namespaces – types
determined by class name and classloader

Classloader Chain

Bootstrap CL Extension CL System CL
Application Programmer
primordial, native jre/lib/ext/*.jar $CLASSPATH
classloader classloader
jre/lib/*.jar -Djava.ext.dirs -Djava.class.path

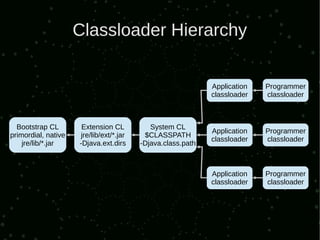

Classloader Hierarchy


Bootstrap CL Extension CL System CL


Enterprise Classloader Hierarchy

Programmer
Application classloader
classloader Programmer
classloader

Programmer
Bootstrap CL Extension CL System CL classloader
Application
classloader
Programmer
Application classloader
classloader

Class Loader API

public abstract class ClassLoader {
protected ClassLoader(ClassLoader parent);
protected ClassLoader();

protected Class<?> loadClass(String name, boolean resolve);
protected Class<?> findClass(String name);
protected final Class<?> defineClass(String name, byte[] b,
int off, int len);
protected final void resolveClass(Class<?> c);

public URL getResource(String name);
public Enumeration<URL> getResources(String name);

public final MyClassLoader getParent();

public void setDefaultAssertionStatus(boolean);
public void setPackageAssertionStatus(String packageName,boolean enabled);
public void setClassAssertionStatus(String className, boolean enabled);
public void clearAssertionStatus();
}

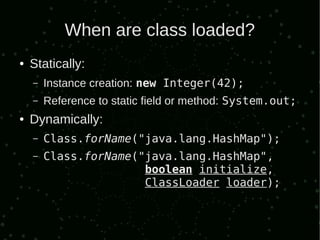

When are class loaded?
● Statically:
– Instance creation: new Integer(42);
– Reference to static field or method: System.out;
● Dynamically:
– Class.forName("java.lang.HashMap");
– Class.forName("java.lang.HashMap",
boolean initialize,
ClassLoader loader);

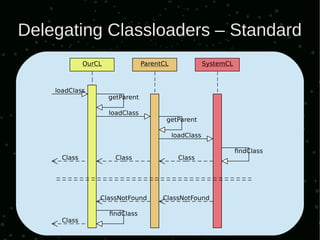

Delegating Classloaders – Standard

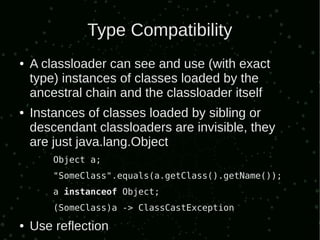

Type Compatibility
● A classloader can see and use (with exact
type) instances of classes loaded by the
ancestral chain and the classloader itself
● Instances of classes loaded by sibling or
descendant classloaders are invisible, they
are just java.lang.Object
Object a;
"SomeClass".equals(a.getClass().getName());
a instanceof Object;
(SomeClass)a -> ClassCastException
● Use reflection

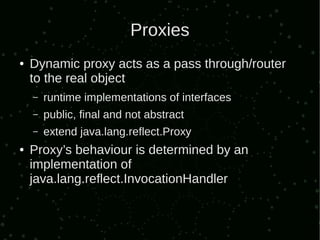

Proxies
● Dynamic proxy acts as a pass through/router
to the real object
– runtime implementations of interfaces
– public, final and not abstract
– extend java.lang.reflect.Proxy
● Proxy’s behaviour is determined by an
implementation of
java.lang.reflect.InvocationHandler

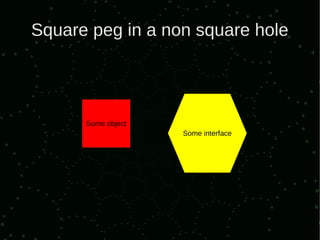

Square peg in a non square hole

Some object
Some interface

Fit it with an InvocationHandler
Proxy

Object

public interface InvocationHandler {
public Object invoke(Object proxy, Method method, Object[] args)
throws Throwable;
}

public class MyInvocationHandler implements InvocationHandler {
private Object delegate;
public MyInvocationHandler(Object... params) {
delegate = makeDelegate();
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
String methodName = method.getName();
Class<?>[] types = method.getParameterTypes();
Method m = reachMethod(methodName, types);
Object result;
try {
result = m.invoke(delegate, args);
} catch (InvocationTargetException e) {
throw e.getCause();
}
return result;
}

private static Method reachMethod(String name, Class<?>... parTypes) {
Method m = null;
/* Logic to determine method */
return m;
}

private static Object makeDelegate(Object... params) {
/* Produce real object instead */
return new Object();
}
}

Java agents
● Package java.lang.instrument - allow Java
programming language agents to instrument
programs running on the JVM.
● java ... -javaagent:jarpath[=options]
● Manifest attributes
● byte[] -> byte[]

They deliver cheaper than the world,
faster than the speed of thought

The entrepreneurial spirit of that
country

Makes them sell the software to this
country

Where it fails spectacularly while
clearly working in the other two ones

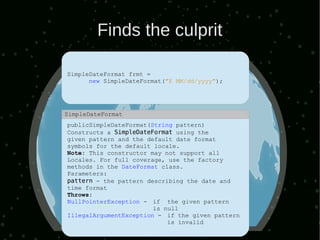

Finds the culprit

SimpleDateFormat frmt =
new SimpleDateFormat("E MM/dd/yyyy");

SimpleDateFormat
publicSimpleDateFormat(String pattern)
Constructs a SimpleDateFormat using the
given pattern and the default date format
symbols for the default locale.
Note: This constructor may not support all
Locales. For full coverage, use the factory
methods in the DateFormat class.
Parameters:
pattern - the pattern describing the date and
time format
Throws:
NullPointerException - if the given pattern
is null
IllegalArgumentException - if the given pattern
is invalid

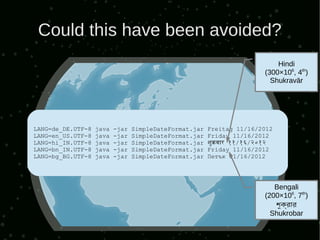

Could this have been avoided?
Hindi
(300×106, 4th)
Shukravār

LANG=de_DE.UTF-8 java -jar SimpleDateFormat.jar Freitag 11/16/2012
LANG=en_US.UTF-8 java -jar SimpleDateFormat.jar Friday 11/16/2012
LANG=hi_IN.UTF-8 java -jar SimpleDateFormat.jar शुकवार ११/१६/२०१२
LANG=bn_IN.UTF-8 java -jar SimpleDateFormat.jar Friday 11/16/2012
LANG=bg_BG.UTF-8 java -jar SimpleDateFormat.jar Петък 11/16/2012

Bengali
(200×106, 7th)
শুক্রার
্রব
Shukrobar

En Use
Lo glis
ca h
le
India proposes:

USA retransmits:

Use
English
Locale

USA try in German:

Verwenden
Sie
Englische
Locale

USA try manners:

Bitte?

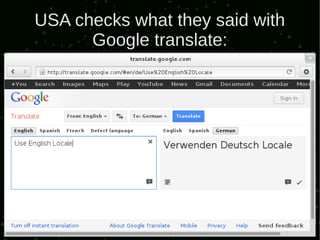

USA checks what they said with
Google translate:

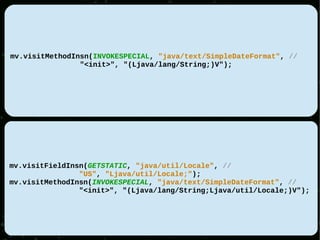

mv.visitMethodInsn(INVOKESPECIAL, "java/text/SimpleDateFormat", //
"<init>", "(Ljava/lang/String;)V");

mv.visitFieldInsn(GETSTATIC, "java/util/Locale", //
"US", "Ljava/util/Locale;");
mv.visitMethodInsn(INVOKESPECIAL, "java/text/SimpleDateFormat", //
"<init>", "(Ljava/lang/String;Ljava/util/Locale;)V");

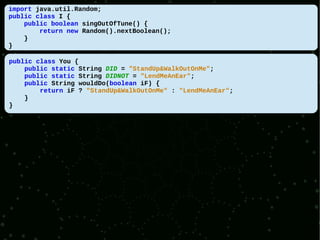

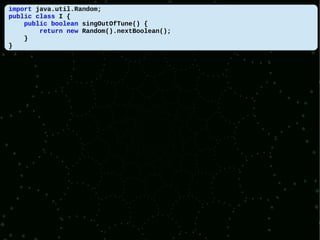

import java.util.Random;
public class I {
public boolean singOutOfTune() {
return new Random().nextBoolean();
}
}

public class I {
}
}

public class You {
public static String DID = "StandUp&WalkOutOnMe";
public static String DIDNOT = "LendMeAnEar";
public String wouldDo(boolean iF) {
return iF ? "StandUp&WalkOutOnMe" : "LendMeAnEar";
}
}

public class I {
}
}

public class You {
}
}

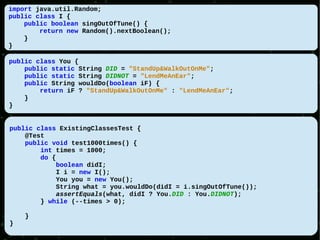

public class ExistingClassesTest {
@Test
public void test1000times() {
int times = 1000;
do {
boolean didI;
I i = new I();
You you = new You();
String what = you.wouldDo(didI = i.singOutOfTune());
assertEquals(what, didI ? You.DID : You.DIDNOT);
} while (--times > 0);

}
}

public class I {
}
}

public class You {
}
}

public class ExistingClassesTest {
@Test
public void test1000times() {
int times = 1000;
do {
boolean didI;
I i = new I();
You you = new You();
String what = you.wouldDo(didI = i.singOutOfTune());
assertEquals(what, didI ? You.DID : You.DIDNOT);
} while (--times > 0);
// What would you do if I sang out of tune ? The Beatles
}
}

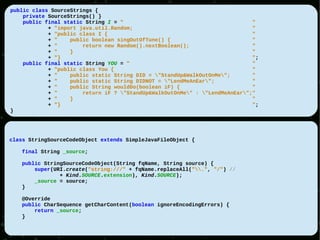

public class SourceStrings {
private SourceStrings() }
public final static String I = " "
+ "import java.util.Random; "
+ "public class I { "
+ " public boolean singOutOfTune() { "
+ " return new Random().nextBoolean(); "
+ " } "
+ "} ";
public final static String YOU = " "
+ "public class You { "
+ " public static String DID = "StandUp&WalkOutOnMe"; "
+ " public static String DIDNOT = "LendMeAnEar"; "
+ " public String wouldDo(boolean iF) { "
+ " return iF ? "StandUp&WalkOutOnMe" : "LendMeAnEar";"
+ " } "
+ "} ";
}

class StringSourceCodeObject extends SimpleJavaFileObject {

final String _source;

public StringSourceCodeObject(String fqName, String source) {
super(URI.create("string:///" + fqName.replaceAll(".", "/") //
+ Kind.SOURCE.extension), Kind.SOURCE);
_source = source;
}

@Override
public CharSequence getCharContent(boolean ignoreEncodingErrors) {
return _source;
}

public class CompilerAPI {
public static void main(String args[]) throws Exception {

/* Creating dynamic java source code file object */
JavaFileObject iObject = new StringSourceCodeObject("I", SourceStrings.I);
JavaFileObject youObject = new StringSourceCodeObject("You", SourceStrings.YOU);
JavaFileObject jfObjects[] = new JavaFileObject[]{iObject, youObject};
/* Units to compile */
Iterable<JavaFileObject> units = Arrays.asList(jfObjects);
/* Instantiating the java compiler */
JavaCompiler compiler = ToolProvider.getSystemJavaCompiler();
/* Get compiler file manager to show what to read. */
// (DEFAULT LISTENER, Locale.getDefault(), Charset.defaultCharset() )
JavaFileManager manager = compiler.getStandardFileManager(null, null, null);
/* Compilation options - here: place in target directory */
String[] compileOptions = new String[]{"-d", "target/classes"};
Iterable<String> options = Arrays.asList(compileOptions);
/* Diagnostic placeholder */
DiagnosticCollector<JavaFileObject> sink = new DiagnosticCollector<JavaFileObject>();
/* 1st null: where to write (default), 2nd null: no annotations processed */
CompilationTask task = compiler.getTask(null, manager, sink, options, null, units);
/* Go, go, go */
boolean status = task.call();
if (!status) {
for (Diagnostic<? extends JavaFileObject> d : sink.getDiagnostics()) {
System.err.format("Error on line %d in %s", d.getLineNumber(), d);
}
}
manager.close();// TRY to close the file manager
}
}

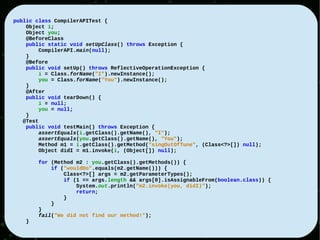

public class CompilerAPITest {
Object i;
Object you;
@BeforeClass
public static void setUpClass() throws Exception {
CompilerAPI.main(null);
}
@Before
public void setUp() throws ReflectiveOperationException {
i = Class.forName("I").newInstance();
you = Class.forName("You").newInstance();
}
@After
public void tearDown() {
i = null;
you = null;
}
@Test
public void testMain() throws Exception {
assertEquals(i.getClass().getName(), "I");
assertEquals(you.getClass().getName(), "You");
Method m1 = i.getClass().getMethod("singOutOfTune", (Class<?>[]) null);
Object didI = m1.invoke(i, (Object[]) null);

for (Method m2 : you.getClass().getMethods()) {
if ("wouldDo".equals(m2.getName())) {
Class<?>[] args = m2.getParameterTypes();
if (1 == args.length && args[0].isAssignableFrom(boolean.class)) {
System.out.println("m2.invoke(you, didI)");
return;
}
}
}
fail("We did not find our method!");
}

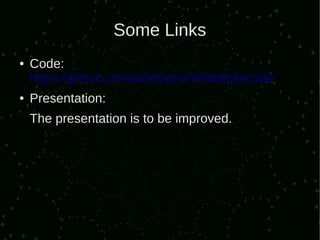

Some Links
● Code:
https://github.com/alshopov/WriteBytecode
● Presentation:
The presentation is to be improved.

I Know Kung Fu - Juggling Java Bytecode

More Related Content

What's hot

Viewers also liked

Similar to I Know Kung Fu - Juggling Java Bytecode

Recently uploaded

I Know Kung Fu - Juggling Java Bytecode
