MySQL Sandbox - A toolkit for laziness

MySQL Sandbox
A toolkit for laziness
Giuseppe Maxia
MySQL Community Team Lead at Oracle

This work is licensed under the Creative Commons
Attribution-Share Alike 3.0 Unported License. To view a
copy of this license, visit http://creativecommons.org/
licenses/by-sa/3.0/ or send a letter to Creative Commons,
171 Second Street, Suite 300, San Francisco, California,
94105, USA.
Thursday, 15 July 2010

about me - Giuseppe Maxia
• a.k.a. The Data Charmer
• MySQL Community Team Lead
• Long time hacking with MySQL features
• Formerly, database consultant, designer, coder.
• A passion for QA
• An even greater passion for open source
• ... and community
• Passionate blogger

• http://datacharmer.blogspot.com

Laziness
Laziness is a disinclination to
activity or exertion despite
having the ability to do so.

http://en.wikipedia.org/wiki/Laziness

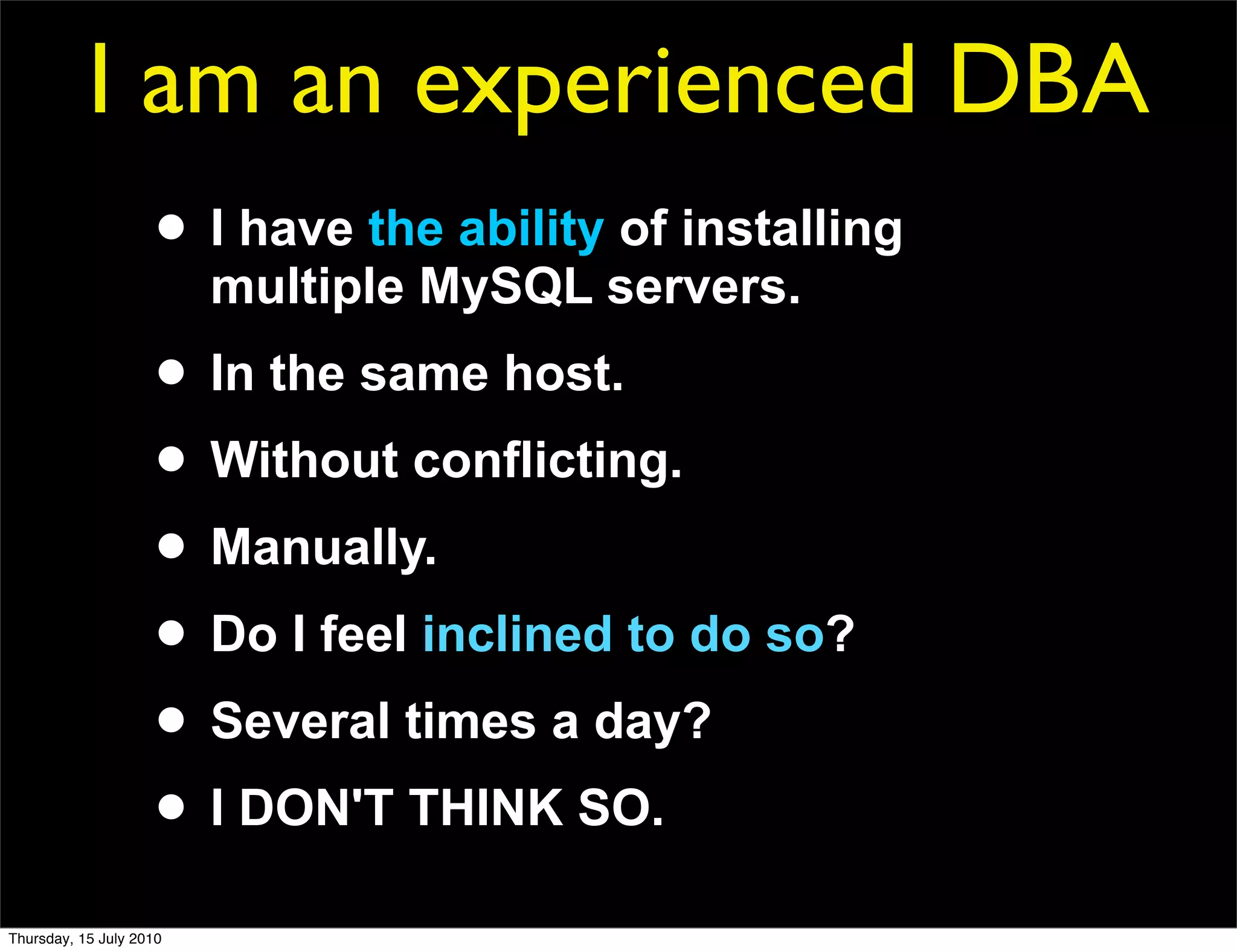

I am an experienced DBA
• I have the ability of installing
multiple MySQL servers.
• In the same host.
• Without conflicting.
• Manually.
• Do I feel inclined to do so?
• Several times a day?
• I DON'T THINK SO.

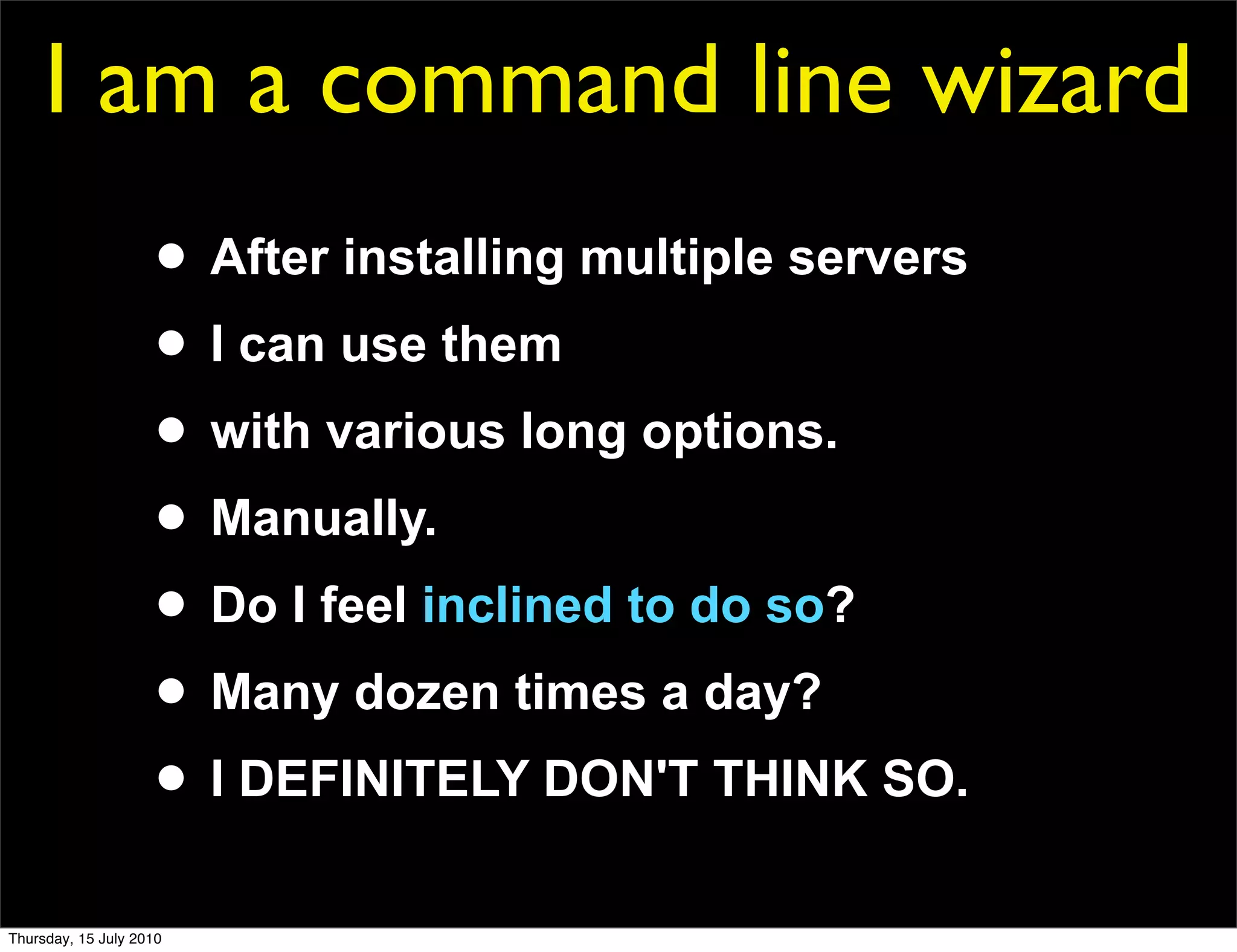

I am a command line wizard
• After installing multiple servers
• I can use them
• with various long options.
• Manually.
• Many dozen times a day?
• I DEFINITELY DON'T THINK SO.

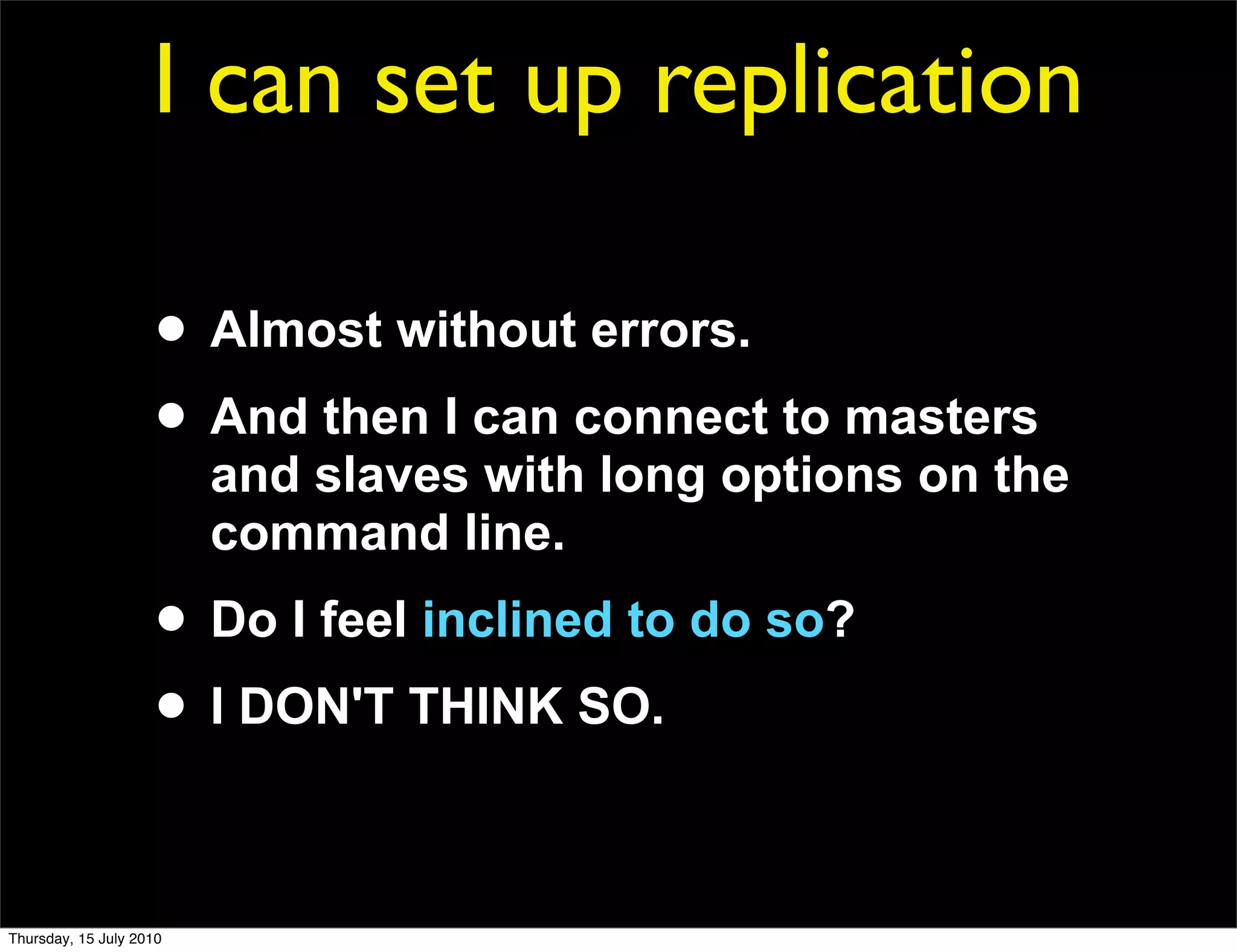

I can set up replication

• Almost without errors.
• And then I can connect to masters
and slaves with long options on the
command line.

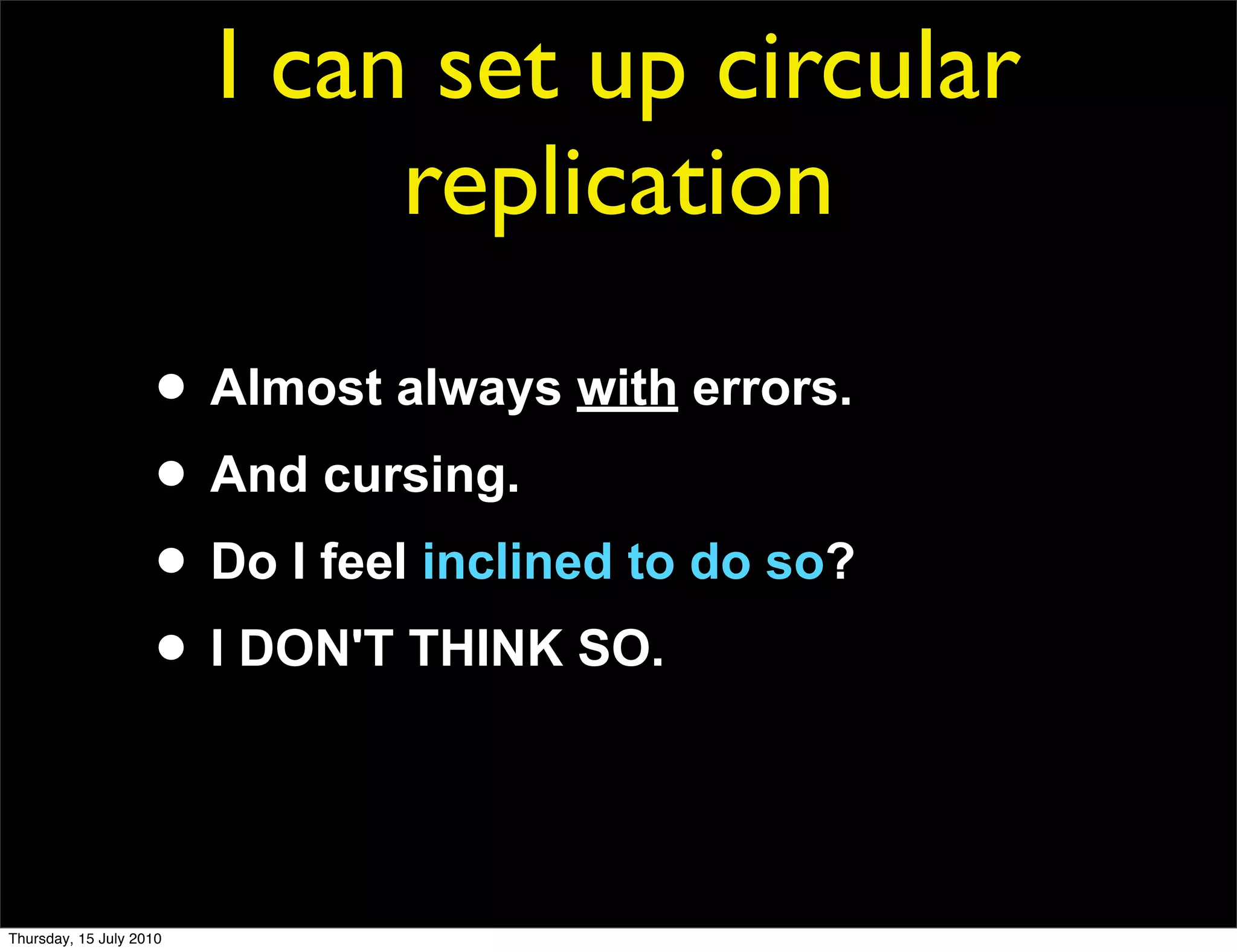

I can set up circular
replication

• Almost always with errors.
• And cursing.

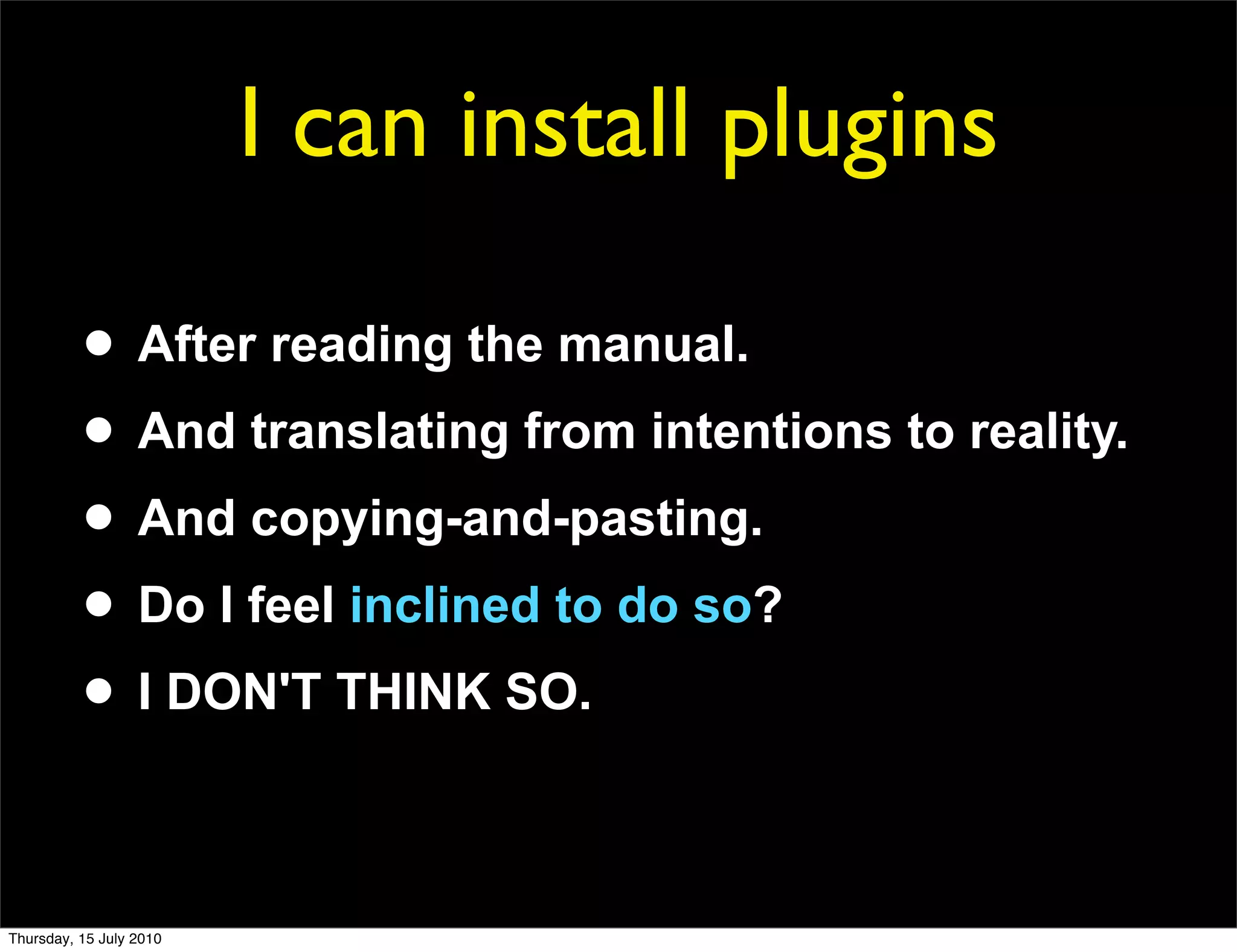

I can install plugins

• After reading the manual.
• And translating from intentions to reality.
• And copying-and-pasting.


I have the ability
• but I don't feel inclined to do repetitive
work
• I ADMIT IT: I AM LAZY


YES: I AM A
LAZY
DEVELOPER

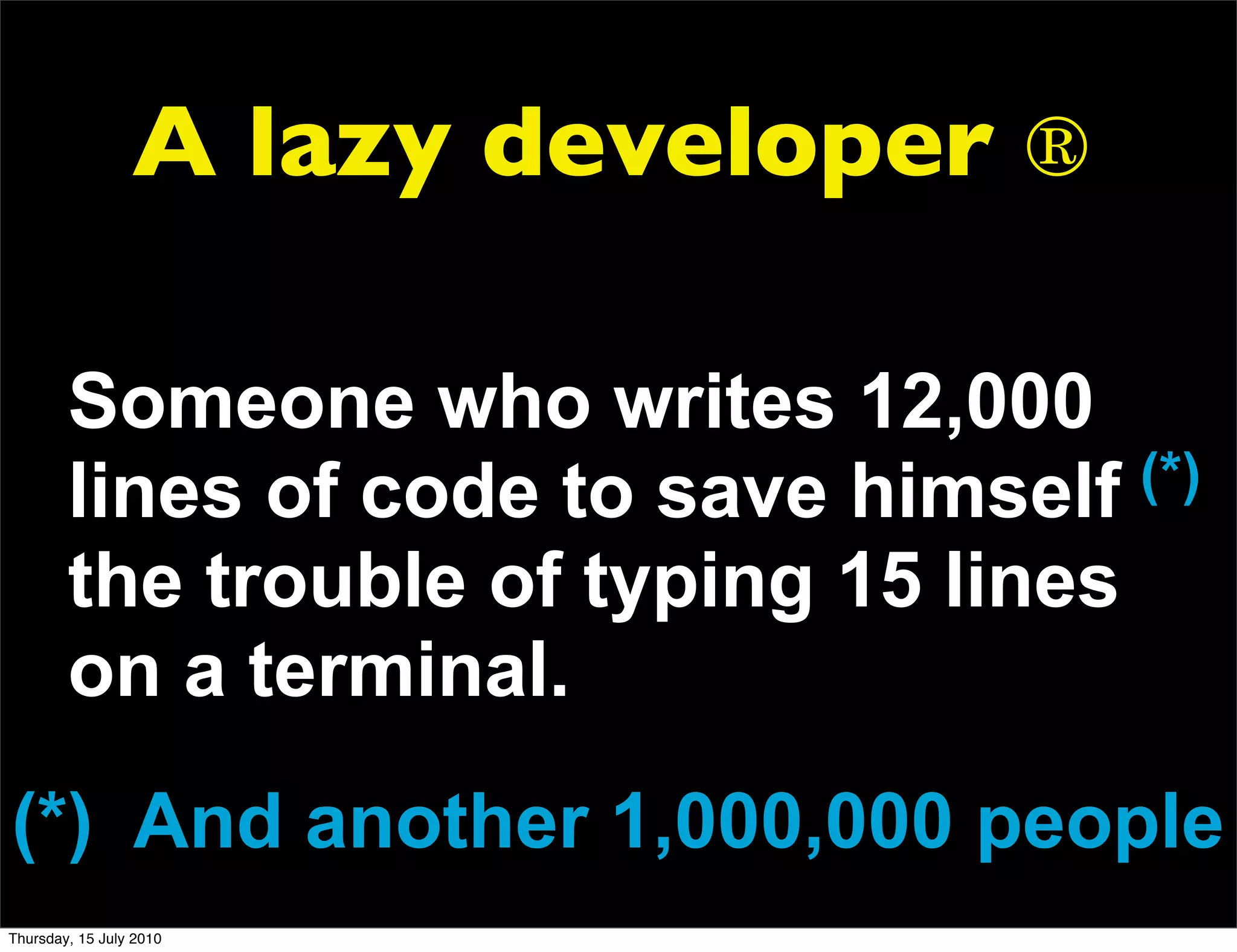

A lazy developer ®

Someone who writes 12,000
lines of code to save himself (*)
the trouble of typing 15 lines
on a terminal.
(*) And another 1,000,000 people

That's me


And after this
presentation,
you will feel lazy
too


MySQL Sandbox
lightning
presentation

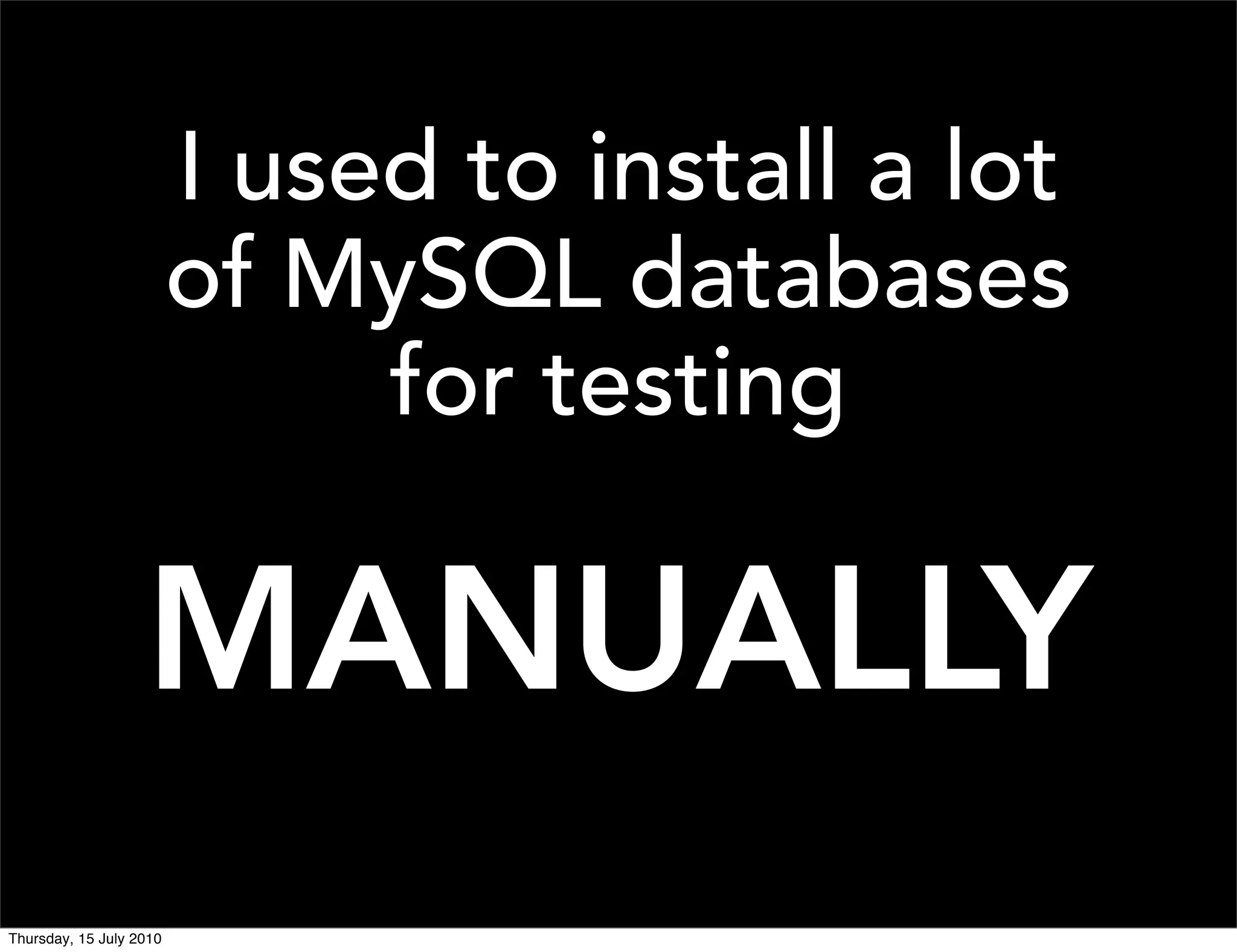

I used to install a lot
of MySQL databases
for testing

MANUALLY

Then, I decided to
use Perl ...


DBA pop
quiz

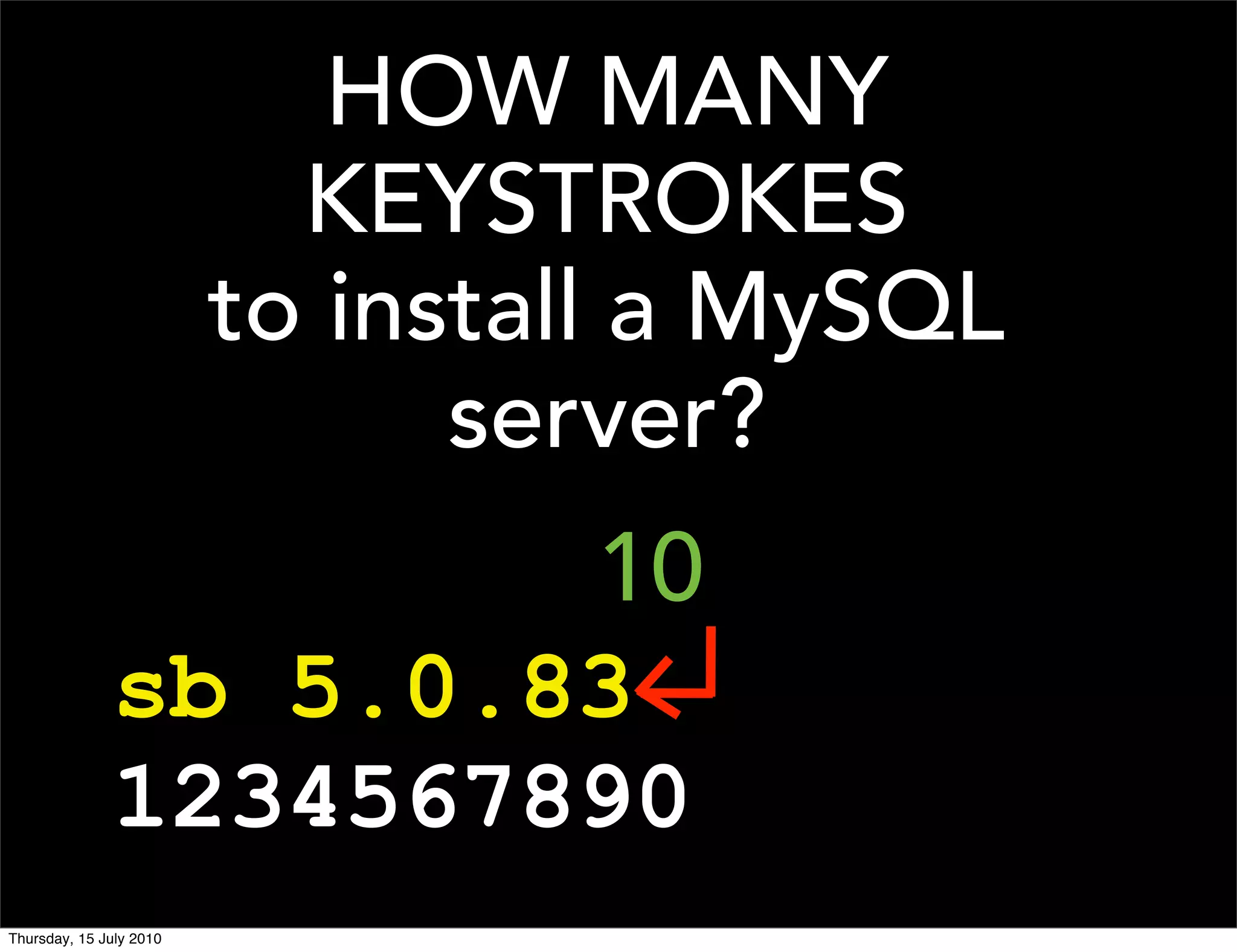

HOW MANY
KEYSTROKES
to install a MySQL
server?
10
sb 5.0.83
1234567890

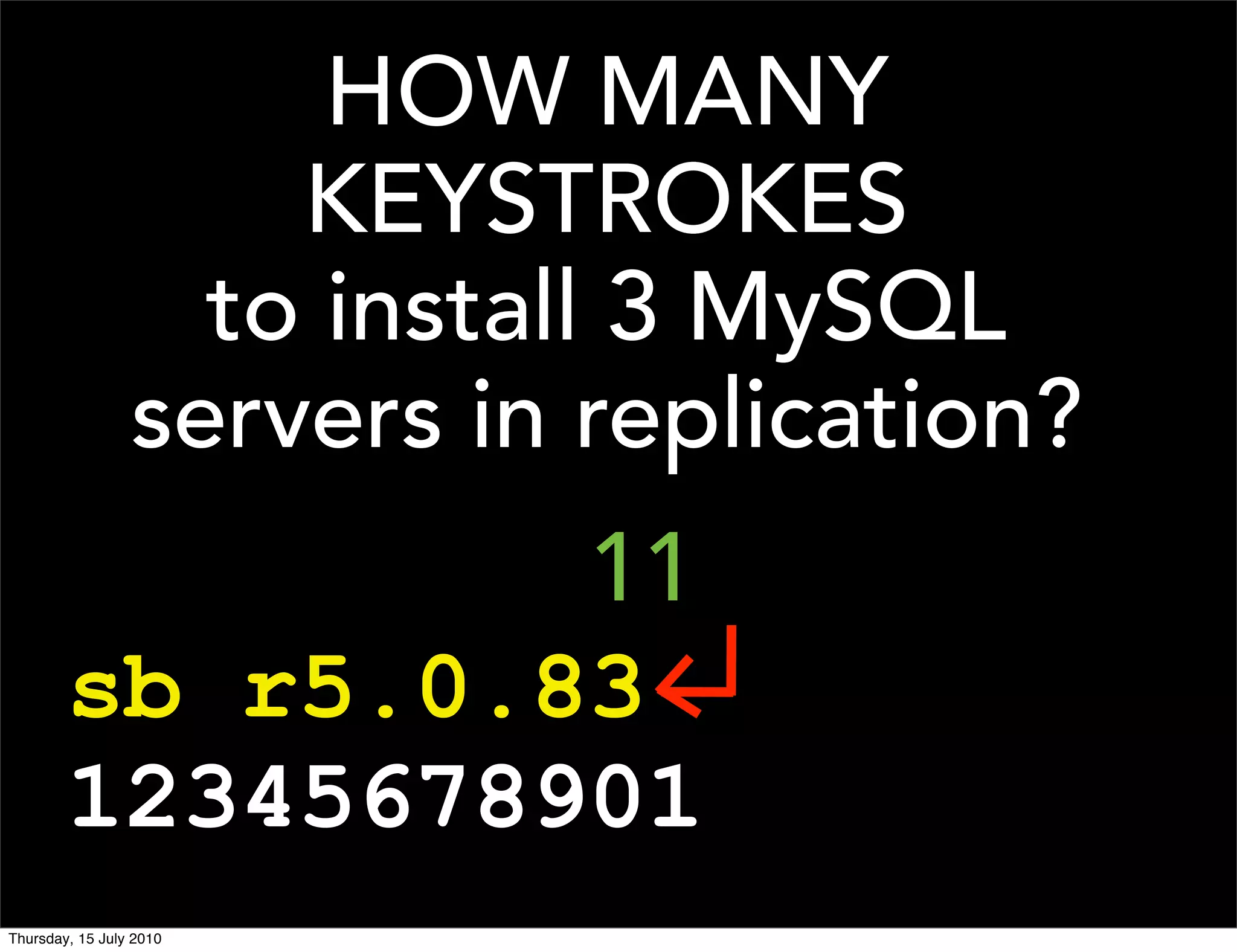

HOW MANY
KEYSTROKES
to install 3 MySQL
servers in replication?
11
sb r5.0.83
12345678901

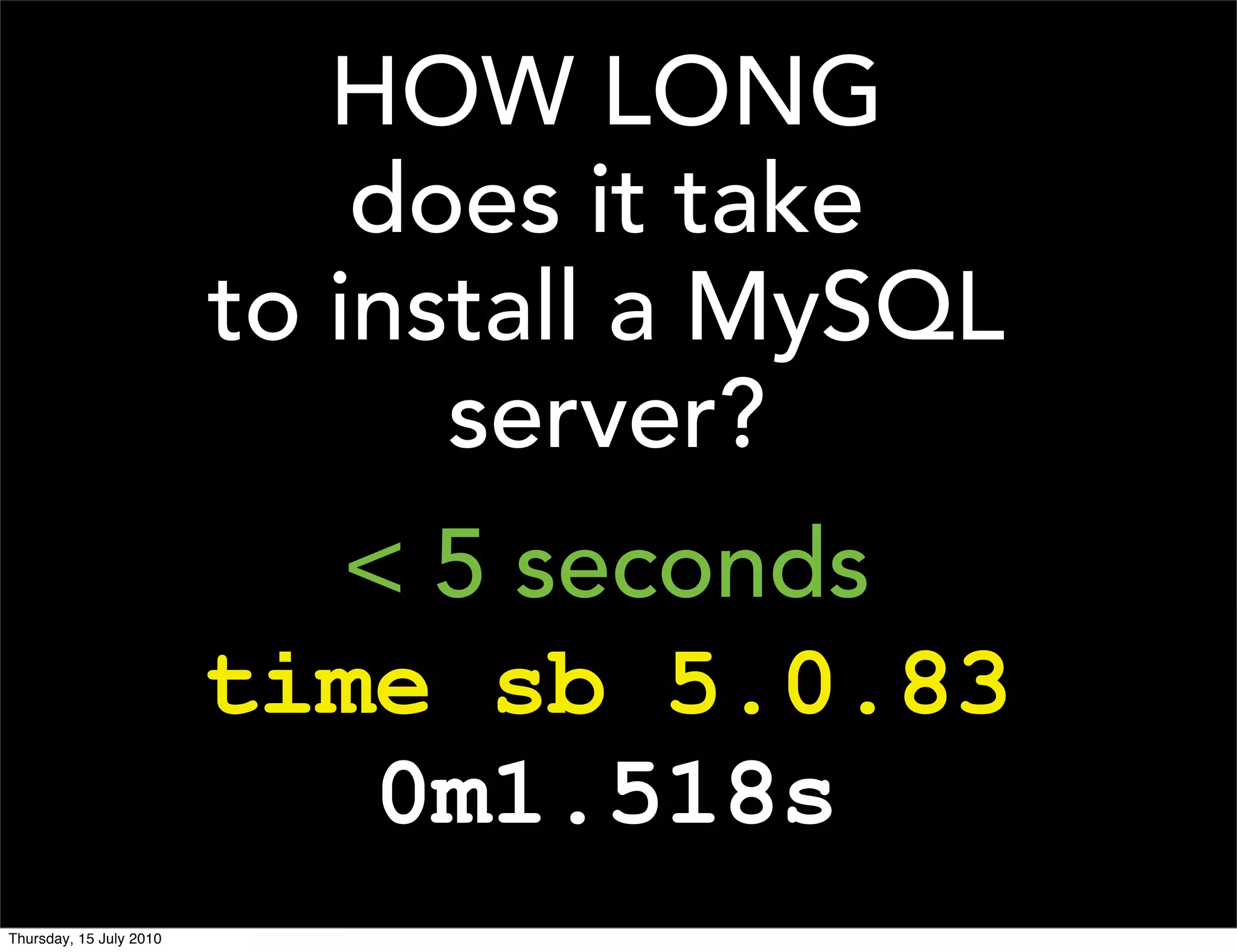

HOW LONG
does it take
to install a MySQL
server?
< 5 seconds
time sb 5.0.83
0m1.518s

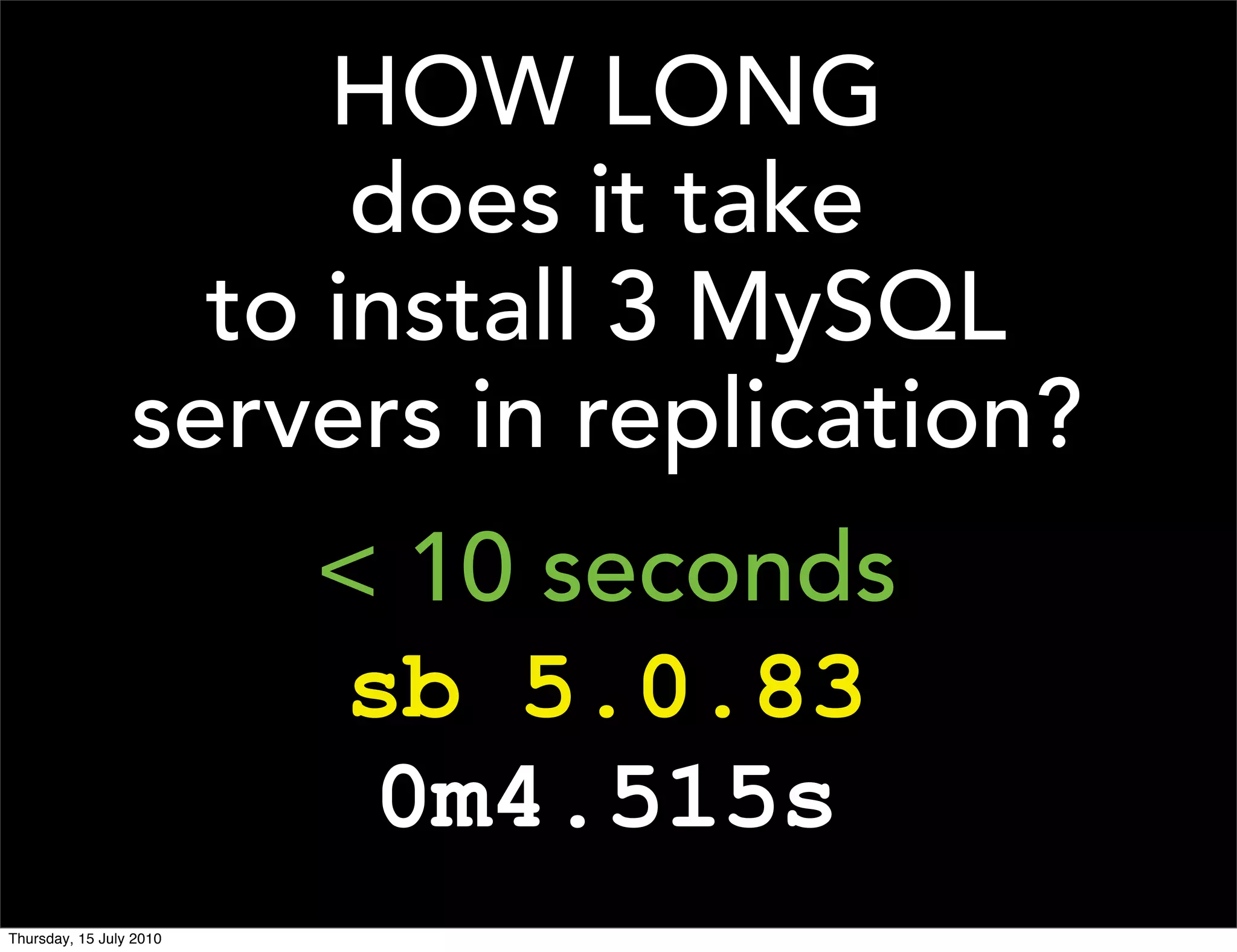

HOW LONG
does it take
to install 3 MySQL
servers in replication?
< 10 seconds
sb 5.0.83
0m4.515s

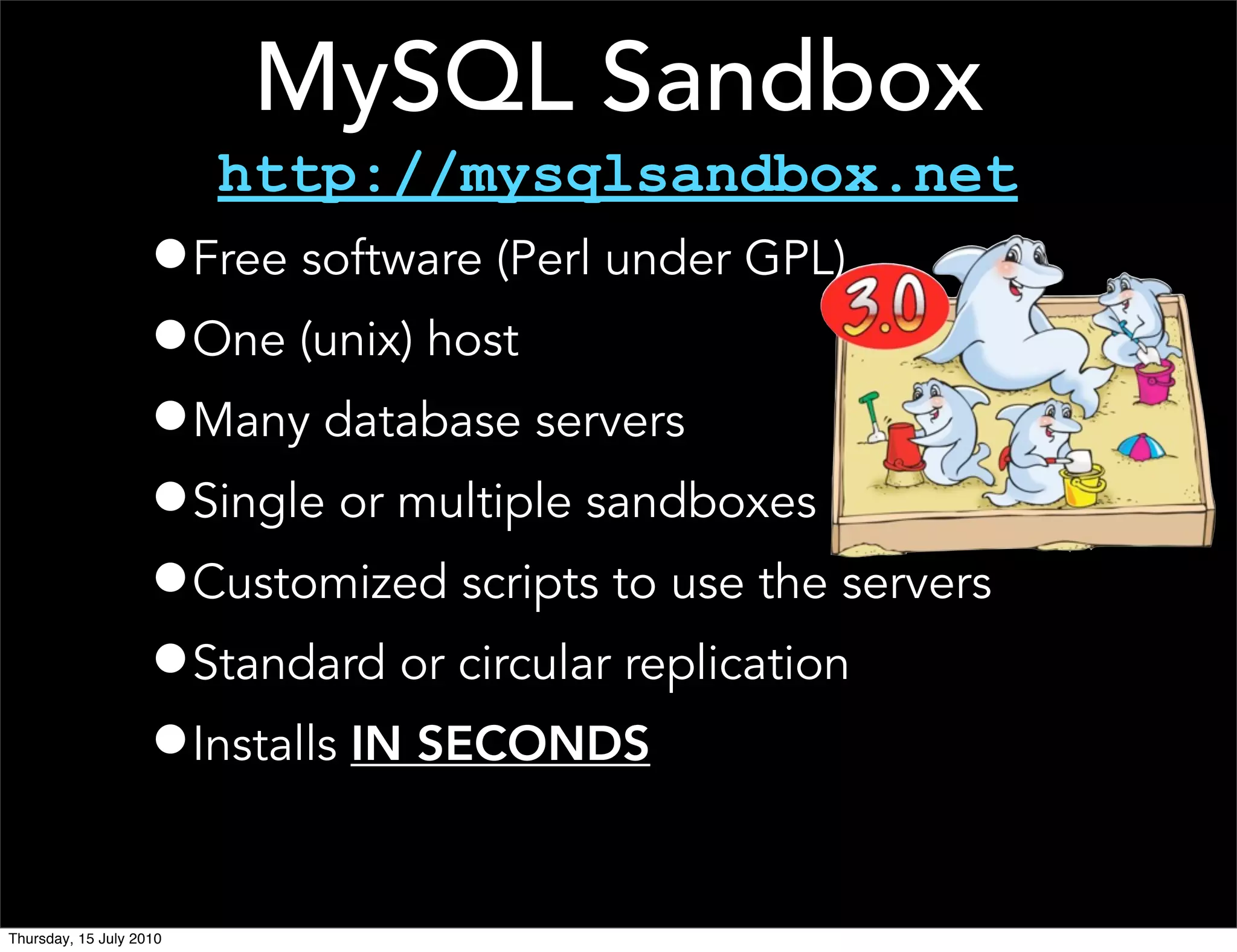

MySQL Sandbox
http://mysqlsandbox.net
•Free software (Perl under GPL)
•One (unix) host
•Many database servers
•Single or multiple sandboxes
•Customized scripts to use the servers
•Standard or circular replication
•Installs IN SECONDS

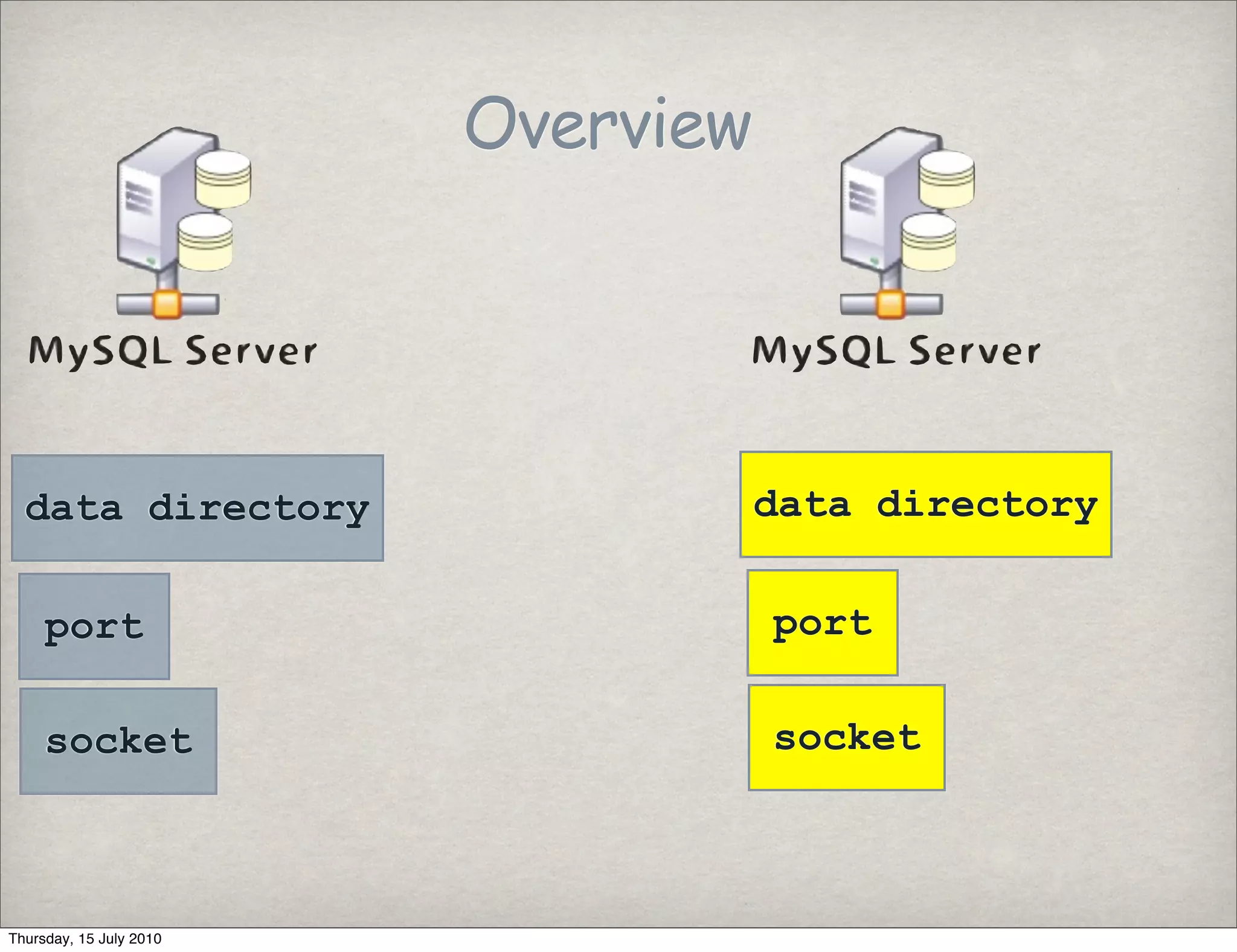

Overview

data directory data directory

port port

socket socket

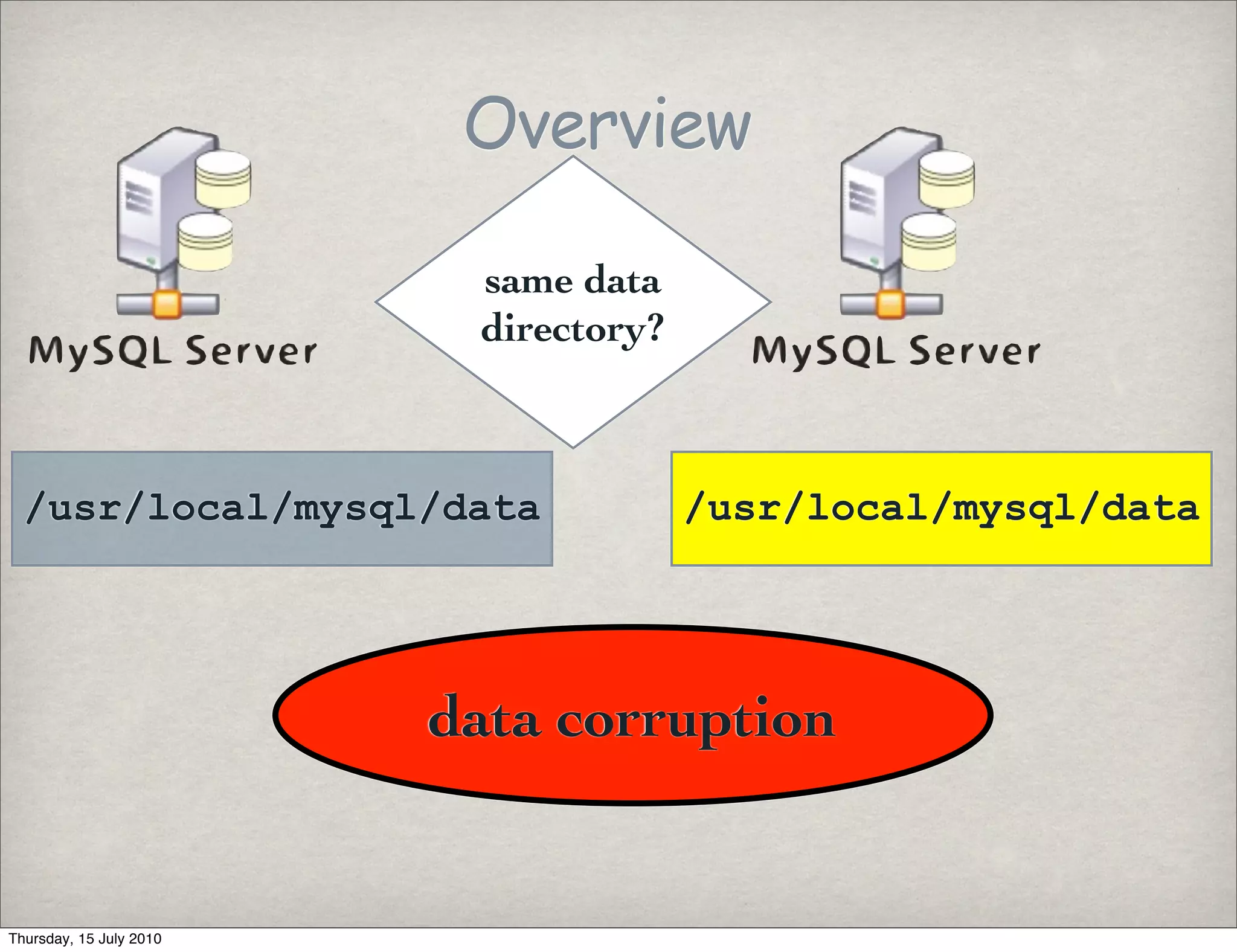

Overview

same data
directory?

/usr/local/mysql/data /usr/local/mysql/data

data corruption


Overview
same data
port or
socket?

3306 3306

/tmp/mysql.sock /tmp/mysql.sock

does not start

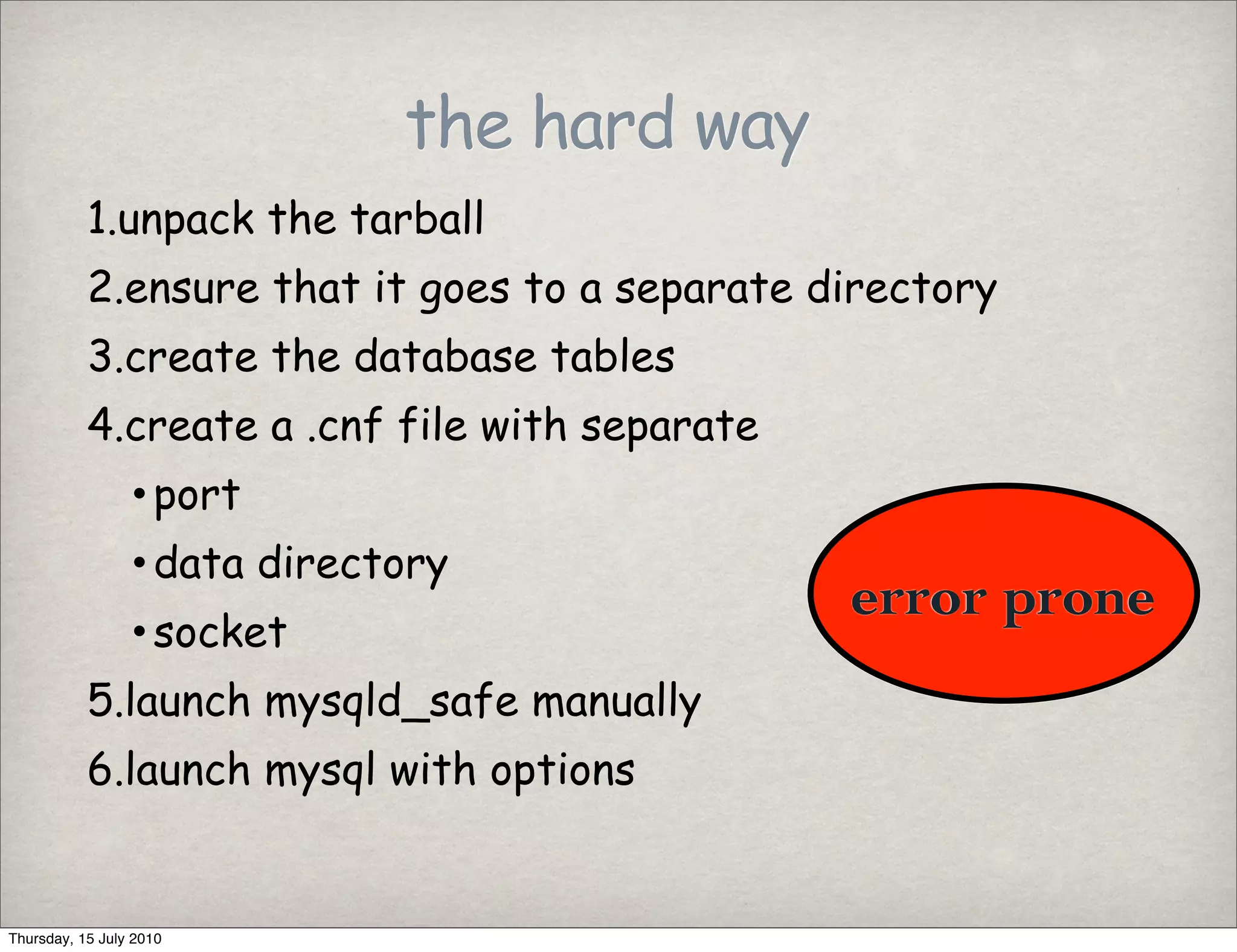

the hard way
1.unpack the tarball
2.ensure that it goes to a separate directory
3.create the database tables
4.create a .cnf file with separate
• port
• data directory
error prone
• socket
5.launch mysqld_safe manually
6.launch mysql with options

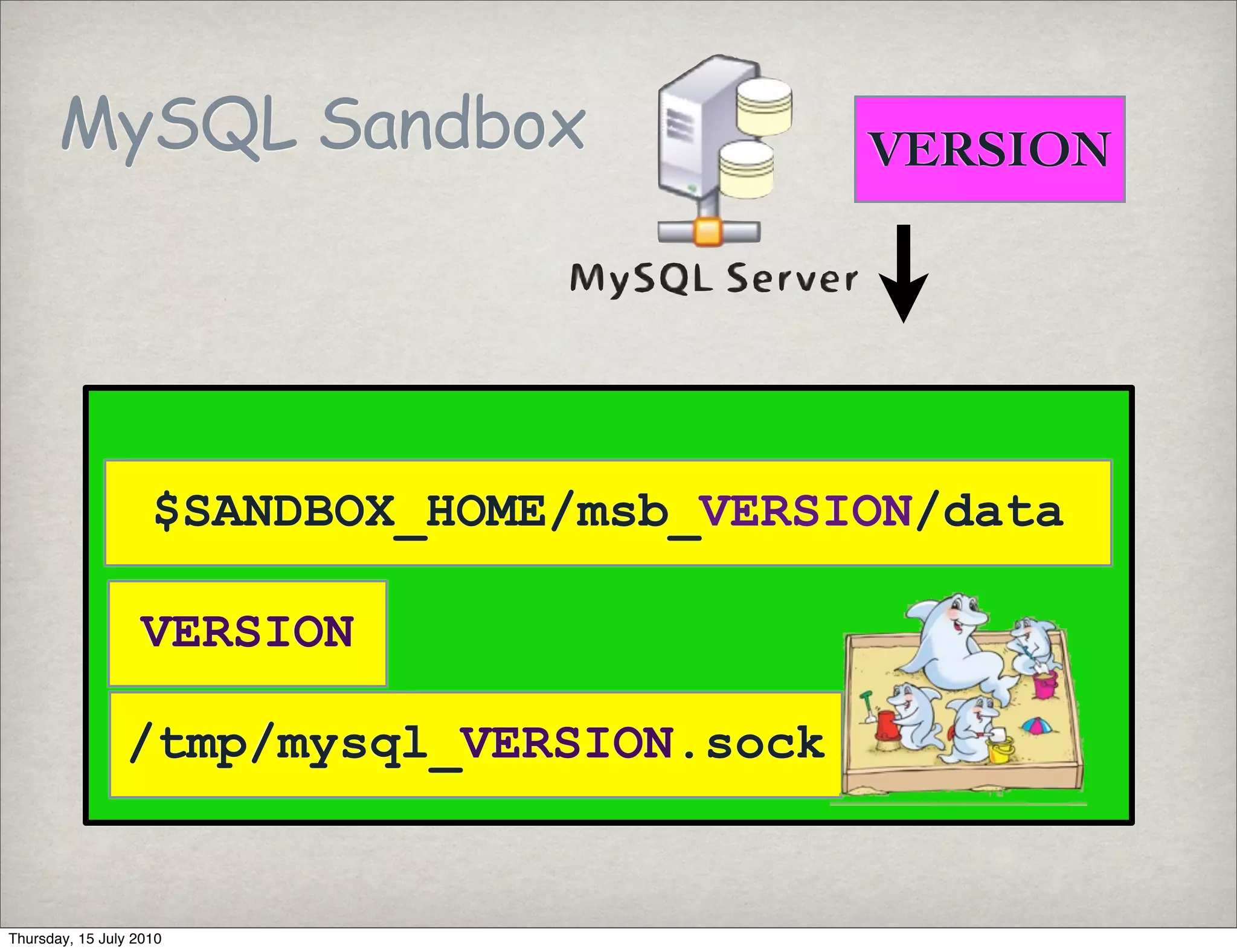

MySQL Sandbox VERSION

$SANDBOX_HOME/msb_VERSION/data

VERSION

/tmp/mysql_VERSION.sock


MySQL Sandbox 5.1.37

$SANDBOX_HOME/msb_5_1_37/data

5137

/tmp/mysql_5137.sock

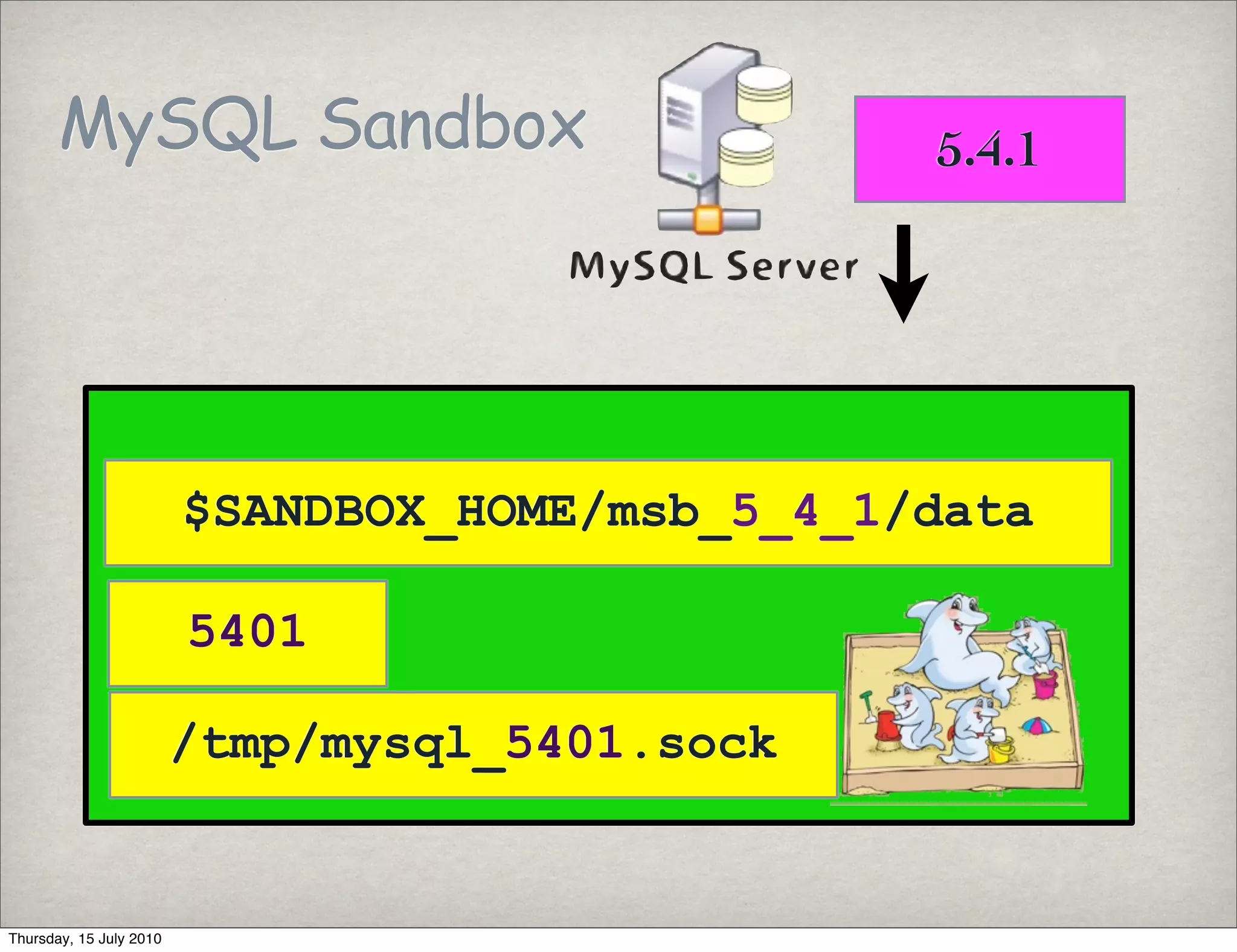

MySQL Sandbox 5.4.1

$SANDBOX_HOME/msb_5_4_1/data

5401

/tmp/mysql_5401.sock

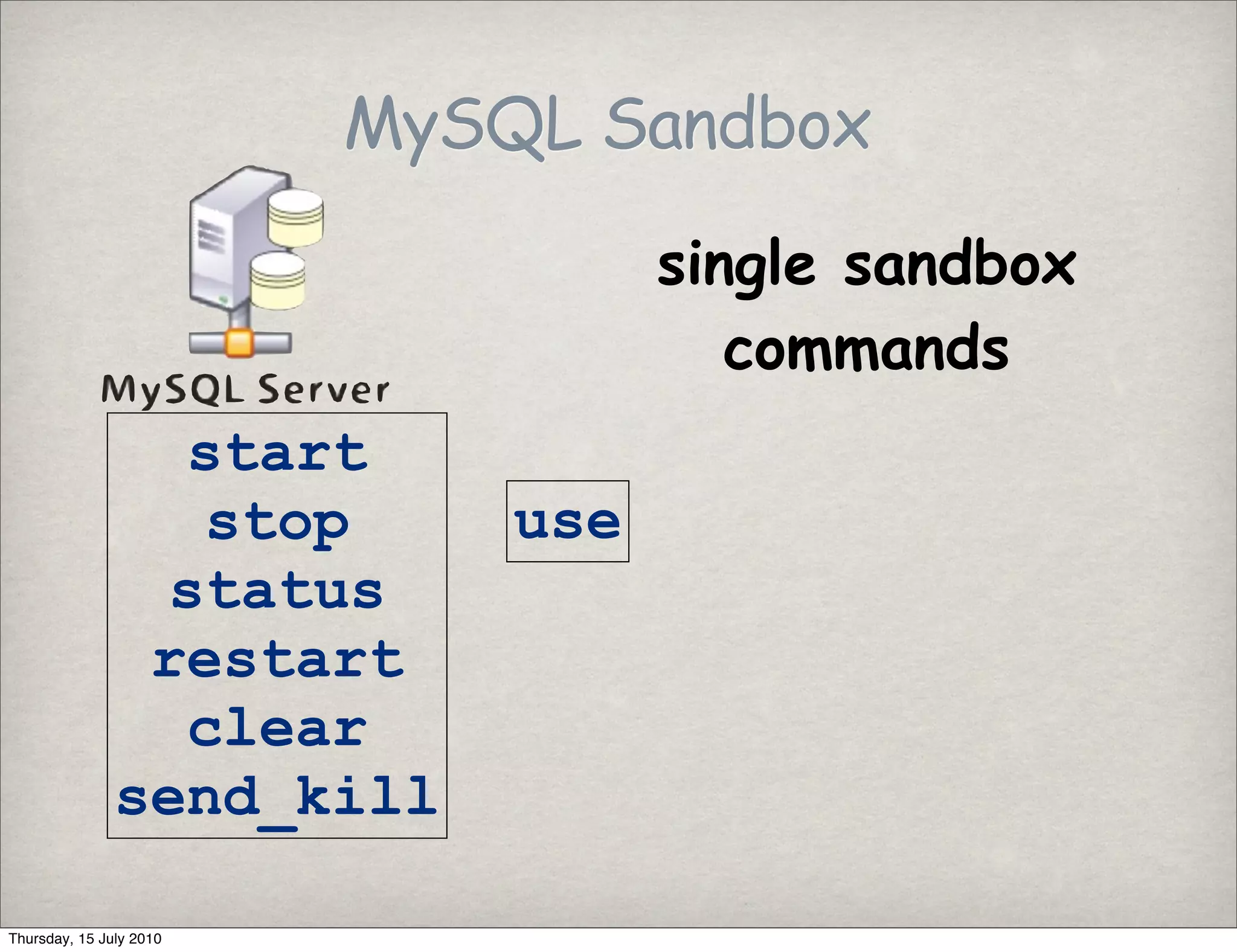

MySQL Sandbox
single sandbox
commands
start
stop use
status
restart
clear
send_kill

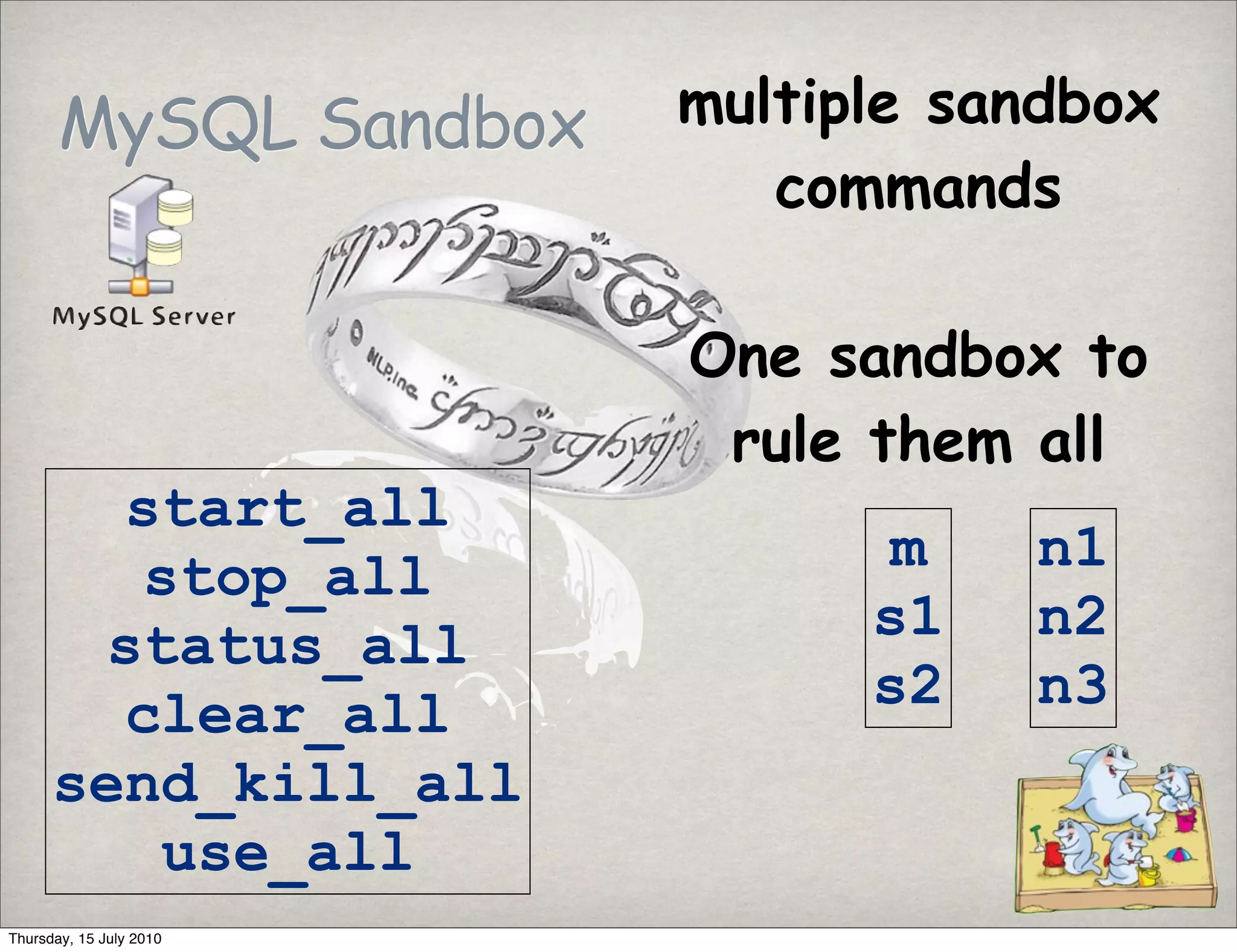

MySQL Sandbox multiple sandbox
commands

One sandbox to
rule them all
start_all
stop_all m n1
status_all s1 n2
clear_all s2 n3
send_kill_all
use_all

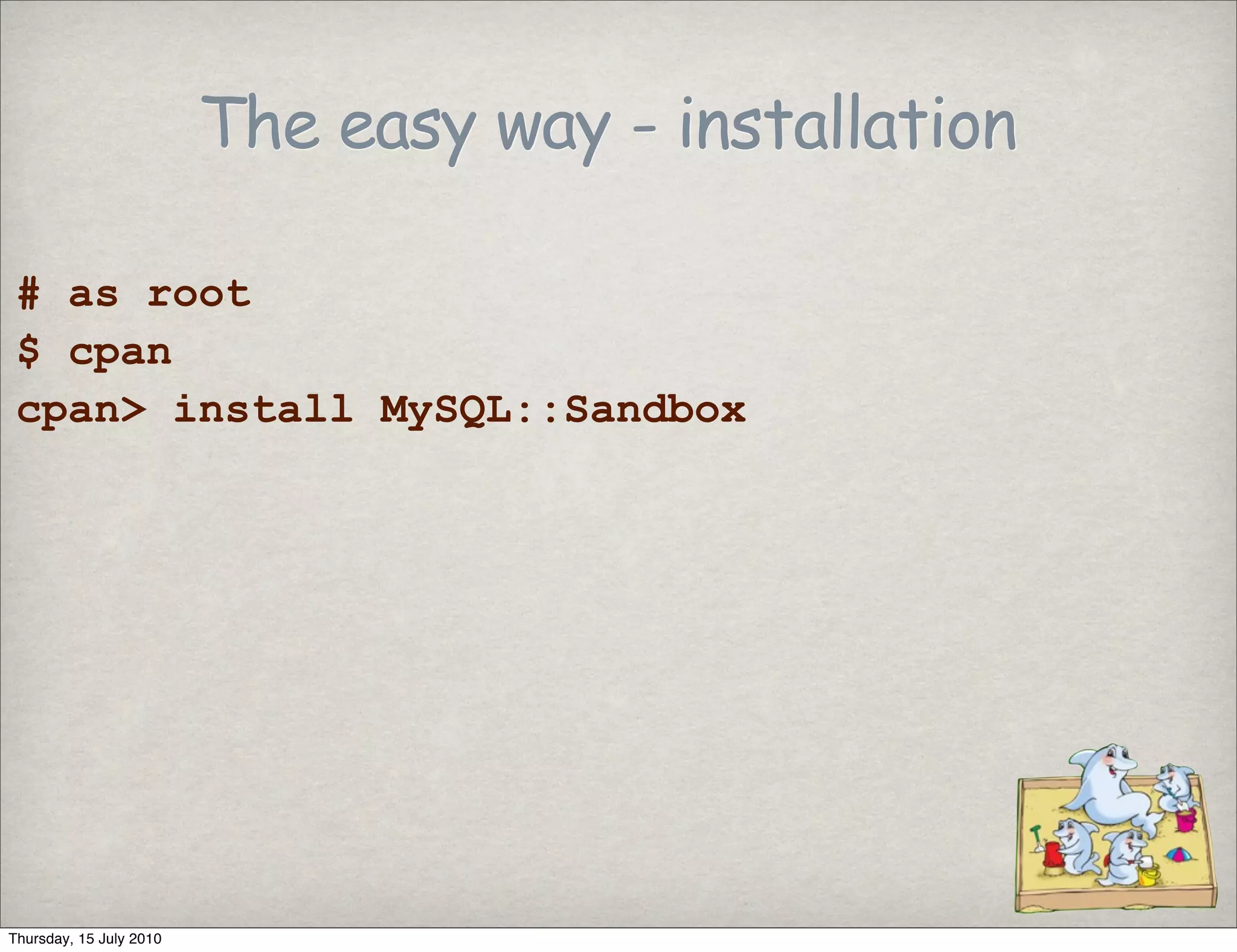

The easy way - installation

# as root
$ cpan
cpan> install MySQL::Sandbox

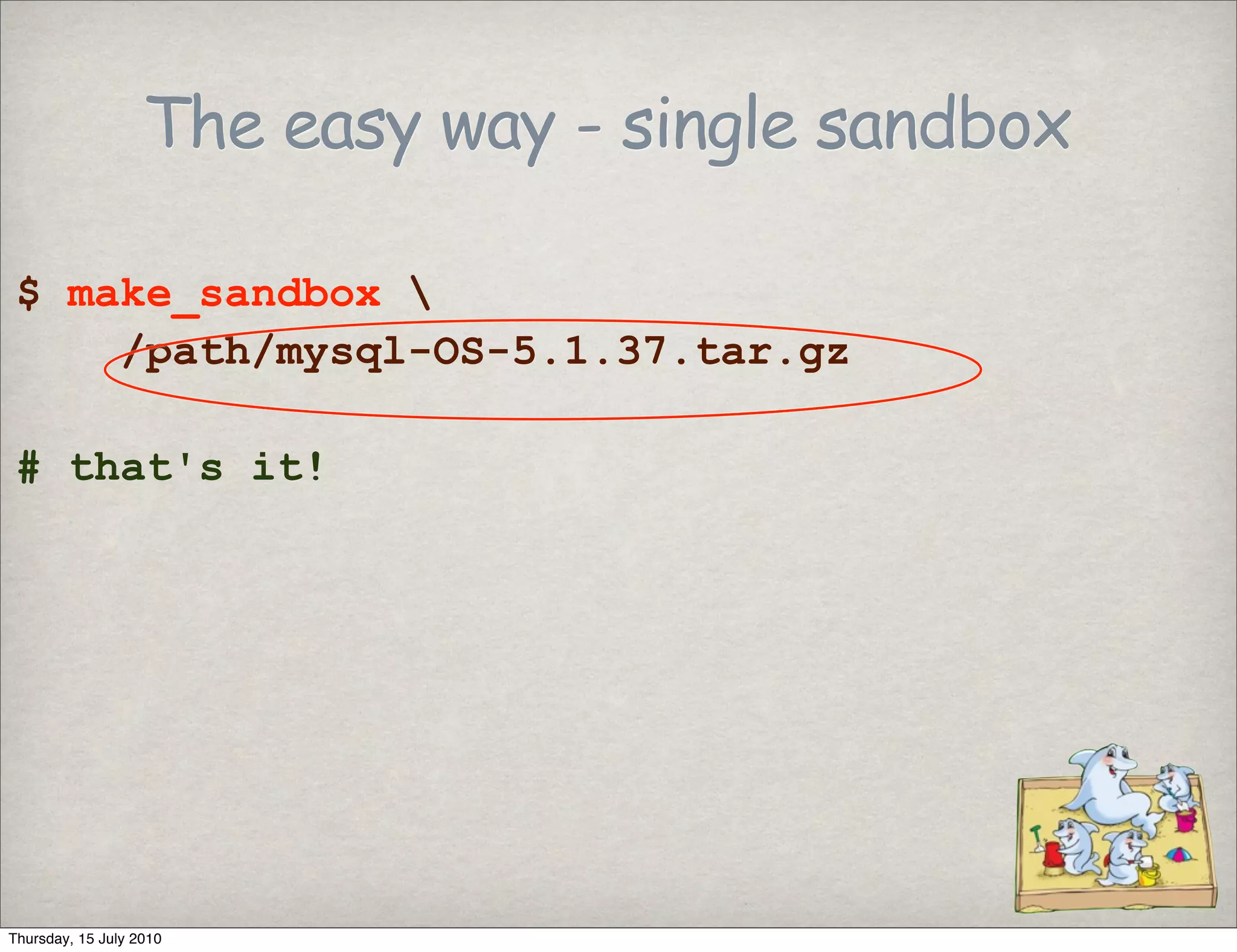

The easy way - single sandbox

$ make_sandbox
/path/mysql-OS-5.1.37.tar.gz

# that's it!

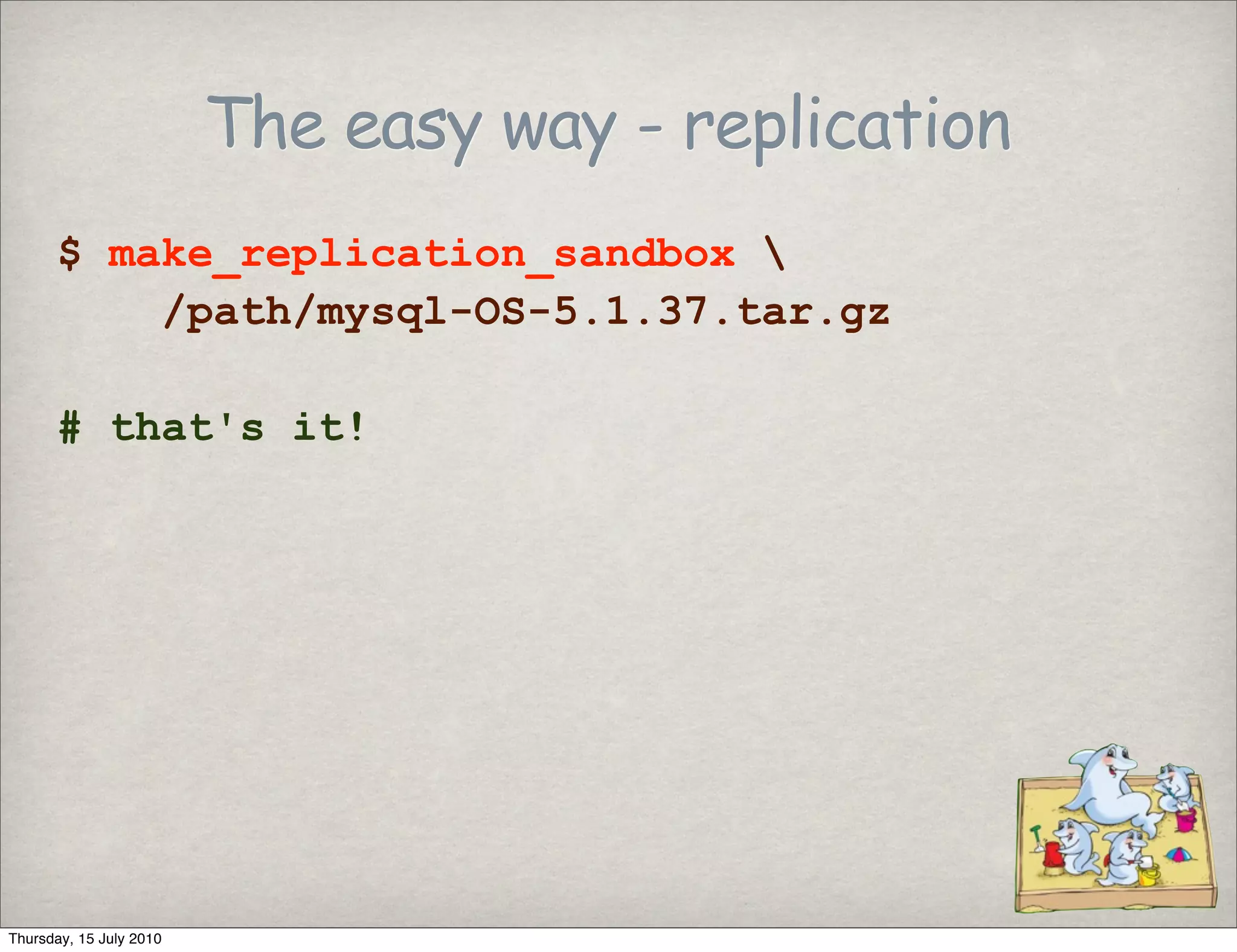

The easy way - replication
$ make_replication_sandbox
/path/mysql-OS-5.1.37.tar.gz

# that's it!

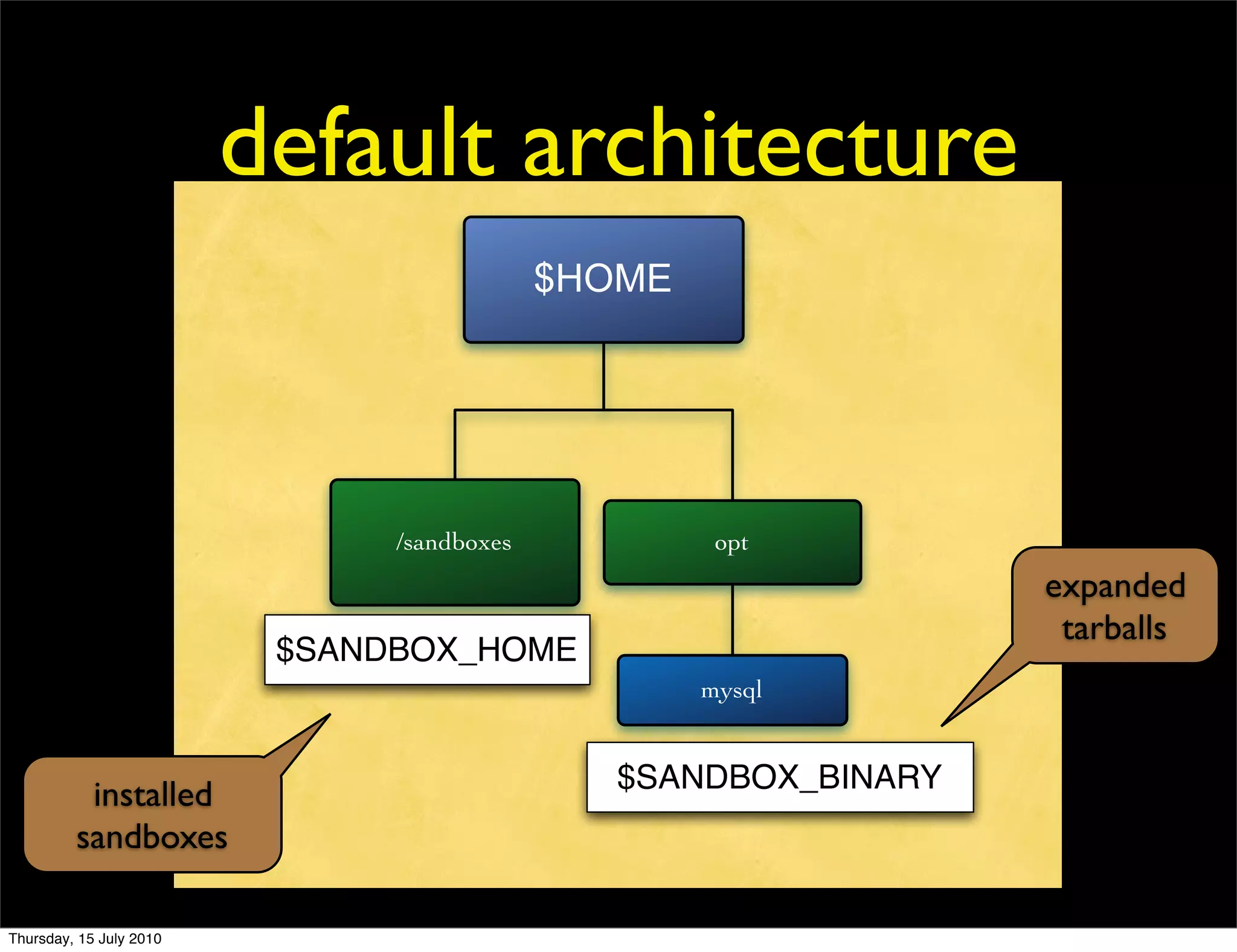

default architecture
$HOME

/sandboxes opt
expanded
tarballs
$SANDBOX_HOME
mysql

$SANDBOX_BINARY
installed
sandboxes

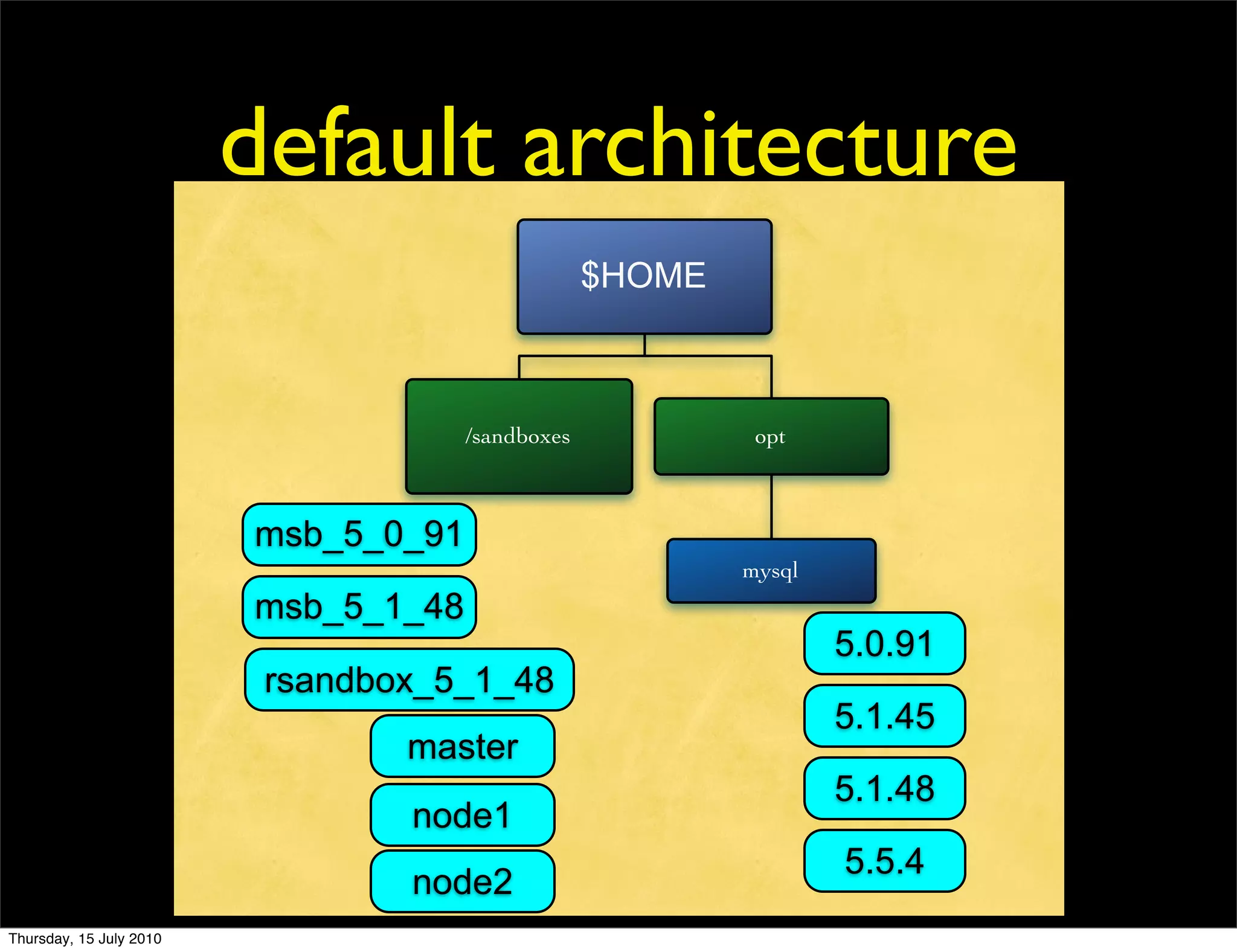

default architecture
$HOME

/sandboxes opt

msb_5_0_91
mysql
msb_5_1_48
5.0.91
rsandbox_5_1_48
5.1.45
master
5.1.48
node1
5.5.4
node2

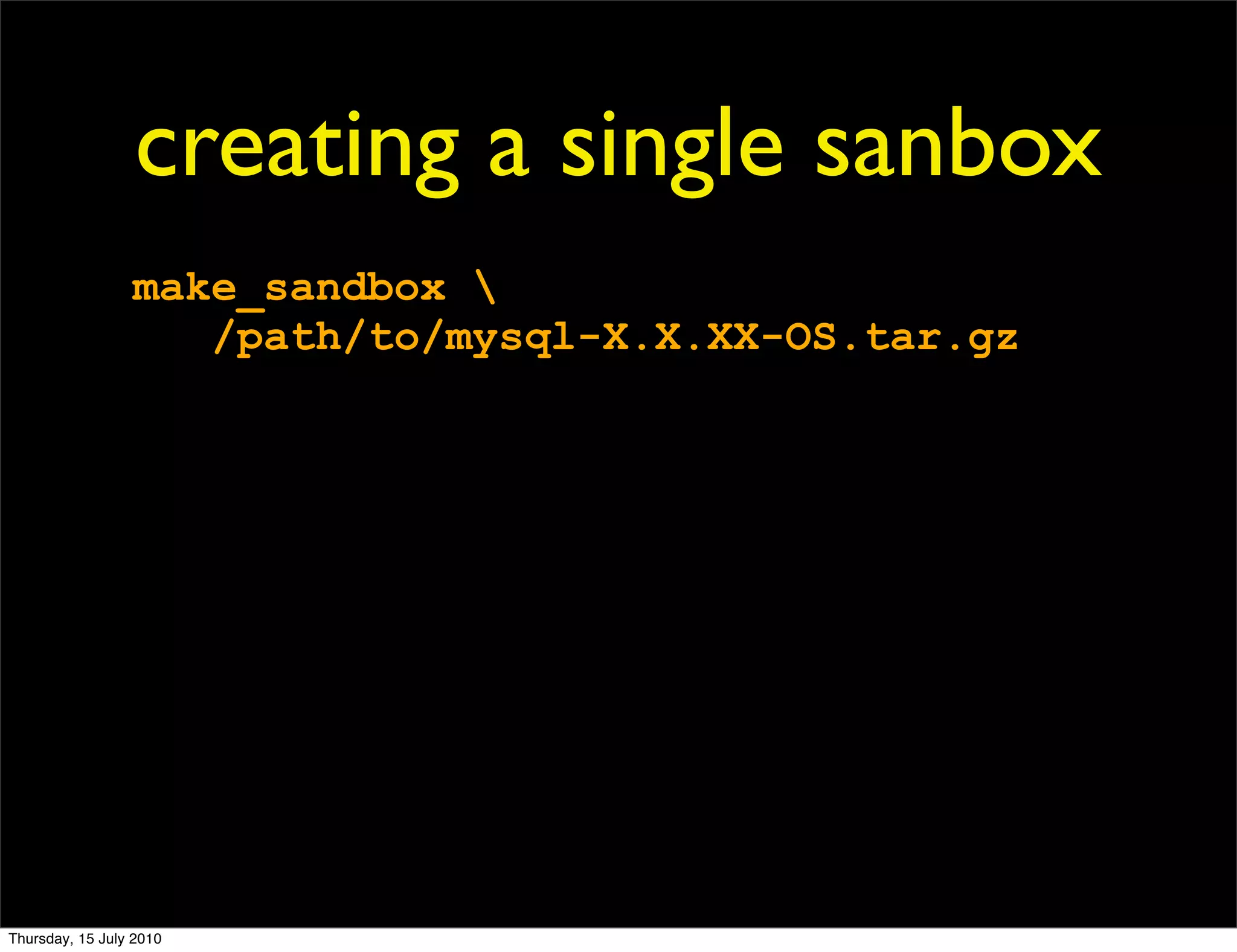

creating a single sanbox
make_sandbox
/path/to/mysql-X.X.XX-OS.tar.gz

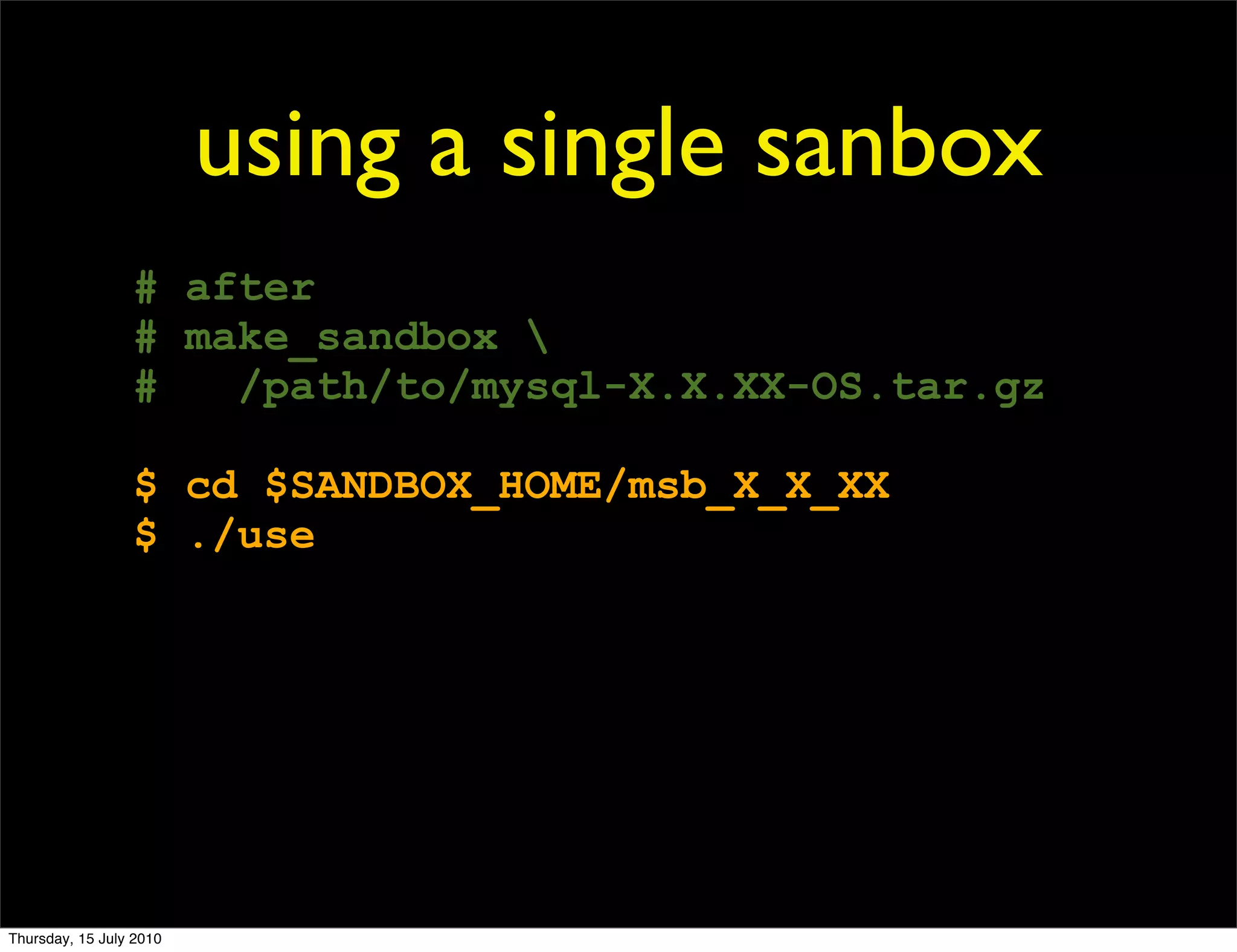

using a single sanbox
# after
# make_sandbox
# /path/to/mysql-X.X.XX-OS.tar.gz

$ cd $SANDBOX_HOME/msb_X_X_XX
$ ./use

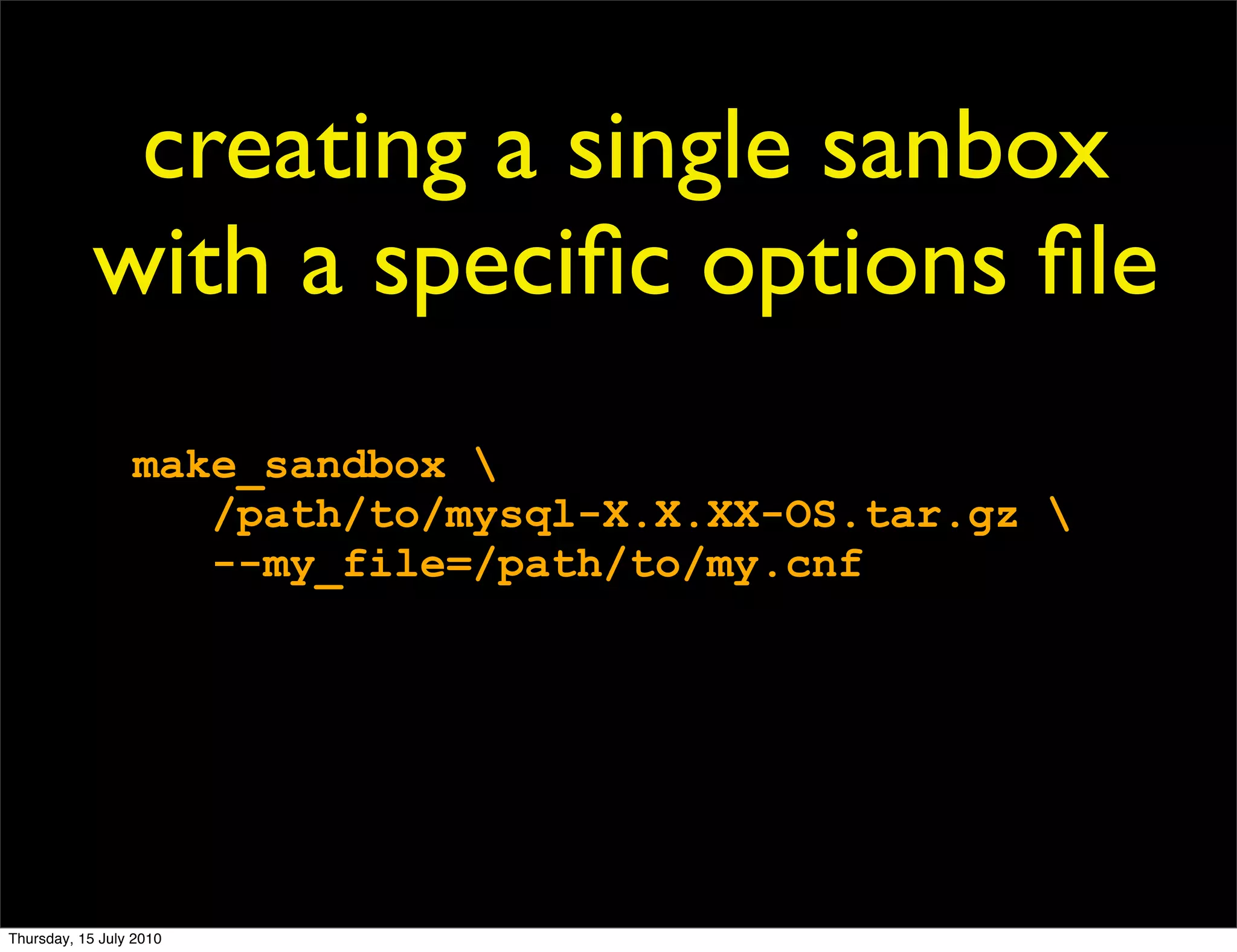

creating a single sanbox
with a speciﬁc options ﬁle
make_sandbox
/path/to/mysql-X.X.XX-OS.tar.gz
--my_file=/path/to/my.cnf

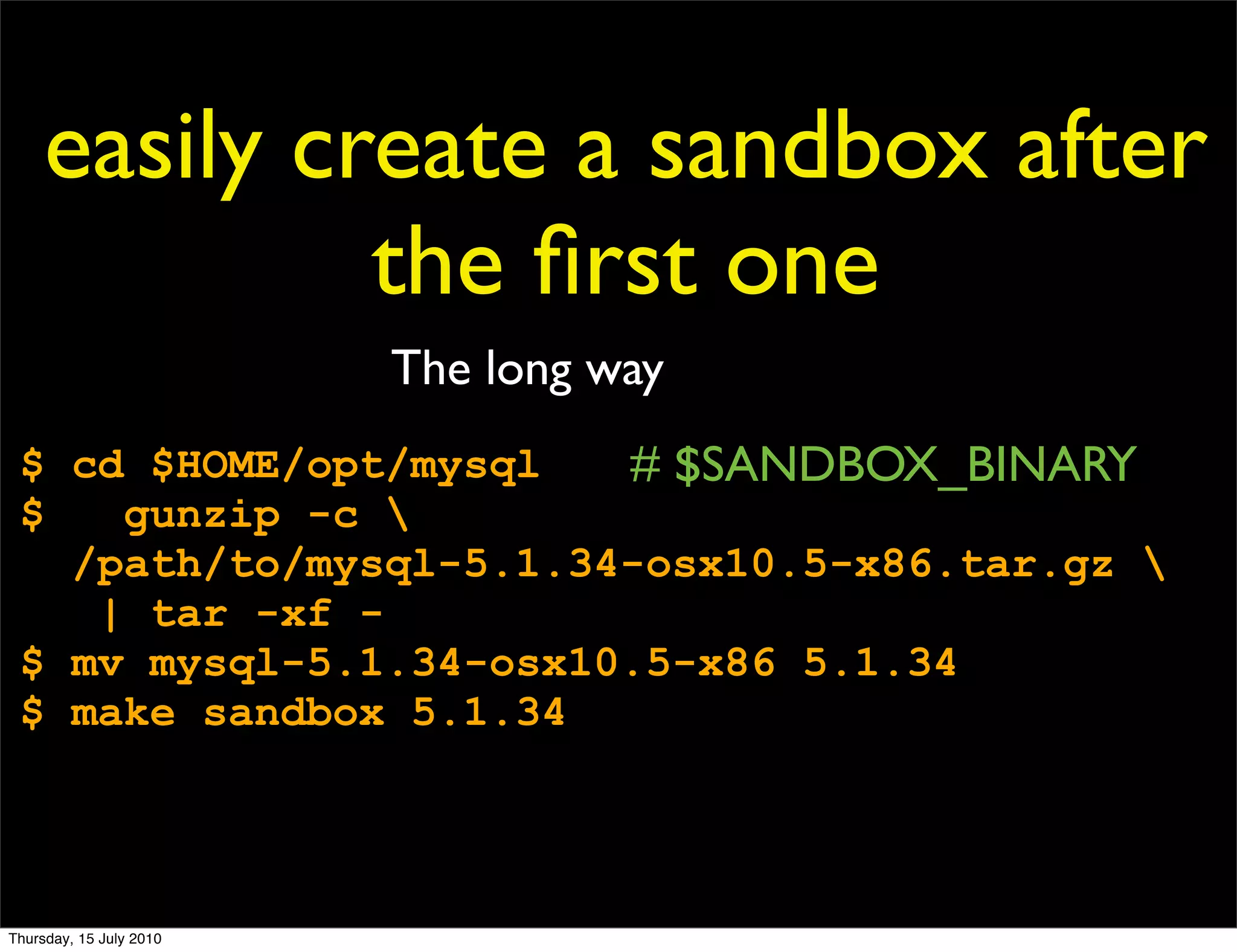

easily create a sandbox after
the ﬁrst one
The long way
$ cd $HOME/opt/mysql # $SANDBOX_BINARY
$ gunzip -c
/path/to/mysql-5.1.34-osx10.5-x86.tar.gz
| tar -xf -
$ mv mysql-5.1.34-osx10.5-x86 5.1.34
$ make sandbox 5.1.34

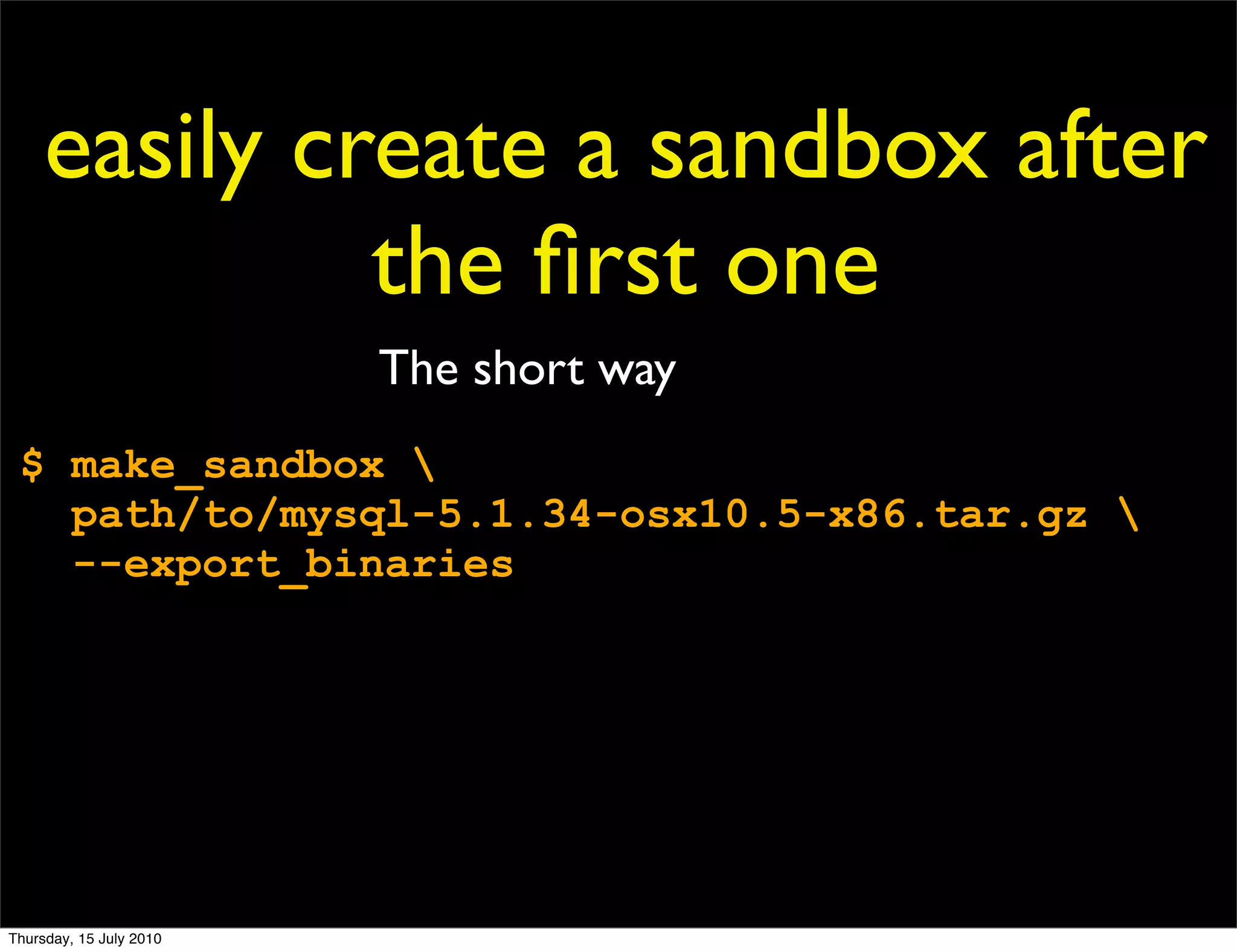

easily create a sandbox after
the ﬁrst one
The short way
$ make_sandbox
path/to/mysql-5.1.34-osx10.5-x86.tar.gz
--export_binaries

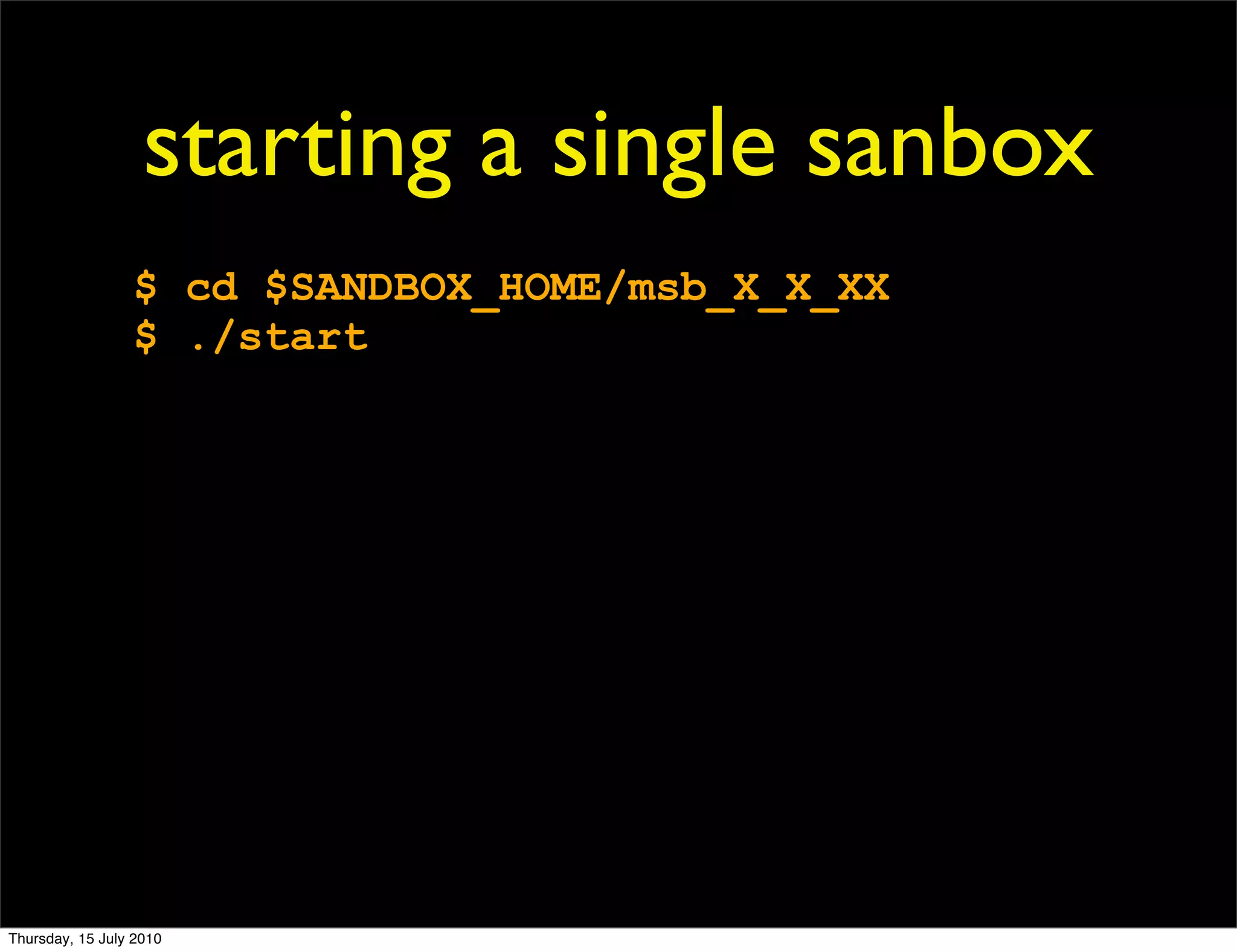

starting a single sanbox
$ ./start

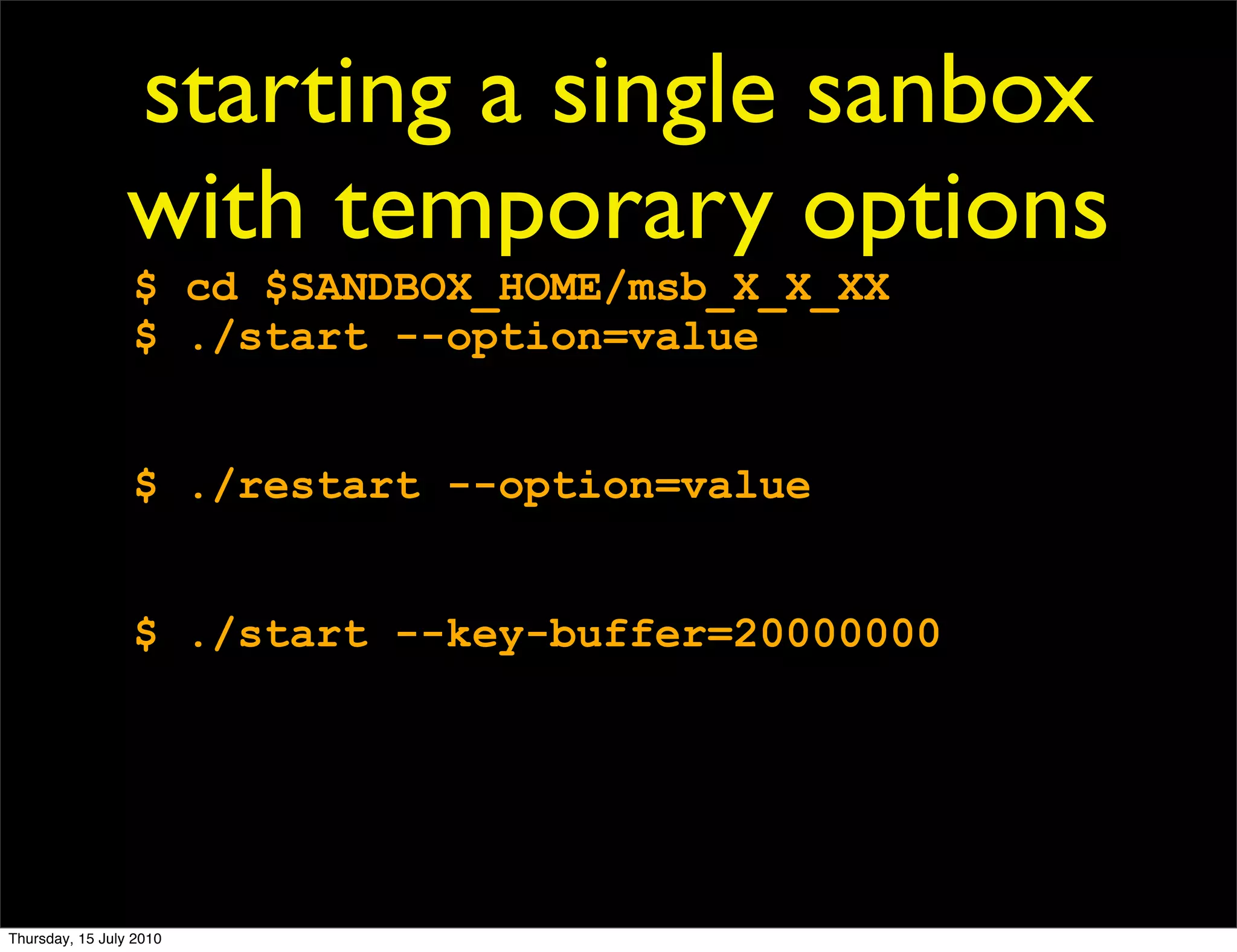

starting a single sanbox
with temporary options
$ ./start --option=value

$ ./restart --option=value

$ ./start --key-buffer=20000000

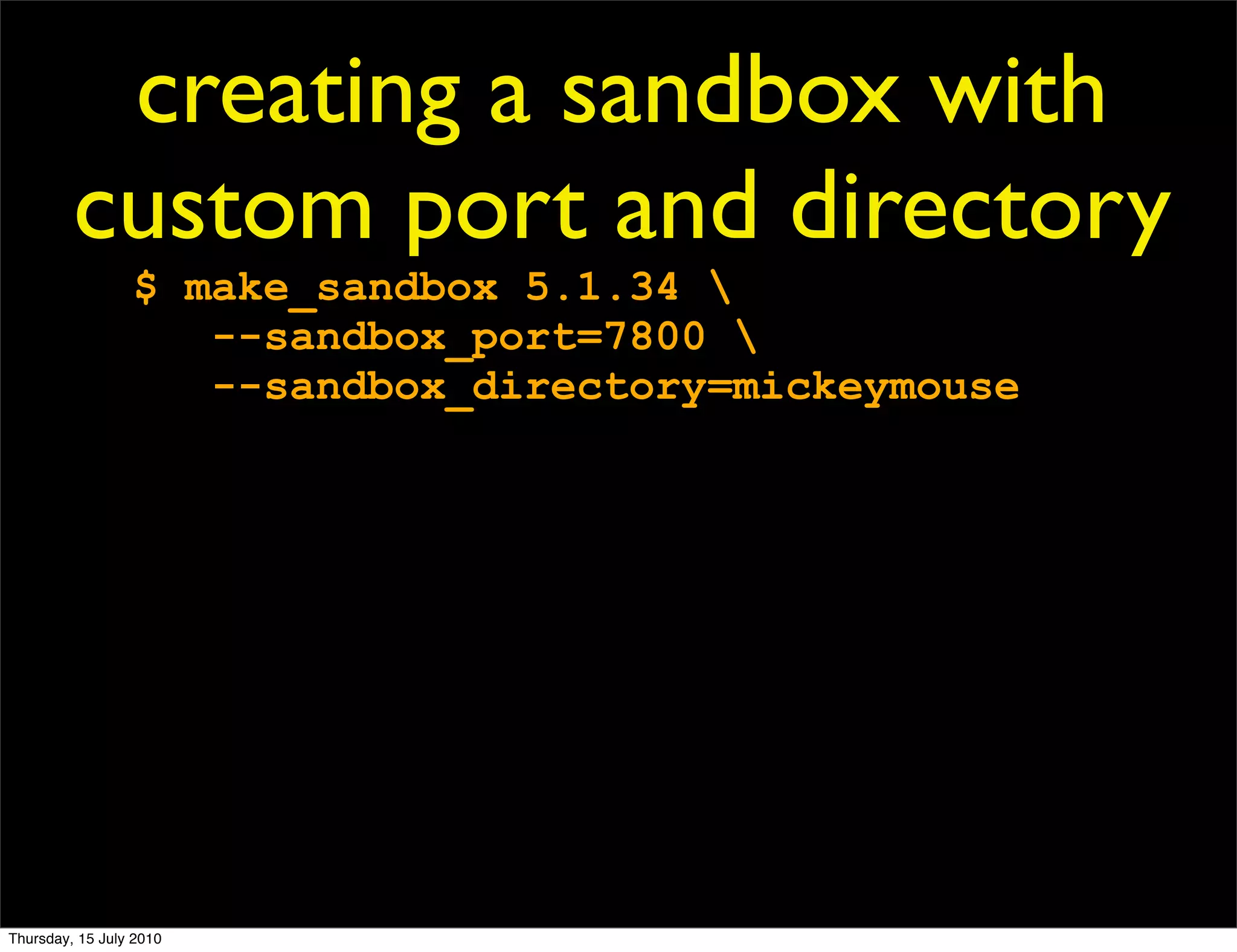

creating a sandbox with
custom port and directory
$ make_sandbox 5.1.34
--sandbox_port=7800
--sandbox_directory=mickeymouse

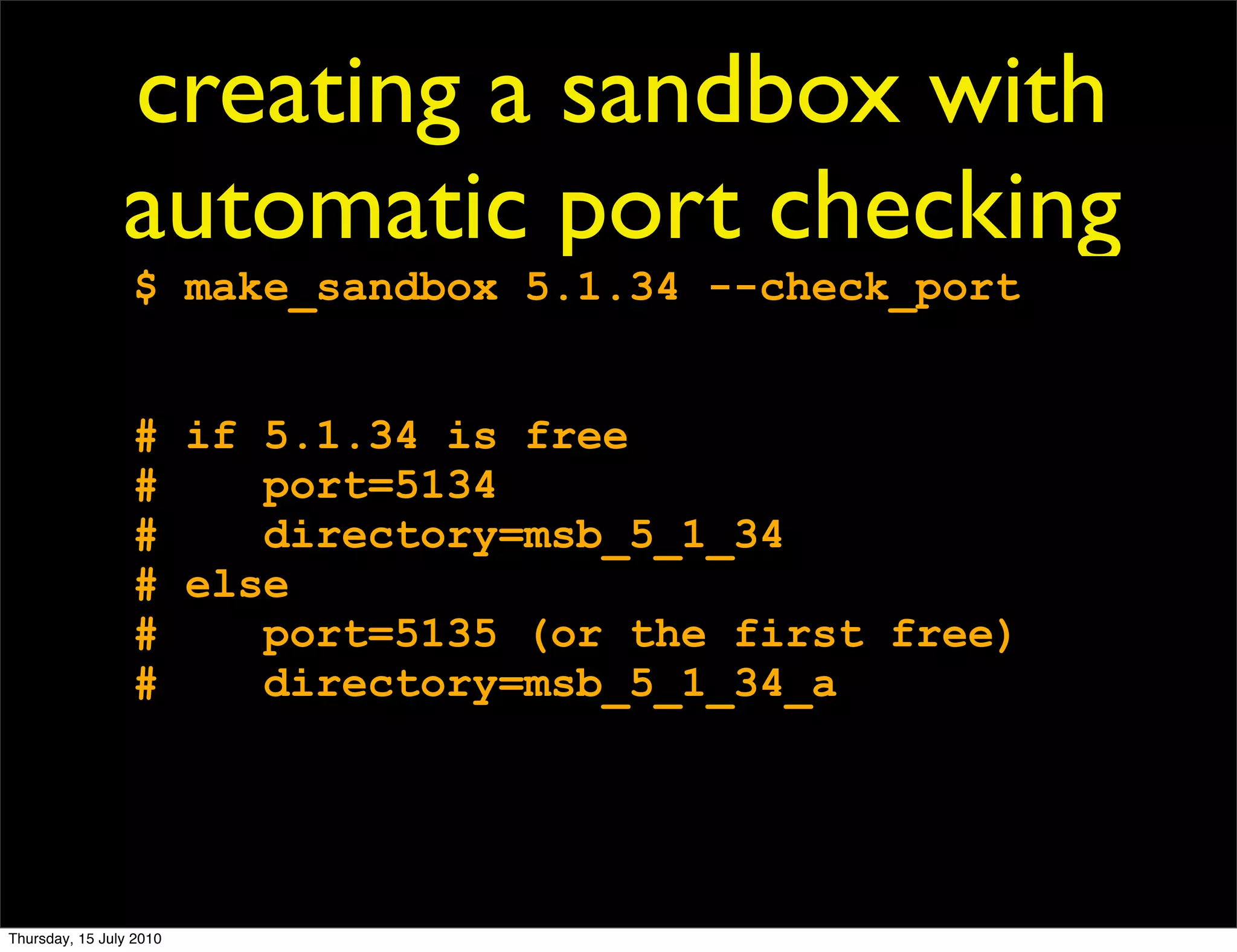

creating a sandbox with
automatic port checking
$ make_sandbox 5.1.34 --check_port

# if 5.1.34 is free
# port=5134
# directory=msb_5_1_34
# else
# port=5135 (or the first free)
# directory=msb_5_1_34_a

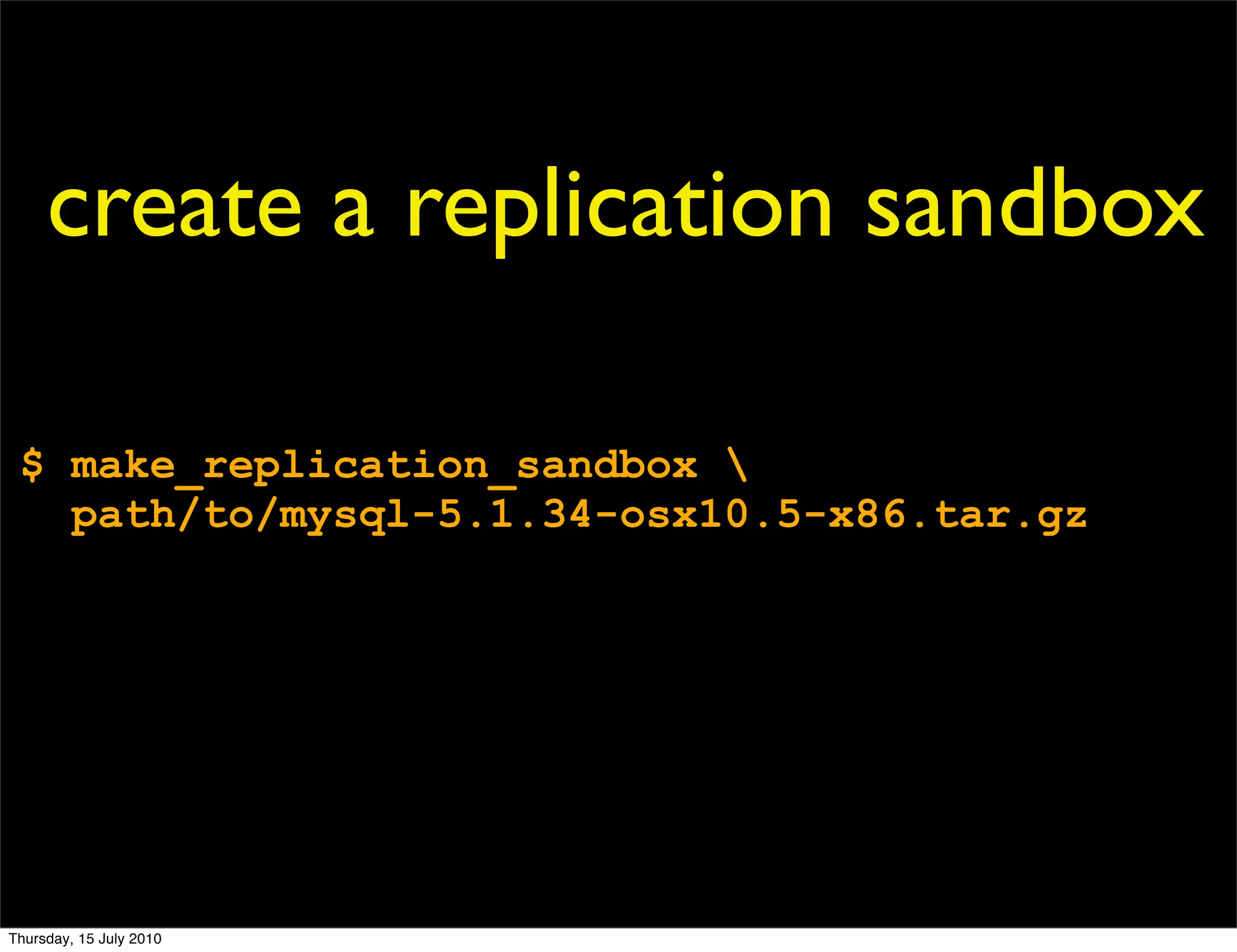

create a replication sandbox

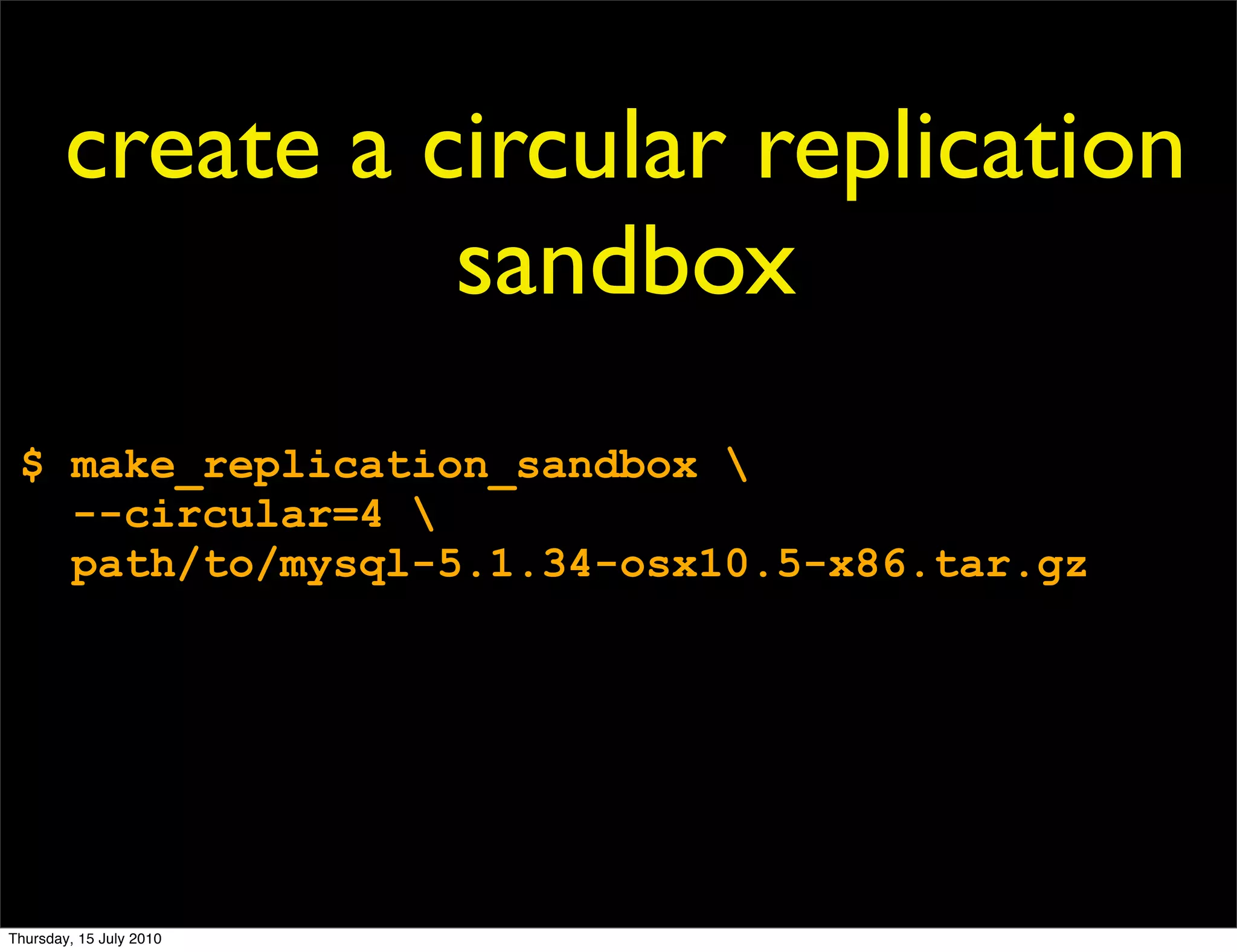

create a circular replication
sandbox
--circular=4

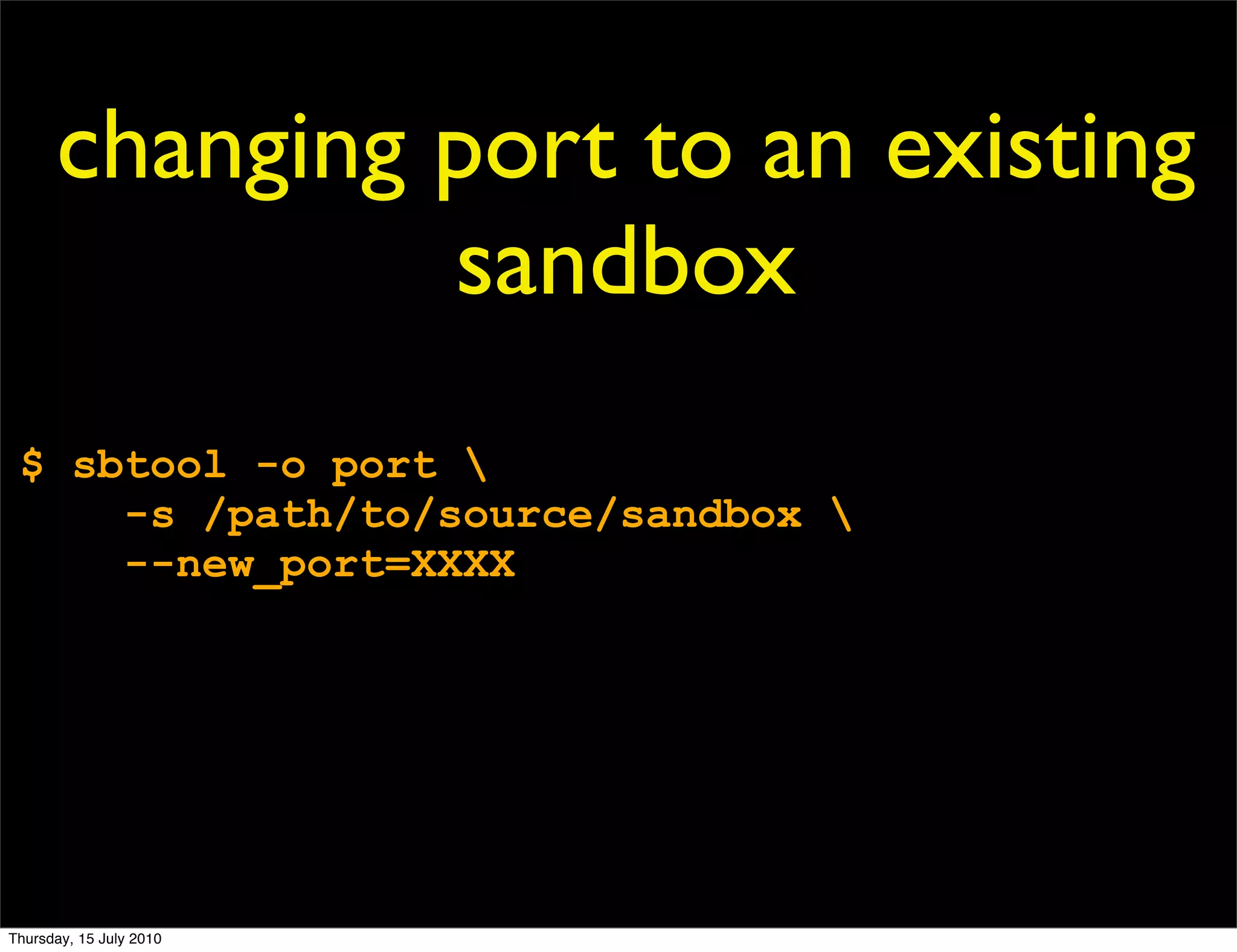

changing port to an existing
sandbox
$ sbtool -o port
-s /path/to/source/sandbox
--new_port=XXXX

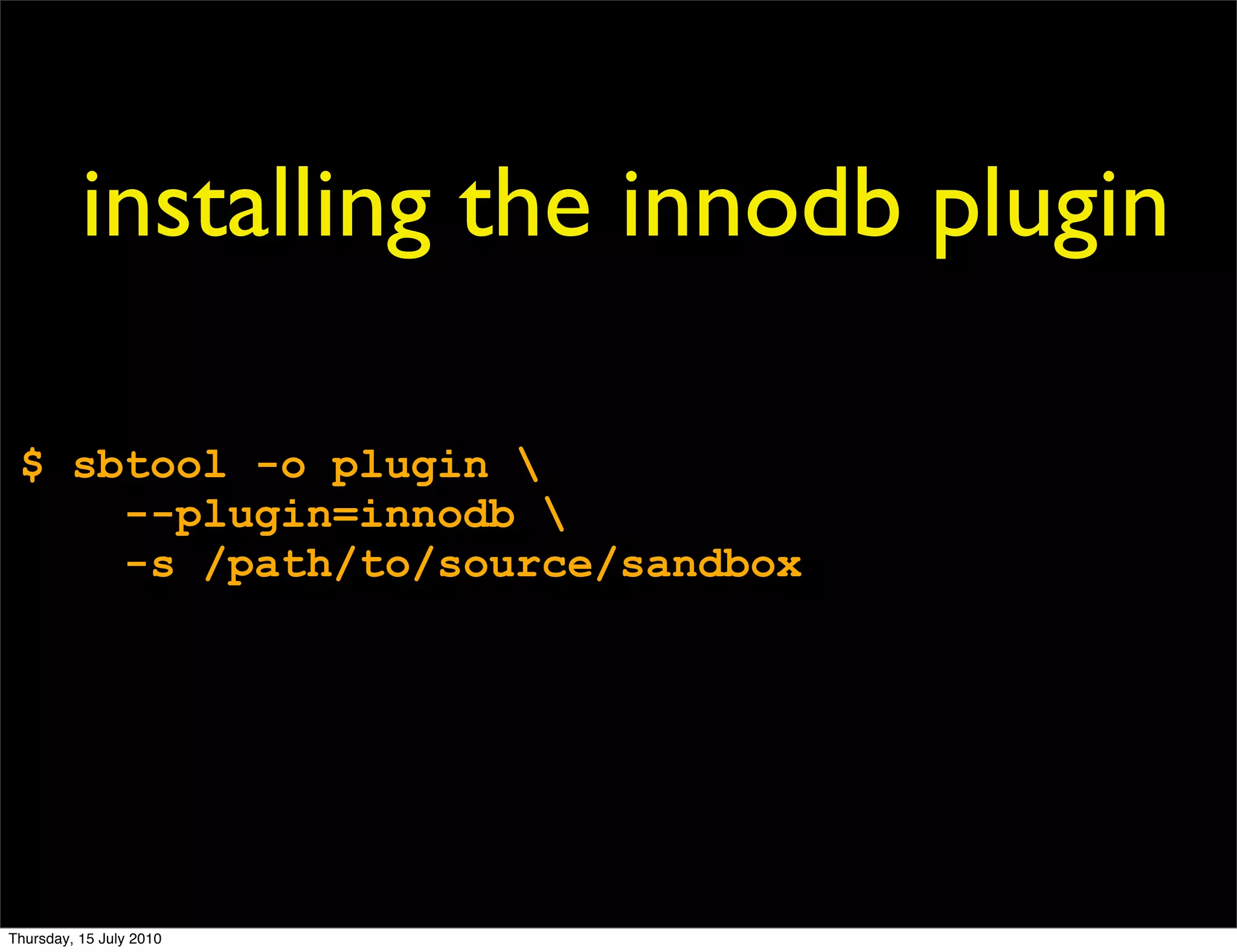

installing the innodb plugin

$ sbtool -o plugin
--plugin=innodb
-s /path/to/source/sandbox

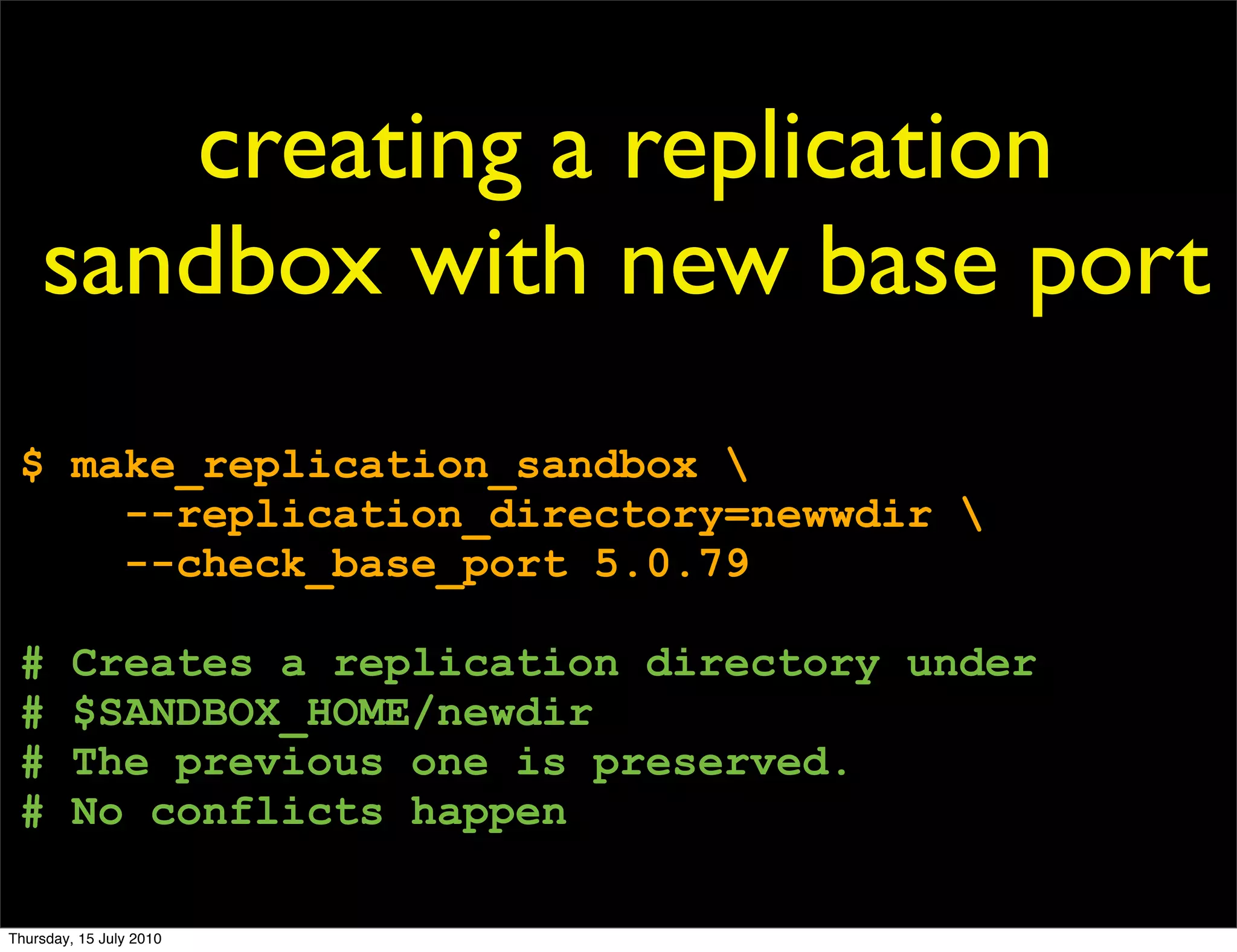

creating a replication
sandbox with new base port
--replication_directory=newwdir
--check_base_port 5.0.79

# Creates a replication directory under
# $SANDBOX_HOME/newdir
# The previous one is preserved.
# No conflicts happen

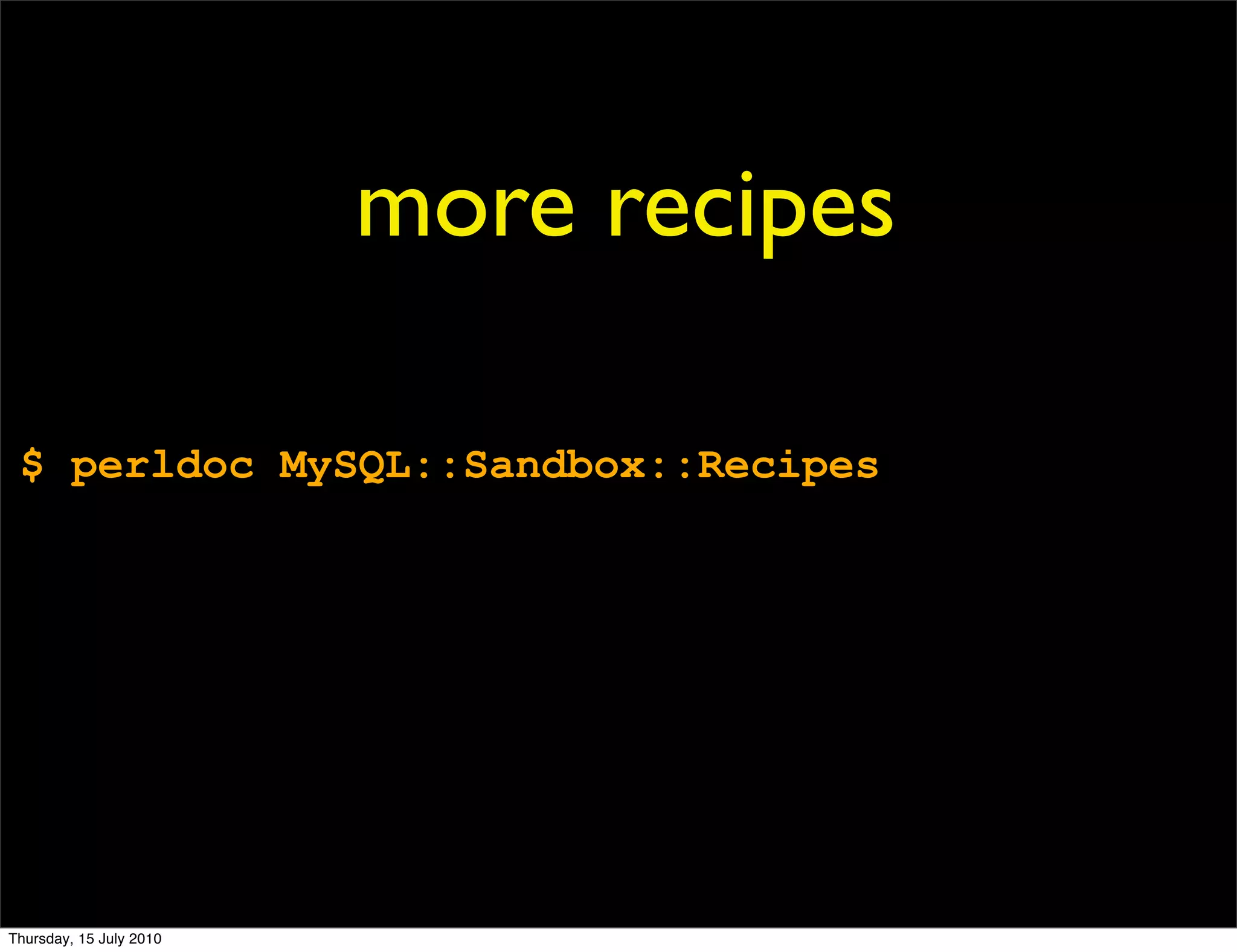

more recipes

$ perldoc MySQL::Sandbox::Recipes

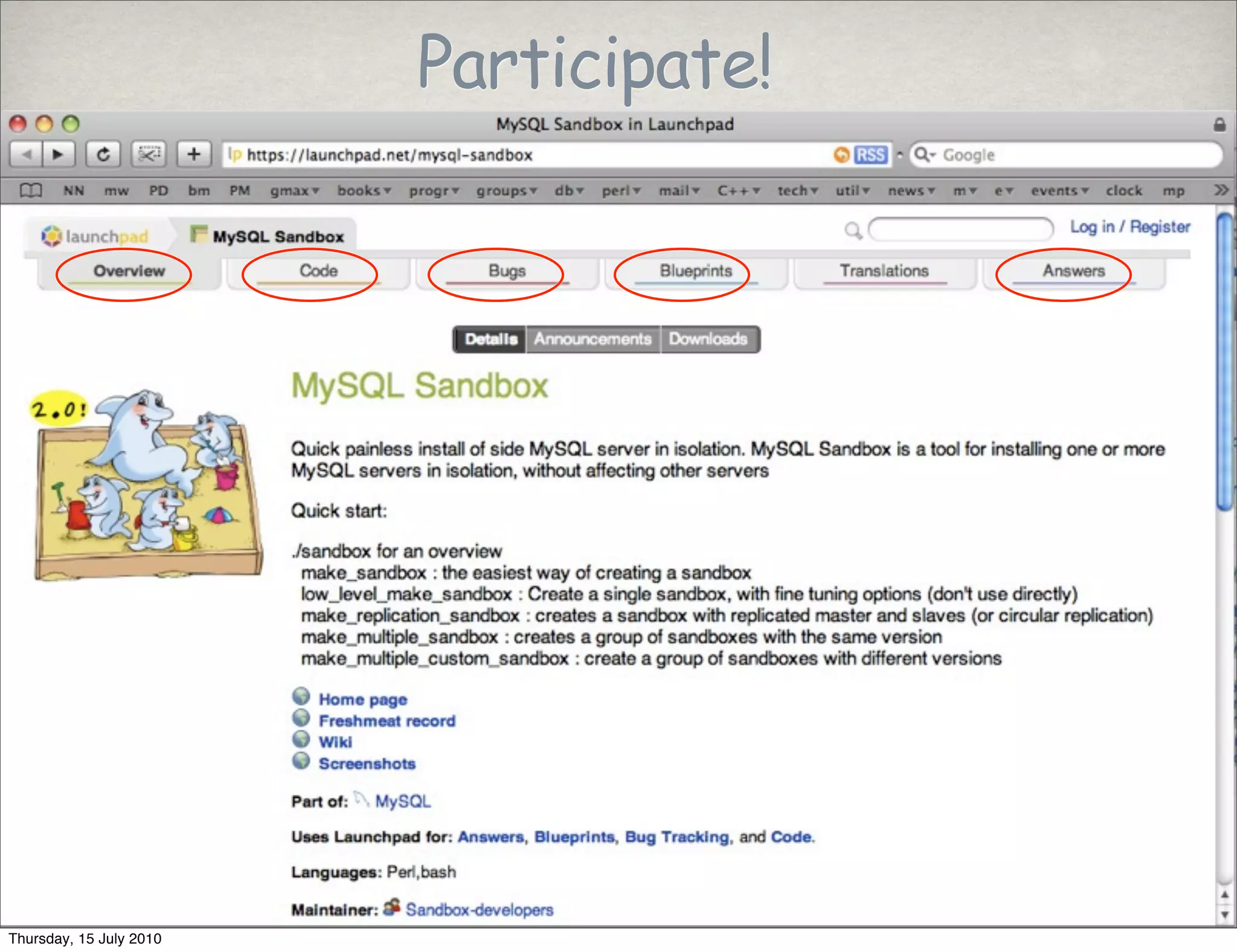

Participate!


roadmap
NORTH

WEST 66 95 EAST

SOUTH

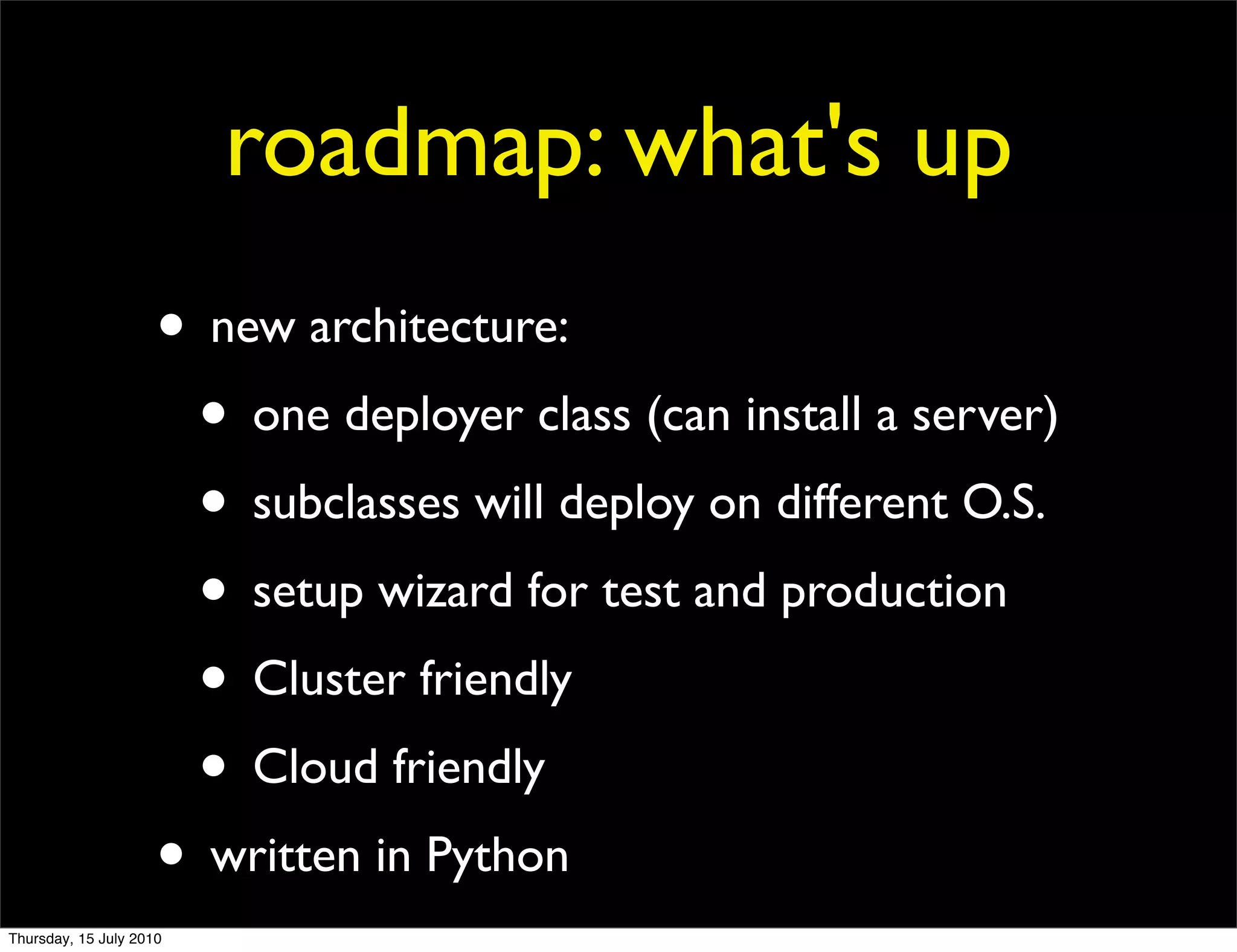

roadmap: what's up
• new architecture:
• one deployer class (can install a server)
• subclasses will deploy on different O.S.
• setup wizard for test and production
• Cluster friendly
• Cloud friendly
• written in Python

THANKS
Let's talk!

This work is licensed under the Creative Commons Attribution-Share Alike 3.0 Unported License. To view a copy of this license, visit http://
creativecommons.org/licenses/by-sa/3.0/ or send a letter to Creative Commons, 171 Second Street, Suite 300, San Francisco, California,
94105, USA.
