dbdeployer: the future of MySQL sandboxes

1. Giuseppe Maxia
Software explorer
dbdeployer
the future of MySQL sandboxes

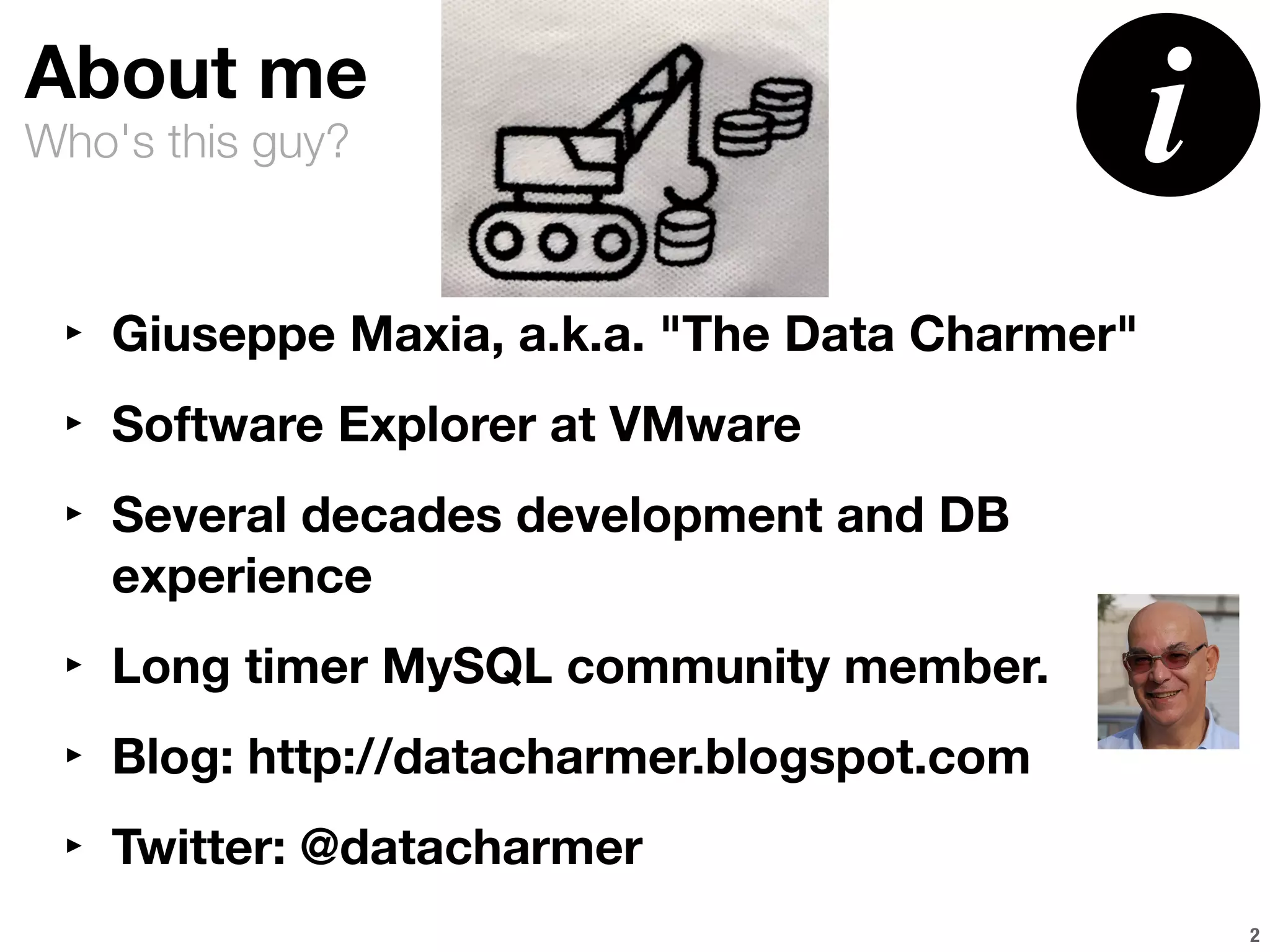

2. Who's this guy?
About me
‣ Giuseppe Maxia, a.k.a. "The Data Charmer"
‣ Software Explorer at VMware
‣ Several decades development and DB
experience
‣ Long timer MySQL community member.
‣ Blog: http://datacharmer.blogspot.com
‣ Twitter: @datacharmer
!2

3. Disclaimer
•None of what I say has
anything to do with my
company.
•I also don’t work for Oracle.

4. 2006-2017: MySQL-Sandbox
• https://github.com/datacharmer/mysql-sandbox
• A cool utility to install many MySQL servers in user space.
• MySQL application of the year 2013
• A Perl package.
• Somehow difficult to install.
• Hard to run when the target system does not have Perl...
• Syntax evolved over years (since 2006!), and it's kinda messy.
!4

5. I had a dream
improve
MySQL-Sandbox
!5

6. I had a dream
rewrite
MySQL-Sandbox
in Python!
in Ruby!
in C++
in Java!
just
joking
in Go!
Actually, why not?
in Javascript!
not even
for a
second
!6

7. introducing
dbdeployer
MySQL-Sandbox (re)written in Go
!7

8. Why not Perl (6), Python,
Ruby, C++?
• Lost patience waiting for Perl 6 ...
• Tired of wrestling sys admins about Python 2.6/7 vs. 3.x ...
• Ruby has magically disappeared ...
• I still love C++, but I it has the same problem as the above ones:
• Burden of build/installation is on users!
Libraries dependencies are hell to solve

9. Why Go?
• Burden of build is on the developer.
• Users need only to download the executable.
• No dependencies (except a system able to run MySQL)
• Fast development
• Incredible wealth of public libraries for everything.
• Amazing community.
!9

10. dbdeployer
• Command line tool
• No dependencies (single binary per O.S.)
• Interface similar to git, docker
• Fast!
• Runs single database, replication, group replication,
multiple deployments, multi-source replication.
• Integrated help
• Easy to extend.
https://github.com/datacharmer/dbdeployer

11. What can it do? (1)
• Install a single MySQL sandbox
• Separated from any existing MySQL server
• Completely in user space
• Reasonably isolated
• Easy to use and administer

12. What can it do? (2)
• Install a group of sandboxes
• Isolated from each other
• Without any relationship
• With binary logging active

13. What can it do? (3)
• Install a master-slave replication cluster
• 1 master and 2 (or more) slaves
• Replication enabled
• Optional GTID
• Easy tools to run operations on all nodes at once

14. What can it do? (4)
• Install a group replication cluster (MySQL 5.7 and 8.0)
• 3 (or more) nodes
• Single-primary or multi-primary
• Group replication configured and enabled
• Easy tools to run operations on all nodes at once

15. What can it do? (5)
• Install a multi-source replication cluster (MySQL 5.7-8.0)
• 3 (or more) nodes
• fan-in or all-masters topologies
• Easy tools to run operations on all nodes at once

16. What can it do? (6)
• Administer sandboxes
• List available binaries
• List installed sandboxes
• start, restart (with options), stop
• check status
• test
• delete

17. What can it do? (7)
• Customize sandboxes
• Customizable initialization and database start
• Provide templates for every script
• Allow on-the-fly and permanent template replacement
• Change most of the default values
• Make sandboxes permanent (= can't be deleted)

18. What can it do? (8)
• Find free ports automatically
• Test replication flow
• Expose MySQL 8 dictionary tables
• Use semi-synch replication
• Run SQL command before and after loading grants
• enable/disable X-protocol

19. Installation
1. Go to https://github.com/datacharmer/dbdeployer
2. Find releases
3. Download the binary for your O.S.
4. Put it in a directory within your $PATH
5. Run it!

22. Using it
1. Download a MySQL binary tarball
2. Use dbdeployer to expand it
3. start creating sandboxes

23. Choose your download

24. Choose your download

25. Principles
https://dev.mysql.com/downloads/mysql/get a MySQL
binary tarball
1
mysql-5.7.22-yourOS.tar.gz
dbdeployer unpack2
$HOME/opt/mysql/5.7.22
dbdeployer deploy single3
$HOME/sandboxes/msb_5_7_22
dbdeployer deploy multiple3
$HOME/sandboxes/multi_msb_5_7_22

26. operations:
unpack once, use forever
$ dbdeployer unpack
mysql-8.0.11-linux-glibc2.12-x86_64.tar.gz
Unpacking tarball mysql-8.0.11-linux-glibc2.12-
x86_64.tar.gz to $HOME/opt/mysql/8.0.11
$ dbdeployer available
8.0.11
$ dbdeployer deploy single 8.0.11
Database installed in $HOME/sandboxes/msb_8_0_11

27. dbdeployer help
$ dbdeployer --help
dbdeployer makes MySQL server installation an easy task.
Runs single, multiple, and replicated sandboxes.
Usage:
dbdeployer [command]
Available Commands:
admin sandbox management tasks
defaults tasks related to dbdeployer defaults
delete delete an installed sandbox
deploy deploy sandboxes
global Runs a given command in every sandbox
help Help about any command
sandboxes List installed sandboxes
unpack unpack a tarball into the binary directory
usage Shows usage of installed sandboxes
versions List available versions

28. unpack
$ dbdeployer unpack -h
If you want to create a sandbox from a tarball, you first need to
unpack it into the sandbox-binary directory. This command carries out
that task, so that afterwards you can call 'deploy single', 'deploy
multiple', and 'deploy replication' commands with only the MySQL
version for that tarball.
If the version is not contained in the tarball name, it should be
supplied using --unpack-version.
If there is already an expanded tarball with the same version, a new
one can be differentiated with --prefix.
Usage:
dbdeployer unpack MySQL-tarball [flags]
Flags:
--prefix string Prefix for the final expanded directory
--unpack-version string which version is contained in the
tarball
--verbosity int Level of verbosity during unpack (0-2)

29. deploy
$ dbdeployer deploy -h
Deploys single, multiple, or replicated
sandboxes
Usage:
dbdeployer deploy [command]
Available Commands:
multiple create multiple sandbox
replication create replication sandbox
single deploys a single sandbox

30. deploy flags (1)
Flags: (cont.)
--base-port int Overrides default base-port (for multiple
sandboxes)
--binary-version string Specifies the version for basedir directory
--bind-address string defines the database bind-address ("127.0.0.1")
--concurrent Runs multiple sandbox deployments concurrently
--custom-mysqld string Uses an alternative mysqld
-p, --db-password string database password (default "msandbox")
-u, --db-user string database user (default "msandbox")
--defaults strings Change defaults on-the-fly (--defaults=label:value)
--disable-mysqlx Disable MySQLX plugin (8.0.11+)
--enable-general-log Enables general log for the sandbox (MySQL 5.1+)
--enable-mysqlx Enables MySQLX plugin (5.7.12+)
--expose-dd-tables In MySQL 8.0+ shows data dictionary tables
--force Overwrite destination sandbox
--gtid enables GTID
--init-general-log uses general log during initialization (MySQL 5.1+)
-i, --init-options strings mysqld options to run during initialization
--keep-server-uuid Does not change the server UUID
--my-cnf-file string Alternative source file for my.sandbox.cnf
-c, --my-cnf-options strings mysqld options to add to my.sandbox.cnf

31. deploy flags (2)
Flags:
--native-auth-plugin in 8.0.4+, uses the native auth plugin
--port int Overrides default port
--post-grants-sql strings SQL queries after loading grants
--post-grants-sql-file string SQL file after loading grants
--pre-grants-sql strings SQL queries before loading grants
--pre-grants-sql-file string SQL file to run before loading grants
--remote-access string defines the database access ("127.%")
--rpl-password string replication password ("rsandbox")
--rpl-user string replication user ("rsandbox")
--sandbox-directory string Changes the default sandbox directory
--skip-load-grants Does not load the grants
--skip-report-host Does not include report host
--skip-report-port Does not include report port
--skip-start Does not start the database server
--use-template strings [template_name:file_name] Replace
existing template with one from file

32. deploy single
$ dbdeployer deploy single -h
single installs a sandbox and creates useful scripts for its use.
MySQL-Version is in the format x.x.xx, and it refers to a
directory named after the version
containing an unpacked tarball. The place where these directories
are found is defined by
--sandbox-binary (default: $HOME/opt/mysql.)
For example:
dbdeployer deploy single 5.7.21
For this command to work, there must be a directory $HOME/opt/
mysql/5.7.21, containing
the binary files from mysql-5.7.21-$YOUR_OS-x86_64.tar.gz
Use the "unpack" command to get the tarball into the right
directory.
Usage:
dbdeployer deploy single MySQL-Version [flags]

33. deploy multiple
$ dbdeployer deploy multiple -h
Creates several sandboxes of the same version, without any
replication relationship.
For this command to work, there must be a directory $HOME/opt/
mysql/5.7.21, containing the binary files from mysql-5.7.21-
$YOUR_OS-x86_64.tar.gz
Use the "unpack" command to get the tarball into the right
directory.
Usage:
dbdeployer deploy multiple MySQL-Version [flags]
Examples:
$ dbdeployer deploy multiple 5.7.21
Flags:
-n, --nodes int How many nodes will be installed (default 3)

34. deploy replication (1)
$ dbdeployer deploy replication -h
The replication command allows you to deploy several nodes
in replication.
Allowed topologies are "master-slave" for all versions,
and "group", "all-masters", "fan-in"
for 5.7.17+.
For this command to work, there must be a directory $HOME/
opt/mysql/5.7.21, containing
the binary files from mysql-5.7.21-$YOUR_OS-x86_64.tar.gz
Use the "unpack" command to get the tarball into the right
directory.
Usage:
dbdeployer deploy replication MySQL-Version [flags]

35. deploy replication (2)
$ dbdeployer deploy replication -h
Examples:
$ dbdeployer deploy replication 5.7.21
# (implies topology = master-slave)
$ dbdeployer deploy --topology=master-slave replication 5.7.21
# (explicitly setting topology)
$ dbdeployer deploy replication --topology=group 5.7.21
$ dbdeployer deploy replication --topology=group 8.0.4
--single-primary
$ dbdeployer deploy --topology=all-masters replication 5.7.21
$ dbdeployer deploy --topology=fan-in replication 5.7.21

36. deploy replication (3)
Flags:
--master-ip string Which IP the slaves will
connect to ("127.0.0.1")
--master-list string Which nodes are masters in
a multi-source deployment ("1,2")
-n, --nodes int How many nodes (3)
--semi-sync Use semi-synchronous
--single-primary Using single primary
--slave-list string Which nodes are slaves in
a multi-source deployment (default "3")
-t, --topology string Which topology will be
installed

37. usage (single)
"./start", "./status", "./restart", and "./stop" do what their name
suggests.
start and restart accept parameters that are eventually passed to the
server.
e.g.:
./start --server-id=1001
./restart --event-scheduler=disabled
"./use" calls the command line client with the appropriate parameters,
Example:
./use -BN -e "select @@server_id"
./use -u root
"./clear" stops the server and removes everything from the data directory,
letting you ready to start from scratch. (Warning! It's irreversible!)
... and more

38. usage (multiple)
On a replication sandbox, you have the same commands (run
"dbdeployer usage single"),
with an "_all" suffix, meaning that you propagate the command
to all the members.
Then you have "./m" as a shortcut to use the master, "./s1"
and "./s2" to access the slaves (and "s3", "s4" ... if you
define more).
In group sandboxes without a master slave relationship (group
replication and multiple sandboxes) the nodes can be accessed
by ./n1, ./n2, ./n3, and so on.
start_all / status_all / restart_all / stop_all / use_all
clear_all / m / s1 / s2 / n1 / n2
The scripts "check_slaves" or "check_nodes" give the status
of replication in the sandbox.
... and more

39. • Single sandbox deployment
• unpack command
• multiple sandboxes
• master-slave replication
• "force" flag
• pre-post grants SQL action
• initialization options
• my.cnf options
• custom my.cnf
• friendly UUID generation
• global commands
• test replication flow
• delete command
• show data dictionary tables
• lock/unlock sandboxes
• finding free ports
• semi-sync replication
• load plugins
What both dbdeployer
and MySQL-Sandbox can do

40. • group replication Single Primary
• group replication Multi Primary
• prevent port collision
• visible initialization
• visible script templates
• replaceable templates
• configurable defaults
• command line completion
• list of source binaries
• list of installed sandboxes
• test script per sandbox
• integrated usage help
• custom abbreviations
• version flag
• sandboxes global catalog
• concurrent deployment
• fan-in
• all-masters
What dbdeployer can do
that MySQL-Sandbox can't

41. LIVE DEMO

42. `
dbdeployer uses semantic versioning (https://semver.org)
Current version: 1.6.0
Version
component
When does it change? example
major
Backward Incompatible API changes.
(Including new features)
1.21.3 => 2.0.0
minor
Backward compatible API changes.
Backward compatible new features
1.21.3 => 1.22.0
revision
Bug fixes.
Code refactoring.
No API changes
1.21.3 => 1.21.4

43. Next steps
• Possible enhancements:
• Install sandbox from remote tarball (?)
• unpack command to slim down tarball contents

44. Parting thoughts
• dbdeployer is open source (Apache license)
• Contributions are welcome!
https://github.com/datacharmer/dbdeployer

45. Q&A
https://www.dbdeployer.com
