1. Serkan ÖZAL
JVM UNDER THE HOOD

2. AGENDA
I. JVM Concepts
II. Memory Management
III. GC
IV. Class Loading
V. Execution Engine
VI. Multi-Threading
VII. JNI

3. I. JVM CONCEPTS

4. TERMS
• JVM
• Runs the bytecodes
• Doesn't understand Java source code
• JRE
• Execute java programs
• = JVM + Packages Classes (lang, util, math, ...) + Runtime libraries (native .dll/.so libs)
• JDK
• Compiles and builds java programs
• = JRE + Development/Debugging Tools (javac, javap, javadoc, jdb, …)

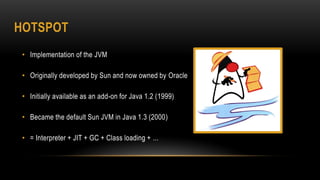

5. HOTSPOT
• Implementation of the JVM
• Originally developed by Sun and now owned by Oracle
• Initially available as an add-on for Java 1.2 (1999)
• Became the default Sun JVM in Java 1.3 (2000)
• = Interpreter + JIT + GC + Class loading + ...

6. II. MEMORY MANAGEMENT

7. HEAP MEMORY

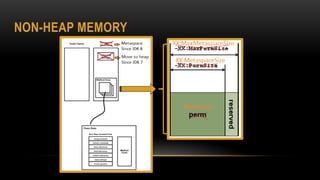

8. NON-HEAP MEMORY

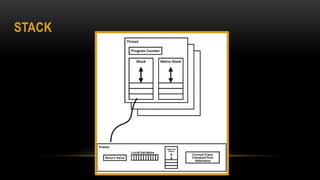

9. STACK

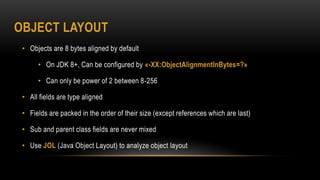

10. OBJECT LAYOUT
• Objects are 8 bytes aligned by default
• On JDK 8+, Can be configured by «-XX:ObjectAlignmentInBytes=?»
• Can only be power of 2 between 8-256
• All fields are type aligned
• Fields are packed in the order of their size (except references which are last)
• Sub and parent class fields are never mixed
• Use JOL (Java Object Layout) to analyze object layout

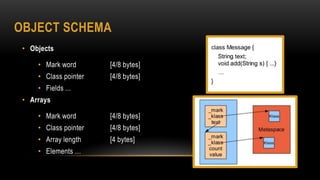

11. OBJECT SCHEMA
• Objects
• Mark word [4/8 bytes]
• Class pointer [4/8 bytes]
• Fields ...
• Arrays
• Mark word [4/8 bytes]
• Class pointer [4/8 bytes]
• Array length [4 bytes]
• Elements …

12. COMPRESSED OOPS
• Based on 8x object alignment rule
• Encode/decode by bit shifting (3 bit shift for default (8 bytes) object alignment)
• Can be configured by «-XX:+UseCompressedOops»
• Enabled by default on JDK 7+ (when heap <= 32GB)
• «-XX:+UseCompressedClassPointers» for classes on JDK 8+

13. OBJECT REFERENCES
• Types of references:
• Strong Reference
• Soft Reference
• Weak Reference
• Phantom Reference
• ReferenceQueue

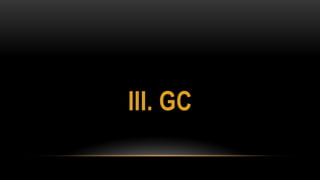

14. III. GC

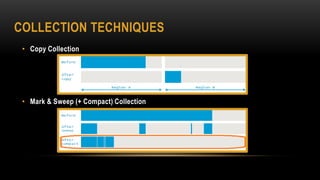

15. COLLECTION TECHNIQUES
• Copy Collection
• Mark & Sweep (+ Compact) Collection

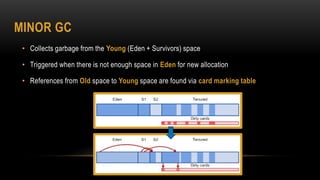

16. MINOR GC
• Collects garbage from the Young (Eden + Survivors) space
• Triggered when there is not enough space in Eden for new allocation
• References from Old space to Young space are found via card marking table

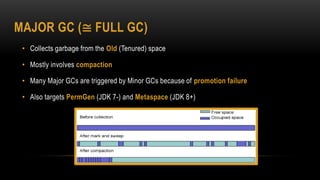

17. MAJOR GC (≅ FULL GC)
• Collects garbage from the Old (Tenured) space
• Mostly involves compaction
• Many Major GCs are triggered by Minor GCs because of promotion failure
• Also targets PermGen (JDK 7-) and Metaspace (JDK 8+)

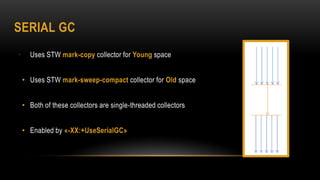

18. SERIAL GC
• Uses STW mark-copy collector for Young space
• Uses STW mark-sweep-compact collector for Old space
• Both of these collectors are single-threaded collectors
• Enabled by «-XX:+UseSerialGC»

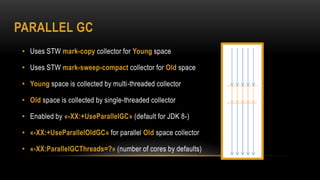

19. PARALLEL GC
• Uses STW mark-copy collector for Young space
• Uses STW mark-sweep-compact collector for Old space
• Young space is collected by multi-threaded collector
• Old space is collected by single-threaded collector
• Enabled by «-XX:+UseParallelGC» (default for JDK 8-)
• «-XX:+UseParallelOldGC» for parallel Old space collector
• «-XX:ParallelGCThreads=?» (number of cores by defaults)

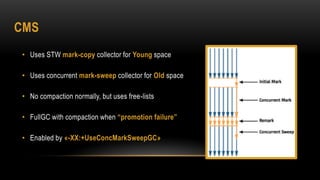

20. CMS
• Uses STW mark-copy collector for Young space
• Uses concurrent mark-sweep collector for Old space
• No compaction normally, but uses free-lists
• FullGC with compaction when “promotion failure”
• Enabled by «-XX:+UseConcMarkSweepGC»

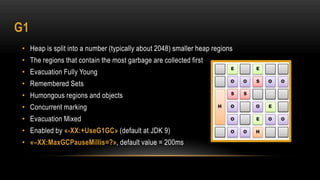

21. G1
• Heap is split into a number (typically about 2048) smaller heap regions
• The regions that contain the most garbage are collected first
• Evacuation Fully Young
• Remembered Sets
• Humongous regions and objects
• Concurrent marking
• Evacuation Mixed
• Enabled by «-XX:+UseG1GC» (default at JDK 9)
• «–XX:MaxGCPauseMillis=?», default value = 200ms

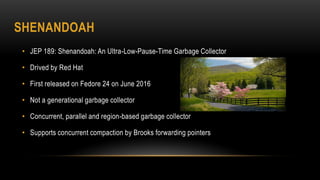

22. SHENANDOAH
• JEP 189: Shenandoah: An Ultra-Low-Pause-Time Garbage Collector
• Drived by Red Hat
• First released on Fedore 24 on June 2016
• Not a generational garbage collector
• Concurrent, parallel and region-based garbage collector
• Supports concurrent compaction by Brooks forwarding pointers

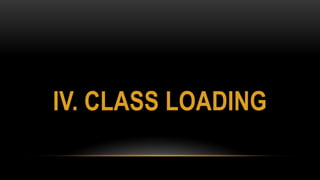

23. IV. CLASS LOADING

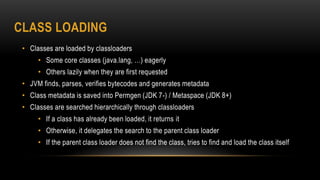

24. CLASS LOADING
• Classes are loaded by classloaders
• Some core classes (java.lang, …) eagerly
• Others lazily when they are first requested
• JVM finds, parses, verifies bytecodes and generates metadata
• Class metadata is saved into Permgen (JDK 7-) / Metaspace (JDK 8+)
• Classes are searched hierarchically through classloaders
• If a class has already been loaded, it returns it
• Otherwise, it delegates the search to the parent class loader
• If the parent class loader does not find the class, tries to find and load the class itself

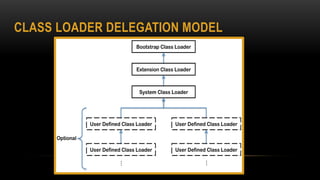

25. CLASS LOADER DELEGATION MODEL

26. V. EXECUTION ENGINE

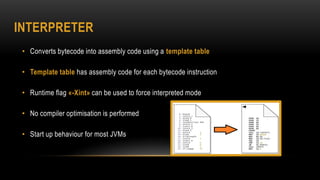

27. INTERPRETER
• Converts bytecode into assembly code using a template table
• Template table has assembly code for each bytecode instruction
• Runtime flag «-Xint» can be used to force interpreted mode
• No compiler optimisation is performed
• Start up behaviour for most JVMs

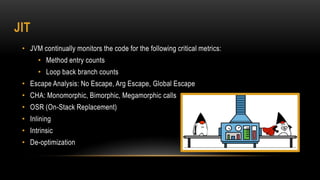

28. JIT
• JVM continually monitors the code for the following critical metrics:
• Method entry counts
• Loop back branch counts
• Escape Analysis: No Escape, Arg Escape, Global Escape
• CHA: Monomorphic, Bimorphic, Megamorphic calls
• OSR (On-Stack Replacement)
• Inlining
• Intrinsic
• De-optimization

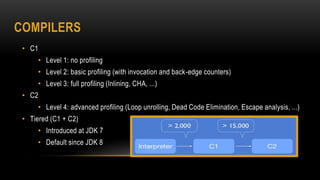

29. COMPILERS
• C1
• Level 1: no profiling
• Level 2: basic profiling (with invocation and back-edge counters)
• Level 3: full profiling (Inlining, CHA, ...)
• C2
• Level 4: advanced profiling (Loop unrolling, Dead Code Elimination, Escape analysis, ...)
• Tiered (C1 + C2)
• Introduced at JDK 7
• Default since JDK 8

30. VI. MULTI-THREADING

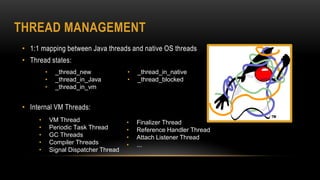

31. THREAD MANAGEMENT
• 1:1 mapping between Java threads and native OS threads
• Thread states:
• Internal VM Threads:
• VM Thread
• Periodic Task Thread
• GC Threads
• Compiler Threads
• Signal Dispatcher Thread
• Finalizer Thread
• Reference Handler Thread
• Attach Listener Thread
• ...
• _thread_new
• _thread_in_Java
• _thread_in_vm
• _thread_in_native
• _thread_blocked

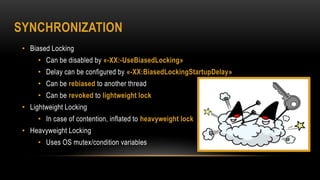

32. SYNCHRONIZATION
• Biased Locking
• Can be disabled by «-XX:-UseBiasedLocking»
• Delay can be configured by «-XX:BiasedLockingStartupDelay»
• Can be rebiased to another thread
• Can be revoked to lightweight lock
• Lightweight Locking
• In case of contention, inflated to heavyweight lock
• Heavyweight Locking
• Uses OS mutex/condition variables

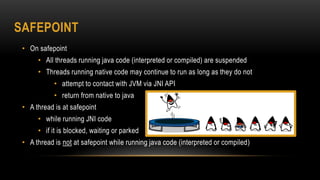

33. SAFEPOINT
• On safepoint
• All threads running java code (interpreted or compiled) are suspended
• Threads running native code may continue to run as long as they do not
• attempt to contact with JVM via JNI API
• return from native to java
• A thread is at safepoint
• while running JNI code
• if it is blocked, waiting or parked
• A thread is not at safepoint while running java code (interpreted or compiled)

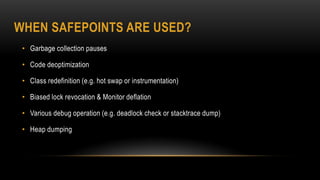

34. WHEN SAFEPOINTS ARE USED?
• Garbage collection pauses
• Code deoptimization
• Class redefinition (e.g. hot swap or instrumentation)
• Biased lock revocation & Monitor deflation
• Various debug operation (e.g. deadlock check or stacktrace dump)
• Heap dumping

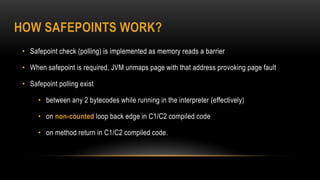

35. HOW SAFEPOINTS WORK?
• Safepoint check (polling) is implemented as memory reads a barrier
• When safepoint is required, JVM unmaps page with that address provoking page fault
• Safepoint polling exist
• between any 2 bytecodes while running in the interpreter (effectively)
• on non-counted loop back edge in C1/C2 compiled code
• on method return in C1/C2 compiled code.

36. VII. JNI

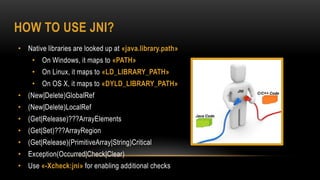

37. HOW TO USE JNI?
• Native libraries are looked up at «java.library.path»
• On Windows, it maps to «PATH»
• On Linux, it maps to «LD_LIBRARY_PATH»
• On OS X, it maps to «DYLD_LIBRARY_PATH»
• (New|Delete)GlobalRef
• (New|Delete)LocalRef
• (Get|Release)???ArrayElements
• (Get|Set)???ArrayRegion
• (Get|Release)(PrimitiveArray|String)Critical
• Exception(Occurred|Check|Clear)
• Use «-Xcheck:jni» for enabling additional checks

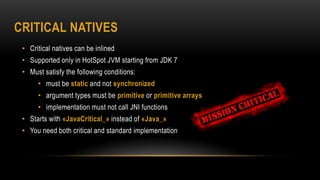

38. CRITICAL NATIVES
• Critical natives can be inlined
• Supported only in HotSpot JVM starting from JDK 7
• Must satisfy the following conditions:
• must be static and not synchronized
• argument types must be primitive or primitive arrays
• implementation must not call JNI functions
• Starts with «JavaCritical_» instead of «Java_»
• You need both critical and standard implementation

39. THANKS
