This document summarizes the new features of version 3 of the MyFaces Extensions-Validator. Key updates include improved integration with Java Bean Validation 1.1 for JSF 1.x and 2.x, support for additional third-party component libraries, ability to define typesafe constraint parameters, and options to customize constraint severity and validation interception. Additional add-ons are also introduced to enable features such as transactional model validation and continued processing with warnings.

1. JSF in der Praxis
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 1

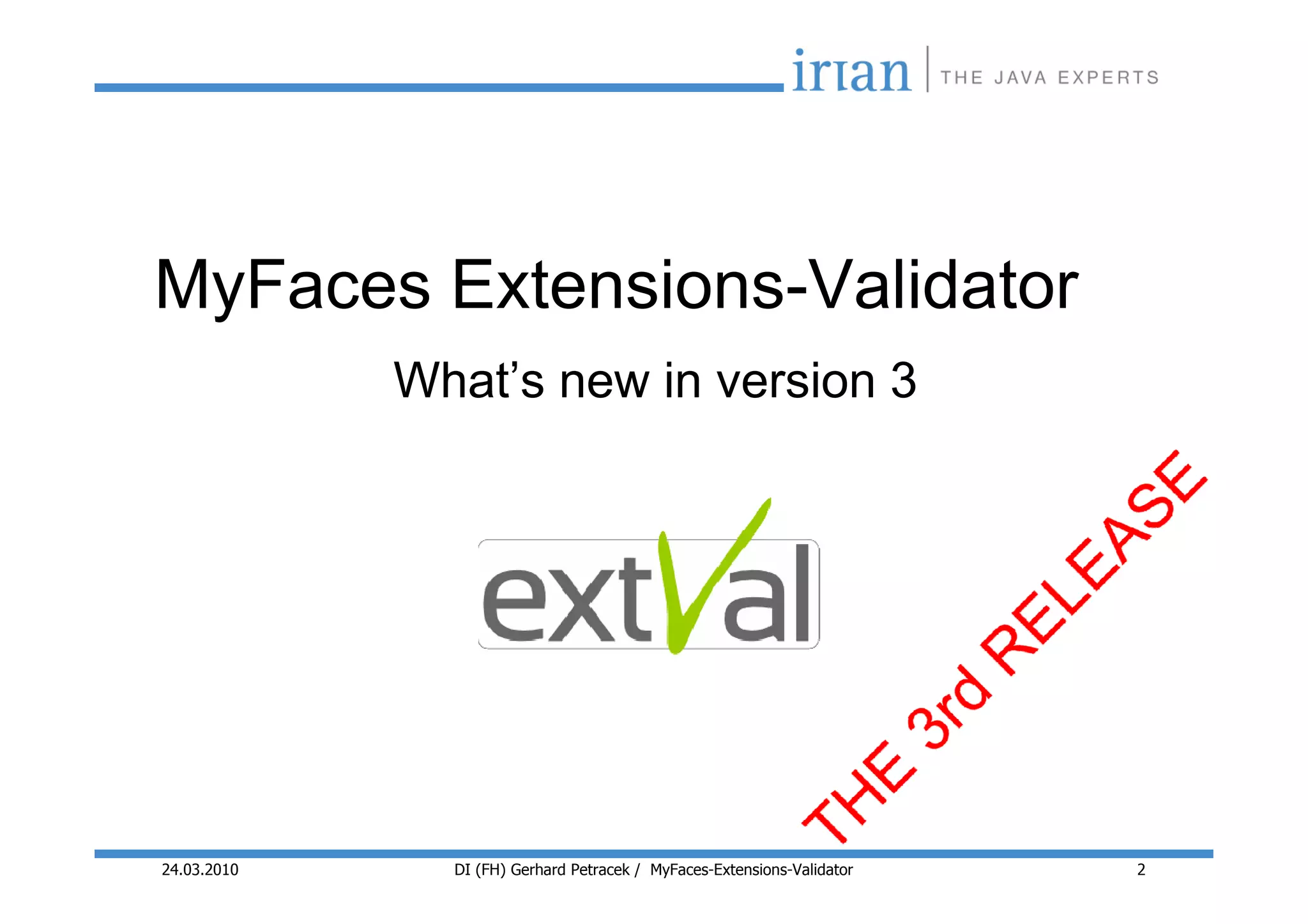

2. MyFaces Extensions-Validator
What’s new in version 3
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 2

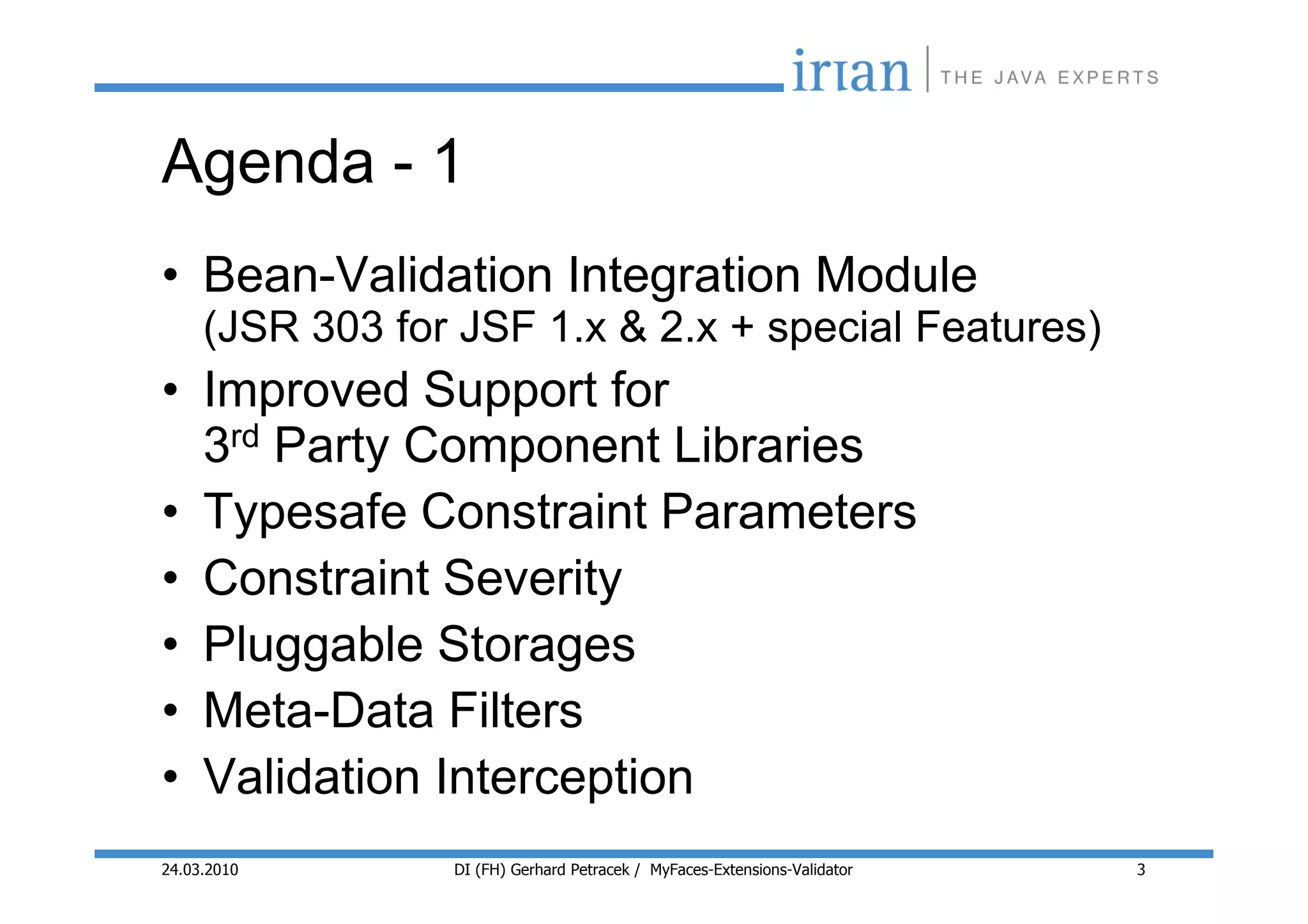

3. Agenda - 1
• Bean-Validation Integration Module
(JSR 303 for JSF 1.x & 2.x + special Features)
• Improved Support for
3rd Party Component Libraries
• Typesafe Constraint Parameters
• Constraint Severity
• Pluggable Storages
• Meta-Data Filters
• Validation Interception
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 3

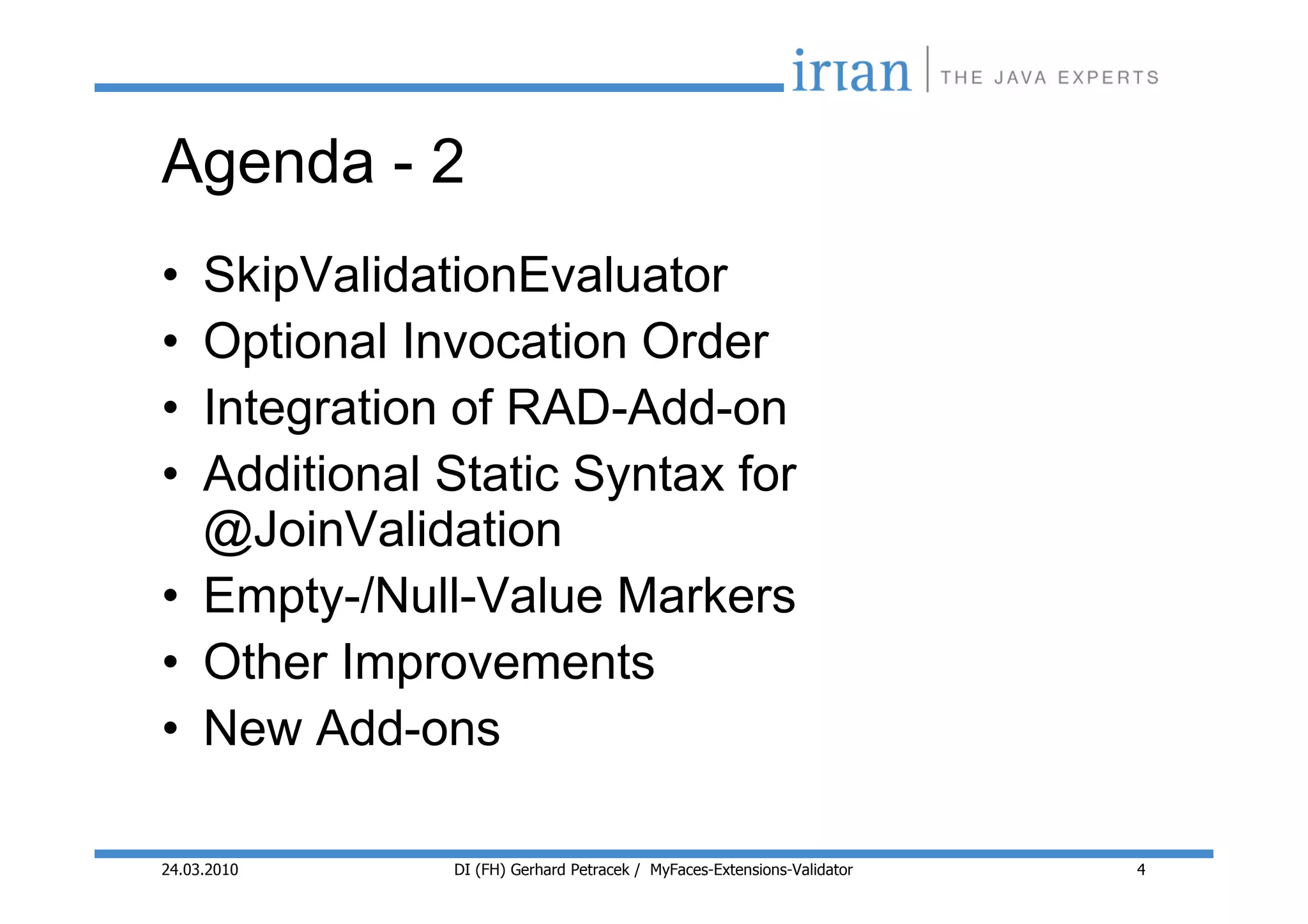

4. Agenda - 2
• SkipValidationEvaluator
• Optional Invocation Order
• Integration of RAD-Add-on
• Additional Static Syntax for
@JoinValidation
• Empty-/Null-Value Markers
• Other Improvements
• New Add-ons
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 4

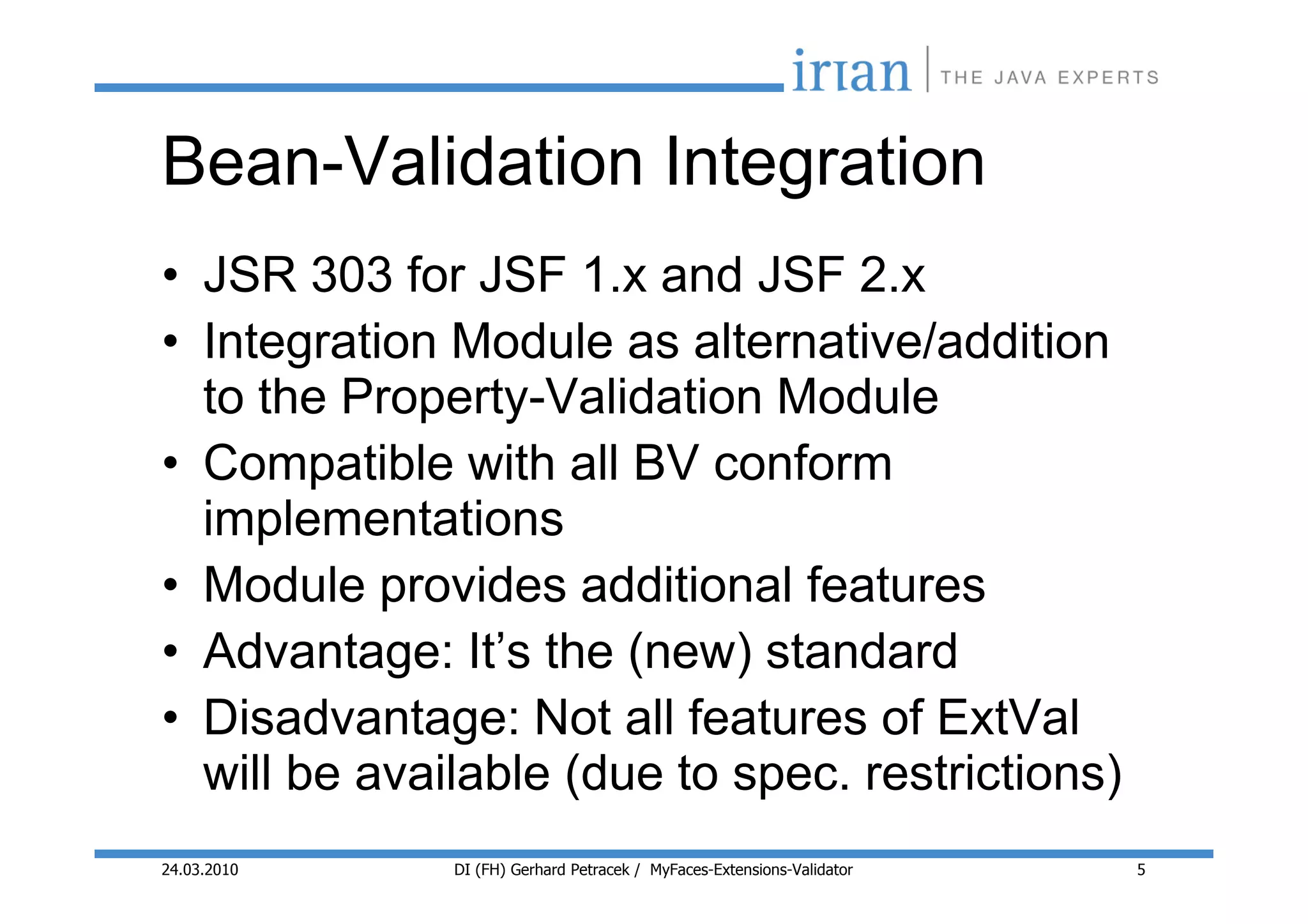

5. Bean-Validation Integration
• JSR 303 for JSF 1.x and JSF 2.x
• Integration Module as alternative/addition
to the Property-Validation Module
• Compatible with all BV conform
implementations
• Module provides additional features
• Advantage: It’s the (new) standard
• Disadvantage: Not all features of ExtVal
will be available (due to spec. restrictions)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 5

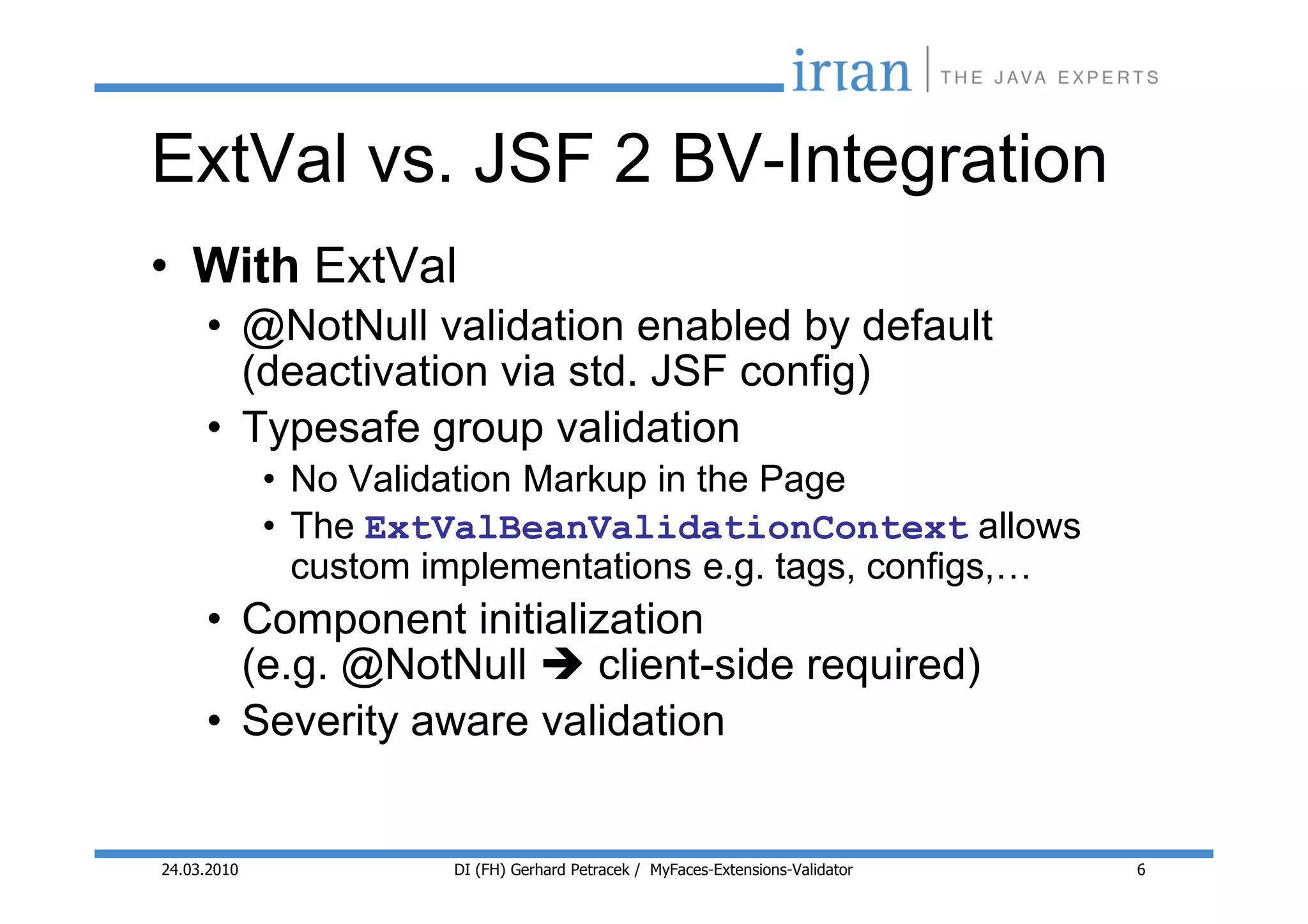

6. ExtVal vs. JSF 2 BV-Integration
• With ExtVal
• @NotNull validation enabled by default
(deactivation via std. JSF config)
• Typesafe group validation
• No Validation Markup in the Page
• The ExtValBeanValidationContext allows
custom implementations e.g. tags, configs,…
• Component initialization
(e.g. @NotNull client-side required)
• Severity aware validation
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 6

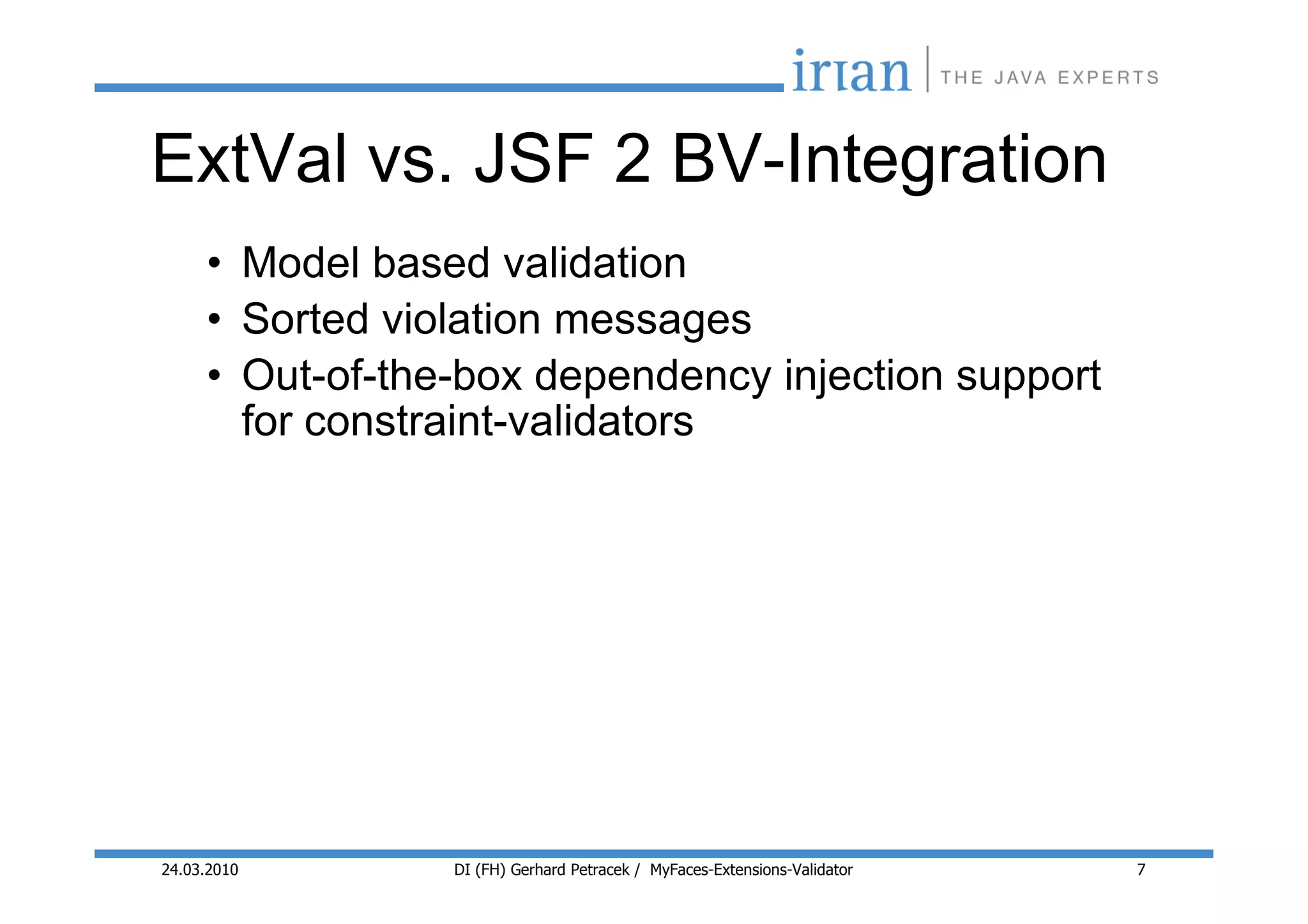

7. ExtVal vs. JSF 2 BV-Integration
• Model based validation
• Sorted violation messages
• Out-of-the-box dependency injection support
for constraint-validators
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 7

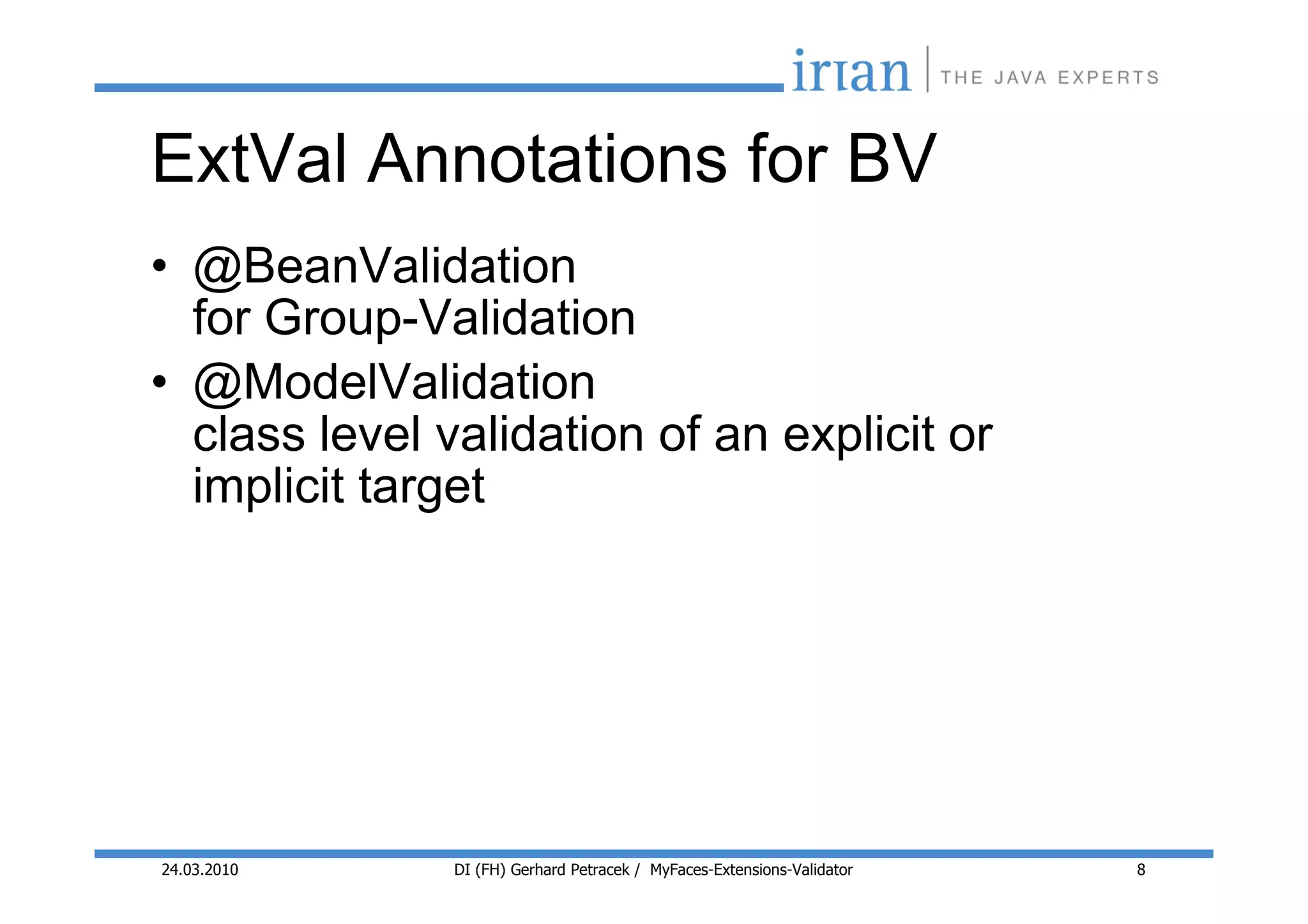

8. ExtVal Annotations for BV
• @BeanValidation
for Group-Validation
• @ModelValidation
class level validation of an explicit or
implicit target
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 8

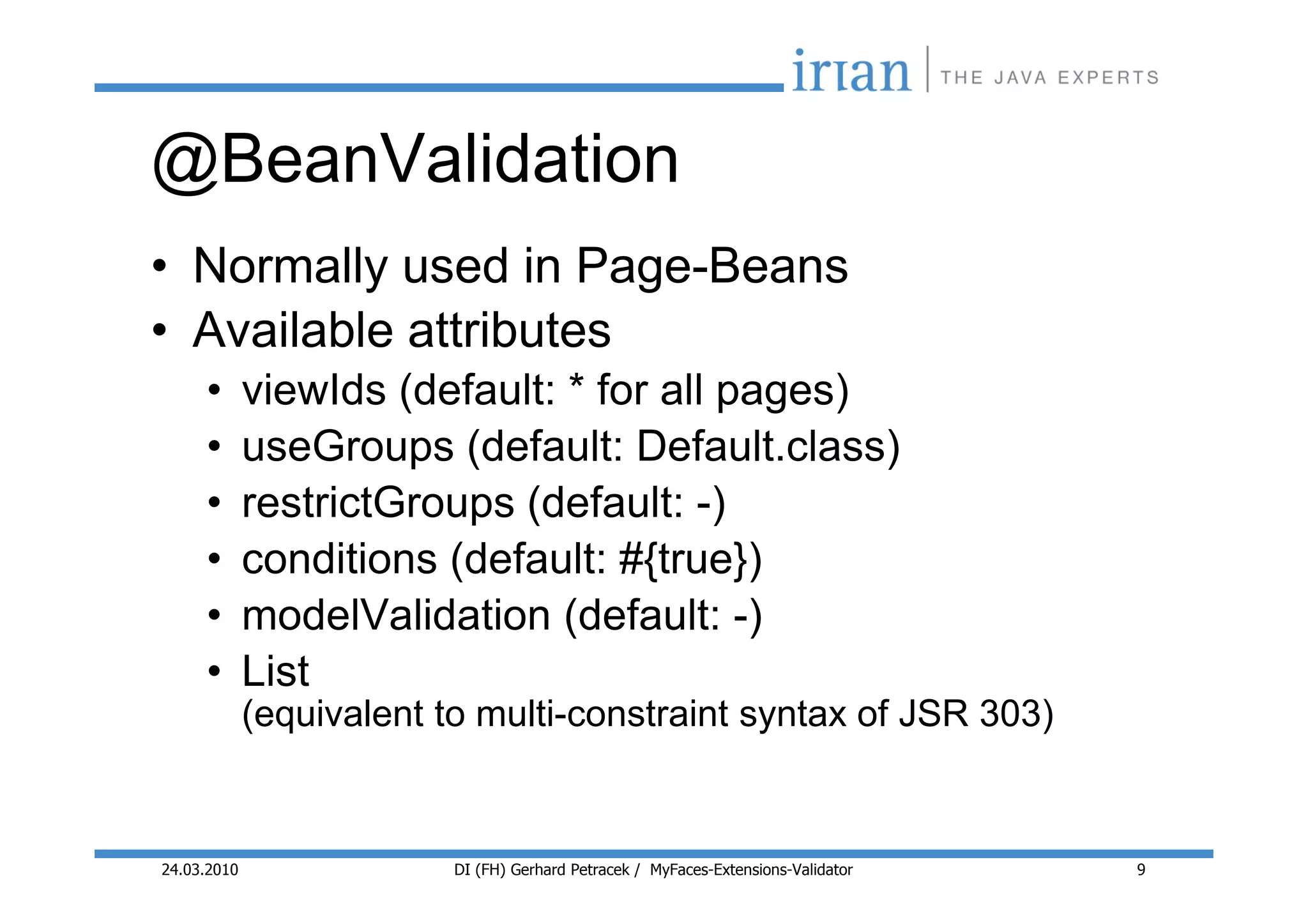

9. @BeanValidation
• Normally used in Page-Beans
• Available attributes
• viewIds (default: * for all pages)
• useGroups (default: Default.class)
• restrictGroups (default: -)
• conditions (default: #{true})
• modelValidation (default: -)
• List
(equivalent to multi-constraint syntax of JSR 303)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 9

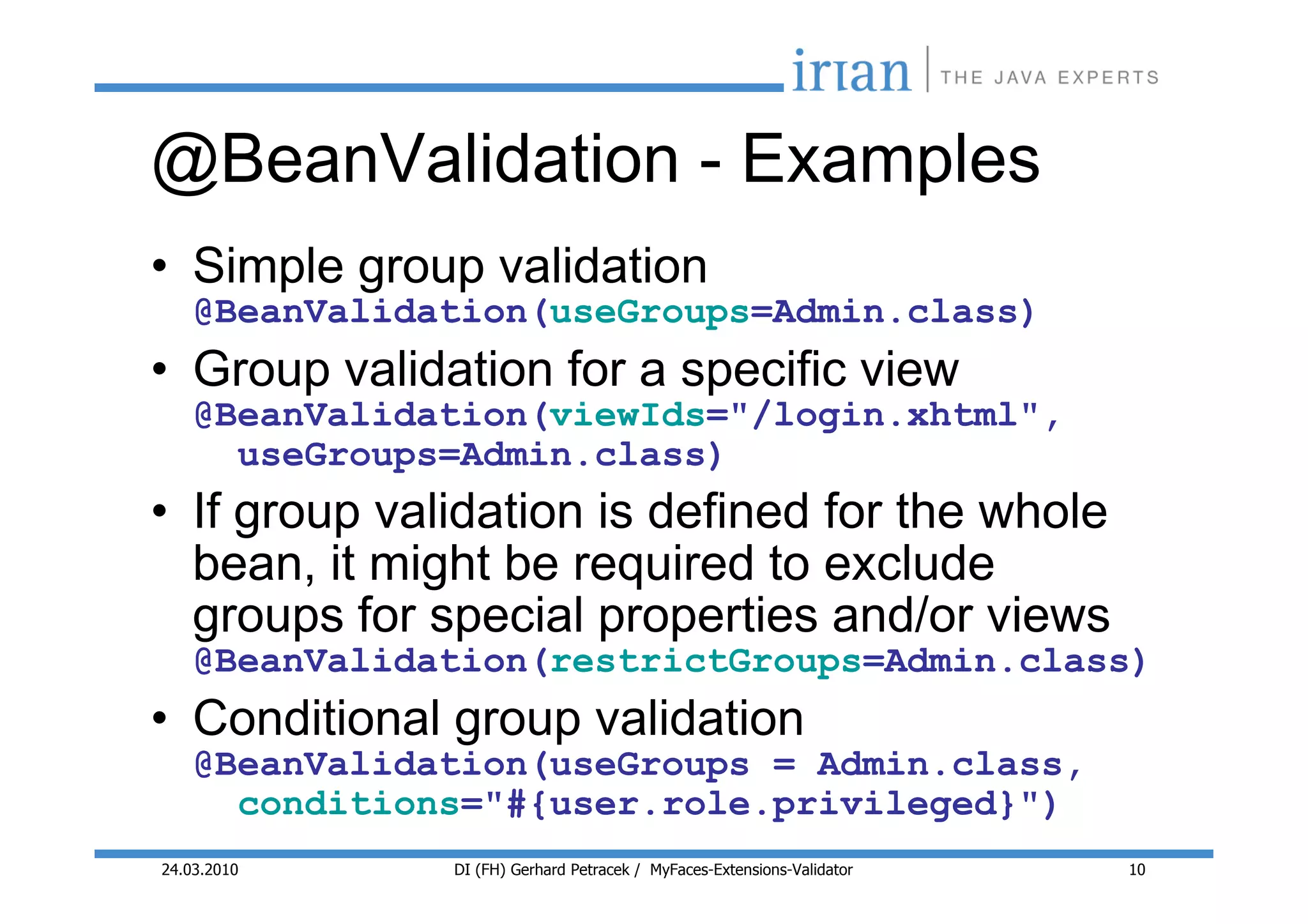

10. @BeanValidation - Examples
• Simple group validation
@BeanValidation(useGroups=Admin.class)
• Group validation for a specific view
@BeanValidation(viewIds="/login.xhtml",
useGroups=Admin.class)
• If group validation is defined for the whole
bean, it might be required to exclude
groups for special properties and/or views
@BeanValidation(restrictGroups=Admin.class)
• Conditional group validation
@BeanValidation(useGroups = Admin.class,
conditions="#{user.role.privileged}")
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 10

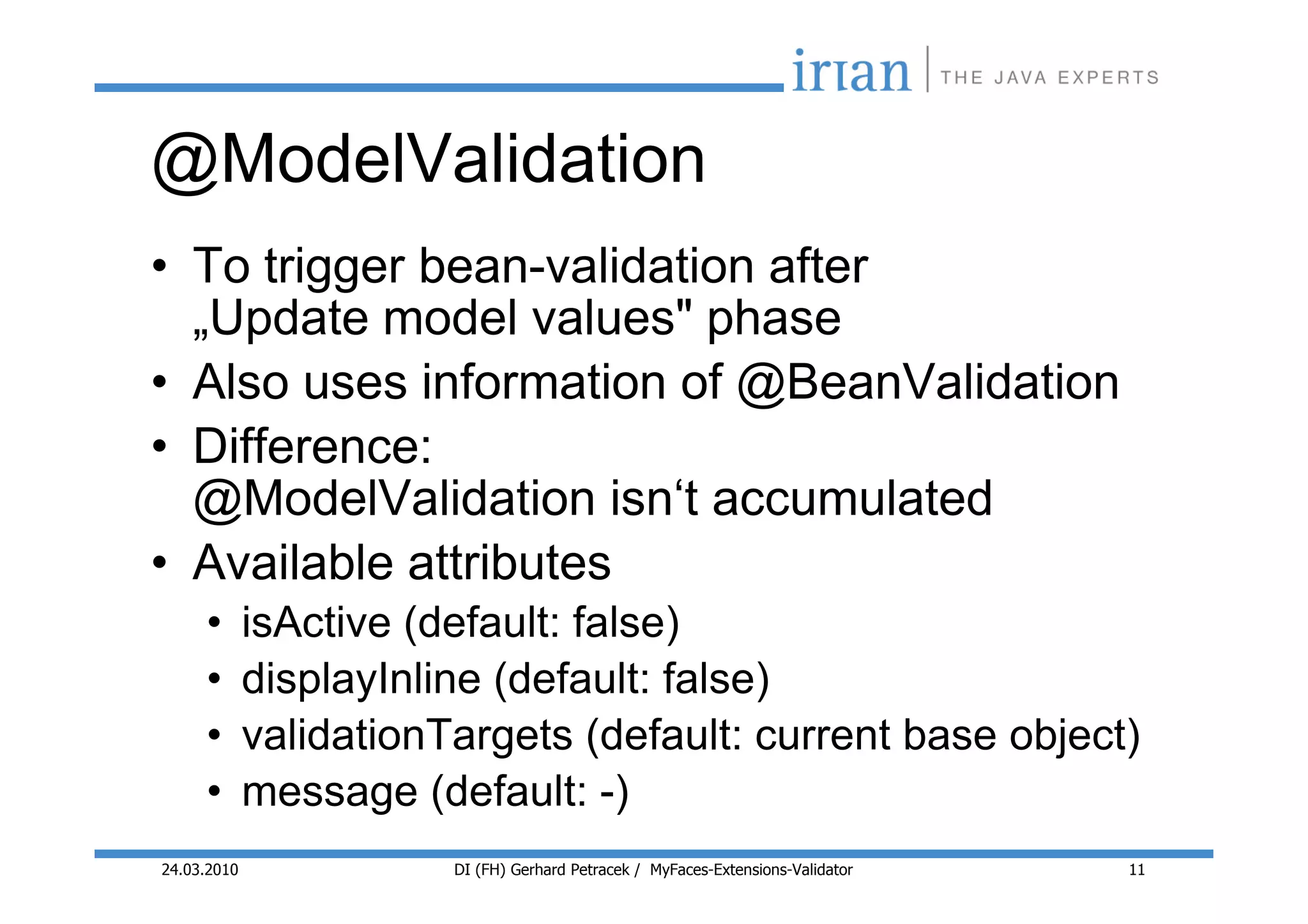

11. @ModelValidation
• To trigger bean-validation after
„Update model values" phase
• Also uses information of @BeanValidation
• Difference:
@ModelValidation isn‘t accumulated
• Available attributes
• isActive (default: false)
• displayInline (default: false)
• validationTargets (default: current base object)
• message (default: -)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 11

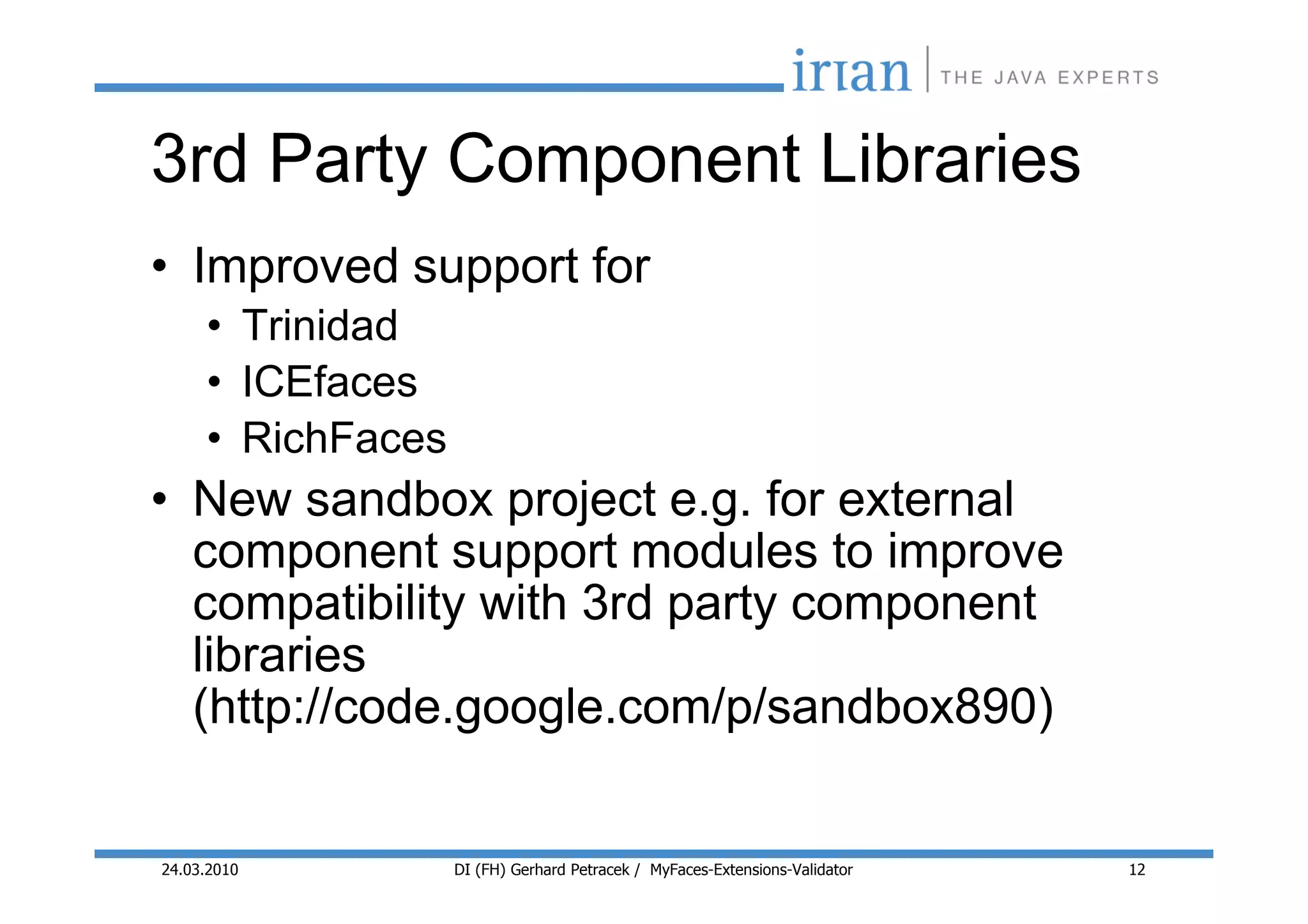

12. 3rd Party Component Libraries
• Improved support for
• Trinidad
• ICEfaces
• RichFaces
• New sandbox project e.g. for external
component support modules to improve
compatibility with 3rd party component
libraries
(http://code.google.com/p/sandbox890)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 12

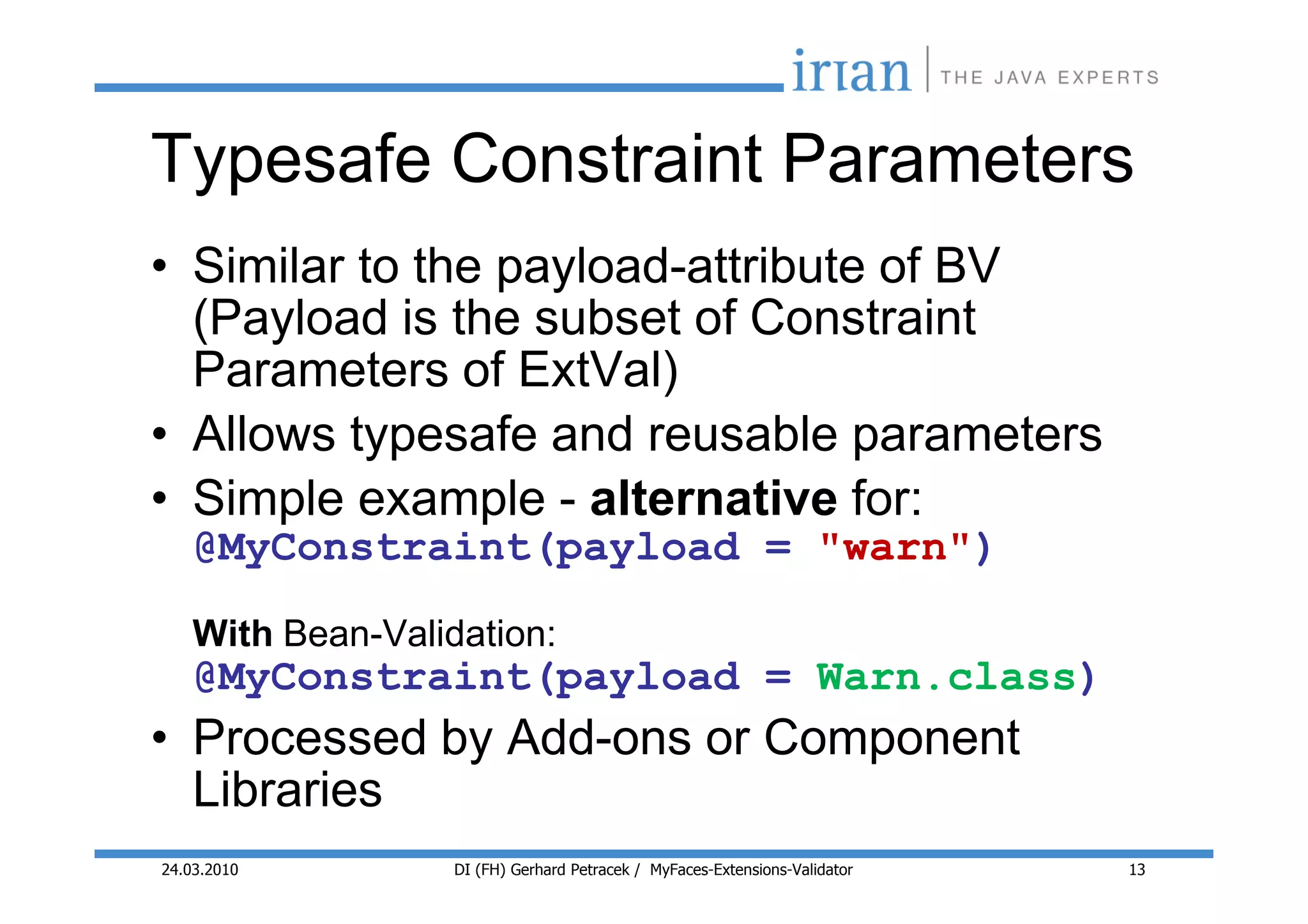

13. Typesafe Constraint Parameters
• Similar to the payload-attribute of BV
(Payload is the subset of Constraint
Parameters of ExtVal)
• Allows typesafe and reusable parameters
• Simple example - alternative for:
@MyConstraint(payload = "warn")
With Bean-Validation:
@MyConstraint(payload = Warn.class)
• Processed by Add-ons or Component
Libraries
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 13

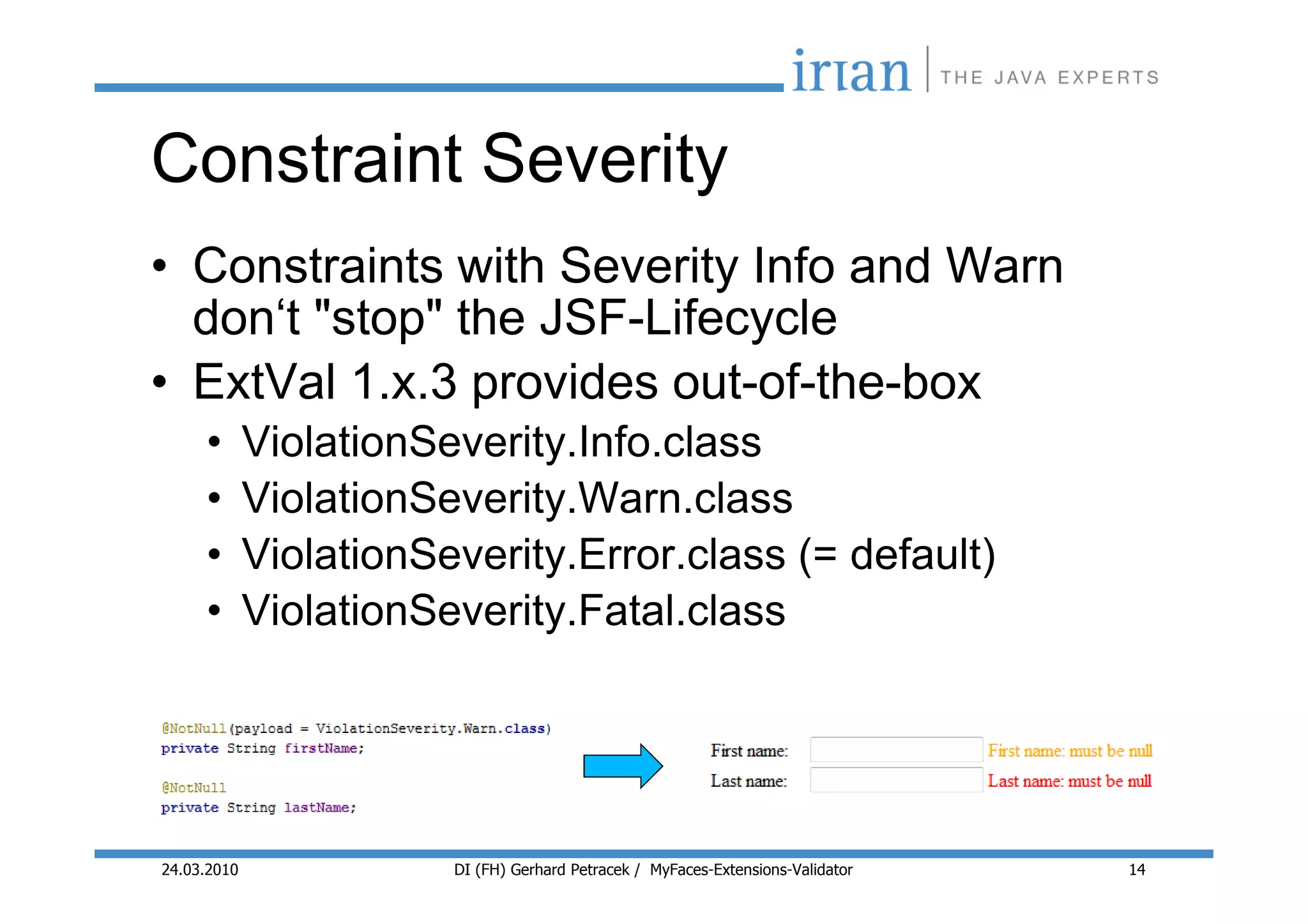

14. Constraint Severity
• Constraints with Severity Info and Warn
don‘t "stop" the JSF-Lifecycle
• ExtVal 1.x.3 provides out-of-the-box
• ViolationSeverity.Info.class
• ViolationSeverity.Warn.class
• ViolationSeverity.Error.class (= default)
• ViolationSeverity.Fatal.class
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 14

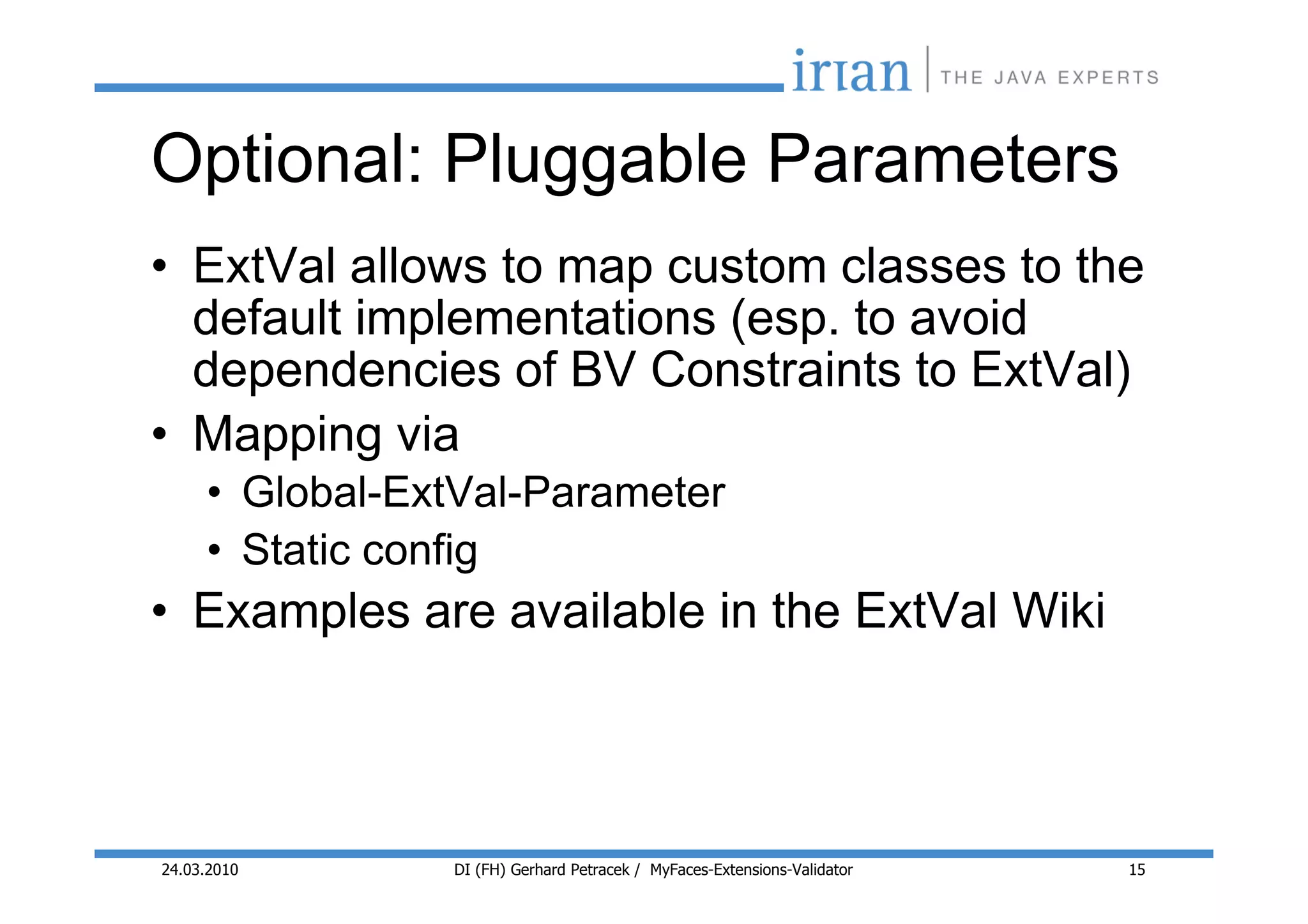

15. Optional: Pluggable Parameters
• ExtVal allows to map custom classes to the
default implementations (esp. to avoid
dependencies of BV Constraints to ExtVal)
• Mapping via
• Global-ExtVal-Parameter
• Static config
• Examples are available in the ExtVal Wiki
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 15

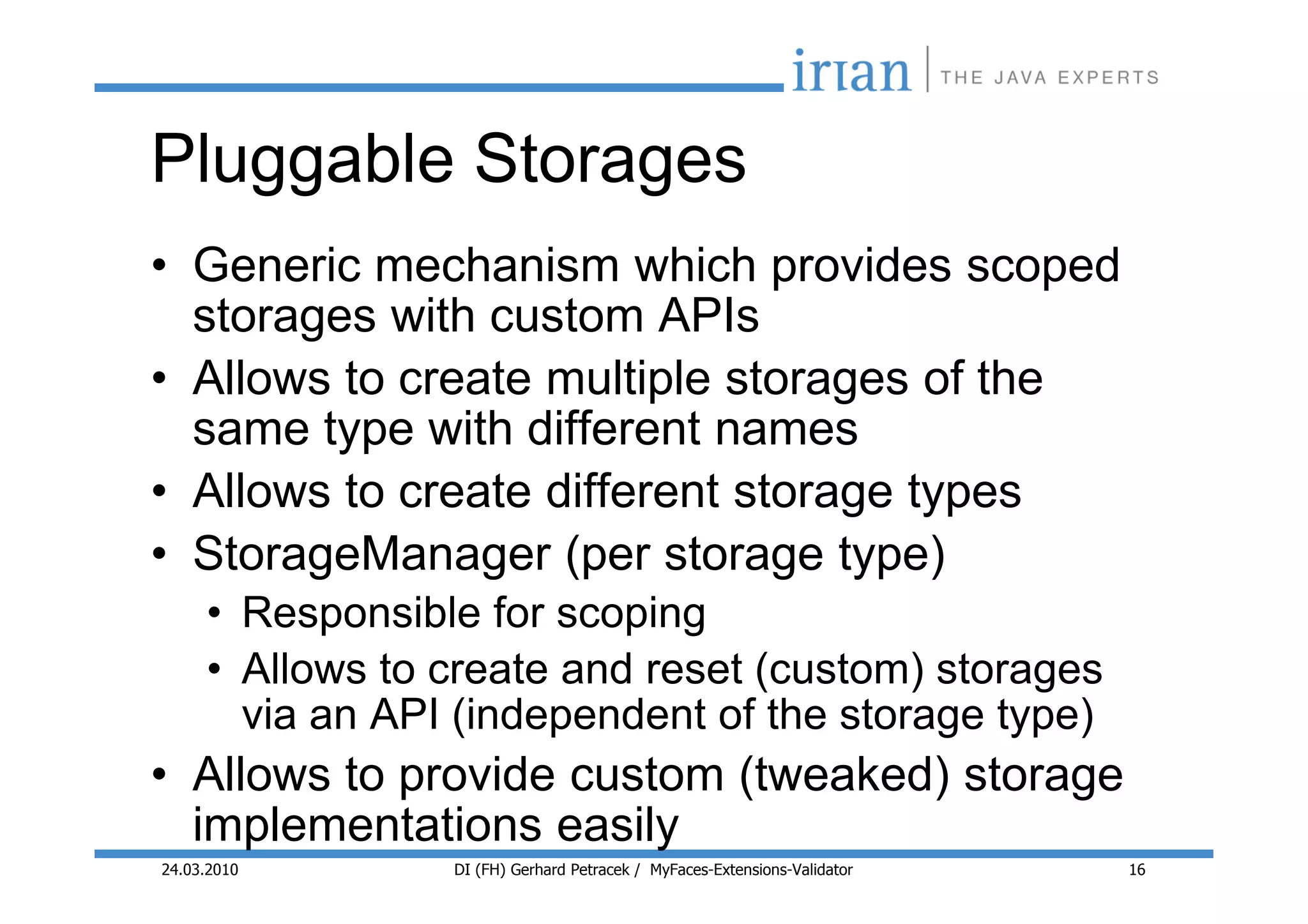

16. Pluggable Storages
• Generic mechanism which provides scoped
storages with custom APIs
• Allows to create multiple storages of the
same type with different names
• Allows to create different storage types
• StorageManager (per storage type)
• Responsible for scoping
• Allows to create and reset (custom) storages
via an API (independent of the storage type)
• Allows to provide custom (tweaked) storage
implementations easily
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 16

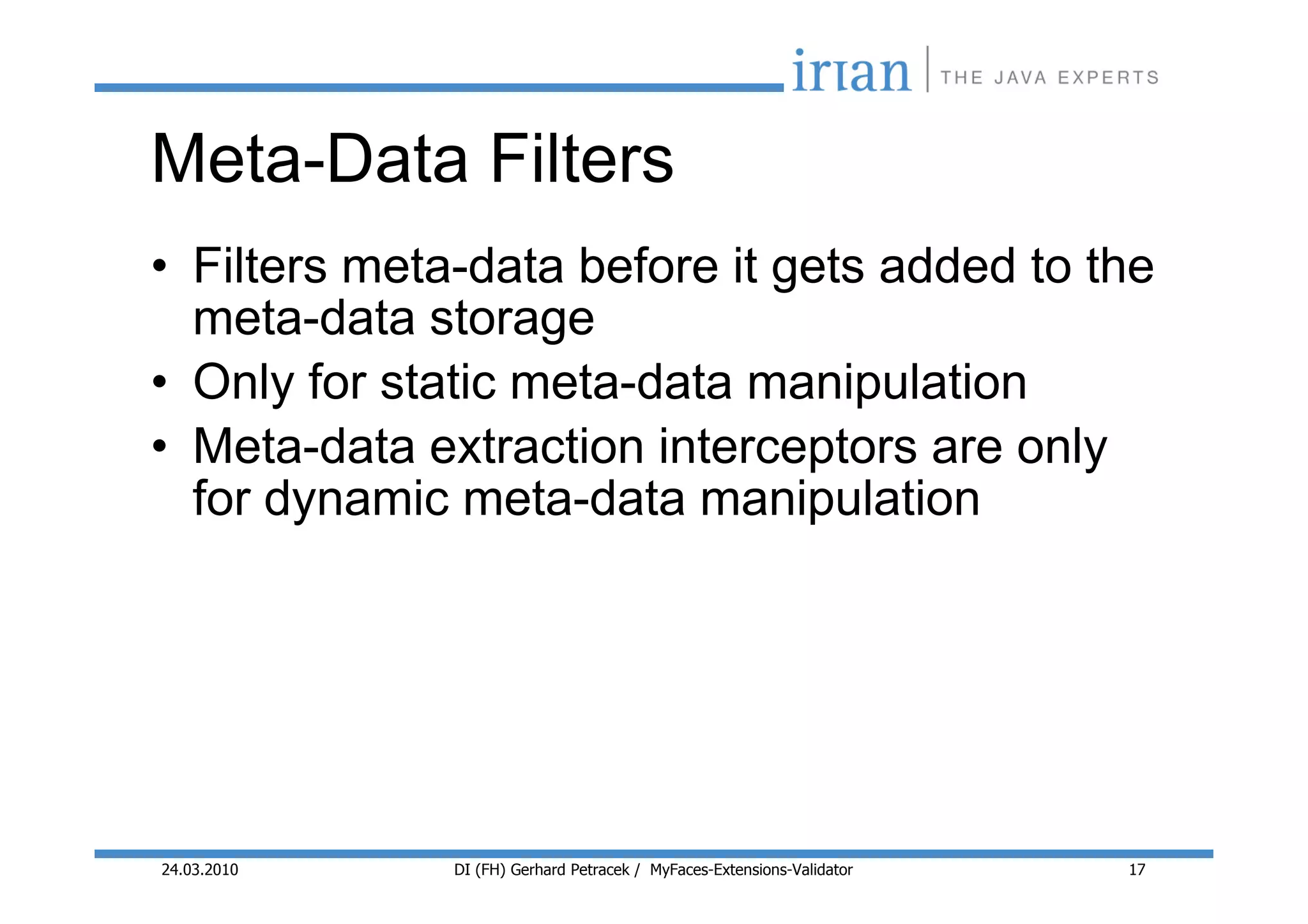

17. Meta-Data Filters
• Filters meta-data before it gets added to the
meta-data storage
• Only for static meta-data manipulation
• Meta-data extraction interceptors are only
for dynamic meta-data manipulation
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 17

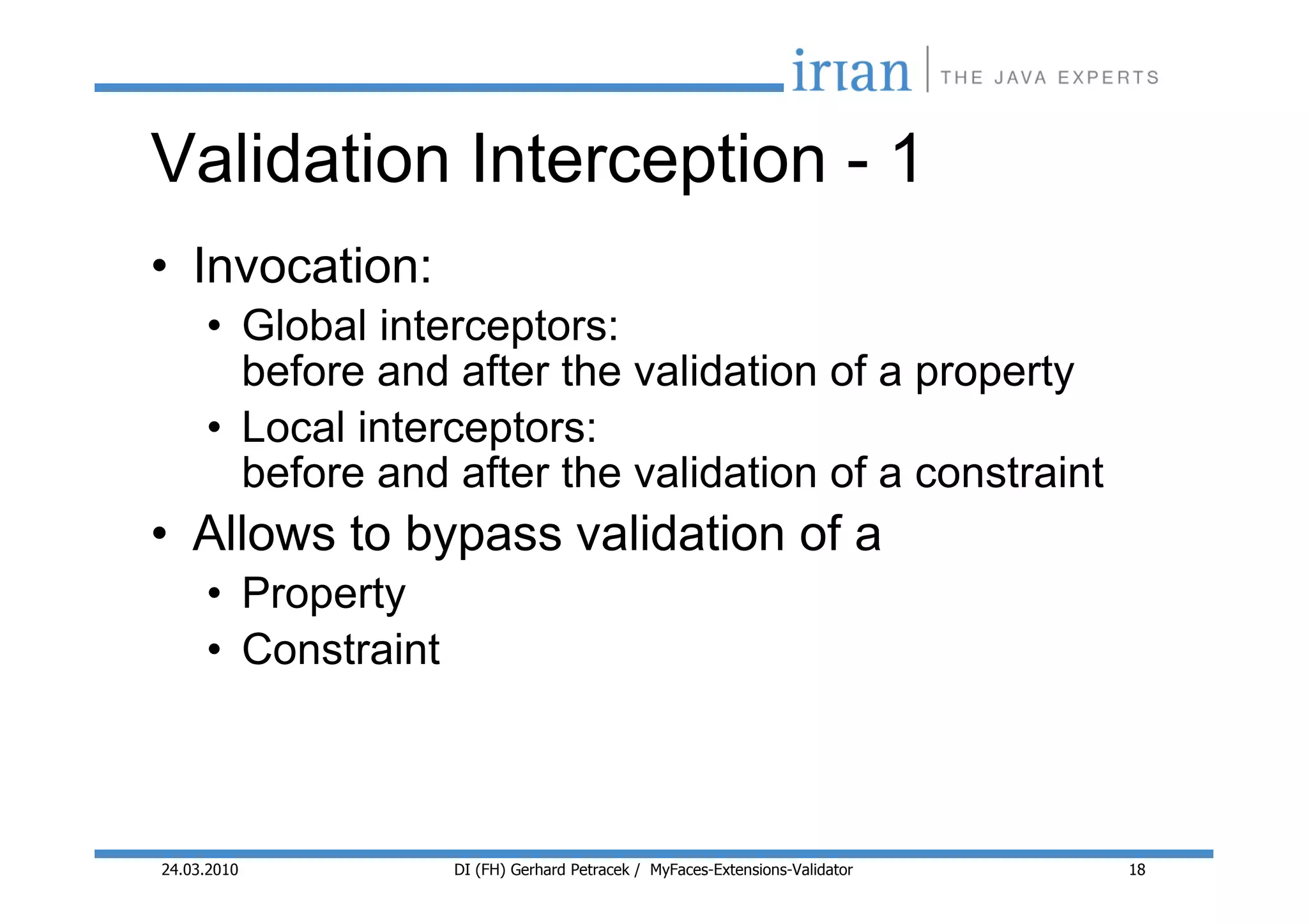

18. Validation Interception - 1
• Invocation:
• Global interceptors:
before and after the validation of a property
• Local interceptors:
before and after the validation of a constraint
• Allows to bypass validation of a
• Property
• Constraint
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 18

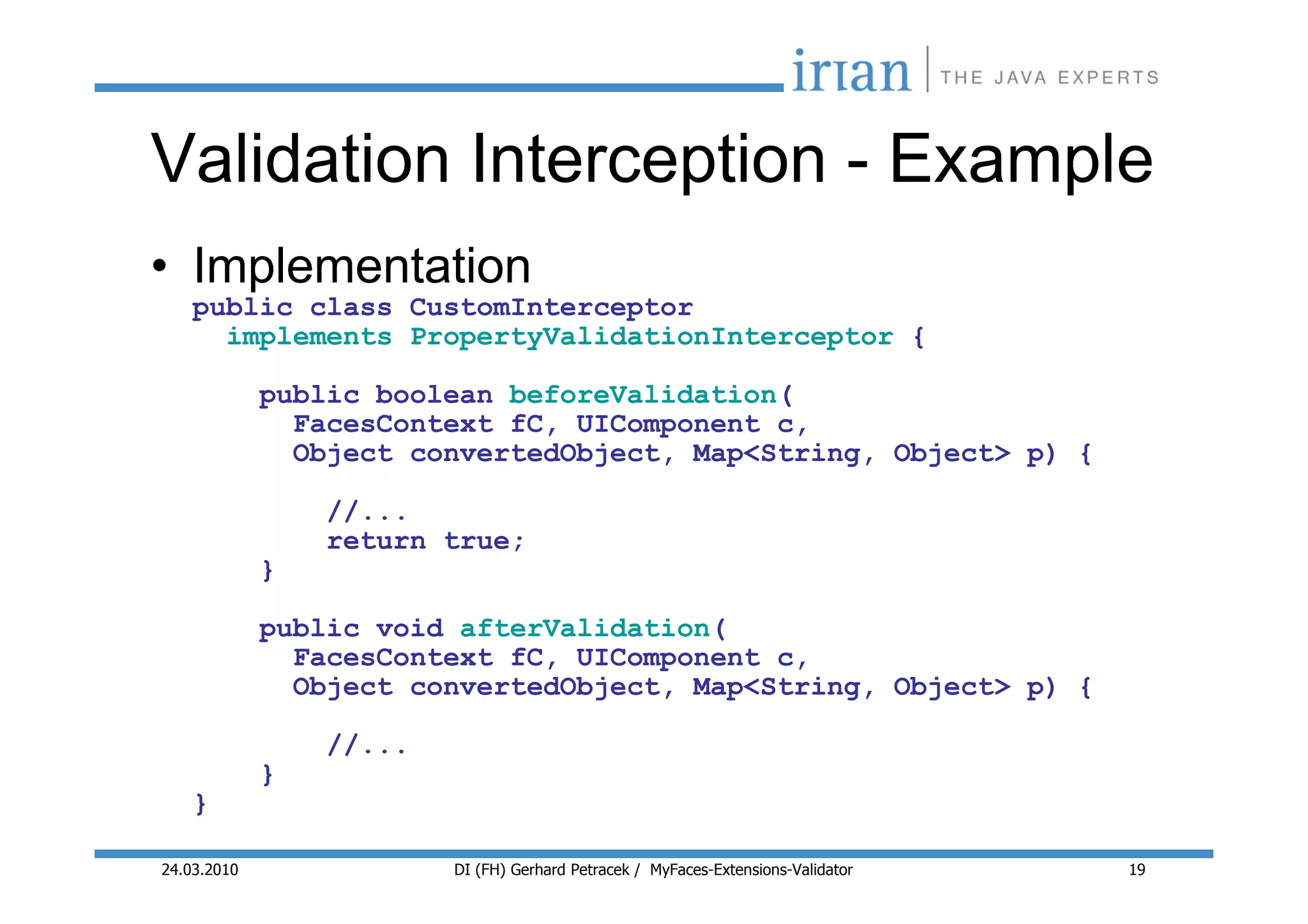

19. Validation Interception - Example
• Implementation
public class CustomInterceptor
implements PropertyValidationInterceptor {
public boolean beforeValidation(
FacesContext fC, UIComponent c,
Object convertedObject, Map<String, Object> p) {
//...
return true;
}
public void afterValidation(
FacesContext fC, UIComponent c,
Object convertedObject, Map<String, Object> p) {
//...
}
}
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 19

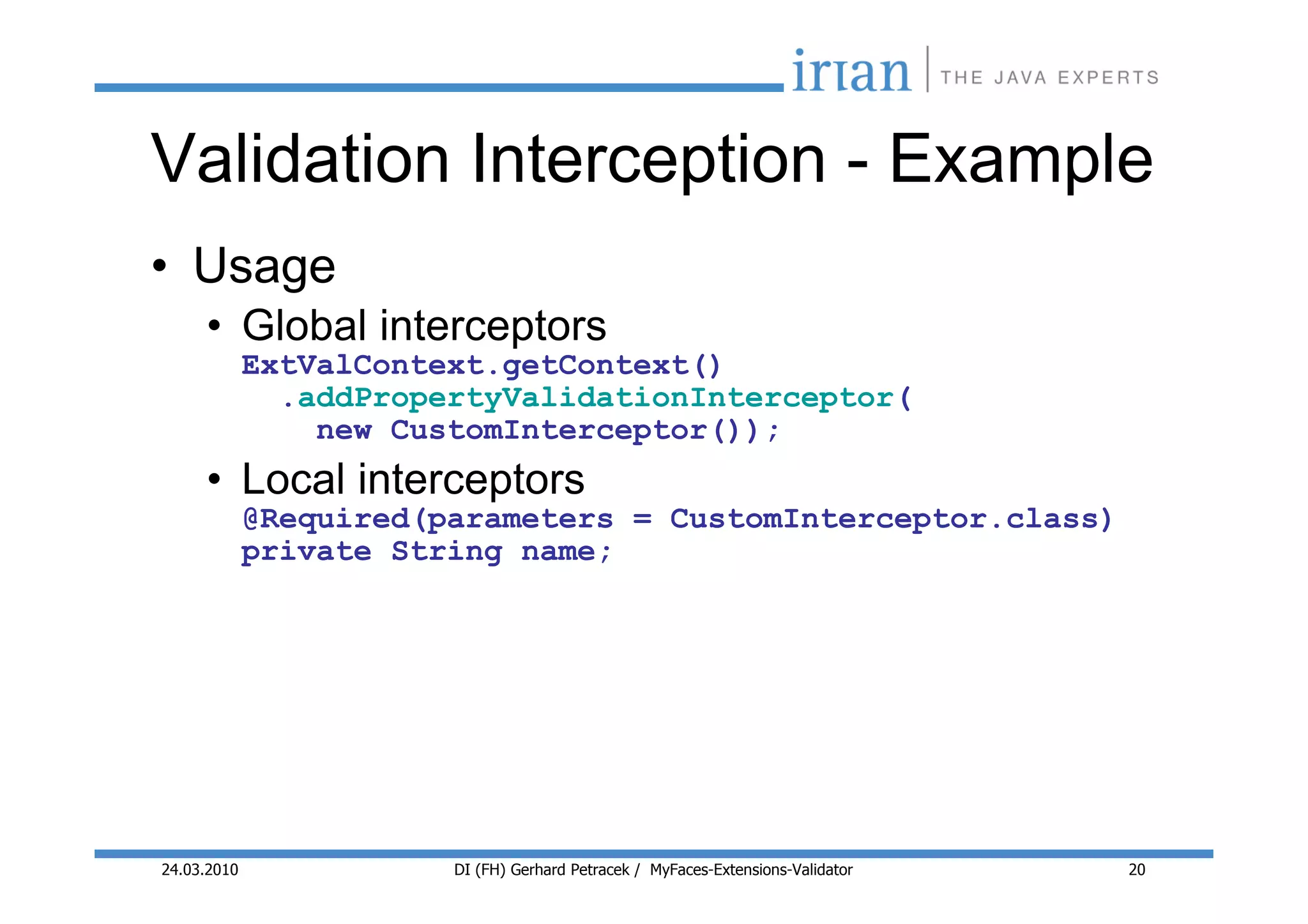

20. Validation Interception - Example
• Usage
• Global interceptors
ExtValContext.getContext()
.addPropertyValidationInterceptor(
new CustomInterceptor());
• Local interceptors
@Required(parameters = CustomInterceptor.class)
private String name;
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 20

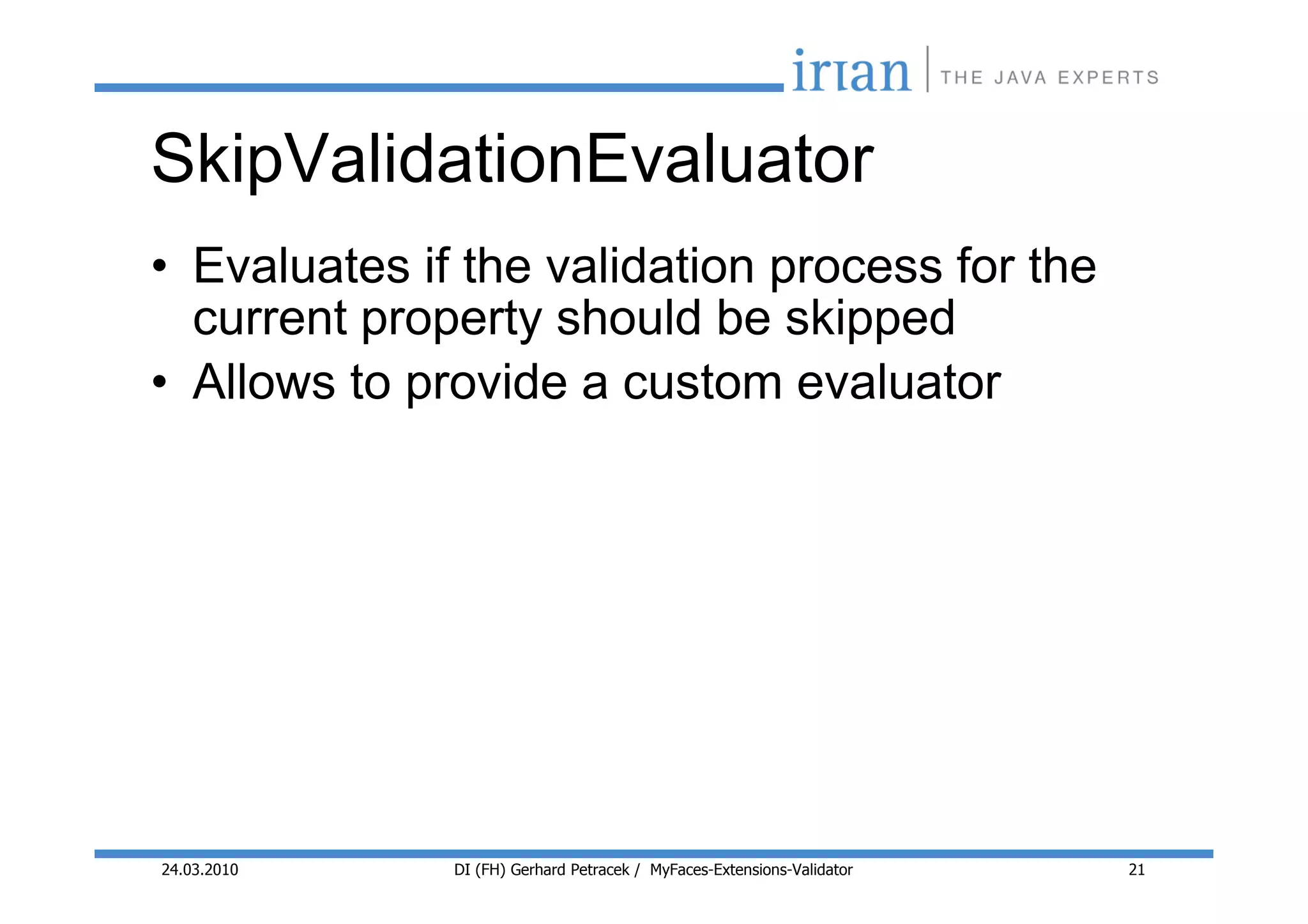

21. SkipValidationEvaluator
• Evaluates if the validation process for the
current property should be skipped
• Allows to provide a custom evaluator
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 21

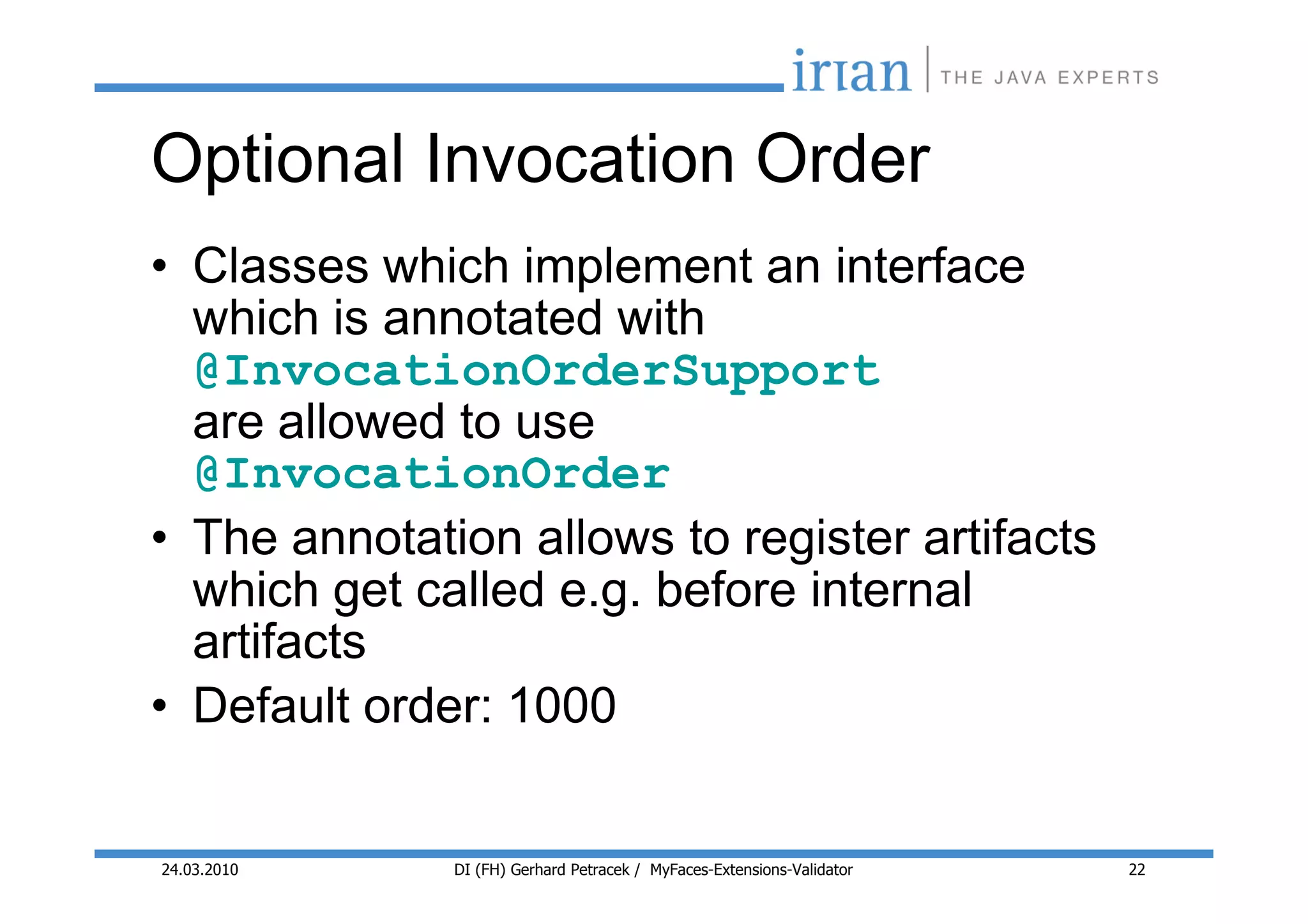

22. Optional Invocation Order
• Classes which implement an interface
which is annotated with
@InvocationOrderSupport
are allowed to use
@InvocationOrder
• The annotation allows to register artifacts
which get called e.g. before internal
artifacts
• Default order: 1000
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 22

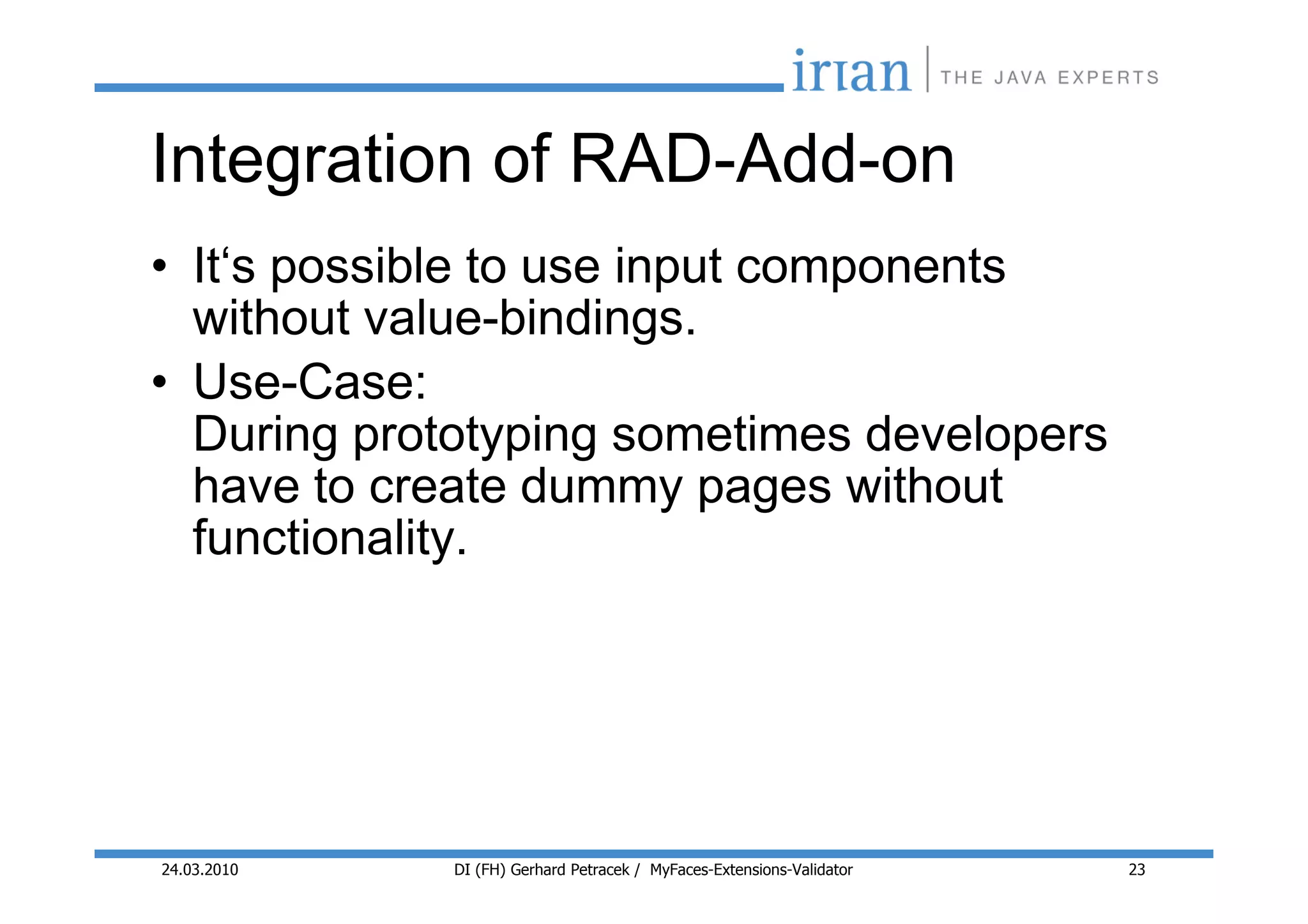

23. Integration of RAD-Add-on
• It‘s possible to use input components
without value-bindings.
• Use-Case:
During prototyping sometimes developers
have to create dummy pages without
functionality.
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 23

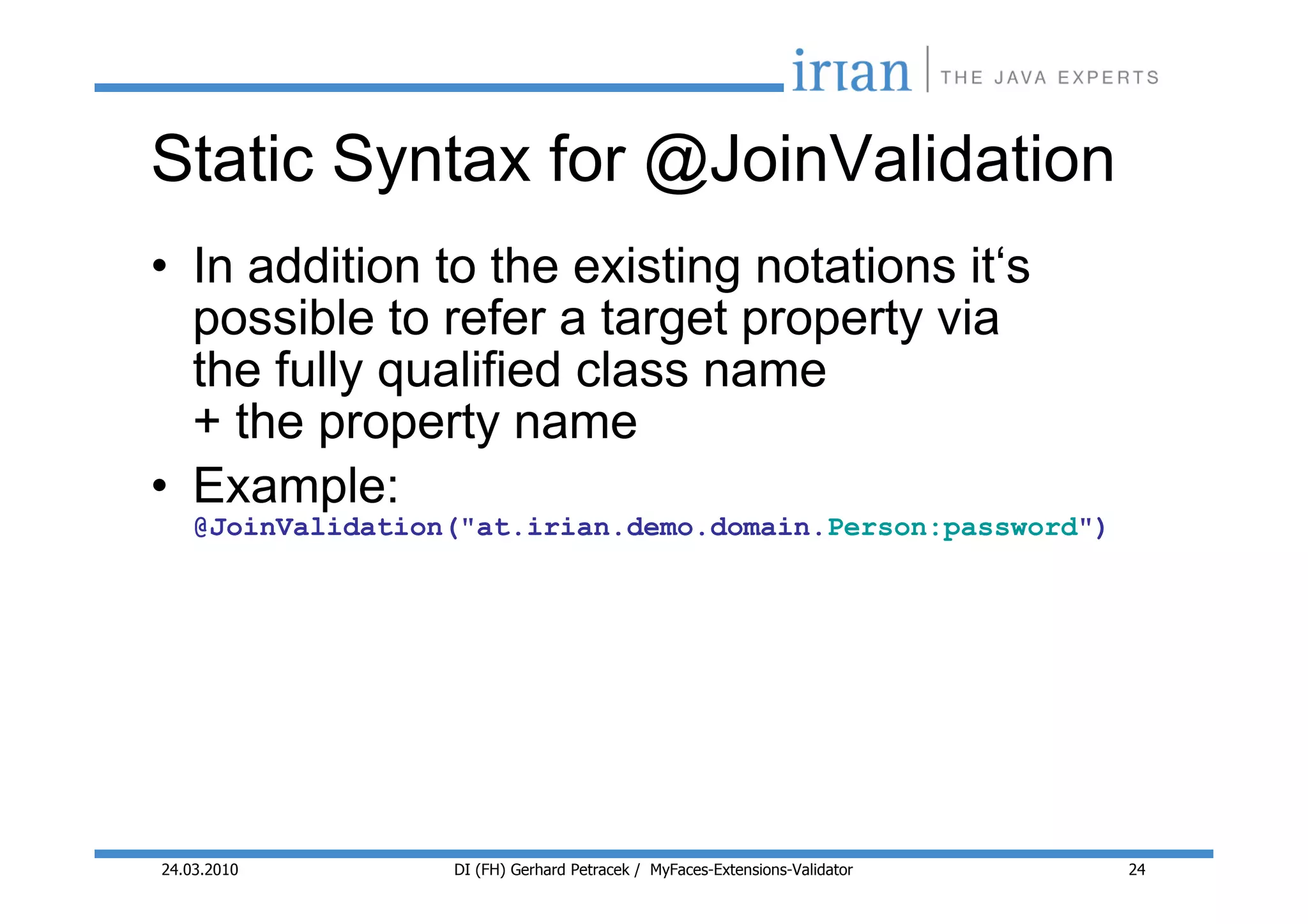

24. Static Syntax for @JoinValidation
• In addition to the existing notations it‘s
possible to refer a target property via
the fully qualified class name
+ the property name
• Example:
@JoinValidation("at.irian.demo.domain.Person:password")
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 24

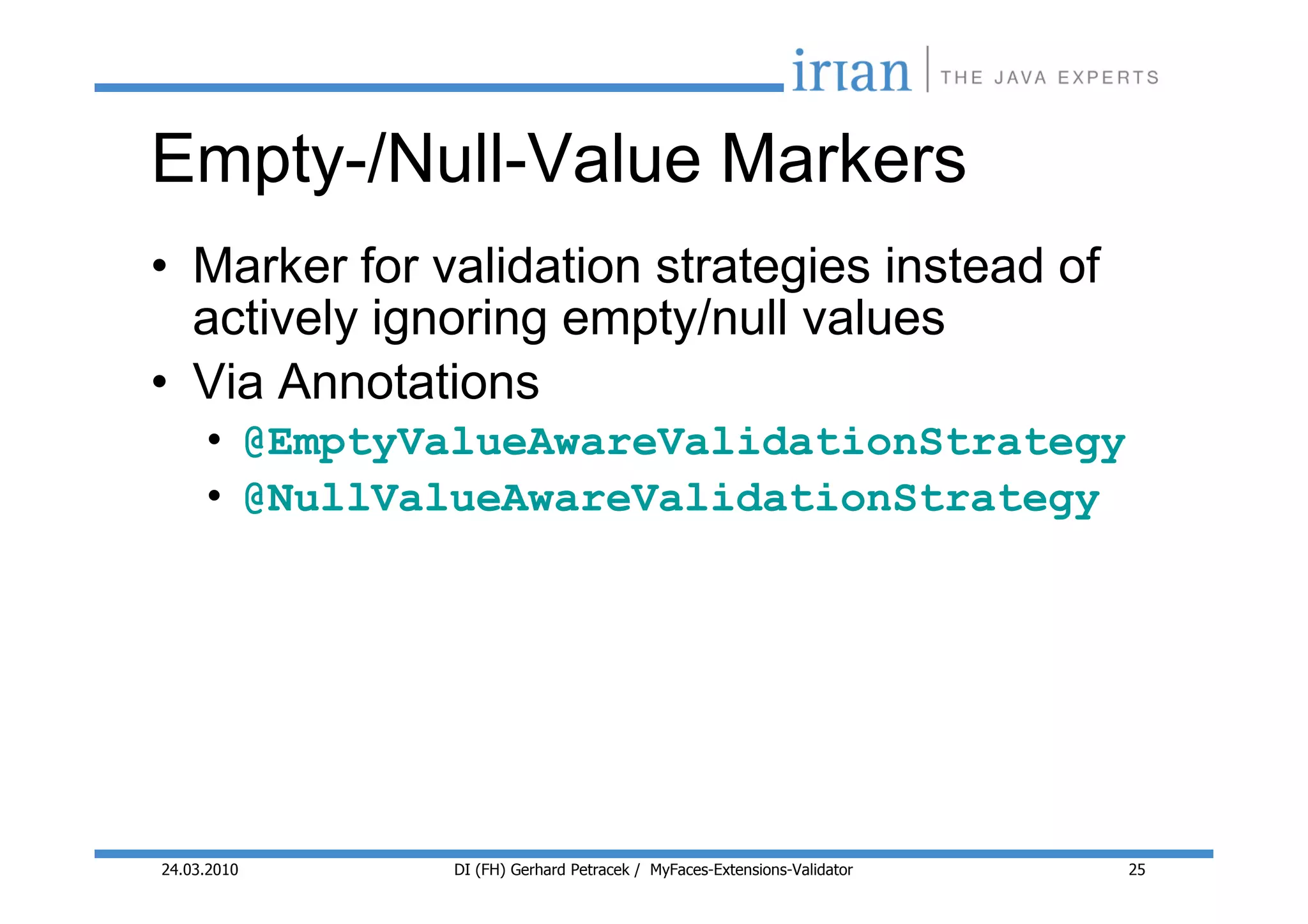

25. Empty-/Null-Value Markers
• Marker for validation strategies instead of
actively ignoring empty/null values
• Via Annotations
• @EmptyValueAwareValidationStrategy
• @NullValueAwareValidationStrategy
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 25

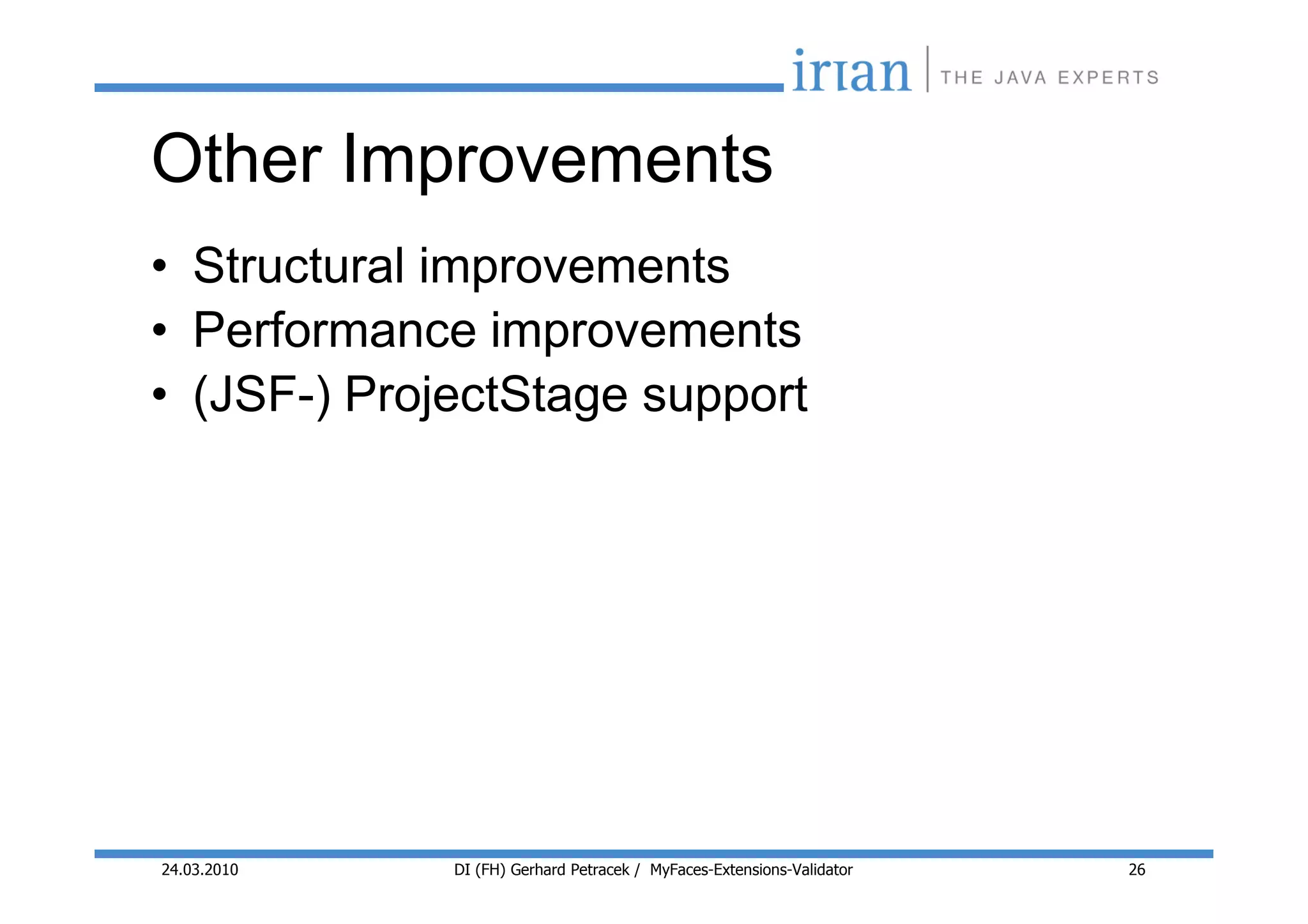

26. Other Improvements
• Structural improvements
• Performance improvements
• (JSF-) ProjectStage support
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 26

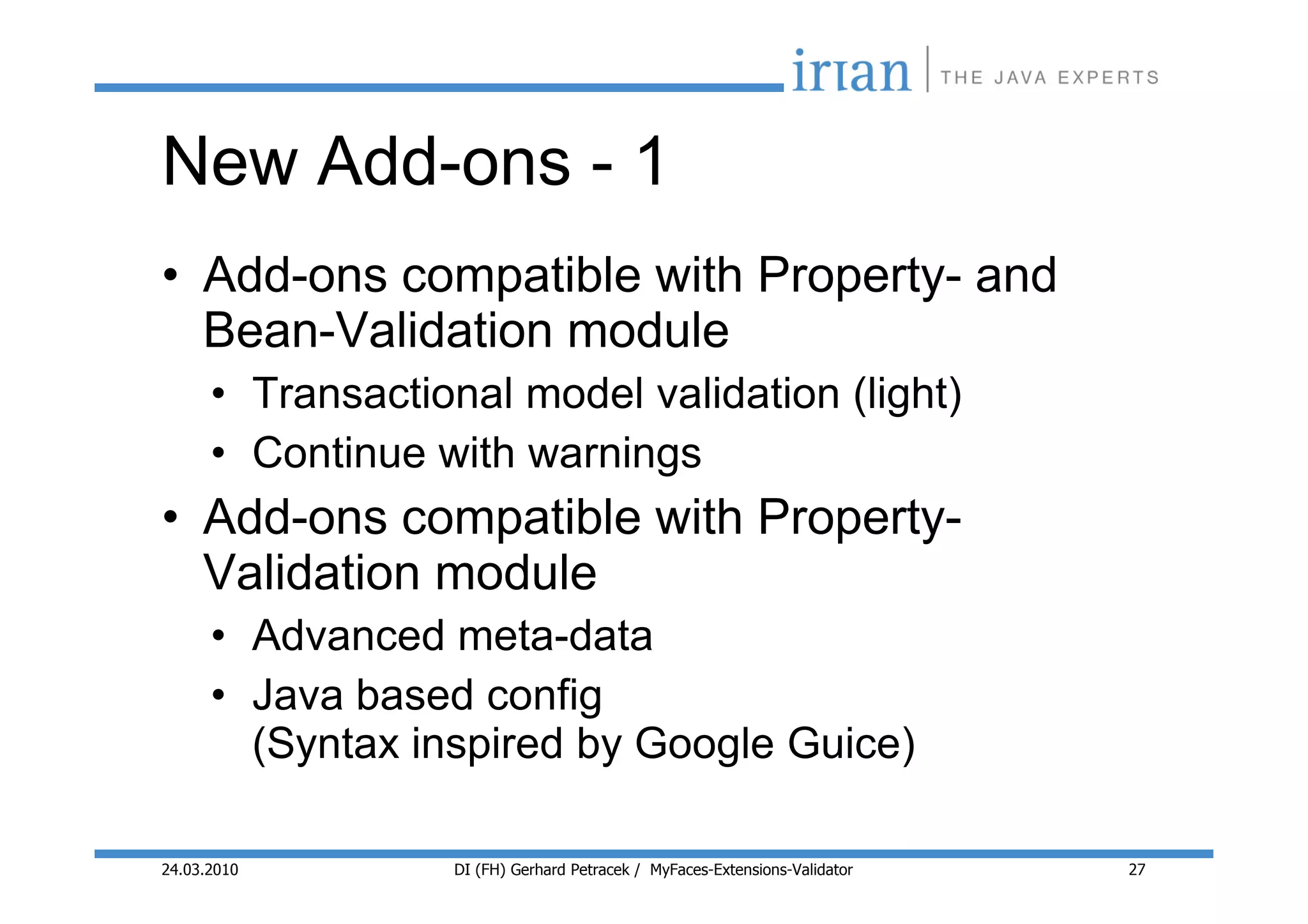

27. New Add-ons - 1
• Add-ons compatible with Property- and
Bean-Validation module
• Transactional model validation (light)
• Continue with warnings
• Add-ons compatible with Property-
Validation module
• Advanced meta-data
• Java based config
(Syntax inspired by Google Guice)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 27

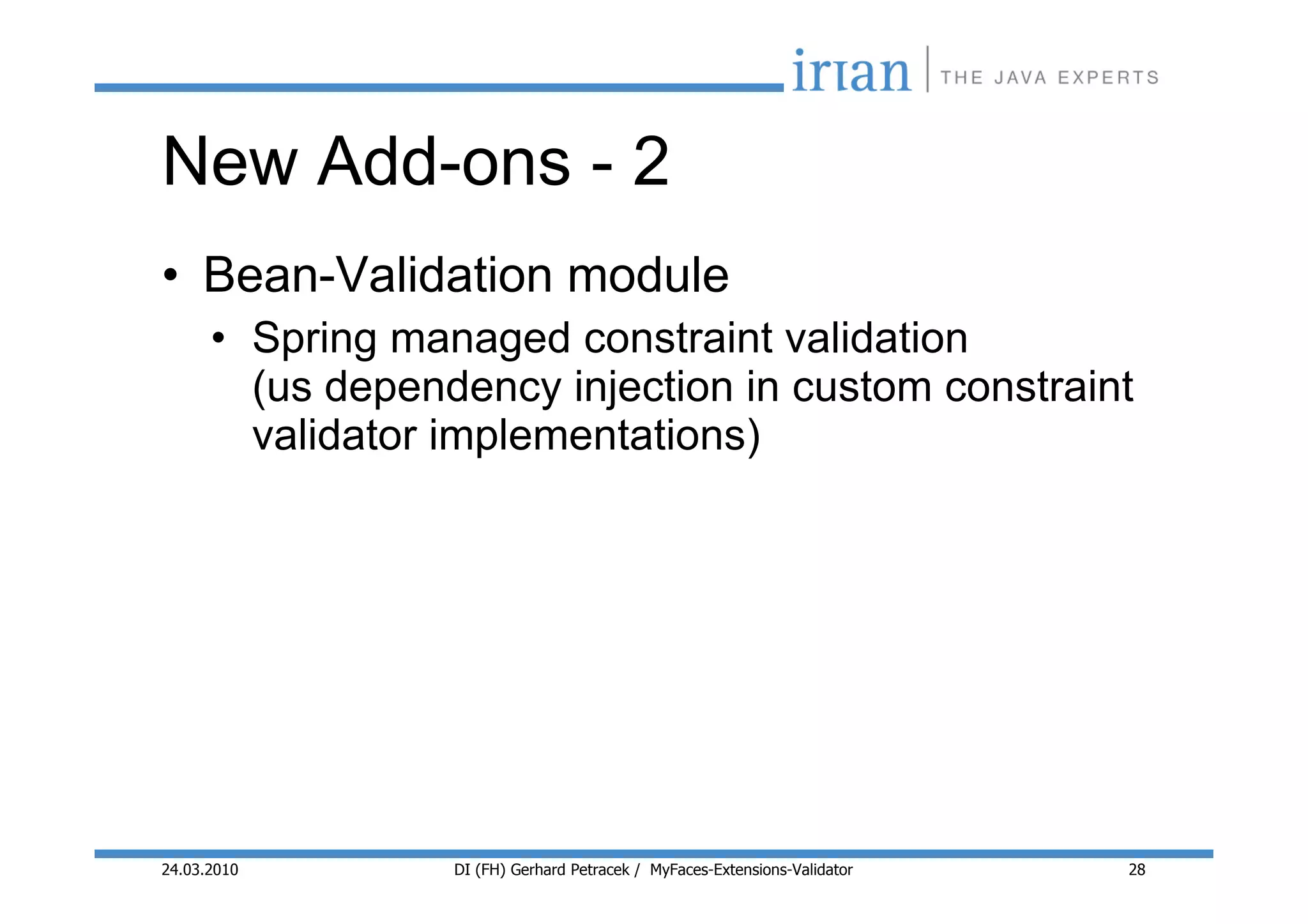

28. New Add-ons - 2
• Bean-Validation module
• Spring managed constraint validation
(us dependency injection in custom constraint
validator implementations)
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 28

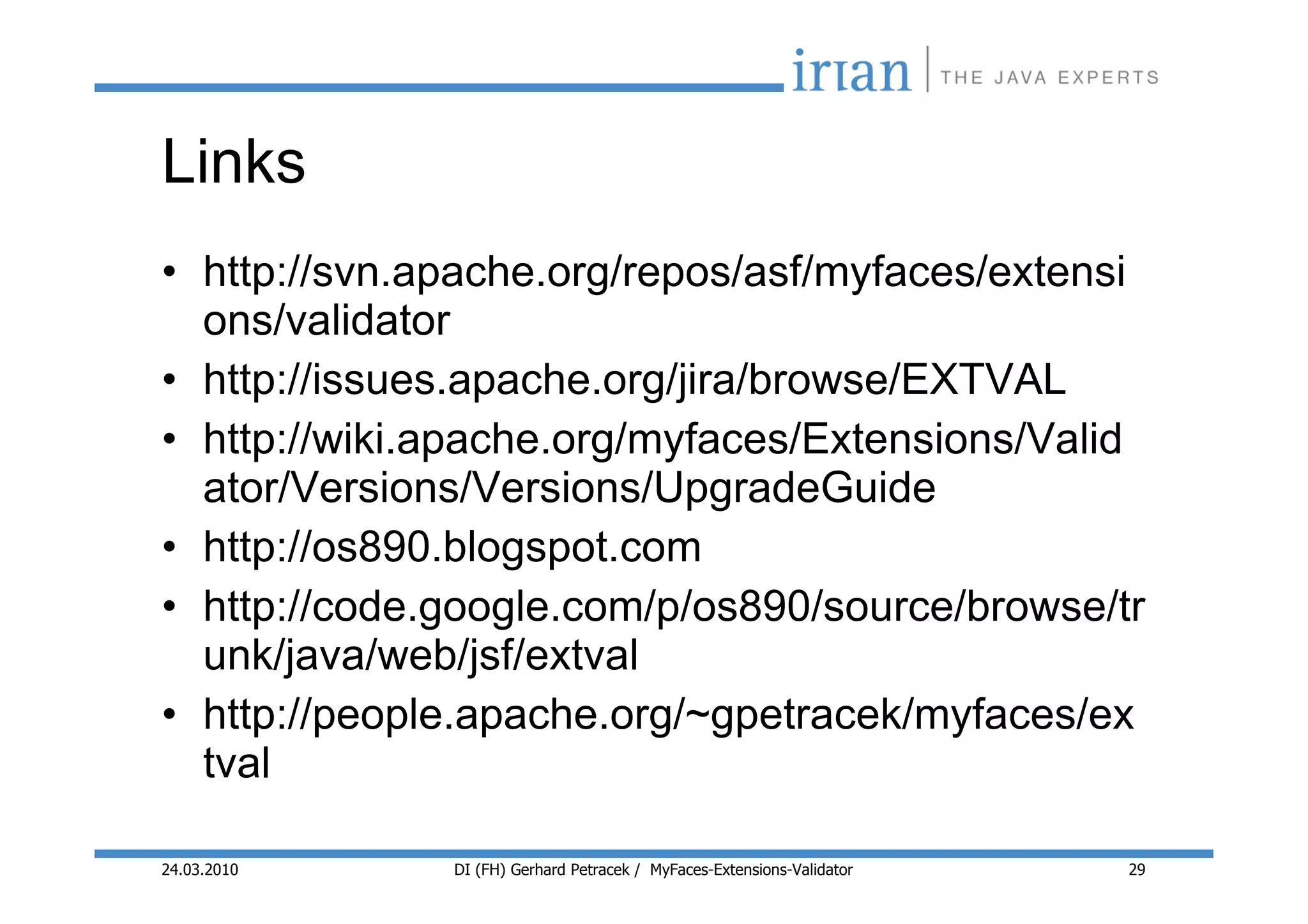

29. Links
• http://svn.apache.org/repos/asf/myfaces/extensi
ons/validator
• http://issues.apache.org/jira/browse/EXTVAL
• http://wiki.apache.org/myfaces/Extensions/Valid
ator/Versions/Versions/UpgradeGuide
• http://os890.blogspot.com
• http://code.google.com/p/os890/source/browse/tr
unk/java/web/jsf/extval
• http://people.apache.org/~gpetracek/myfaces/ex
tval
24.03.2010 DI (FH) Gerhard Petracek / MyFaces-Extensions-Validator 29
