The document discusses changes coming to caching in ASP.NET 4.0. It will include a new extensible object caching API separate from System.Web.dll to allow caching outside of ASP.NET applications. It will also make ASP.NET output caching extensible so custom caches can be used. This will provide a common API for programming against various cache providers like in-memory, disk-based, or cloud caches. It aims to provide clean integration points for third party caches to plug into the new caching APIs.

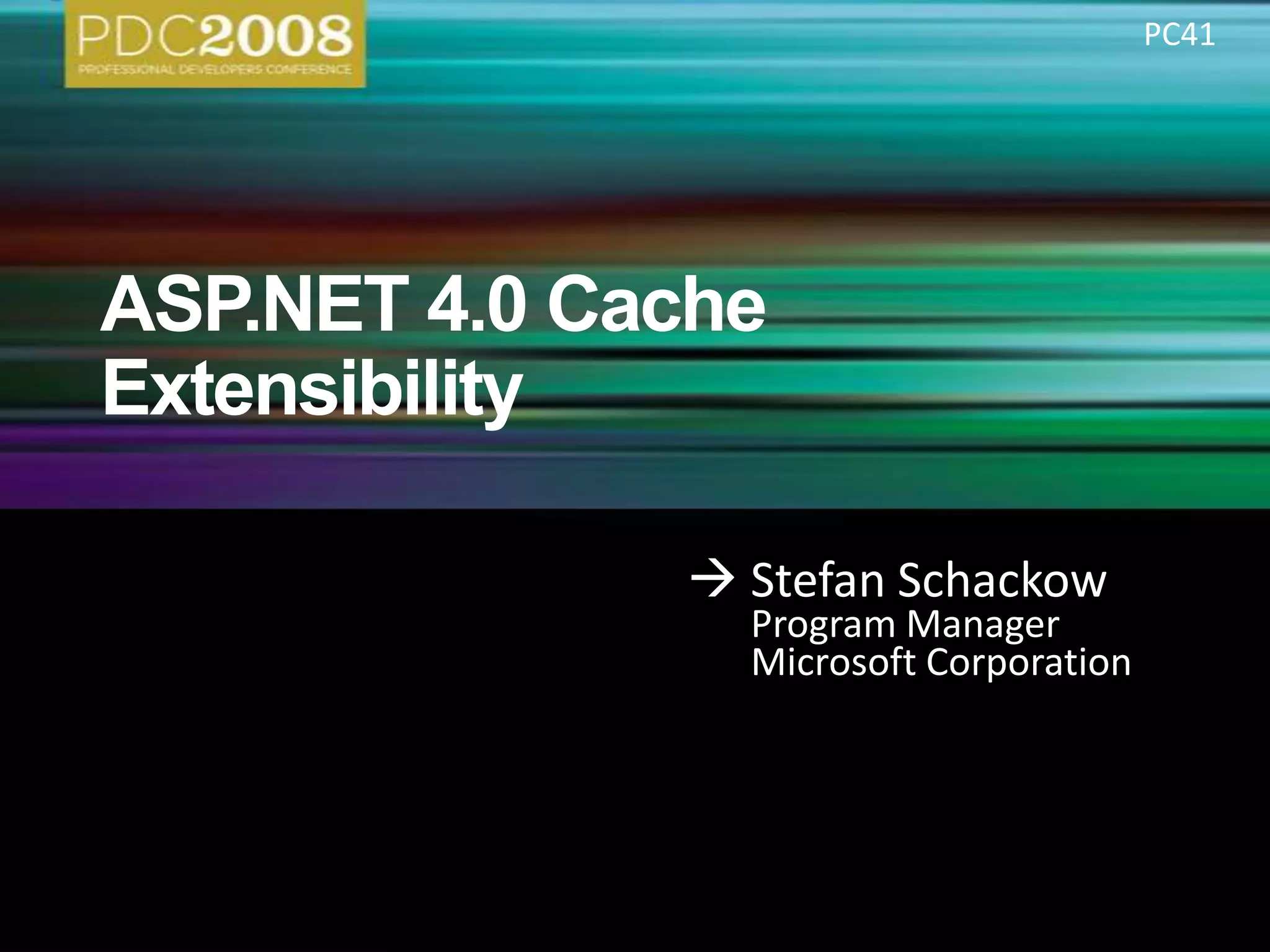

1. ASP.NET 4.0 Cache Extensibility  Stefan SchackowProgram Manager Microsoft Corporation PC41

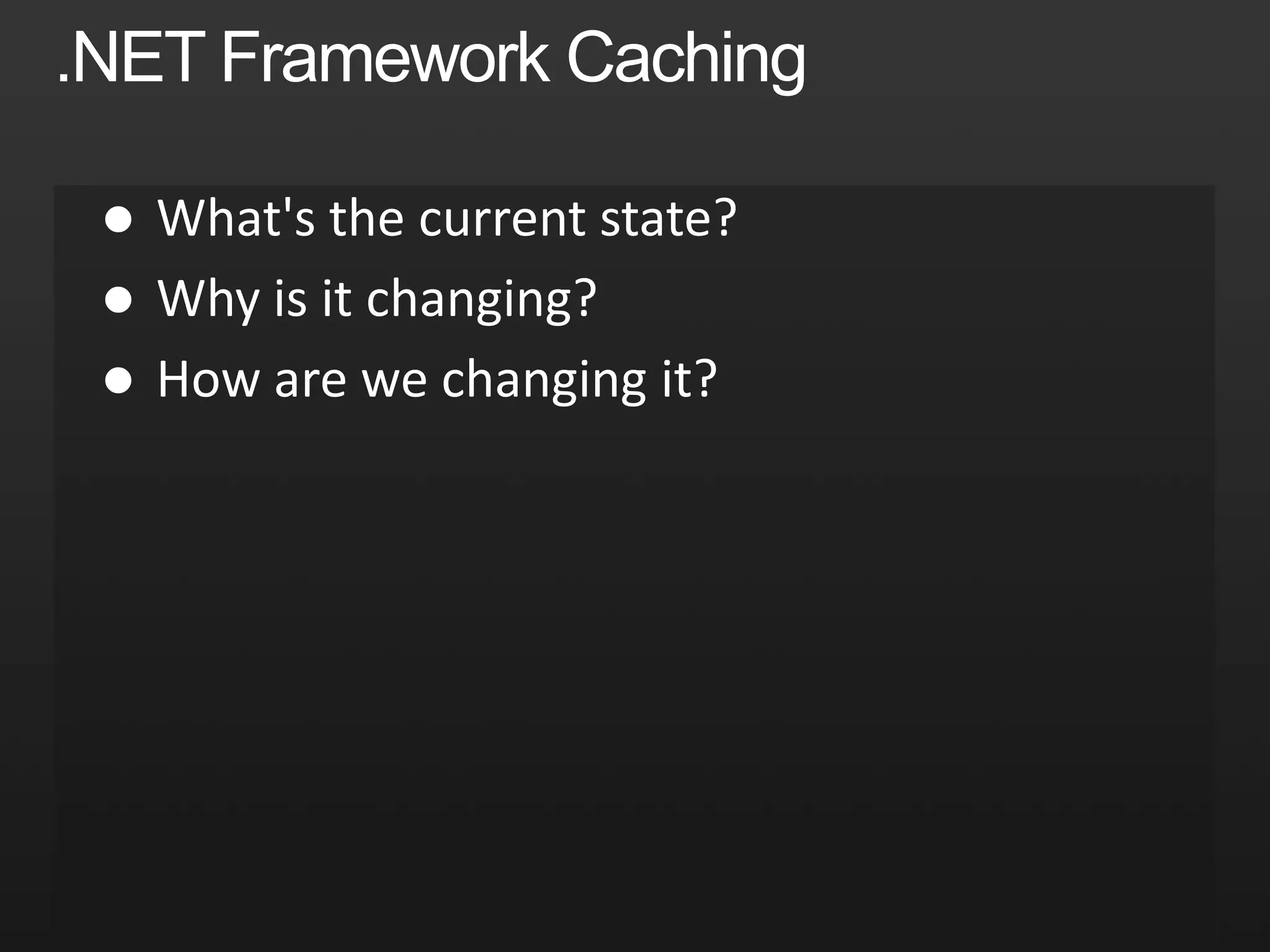

2. What's the current state? Why is it changing? How are we changing it? .NET Framework Caching

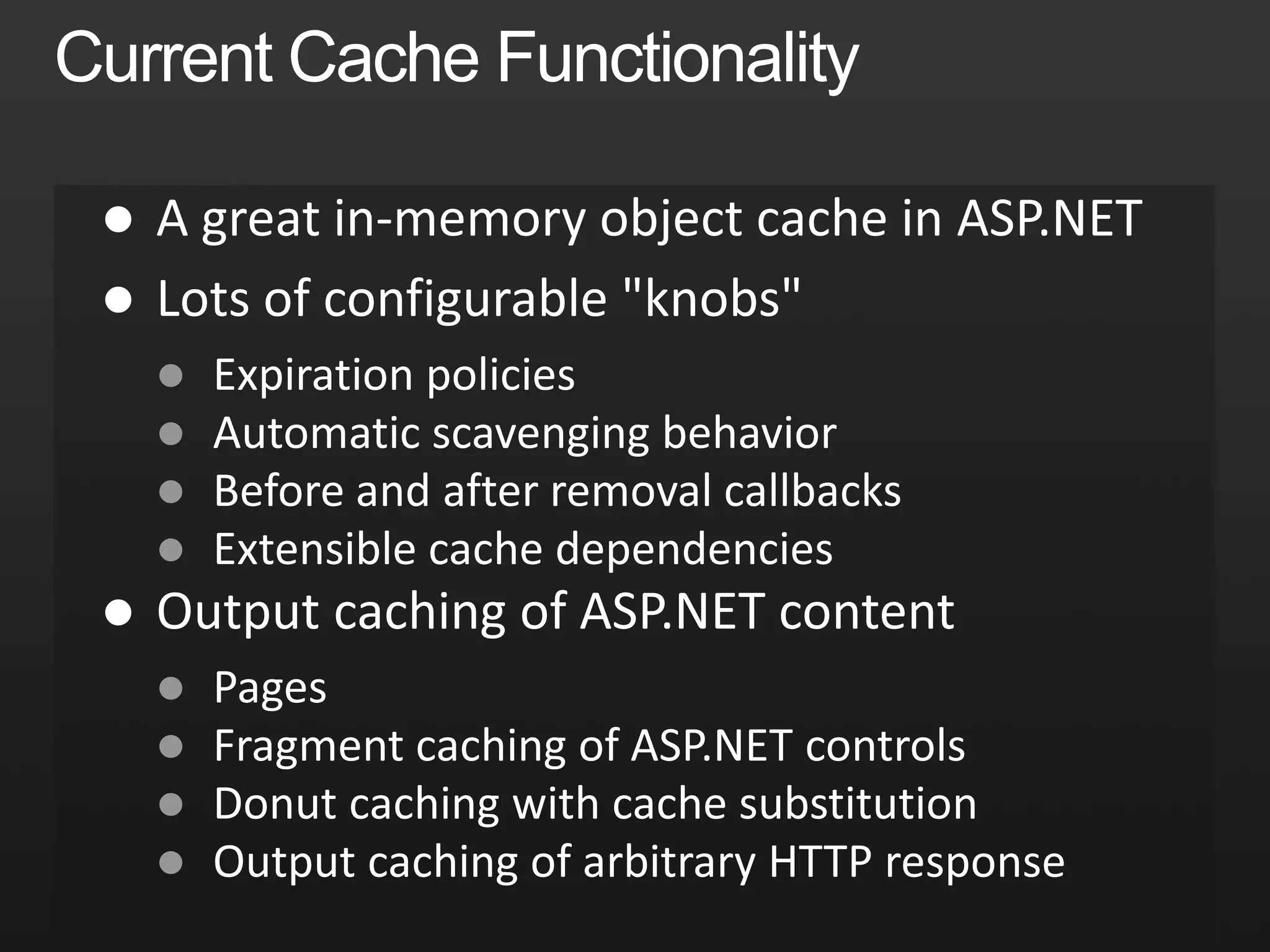

3. A great in-memory object cache in ASP.NET Lots of configurable "knobs" Expiration policies Automatic scavenging behavior Before and after removal callbacks Extensible cache dependencies Output caching of ASP.NET content Pages Fragment caching of ASP.NET controls Donut caching with cache substitution Output caching of arbitrary HTTP response Current Cache Functionality

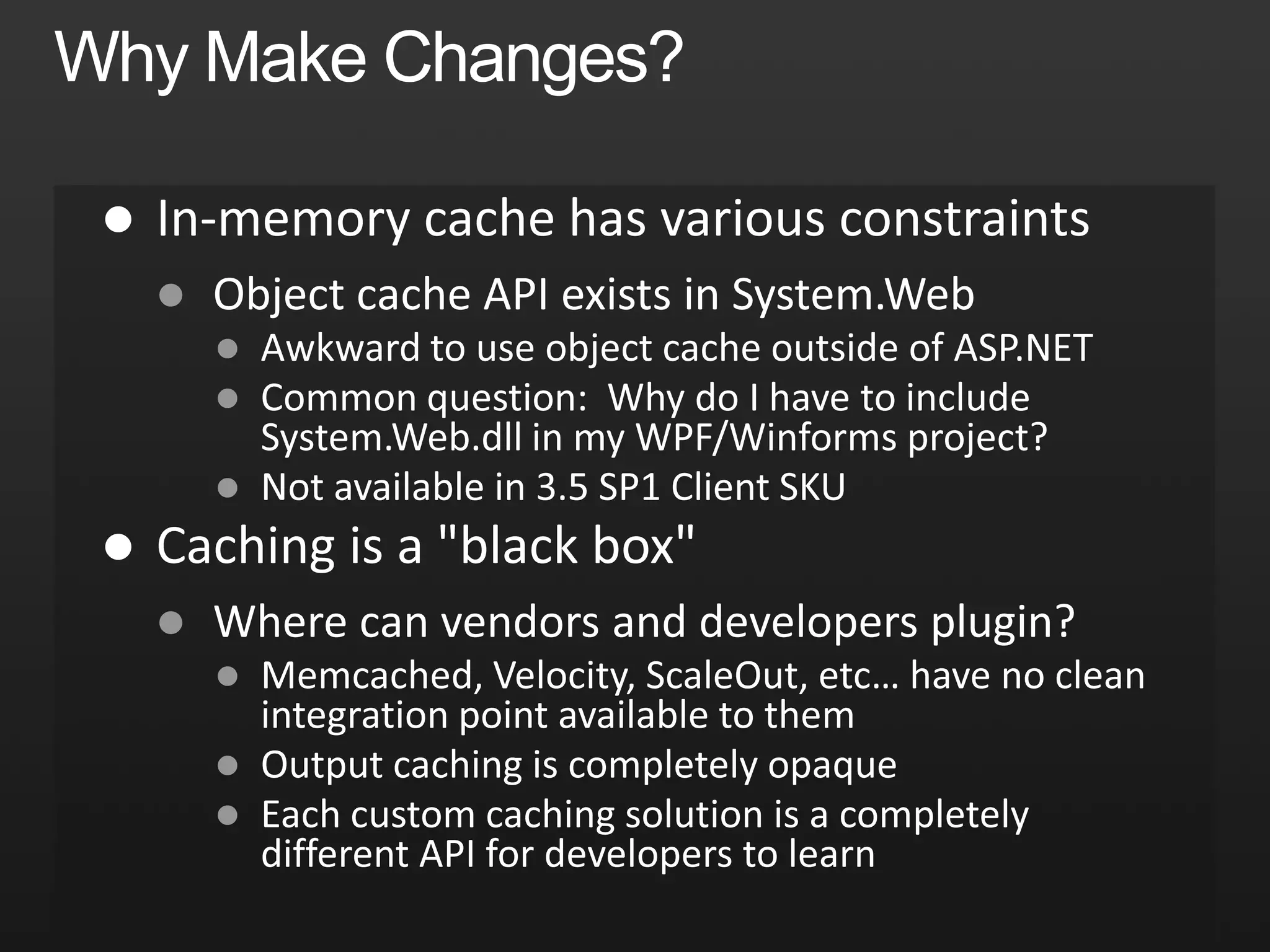

4. In-memory cache has various constraints Object cache API exists in System.Web Awkward to use object cache outside of ASP.NET Common question: Why do I have to include System.Web.dll in my WPF/Winforms project? Not available in 3.5 SP1 Client SKU Caching is a "black box" Where can vendors and developers plugin? Memcached, Velocity, ScaleOut, etc… have no clean integration point available to them Output caching is completely opaque Each custom caching solution is a completely different API for developers to learn Why Make Changes?

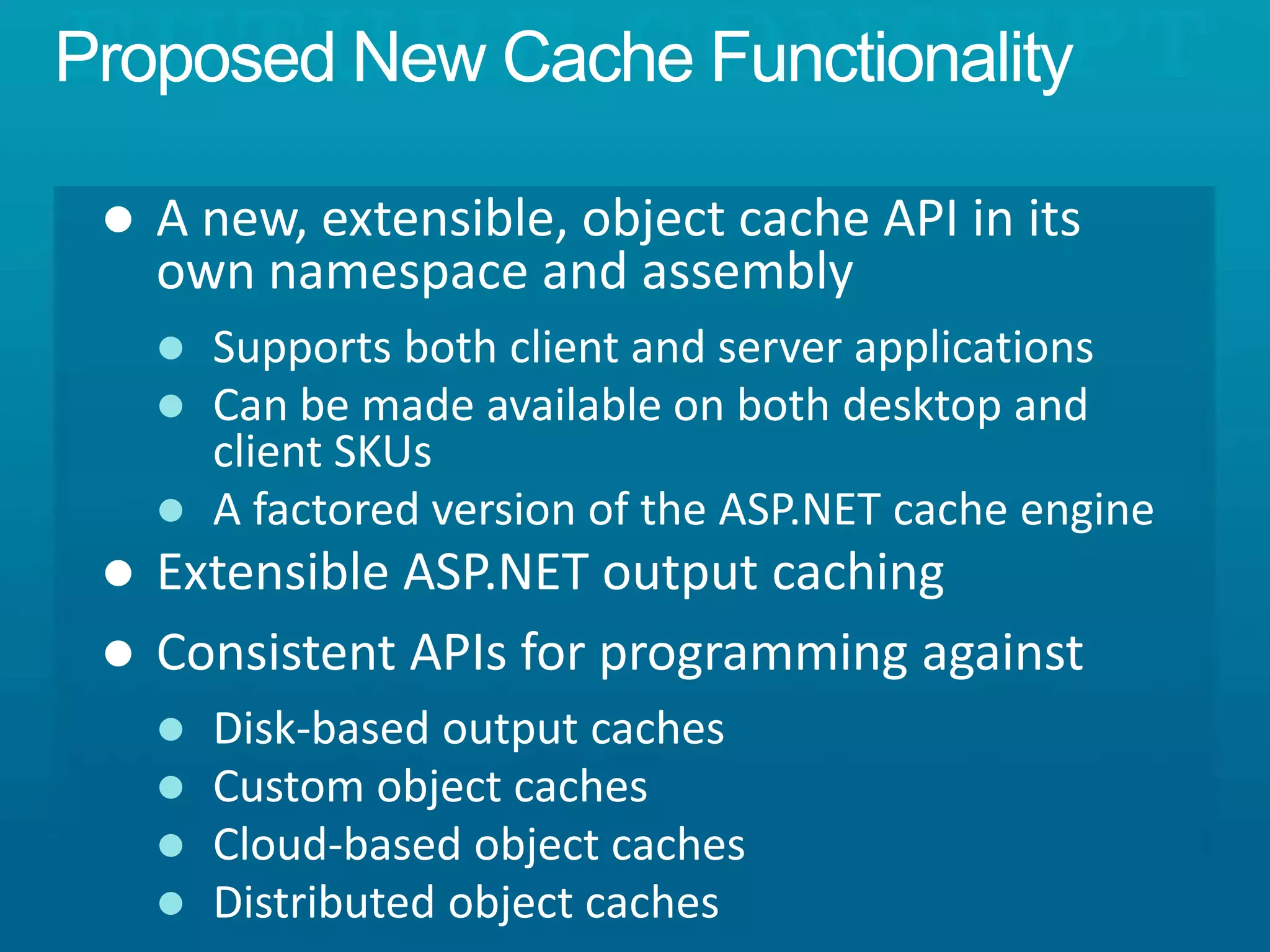

5. Proposed New Cache Functionality A new, extensible, object cache API in its own namespace and assembly Supports both client and server applications Can be made available on both desktop and client SKUs A factored version of the ASP.NET cache engine Extensible ASP.NET output caching Consistent APIs for programming against Disk-based output caches Custom object caches Cloud-based object caches Distributed object caches

6. New 4.0 Cache Functionality Namespace System.Caching { In-memory Disk based Cache Windows Azure CacheProvider Distributed }

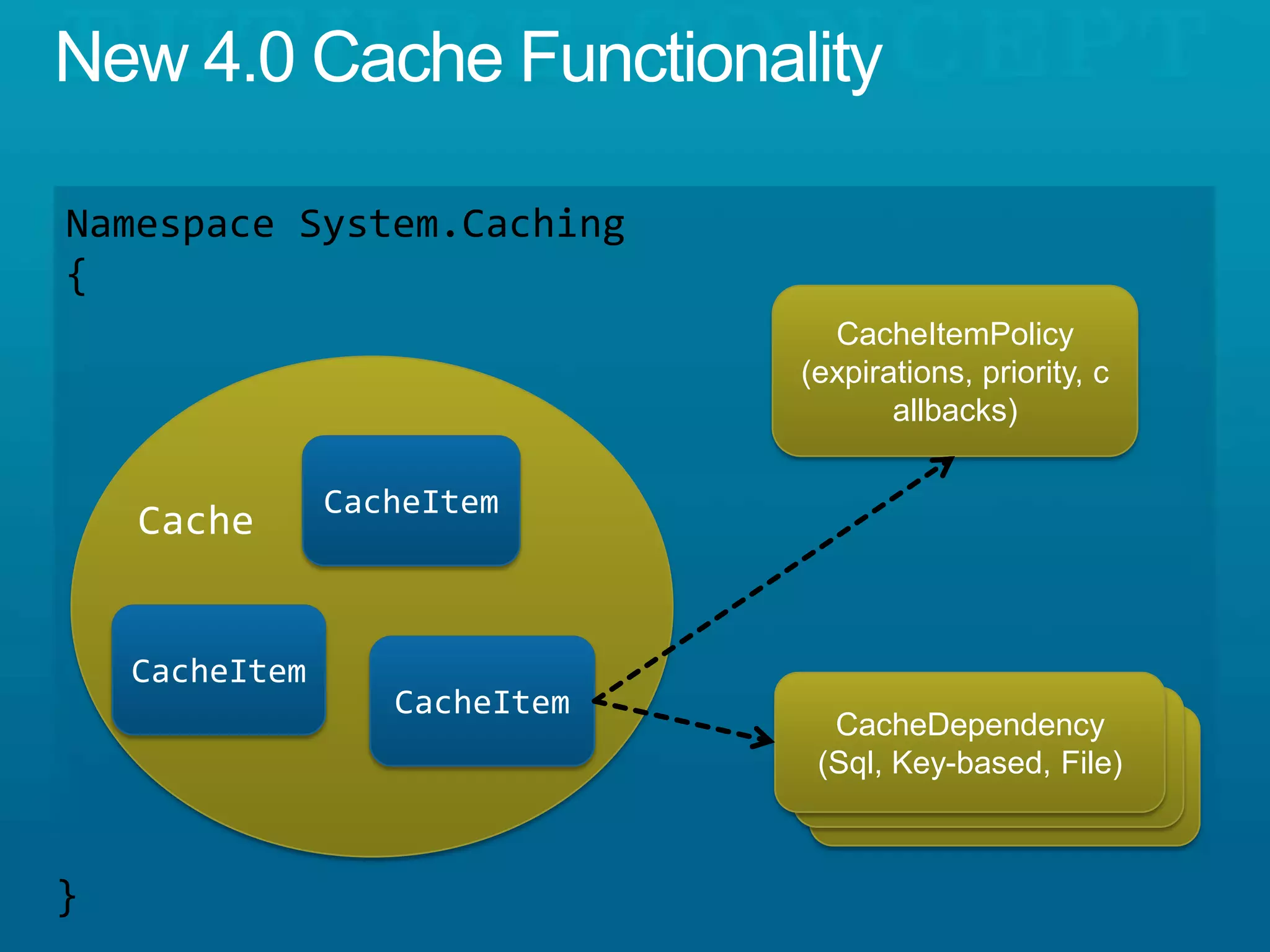

7. New 4.0 Cache Functionality Namespace System.Caching { CacheItemPolicy (expirations, priority, callbacks) CacheItem Cache CacheItem CacheItem CacheDependency (Sql, Key-based, File) }

8. Object Caching demo

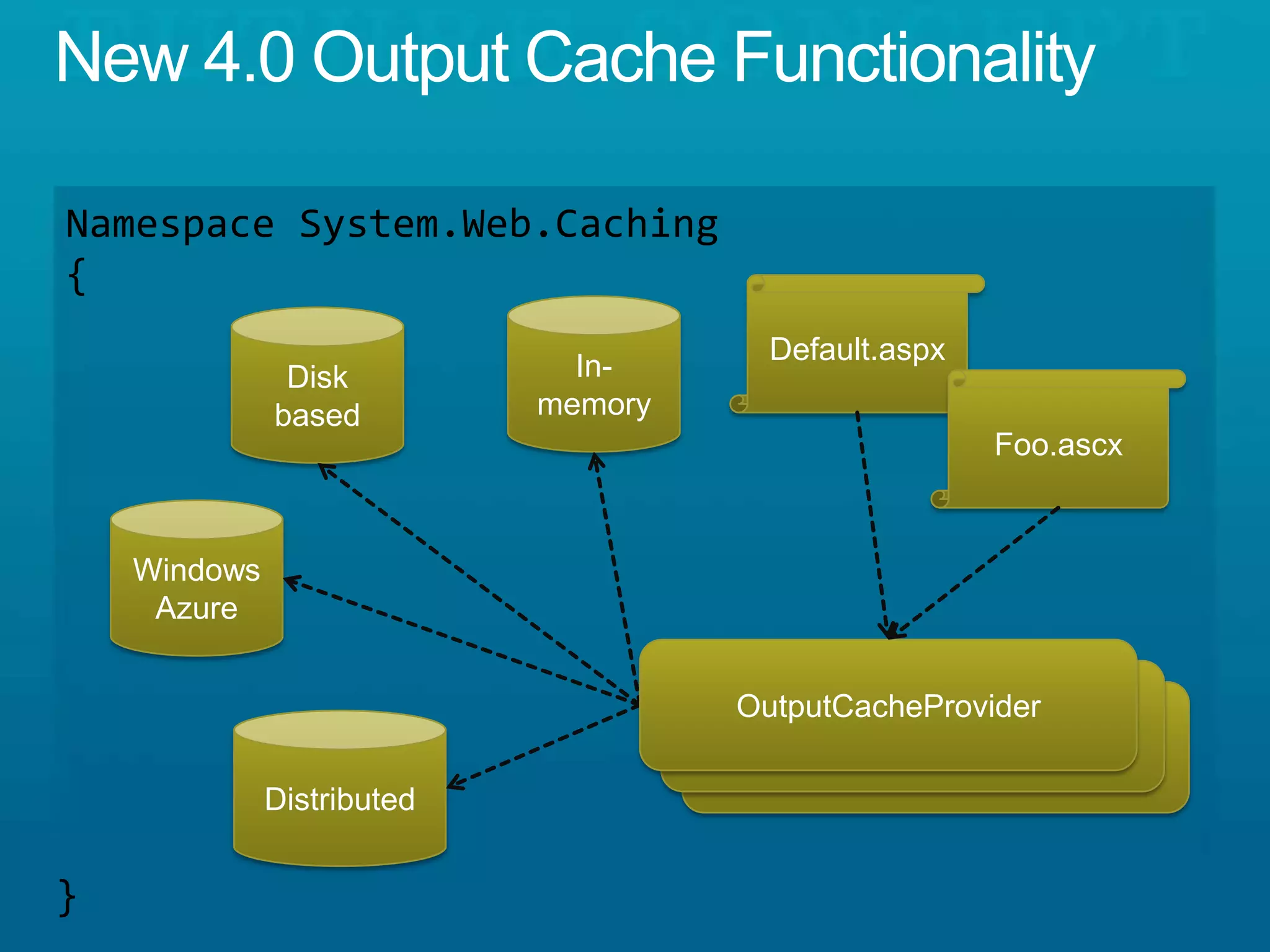

9. New 4.0 Output Cache Functionality Namespace System.Web.Caching { Default.aspx In-memory Disk based Foo.ascx Windows Azure OutputCacheProvider Distributed }

10. Output Caching demo

11. Core Versus Optional APIs Cache API is a "union" of common functionality Not all cache providers need to implement all features Core functionality for all providers Represented on CacheProvider base type Storing and retrieving a key-value pair Basic Add/Get/Set/Contains/Remove methods Named cache partitions Providers specialize by deriving from InMemoryCacheProvider OutOfProcessCacheProvider

12. InMemoryCacheProvider Represents a provider running exclusively in a single app-domain Count of items in cache Sliding expirations Distributed caches usually can't synchronize sliding expiration values across multiple servers Cache dependencies (derivations of CacheDependency) Distributed caches may have no concept of dependencies Item removal callbacks (before and after removal) Distributed caches may not be able to call back to anything

13. OutOfProcessCacheProvider Represents a provider that stores data outside of an app-domain Version-based updates (CacheItem.Version) Useful for caches that support optimistic concurrency Lock-based updates (CacheItem.LockHandle) If a cache supports pessimistic concurrency Get multiple items Saves multiple round-trips on fetches Query-tag metadata (CacheItem.QueryTags) Retrieving multiple cache items based on string tags

14. "Velocity" Integration "Velocity" – codename for distributed cache created by the Sql Server team Planned "Velocity" integration points OutOfProcessCacheProvider implementation for object caching SessionStateStoreProviderBase implementation for ASP.NET session state Sidenote: Updates to session state API are planned in 4.0 to allow for more granular sets and gets. OutputCacheProvider implementation for ASP.NET output caching

15. Checking cache capabilities demo

16. Migrating From Existing APIs System.Web.Caching.Cache Current plan is that it stays un-changed Might enable "opting-in" to using an object cache provider Requires developing a “shim” that can re-route calls to the new object cache provider layer Currently the “shim” is only in the “idea phase” ASP.NET output caching Both page and control caching can opt-in to using custom providers By default both types of output caching continue to use ASP.NET’s in-memory cache

17. Migrating From Existing APIs ASP.NET control output caching <@OutputCacheoutputCacheProvider="…" /> ASP.NET page output caching Programmatically choose different providers Override a new method on HttpApplication HttpApplication.GetOutputCacheProviderName Custom page output caching supports: Absolute expirations File-based dependencies only Validation and substitution callbacks must be static

18. Migrating From Existing APIs

19. Summary 4.0 Caching is all about extensibility! Both object caching and ASP.NET output caching will be pluggable New object cache APIs available for both client and full versions of .NET Framework
