1. Extrusion

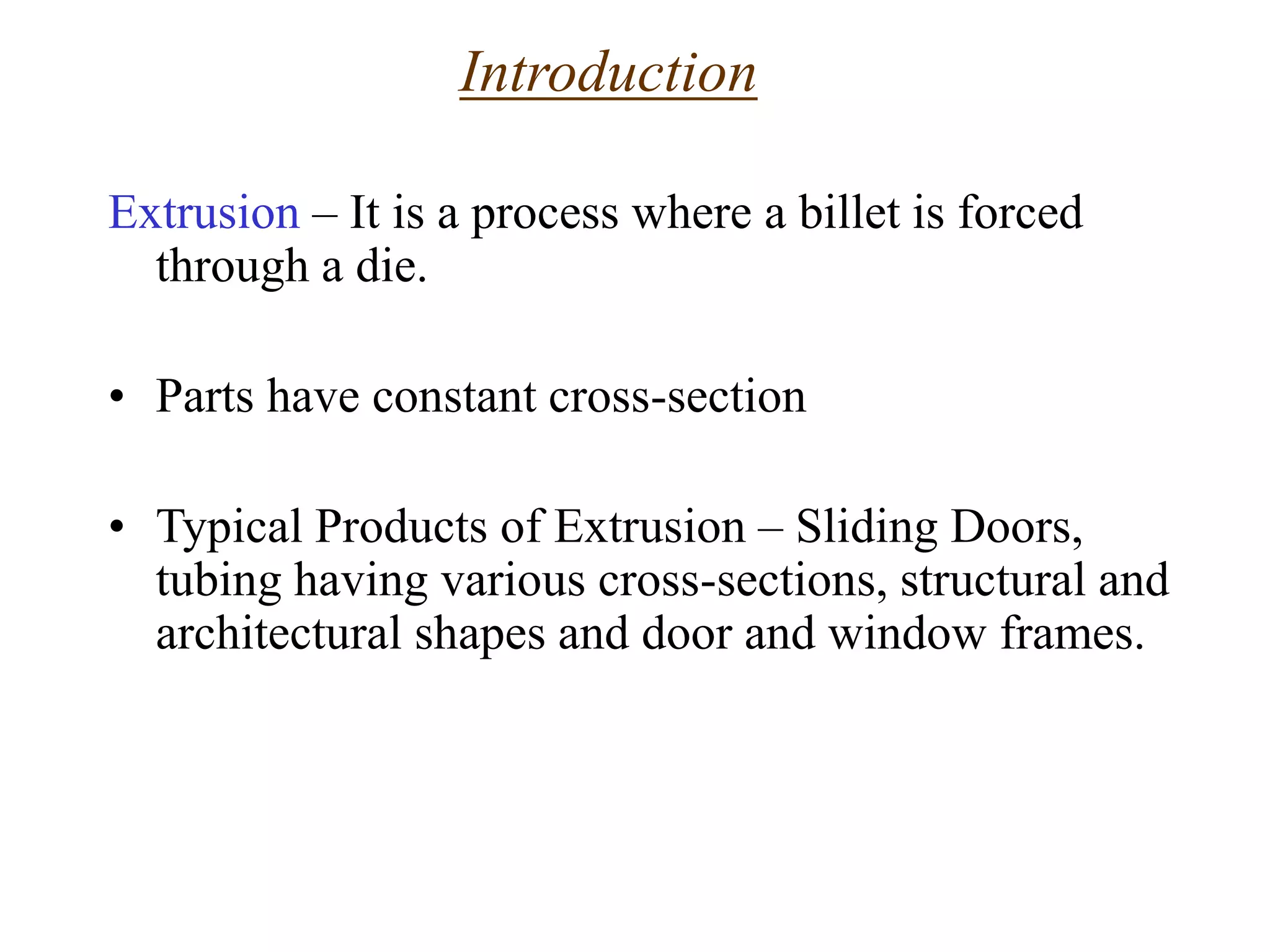

2. Introduction
Extrusion – It is a process where a billet is forced
through a die.
• Parts have constant cross-section
• Typical Products of Extrusion – Sliding Doors,
tubing having various cross-sections, structural and
architectural shapes and door and window frames.

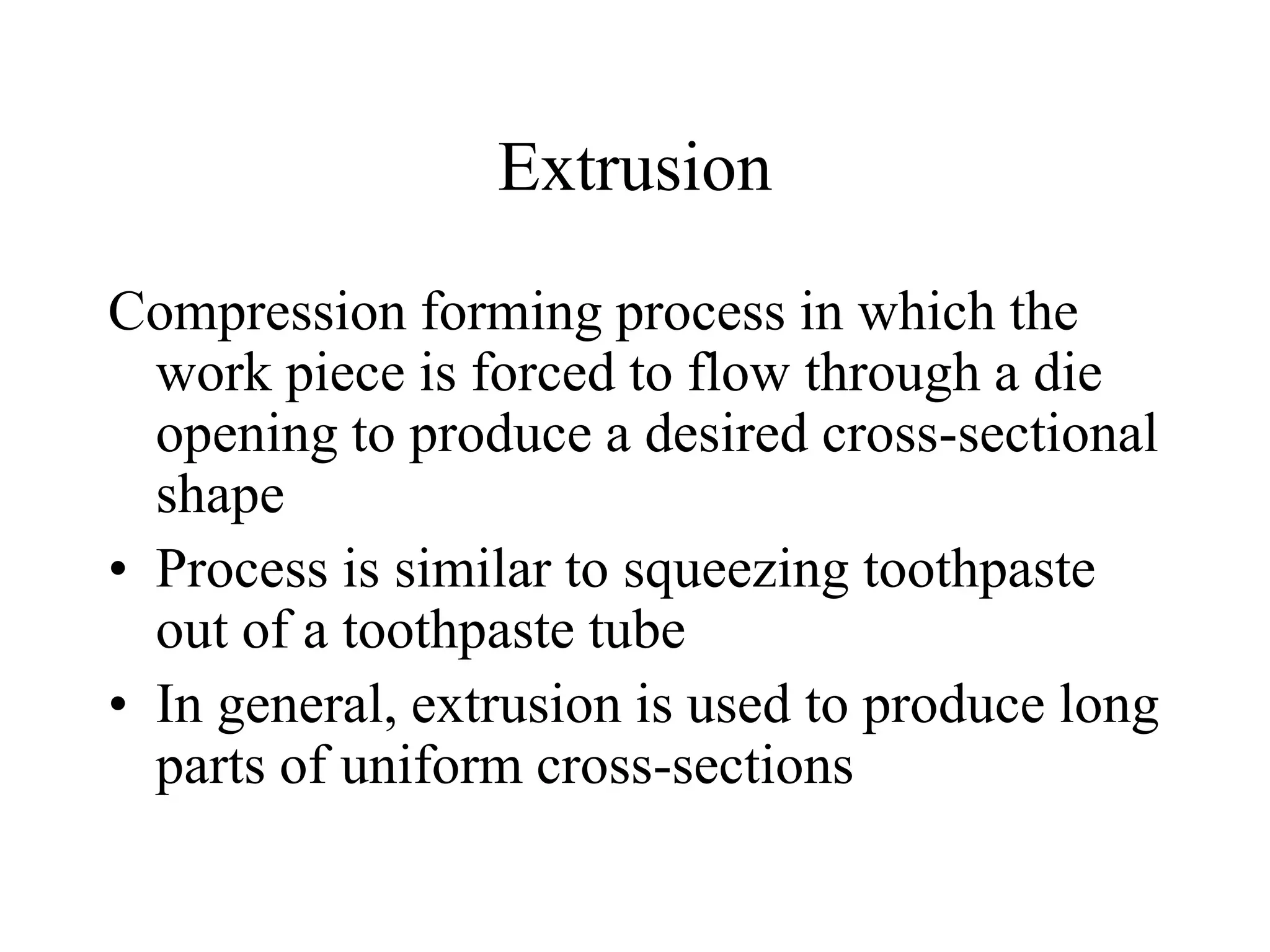

3. Extrusion
Compression forming process in which the
work piece is forced to flow through a die
opening to produce a desired cross-sectional
shape
• Process is similar to squeezing toothpaste
out of a toothpaste tube
• In general, extrusion is used to produce long
parts of uniform cross-sections

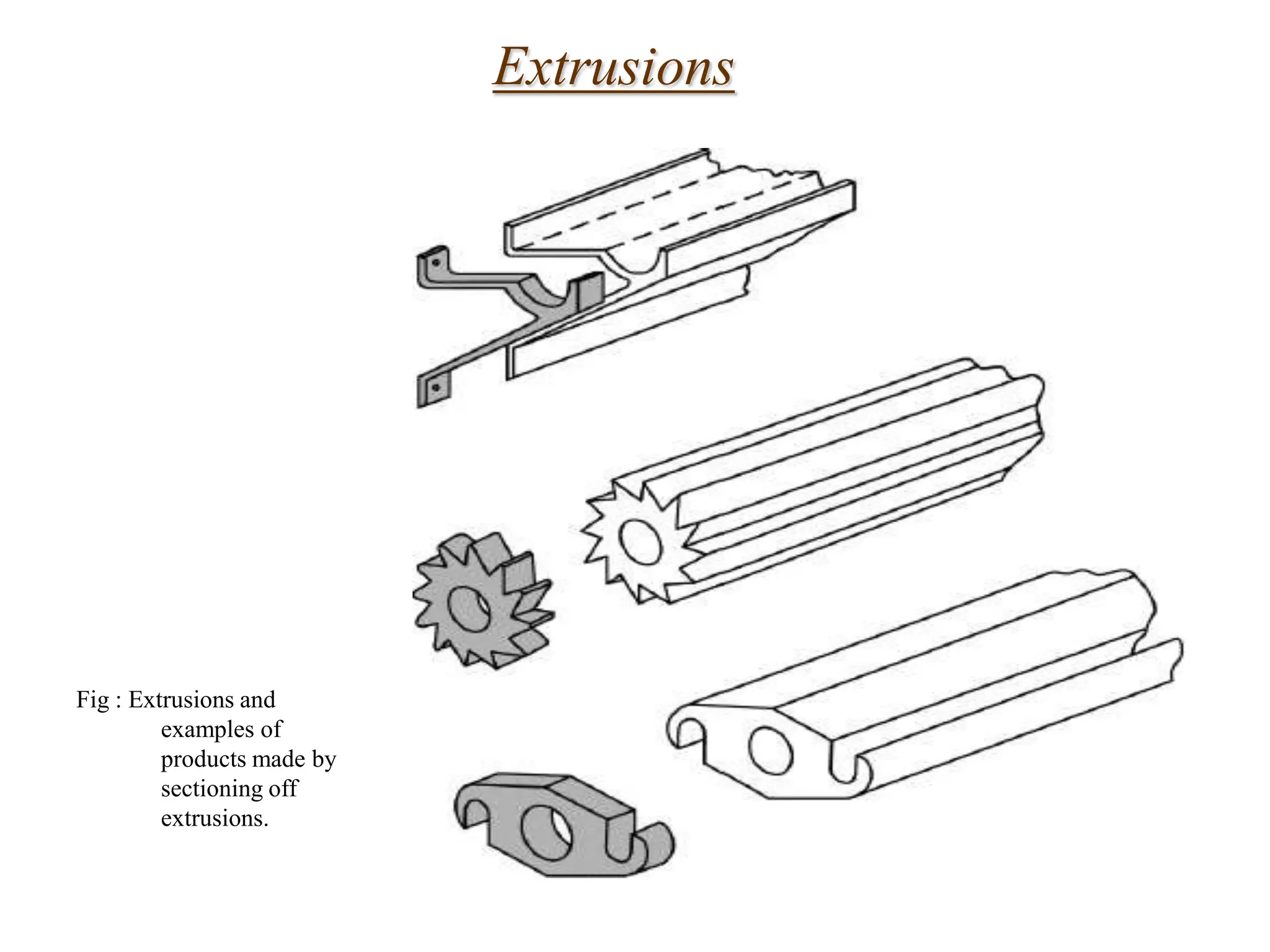

4. Extrusions
Fig : Extrusions and
examples of
products made by
sectioning off
extrusions.

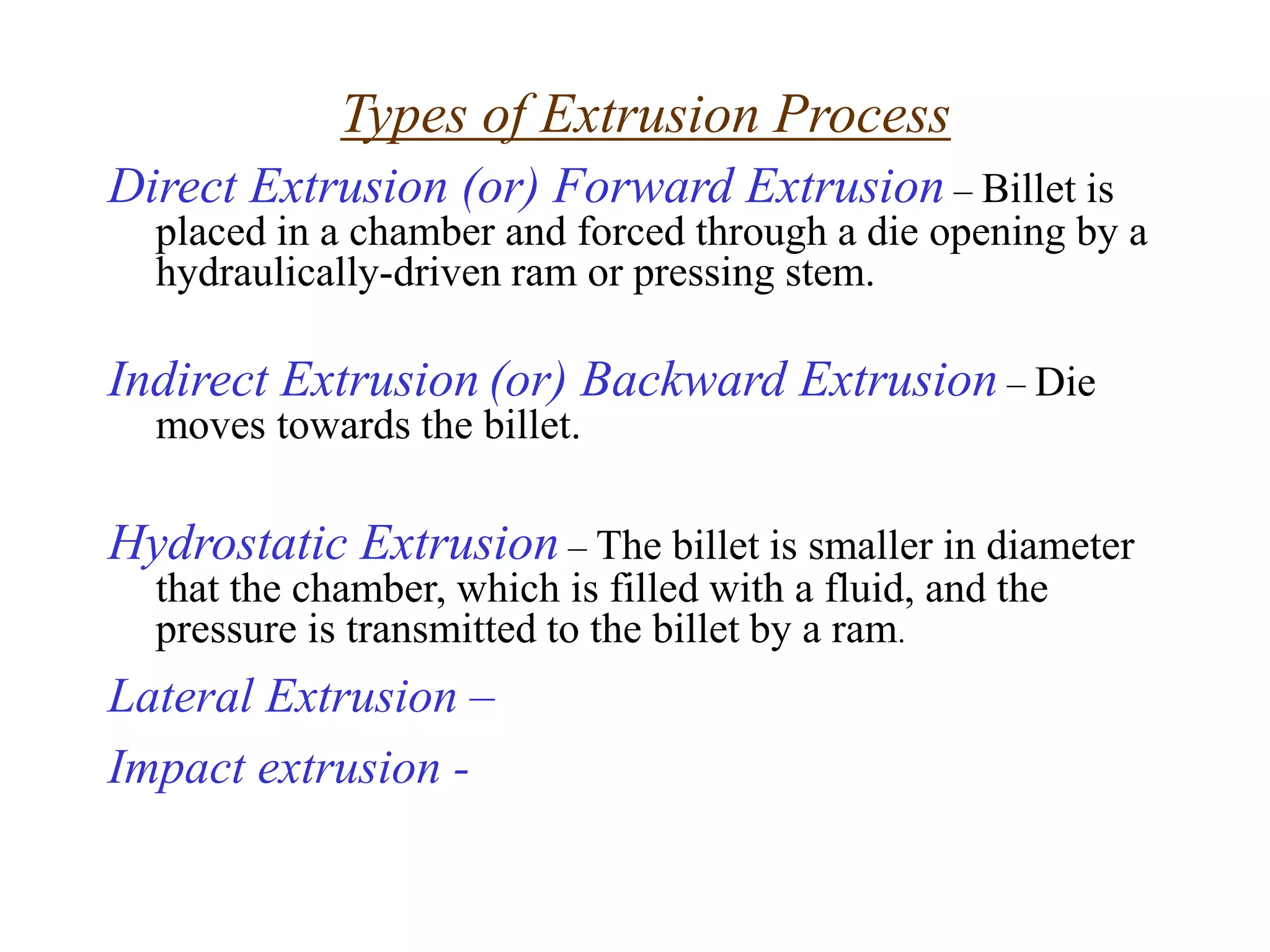

5. Direct Extrusion (or) Forward Extrusion – Billet is
placed in a chamber and forced through a die opening by a
hydraulically-driven ram or pressing stem.
Indirect Extrusion (or) Backward Extrusion – Die
moves towards the billet.
Hydrostatic Extrusion – The billet is smaller in diameter
that the chamber, which is filled with a fluid, and the
pressure is transmitted to the billet by a ram.
Lateral Extrusion –
Impact extrusion -
Types of Extrusion Process

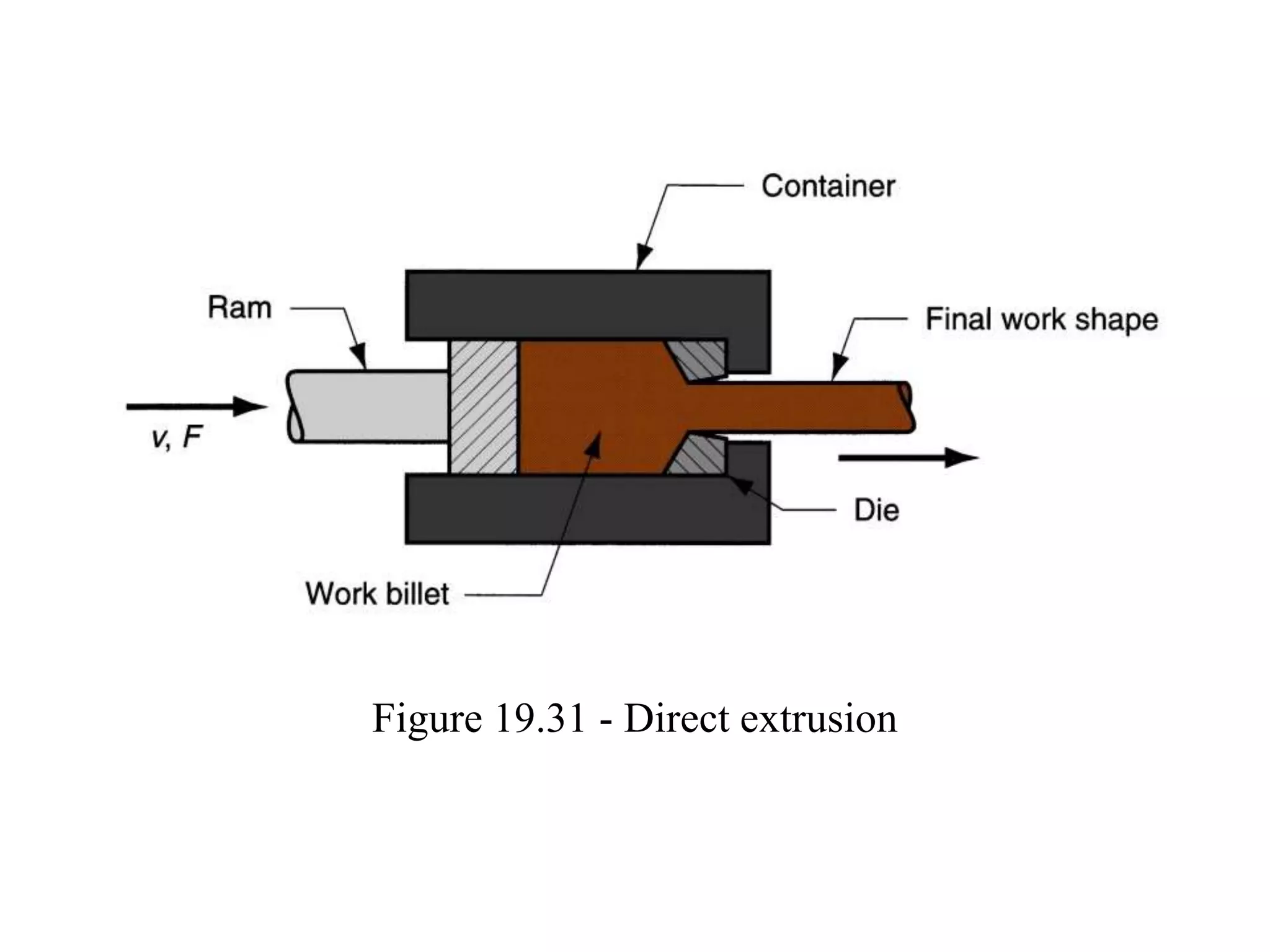

6. Figure 19.31 - Direct extrusion

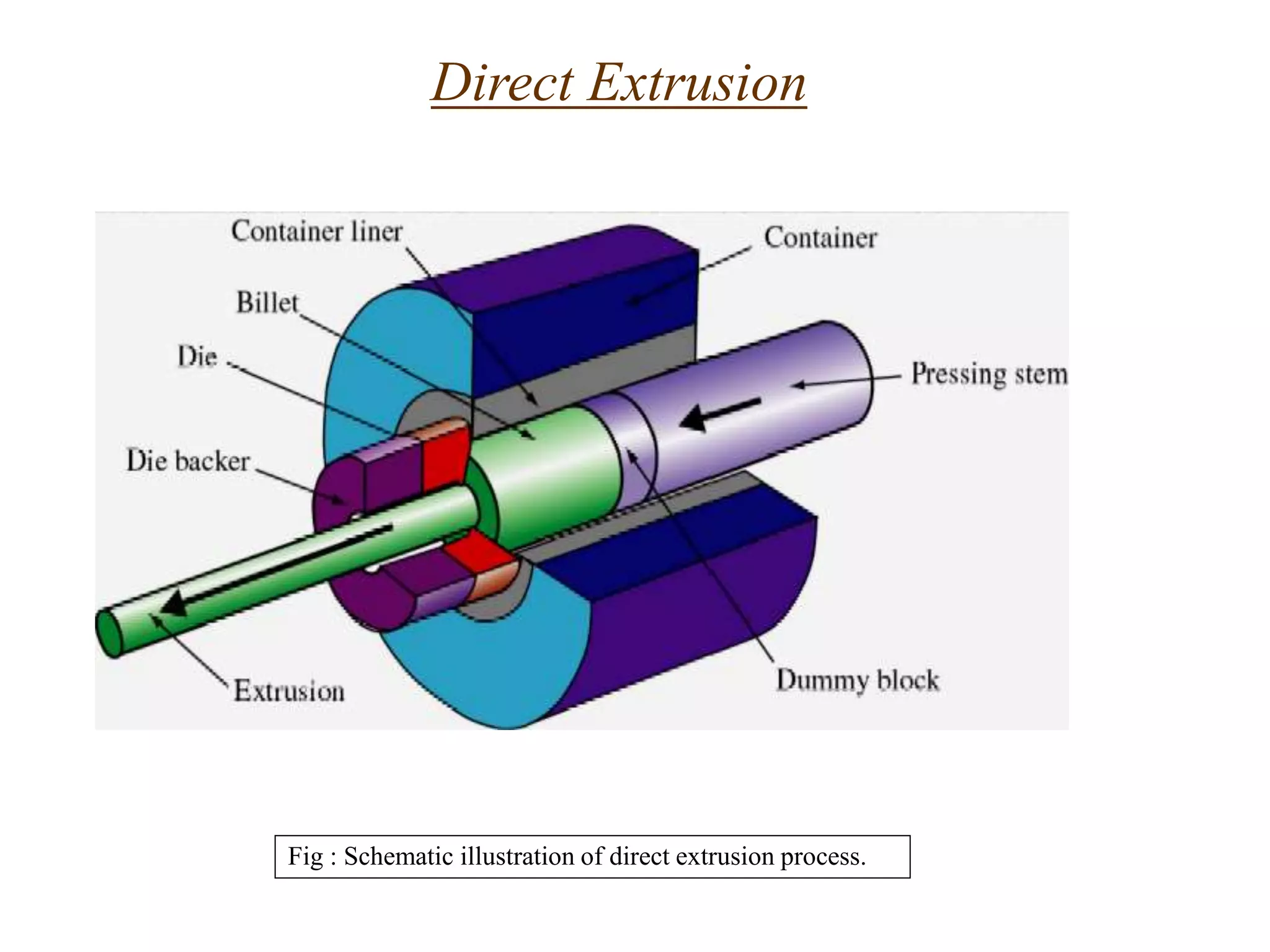

7. Direct Extrusion
Fig : Schematic illustration of direct extrusion process.

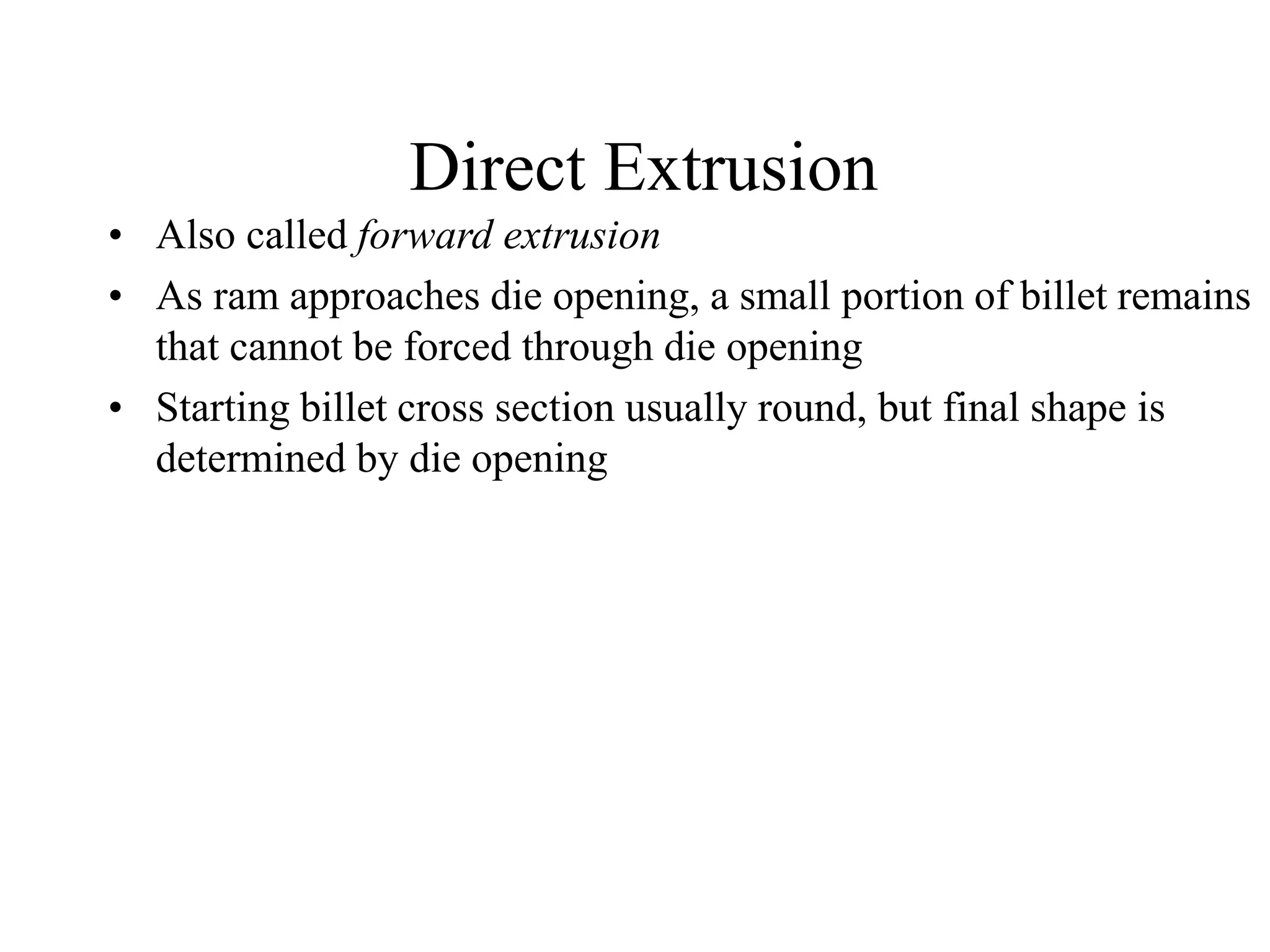

8. Direct Extrusion
• Also called forward extrusion
• As ram approaches die opening, a small portion of billet remains
that cannot be forced through die opening
• Starting billet cross section usually round, but final shape is
determined by die opening

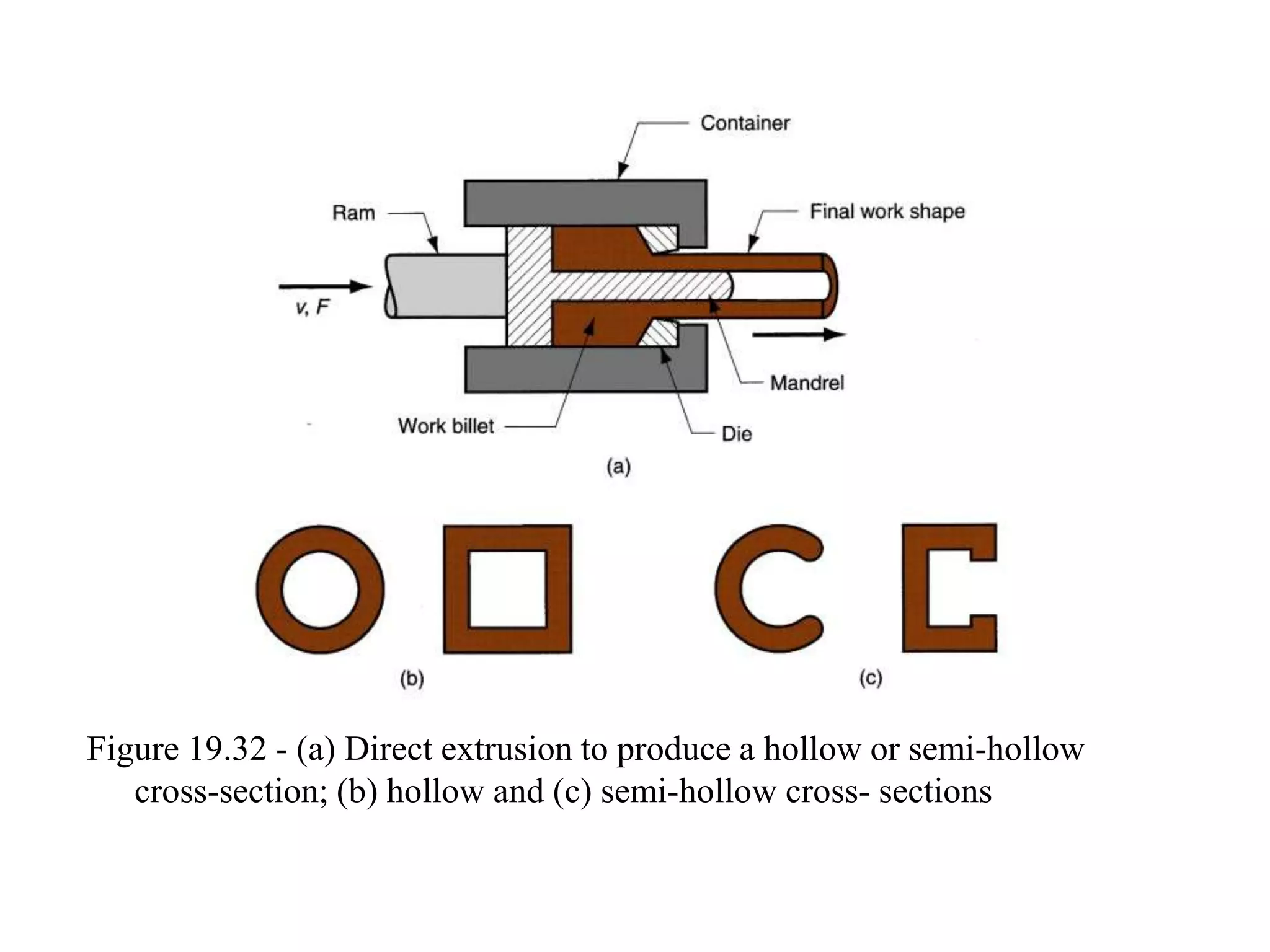

9. Figure 19.32 - (a) Direct extrusion to produce a hollow or semi-hollow
cross-section; (b) hollow and (c) semi-hollow cross- sections

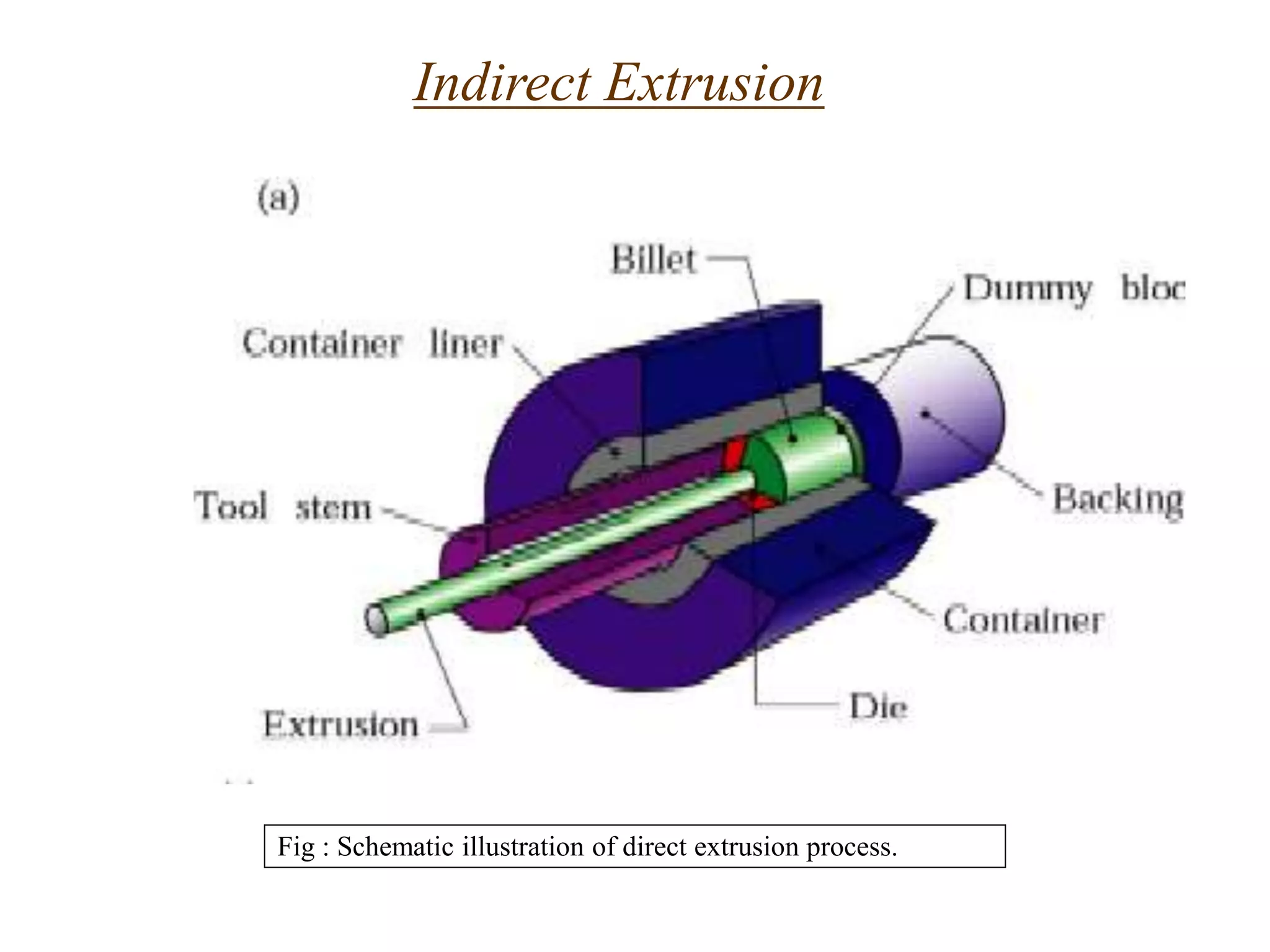

10. Indirect Extrusion
Fig : Schematic illustration of direct extrusion process.

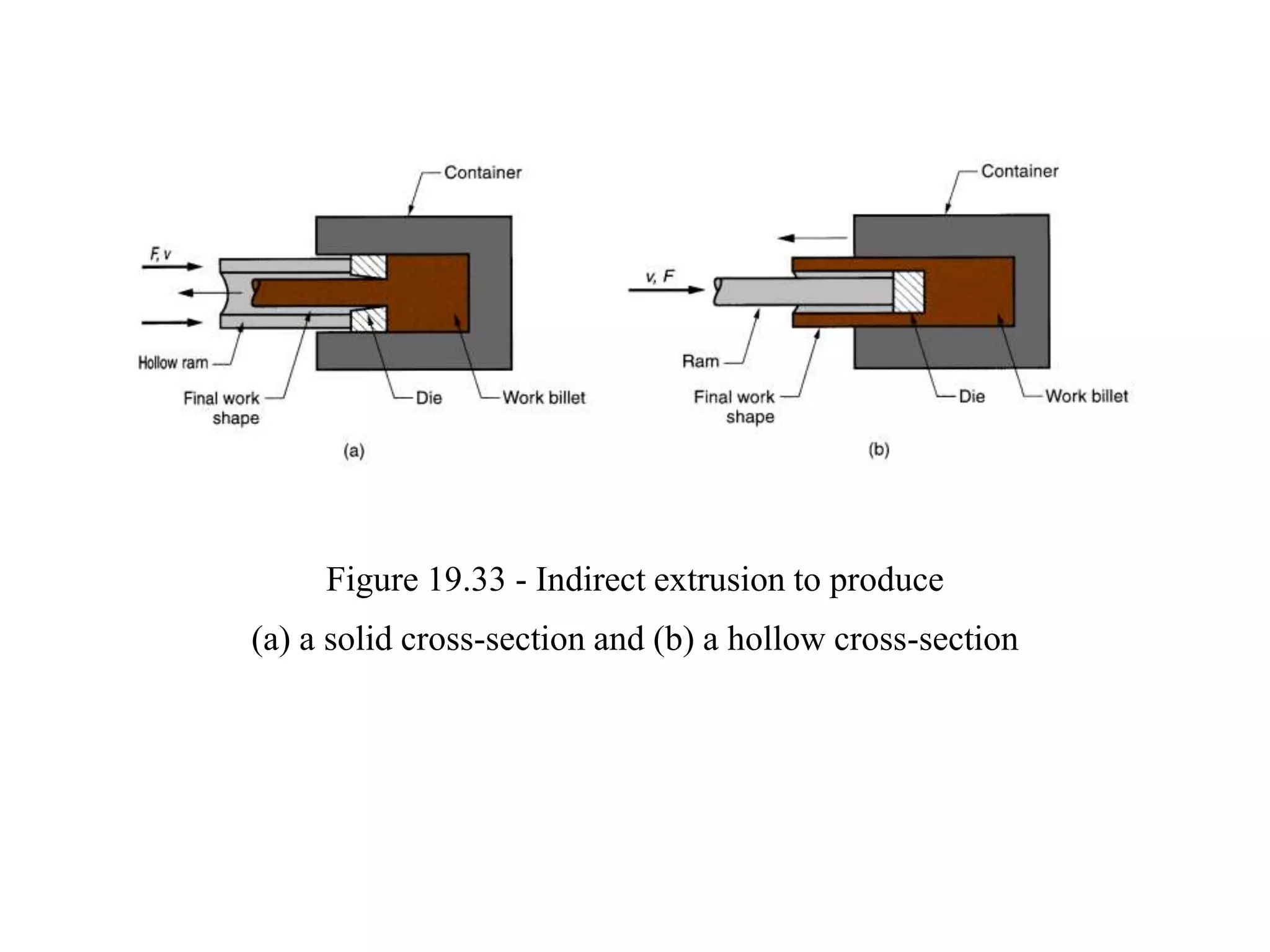

11. Figure 19.33 - Indirect extrusion to produce
(a) a solid cross-section and (b) a hollow cross-section

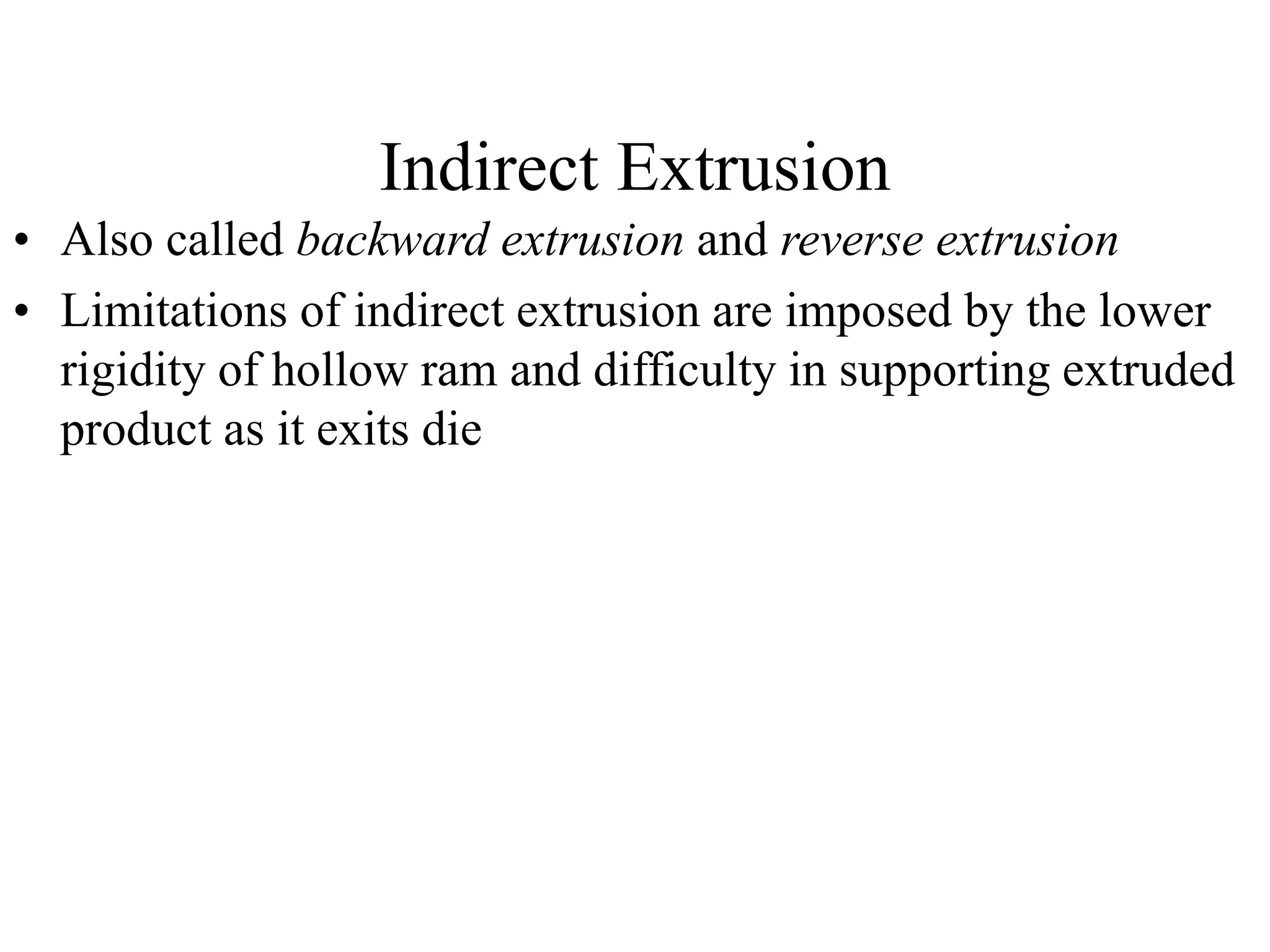

12. Indirect Extrusion
• Also called backward extrusion and reverse extrusion
• Limitations of indirect extrusion are imposed by the lower
rigidity of hollow ram and difficulty in supporting extruded
product as it exits die

13. General Advantages of Extrusion
• Variety of shapes possible, especially in hot extrusion
– Limitation: part cross-section must be uniform throughout length
• Grain structure and strength enhanced in cold and warm
extrusion
• Close tolerances possible, especially in cold extrusion
• In some operations, little or no waste of material

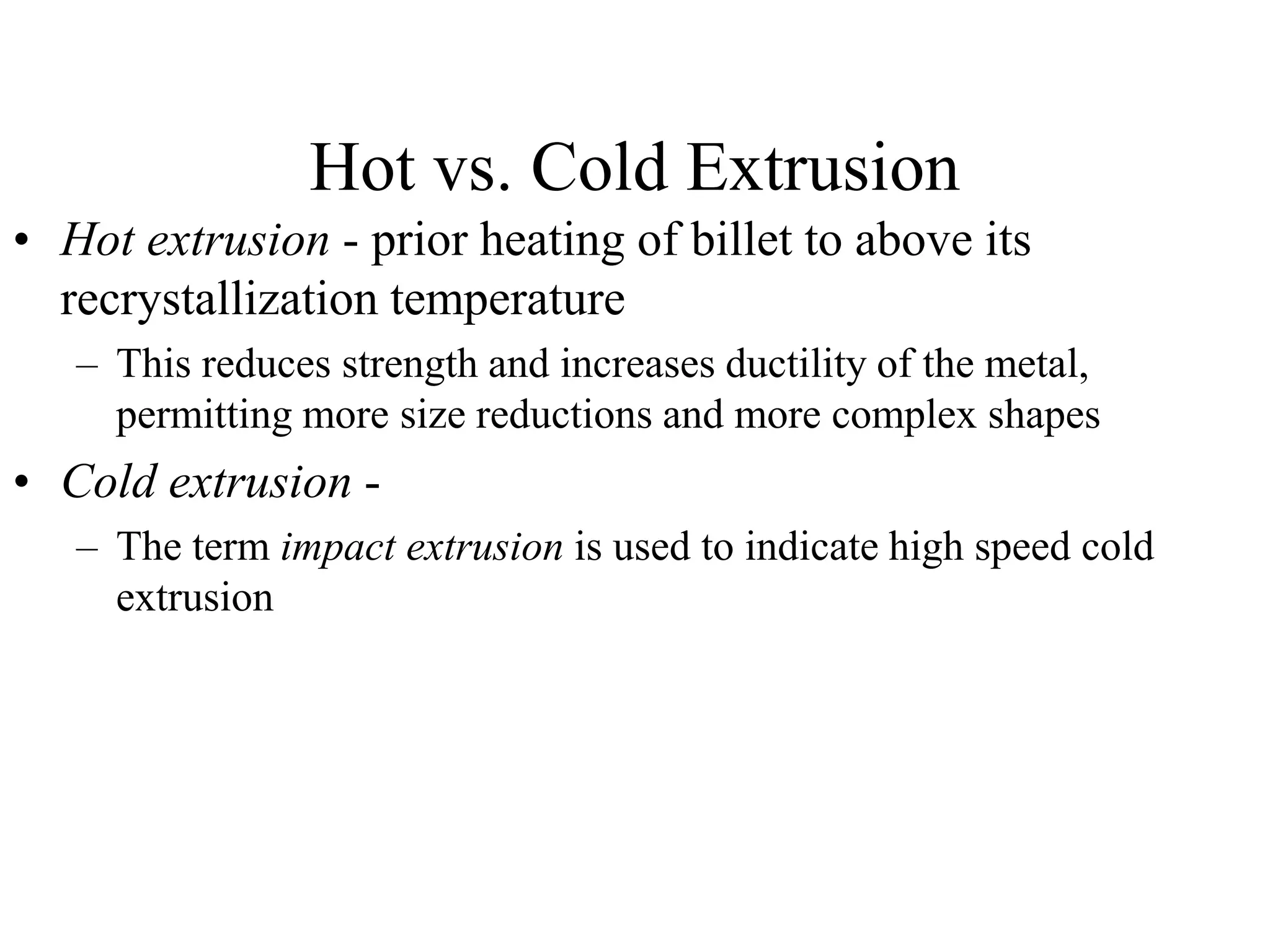

14. Hot vs. Cold Extrusion
• Hot extrusion - prior heating of billet to above its
recrystallization temperature
– This reduces strength and increases ductility of the metal,
permitting more size reductions and more complex shapes
• Cold extrusion -
– The term impact extrusion is used to indicate high speed cold
extrusion

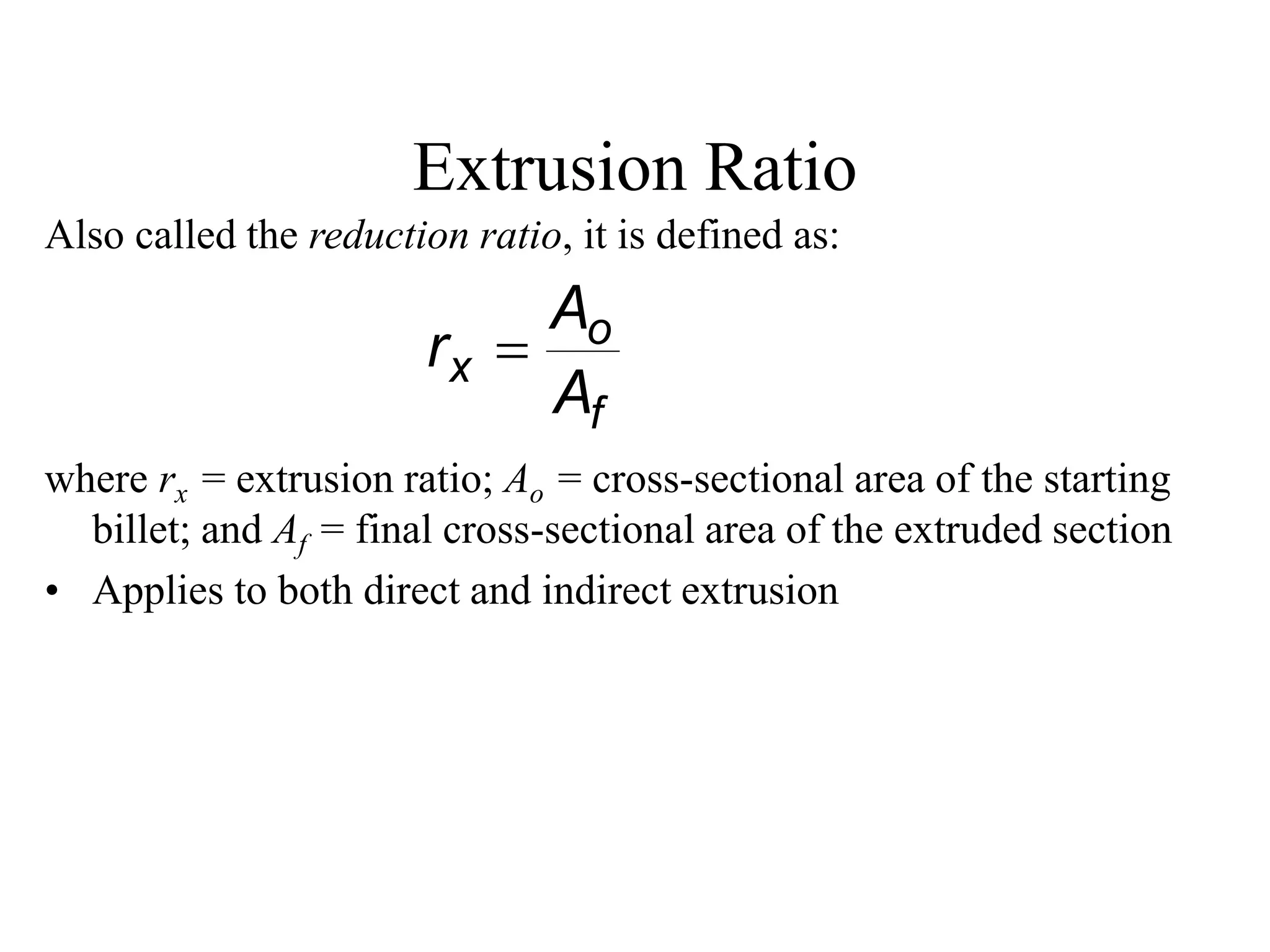

15. Extrusion Ratio
Also called the reduction ratio, it is defined as:
where rx = extrusion ratio; Ao = cross-sectional area of the starting
billet; and Af = final cross-sectional area of the extruded section
• Applies to both direct and indirect extrusion
f
o
x
A
A
r 

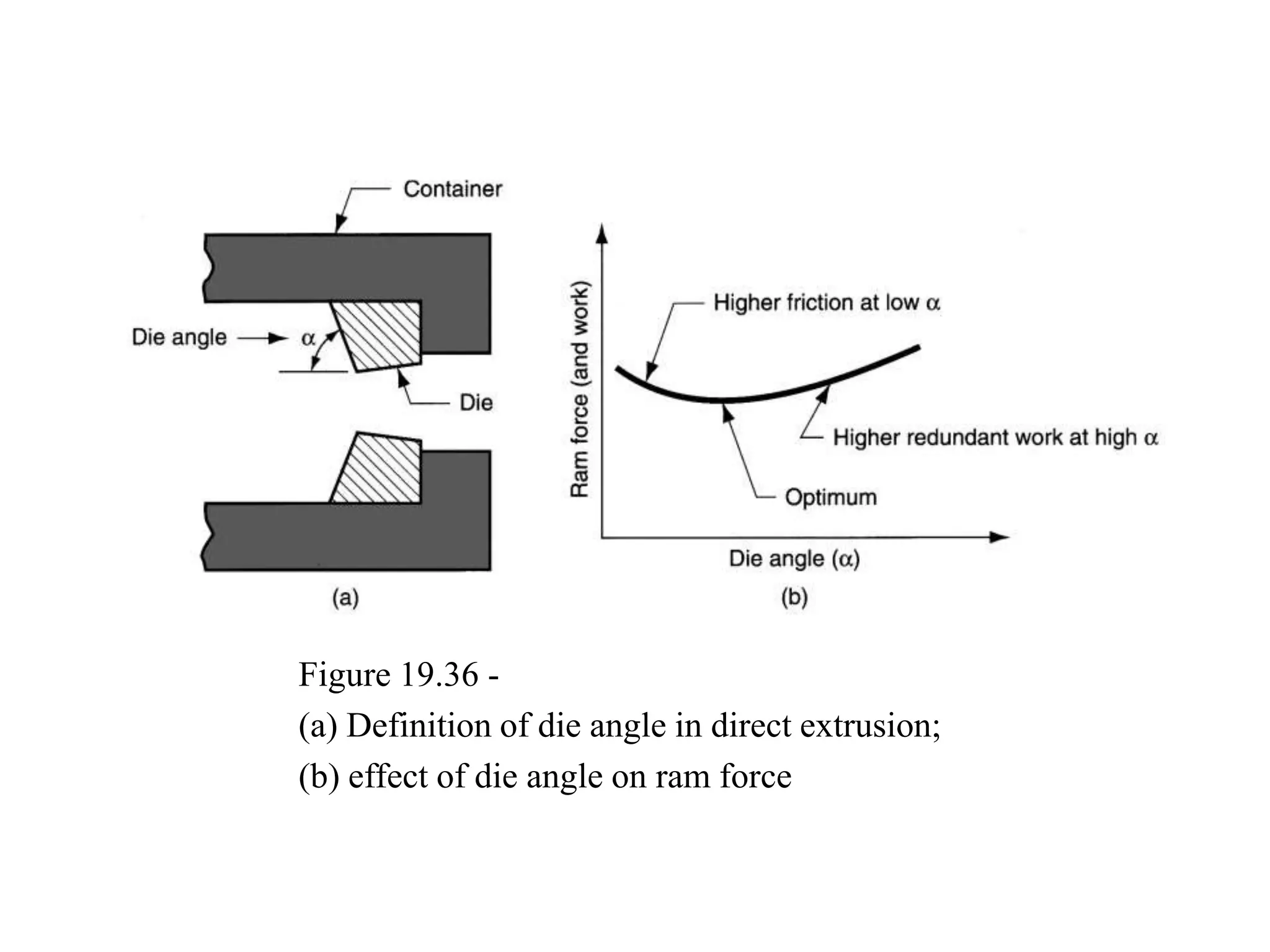

16. Figure 19.36 -
(a) Definition of die angle in direct extrusion;
(b) effect of die angle on ram force

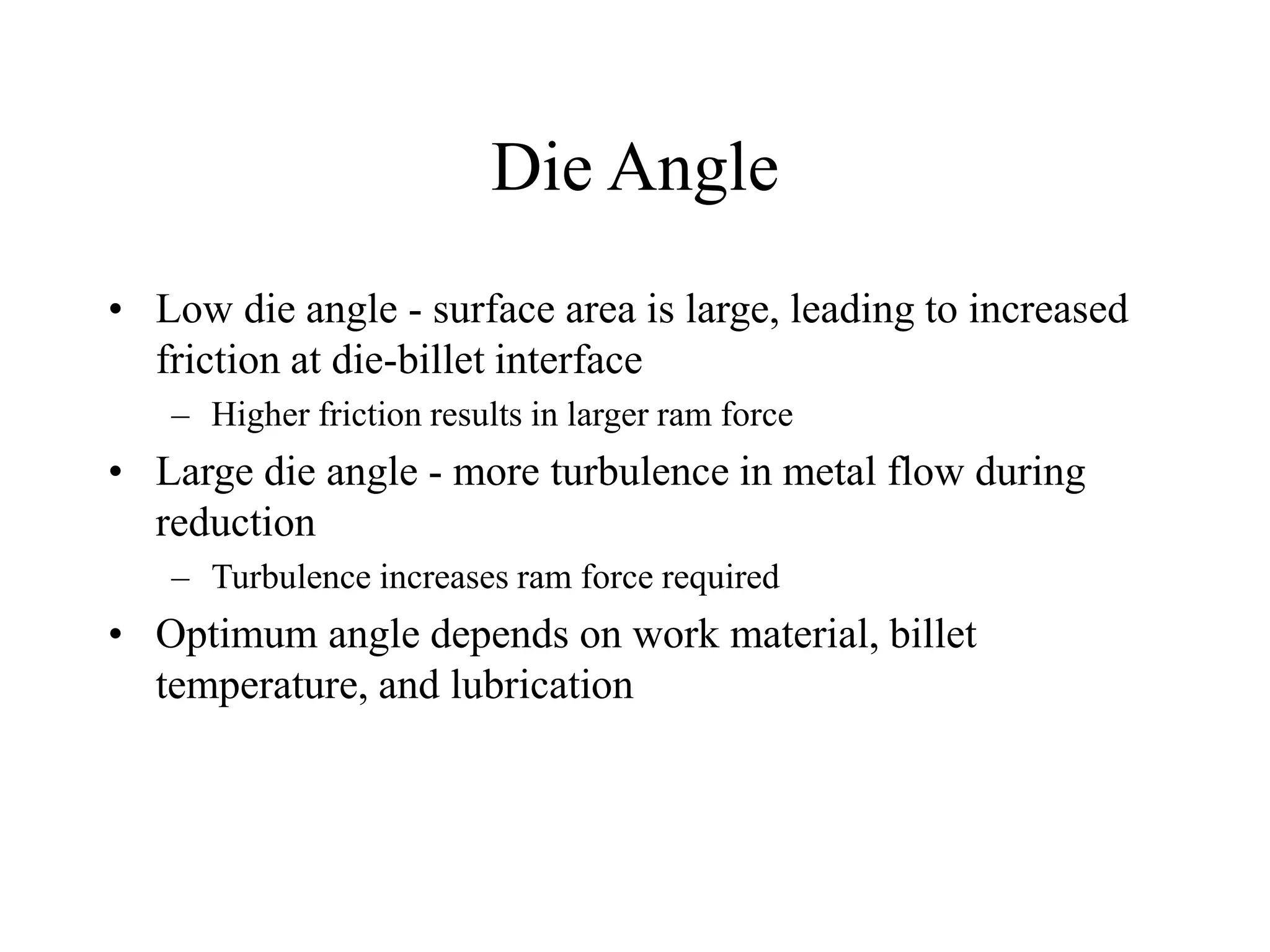

17. Die Angle
• Low die angle - surface area is large, leading to increased
friction at die-billet interface
– Higher friction results in larger ram force
• Large die angle - more turbulence in metal flow during
reduction
– Turbulence increases ram force required
• Optimum angle depends on work material, billet
temperature, and lubrication

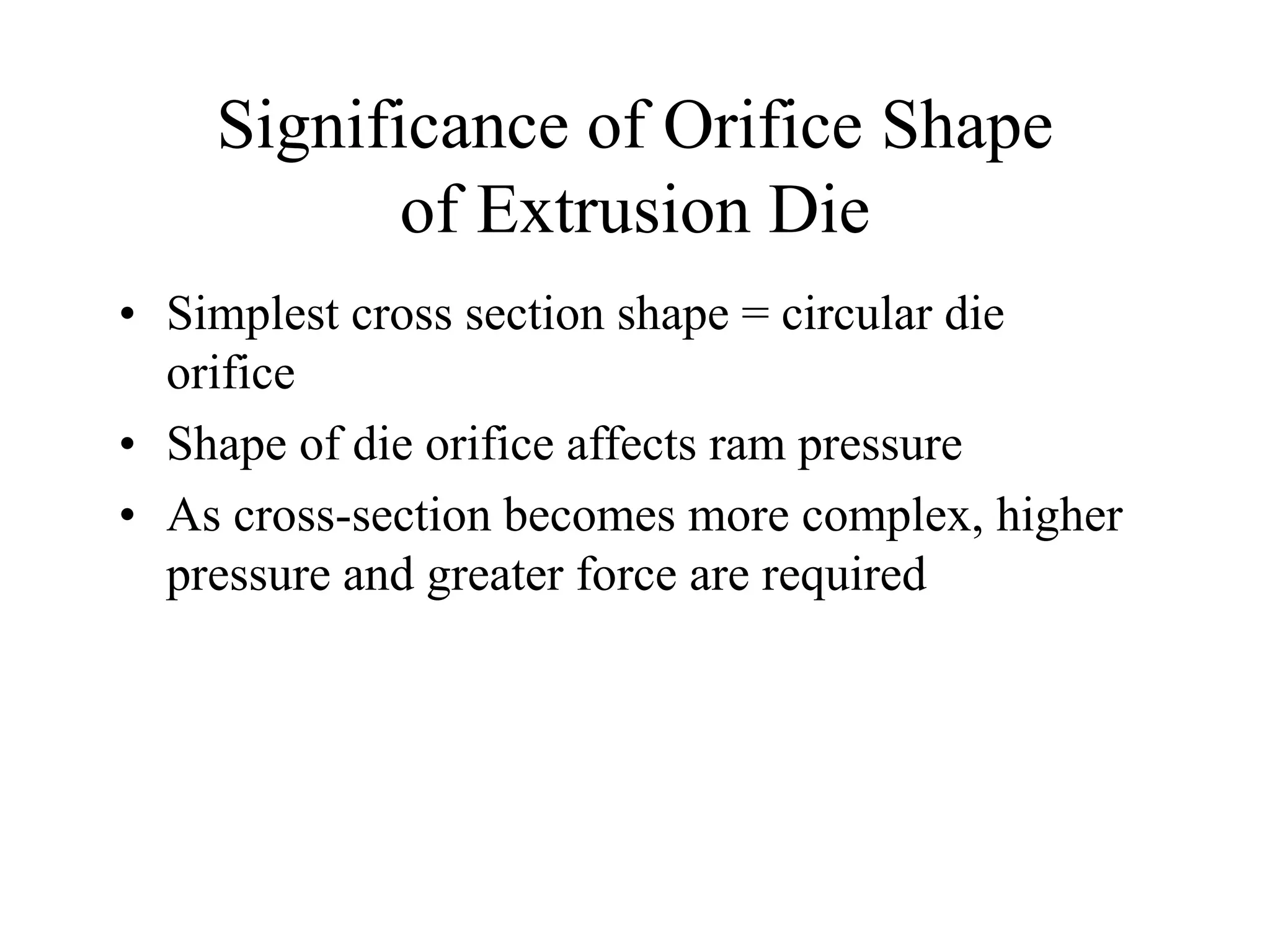

18. Significance of Orifice Shape
of Extrusion Die
• Simplest cross section shape = circular die
orifice
• Shape of die orifice affects ram pressure
• As cross-section becomes more complex, higher
pressure and greater force are required

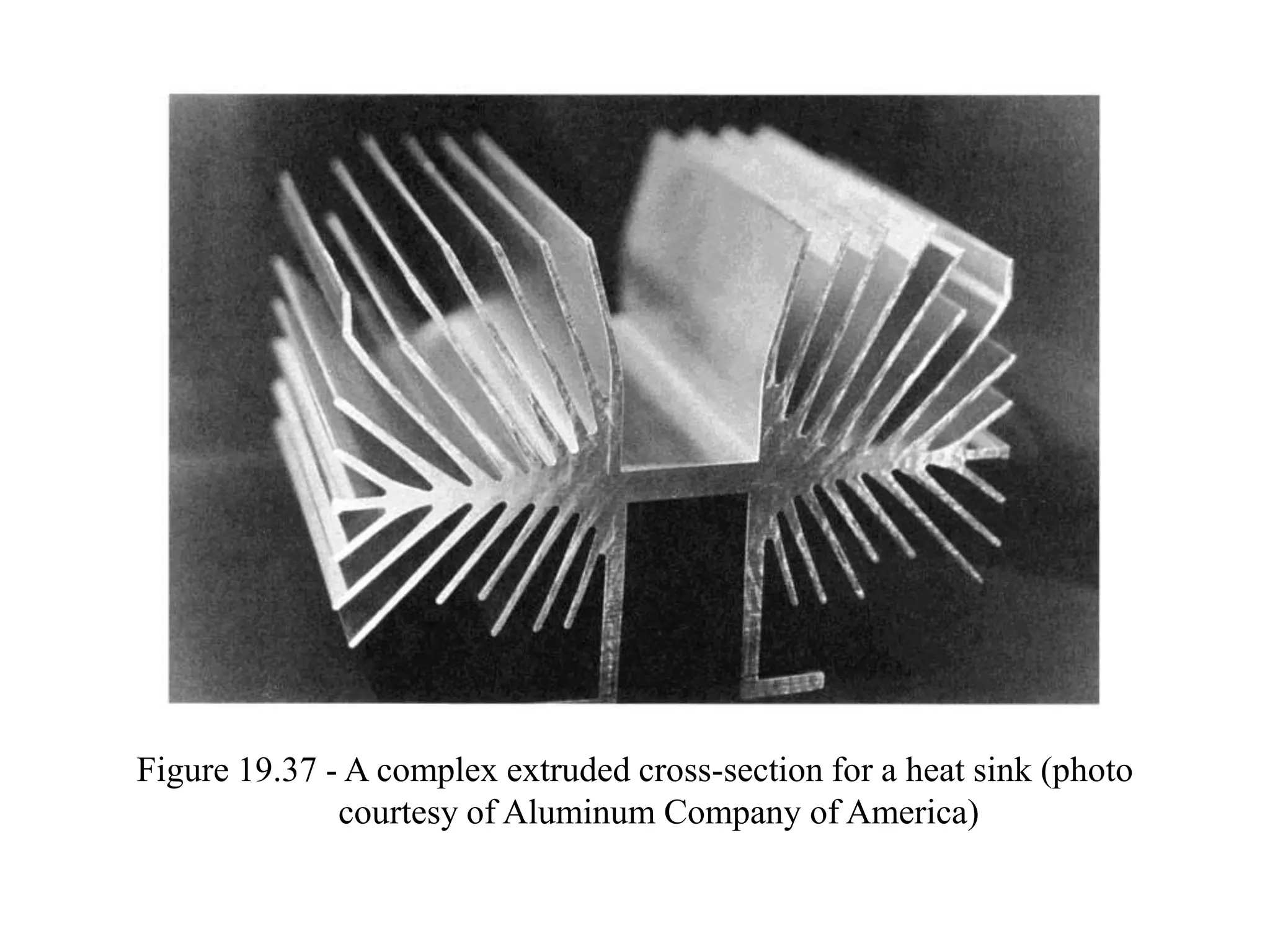

19. Figure 19.37 - A complex extruded cross-section for a heat sink (photo
courtesy of Aluminum Company of America)

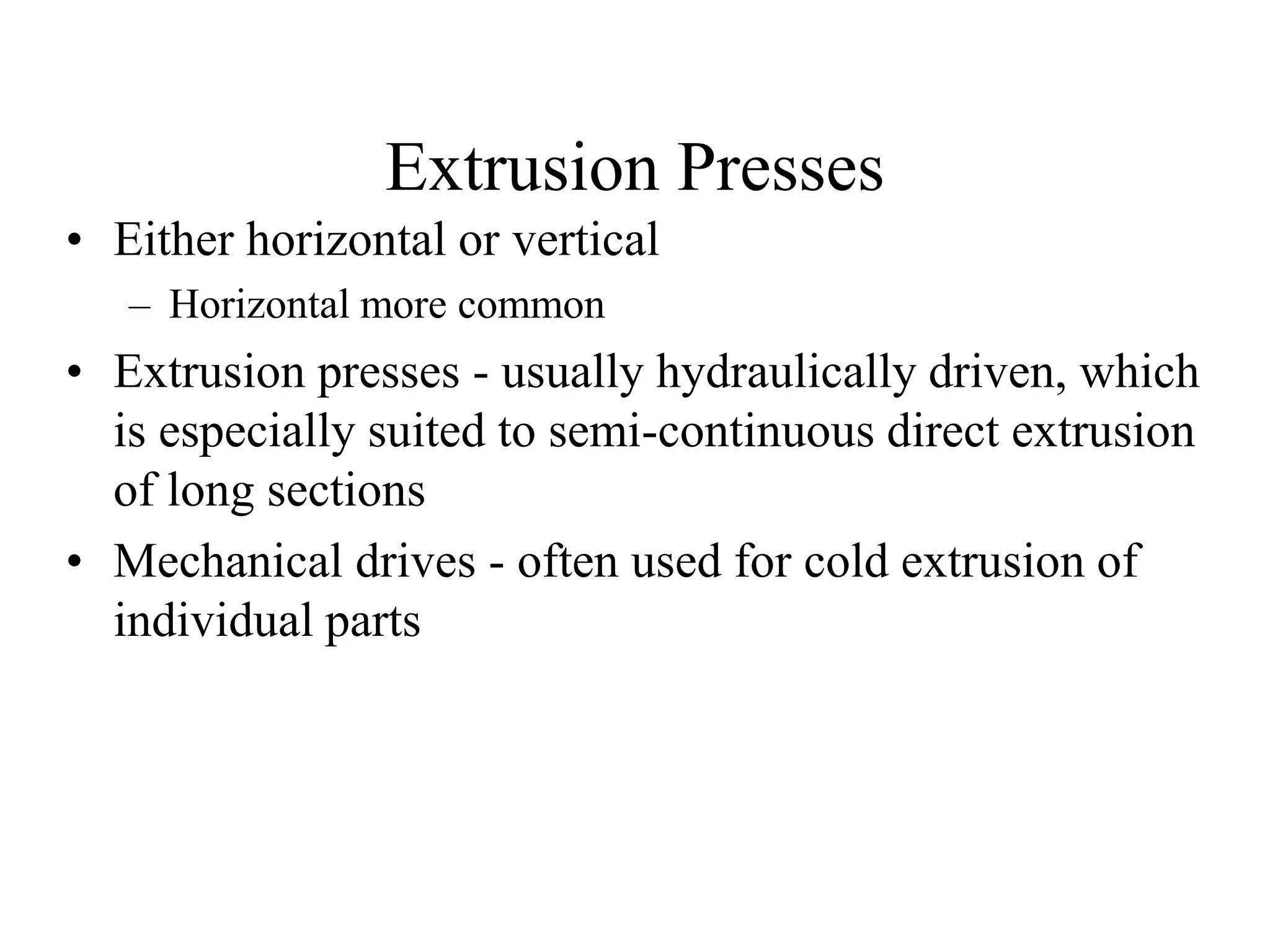

20. Extrusion Presses
• Either horizontal or vertical
– Horizontal more common
• Extrusion presses - usually hydraulically driven, which
is especially suited to semi-continuous direct extrusion
of long sections
• Mechanical drives - often used for cold extrusion of
individual parts

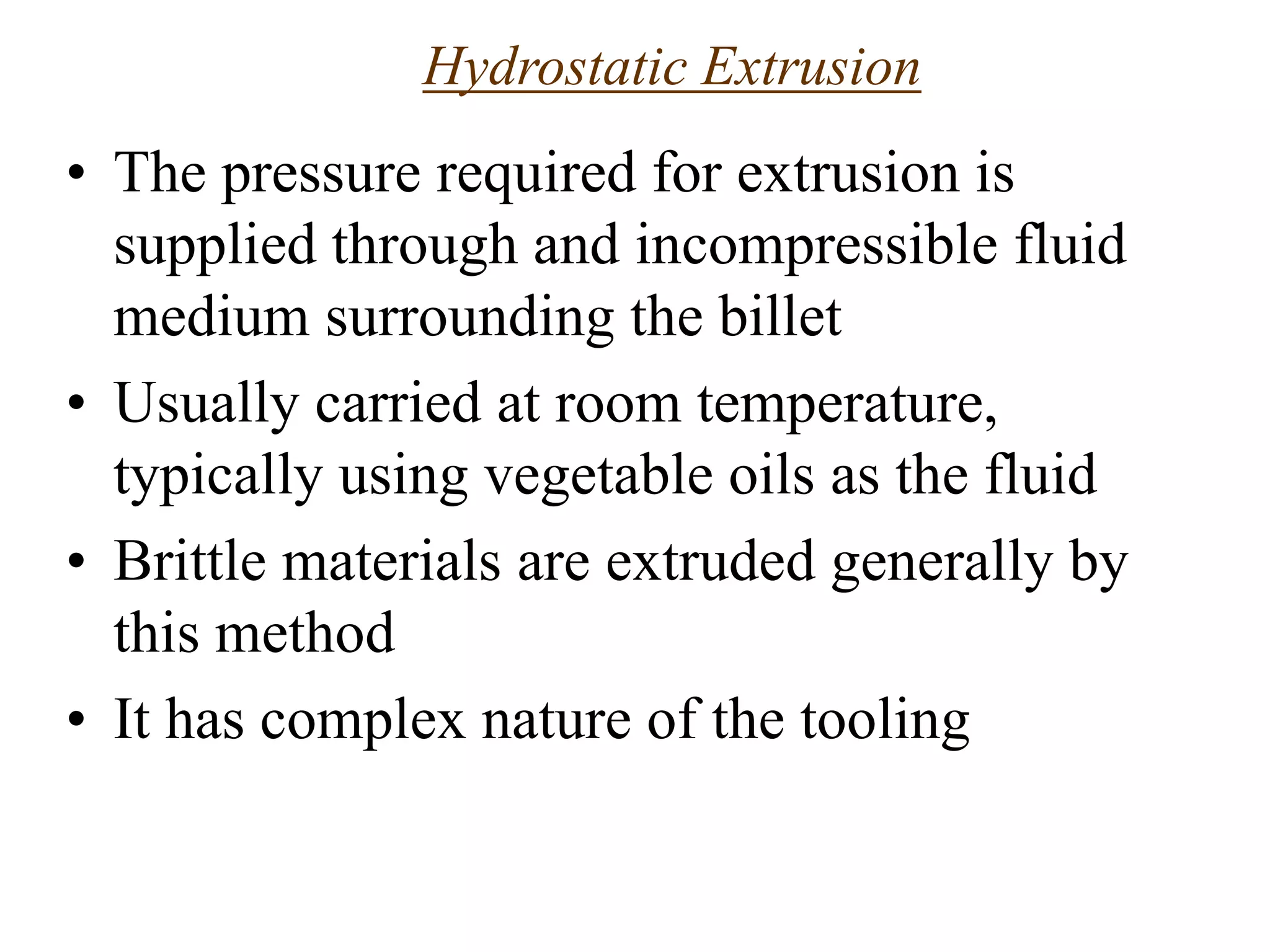

21. Hydrostatic Extrusion
• The pressure required for extrusion is
supplied through and incompressible fluid
medium surrounding the billet
• Usually carried at room temperature,
typically using vegetable oils as the fluid
• Brittle materials are extruded generally by
this method
• It has complex nature of the tooling

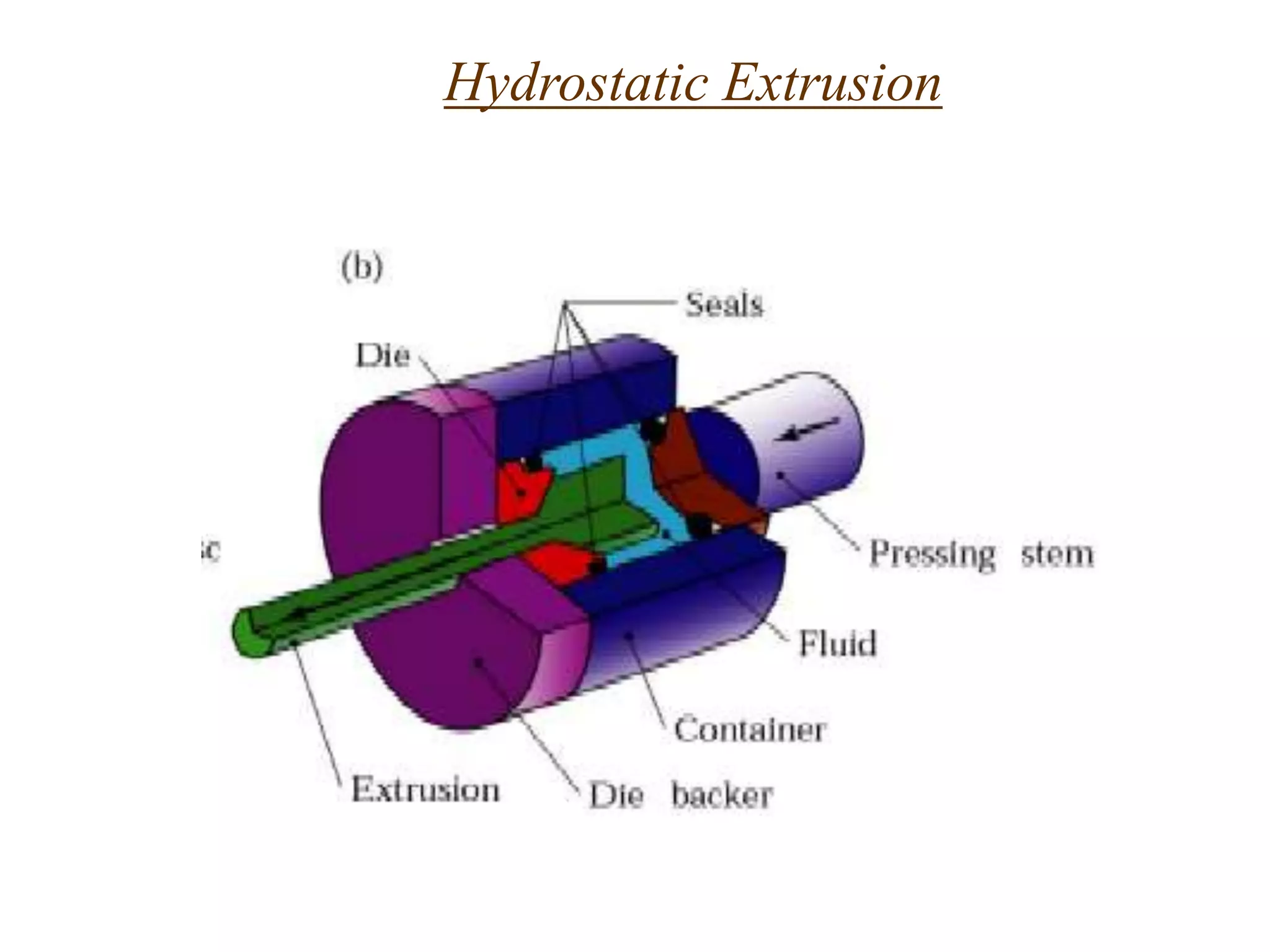

22. Hydrostatic Extrusion

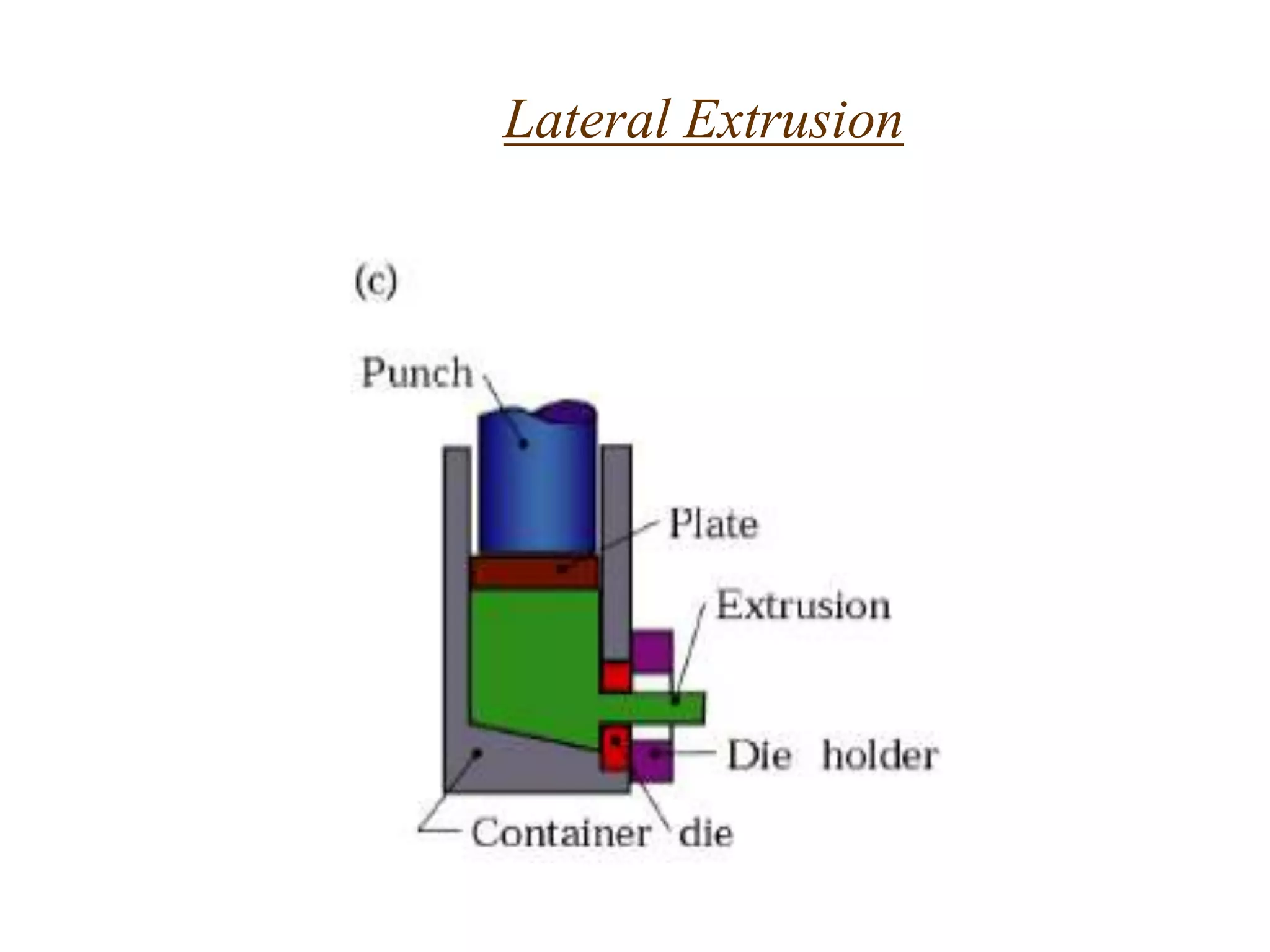

23. Lateral Extrusion

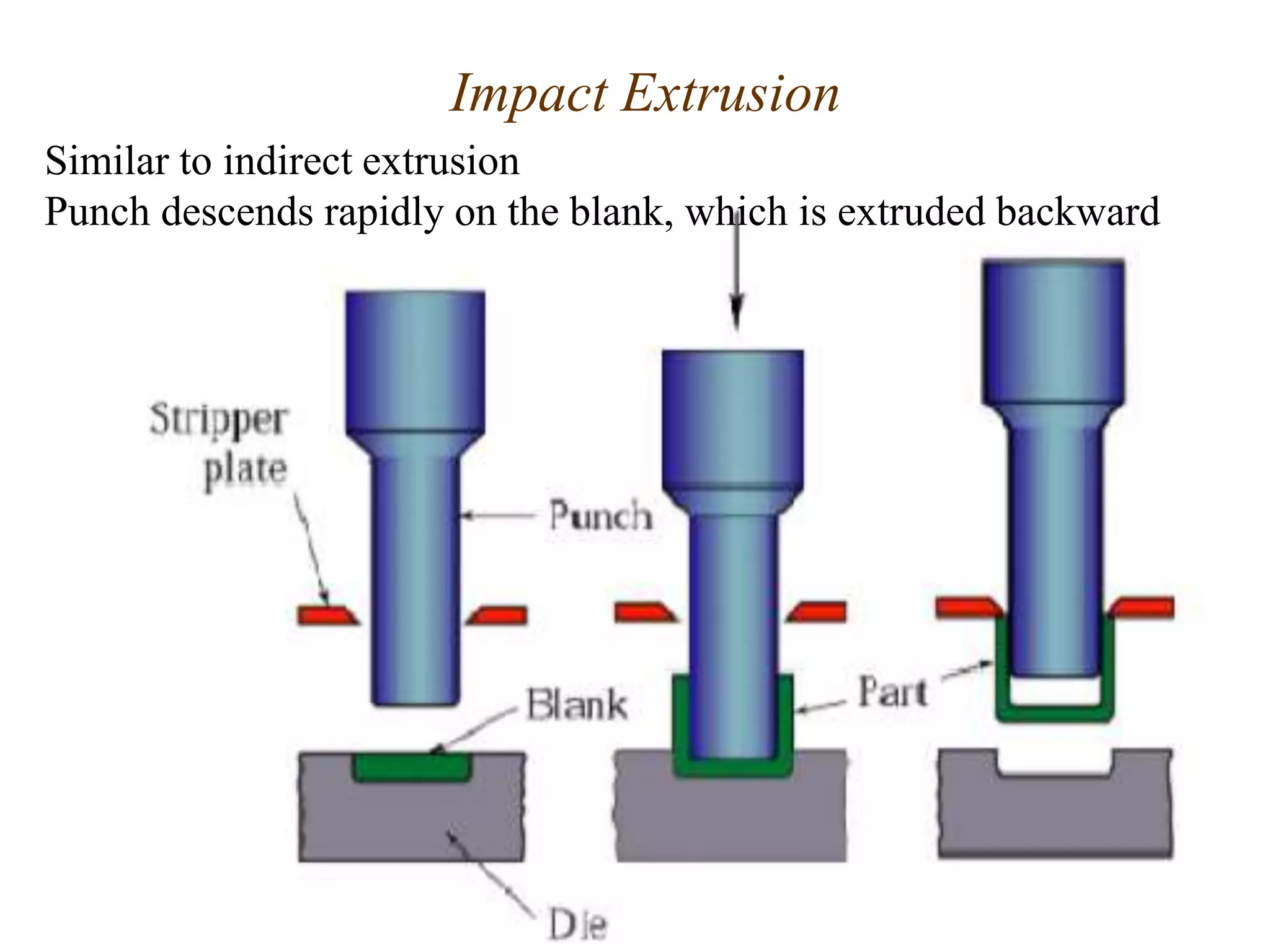

24. Impact Extrusion
Similar to indirect extrusion
Punch descends rapidly on the blank, which is extruded backward

25. Examples of Impact Extrusion
Fig : (a) Two examples of products made by impact extrusion. These parts may also be made by casting, by forging,
or by machining; the choice of process depends on the dimensions and the materials involved and on the
properties desires. Economic considerations are also important in final process selection. (b) and (c) Impact
extrusion of a collapsible tube by the Hooker process.

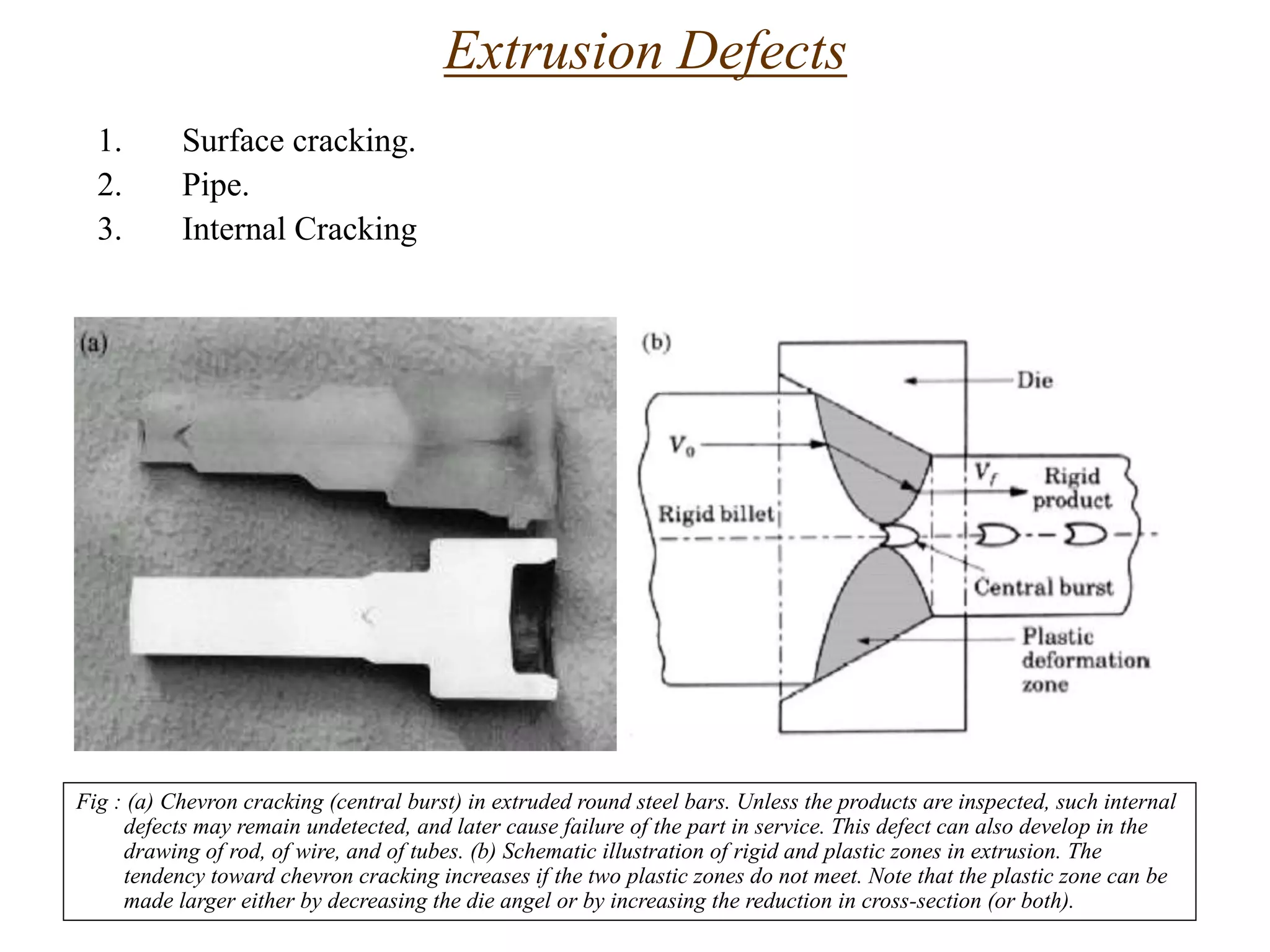

26. Extrusion Defects
1. Surface cracking.
2. Pipe.
3. Internal Cracking
Fig : (a) Chevron cracking (central burst) in extruded round steel bars. Unless the products are inspected, such internal
defects may remain undetected, and later cause failure of the part in service. This defect can also develop in the
drawing of rod, of wire, and of tubes. (b) Schematic illustration of rigid and plastic zones in extrusion. The
tendency toward chevron cracking increases if the two plastic zones do not meet. Note that the plastic zone can be
made larger either by decreasing the die angel or by increasing the reduction in cross-section (or both).

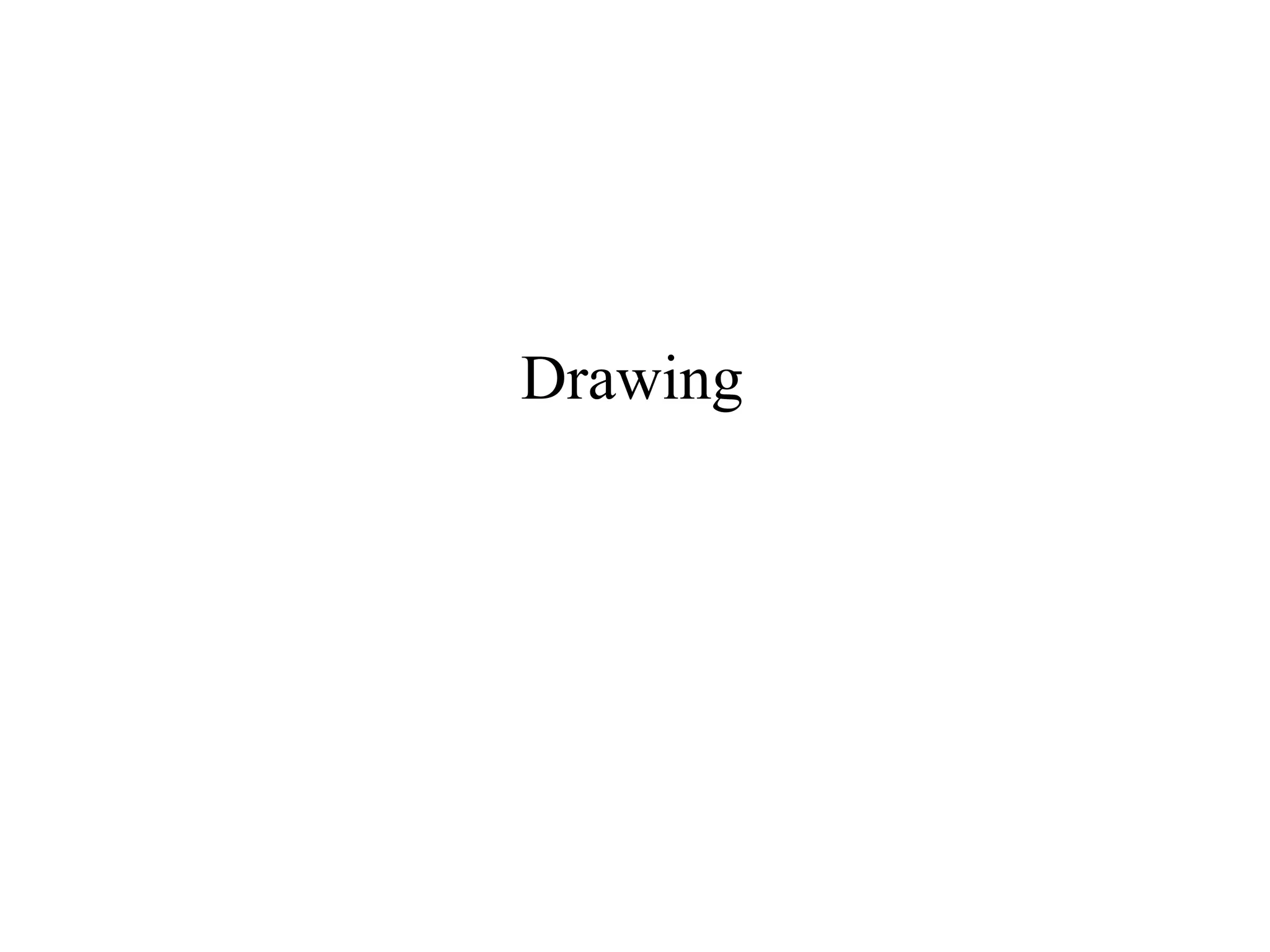

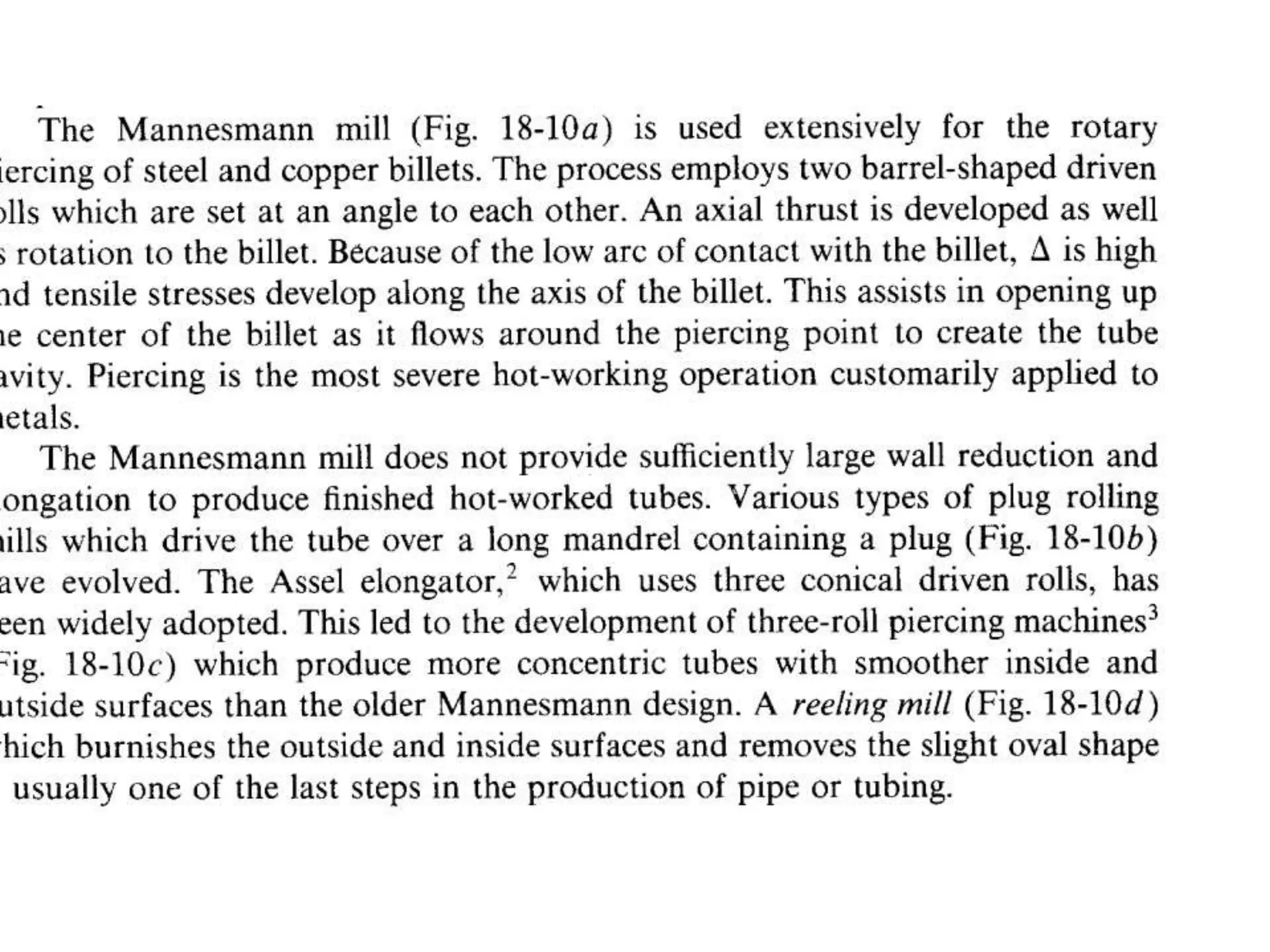

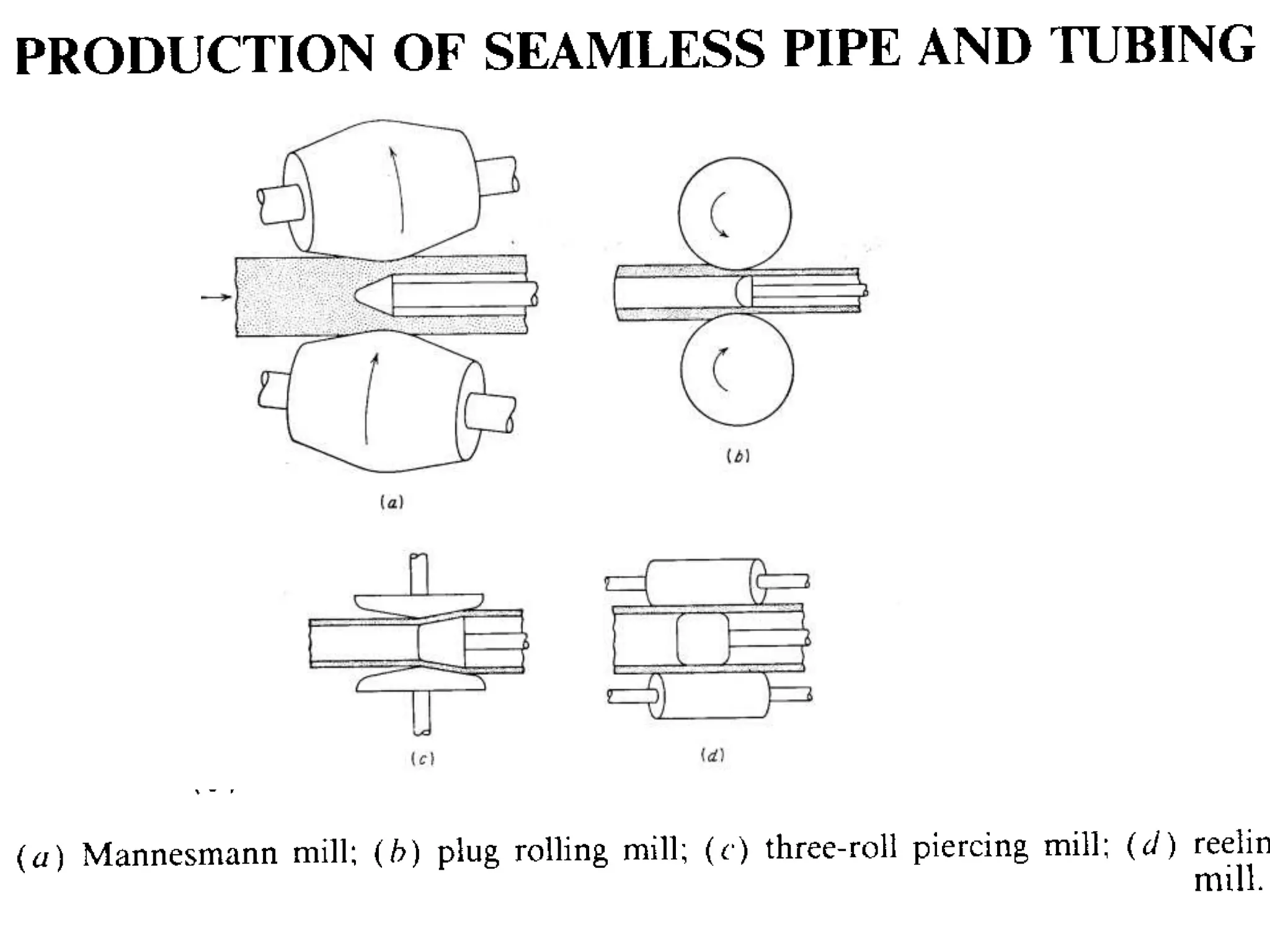

29. Drawing

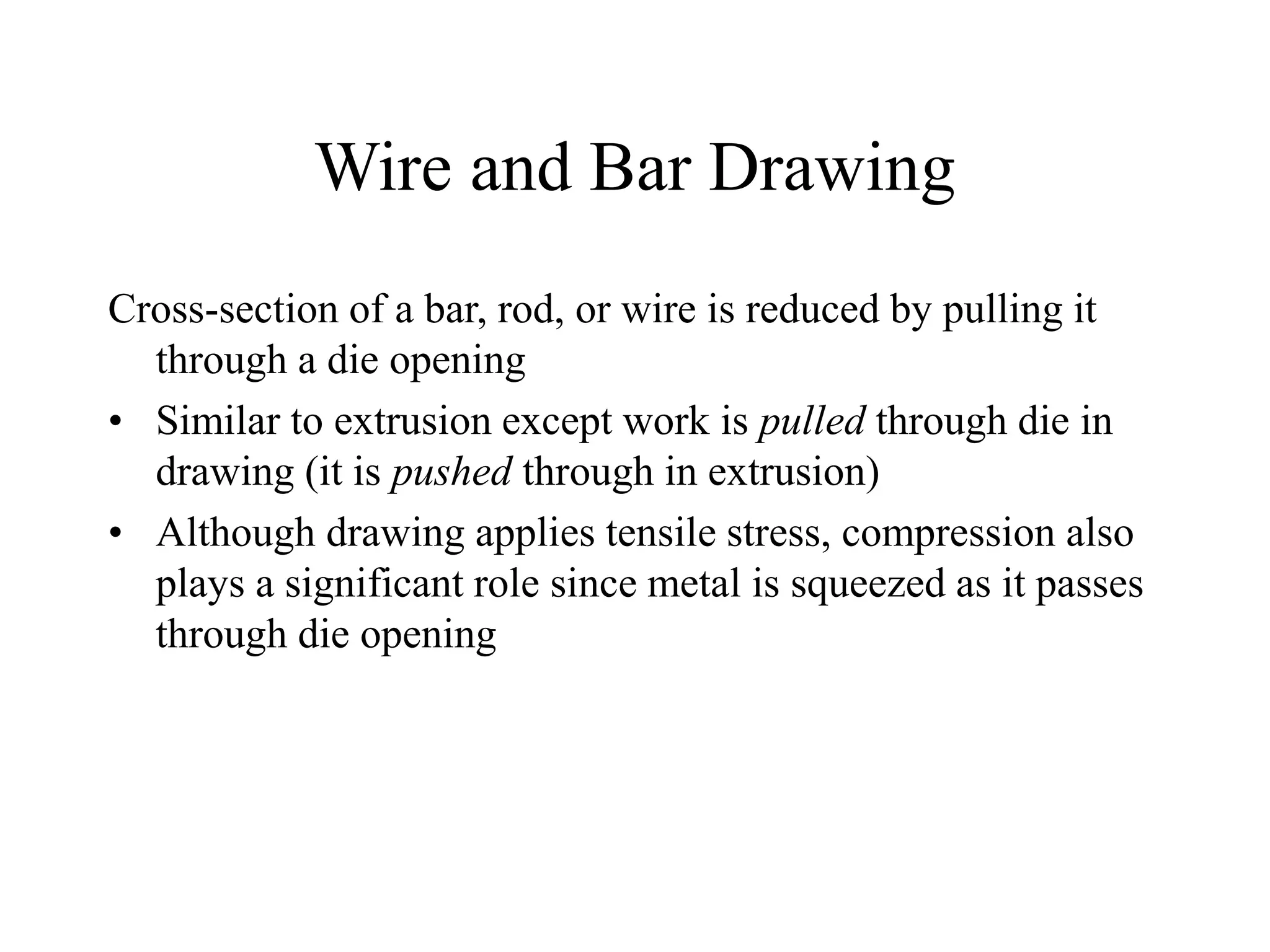

30. Wire and Bar Drawing
Cross-section of a bar, rod, or wire is reduced by pulling it
through a die opening
• Similar to extrusion except work is pulled through die in
drawing (it is pushed through in extrusion)
• Although drawing applies tensile stress, compression also
plays a significant role since metal is squeezed as it passes
through die opening

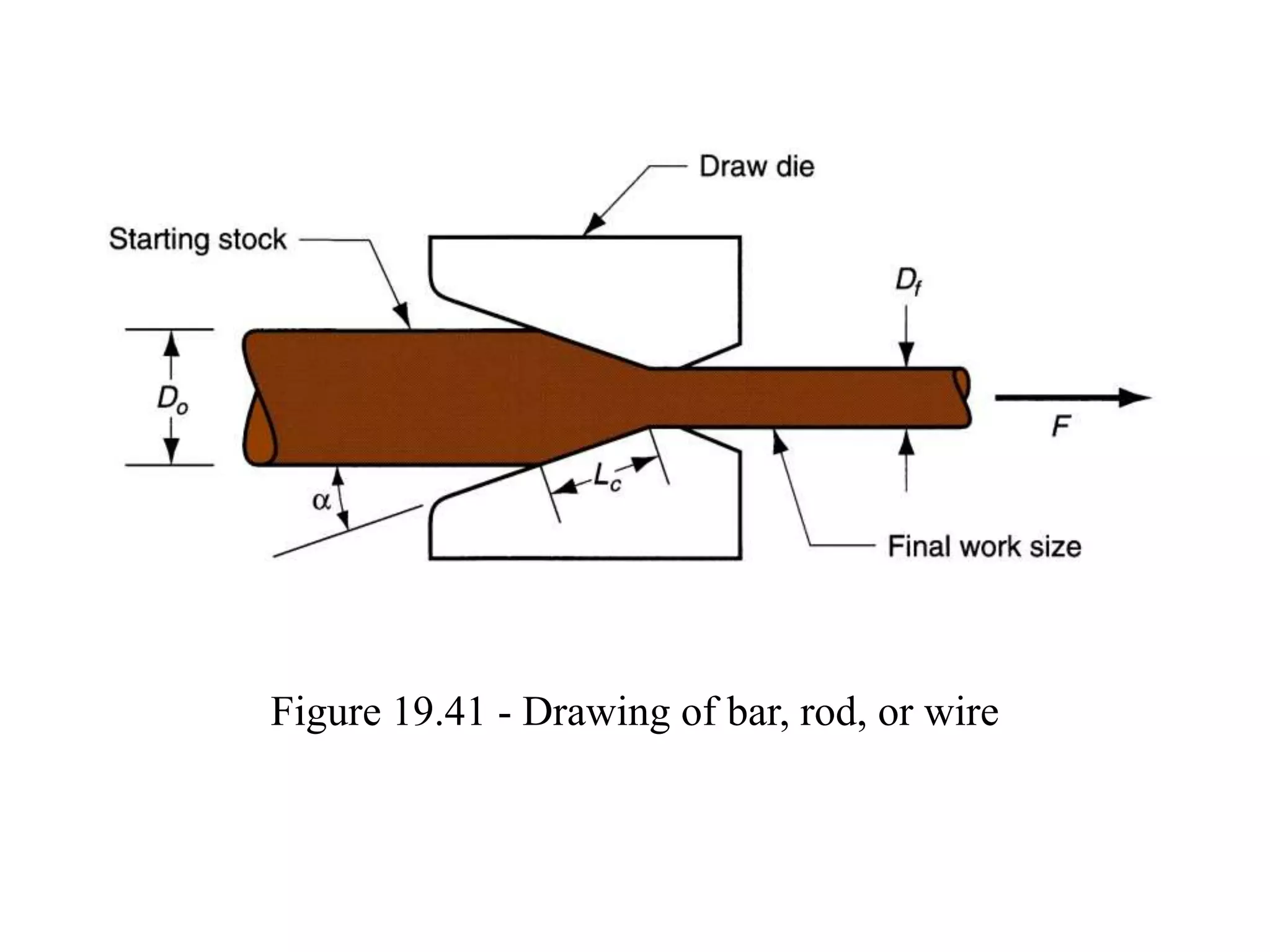

31. Figure 19.41 - Drawing of bar, rod, or wire

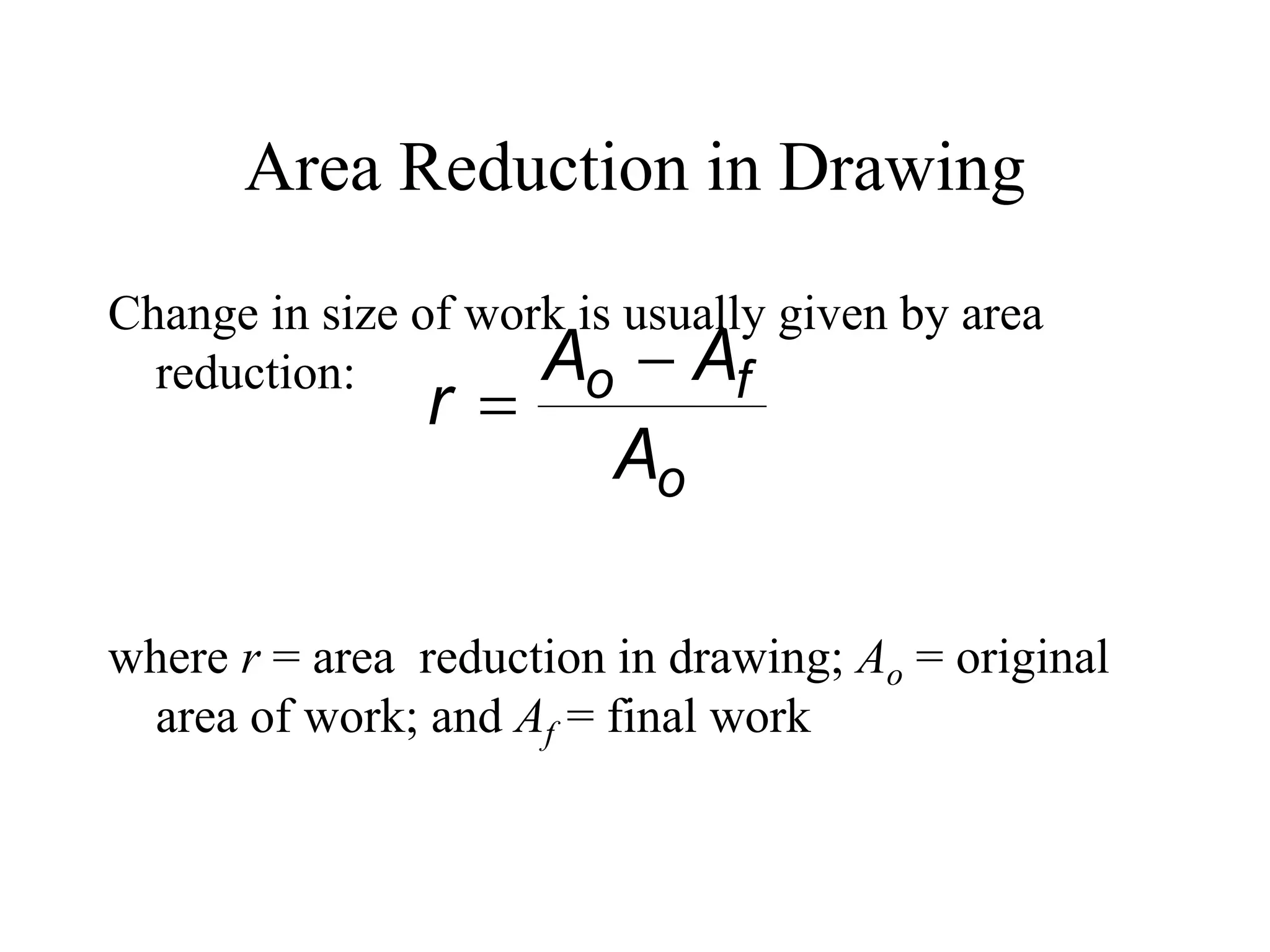

32. Area Reduction in Drawing
Change in size of work is usually given by area
reduction:
where r = area reduction in drawing; Ao = original
area of work; and Af = final work
o
f
o
A
A
A
r



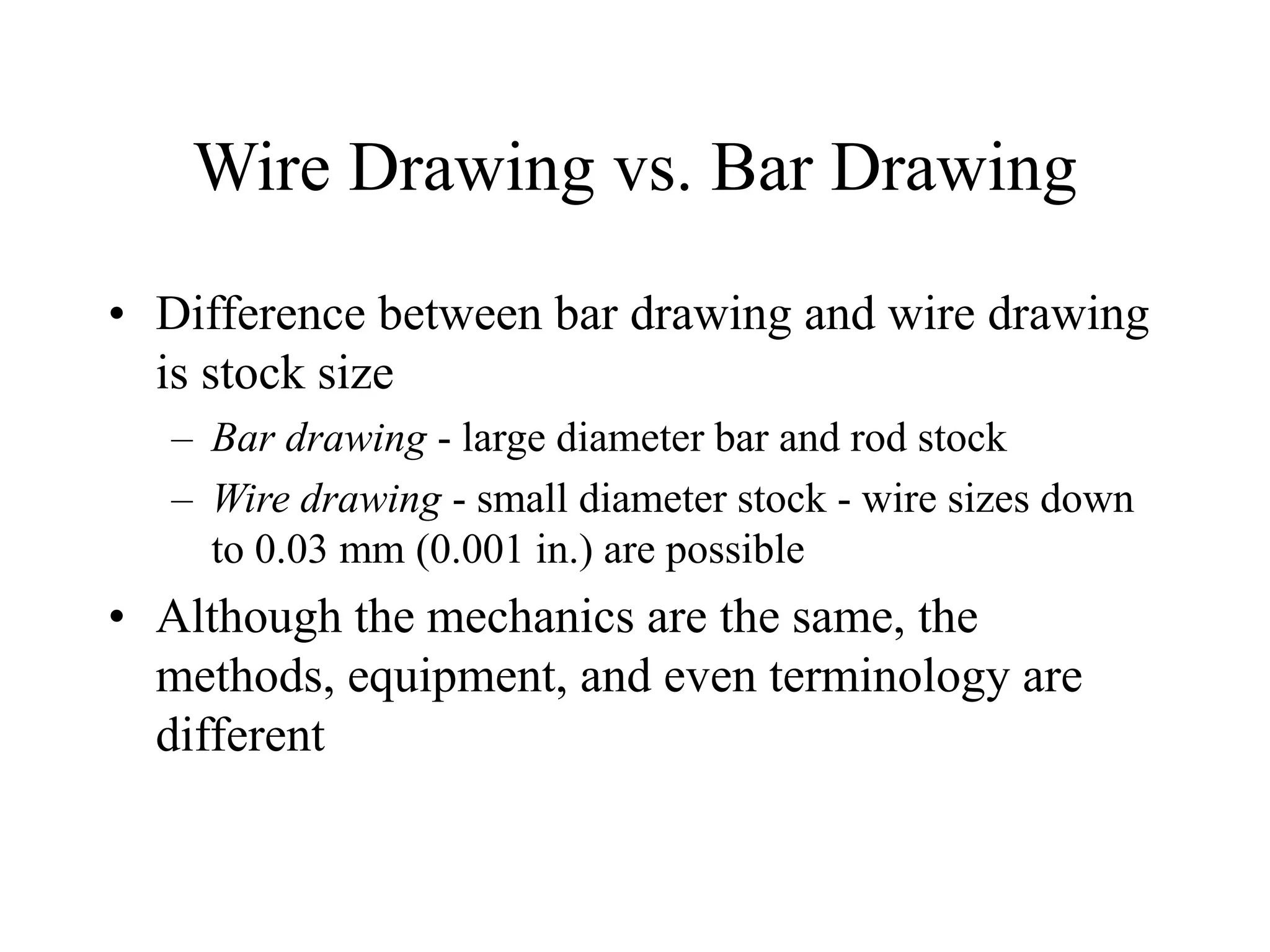

33. Wire Drawing vs. Bar Drawing
• Difference between bar drawing and wire drawing
is stock size
– Bar drawing - large diameter bar and rod stock
– Wire drawing - small diameter stock - wire sizes down
to 0.03 mm (0.001 in.) are possible
• Although the mechanics are the same, the
methods, equipment, and even terminology are
different

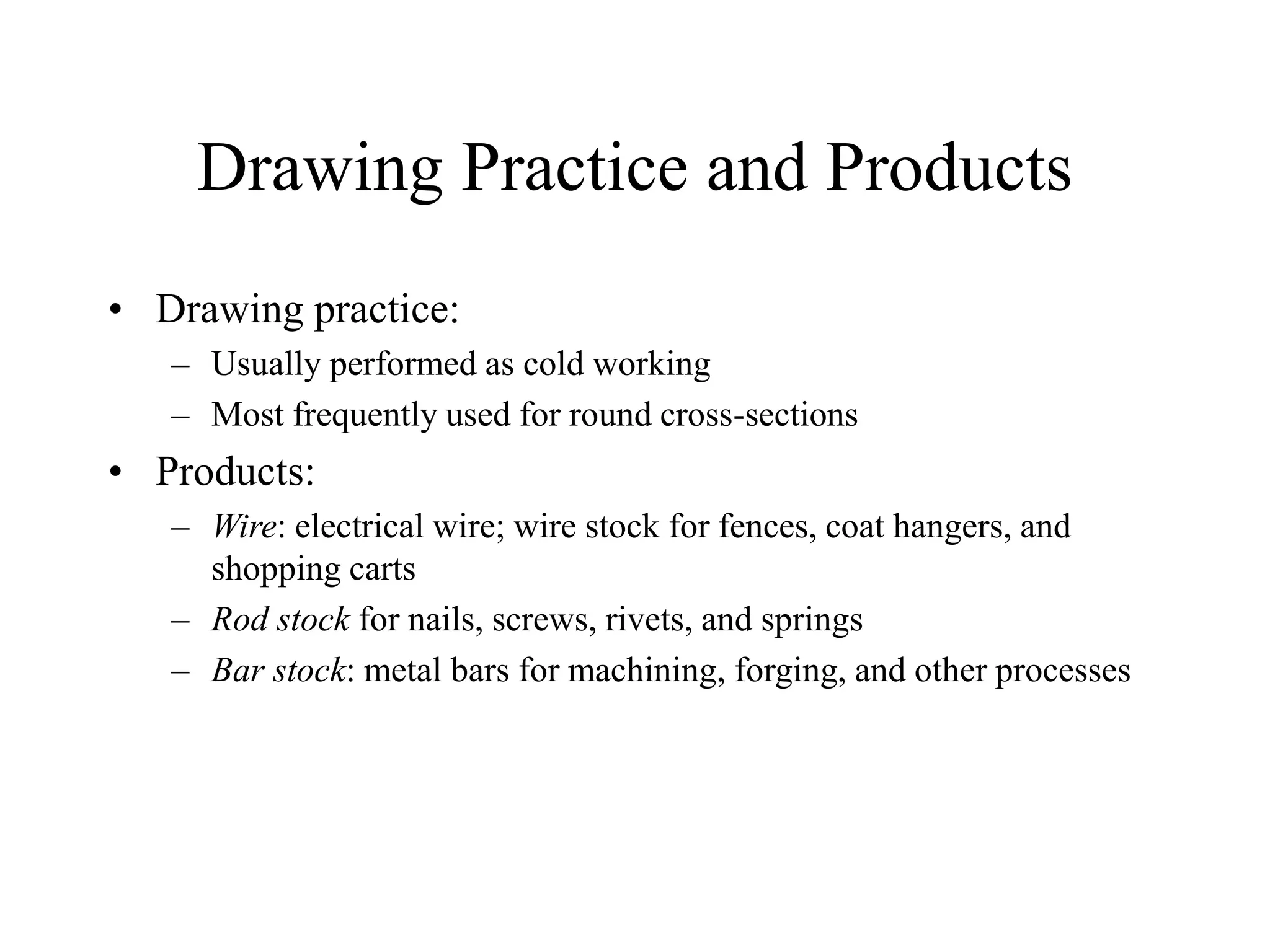

34. Drawing Practice and Products
• Drawing practice:
– Usually performed as cold working
– Most frequently used for round cross-sections
• Products:
– Wire: electrical wire; wire stock for fences, coat hangers, and
shopping carts
– Rod stock for nails, screws, rivets, and springs
– Bar stock: metal bars for machining, forging, and other processes

35. Bar Drawing
• Accomplished as a single-draft operation - the stock
is pulled through one die opening
• Beginning stock has large diameter and is a straight
cylinder
• This necessitates a batch type operation

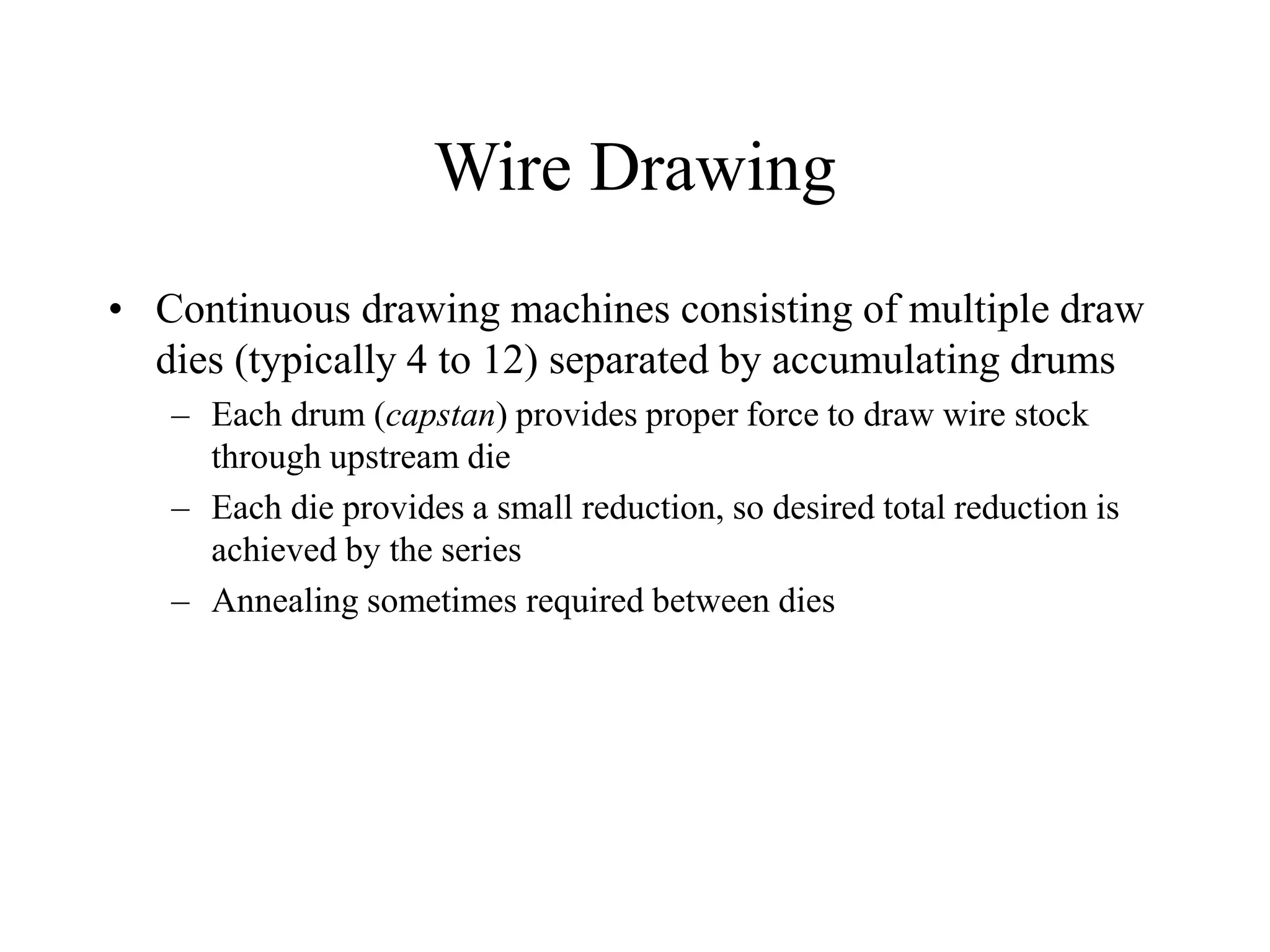

36. Wire Drawing
• Continuous drawing machines consisting of multiple draw
dies (typically 4 to 12) separated by accumulating drums
– Each drum (capstan) provides proper force to draw wire stock
through upstream die
– Each die provides a small reduction, so desired total reduction is
achieved by the series
– Annealing sometimes required between dies

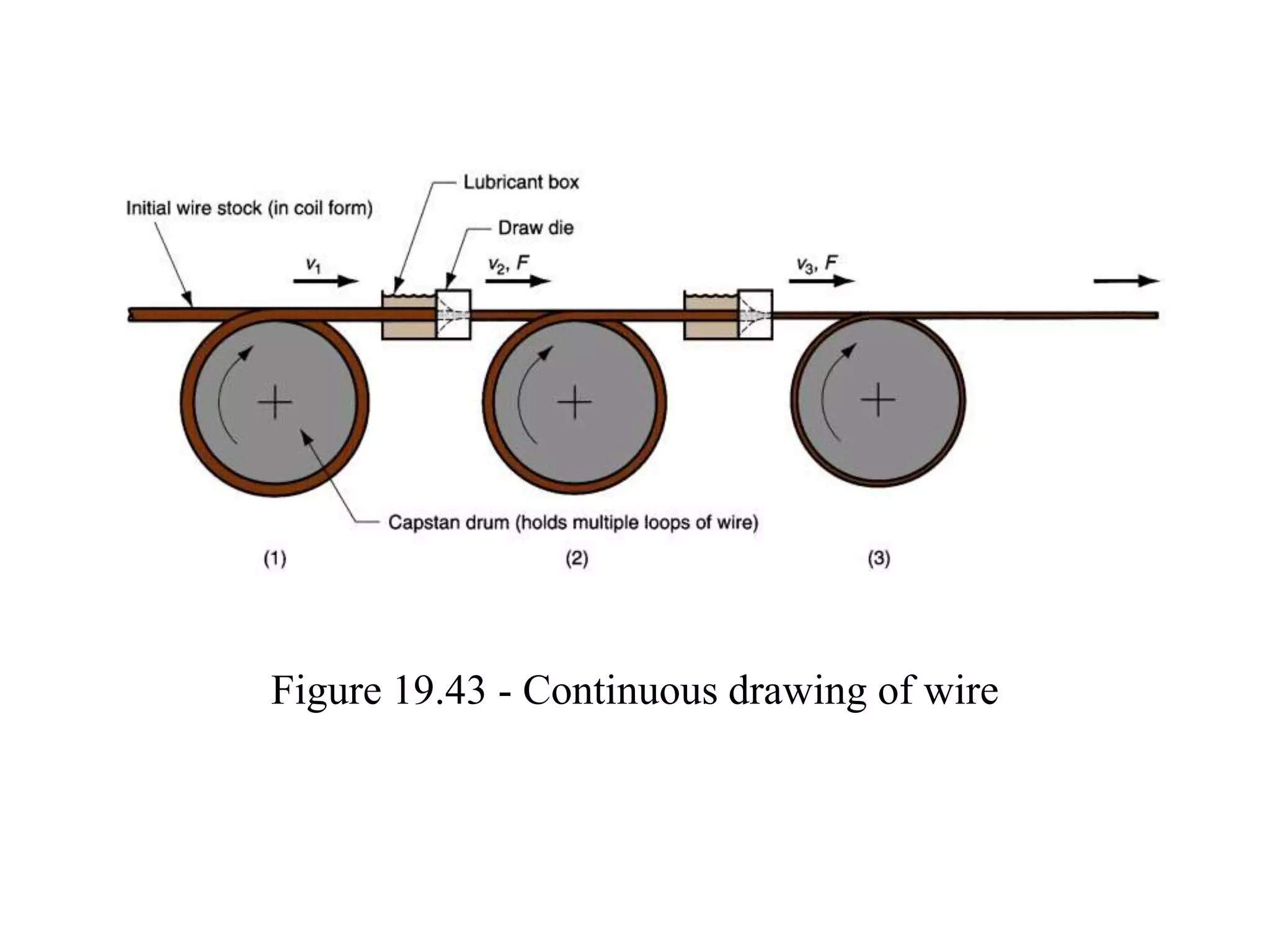

37. Figure 19.43 - Continuous drawing of wire

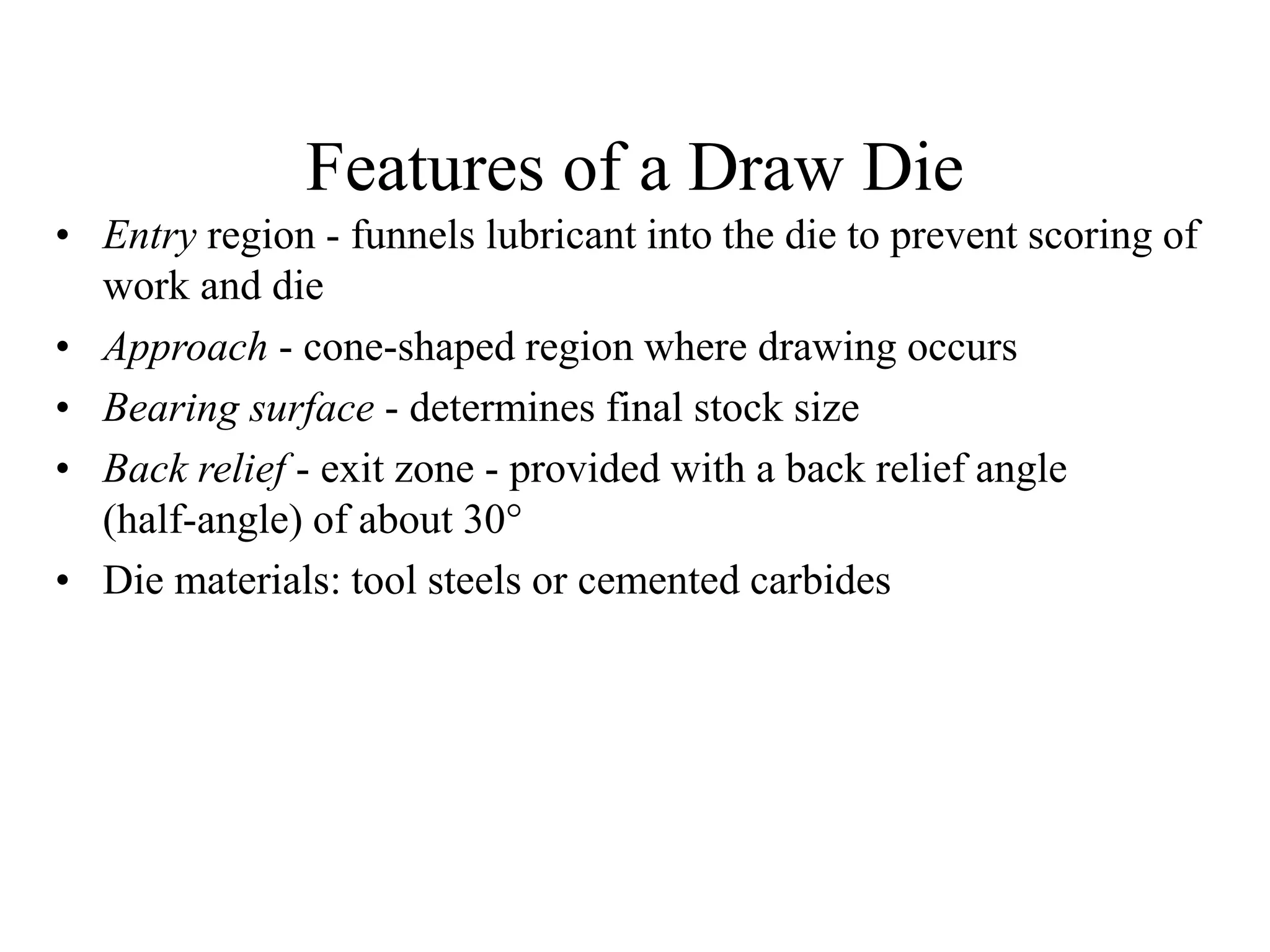

38. Features of a Draw Die
• Entry region - funnels lubricant into the die to prevent scoring of
work and die
• Approach - cone-shaped region where drawing occurs
• Bearing surface - determines final stock size
• Back relief - exit zone - provided with a back relief angle
(half-angle) of about 30
• Die materials: tool steels or cemented carbides

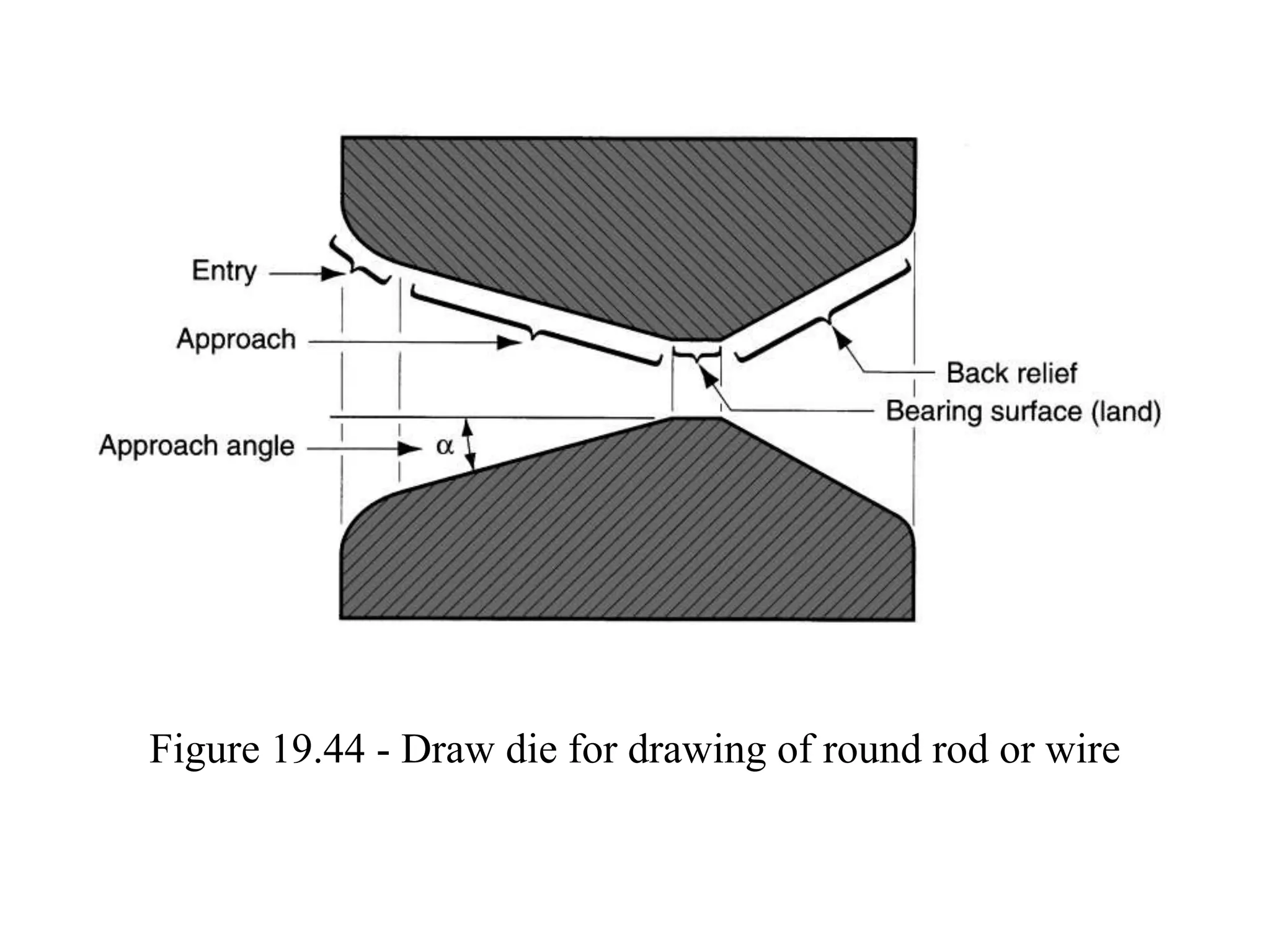

39. Figure 19.44 - Draw die for drawing of round rod or wire

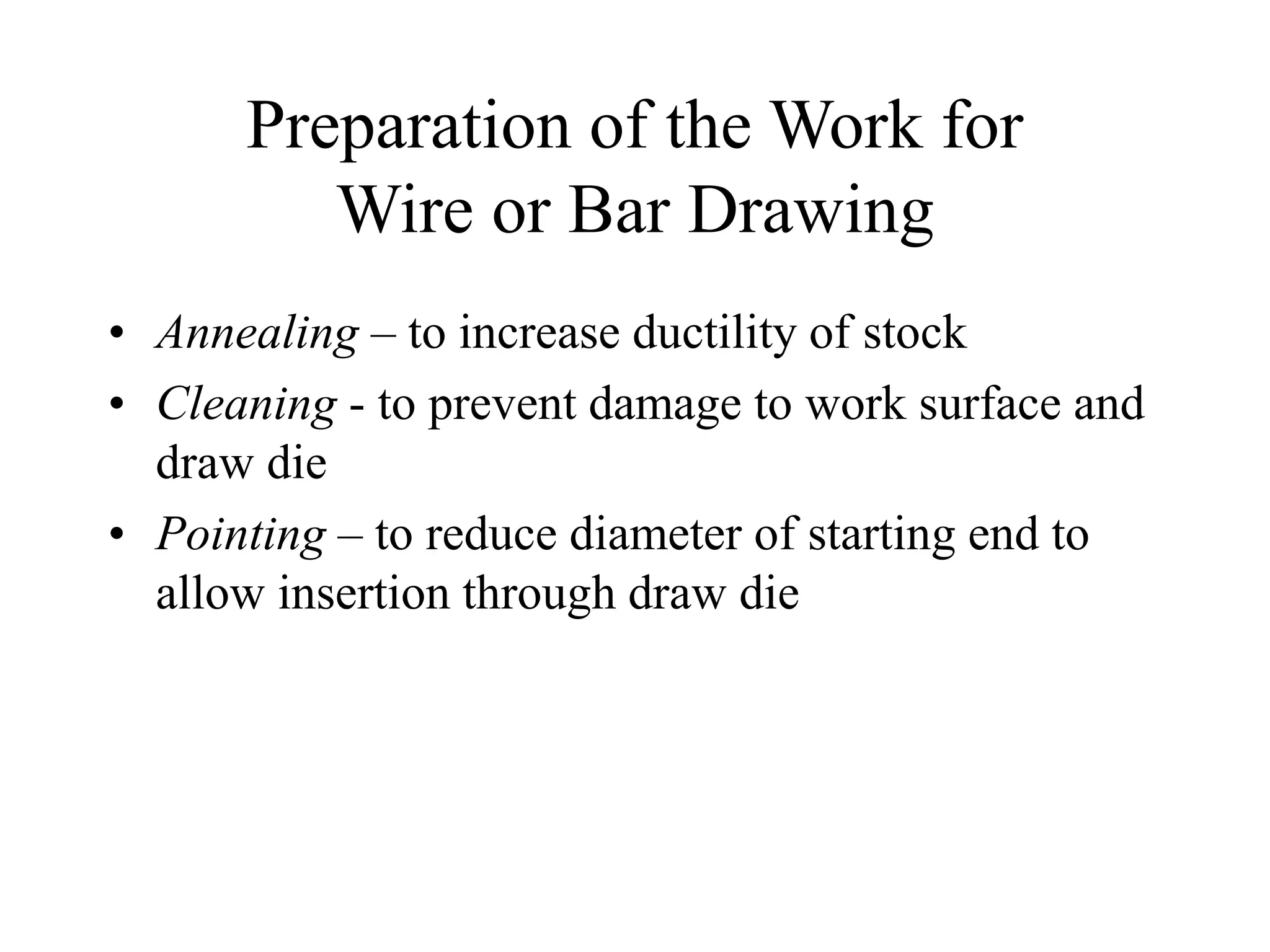

40. Preparation of the Work for
Wire or Bar Drawing
• Annealing – to increase ductility of stock
• Cleaning - to prevent damage to work surface and
draw die
• Pointing – to reduce diameter of starting end to
allow insertion through draw die

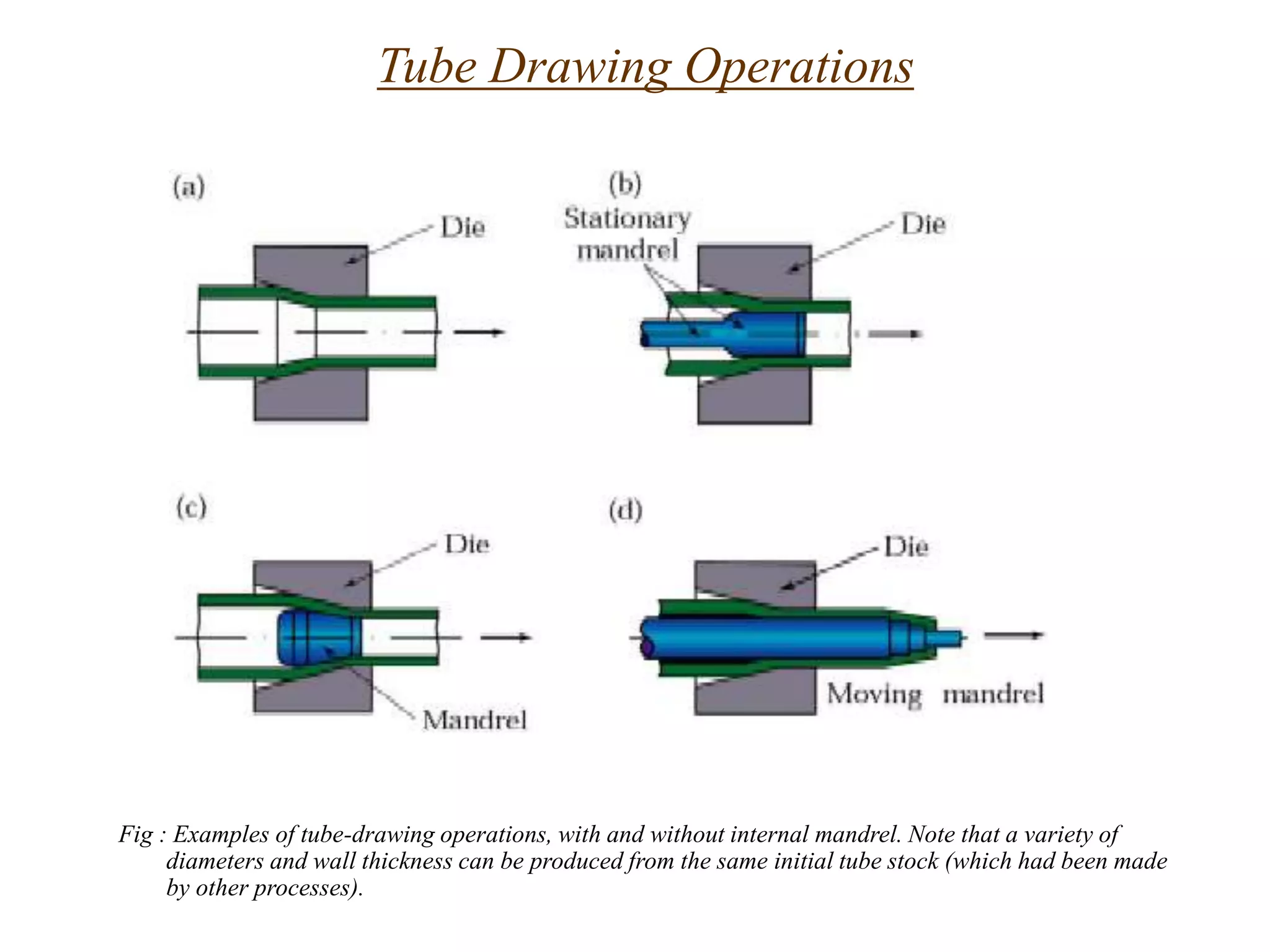

41. Tube Drawing Operations
Fig : Examples of tube-drawing operations, with and without internal mandrel. Note that a variety of
diameters and wall thickness can be produced from the same initial tube stock (which had been made
by other processes).
