MVP Mix 2015 Leveraging MVVM on all Platforms
- 2. Who’s this guy… really? James Montemagno Developer Evangelist james@xamarin.com http://motz.codes @JamesMontemagno
- 3. “MVVM is awesome and will revolutionize your application development process.” -‐James Montemagno
- 4. Let’s talk architecture! (﴾everyone loves architecture..)﴿

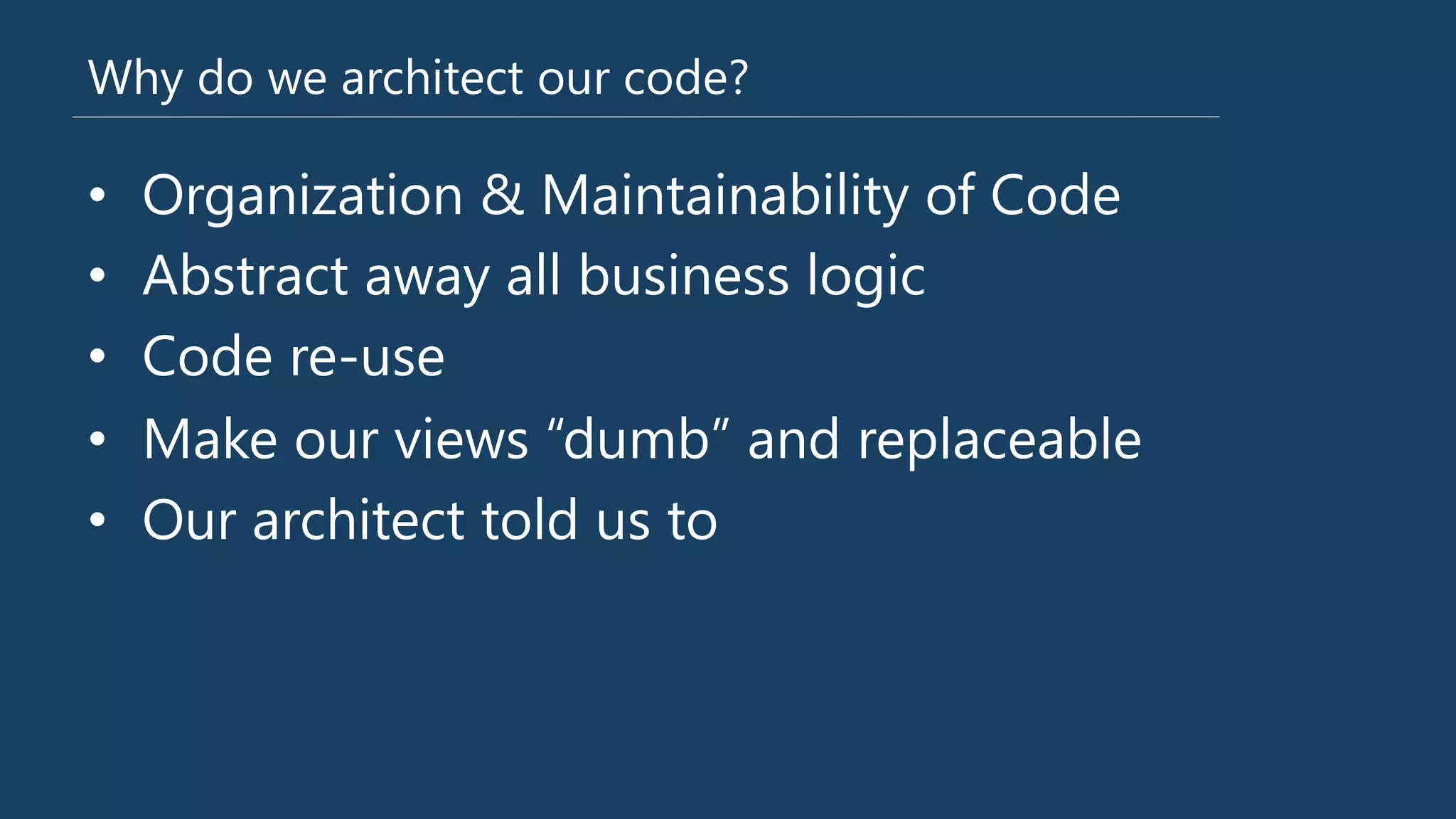

- 5. Why do we architect our code? • Organization & Maintainability of Code • Abstract away all business logic • Code re-‐use • Make our views “dumb” and replaceable • Our architect told us to

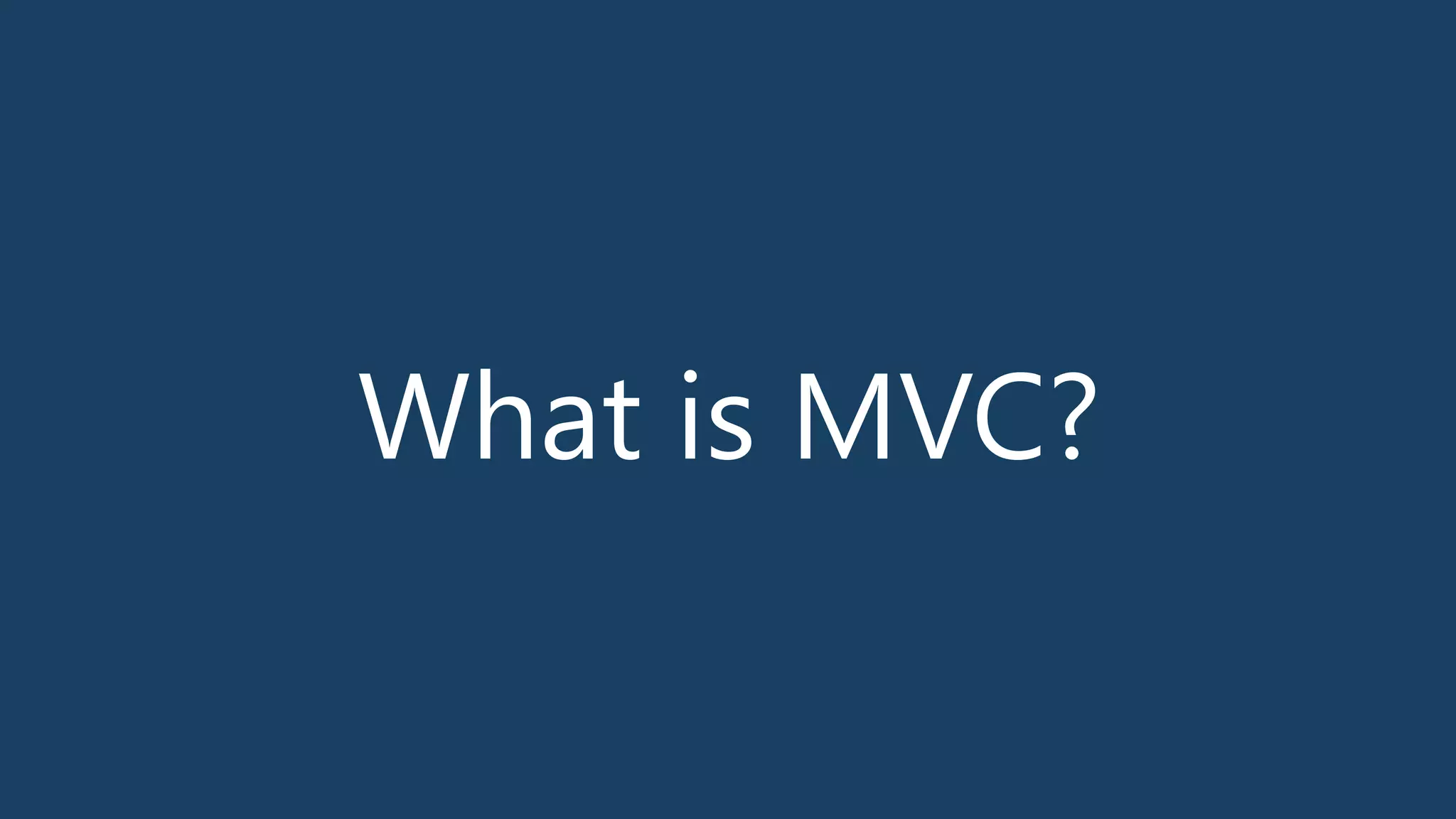

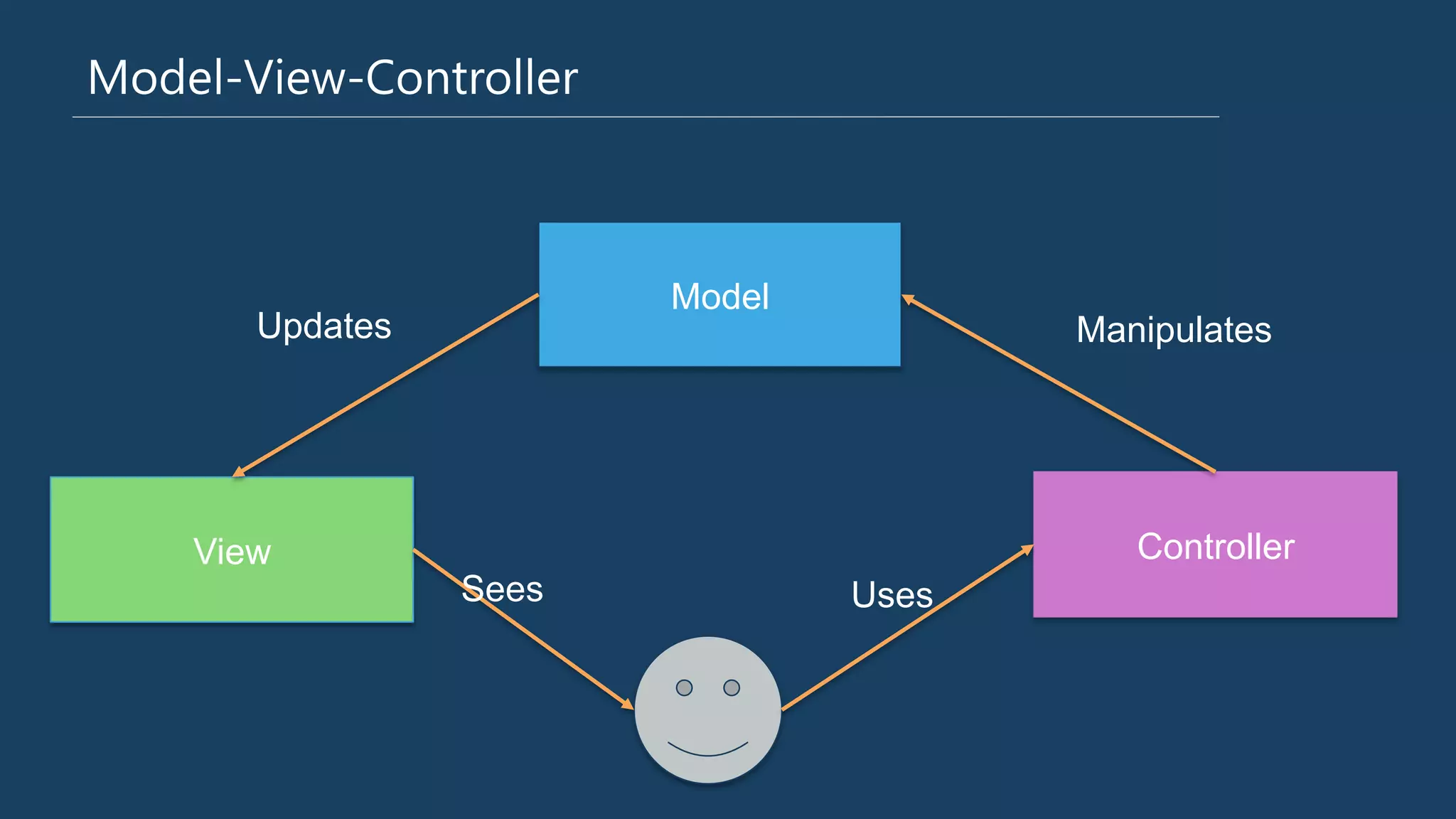

- 7. What is MVC?

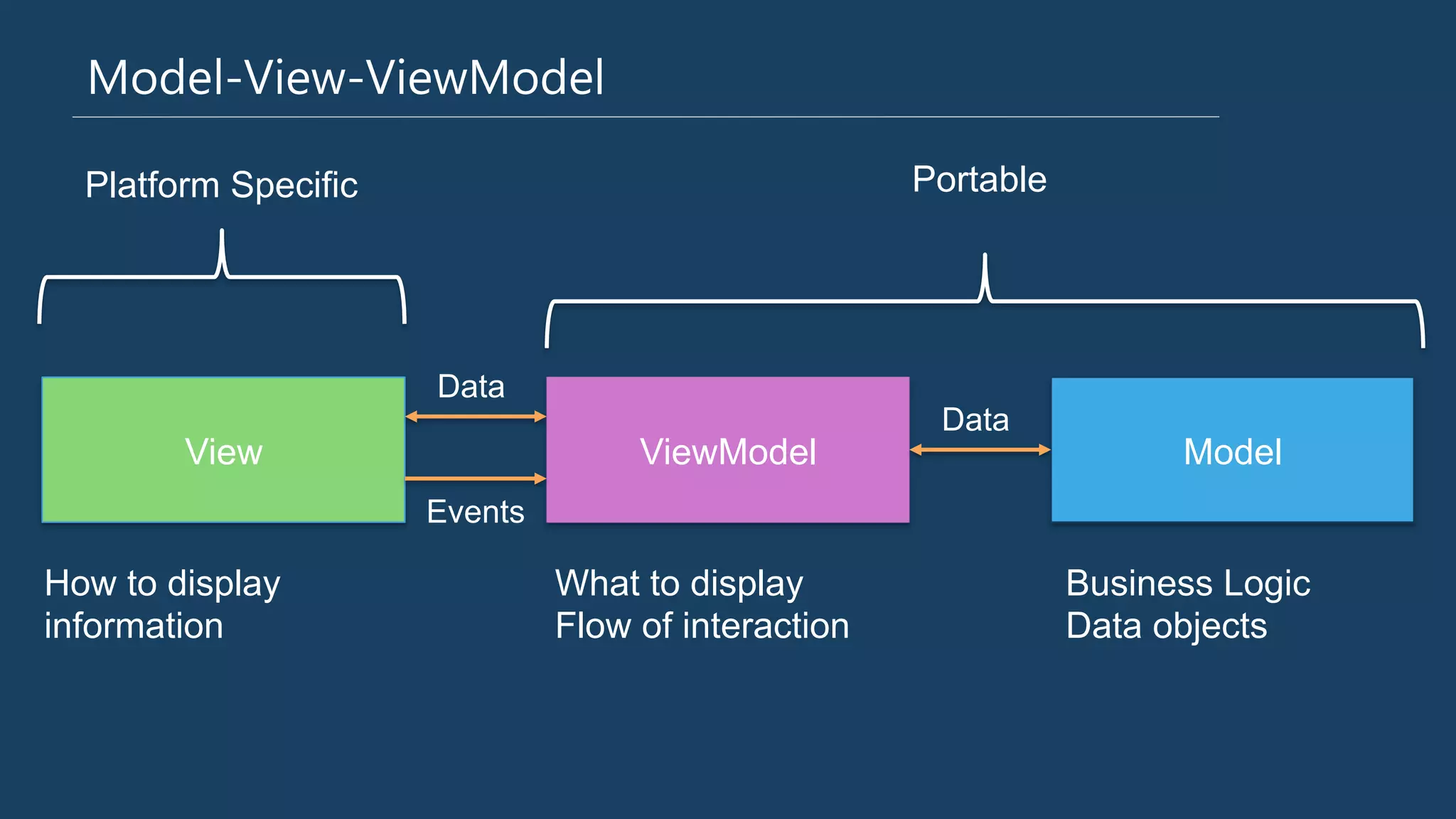

- 10. Model-‐View-‐ViewModel ModelView ViewModel How to display information What to display Flow of interaction Business Logic Data objects Events Data Data Platform Specific Portable
- 11. Why MVVM?

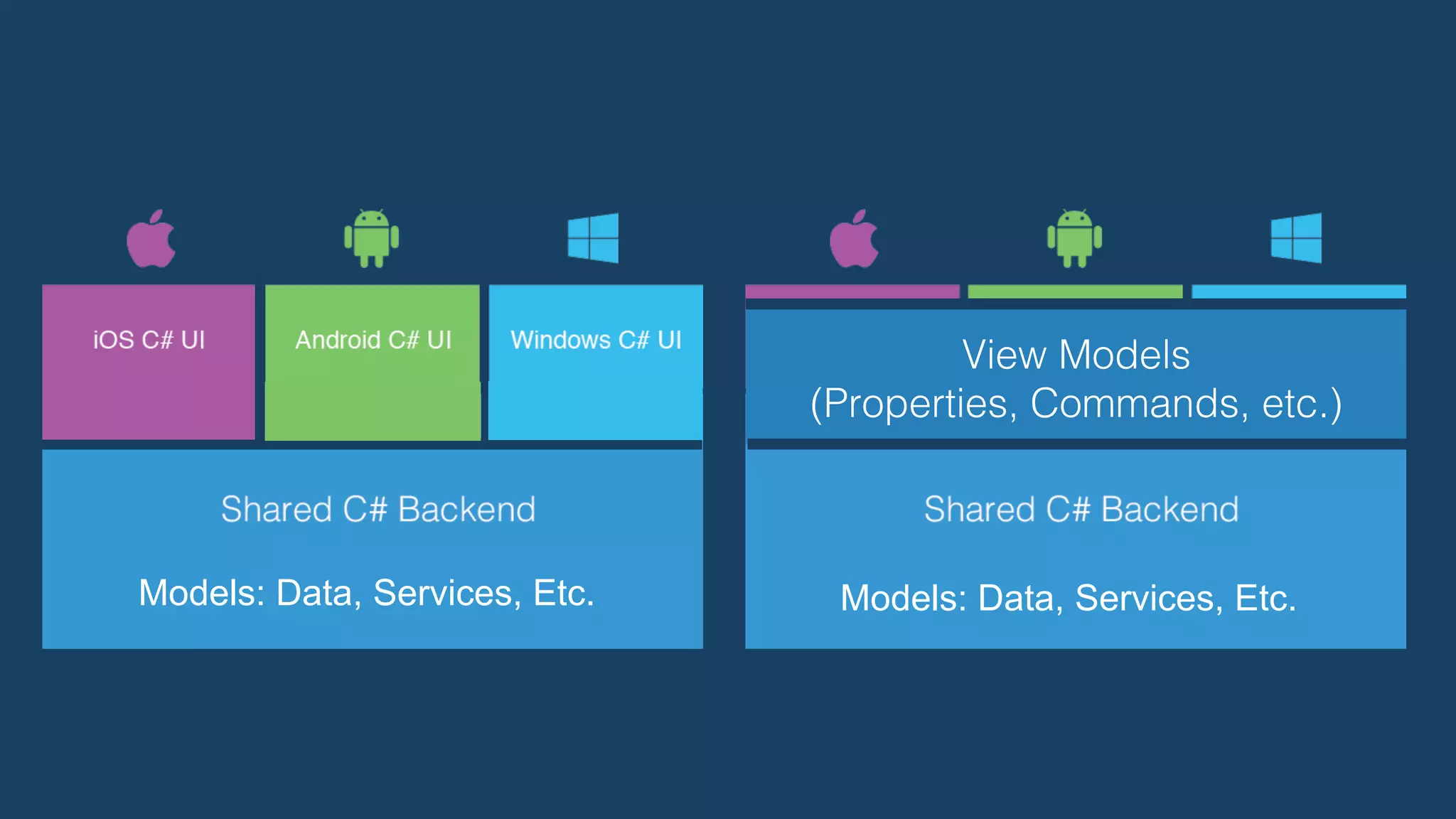

- 12. ! View Models! (Properties, Commands, etc.)! ! Models: Data, Services, Etc. Models: Data, Services, Etc.

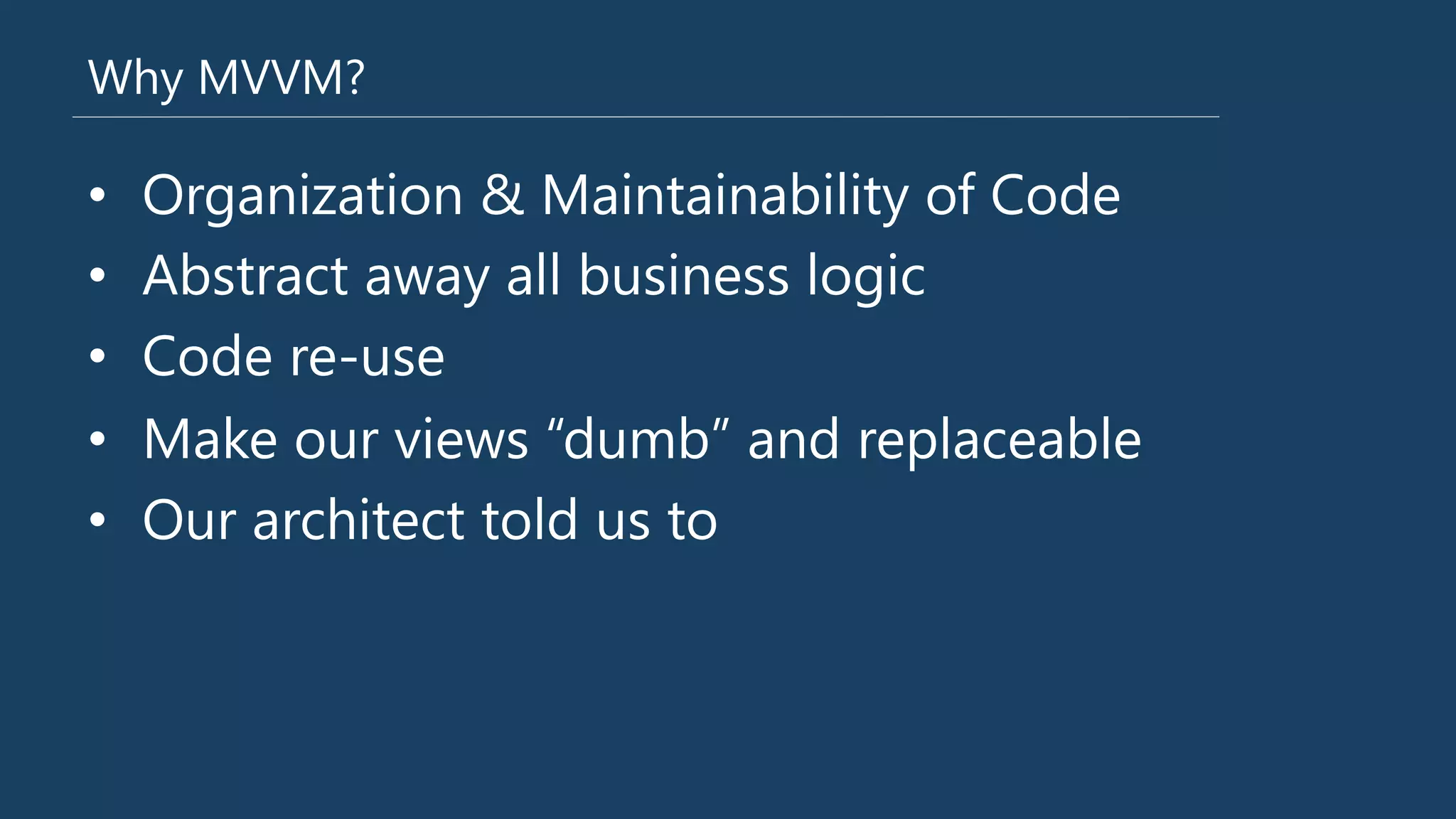

- 13. Why MVVM? • Organization & Maintainability of Code • Abstract away all business logic • Code re-‐use • Make our views “dumb” and replaceable • Our architect told us to
- 14. MVVM != Data Binding

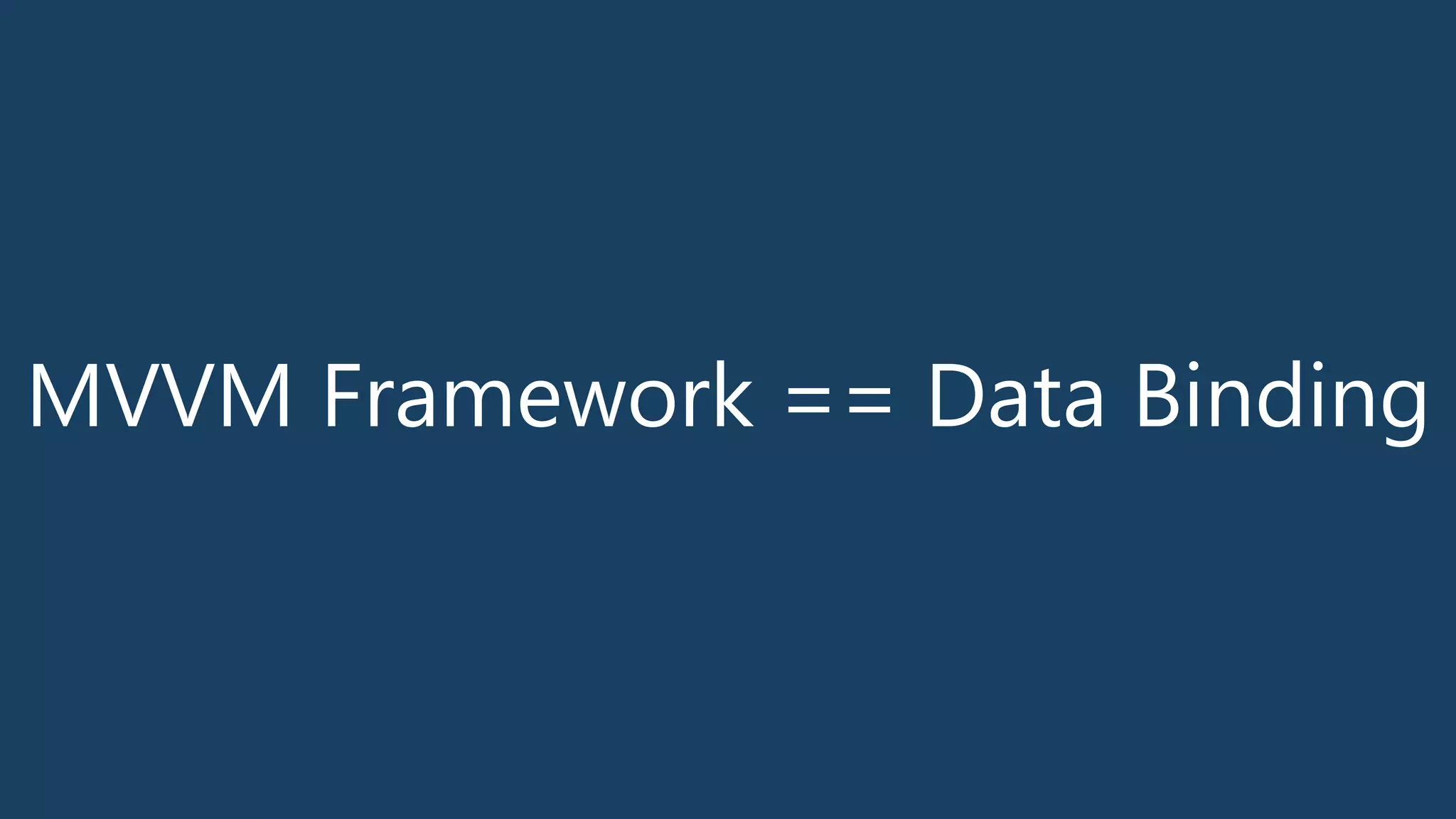

- 15. MVVM Framework == Data Binding

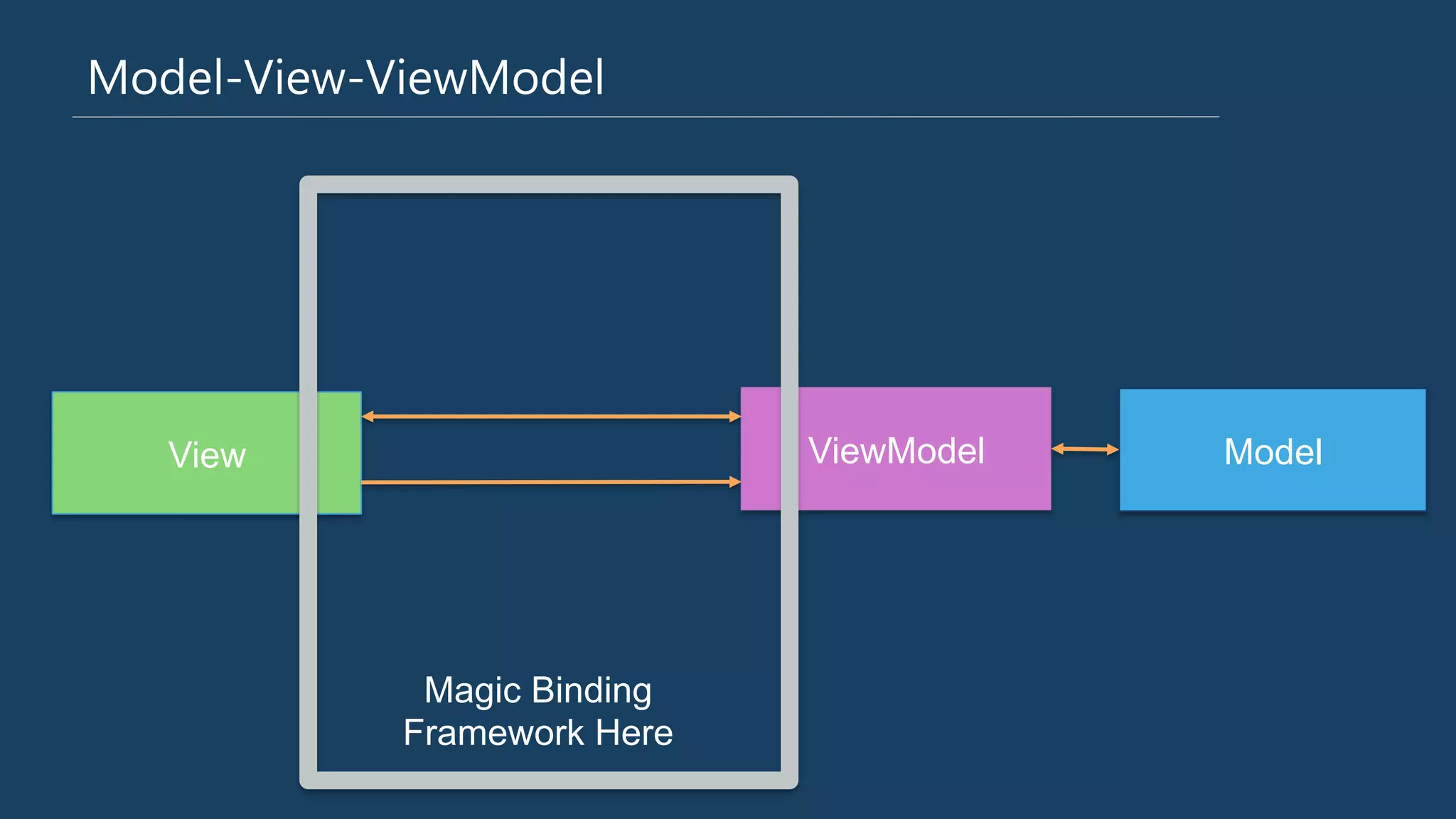

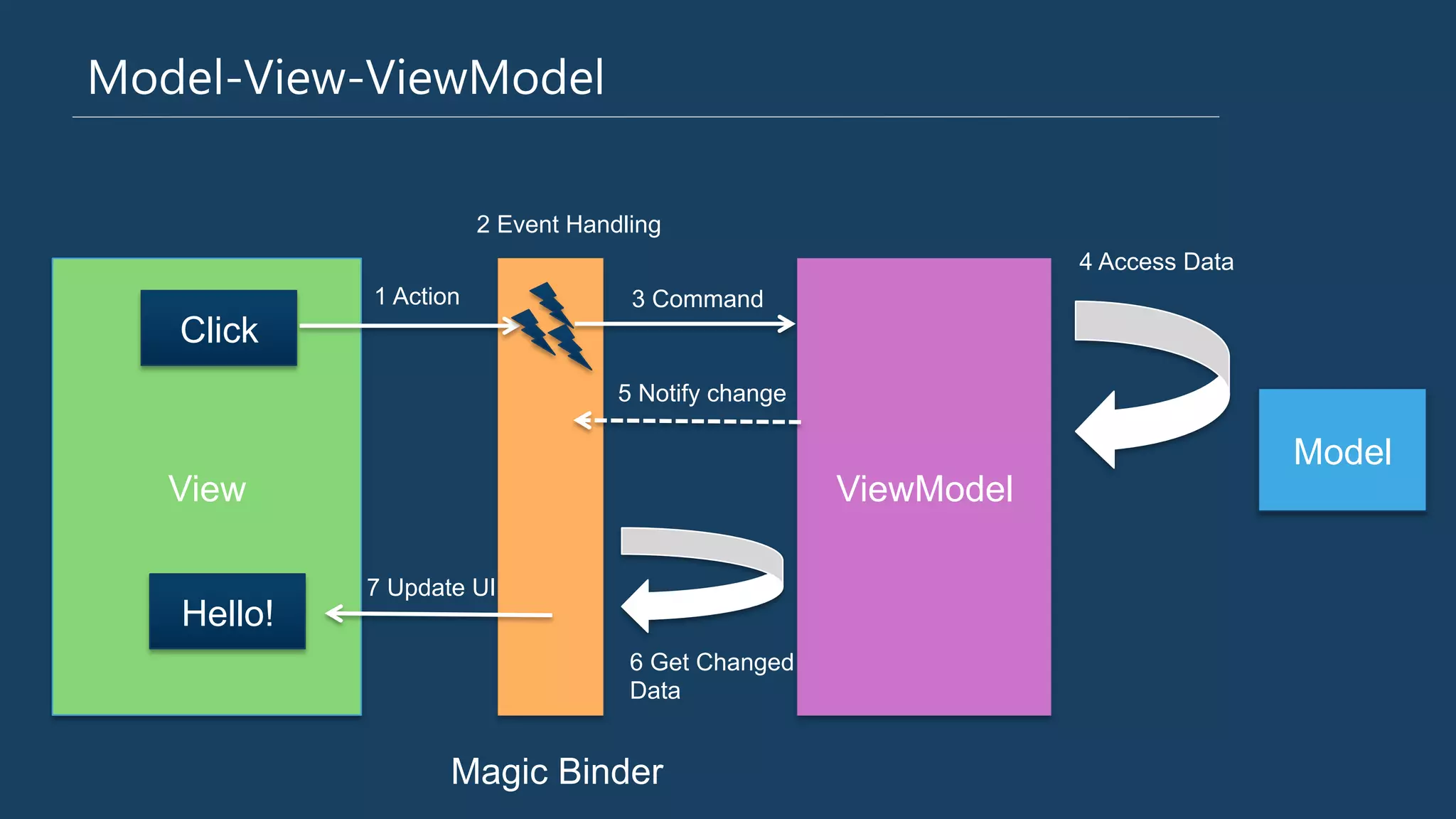

- 17. Model-‐View-‐ViewModel Model View ViewModel 1 Action 2 Event Handling 3 Command 4 Access Data 5 Notify change 6 Get Changed Data 7 Update UI Click Hello! Magic Binder

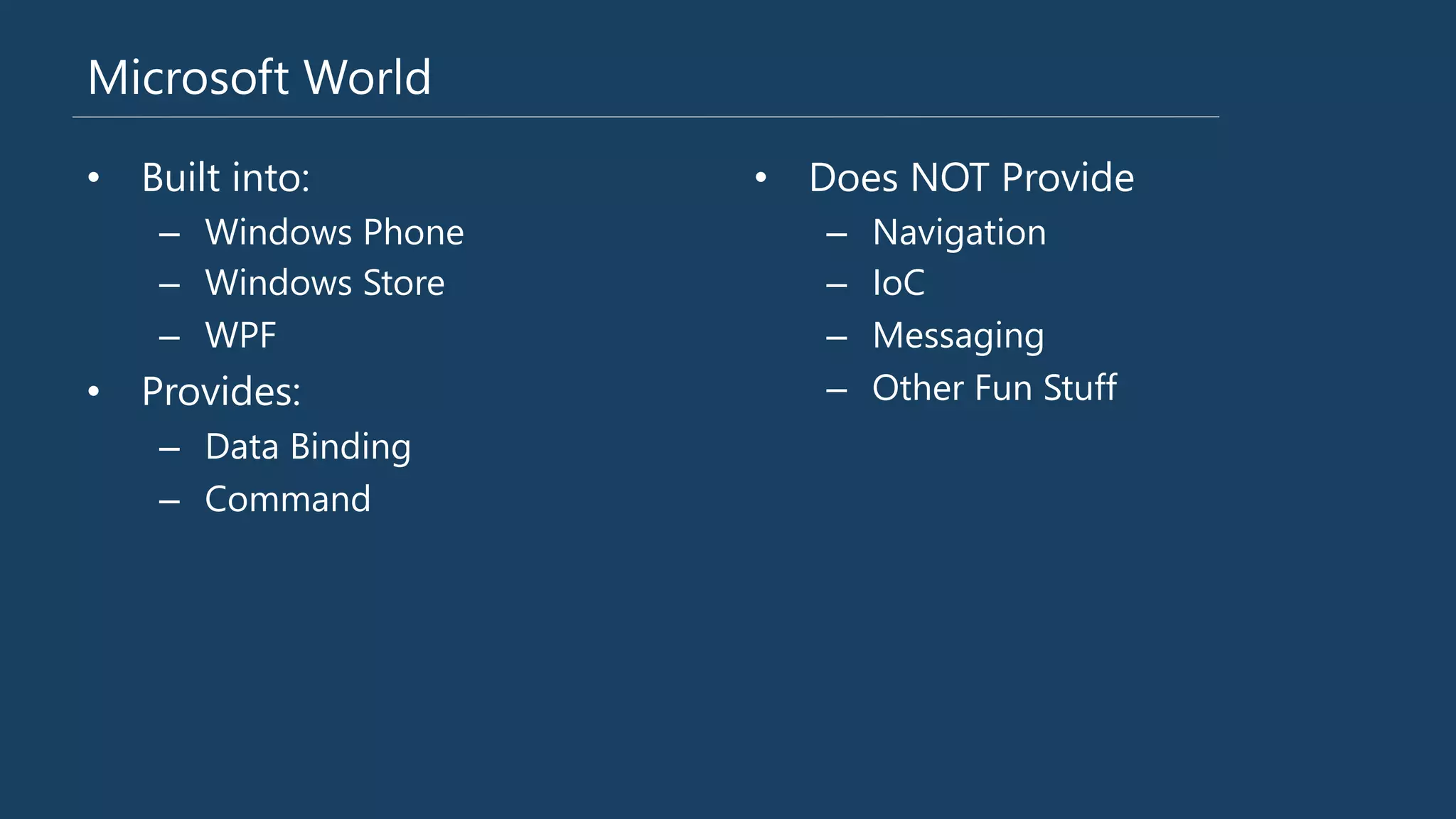

- 18. Microsoft World • Built into: – Windows Phone – Windows Store – WPF • Provides: – Data Binding – Command • Does NOT Provide – Navigation – IoC – Messaging – Other Fun Stuff

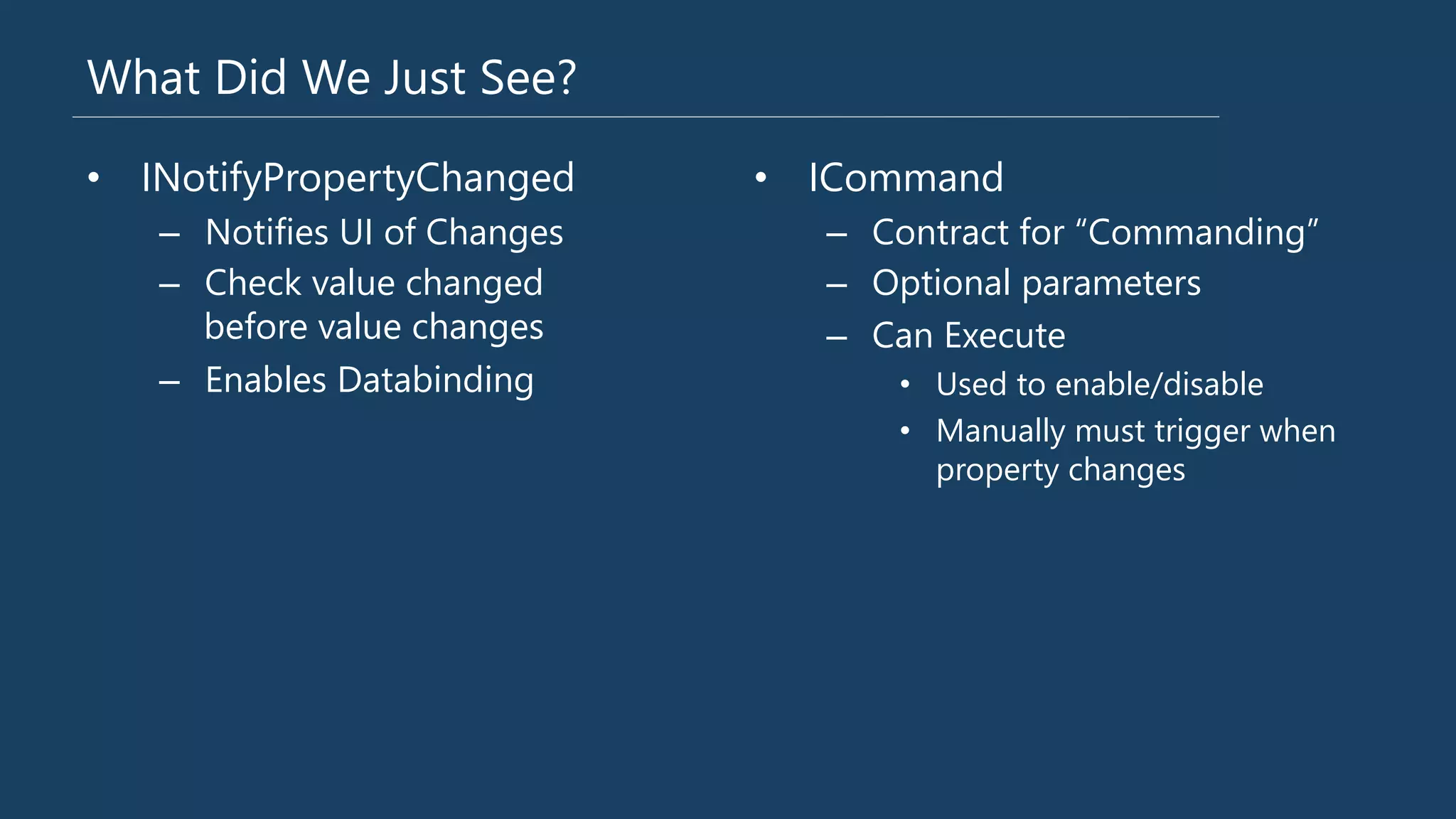

- 20. What Did We Just See? • INotifyPropertyChanged – Notifies UI of Changes – Check value changed before value changes – Enables Databinding • ICommand – Contract for “Commanding” – Optional parameters – Can Execute • Used to enable/disable • Manually must trigger when property changes

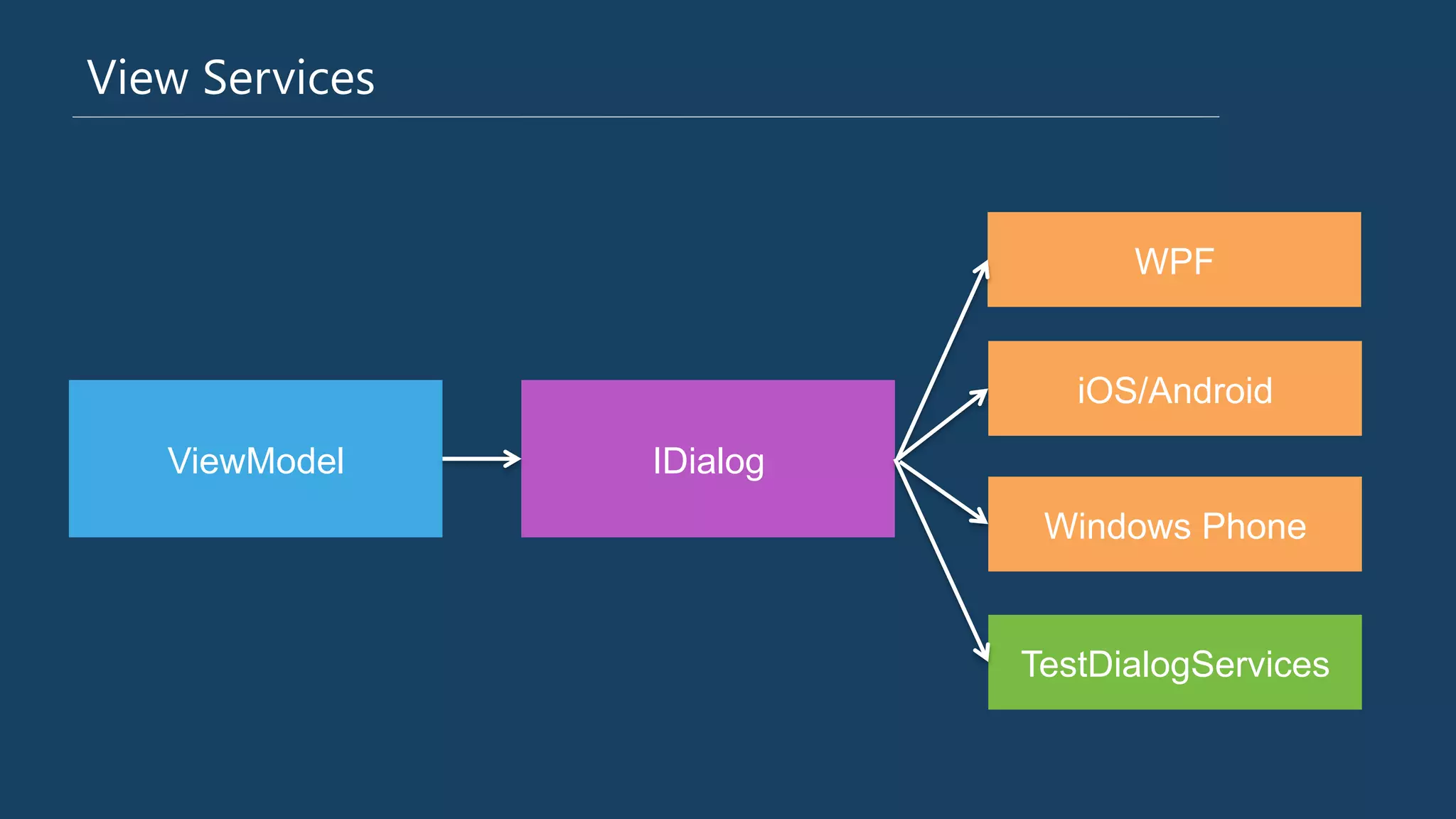

- 22. View Services ViewModel IDialog WPF iOS/Android Windows Phone TestDialogServices

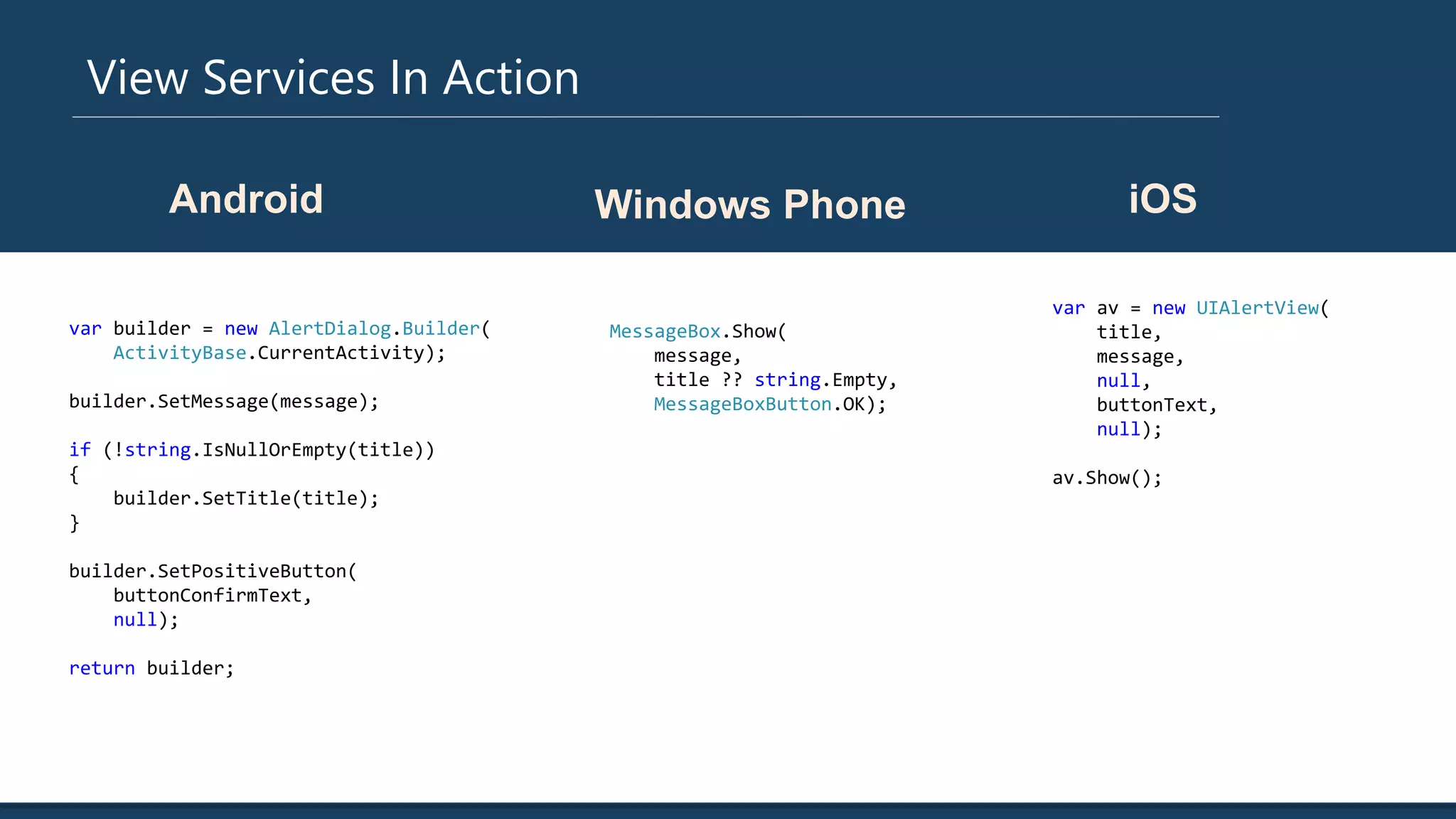

- 23. View Services In Action var av = new UIAlertView( title, message, null, buttonText, null); av.Show(); var builder = new AlertDialog.Builder( ActivityBase.CurrentActivity); builder.SetMessage(message); if (!string.IsNullOrEmpty(title)) { builder.SetTitle(title); } builder.SetPositiveButton( buttonConfirmText, null); return builder; MessageBox.Show( message, title ?? string.Empty, MessageBoxButton.OK); Android iOSWindows Phone

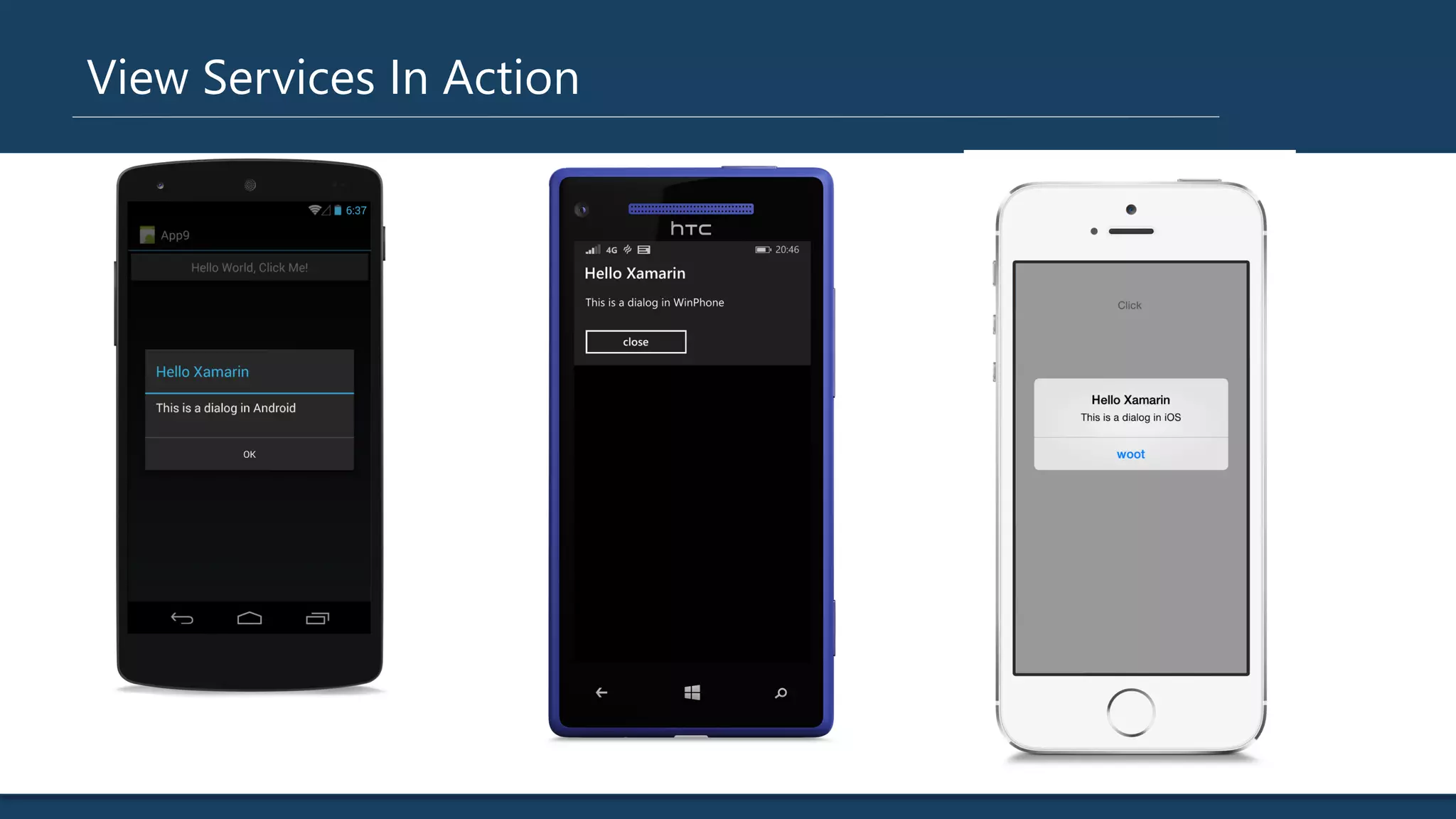

- 24. View Services In Action

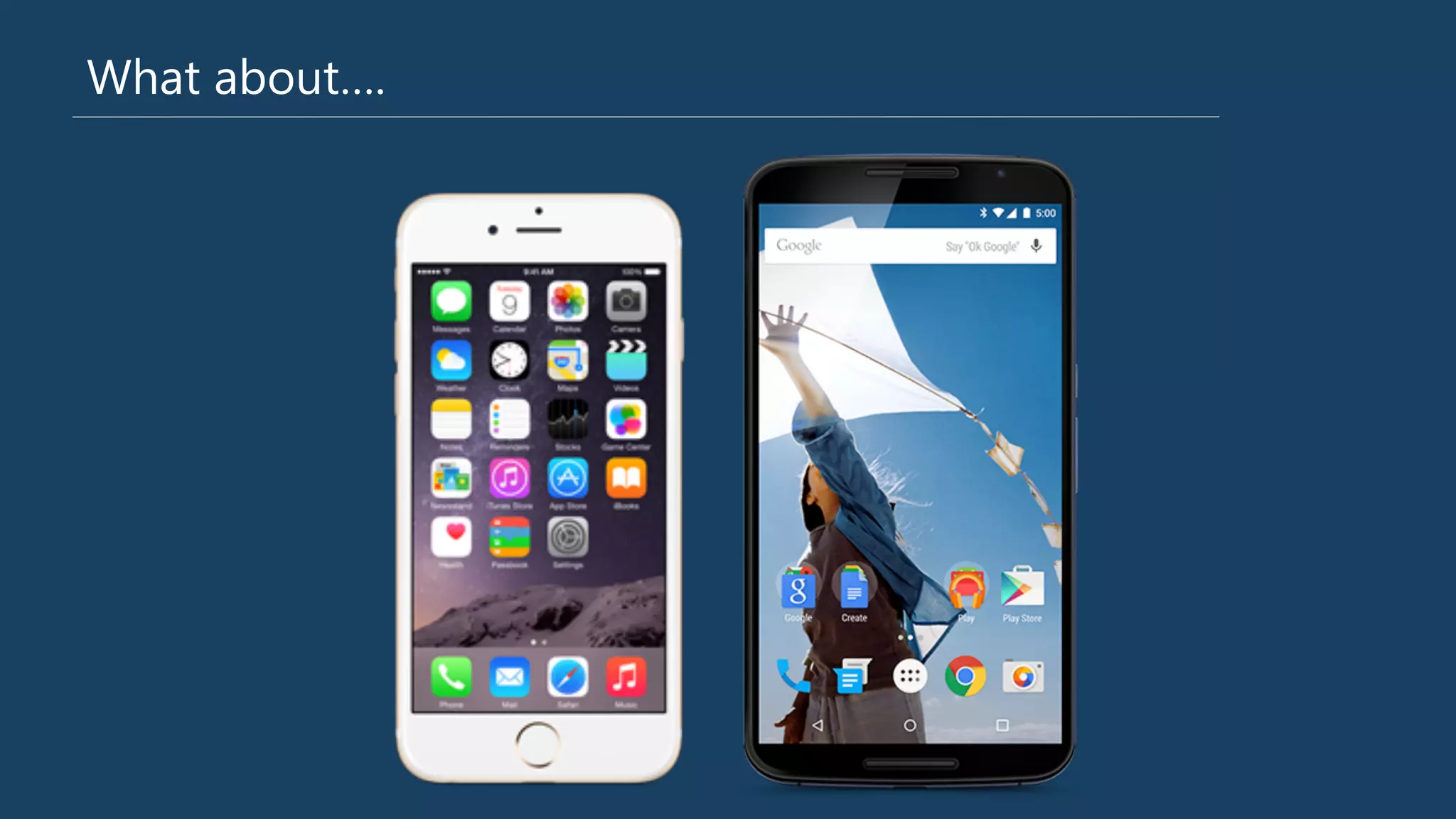

- 25. What about….

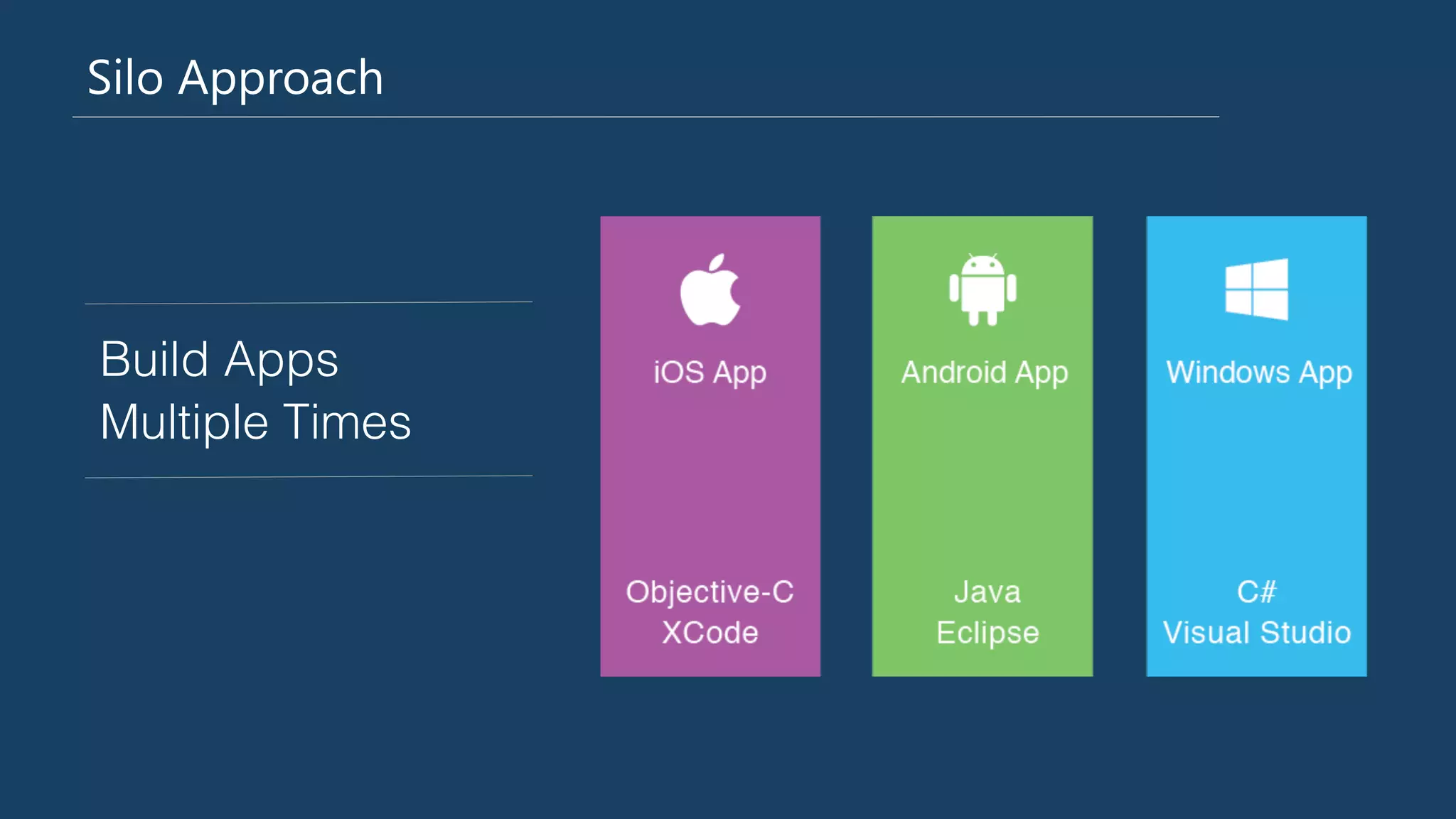

- 26. Silo Approach Build Apps ! Multiple Times!
- 27. Not Really Built for MVVM L
- 28. Native With ! Code Sharing! Xamarin’s Unique Approach

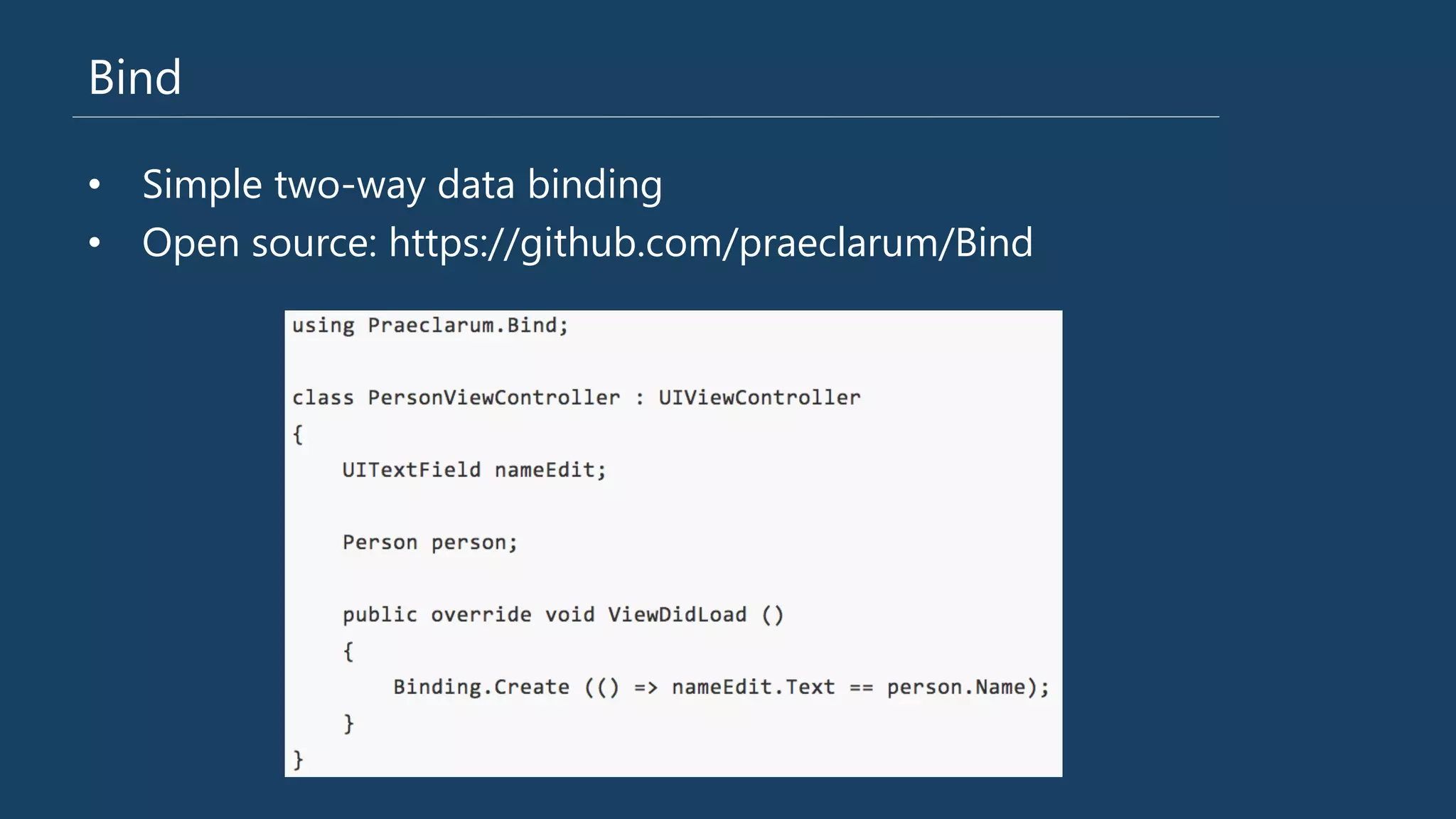

- 29. Bind • Simple two-‐way data binding • Open source: https://github.com/praeclarum/Bind

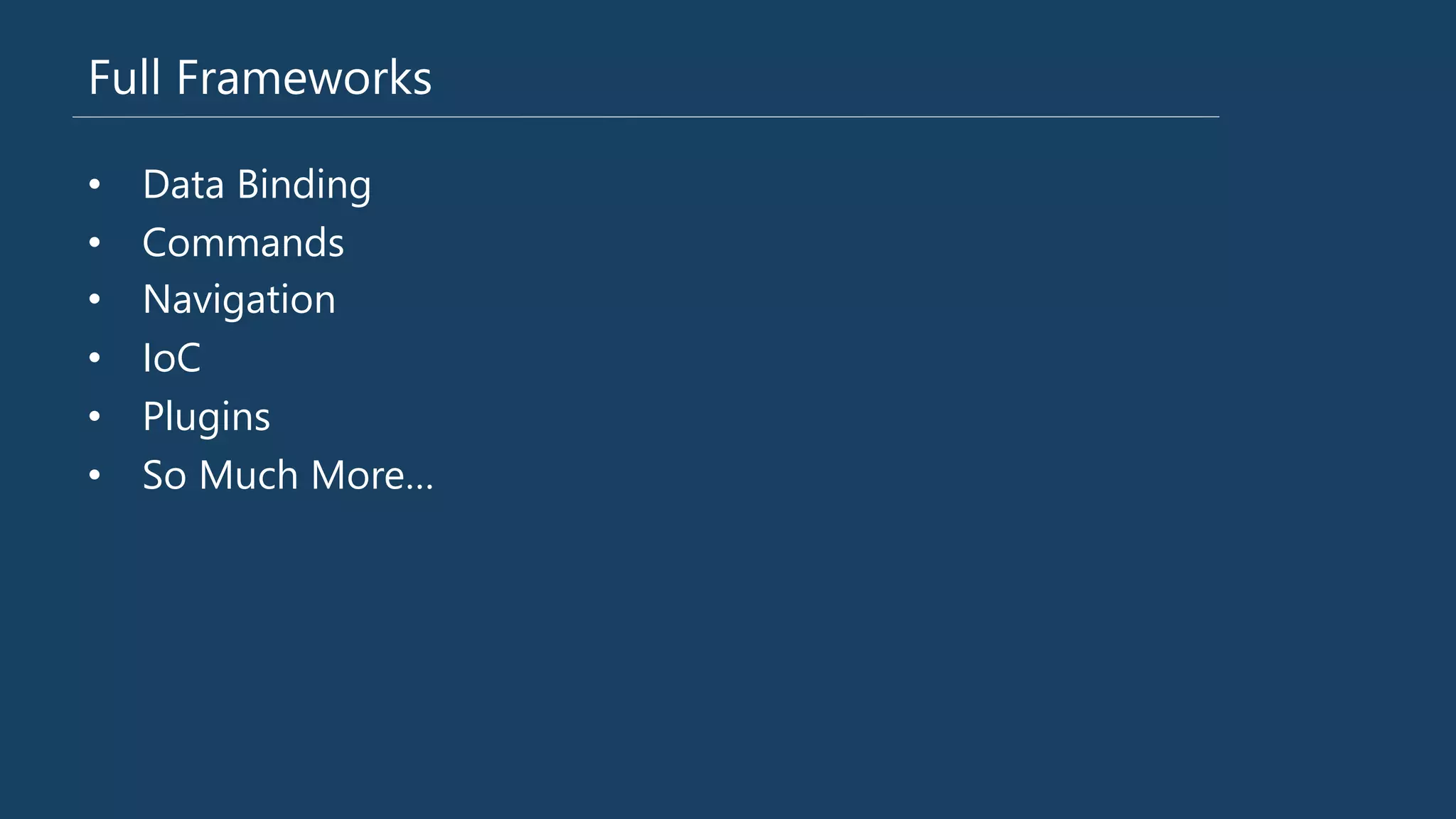

- 31. Full Frameworks • Data Binding • Commands • Navigation • IoC • Plugins • So Much More…
- 32. Even More MVVM Light MVVMCross Xamarin.Forms
- 34. What about the Web?

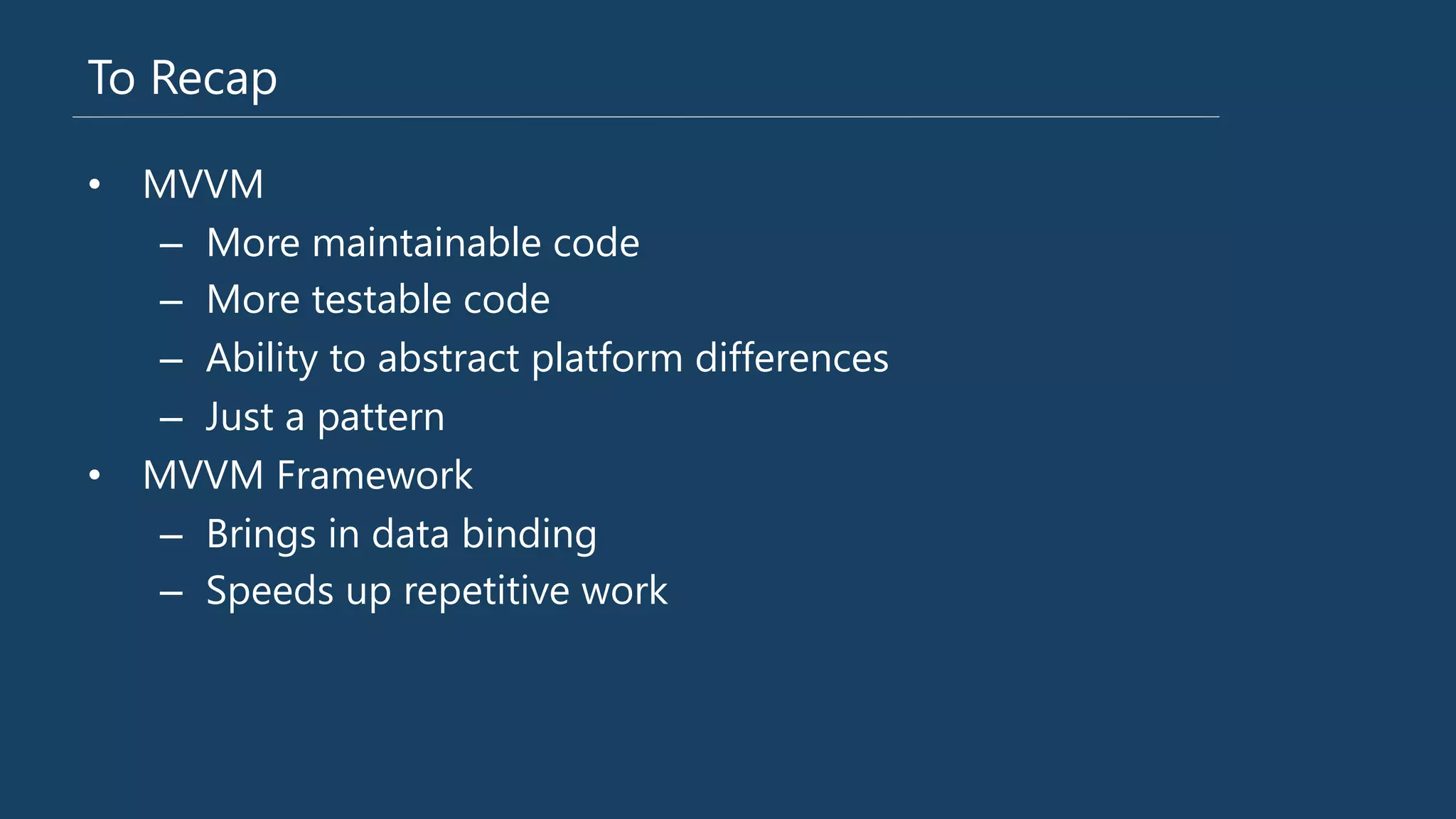

- 35. To Recap • MVVM – More maintainable code – More testable code – Ability to abstract platform differences – Just a pattern • MVVM Framework – Brings in data binding – Speeds up repetitive work
- 36. MVVM == Tim & Eric Awesome Show GIF

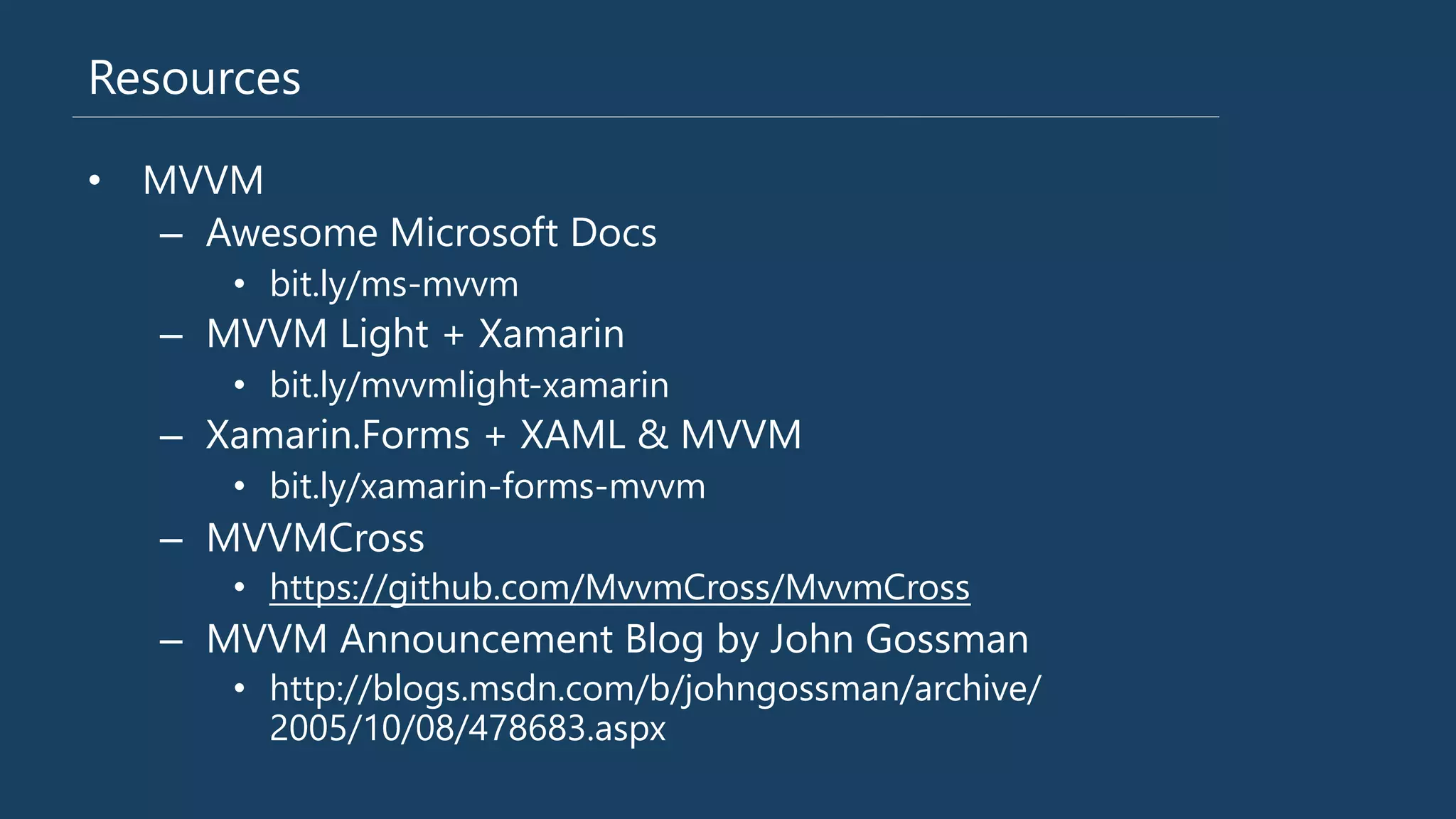

- 37. Resources • MVVM – Awesome Microsoft Docs • bit.ly/ms-‐mvvm – MVVM Light + Xamarin • bit.ly/mvvmlight-‐xamarin – Xamarin.Forms + XAML & MVVM • bit.ly/xamarin-‐forms-‐mvvm – MVVMCross • https://github.com/MvvmCross/MvvmCross – MVVM Announcement Blog by John Gossman • http://blogs.msdn.com/b/johngossman/archive/ 2005/10/08/478683.aspx
