1. © 2013 EDB All rights reserved. 1
Materialized views in PostgreSQL
Ashutosh Bapat | 28th
March, 2014

2. © 2013 EDB All rights reserved. 2
Theoretical background
PostgreSQL's support
Use cases

3. © 2013 EDB All rights reserved. 3
(SQL) View
● “Virtual relation” defined
by a query
● Represents the result of
the query
● Can be queried similar
to a table
● Referencing view in a
query, requires the
defining query to be
executed each time
View: emp_with_good_salary
SELECT emp_name
FROM emp
WHERE salary > 15000;
Table: emp
emp_name salary
Kiran 10000
Mohan 20000
Leela 30000

4. © 2013 EDB All rights reserved. 4
Materialized View (MV)
● A “view” with results of
associated query stored in
the database
● Referencing a materialized
view does not require
execution of the query
● Needs to be “maintained”
to keep up with changes in
underlying objects (tables
or views)
● Can be indexed unlike
non-materialized view
Table: emp
emp_name salary
Kiran 10000
Mohan 20000
Leela 30000
MV: emp_with_good_salary
emp_name salary
Mohan 20000
Leela 30000

5. © 2013 EDB All rights reserved. 5

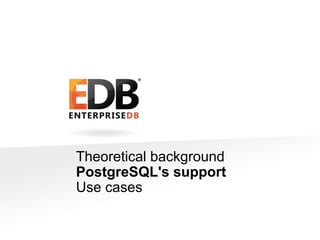

Theoretical background
PostgreSQL's support
Use cases

6. © 2013 EDB All rights reserved. 6
●
Creation
– CREATE MATERIALIZED VIEW
●
Maintainance
– REFRESH MATERIALIZED VIEW
●
Destruction
– DROP MATERIALIZED VIEW
●
Supported from 9.3
●
Enhancements in 9.4
– REFRESH MATERIALIZED VIEW
CONCURRENTLY
Materialized Views in PostgreSQL

7. © 2013 EDB All rights reserved. 7
●
Lazy refresh
– Materialized view usually contains stale data
– REFRESH periodically or suitable independent of
DML activity
–
●
Aggressive refresh
– Materialized view contains latest data in
serializable transactions and nearly fresh data at
other isolation levels
– REFRESH using triggers/rules
Refreshing MV

8. © 2013 EDB All rights reserved. 8
●
Incremental refresh
– Refreshing only those rows affected by changes to
the underlying table
– Being worked on community
●
Using Materialized views for query optimization
– Using MVs automatically
●
Auto-refresh
– Refreshing materialized view automatically when
the underlying tables change
What's not supported in 9.4

9. © 2013 EDB All rights reserved. 9

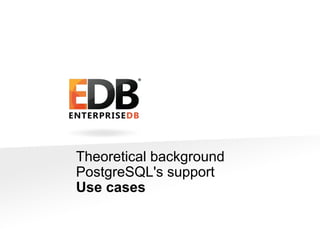

Theoretical background
PostgreSQL's support
Use cases

10. © 2013 EDB All rights reserved. 10
Reporting using stale data
● Very frequently updated tables
● Approximate reports are fine
● Create materialized view/s for reporting queries
● Refresh every night or on weekly/monthly basis

11. © 2013 EDB All rights reserved. 11
Reporting region-wise sales
● Table schema
CREATE TABLE salesman(salesman_no integer PRIMARY KEY,
name varchar(100),
region varchar(100));
CREATE TABLE invoice (invoice_no integer PRIMARY KEY,
salesman_no integer REFERENCES salesman,
invoice_amt numeric(13, 2),
invoice_date date);
● Reporting Query
SELECT sum(i.invoice_amt) region_sale, s.region region
FROM salesman s, invoice i
WHERE i.salesman_no = s.salesman_no
GROUP BY s.region
ORDER BY region_sale
LIMIT 10;

12. © 2013 EDB All rights reserved. 12
Reporting region-wise sales
EXPLAIN ANALYZE SELECT sum(i.invoice_amt) region_sale, s.region region
FROM salesman s, invoice i
WHERE i.salesman_no = s.salesman_no
GROUP BY s.region
ORDER BY region_sale
LIMIT 10;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------------------------
Limit (cost=44294.16..44294.18 rows=10 width=234) (actual time=2609.868..2609.870 rows=10 loops=1)
-> Sort (cost=44294.16..44294.66 rows=200 width=234) (actual time=2609.860..2609.861 rows=10 loops=1)
Sort Key: (sum(i.invoice_amt))
Sort Method: top-N heapsort Memory: 26kB
-> HashAggregate (cost=44287.84..44289.84 rows=200 width=234) (actual time=2609.347..2609.366 rows=26
loops=1)
-> Hash Join (cost=559.84..39828.84 rows=891800 width=234) (actual time=29.751..1374.305
rows=1000000 loops=1)
Hash Cond: (i.salesman_no = s.salesman_no)
-> Seq Scan on invoice i (cost=0.00..15288.00 rows=891800 width=20) (actual time=0.048..398.745
rows=1000000 loops=1)
-> Hash (cost=345.15..345.15 rows=5015 width=222) (actual time=29.602..29.602 rows=10000 loops=1)
Buckets: 1024 Batches: 2 Memory Usage: 685kB
-> Seq Scan on salesman s (cost=0.00..345.15 rows=5015 width=222) (actual time=0.009..5.221
rows=10000 loops=1)
Total runtime: 2610.316 ms

13. © 2013 EDB All rights reserved. 13
Reporting region-wise sales
CREATE MATERIALIZED VIEW sales_by_region AS
SELECT sum(i.invoice_amt) region_sale, s.region region
FROM salesman s, invoice i
WHERE i.salesman_no = s.salesman_no
GROUP BY s.region;
EXPLAIN ANALYZE SELECT * FROM sales_by_region ORDER BY region_sale LIMIT 10;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------
Limit (cost=19.17..19.19 rows=10 width=250) (actual time=0.065..0.066 rows=10 loops=1)
-> Sort (cost=19.17..19.89 rows=290 width=250) (actual time=0.064..0.064 rows=10 loops=1)
Sort Key: region_sale
Sort Method: top-N heapsort Memory: 26kB
-> Seq Scan on sales_by_region (cost=0.00..12.90 rows=290 width=250) (actual time=0.007..0.013 rows=26
loops=1)
Total runtime: 0.094 ms
(6 rows)

14. © 2013 EDB All rights reserved. 14
Complex queries
● Relatively stable underlying tables
● Complex and slow running queries
● Bonus
– Stale data not tolerable – use triggers to refresh
– Faster query results – use indexes on MV

15. © 2013 EDB All rights reserved. 15

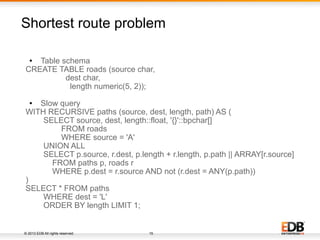

Shortest route problem
● Table schema
CREATE TABLE roads (source char,
dest char,
length numeric(5, 2));
● Slow query
WITH RECURSIVE paths (source, dest, length, path) AS (
SELECT source, dest, length::float, '{}'::bpchar[]
FROM roads
WHERE source = 'A'
UNION ALL
SELECT p.source, r.dest, p.length + r.length, p.path || ARRAY[r.source]
FROM paths p, roads r
WHERE p.dest = r.source AND not (r.dest = ANY(p.path))
)
SELECT * FROM paths
WHERE dest = 'L'
ORDER BY length LIMIT 1;

16. © 2013 EDB All rights reserved. 16
SRP: without MV
EXPLAIN ANALYZE output
WITH RECURSIVE paths (source, dest, length, path) AS (
ORDER BY length LIMIT 1;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------------------------------
Limit (cost=686.43..686.43 rows=1 width=56) (actual time=897.159..897.159 rows=1 loops=1)
CTE paths
-> Recursive Union (cost=0.00..581.31 rows=4667 width=76) (actual time=0.039..720.175 rows=138640 loops=1)
-> Seq Scan on roads (cost=0.00..27.52 rows=7 width=28) (actual time=0.036..0.061 rows=5 loops=1)
Filter: (source = 'A'::bpchar)
Rows Removed by Filter: 75
-> Hash Join (cost=2.28..46.04 rows=466 width=76) (actual time=9.528..38.388 rows=8665 loops=16)
Hash Cond: (r.source = p.dest)
Join Filter: (r.dest <> ALL (p.path))
-> Seq Scan on roads r (cost=0.00..24.00 rows=1400 width=28) (actual time=0.010..0.025 rows=80
loops=16)
-> Hash (cost=1.40..1.40 rows=70 width=56) (actual time=9.159..9.159 rows=8665 loops=16)
Buckets: 1024 Batches: 1 Memory Usage: 1kB
-> WorkTable Scan on paths p (cost=0.00..1.40 rows=70 width=56) (actual time=0.008..3.959
rows=8665 loops=16)
-> Sort (cost=105.12..105.18 rows=23 width=56) (actual time=897.154..897.154 rows=1 loops=1)
Sort Key: paths.length
Sort Method: top-N heapsort Memory: 25kB
-> CTE Scan on paths (cost=0.00..105.01 rows=23 width=56) (actual time=0.696..896.652 rows=912 loops=1)
Filter: (dest = 'L'::bpchar)
Rows Removed by Filter: 137728
Total runtime: 900.970 ms
(20 rows)

17. © 2013 EDB All rights reserved. 17
SRP: Materialized View
CREATE MATERIALIZED VIEW paths AS
WITH RECURSIVE paths (source, dest, length, path) AS (
SELECT source, dest, length::float, '{}'::bpchar[]
FROM roads
UNION ALL
SELECT p.source, r.dest, p.length + r.length, p.path || ARRAY[r.source]
FROM paths p, roads r
WHERE p.dest = r.source AND not (r.dest = ANY(p.path))
)
SELECT * FROM paths;
EXPLAIN ANALYZE SELECT * FROM paths WHERE source = 'A' and dest = 'L' ORDER BY length DESC LIMIT 1;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------------
Limit (cost=10623.33..10623.33 rows=1 width=56) (actual time=125.326..125.327 rows=1 loops=1)
-> Sort (cost=10623.33..10623.35 rows=10 width=56) (actual time=125.324..125.324 rows=1 loops=1)
Sort Key: length
Sort Method: top-N heapsort Memory: 25kB
-> Seq Scan on paths (cost=0.00..10623.28 rows=10 width=56) (actual time=0.283..124.988 rows=912 loops=1)
Filter: ((source = 'A'::bpchar) AND (dest = 'L'::bpchar))
Rows Removed by Filter: 281233
Total runtime: 125.377 ms
(8 rows)

18. © 2013 EDB All rights reserved. 18
SRP: MV with indexes
CREATE INDEX i_paths_source on paths(source, dest);
EXPLAIN ANALYZE SELECT * FROM paths WHERE source = 'A' and dest = 'L' ORDER BY length DESC LIMIT 1;
QUERY PLAN
-------------------------------------------------------------------------------------------------------------------------------------
Limit (cost=31.80..31.80 rows=1 width=56) (actual time=1.265..1.265 rows=1 loops=1)
-> Sort (cost=31.80..31.81 rows=7 width=56) (actual time=1.264..1.264 rows=1 loops=1)
Sort Key: length
Sort Method: top-N heapsort Memory: 25kB
-> Bitmap Heap Scan on paths (cost=4.49..31.76 rows=7 width=56) (actual time=0.327..0.982 rows=912
loops=1)
Recheck Cond: ((source = 'A'::bpchar) AND (dest = 'L'::bpchar))
-> Bitmap Index Scan on i_paths_source (cost=0.00..4.49 rows=7 width=0) (actual time=0.304..0.304
rows=912 loops=1)
Index Cond: ((source = 'A'::bpchar) AND (dest = 'L'::bpchar))
Total runtime: 1.317 ms
(9 rows)

19. © 2013 EDB All rights reserved. 19

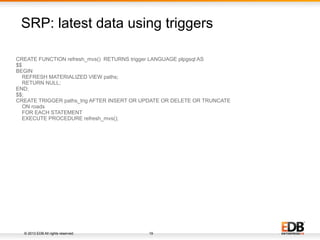

SRP: latest data using triggers
CREATE FUNCTION refresh_mvs() RETURNS trigger LANGUAGE plpgsql AS
$$
BEGIN
REFRESH MATERIALIZED VIEW paths;
RETURN NULL;
END;
$$;
CREATE TRIGGER paths_trig AFTER INSERT OR UPDATE OR DELETE OR TRUNCATE
ON roads
FOR EACH STATEMENT
EXECUTE PROCEDURE refresh_mvs();

20. © 2013 EDB All rights reserved. 20

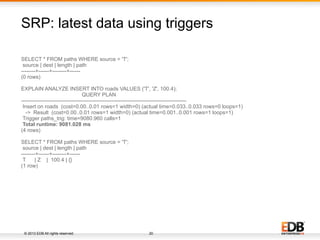

SRP: latest data using triggers
SELECT * FROM paths WHERE source = 'T';
source | dest | length | path
--------+------+--------+------
(0 rows)
EXPLAIN ANALYZE INSERT INTO roads VALUES ('T', 'Z', 100.4);
QUERY PLAN
---------------------------------------------------------------------------------------------
Insert on roads (cost=0.00..0.01 rows=1 width=0) (actual time=0.033..0.033 rows=0 loops=1)
-> Result (cost=0.00..0.01 rows=1 width=0) (actual time=0.001..0.001 rows=1 loops=1)
Trigger paths_trig: time=9080.960 calls=1
Total runtime: 9081.028 ms
(4 rows)
SELECT * FROM paths WHERE source = 'T';
source | dest | length | path
--------+------+--------+------
T | Z | 100.4 | {}
(1 row)

21. © 2013 EDB All rights reserved. 21

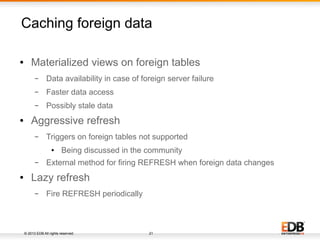

Caching foreign data
● Materialized views on foreign tables
– Data availability in case of foreign server failure
– Faster data access
– Possibly stale data
● Aggressive refresh
– Triggers on foreign tables not supported
● Being discussed in the community
– External method for firing REFRESH when foreign data changes
● Lazy refresh
– Fire REFRESH periodically

22. © 2013 EDB All rights reserved. 22

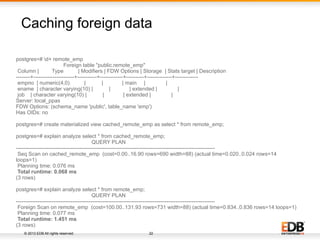

Caching foreign data
postgres=# d+ remote_emp
Foreign table "public.remote_emp"
Column | Type | Modifiers | FDW Options | Storage | Stats target | Description
--------+-----------------------+-----------+-------------+----------+--------------+-------------
empno | numeric(4,0) | | | main | |
ename | character varying(10) | | | extended | |
job | character varying(10) | | | extended | |
Server: local_ppas
FDW Options: (schema_name 'public', table_name 'emp')
Has OIDs: no
postgres=# create materialized view cached_remote_emp as select * from remote_emp;
postgres=# explain analyze select * from cached_remote_emp;
QUERY PLAN
----------------------------------------------------------------------------------------------------------------
Seq Scan on cached_remote_emp (cost=0.00..16.90 rows=690 width=88) (actual time=0.020..0.024 rows=14
loops=1)
Planning time: 0.076 ms
Total runtime: 0.068 ms
(3 rows)
postgres=# explain analyze select * from remote_emp;
QUERY PLAN
----------------------------------------------------------------------------------------------------------------
Foreign Scan on remote_emp (cost=100.00..131.93 rows=731 width=88) (actual time=0.834..0.836 rows=14 loops=1)
Planning time: 0.077 ms
Total runtime: 1.451 ms
(3 rows)

23. © 2013 EDB All rights reserved. 23
Thank you
